Solaris Performance: Introduction

Slides for an introduction to performance analysis and tuning on the Solaris operating system in 2007 by Brendan Gregg.

next
prev
1/30
next
prev
2/30
next
prev
3/30
next
prev
4/30
next
prev
5/30
next
prev
6/30
next
prev
7/30
next
prev
8/30
next
prev
9/30
next
prev
10/30
next
prev
11/30
next
prev
12/30
next
prev
13/30
next
prev
14/30
next
prev
15/30
next
prev
16/30
next
prev
17/30
next
prev
18/30
next
prev
19/30
next
prev
20/30
next
prev
21/30
next
prev
22/30
next
prev
23/30
next
prev
24/30
next
prev
25/30
next
prev
26/30
next
prev
27/30
next
prev
28/30
next
prev
29/30
next
prev
30/30

PDF: Sun2007_Solaris_Performance_Intro.pdf

Keywords (from pdftotext):

slide 1:
    # vmstat 1
    kthr
    r b w
    Solaris Performance:
    Introduction
    Brendan Gregg
    Sun Microsystems
    May 2007
    memory
    swap
    free
    page
    mf pi po fr de
    0 0 0 4596848 120908 0
    0 0 0 4411920 48652 14
    0 0 0 4411576 48316 80 476
    0 0 0 4411576 48316 37 240
    0 0 0 4411196 48004 45 467
    0 0 0 4411196 48004
    2 0 0 4410852 47728 23 236
    1 0 0 4410852 47728
    4 0 0 4410504 47448 23 235
    3 0 0 4410208 47220 23 237
    3 0 0 4410208 47220
    3 0 0 4410208 47220
    3 0 0 4410208 47224
    3 0 0 4410208 47224
    2 0 0 4410648 47596
    3 0 0 4410696 47644
    2 0 0 4410696 47648
    0 0 0 4411384 48204
    kthr
    r b w
    memory
    swap
    page
    free
    mf pi po fr de
    0 0 0 4411736 48488
    0 0 0 4412088 48840 37 239
    0 0 0 4411752 48572 23 234
    0 0 0 4411752 48576 23 237
    1 0 0 4411408 48300

slide 2:

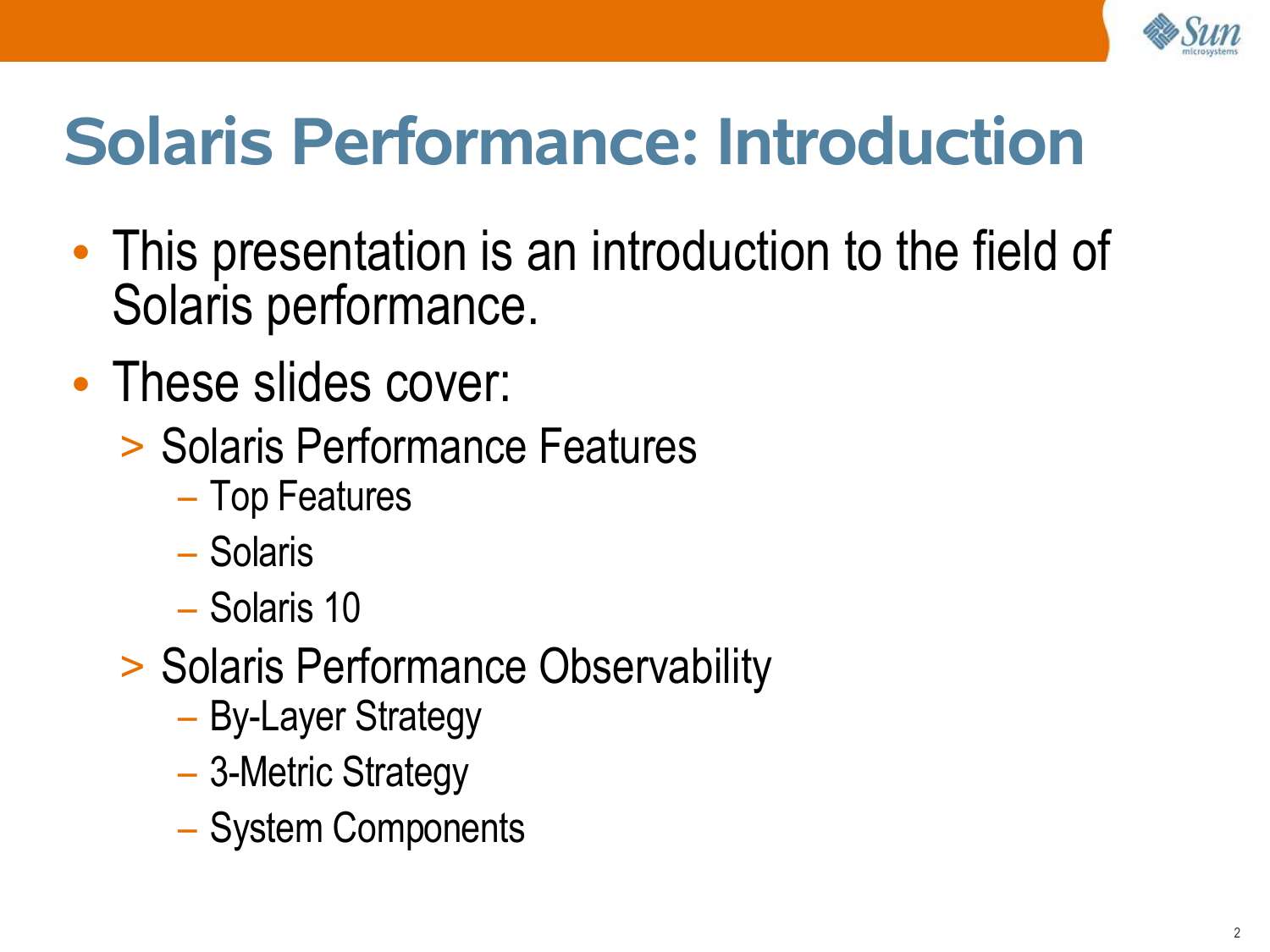

    Solaris Performance: Introduction
    • This presentation is an introduction to the field of
    Solaris performance.
    • These slides cover:
    >gt; Solaris Performance Features
    – Top Features
    – Solaris
    – Solaris 10
    >gt; Solaris Performance Observability
    – By-Layer Strategy
    – 3-Metric Strategy
    – System Components

slide 3:

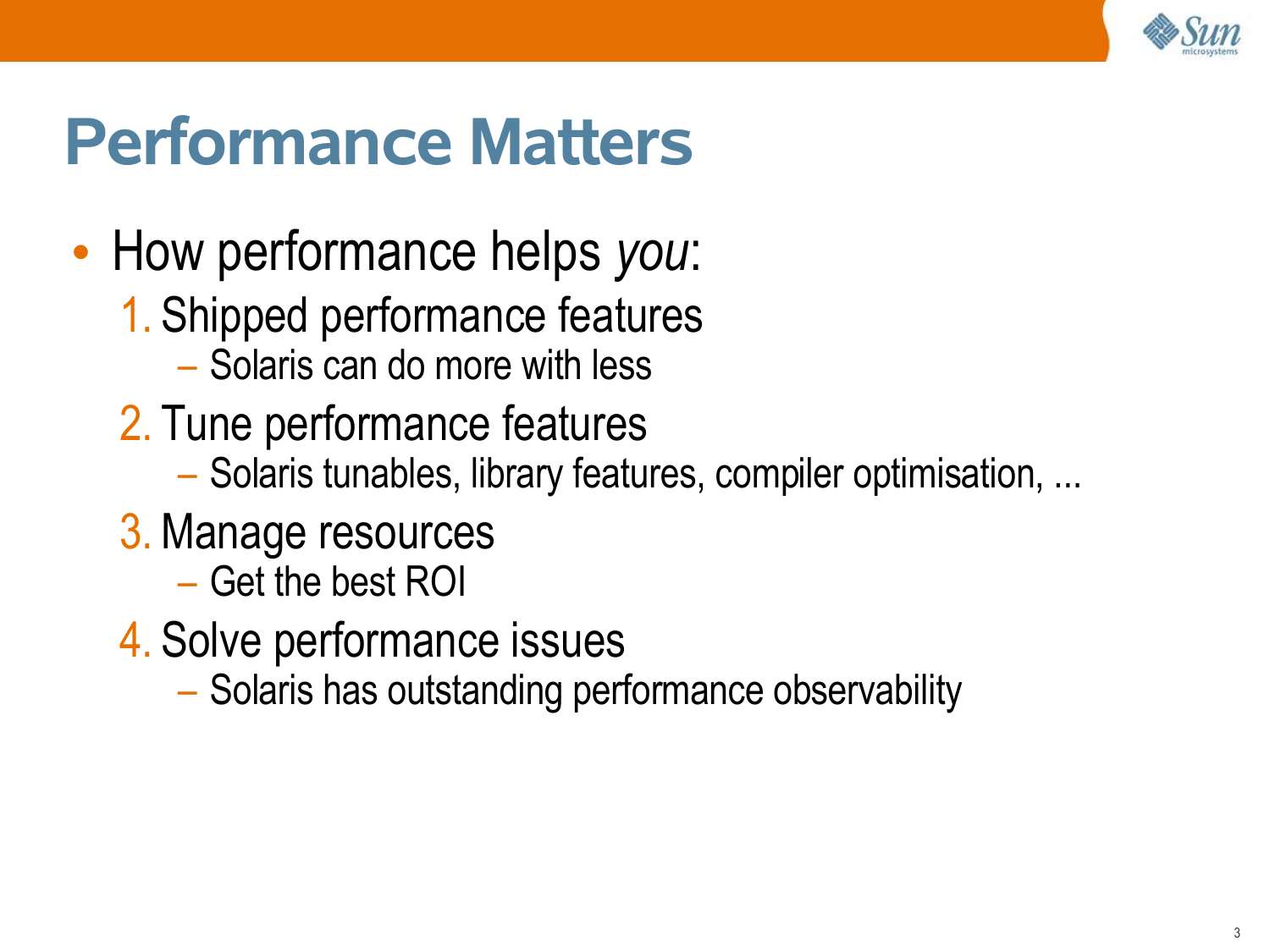

    Performance Matters
    • How performance helps you:
    1. Shipped performance features
    – Solaris can do more with less
    2. Tune performance features
    – Solaris tunables, library features, compiler optimisation, ...
    3. Manage resources
    – Get the best ROI
    4. Solve performance issues
    – Solaris has outstanding performance observability

slide 4:

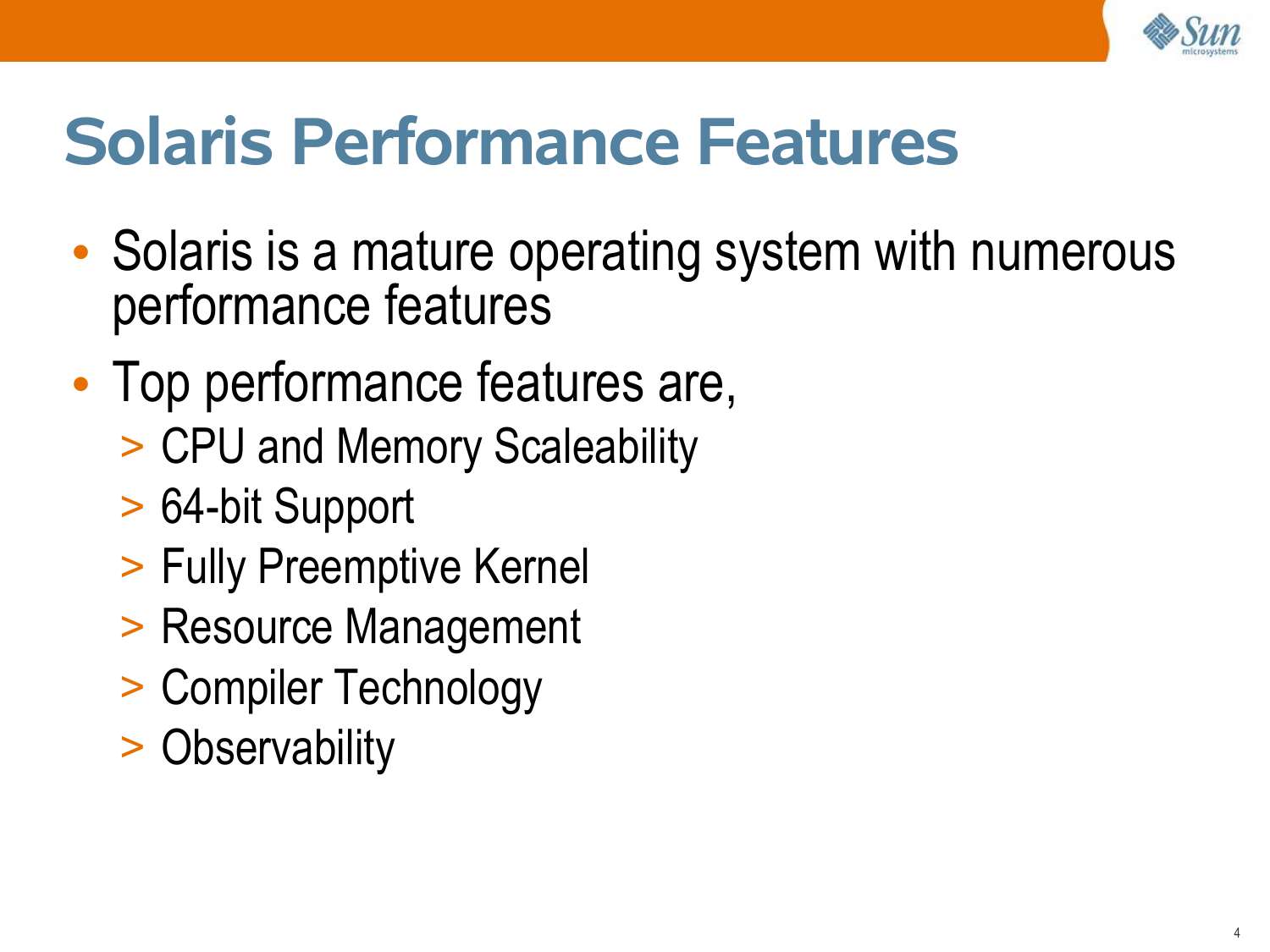

    Solaris Performance Features
    • Solaris is a mature operating system with numerous
    performance features
    • Top performance features are,
    >gt; CPU and Memory Scaleability
    >gt; 64-bit Support
    >gt; Fully Preemptive Kernel
    >gt; Resource Management
    >gt; Compiler Technology
    >gt; Observability

slide 5:

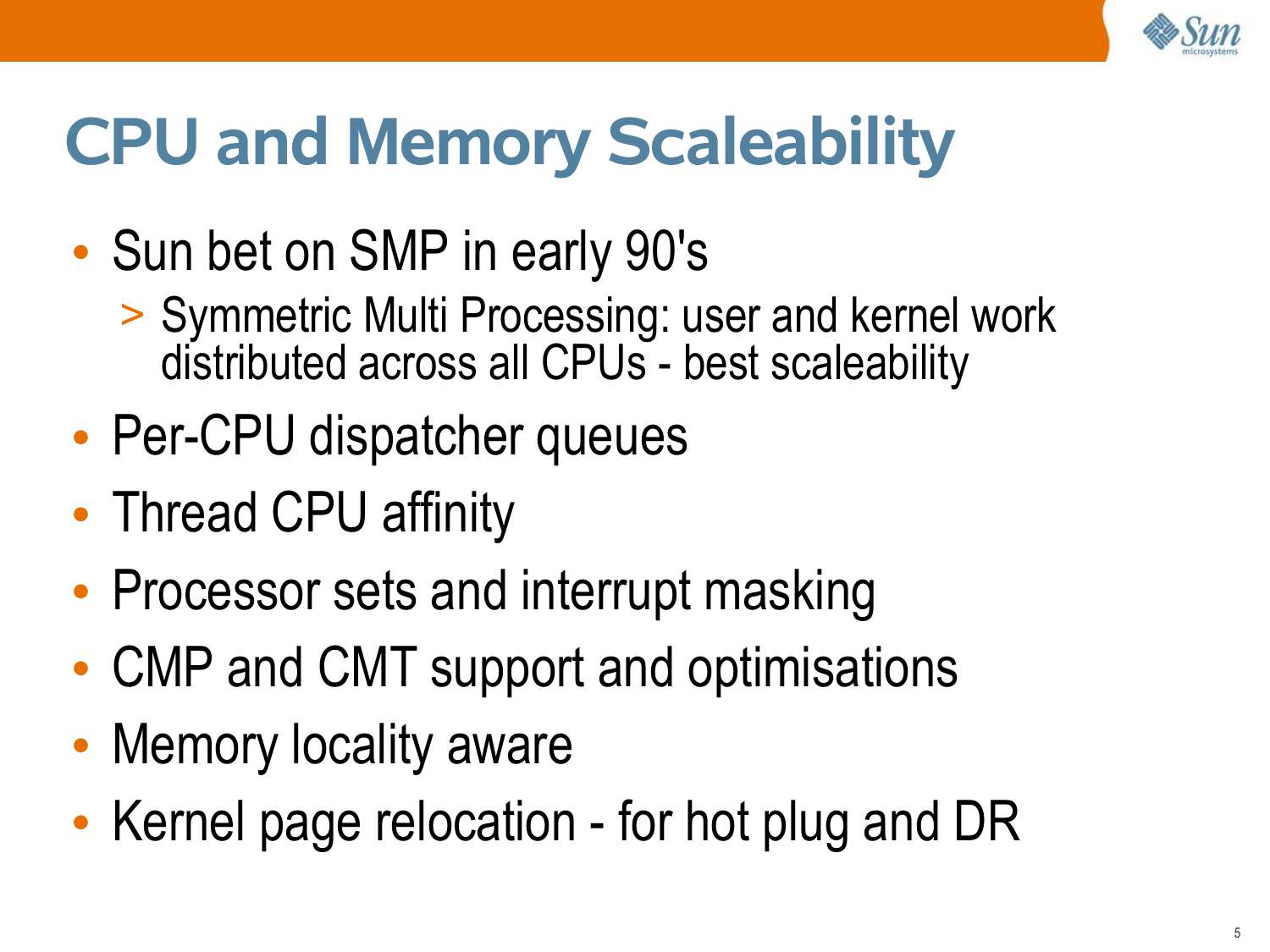

    CPU and Memory Scaleability
    • Sun bet on SMP in early 90's
    >gt; Symmetric Multi Processing: user and kernel work
    distributed across all CPUs - best scaleability
    • Per-CPU dispatcher queues
    • Thread CPU affinity
    • Processor sets and interrupt masking
    • CMP and CMT support and optimisations
    • Memory locality aware
    • Kernel page relocation - for hot plug and DR

slide 6:

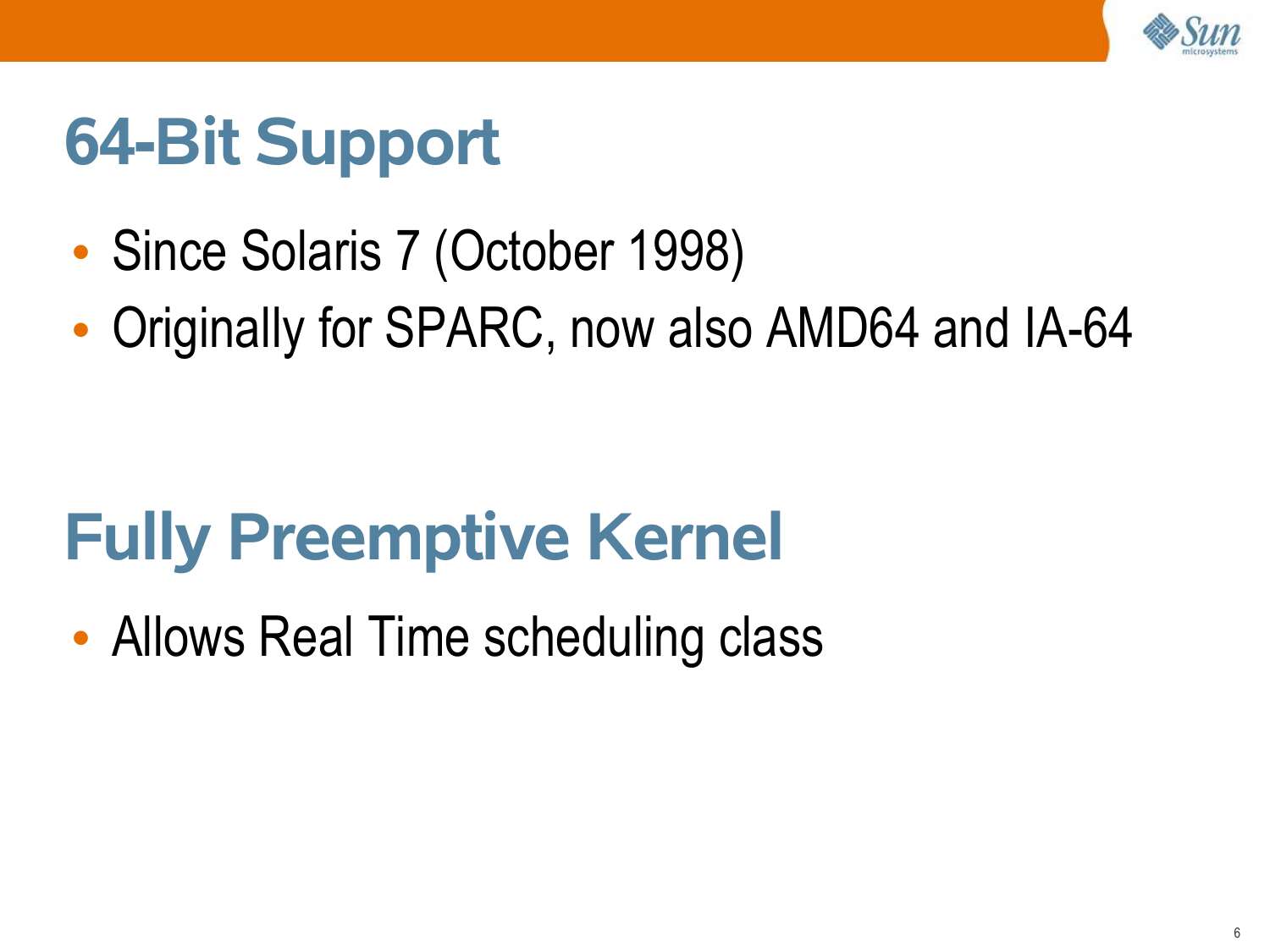

    64-Bit Support
    • Since Solaris 7 (October 1998)
    • Originally for SPARC, now also AMD64 and IA-64
    Fully Preemptive Kernel
    • Allows Real Time scheduling class

slide 7:

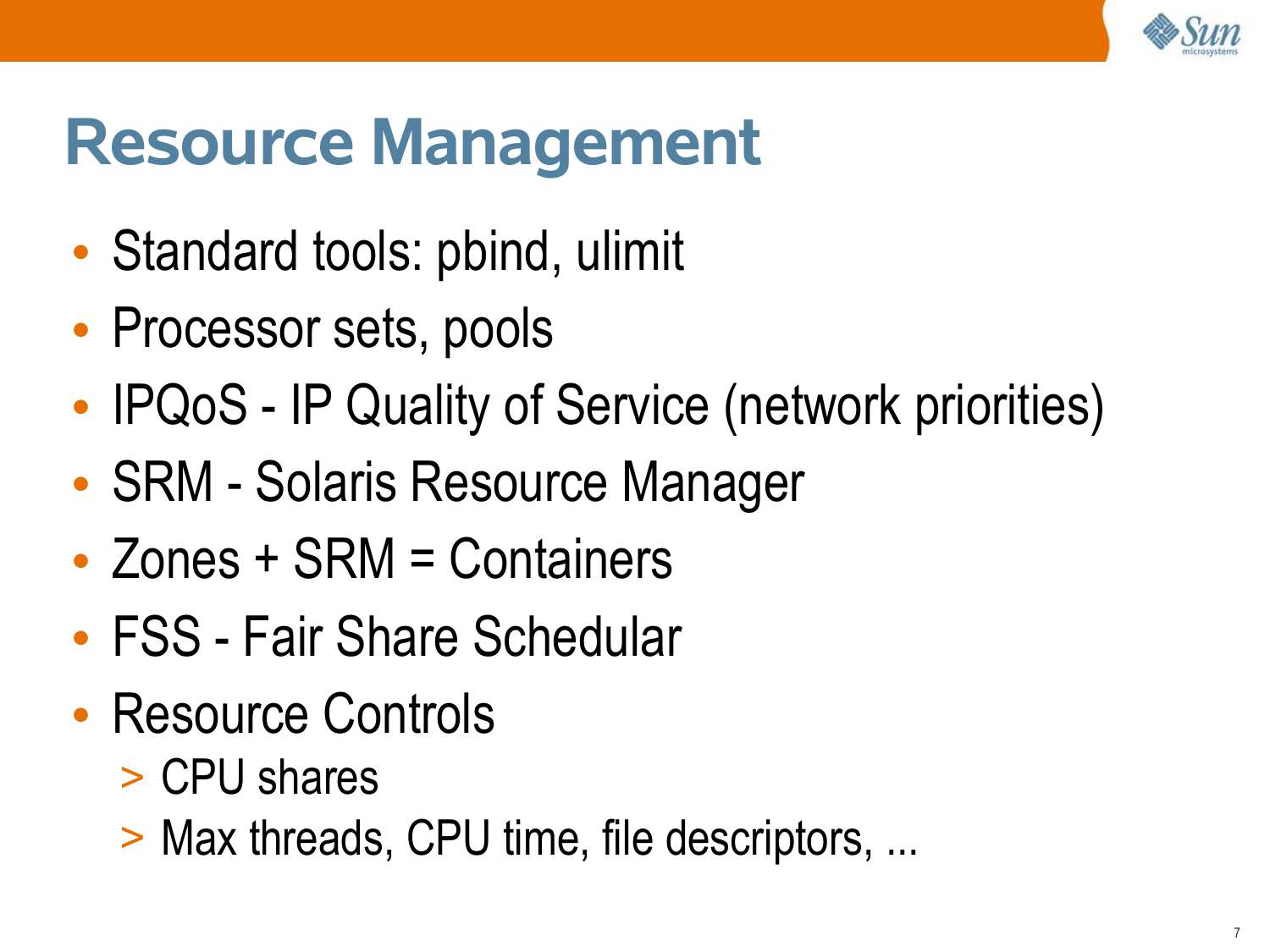

    Resource Management
    • Standard tools: pbind, ulimit
    • Processor sets, pools
    • IPQoS - IP Quality of Service (network priorities)
    • SRM - Solaris Resource Manager
    • Zones + SRM = Containers
    • FSS - Fair Share Schedular
    • Resource Controls
    >gt; CPU shares
    >gt; Max threads, CPU time, file descriptors, ...

slide 8:

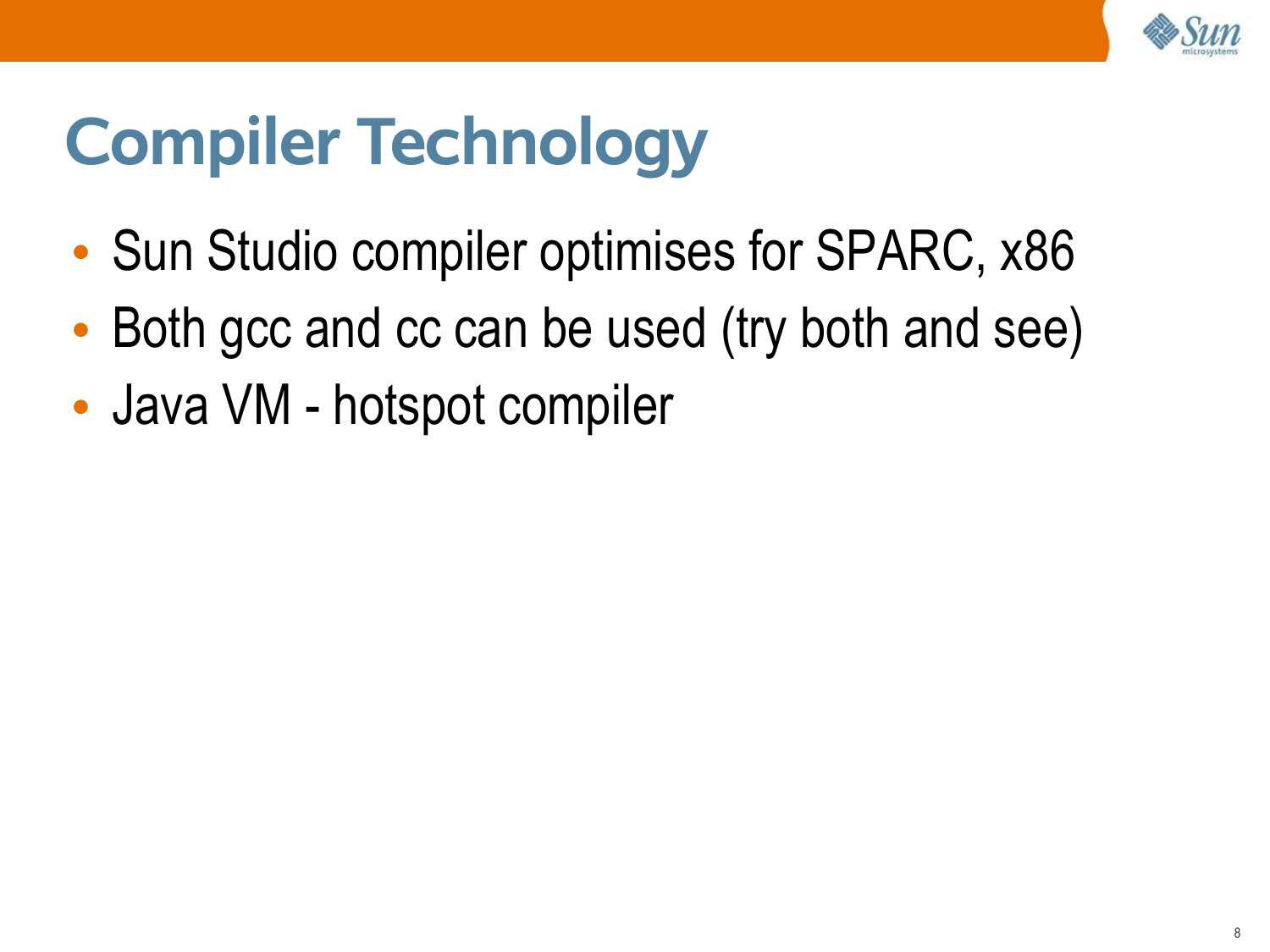

    Compiler Technology
    • Sun Studio compiler optimises for SPARC, x86
    • Both gcc and cc can be used (try both and see)
    • Java VM - hotspot compiler

slide 9:

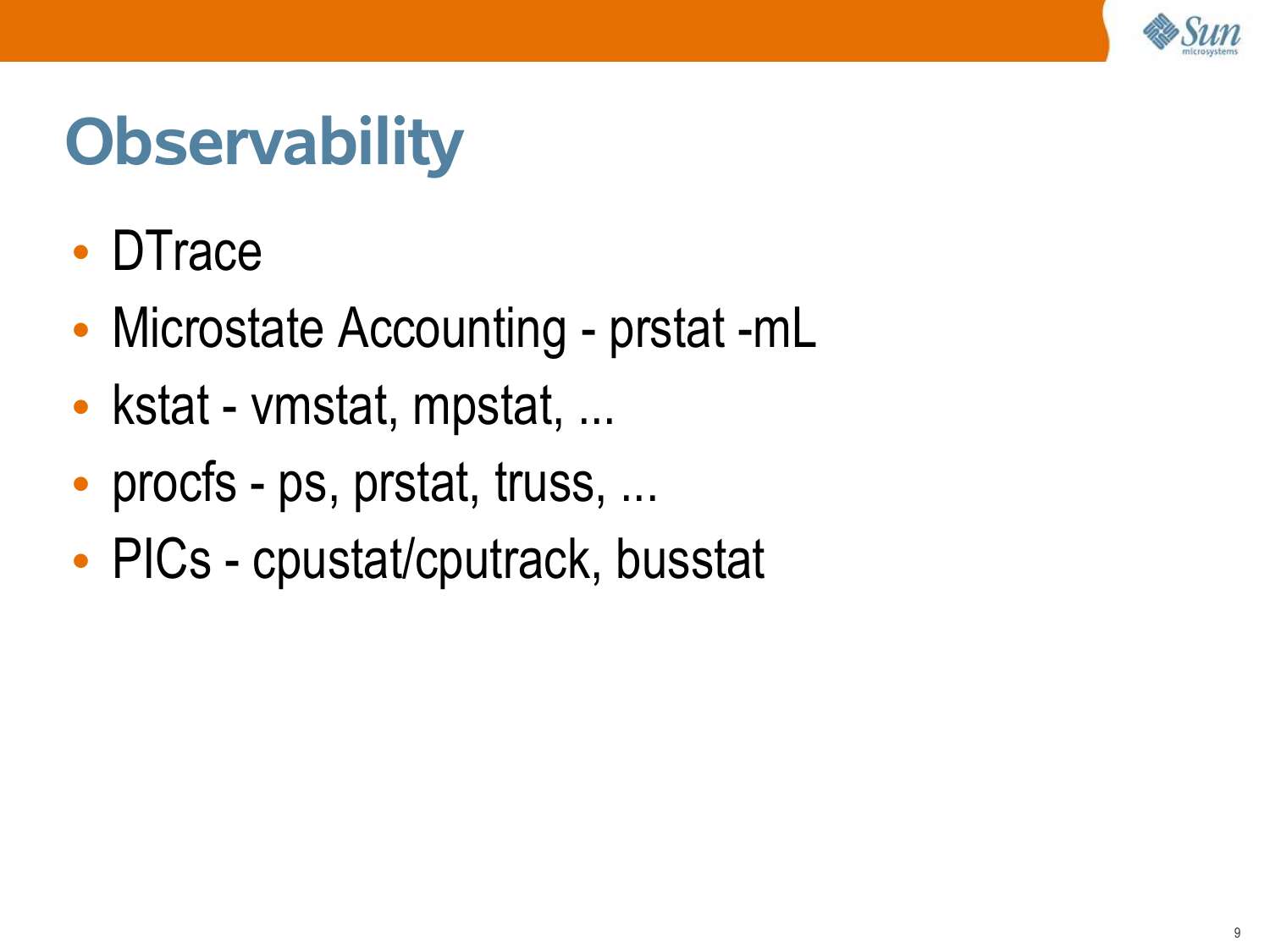

    Observability
    • DTrace
    • Microstate Accounting - prstat -mL
    • kstat - vmstat, mpstat, ...
    • procfs - ps, prstat, truss, ...
    • PICs - cpustat/cputrack, busstat

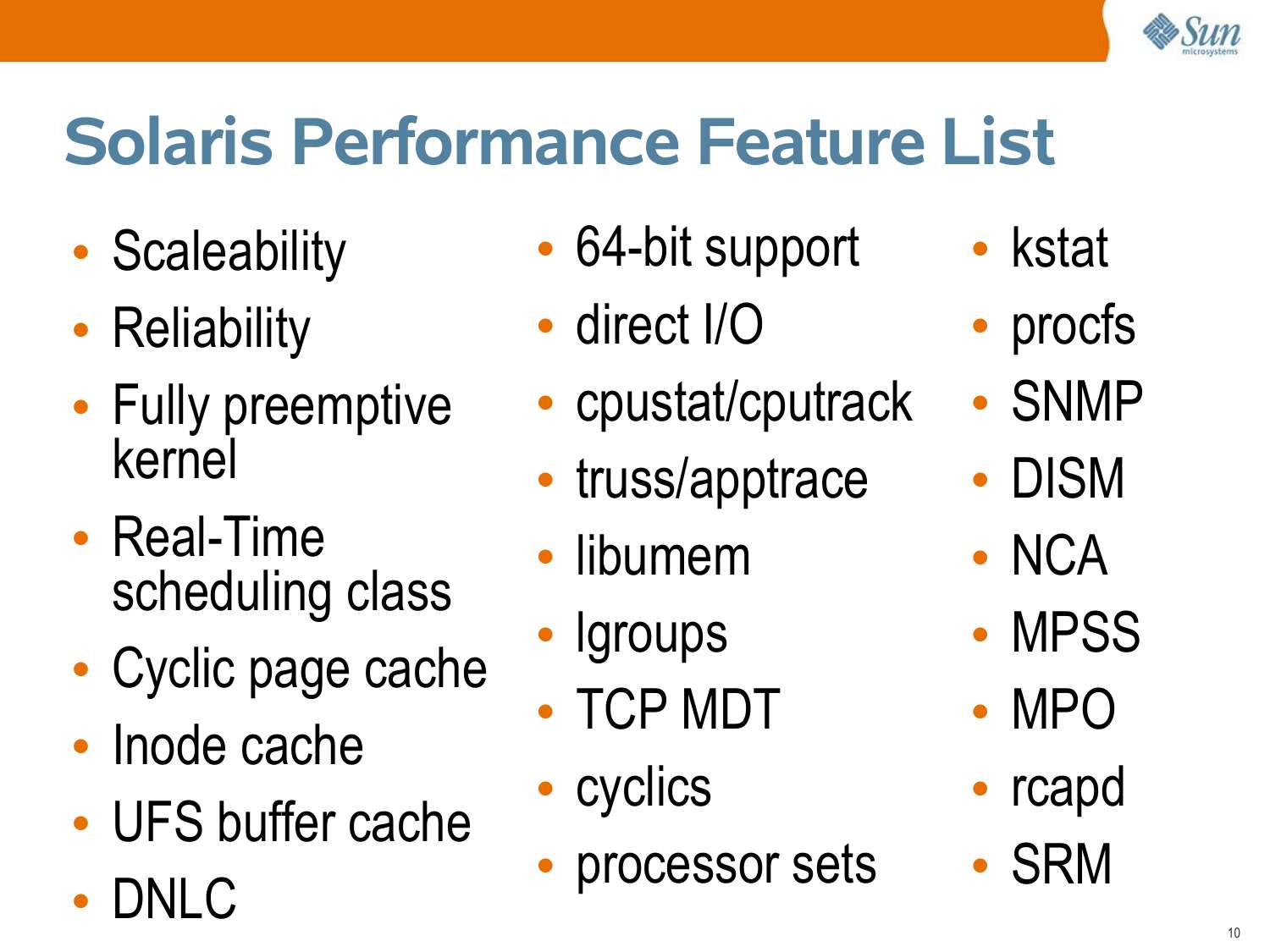

slide 10:
    Solaris Performance Feature List
    • Scaleability
    • Reliability
    • Fully preemptive
    kernel
    • Real-Time
    scheduling class
    • Cyclic page cache
    • Inode cache
    • UFS buffer cache
    • DNLC
    • 64-bit support
    • direct I/O
    • cpustat/cputrack
    • truss/apptrace
    • libumem
    • lgroups
    • TCP MDT
    • cyclics
    • processor sets
    • kstat
    • procfs
    • SNMP
    • DISM
    • NCA
    • MPSS
    • MPO
    • rcapd
    • SRM

slide 11:

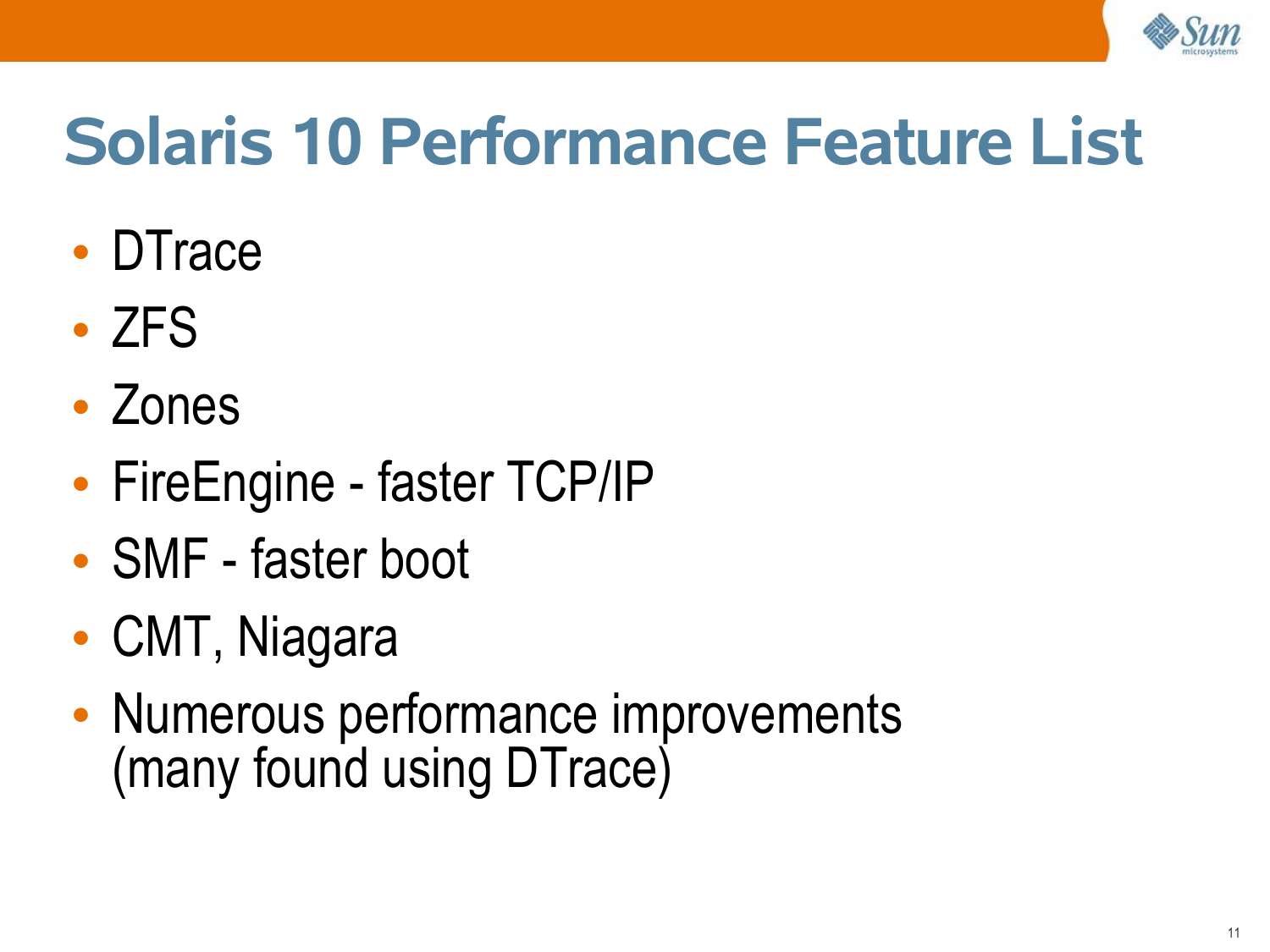

    Solaris 10 Performance Feature List
    • DTrace
    • ZFS
    • Zones
    • FireEngine - faster TCP/IP
    • SMF - faster boot
    • CMT, Niagara
    • Numerous performance improvements
    (many found using DTrace)

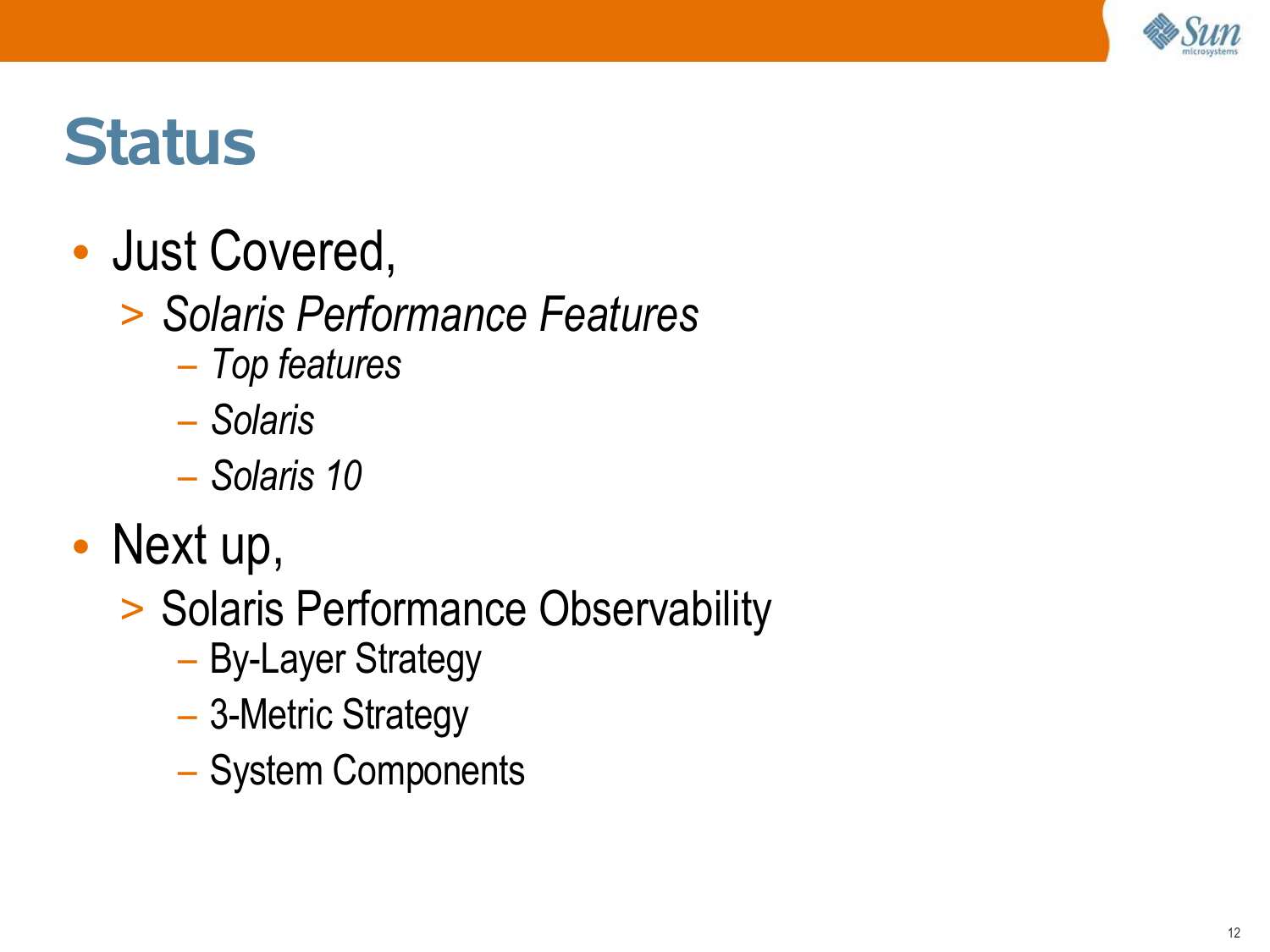

slide 12:
    Status
    • Just Covered,
    >gt; Solaris Performance Features
    – Top features
    – Solaris
    – Solaris 10
    • Next up,
    >gt; Solaris Performance Observability
    – By-Layer Strategy
    – 3-Metric Strategy
    – System Components

slide 13:

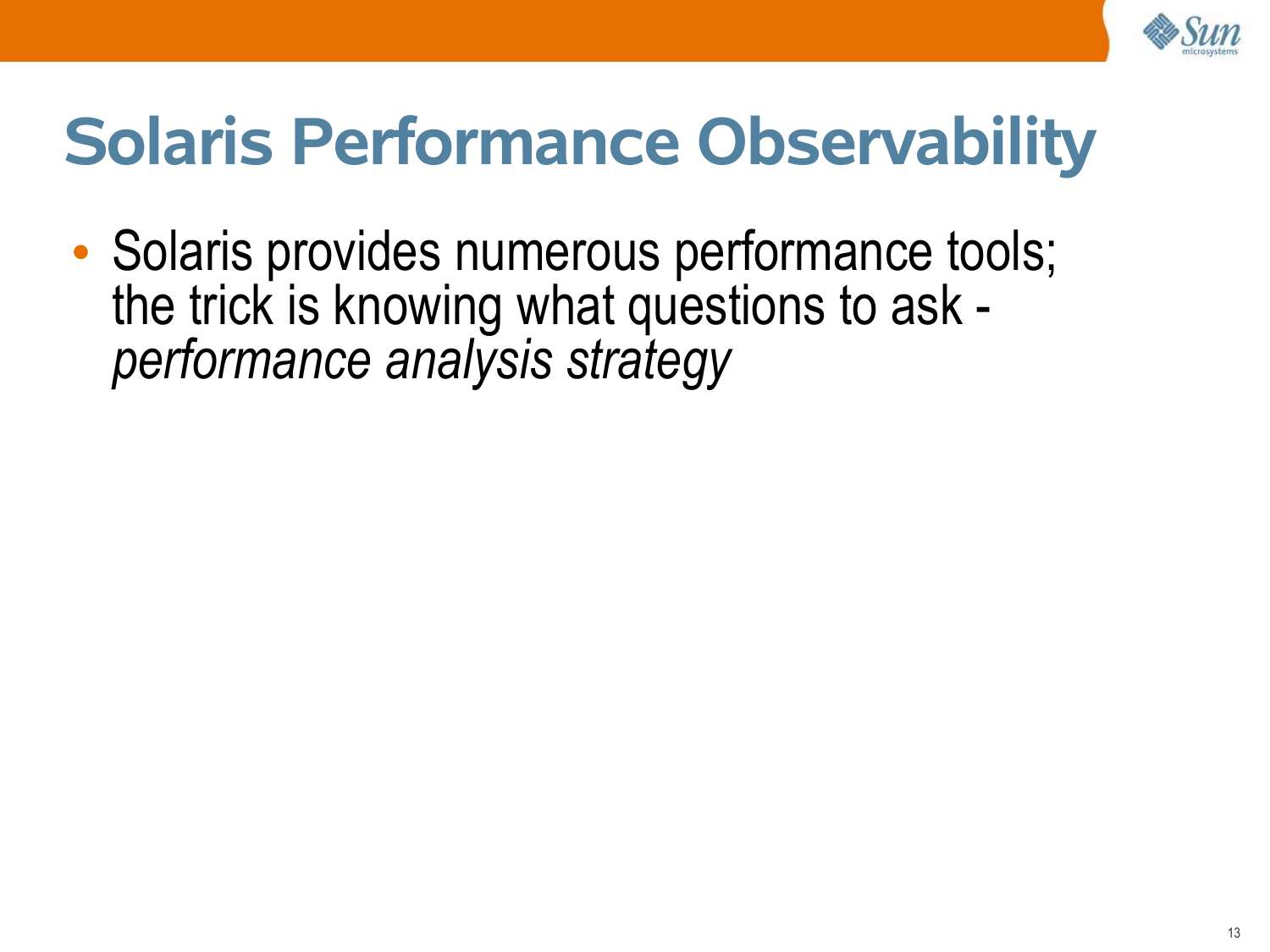

    Solaris Performance Observability
    • Solaris provides numerous performance tools;
    the trick is knowing what questions to ask performance analysis strategy

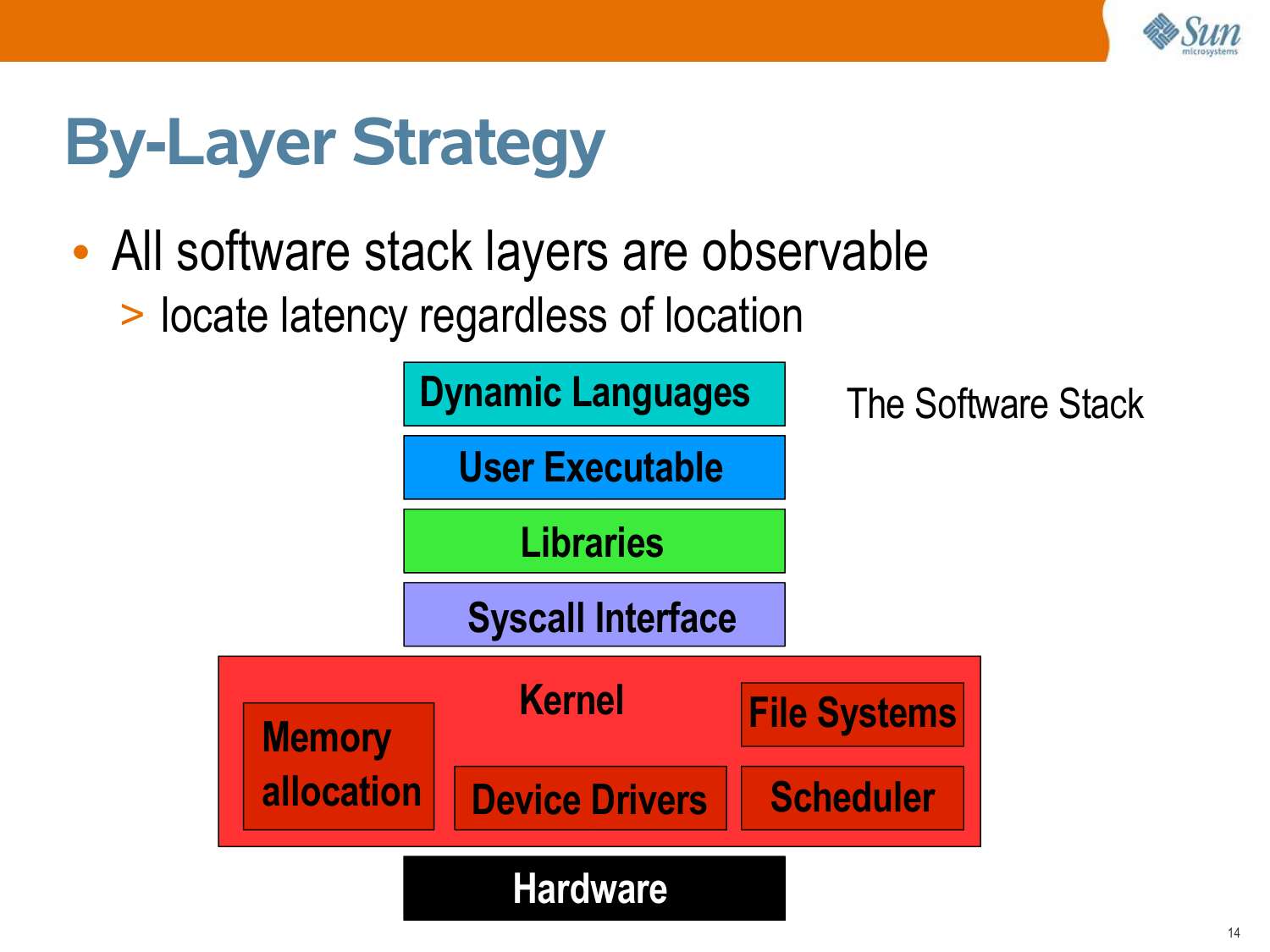

slide 14:
    By-Layer Strategy
    • All software stack layers are observable
    >gt; locate latency regardless of location
    Dynamic Languages
    The Software Stack
    User Executable
    Libraries
    Syscall Interface
    Memory
    allocation
    Kernel
    File Systems
    Device Drivers
    Scheduler
    Hardware

slide 15:

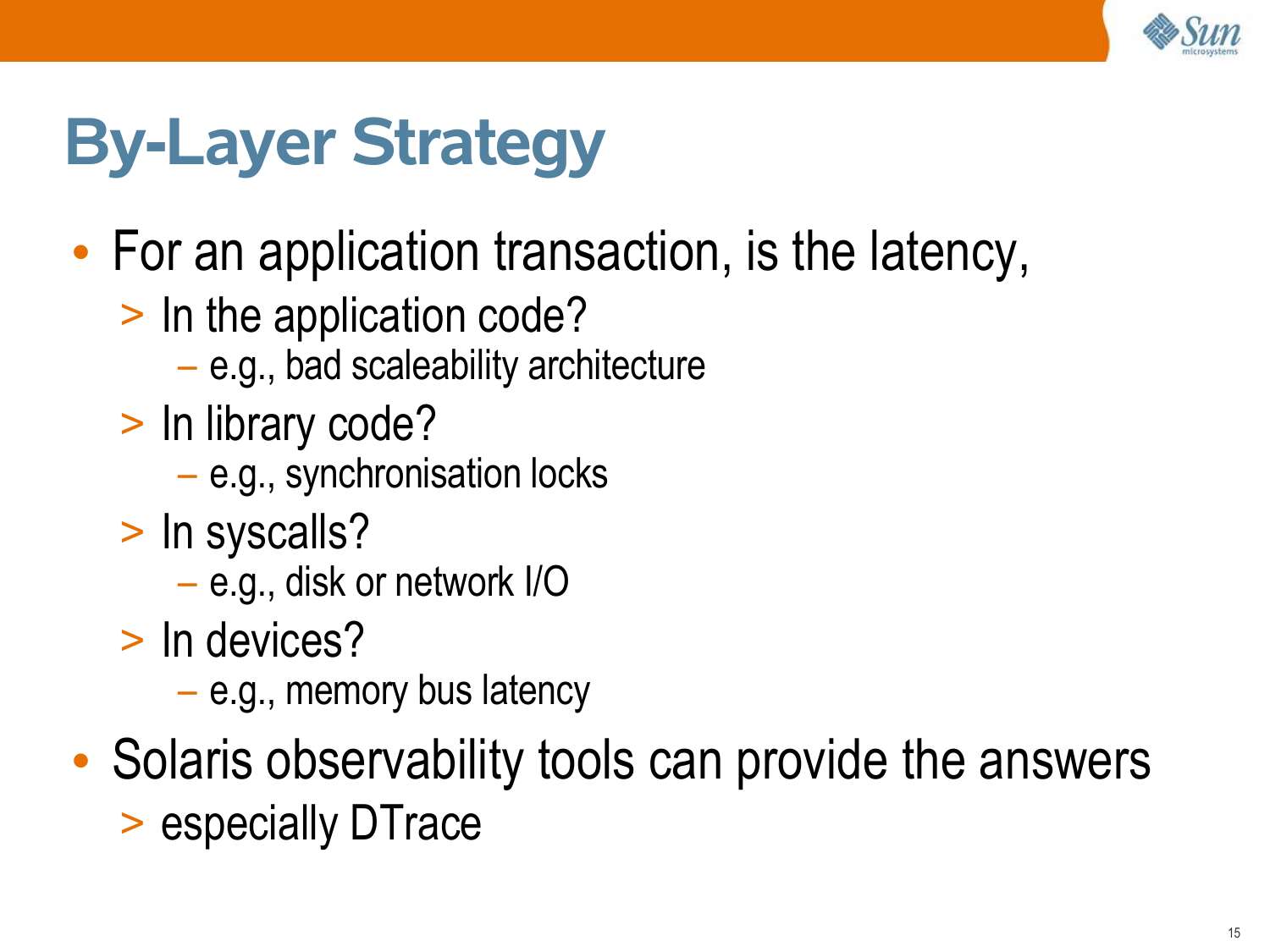

    By-Layer Strategy
    • For an application transaction, is the latency,
    >gt; In the application code?
    – e.g., bad scaleability architecture
    >gt; In library code?
    – e.g., synchronisation locks
    >gt; In syscalls?
    – e.g., disk or network I/O
    >gt; In devices?
    – e.g., memory bus latency
    • Solaris observability tools can provide the answers
    >gt; especially DTrace

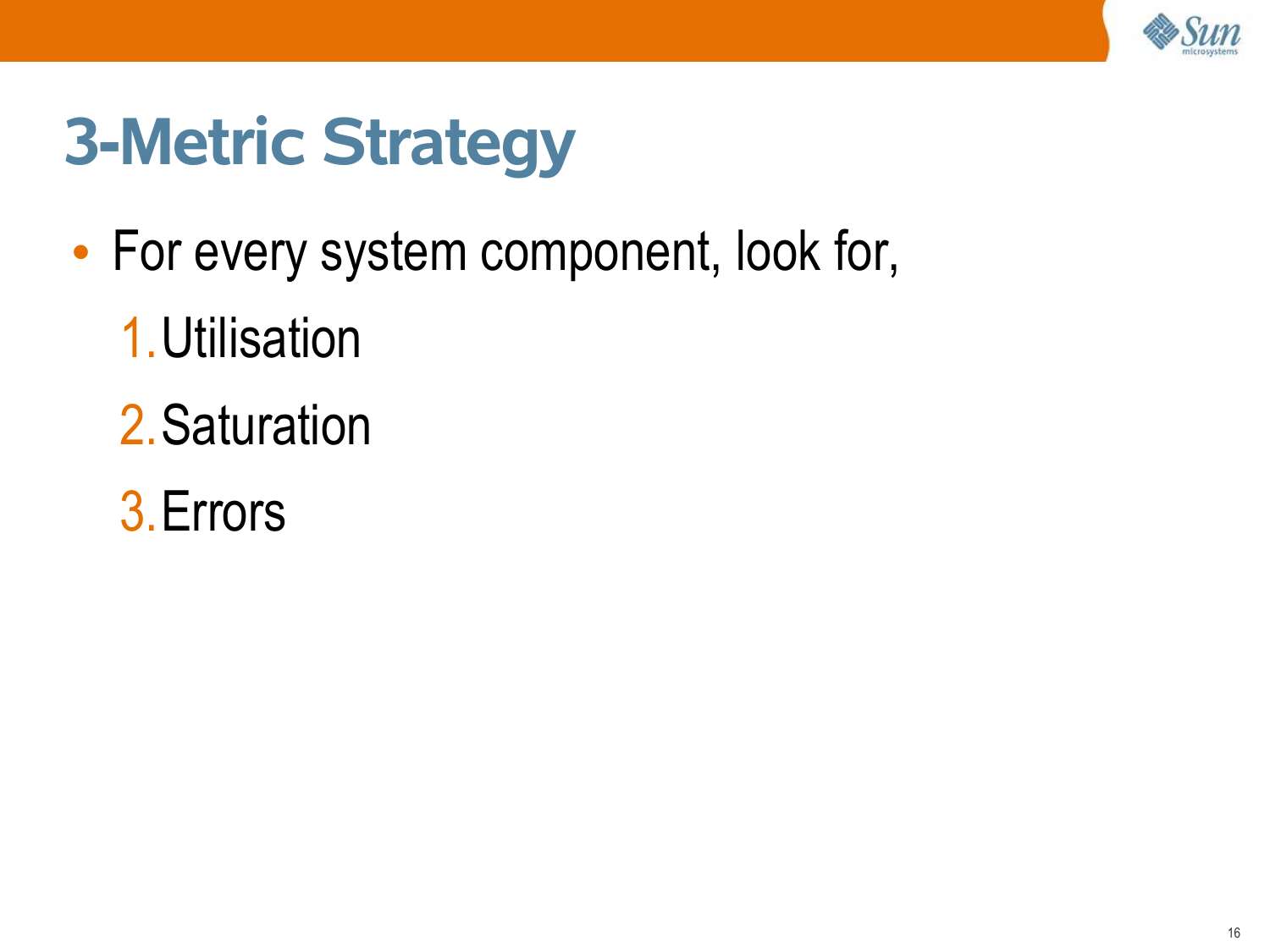

slide 16:
    3-Metric Strategy
    • For every system component, look for,
    1.Utilisation
    2.Saturation
    3.Errors

slide 17:

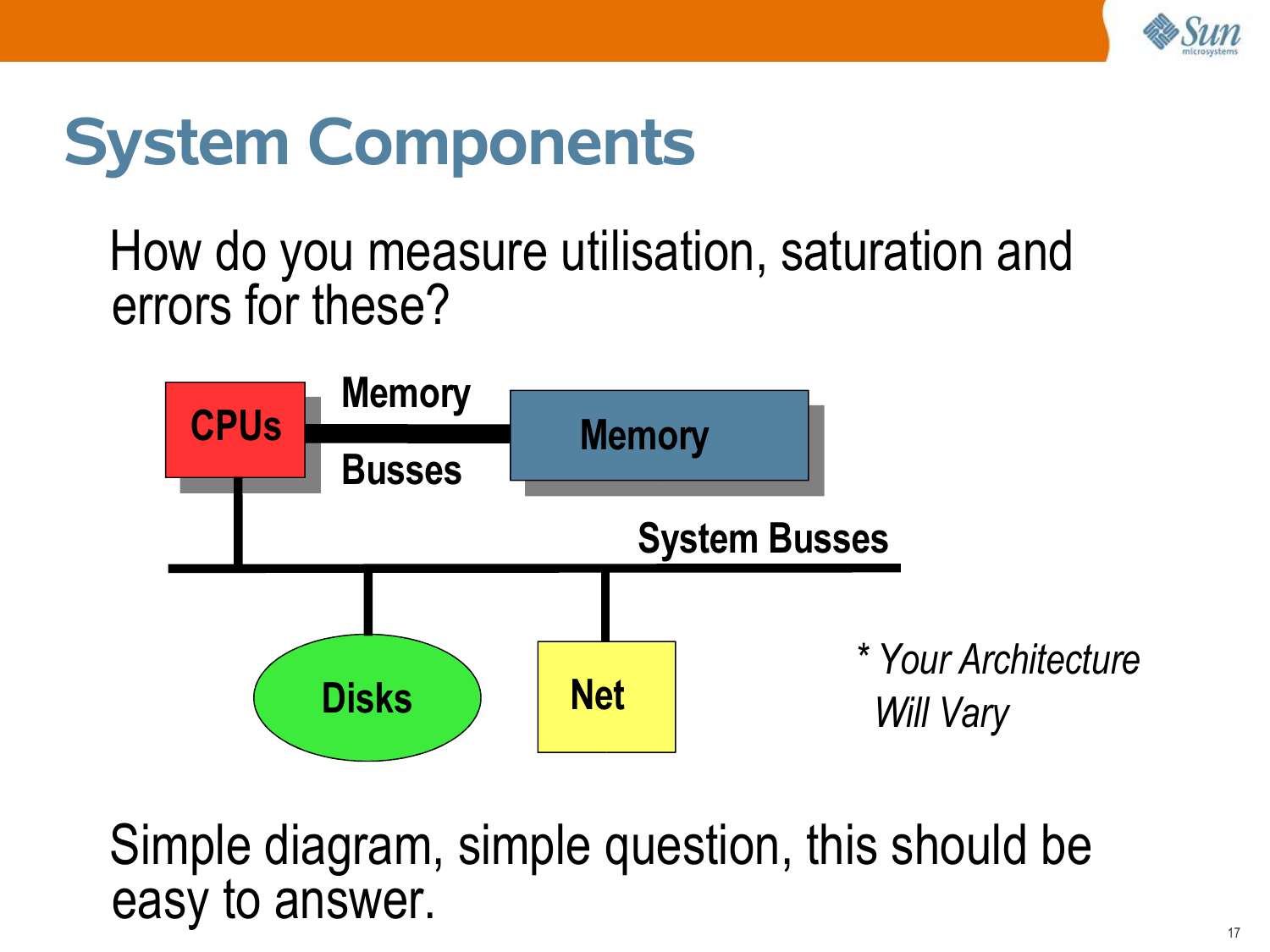

    System Components
    How do you measure utilisation, saturation and
    errors for these?
    CPUs
    Memory
    Busses
    Memory
    System Busses
    Disks
    Net
    * Your Architecture
    Will Vary
    Simple diagram, simple question, this should be
    easy to answer.

slide 18:

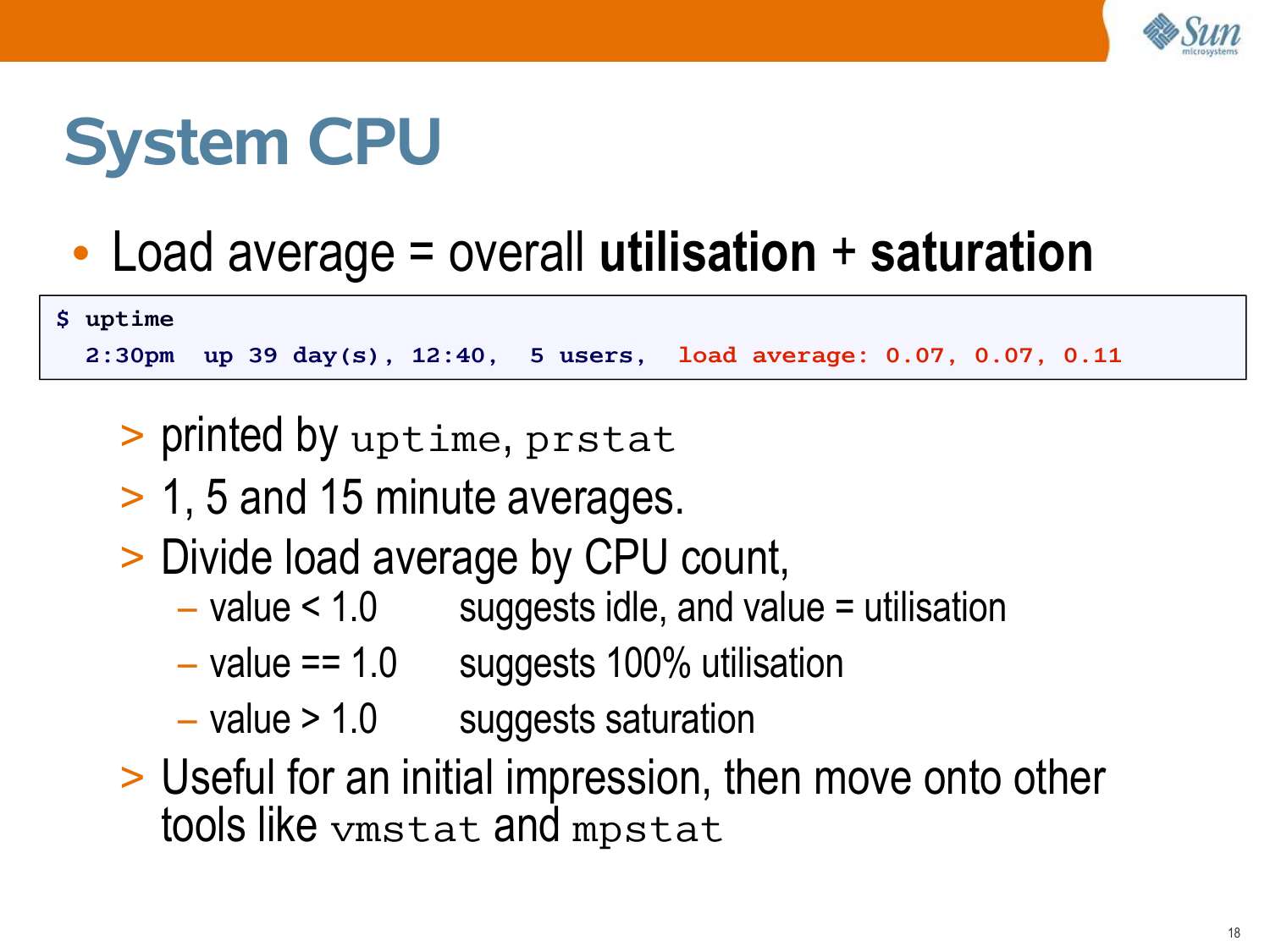

    System CPU
    • Load average = overall utilisation + saturation
    $ uptime
    2:30pm
    up 39 day(s), 12:40,
    5 users,
    load average: 0.07, 0.07, 0.11
    >gt; printed by uptime, prstat
    >gt; 1, 5 and 15 minute averages.
    >gt; Divide load average by CPU count,
    – value gt; 1.0
    suggests saturation
    >gt; Useful for an initial impression, then move onto other
    tools like vmstat and mpstat

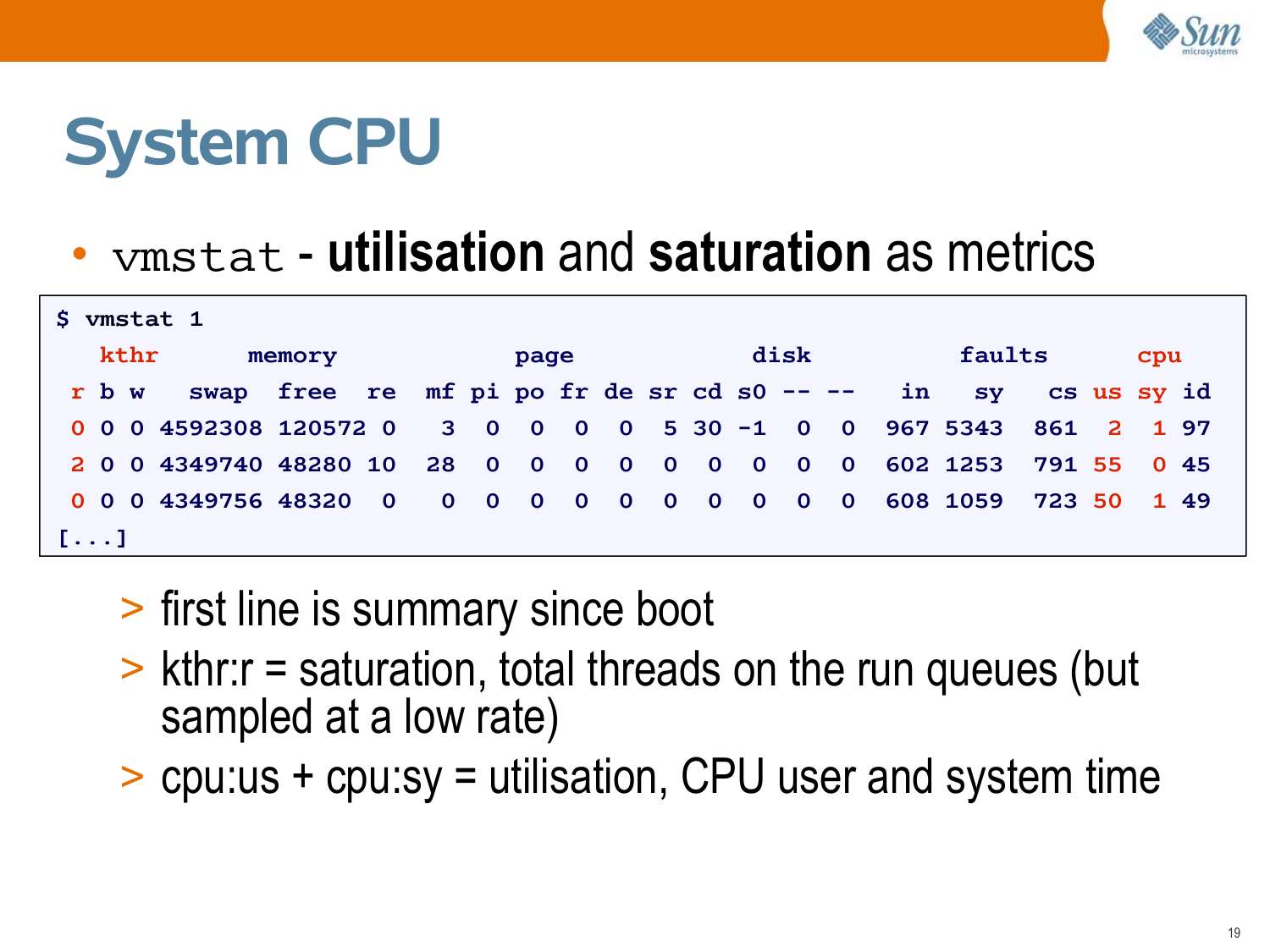

slide 19:
    System CPU
    • vmstat - utilisation and saturation as metrics
    $ vmstat 1
    kthr
    memory
    r b w
    swap free re
    0 0 0 4592308 120572 0
    2 0 0 4349740 48280 10
    0 0 0 4349756 48320 0
    [...]
    page
    disk
    mf pi po fr de sr cd s0 -- -3 0 0 0 0 5 30 -1 0 0
    28 0 0 0 0 0 0 0 0 0
    0 0 0 0 0 0 0 0 0 0
    faults
    cpu
    cs us sy id
    967 5343 861 2 1 97
    602 1253 791 55 0 45
    608 1059 723 50 1 49
    >gt; first line is summary since boot
    >gt; kthr:r = saturation, total threads on the run queues (but
    sampled at a low rate)
    >gt; cpu:us + cpu:sy = utilisation, CPU user and system time

slide 20:

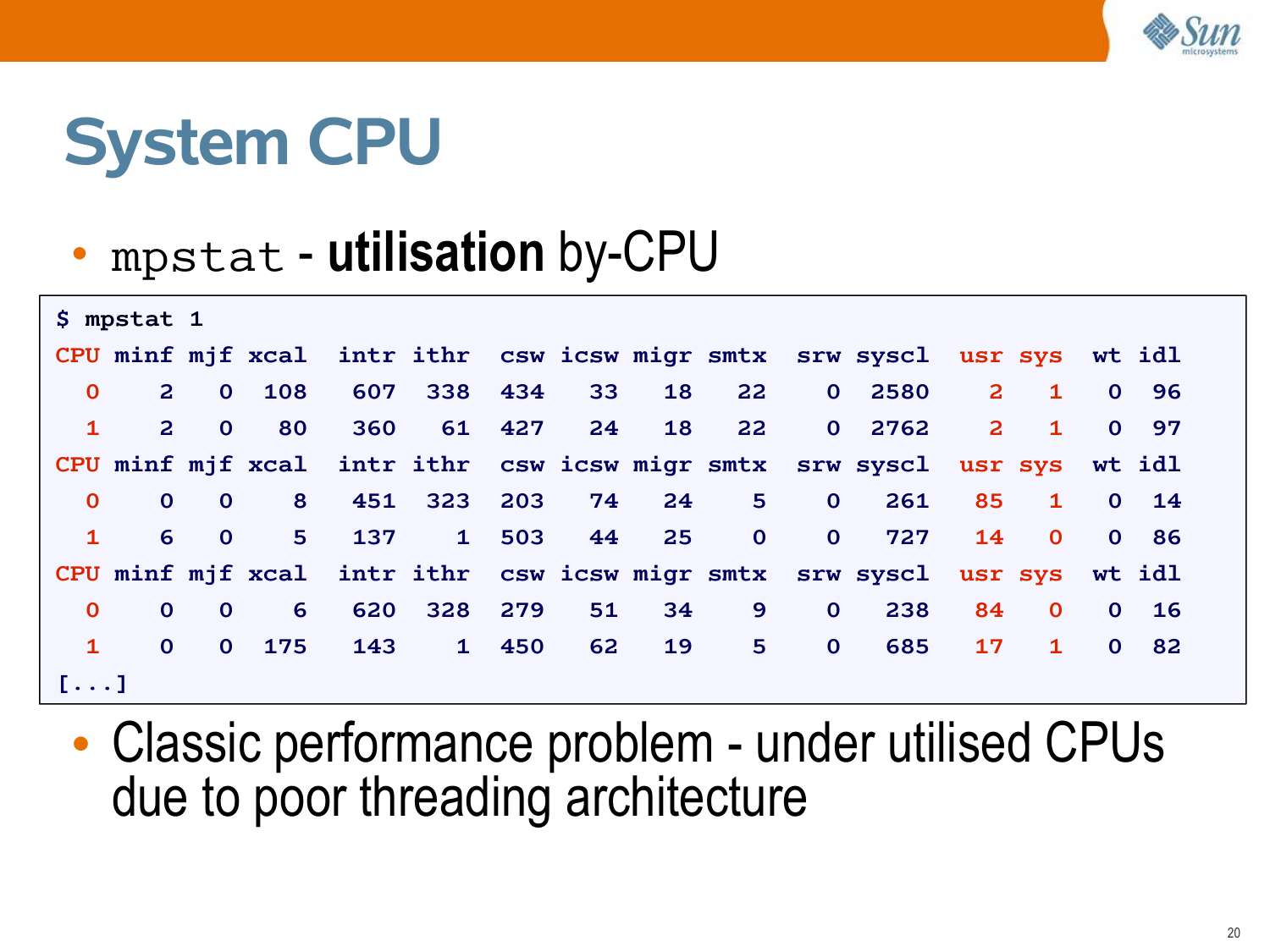

    System CPU
    • mpstat - utilisation by-CPU
    $ mpstat 1
    CPU minf mjf xcal
    0 108
    CPU minf mjf xcal
    CPU minf mjf xcal
    0 175
    [...]
    intr ithr
    607 338
    intr ithr
    451 323
    intr ithr
    620 328
    csw icsw migr smtx
    csw icsw migr smtx
    csw icsw migr smtx
    srw syscl
    0 2580
    0 2762
    srw syscl
    srw syscl
    usr sys
    usr sys
    usr sys
    wt idl
    0 96
    0 97
    wt idl
    0 14
    0 86
    wt idl
    0 16
    0 82
    • Classic performance problem - under utilised CPUs
    due to poor threading architecture

slide 21:

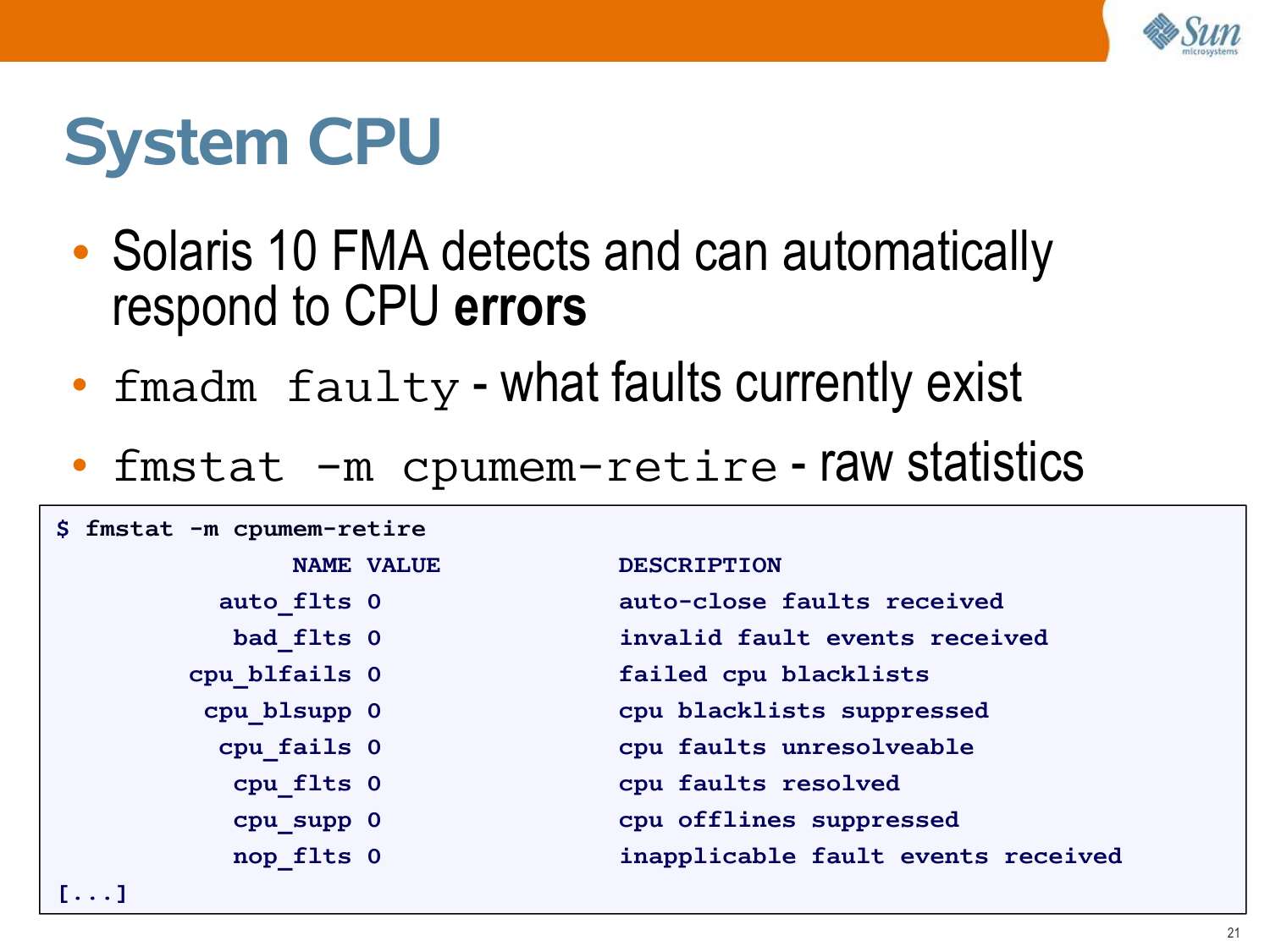

    System CPU
    • Solaris 10 FMA detects and can automatically
    respond to CPU errors
    • fmadm faulty - what faults currently exist
    • fmstat -m cpumem-retire - raw statistics
    $ fmstat -m cpumem-retire
    NAME VALUE
    auto_flts 0
    bad_flts 0
    cpu_blfails 0
    cpu_blsupp 0
    cpu_fails 0
    cpu_flts 0
    cpu_supp 0
    nop_flts 0
    [...]
    DESCRIPTION
    auto-close faults received
    invalid fault events received
    failed cpu blacklists
    cpu blacklists suppressed
    cpu faults unresolveable
    cpu faults resolved
    cpu offlines suppressed
    inapplicable fault events received

slide 22:

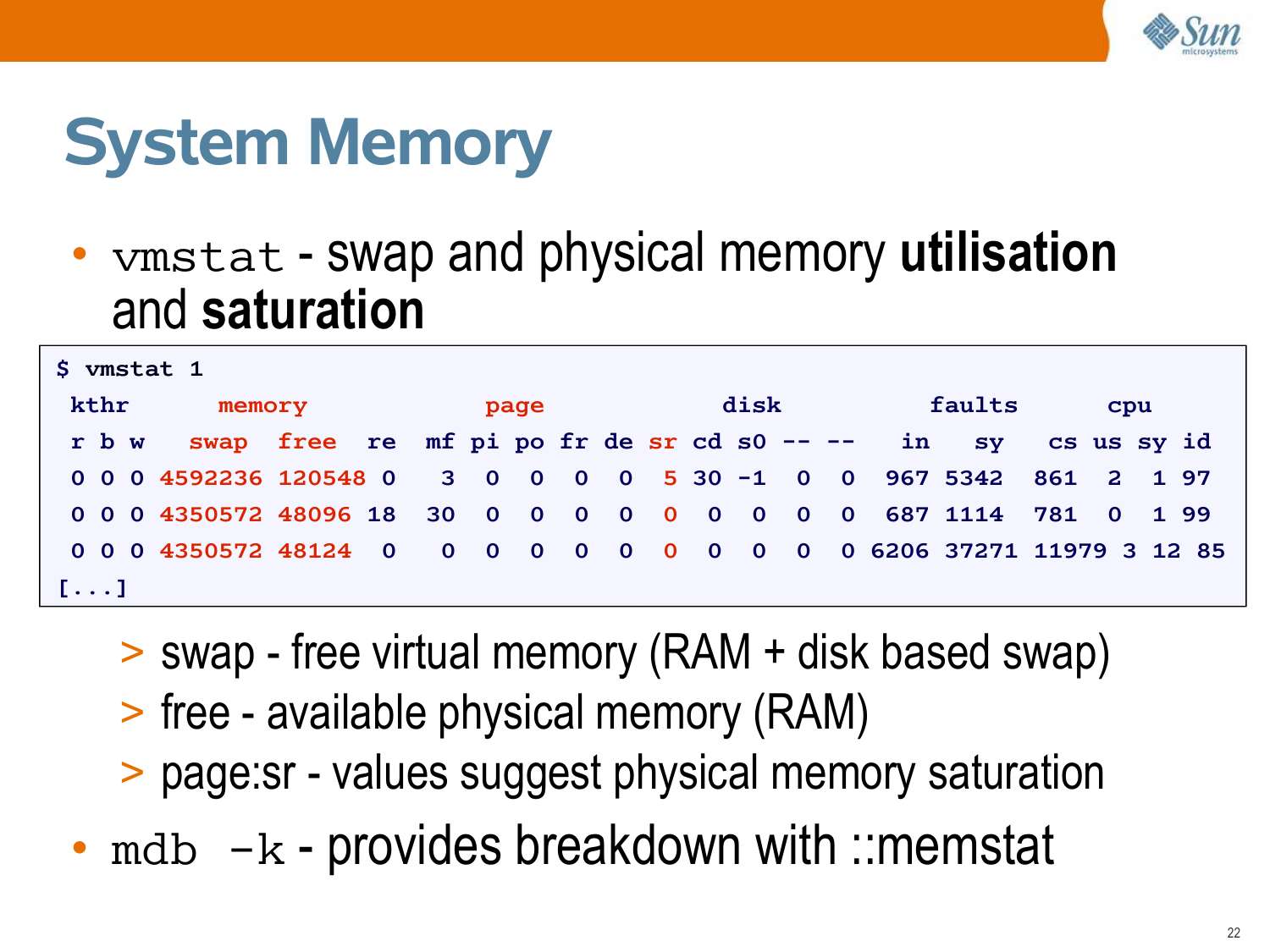

    System Memory
    • vmstat - swap and physical memory utilisation
    and saturation
    $ vmstat 1
    kthr
    memory
    r b w
    swap free re
    0 0 0 4592236 120548 0
    0 0 0 4350572 48096 18
    0 0 0 4350572 48124 0
    [...]
    page
    disk
    faults
    cpu
    mf pi po fr de sr cd s0 -- -in
    cs us sy id
    3 0 0 0 0 5 30 -1 0 0 967 5342 861 2 1 97
    30 0 0 0 0 0 0 0 0 0 687 1114 781 0 1 99
    0 0 0 0 0 0 0 0 0 0 6206 37271 11979 3 12 85
    >gt; swap - free virtual memory (RAM + disk based swap)
    >gt; free - available physical memory (RAM)
    >gt; page:sr - values suggest physical memory saturation
    • mdb -k - provides breakdown with ::memstat

slide 23:

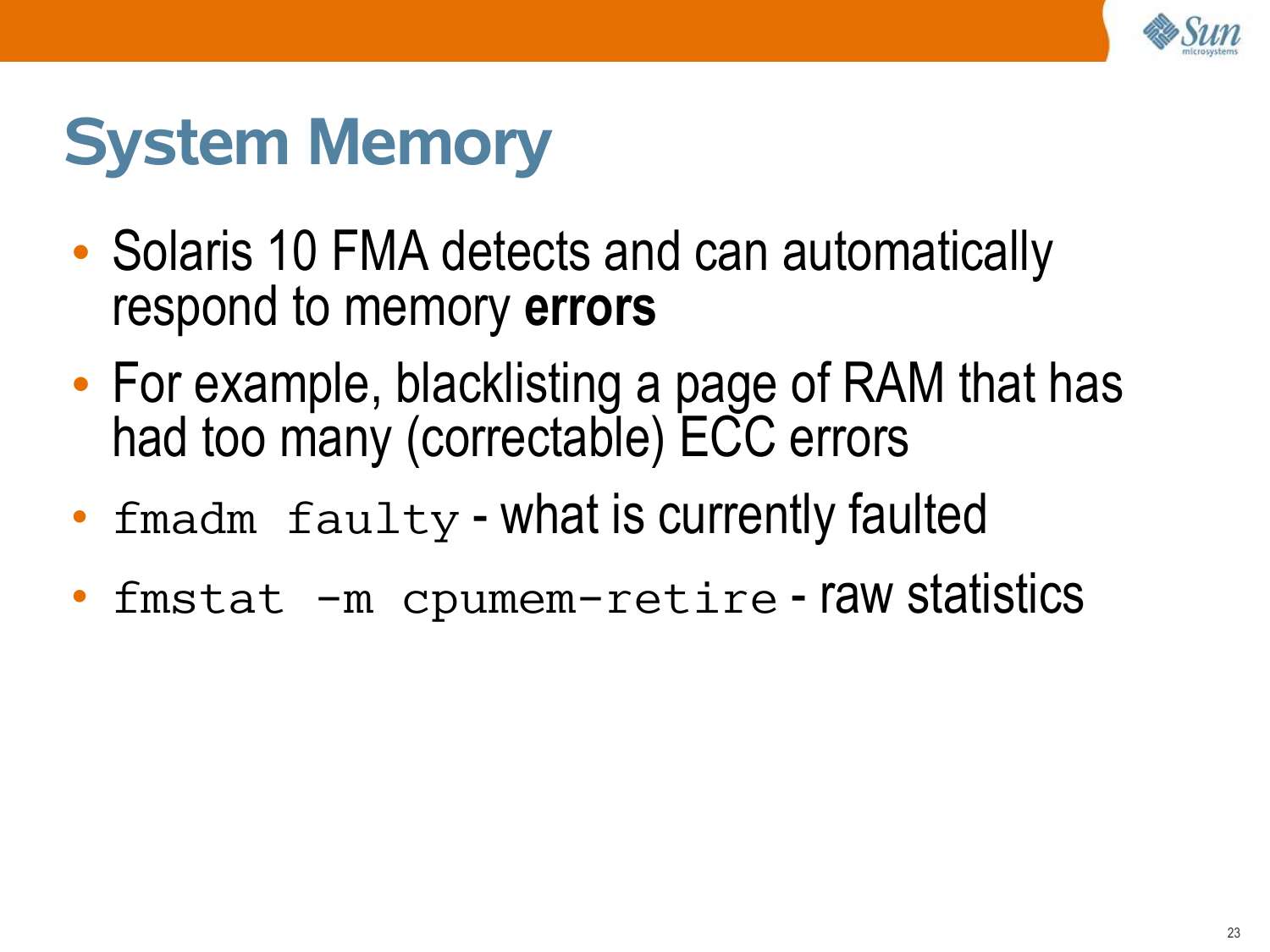

    System Memory
    • Solaris 10 FMA detects and can automatically
    respond to memory errors
    • For example, blacklisting a page of RAM that has
    had too many (correctable) ECC errors
    • fmadm faulty - what is currently faulted
    • fmstat -m cpumem-retire - raw statistics

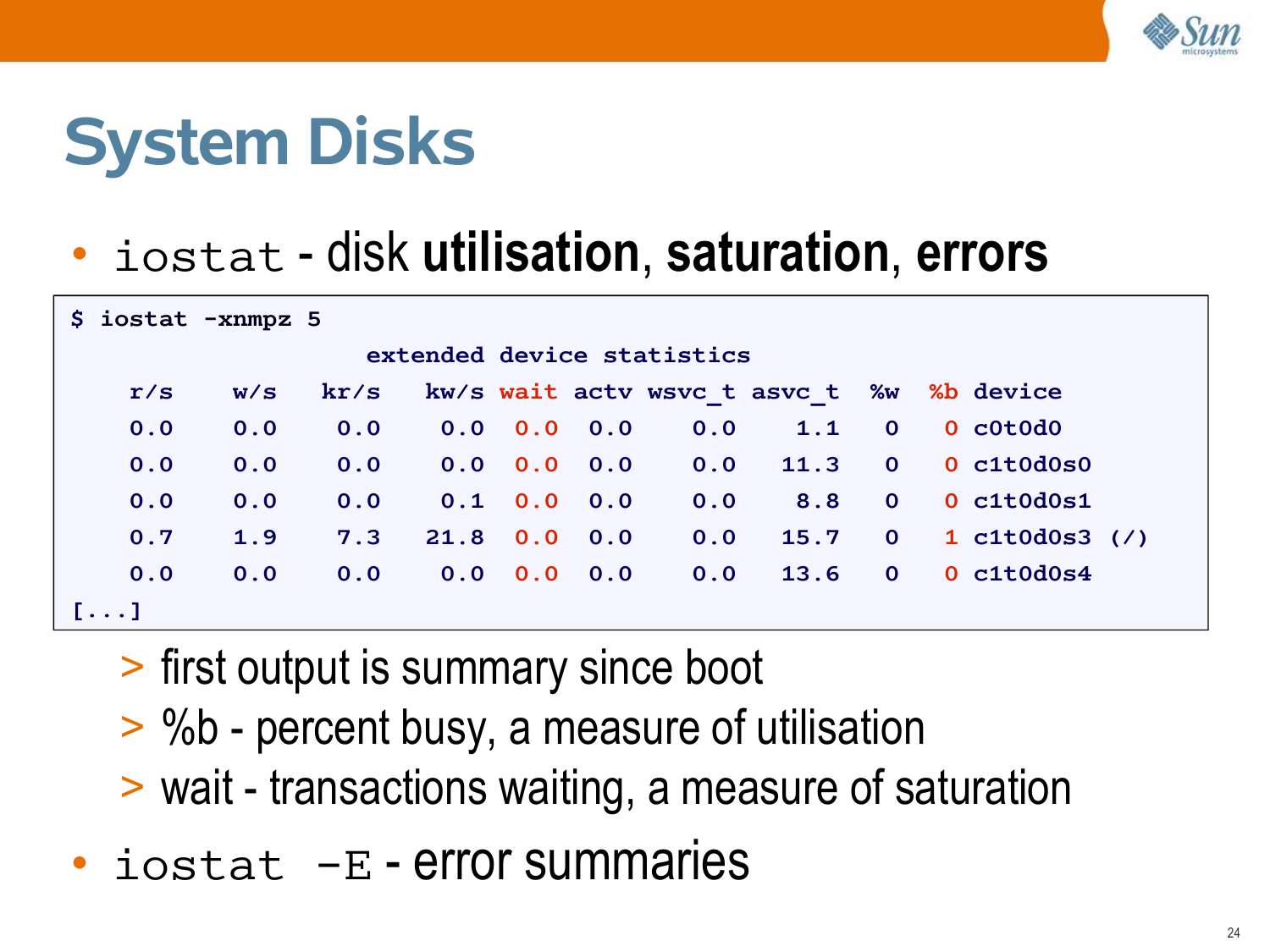

slide 24:
    System Disks
    • iostat - disk utilisation, saturation, errors
    $ iostat -xnmpz 5
    r/s
    [...]
    w/s
    extended device statistics
    kr/s
    kw/s wait actv wsvc_t asvc_t
    0.0 0.0 0.0
    0.0 0.0 0.0
    0.1 0.0 0.0
    21.8 0.0 0.0
    0.0 0.0 0.0
    %b device
    0 c0t0d0
    0 c1t0d0s0
    0 c1t0d0s1
    1 c1t0d0s3 (/)
    0 c1t0d0s4
    >gt; first output is summary since boot
    >gt; %b - percent busy, a measure of utilisation
    >gt; wait - transactions waiting, a measure of saturation
    • iostat -E - error summaries

slide 25:

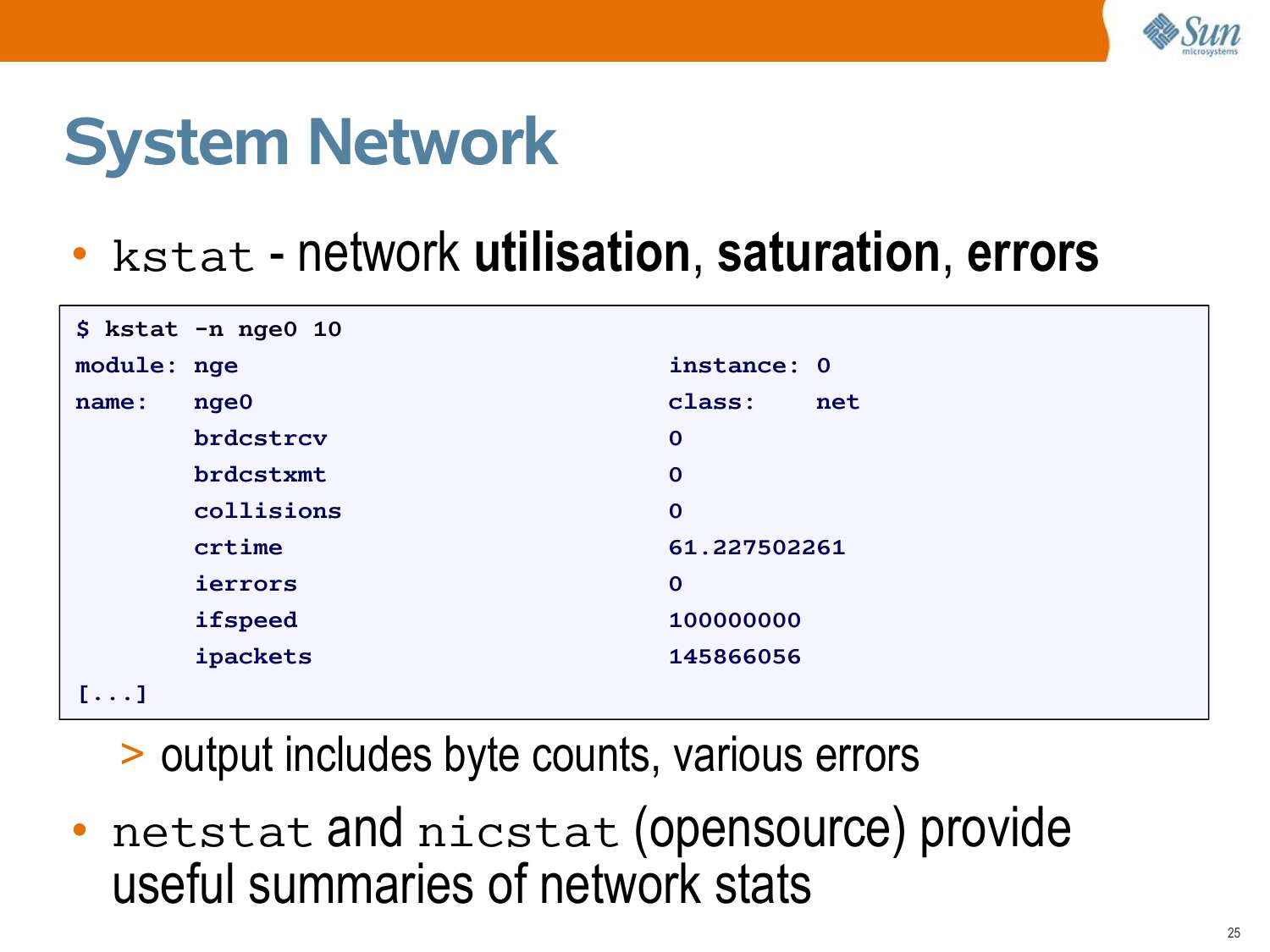

    System Network
    • kstat - network utilisation, saturation, errors
    $ kstat -n nge0 10
    module: nge
    name:
    nge0
    brdcstrcv
    brdcstxmt
    collisions
    crtime
    ierrors
    ifspeed
    ipackets
    [...]
    instance: 0
    class:
    net
    >gt; output includes byte counts, various errors
    • netstat and nicstat (opensource) provide
    useful summaries of network stats

slide 26:

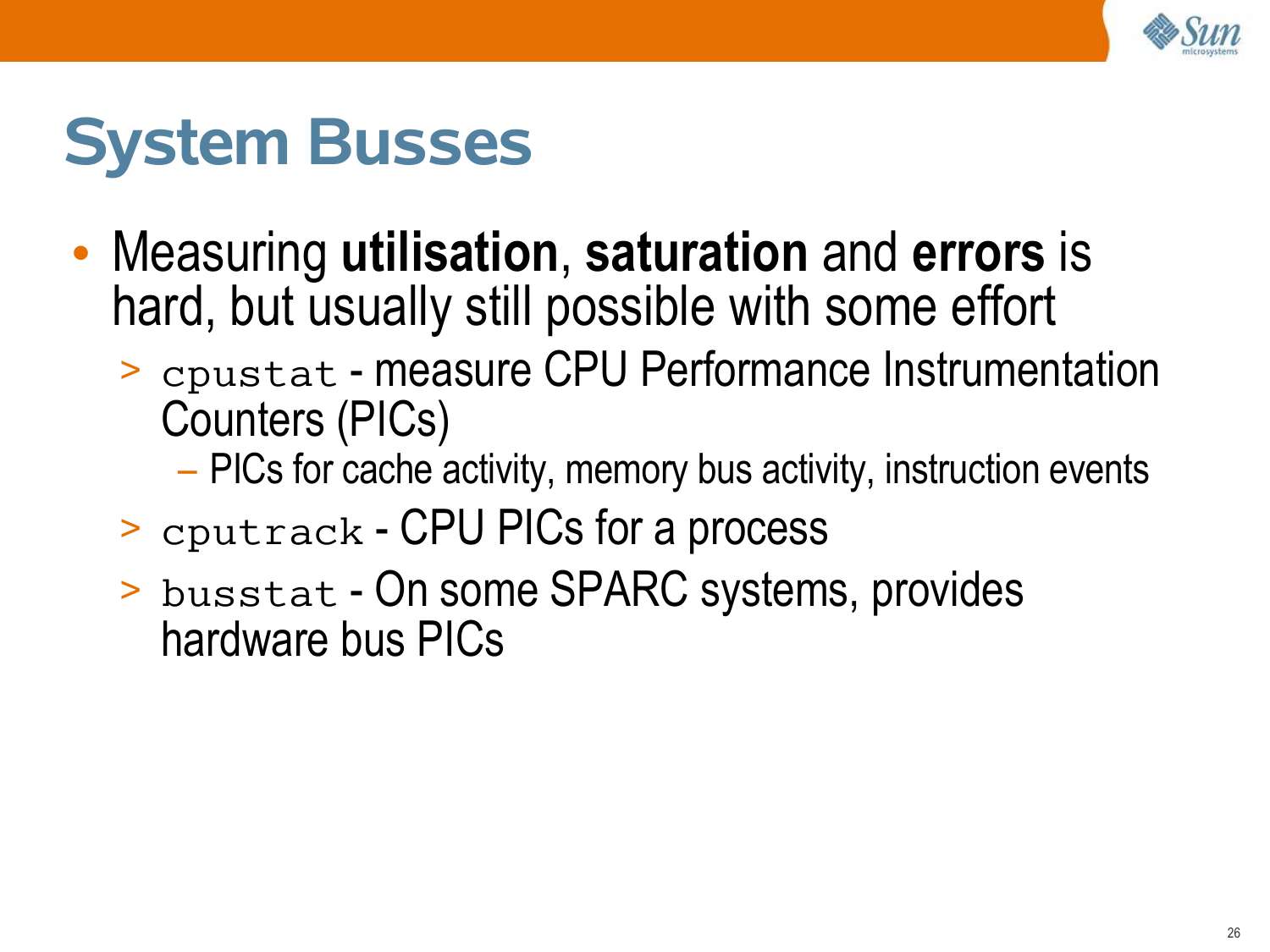

    System Busses
    • Measuring utilisation, saturation and errors is
    hard, but usually still possible with some effort
    >gt; cpustat - measure CPU Performance Instrumentation
    Counters (PICs)
    – PICs for cache activity, memory bus activity, instruction events
    >gt; cputrack - CPU PICs for a process
    >gt; busstat - On some SPARC systems, provides
    hardware bus PICs

slide 27:

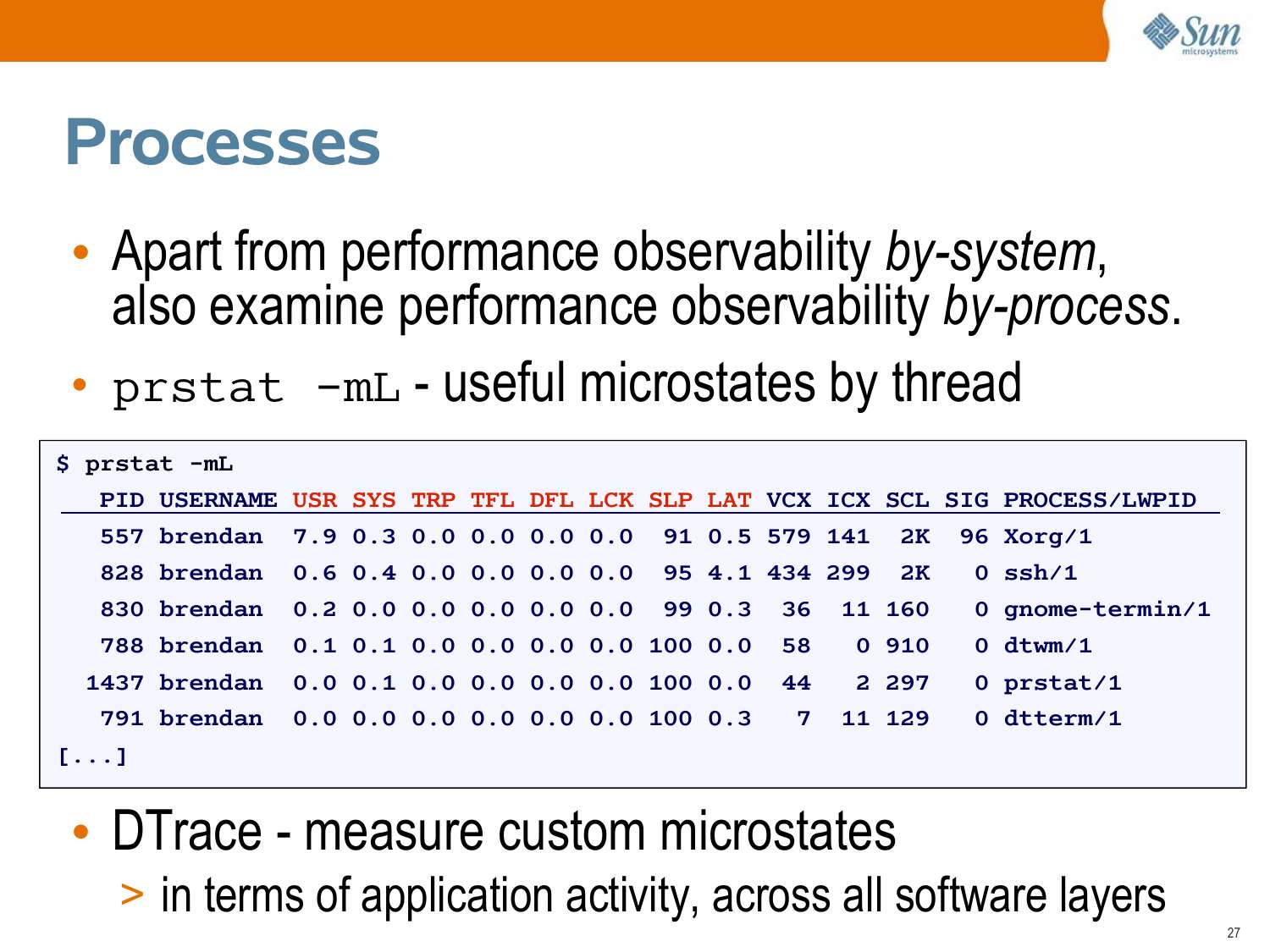

    Processes
    • Apart from performance observability by-system,
    also examine performance observability by-process.
    • prstat -mL - useful microstates by thread
    $ prstat -mL
    PID USERNAME USR SYS TRP TFL DFL LCK SLP LAT VCX ICX SCL SIG PROCESS/LWPID
    557 brendan 7.9 0.3 0.0 0.0 0.0 0.0 91 0.5 579 141 2K 96 Xorg/1
    828 brendan 0.6 0.4 0.0 0.0 0.0 0.0 95 4.1 434 299 2K
    0 ssh/1
    830 brendan 0.2 0.0 0.0 0.0 0.0 0.0 99 0.3 36 11 160
    0 gnome-termin/1
    788 brendan 0.1 0.1 0.0 0.0 0.0 0.0 100 0.0 58
    0 910
    0 dtwm/1
    1437 brendan 0.0 0.1 0.0 0.0 0.0 0.0 100 0.0 44
    2 297
    0 prstat/1
    791 brendan 0.0 0.0 0.0 0.0 0.0 0.0 100 0.3
    7 11 129
    0 dtterm/1
    [...]
    • DTrace - measure custom microstates
    >gt; in terms of application activity, across all software layers

slide 28:

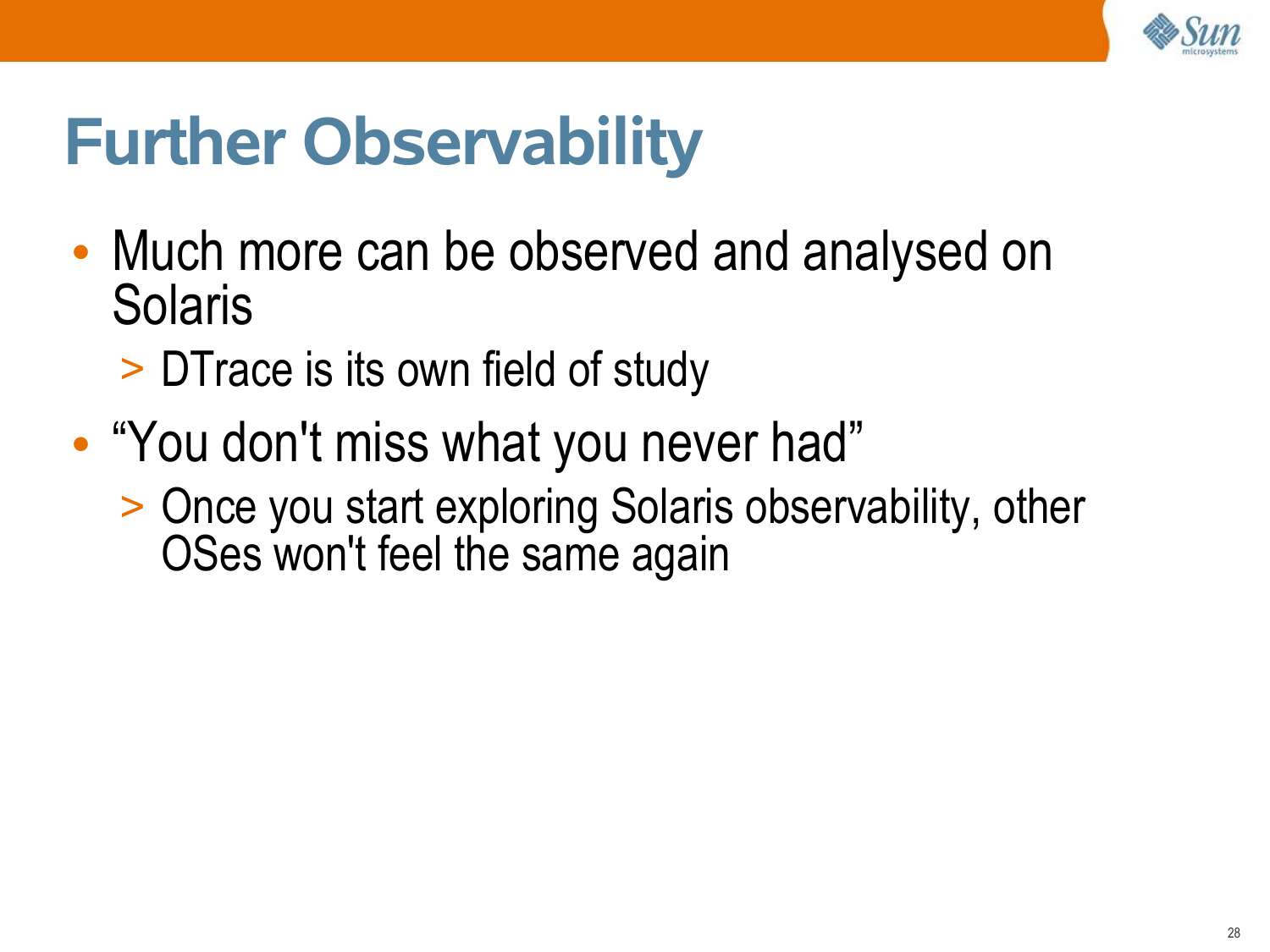

    Further Observability
    • Much more can be observed and analysed on
    Solaris
    >gt; DTrace is its own field of study
    • “You don't miss what you never had”
    >gt; Once you start exploring Solaris observability, other
    OSes won't feel the same again

slide 29:

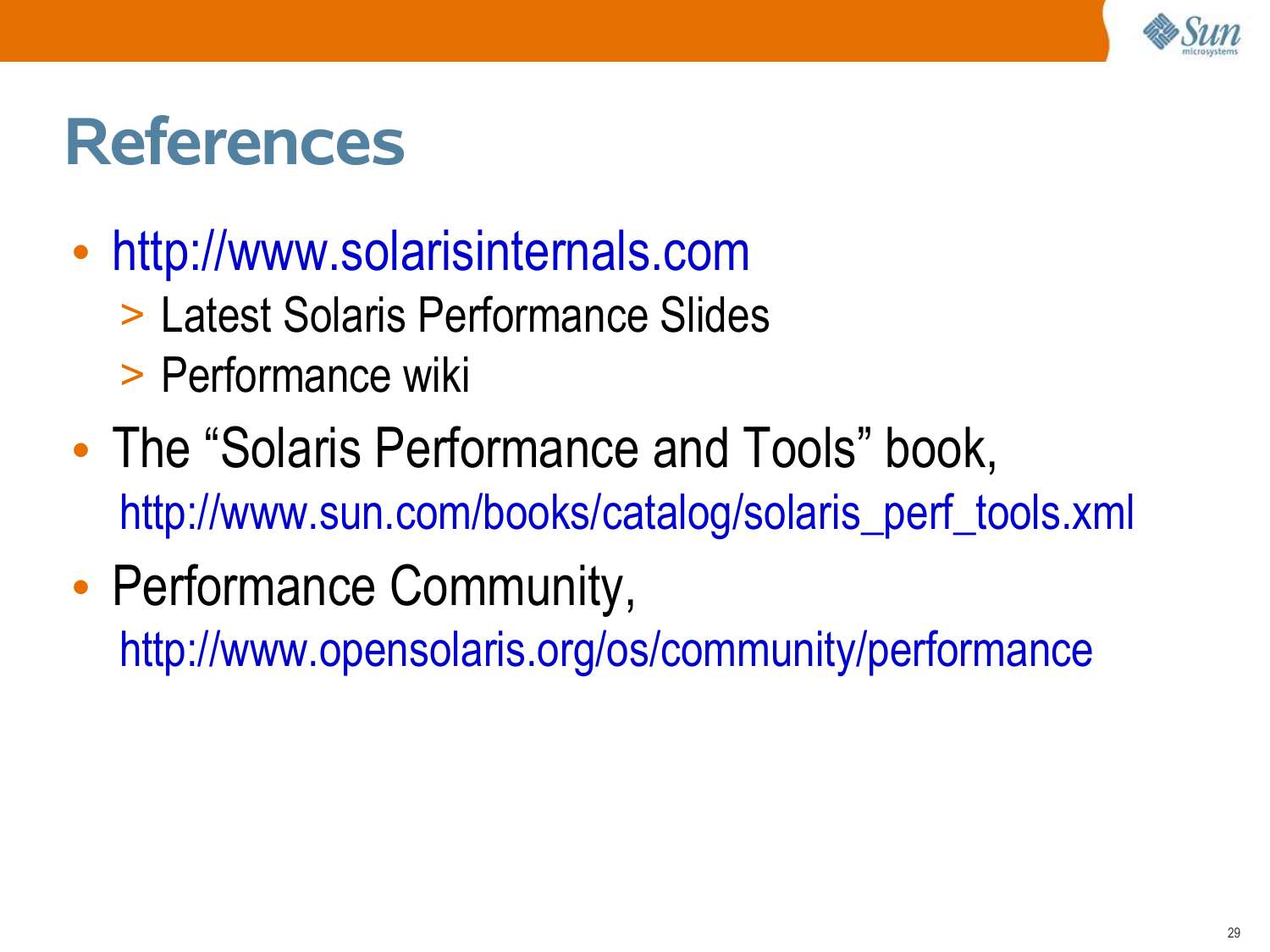

    References
    • http://www.solarisinternals.com
    >gt; Latest Solaris Performance Slides
    >gt; Performance wiki
    • The “Solaris Performance and Tools” book,
    http://www.sun.com/books/catalog/solaris_perf_tools.xml
    • Performance Community,
    http://www.opensolaris.org/os/community/performance

slide 30:
    Ctrl-D
    Brendan Gregg
    brendan@sun.com
