ktap Examples

These are some example one-liners and scripts for ktap: a script-based dynamic tracing tool for Linux. This is not an official ktap page, but rather my own collection of tools I'm using. These examples were written on Ubuntu precise (12.04.2 LTS).

WARNING: This is open source software for an in-development tool, which may not yet be safe for production use. Use at your own risk. I'm currently using this in my own lab environment, just like I do with other unstable Linux tracers.

There's not a lot to see here yet... These examples will stop working from time to time as ktap evolves. Check the examples that come with ktap, which are kept more up to date as the code changes.

One Liners

# List all probes:
ktap -le

# List syscall enter probes (or use grep):
ktap -le 'syscalls:sys_enter_*'

# Tracing connect() syscalls by process name:
ktap -e 'trace syscalls:sys_enter_connect { print("connect() by: ", execname); }'

# Tracing heap size changes via brk() syscall:
ktap -e 'trace syscalls:sys_enter_brk { printf("%s called %s", execname, argstr); }'

# Tracing process execution (if probe exists):
ktap -e 'trace sched:sched_process_exec { print("running: ", pid, execname); }'

# Syscall count by syscall:
ktap -e 'var s = {}; trace syscalls:sys_enter_* { s[probename] += 1 } trace_end { print_hist(s); }'

# Syscall count by syscall, with starting text:
ktap -e 'var s = {}; printf("Tracing... Ctrl-C to end.\n");
    trace syscalls:sys_enter_* { s[probename] += 1 } trace_end { print_hist(s); }'

# Syscall count by program:
ktap -e 'var s = {}; trace syscalls:sys_enter_* { s[execname()] += 1 } trace_end { print_hist(s); }'

# read() syscall by requested size distribution:
ktap -e 'var s = {}; trace syscalls:sys_enter_read { s[arg4] += 1 } trace_end { print_hist(s); }'

# read() syscall by returned size distribution:
ktap -e 'var s = {}; trace syscalls:sys_exit_read { s[arg2] += 1 } trace_end { print_hist(s); }'

# Stack profiling at 100 Hz, unsorted (see ktap's stack_profile.kp):
ktap -e 'var s = {}; profile-10ms { s[stack()] += 1 }
    trace_end { for (k, v in pairs(s)) { print(k, v, "\n"); } }'

# Dynamic tracing of tcp_sendmsg() with stack traces:
ktap -e 'var s = {}; trace probe:tcp_sendmsg { s[stack()] += 1 }
    trace_end { for (k, v in pairs(s)) { print(k, v, "\n"); } }'

# Tracing process execution, with simple (-s) info (currently broken):
ktap -s sched:sched_process_exec

I've included an example that has some starting text, so that you know when tracing has began. Instead of this, you could run these one-liners with "-v", verbose mode, for a similar effect. ktap's startup is fairly fast, so this is less necessary than it is with other tracing tools.

Sample One-Liner Outputs

Tracing heap size changes via brk() syscall:

# ktap -e 'trace syscalls:sys_enter_brk { printf("%s called %s", execname, argstr); }'
Tracing... Hit Ctrl-C to end.
date called sys_brk(brk: 0)
date called sys_brk(brk: 0)
date called sys_brk(brk: 1fdc000)
postgres called sys_brk(brk: 269d000)
postgres called sys_brk(brk: 26ca000)
postgres called sys_brk(brk: 26eb000)
postgres called sys_brk(brk: 270f000)
postgres called sys_brk(brk: 2730000)
postgres called sys_brk(brk: 2752000)
postgres called sys_brk(brk: 2774000)
[...]

Tracing process execution (if probe exists):

# ktap -e 'trace sched:sched_process_exec { print("running: ", pid, execname); }'
running: 	1271	man
running: 	1279	preconv
running: 	1280	tbl
running: 	1282	pager
running: 	1281	nroff
running: 	1283	locale
running: 	1284	groff
running: 	1285	troff
running: 	1286	grotty
[...]

Syscall by syscall name:

# ktap -e 'var s = {}; printf("Tracing... Ctrl-C to end.\n");
    trace syscalls:sys_enter_* { s[probename] += 1 } trace_end { print_hist(s); }'
Tracing... Ctrl-C to end.
^C
                          value ------------- Distribution ------------- count
        sys_enter_rt_sigprocmask |@@@@@@@@@                              260
          sys_enter_rt_sigaction |@@@@@                                  166
                  sys_enter_read |@@@                                    107
                 sys_enter_times |@@                                     80
                sys_enter_select |@@                                     74
                 sys_enter_ioctl |@@                                     71
                 sys_enter_write |@@                                     64
                  sys_enter_poll |@                                      43
                  sys_enter_mmap |@                                      32
                 sys_enter_close |                                       25
               sys_enter_newstat |                                       25
              sys_enter_newfstat |                                       16
                  sys_enter_open |                                       16
                sys_enter_access |                                       16
              sys_enter_mprotect |                                       13
                sys_enter_statfs |                                       11
               sys_enter_getegid |                                       8
                sys_enter_munmap |                                       8
               sys_enter_geteuid |                                       8
                sys_enter_getuid |                                       8
                             ... |

read() syscall by returned size distribution:

# ktap -e 'var s = {}; trace syscalls:sys_exit_read { s[arg2] += 1 } trace_end { print_hist(s); }'
^C
                          value ------------- Distribution ------------- count
                             -11 |@@@@@@@@@@@@@@@@@@@@@@@@               50
                              18 |@@@@@@                                 13
                              72 |@@                                     6
                            1024 |@                                      4
                               0 |                                       2
                               2 |                                       2
                             446 |                                       1
                             515 |                                       1
                              48 |                                       1

Scripts

syslatl.kp: syscall latency as a linear aggregation. This script can be edited to adjust the step size, which is 10 ms by default.

UPDATE: this is now part of ktap, under samples/syscalls/syslatl.kp.

# ./syslatl.kp
Tracing syscalls... Hit Ctrl-C to end.
^C
   LAT(ms)+    COUNT
          0      378
         10        0
         20        0
         30        1
         40        0
         50        0
         60        0
         70        2
         80        0
         90        0
        100       33
        110        0
        120        2
        130        0
        140        2
        150        0
        160        2

The script loops from zero latency to the maximum seen, printing the counts for each latency range. As ktap is in development, it's possible an easier way to achieve similar output will be added.

opensnoop.kp: trace open() syscalls and print basic details. Useful for debugging as it can quickly show which data files, log files, and config files are in use by an application.

# ./opensnoop.kp
   PID COMM          FD ERR PATH
 15313 ktap           5   0 /sys/kernel/debug/ktap/trace_pipe_15313
 15315 ssh            3   0 /etc/nsswitch.conf
 15315 ssh            3   0 /etc/ld.so.cache
 15315 ssh            3   0 /lib/x86_64-linux-gnu/libnss_compat.so.2
 15315 ssh            3   0 /lib/x86_64-linux-gnu/libnsl.so.1
 15315 ssh            3   0 /etc/ld.so.cache
 15315 ssh            3   0 /lib/x86_64-linux-gnu/libnss_nis.so.2
 15315 ssh            3   0 /lib/x86_64-linux-gnu/libnss_files.so.2
 15315 ssh            3   0 /etc/passwd
 15315 ssh            3   0 /usr/lib/ssl/openssl.cnf
 15315 ssh            0   2 /root/.ssh/config
 15315 ssh            3   0 /etc/ssh/ssh_config
 15315 ssh            3   0 /etc/ld.so.cache
   848 irqbalance     3   0 /proc/stat
   848 irqbalance     3   0 /proc/interrupts
   848 irqbalance     4   0 /proc/irq/0/affinity_hint
[...]

Flame Graphs

A Flame Graph visualizes stack traces, and ktap already supports their generation via the scripts/profiling/stack_profile.kp script. Here's an example using a ktap one-liner and the Flame Graph software:

# ktap -e 'var s = {}; profile-1ms { s[stack(100)] += 1 }
    trace_end { for (k, v in pairs(s)) { print(k, v, "\n") } }
    tick-30s { exit(0) }' -o out.kstacks
# sed 's/	//g' out.kstacks | stackcollapse.pl | flamegraph.pl > out.kstacks.svg

The sed(1) command remove tab characters (that's a tab, not a series of spaces), so that stackcollapse.pl can process the text. A stackcollapse-ktap.pl could be easily written to process ktap output directly, and avoid the need for sed(1).

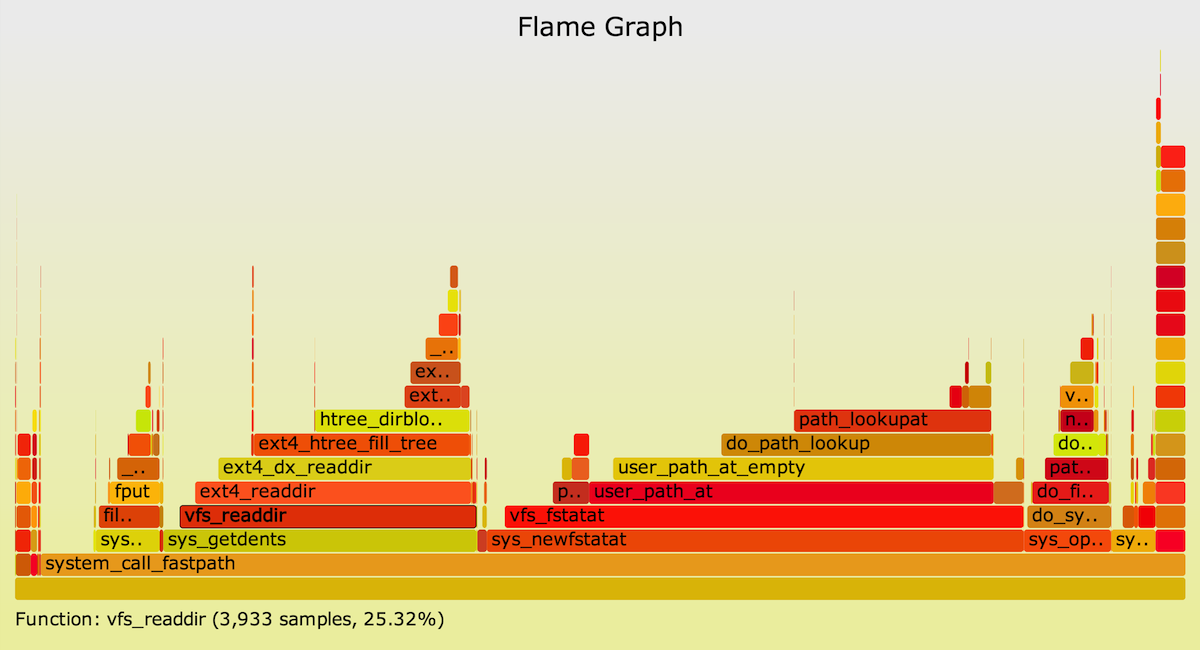

The resulting flame graph:

Click for the interactive SVG, where you can mouse-over elements.

Setup

Last time I installed ktap on Ubuntu 13.10 (kernel: 3.11.0-17-generic), I used these steps:

apt-get install git gcc make libelf-dev
git clone https://github.com/ktap/ktap
cd ktap
make
make install
make load

Took 5 minutes. As said earlier, this is still in development, so I'm only using it in lab environments at the moment.
