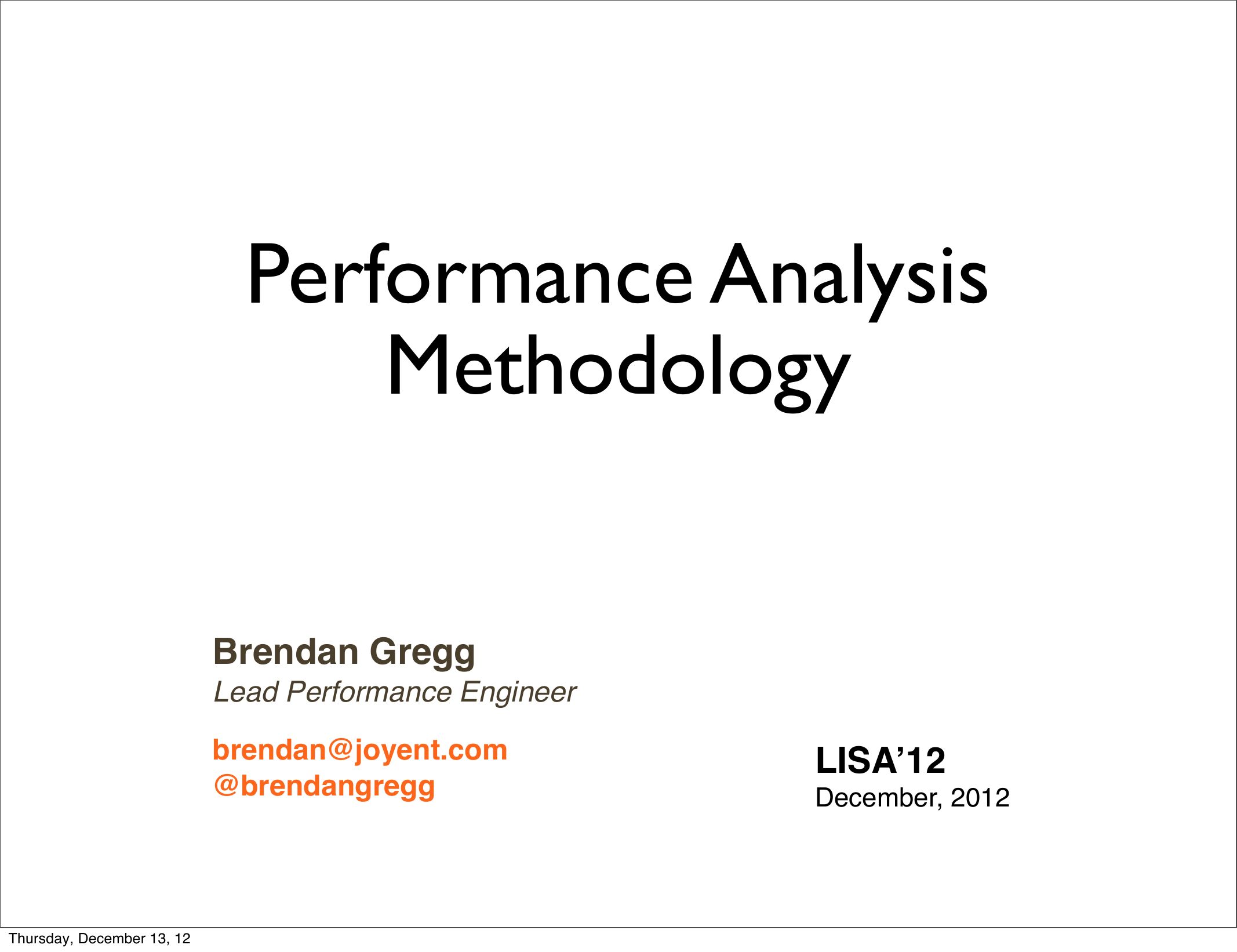

Performance Analysis
Methodology
Brendan Gregg
Lead Performance Engineer
brendan@joyent.com
@brendangregg
Thursday, December 13, 12
LISA’12
December, 2012

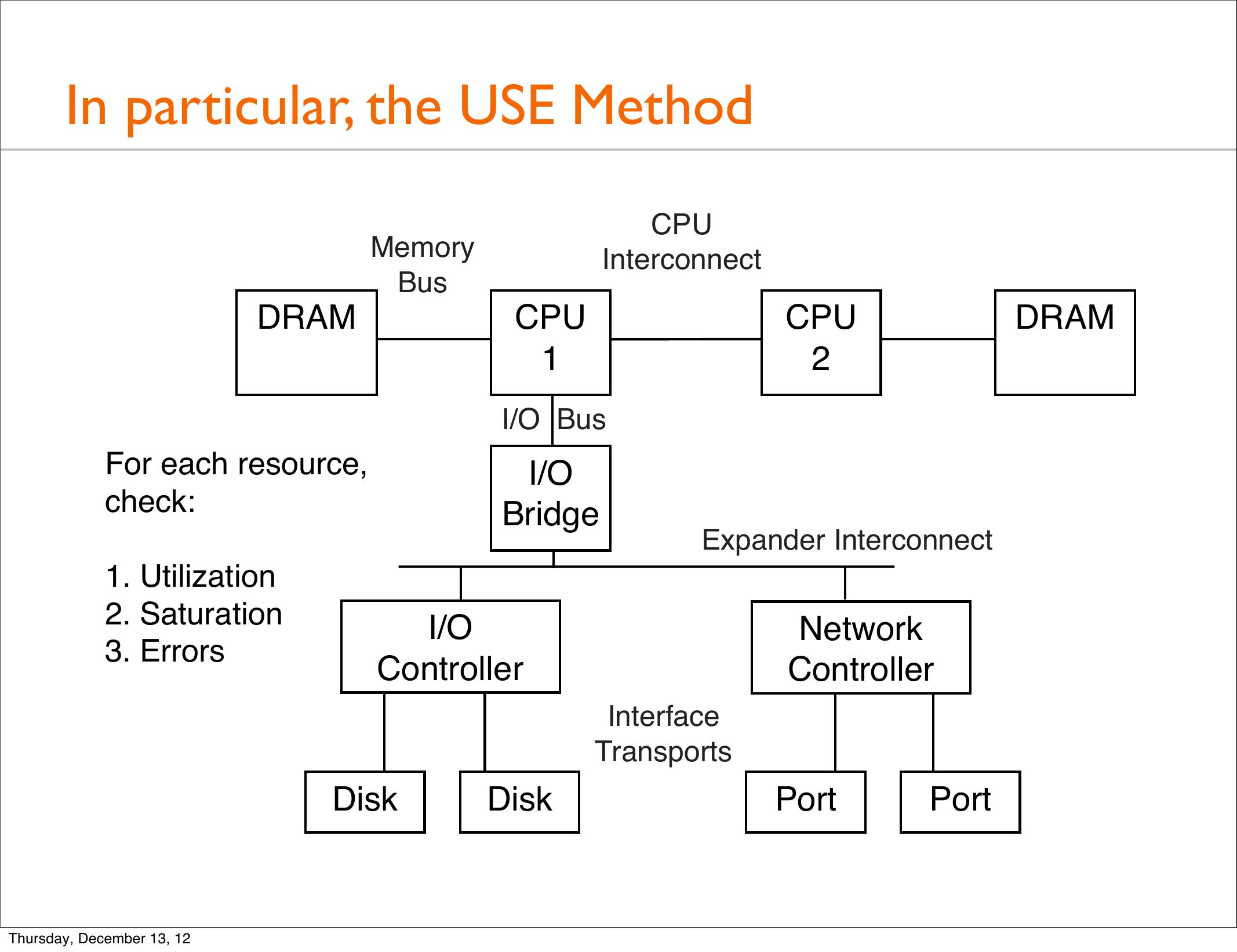

In particular, the USE Method

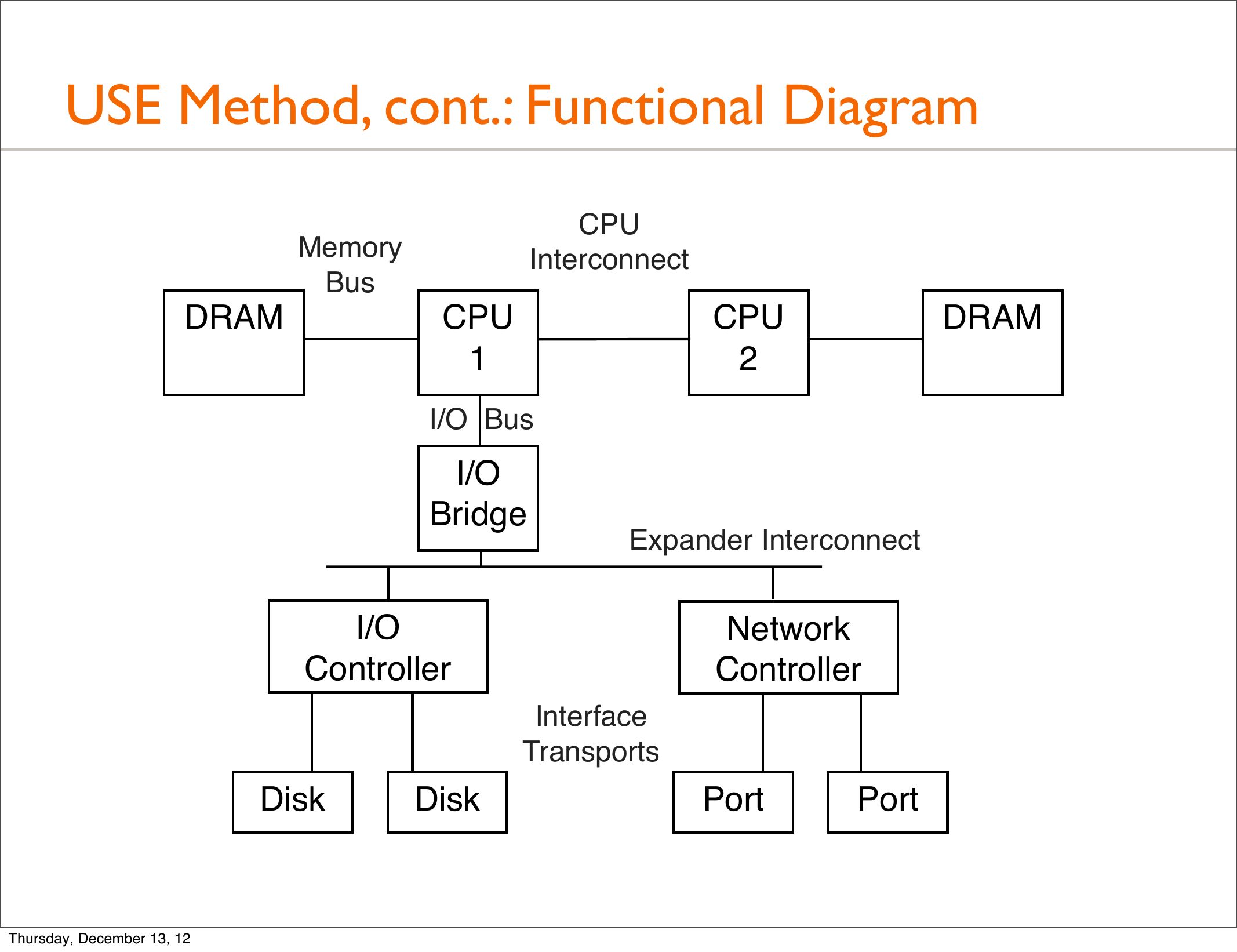

CPU
Interconnect
Memory
Bus
DRAM
CPU
CPU
DRAM
I/O Bus
For each resource,
check:
1. Utilization
2. Saturation
3. Errors
I/O
Bridge
Expander Interconnect
I/O
Controller
Network
Controller
Interface
Transports
Disk
Thursday, December 13, 12
Disk
Port
Port

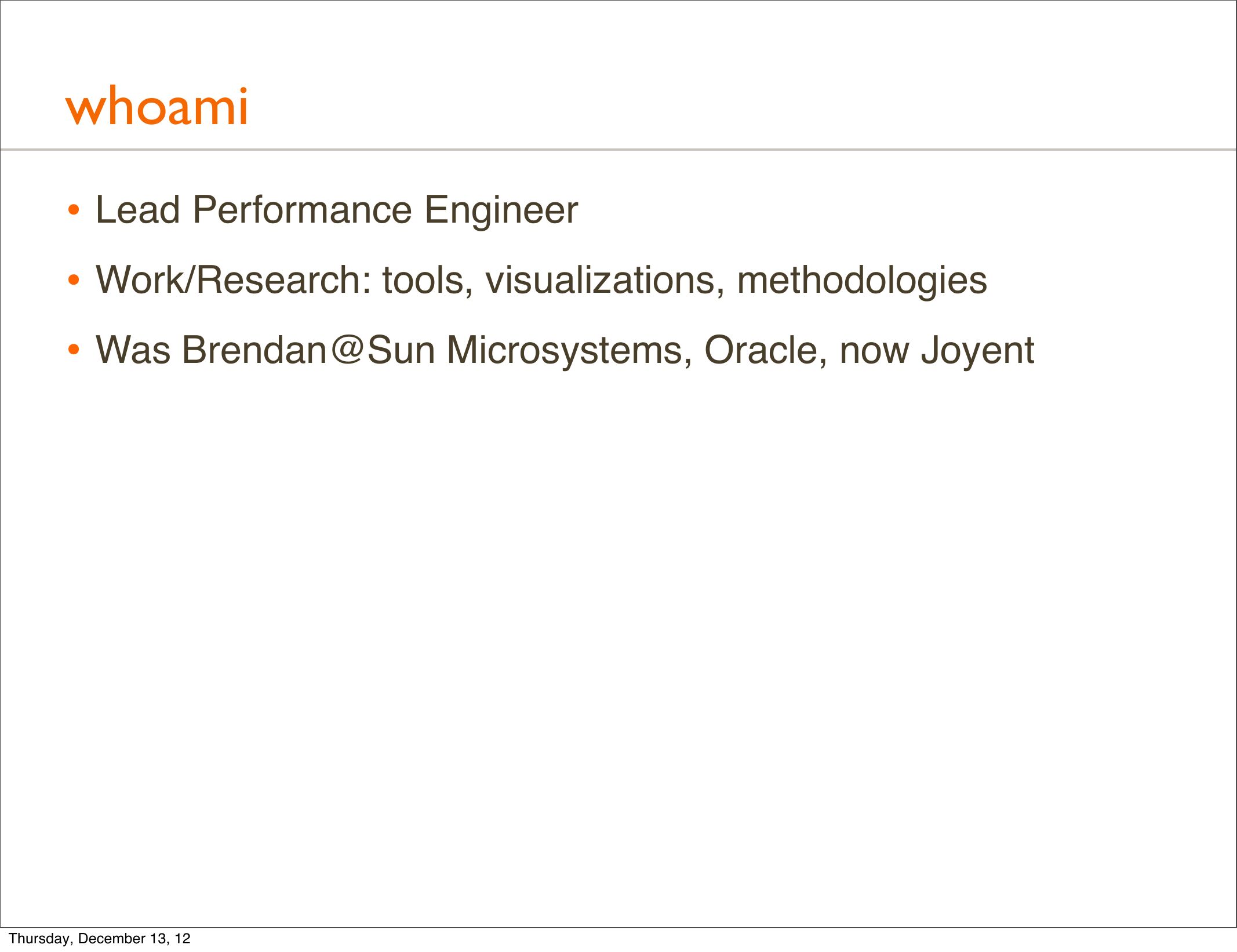

whoami
• Lead Performance Engineer
• Work/Research: tools, visualizations, methodologies
• Was Brendan@Sun Microsystems, Oracle, now Joyent
Thursday, December 13, 12

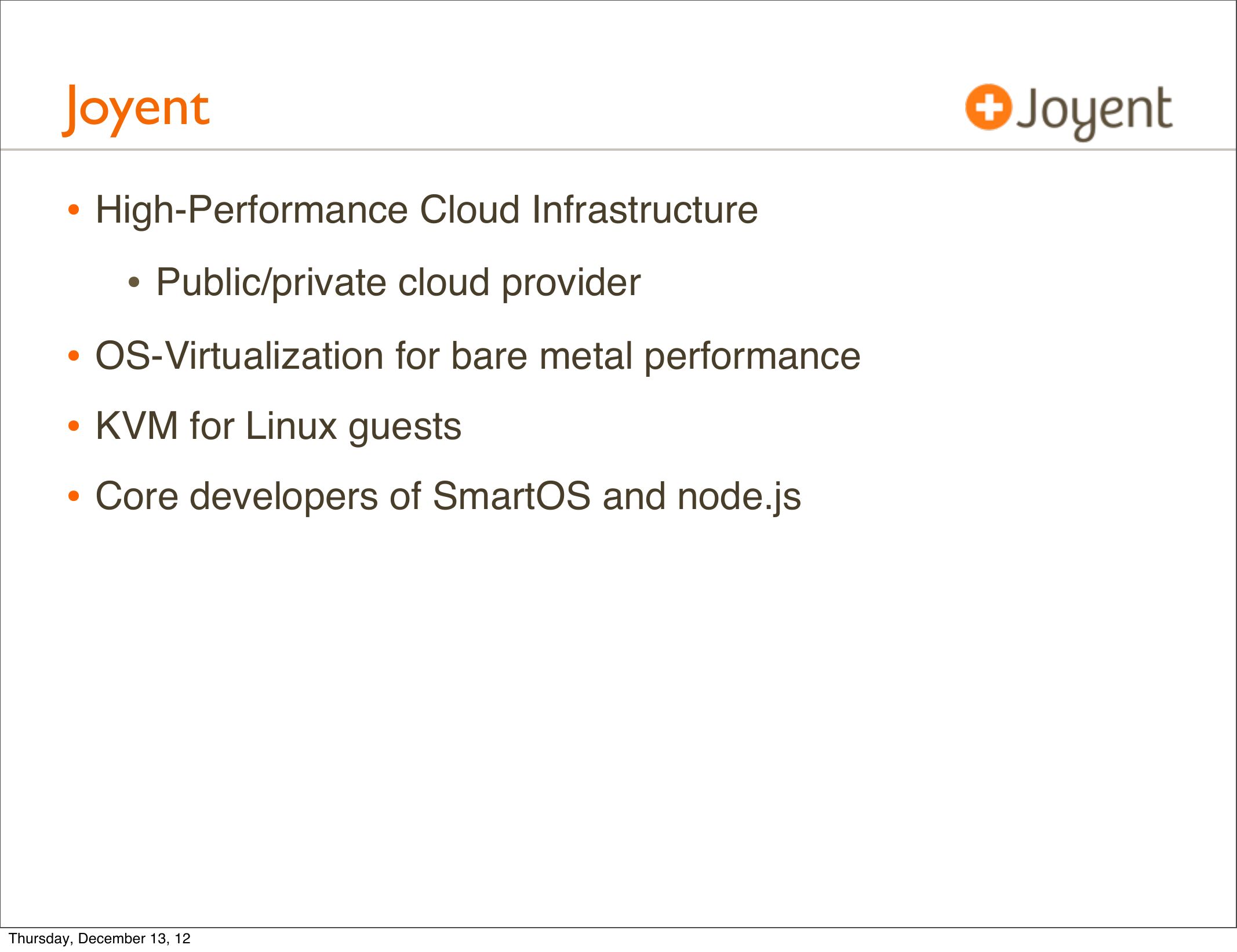

Joyent
• High-Performance Cloud Infrastructure
• Public/private cloud provider
• OS-Virtualization for bare metal performance
• KVM for Linux guests
• Core developers of SmartOS and node.js
Thursday, December 13, 12

LISA10: Performance Visualizations
• Included latency heat maps
Buldge
Beak
Head
Wing
Shoulders
Body
Neck
http://dtrace.org/blogs/brendan/2012/12/10/usenix-lisa-2010-visualizations-for-performance-analysis/
Thursday, December 13, 12

LISA12: Performance Methodologies
• Also a focus of my next book
Systems
Performance
ENTERPRISE
AND THE CLOUD
Brendan Gregg
Prentice Hall, 2013
Thursday, December 13, 12

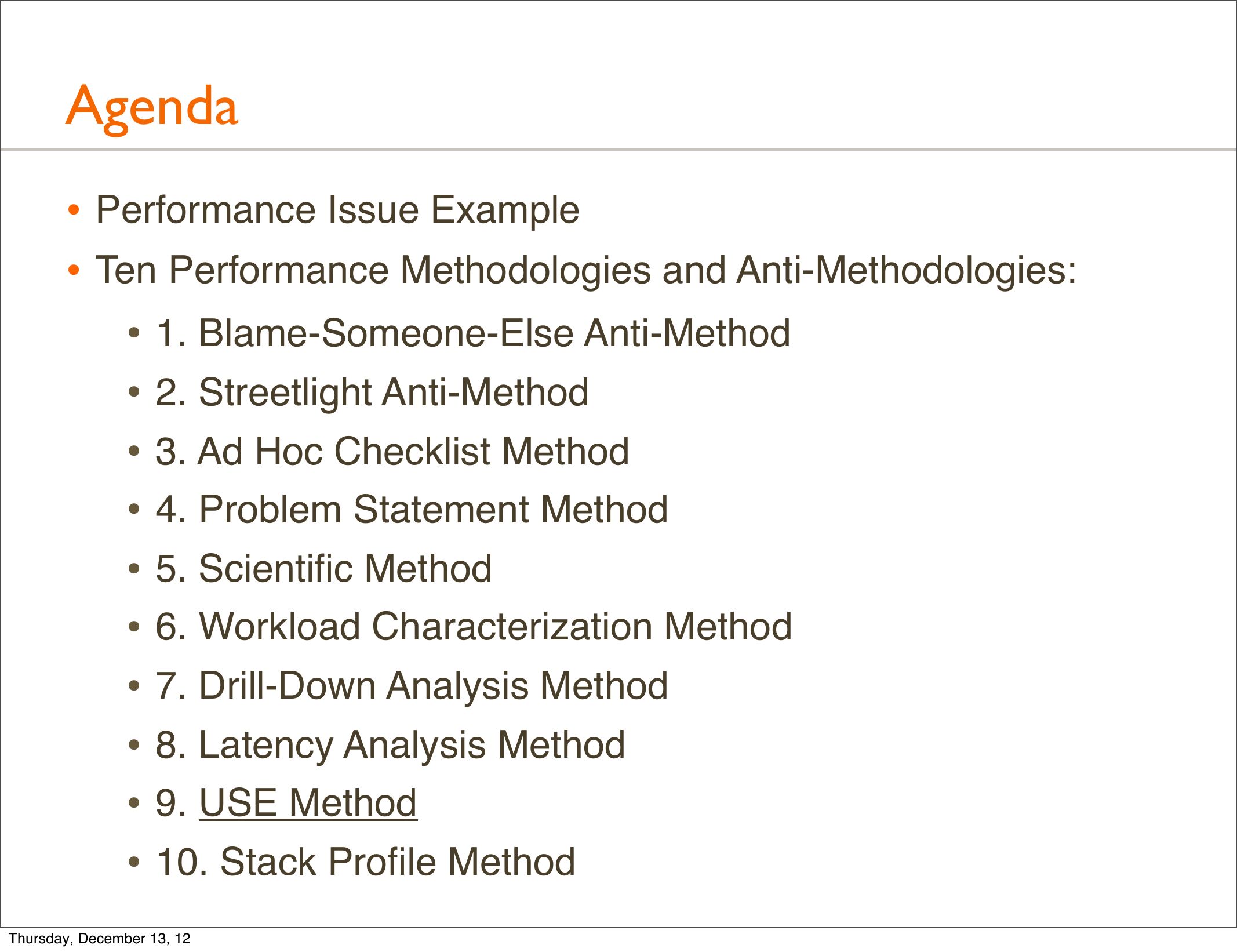

Agenda
• Performance Issue Example
• Ten Performance Methodologies and Anti-Methodologies:
• 1. Blame-Someone-Else Anti-Method
• 2. Streetlight Anti-Method
• 3. Ad Hoc Checklist Method
• 4. Problem Statement Method
• 5. Scientific Method
• 6. Workload Characterization Method
• 7. Drill-Down Analysis Method
• 8. Latency Analysis Method
• 9. USE Method
• 10. Stack Profile Method
Thursday, December 13, 12

Agenda, cont.

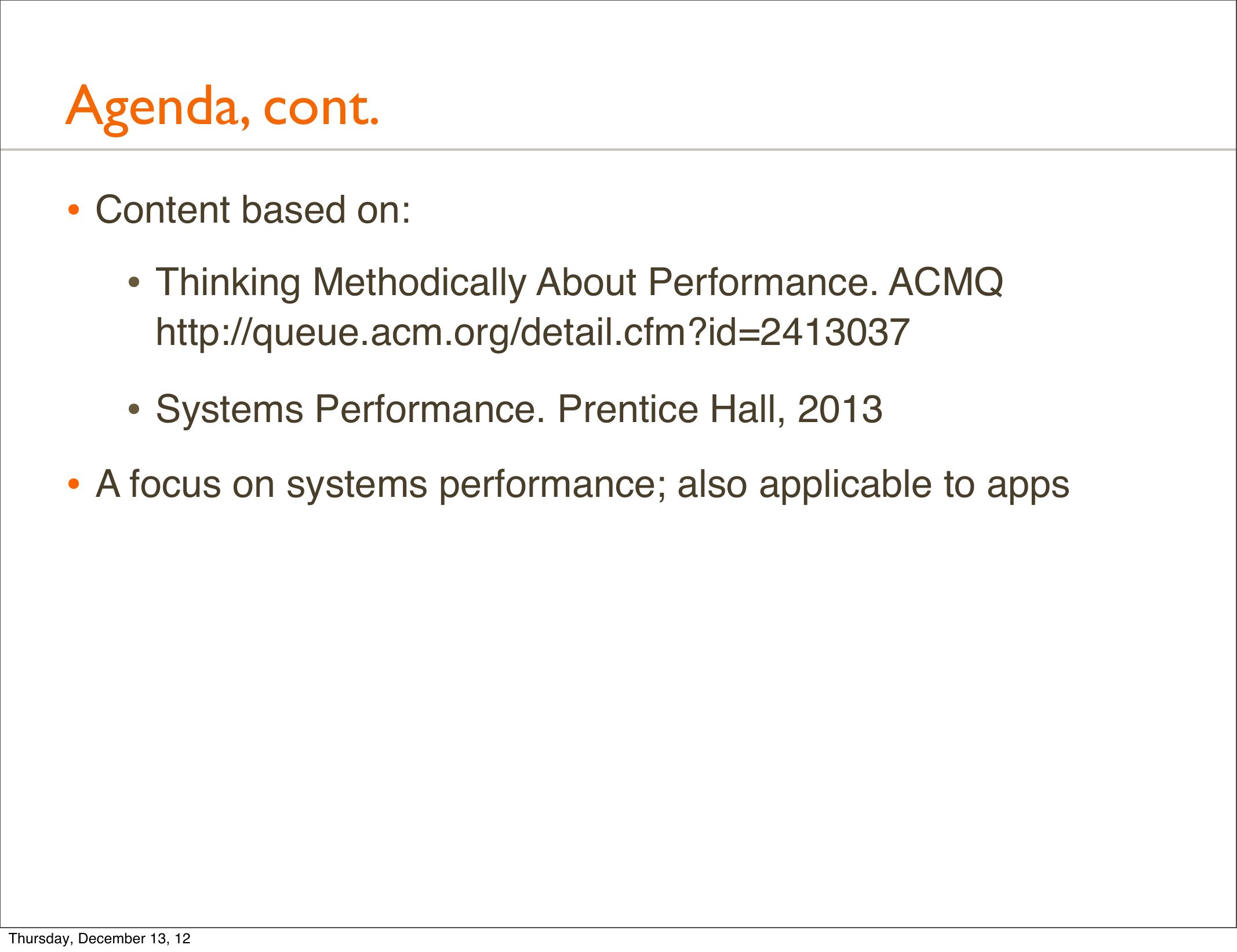

• Content based on:
• Thinking Methodically About Performance. ACMQ
http://queue.acm.org/detail.cfm?id=2413037
• Systems Performance. Prentice Hall, 2013
• A focus on systems performance; also applicable to apps
Thursday, December 13, 12

Performance Issue

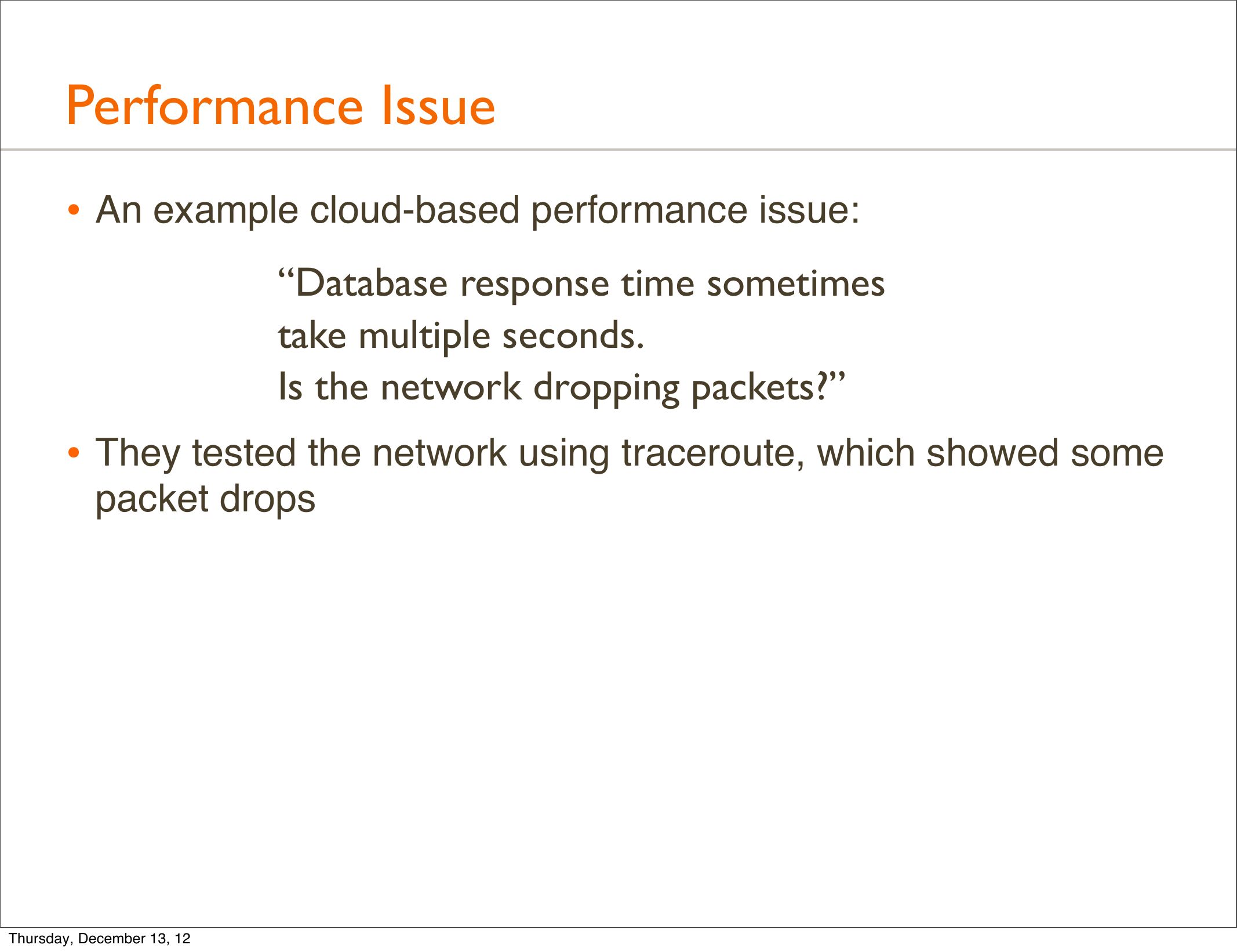

• An example cloud-based performance issue:
“Database response time sometimes
take multiple seconds.
Is the network dropping packets?”
• They tested the network using traceroute, which showed some
packet drops
Thursday, December 13, 12

Performance Issue, cont.

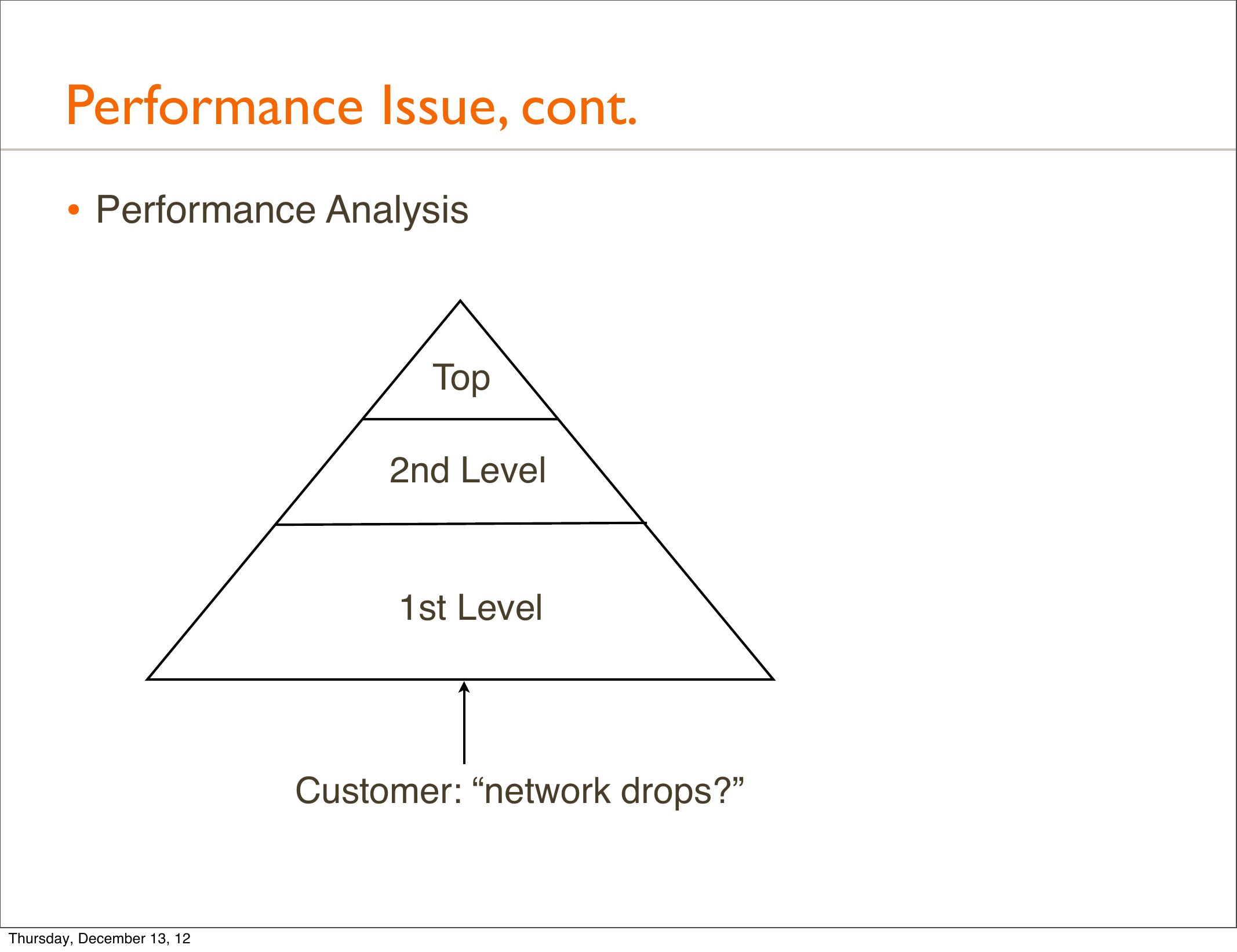

• Performance Analysis
Top
2nd Level
1st Level
Customer: “network drops?”
Thursday, December 13, 12

Performance Issue, cont.
• Performance Analysis
Top
2nd Level
“network looks ok,
CPU also ok”
1st Level
“ran traceroute,
can’t reproduce”
Customer: “network drops?”
Thursday, December 13, 12
my turn

Performance Issue, cont.
• Could try network packet sniffing
• tcpdump/snoop
• Performance overhead during capture (CPU, storage)
and post-processing (wireshark, etc)
• Time consuming to analyze: not real-time
Thursday, December 13, 12

Performance Issue, cont.
• Could try dynamic tracing
• Efficient: only drop/retransmit paths traced
• Context: kernel state readable
• Real-time: analysis and summaries

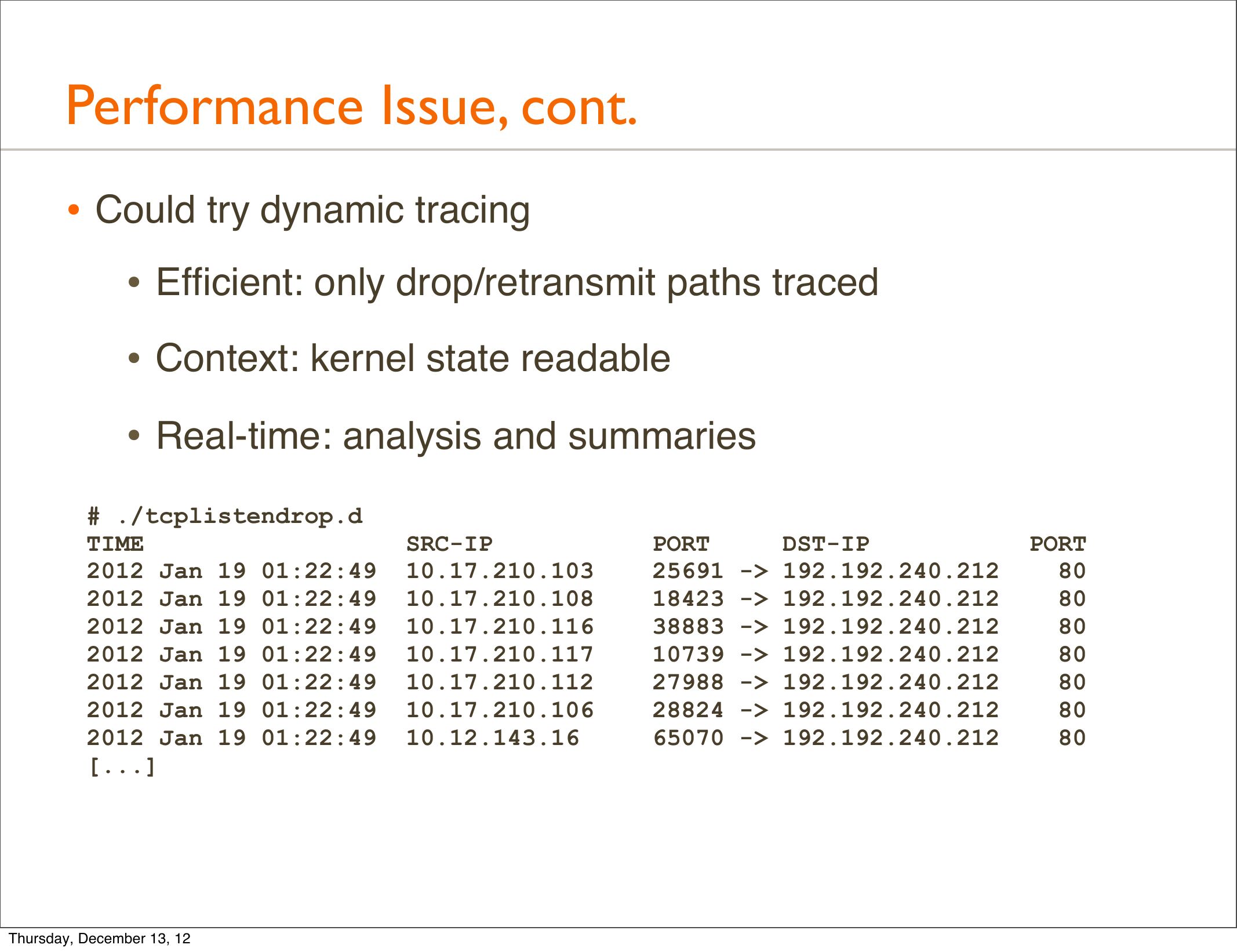

# ./tcplistendrop.d
TIME
2012 Jan 19 01:22:49
2012 Jan 19 01:22:49
2012 Jan 19 01:22:49
2012 Jan 19 01:22:49
2012 Jan 19 01:22:49
2012 Jan 19 01:22:49
2012 Jan 19 01:22:49
[...]
Thursday, December 13, 12
SRC-IP
PORT
DST-IP
25691 ->gt; 192.192.240.212
18423 ->gt; 192.192.240.212
38883 ->gt; 192.192.240.212
10739 ->gt; 192.192.240.212
27988 ->gt; 192.192.240.212
28824 ->gt; 192.192.240.212
65070 ->gt; 192.192.240.212
PORT

Performance Issue, cont.

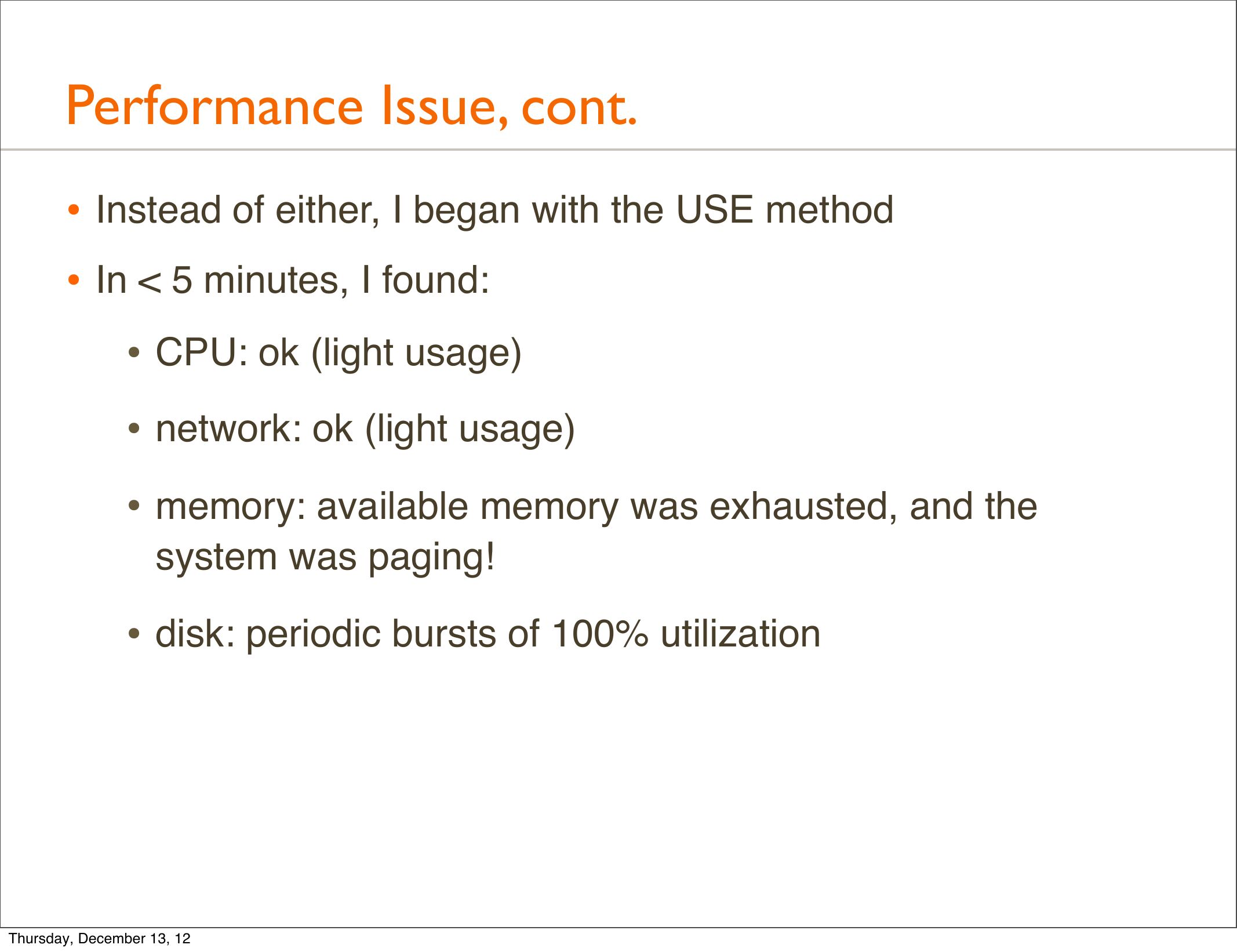

• Instead of either, I began with the USE method
• In

Performance Issue, cont.

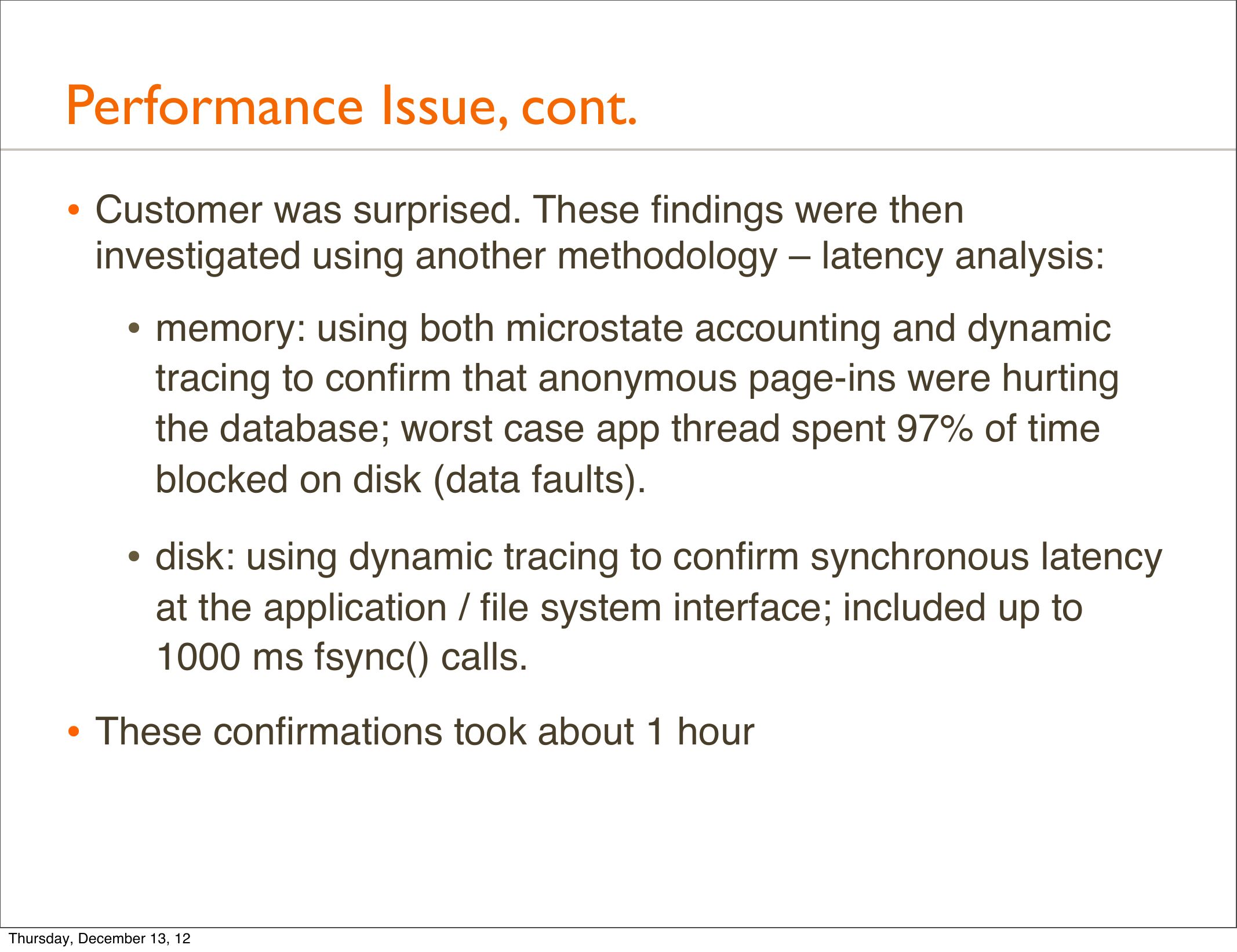

• Customer was surprised. These findings were then
investigated using another methodology – latency analysis:
• memory: using both microstate accounting and dynamic
tracing to confirm that anonymous page-ins were hurting
the database; worst case app thread spent 97% of time
blocked on disk (data faults).
• disk: using dynamic tracing to confirm synchronous latency
at the application / file system interface; included up to
1000 ms fsync() calls.
• These confirmations took about 1 hour
Thursday, December 13, 12

Performance Issue, cont.

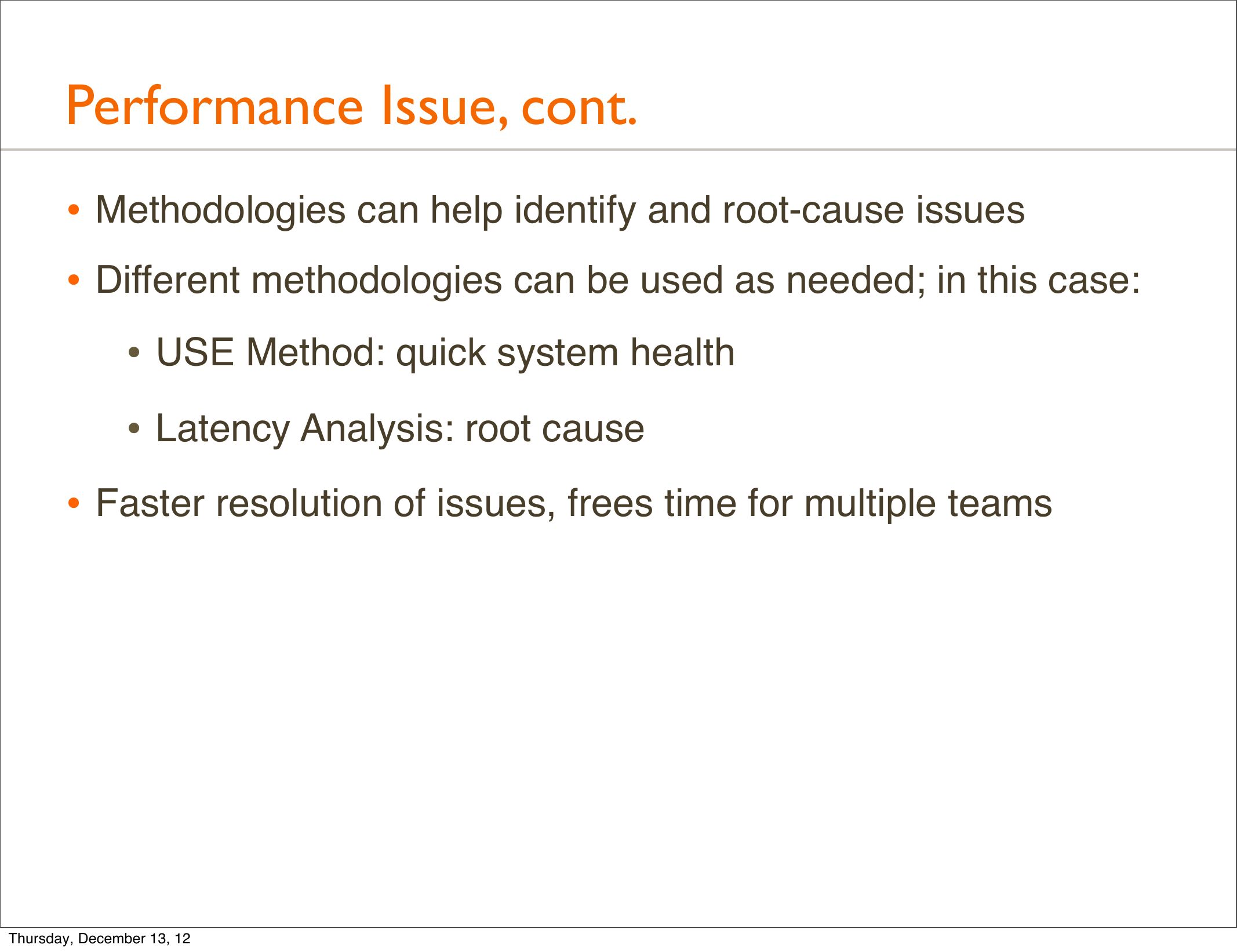

• Methodologies can help identify and root-cause issues
• Different methodologies can be used as needed; in this case:
• USE Method: quick system health
• Latency Analysis: root cause
• Faster resolution of issues, frees time for multiple teams
Thursday, December 13, 12

Performance Methodologies

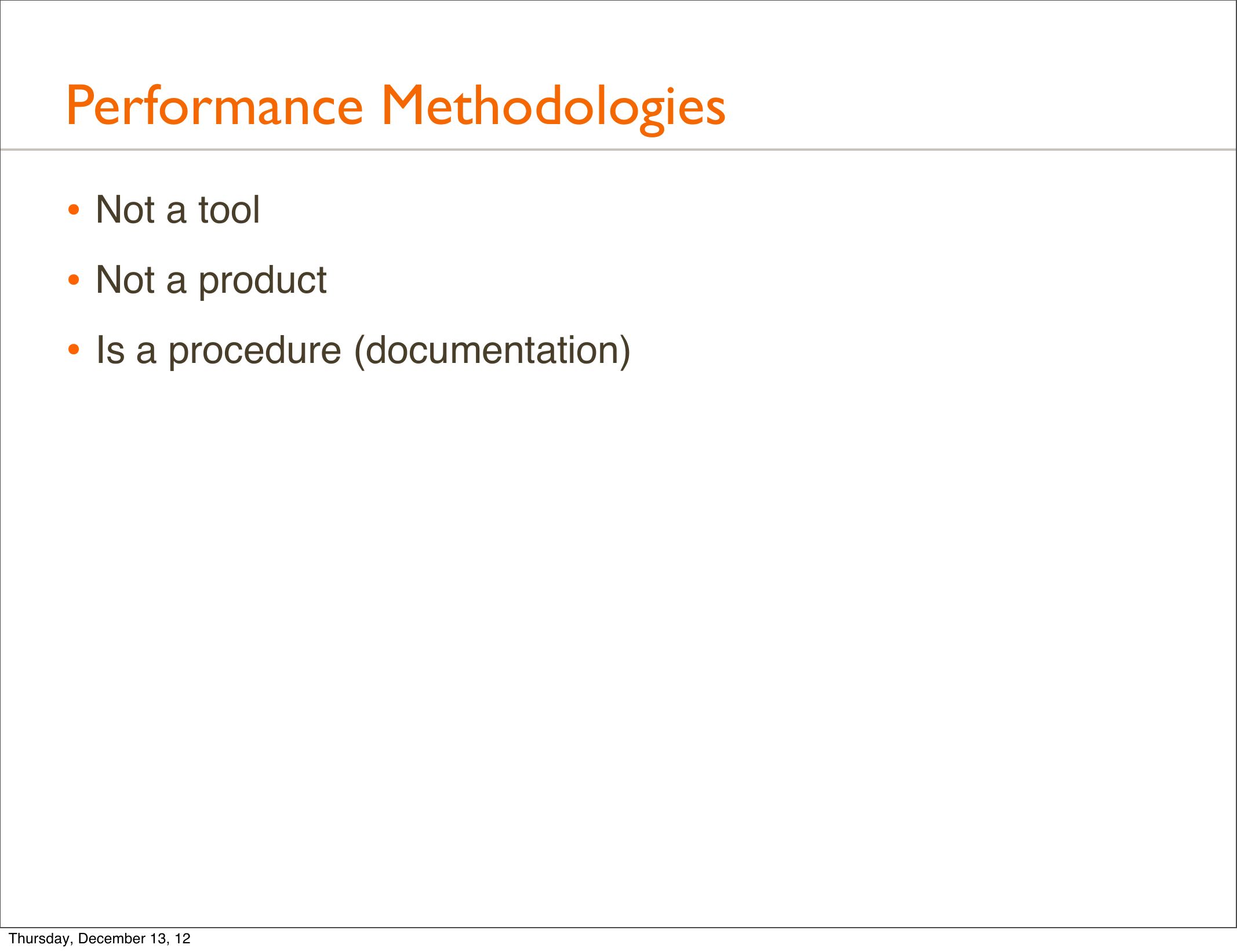

• Not a tool
• Not a product
• Is a procedure (documentation)
Thursday, December 13, 12

Performance Methodologies, cont.

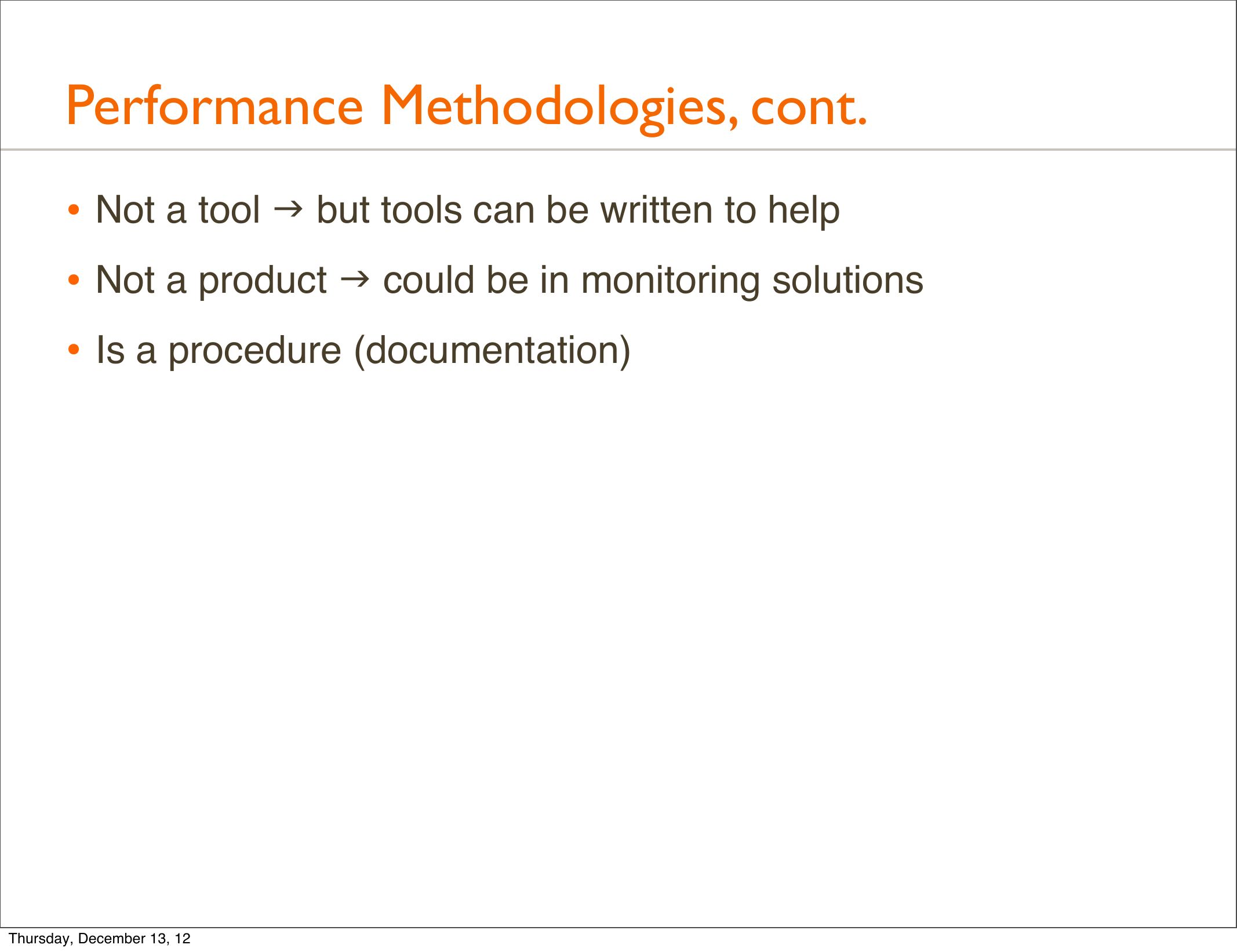

• Not a tool  but tools can be written to help
• Not a product  could be in monitoring solutions
• Is a procedure (documentation)
Thursday, December 13, 12

Performance Methodologies, cont.
• Audience
• Beginners: provides a starting point
• Experts: provides a reminder
• Casual users: provides a checklist
Thursday, December 13, 12

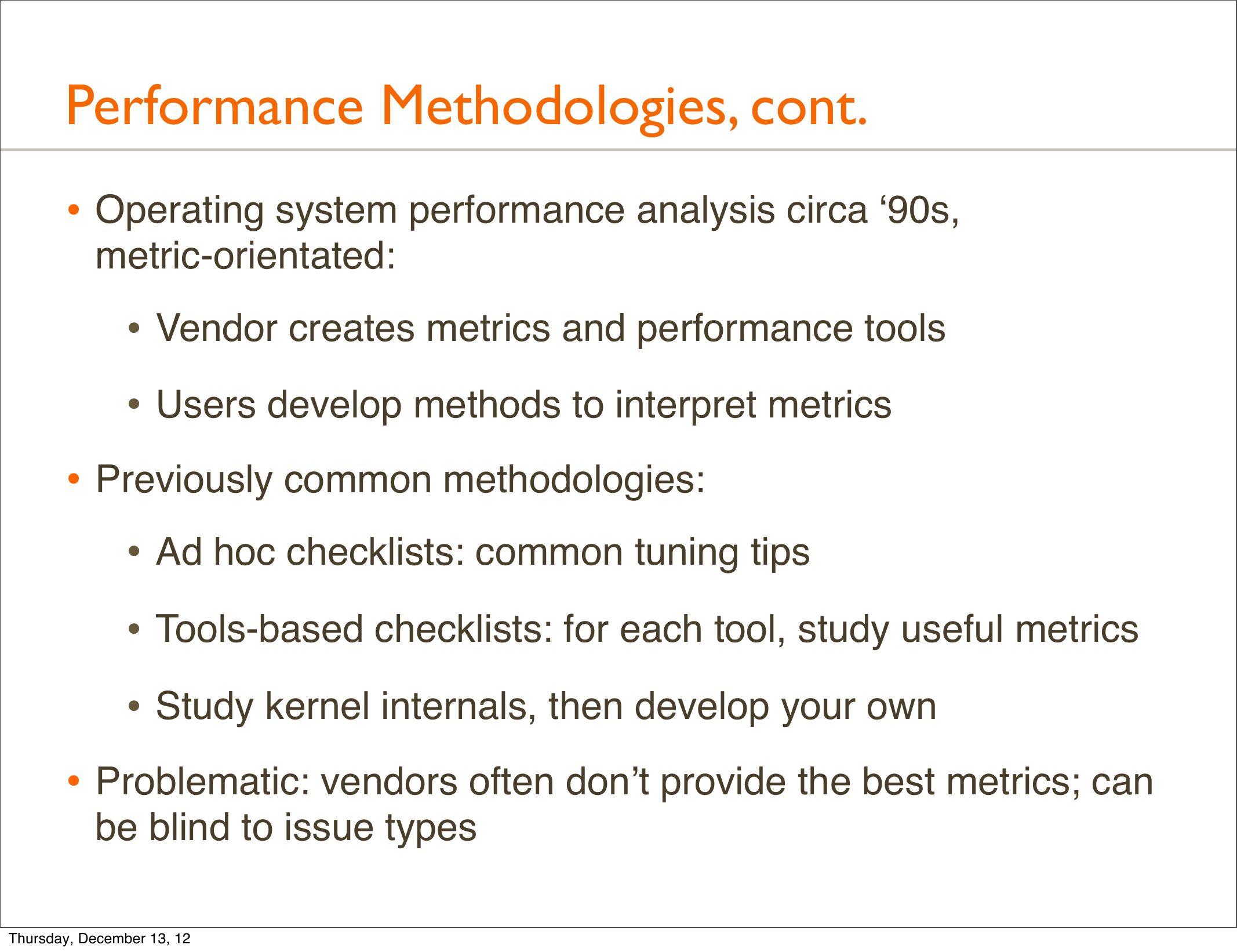

Performance Methodologies, cont.
• Operating system performance analysis circa ‘90s,
metric-orientated:
• Vendor creates metrics and performance tools
• Users develop methods to interpret metrics
• Previously common methodologies:
• Ad hoc checklists: common tuning tips
• Tools-based checklists: for each tool, study useful metrics
• Study kernel internals, then develop your own
• Problematic: vendors often don’t provide the best metrics; can
be blind to issue types
Thursday, December 13, 12

Performance Methodologies, cont.

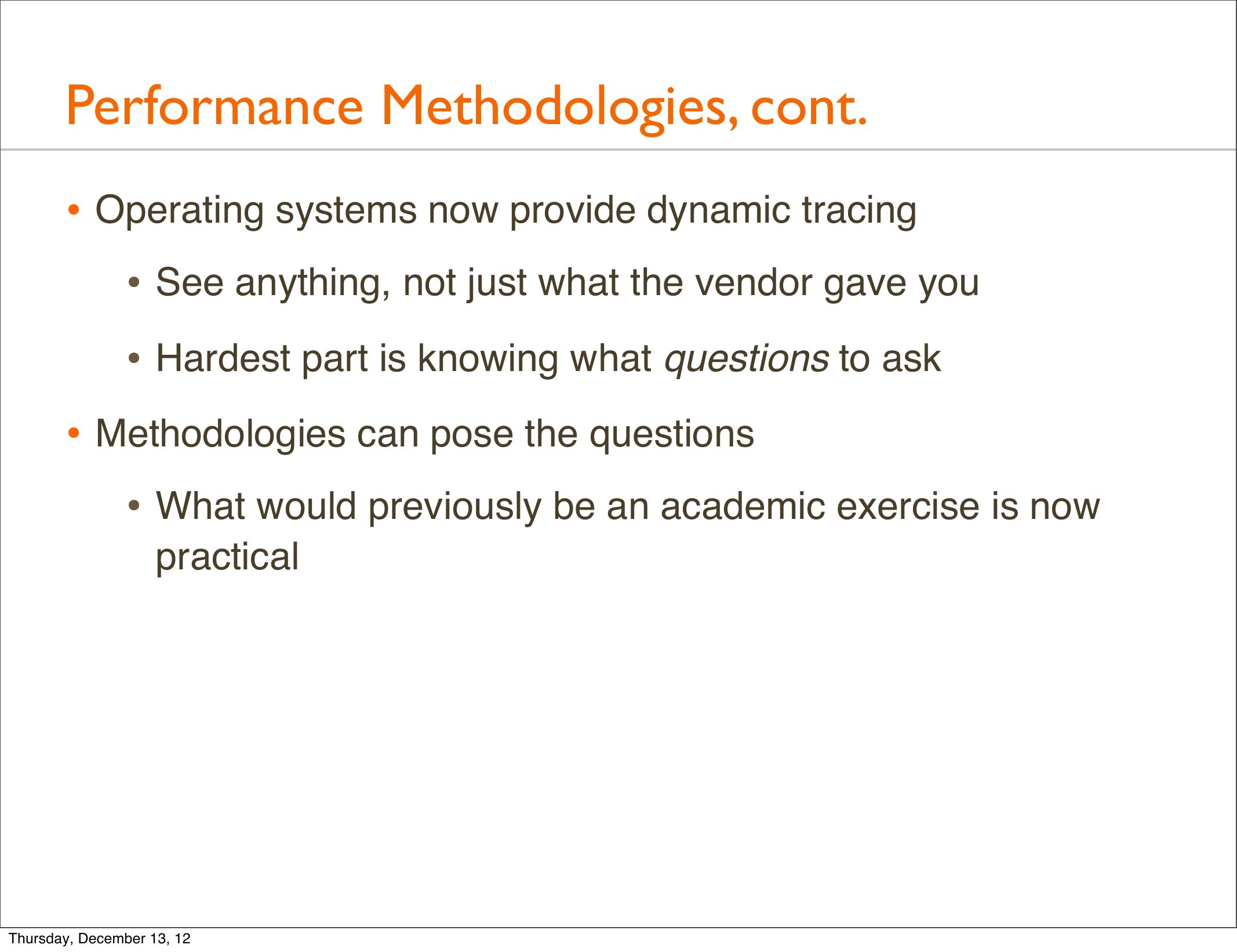

• Operating systems now provide dynamic tracing
• See anything, not just what the vendor gave you
• Hardest part is knowing what questions to ask
• Methodologies can pose the questions
• What would previously be an academic exercise is now
practical
Thursday, December 13, 12

Performance Methodologies, cont.

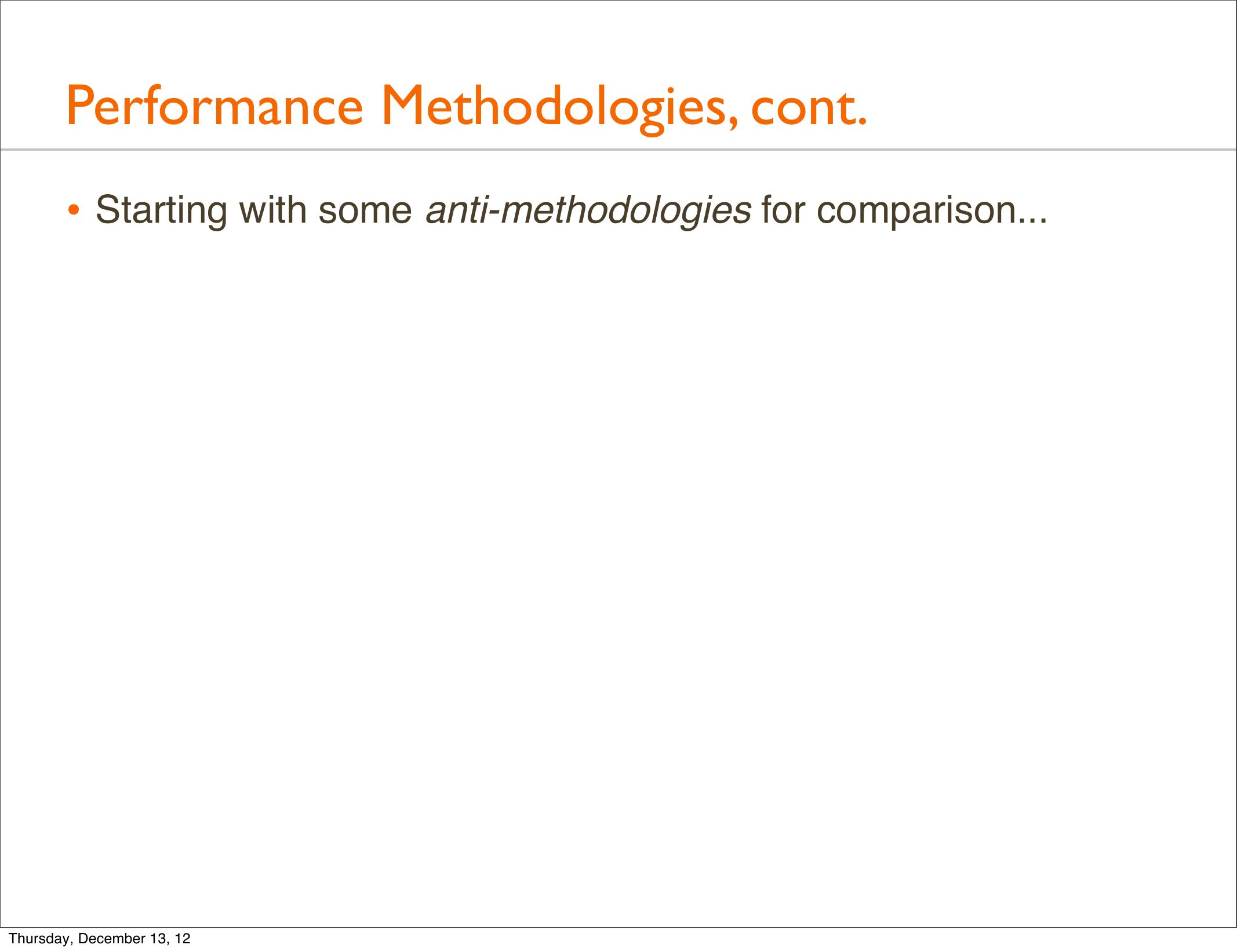

• Starting with some anti-methodologies for comparison...
Thursday, December 13, 12

Blame-Someone-Else Anti-Method
Thursday, December 13, 12

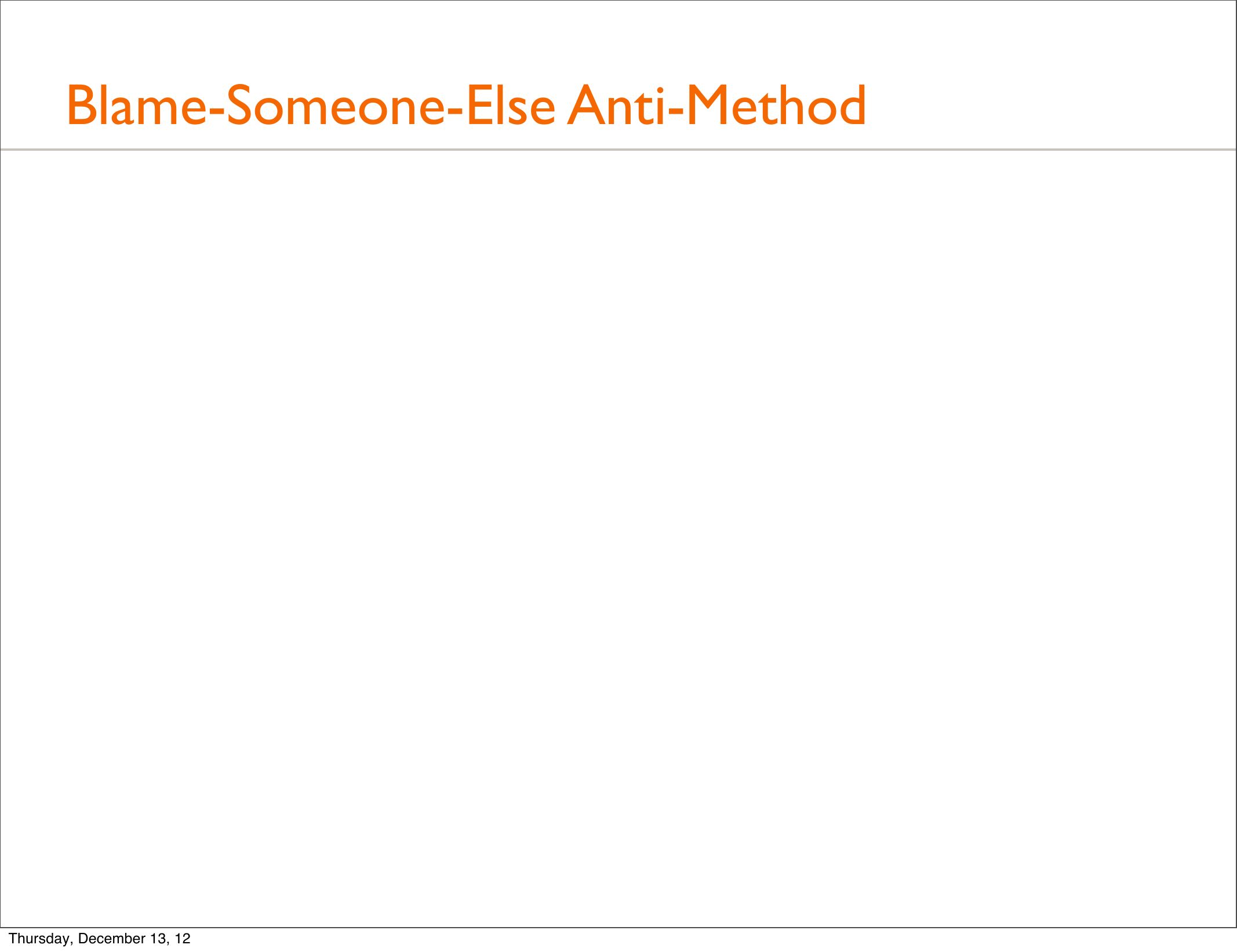

Blame-Someone-Else Anti-Method

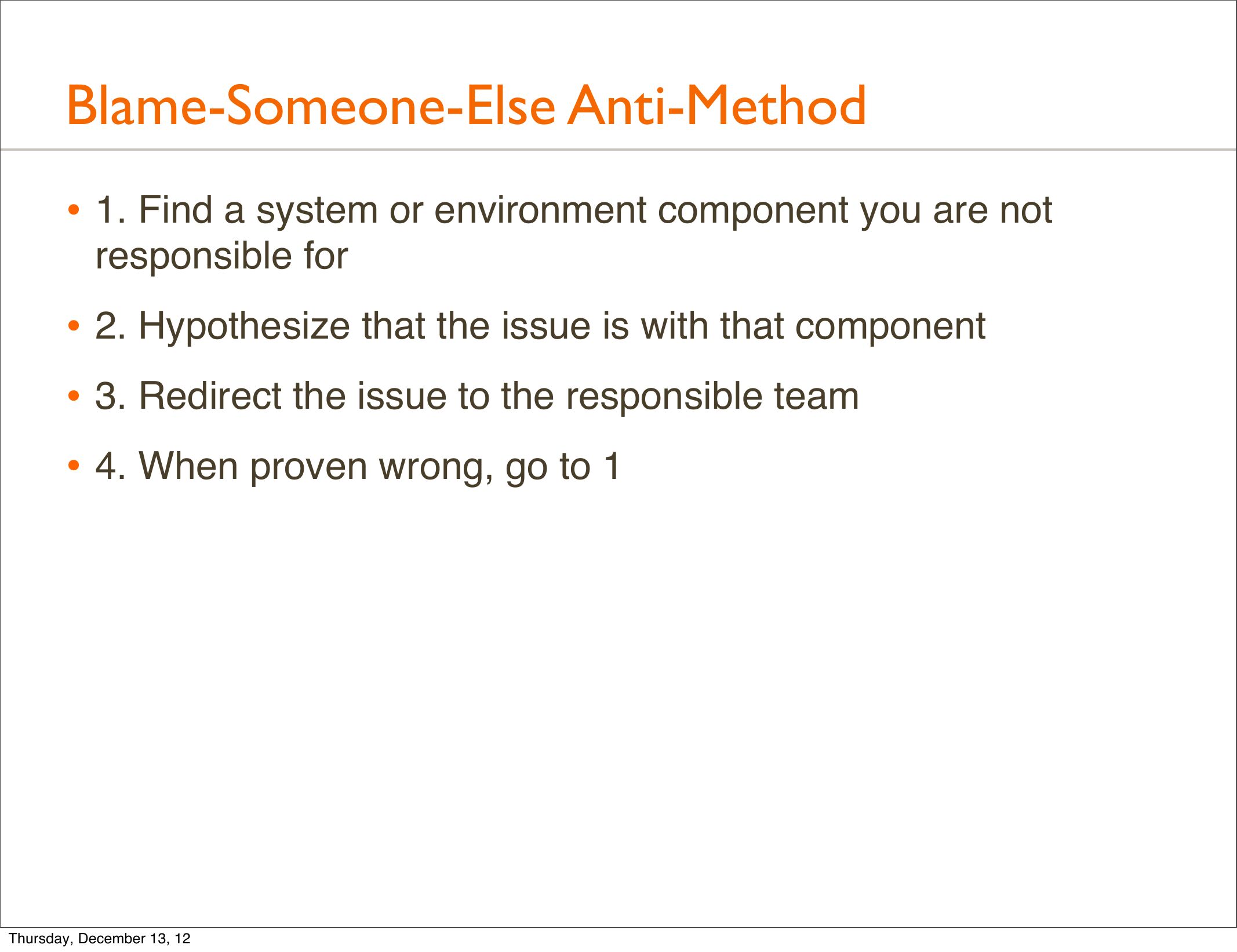

• 1. Find a system or environment component you are not
responsible for
• 2. Hypothesize that the issue is with that component
• 3. Redirect the issue to the responsible team
• 4. When proven wrong, go to 1
Thursday, December 13, 12

Blame-Someone-Else Anti-Method, cont.
"Maybe it's the network.
Can you check with the network team
if they have had dropped packets
... or something?"
Thursday, December 13, 12

Blame-Someone-Else Anti-Method, cont.
• 1. Find a system or environment component you are not
responsible for
• 2. Hypothesize that the issue is with that component
• 3. Redirect the issue to the responsible team
• 4. When proven wrong, go to 1

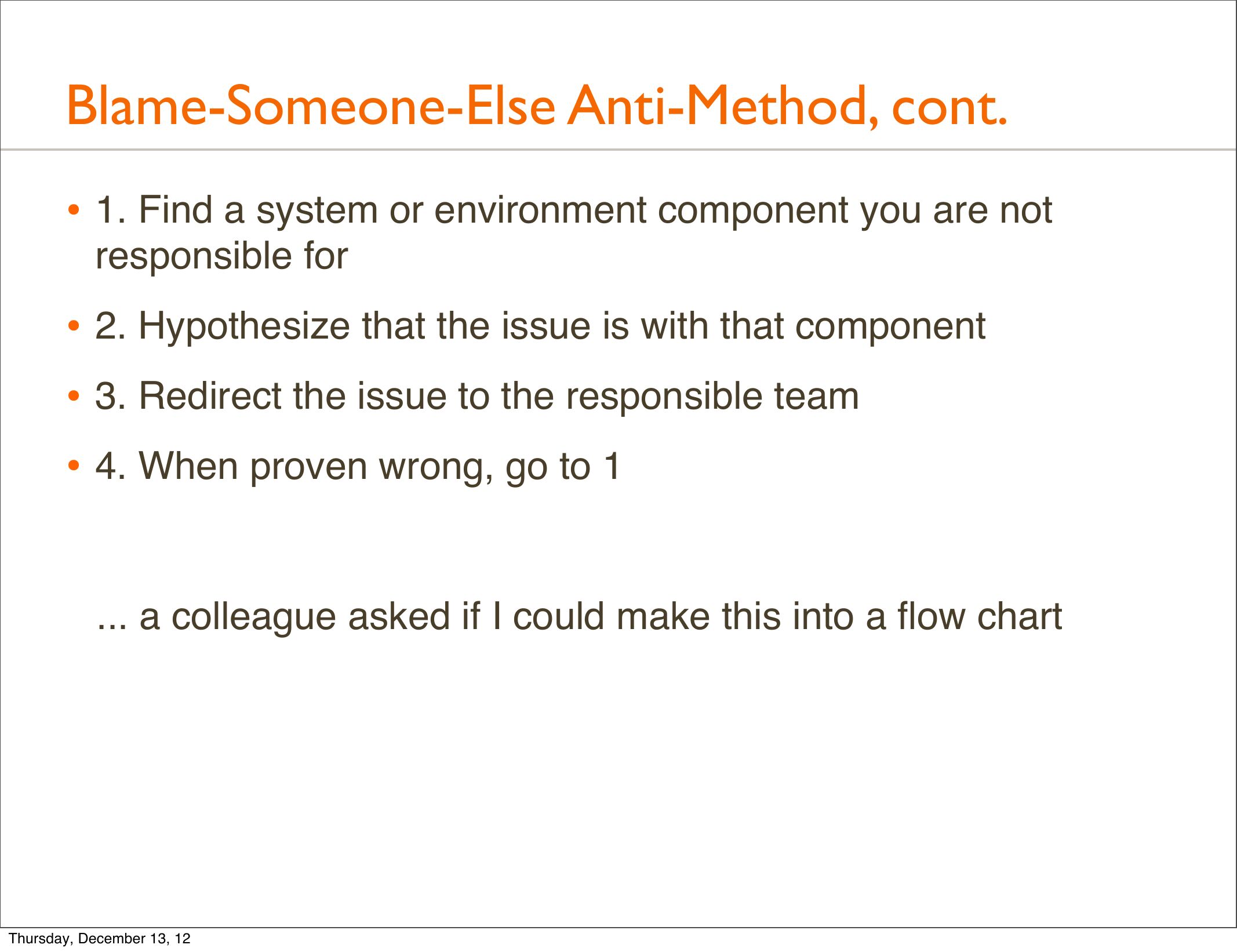

... a colleague asked if I could make this into a flow chart
Thursday, December 13, 12

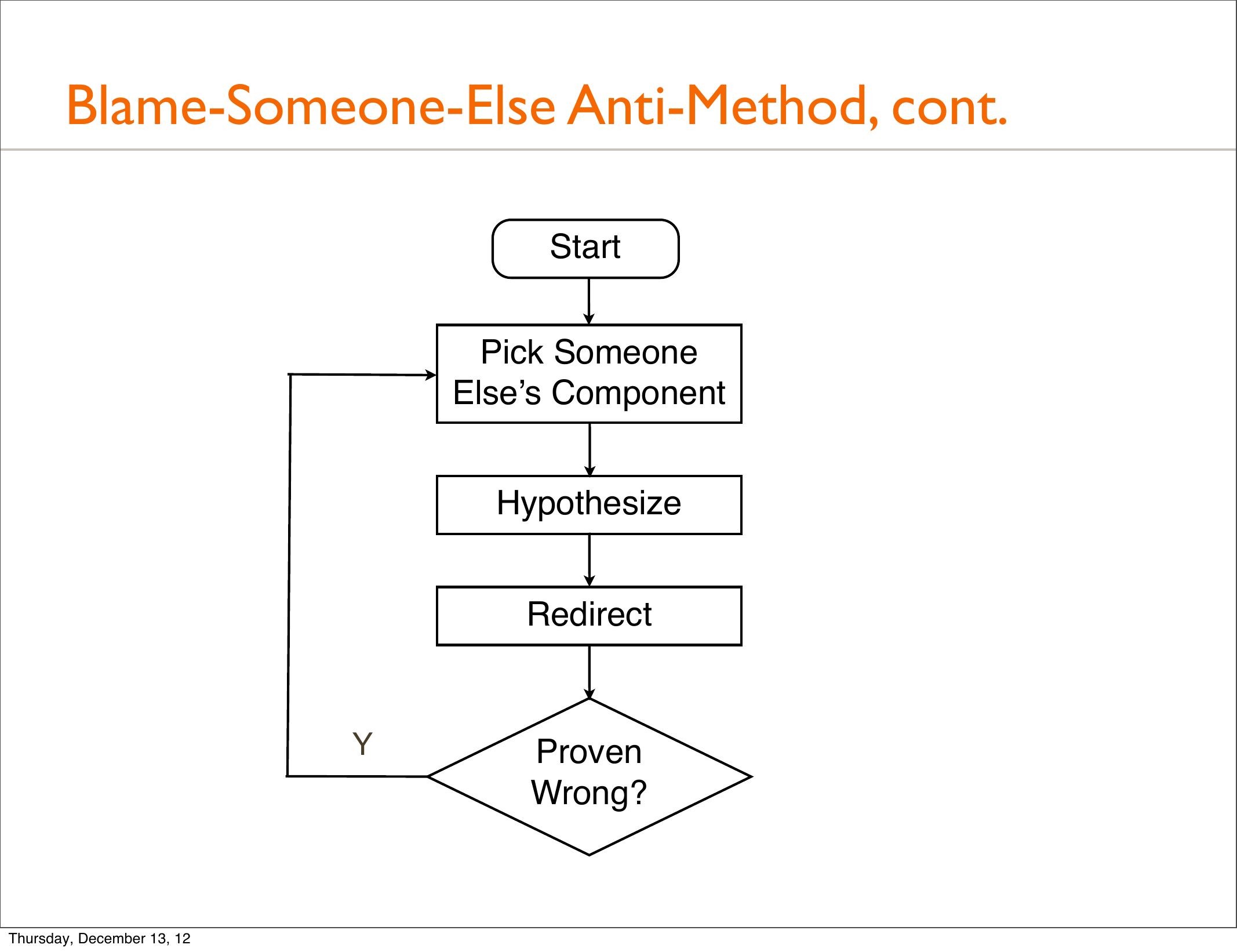

Blame-Someone-Else Anti-Method, cont.
Start
Pick Someone
Else’s Component
Hypothesize
Redirect
Thursday, December 13, 12
Proven
Wrong?

Blame-Someone-Else Anti-Method, cont.
• Wasteful of other team resources
• Identifiable by a lack of data analysis – or any data at all
• Ask for screenshots, then take them for a 2nd opinion
Thursday, December 13, 12

Streetlight Anti-Method
Thursday, December 13, 12

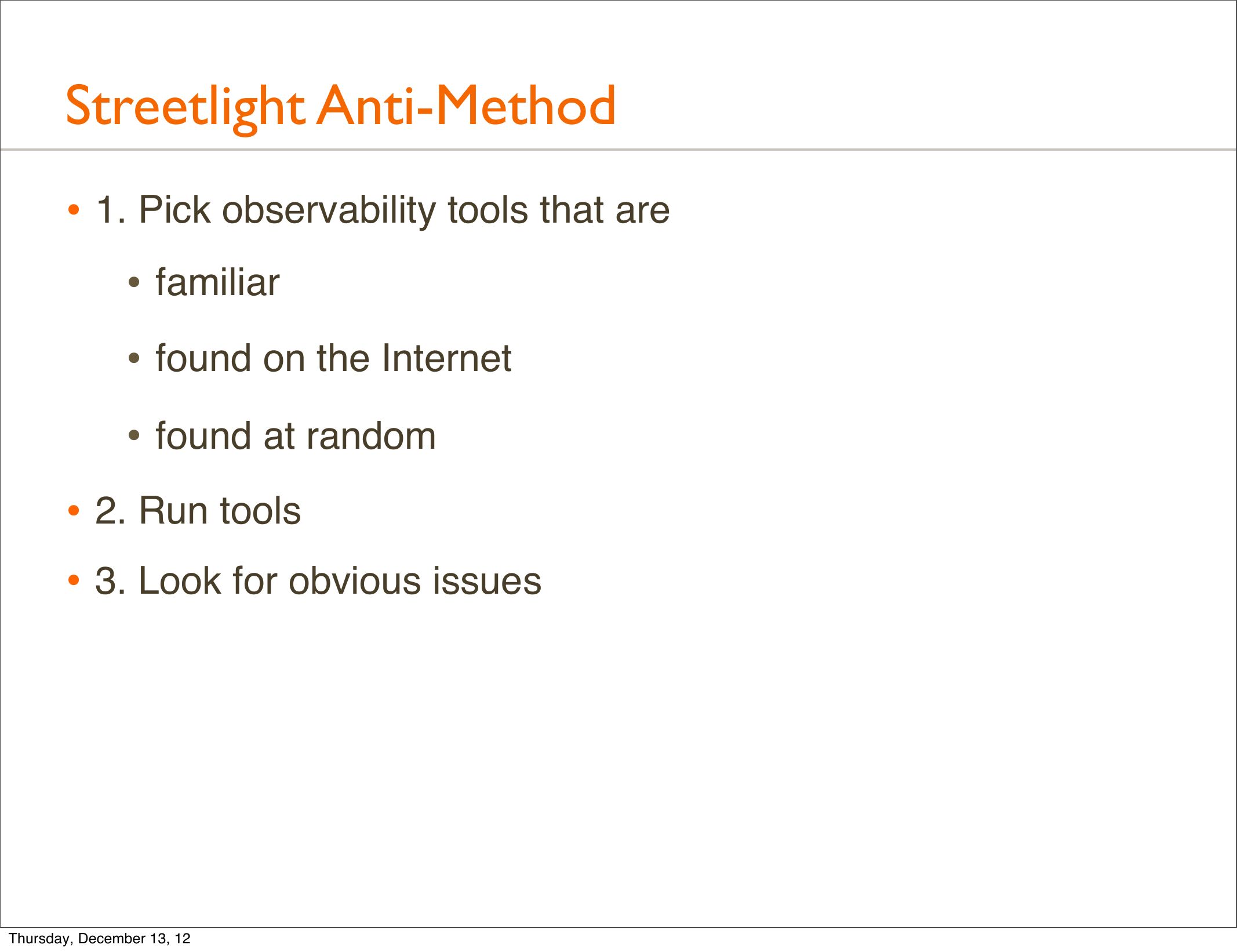

Streetlight Anti-Method
• 1. Pick observability tools that are
• familiar
• found on the Internet
• found at random
• 2. Run tools
• 3. Look for obvious issues
Thursday, December 13, 12

Streetlight Anti-Method, cont.
• Named after an observational bias called the streetlight effect
A policeman sees a drunk looking under a streetlight,
and asks what he is looking for.
The drunk says he has lost his keys.
The policeman can't find them either,
and asks if he lost them under the streetlight.
The drunk replies:
“No, but this is where the light is best.”
Thursday, December 13, 12

Streetlight Anti-Method, cont.

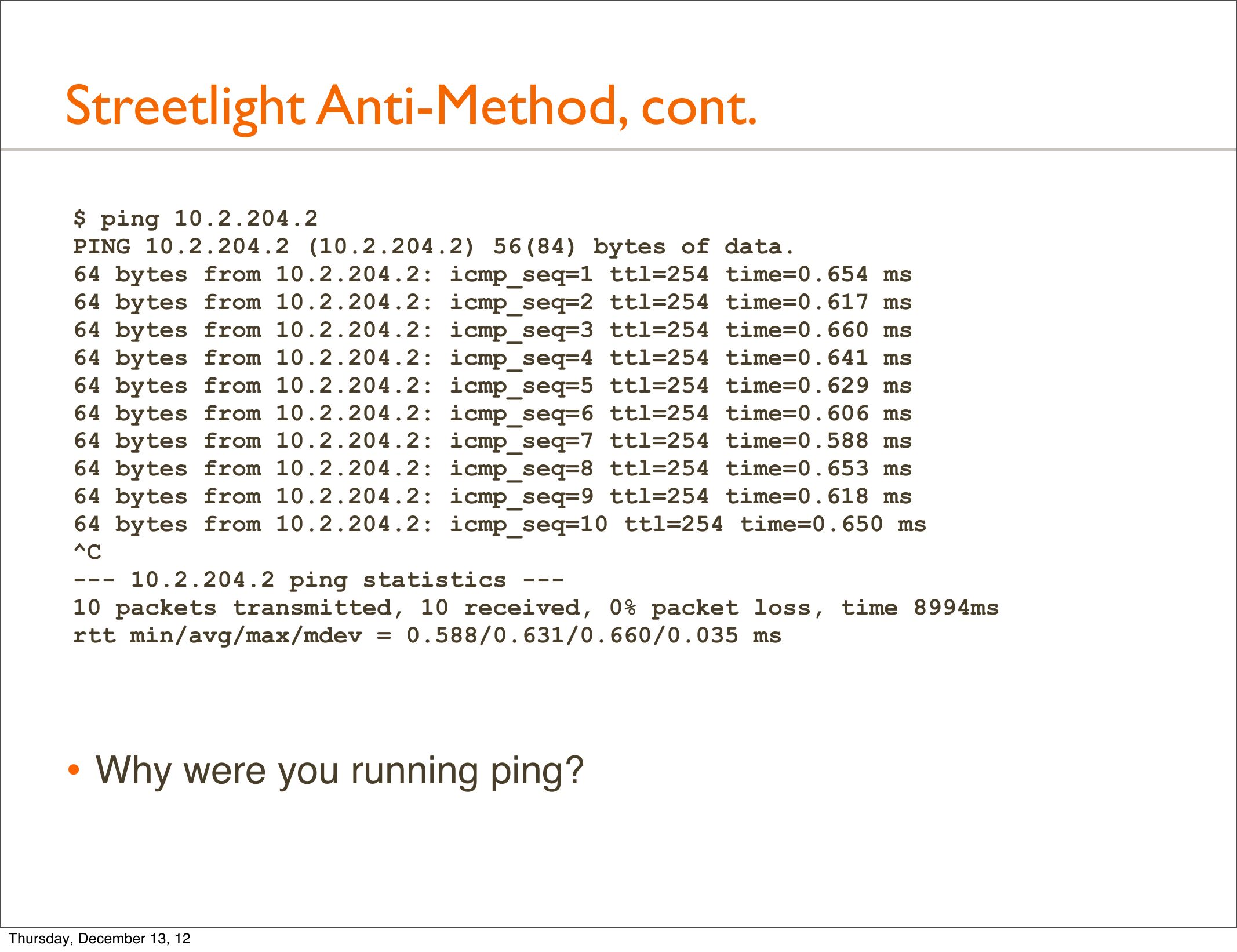

$ ping 10.2.204.2
PING 10.2.204.2 (10.2.204.2) 56(84) bytes of data.
64 bytes from 10.2.204.2: icmp_seq=1 ttl=254 time=0.654 ms
64 bytes from 10.2.204.2: icmp_seq=2 ttl=254 time=0.617 ms
64 bytes from 10.2.204.2: icmp_seq=3 ttl=254 time=0.660 ms
64 bytes from 10.2.204.2: icmp_seq=4 ttl=254 time=0.641 ms
64 bytes from 10.2.204.2: icmp_seq=5 ttl=254 time=0.629 ms
64 bytes from 10.2.204.2: icmp_seq=6 ttl=254 time=0.606 ms
64 bytes from 10.2.204.2: icmp_seq=7 ttl=254 time=0.588 ms
64 bytes from 10.2.204.2: icmp_seq=8 ttl=254 time=0.653 ms
64 bytes from 10.2.204.2: icmp_seq=9 ttl=254 time=0.618 ms
64 bytes from 10.2.204.2: icmp_seq=10 ttl=254 time=0.650 ms
--- 10.2.204.2 ping statistics --10 packets transmitted, 10 received, 0% packet loss, time 8994ms
rtt min/avg/max/mdev = 0.588/0.631/0.660/0.035 ms
• Why were you running ping?
Thursday, December 13, 12

Streetlight Anti-Method, cont.

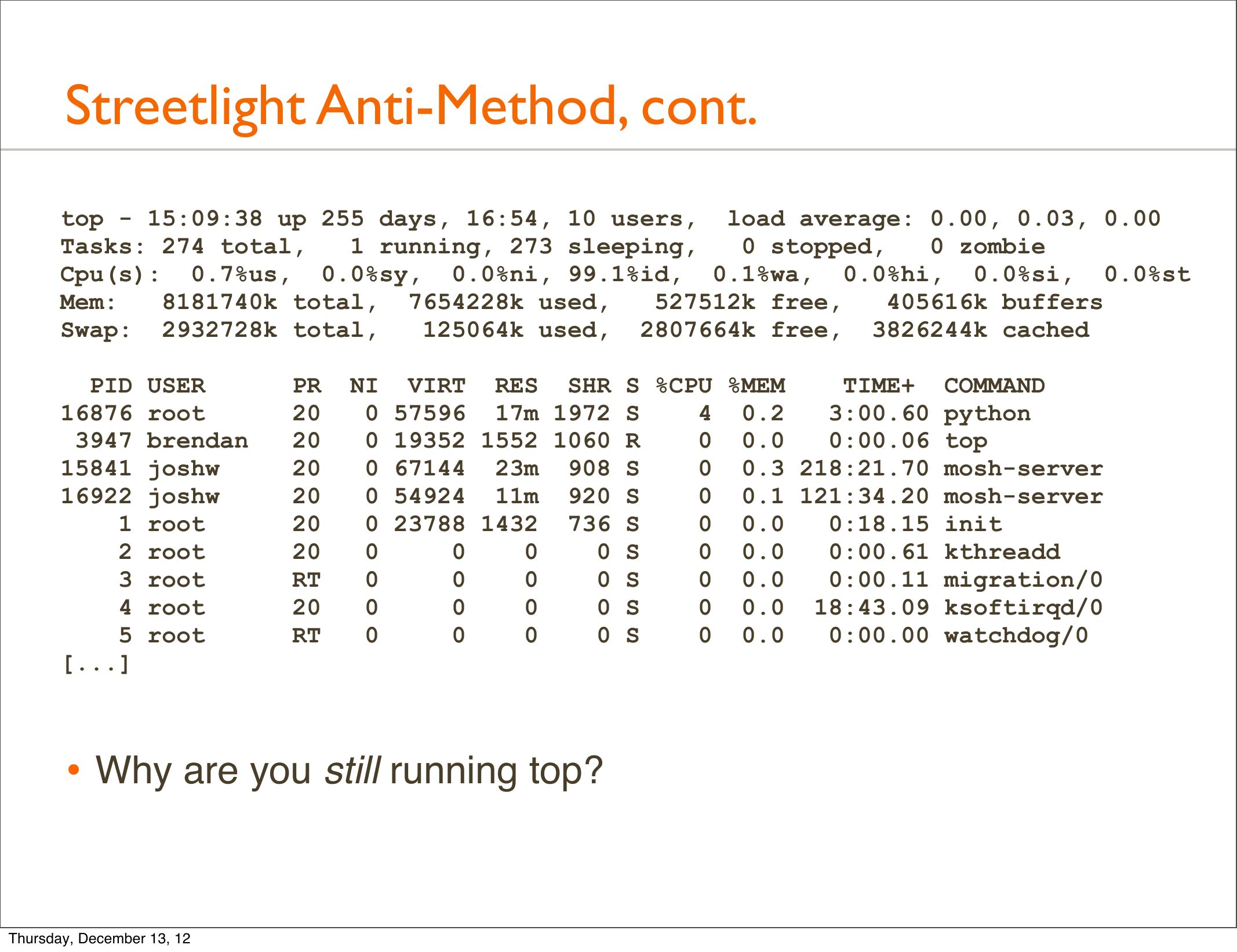

top - 15:09:38 up 255 days, 16:54, 10 users, load average: 0.00, 0.03, 0.00
Tasks: 274 total,
1 running, 273 sleeping,
0 stopped,
0 zombie
Cpu(s): 0.7%us, 0.0%sy, 0.0%ni, 99.1%id, 0.1%wa, 0.0%hi, 0.0%si, 0.0%st
Mem:
8181740k total, 7654228k used,
527512k free,
405616k buffers
Swap: 2932728k total,
125064k used, 2807664k free, 3826244k cached
PID USER
16876 root
3947 brendan
15841 joshw
16922 joshw
1 root
2 root
3 root
4 root
5 root
[...]
NI VIRT RES SHR S %CPU %MEM
TIME+ COMMAND
0 57596 17m 1972 S
4 0.2
3:00.60 python
0 19352 1552 1060 R
0 0.0
0:00.06 top
0 67144 23m 908 S
0 0.3 218:21.70 mosh-server
0 54924 11m 920 S
0 0.1 121:34.20 mosh-server
0 23788 1432 736 S
0 0.0
0:18.15 init
0 S
0 0.0
0:00.61 kthreadd
0 S
0 0.0
0:00.11 migration/0
0 S
0 0.0 18:43.09 ksoftirqd/0
0 S
0 0.0
0:00.00 watchdog/0
• Why are you still running top?
Thursday, December 13, 12

Streetlight Anti-Method, cont.

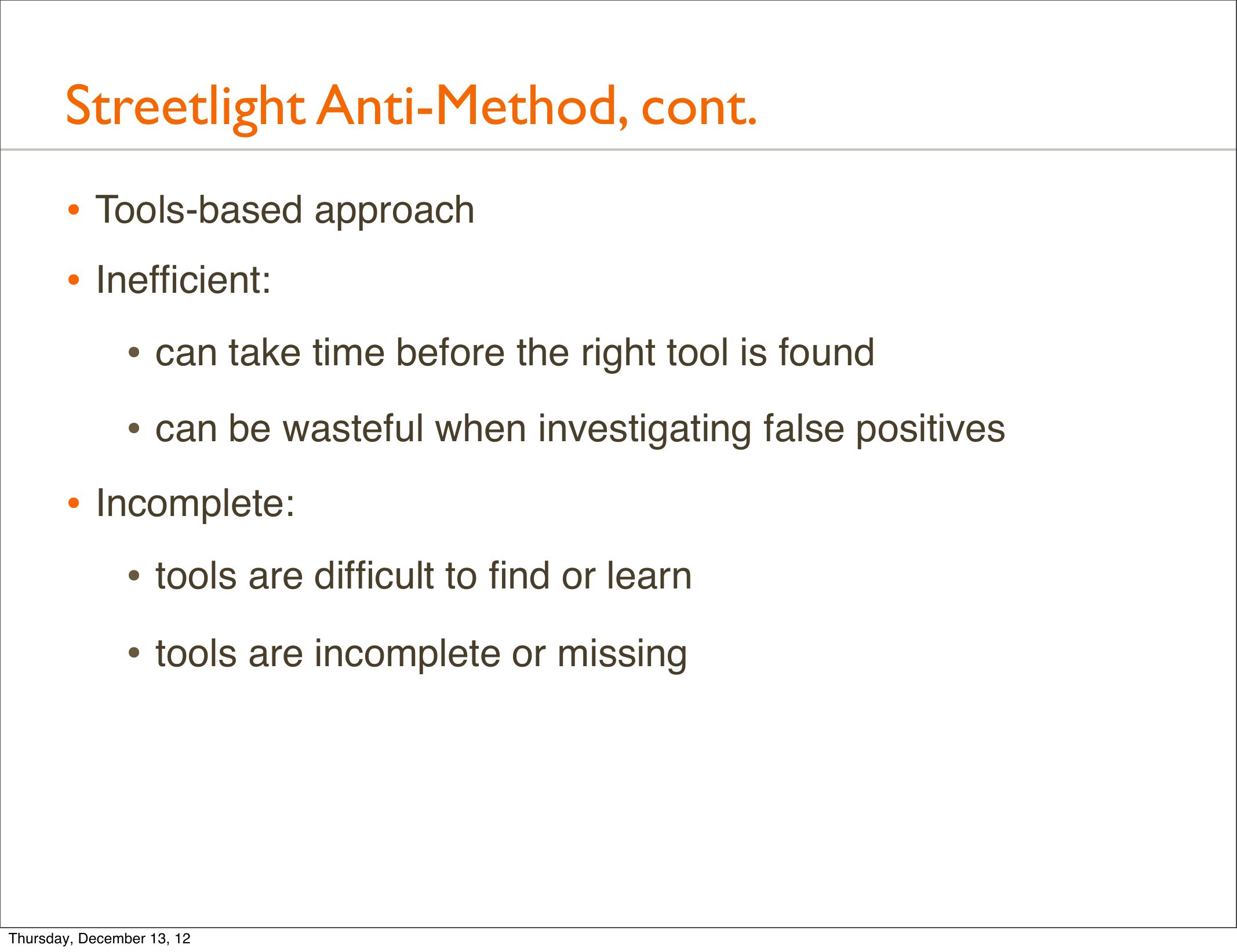

• Tools-based approach
• Inefficient:
• can take time before the right tool is found
• can be wasteful when investigating false positives
• Incomplete:
• tools are difficult to find or learn
• tools are incomplete or missing
Thursday, December 13, 12

Ad Hoc Checklist Method
Thursday, December 13, 12

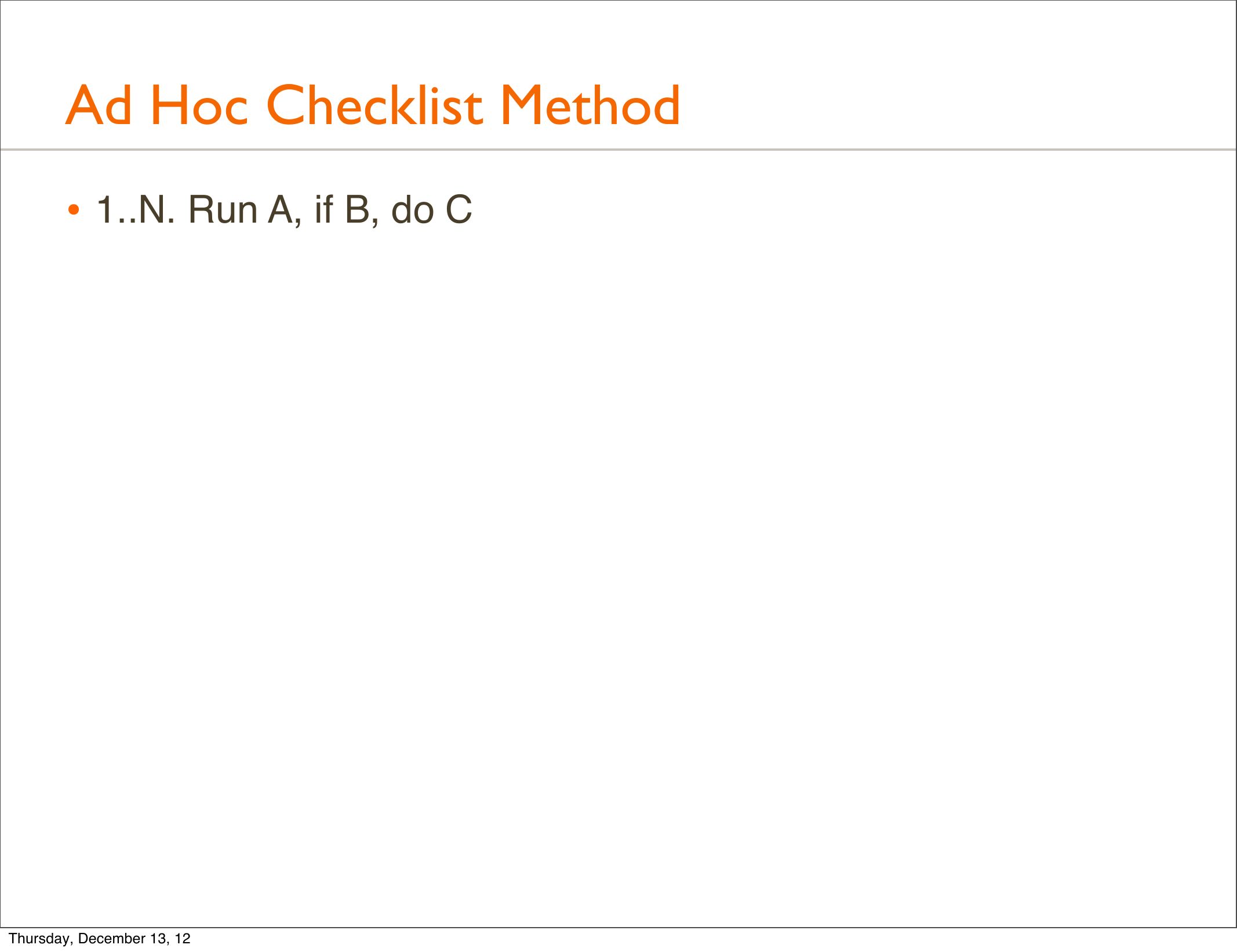

Ad Hoc Checklist Method
• 1..N. Run A, if B, do C
Thursday, December 13, 12

Ad Hoc Checklist Method, cont.
• 1..N. Run A, if B, do C

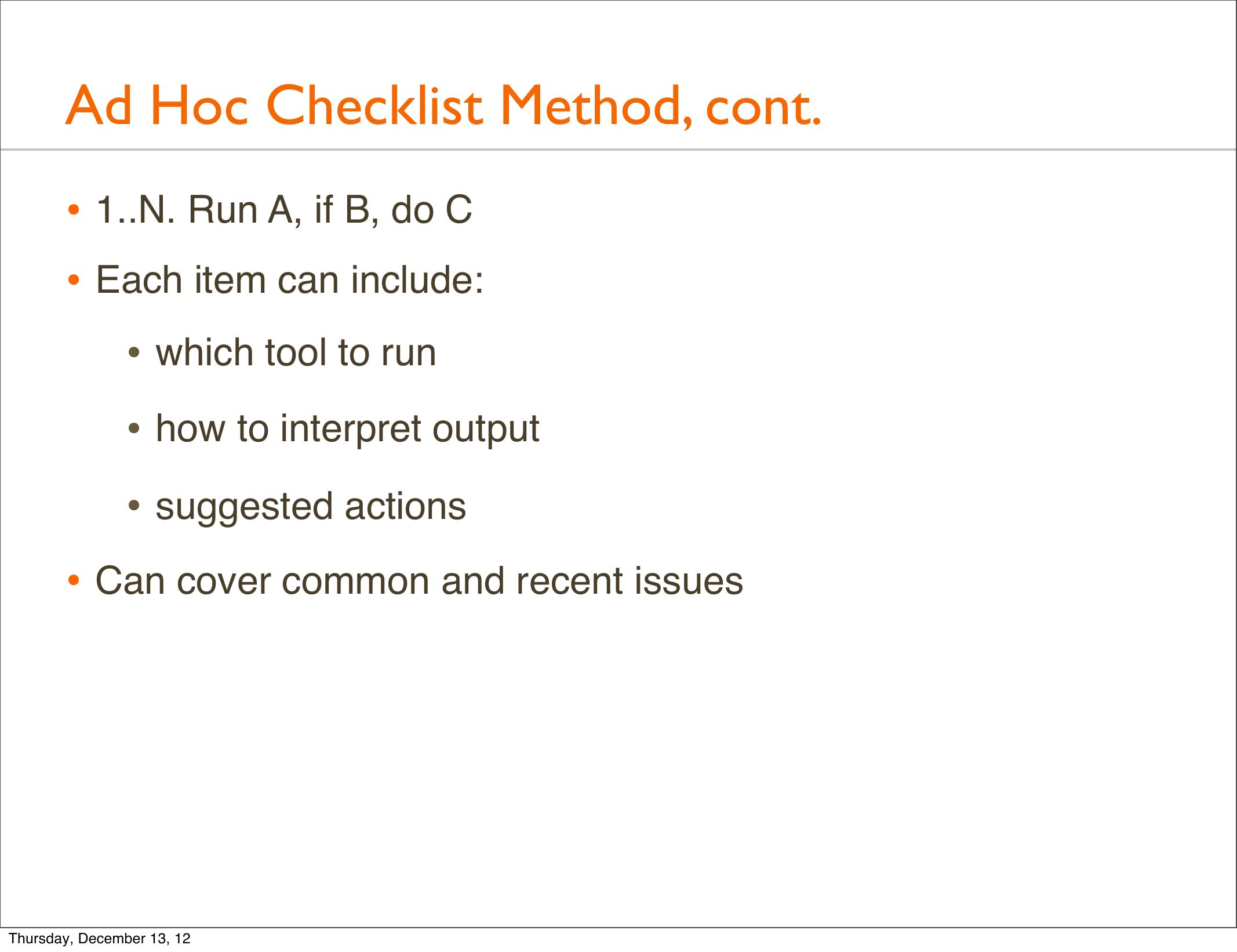

• Each item can include:
• which tool to run
• how to interpret output
• suggested actions
• Can cover common and recent issues
Thursday, December 13, 12

Ad Hoc Checklist Method, cont.

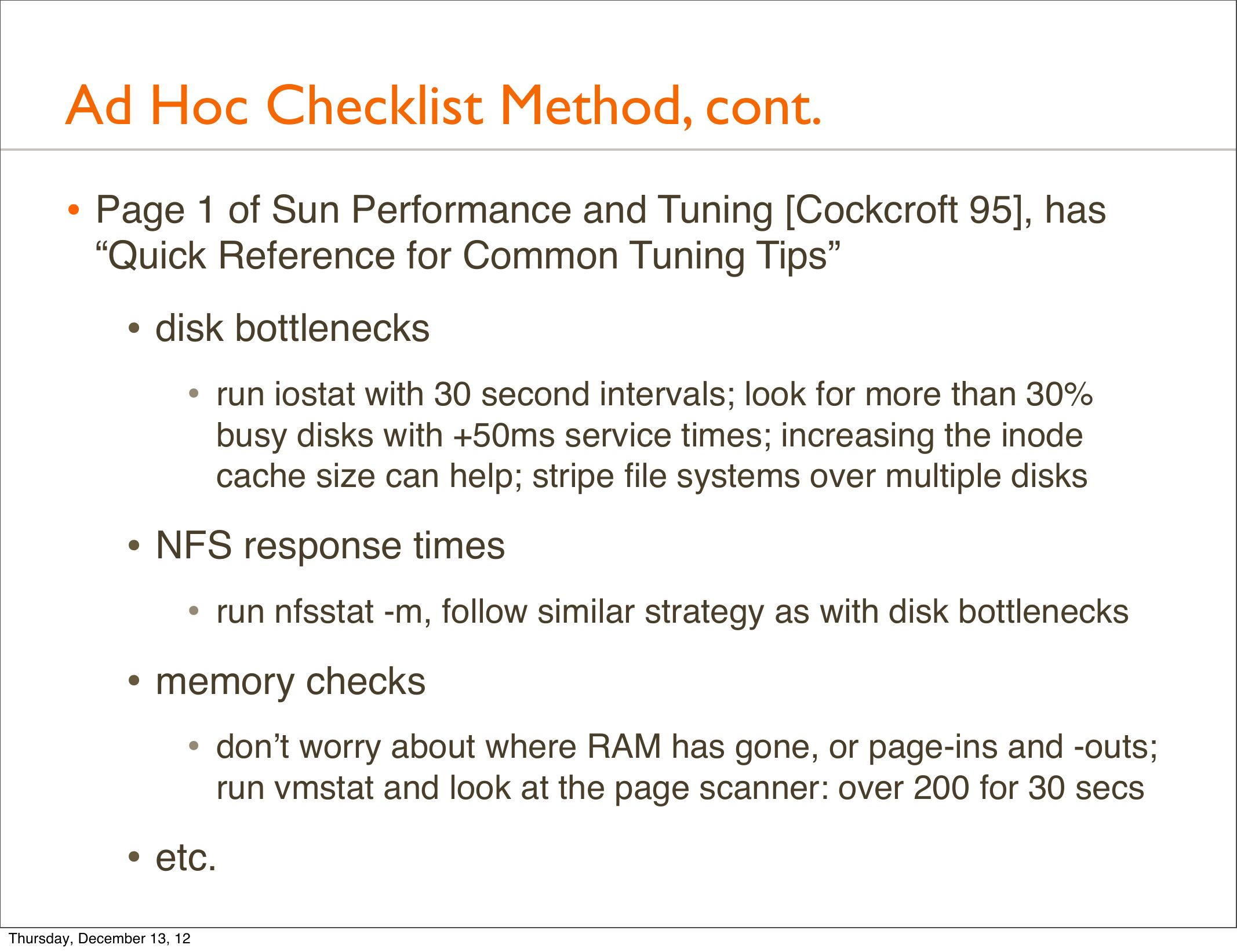

• Page 1 of Sun Performance and Tuning [Cockcroft 95], has
“Quick Reference for Common Tuning Tips”
• disk bottlenecks
• run iostat with 30 second intervals; look for more than 30%
busy disks with +50ms service times; increasing the inode
cache size can help; stripe file systems over multiple disks
• NFS response times
• run nfsstat -m, follow similar strategy as with disk bottlenecks
• memory checks
• don’t worry about where RAM has gone, or page-ins and -outs;
run vmstat and look at the page scanner: over 200 for 30 secs
• etc.
Thursday, December 13, 12

Ad Hoc Checklist Method, cont.

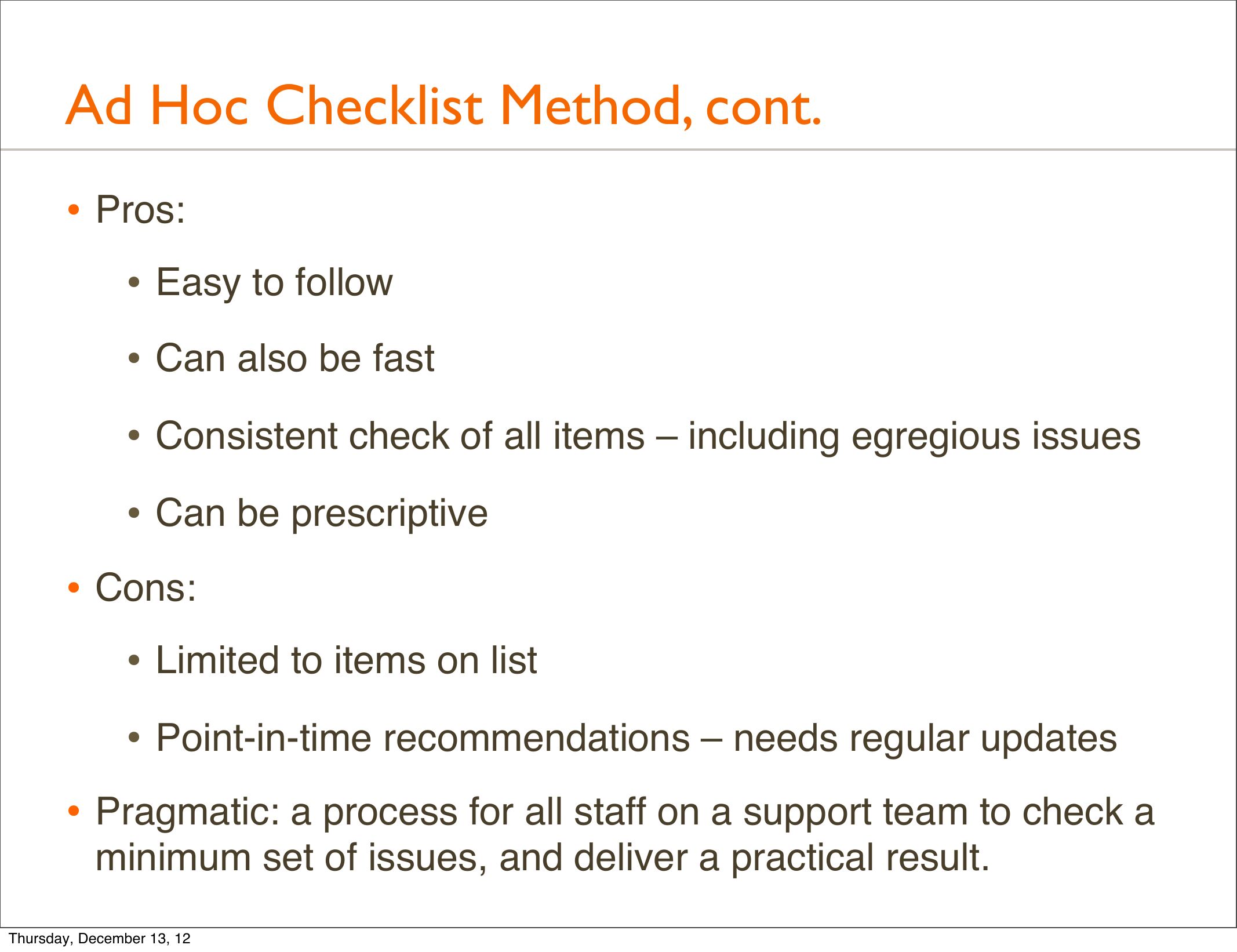

• Pros:
• Easy to follow
• Can also be fast
• Consistent check of all items – including egregious issues
• Can be prescriptive
• Cons:
• Limited to items on list
• Point-in-time recommendations – needs regular updates
• Pragmatic: a process for all staff on a support team to check a
minimum set of issues, and deliver a practical result.
Thursday, December 13, 12

Problem Statement Method
Thursday, December 13, 12

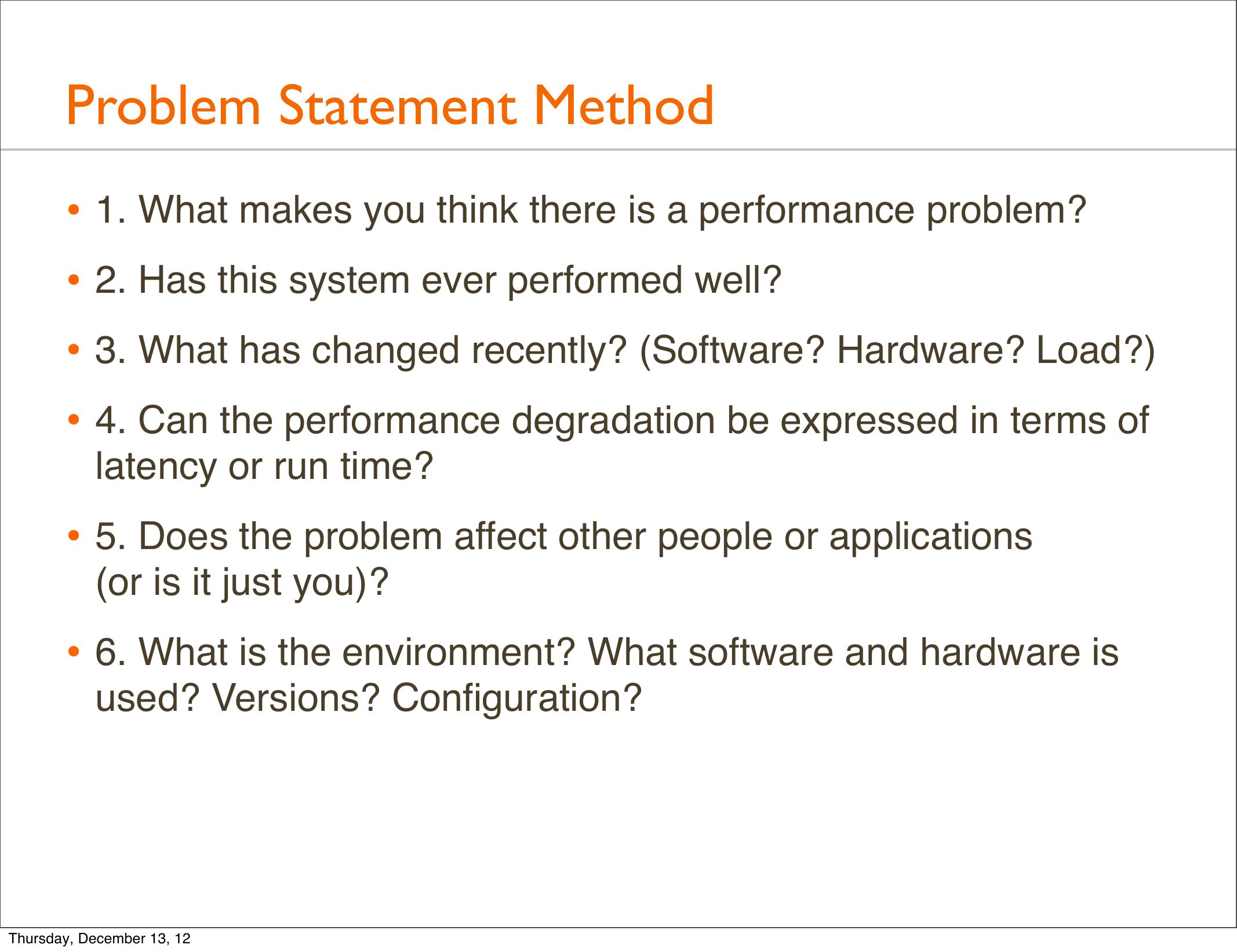

Problem Statement Method
• 1. What makes you think there is a performance problem?
• 2. Has this system ever performed well?
• 3. What has changed recently? (Software? Hardware? Load?)
• 4. Can the performance degradation be expressed in terms of
latency or run time?
• 5. Does the problem affect other people or applications
(or is it just you)?
• 6. What is the environment? What software and hardware is
used? Versions? Configuration?
Thursday, December 13, 12

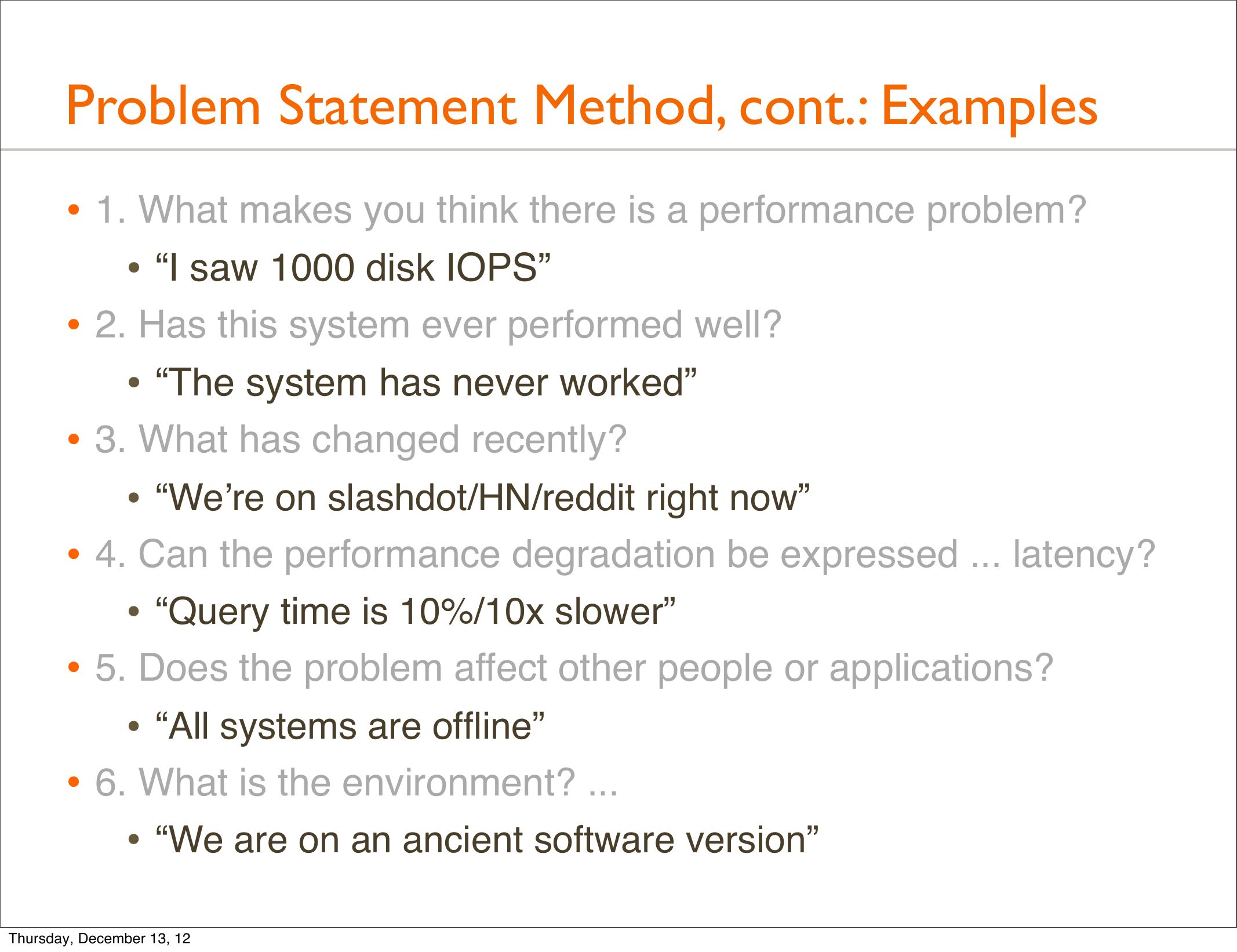

Problem Statement Method, cont.: Examples
• 1. What makes you think there is a performance problem?
• “I saw 1000 disk IOPS”
• 2. Has this system ever performed well?
• “The system has never worked”
• 3. What has changed recently?
• “We’re on slashdot/HN/reddit right now”
• 4. Can the performance degradation be expressed ... latency?
• “Query time is 10%/10x slower”
• 5. Does the problem affect other people or applications?
• “All systems are offline”
• 6. What is the environment? ...
• “We are on an ancient software version”
Thursday, December 13, 12

Problem Statement Method, cont.: Examples
• 1. What makes you think there is a performance problem?
• “I saw 1000 disk IOPS” – not a problem by itself
• 2. Has this system ever performed well?
• “The system has never worked” – good to know!
• 3. What has changed recently?
• “We’re on slashdot/HN/reddit right now” – scalability?
• 4. Can the performance degradation be expressed ... latency?
• “Query time is 10%/10x slower” – quantify
• 5. Does the problem affect other people or applications?
• “All systems are offline” – power/network?
• 6. What is the environment? ...
• “We are on an ancient software version” – known issue?
Thursday, December 13, 12

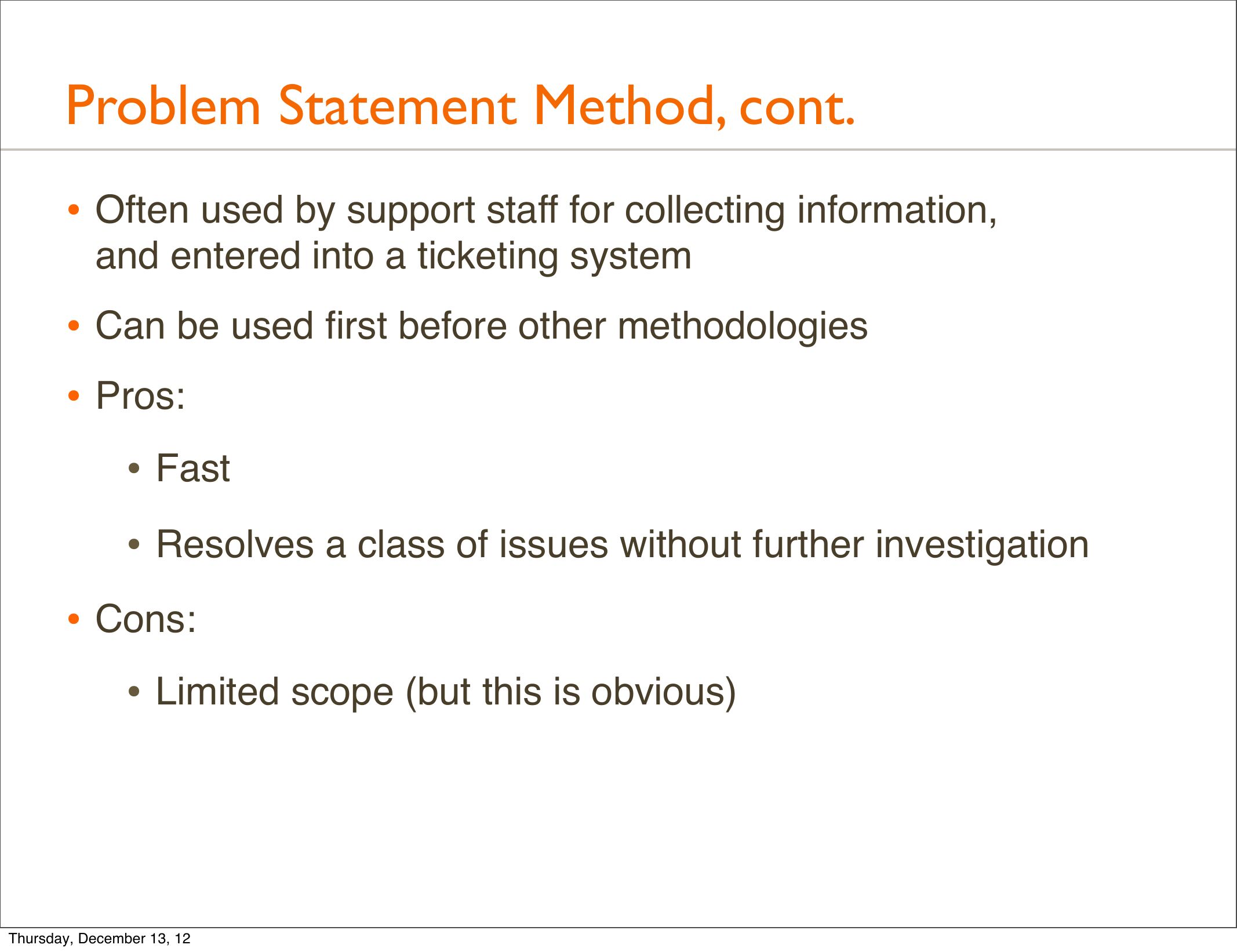

Problem Statement Method, cont.
• Often used by support staff for collecting information,
and entered into a ticketing system
• Can be used first before other methodologies
• Pros:
• Fast
• Resolves a class of issues without further investigation
• Cons:
• Limited scope (but this is obvious)
Thursday, December 13, 12

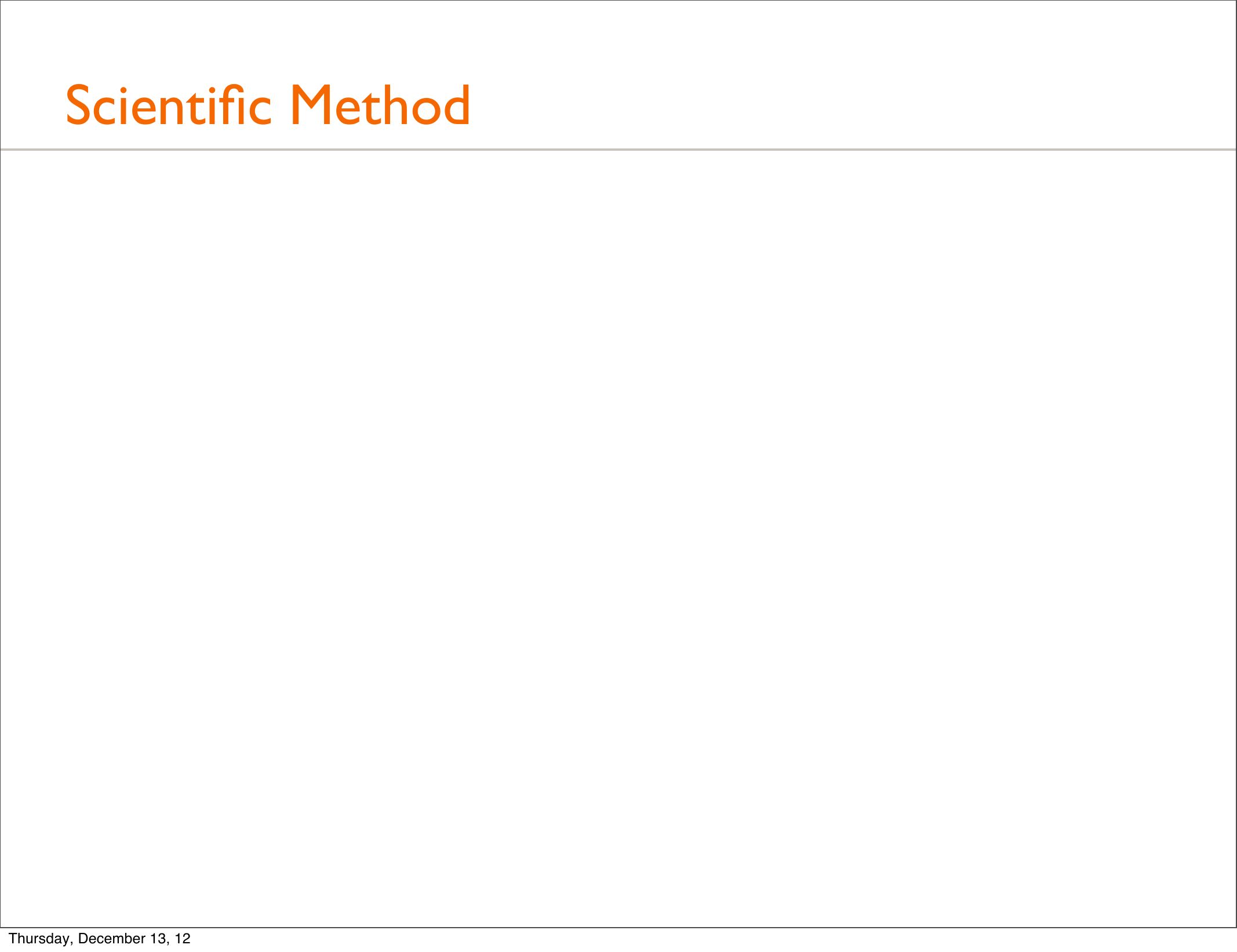

Scientific Method
Thursday, December 13, 12

Scientific Method
• 1. Question
• 2. Hypothesis
• 3. Prediction
• 4. Test
• 5. Analysis
Thursday, December 13, 12

Scientific Method, cont.

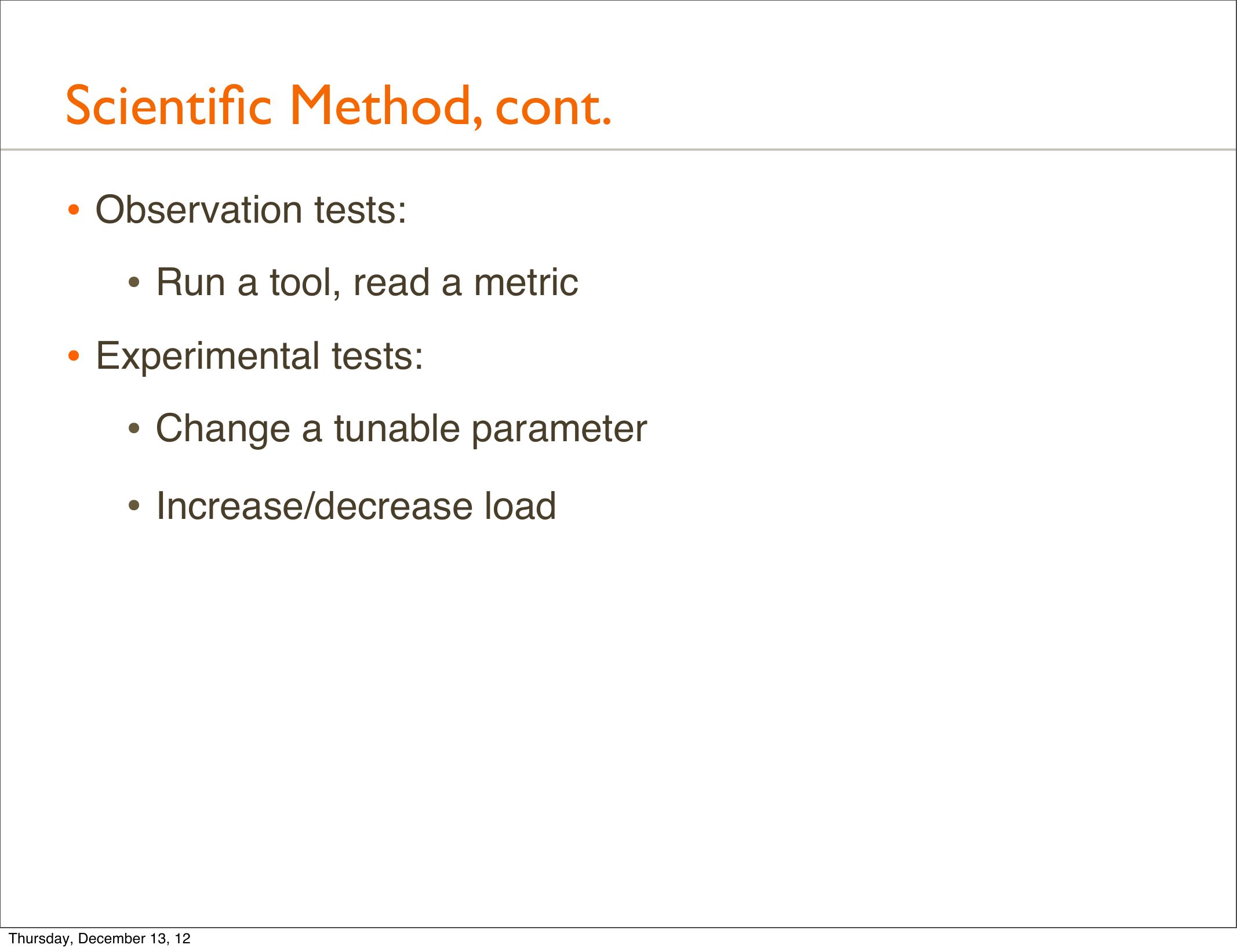

• Observation tests:
• Run a tool, read a metric
• Experimental tests:
• Change a tunable parameter
• Increase/decrease load
Thursday, December 13, 12

Scientific Method, cont.

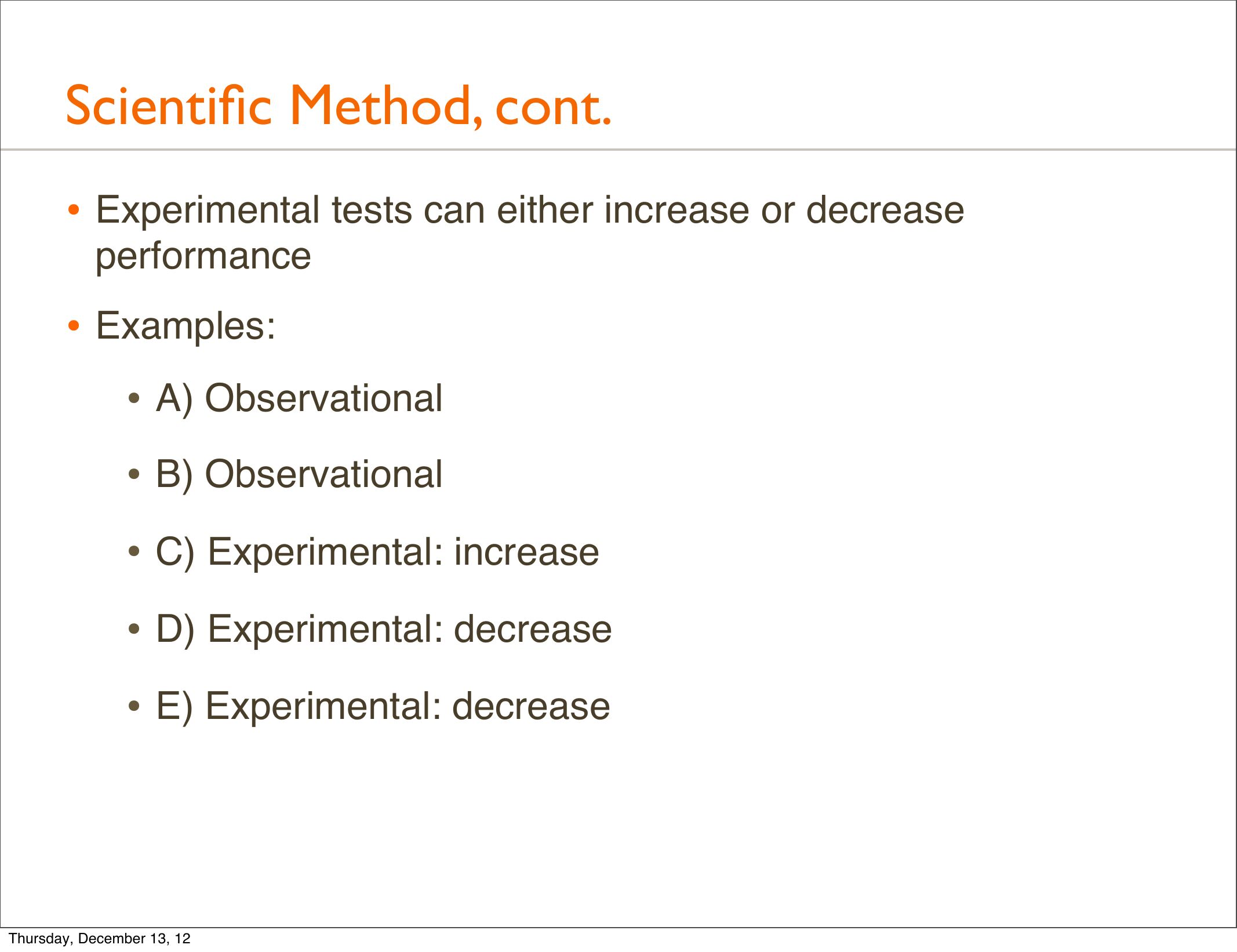

• Experimental tests can either increase or decrease
performance
• Examples:
• A) Observational
• B) Observational
• C) Experimental: increase
• D) Experimental: decrease
• E) Experimental: decrease
Thursday, December 13, 12

Scientific Method, cont.

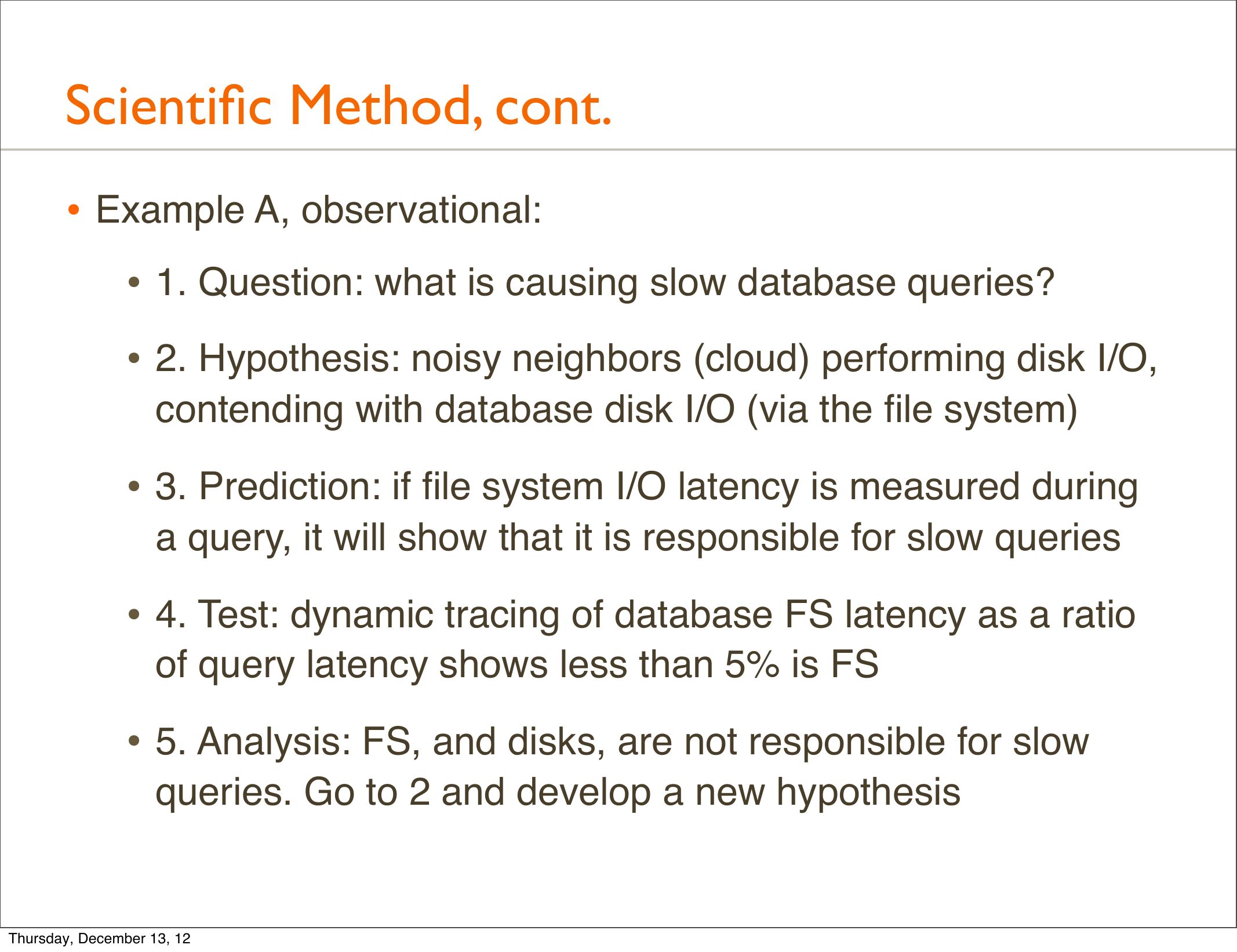

• Example A, observational:
• 1. Question: what is causing slow database queries?
• 2. Hypothesis: noisy neighbors (cloud) performing disk I/O,
contending with database disk I/O (via the file system)
• 3. Prediction:
Thursday, December 13, 12

Scientific Method, cont.
• Example A, observational:
• 1. Question: what is causing slow database queries?
• 2. Hypothesis: noisy neighbors (cloud) performing disk I/O,
contending with database disk I/O (via the file system)
• 3. Prediction: if file system I/O latency is measured during
a query, it will show that it is responsible for slow queries
• 4. Test: dynamic tracing of database FS latency as a ratio
of query latency shows less than 5% is FS
• 5. Analysis: FS, and disks, are not responsible for slow
queries. Go to 2 and develop a new hypothesis
Thursday, December 13, 12

Scientific Method, cont.
• Example B, observational:
• 1. Question: why is an app slower after moving it to a multiprocessor system?
• 2. Hypothesis: NUMA effects – remote memory I/O, CPU
interconnect contention, less cache warmth, cross calls, ...
• 3. Prediction:
Thursday, December 13, 12

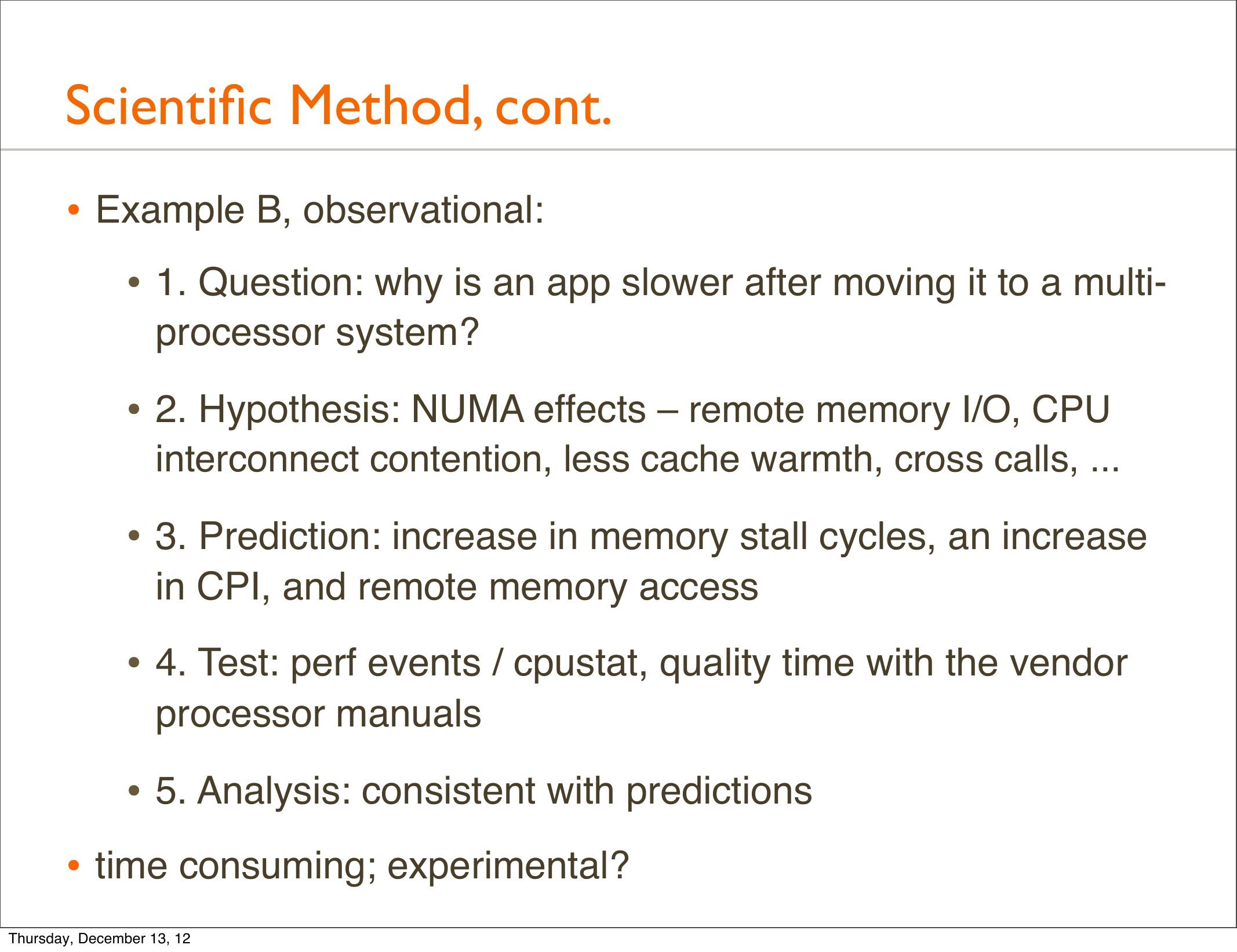

Scientific Method, cont.
• Example B, observational:
• 1. Question: why is an app slower after moving it to a multiprocessor system?
• 2. Hypothesis: NUMA effects – remote memory I/O, CPU
interconnect contention, less cache warmth, cross calls, ...
• 3. Prediction: increase in memory stall cycles, an increase
in CPI, and remote memory access
• 4. Test: perf events / cpustat, quality time with the vendor
processor manuals
• 5. Analysis: consistent with predictions
• time consuming; experimental?
Thursday, December 13, 12

Scientific Method, cont.

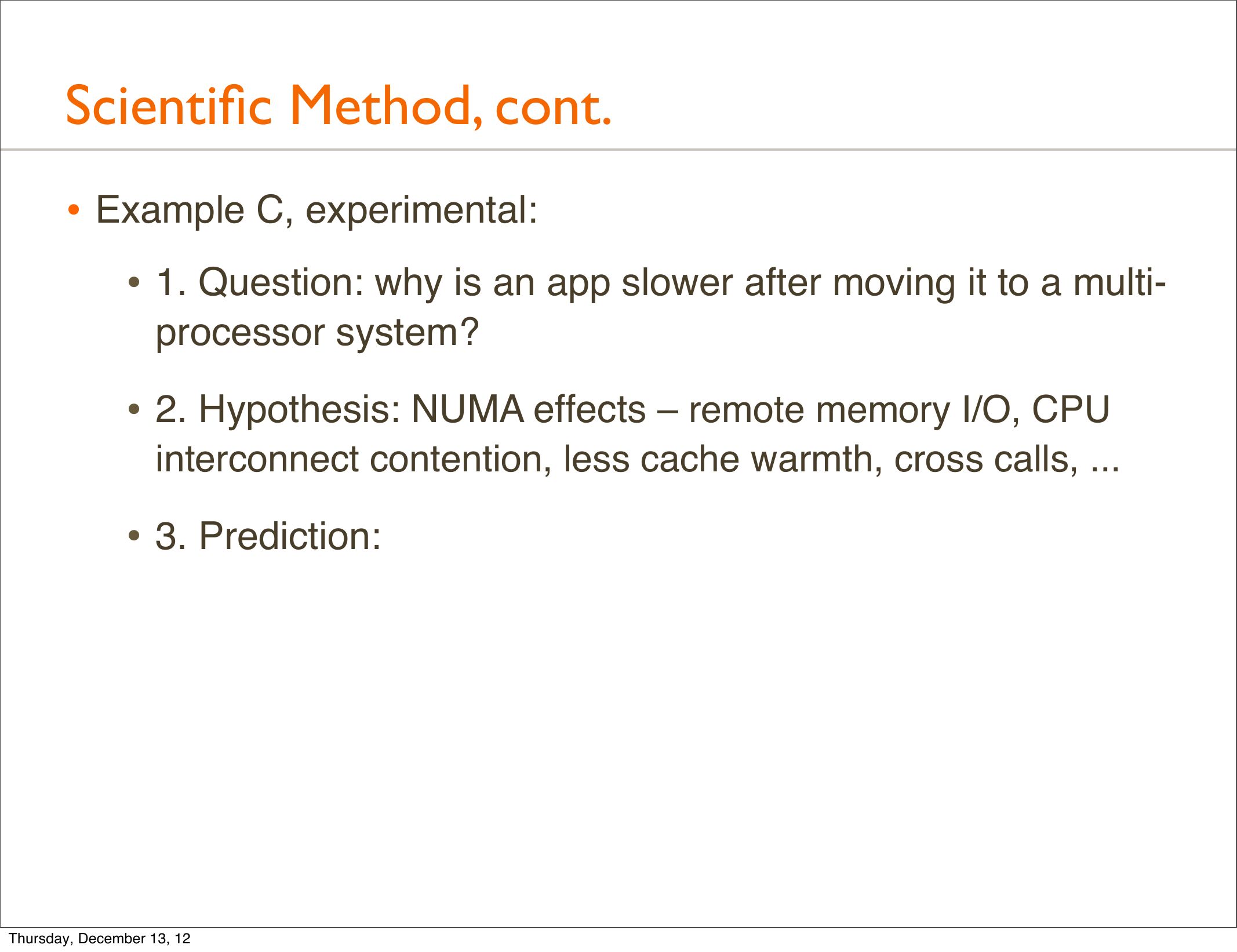

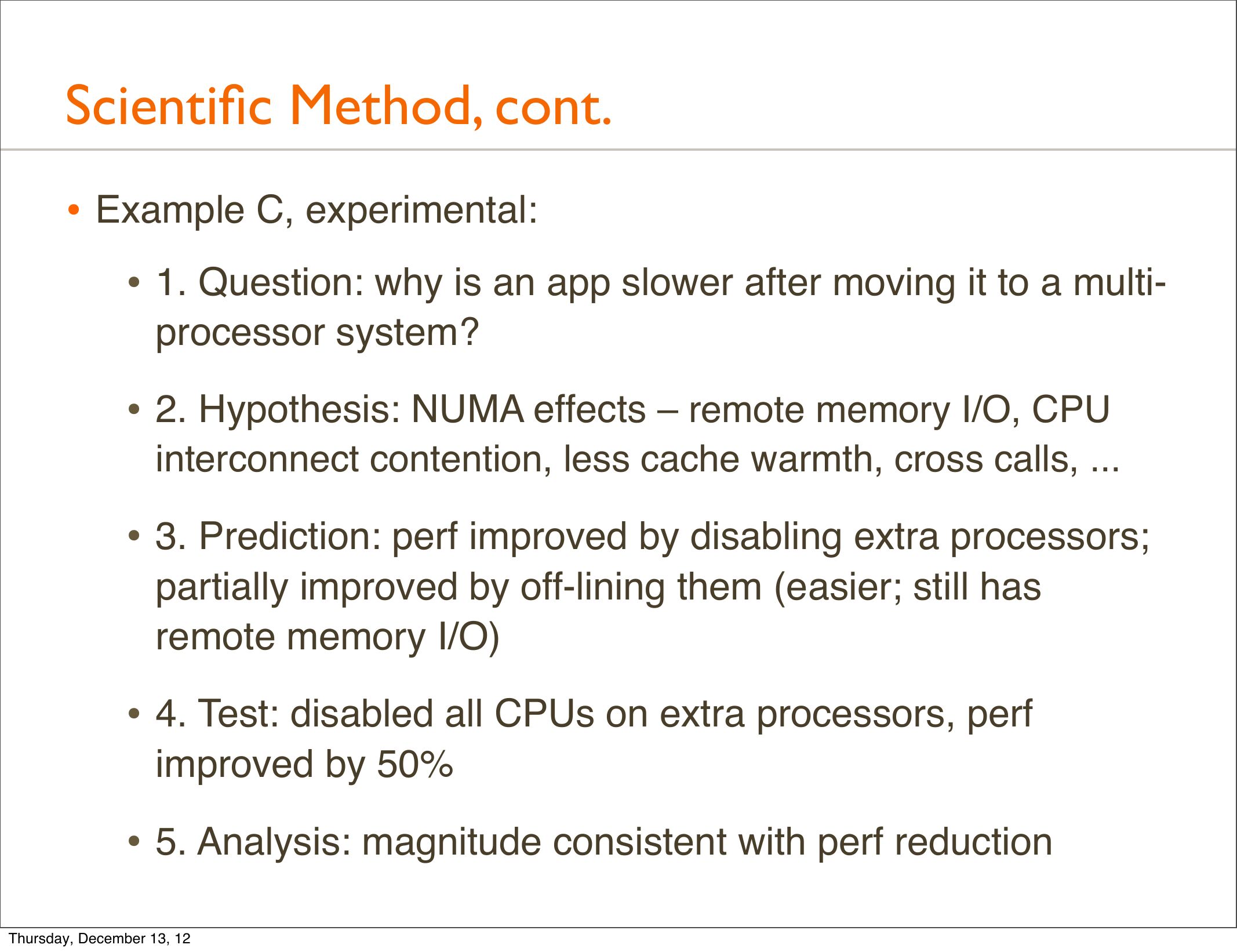

• Example C, experimental:
• 1. Question: why is an app slower after moving it to a multiprocessor system?
• 2. Hypothesis: NUMA effects – remote memory I/O, CPU
interconnect contention, less cache warmth, cross calls, ...
• 3. Prediction:
Thursday, December 13, 12

Scientific Method, cont.
• Example C, experimental:
• 1. Question: why is an app slower after moving it to a multiprocessor system?
• 2. Hypothesis: NUMA effects – remote memory I/O, CPU
interconnect contention, less cache warmth, cross calls, ...
• 3. Prediction: perf improved by disabling extra processors;
partially improved by off-lining them (easier; still has
remote memory I/O)
• 4. Test: disabled all CPUs on extra processors, perf
improved by 50%
• 5. Analysis: magnitude consistent with perf reduction
Thursday, December 13, 12

Scientific Method, cont.
• Example D, experimental:
• 1. Question: degraded file system perf as the cache grows
• 2. Hypothesis: file system metadata overheads, relative to
the record size – more records, more lock contention on
hash tables for the record lists
• 3. Prediction:
Thursday, December 13, 12

Scientific Method, cont.

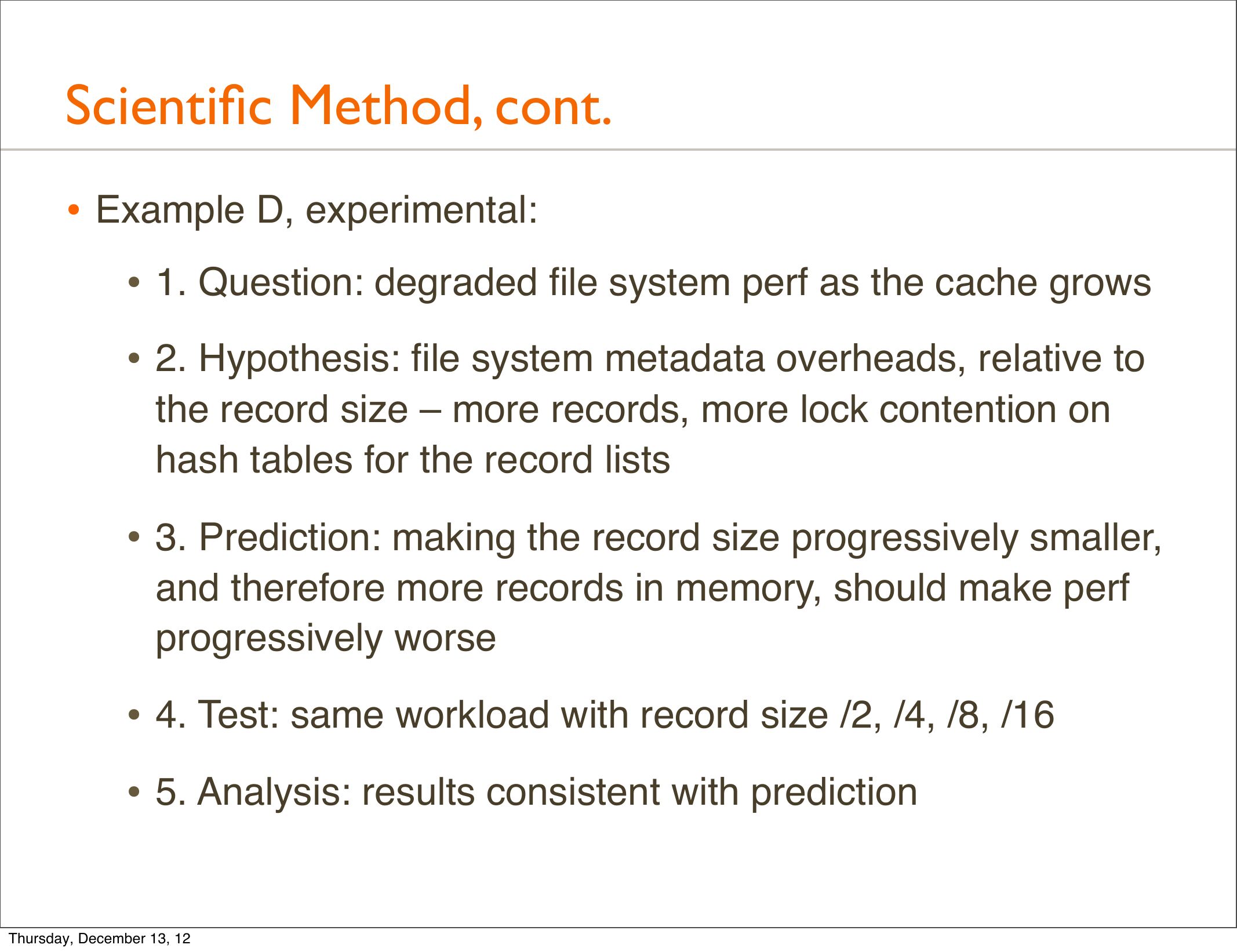

• Example D, experimental:
• 1. Question: degraded file system perf as the cache grows
• 2. Hypothesis: file system metadata overheads, relative to
the record size – more records, more lock contention on
hash tables for the record lists
• 3. Prediction: making the record size progressively smaller,
and therefore more records in memory, should make perf
progressively worse
• 4. Test: same workload with record size /2, /4, /8, /16
• 5. Analysis: results consistent with prediction
Thursday, December 13, 12

Scientific Method, cont.

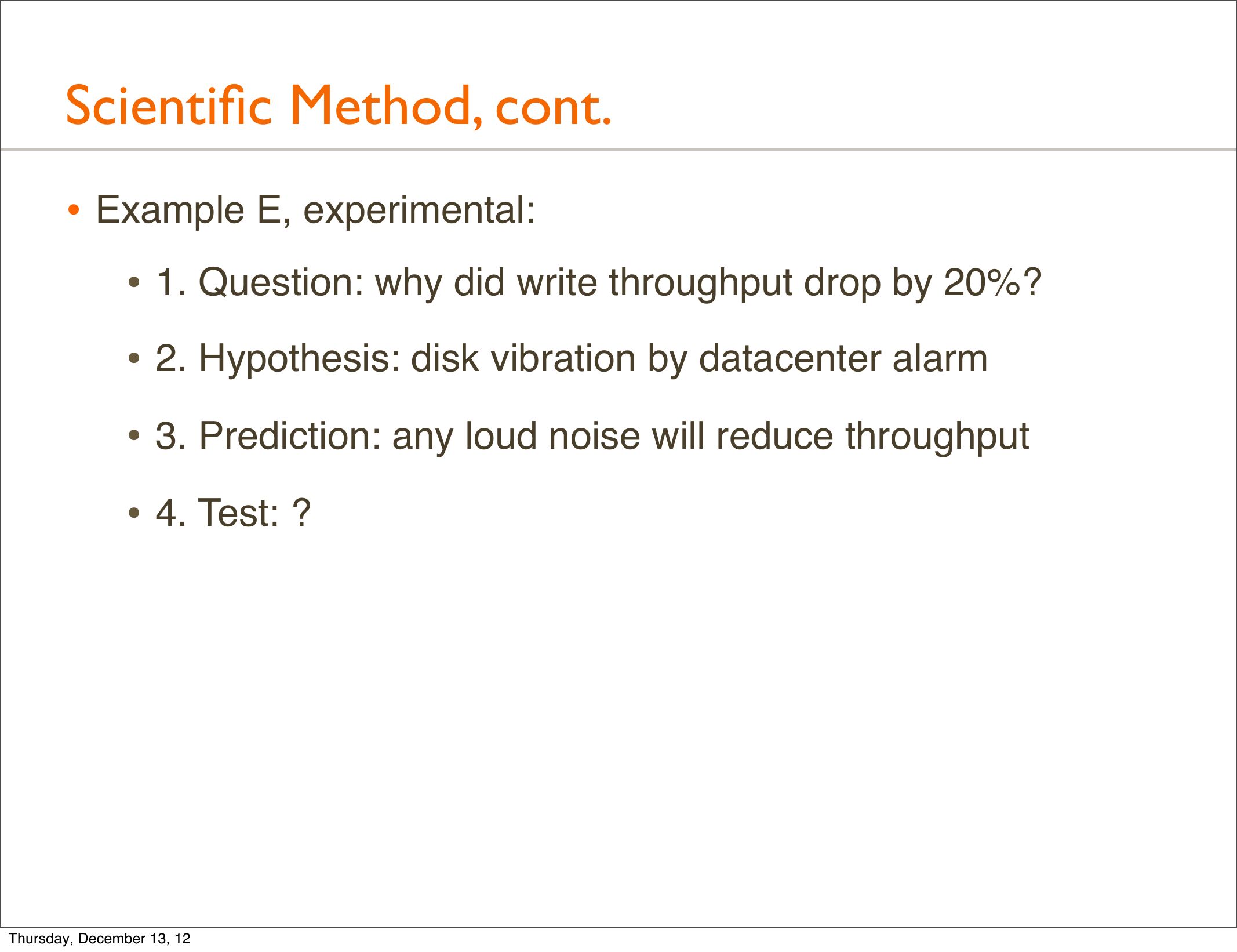

• Example E, experimental:
• 1. Question: why did write throughput drop by 20%?
• 2. Hypothesis: disk vibration by datacenter alarm
• 3. Prediction: any loud noise will reduce throughput
• 4. Test: ?
Thursday, December 13, 12

Scientific Method, cont.
• Test
• Shouting in the Datacenter: http://www.youtube.com/watch?v=tDacjrSCeq4
Thursday, December 13, 12

Scientific Method, cont.

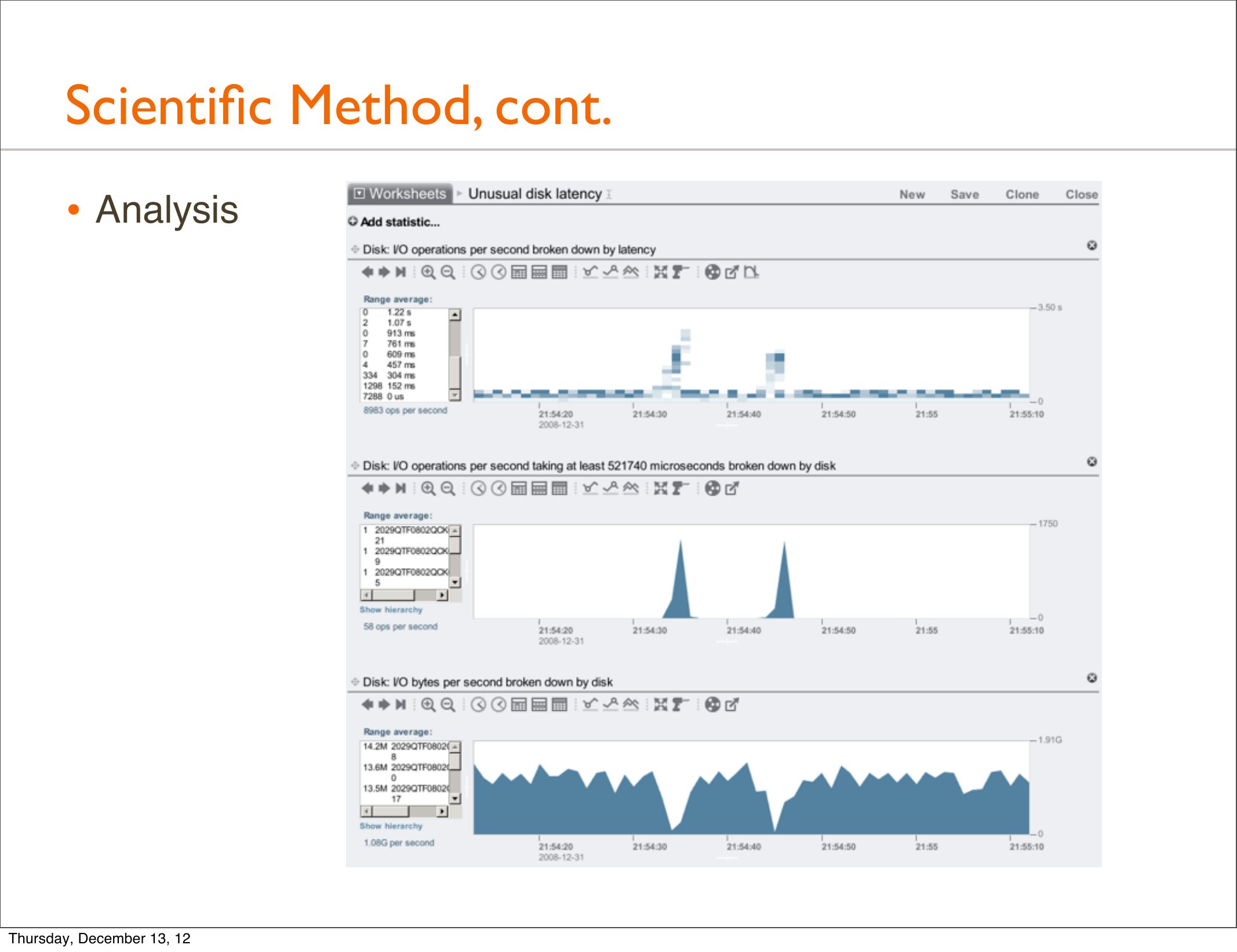

• Analysis
Thursday, December 13, 12

Scientific Method, cont.

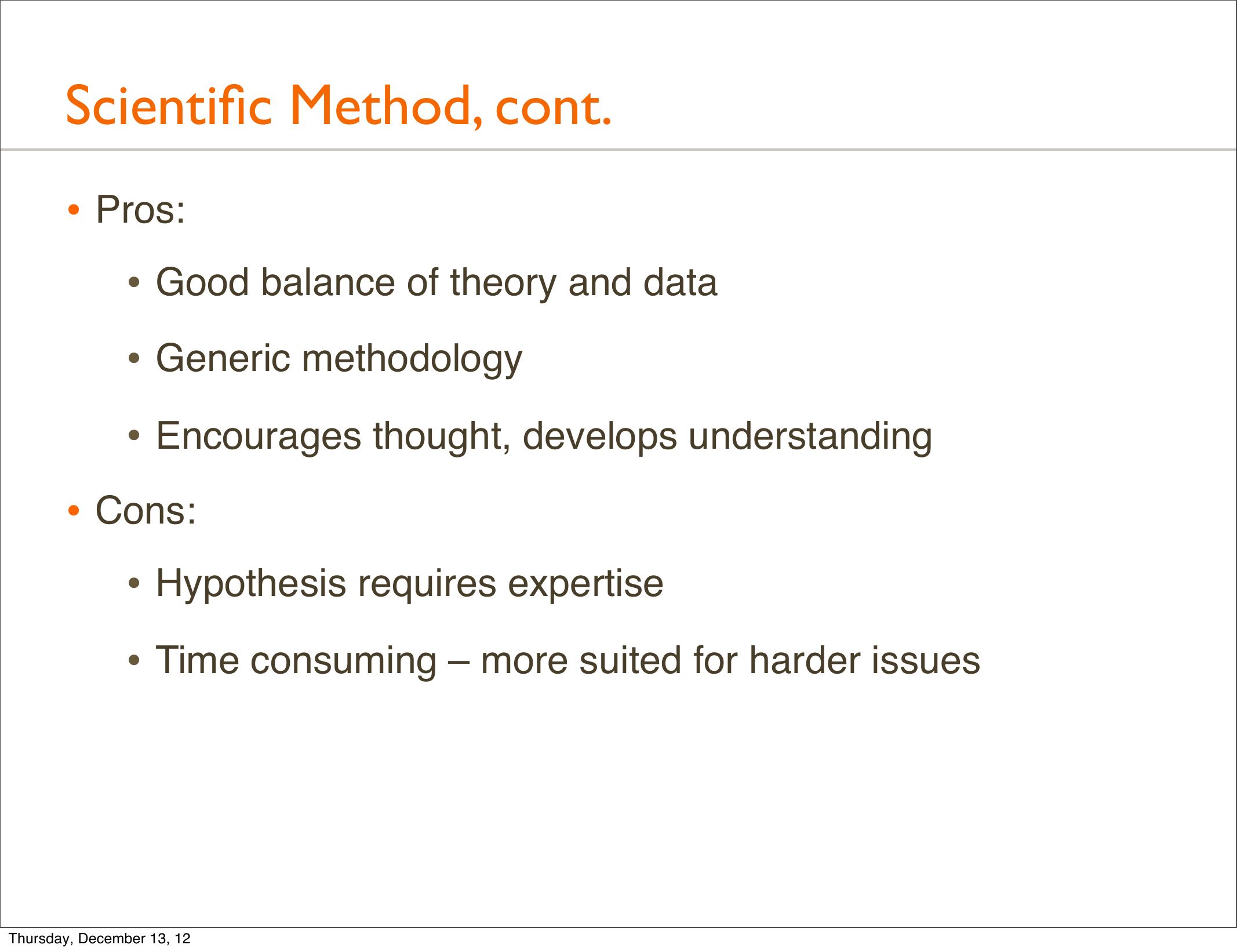

• Pros:
• Good balance of theory and data
• Generic methodology
• Encourages thought, develops understanding
• Cons:
• Hypothesis requires expertise
• Time consuming – more suited for harder issues
Thursday, December 13, 12

Workload Characterization Method
Thursday, December 13, 12

Workload Characterization Method

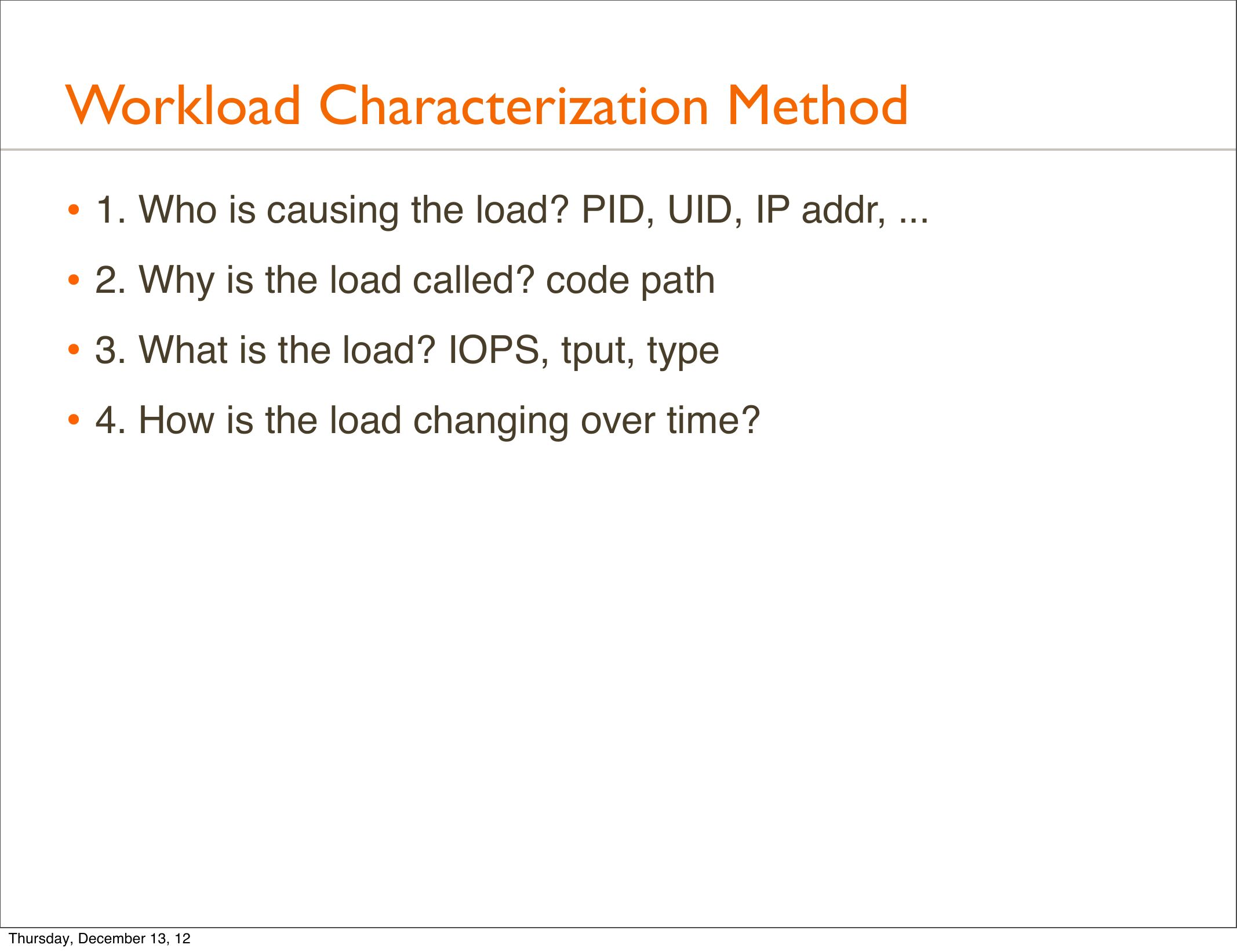

• 1. Who is causing the load? PID, UID, IP addr, ...
• 2. Why is the load called? code path
• 3. What is the load? IOPS, tput, type
• 4. How is the load changing over time?
Thursday, December 13, 12

Workload Characterization Method, cont.
• Example:

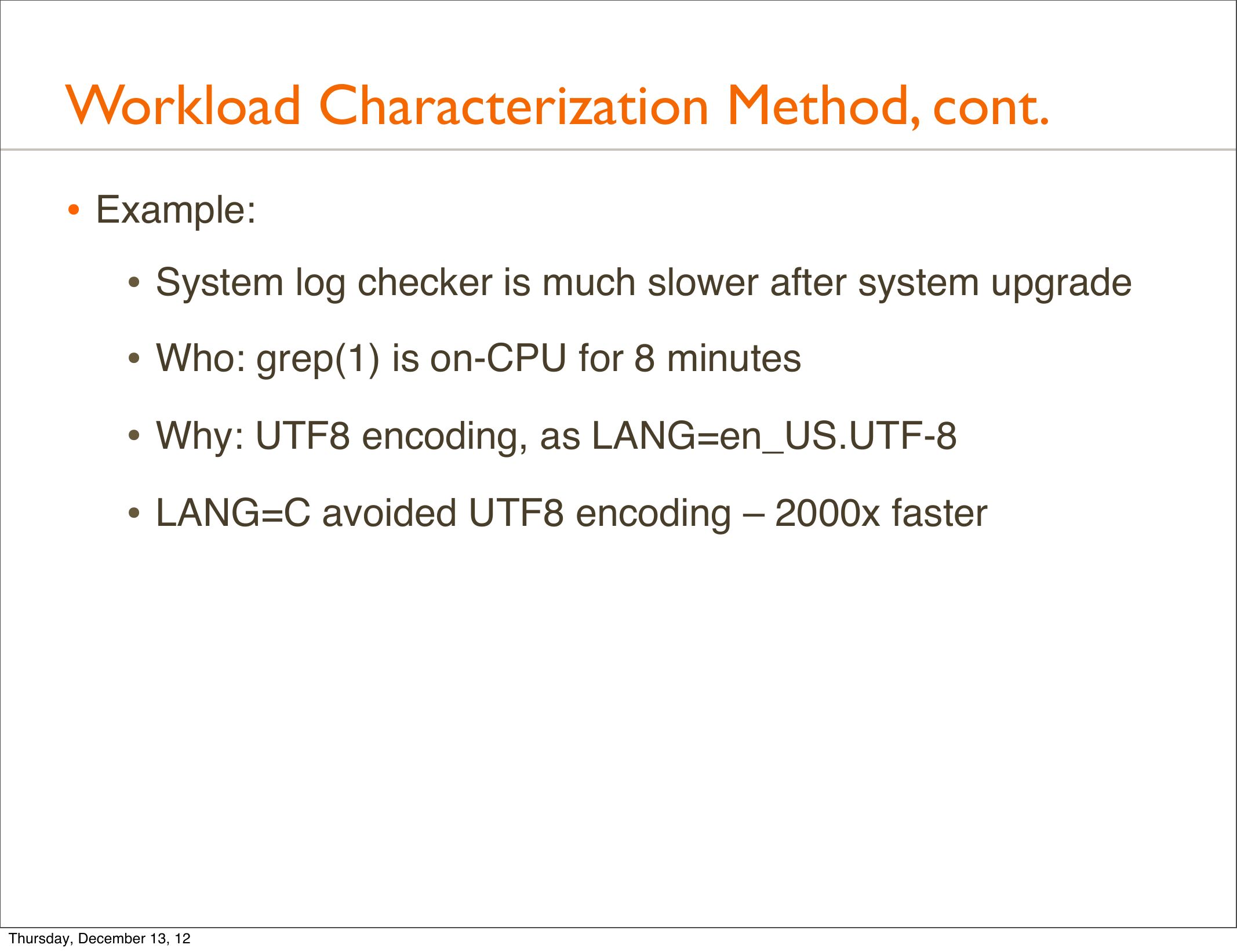

• System log checker is much slower after system upgrade
• Who: grep(1) is on-CPU for 8 minutes
• Why: UTF8 encoding, as LANG=en_US.UTF-8
• LANG=C avoided UTF8 encoding – 2000x faster
Thursday, December 13, 12

Workload Characterization Method, cont.

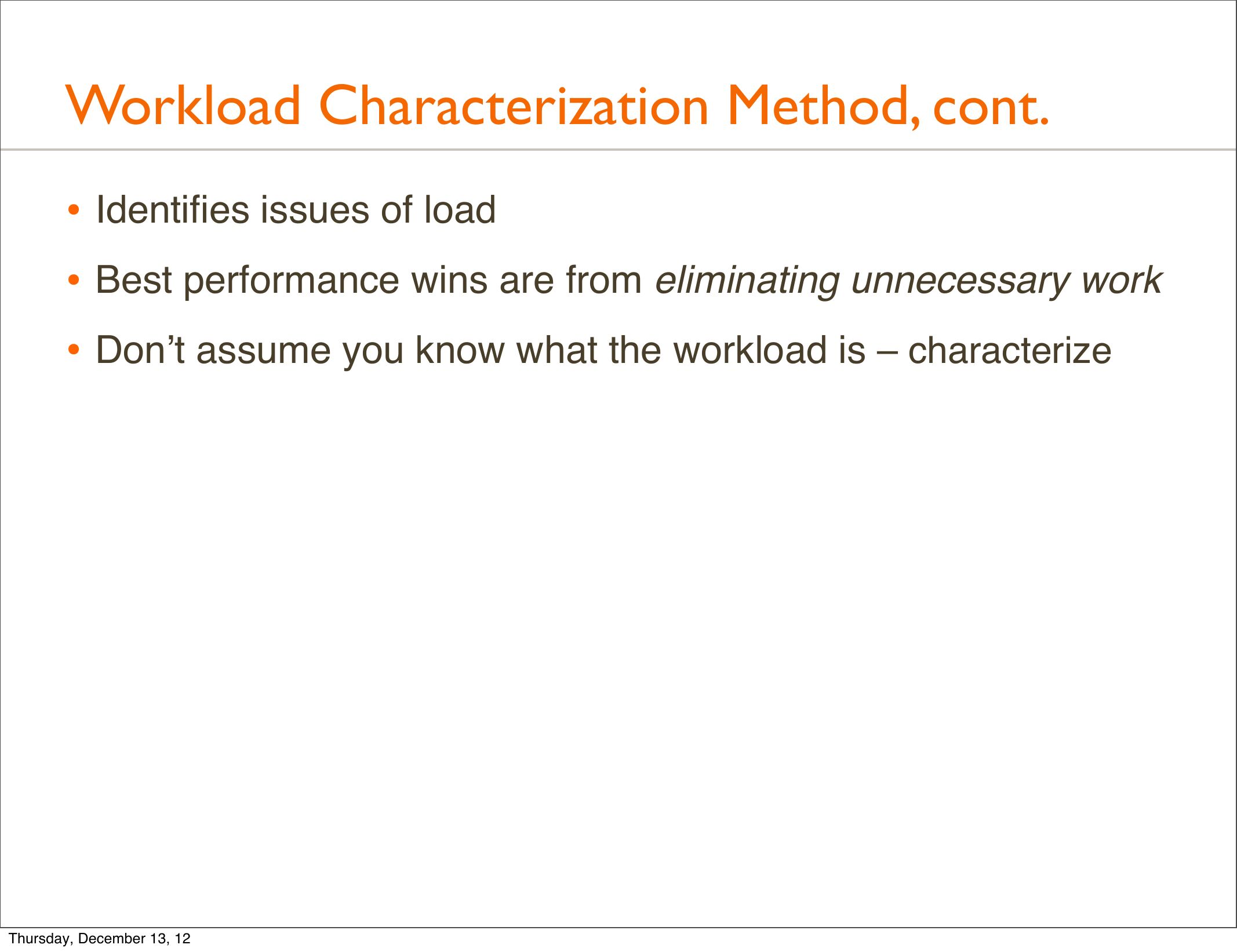

• Identifies issues of load
• Best performance wins are from eliminating unnecessary work
• Don’t assume you know what the workload is – characterize
Thursday, December 13, 12

Workload Characterization Method, cont.

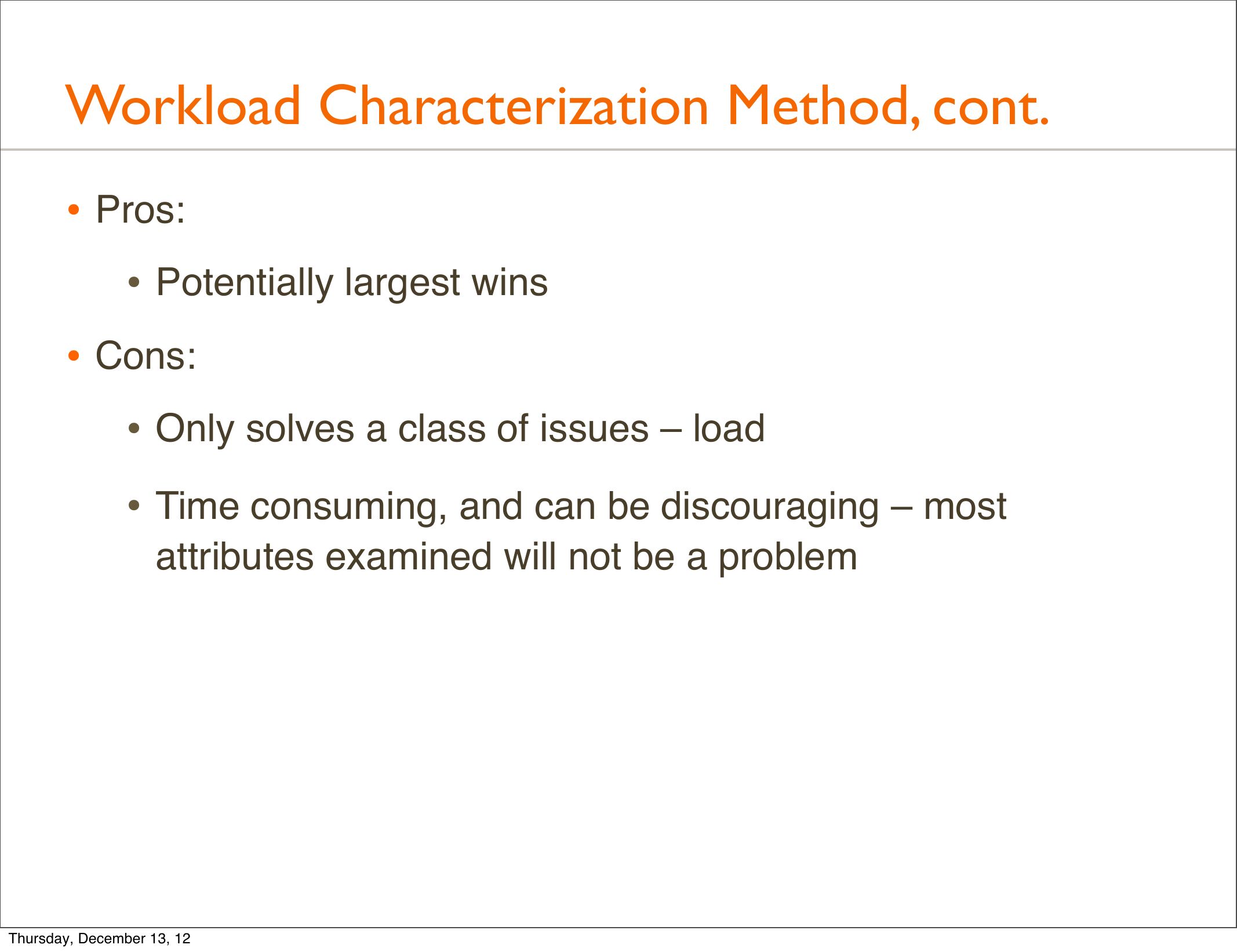

• Pros:
• Potentially largest wins
• Cons:
• Only solves a class of issues – load
• Time consuming, and can be discouraging – most
attributes examined will not be a problem
Thursday, December 13, 12

Drill-Down Analysis Method
Thursday, December 13, 12

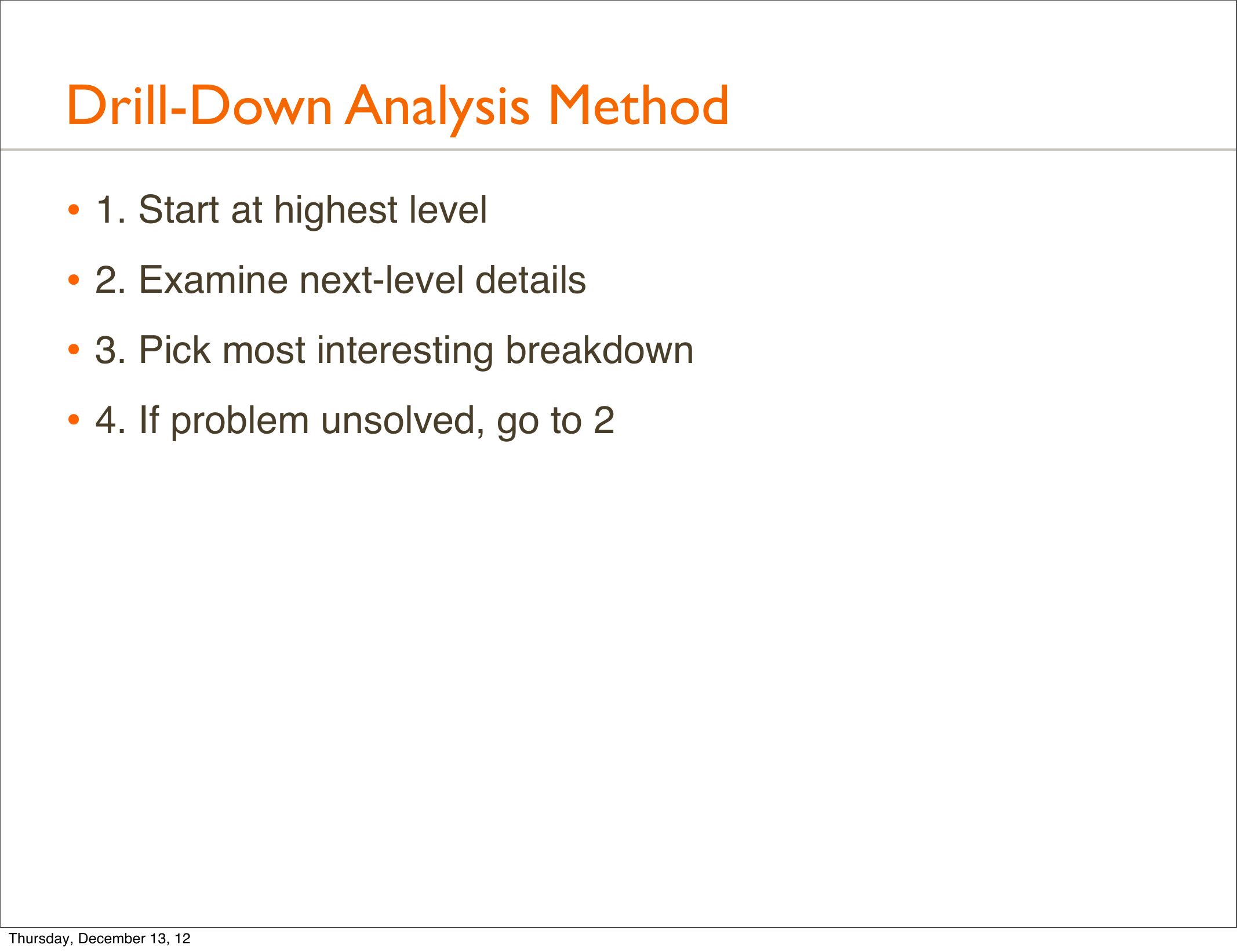

Drill-Down Analysis Method
• 1. Start at highest level
• 2. Examine next-level details
• 3. Pick most interesting breakdown
• 4. If problem unsolved, go to 2
Thursday, December 13, 12

Drill-Down Analysis Method, cont.

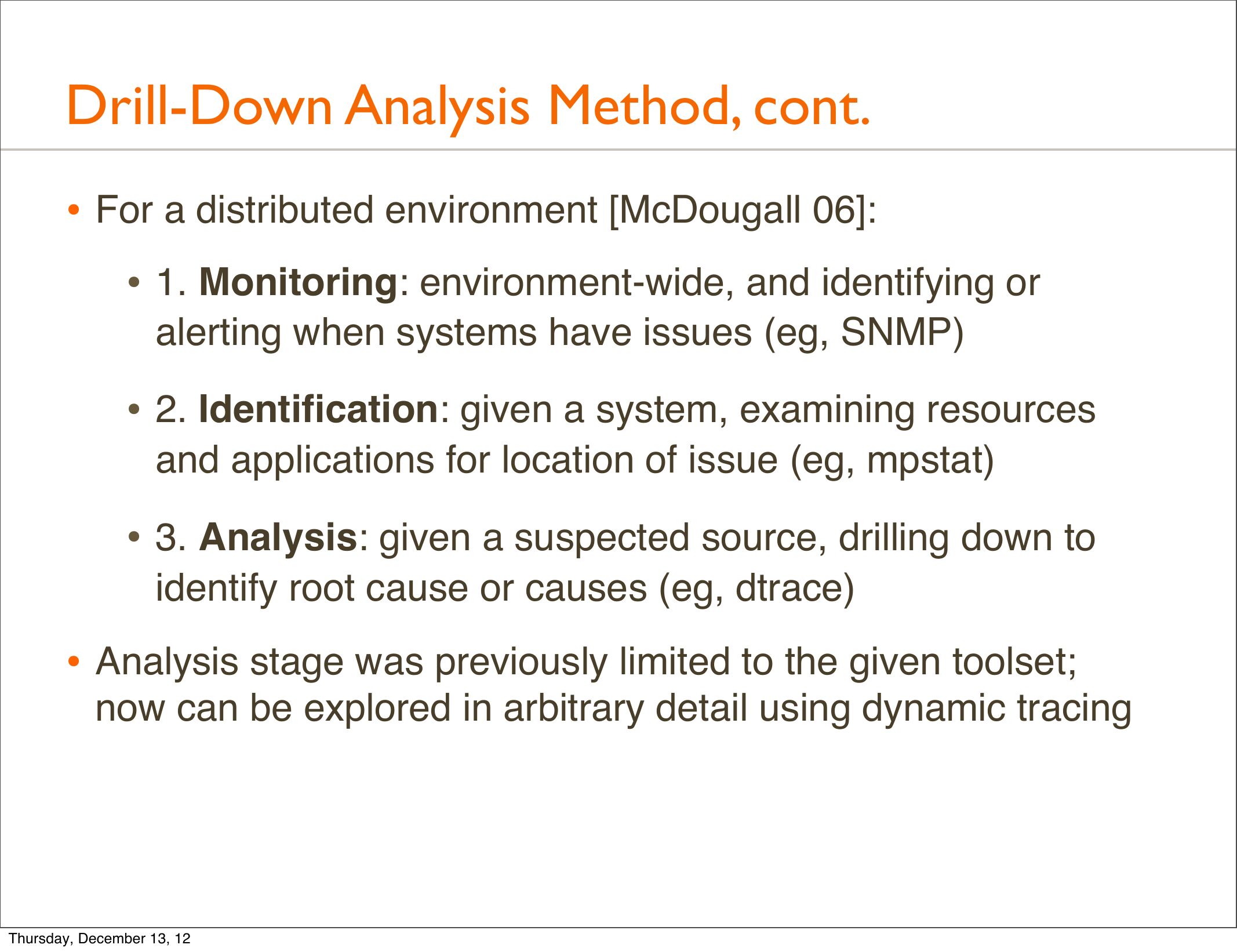

• For a distributed environment [McDougall 06]:
• 1. Monitoring: environment-wide, and identifying or
alerting when systems have issues (eg, SNMP)
• 2. Identification: given a system, examining resources
and applications for location of issue (eg, mpstat)
• 3. Analysis: given a suspected source, drilling down to
identify root cause or causes (eg, dtrace)
• Analysis stage was previously limited to the given toolset;
now can be explored in arbitrary detail using dynamic tracing
Thursday, December 13, 12

Drill-Down Analysis Method, cont.: Example

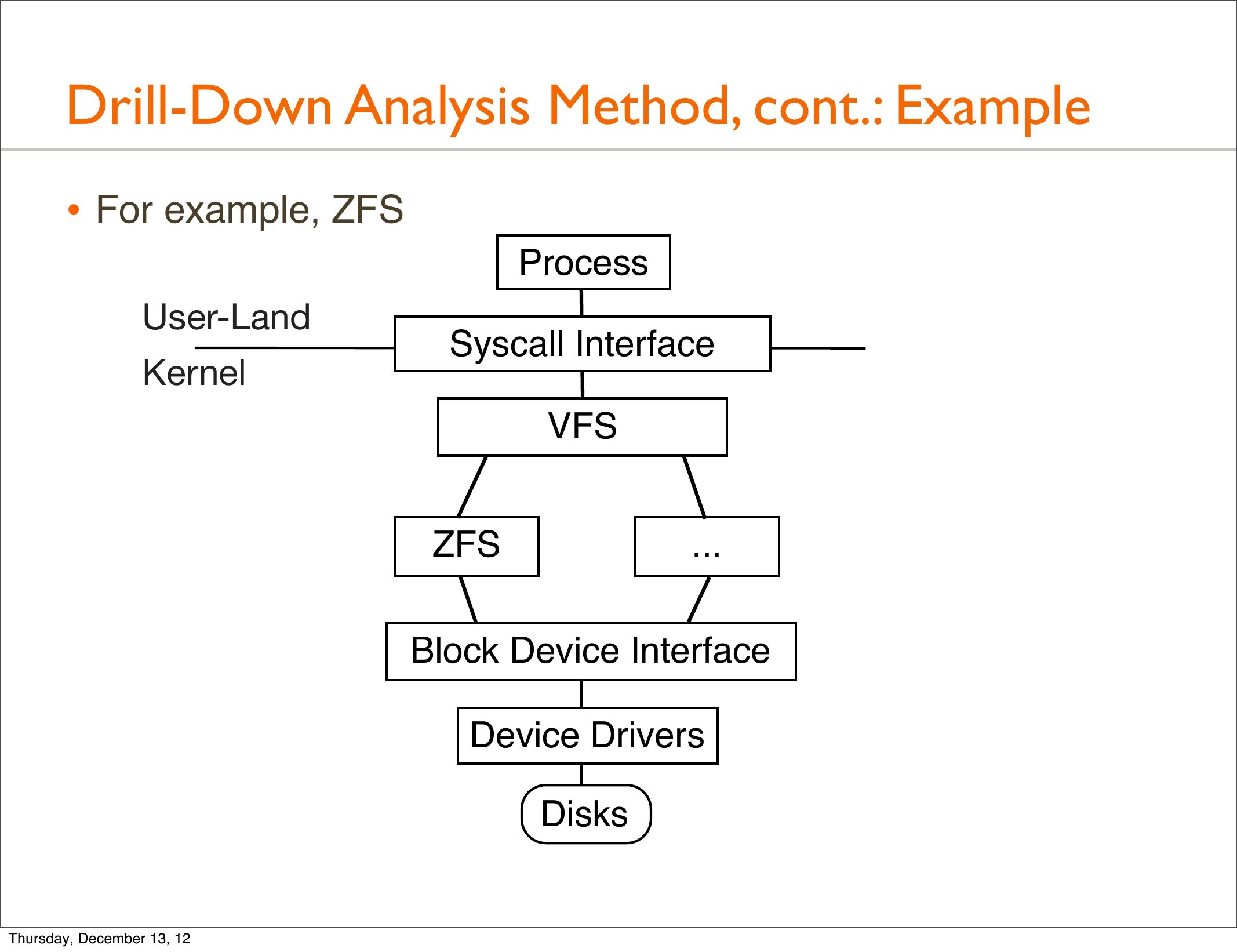

• For example, ZFS
Process
User-Land
Kernel
Syscall Interface
VFS
ZFS
Block Device Interface
Device Drivers
Disks
Thursday, December 13, 12

Drill-Down Analysis Method, cont.: Example
• For example, ZFS
Drill-Down Analysis
Process
User-Land
Kernel
Syscall Interface
VFS
ZFS
Block Device Interface
Device Drivers
Disks
Thursday, December 13, 12

Drill-Down Analysis Method, cont.: Example
• Using DTrace
mysql_pid_fslatency.d
Process
User-Land
Kernel
Syscall Interface
VFS
ZFS
Block Device Interface
Device Drivers
Disks
Thursday, December 13, 12

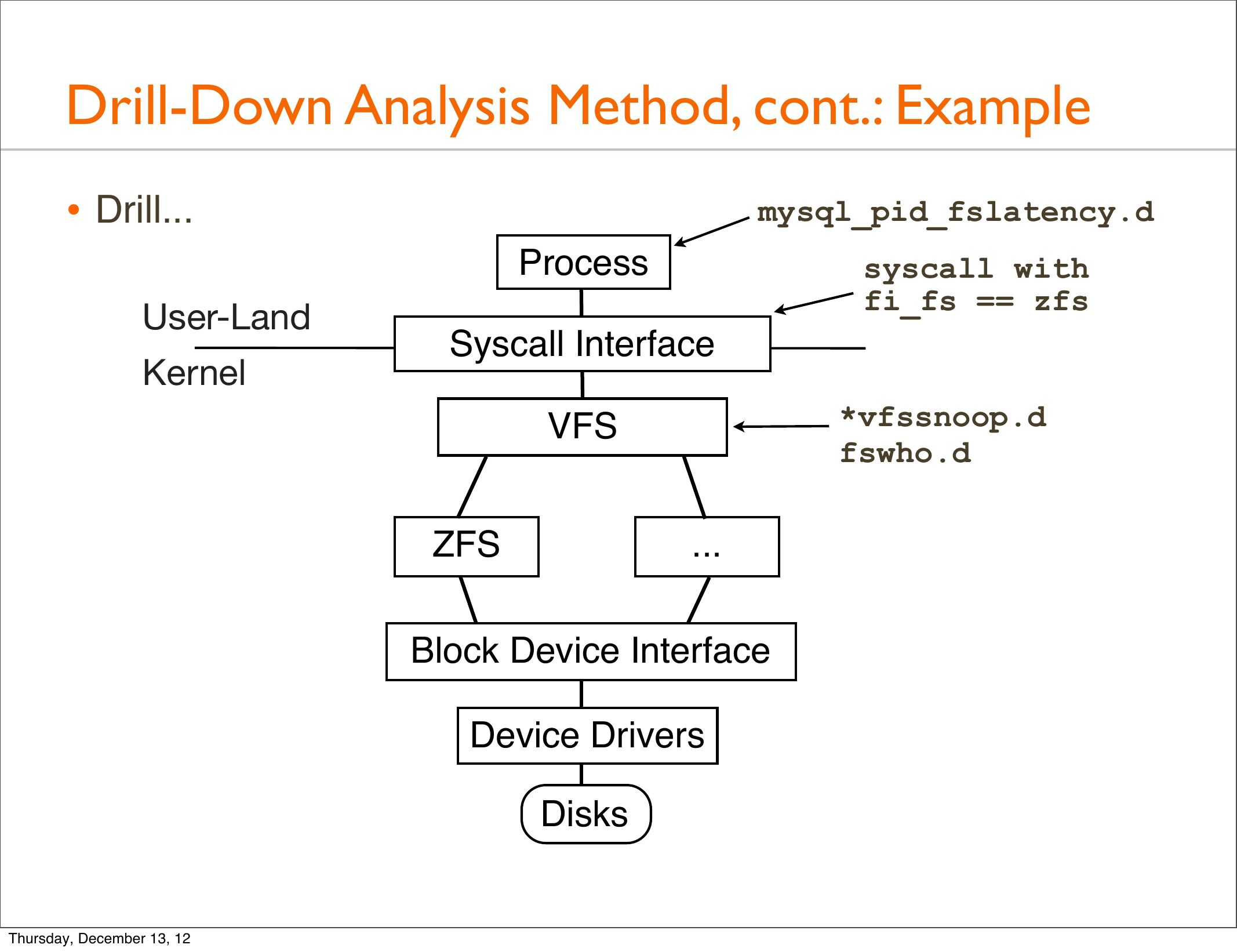

Drill-Down Analysis Method, cont.: Example
• Drill...
mysql_pid_fslatency.d
Process
User-Land
Kernel
syscall with
fi_fs == zfs
Syscall Interface
VFS
ZFS
Block Device Interface
Device Drivers
Disks
Thursday, December 13, 12

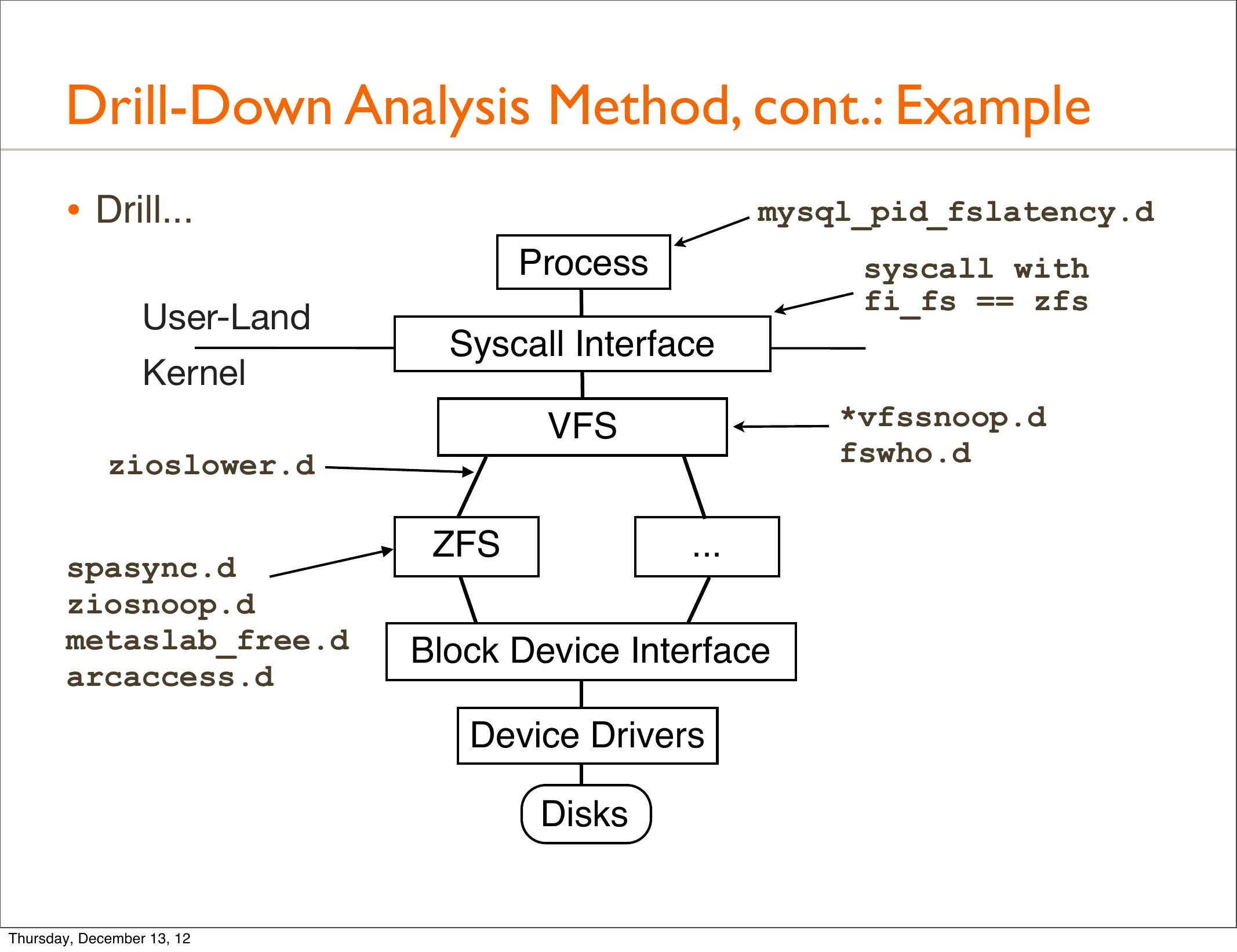

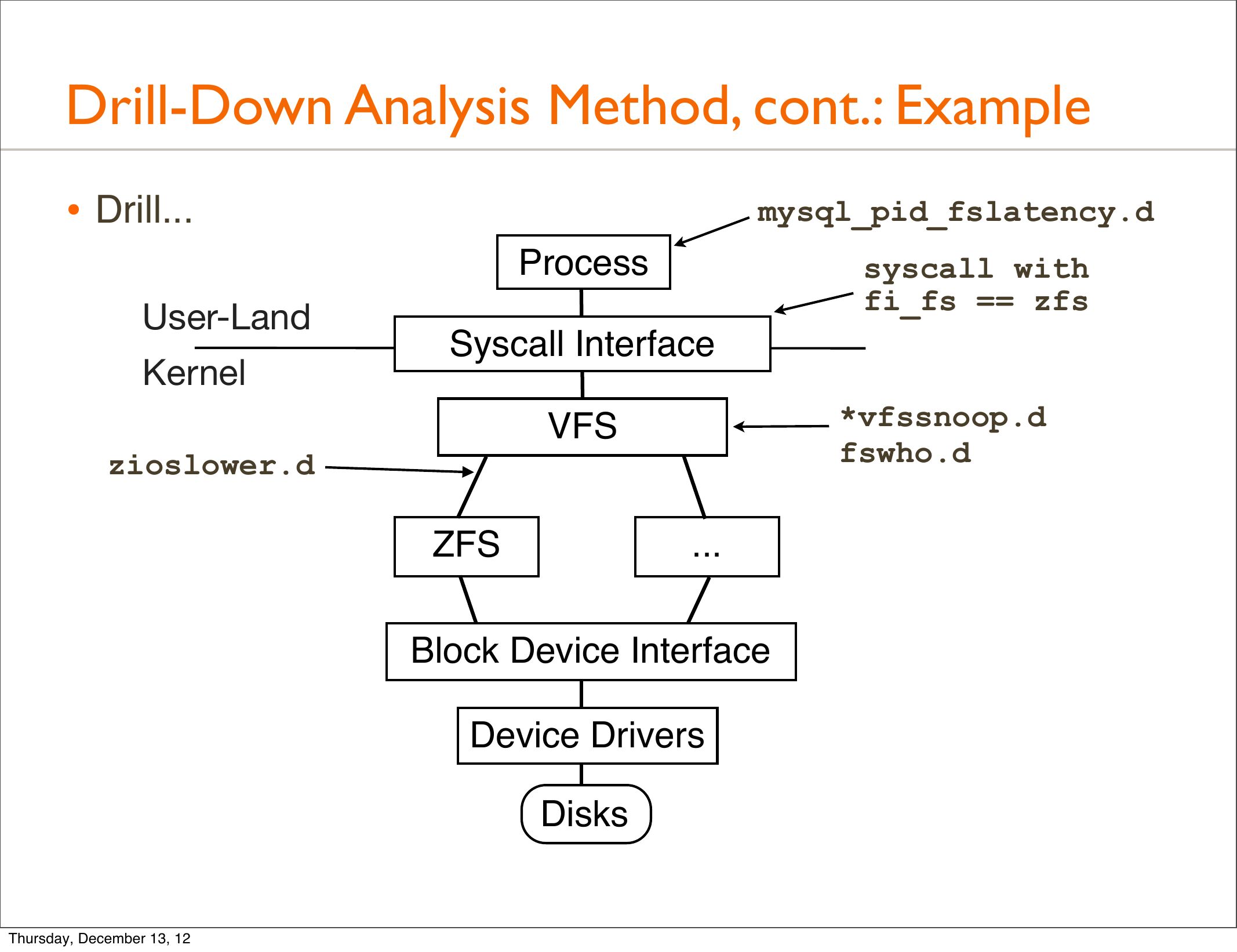

Drill-Down Analysis Method, cont.: Example
• Drill...
mysql_pid_fslatency.d
Process
User-Land
Kernel
syscall with
fi_fs == zfs
Syscall Interface
*vfssnoop.d
fswho.d
VFS
ZFS
Block Device Interface
Device Drivers
Disks
Thursday, December 13, 12

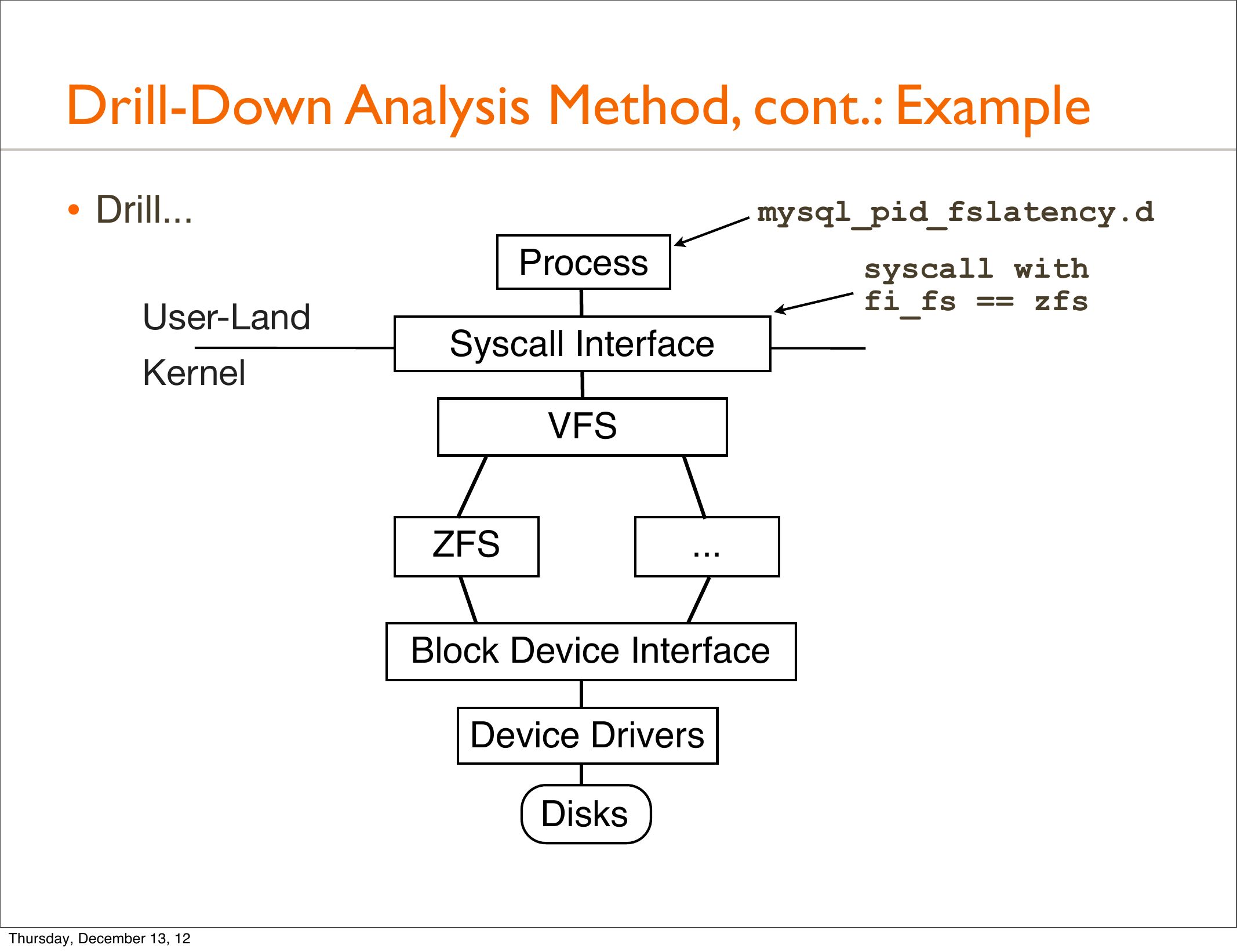

Drill-Down Analysis Method, cont.: Example
• Drill...
mysql_pid_fslatency.d
Process
User-Land
Kernel
syscall with
fi_fs == zfs
Syscall Interface
*vfssnoop.d
fswho.d
VFS
zioslower.d
ZFS
Block Device Interface
Device Drivers
Disks
Thursday, December 13, 12

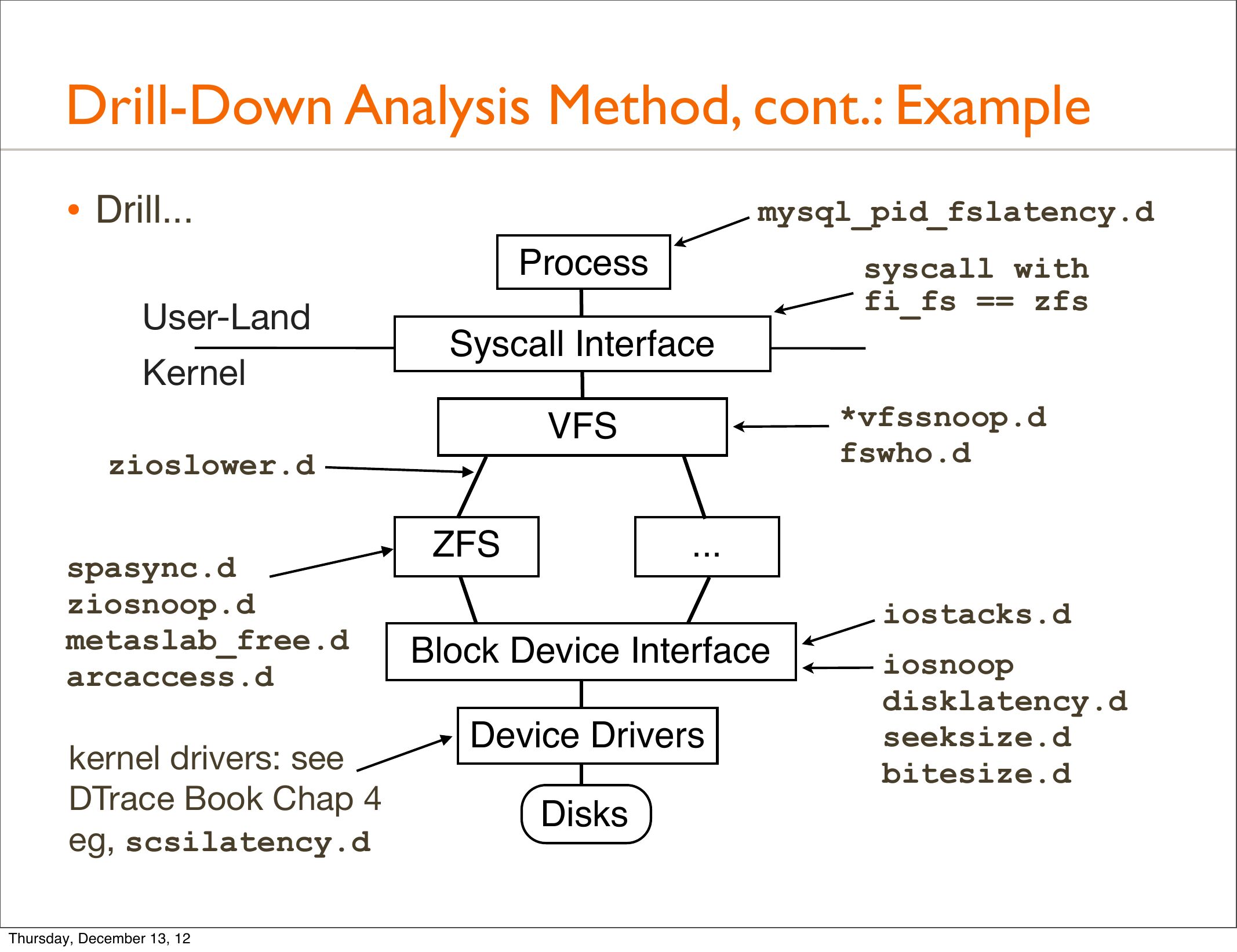

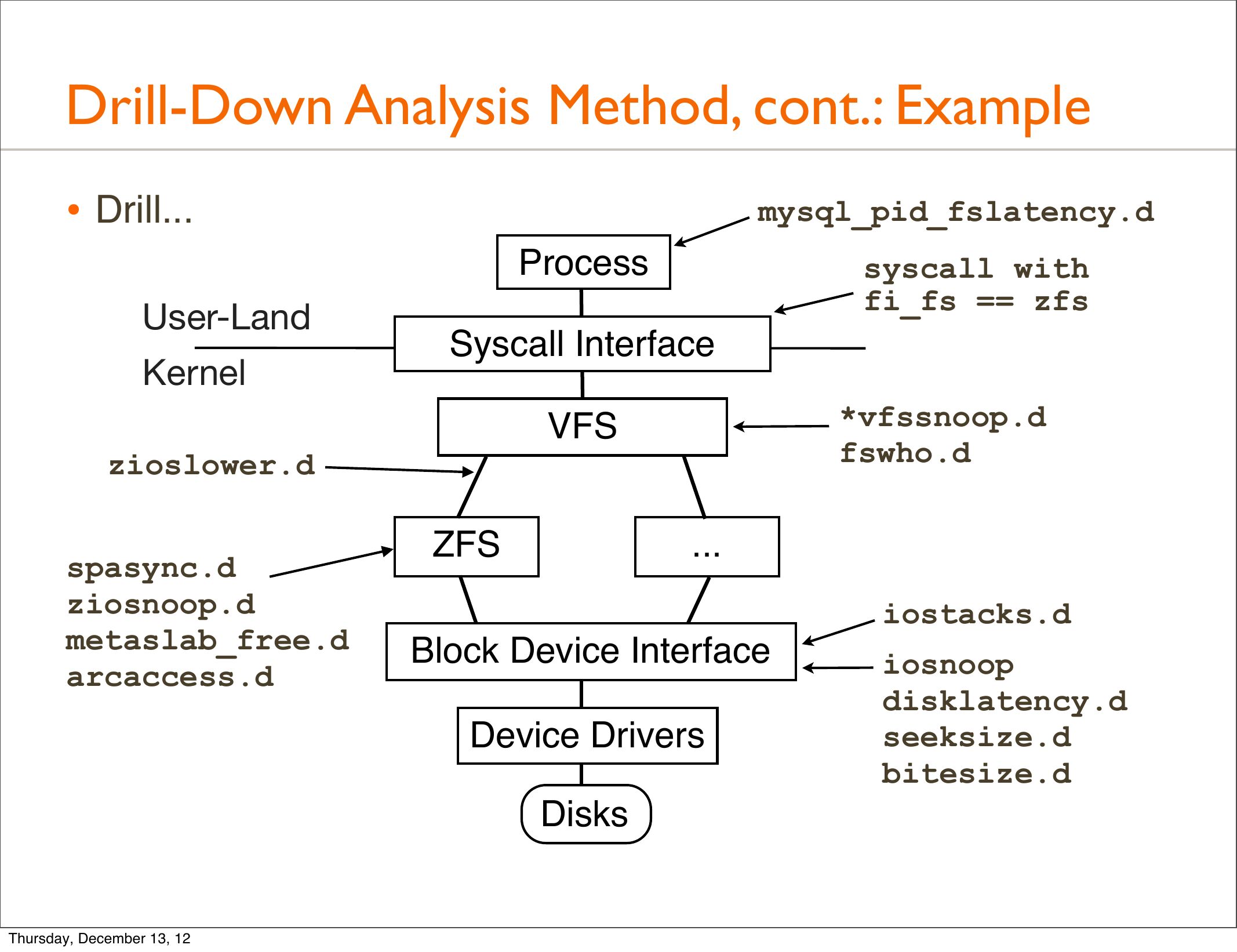

Drill-Down Analysis Method, cont.: Example
• Drill...
mysql_pid_fslatency.d
Process
User-Land
Kernel
syscall with
fi_fs == zfs
Syscall Interface
*vfssnoop.d
fswho.d
VFS
zioslower.d
spasync.d
ziosnoop.d
metaslab_free.d
arcaccess.d
ZFS
Block Device Interface
Device Drivers
Disks
Thursday, December 13, 12

Drill-Down Analysis Method, cont.: Example
• Drill...
mysql_pid_fslatency.d
Process
User-Land
Kernel
syscall with
fi_fs == zfs
Syscall Interface
*vfssnoop.d
fswho.d
VFS
zioslower.d
spasync.d
ziosnoop.d
metaslab_free.d
arcaccess.d
ZFS
iostacks.d
Block Device Interface
Device Drivers
Disks
Thursday, December 13, 12
iosnoop
disklatency.d
seeksize.d
bitesize.d

Drill-Down Analysis Method, cont.: Example
• Drill...
mysql_pid_fslatency.d
Process
User-Land
Kernel
syscall with
fi_fs == zfs
Syscall Interface
*vfssnoop.d
fswho.d
VFS
zioslower.d
spasync.d
ziosnoop.d
metaslab_free.d
arcaccess.d
kernel drivers: see
DTrace Book Chap 4
eg, scsilatency.d
Thursday, December 13, 12
ZFS
iostacks.d
Block Device Interface
Device Drivers
Disks
iosnoop
disklatency.d
seeksize.d
bitesize.d

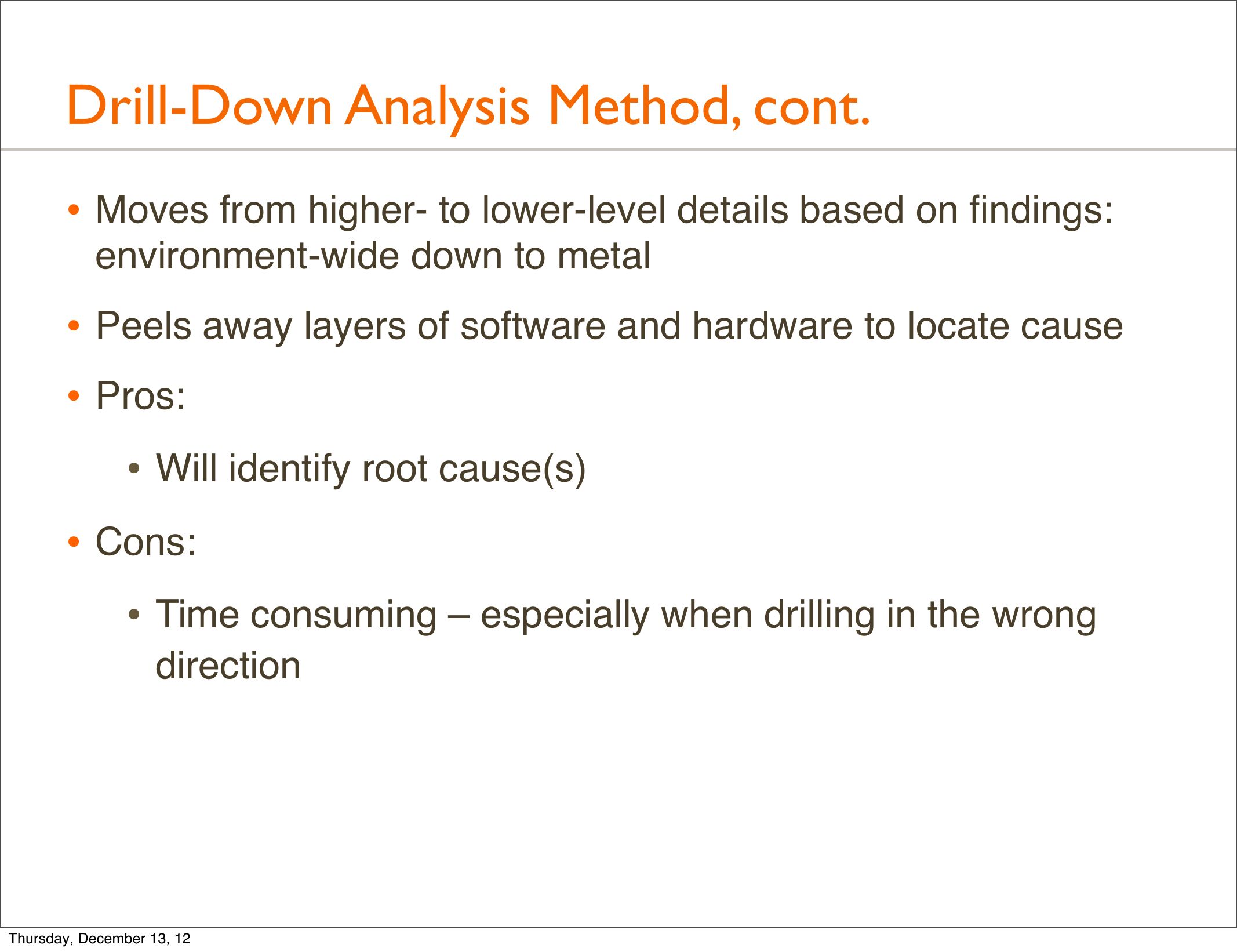

Drill-Down Analysis Method, cont.
• Moves from higher- to lower-level details based on findings:
environment-wide down to metal
• Peels away layers of software and hardware to locate cause
• Pros:
• Will identify root cause(s)
• Cons:
• Time consuming – especially when drilling in the wrong
direction
Thursday, December 13, 12

Latency Analysis Method
Thursday, December 13, 12

Latency Analysis Method, cont.
• 1. Measure operation time (latency)
• 2. Divide into logical synchronous components
• 3. Continue division until latency origin is identified
• 4. Quantify: estimate speedup if problem fixed
Thursday, December 13, 12

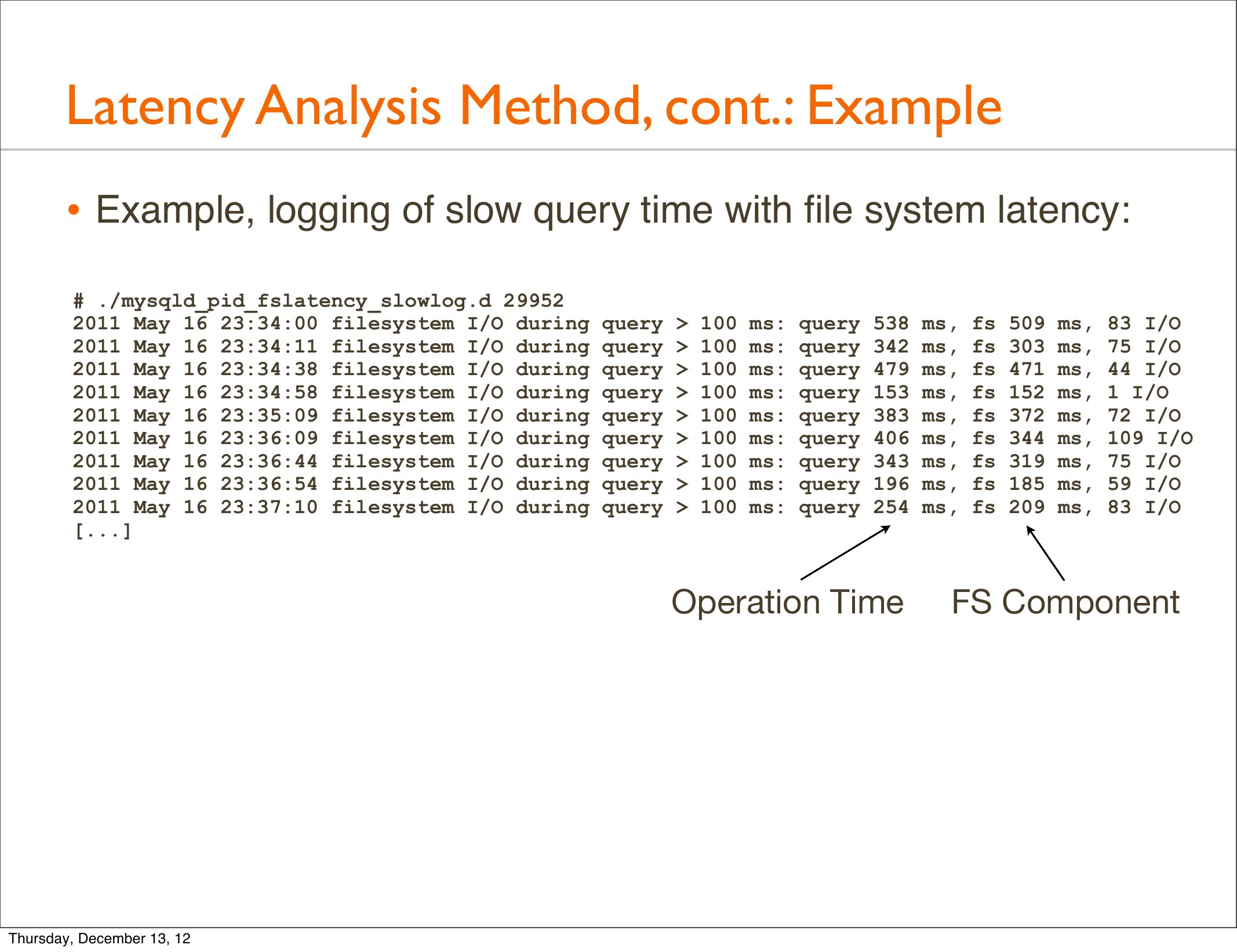

Latency Analysis Method, cont.: Example
• Example, logging of slow query time with file system latency:
# ./mysqld_pid_fslatency_slowlog.d 29952
2011 May 16 23:34:00 filesystem I/O during query >gt; 100 ms: query 538 ms, fs 509 ms, 83 I/O
2011 May 16 23:34:11 filesystem I/O during query >gt; 100 ms: query 342 ms, fs 303 ms, 75 I/O
2011 May 16 23:34:38 filesystem I/O during query >gt; 100 ms: query 479 ms, fs 471 ms, 44 I/O
2011 May 16 23:34:58 filesystem I/O during query >gt; 100 ms: query 153 ms, fs 152 ms, 1 I/O
2011 May 16 23:35:09 filesystem I/O during query >gt; 100 ms: query 383 ms, fs 372 ms, 72 I/O
2011 May 16 23:36:09 filesystem I/O during query >gt; 100 ms: query 406 ms, fs 344 ms, 109 I/O
2011 May 16 23:36:44 filesystem I/O during query >gt; 100 ms: query 343 ms, fs 319 ms, 75 I/O
2011 May 16 23:36:54 filesystem I/O during query >gt; 100 ms: query 196 ms, fs 185 ms, 59 I/O
2011 May 16 23:37:10 filesystem I/O during query >gt; 100 ms: query 254 ms, fs 209 ms, 83 I/O
[...]
Operation Time
Thursday, December 13, 12
FS Component

Latency Analysis Method, cont.: Types
• Drill-down analysis of latency
• many of the previous ZFS examples were latency-based
• Latency binary search, eg:
• 1. Operation latency is A
• 2. Measure A
• 3. Measure synchronous components: B, C (can be sums)
• 4. if B >gt; C, A = B. else A = C
• 5. If problem unsolved, go to 2
• Spot-the-outlier from multiple layers – correlate latency
Thursday, December 13, 12

Latency Analysis Method, cont.: Example
• Drill-down: Latency distributions

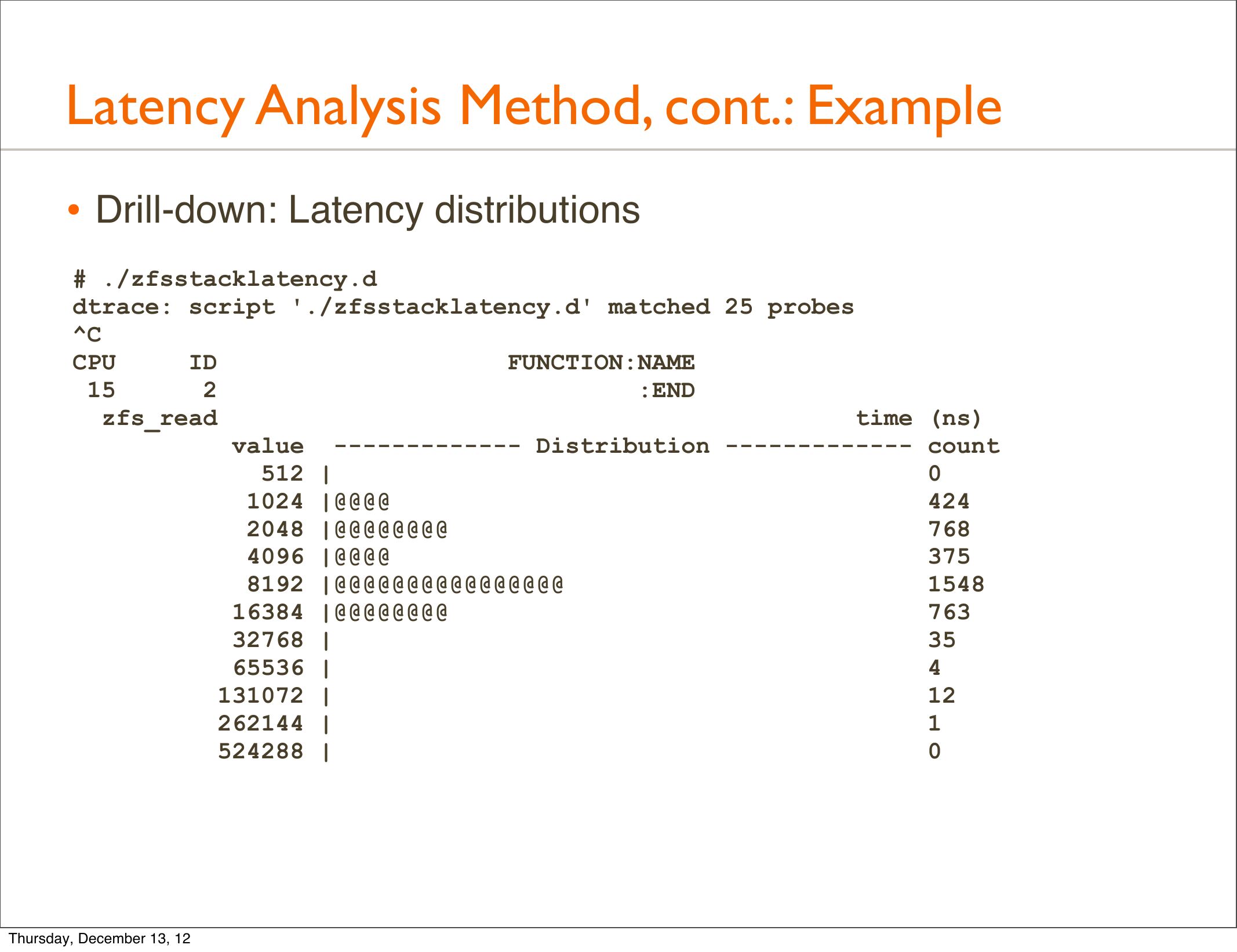

# ./zfsstacklatency.d
dtrace: script './zfsstacklatency.d' matched 25 probes
CPU
FUNCTION:NAME
:END
zfs_read
time (ns)
value ------------- Distribution ------------- count
512 |
1024 |@@@@
2048 |@@@@@@@@
4096 |@@@@
8192 |@@@@@@@@@@@@@@@@
16384 |@@@@@@@@
32768 |
65536 |
131072 |
262144 |
524288 |
Thursday, December 13, 12

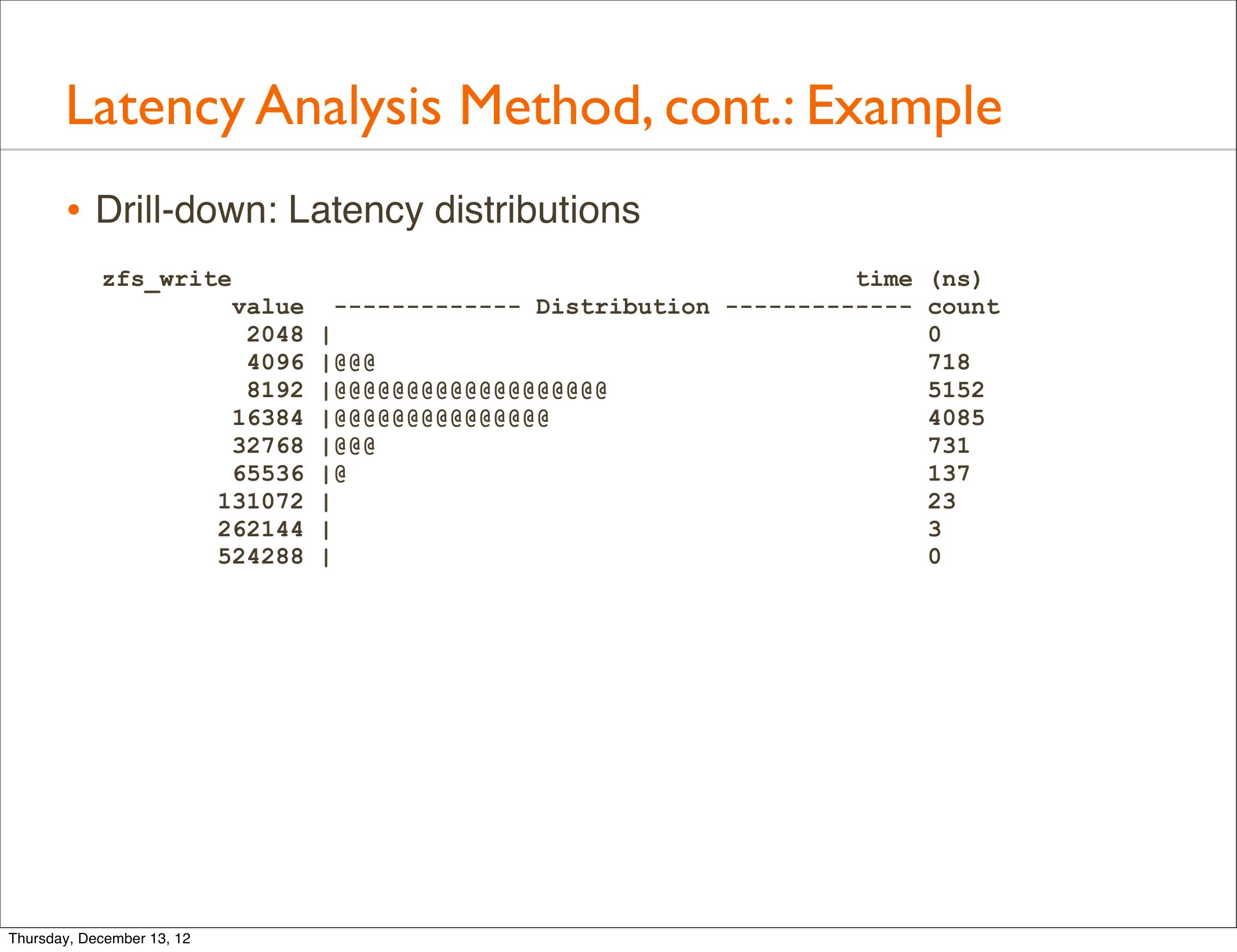

Latency Analysis Method, cont.: Example
• Drill-down: Latency distributions
zfs_write
time (ns)
value ------------- Distribution ------------- count
2048 |
4096 |@@@
8192 |@@@@@@@@@@@@@@@@@@@
16384 |@@@@@@@@@@@@@@@
32768 |@@@
65536 |@
131072 |
262144 |
524288 |
Thursday, December 13, 12

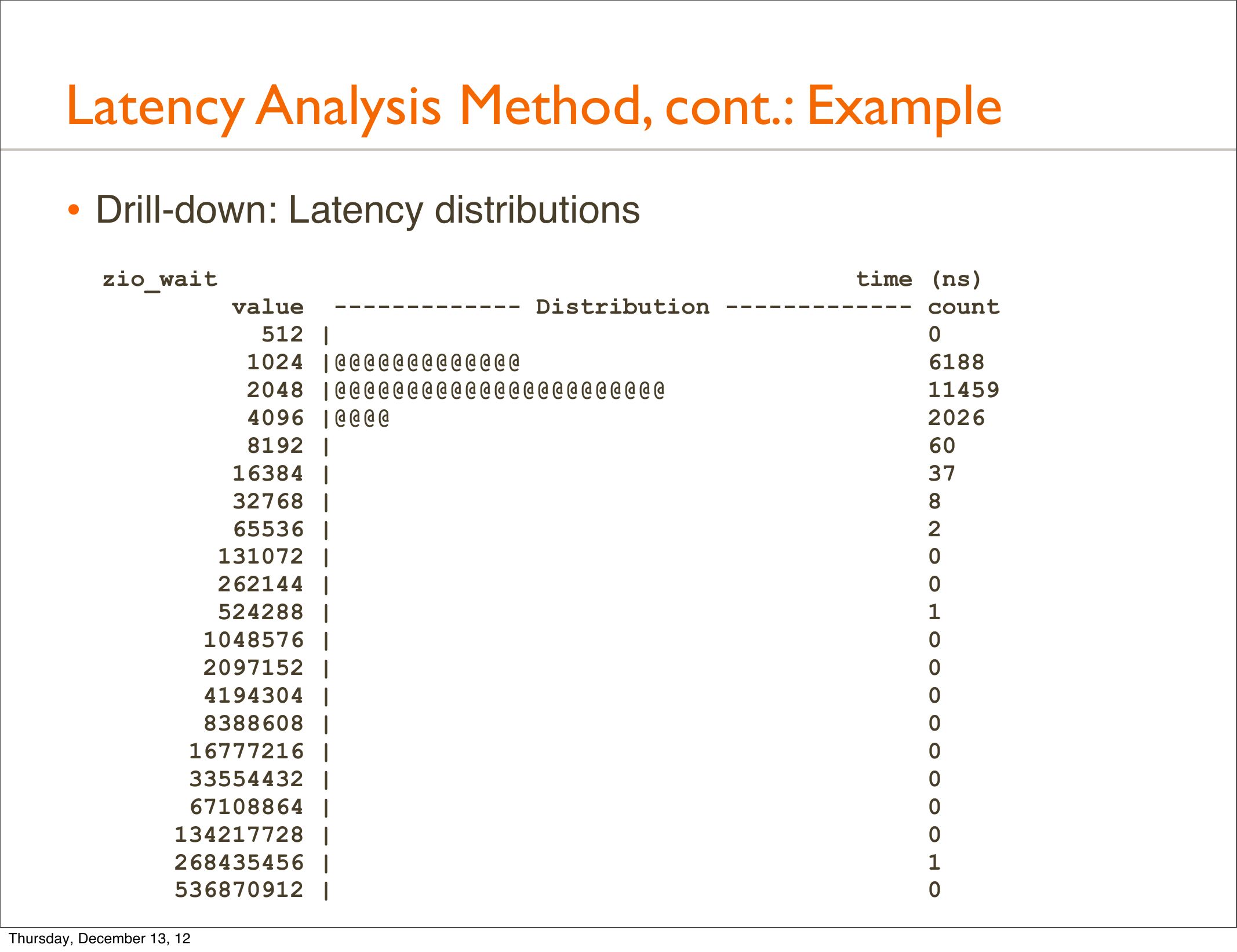

Latency Analysis Method, cont.: Example
• Drill-down: Latency distributions
zio_wait
time (ns)
value ------------- Distribution ------------- count
512 |
1024 |@@@@@@@@@@@@@
2048 |@@@@@@@@@@@@@@@@@@@@@@@
4096 |@@@@
8192 |
16384 |
32768 |
65536 |
131072 |
262144 |
524288 |
1048576 |
2097152 |
4194304 |
8388608 |
16777216 |
33554432 |
67108864 |
134217728 |
268435456 |
536870912 |
Thursday, December 13, 12

Latency Analysis Method, cont.: Example
• Drill-down: Latency distributions
zio_vdev_io_done
time (ns)
value ------------- Distribution ------------- count
2048 |
4096 |@
8192 |@@@@
16384 |@
32768 |@
65536 |
131072 |@@
262144 |@@
524288 |@@@
1048576 |@@@
2097152 |
4194304 |
8388608 |
16777216 |
33554432 |@@@
67108864 |@@@@@@@@@@@@@@@@@@@@@
134217728 |
268435456 |
536870912 |
Thursday, December 13, 12

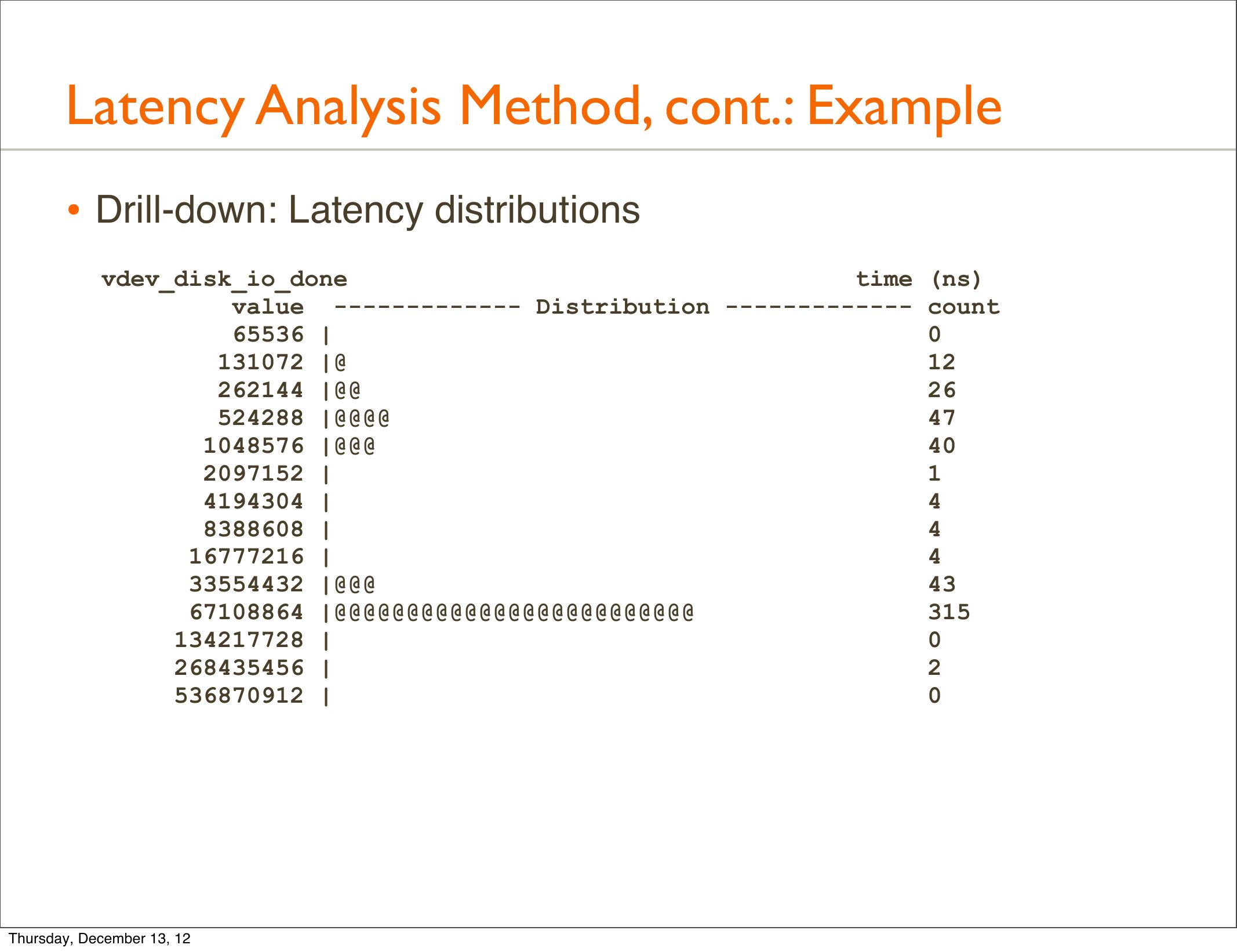

Latency Analysis Method, cont.: Example
• Drill-down: Latency distributions
vdev_disk_io_done
time (ns)
value ------------- Distribution ------------- count
65536 |
131072 |@
262144 |@@
524288 |@@@@
1048576 |@@@
2097152 |
4194304 |
8388608 |
16777216 |
33554432 |@@@
67108864 |@@@@@@@@@@@@@@@@@@@@@@@@@
134217728 |
268435456 |
536870912 |
Thursday, December 13, 12

Latency Analysis Method, cont.: Example
• Drill-down: Latency distributions

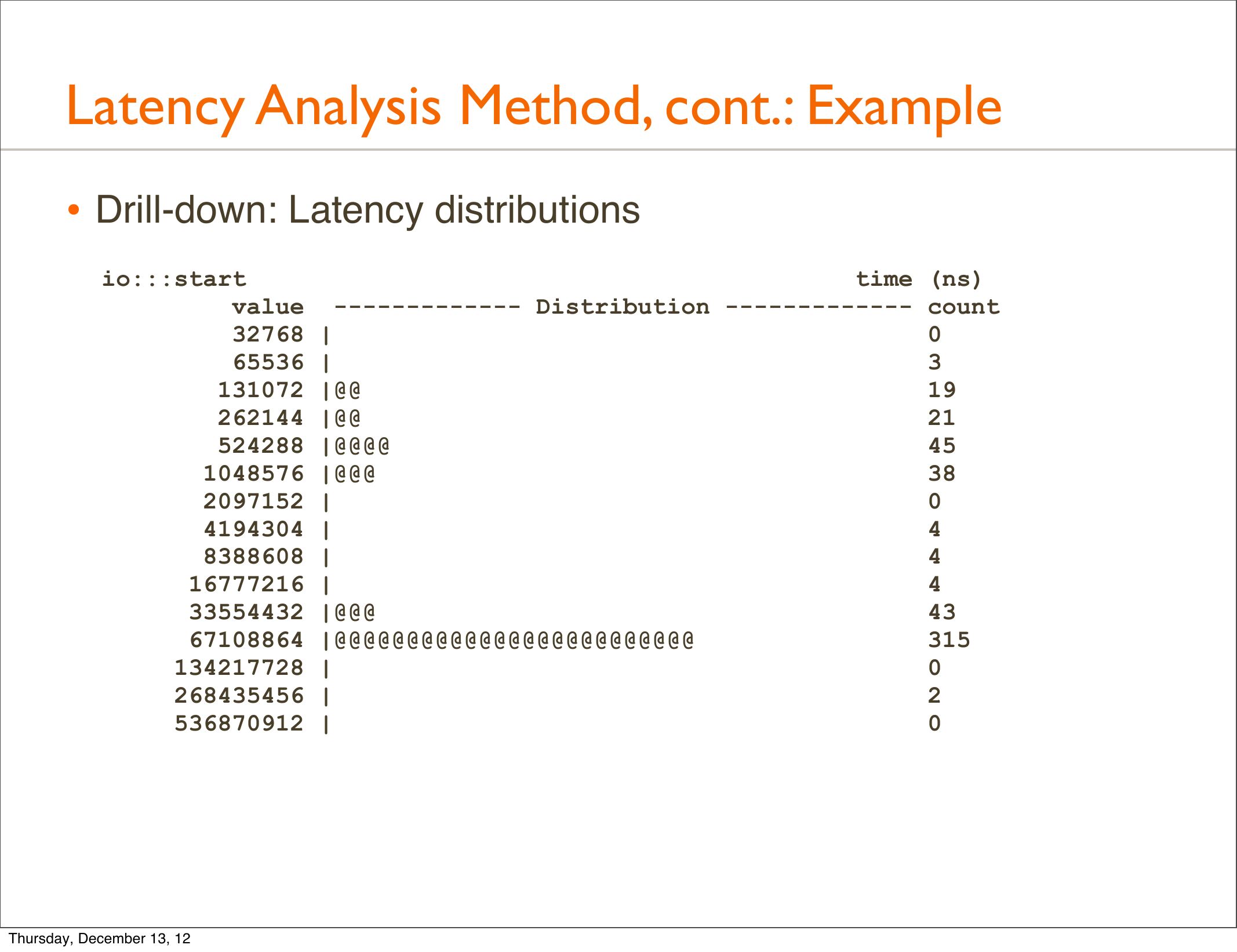

io:::start
time (ns)
value ------------- Distribution ------------- count
32768 |
65536 |
131072 |@@
262144 |@@
524288 |@@@@
1048576 |@@@
2097152 |
4194304 |
8388608 |
16777216 |
33554432 |@@@
67108864 |@@@@@@@@@@@@@@@@@@@@@@@@@
134217728 |
268435456 |
536870912 |
Thursday, December 13, 12

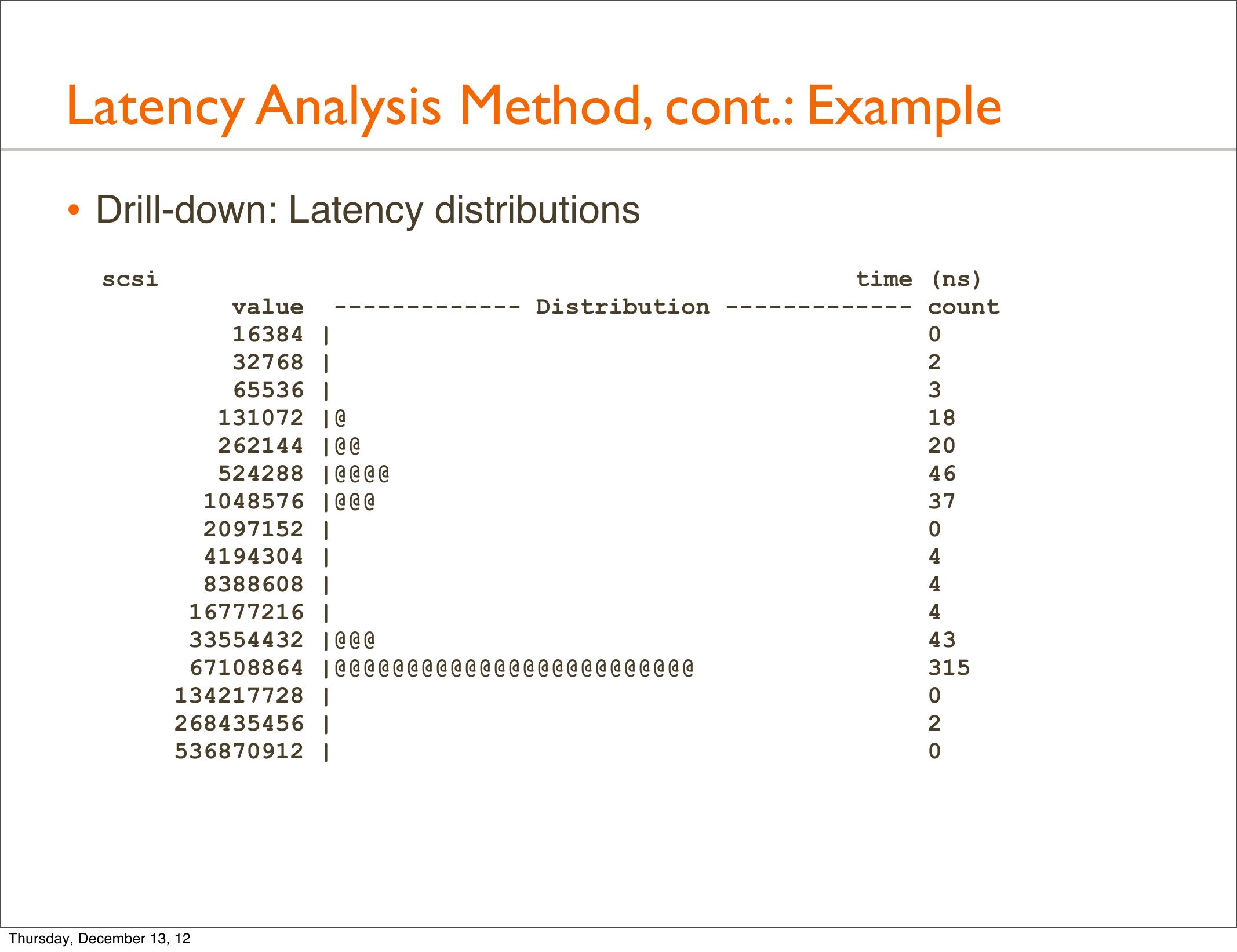

Latency Analysis Method, cont.: Example
• Drill-down: Latency distributions
scsi
time (ns)
value ------------- Distribution ------------- count
16384 |
32768 |
65536 |
131072 |@
262144 |@@
524288 |@@@@
1048576 |@@@
2097152 |
4194304 |
8388608 |
16777216 |
33554432 |@@@
67108864 |@@@@@@@@@@@@@@@@@@@@@@@@@
134217728 |
268435456 |
536870912 |
Thursday, December 13, 12

Latency Analysis Method, cont.: Example
• Drill-down: Latency distributions

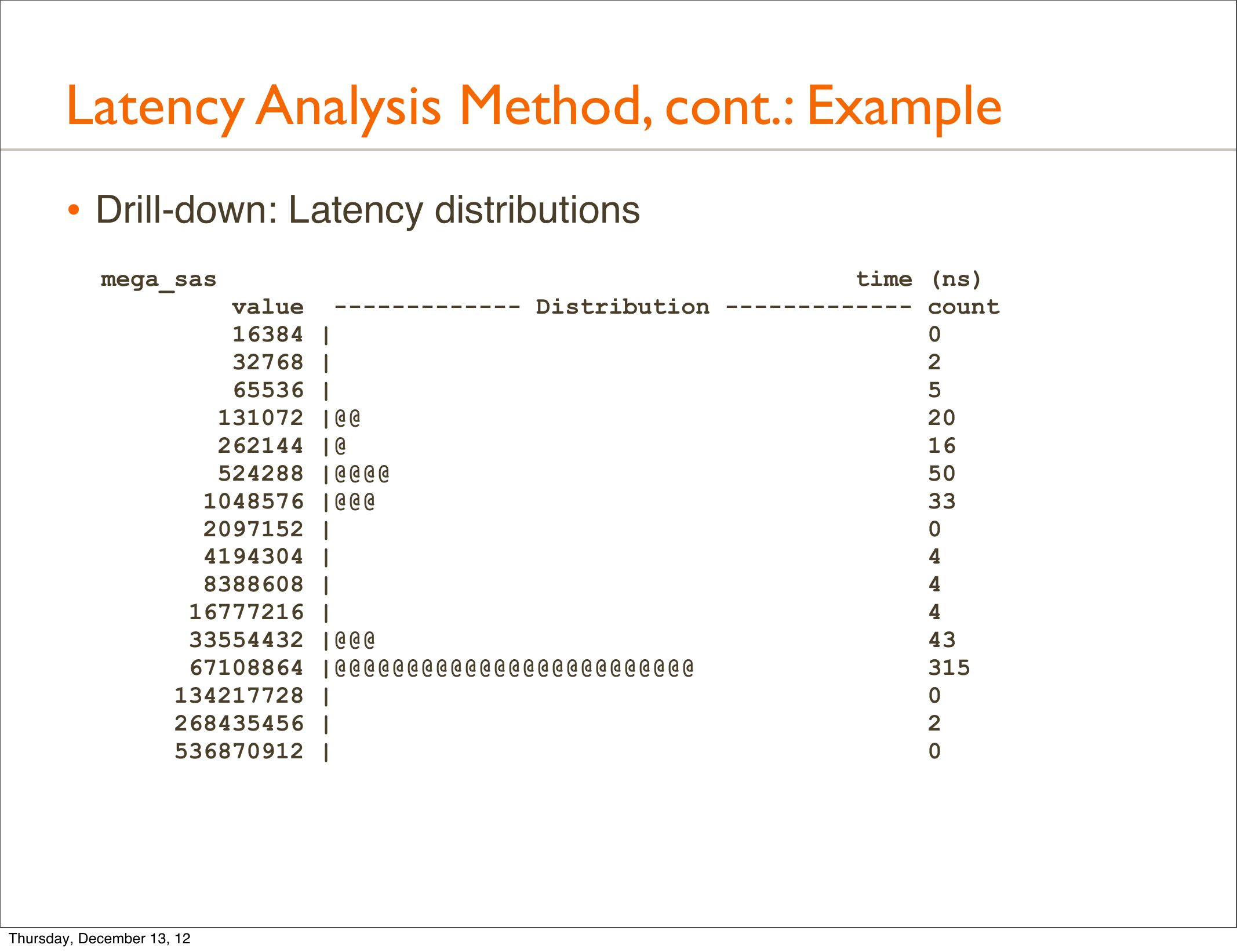

mega_sas
time (ns)
value ------------- Distribution ------------- count
16384 |
32768 |
65536 |
131072 |@@
262144 |@
524288 |@@@@
1048576 |@@@
2097152 |
4194304 |
8388608 |
16777216 |
33554432 |@@@
67108864 |@@@@@@@@@@@@@@@@@@@@@@@@@
134217728 |
268435456 |
536870912 |
Thursday, December 13, 12

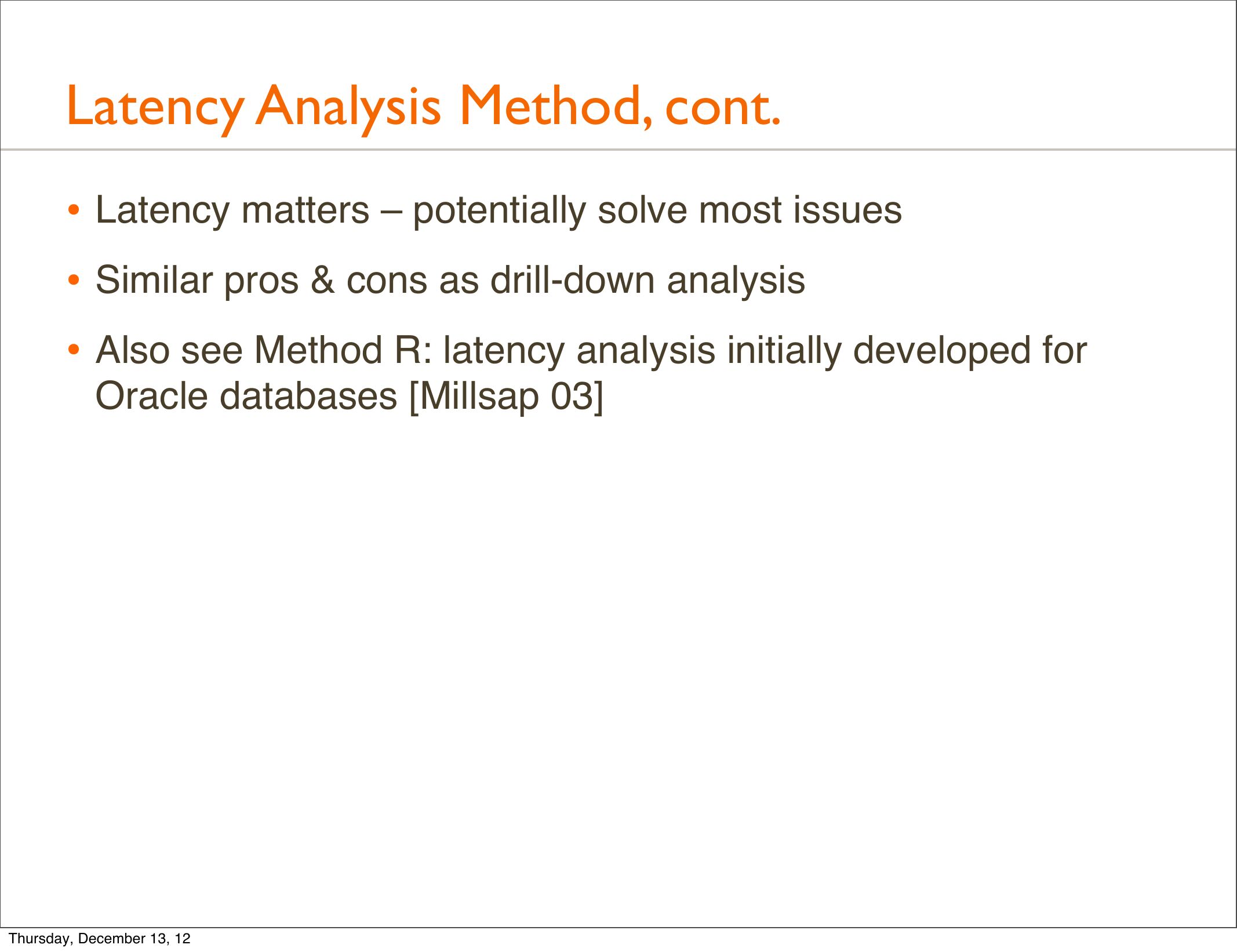

Latency Analysis Method, cont.
• Latency matters – potentially solve most issues
• Similar pros & cons as drill-down analysis
• Also see Method R: latency analysis initially developed for
Oracle databases [Millsap 03]
Thursday, December 13, 12

USE Method
Thursday, December 13, 12

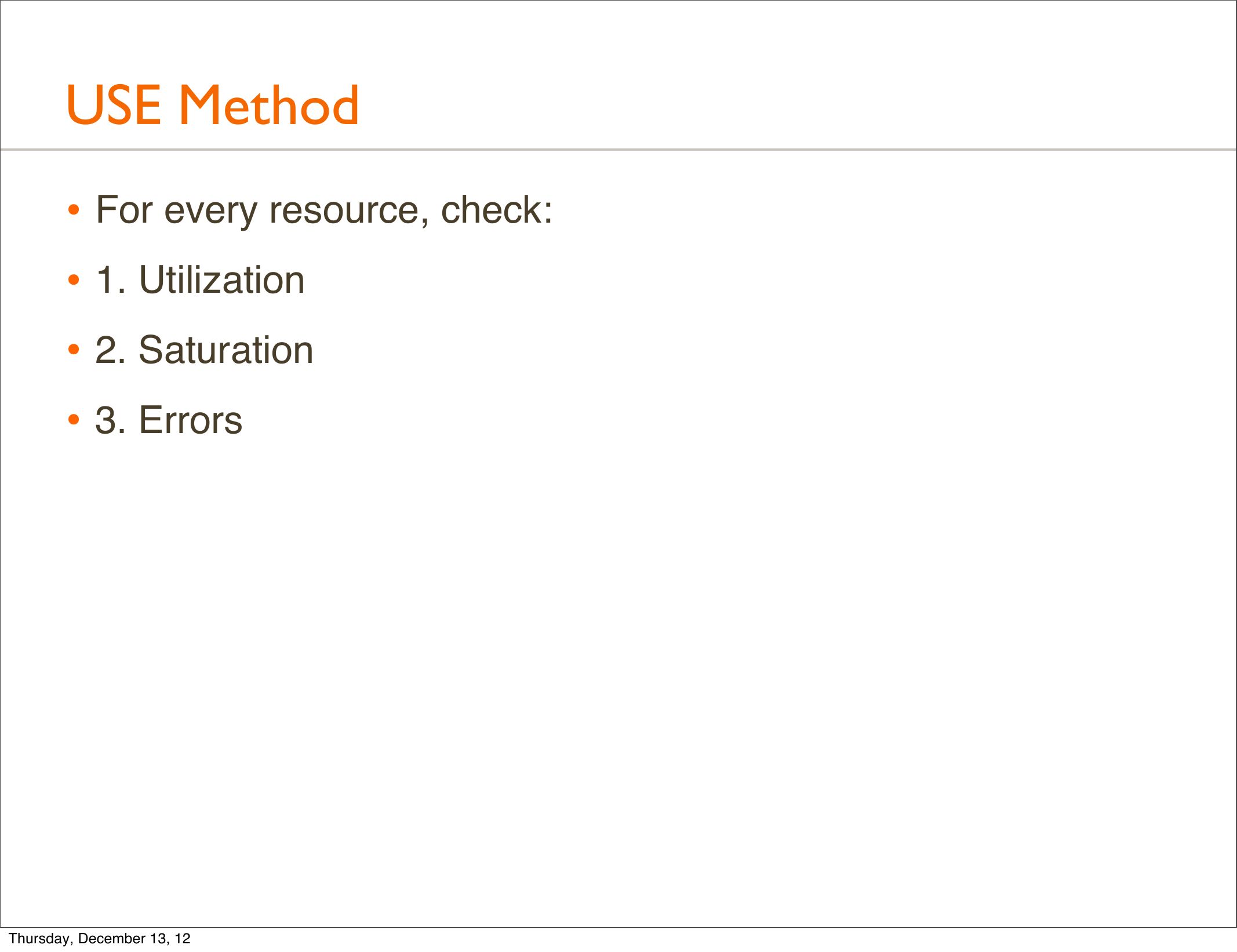

USE Method
• For every resource, check:
• 1. Utilization
• 2. Saturation
• 3. Errors
Thursday, December 13, 12

USE Method, cont.

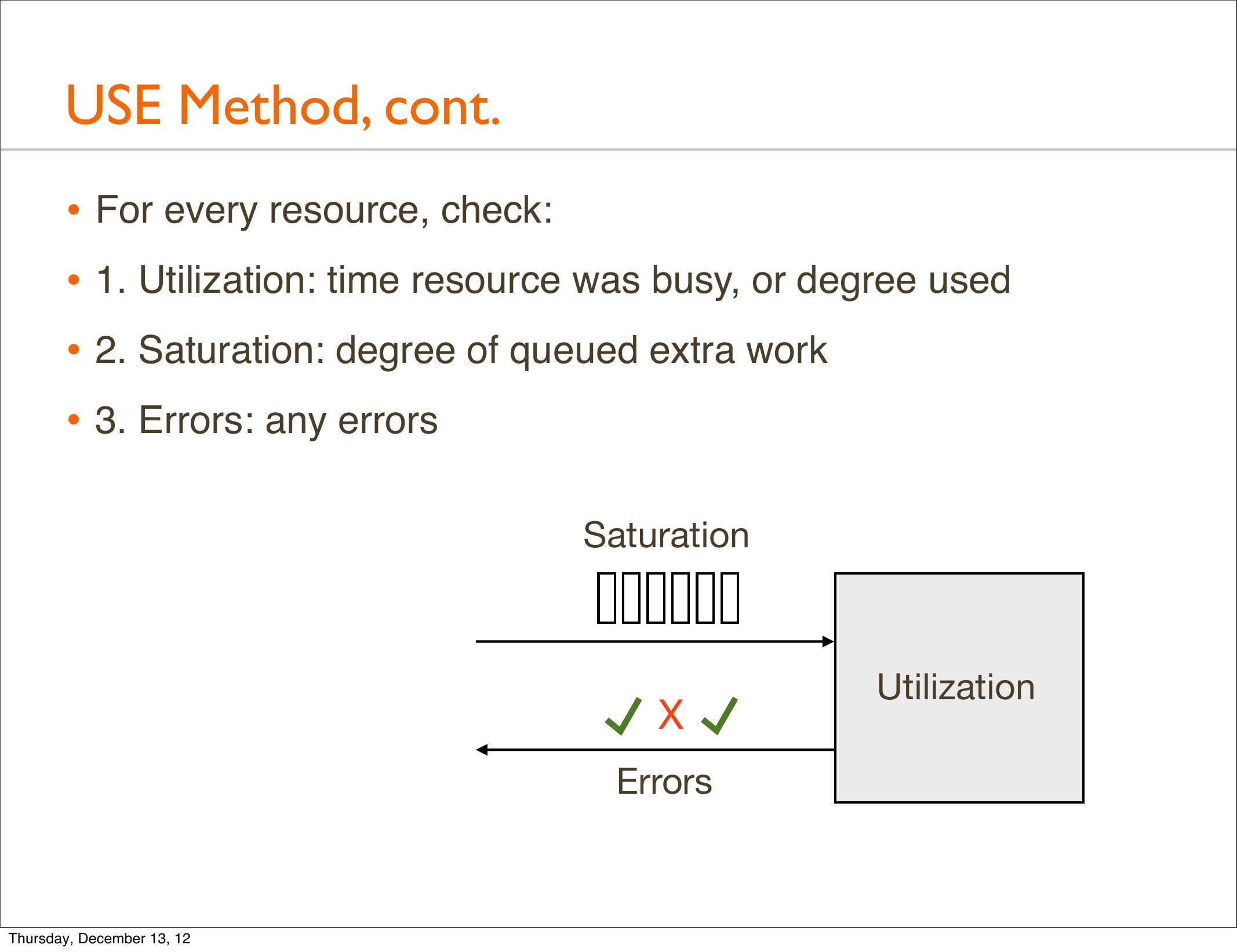

• For every resource, check:
• 1. Utilization: time resource was busy, or degree used
• 2. Saturation: degree of queued extra work
• 3. Errors: any errors
Saturation
Errors
Thursday, December 13, 12
Utilization

USE Method, cont.

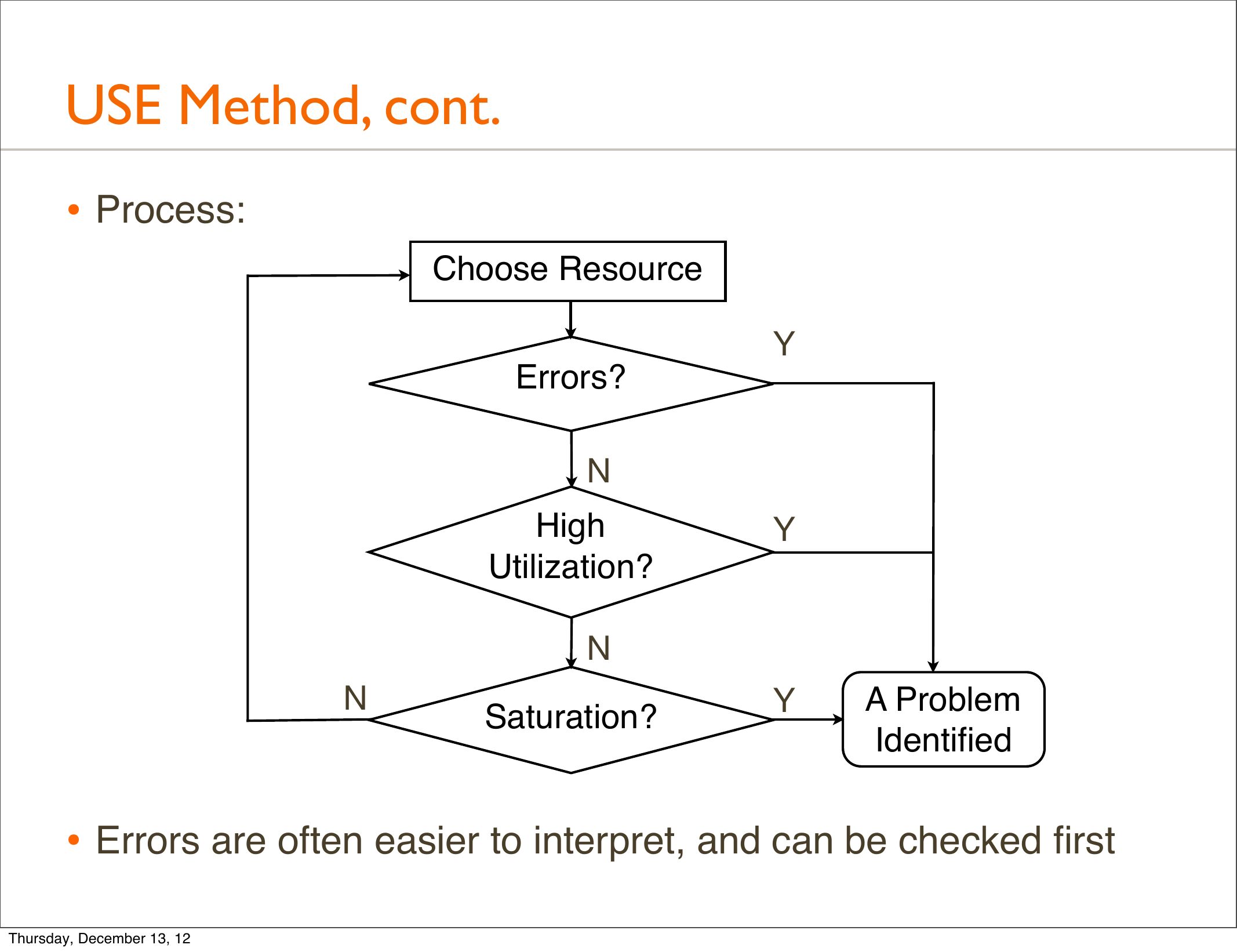

• Process:
Choose Resource
Errors?
High
Utilization?
Saturation?
A Problem
Identified
• Errors are often easier to interpret, and can be checked first
Thursday, December 13, 12

USE Method, cont.

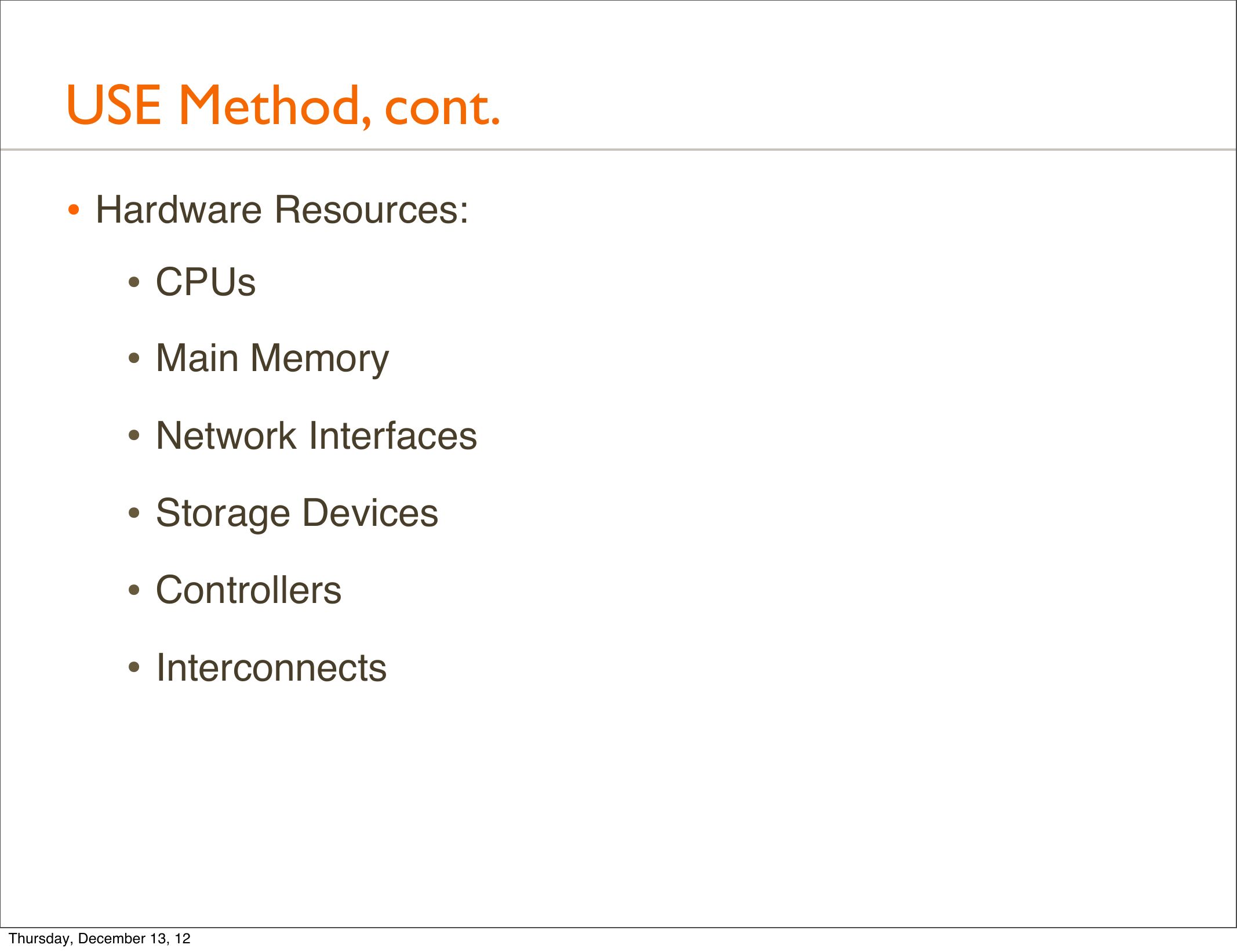

• Hardware Resources:
• CPUs
• Main Memory
• Network Interfaces
• Storage Devices
• Controllers
• Interconnects
Thursday, December 13, 12

USE Method, cont.
• A great way to determine resources is to find or draw the
server functional diagram
• Vendor hardware teams have these
• Analyze every component in the data path
Thursday, December 13, 12

USE Method, cont.: Functional Diagram
CPU
Interconnect
Memory
Bus
DRAM
CPU
CPU
DRAM
I/O Bus
I/O
Bridge
Expander Interconnect
I/O
Controller
Network
Controller
Interface
Transports
Disk
Thursday, December 13, 12
Disk
Port
Port

USE Method, cont.

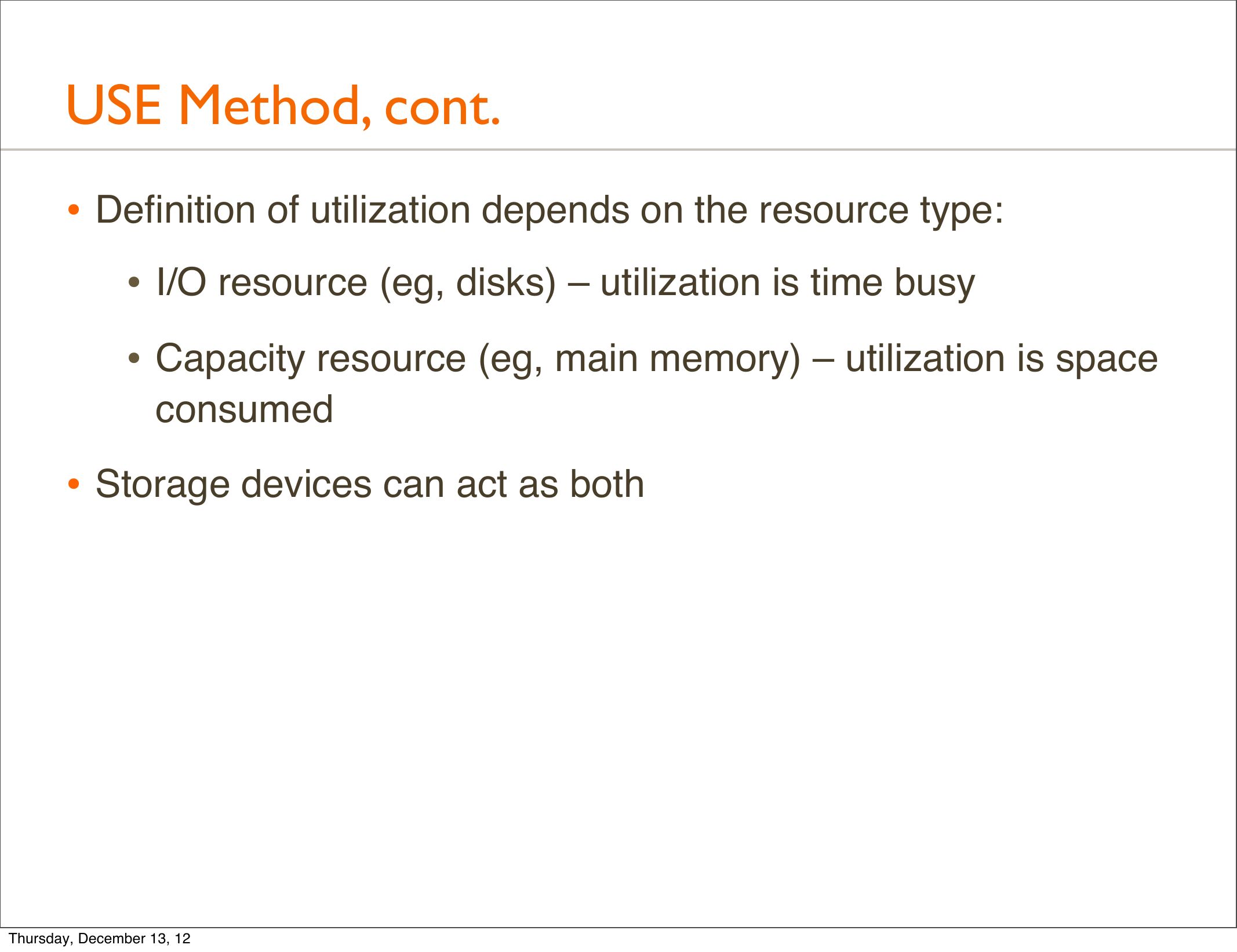

• Definition of utilization depends on the resource type:
• I/O resource (eg, disks) – utilization is time busy
• Capacity resource (eg, main memory) – utilization is space
consumed
• Storage devices can act as both
Thursday, December 13, 12

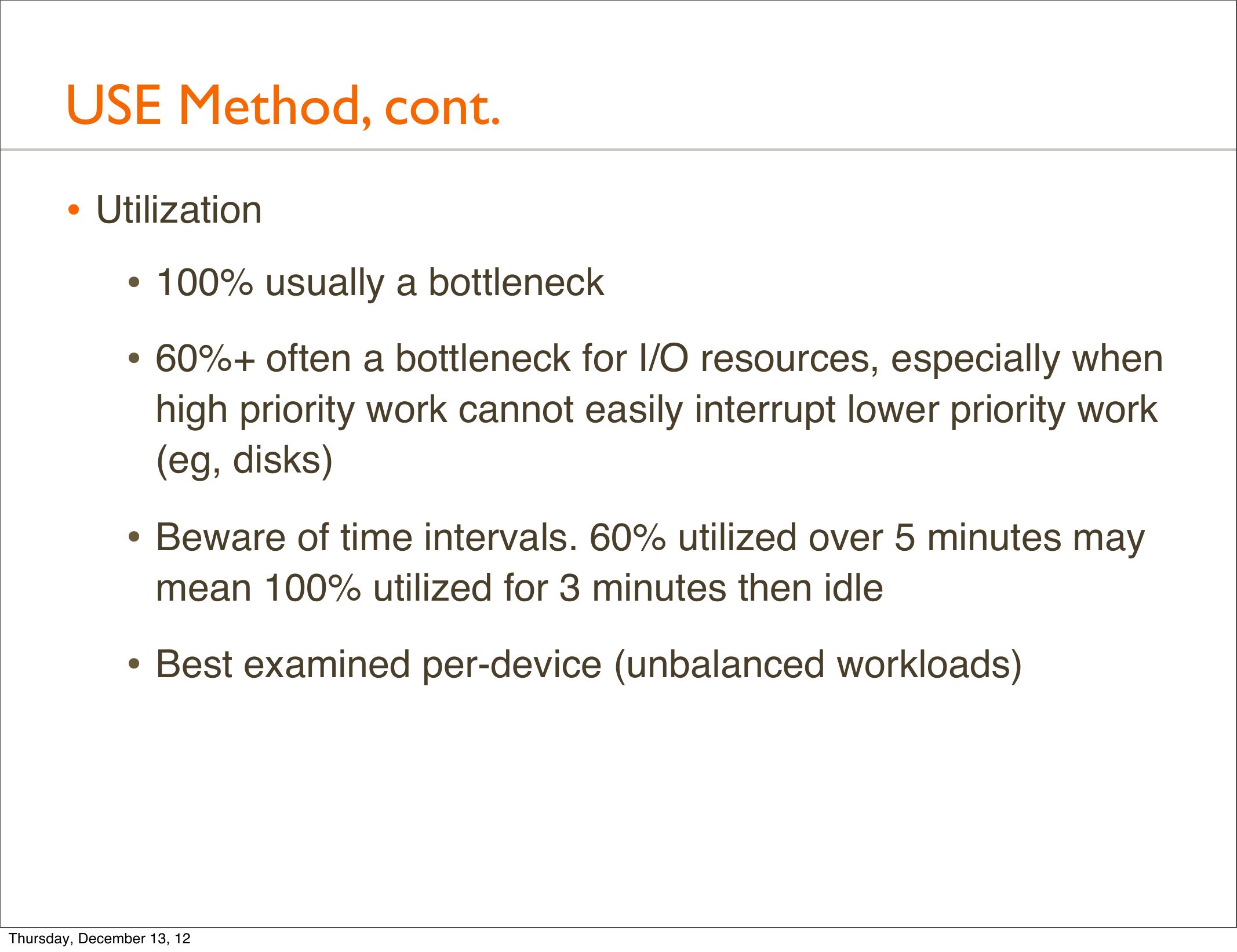

USE Method, cont.
• Utilization
• 100% usually a bottleneck
• 60%+ often a bottleneck for I/O resources, especially when
high priority work cannot easily interrupt lower priority work
(eg, disks)
• Beware of time intervals. 60% utilized over 5 minutes may
mean 100% utilized for 3 minutes then idle
• Best examined per-device (unbalanced workloads)
Thursday, December 13, 12

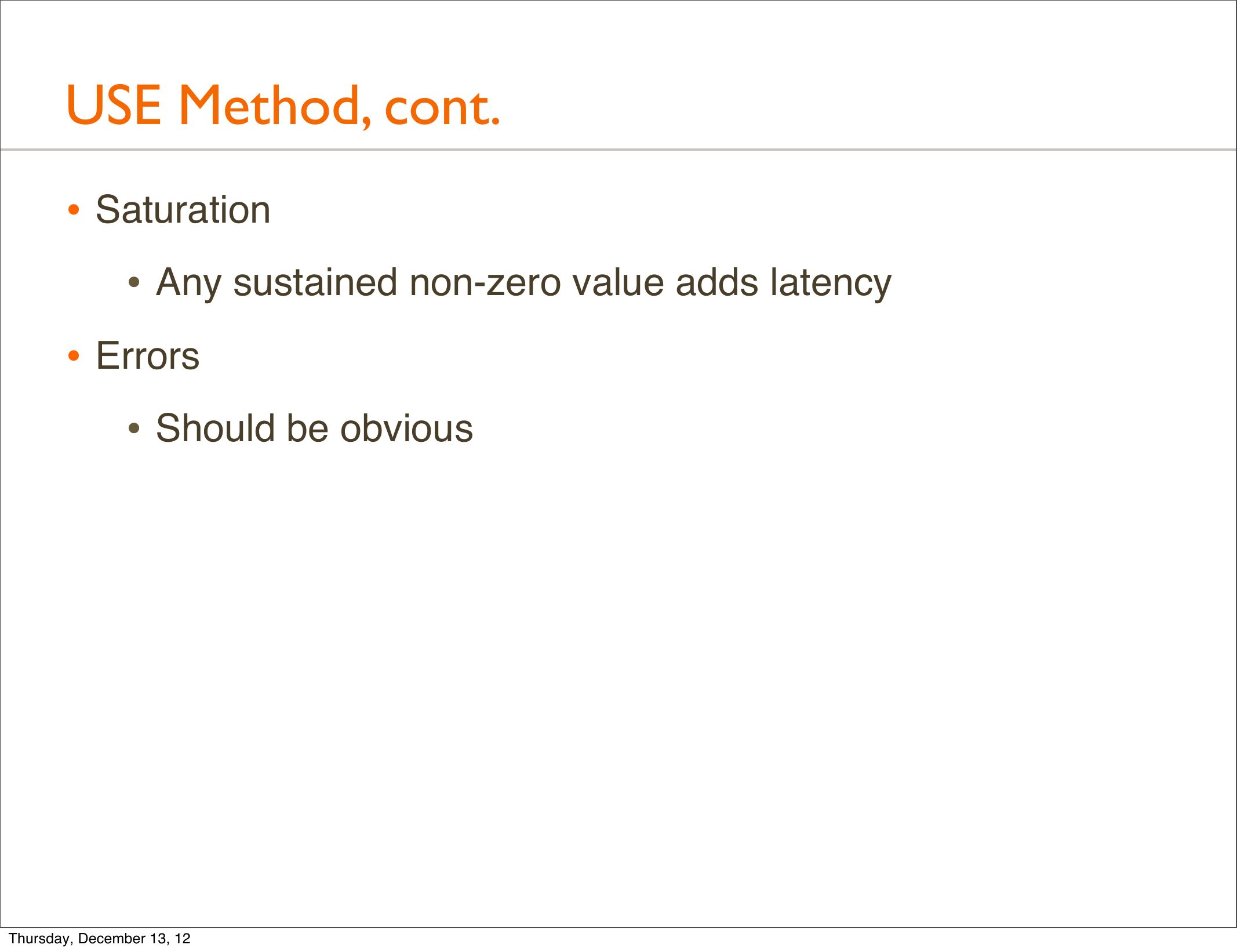

USE Method, cont.
• Saturation
• Any sustained non-zero value adds latency
• Errors
• Should be obvious
Thursday, December 13, 12

USE Method, cont.: Examples
Resource
Type
CPU
utilization
CPU
saturation
Memory
utilization
Memory
saturation
Network Interface
utilization
Storage Device I/O
utilization
Storage Device I/O
saturation
Storage Device I/O
errors
Thursday, December 13, 12
Metric

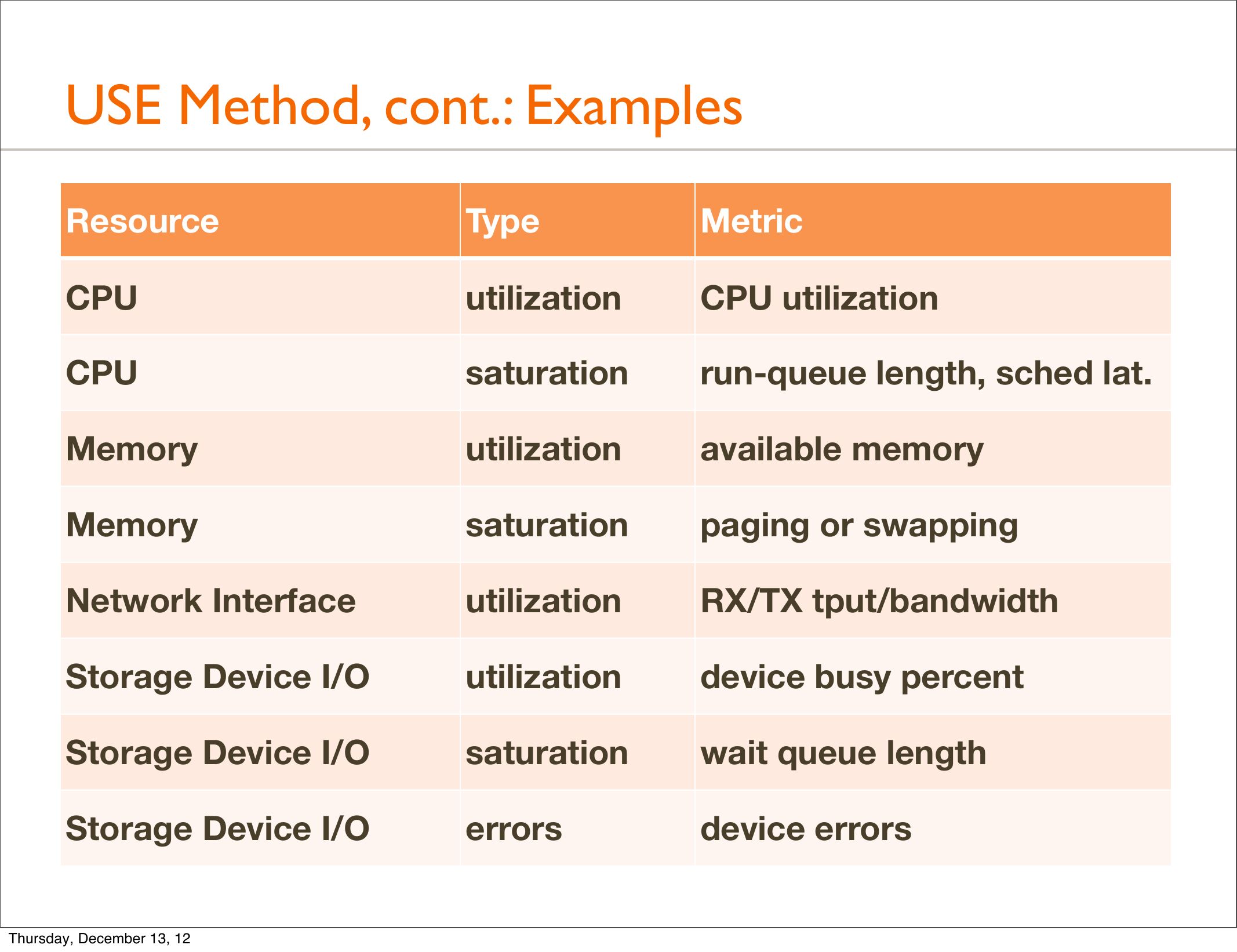

USE Method, cont.: Examples
Resource
Type
Metric
CPU
utilization
CPU utilization
CPU
saturation
run-queue length, sched lat.
Memory
utilization
available memory
Memory
saturation
paging or swapping
Network Interface
utilization
RX/TX tput/bandwidth
Storage Device I/O
utilization
device busy percent
Storage Device I/O
saturation
wait queue length
Storage Device I/O
errors
device errors
Thursday, December 13, 12

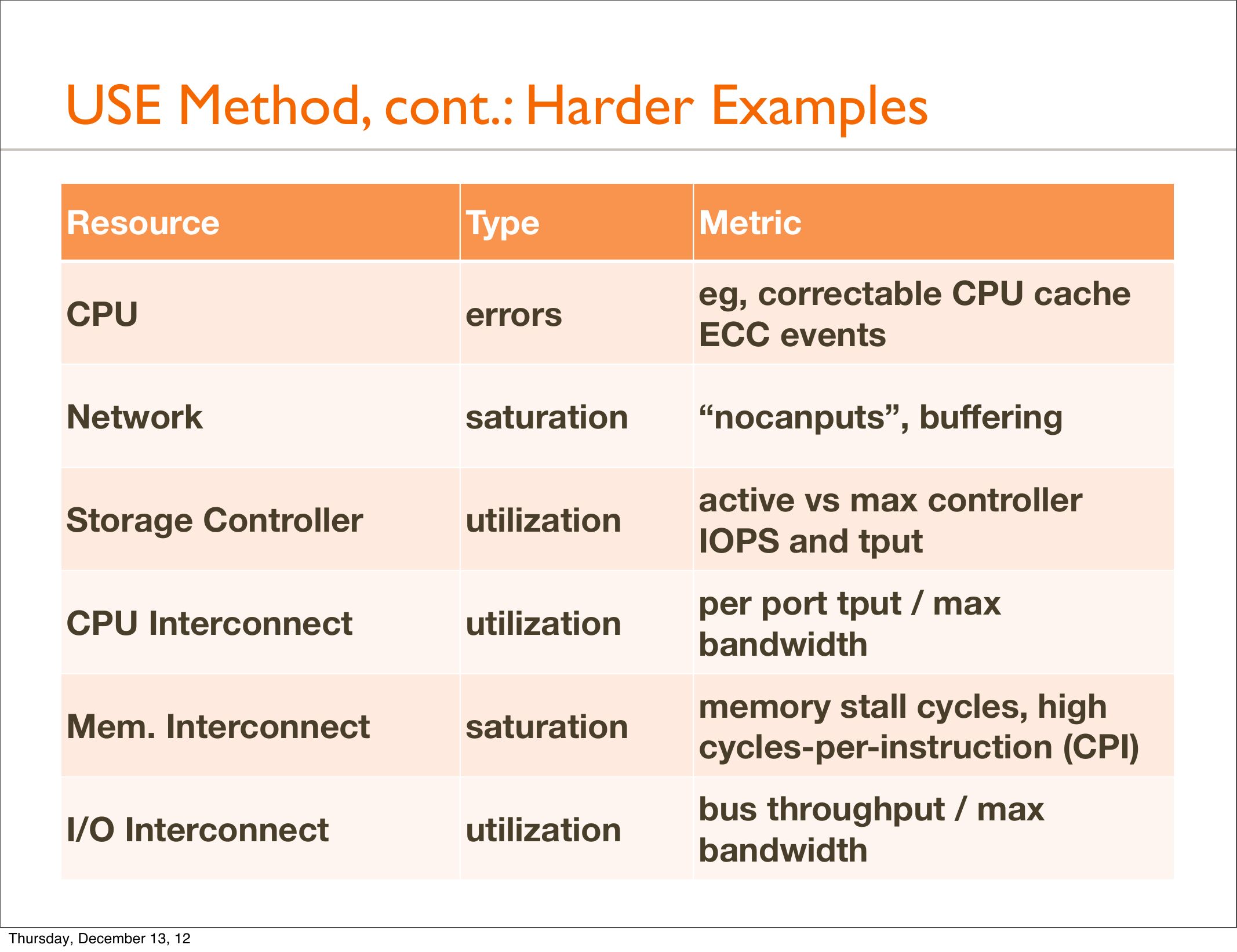

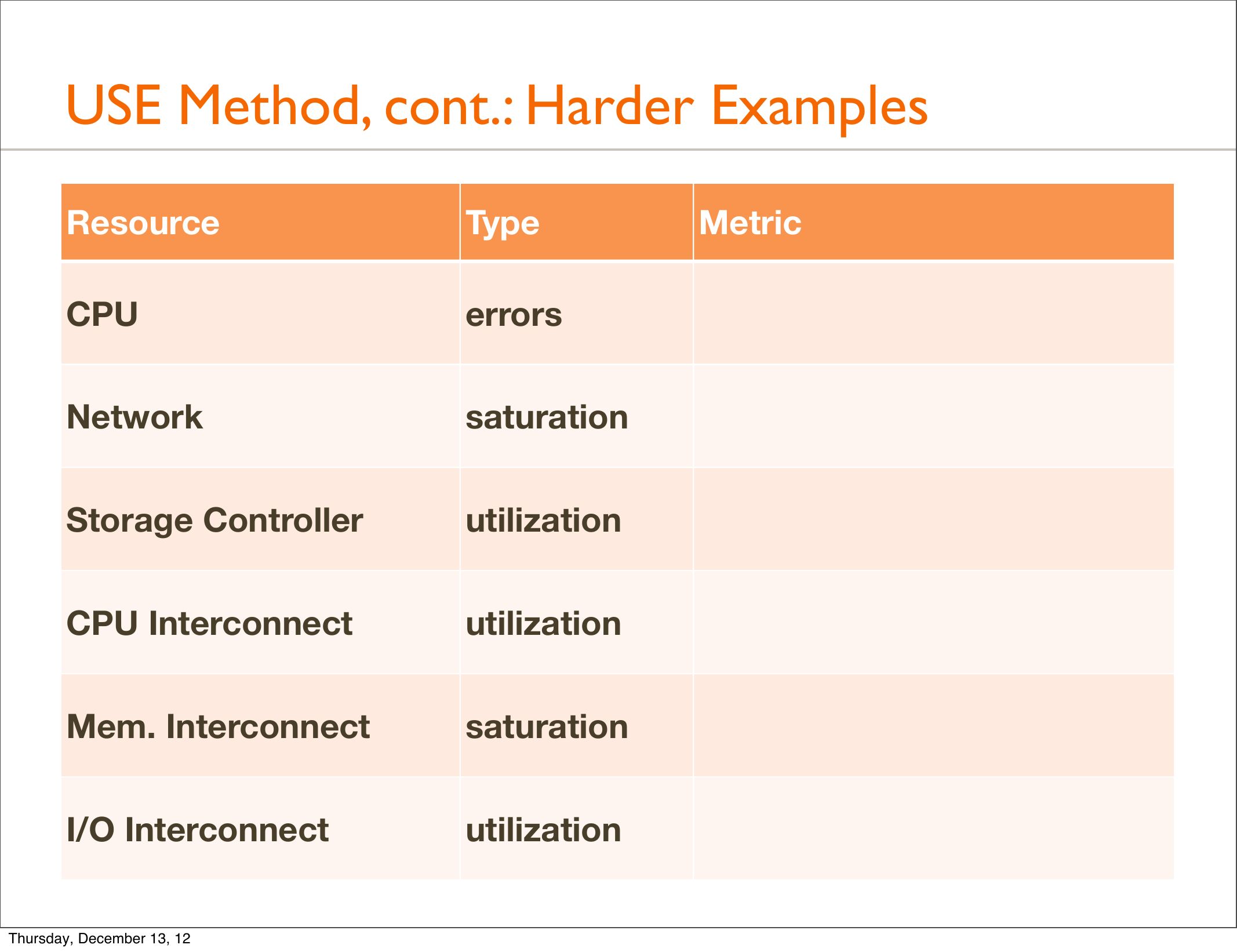

USE Method, cont.: Harder Examples
Resource
Type
CPU
errors
Network
saturation
Storage Controller
utilization
CPU Interconnect
utilization
Mem. Interconnect
saturation
I/O Interconnect
utilization
Thursday, December 13, 12
Metric

USE Method, cont.: Harder Examples
Resource
Type
Metric
CPU
errors
eg, correctable CPU cache
ECC events
Network
saturation
“nocanputs”, buffering
utilization
active vs max controller
IOPS and tput
utilization
per port tput / max
bandwidth
saturation
memory stall cycles, high
cycles-per-instruction (CPI)
utilization
bus throughput / max
bandwidth
Storage Controller
CPU Interconnect
Mem. Interconnect
I/O Interconnect
Thursday, December 13, 12

USE Method, cont.

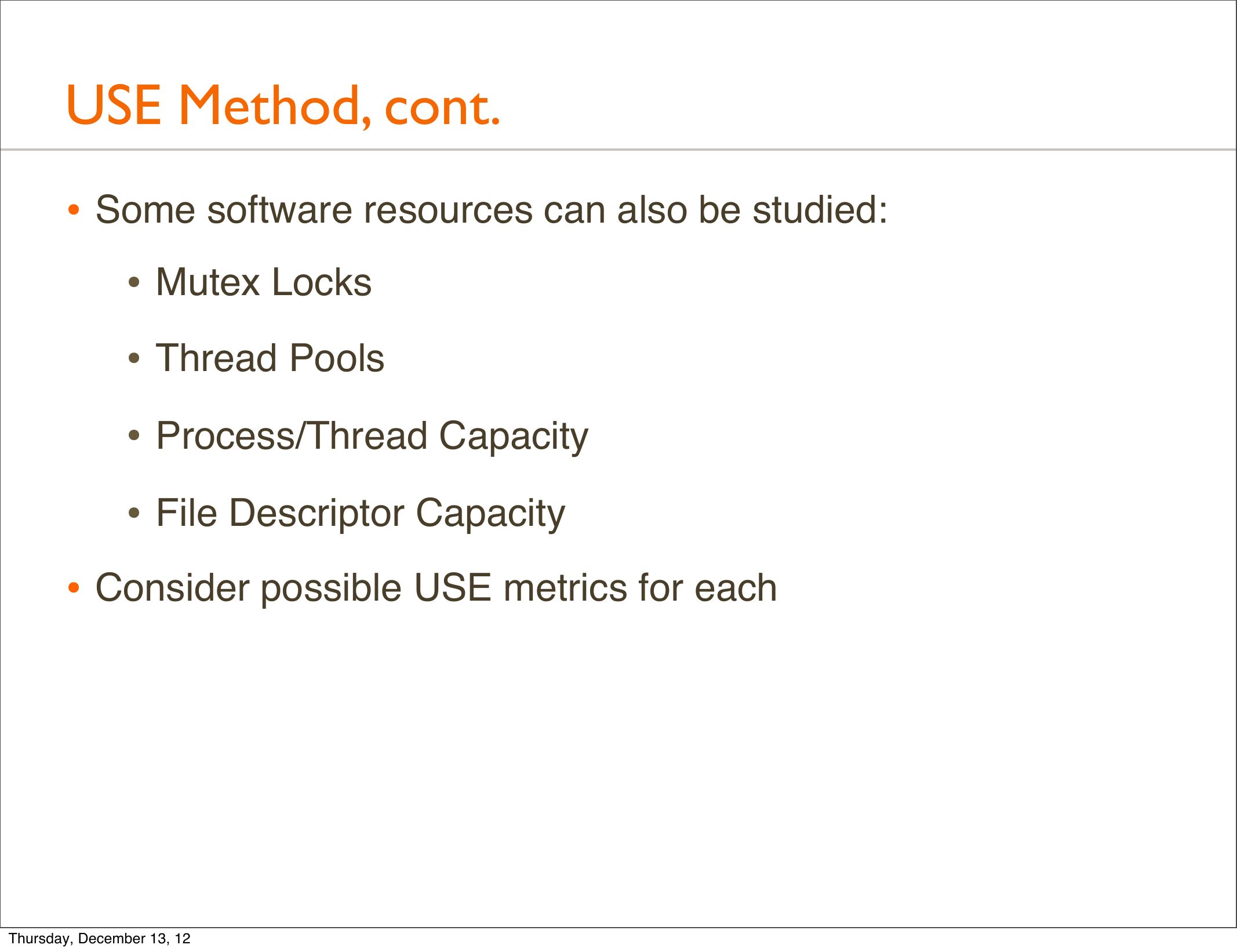

• Some software resources can also be studied:
• Mutex Locks
• Thread Pools
• Process/Thread Capacity
• File Descriptor Capacity
• Consider possible USE metrics for each
Thursday, December 13, 12

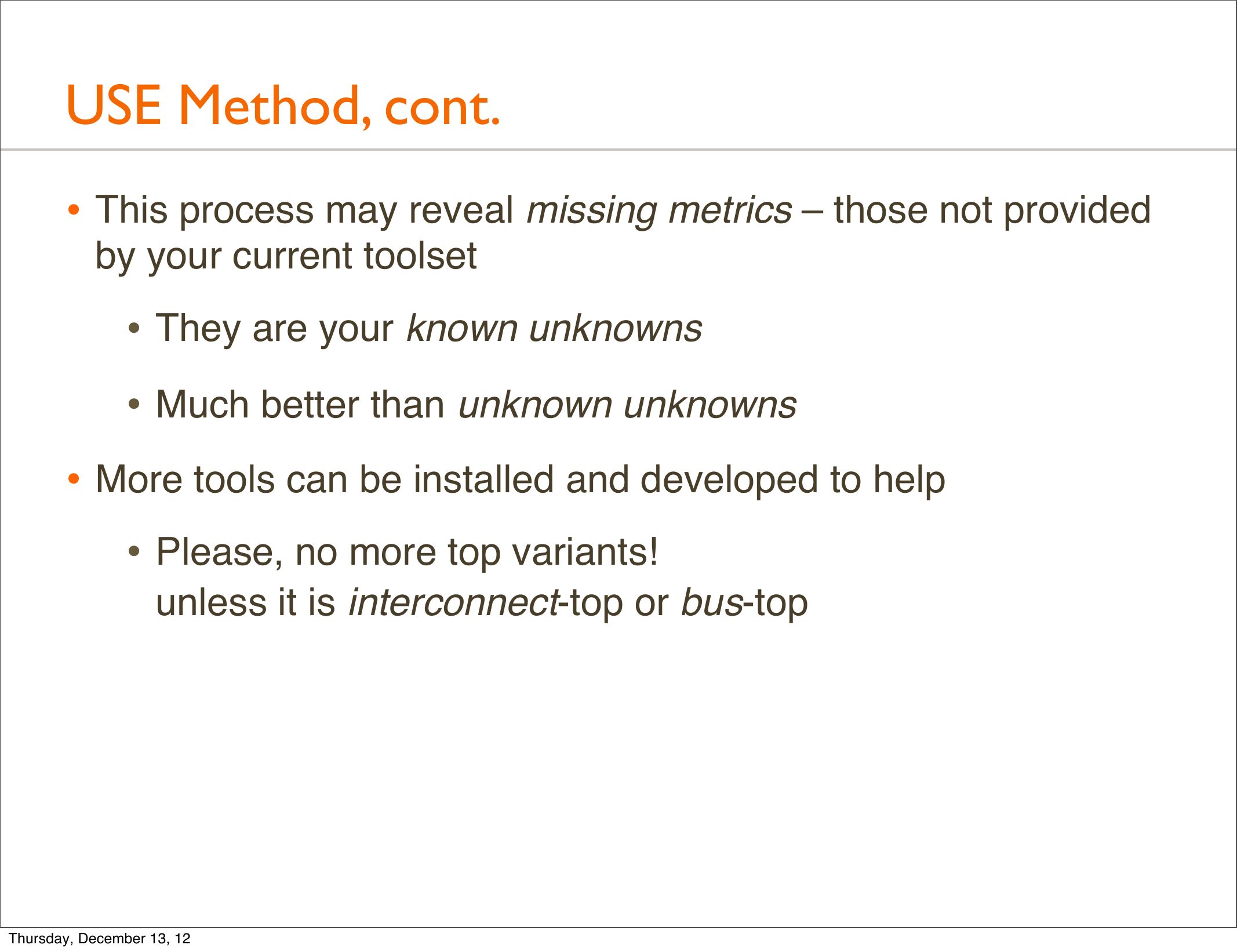

USE Method, cont.
• This process may reveal missing metrics – those not provided
by your current toolset
• They are your known unknowns
• Much better than unknown unknowns
• More tools can be installed and developed to help
• Please, no more top variants!
unless it is interconnect-top or bus-top
Thursday, December 13, 12

USE Method, cont.: Example Linux Checklist
http://dtrace.org/blogs/brendan/2012/03/07/the-use-method-linux-performance-checklist
Resource Type
CPU
CPU
CPU
Utilization
Saturation
Errors
Metric
per-cpu: mpstat -P ALL 1, “%idle”; sar -P ALL,
“%idle”; system-wide: vmstat 1, “id”; sar -u, “%idle”;
dstat -c, “idl”; per-process:top, “%CPU”; htop, “CPU
%”; ps -o pcpu; pidstat 1, “%CPU”; per-kernelthread: top/htop (“K” to toggle), where VIRT == 0
(heuristic).
[1]vmstat 1, “r” >gt; CPU count [2]; sar -q,
system-wide:
“runq-sz” >gt; CPU count; dstat -p, “run” >gt; CPU count;
per-process: /proc/PID/schedstat 2nd field
(sched_info.run_delay); perf sched latency (shows
“Average” and “Maximum” delay per-schedule); dynamic
tracing, eg, SystemTap schedtimes.stp “queued(us)” [3]
perf (LPE) if processor specific error events (CPC) are
available; eg, AMD64′s “04Ah Single-bit ECC Errors
Recorded by Scrubber” [4]
... etc for all combinations (would fill a dozen slides)
Thursday, December 13, 12

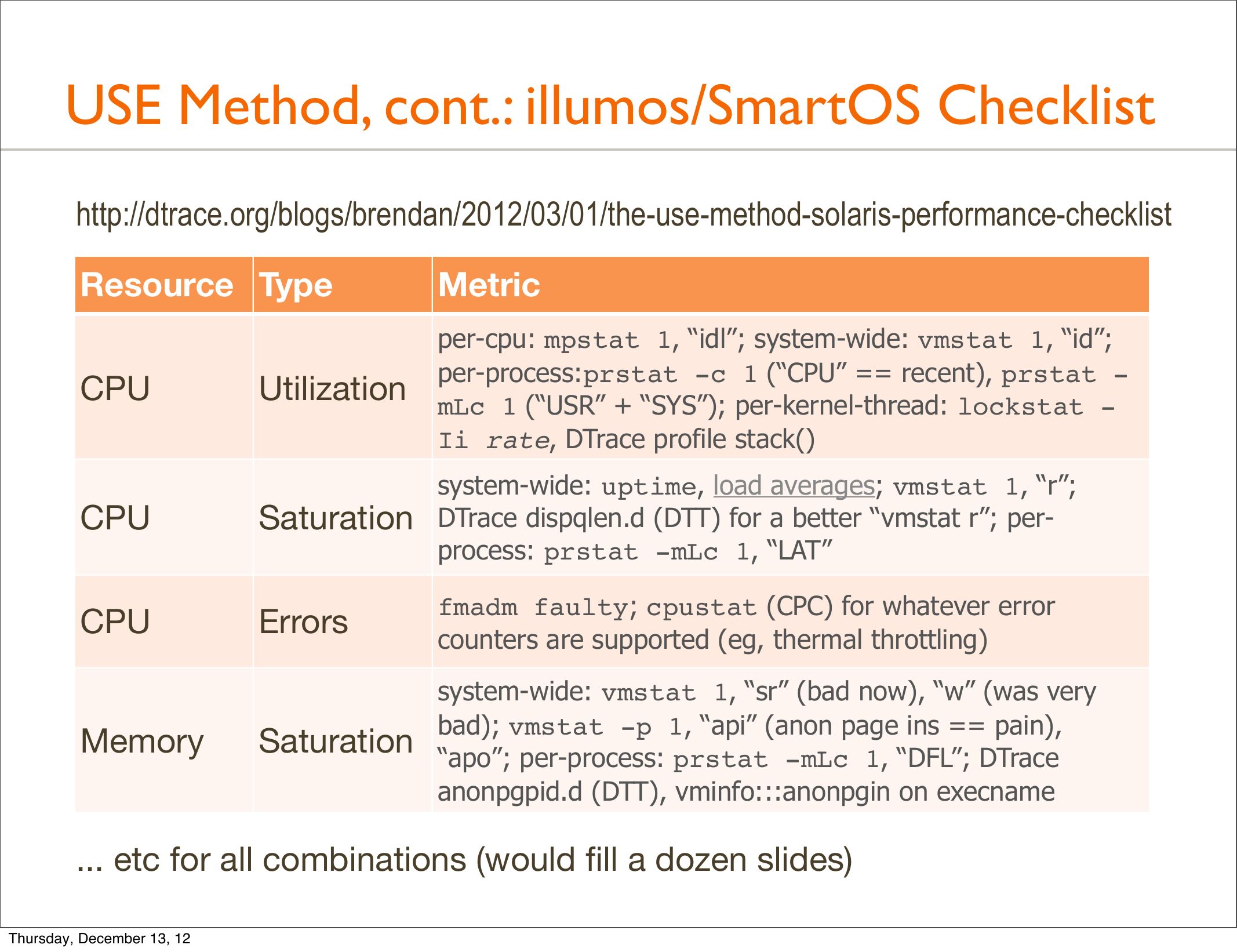

USE Method, cont.: illumos/SmartOS Checklist
http://dtrace.org/blogs/brendan/2012/03/01/the-use-method-solaris-performance-checklist
Resource Type
Metric
CPU
Utilization
per-cpu: mpstat 1, “idl”; system-wide: vmstat 1, “id”;
per-process:prstat -c 1 (“CPU” == recent), prstat mLc 1 (“USR” + “SYS”); per-kernel-thread: lockstat Ii rate, DTrace profile stack()
Saturation
system-wide: uptime, load averages; vmstat 1, “r”;
DTrace dispqlen.d (DTT) for a better “vmstat r”; perprocess: prstat -mLc 1, “LAT”
Errors
fmadm faulty; cpustat (CPC) for whatever error
counters are supported (eg, thermal throttling)
Saturation
system-wide: vmstat 1, “sr” (bad now), “w” (was very
bad); vmstat -p 1, “api” (anon page ins == pain),
“apo”; per-process: prstat -mLc 1, “DFL”; DTrace
anonpgpid.d (DTT), vminfo:::anonpgin on execname
CPU
CPU
Memory
... etc for all combinations (would fill a dozen slides)
Thursday, December 13, 12

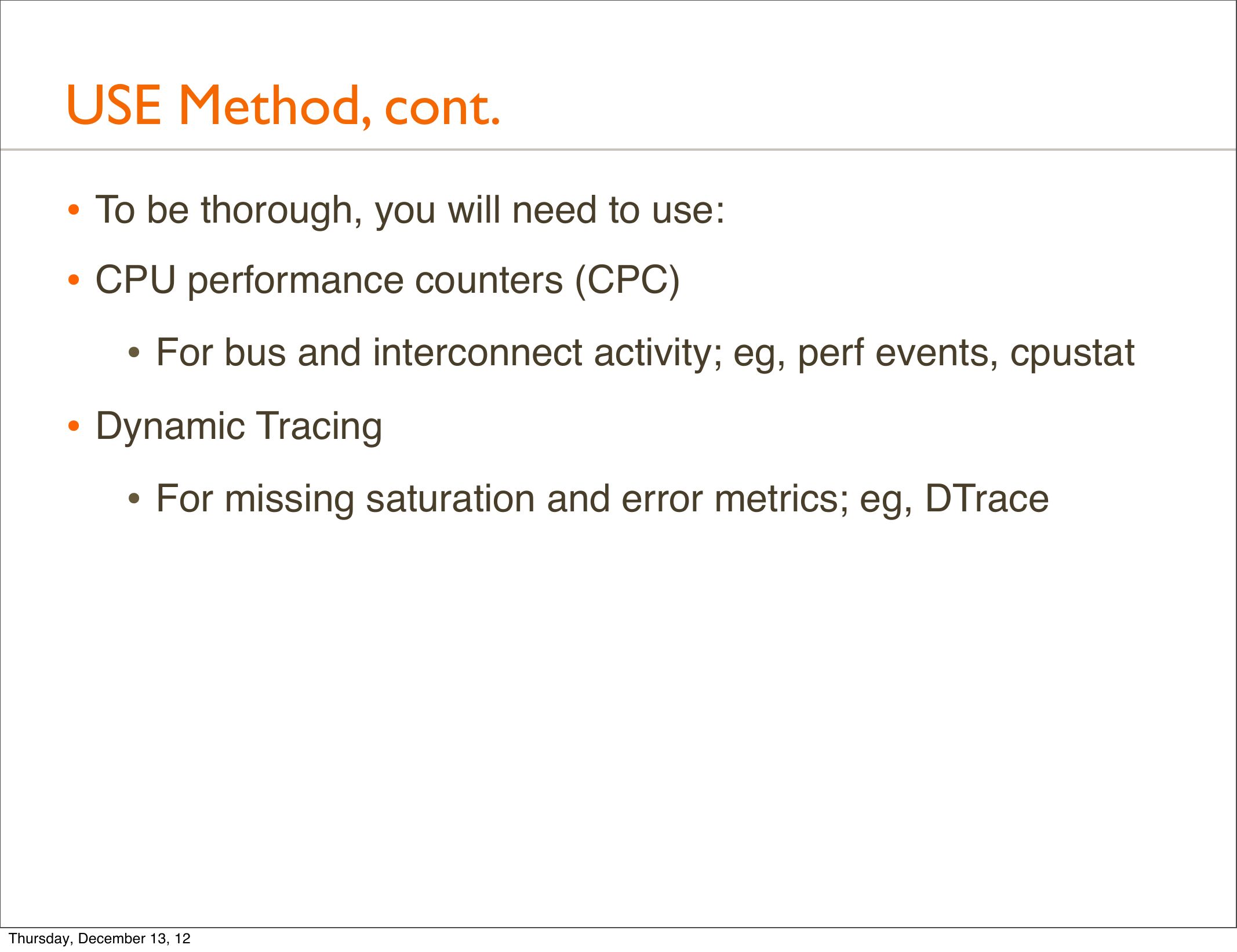

USE Method, cont.
• To be thorough, you will need to use:
• CPU performance counters (CPC)
• For bus and interconnect activity; eg, perf events, cpustat
• Dynamic Tracing
• For missing saturation and error metrics; eg, DTrace
Thursday, December 13, 12

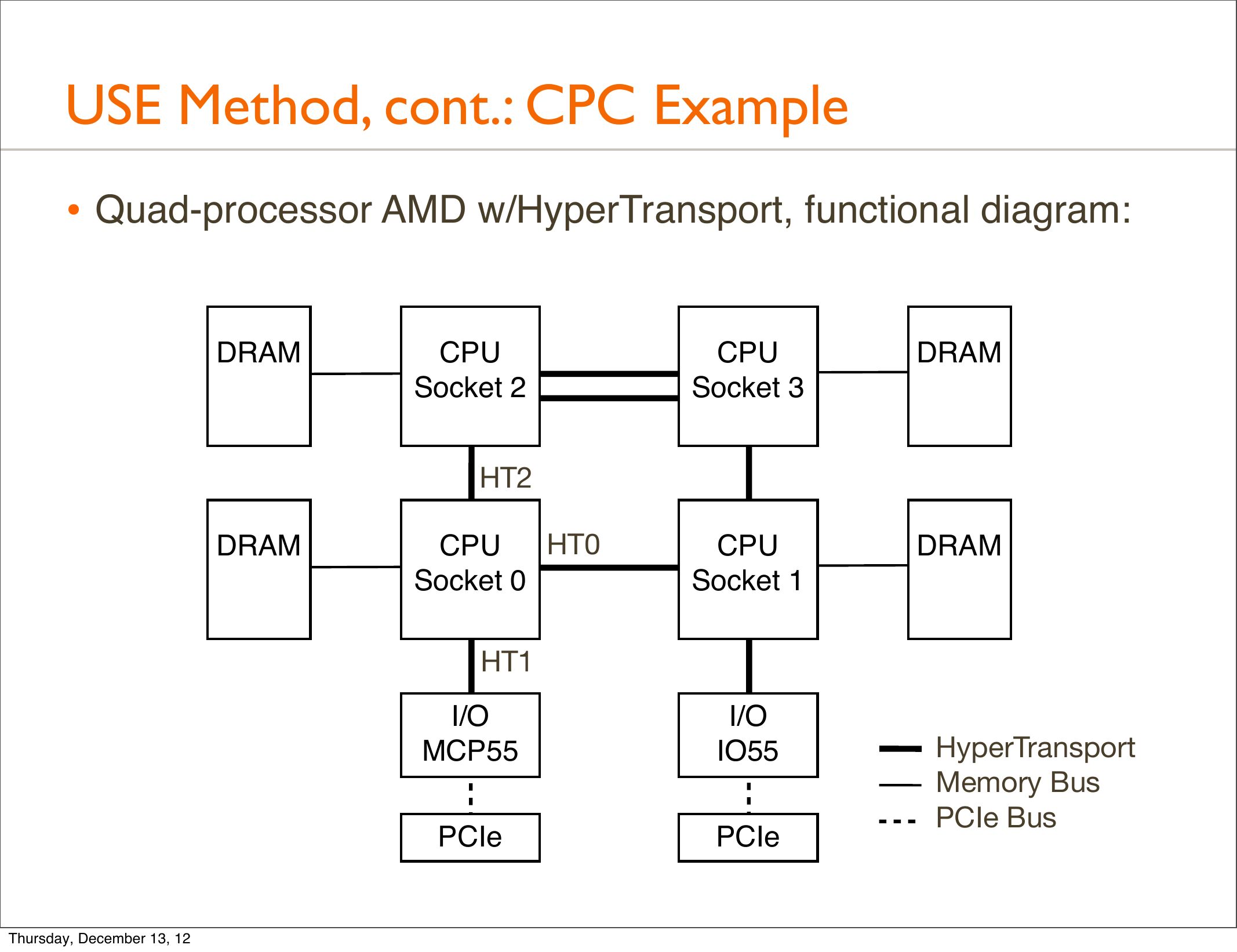

USE Method, cont.: CPC Example
• Quad-processor AMD w/HyperTransport, functional diagram:
DRAM
CPU
Socket 2
CPU
Socket 3
DRAM
CPU
Socket 1
DRAM
HT2
DRAM
HT0
CPU
Socket 0
HT1
Thursday, December 13, 12
I/O
MCP55
I/O
IO55
PCIe
PCIe
HyperTransport
Memory Bus
PCIe Bus

USE Method, cont.: CPC Example

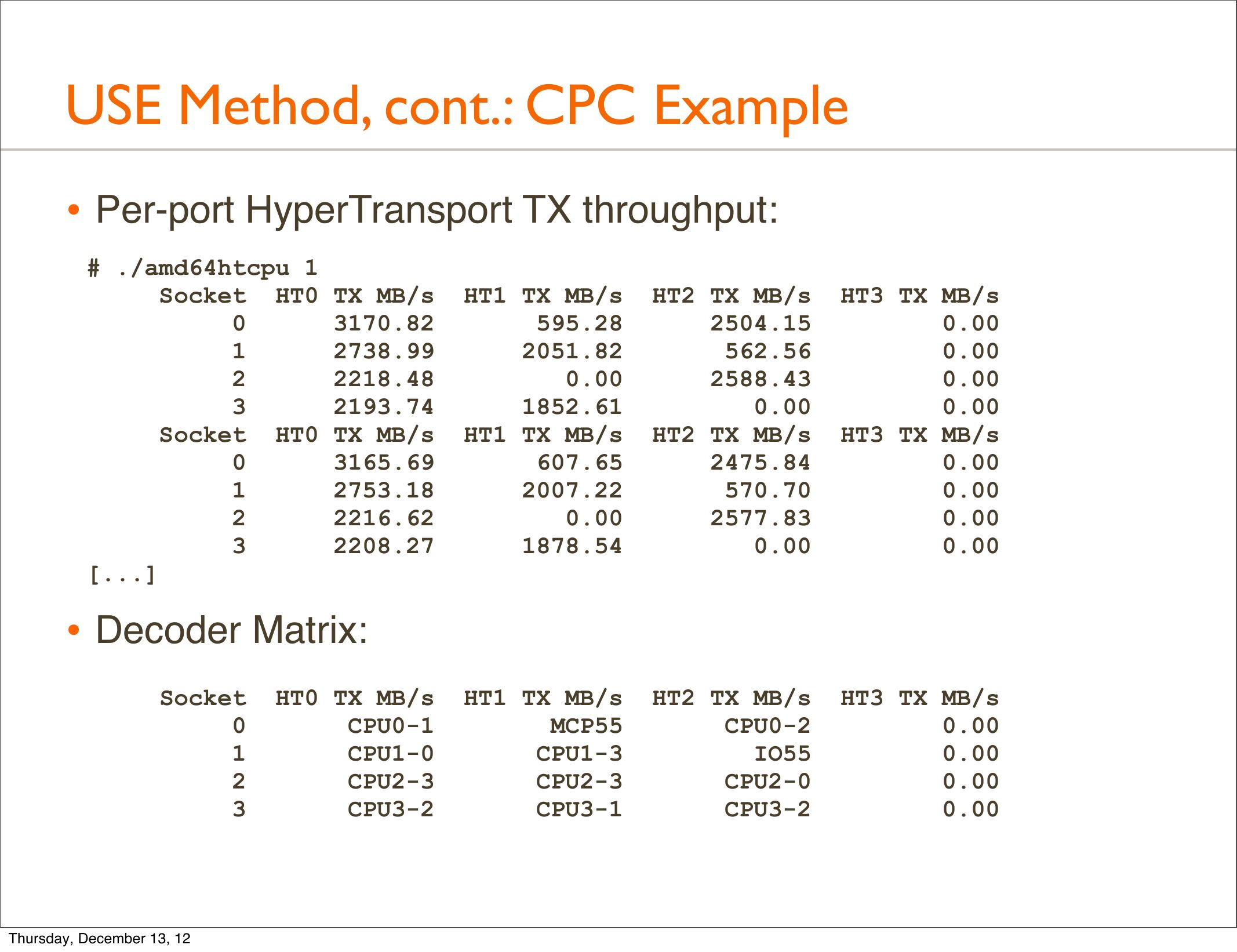

• Per-port HyperTransport TX throughput:
# ./amd64htcpu 1
Socket HT0 TX MB/s
Socket HT0 TX MB/s
[...]
HT1 TX MB/s
HT1 TX MB/s
HT2 TX MB/s
HT2 TX MB/s
HT3 TX MB/s
HT3 TX MB/s
HT1 TX MB/s
MCP55
CPU1-3
CPU2-3
CPU3-1
HT2 TX MB/s
CPU0-2
IO55
CPU2-0
CPU3-2
HT3 TX MB/s
• Decoder Matrix:
Socket
Thursday, December 13, 12
HT0 TX MB/s
CPU0-1
CPU1-0
CPU2-3
CPU3-2

USE Method, cont.: CPC Example

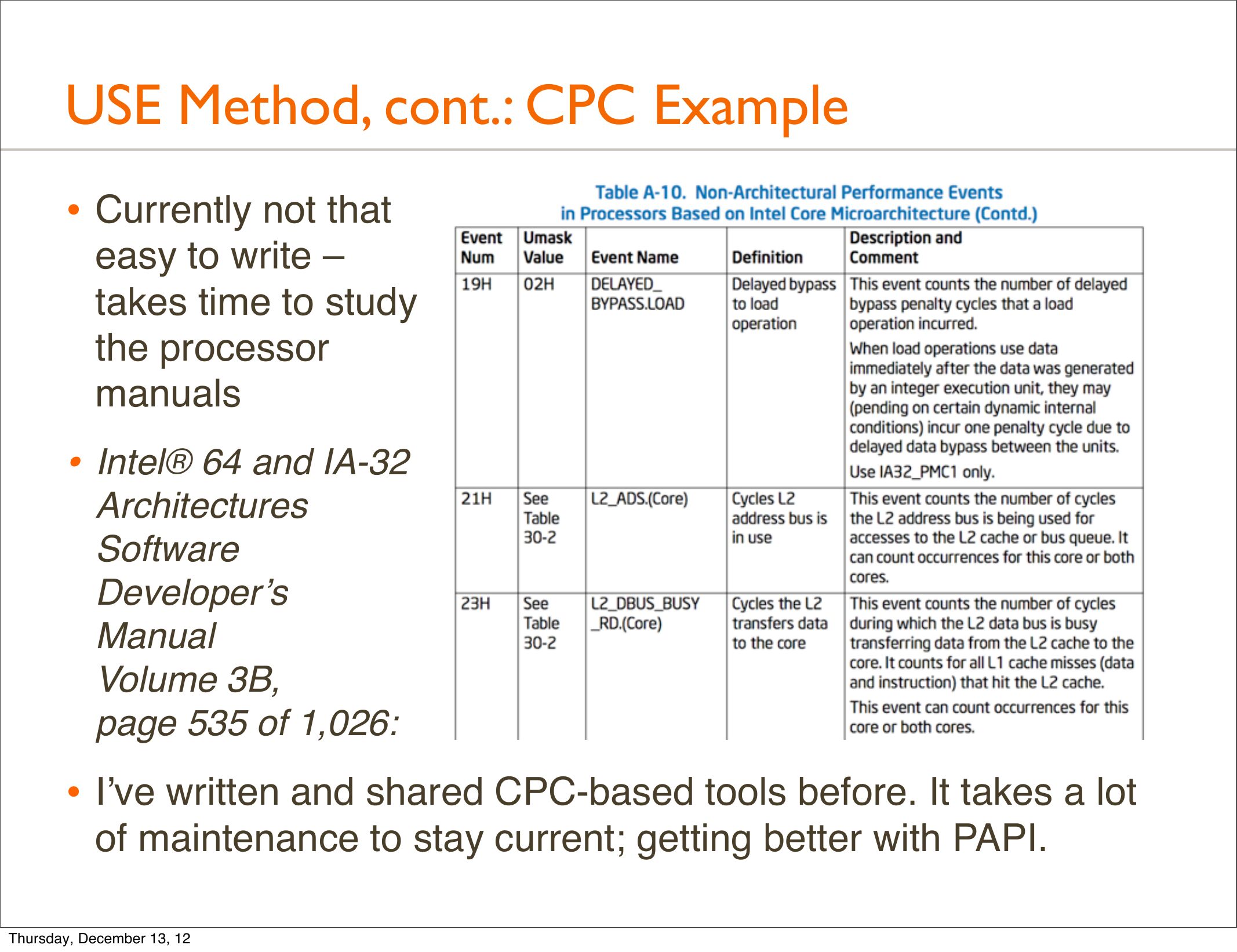

• Currently not that
easy to write –
takes time to study
the processor
manuals
• Intel® 64 and IA-32
Architectures
Software
Developer’s
Manual
Volume 3B,
page 535 of 1,026:
• I’ve written and shared CPC-based tools before. It takes a lot
of maintenance to stay current; getting better with PAPI.
Thursday, December 13, 12

USE Method, cont.: Products
• Supported products can be developed to help
• Joyent Cloud Analytics includes metrics to support USE
Thursday, December 13, 12

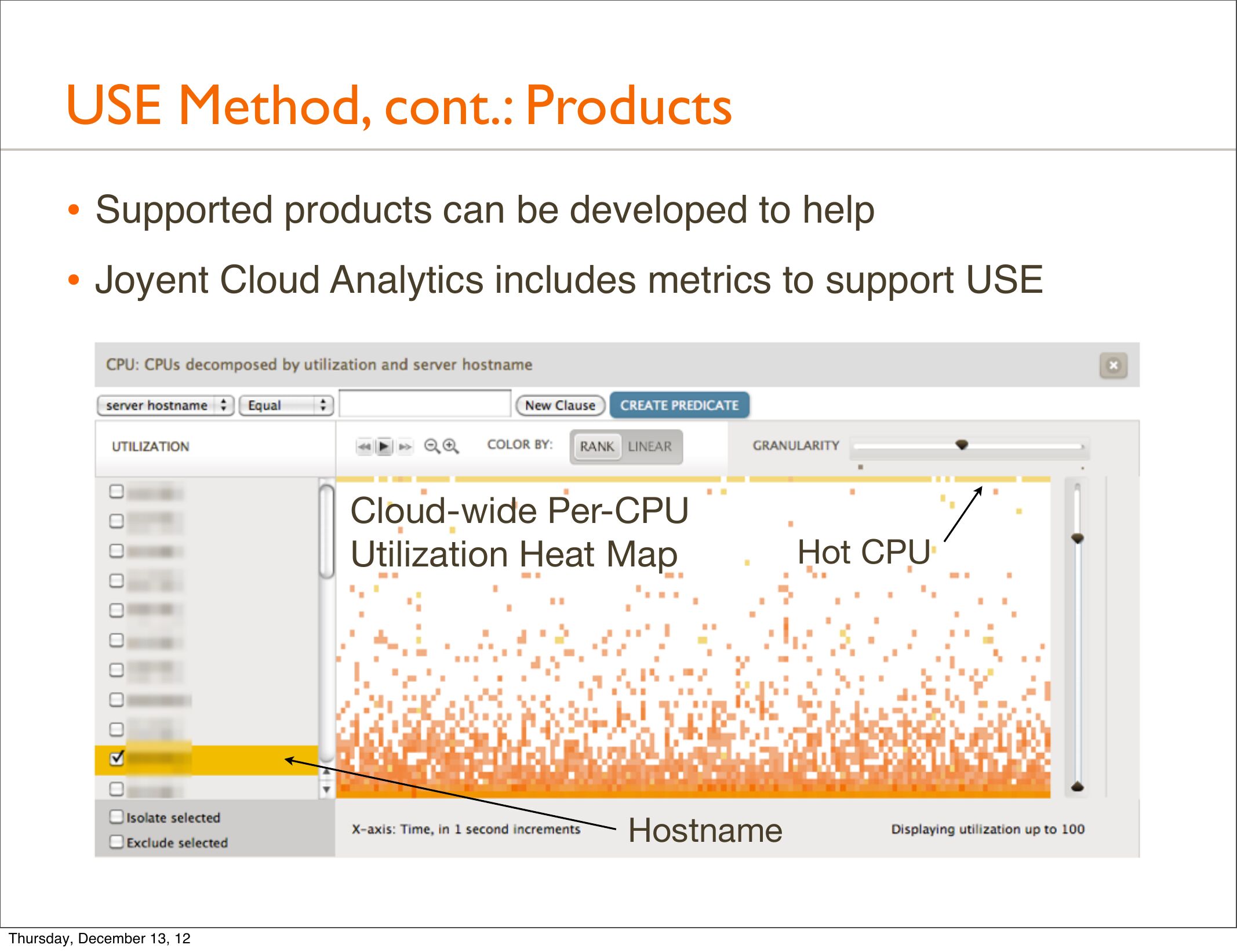

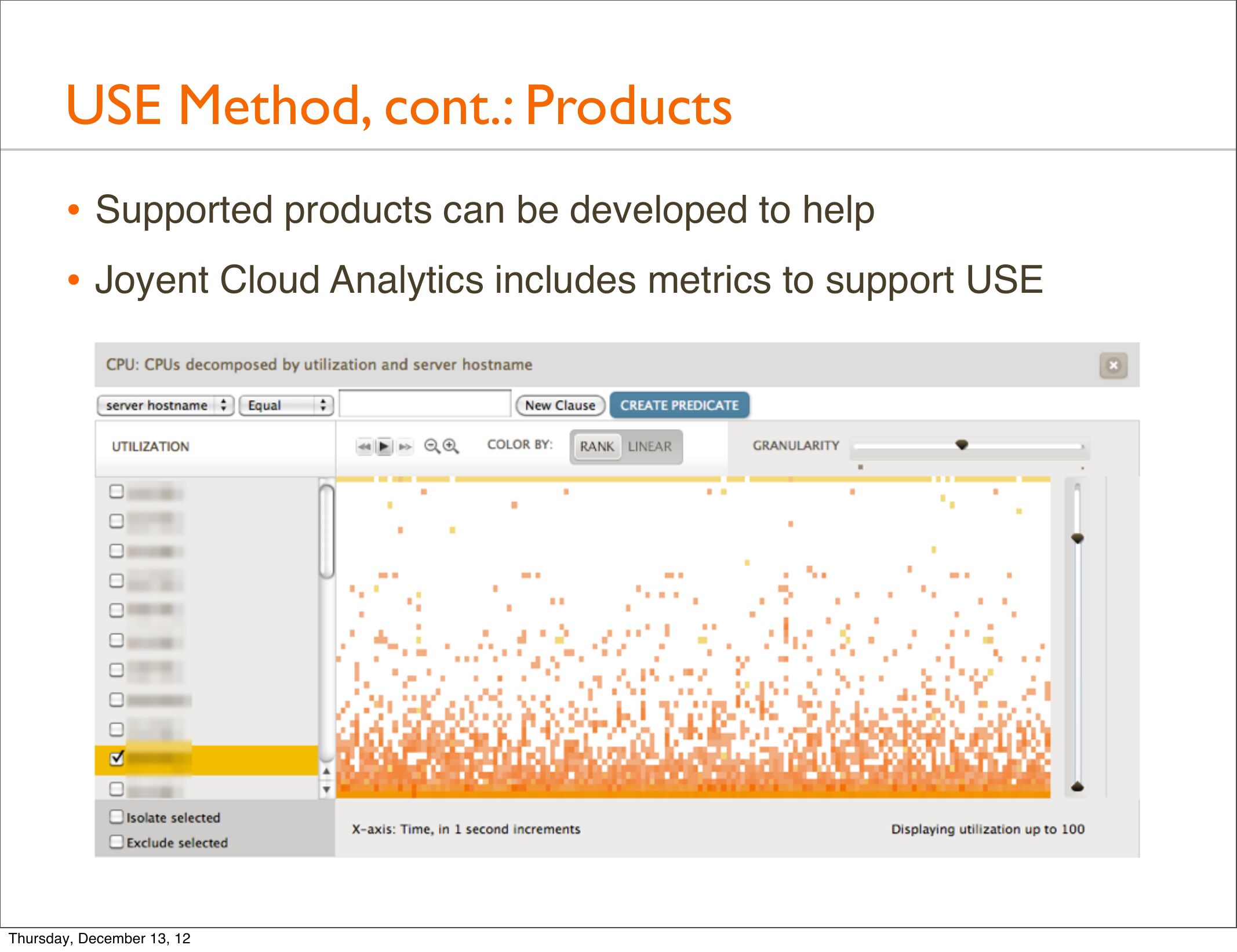

USE Method, cont.: Products
• Supported products can be developed to help
• Joyent Cloud Analytics includes metrics to support USE
Cloud-wide Per-CPU
Utilization Heat Map
Hostname
Thursday, December 13, 12
Hot CPU

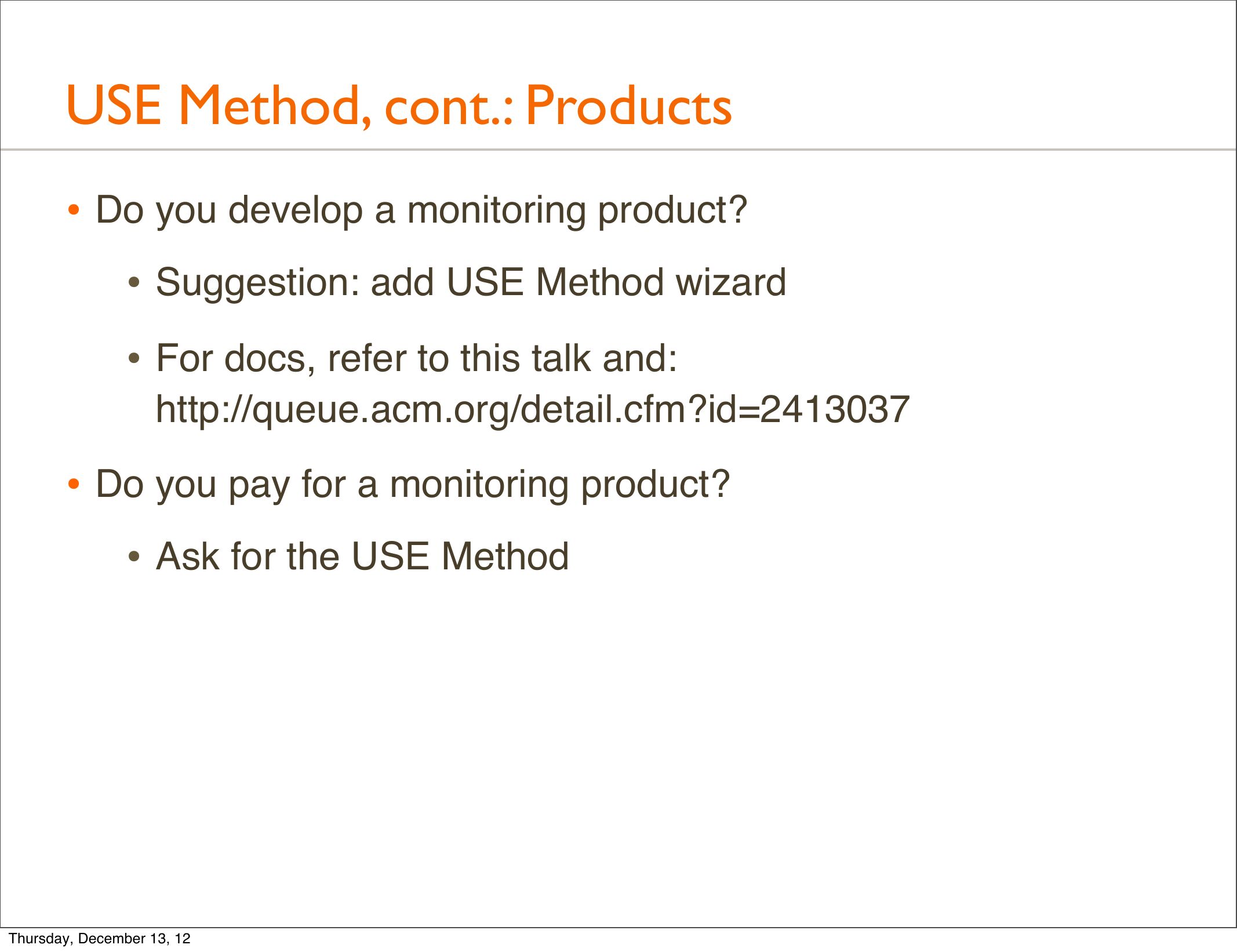

USE Method, cont.: Products
• Do you develop a monitoring product?
• Suggestion: add USE Method wizard
• For docs, refer to this talk and:
http://queue.acm.org/detail.cfm?id=2413037
• Do you pay for a monitoring product?
• Ask for the USE Method
Thursday, December 13, 12

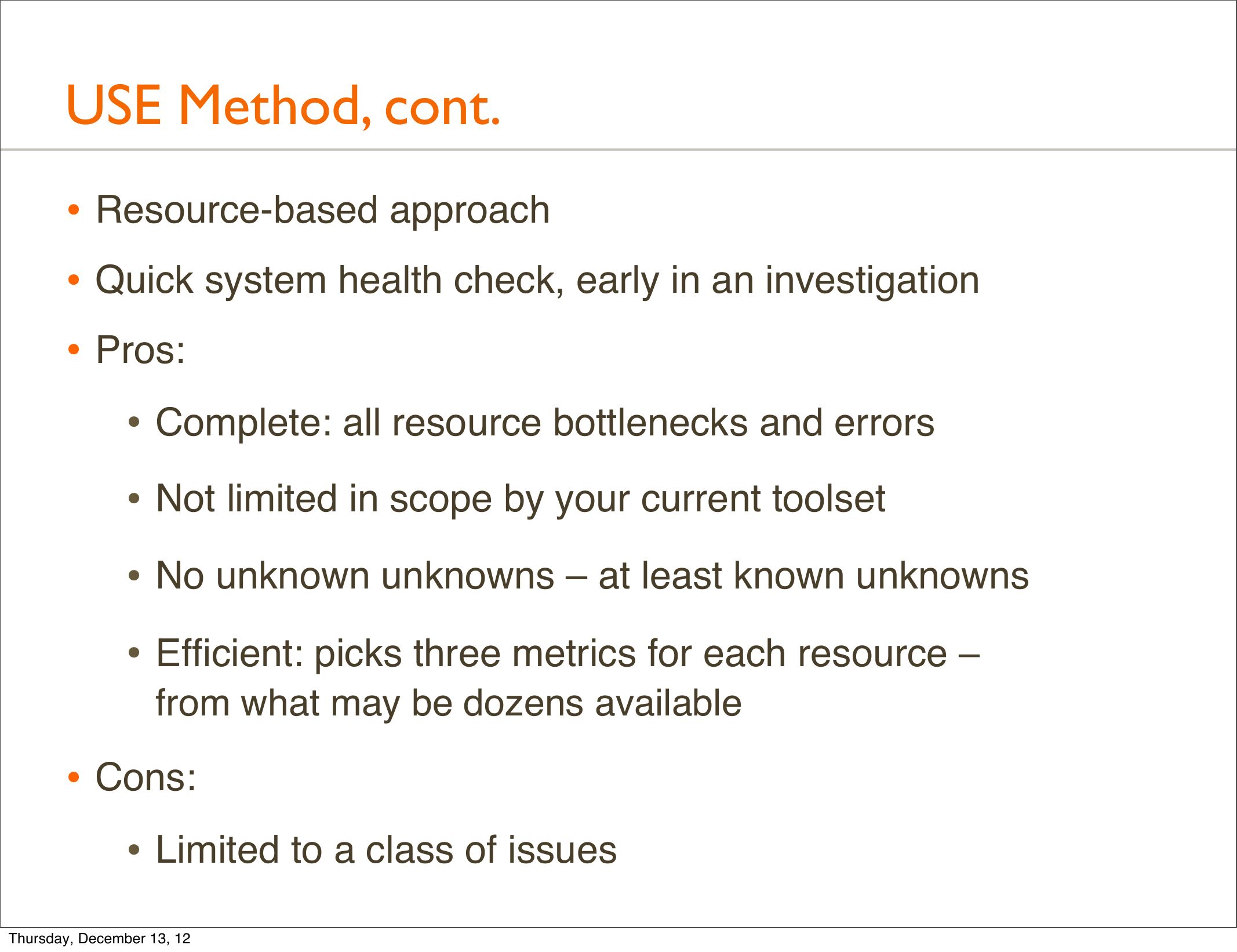

USE Method, cont.
• Resource-based approach
• Quick system health check, early in an investigation
• Pros:
• Complete: all resource bottlenecks and errors
• Not limited in scope by your current toolset
• No unknown unknowns – at least known unknowns
• Efficient: picks three metrics for each resource –
from what may be dozens available
• Cons:
• Limited to a class of issues
Thursday, December 13, 12

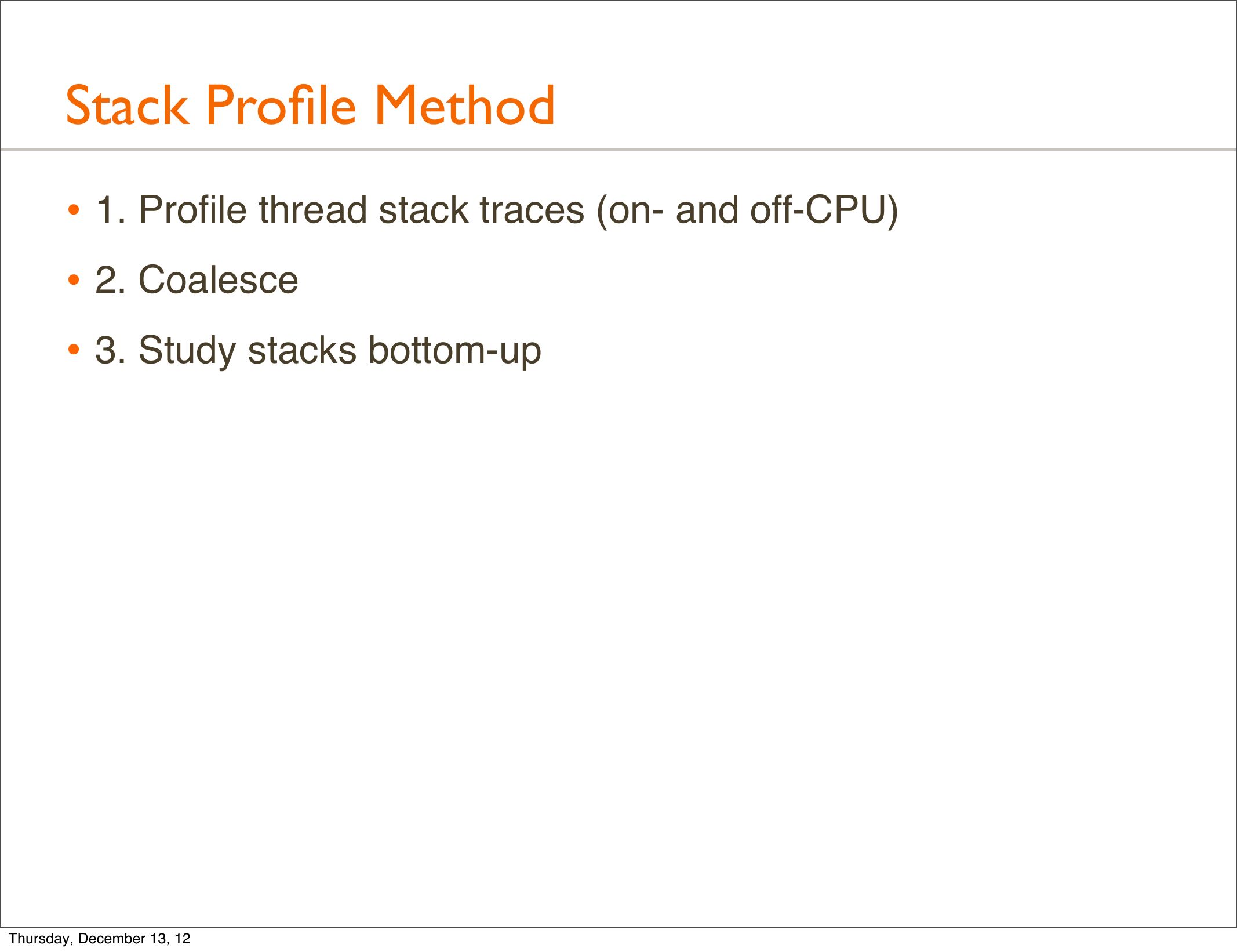

Stack Profile Method
Thursday, December 13, 12

Stack Profile Method
• 1. Profile thread stack traces (on- and off-CPU)
• 2. Coalesce
• 3. Study stacks bottom-up
Thursday, December 13, 12

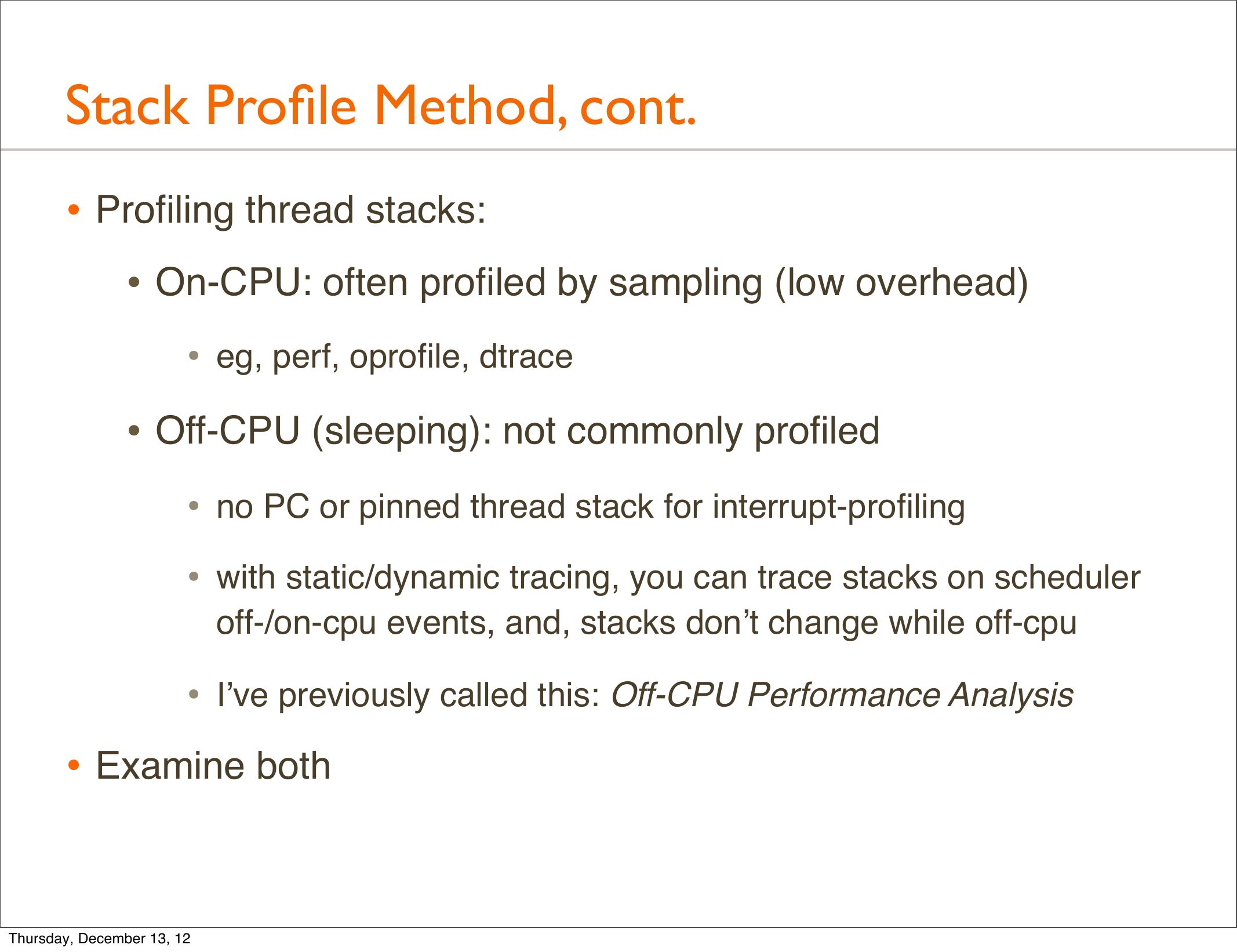

Stack Profile Method, cont.
• Profiling thread stacks:
• On-CPU: often profiled by sampling (low overhead)
• eg, perf, oprofile, dtrace
• Off-CPU (sleeping): not commonly profiled
• no PC or pinned thread stack for interrupt-profiling
• with static/dynamic tracing, you can trace stacks on scheduler
off-/on-cpu events, and, stacks don’t change while off-cpu
• I’ve previously called this: Off-CPU Performance Analysis
• Examine both
Thursday, December 13, 12

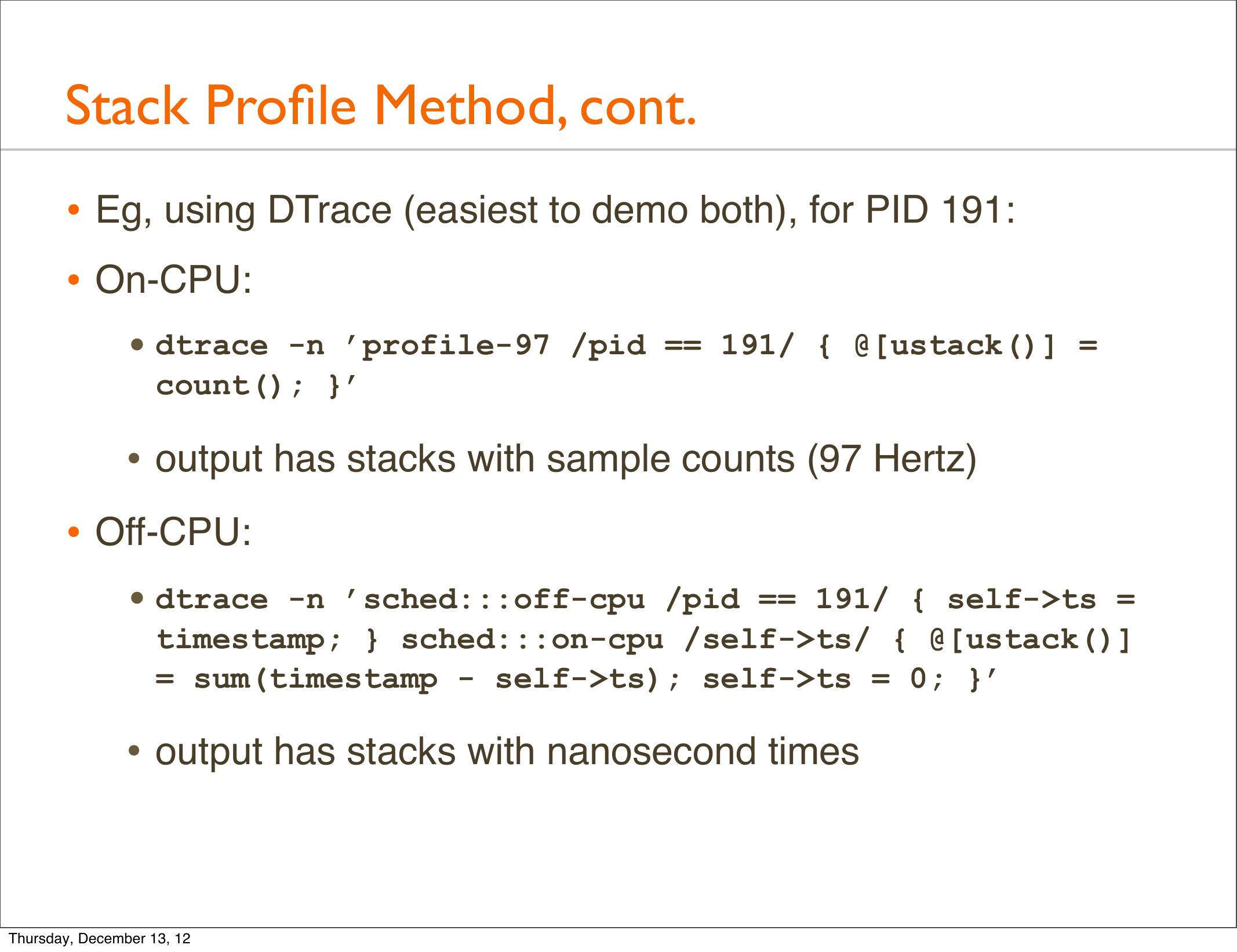

Stack Profile Method, cont.
• Eg, using DTrace (easiest to demo both), for PID 191:
• On-CPU:
• dtrace -n ’profile-97 /pid == 191/ { @[ustack()] =
count(); }’
• output has stacks with sample counts (97 Hertz)
• Off-CPU:
• dtrace -n ’sched:::off-cpu /pid == 191/ { self->gt;ts =
timestamp; } sched:::on-cpu /self->gt;ts/ { @[ustack()]
= sum(timestamp - self->gt;ts); self->gt;ts = 0; }’
• output has stacks with nanosecond times
Thursday, December 13, 12

Stack Profile Method, cont.

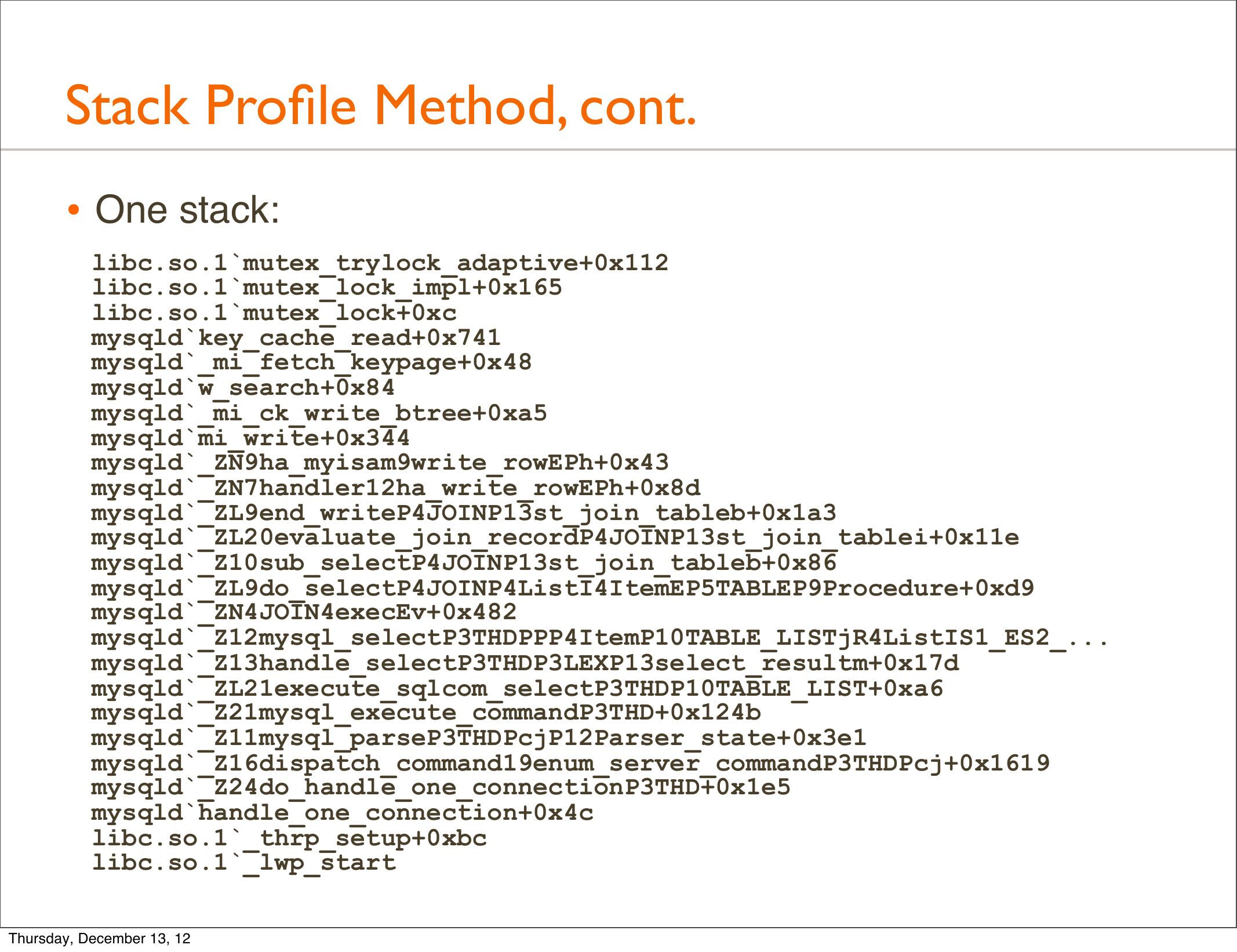

• One stack:
libc.so.1`mutex_trylock_adaptive+0x112
libc.so.1`mutex_lock_impl+0x165
libc.so.1`mutex_lock+0xc
mysqld`key_cache_read+0x741
mysqld`_mi_fetch_keypage+0x48
mysqld`w_search+0x84
mysqld`_mi_ck_write_btree+0xa5
mysqld`mi_write+0x344
mysqld`_ZN9ha_myisam9write_rowEPh+0x43
mysqld`_ZN7handler12ha_write_rowEPh+0x8d
mysqld`_ZL9end_writeP4JOINP13st_join_tableb+0x1a3
mysqld`_ZL20evaluate_join_recordP4JOINP13st_join_tablei+0x11e
mysqld`_Z10sub_selectP4JOINP13st_join_tableb+0x86
mysqld`_ZL9do_selectP4JOINP4ListI4ItemEP5TABLEP9Procedure+0xd9
mysqld`_ZN4JOIN4execEv+0x482
mysqld`_Z12mysql_selectP3THDPPP4ItemP10TABLE_LISTjR4ListIS1_ES2_...
mysqld`_Z13handle_selectP3THDP3LEXP13select_resultm+0x17d
mysqld`_ZL21execute_sqlcom_selectP3THDP10TABLE_LIST+0xa6
mysqld`_Z21mysql_execute_commandP3THD+0x124b
mysqld`_Z11mysql_parseP3THDPcjP12Parser_state+0x3e1
mysqld`_Z16dispatch_command19enum_server_commandP3THDPcj+0x1619
mysqld`_Z24do_handle_one_connectionP3THD+0x1e5
mysqld`handle_one_connection+0x4c
libc.so.1`_thrp_setup+0xbc
libc.so.1`_lwp_start
Thursday, December 13, 12

Stack Profile Method, cont.

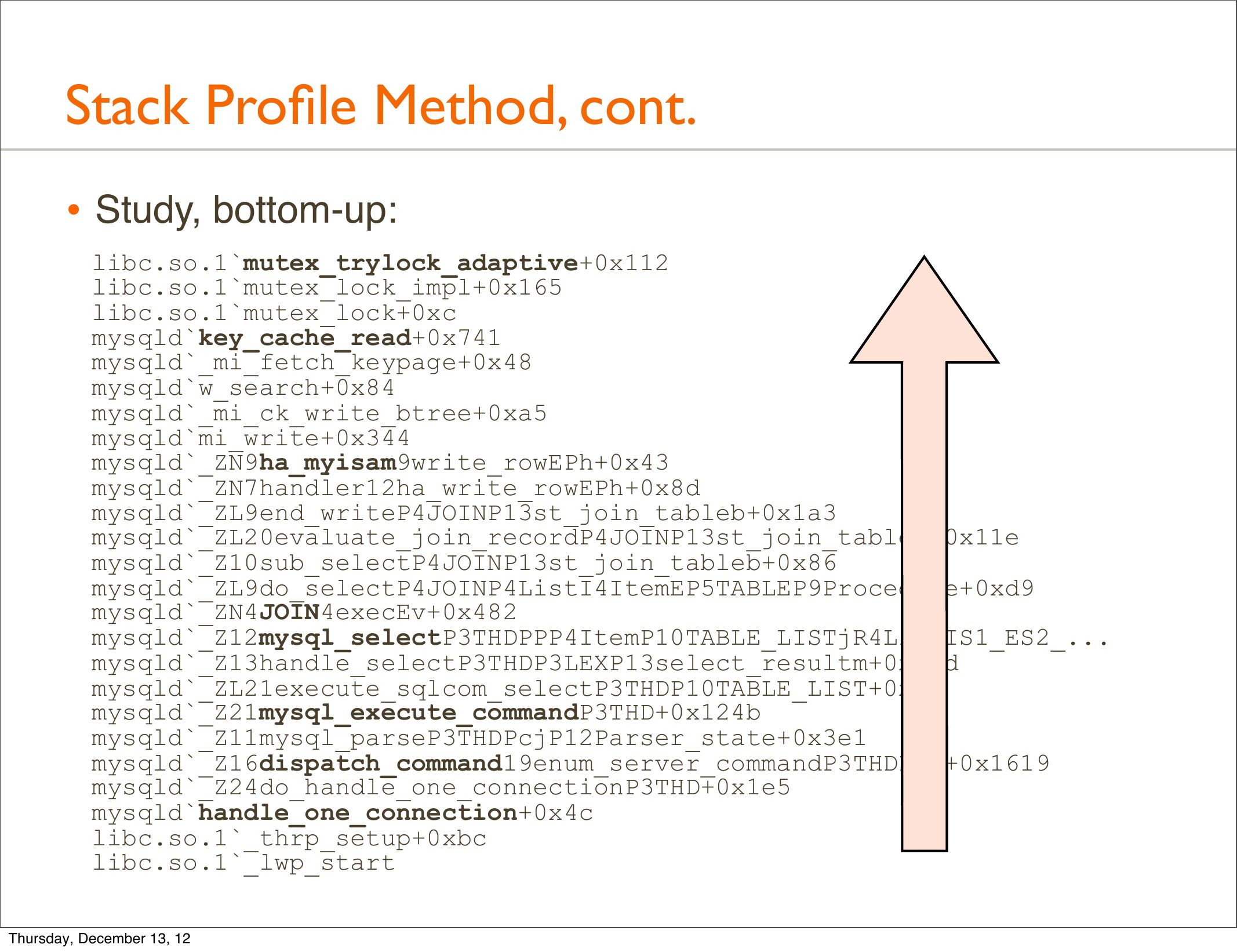

• Study, bottom-up:
libc.so.1`mutex_trylock_adaptive+0x112
libc.so.1`mutex_lock_impl+0x165
libc.so.1`mutex_lock+0xc
mysqld`key_cache_read+0x741
mysqld`_mi_fetch_keypage+0x48
mysqld`w_search+0x84
mysqld`_mi_ck_write_btree+0xa5
mysqld`mi_write+0x344
mysqld`_ZN9ha_myisam9write_rowEPh+0x43
mysqld`_ZN7handler12ha_write_rowEPh+0x8d
mysqld`_ZL9end_writeP4JOINP13st_join_tableb+0x1a3
mysqld`_ZL20evaluate_join_recordP4JOINP13st_join_tablei+0x11e
mysqld`_Z10sub_selectP4JOINP13st_join_tableb+0x86
mysqld`_ZL9do_selectP4JOINP4ListI4ItemEP5TABLEP9Procedure+0xd9
mysqld`_ZN4JOIN4execEv+0x482
mysqld`_Z12mysql_selectP3THDPPP4ItemP10TABLE_LISTjR4ListIS1_ES2_...
mysqld`_Z13handle_selectP3THDP3LEXP13select_resultm+0x17d
mysqld`_ZL21execute_sqlcom_selectP3THDP10TABLE_LIST+0xa6
mysqld`_Z21mysql_execute_commandP3THD+0x124b
mysqld`_Z11mysql_parseP3THDPcjP12Parser_state+0x3e1
mysqld`_Z16dispatch_command19enum_server_commandP3THDPcj+0x1619
mysqld`_Z24do_handle_one_connectionP3THD+0x1e5
mysqld`handle_one_connection+0x4c
libc.so.1`_thrp_setup+0xbc
libc.so.1`_lwp_start
Thursday, December 13, 12

Stack Profile Method, cont.

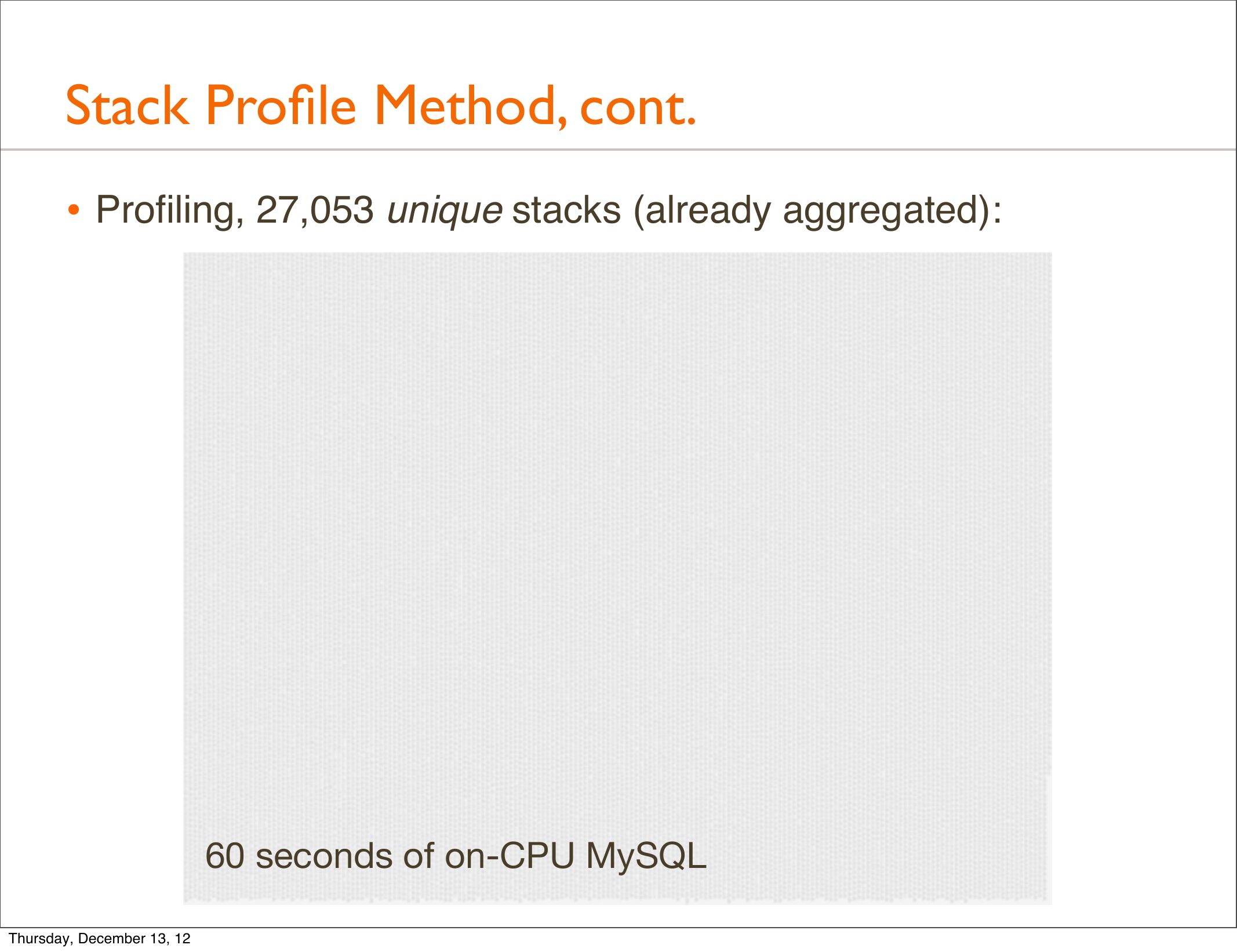

• Profiling, 27,053 unique stacks (already aggregated):
60 seconds of on-CPU MySQL
Thursday, December 13, 12

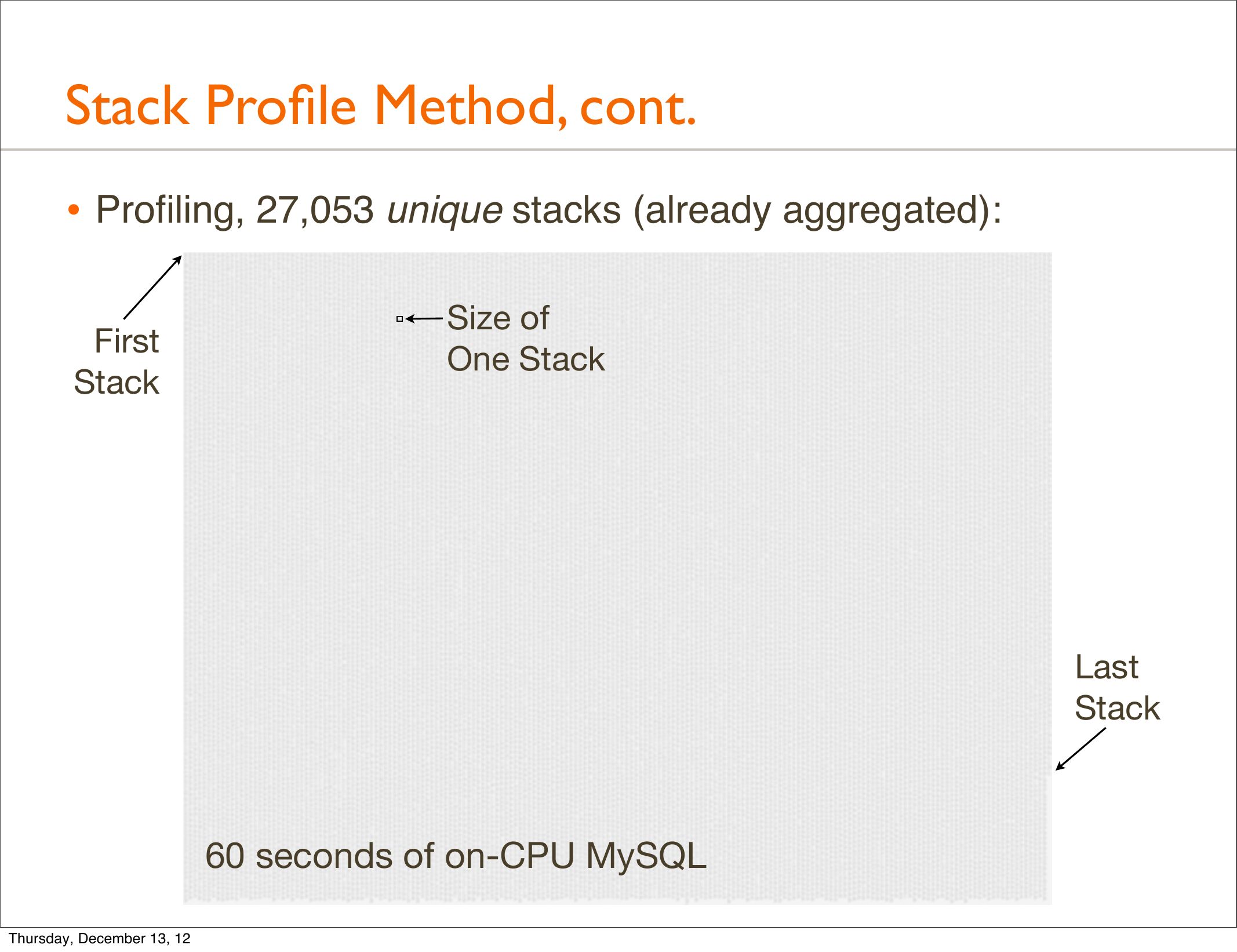

Stack Profile Method, cont.
• Profiling, 27,053 unique stacks (already aggregated):
First
Stack
Size of
One Stack
Last
Stack
60 seconds of on-CPU MySQL
Thursday, December 13, 12

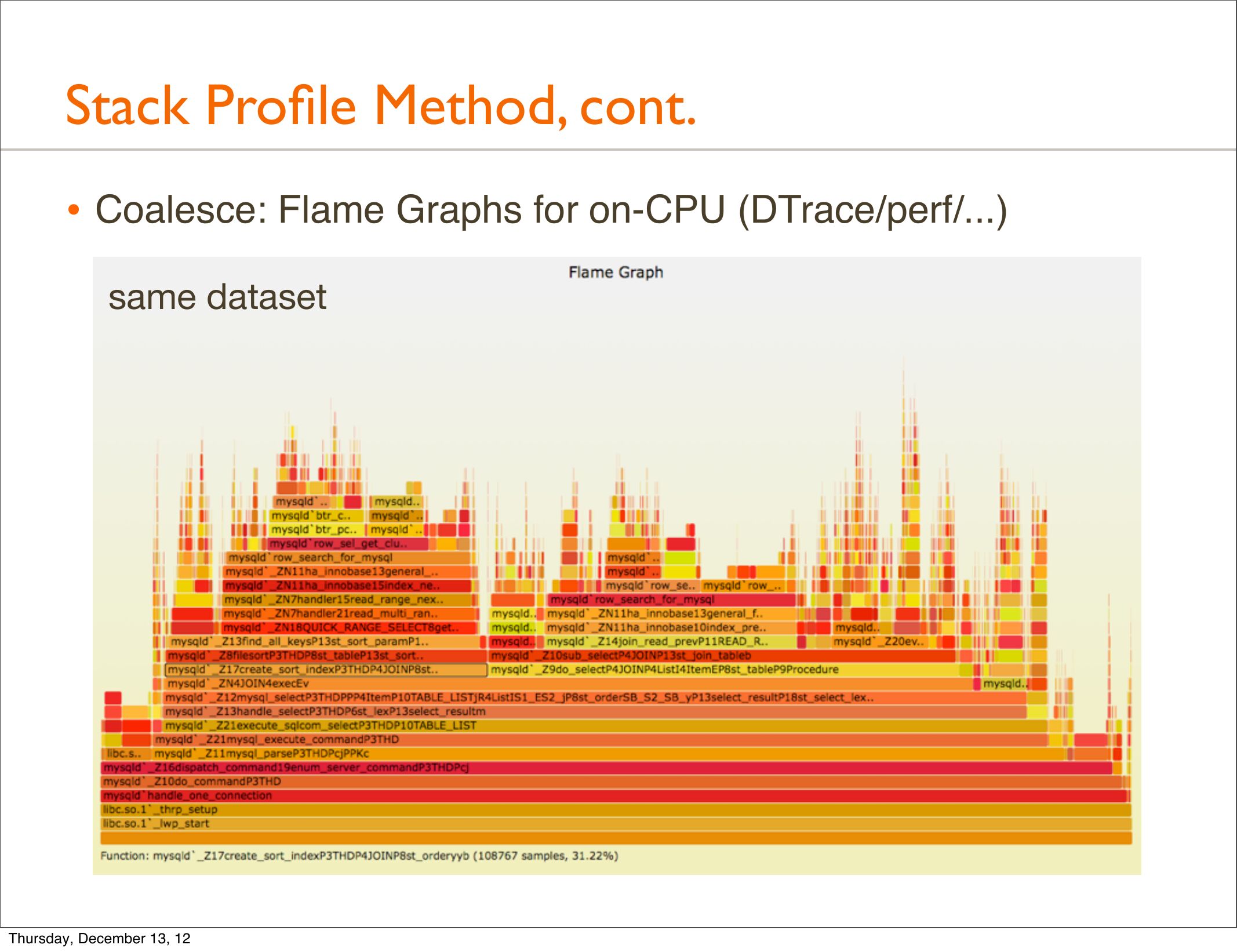

Stack Profile Method, cont.
• Coalesce: Flame Graphs for on-CPU (DTrace/perf/...)
same dataset
Thursday, December 13, 12

Stack Profile Method, cont.

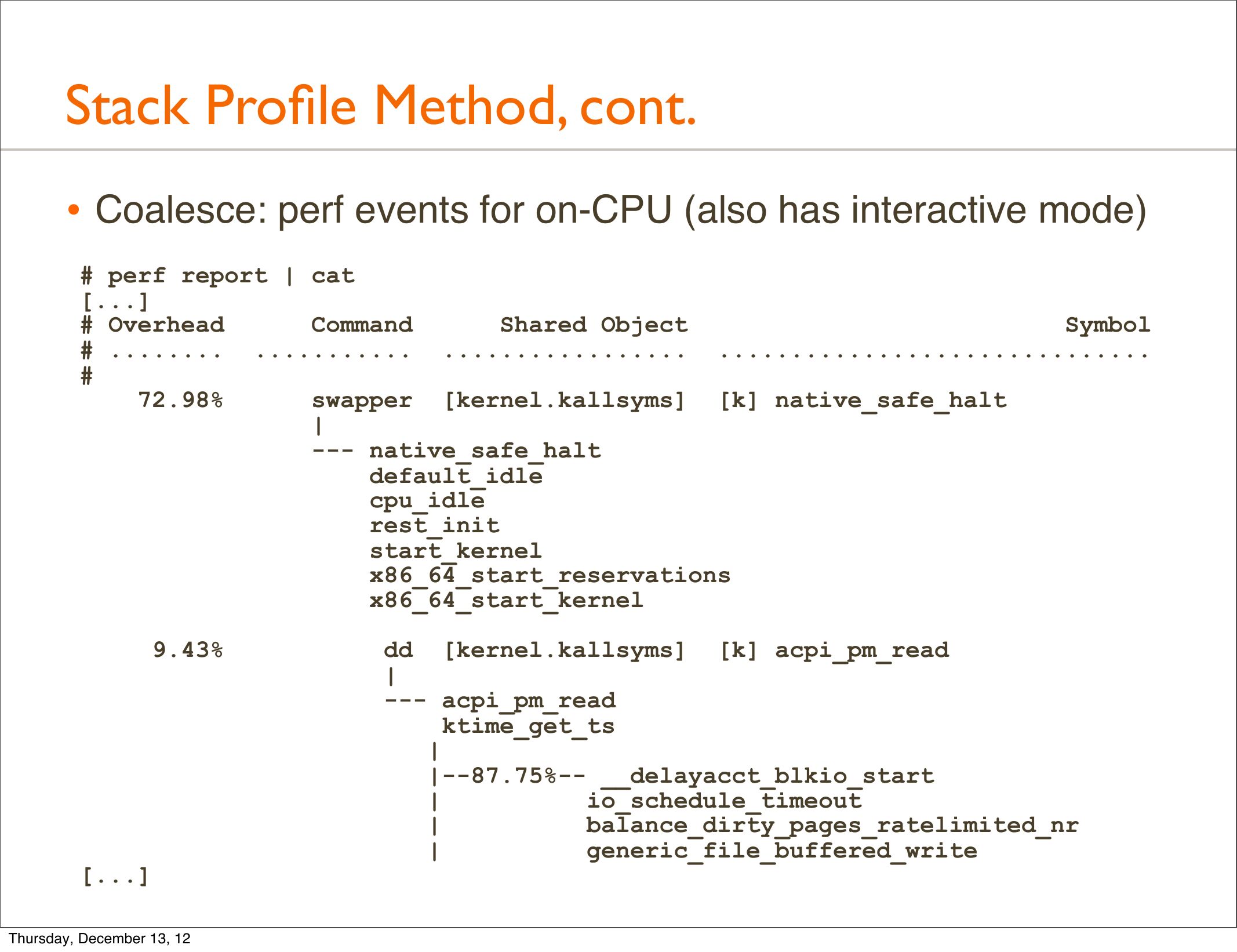

• Coalesce: perf events for on-CPU (also has interactive mode)
# perf report | cat
[...]
# Overhead
Command
Shared Object
Symbol
# ........ ........... ................. ..............................
72.98%
swapper [kernel.kallsyms] [k] native_safe_halt
--- native_safe_halt
default_idle
cpu_idle
rest_init
start_kernel
x86_64_start_reservations
x86_64_start_kernel
9.43%
[...]
Thursday, December 13, 12
dd [kernel.kallsyms] [k] acpi_pm_read
--- acpi_pm_read
ktime_get_ts
|--87.75%-- __delayacct_blkio_start
io_schedule_timeout
balance_dirty_pages_ratelimited_nr
generic_file_buffered_write

Stack Profile Method, cont.: Example Toolset
• 1. Profile thread stack traces
• DTrace on-CPU sampling, off-CPU tracing
• 2. Coalesce
• Flame Graphs
• 3. Study stacks bottom-up
Thursday, December 13, 12

Stack Profile Method, cont.

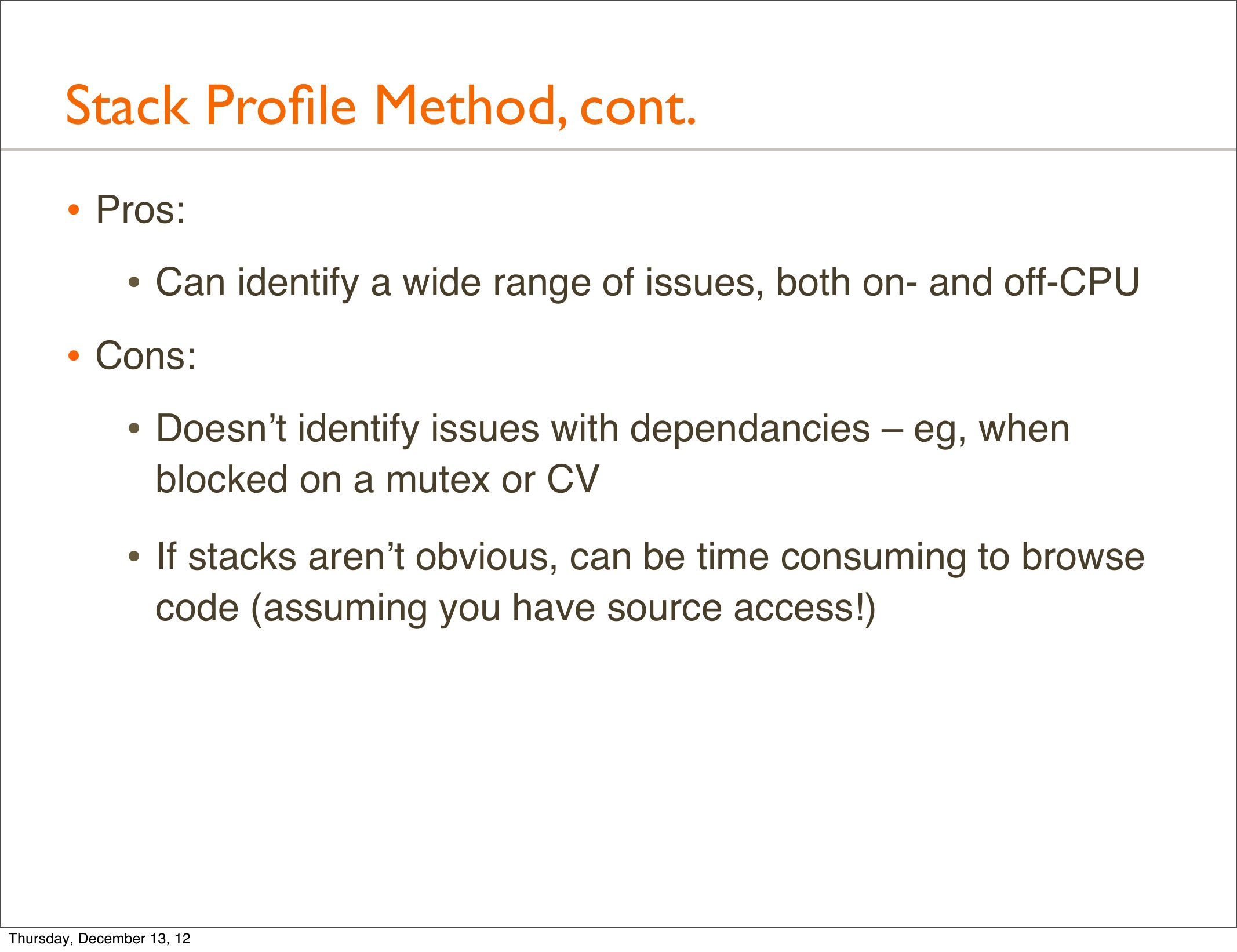

• Pros:
• Can identify a wide range of issues, both on- and off-CPU
• Cons:
• Doesn’t identify issues with dependancies – eg, when
blocked on a mutex or CV
• If stacks aren’t obvious, can be time consuming to browse
code (assuming you have source access!)
Thursday, December 13, 12

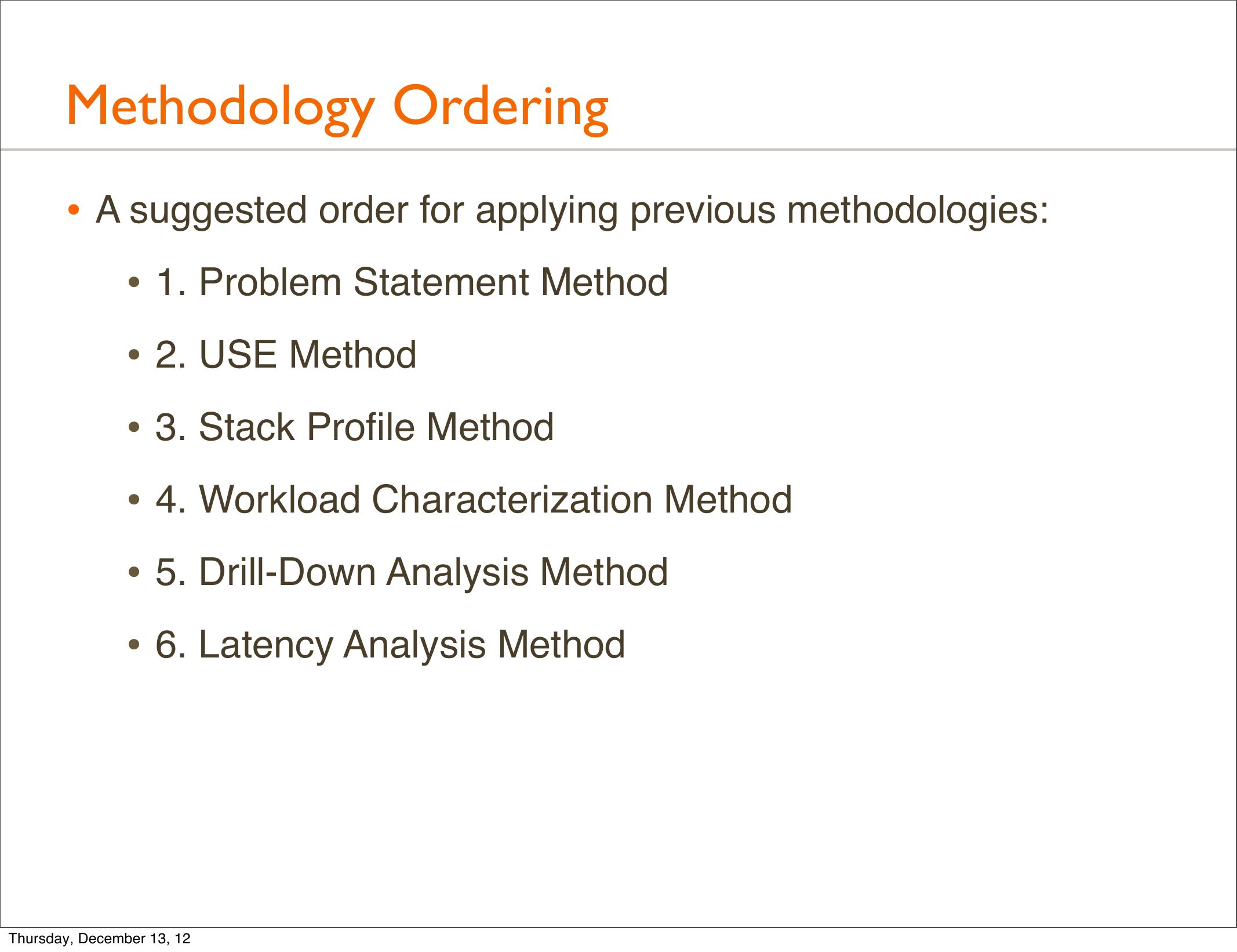

Methodology Ordering
• A suggested order for applying previous methodologies:
• 1. Problem Statement Method
• 2. USE Method
• 3. Stack Profile Method
• 4. Workload Characterization Method
• 5. Drill-Down Analysis Method
• 6. Latency Analysis Method
Thursday, December 13, 12

Final Remarks

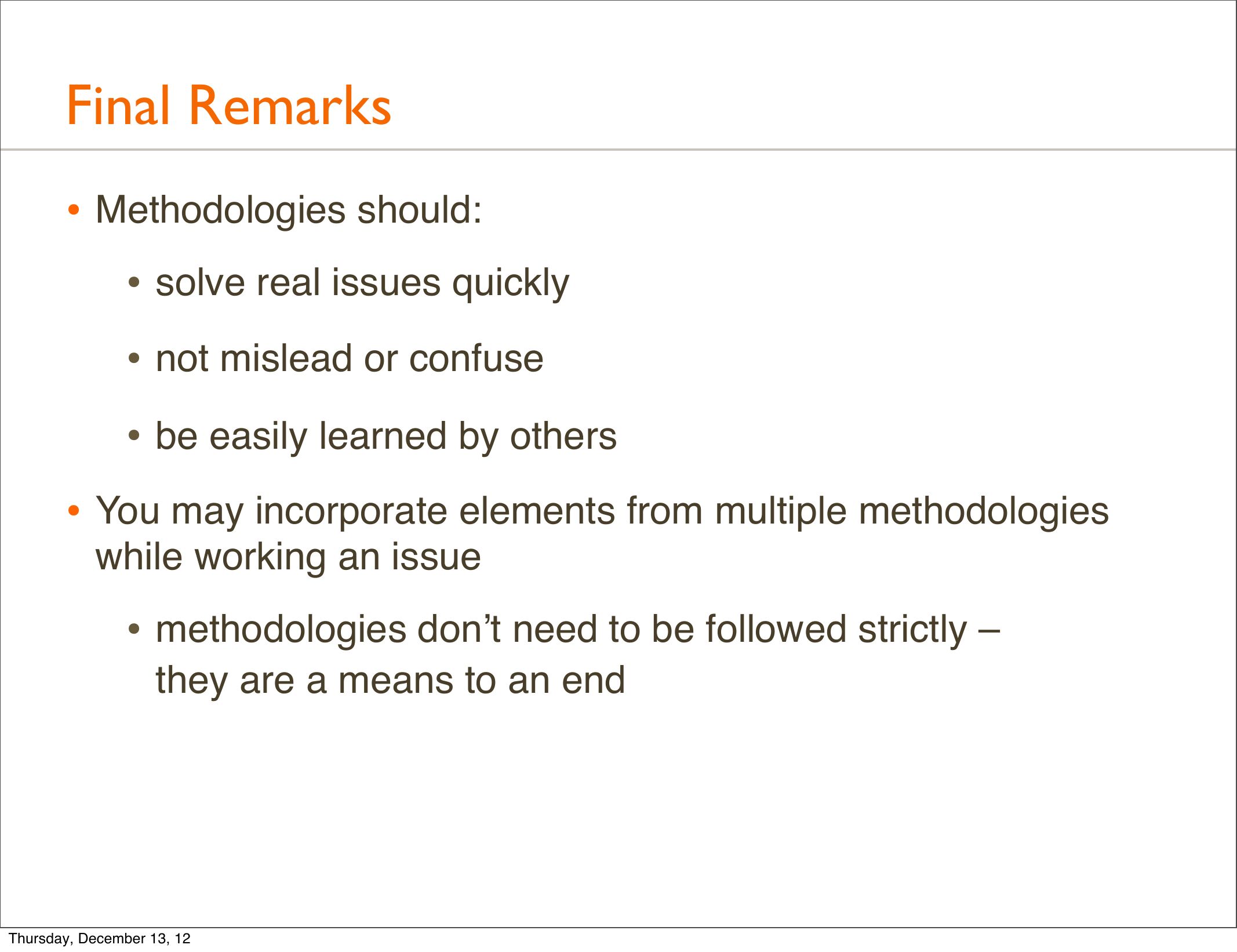

• Methodologies should:
• solve real issues quickly
• not mislead or confuse
• be easily learned by others
• You may incorporate elements from multiple methodologies
while working an issue
• methodologies don’t need to be followed strictly –
they are a means to an end
Thursday, December 13, 12

Final Remarks, cont.

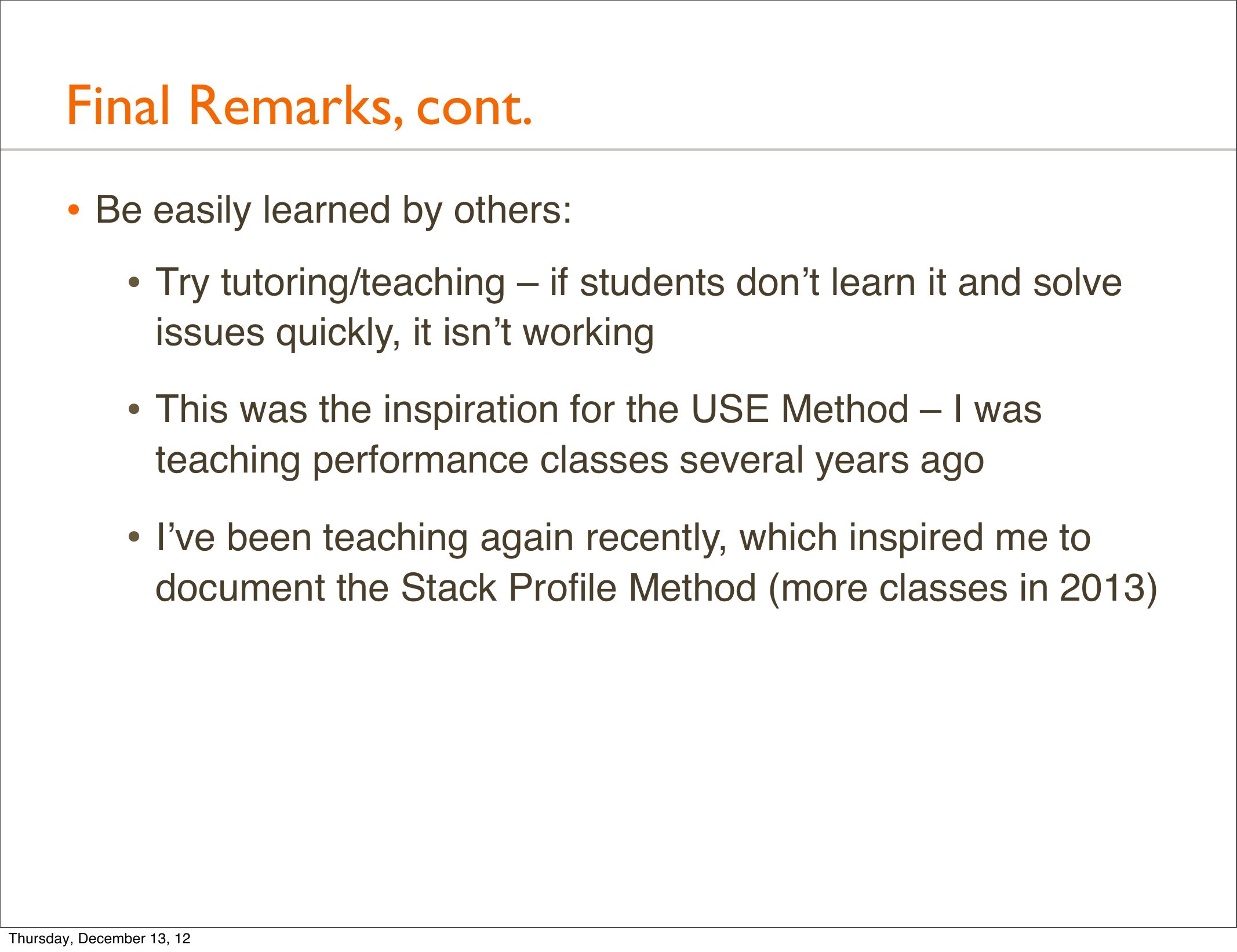

• Be easily learned by others:
• Try tutoring/teaching – if students don’t learn it and solve
issues quickly, it isn’t working
• This was the inspiration for the USE Method – I was
teaching performance classes several years ago
• I’ve been teaching again recently, which inspired me to
document the Stack Profile Method (more classes in 2013)
Thursday, December 13, 12

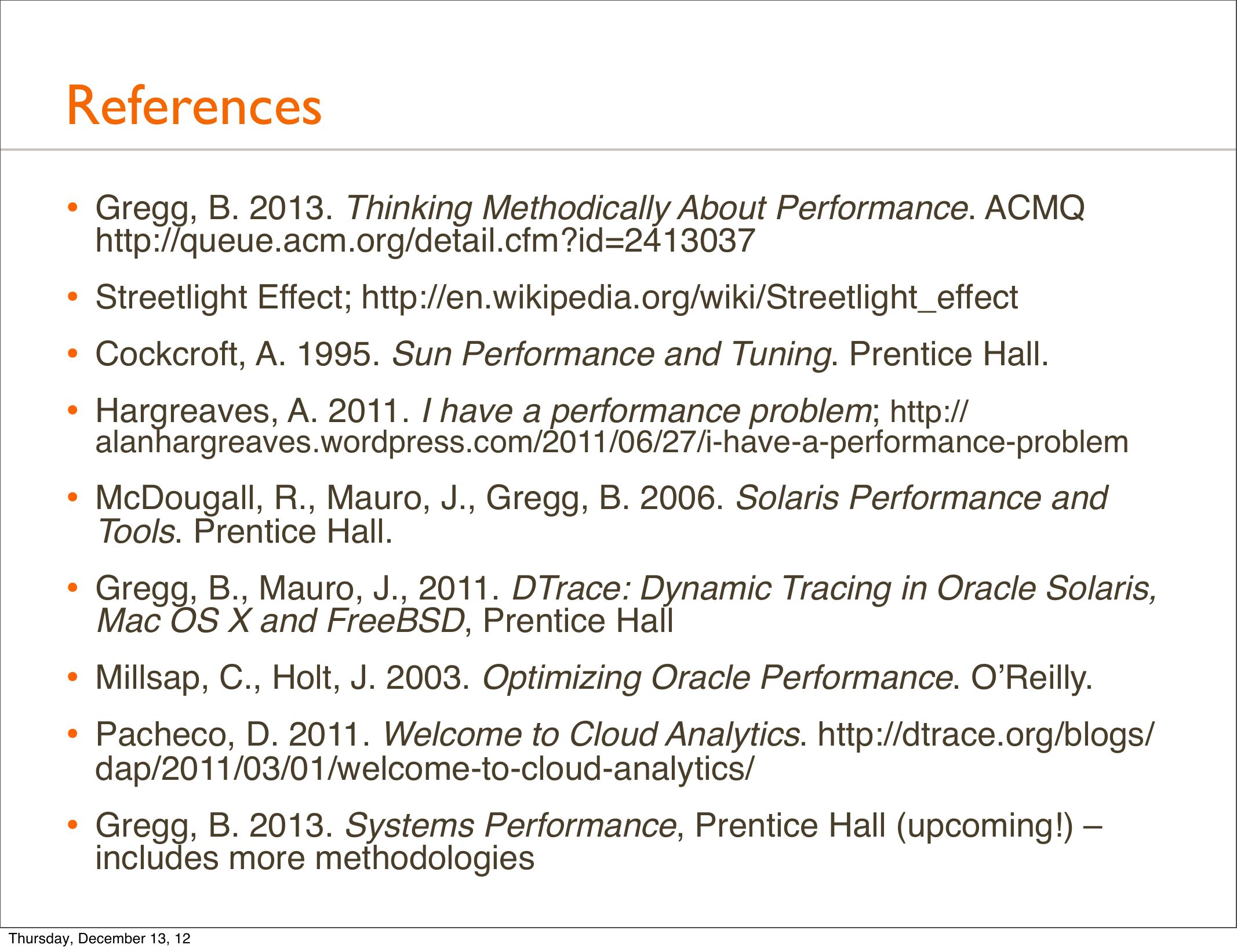

References
• Gregg, B. 2013. Thinking Methodically About Performance. ACMQ
http://queue.acm.org/detail.cfm?id=2413037
• Streetlight Effect; http://en.wikipedia.org/wiki/Streetlight_effect
• Cockcroft, A. 1995. Sun Performance and Tuning. Prentice Hall.
• Hargreaves, A. 2011. I have a performance problem; http://
alanhargreaves.wordpress.com/2011/06/27/i-have-a-performance-problem
• McDougall, R., Mauro, J., Gregg, B. 2006. Solaris Performance and
Tools. Prentice Hall.
• Gregg, B., Mauro, J., 2011. DTrace: Dynamic Tracing in Oracle Solaris,
Mac OS X and FreeBSD, Prentice Hall
• Millsap, C., Holt, J. 2003. Optimizing Oracle Performance. O’Reilly.
• Pacheco, D. 2011. Welcome to Cloud Analytics. http://dtrace.org/blogs/
dap/2011/03/01/welcome-to-cloud-analytics/
• Gregg, B. 2013. Systems Performance, Prentice Hall (upcoming!) –
includes more methodologies
Thursday, December 13, 12

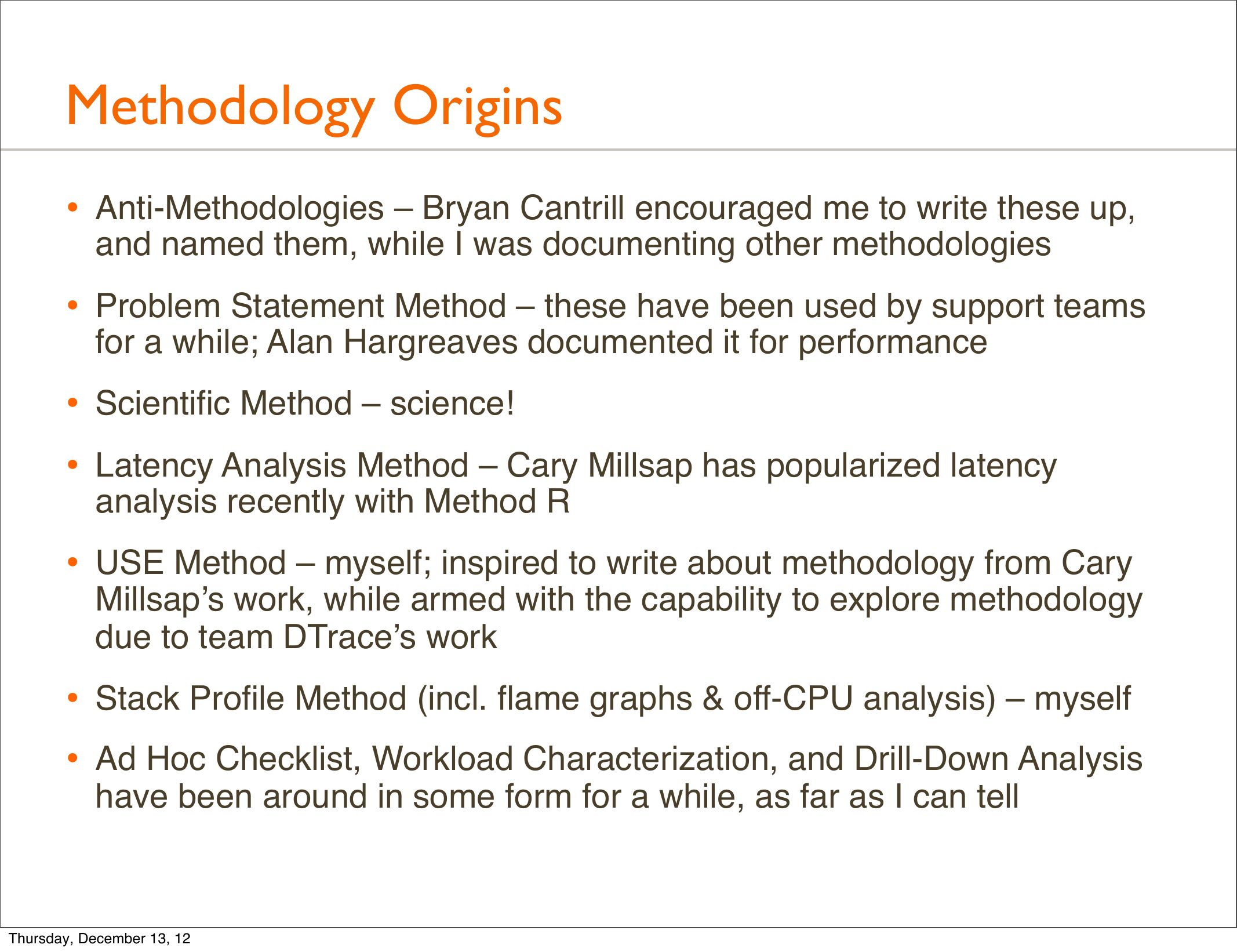

Methodology Origins
• Anti-Methodologies – Bryan Cantrill encouraged me to write these up,
and named them, while I was documenting other methodologies
• Problem Statement Method – these have been used by support teams
for a while; Alan Hargreaves documented it for performance
• Scientific Method – science!
• Latency Analysis Method – Cary Millsap has popularized latency
analysis recently with Method R
• USE Method – myself; inspired to write about methodology from Cary
Millsap’s work, while armed with the capability to explore methodology
due to team DTrace’s work
• Stack Profile Method (incl. flame graphs & off-CPU analysis) – myself
• Ad Hoc Checklist, Workload Characterization, and Drill-Down Analysis
have been around in some form for a while, as far as I can tell
Thursday, December 13, 12

Thank you!
• email: brendan@joyent.com
• twitter: @brendangregg
• blog: http://dtrace.org/blogs/brendan
• blog resources:
• http://dtrace.org/blogs/brendan/2012/02/29/the-use-method/
• http://dtrace.org/blogs/brendan/2012/03/01/the-use-method-solarisperformance-checklist/
• http://dtrace.org/blogs/brendan/2012/03/07/the-use-method-linux-performancechecklist/
• http://dtrace.org/blogs/brendan/2011/05/18/file-system-latency-part-3/
• http://dtrace.org/blogs/brendan/2011/07/08/off-cpu-performance-analysis/
• http://dtrace.org/blogs/brendan/2011/12/16/flame-graphs/
Thursday, December 13, 12
