# dtrace -n 'syscall:::entry { @[exe
dtrace: description 'syscall:::entry
DTrace Topics:
Introduction
Brendan Gregg
Sun Microsystems
April 2007
iscsitgtd
nscd
operapluginclean
screen-4.0.2
devfsadm
httpd
sendmail
xload
evince
operapluginwrapp
xclock
xntpd
FvwmIconMan
fmd
FvwmPager
dtrace
gnome-terminal
fvwm2
x64
akd
opera
Xorg
soffice.bin

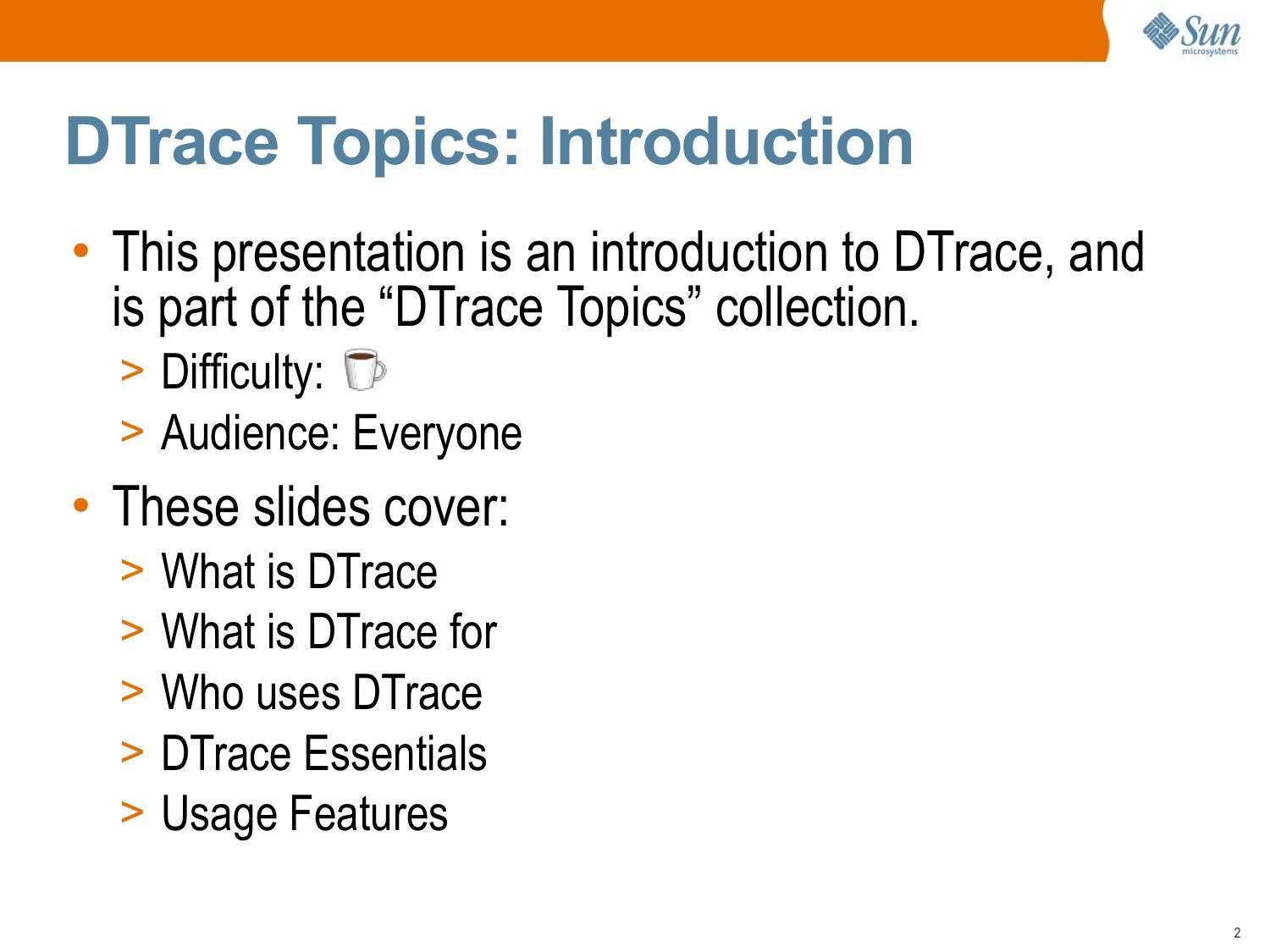

DTrace Topics: Introduction
• This presentation is an introduction to DTrace, and
is part of the “DTrace Topics” collection.
>gt; Difficulty:
>gt; Audience: Everyone
• These slides cover:
>gt; What is DTrace
>gt; What is DTrace for
>gt; Who uses DTrace
>gt; DTrace Essentials
>gt; Usage Features

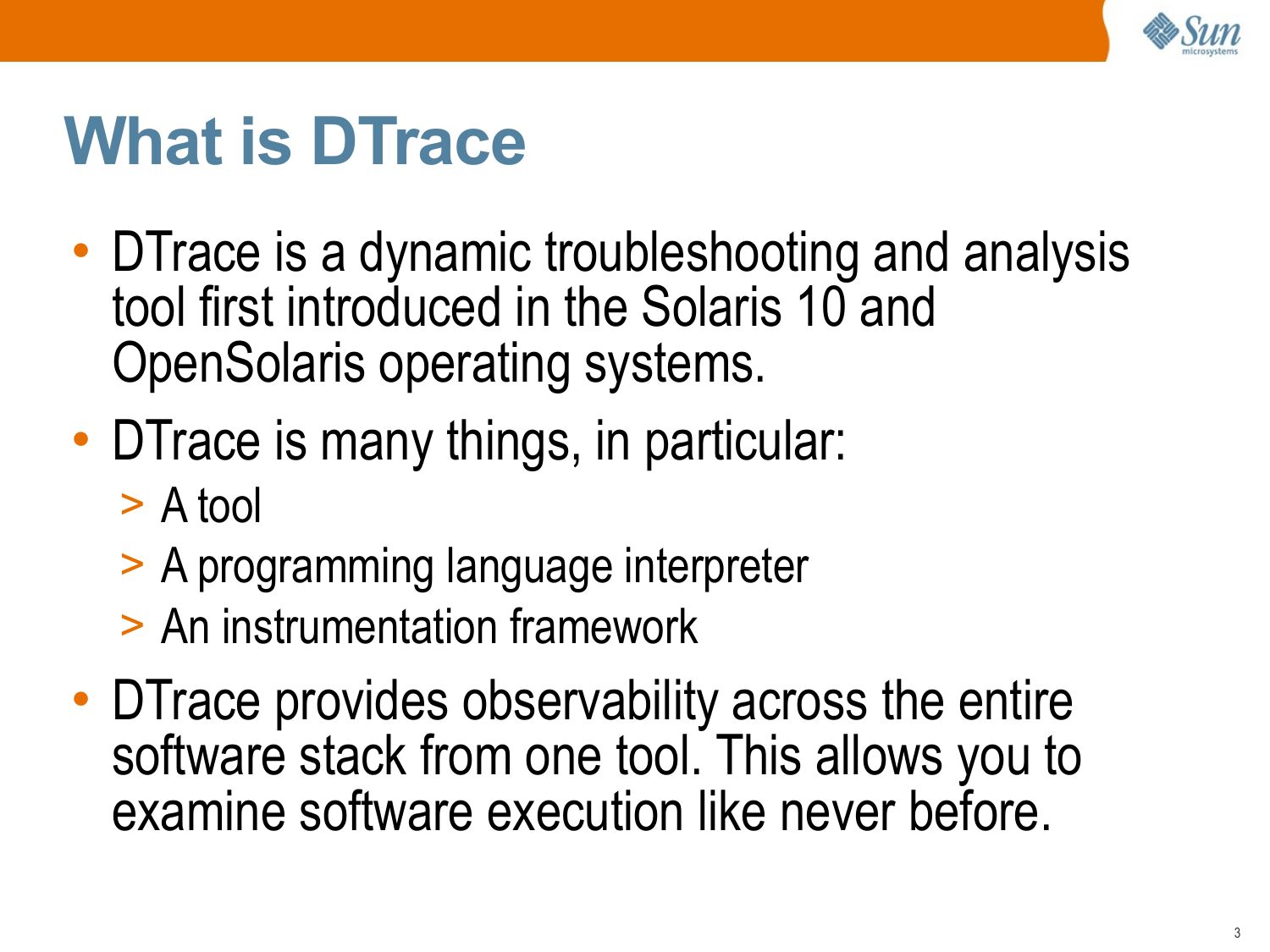

What is DTrace
• DTrace is a dynamic troubleshooting and analysis
tool first introduced in the Solaris 10 and
OpenSolaris operating systems.
• DTrace is many things, in particular:
>gt; A tool
>gt; A programming language interpreter
>gt; An instrumentation framework
• DTrace provides observability across the entire
software stack from one tool. This allows you to
examine software execution like never before.

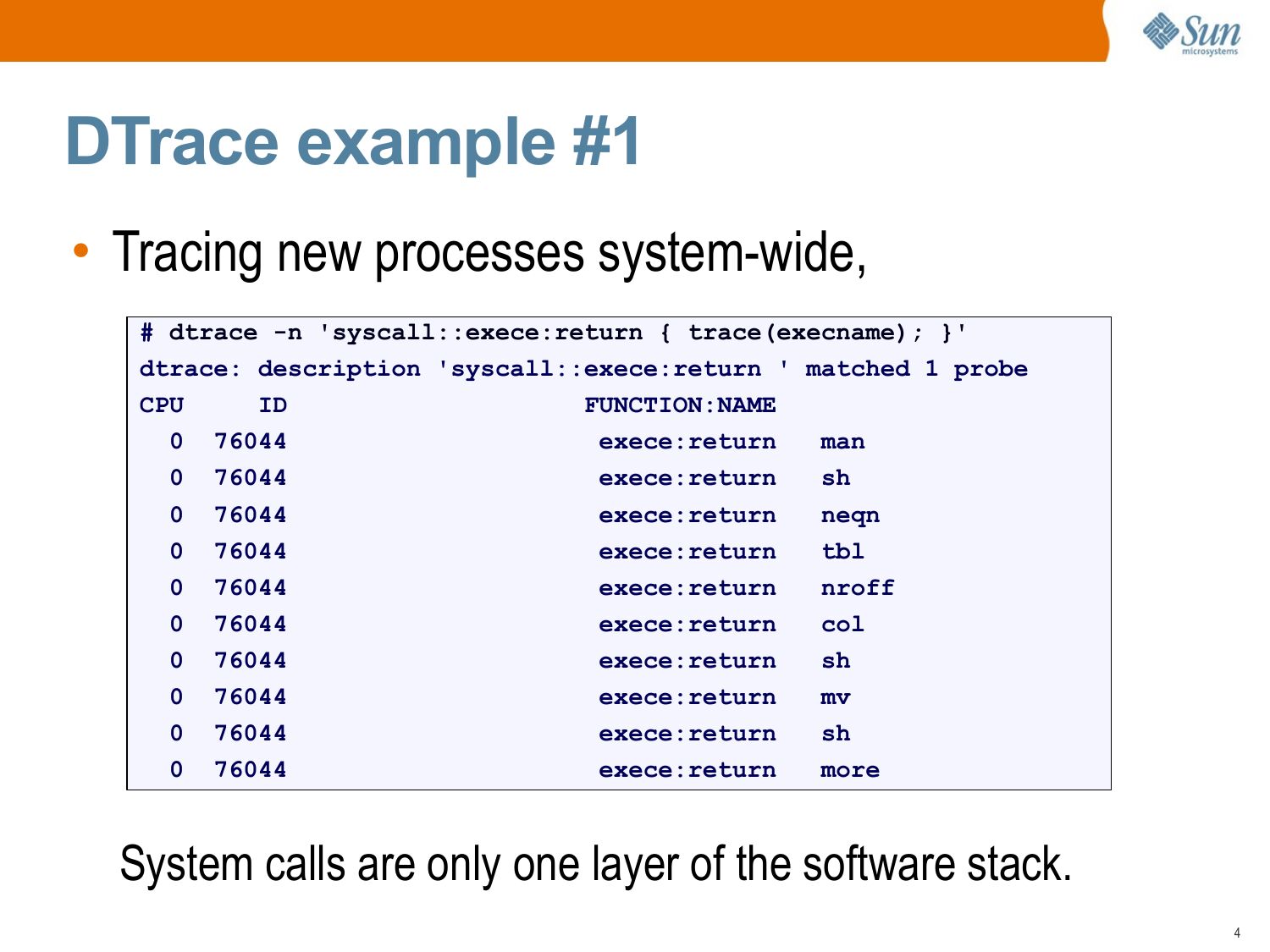

DTrace example #1
• Tracing new processes system-wide,
# dtrace -n 'syscall::exece:return { trace(execname); }'
dtrace: description 'syscall::exece:return ' matched 1 probe
CPU
FUNCTION:NAME
0 76044
exece:return
man
0 76044
exece:return
0 76044
exece:return
neqn
0 76044
exece:return
tbl
0 76044
exece:return
nroff
0 76044
exece:return
col
0 76044
exece:return
0 76044
exece:return
0 76044
exece:return
0 76044
exece:return
more
System calls are only one layer of the software stack.

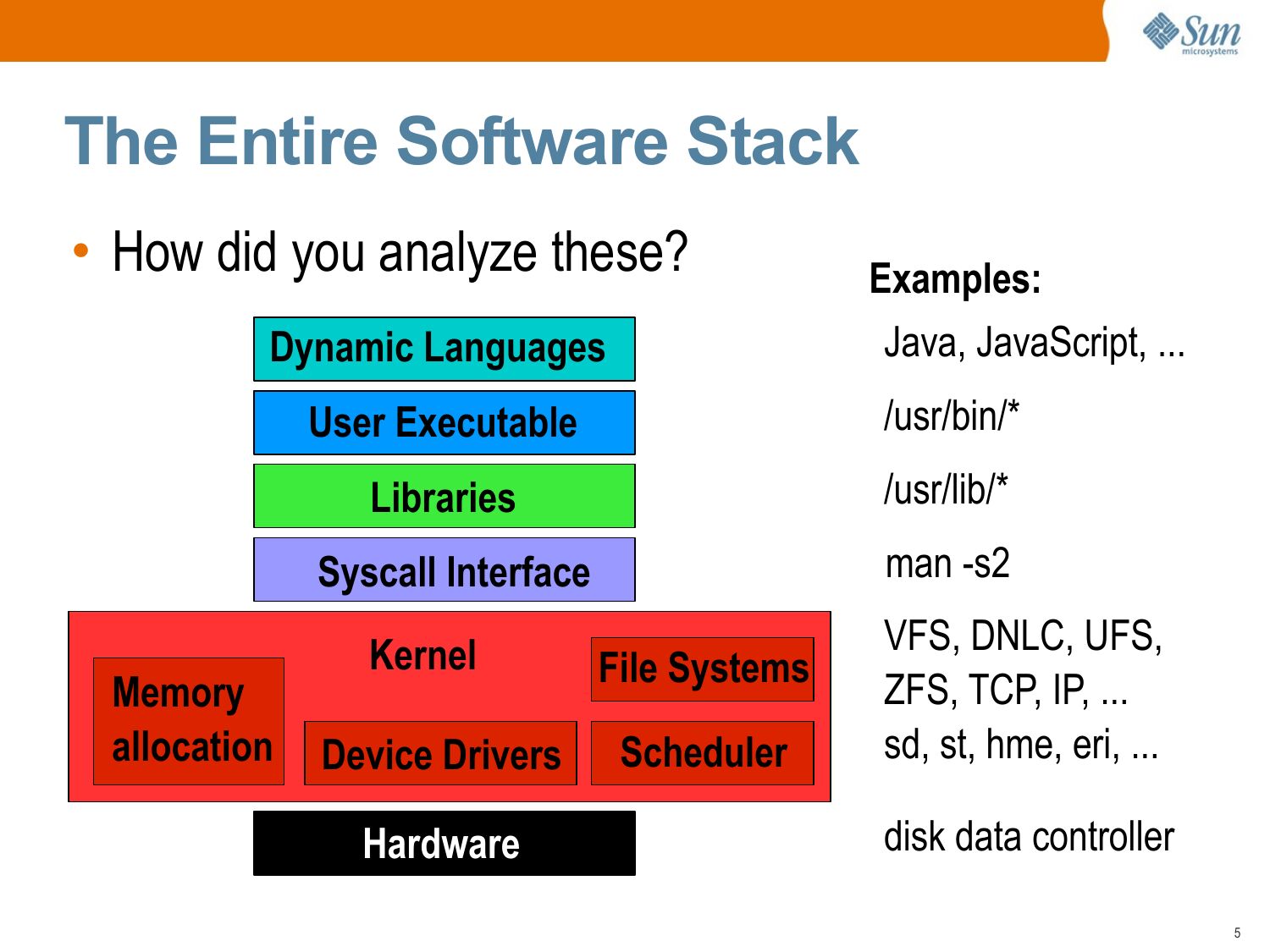

The Entire Software Stack
• How did you analyze these?
Dynamic Languages
Memory
allocation
Examples:
Java, JavaScript, ...
User Executable
/usr/bin/*
Libraries
/usr/lib/*
Syscall Interface
man -s2
Kernel
File Systems
Device Drivers
Scheduler
Hardware
VFS, DNLC, UFS,
ZFS, TCP, IP, ...
sd, st, hme, eri, ...
disk data controller

The Entire Software Stack
• It was possible, but difficult:
Dynamic Languages
Previously:
debuggers
User Executable
truss -ua.out
apptrace, sotruss
Libraries
truss
Syscall Interface
Memory
allocation
Kernel
File Systems
Device Drivers
Scheduler
Hardware
prex; tnf*
lockstat
mdb
kstat, PICs, guesswork

The Entire Software Stack
• DTrace is all seeing:
DTrace visibility:
Yes, with providers
Dynamic Languages
Memory
allocation
User Executable
Yes
Libraries
Yes
Syscall Interface
Yes
Kernel
File Systems
Device Drivers
Scheduler
Hardware
Yes
No. Indirectly, yes

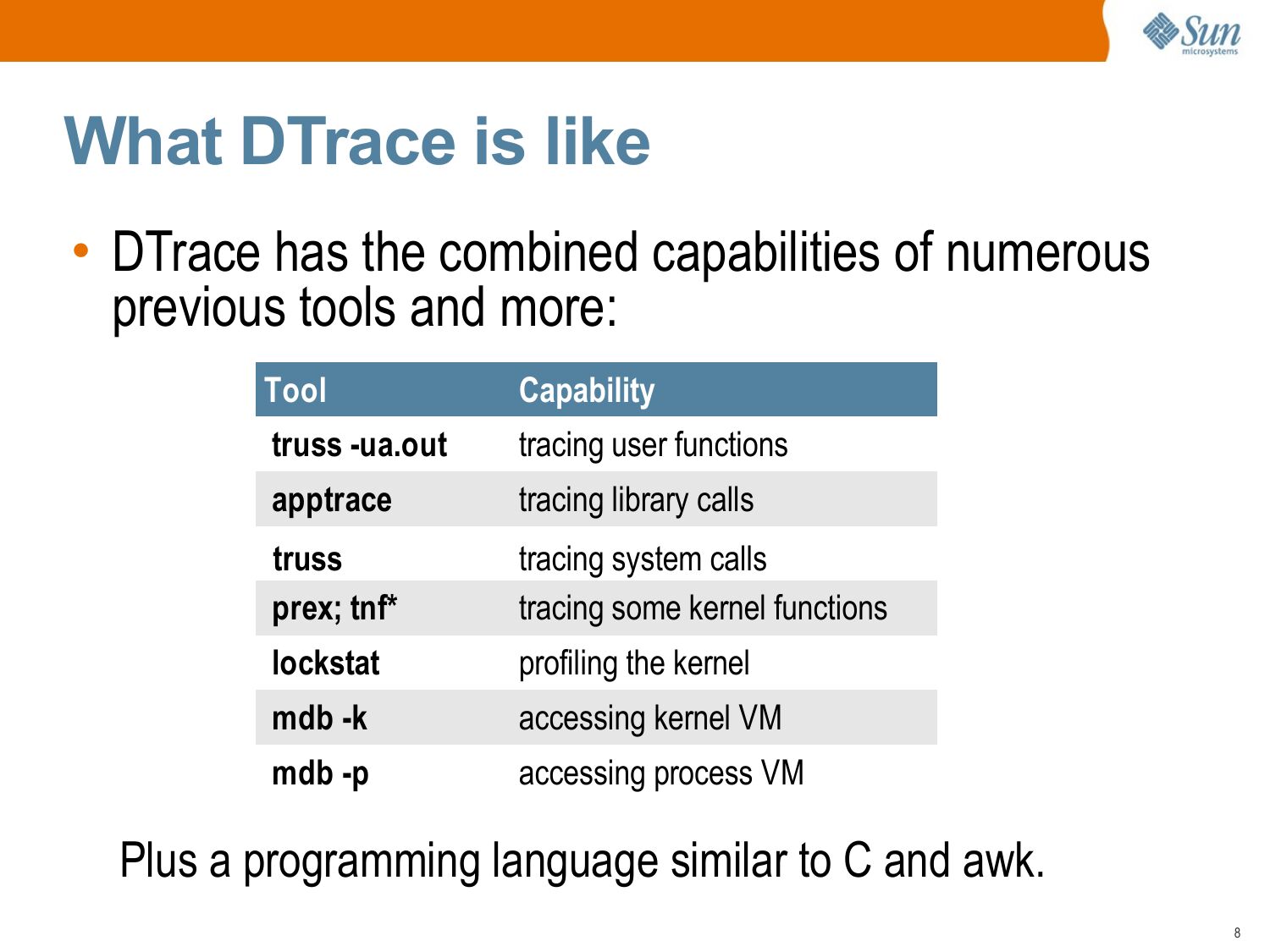

What DTrace is like
• DTrace has the combined capabilities of numerous
previous tools and more:
Tool
Capability
truss -ua.out
tracing user functions
apptrace
tracing library calls
truss
prex; tnf*
tracing system calls
tracing some kernel functions
lockstat
profiling the kernel
mdb -k
accessing kernel VM
mdb -p
accessing process VM
Plus a programming language similar to C and awk.

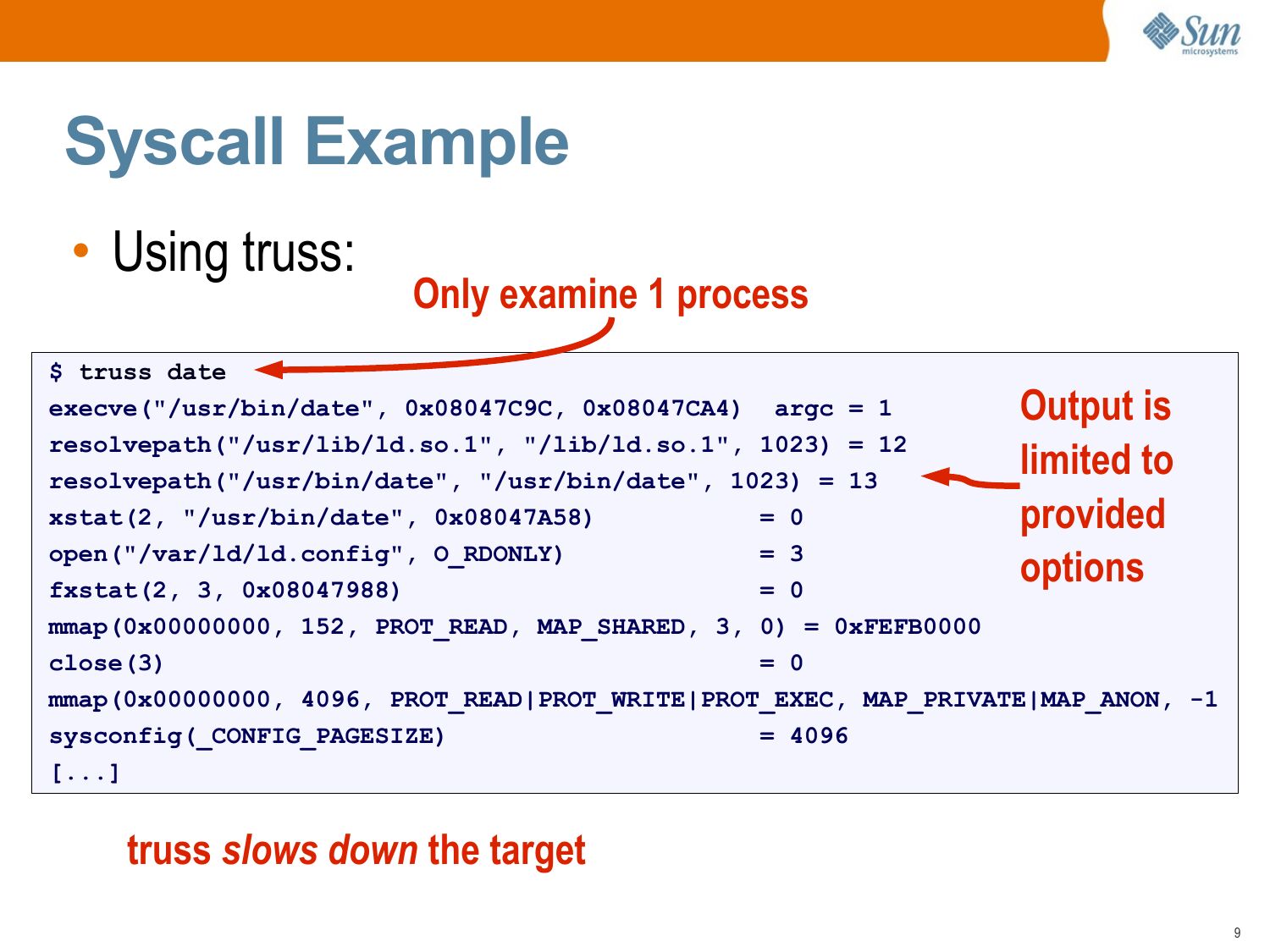

Syscall Example
• Using truss:
Only examine 1 process
$ truss date
execve("/usr/bin/date", 0x08047C9C, 0x08047CA4) argc = 1
resolvepath("/usr/lib/ld.so.1", "/lib/ld.so.1", 1023) = 12
resolvepath("/usr/bin/date", "/usr/bin/date", 1023) = 13
xstat(2, "/usr/bin/date", 0x08047A58)
= 0
open("/var/ld/ld.config", O_RDONLY)
= 3
fxstat(2, 3, 0x08047988)
= 0
mmap(0x00000000, 152, PROT_READ, MAP_SHARED, 3, 0) = 0xFEFB0000
close(3)
= 0
mmap(0x00000000, 4096, PROT_READ|PROT_WRITE|PROT_EXEC, MAP_PRIVATE|MAP_ANON, -1
sysconfig(_CONFIG_PAGESIZE)
= 4096
[...]
Output is
limited to
provided
options
truss slows down the target

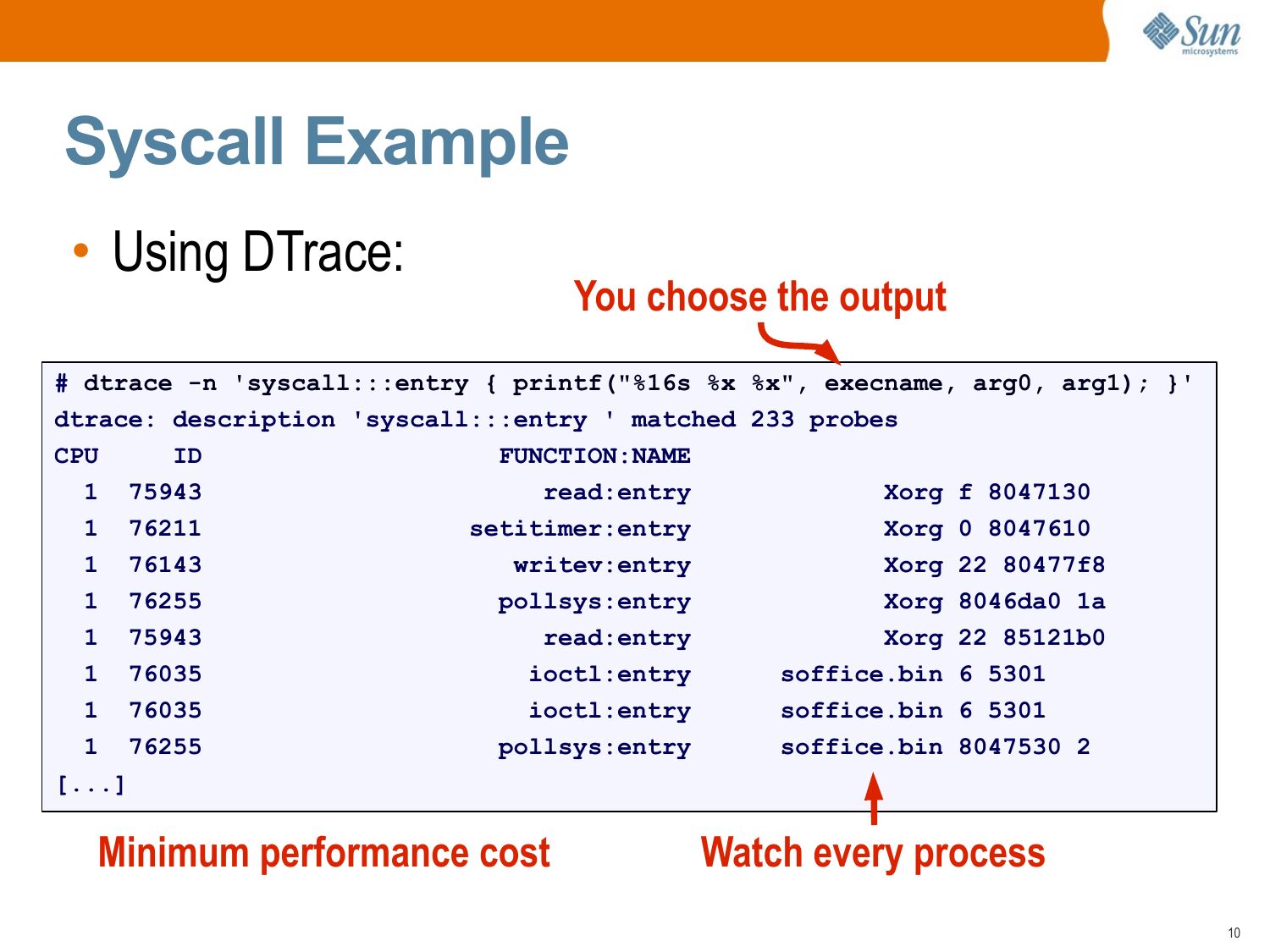

Syscall Example
• Using DTrace:
You choose the output
# dtrace -n 'syscall:::entry { printf("%16s %x %x", execname, arg0, arg1); }'
dtrace: description 'syscall:::entry ' matched 233 probes
CPU
FUNCTION:NAME
1 75943
read:entry
Xorg f 8047130
1 76211
setitimer:entry
Xorg 0 8047610
1 76143
writev:entry
Xorg 22 80477f8
1 76255
pollsys:entry
Xorg 8046da0 1a
1 75943
read:entry
Xorg 22 85121b0
1 76035
ioctl:entry
soffice.bin 6 5301
1 76035
ioctl:entry
soffice.bin 6 5301
1 76255
pollsys:entry
soffice.bin 8047530 2
[...]
Minimum performance cost
Watch every process

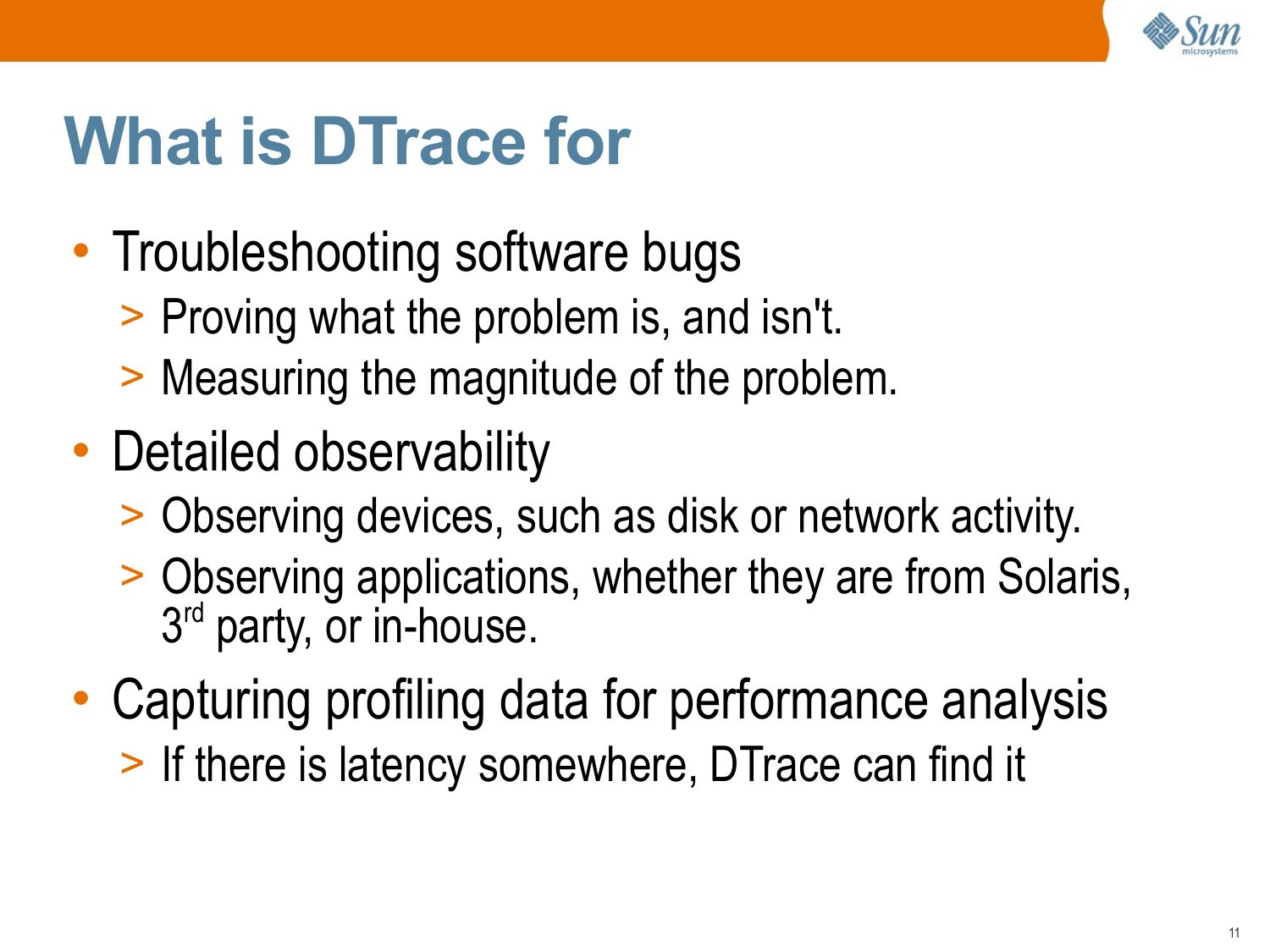

What is DTrace for
• Troubleshooting software bugs
>gt; Proving what the problem is, and isn't.
>gt; Measuring the magnitude of the problem.
• Detailed observability
>gt; Observing devices, such as disk or network activity.
>gt; Observing applications, whether they are from Solaris,
3rd party, or in-house.
• Capturing profiling data for performance analysis
>gt; If there is latency somewhere, DTrace can find it

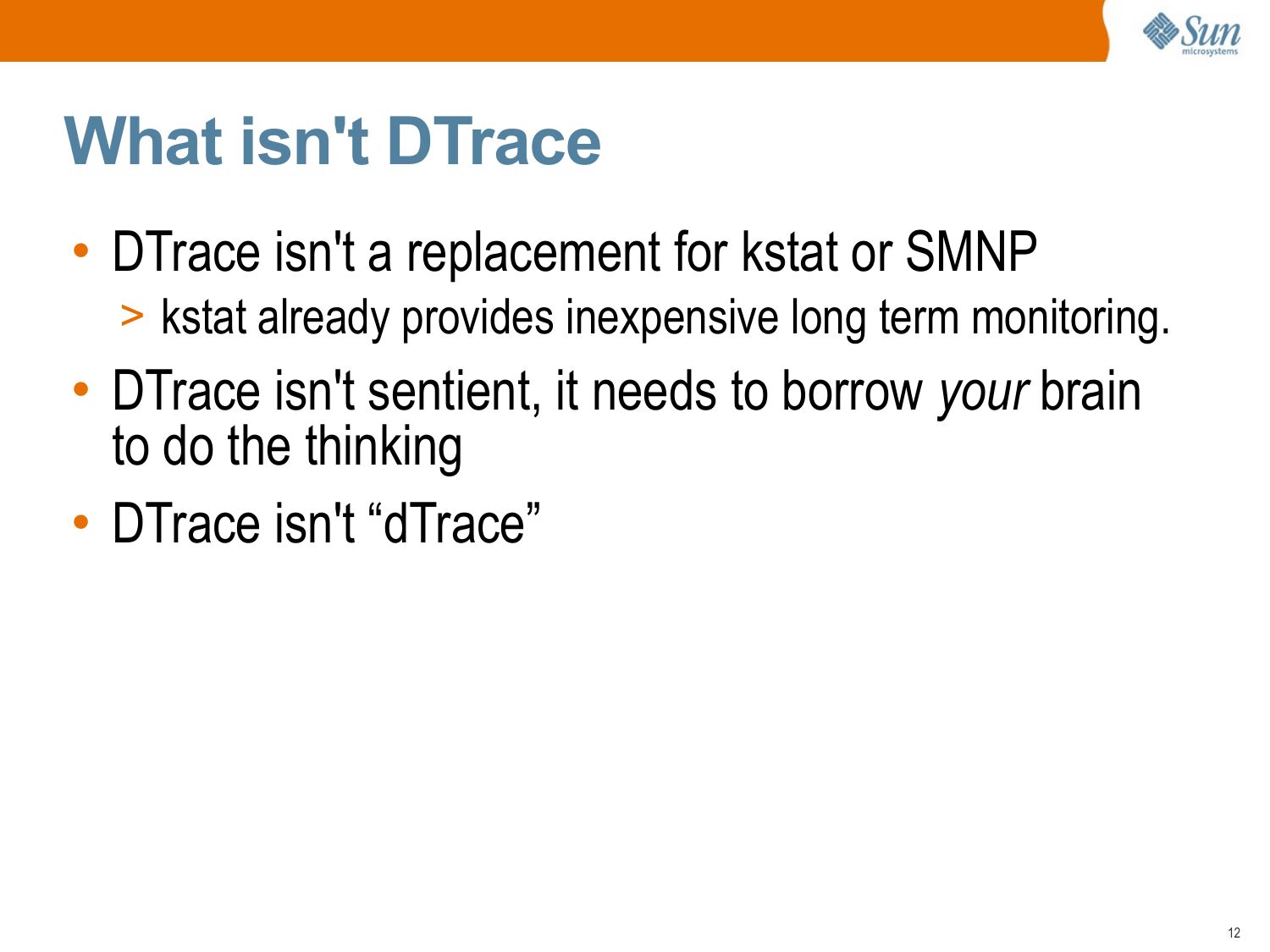

What isn't DTrace
• DTrace isn't a replacement for kstat or SMNP
>gt; kstat already provides inexpensive long term monitoring.
• DTrace isn't sentient, it needs to borrow your brain
to do the thinking
• DTrace isn't “dTrace”

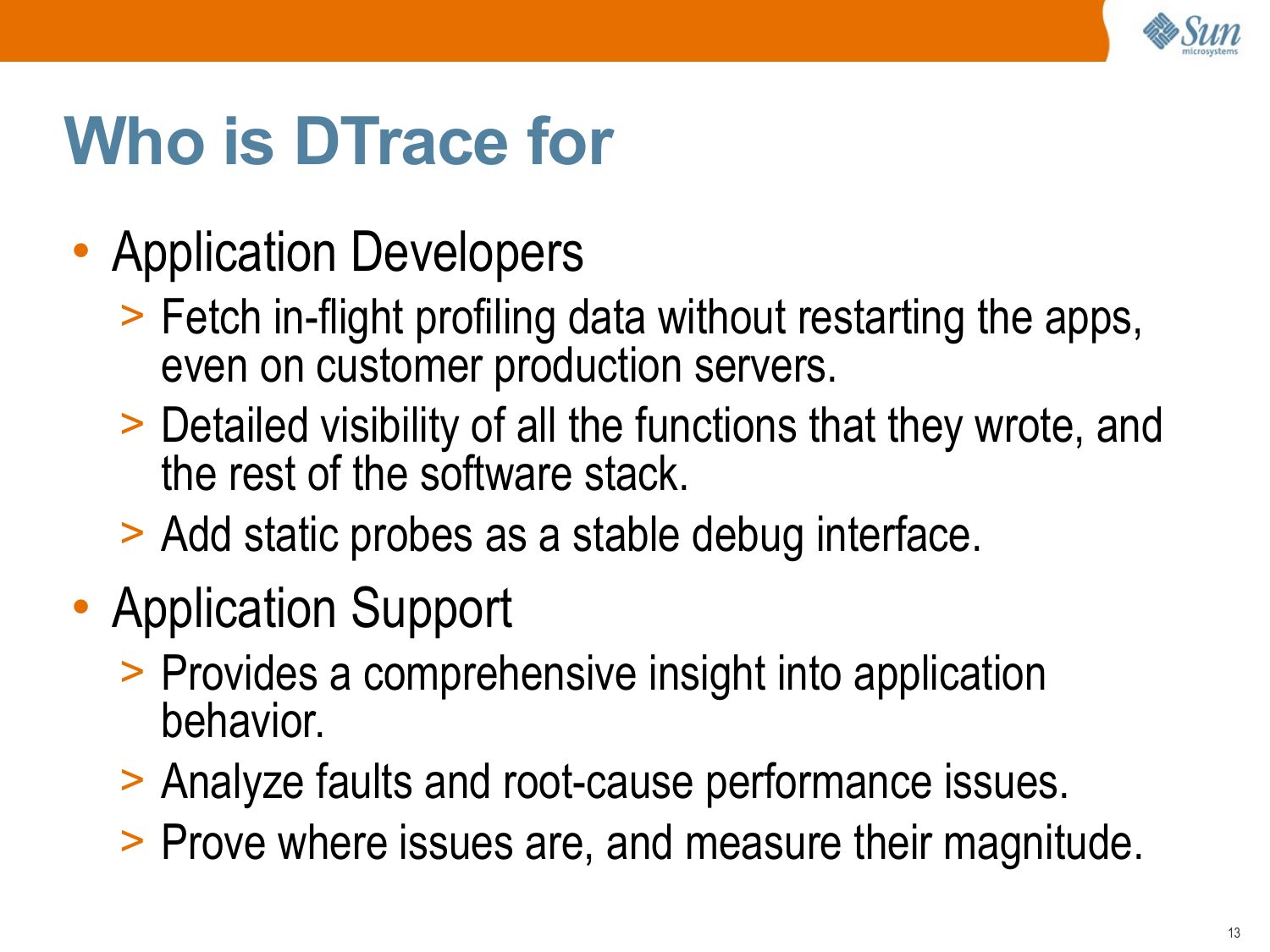

Who is DTrace for
• Application Developers
>gt; Fetch in-flight profiling data without restarting the apps,
even on customer production servers.
>gt; Detailed visibility of all the functions that they wrote, and
the rest of the software stack.
>gt; Add static probes as a stable debug interface.
• Application Support
>gt; Provides a comprehensive insight into application
behavior.
>gt; Analyze faults and root-cause performance issues.
>gt; Prove where issues are, and measure their magnitude.

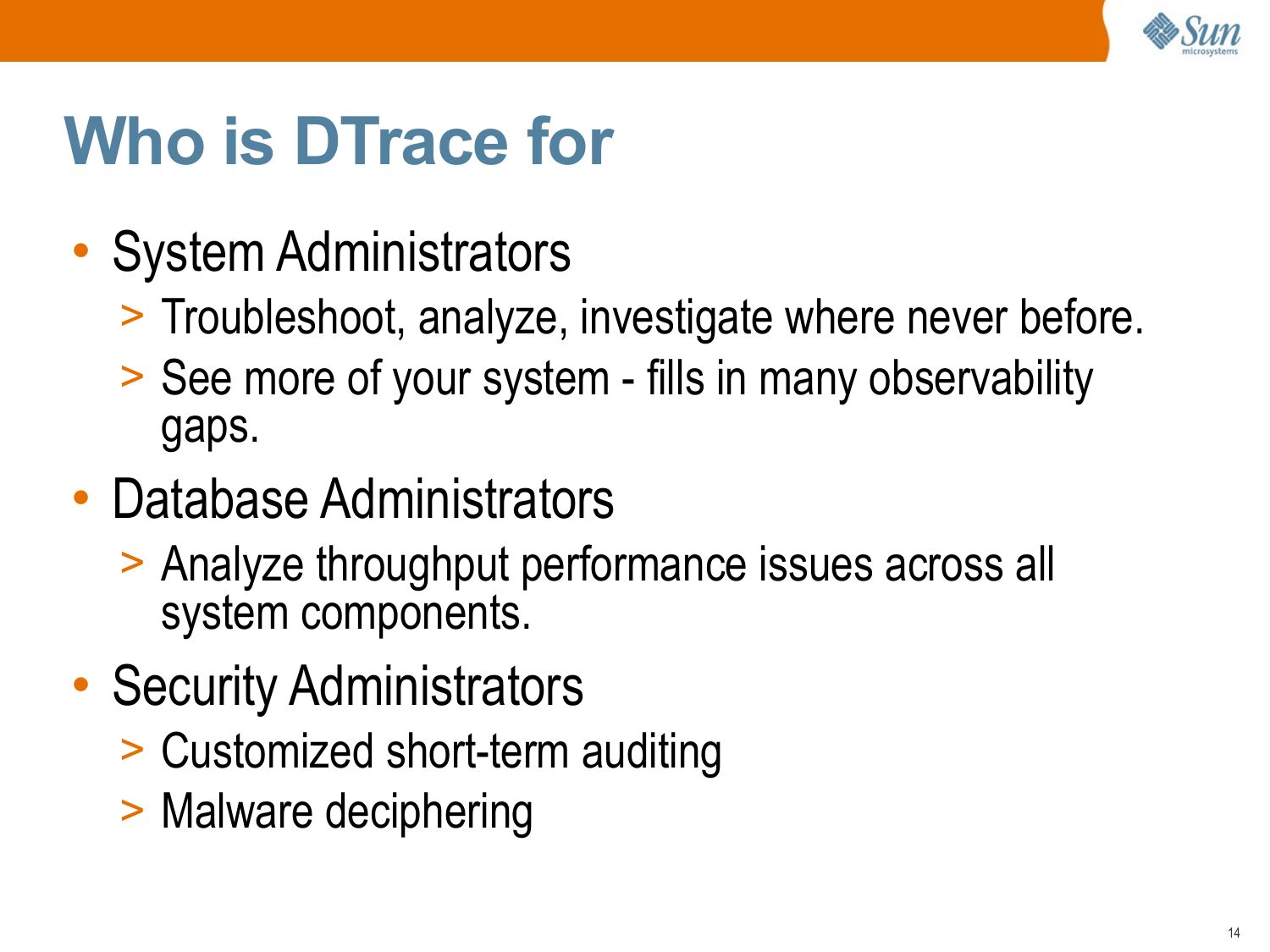

Who is DTrace for
• System Administrators
>gt; Troubleshoot, analyze, investigate where never before.
>gt; See more of your system - fills in many observability
gaps.
• Database Administrators
>gt; Analyze throughput performance issues across all
system components.
• Security Administrators
>gt; Customized short-term auditing
>gt; Malware deciphering

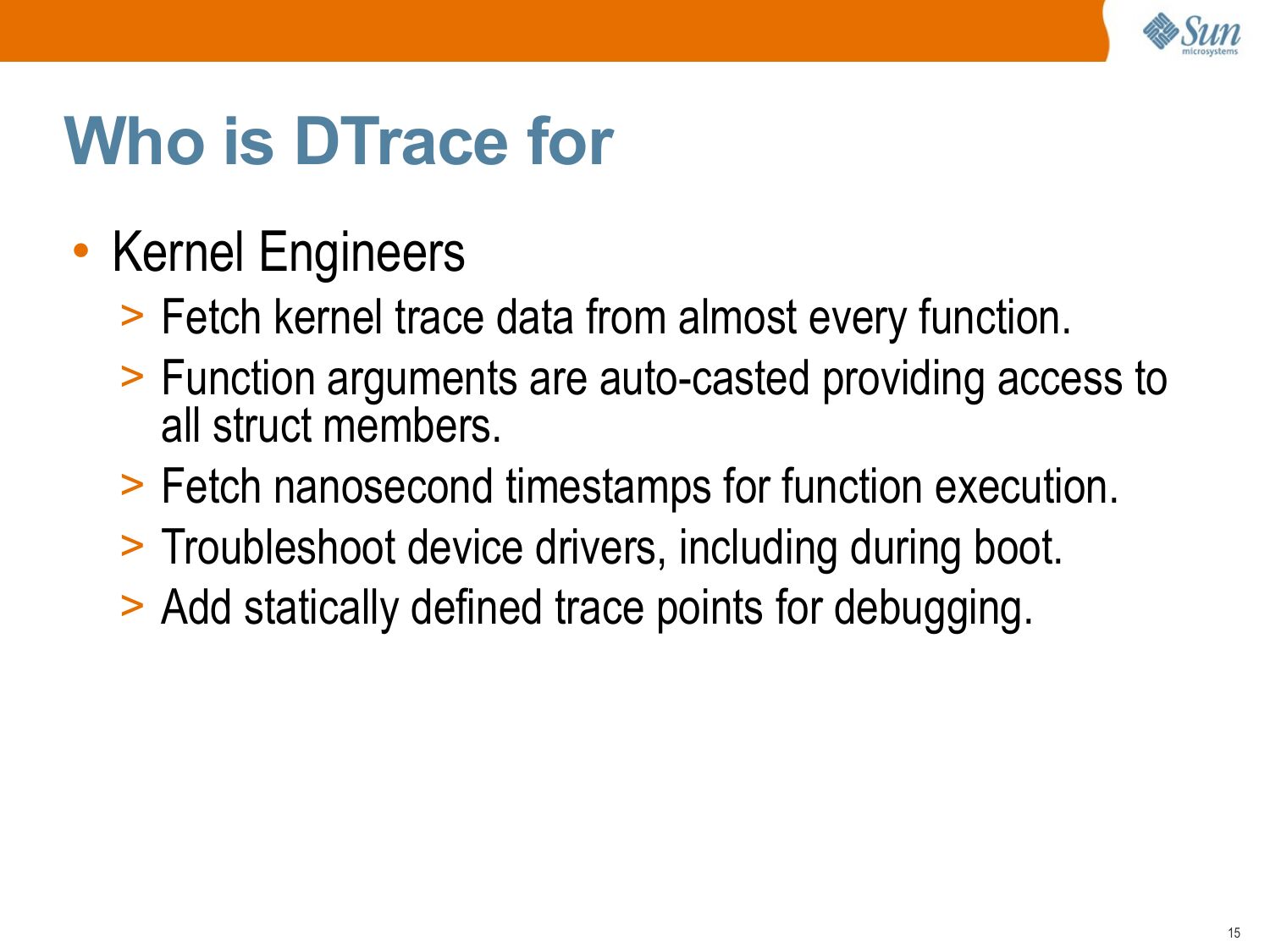

Who is DTrace for
• Kernel Engineers
>gt; Fetch kernel trace data from almost every function.
>gt; Function arguments are auto-casted providing access to
all struct members.
>gt; Fetch nanosecond timestamps for function execution.
>gt; Troubleshoot device drivers, including during boot.
>gt; Add statically defined trace points for debugging.

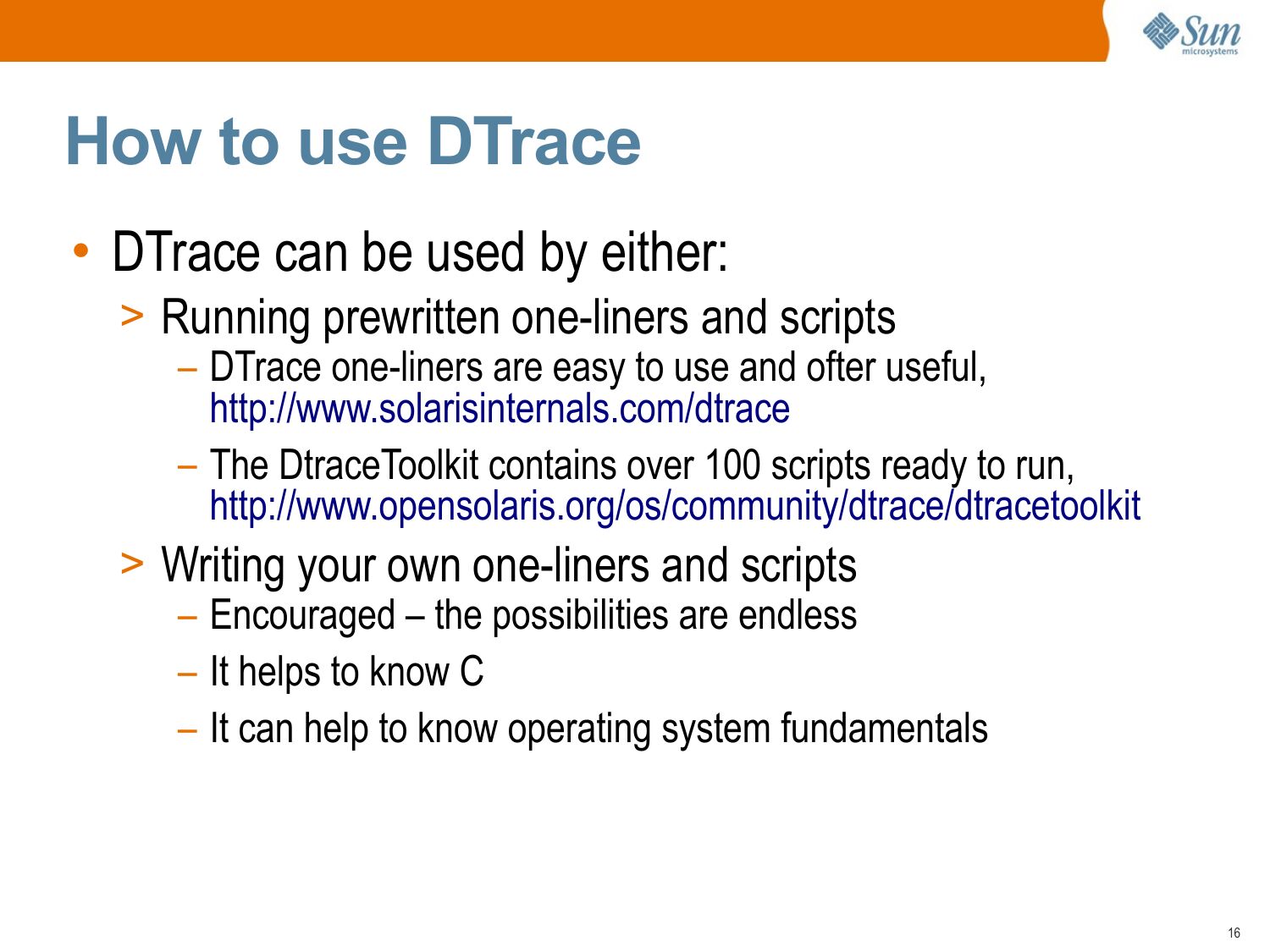

How to use DTrace
• DTrace can be used by either:
>gt; Running prewritten one-liners and scripts
– DTrace one-liners are easy to use and ofter useful,
http://www.solarisinternals.com/dtrace
– The DtraceToolkit contains over 100 scripts ready to run,
http://www.opensolaris.org/os/community/dtrace/dtracetoolkit
>gt; Writing your own one-liners and scripts
– Encouraged – the possibilities are endless
– It helps to know C
– It can help to know operating system fundamentals

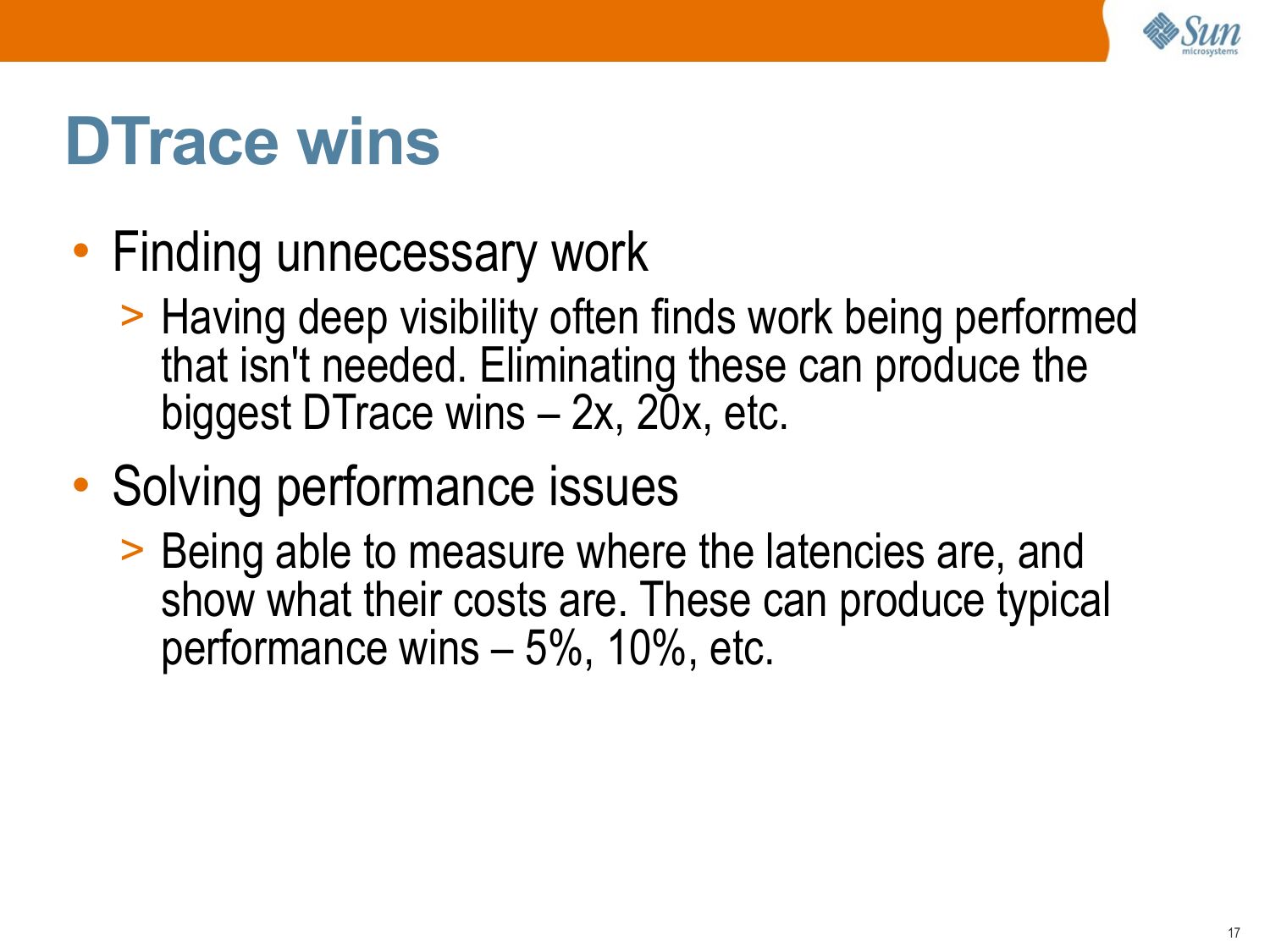

DTrace wins
• Finding unnecessary work
>gt; Having deep visibility often finds work being performed
that isn't needed. Eliminating these can produce the
biggest DTrace wins – 2x, 20x, etc.
• Solving performance issues
>gt; Being able to measure where the latencies are, and
show what their costs are. These can produce typical
performance wins – 5%, 10%, etc.

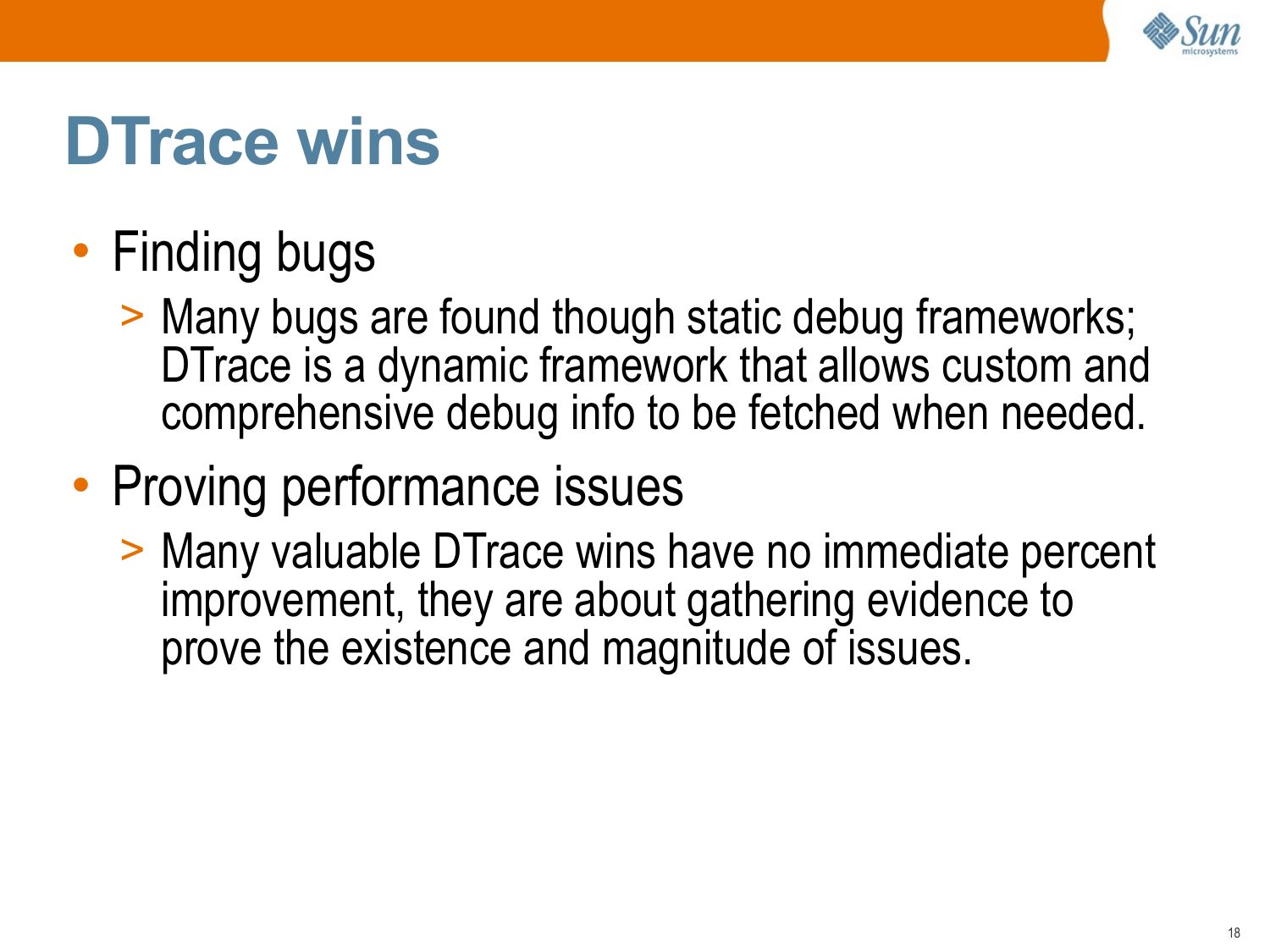

DTrace wins
• Finding bugs
>gt; Many bugs are found though static debug frameworks;
DTrace is a dynamic framework that allows custom and
comprehensive debug info to be fetched when needed.
• Proving performance issues
>gt; Many valuable DTrace wins have no immediate percent
improvement, they are about gathering evidence to
prove the existence and magnitude of issues.

Example scenario: The past
• Take a performance issue on a complex customer
system,
Customer:
“Why is our system slow?”
• With previous observability tools, customers could
often find problems but not take the measurements
needed to prove that they found the problem.
>gt; What is the latency cost for this issue? As a percent?

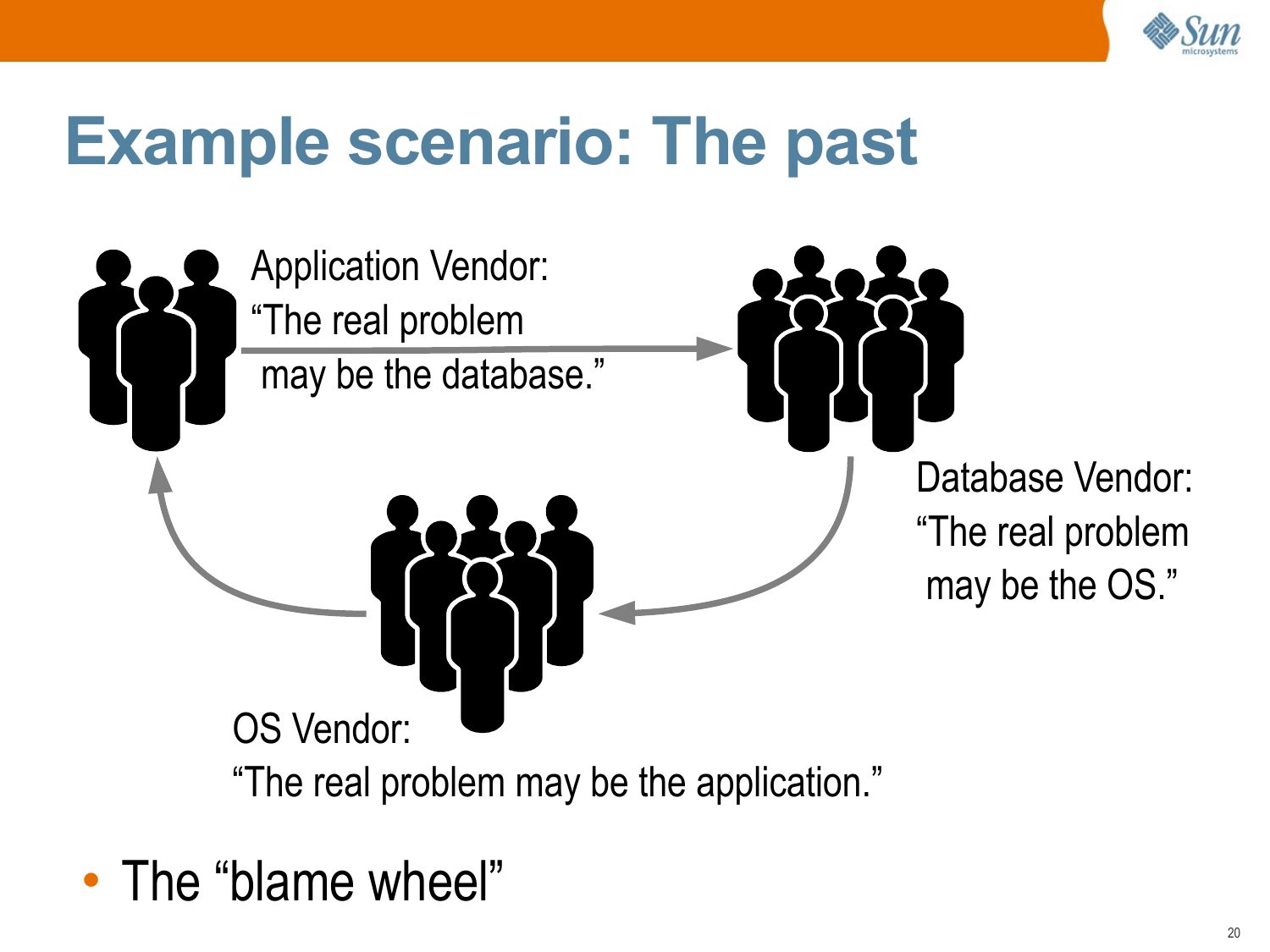

Example scenario: The past
Application Vendor:
“The real problem
may be the database.”
Database Vendor:
“The real problem
may be the OS.”
OS Vendor:
“The real problem may be the application.”
• The “blame wheel”

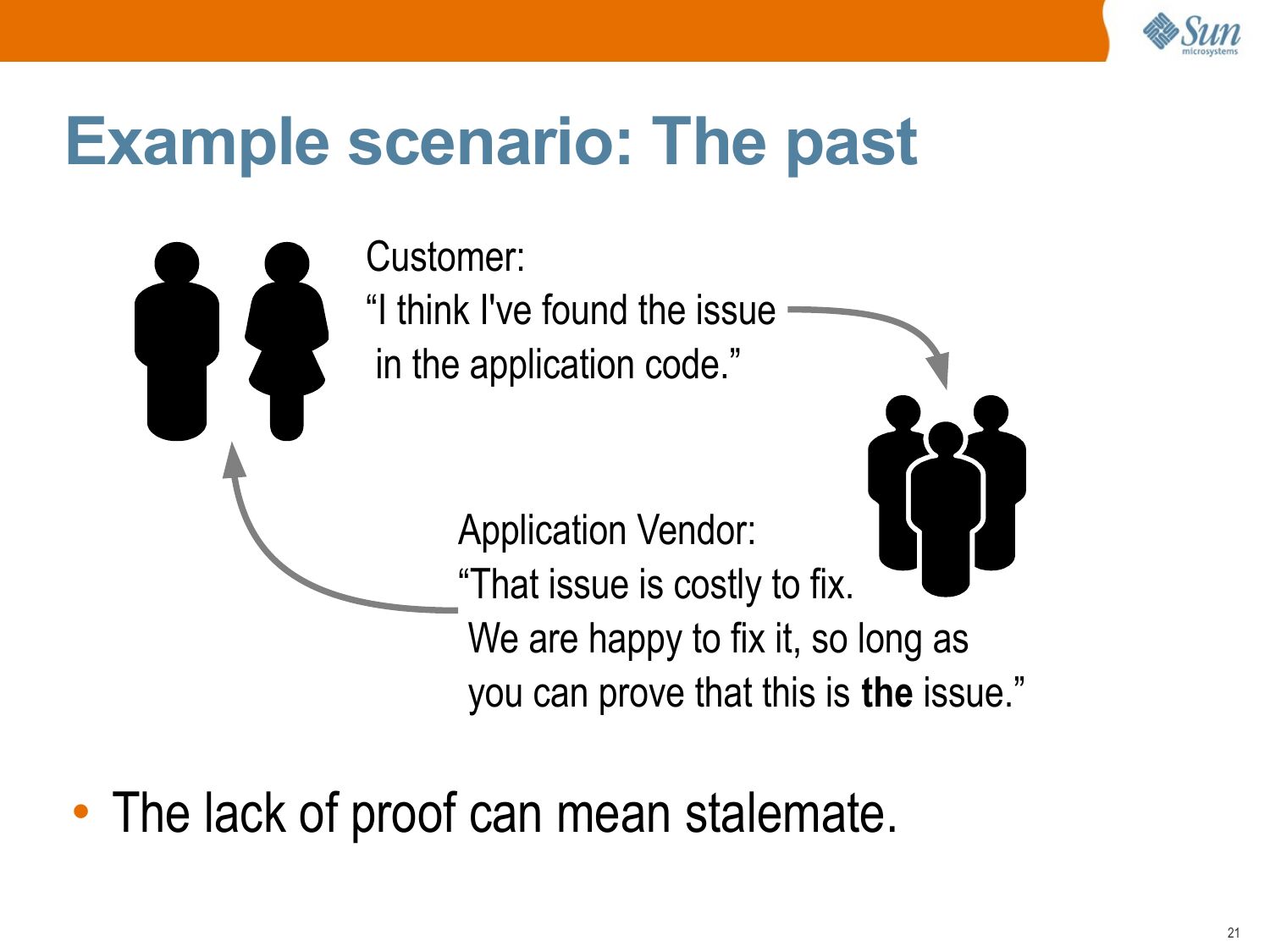

Example scenario: The past
Customer:
“I think I've found the issue
in the application code.”
Application Vendor:
“That issue is costly to fix.
We are happy to fix it, so long as
you can prove that this is the issue.”
• The lack of proof can mean stalemate.

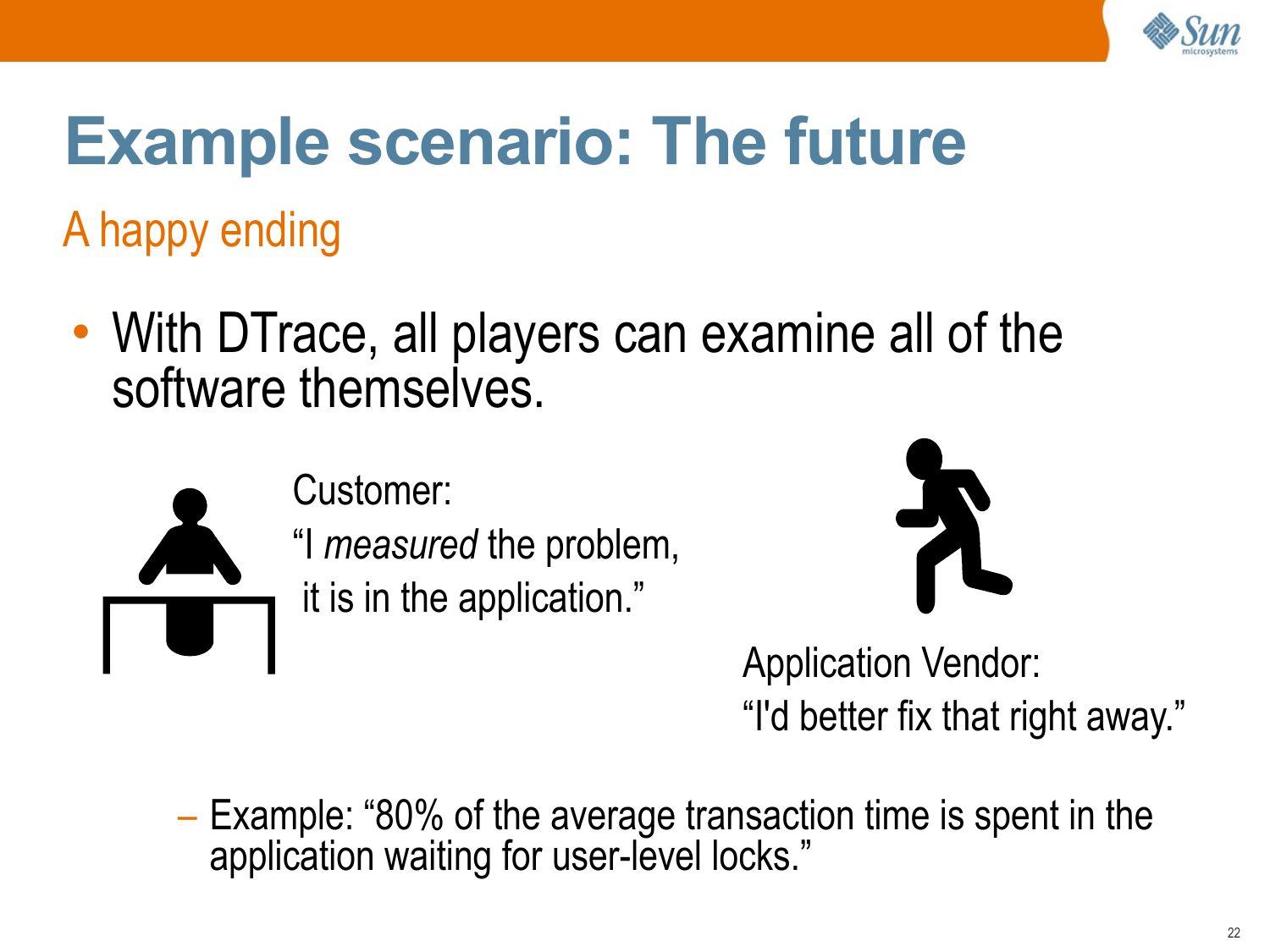

Example scenario: The future
A happy ending
• With DTrace, all players can examine all of the
software themselves.
Customer:
“I measured the problem,
it is in the application.”
Application Vendor:
“I'd better fix that right away.”
– Example: “80% of the average transaction time is spent in the
application waiting for user-level locks.”

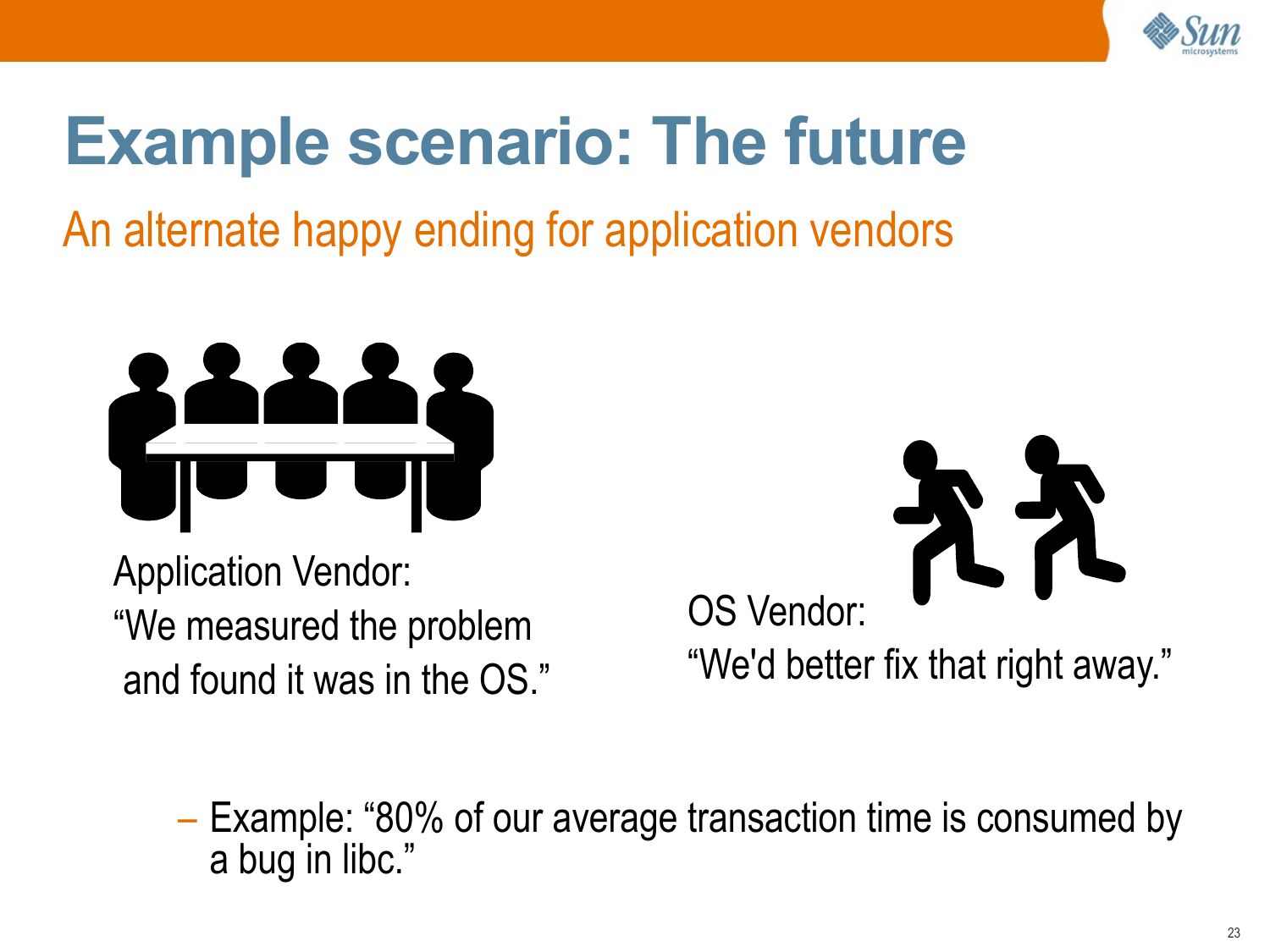

Example scenario: The future
An alternate happy ending for application vendors
Application Vendor:
“We measured the problem
and found it was in the OS.”
OS Vendor:
“We'd better fix that right away.”
– Example: “80% of our average transaction time is consumed by
a bug in libc.”

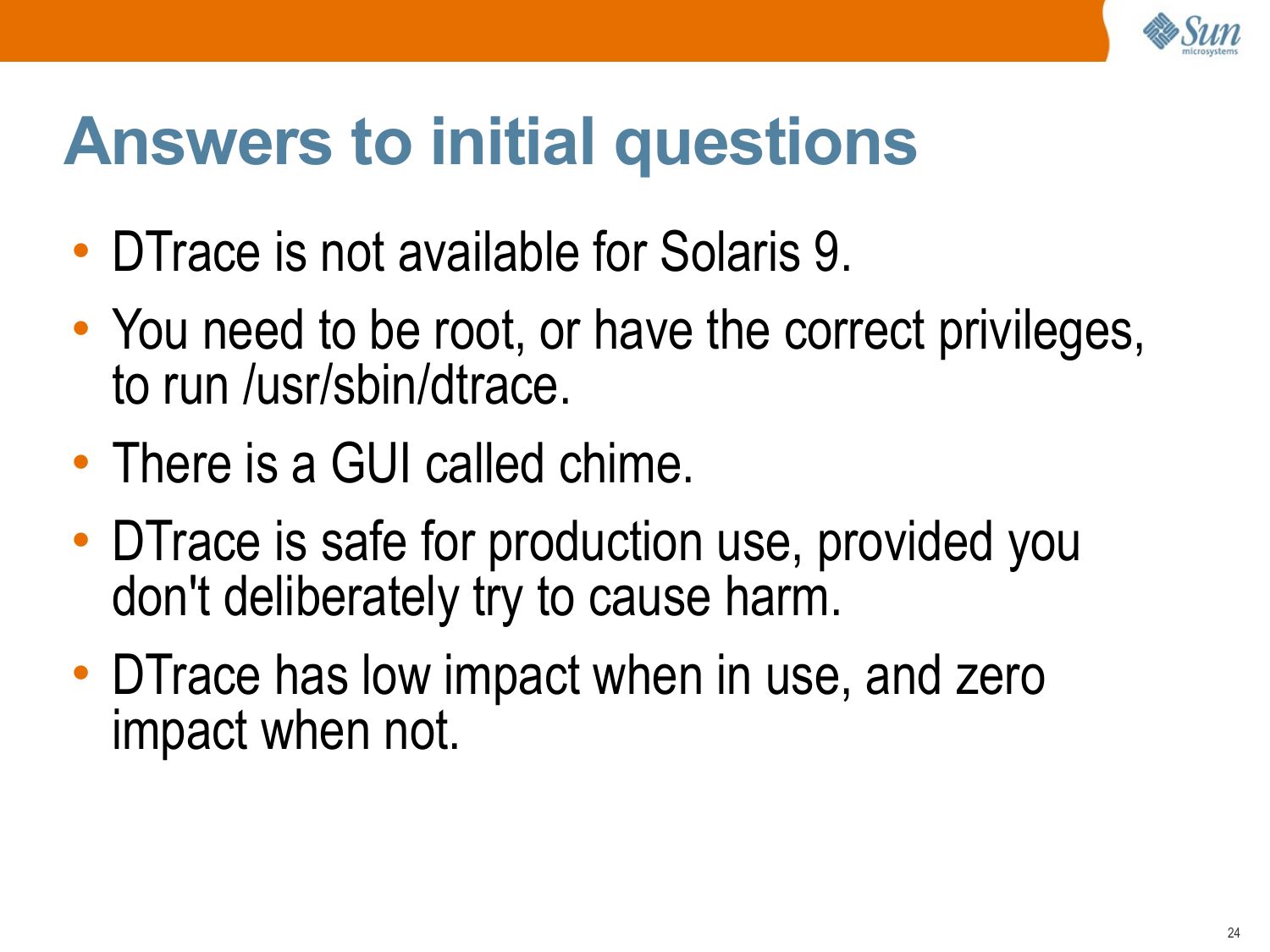

Answers to initial questions
• DTrace is not available for Solaris 9.
• You need to be root, or have the correct privileges,
to run /usr/sbin/dtrace.
• There is a GUI called chime.
• DTrace is safe for production use, provided you
don't deliberately try to cause harm.
• DTrace has low impact when in use, and zero
impact when not.

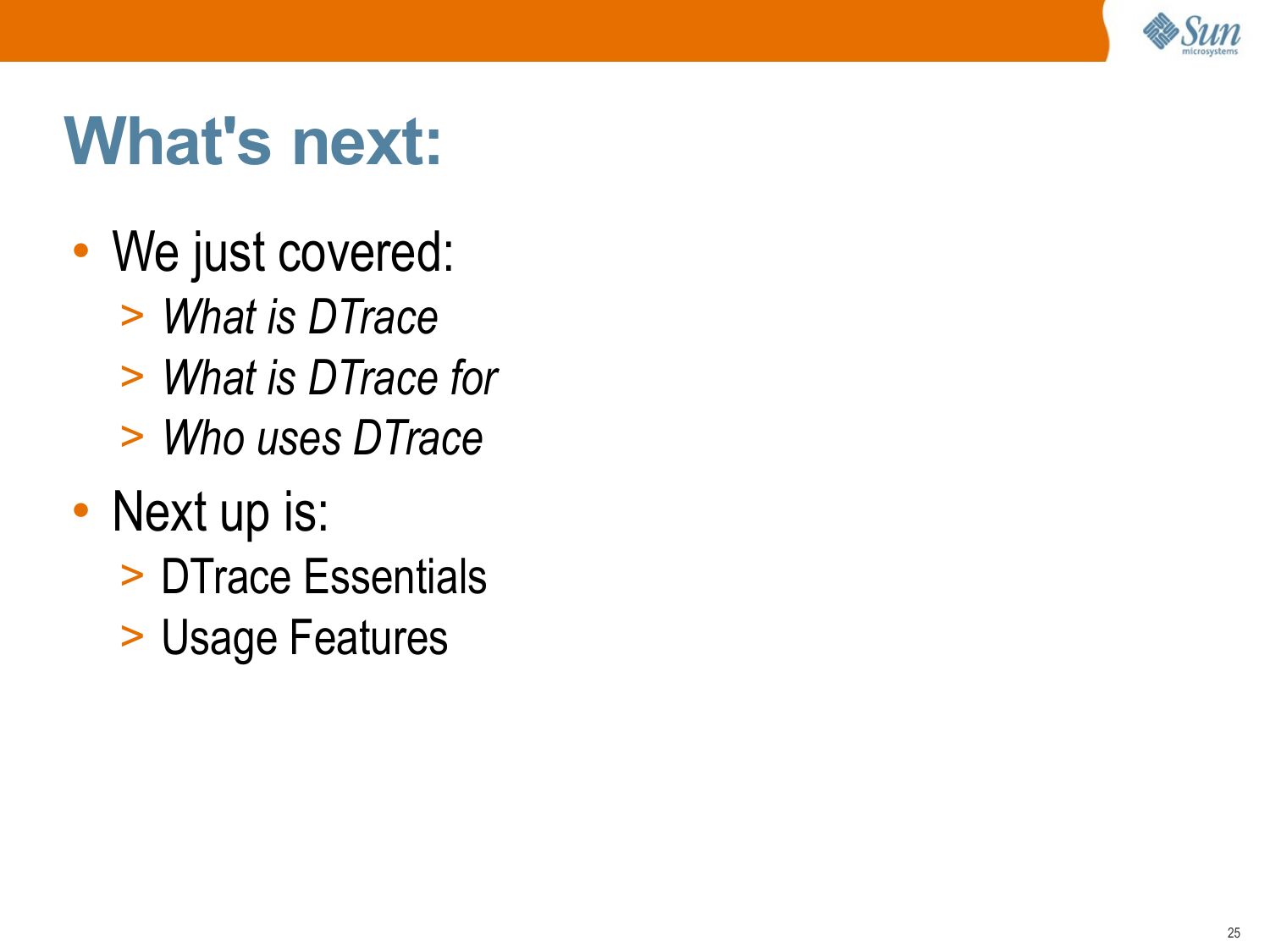

What's next:
• We just covered:
>gt; What is DTrace
>gt; What is DTrace for
>gt; Who uses DTrace
• Next up is:
>gt; DTrace Essentials
>gt; Usage Features

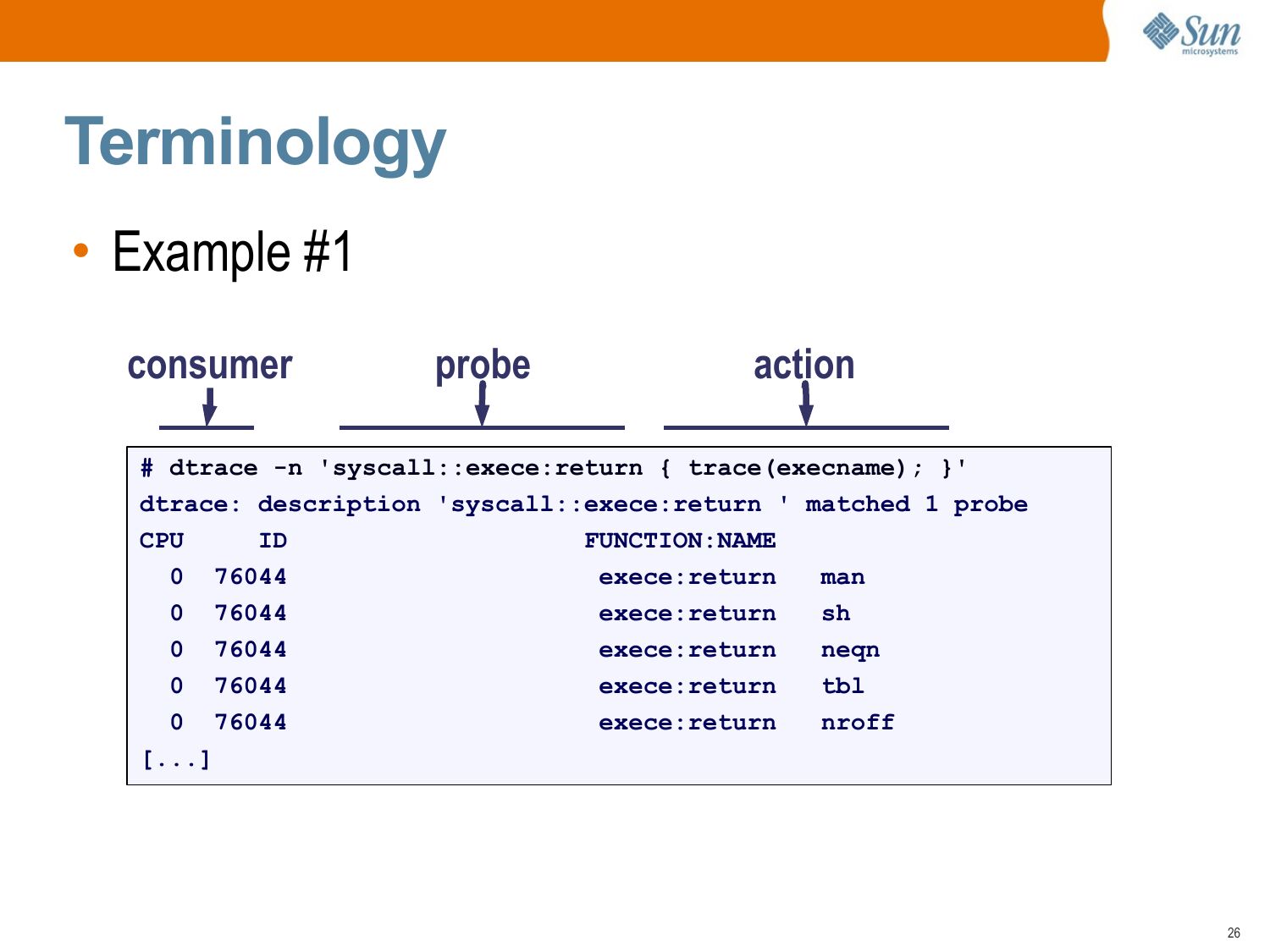

Terminology
• Example #1
consumer
probe
action
# dtrace -n 'syscall::exece:return { trace(execname); }'
dtrace: description 'syscall::exece:return ' matched 1 probe
CPU
FUNCTION:NAME
0 76044
exece:return
man
0 76044
exece:return
0 76044
exece:return
neqn
0 76044
exece:return
tbl
0 76044
exece:return
nroff
[...]

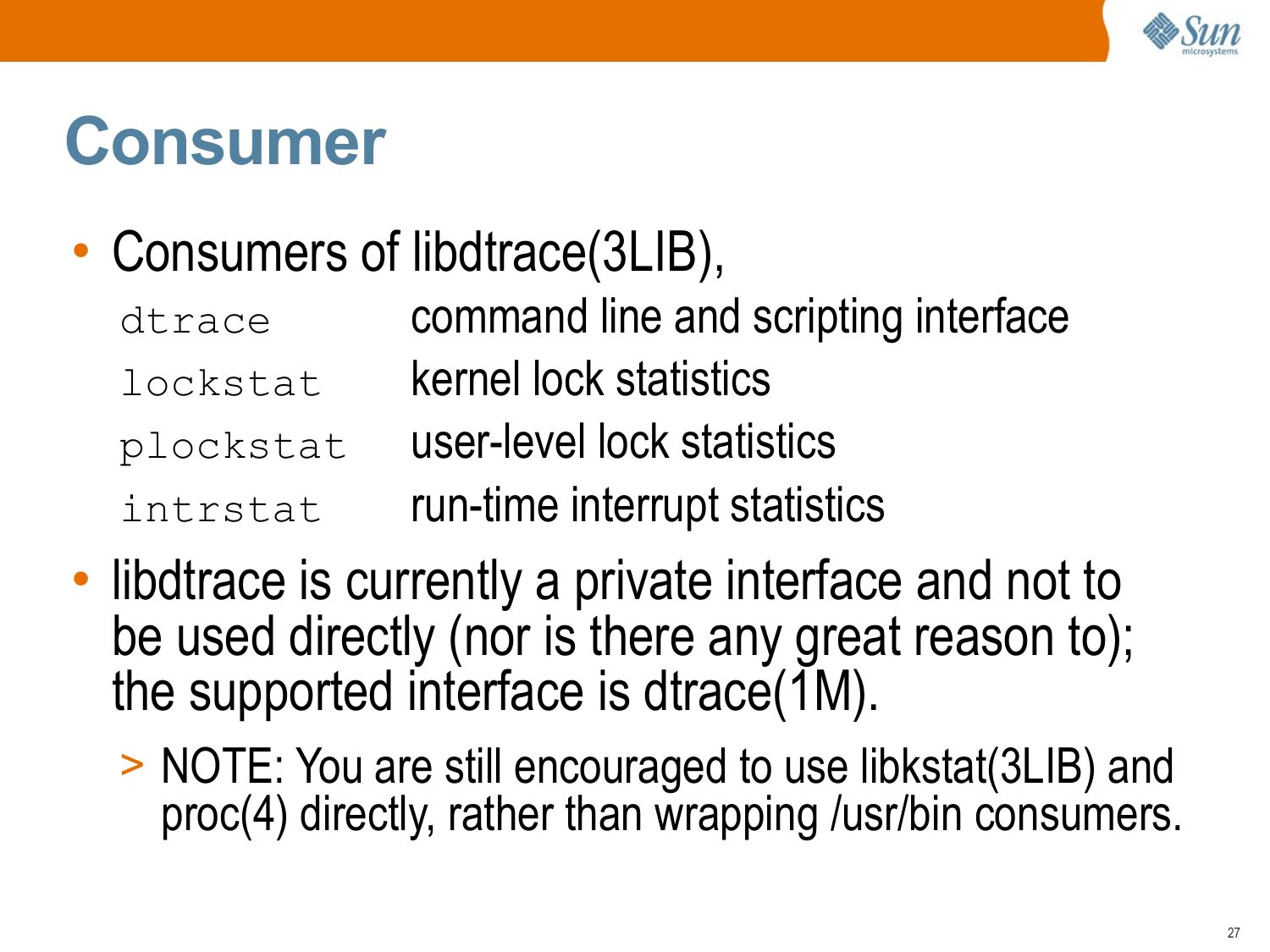

Consumer
• Consumers of libdtrace(3LIB),
dtrace
lockstat
plockstat
intrstat
command line and scripting interface
kernel lock statistics
user-level lock statistics
run-time interrupt statistics
• libdtrace is currently a private interface and not to
be used directly (nor is there any great reason to);
the supported interface is dtrace(1M).
>gt; NOTE: You are still encouraged to use libkstat(3LIB) and
proc(4) directly, rather than wrapping /usr/bin consumers.

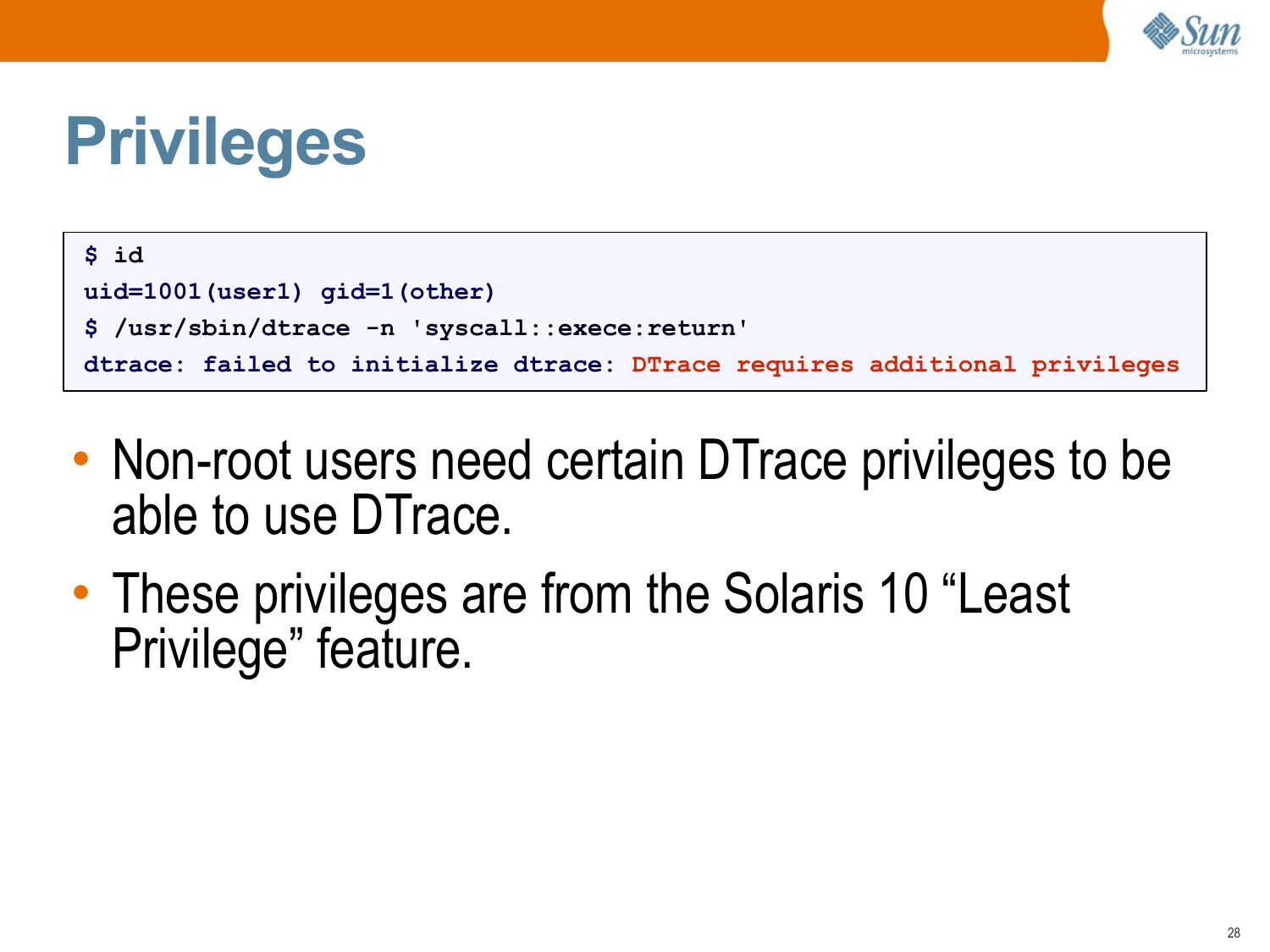

Privileges
$ id
uid=1001(user1) gid=1(other)
$ /usr/sbin/dtrace -n 'syscall::exece:return'
dtrace: failed to initialize dtrace: DTrace requires additional privileges
• Non-root users need certain DTrace privileges to be
able to use DTrace.
• These privileges are from the Solaris 10 “Least
Privilege” feature.

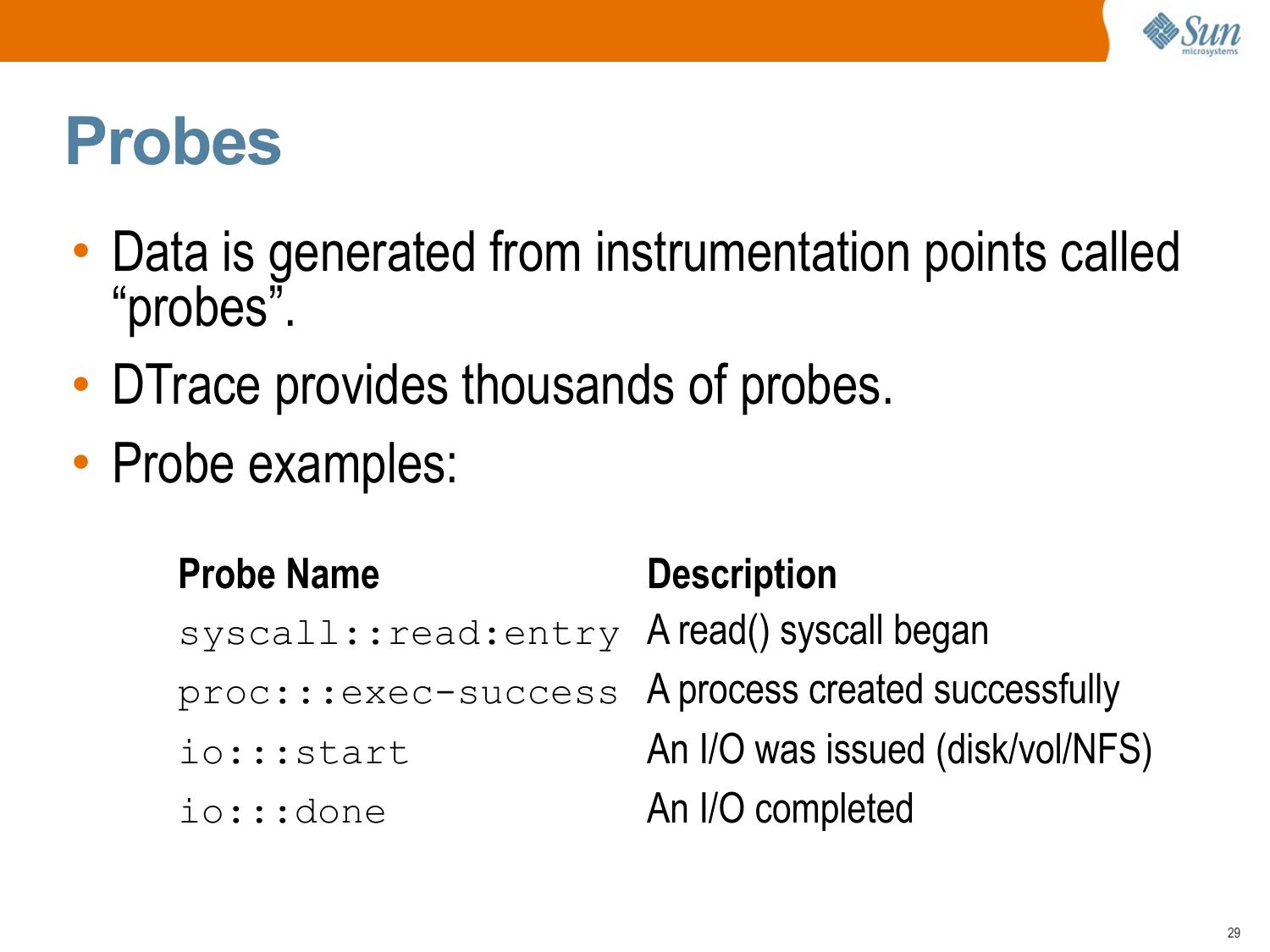

Probes
• Data is generated from instrumentation points called
“probes”.
• DTrace provides thousands of probes.
• Probe examples:
Probe Name
Description
syscall::read:entry A read() syscall began
proc:::exec-success A process created successfully
io:::start
An I/O was issued (disk/vol/NFS)
io:::done
An I/O completed

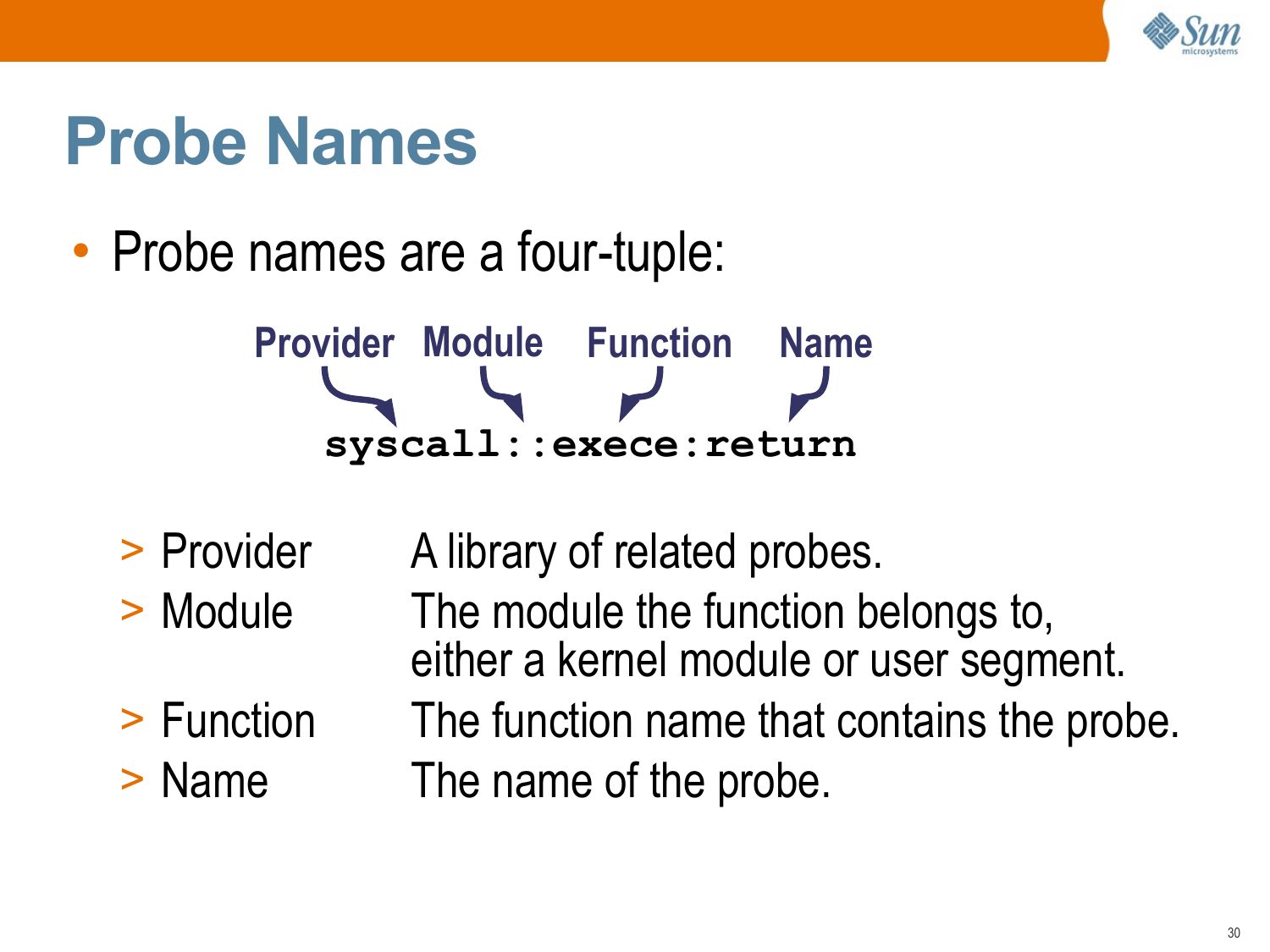

Probe Names
• Probe names are a four-tuple:
Provider Module
Function
Name
syscall::exece:return
>gt; Provider
>gt; Module
>gt; Function
>gt; Name
A library of related probes.
The module the function belongs to,
either a kernel module or user segment.
The function name that contains the probe.
The name of the probe.

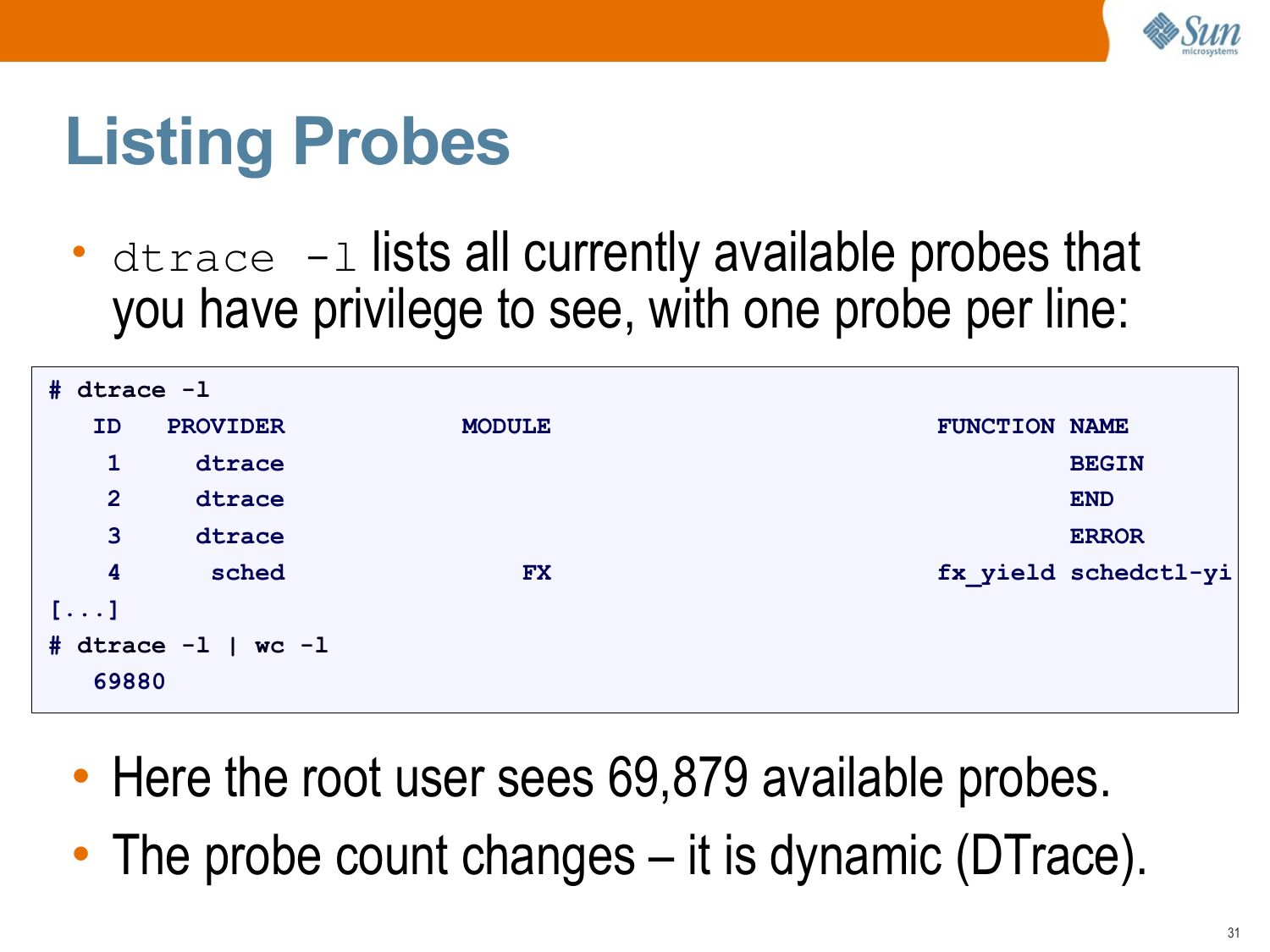

Listing Probes
• dtrace -l lists all currently available probes that
you have privilege to see, with one probe per line:
# dtrace -l
PROVIDER
dtrace
dtrace
dtrace
sched
[...]
# dtrace -l | wc -l
MODULE
FUNCTION NAME
BEGIN
END
ERROR
fx_yield schedctl-yi
• Here the root user sees 69,879 available probes.
• The probe count changes – it is dynamic (DTrace).

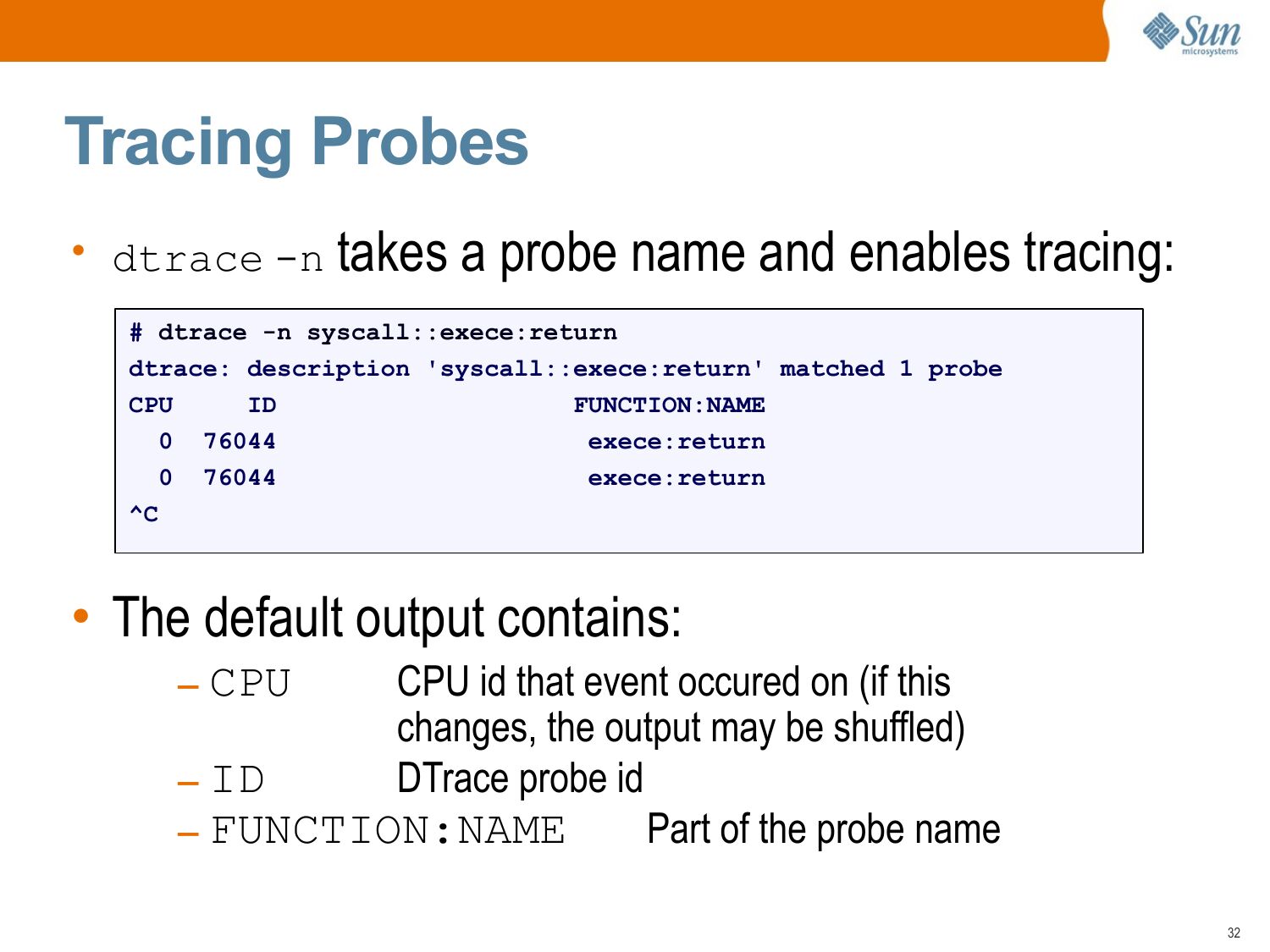

Tracing Probes
• dtrace -n takes a probe name and enables tracing:
# dtrace -n syscall::exece:return
dtrace: description 'syscall::exece:return' matched 1 probe
CPU
FUNCTION:NAME
0 76044
exece:return
0 76044
exece:return
• The default output contains:
CPU id that event occured on (if this
changes, the output may be shuffled)
DTrace probe id
– ID
Part of the probe name
– FUNCTION:NAME
– CPU

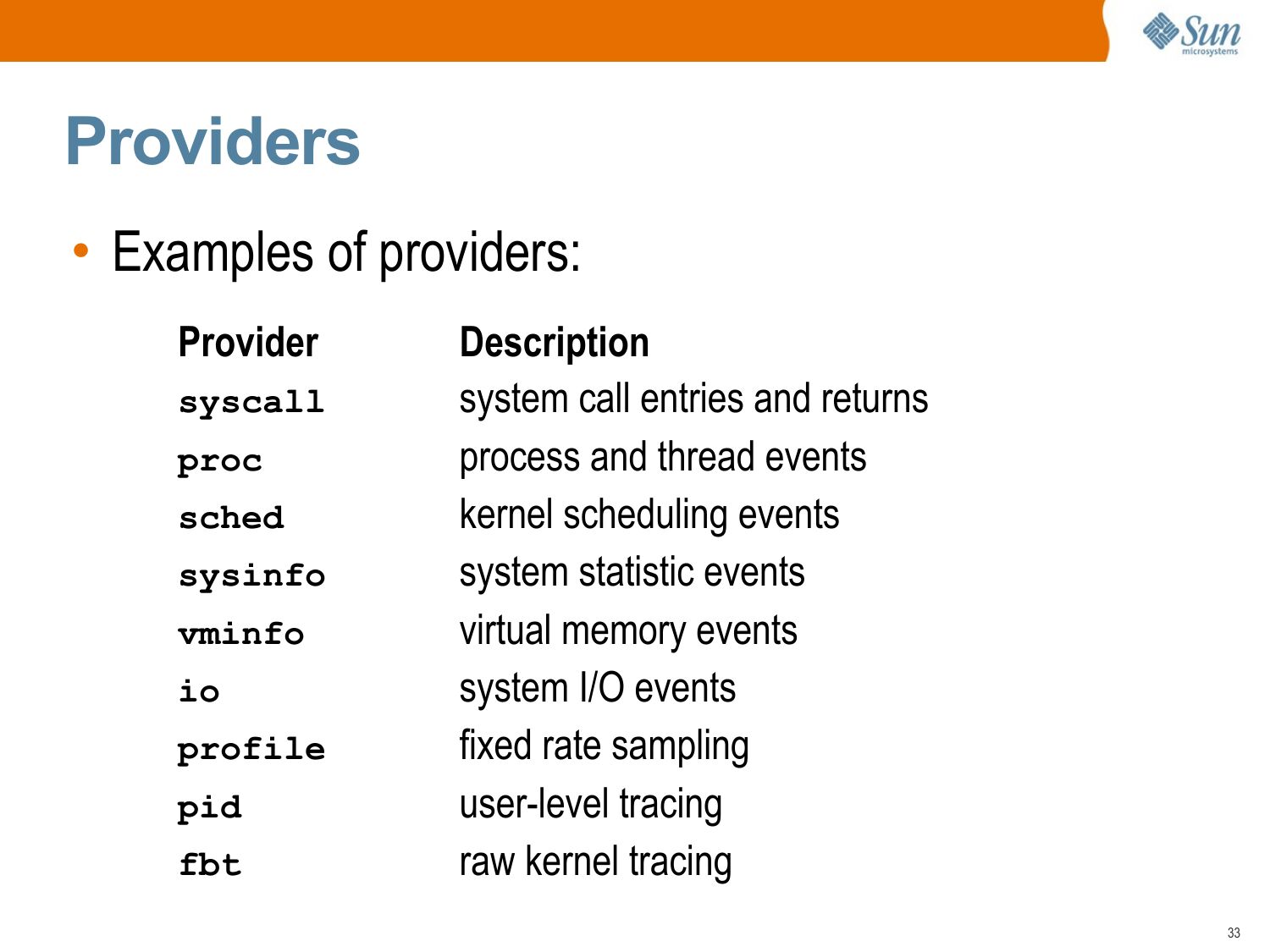

Providers
• Examples of providers:
Provider
syscall
proc
sched
sysinfo
vminfo
profile
pid
fbt
Description
system call entries and returns
process and thread events
kernel scheduling events
system statistic events
virtual memory events
system I/O events
fixed rate sampling
user-level tracing
raw kernel tracing

Providers
• Example of probes:
Provider
Example probe
syscall
proc
sched
sysinfo
vminfo
profile
pid
syscall::read:entry
proc:::exec-success
sched:::on-cpu
sysinfo:::readch
vminfo:::maj_fault
io:::start
profile:::profile-1000hz
pid172:libc:fopen:entry
pid172:a.out:main:entry
fbt::bdev_strategy:entry
fbt

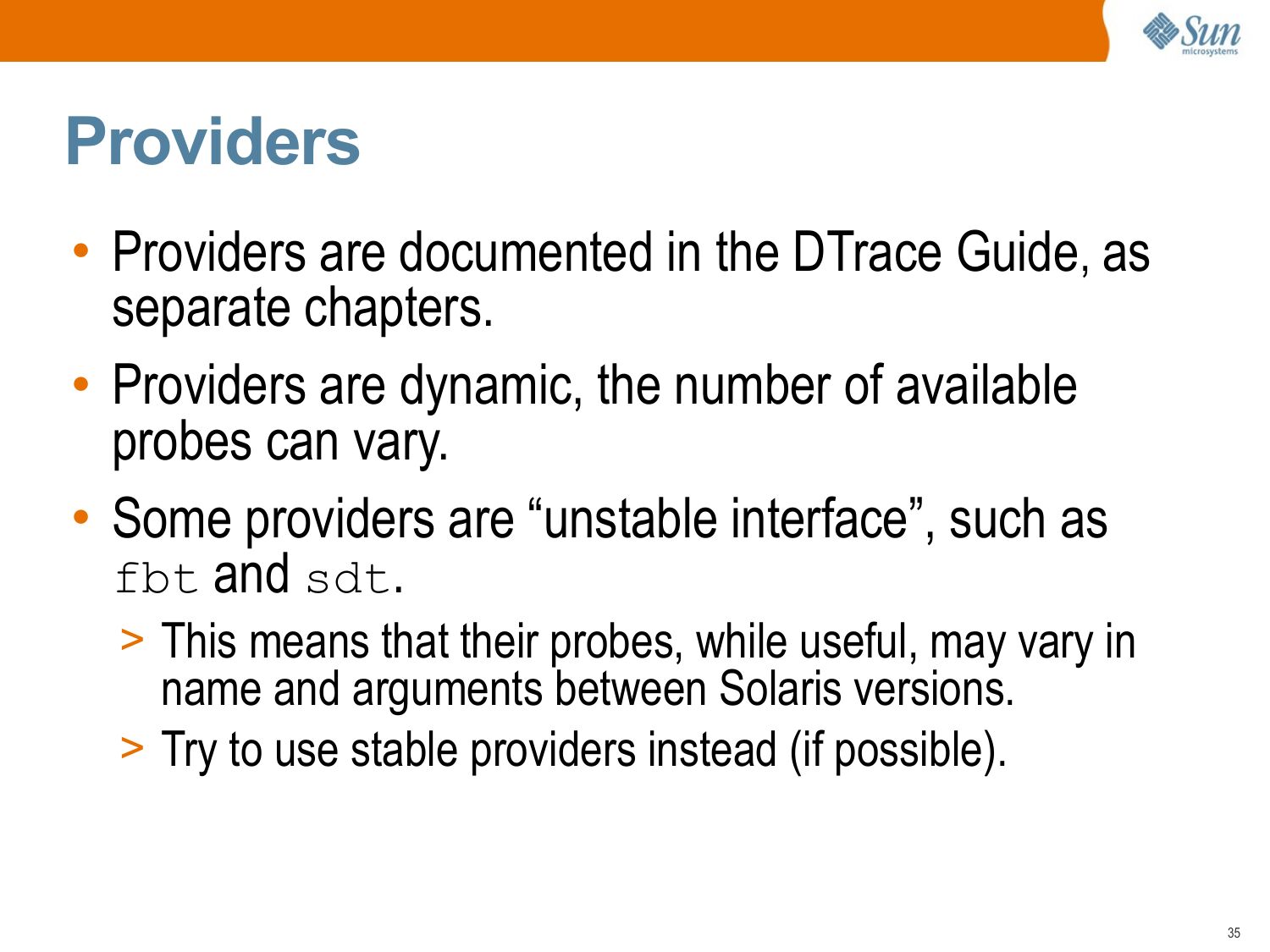

Providers
• Providers are documented in the DTrace Guide, as
separate chapters.
• Providers are dynamic, the number of available
probes can vary.
• Some providers are “unstable interface”, such as
fbt and sdt.
>gt; This means that their probes, while useful, may vary in
name and arguments between Solaris versions.
>gt; Try to use stable providers instead (if possible).

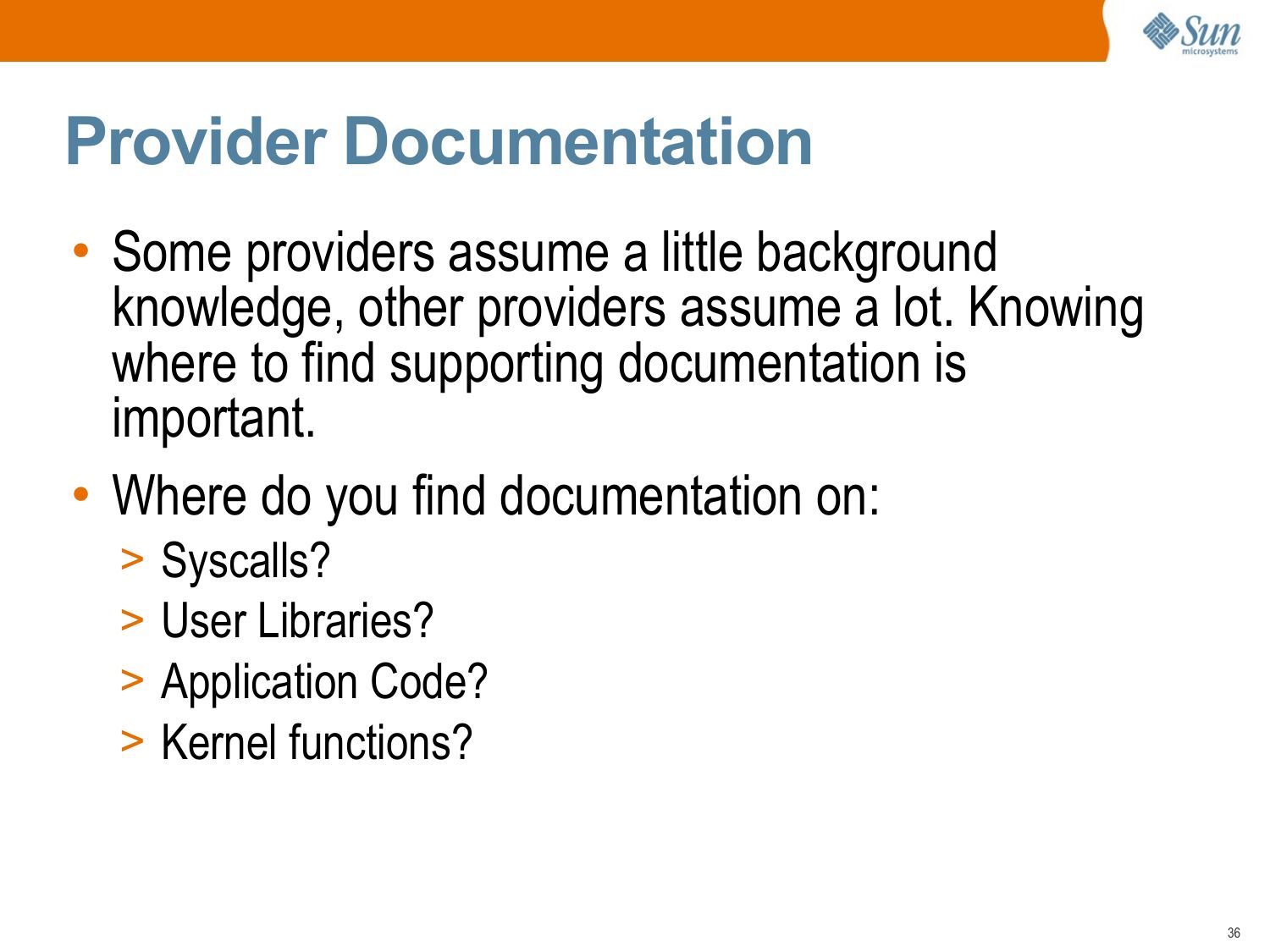

Provider Documentation
• Some providers assume a little background
knowledge, other providers assume a lot. Knowing
where to find supporting documentation is
important.
• Where do you find documentation on:
>gt; Syscalls?
>gt; User Libraries?
>gt; Application Code?
>gt; Kernel functions?

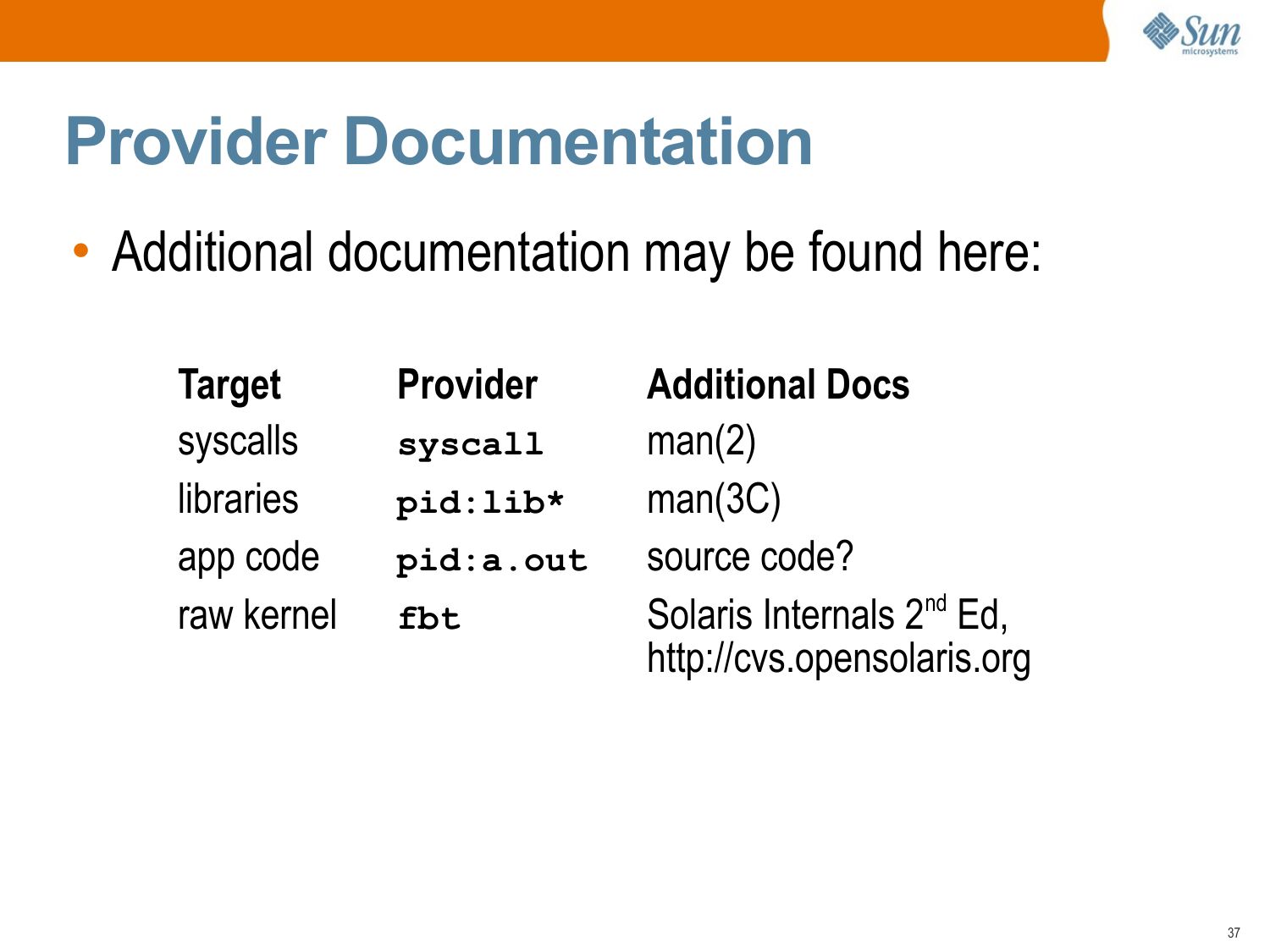

Provider Documentation
• Additional documentation may be found here:
Target
syscalls
libraries
app code
raw kernel
Provider
syscall
pid:lib*
pid:a.out
fbt
Additional Docs
man(2)
man(3C)
source code?
Solaris Internals 2nd Ed,
http://cvs.opensolaris.org

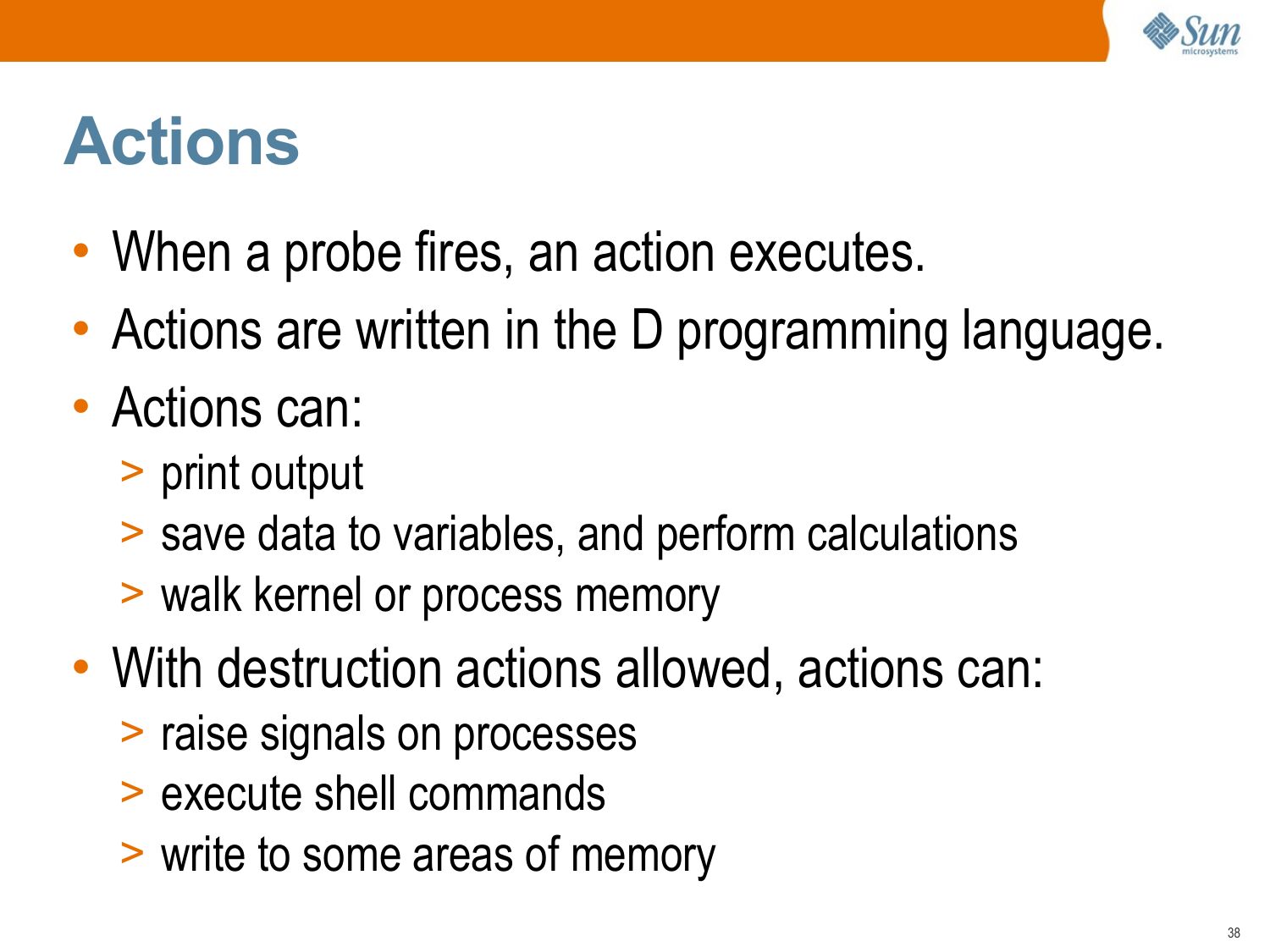

Actions
• When a probe fires, an action executes.
• Actions are written in the D programming language.
• Actions can:
>gt; print output
>gt; save data to variables, and perform calculations
>gt; walk kernel or process memory
• With destruction actions allowed, actions can:
>gt; raise signals on processes
>gt; execute shell commands
>gt; write to some areas of memory

trace() Example
# dtrace -n 'syscall::exece:return { trace(execname); }'
dtrace: description 'syscall::exece:return ' matched 1 probe
CPU
FUNCTION:NAME
0 76044
exece:return
man
0 76044
exece:return
0 76044
exece:return
neqn
0 76044
exece:return
tbl
0 76044
exece:return
nroff
0 76044
exece:return
col
[...]
• The trace() action accepts one argument and prints
it when the probe fired.

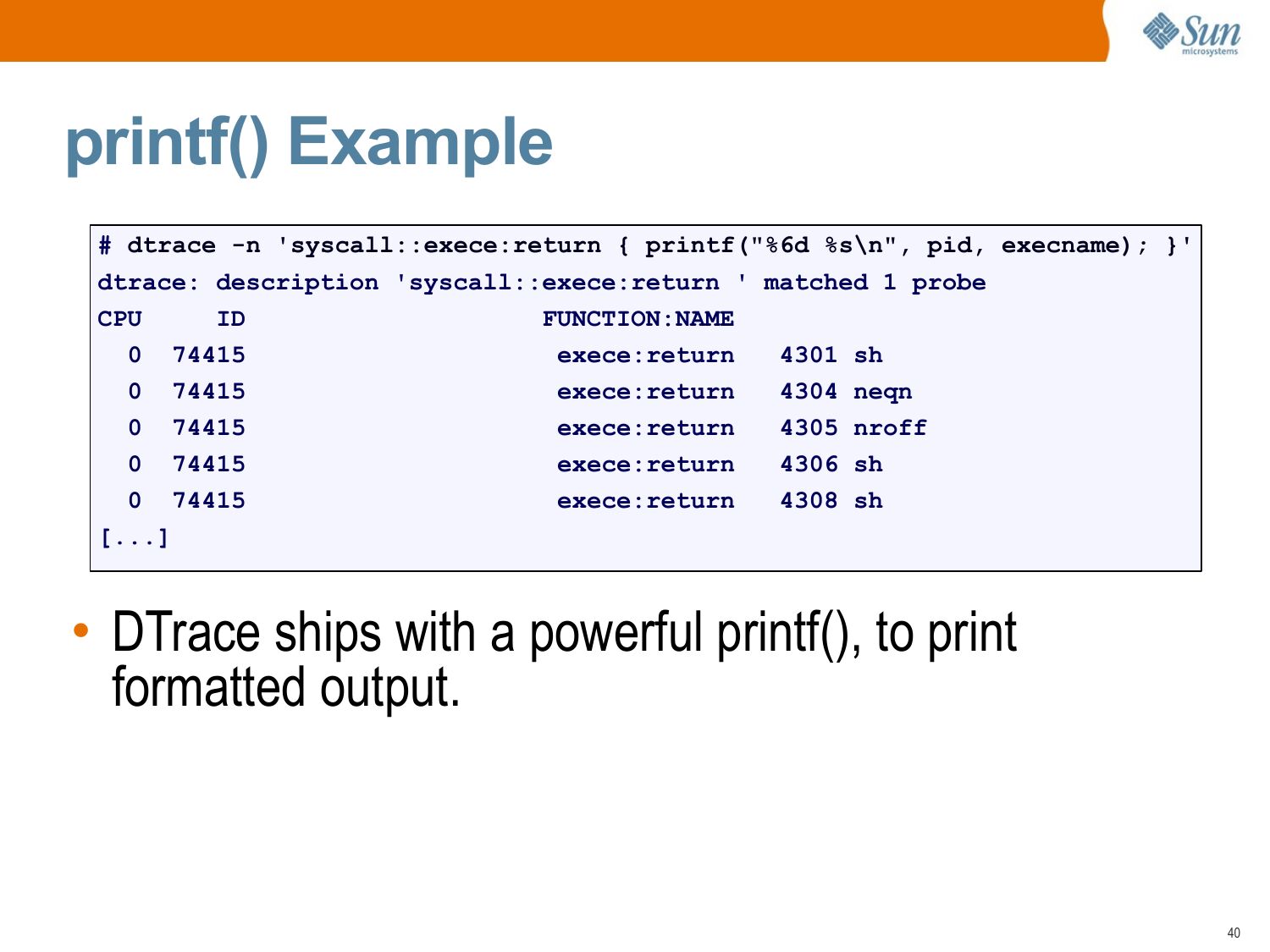

printf() Example
# dtrace -n 'syscall::exece:return { printf("%6d %s\n", pid, execname); }'
dtrace: description 'syscall::exece:return ' matched 1 probe
CPU
FUNCTION:NAME
0 74415
exece:return
4301 sh
0 74415
exece:return
4304 neqn
0 74415
exece:return
4305 nroff
0 74415
exece:return
4306 sh
0 74415
exece:return
4308 sh
[...]
• DTrace ships with a powerful printf(), to print
formatted output.

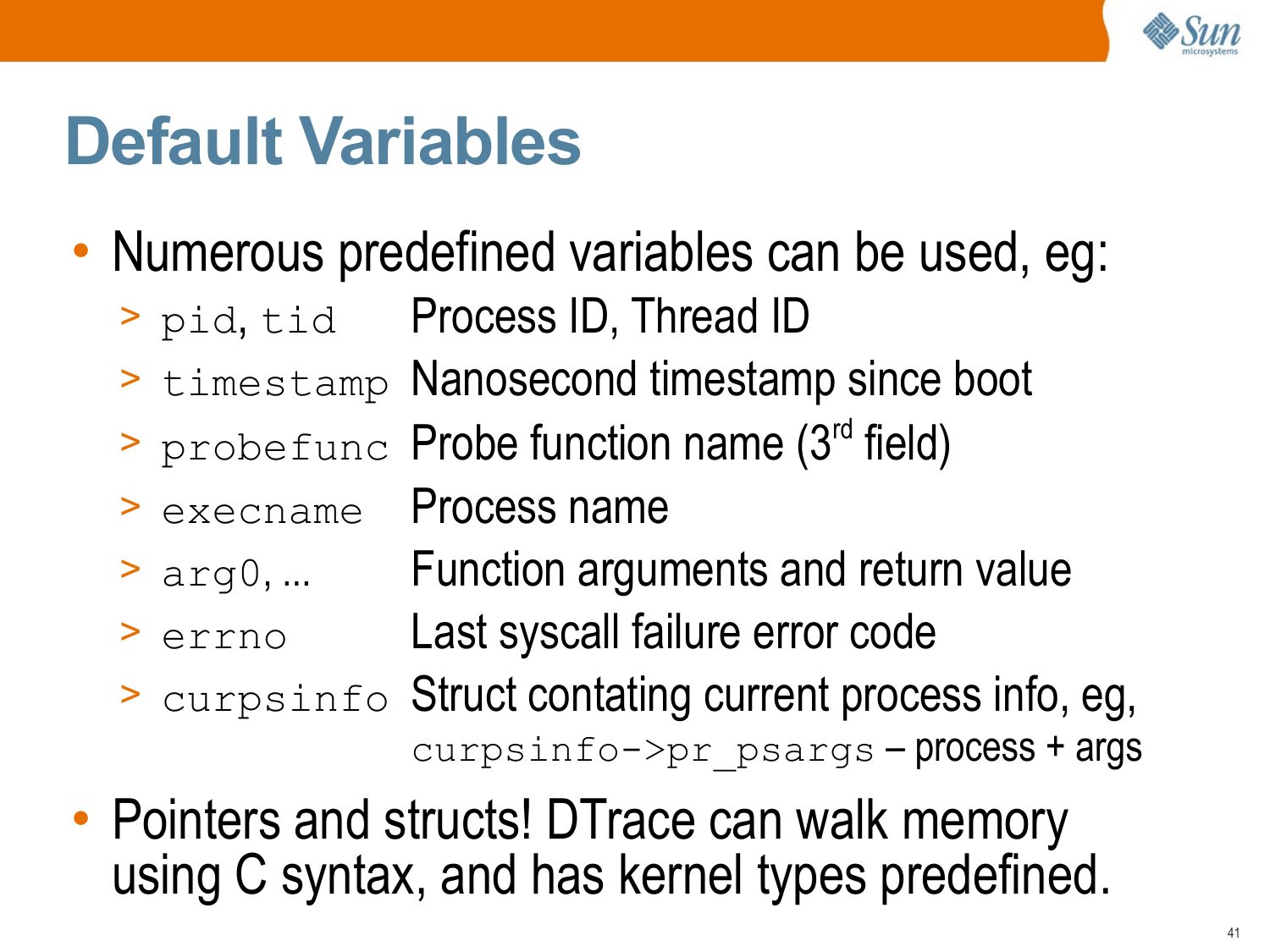

Default Variables
• Numerous predefined variables can be used, eg:
>gt; pid, tid
Process ID, Thread ID
>gt; timestamp Nanosecond timestamp since boot
>gt; probefunc Probe function name (3rd field)
>gt; execname Process name
>gt; arg0, ...
Function arguments and return value
>gt; errno
Last syscall failure error code
>gt; curpsinfo Struct contating current process info, eg,
curpsinfo->gt;pr_psargs – process + args
• Pointers and structs! DTrace can walk memory
using C syntax, and has kernel types predefined.

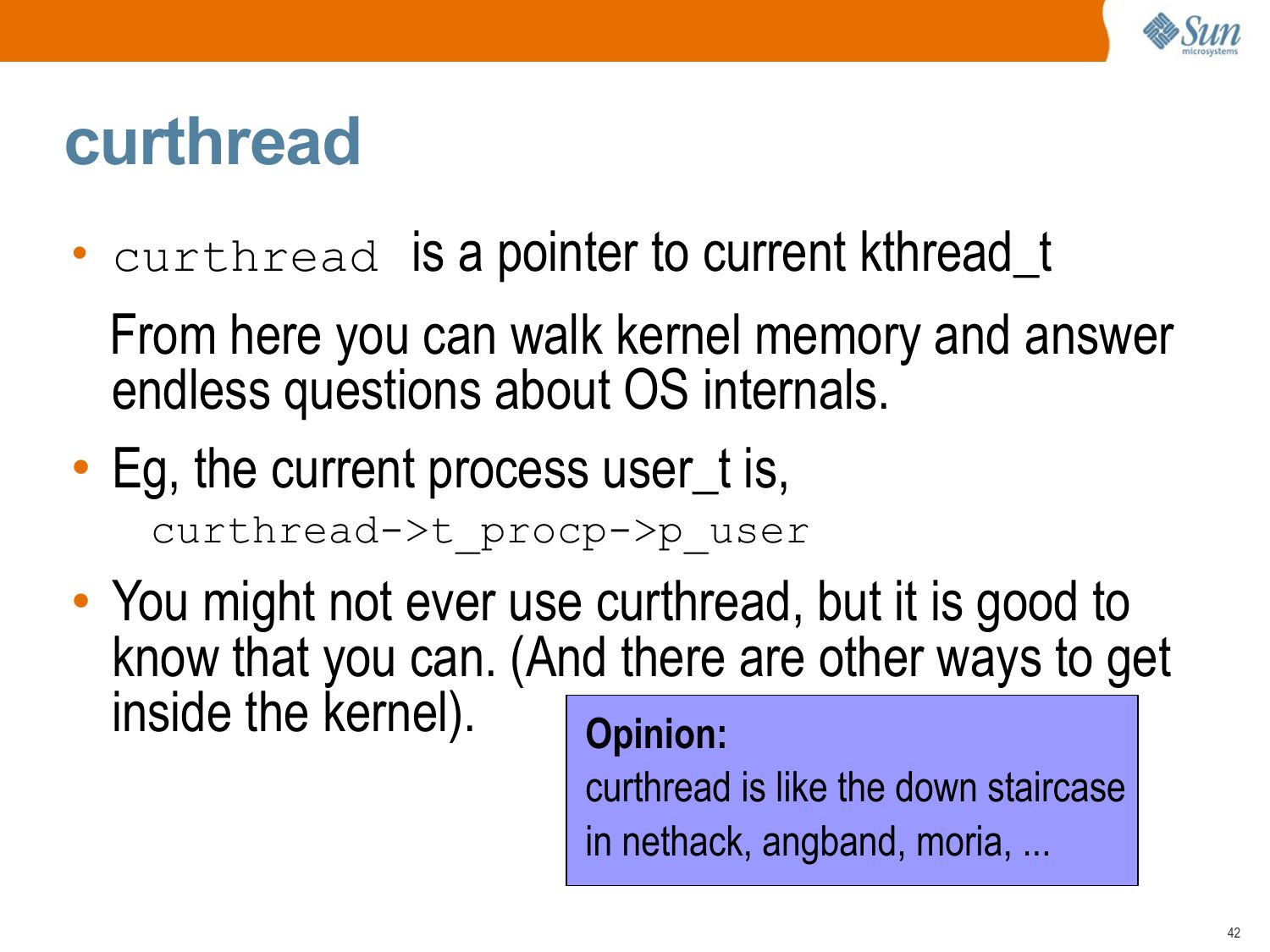

curthread
• curthread is a pointer to current kthread_t
From here you can walk kernel memory and answer
endless questions about OS internals.
• Eg, the current process user_t is,
curthread->gt;t_procp->gt;p_user
• You might not ever use curthread, but it is good to
know that you can. (And there are other ways to get
inside the kernel).
Opinion:
curthread is like the down staircase
in nethack, angband, moria, ...

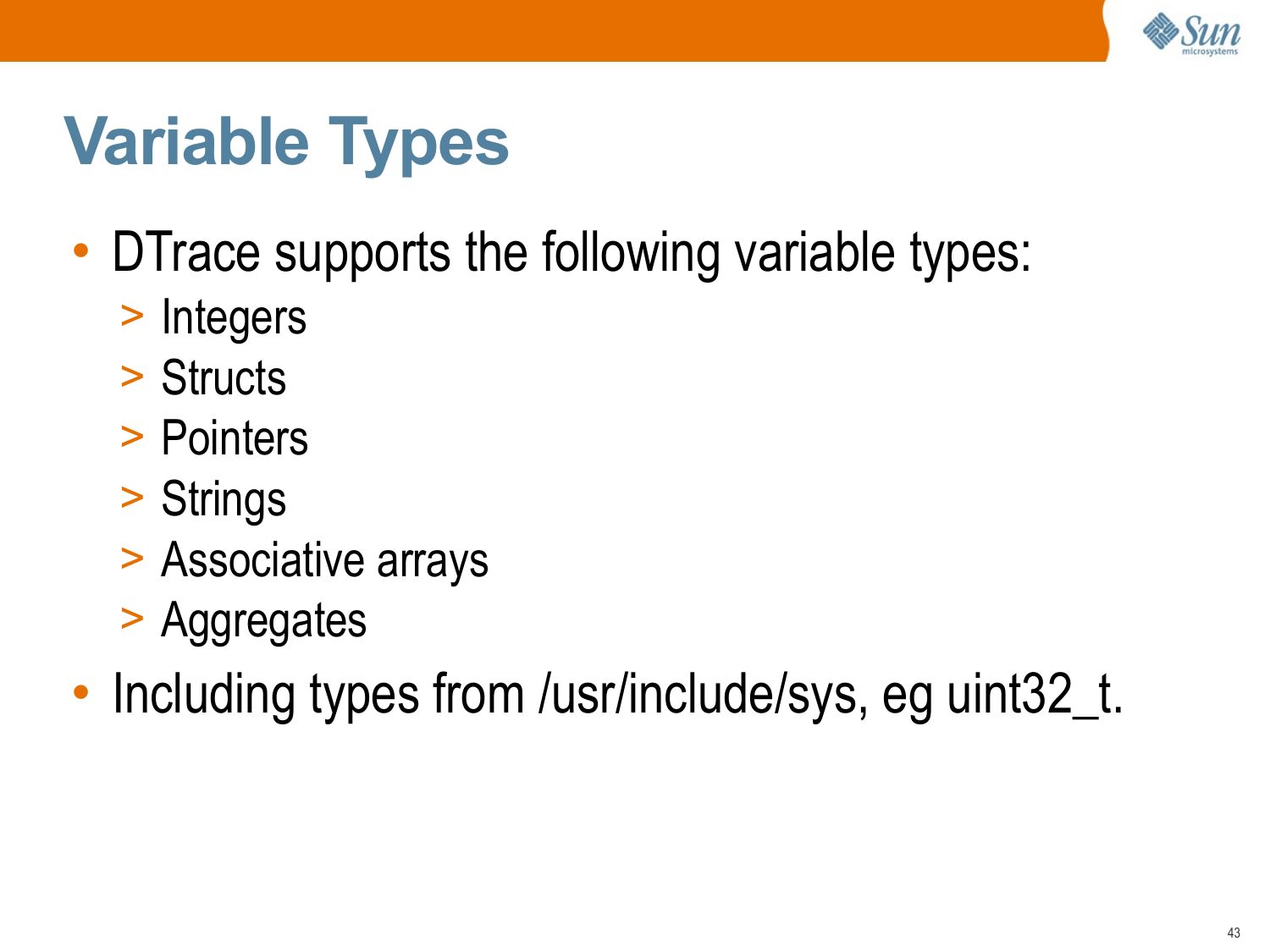

Variable Types
• DTrace supports the following variable types:
>gt; Integers
>gt; Structs
>gt; Pointers
>gt; Strings
>gt; Associative arrays
>gt; Aggregates
• Including types from /usr/include/sys, eg uint32_t.

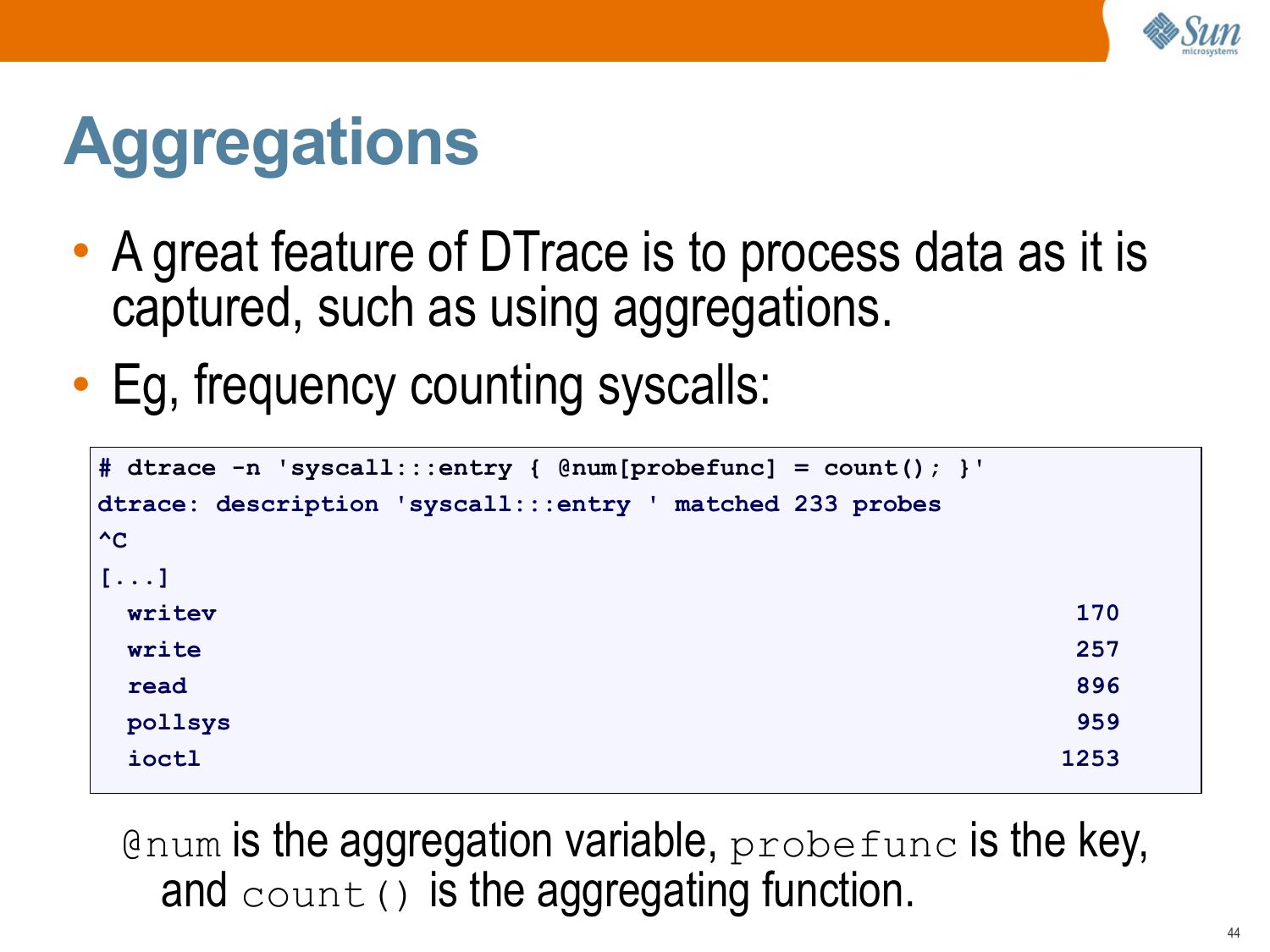

Aggregations
• A great feature of DTrace is to process data as it is
captured, such as using aggregations.
• Eg, frequency counting syscalls:
# dtrace -n 'syscall:::entry { @num[probefunc] = count(); }'
dtrace: description 'syscall:::entry ' matched 233 probes
[...]
writev
write
read
pollsys
ioctl
@num is the aggregation variable, probefunc is the key,
and count() is the aggregating function.

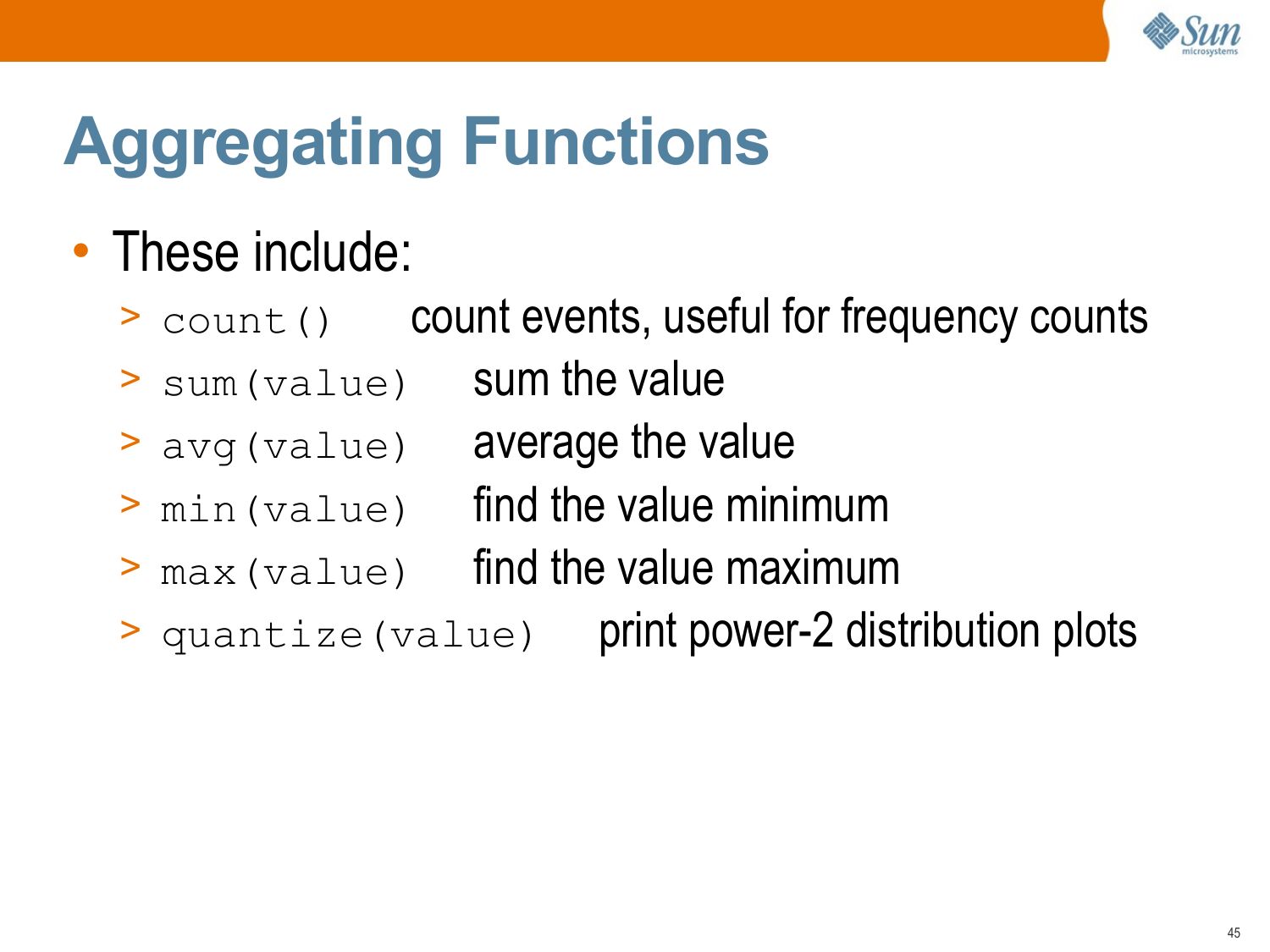

Aggregating Functions
• These include:
count events, useful for frequency counts
>gt; sum(value)
sum the value
>gt; avg(value)
average the value
>gt; min(value)
find the value minimum
>gt; max(value)
find the value maximum
>gt; quantize(value) print power-2 distribution plots
>gt; count()

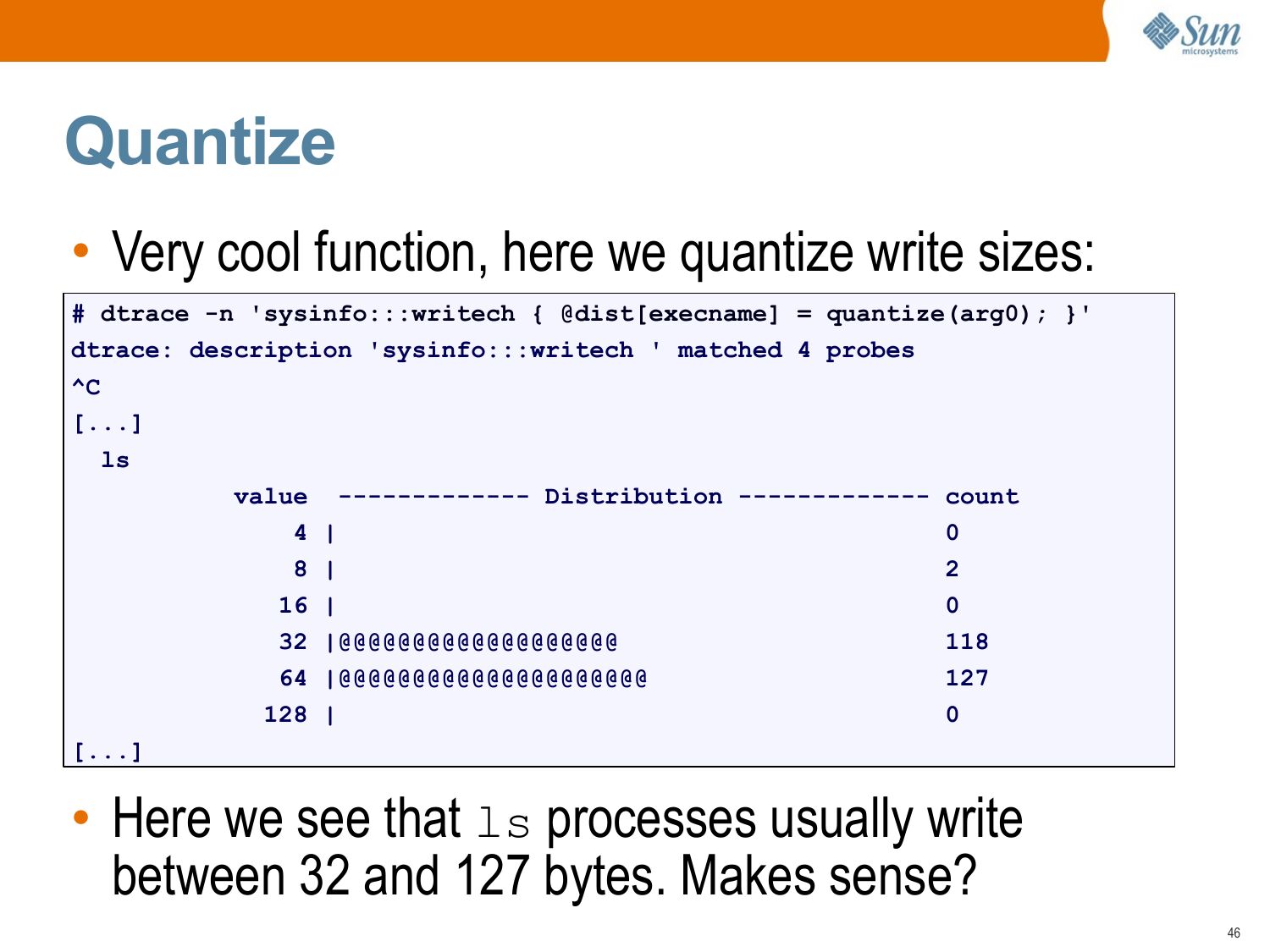

Quantize
• Very cool function, here we quantize write sizes:
# dtrace -n 'sysinfo:::writech { @dist[execname] = quantize(arg0); }'
dtrace: description 'sysinfo:::writech ' matched 4 probes
[...]
value ------------- Distribution ------------- count
4 |
8 |
16 |
32 |@@@@@@@@@@@@@@@@@@@
64 |@@@@@@@@@@@@@@@@@@@@@
128 |
[...]
• Here we see that ls processes usually write
between 32 and 127 bytes. Makes sense?

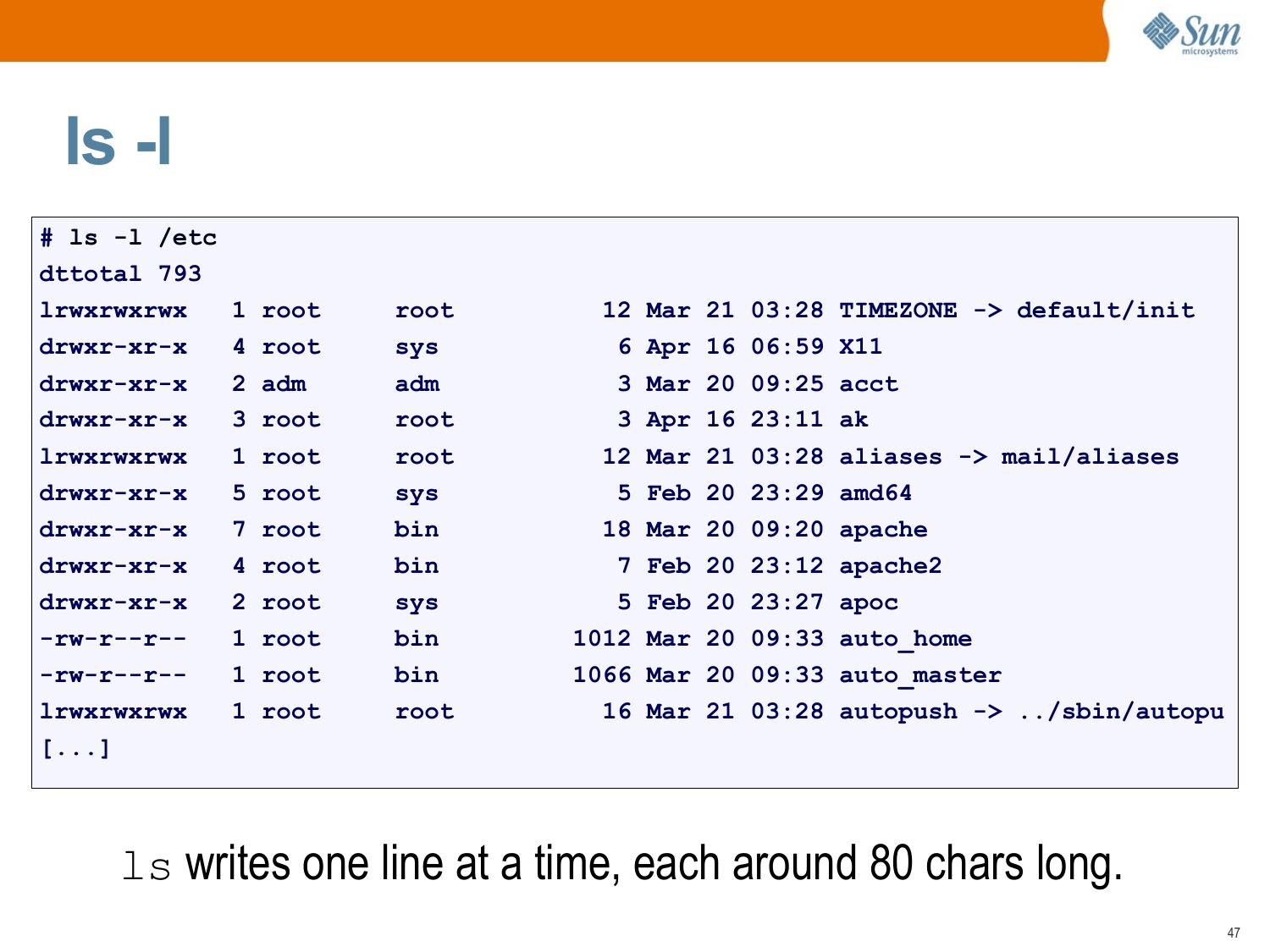

ls -l
# ls -l /etc
dttotal 793
lrwxrwxrwx
1 root
drwxr-xr-x
4 root
drwxr-xr-x
2 adm
drwxr-xr-x
3 root
lrwxrwxrwx
1 root
drwxr-xr-x
5 root
drwxr-xr-x
7 root
drwxr-xr-x
4 root
drwxr-xr-x
2 root
-rw-r--r-1 root
-rw-r--r-1 root
lrwxrwxrwx
1 root
[...]
root
sys
adm
root
root
sys
bin
bin
sys
bin
bin
root
12 Mar 21 03:28 TIMEZONE ->gt; default/init
6 Apr 16 06:59 X11
3 Mar 20 09:25 acct
3 Apr 16 23:11 ak
12 Mar 21 03:28 aliases ->gt; mail/aliases
5 Feb 20 23:29 amd64
18 Mar 20 09:20 apache
7 Feb 20 23:12 apache2
5 Feb 20 23:27 apoc
1012 Mar 20 09:33 auto_home
1066 Mar 20 09:33 auto_master
16 Mar 21 03:28 autopush ->gt; ../sbin/autopu
ls writes one line at a time, each around 80 chars long.

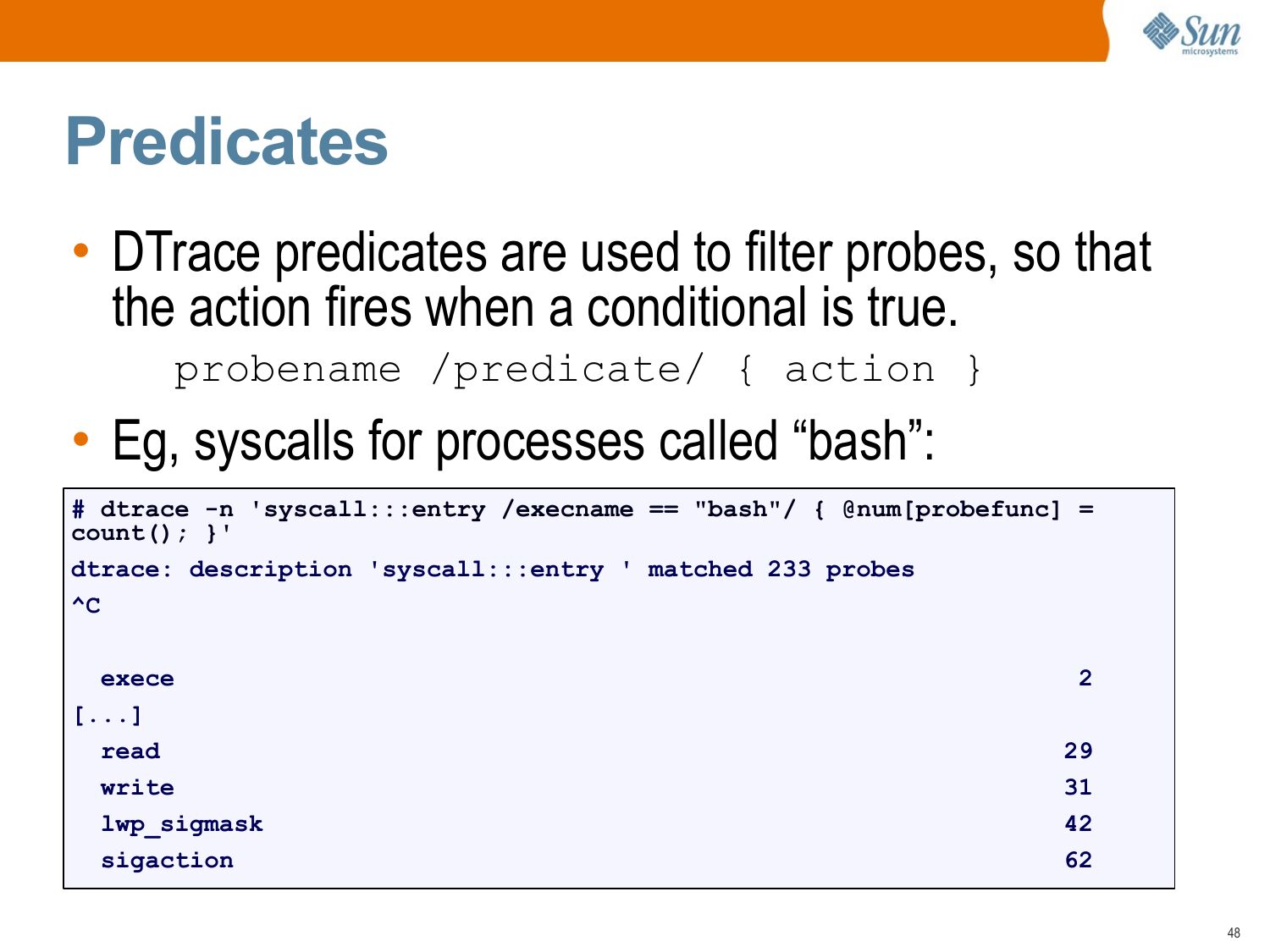

Predicates
• DTrace predicates are used to filter probes, so that
the action fires when a conditional is true.
probename /predicate/ { action }
• Eg, syscalls for processes called “bash”:
# dtrace -n 'syscall:::entry /execname == "bash"/ { @num[probefunc] =
count(); }'
dtrace: description 'syscall:::entry ' matched 233 probes
exece
[...]
read
write
lwp_sigmask
sigaction

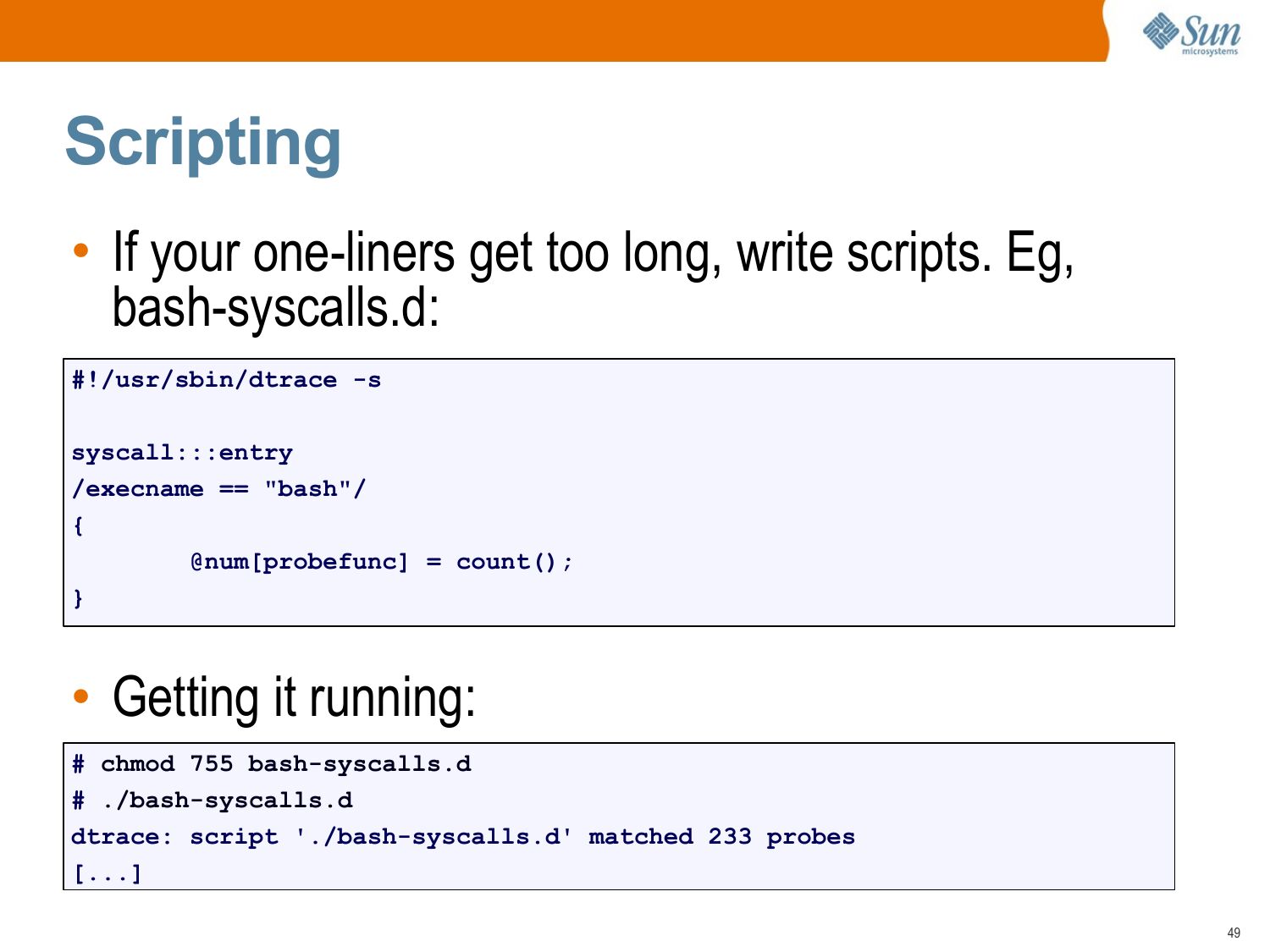

Scripting
• If your one-liners get too long, write scripts. Eg,
bash-syscalls.d:
#!/usr/sbin/dtrace -s
syscall:::entry
/execname == "bash"/
@num[probefunc] = count();
• Getting it running:
# chmod 755 bash-syscalls.d
# ./bash-syscalls.d
dtrace: script './bash-syscalls.d' matched 233 probes
[...]

What's next:
• We just covered:
>gt; What is DTrace
>gt; What is DTrace for
>gt; Who uses DTrace
>gt; DTrace Essentials
• Next up is:
>gt; Usage Features

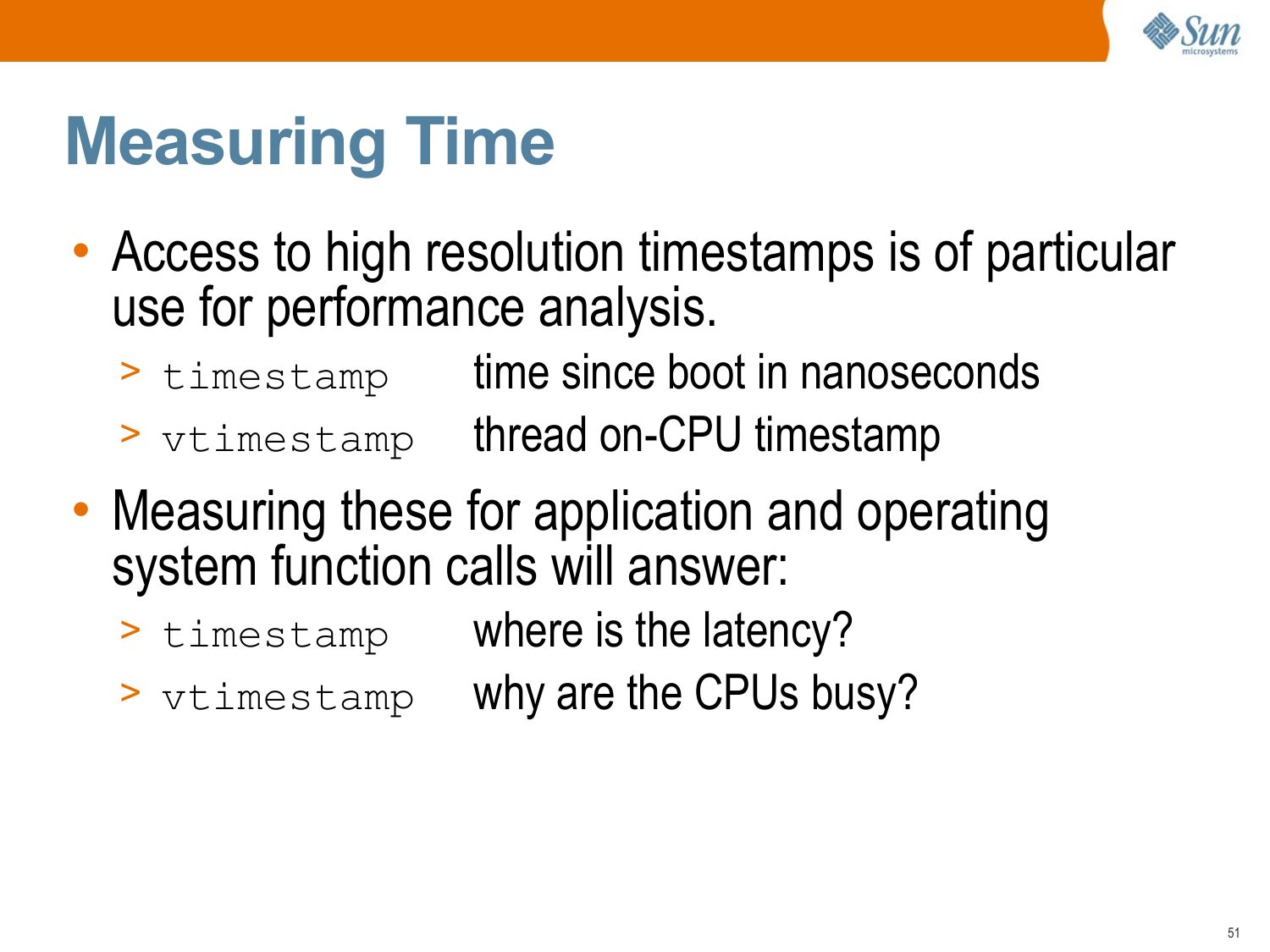

Measuring Time
• Access to high resolution timestamps is of particular
use for performance analysis.
>gt; timestamp
>gt; vtimestamp
time since boot in nanoseconds
thread on-CPU timestamp
• Measuring these for application and operating
system function calls will answer:
>gt; timestamp
>gt; vtimestamp
where is the latency?
why are the CPUs busy?

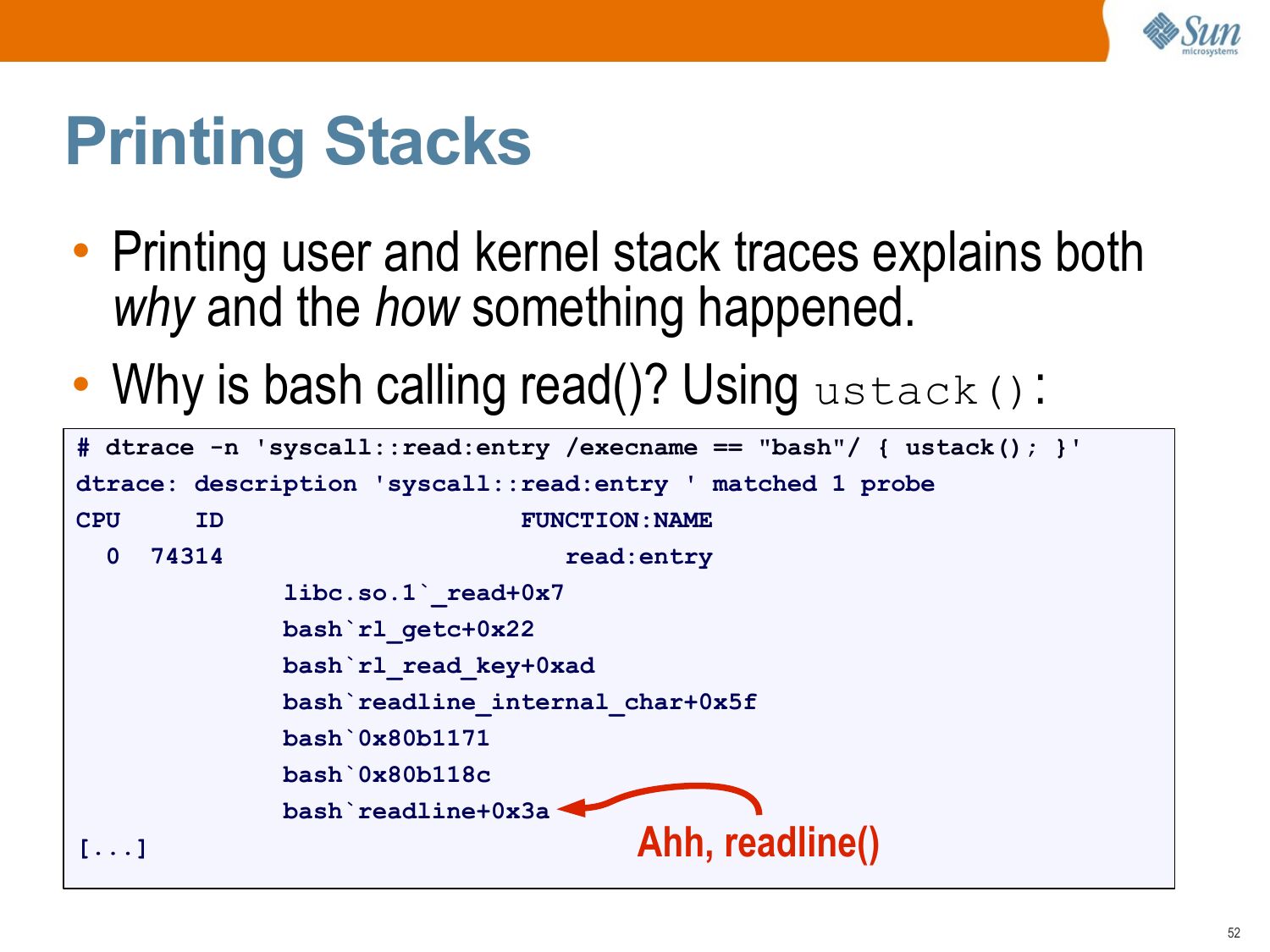

Printing Stacks
• Printing user and kernel stack traces explains both
why and the how something happened.
• Why is bash calling read()? Using ustack():
# dtrace -n 'syscall::read:entry /execname == "bash"/ { ustack(); }'
dtrace: description 'syscall::read:entry ' matched 1 probe
CPU
FUNCTION:NAME
0 74314
read:entry
libc.so.1`_read+0x7
bash`rl_getc+0x22
bash`rl_read_key+0xad
bash`readline_internal_char+0x5f
bash`0x80b1171
bash`0x80b118c
bash`readline+0x3a
[...]
Ahh, readline()

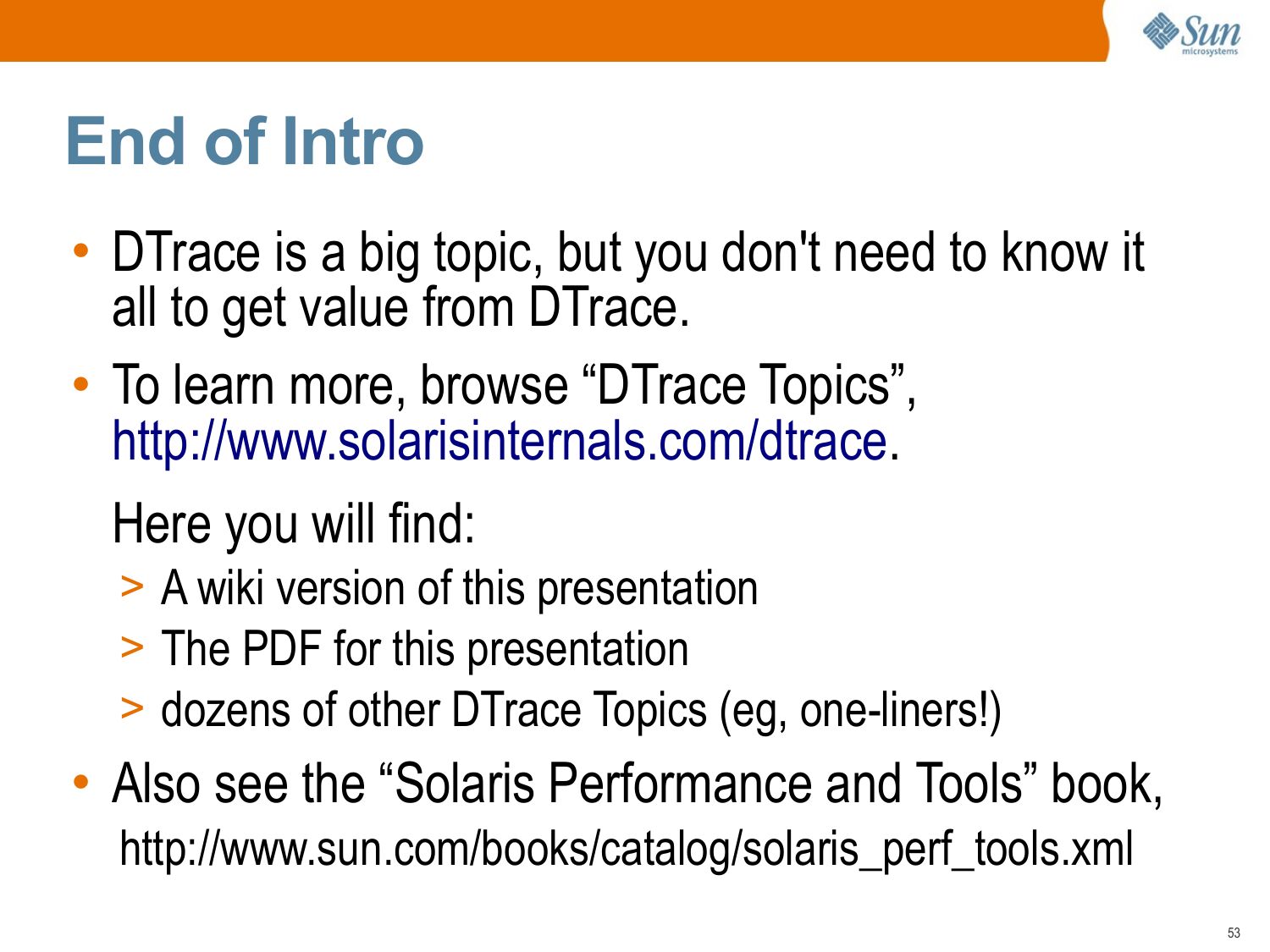

End of Intro
• DTrace is a big topic, but you don't need to know it
all to get value from DTrace.
• To learn more, browse “DTrace Topics”,
http://www.solarisinternals.com/dtrace.
Here you will find:
>gt; A wiki version of this presentation
>gt; The PDF for this presentation
>gt; dozens of other DTrace Topics (eg, one-liners!)
• Also see the “Solaris Performance and Tools” book,
http://www.sun.com/books/catalog/solaris_perf_tools.xml

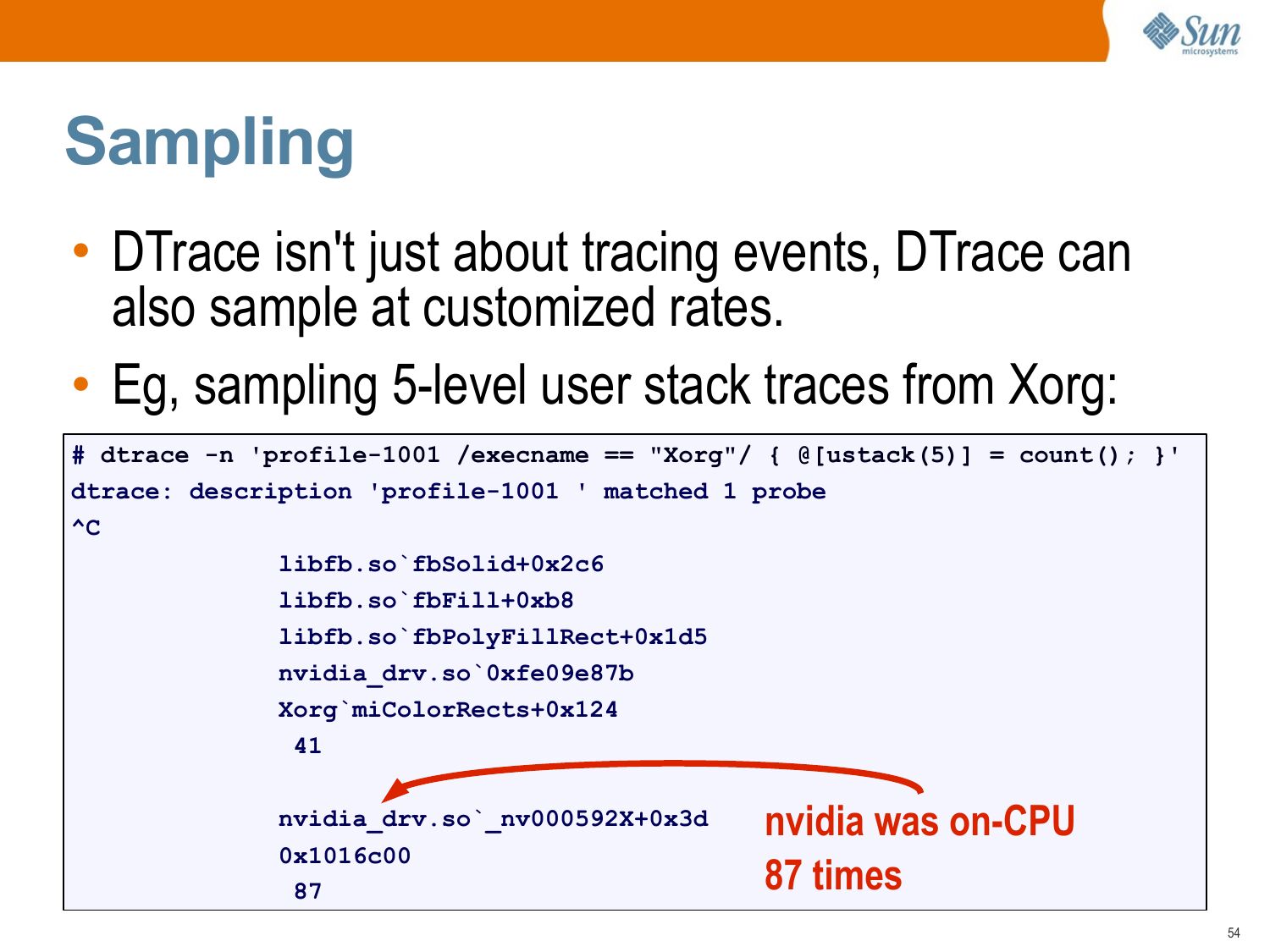

Sampling
• DTrace isn't just about tracing events, DTrace can
also sample at customized rates.
• Eg, sampling 5-level user stack traces from Xorg:
# dtrace -n 'profile-1001 /execname == "Xorg"/ { @[ustack(5)] = count(); }'
dtrace: description 'profile-1001 ' matched 1 probe
libfb.so`fbSolid+0x2c6
libfb.so`fbFill+0xb8
libfb.so`fbPolyFillRect+0x1d5
nvidia_drv.so`0xfe09e87b
Xorg`miColorRects+0x124
nvidia_drv.so`_nv000592X+0x3d
0x1016c00
nvidia was on-CPU
87 times

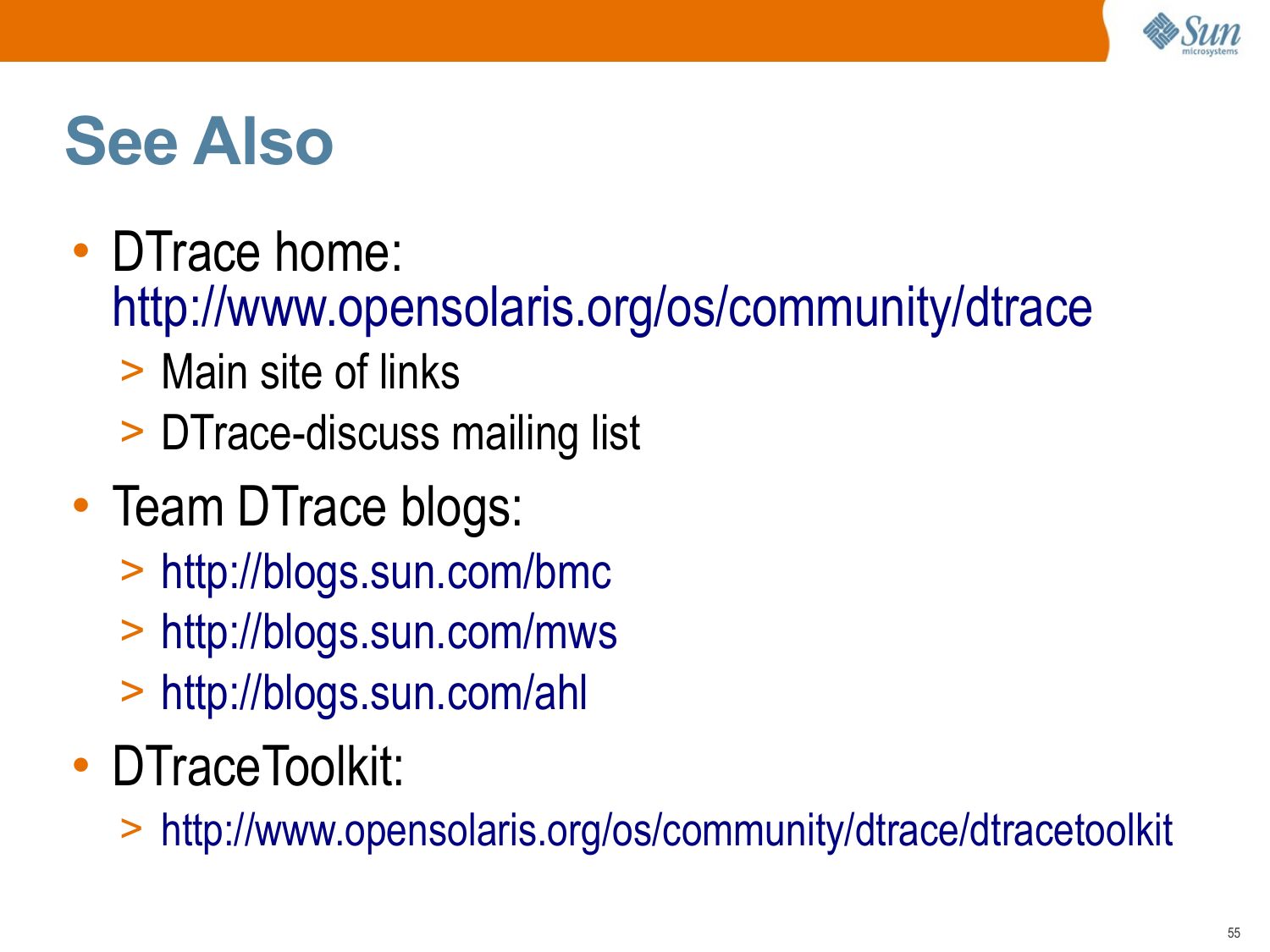

See Also
• DTrace home:
http://www.opensolaris.org/os/community/dtrace
>gt; Main site of links
>gt; DTrace-discuss mailing list
• Team DTrace blogs:
>gt; http://blogs.sun.com/bmc
>gt; http://blogs.sun.com/mws
>gt; http://blogs.sun.com/ahl
• DTraceToolkit:
>gt; http://www.opensolaris.org/os/community/dtrace/dtracetoolkit

dtrace:::END
Brendan Gregg
brendan@sun.com
