ATO2018_Linux_Performance

ATO: Linux Performance 2018

Talk by Brendan Gregg for All Things Open 2018.

Description: "At over one thousand code commits per week, it's hard to keep up with Linux developments. This keynote will summarize recent Linux performance features, for a wide audience: the KPTI patches for Meltdown, eBPF for performance observability and the new open source tools that use it, Kyber for disk I/O scheduling, BBR for TCP congestion control, and more. This is about exposure: knowing what exists, so you can learn and use it later when needed. Get the most out of your systems with the latest Linux kernels and exciting features."

	next prev 1/26
	next prev 2/26
	next prev 3/26
	next prev 4/26
	next prev 5/26
	next prev 6/26
	next prev 7/26
	next prev 8/26
	next prev 9/26
	next prev 10/26
	next prev 11/26
	next prev 12/26
	next prev 13/26
	next prev 14/26
	next prev 15/26
	next prev 16/26
	next prev 17/26
	next prev 18/26
	next prev 19/26
	next prev 20/26
	next prev 21/26
	next prev 22/26
	next prev 23/26
	next prev 24/26
	next prev 25/26
	next prev 26/26

PDF: ATO2018_Linux_Performance_2018.pdf

Keywords (from pdftotext):

slide 1:

Linux Performance
Brendan Gregg
Senior Performance Architect
Oct 2018

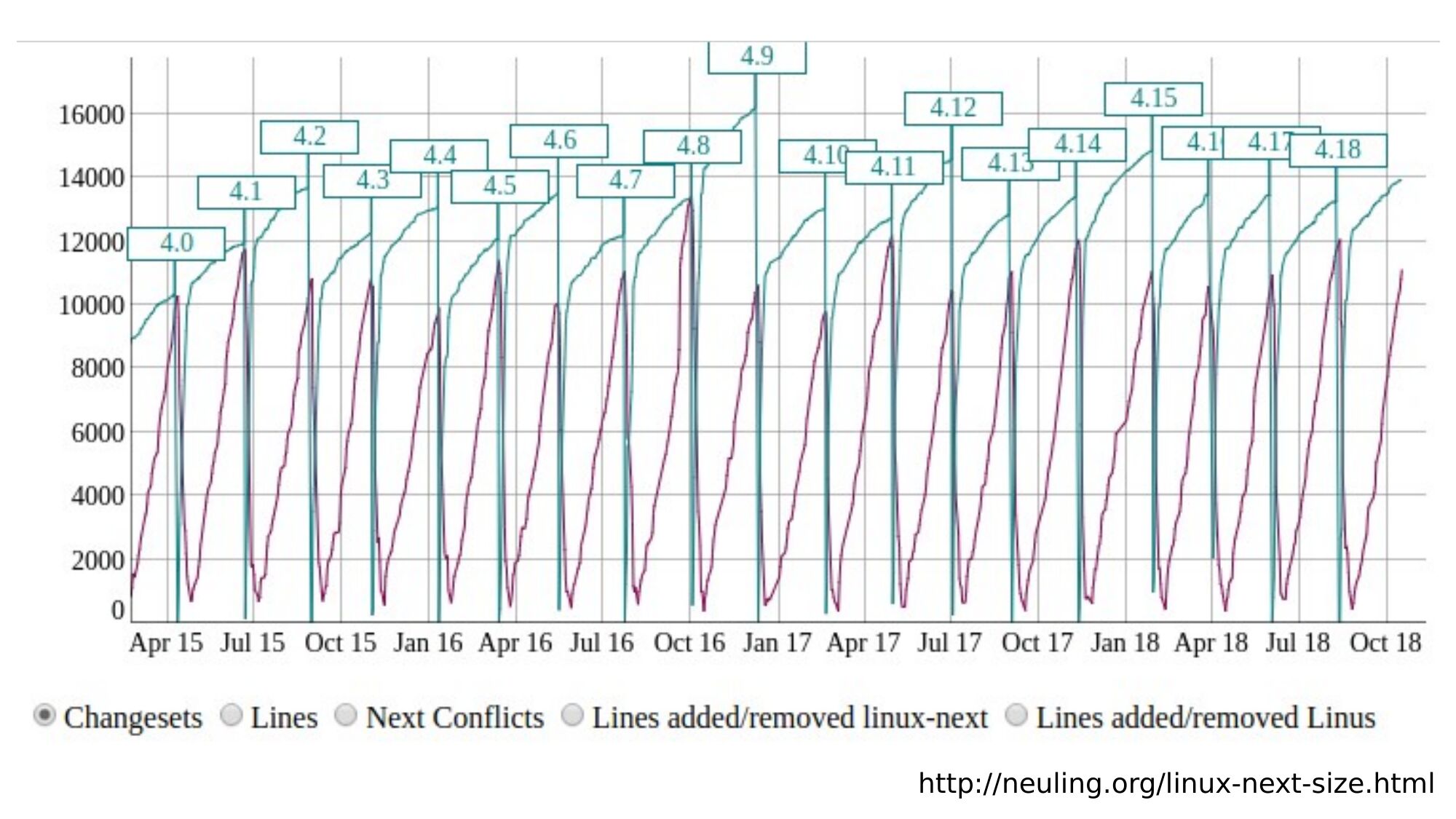

slide 2:

http://neuling.org/linux-next-size.html

slide 3:

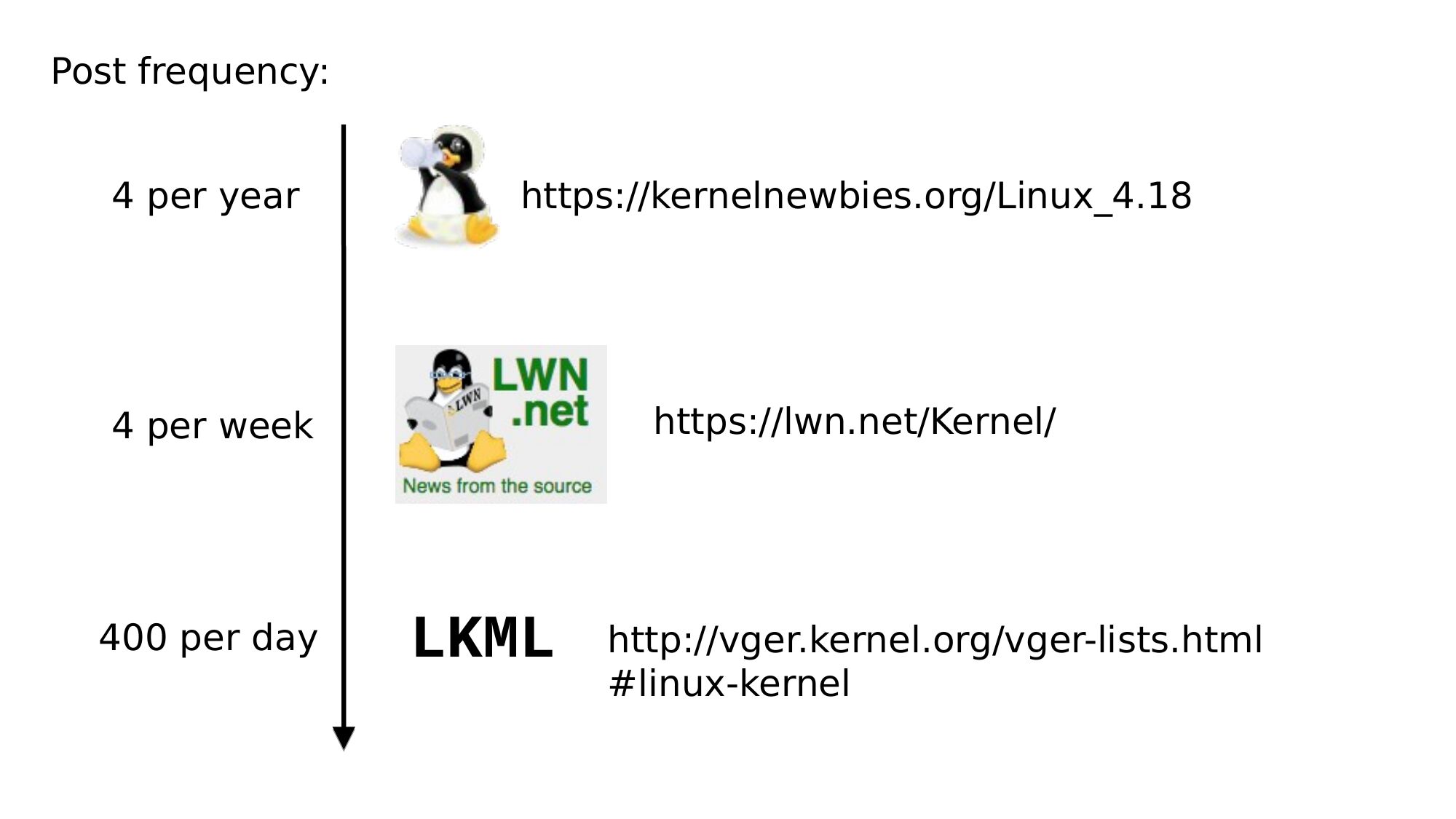

Post frequency:
4 per year
https://kernelnewbies.org/Linux_4.18
4 per week
https://lwn.net/Kernel/
400 per day
LKML
http://vger.kernel.org/vger-lists.html
#linux-kernel

slide 4:

https://meltdownattack.com/

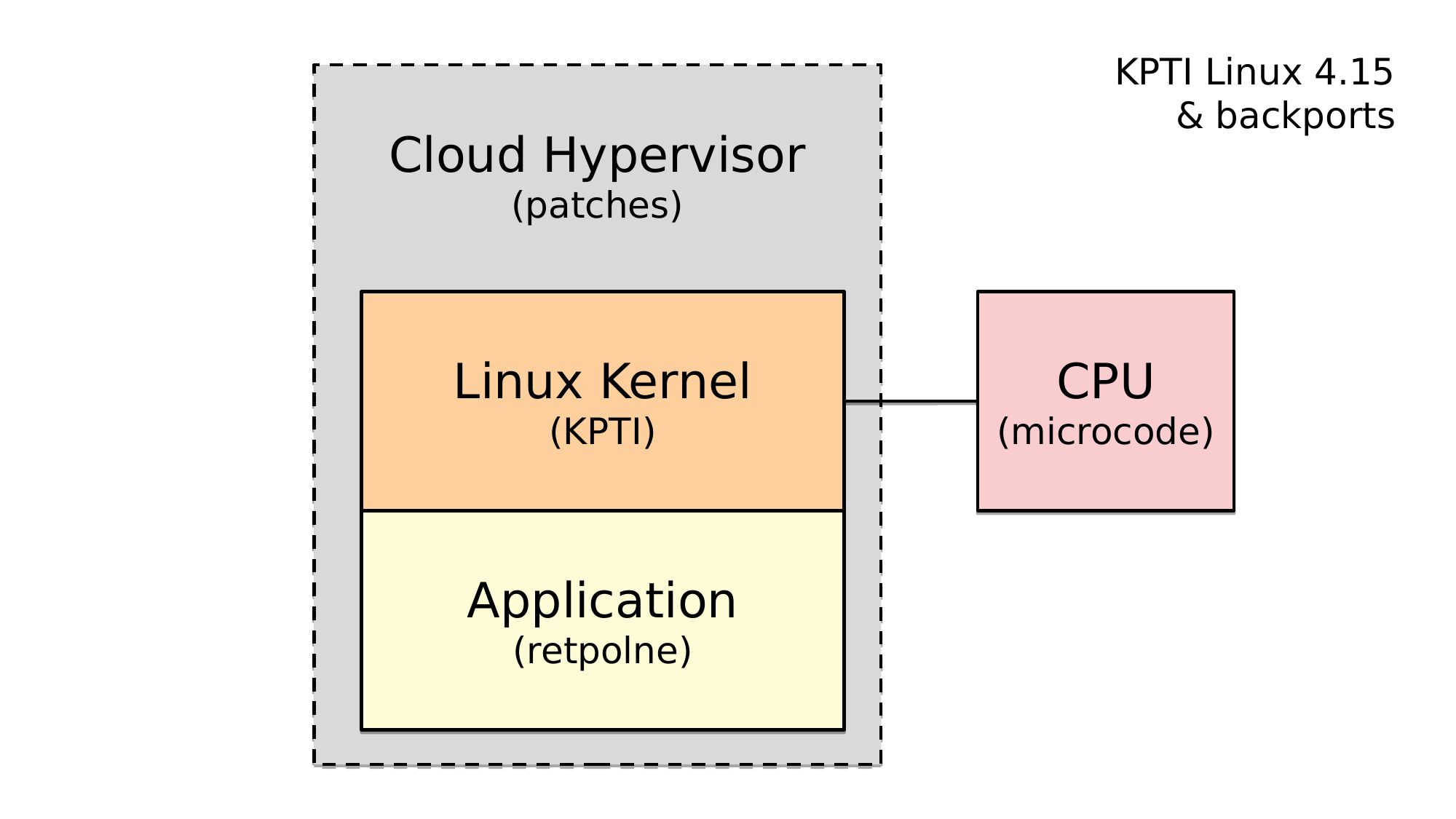

slide 5:

Cloud Hypervisor
KPTI Linux 4.15
& backports
(patches)
Linux Kernel
(KPTI)
Application
(retpolne)
CPU
(microcode)

slide 6:

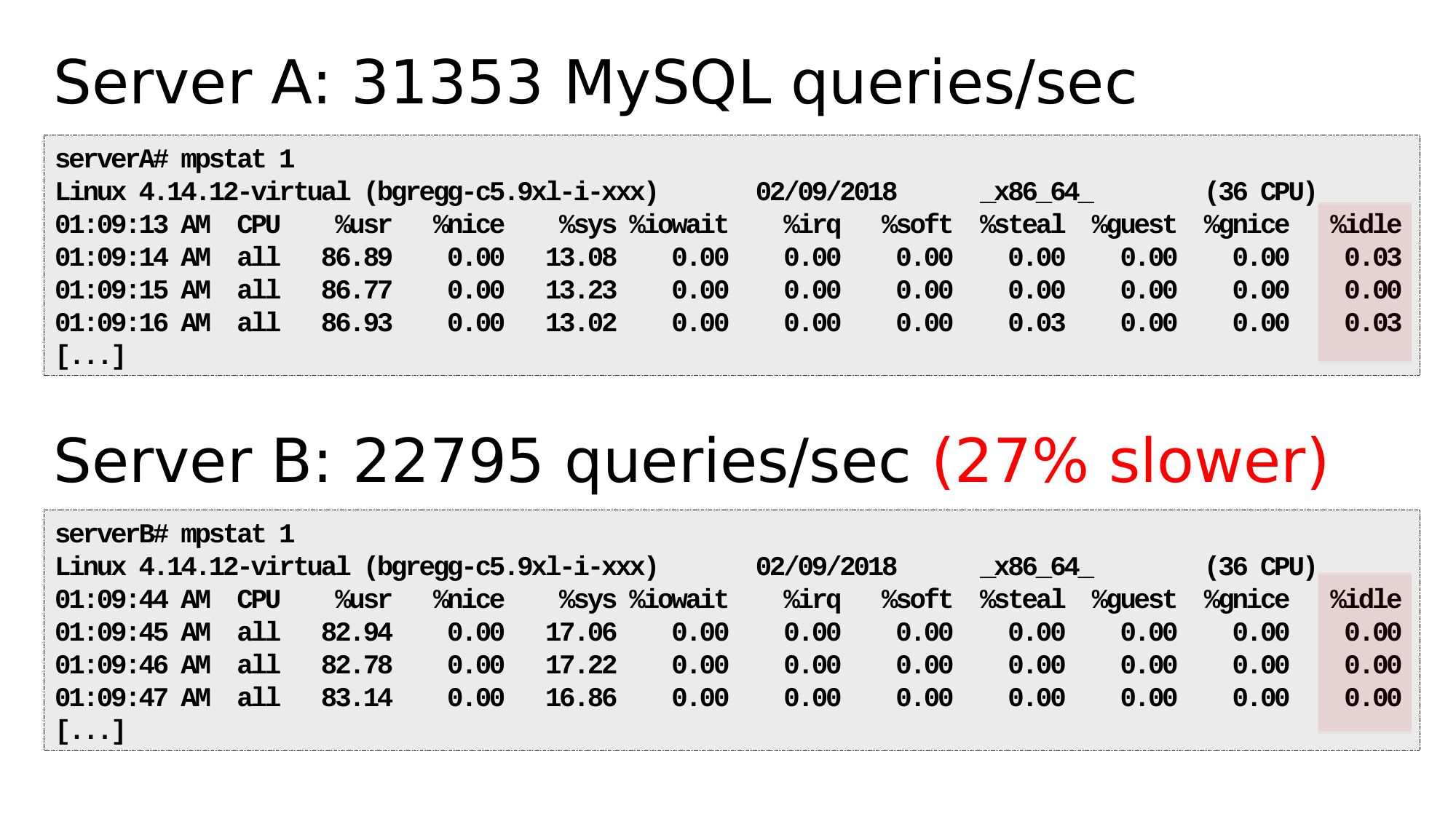

Server A: 31353 MySQL queries/sec
serverA# mpstat 1
Linux 4.14.12-virtual (bgregg-c5.9xl-i-xxx)
02/09/2018
_x86_64_
(36 CPU)
01:09:13 AM CPU
%usr %nice
%sys %iowait
%irq %soft %steal %guest %gnice %idle
01:09:14 AM all 86.89
0.00 13.08
01:09:15 AM all 86.77
0.00 13.23
01:09:16 AM all 86.93
0.00 13.02
[...]
Server B: 22795 queries/sec (27% slower)
serverB# mpstat 1
Linux 4.14.12-virtual (bgregg-c5.9xl-i-xxx)
02/09/2018
_x86_64_
(36 CPU)
01:09:44 AM CPU
%usr %nice
%sys %iowait
%irq %soft %steal %guest %gnice %idle
01:09:45 AM all 82.94
0.00 17.06
01:09:46 AM all 82.78
0.00 17.22
01:09:47 AM all 83.14
0.00 16.86
[...]

slide 7:

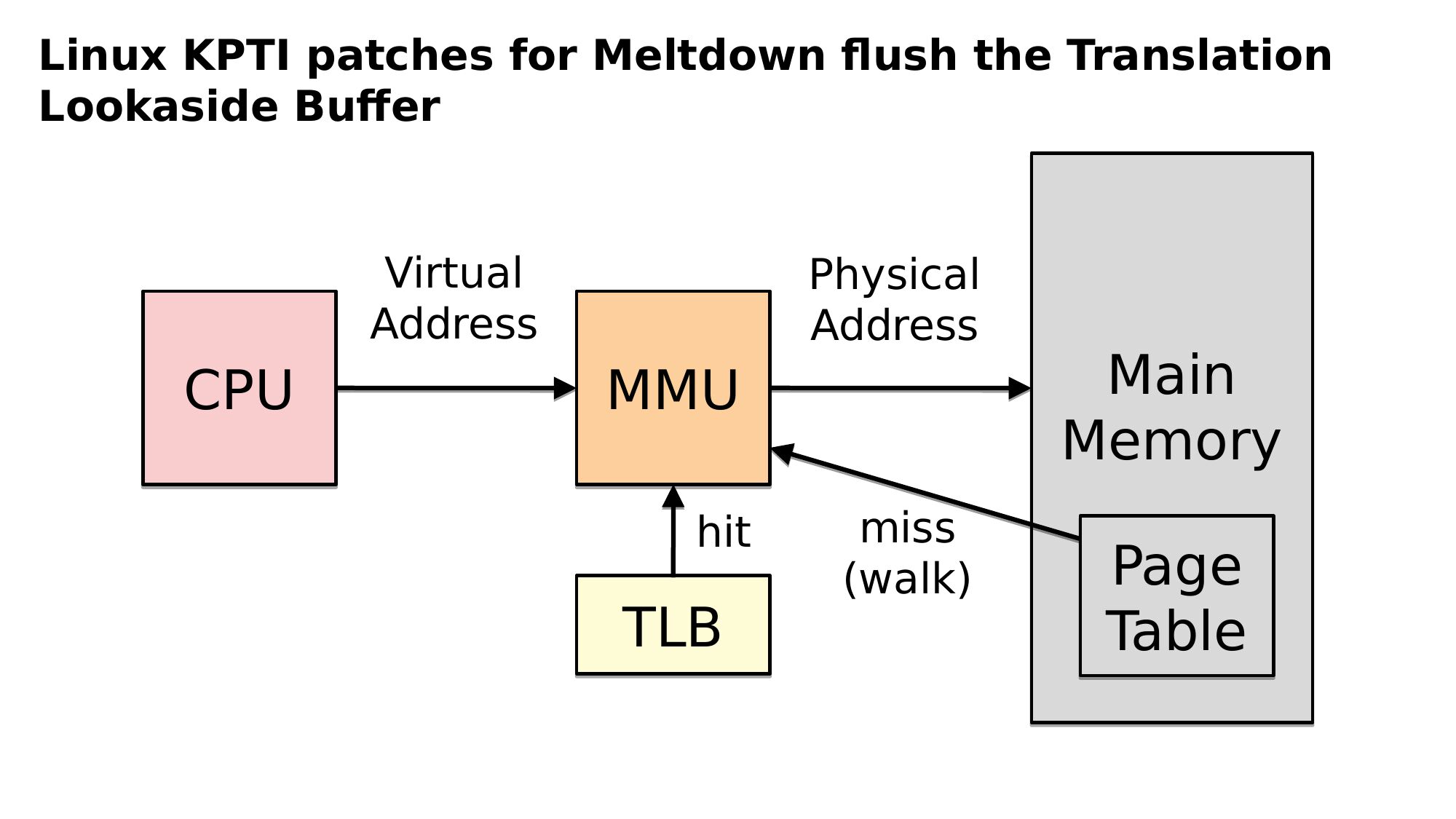

Linux KPTI patches for Meltdown flush the Translation
Lookaside Buffer
Virtual
Address
CPU
Physical
Address
MMU
hit
TLB
miss
(walk)
Main
Memory
Page
Table

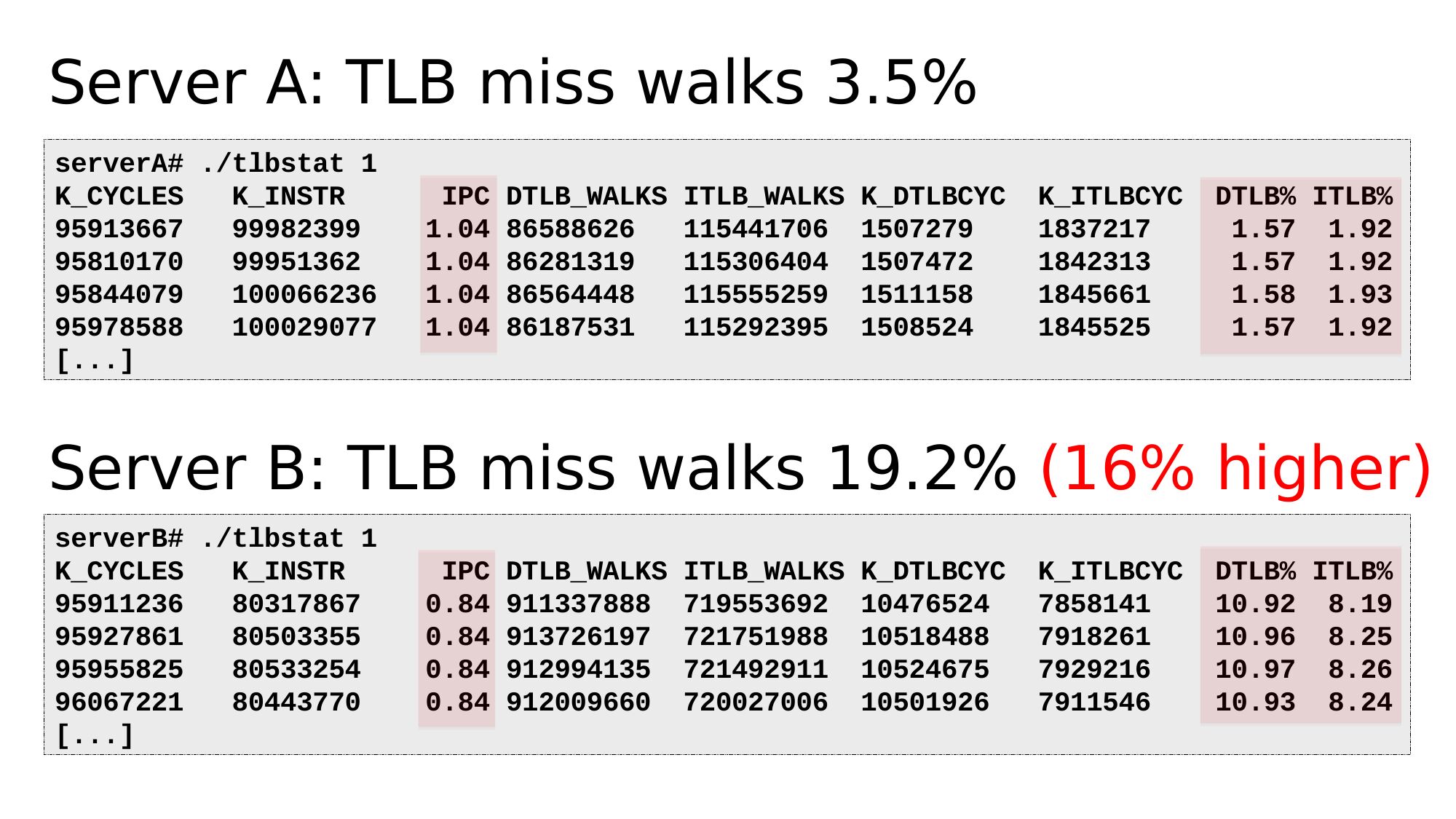

slide 8:

Server A: TLB miss walks 3.5%
serverA# ./tlbstat 1
K_CYCLES
K_INSTR
[...]
IPC DTLB_WALKS ITLB_WALKS K_DTLBCYC
1.04 86588626
115441706 1507279
1.04 86281319
115306404 1507472
1.04 86564448
115555259 1511158
1.04 86187531
115292395 1508524
K_ITLBCYC
DTLB% ITLB%
1.57 1.92
1.57 1.92
1.58 1.93
1.57 1.92
Server B: TLB miss walks 19.2% (16% higher)
serverB# ./tlbstat 1
K_CYCLES
K_INSTR
[...]
IPC DTLB_WALKS ITLB_WALKS K_DTLBCYC
0.84 911337888 719553692 10476524
0.84 913726197 721751988 10518488
0.84 912994135 721492911 10524675
0.84 912009660 720027006 10501926
K_ITLBCYC
DTLB% ITLB%
10.92 8.19
10.96 8.25
10.97 8.26
10.93 8.24

slide 9:

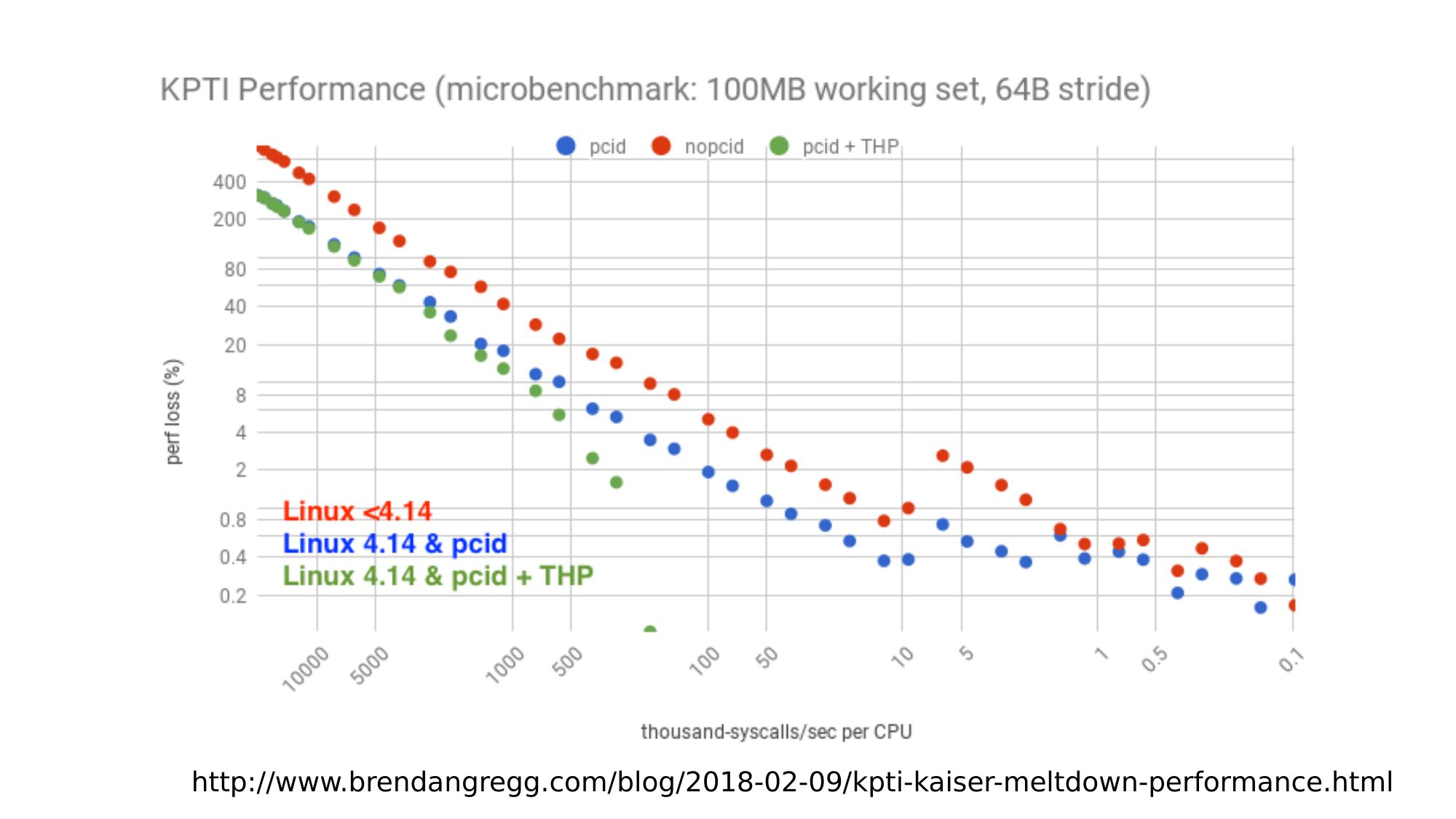

http://www.brendangregg.com/blog/2018-02-09/kpti-kaiser-meltdown-performance.html

slide 10:

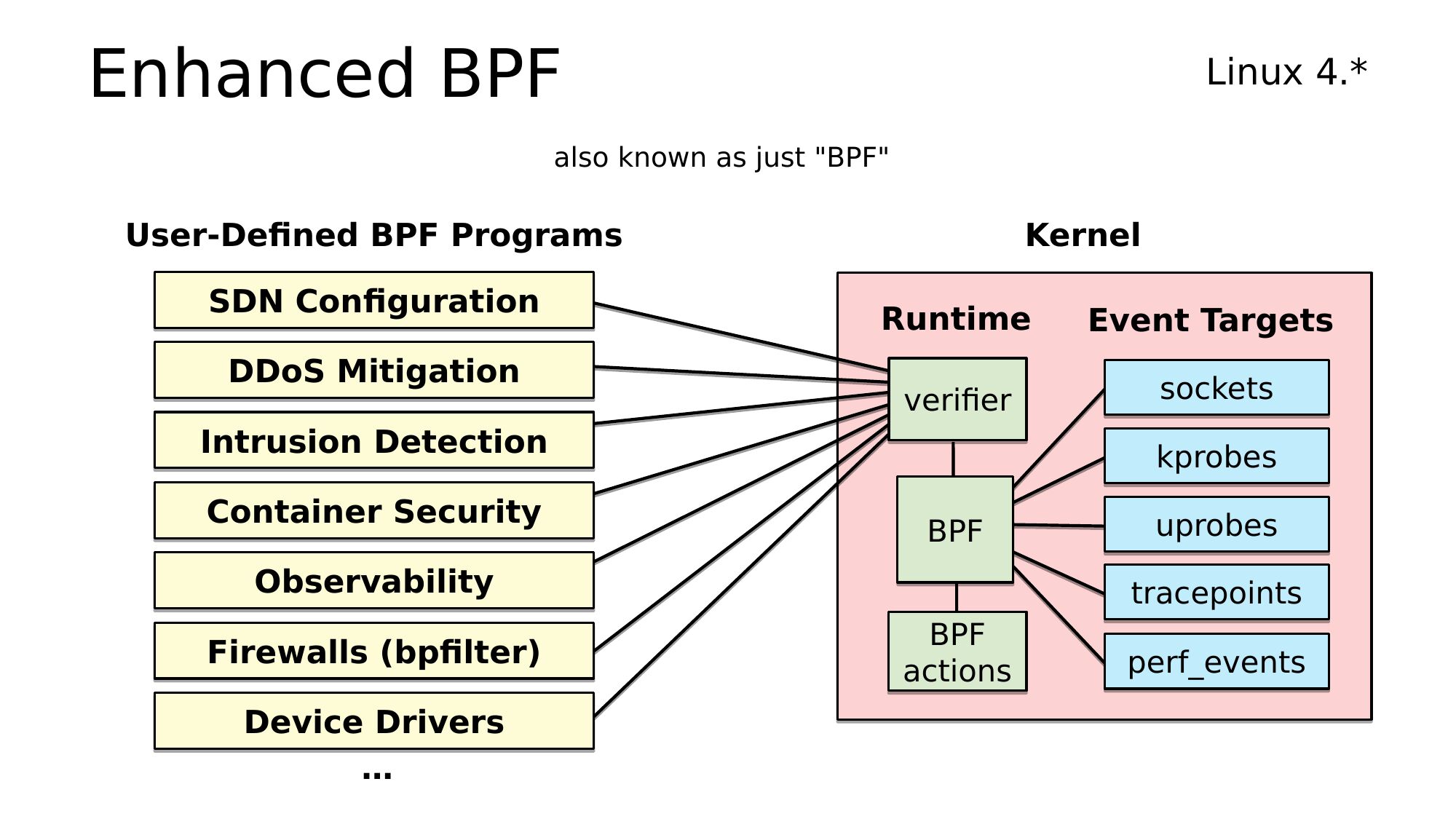

Enhanced BPF
Linux 4.*
also known as just "BPF"
User-Defined BPF Programs
SDN Configuration
DDoS Mitigation
Kernel
Runtime
Event Targets
verifier
sockets
Intrusion Detection
Container Security
kprobes
BPF
Observability
Firewalls (bpfilter)
Device Drivers
uprobes
tracepoints
BPF
actions
perf_events

slide 11:

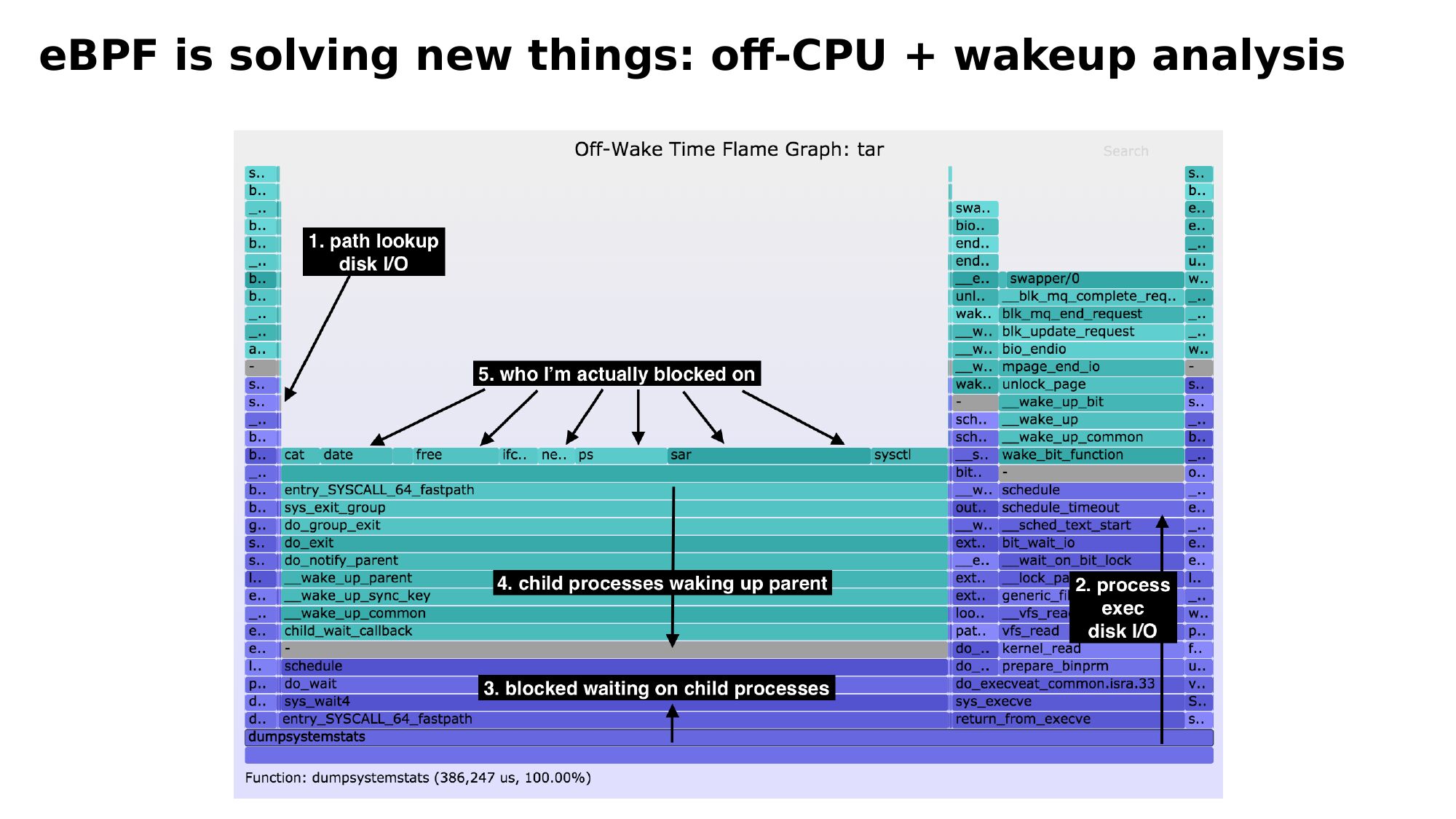

eBPF is solving new things: off-CPU + wakeup analysis

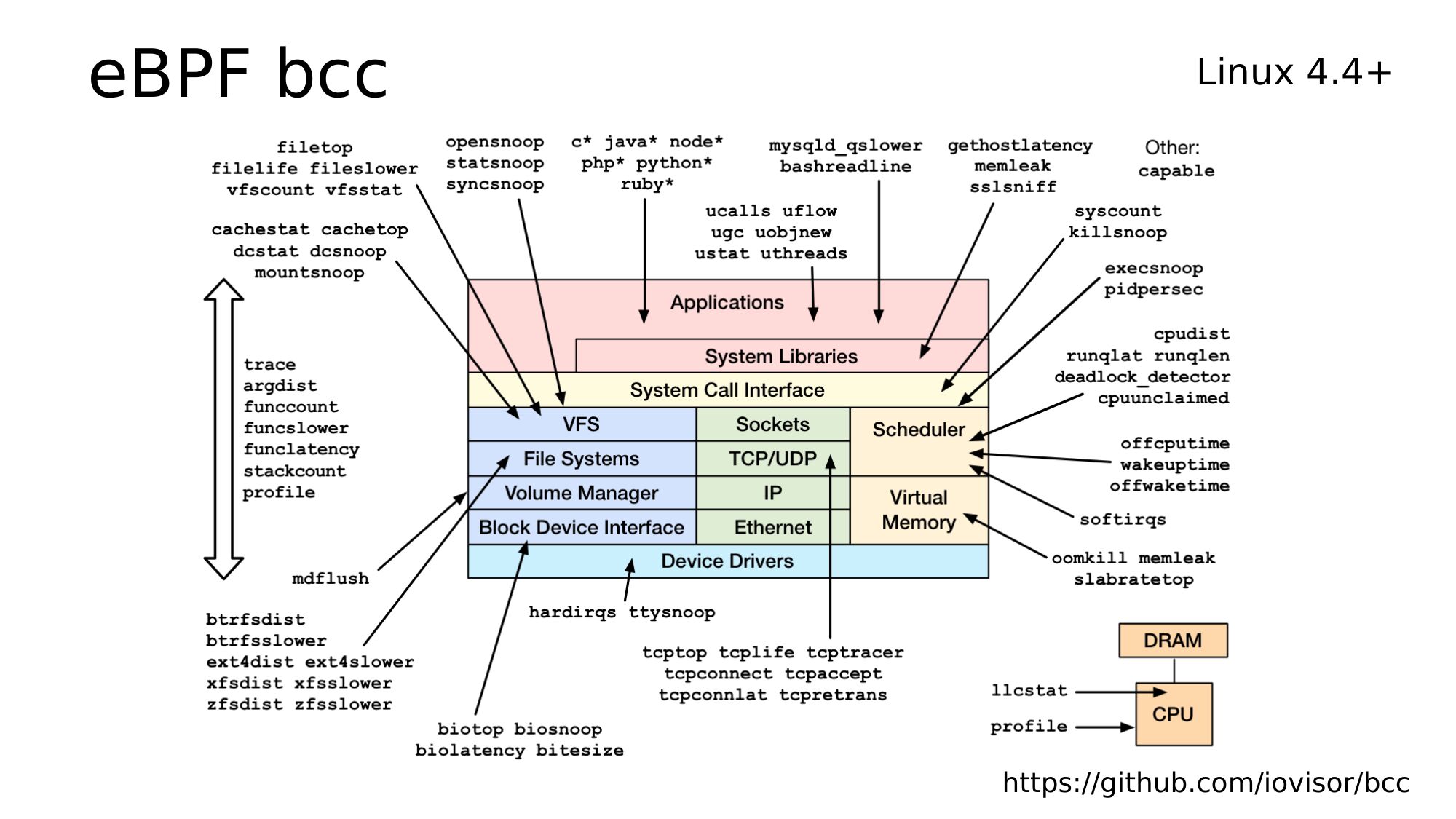

slide 12:

eBPF bcc
Linux 4.4+
https://github.com/iovisor/bcc

slide 13:

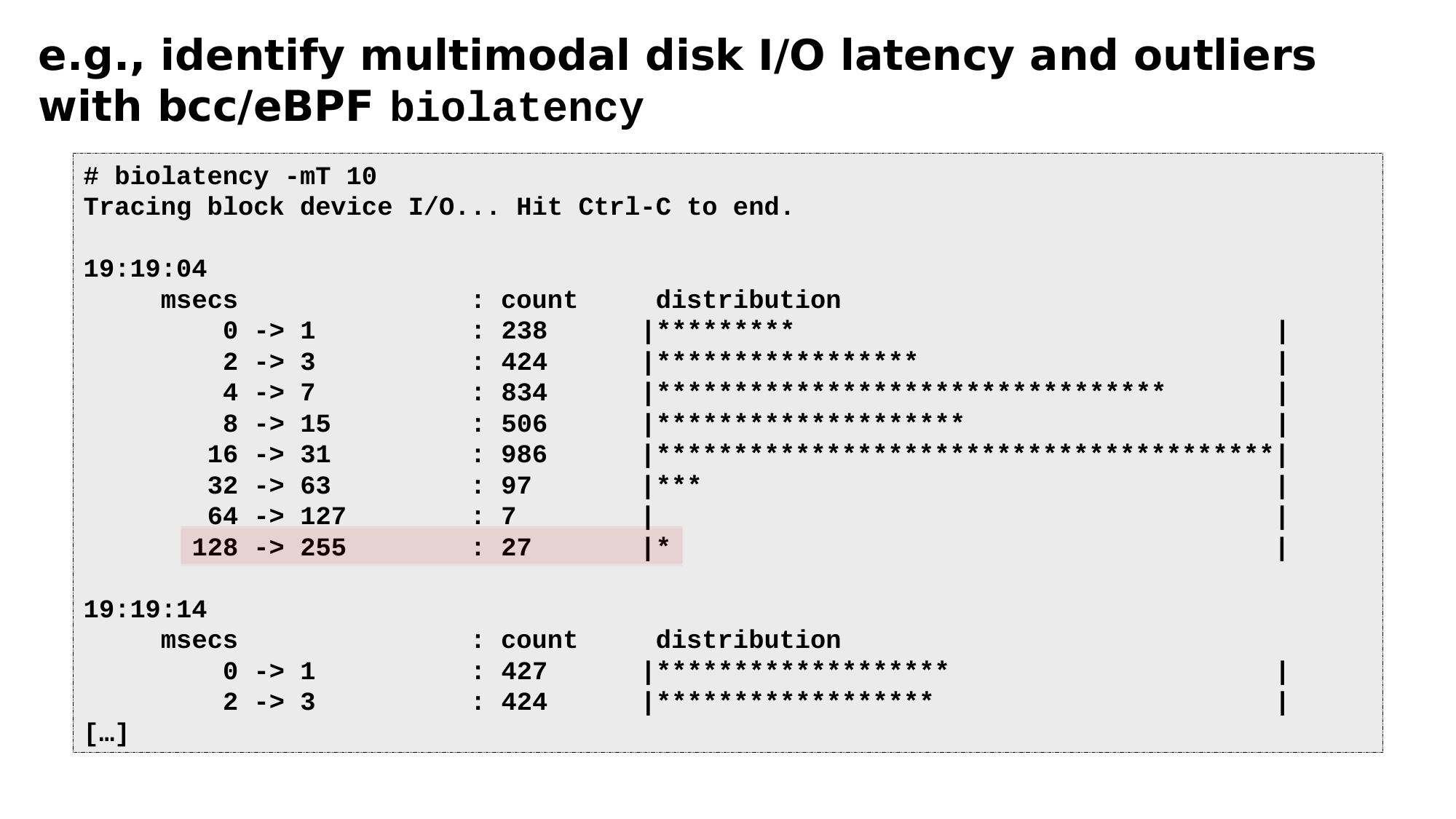

e.g., identify multimodal disk I/O latency and outliers
with bcc/eBPF biolatency
# biolatency -mT 10
Tracing block device I/O... Hit Ctrl-C to end.
19:19:04
msecs
0 ->gt; 1
2 ->gt; 3
4 ->gt; 7
8 ->gt; 15
16 ->gt; 31
32 ->gt; 63
64 ->gt; 127
128 ->gt; 255
19:19:14
msecs
0 ->gt; 1
2 ->gt; 3
[…]
: count
: 238
: 424
: 834
: 506
: 986
: 97
: 7
: 27
distribution
|*********
|*****************
|*********************************
|********************
|****************************************|
|***
: count
: 427
: 424
distribution
|*******************
|******************

slide 14:

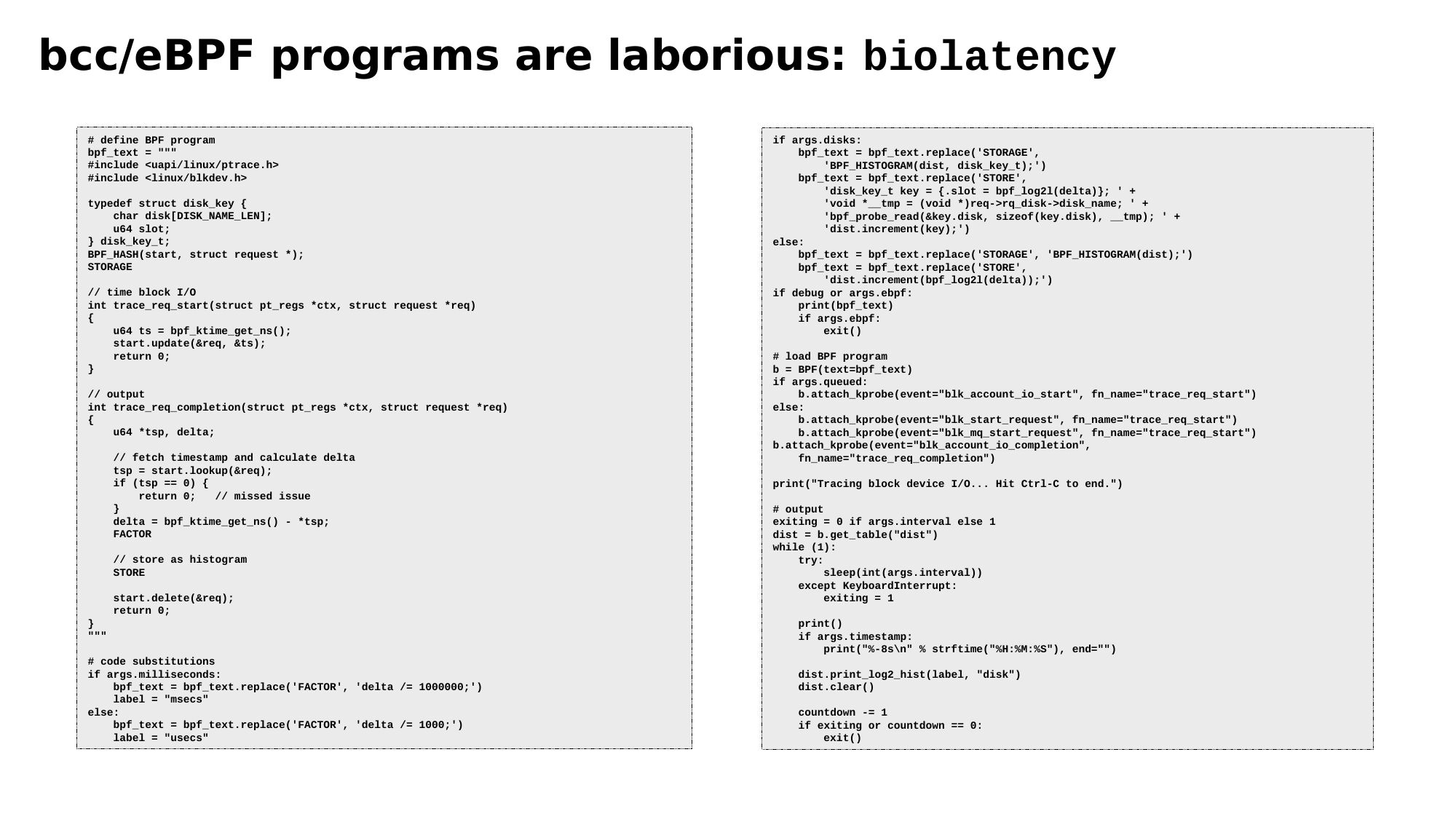

bcc/eBPF programs are laborious: biolatency
# define BPF program
bpf_text = """
#include gt;
#include gt;
typedef struct disk_key {
char disk[DISK_NAME_LEN];
u64 slot;
} disk_key_t;
BPF_HASH(start, struct request *);
STORAGE
// time block I/O
int trace_req_start(struct pt_regs *ctx, struct request *req)
u64 ts = bpf_ktime_get_ns();
start.update(&req, &ts);
return 0;
// output
int trace_req_completion(struct pt_regs *ctx, struct request *req)
u64 *tsp, delta;
// fetch timestamp and calculate delta
tsp = start.lookup(&req);
if (tsp == 0) {
return 0;
// missed issue
delta = bpf_ktime_get_ns() - *tsp;
FACTOR
// store as histogram
STORE
start.delete(&req);
return 0;
"""
# code substitutions
if args.milliseconds:
bpf_text = bpf_text.replace('FACTOR', 'delta /= 1000000;')
label = "msecs"
else:
bpf_text = bpf_text.replace('FACTOR', 'delta /= 1000;')
label = "usecs"
if args.disks:
bpf_text = bpf_text.replace('STORAGE',
'BPF_HISTOGRAM(dist, disk_key_t);')
bpf_text = bpf_text.replace('STORE',
'disk_key_t key = {.slot = bpf_log2l(delta)}; ' +
'void *__tmp = (void *)req->gt;rq_disk->gt;disk_name; ' +
'bpf_probe_read(&key.disk, sizeof(key.disk), __tmp); ' +
'dist.increment(key);')
else:
bpf_text = bpf_text.replace('STORAGE', 'BPF_HISTOGRAM(dist);')
bpf_text = bpf_text.replace('STORE',
'dist.increment(bpf_log2l(delta));')
if debug or args.ebpf:
print(bpf_text)
if args.ebpf:
exit()
# load BPF program
b = BPF(text=bpf_text)
if args.queued:
b.attach_kprobe(event="blk_account_io_start", fn_name="trace_req_start")
else:
b.attach_kprobe(event="blk_start_request", fn_name="trace_req_start")
b.attach_kprobe(event="blk_mq_start_request", fn_name="trace_req_start")
b.attach_kprobe(event="blk_account_io_completion",
fn_name="trace_req_completion")
print("Tracing block device I/O... Hit Ctrl-C to end.")
# output
exiting = 0 if args.interval else 1
dist = b.get_table("dist")
while (1):
try:
sleep(int(args.interval))
except KeyboardInterrupt:
exiting = 1
print()
if args.timestamp:
print("%-8s\n" % strftime("%H:%M:%S"), end="")
dist.print_log2_hist(label, "disk")
dist.clear()
countdown -= 1
if exiting or countdown == 0:
exit()

slide 15:

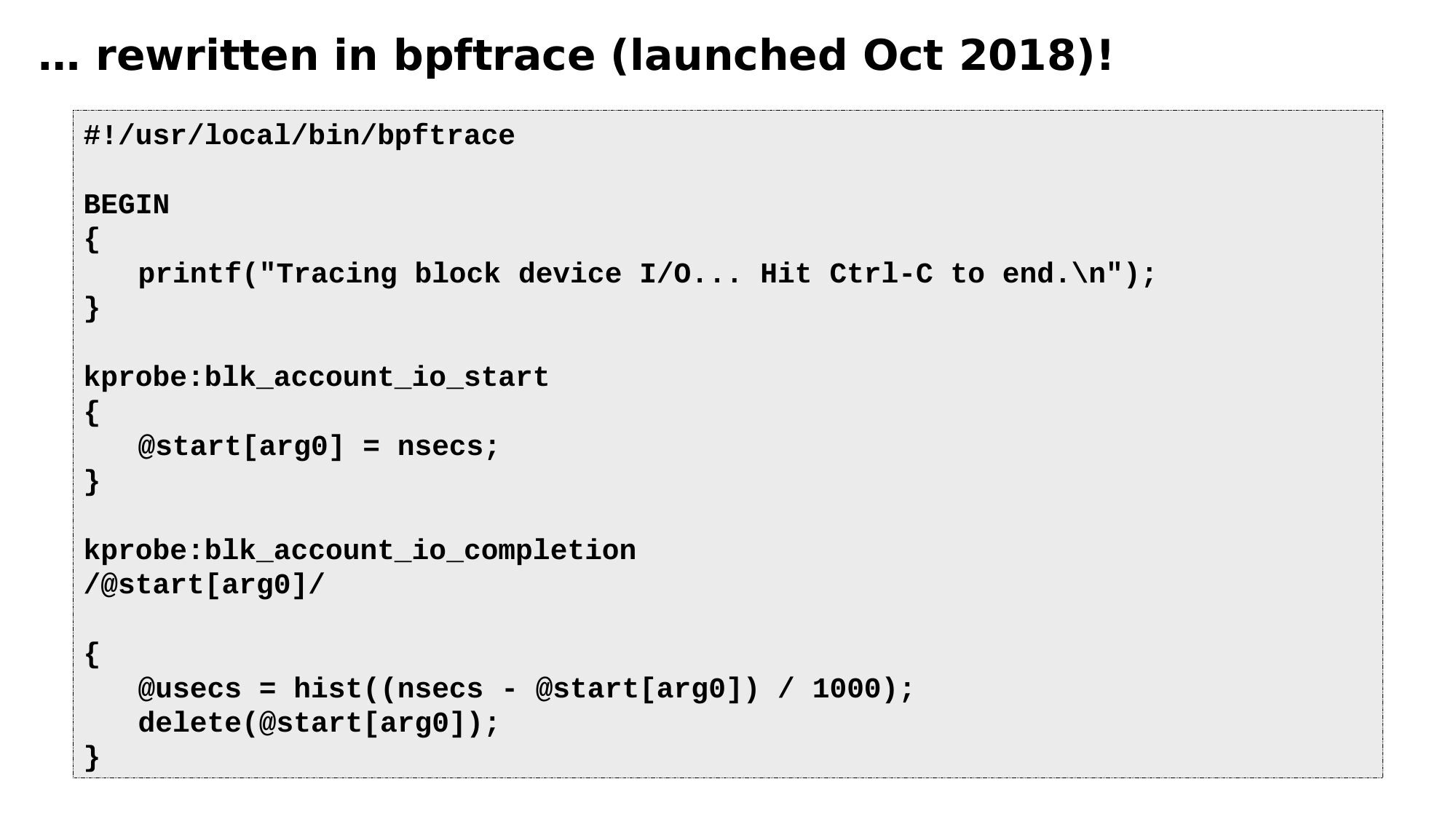

… rewritten in bpftrace (launched Oct 2018)!
#!/usr/local/bin/bpftrace
BEGIN
printf("Tracing block device I/O... Hit Ctrl-C to end.\n");
kprobe:blk_account_io_start
@start[arg0] = nsecs;
kprobe:blk_account_io_completion
/@start[arg0]/
@usecs = hist((nsecs - @start[arg0]) / 1000);
delete(@start[arg0]);

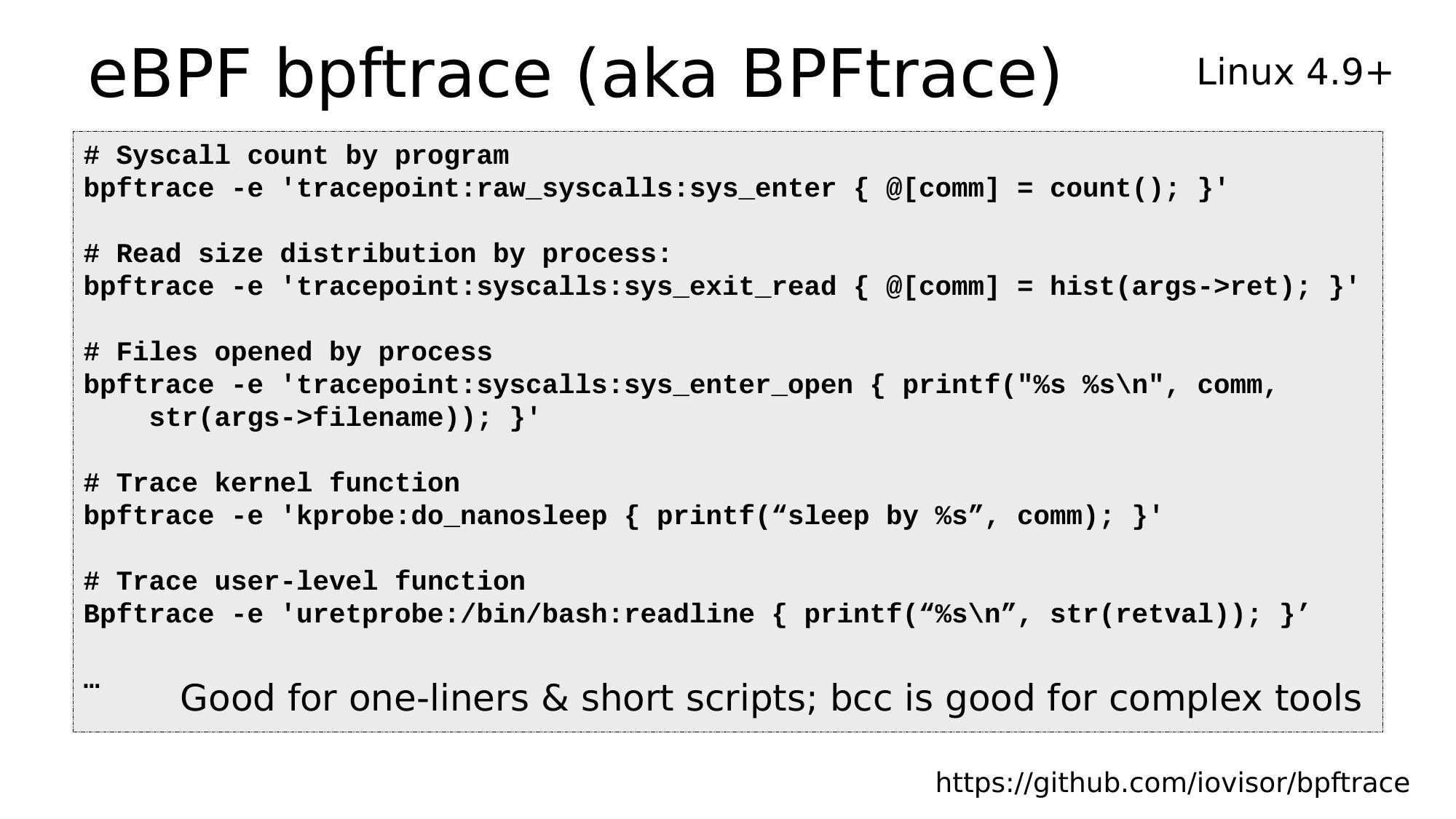

slide 16:

eBPF bpftrace (aka BPFtrace)
Linux 4.9+
# Syscall count by program
bpftrace -e 'tracepoint:raw_syscalls:sys_enter { @[comm] = count(); }'
# Read size distribution by process:
bpftrace -e 'tracepoint:syscalls:sys_exit_read { @[comm] = hist(args->gt;ret); }'
# Files opened by process
bpftrace -e 'tracepoint:syscalls:sys_enter_open { printf("%s %s\n", comm,
str(args->gt;filename)); }'
# Trace kernel function
bpftrace -e 'kprobe:do_nanosleep { printf(“sleep by %s”, comm); }'
# Trace user-level function
Bpftrace -e 'uretprobe:/bin/bash:readline { printf(“%s\n”, str(retval)); }’
Good for one-liners & short scripts; bcc is good for complex tools
https://github.com/iovisor/bpftrace

slide 17:

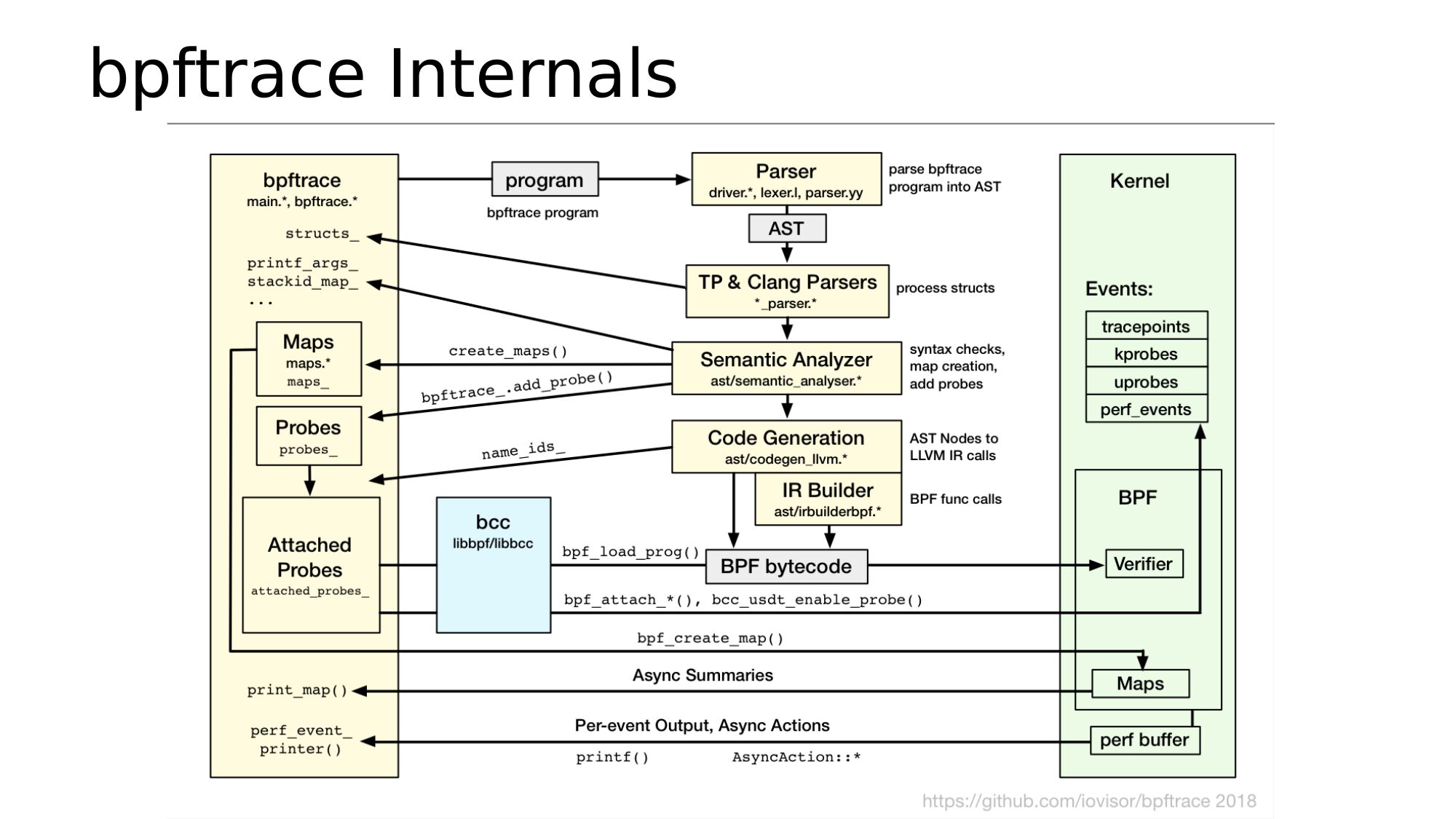

bpftrace Internals

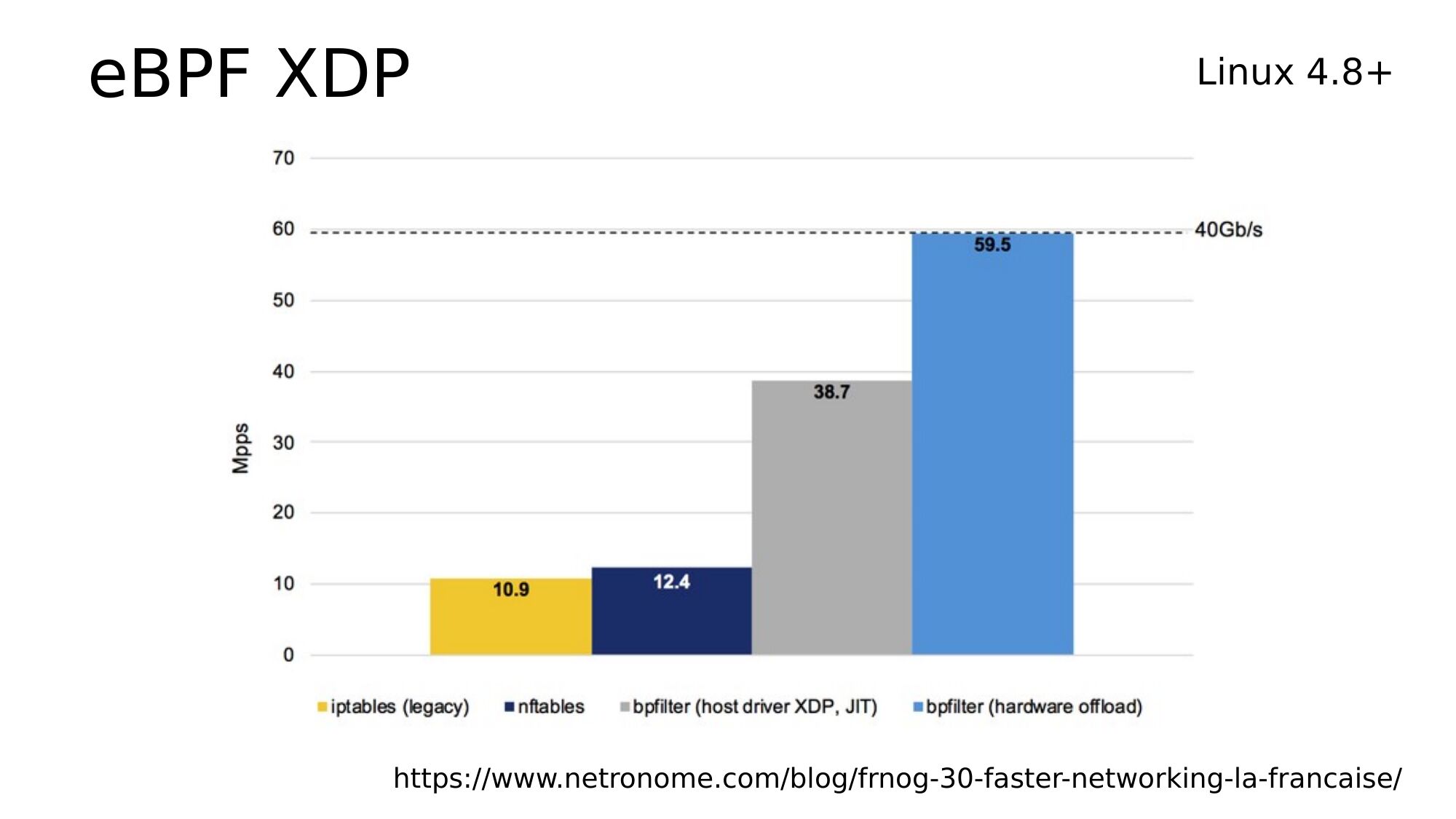

slide 18:

eBPF XDP
Linux 4.8+
https://www.netronome.com/blog/frnog-30-faster-networking-la-francaise/

slide 19:

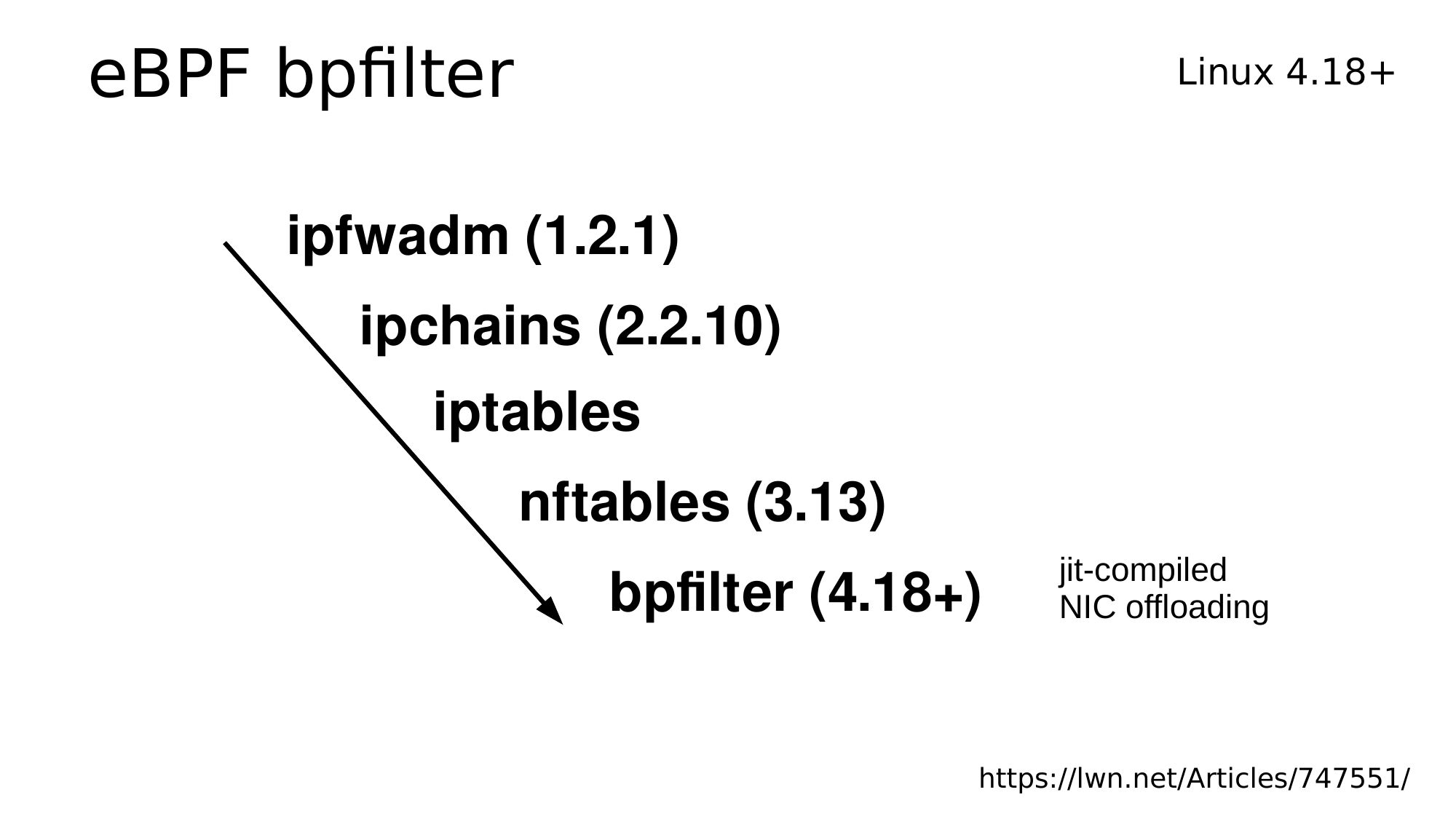

eBPF bpfilter
Linux 4.18+
ipfwadm (1.2.1)
ipchains (2.2.10)
iptables
nftables (3.13)
bpfilter (4.18+)
jit-compiled
NIC offloading
https://lwn.net/Articles/747551/

slide 20:

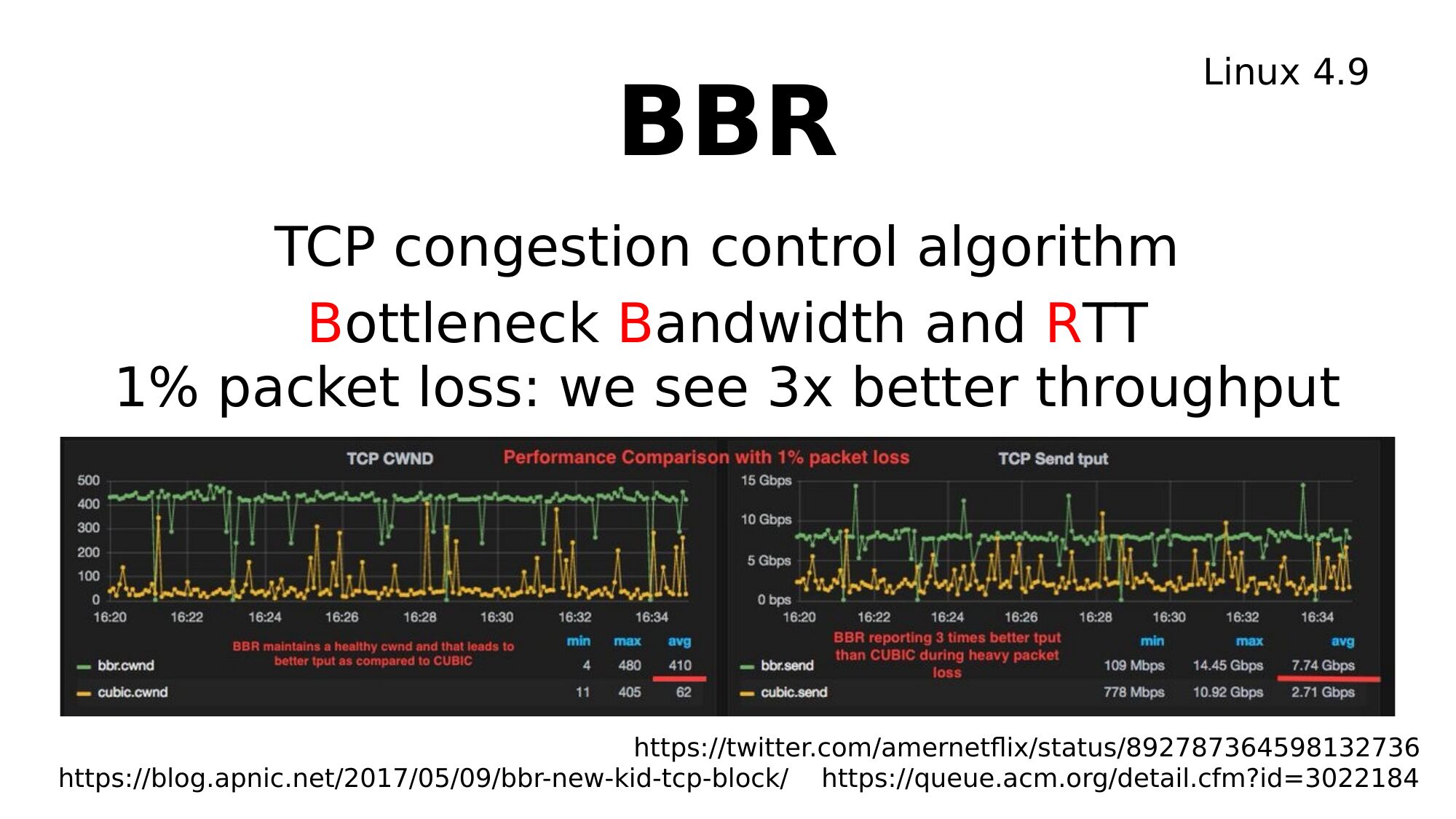

BBR
Linux 4.9
TCP congestion control algorithm
Bottleneck Bandwidth and RTT
1% packet loss: we see 3x better throughput
https://twitter.com/amernetflix/status/892787364598132736
https://blog.apnic.net/2017/05/09/bbr-new-kid-tcp-block/ https://queue.acm.org/detail.cfm?id=3022184

slide 21:

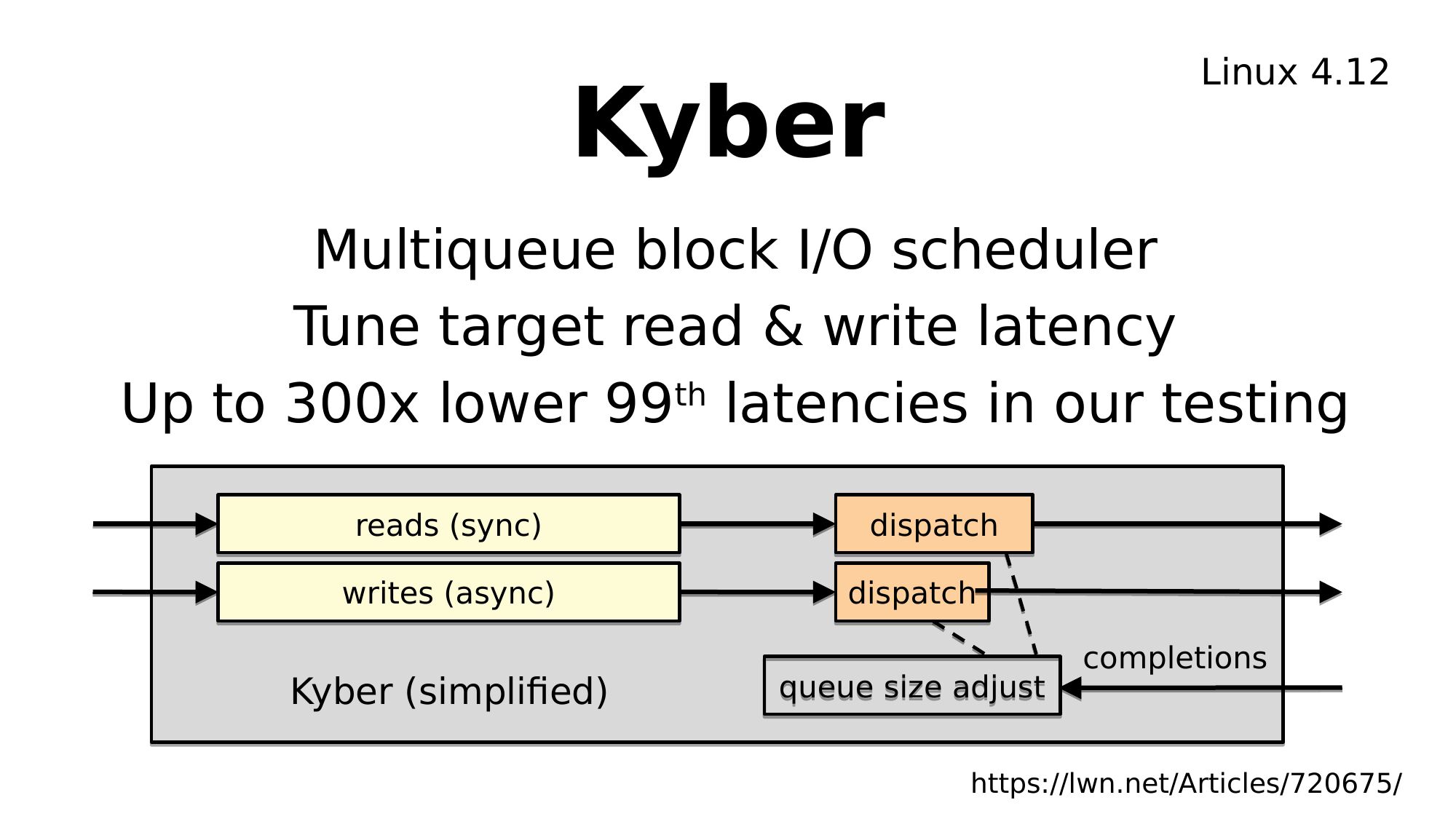

Linux 4.12
Kyber
Multiqueue block I/O scheduler
Tune target read & write latency
Up to 300x lower 99th latencies in our testing
reads (sync)
writes (async)
Kyber (simplified)
dispatch
dispatch
queue size adjust
completions
https://lwn.net/Articles/720675/

slide 22:

Hist Triggers
Linux 4.17
# cat /sys/kernel/debug/tracing/events/kmem/kmalloc/hist
# trigger info:
hist:keys=stacktrace:vals=bytes_req,bytes_alloc:sort=bytes_alloc:size=2048
[active]
[…]
{ stacktrace:
__kmalloc+0x11b/0x1b0
ftrace
seq_buf_alloc+0x1b/0x50
advanced
seq_read+0x2cc/0x370
summaries
proc_reg_read+0x3d/0x80
__vfs_read+0x28/0xe0
vfs_read+0x86/0x140
SyS_read+0x46/0xb0
system_call_fastpath+0x12/0x6a
} hitcount:
19133 bytes_req:
78368768 bytes_alloc:
https://www.kernel.org/doc/html/latest/trace/histogram.html

slide 23:

Linux 4.?
not merged yet
PSI
Pressure Stall Information
More saturation metrics!
The USE Method
/proc/pressure/cpu
/proc/pressure/memory
/proc/pressure/io
10-, 60-, and 300-second averages
Saturation
Errors
Resource
Utilization
(%)
https://lwn.net/Articles/759781/

slide 24:

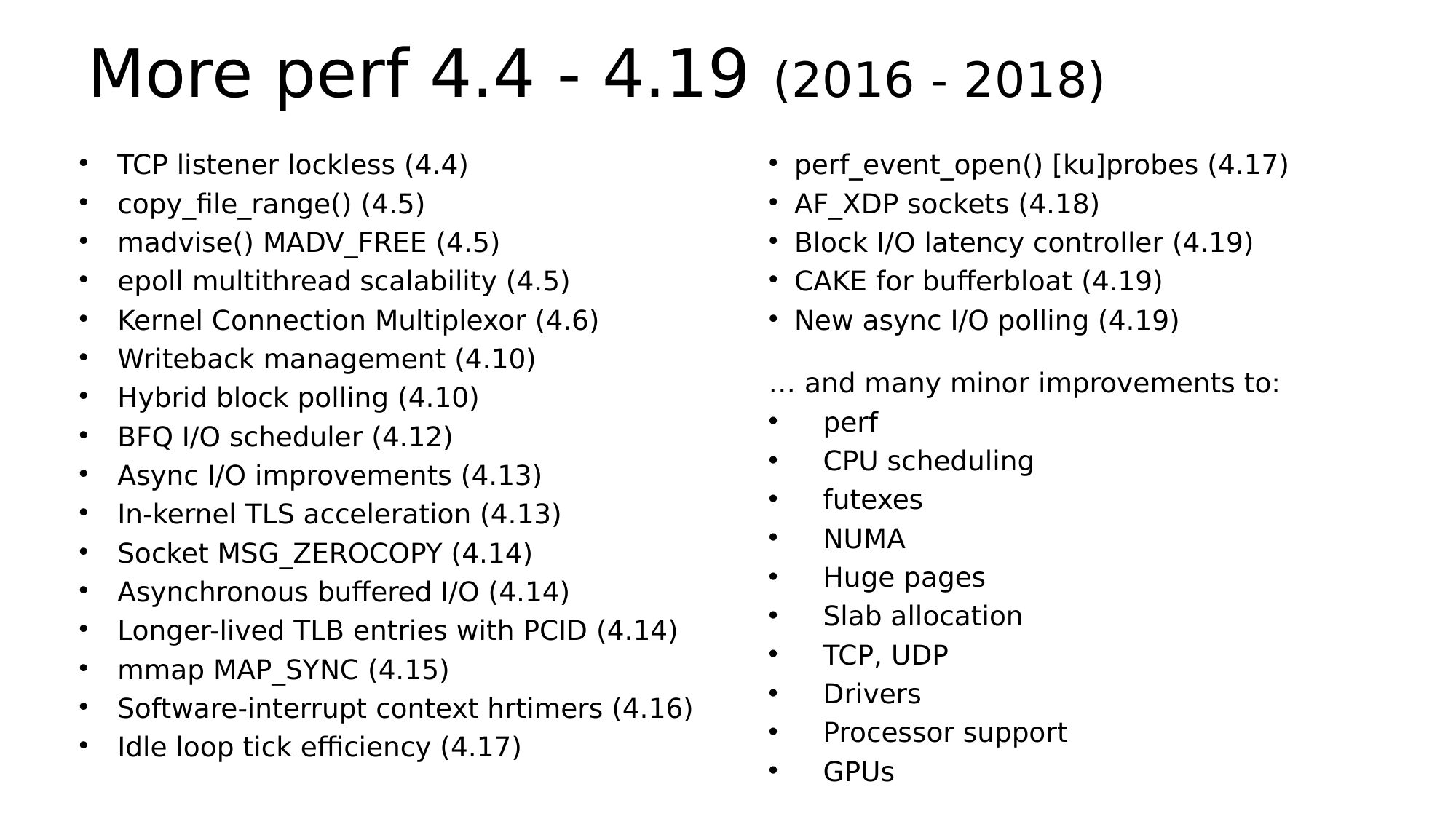

More perf 4.4 - 4.19 (2016 - 2018)
TCP listener lockless (4.4)
copy_file_range() (4.5)
madvise() MADV_FREE (4.5)
epoll multithread scalability (4.5)
Kernel Connection Multiplexor (4.6)
Writeback management (4.10)
Hybrid block polling (4.10)
BFQ I/O scheduler (4.12)
Async I/O improvements (4.13)
In-kernel TLS acceleration (4.13)
Socket MSG_ZEROCOPY (4.14)
Asynchronous buffered I/O (4.14)
Longer-lived TLB entries with PCID (4.14)
mmap MAP_SYNC (4.15)
Software-interrupt context hrtimers (4.16)
Idle loop tick efficiency (4.17)
perf_event_open() [ku]probes (4.17)
AF_XDP sockets (4.18)
Block I/O latency controller (4.19)
CAKE for bufferbloat (4.19)
New async I/O polling (4.19)
… and many minor improvements to:
perf
CPU scheduling
futexes
NUMA
Huge pages
Slab allocation
TCP, UDP
Drivers
Processor support
GPUs

slide 25:

Take Aways
1. Run latest
2. Browse major features
eg, https://kernelnewbies.org/Linux_4.19

slide 26:

Some Linux perf Resources
http://www.brendangregg.com/linuxperf.html
https://kernelnewbies.org/LinuxChanges
https://lwn.net/Kernel
https://github.com/iovisor/bcc
http://blog.stgolabs.net/search/label/linux
http://www.brendangregg.com/blog/2018-02-09/kpti-kaiser-meltdown-performance.html
