AWS re:Invent 2017: How Netflix Tunes EC2 Instances for Performance

Video: https://www.youtube.com/watch?v=89fYOo1V2pA

CMP325 talk for AWS re:Invent 2017, by Brendan Gregg.

Description: "At Netflix we make the best use of AWS EC2 instance types and features to create a high performance cloud, achieving near bare metal speed for our workloads. This session will summarize the configuration, tuning, and activities for delivering the fastest possible EC2 instances, and will help other EC2 users improve performance, reduce latency outliers, and make better use of EC2 features. We'll show how we choose EC2 instance types, how we choose between EC2 Xen modes: HVM, PV, and PVHVM, and the importance of EC2 features such SR-IOV for bare-metal performance. SR-IOV is used by EC2 enhanced networking, and recently for the new i3 instance type for enhanced disk performance as well. We'll also cover kernel tuning and observability tools, from basic to advanced. Advanced performance analysis includes the use of Java and Node.js flame graphs, and the new EC2 Performance Monitoring Counter (PMC) feature released this year."

next
prev
1/63
next
prev
2/63
next
prev
3/63
next
prev
4/63
next
prev
5/63
next
prev
6/63
next
prev
7/63
next
prev
8/63
next
prev
9/63
next
prev
10/63
next
prev
11/63
next
prev
12/63
next
prev
13/63
next
prev
14/63
next
prev
15/63
next
prev
16/63
next
prev
17/63
next
prev
18/63
next
prev
19/63
next
prev
20/63
next
prev
21/63
next
prev
22/63
next
prev
23/63
next
prev
24/63
next
prev
25/63
next
prev
26/63
next
prev
27/63
next
prev
28/63
next
prev
29/63
next
prev
30/63
next
prev
31/63
next
prev
32/63
next
prev
33/63
next
prev
34/63
next
prev
35/63
next
prev
36/63
next
prev
37/63
next
prev
38/63
next
prev
39/63
next
prev
40/63
next
prev
41/63
next
prev
42/63
next
prev
43/63
next
prev
44/63
next
prev
45/63
next
prev
46/63
next
prev
47/63
next
prev
48/63
next
prev
49/63
next
prev
50/63
next
prev
51/63
next
prev
52/63
next
prev
53/63
next
prev
54/63
next
prev
55/63
next
prev
56/63
next
prev
57/63
next
prev
58/63
next
prev
59/63
next
prev
60/63
next
prev
61/63
next
prev
62/63
next
prev
63/63

PDF: AWSreInvent2017_performance_tuning_EC2.pdf

Keywords (from pdftotext):

slide 1:
    CMP325
    How Netflix Tunes
    EC2 Instances for
    Performance
    Brendan Gregg, Performance and OS Engineering Team
    November 28, 2017
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 2:
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 3:

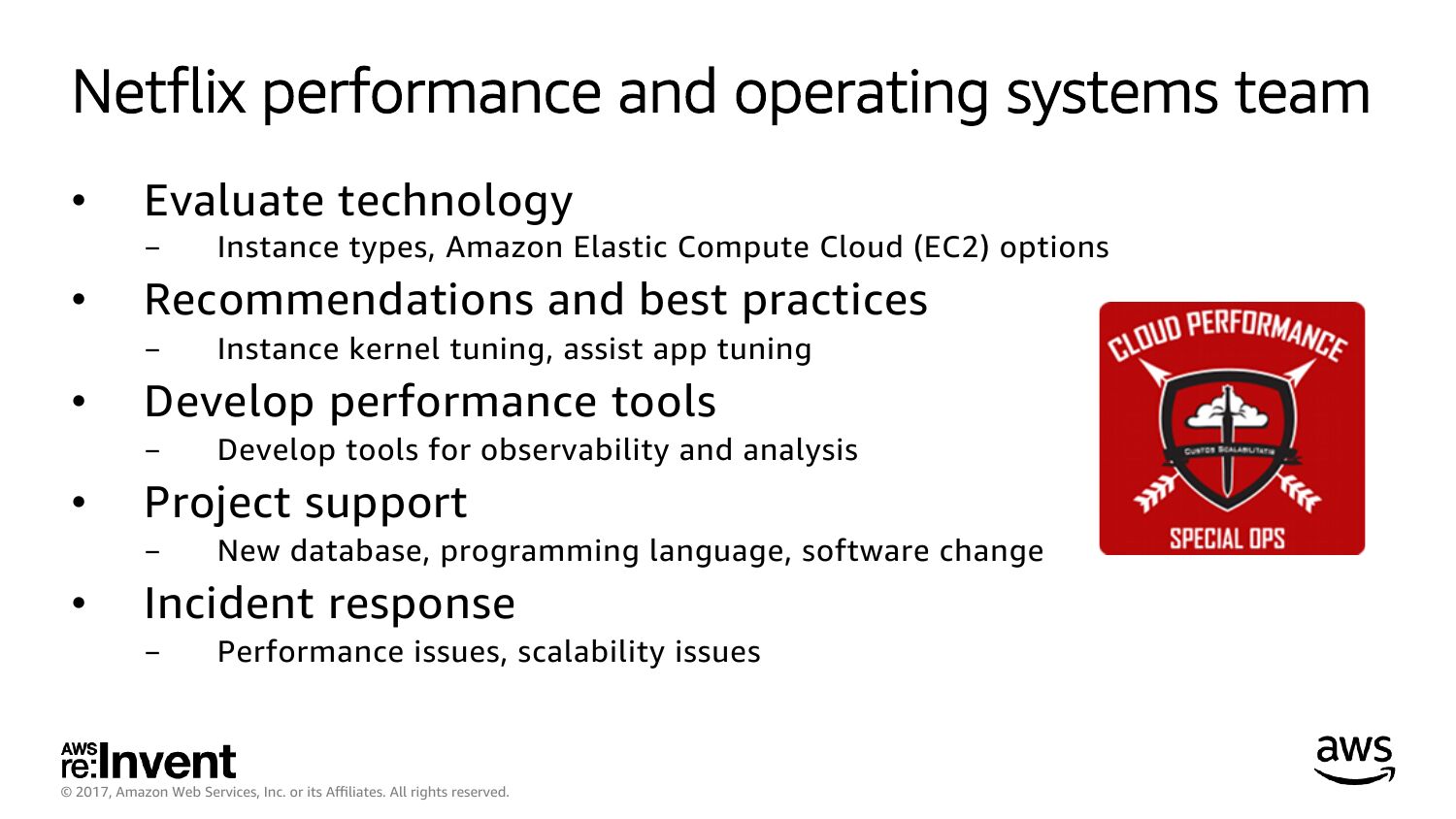

    Netflix performance and operating systems team
    Evaluate technology
    Recommendations and best practices
    Develop tools for observability and analysis
    Project support
    Instance kernel tuning, assist app tuning
    Develop performance tools
    Instance types, Amazon Elastic Compute Cloud (EC2) options
    New database, programming language, software change
    Incident response
    Performance issues, scalability issues
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 4:

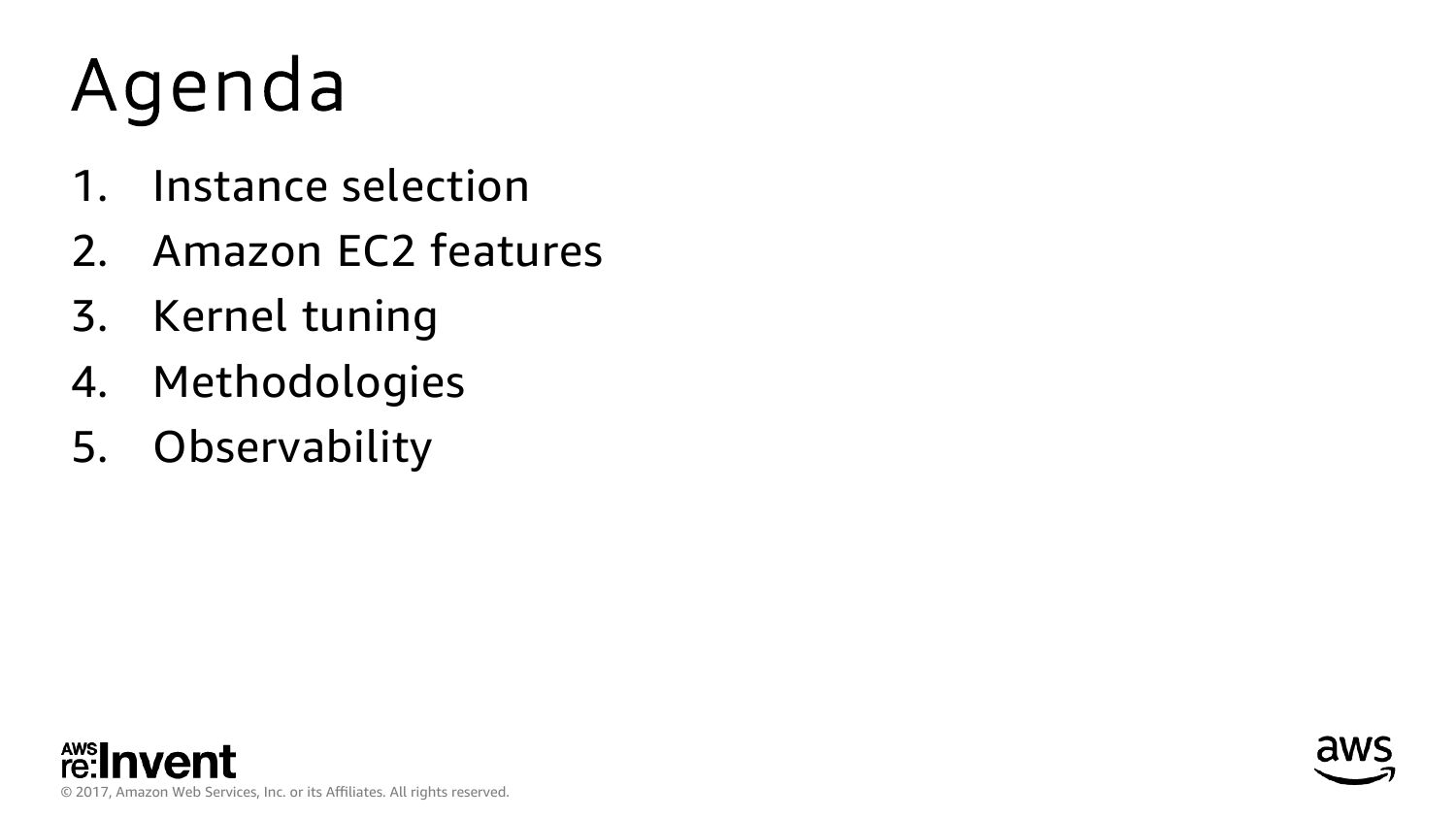

    Agenda
    Instance selection
    Amazon EC2 features
    Kernel tuning
    Methodologies
    Observability
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 5:

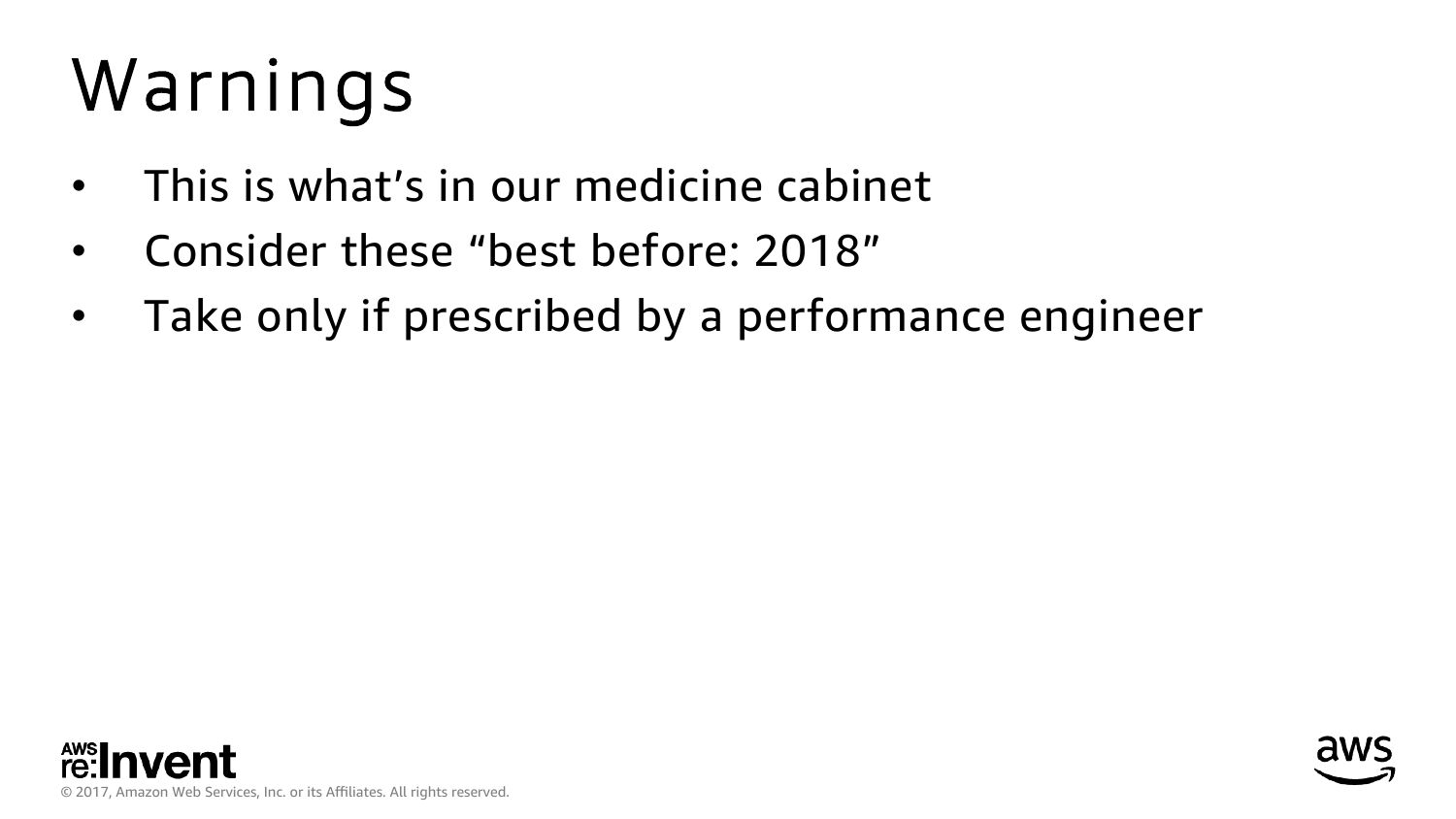

    Warnings
    This is what’s in our medicine cabinet
    Consider these “best before: 2018”
    Take only if prescribed by a performance engineer
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 6:
    1. Instance selection
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 7:

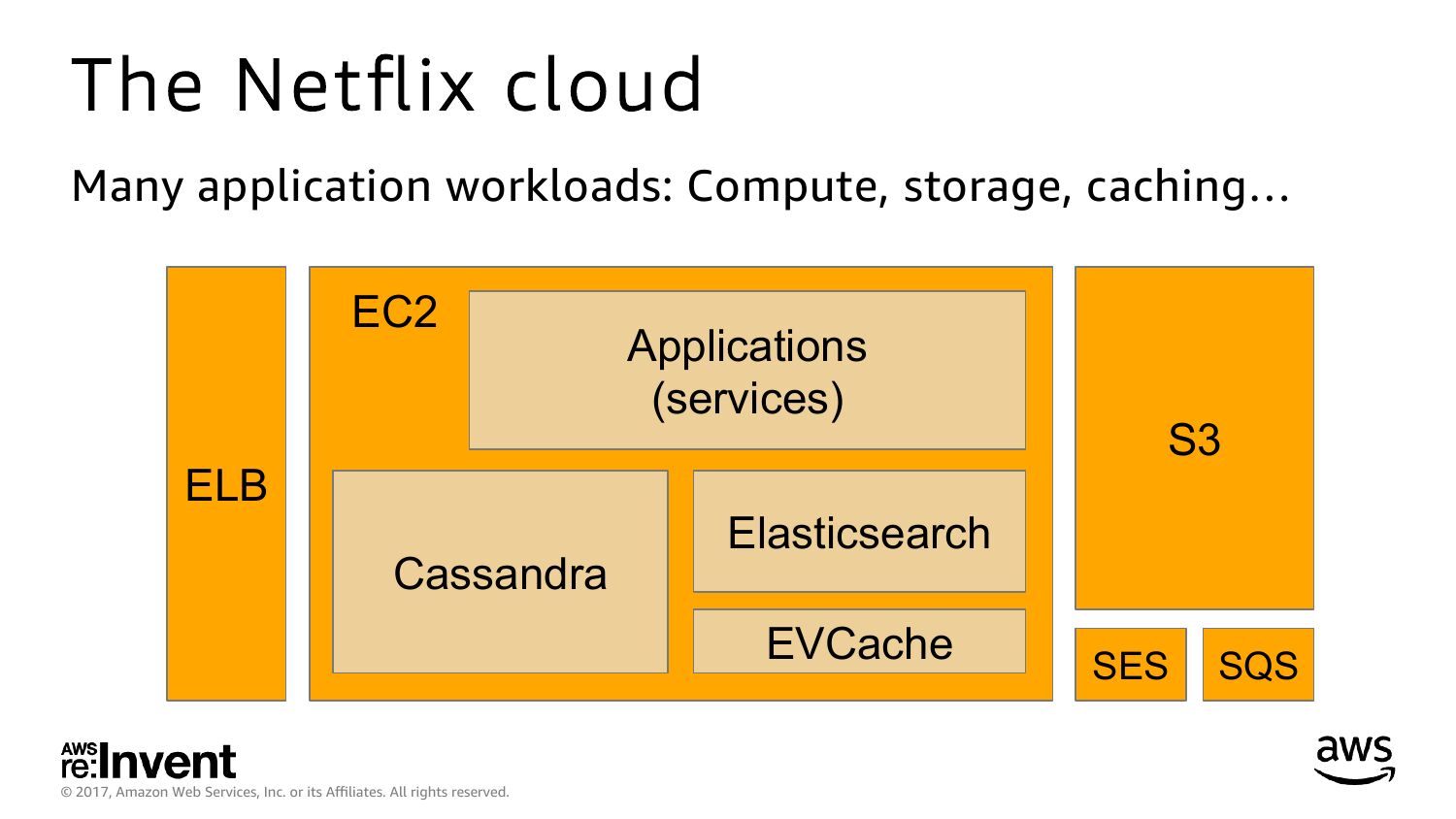

    The Netflix cloud
    Many application workloads: Compute, storage, caching…
    EC2
    ELB
    Cassandra
    Applications
    (services)
    Elasticsearch
    EVCache
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    SES
    SQS

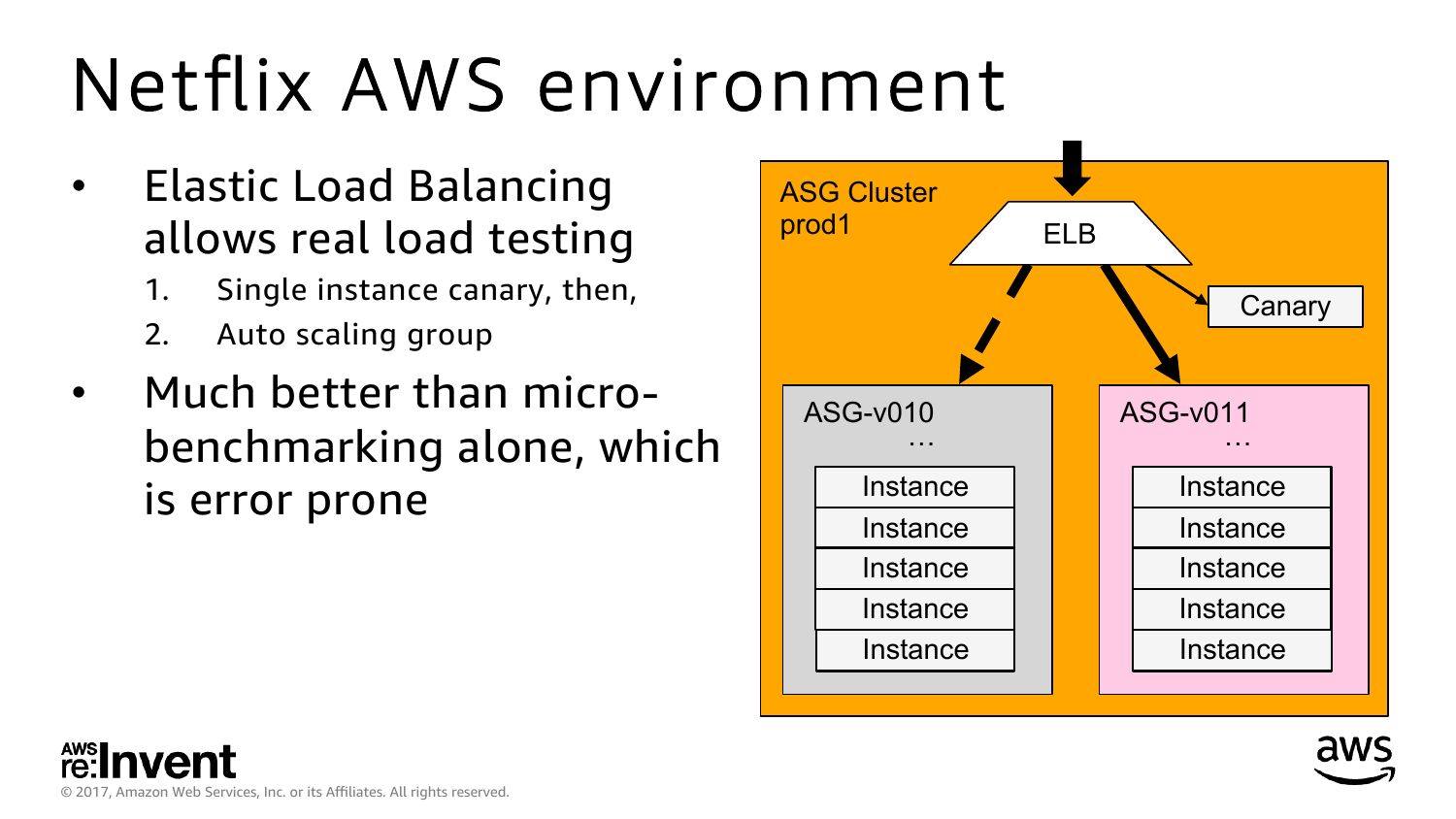

slide 8:
    Netflix AWS environment
    Elastic Load Balancing
    allows real load testing
    ASG Cluster
    prod1
    Single instance canary, then,
    Auto scaling group
    Much better than microbenchmarking alone, which
    is error prone
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    ELB
    Canary
    ASG-v010
    Instance
    Instance
    Instance
    Instance
    Instance
    ASG-v011
    Instance
    Instance
    Instance
    Instance
    Instance

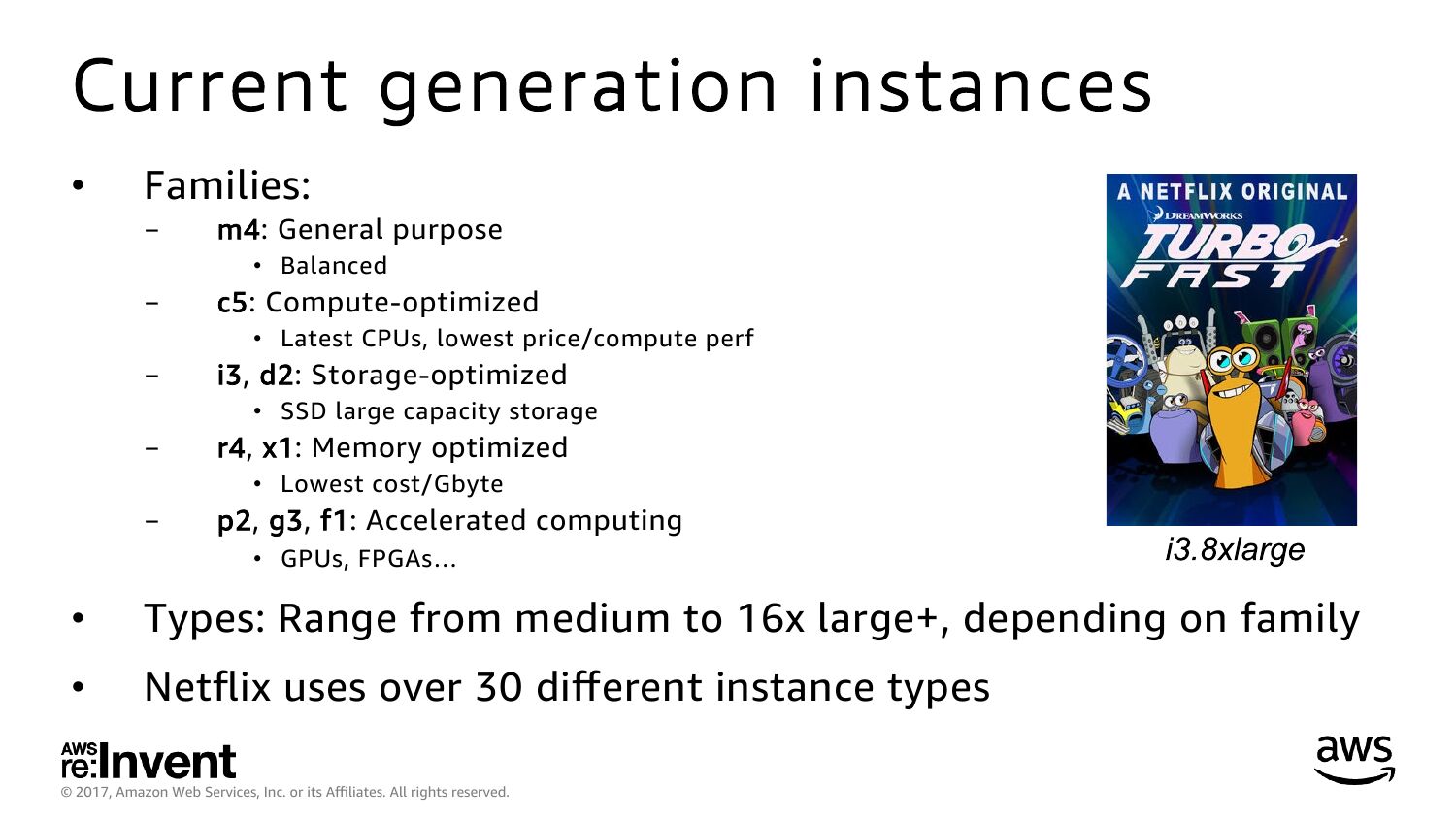

slide 9:
    Current generation instances
    Families:
    m4: General purpose
    • Balanced
    c5: Compute-optimized
    • Latest CPUs, lowest price/compute perf
    i3, d2: Storage-optimized
    • SSD large capacity storage
    r4, x1: Memory optimized
    • Lowest cost/Gbyte
    p2, g3, f1: Accelerated computing
    • GPUs, FPGAs…
    Types: Range from medium to 16x large+, depending on family
    Netflix uses over 30 different instance types
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 10:

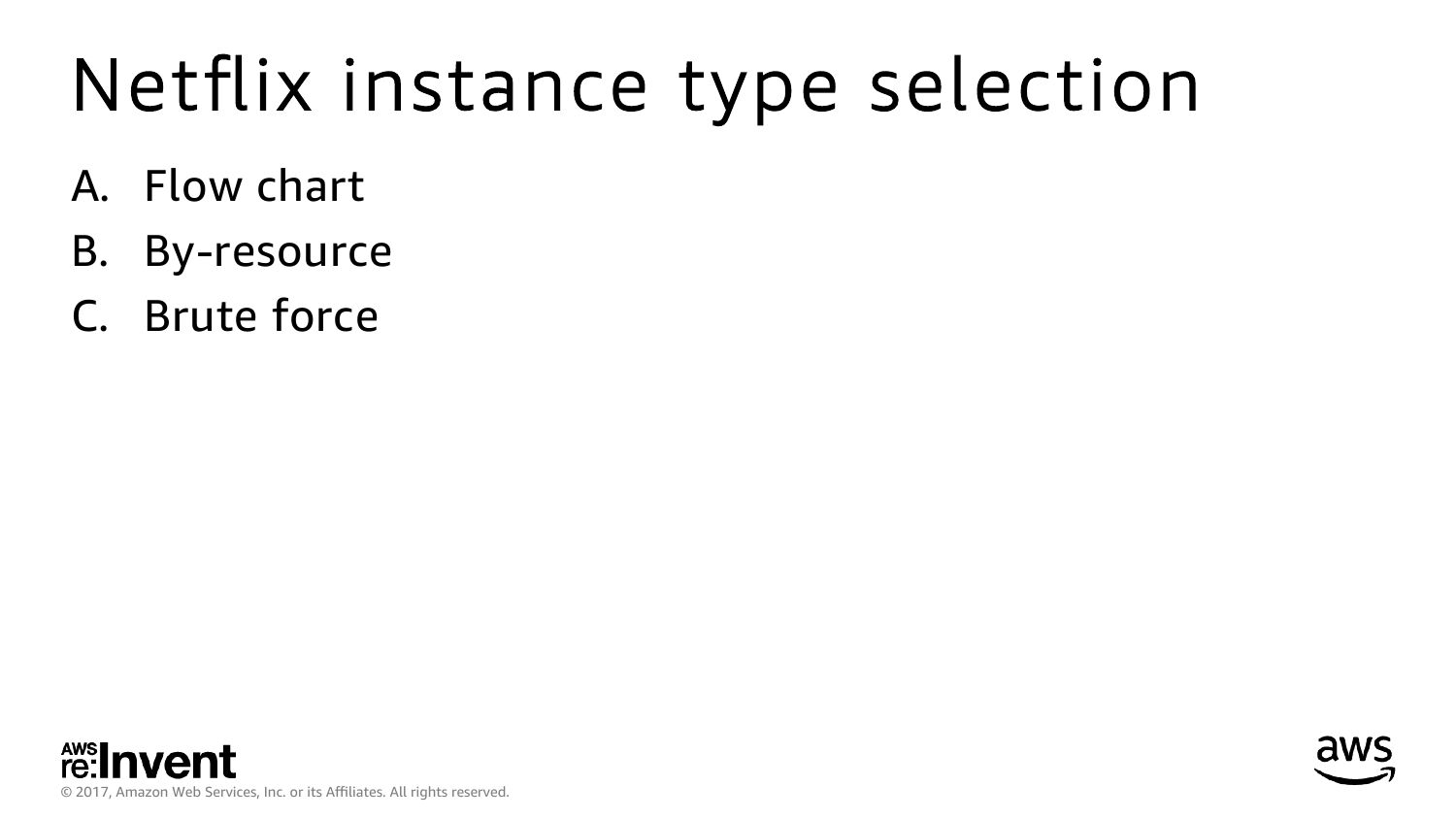

    Netflix instance type selection
    A. Flow chart
    B. By-resource
    C. Brute force
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 11:

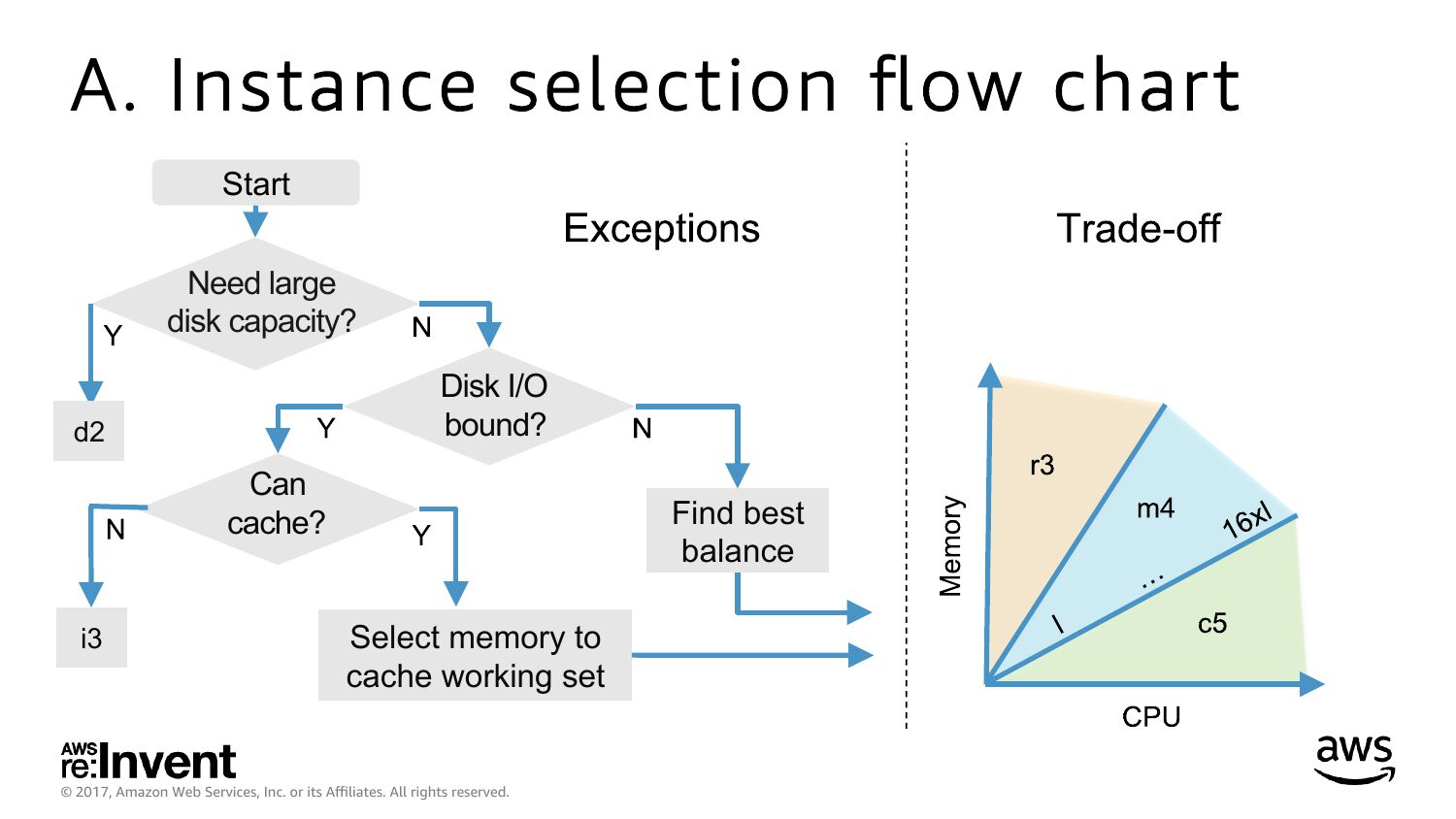

    A. Instance selection flow chart
    Start
    Need large
    disk capacity?
    Disk I/O
    bound?
    Can
    cache?
    Find best
    balance
    Select memory to
    cache working set
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 12:

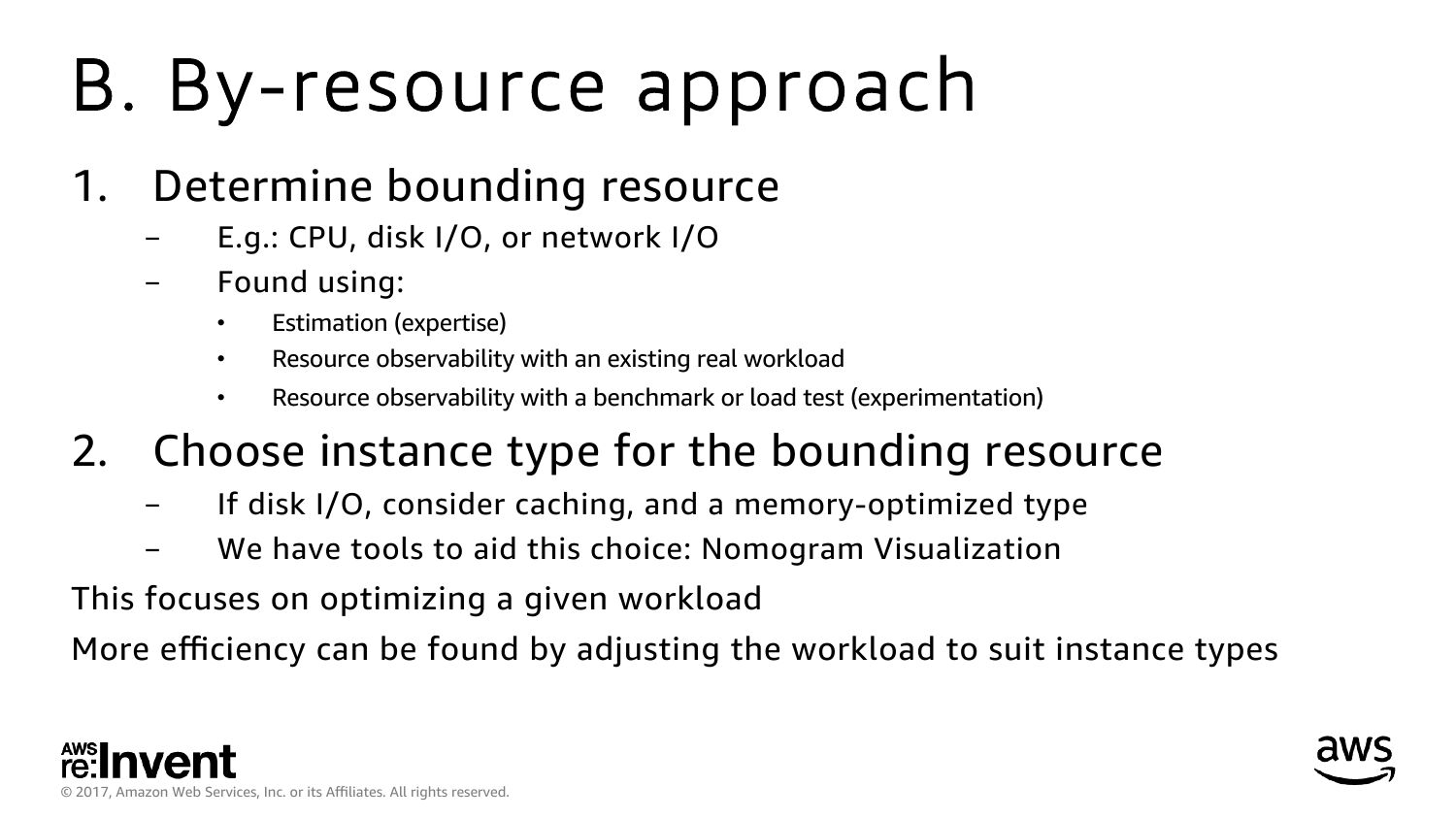

    B. By-resource approach
    Determine bounding resource
    E.g.: CPU, disk I/O, or network I/O
    Found using:
    Estimation (expertise)
    Resource observability with an existing real workload
    Resource observability with a benchmark or load test (experimentation)
    Choose instance type for the bounding resource
    If disk I/O, consider caching, and a memory-optimized type
    We have tools to aid this choice: Nomogram Visualization
    This focuses on optimizing a given workload
    More efficiency can be found by adjusting the workload to suit instance types
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 13:

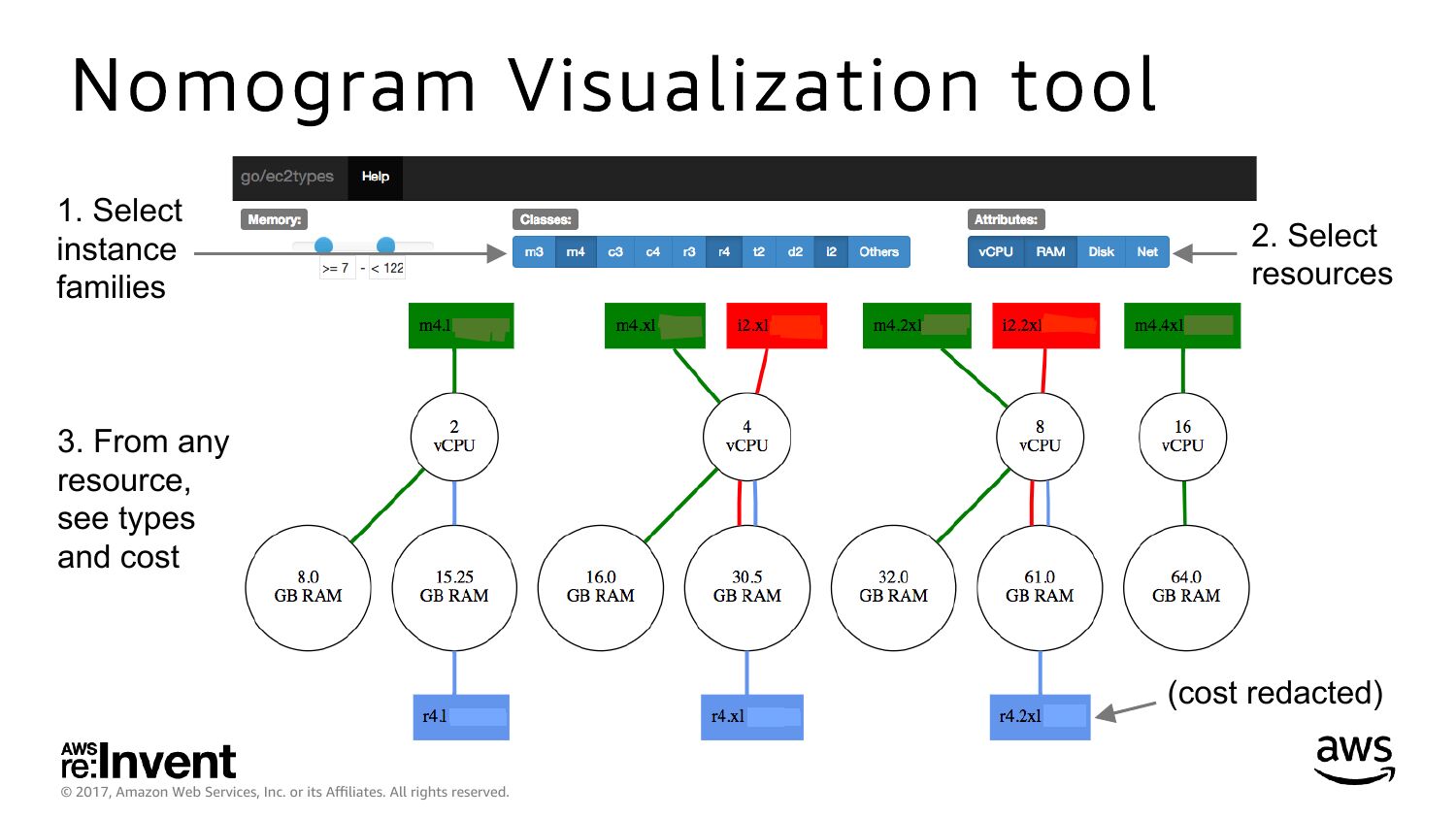

    Nomogram Visualization tool
    1. Select
    instance
    families
    2. Select
    resources
    3. From any
    resource,
    see types
    and cost
    (cost redacted)
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 14:

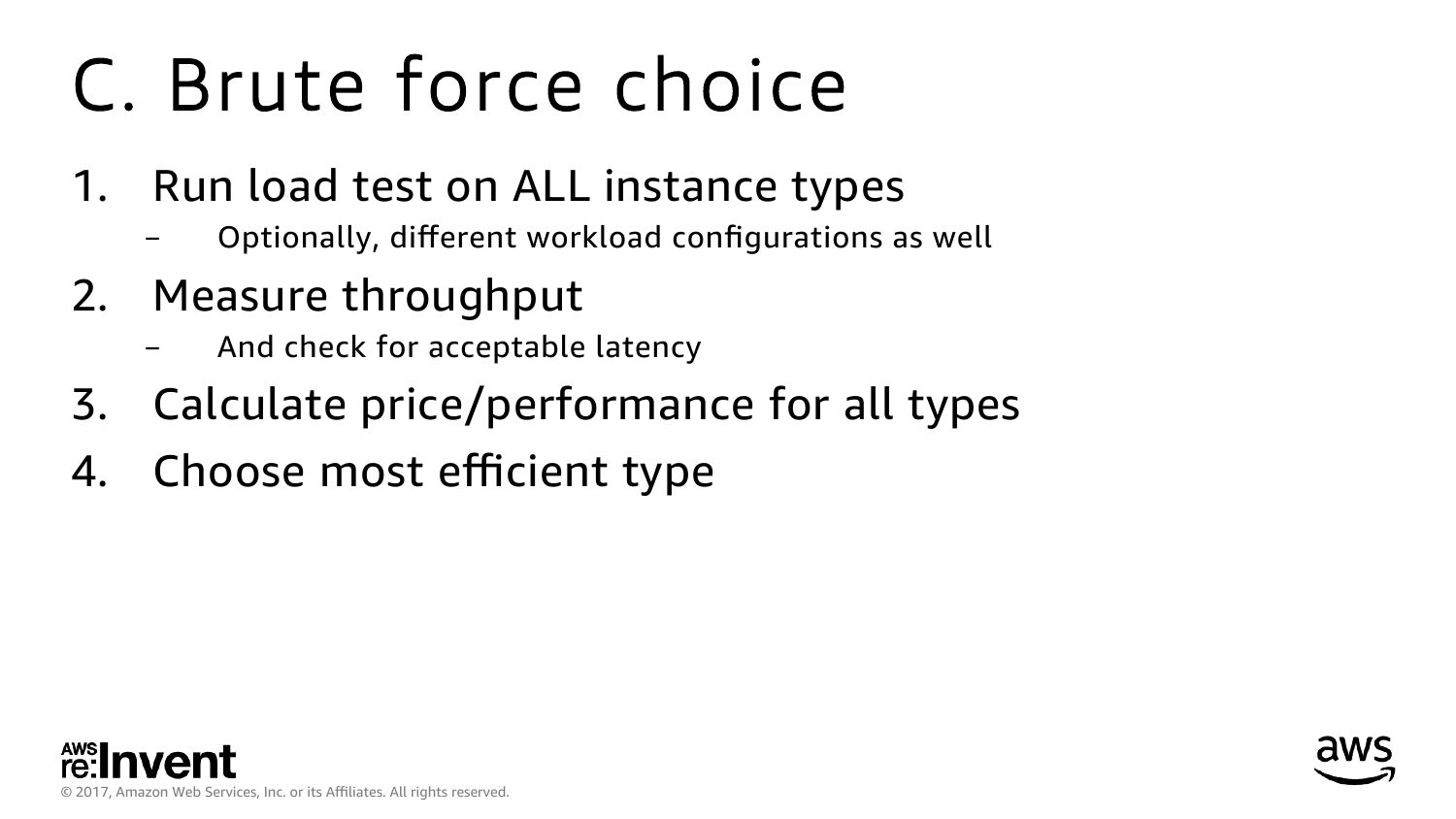

    C. Brute force choice
    Run load test on ALL instance types
    Measure throughput
    Optionally, different workload configurations as well
    And check for acceptable latency
    Calculate price/performance for all types
    Choose most efficient type
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 15:

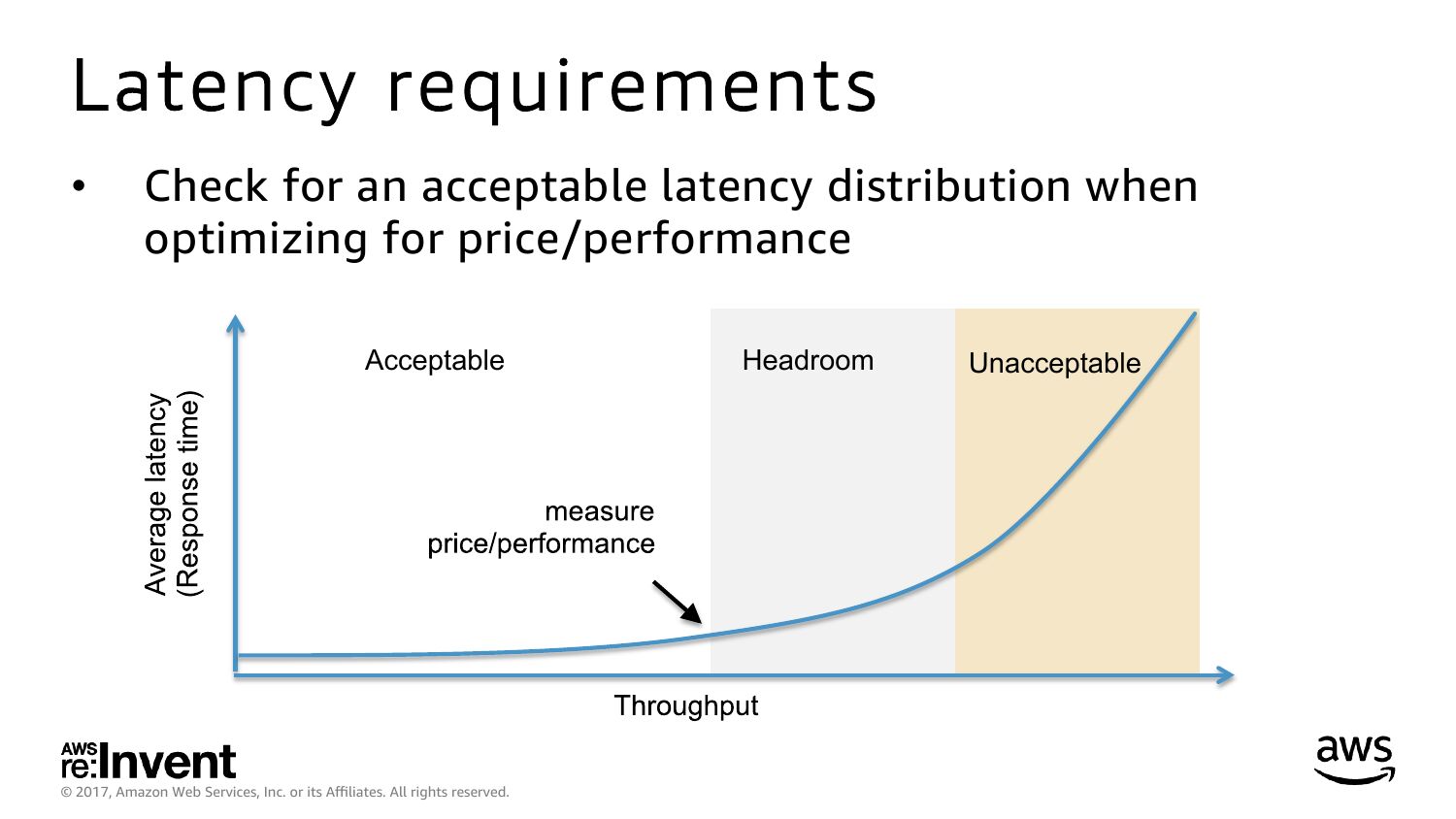

    Latency requirements
    Check for an acceptable latency distribution when
    optimizing for price/performance
    Acceptable
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    Headroom
    Unacceptable

slide 16:

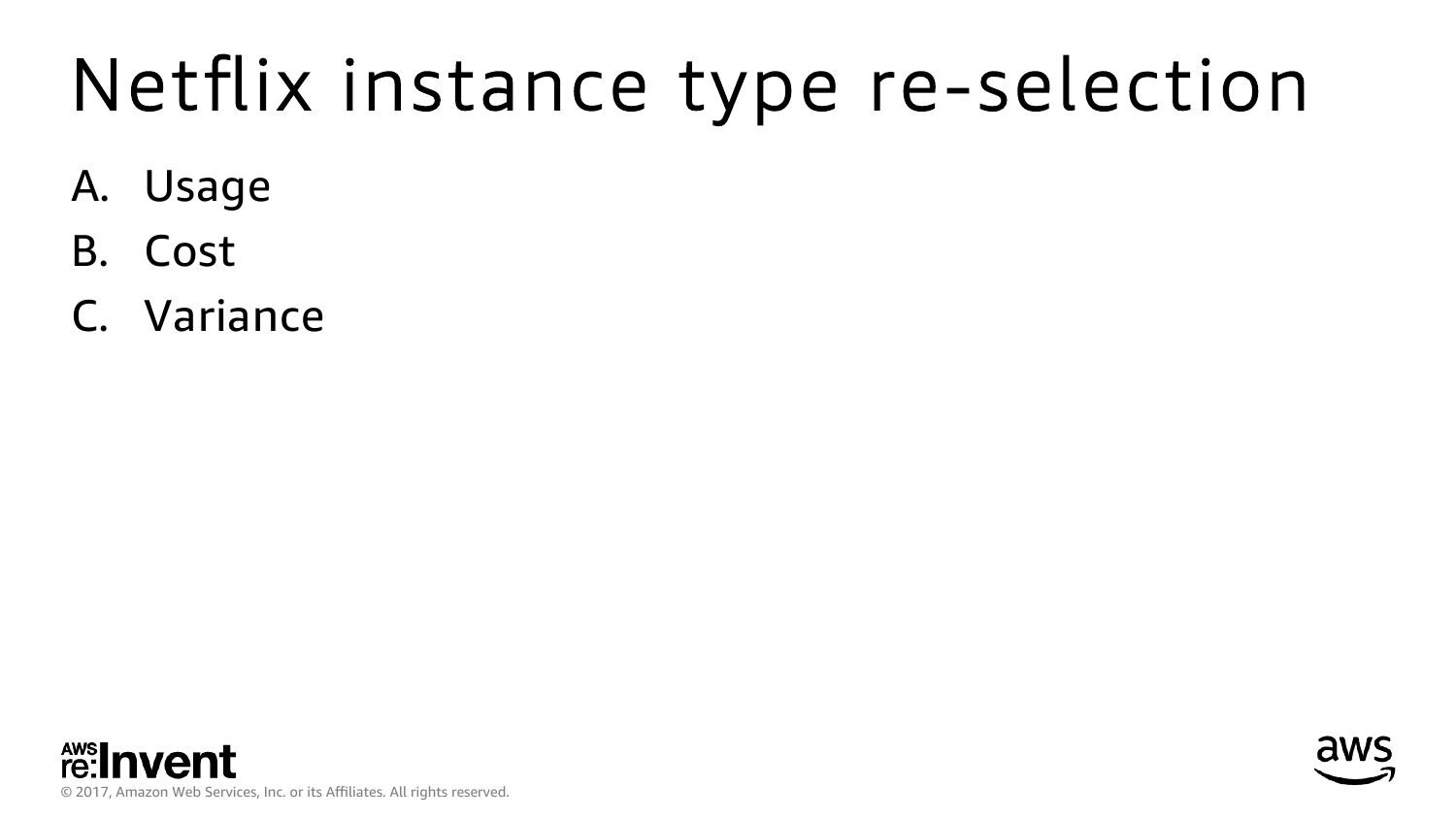

    Netflix instance type re-selection
    A. Usage
    B. Cost
    C. Variance
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 17:

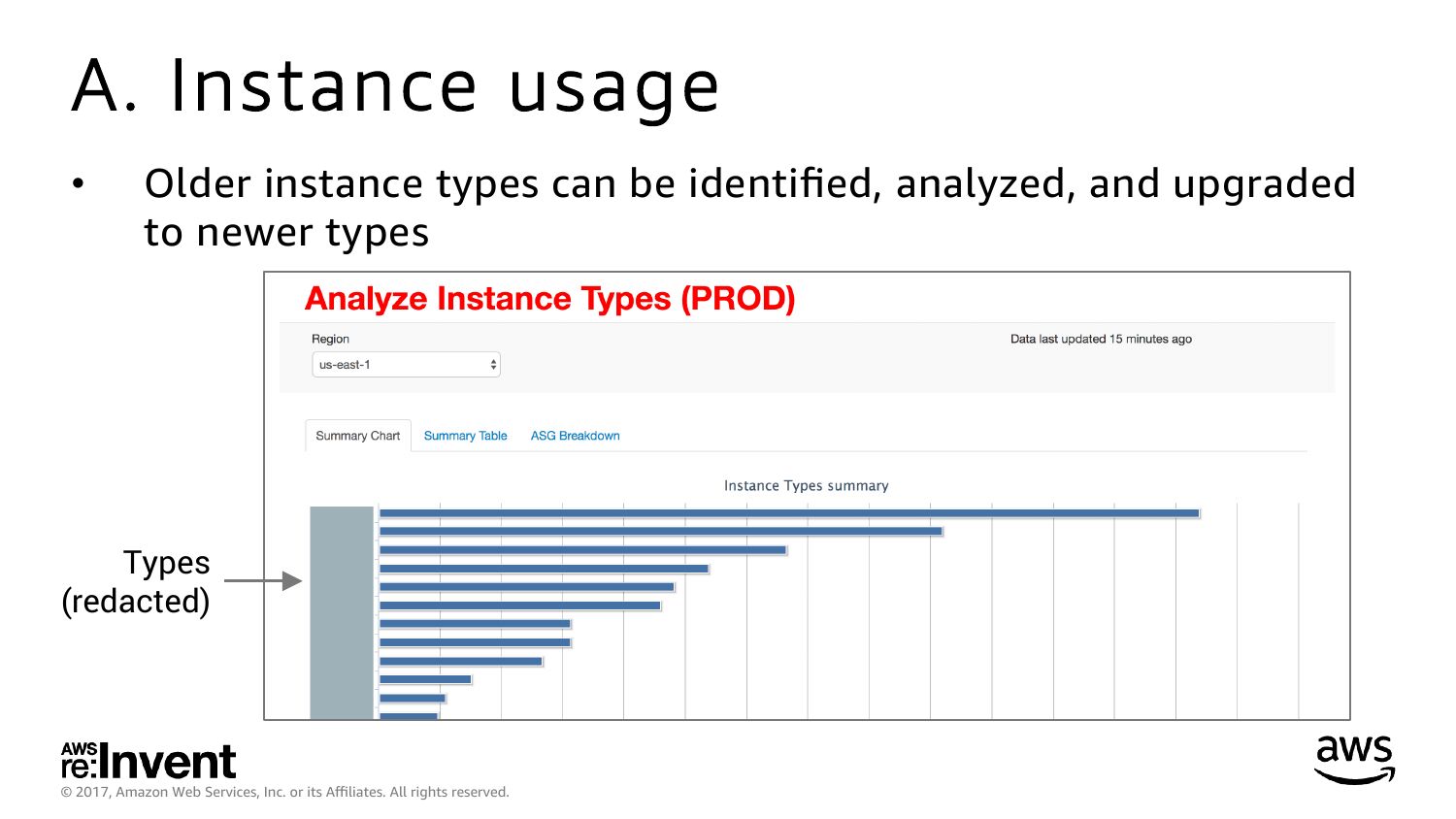

    A. Instance usage
    Older instance types can be identified, analyzed, and upgraded
    to newer types
    Types
    (redacted)
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 18:

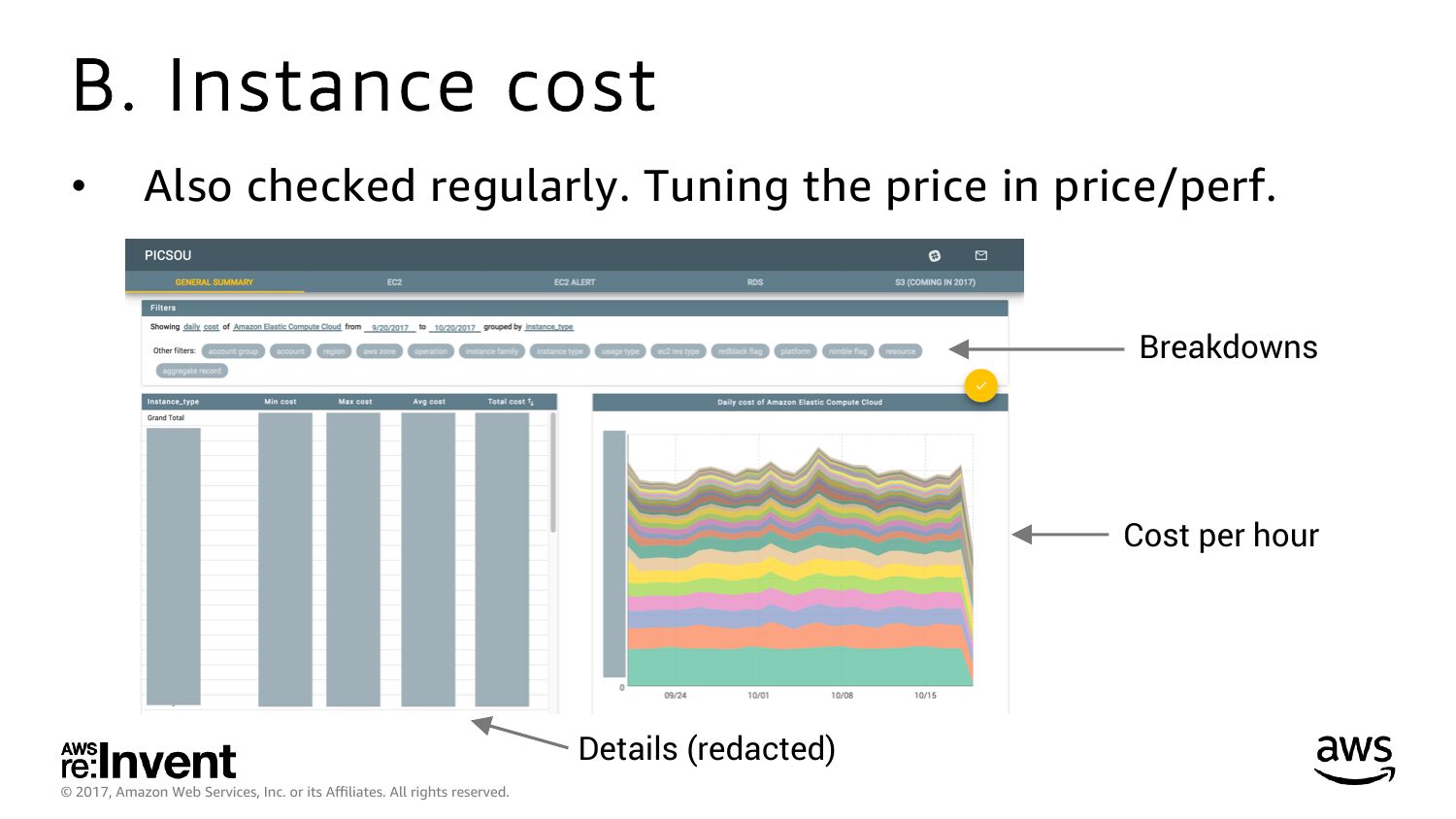

    B. Instance cost
    Also checked regularly. Tuning the price in price/perf.
    Breakdowns
    Cost per hour
    Details (redacted)
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

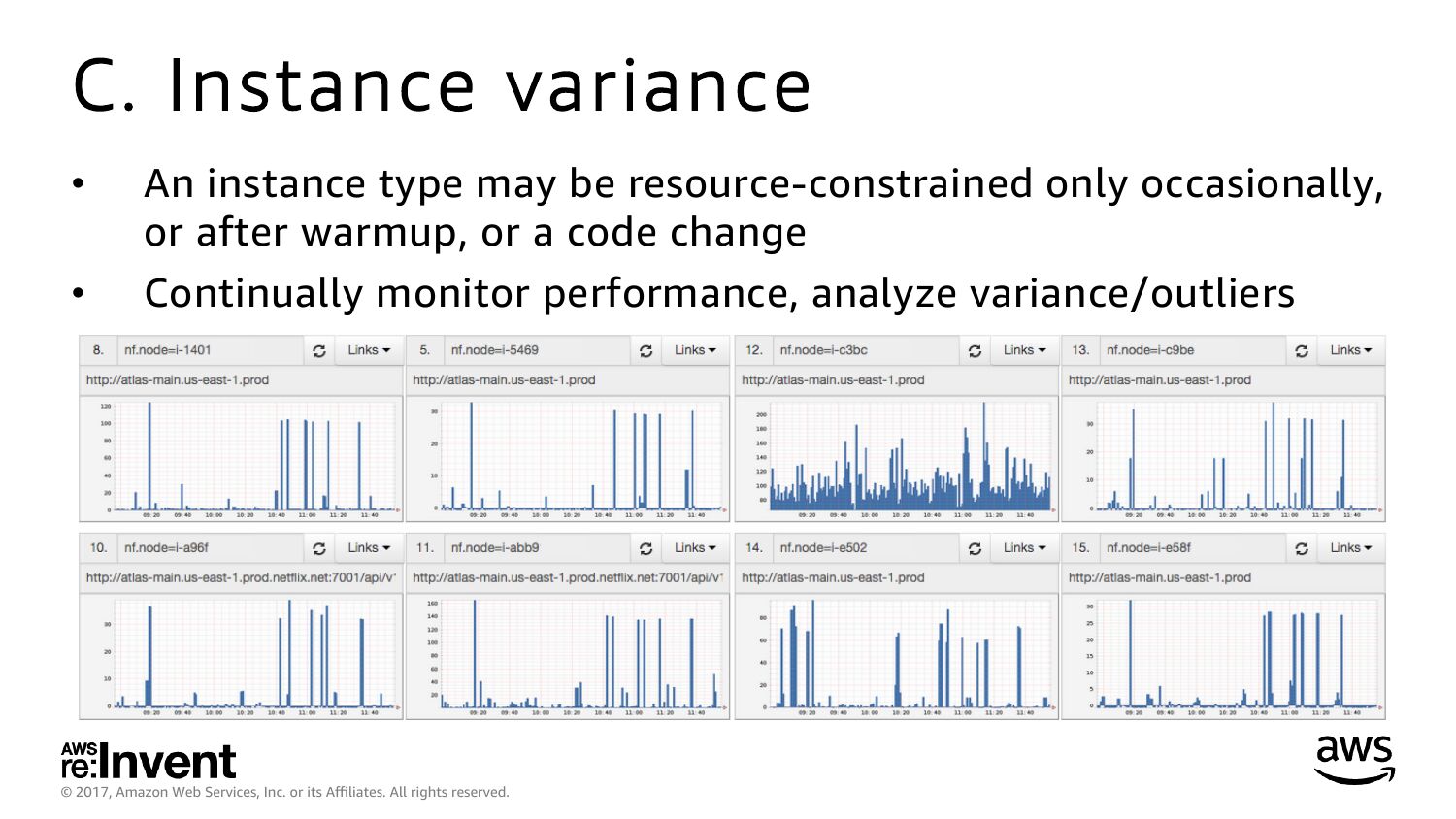

slide 19:
    C. Instance variance
    An instance type may be resource-constrained only occasionally,
    or after warmup, or a code change
    Continually monitor performance, analyze variance/outliers
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 20:
    2. Amazon EC2 features
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

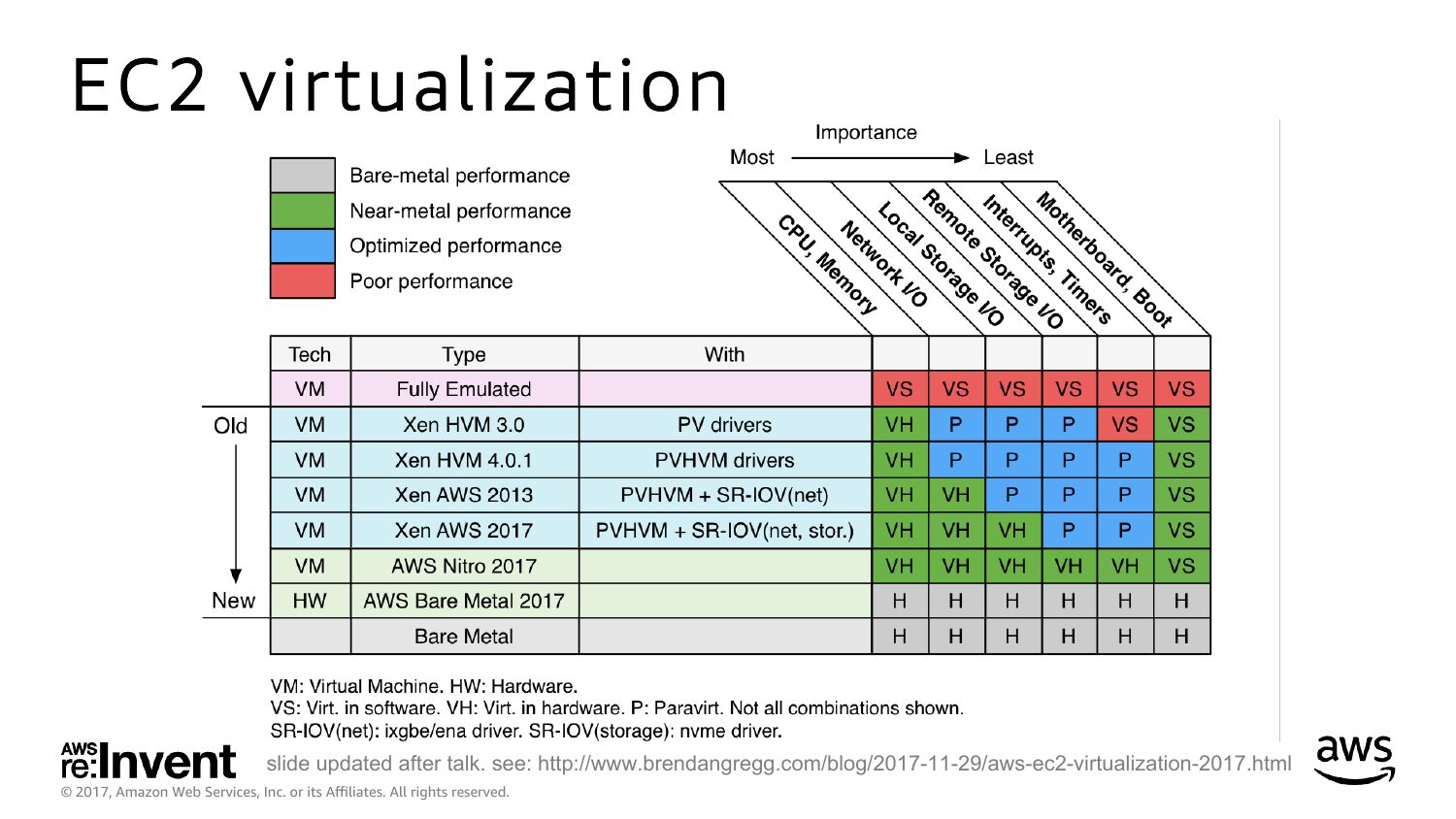

slide 21:
    EC2 virtualization
    slide updated after talk. see: http://www.brendangregg.com/blog/2017-11-29/aws-ec2-virtualization-2017.html
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 22:

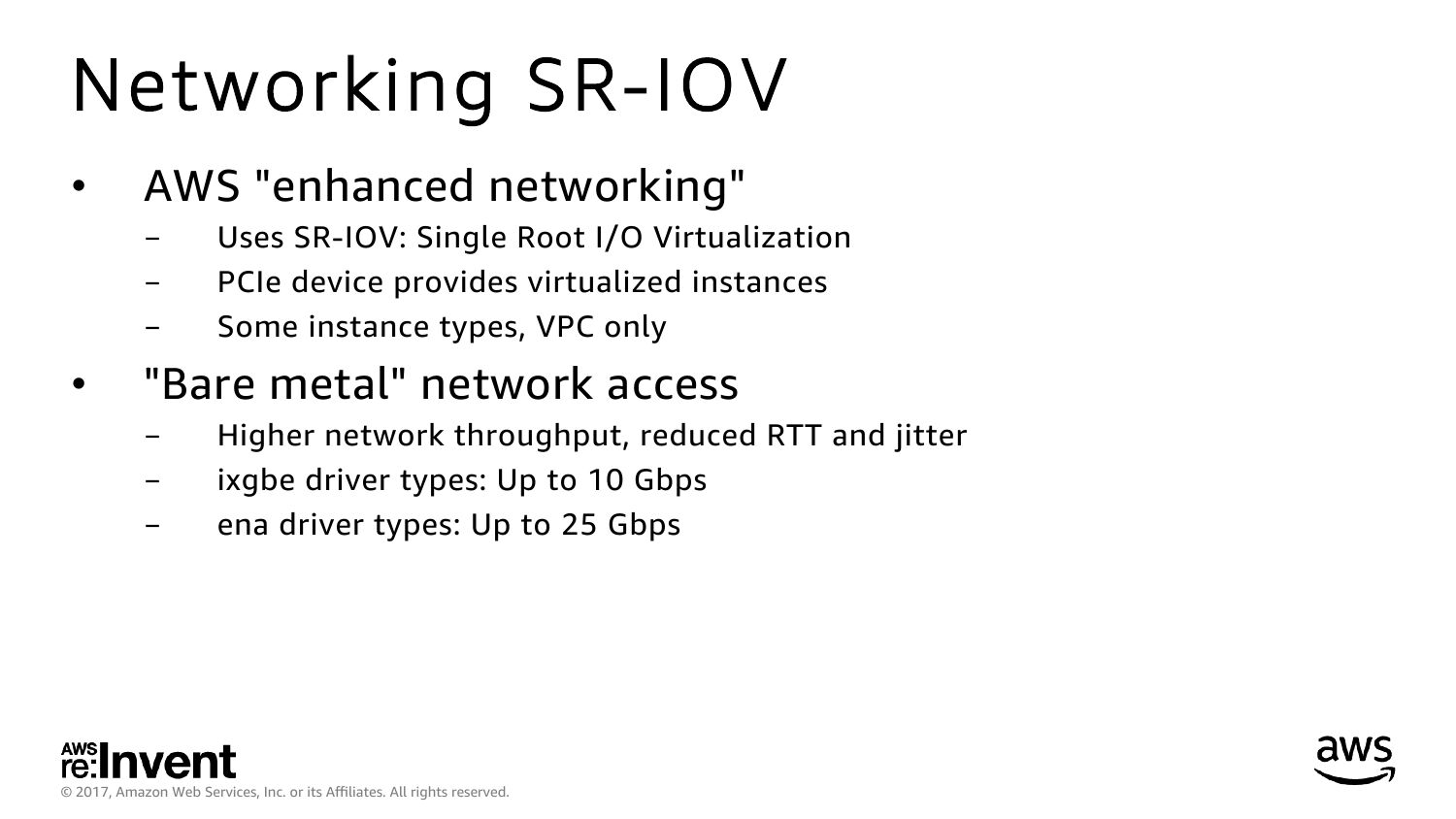

    Networking SR-IOV
    AWS "enhanced networking"
    Uses SR-IOV: Single Root I/O Virtualization
    PCIe device provides virtualized instances
    Some instance types, VPC only
    "Bare metal" network access
    Higher network throughput, reduced RTT and jitter
    ixgbe driver types: Up to 10 Gbps
    ena driver types: Up to 25 Gbps
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 23:

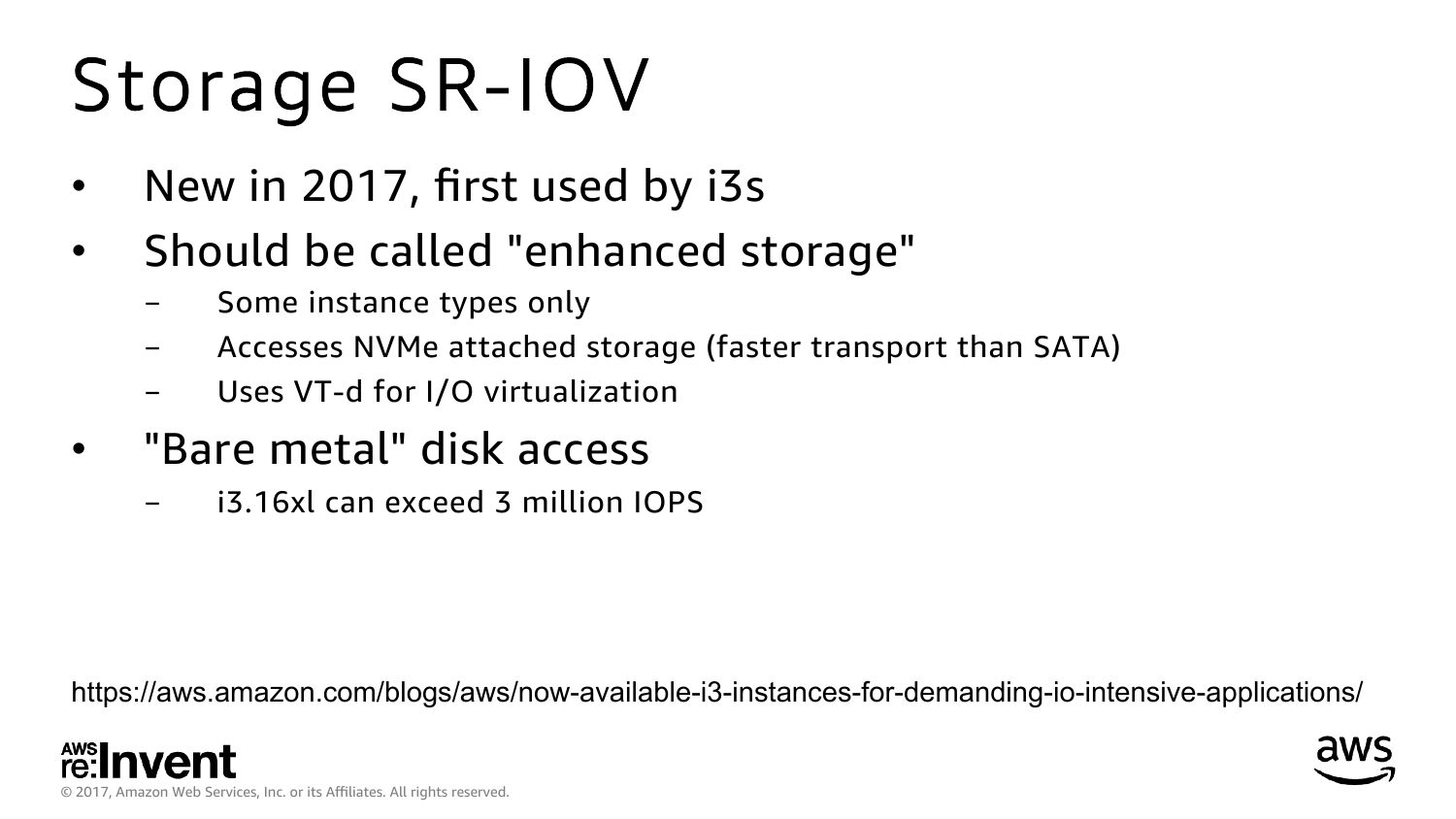

    Storage SR-IOV
    New in 2017, first used by i3s
    Should be called "enhanced storage"
    Some instance types only
    Accesses NVMe attached storage (faster transport than SATA)
    Uses VT-d for I/O virtualization
    "Bare metal" disk access
    i3.16xl can exceed 3 million IOPS
    https://aws.amazon.com/blogs/aws/now-available-i3-instances-for-demanding-io-intensive-applications/
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 24:
    3. Kernel tuning
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 25:

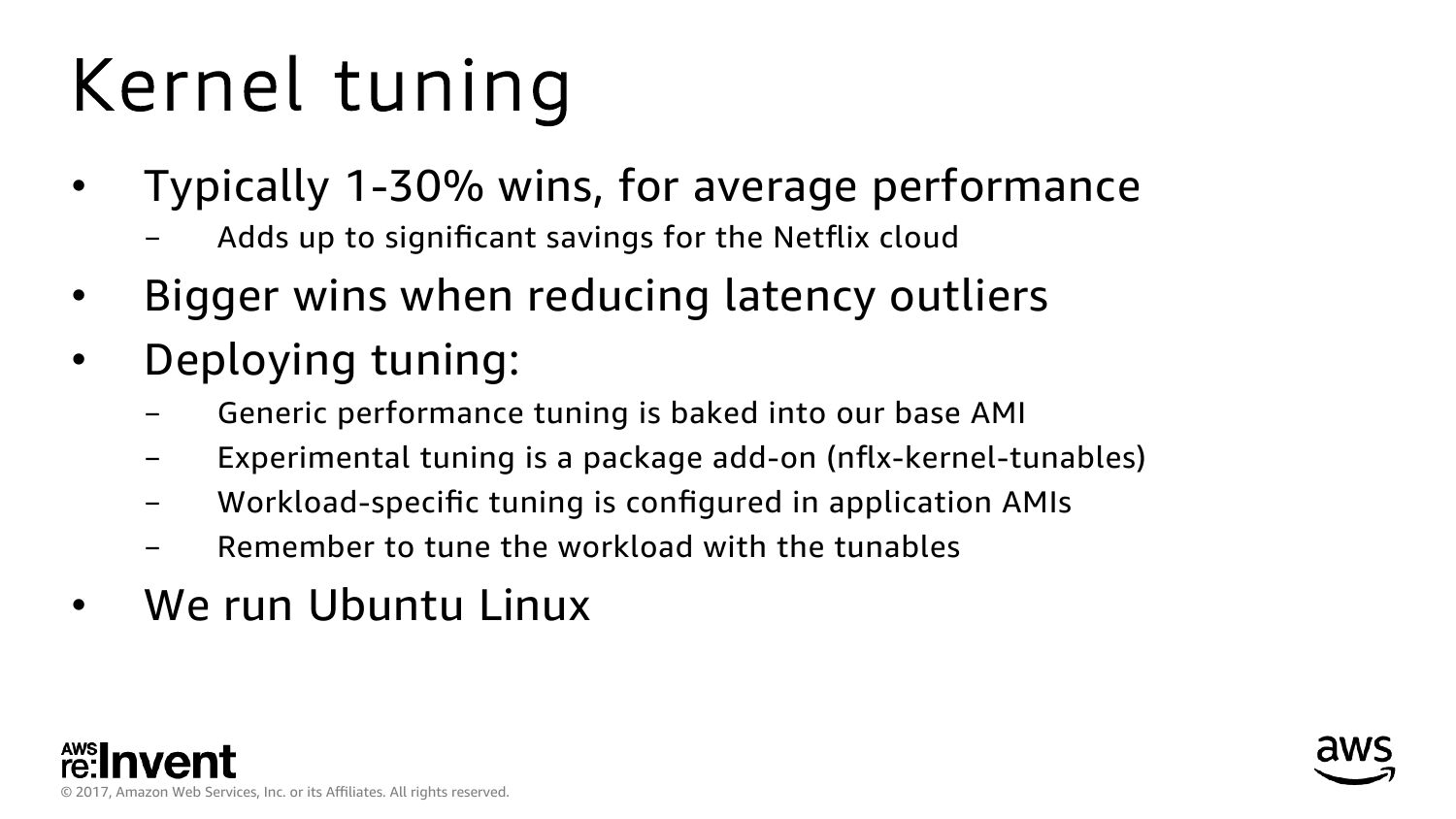

    Kernel tuning
    Typically 1-30% wins, for average performance
    Bigger wins when reducing latency outliers
    Deploying tuning:
    Adds up to significant savings for the Netflix cloud
    Generic performance tuning is baked into our base AMI
    Experimental tuning is a package add-on (nflx-kernel-tunables)
    Workload-specific tuning is configured in application AMIs
    Remember to tune the workload with the tunables
    We run Ubuntu Linux
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 26:

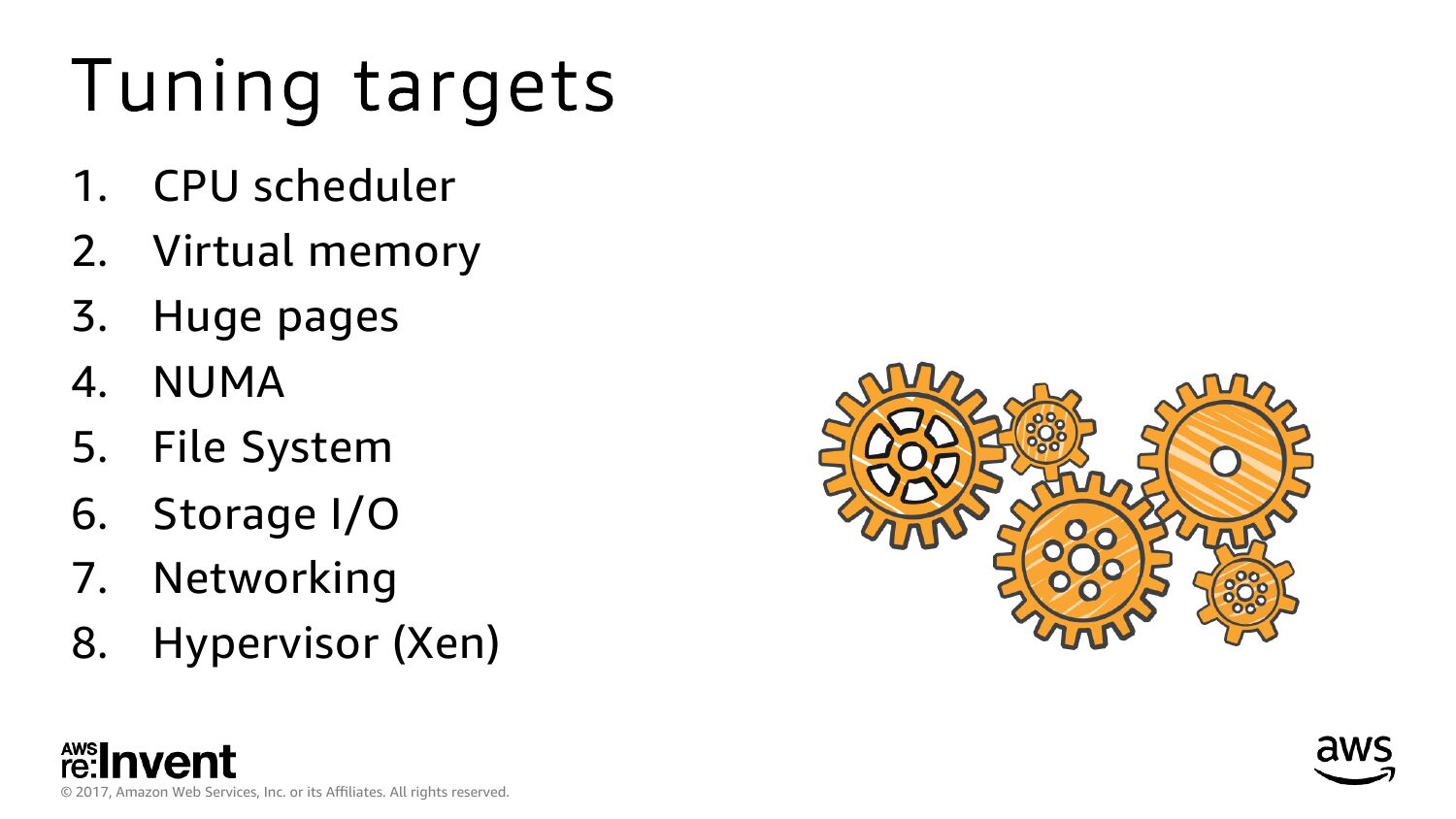

    Tuning targets
    CPU scheduler
    Virtual memory
    Huge pages
    NUMA
    File System
    Storage I/O
    Networking
    Hypervisor (Xen)
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 27:

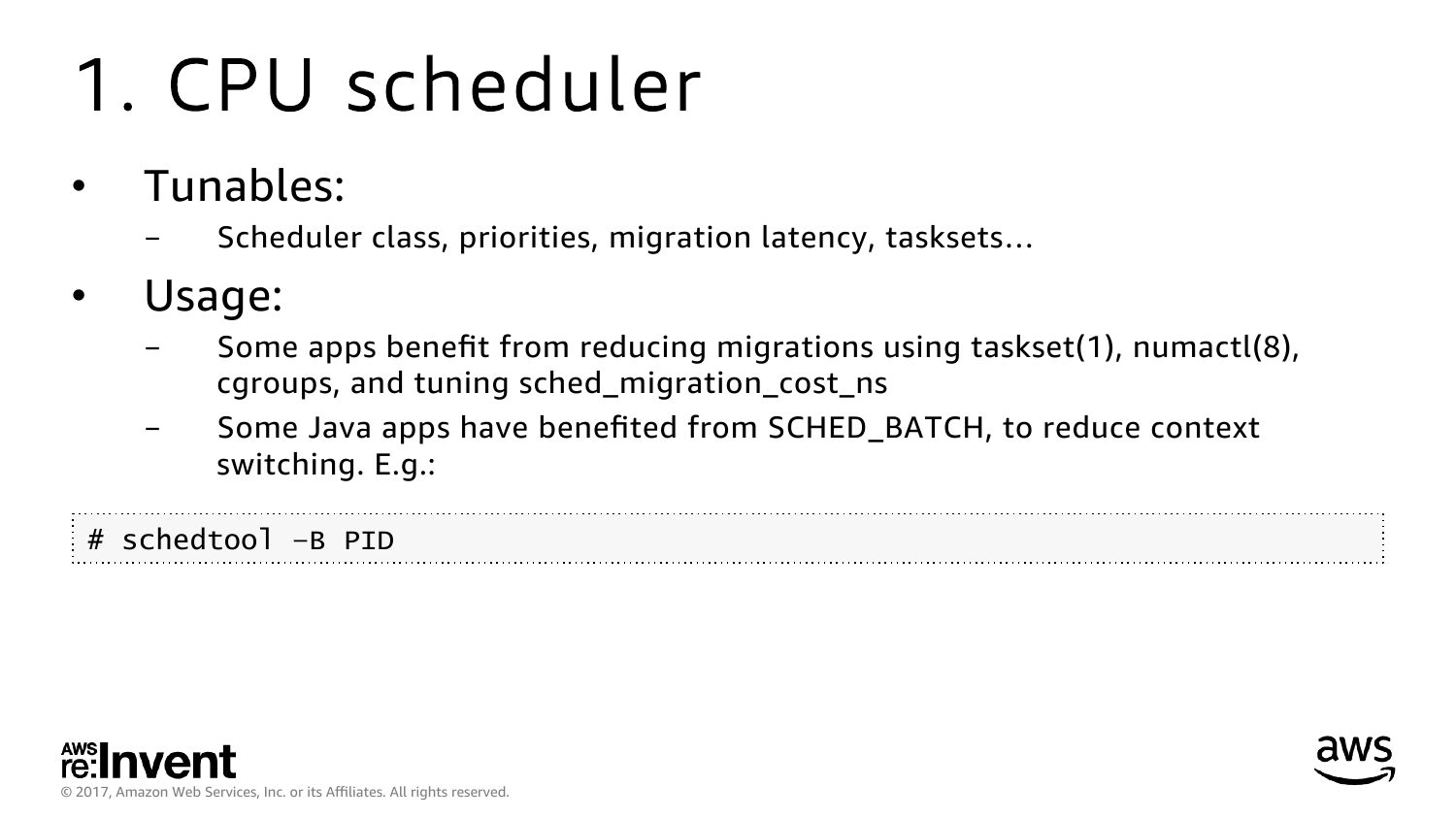

    1. CPU scheduler
    Tunables:
    Scheduler class, priorities, migration latency, tasksets…
    Usage:
    Some apps benefit from reducing migrations using taskset(1), numactl(8),
    cgroups, and tuning sched_migration_cost_ns
    Some Java apps have benefited from SCHED_BATCH, to reduce context
    switching. E.g.:
    # schedtool –B PID
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

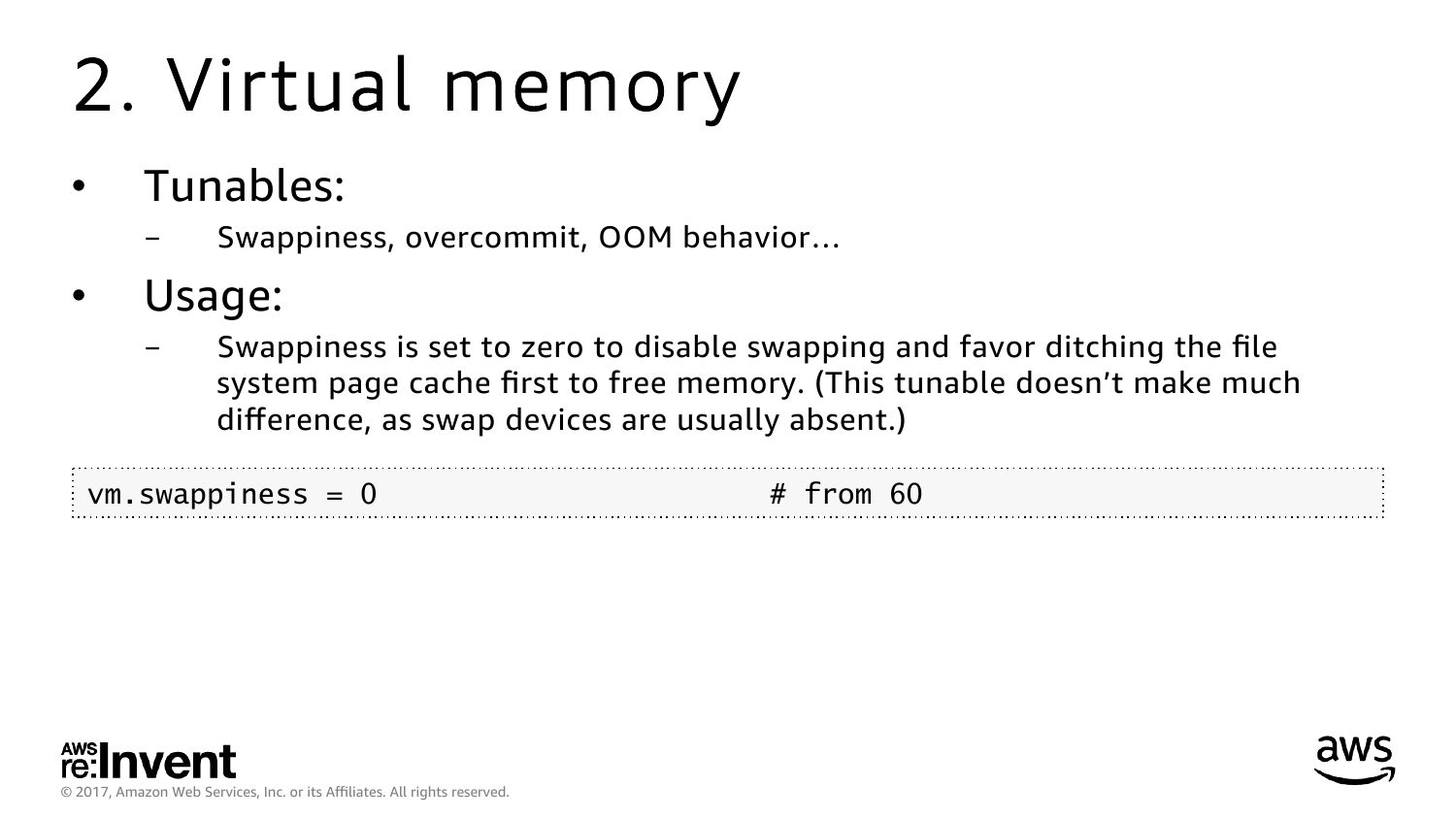

slide 28:
    2. Virtual memory
    Tunables:
    Swappiness, overcommit, OOM behavior…
    Usage:
    Swappiness is set to zero to disable swapping and favor ditching the file
    system page cache first to free memory. (This tunable doesn’t make much
    difference, as swap devices are usually absent.)
    vm.swappiness = 0
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    # from 60

slide 29:

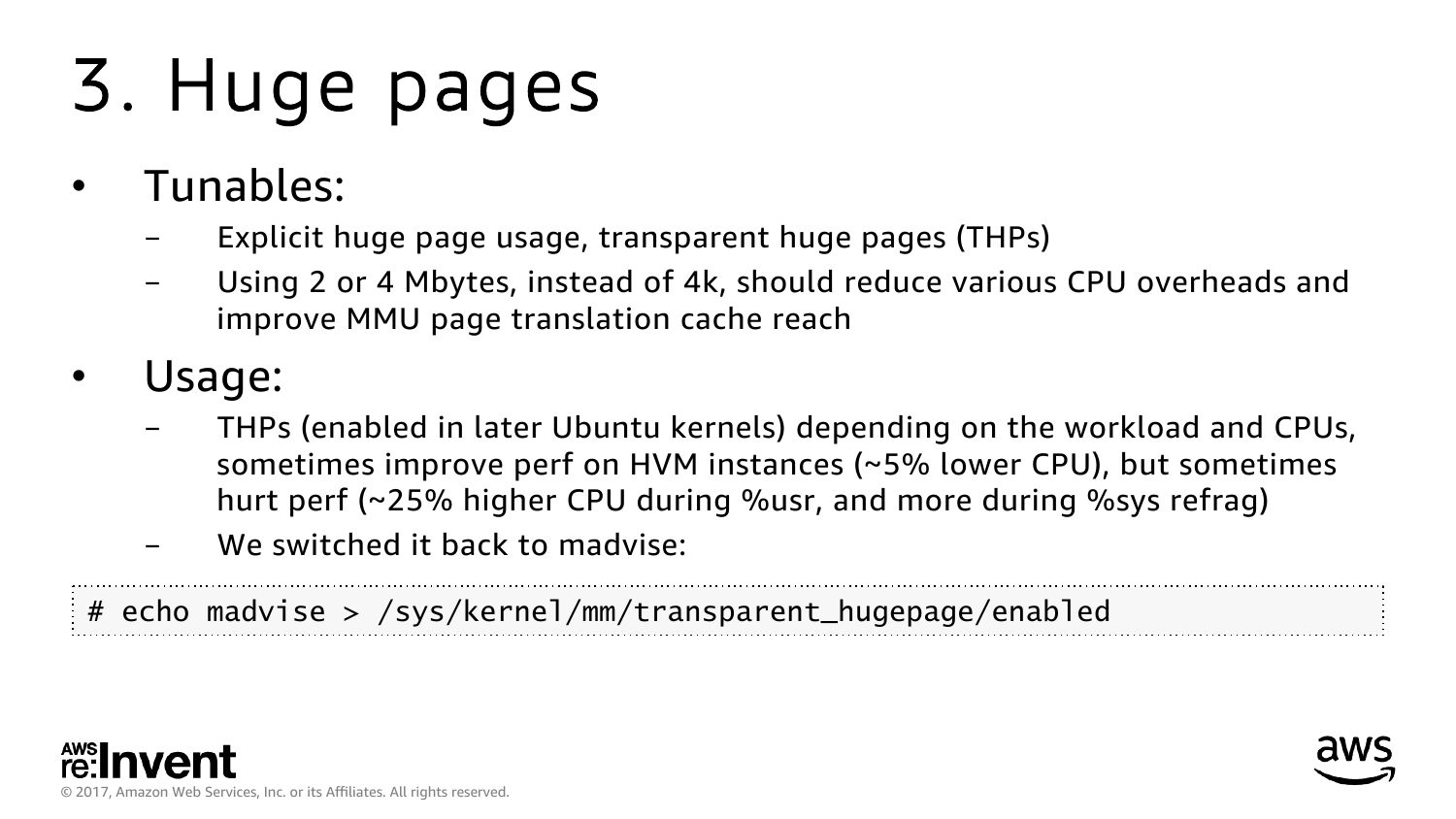

    3. Huge pages
    Tunables:
    Explicit huge page usage, transparent huge pages (THPs)
    Using 2 or 4 Mbytes, instead of 4k, should reduce various CPU overheads and
    improve MMU page translation cache reach
    Usage:
    THPs (enabled in later Ubuntu kernels) depending on the workload and CPUs,
    sometimes improve perf on HVM instances (~5% lower CPU), but sometimes
    hurt perf (~25% higher CPU during %usr, and more during %sys refrag)
    We switched it back to madvise:
    # echo madvise >gt; /sys/kernel/mm/transparent_hugepage/enabled
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 30:

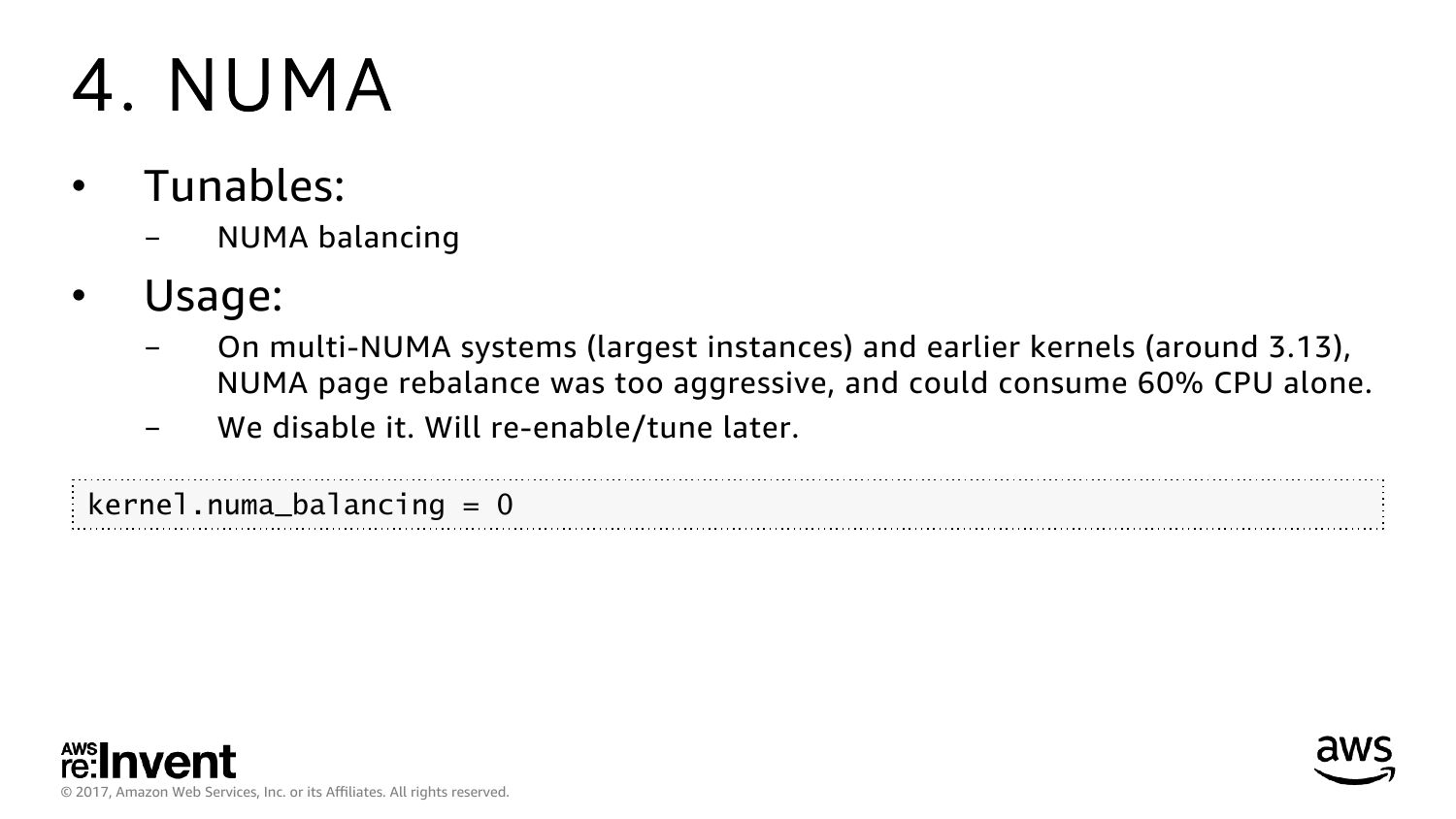

    4. NUMA
    Tunables:
    NUMA balancing
    Usage:
    On multi-NUMA systems (largest instances) and earlier kernels (around 3.13),
    NUMA page rebalance was too aggressive, and could consume 60% CPU alone.
    We disable it. Will re-enable/tune later.
    kernel.numa_balancing = 0
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

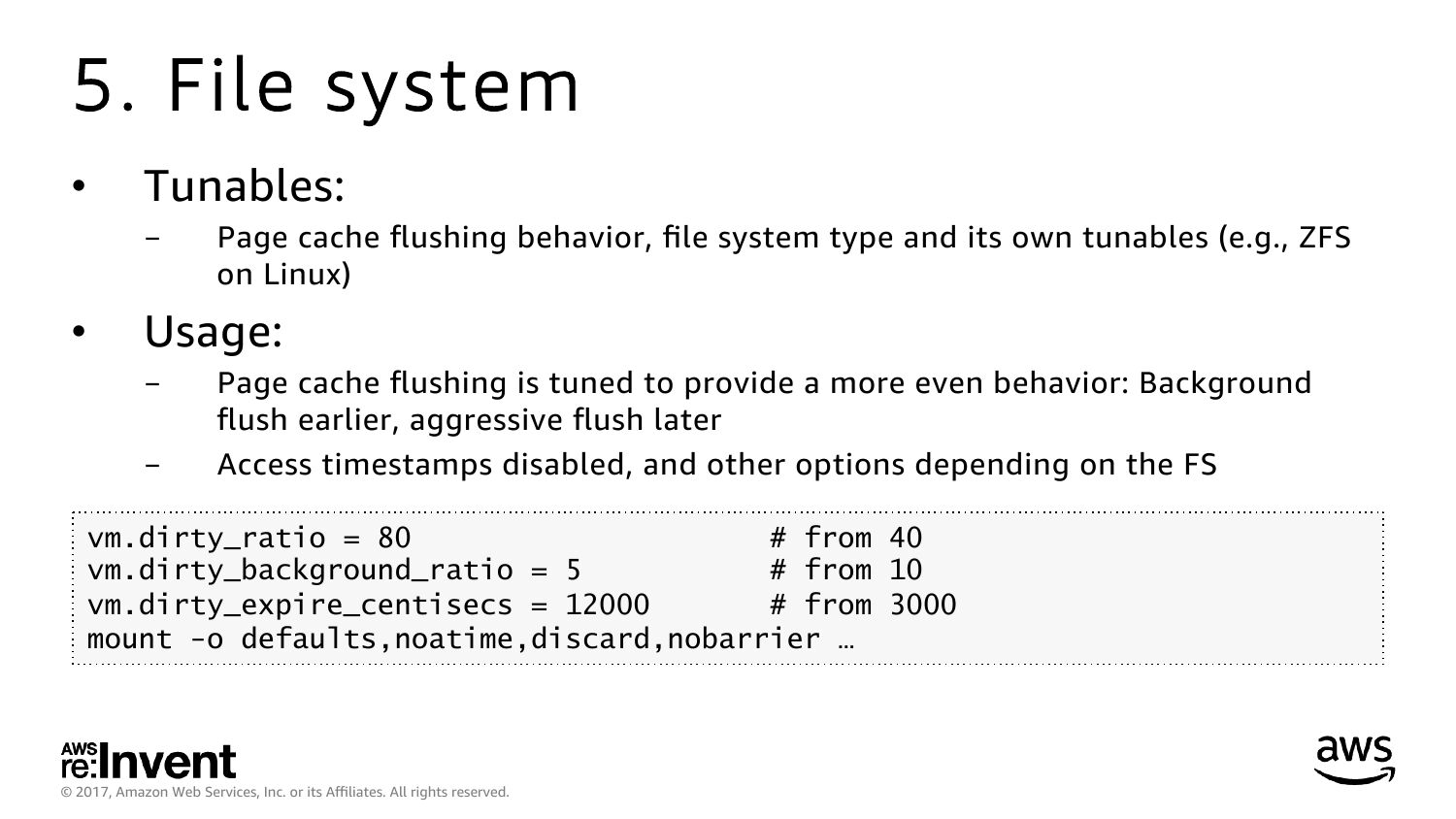

slide 31:
    5. File system
    Tunables:
    Page cache flushing behavior, file system type and its own tunables (e.g., ZFS
    on Linux)
    Usage:
    Page cache flushing is tuned to provide a more even behavior: Background
    flush earlier, aggressive flush later
    Access timestamps disabled, and other options depending on the FS
    vm.dirty_ratio = 80
    # from 40
    vm.dirty_background_ratio = 5
    # from 10
    vm.dirty_expire_centisecs = 12000
    # from 3000
    mount -o defaults,noatime,discard,nobarrier …
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 32:

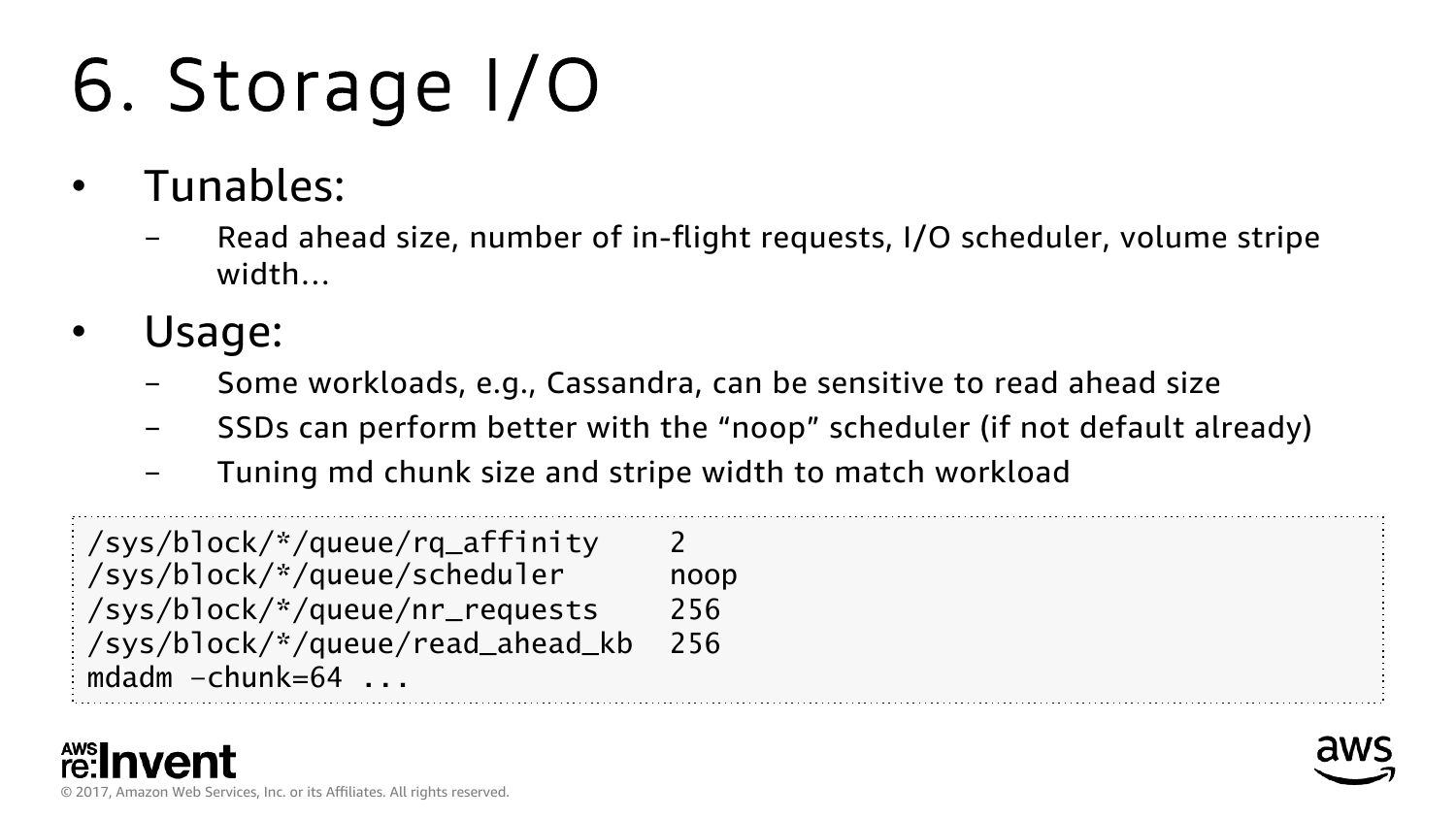

    6. Storage I/O
    Tunables:
    Read ahead size, number of in-flight requests, I/O scheduler, volume stripe
    width…
    Usage:
    Some workloads, e.g., Cassandra, can be sensitive to read ahead size
    SSDs can perform better with the “noop” scheduler (if not default already)
    Tuning md chunk size and stripe width to match workload
    /sys/block/*/queue/rq_affinity
    /sys/block/*/queue/scheduler
    /sys/block/*/queue/nr_requests
    /sys/block/*/queue/read_ahead_kb
    mdadm –chunk=64 ...
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    noop

slide 33:
    7. Networking
    Tunables:
    TCP buffer sizes, TCP backlog, device backlog, TCP reuse…
    Usage:
    net.core.somaxconn = 1024
    net.core.netdev_max_backlog = 5000
    net.core.rmem_max = 16777216
    net.core.wmem_max = 16777216
    net.ipv4.tcp_wmem = 4096 12582912 16777216
    net.ipv4.tcp_rmem = 4096 12582912 16777216
    net.ipv4.tcp_max_syn_backlog = 8096
    net.ipv4.tcp_slow_start_after_idle = 0
    net.ipv4.tcp_tw_reuse = 1
    net.ipv4.ip_local_port_range = 10240 65535
    net.ipv4.tcp_abort_on_overflow = 1
    # maybe
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

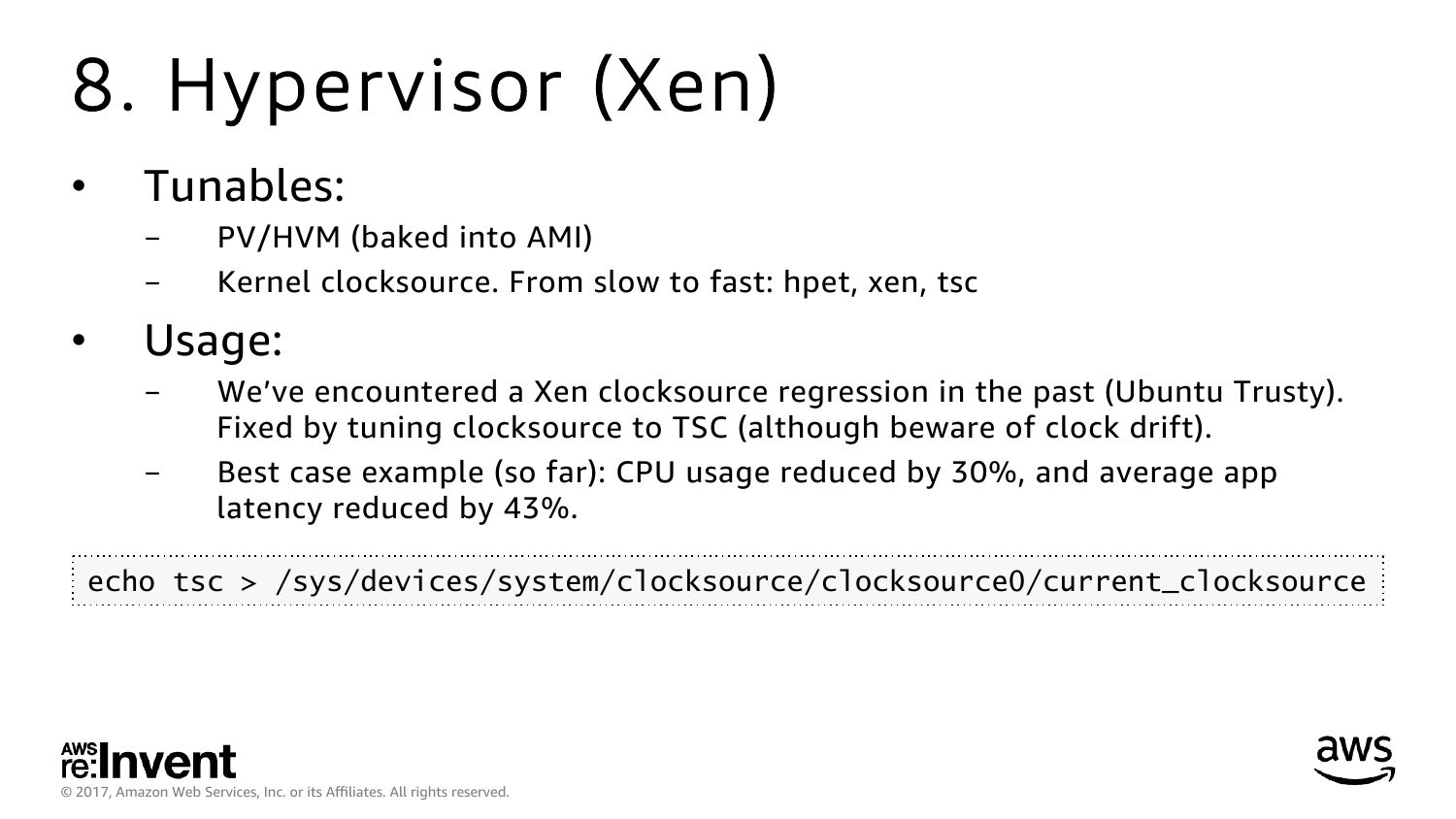

slide 34:
    8. Hypervisor (Xen)
    Tunables:
    PV/HVM (baked into AMI)
    Kernel clocksource. From slow to fast: hpet, xen, tsc
    Usage:
    We’ve encountered a Xen clocksource regression in the past (Ubuntu Trusty).
    Fixed by tuning clocksource to TSC (although beware of clock drift).
    Best case example (so far): CPU usage reduced by 30%, and average app
    latency reduced by 43%.
    echo tsc >gt; /sys/devices/system/clocksource/clocksource0/current_clocksource
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 35:
    4. Methodologies
    Techniques of performance analysis
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 36:

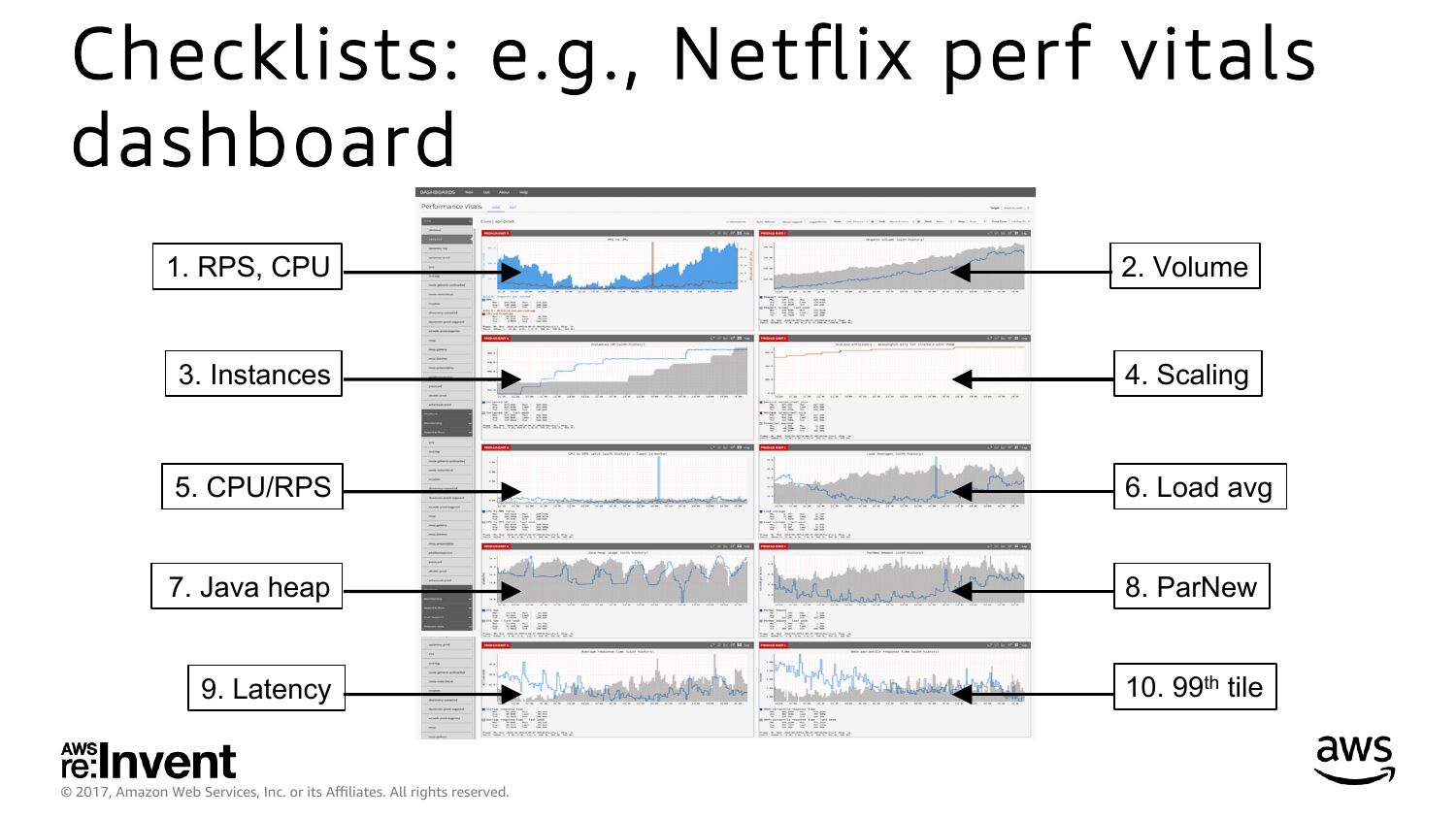

    Checklists: e.g., Netflix perf vitals
    dashboard
    1. RPS, CPU
    2. Volume
    3. Instances
    4. Scaling
    5. CPU/RPS
    6. Load avg
    7. Java heap
    8. ParNew
    9. Latency
    10. 99th tile
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 37:

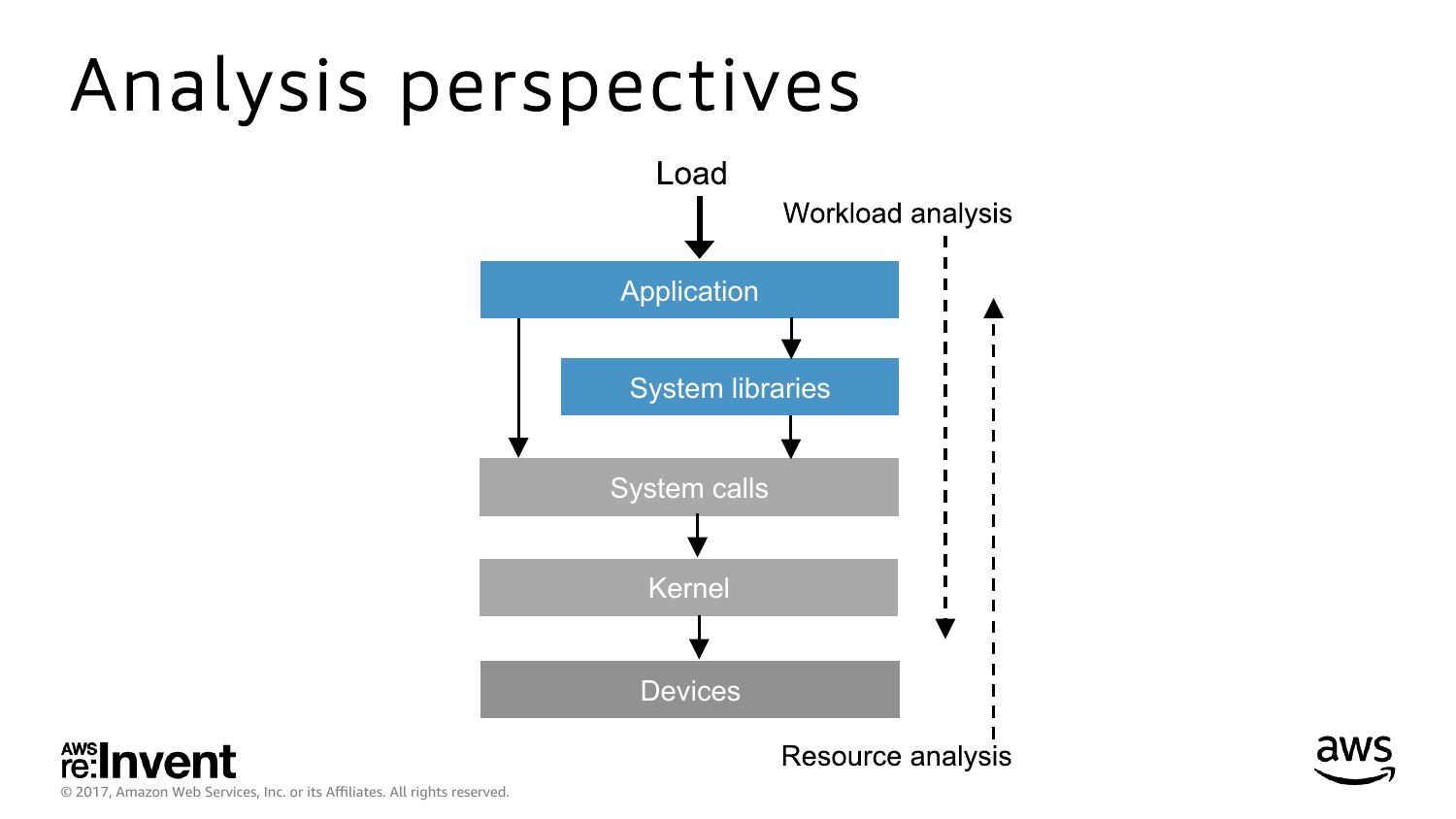

    Analysis perspectives
    Application
    System libraries
    System calls
    Kernel
    Devices
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 38:

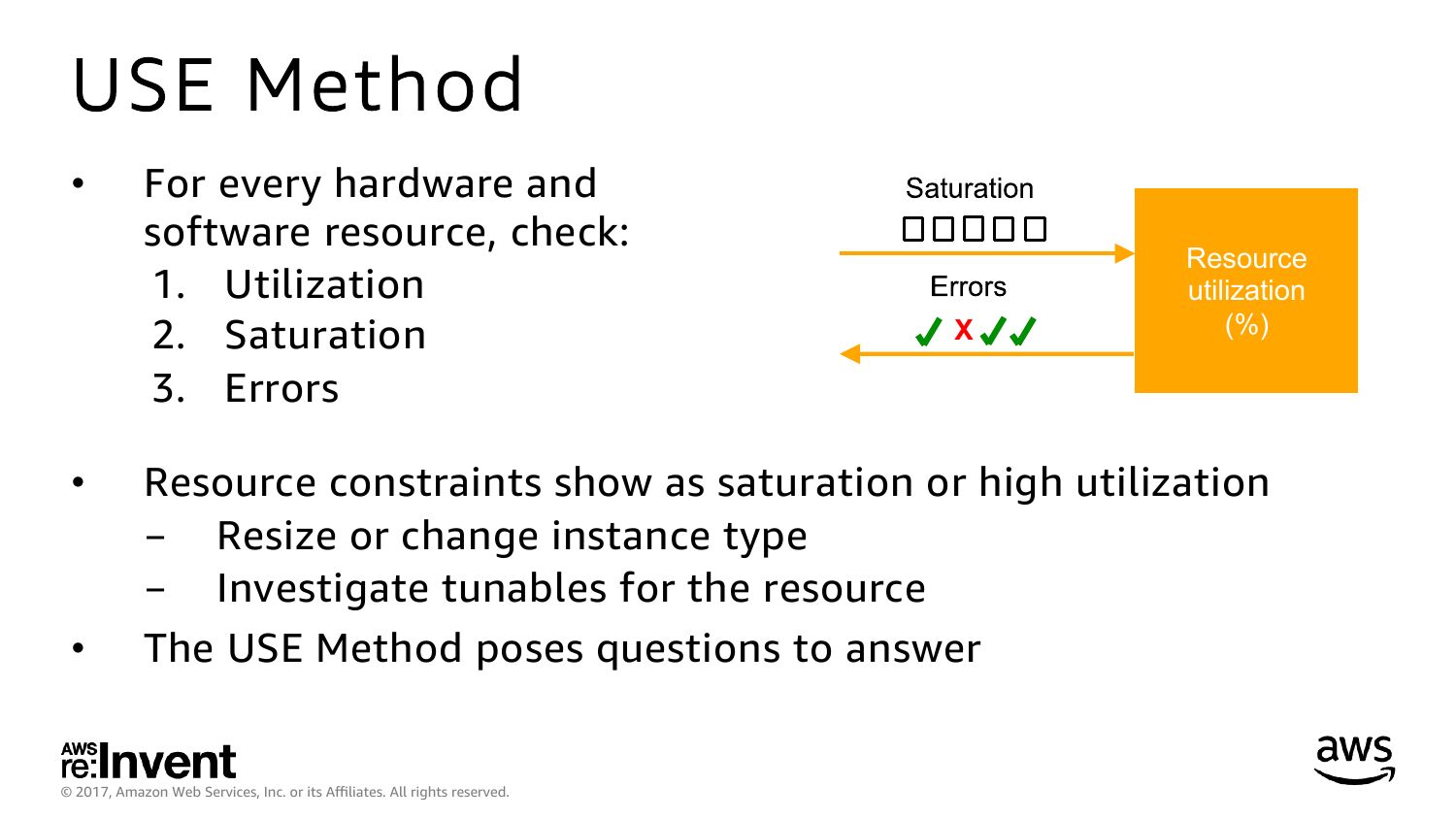

    USE Method
    For every hardware and
    software resource, check:
    1. Utilization
    2. Saturation
    3. Errors
    Resource
    utilization
    (%)
    Resource constraints show as saturation or high utilization
    - Resize or change instance type
    - Investigate tunables for the resource
    The USE Method poses questions to answer
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 39:

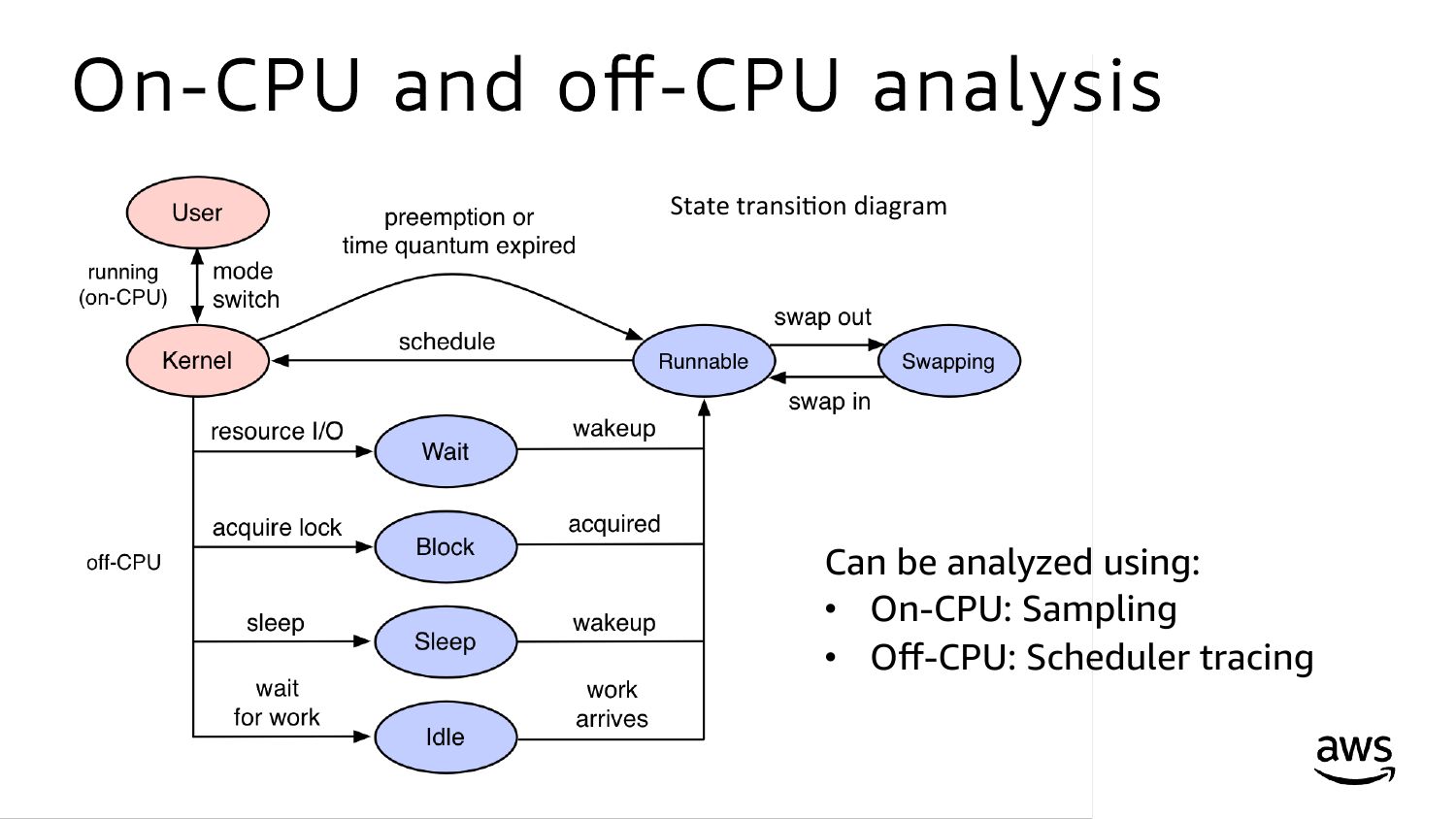

    On-CPU and off-CPU analysis
    State transi*on diagram
    Can be analyzed using:
    • On-CPU: Sampling
    • Off-CPU: Scheduler tracing
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 40:
    5. Observability
    Finding, quantifying, and confirming tunables
    Discovering system wins (5-25%’s) and application wins (2-10x’s)
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

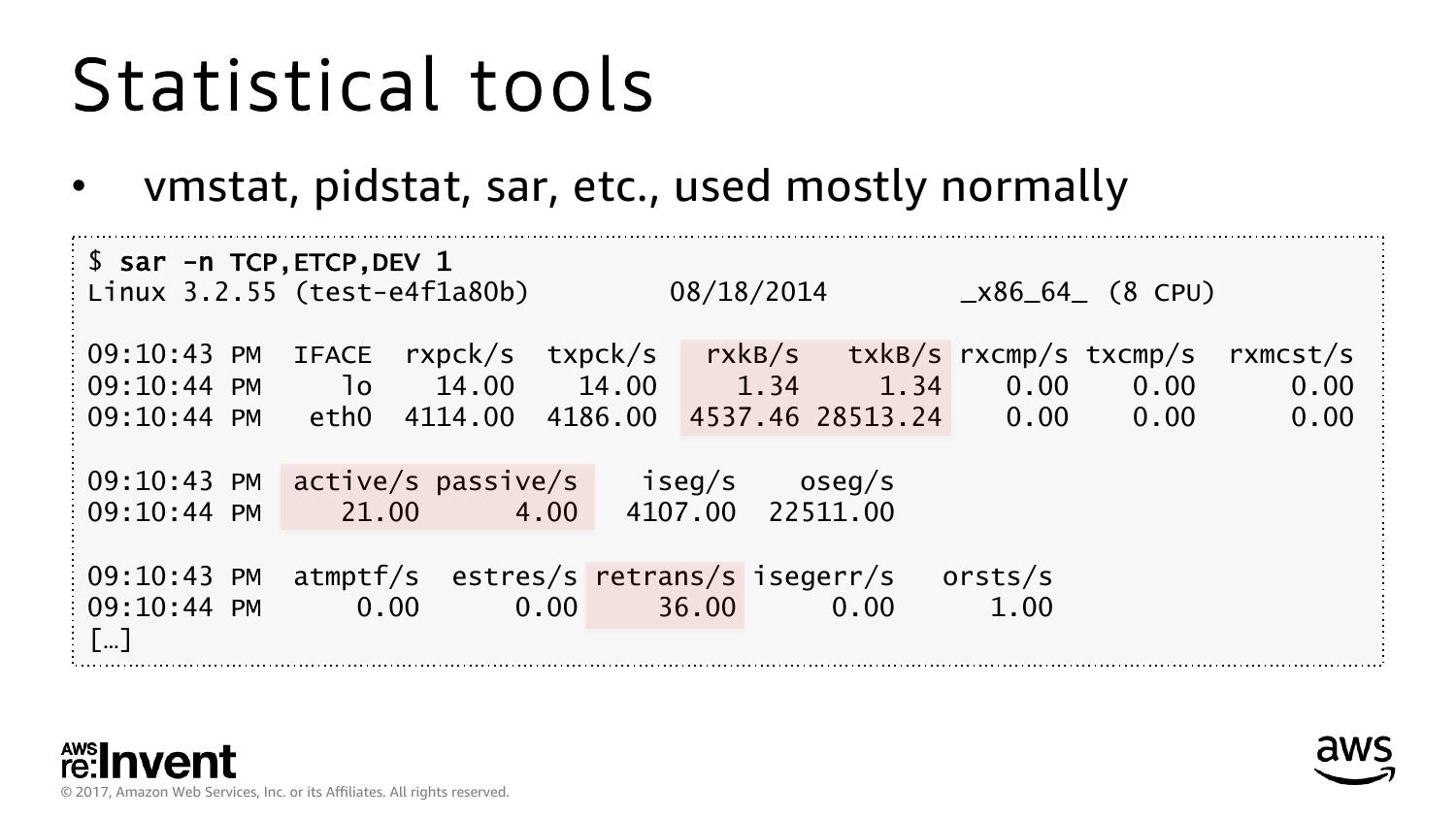

slide 41:
    Statistical tools
    vmstat, pidstat, sar, etc., used mostly normally
    $ sar -n TCP,ETCP,DEV 1
    Linux 3.2.55 (test-e4f1a80b)
    rxpck/s
    08/18/2014
    09:10:43 PM
    09:10:44 PM
    09:10:44 PM
    IFACE
    eth0
    txpck/s
    09:10:43 PM
    09:10:44 PM
    active/s passive/s
    09:10:43 PM
    09:10:44 PM
    […]
    atmptf/s
    rxkB/s
    txkB/s rxcmp/s txcmp/s
    4537.46 28513.24
    iseg/s
    oseg/s
    estres/s retrans/s isegerr/s
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    _x86_64_ (8 CPU)
    orsts/s
    rxmcst/s

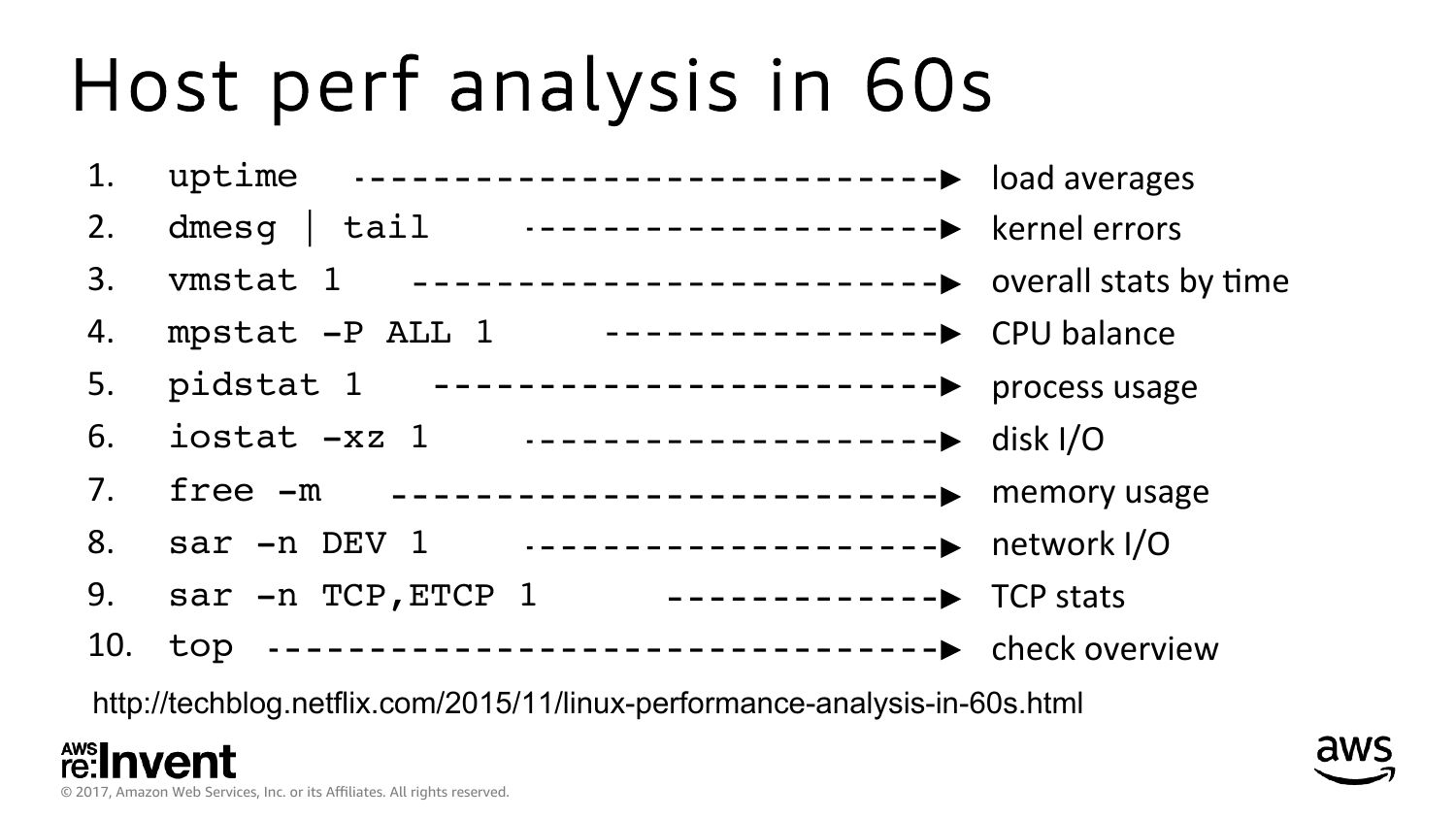

slide 42:
    Host perf analysis in 60s
    uptime
    dmesg | tail
    vmstat 1
    mpstat -P ALL 1
    pidstat 1
    iostat -xz 1
    free -m
    sar -n DEV 1
    sar -n TCP,ETCP 1
    top
    load averages
    kernel errors
    overall stats by *me
    CPU balance
    process usage
    disk I/O
    memory usage
    network I/O
    TCP stats
    check overview
    http://techblog.netflix.com/2015/11/linux-performance-analysis-in-60s.html
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 43:

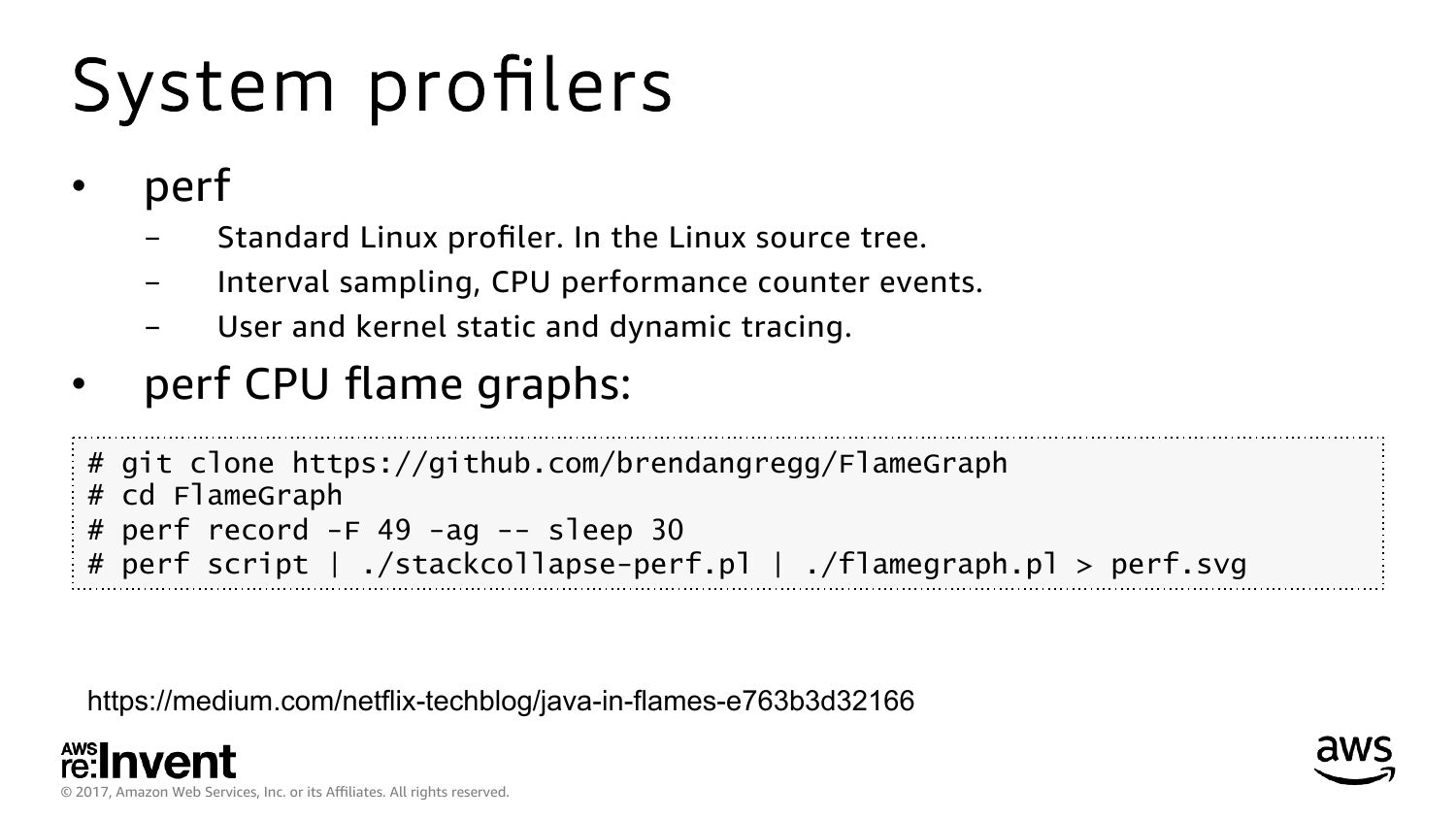

    System profilers
    perf
    Standard Linux profiler. In the Linux source tree.
    Interval sampling, CPU performance counter events.
    User and kernel static and dynamic tracing.
    perf CPU flame graphs:
    # git clone https://github.com/brendangregg/FlameGraph
    # cd FlameGraph
    # perf record -F 49 -ag -- sleep 30
    # perf script | ./stackcollapse-perf.pl | ./flamegraph.pl >gt; perf.svg
    https://medium.com/netflix-techblog/java-in-flames-e763b3d32166
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

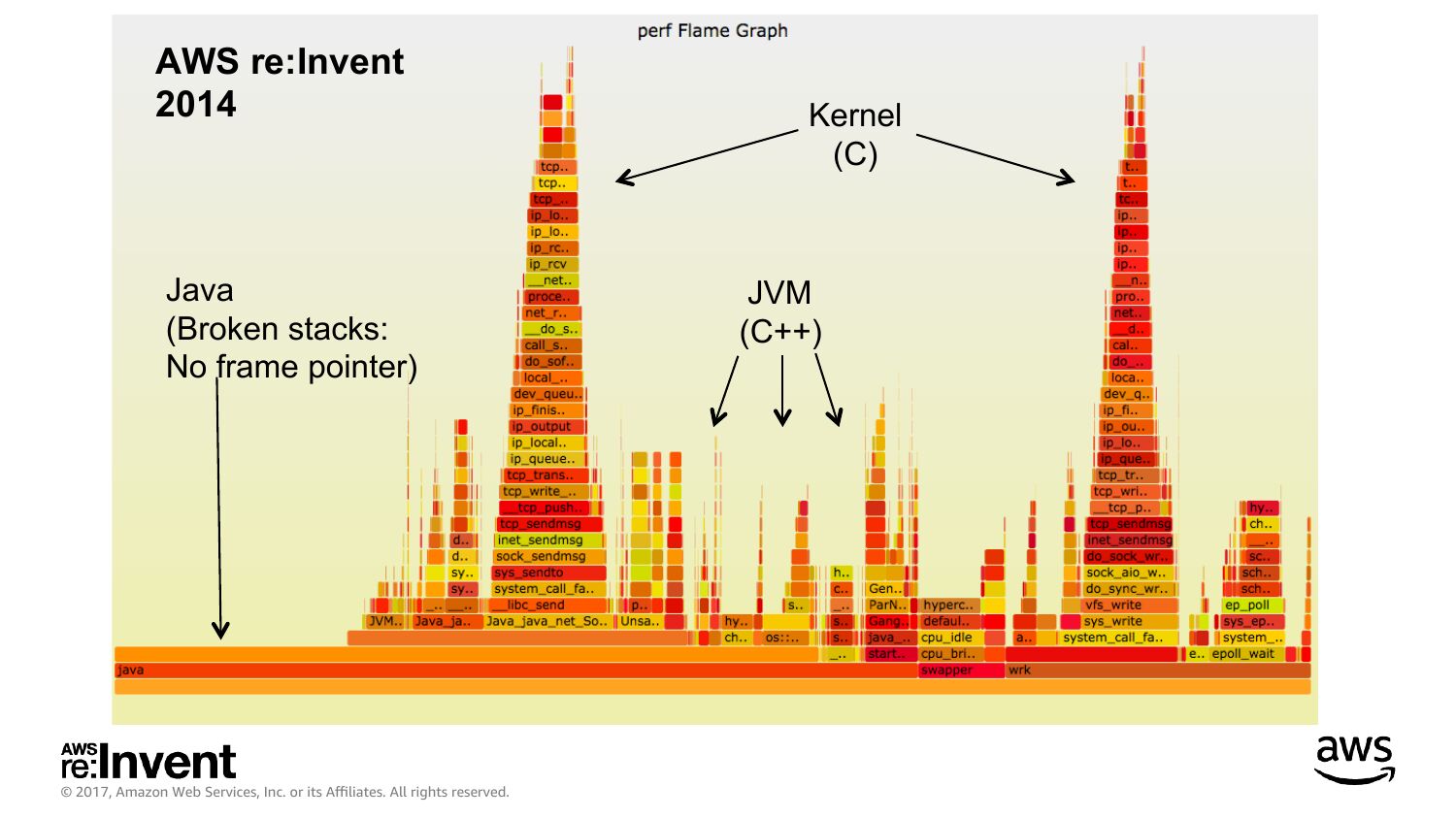

slide 44:
    AWS re:Invent
    Java
    (Broken stacks:
    No frame pointer)
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    Kernel
    (C)
    JVM
    (C++)

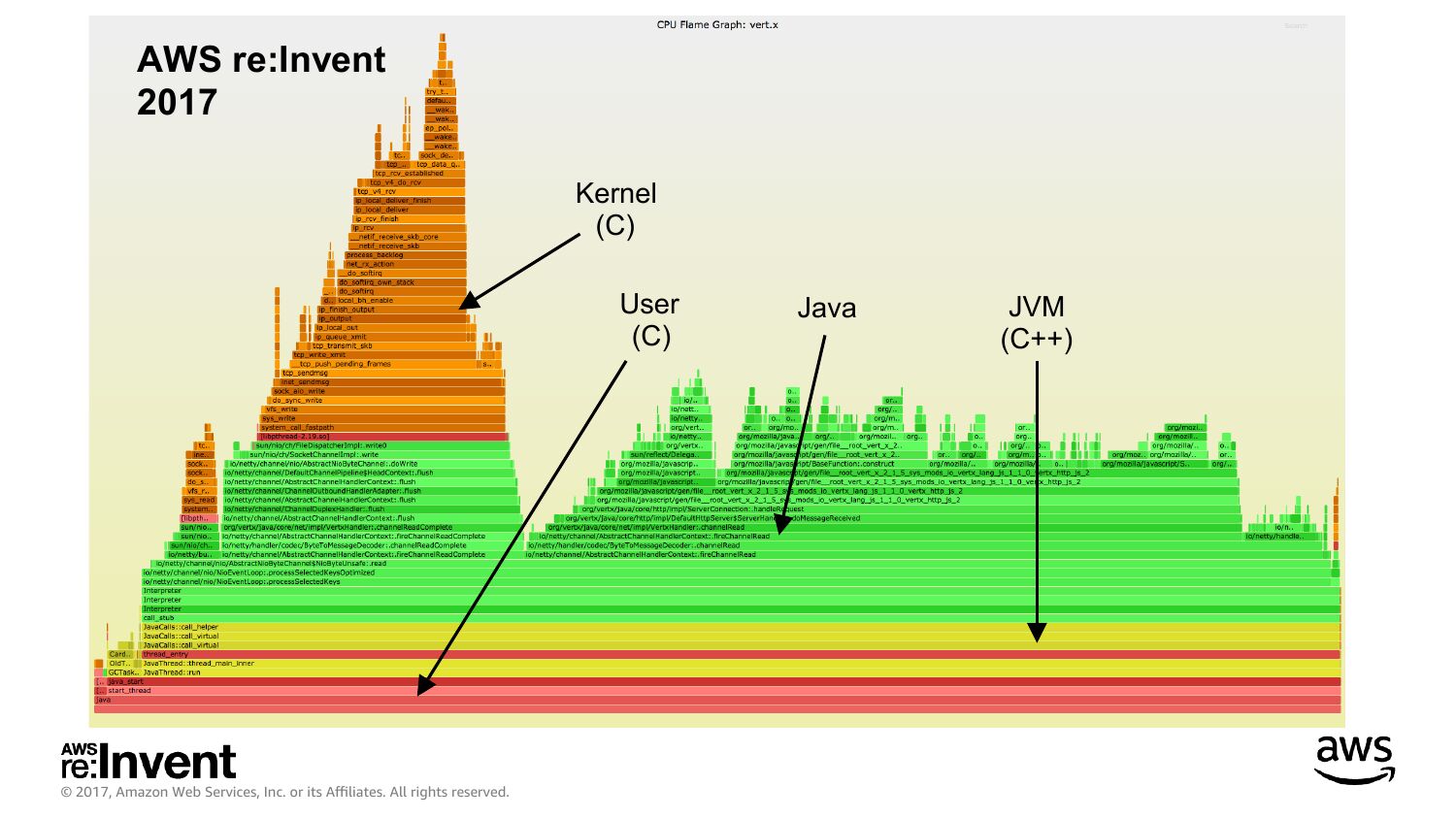

slide 45:
    AWS re:Invent
    Kernel
    (C)
    User
    (C)
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    Java
    JVM
    (C++)

slide 46:

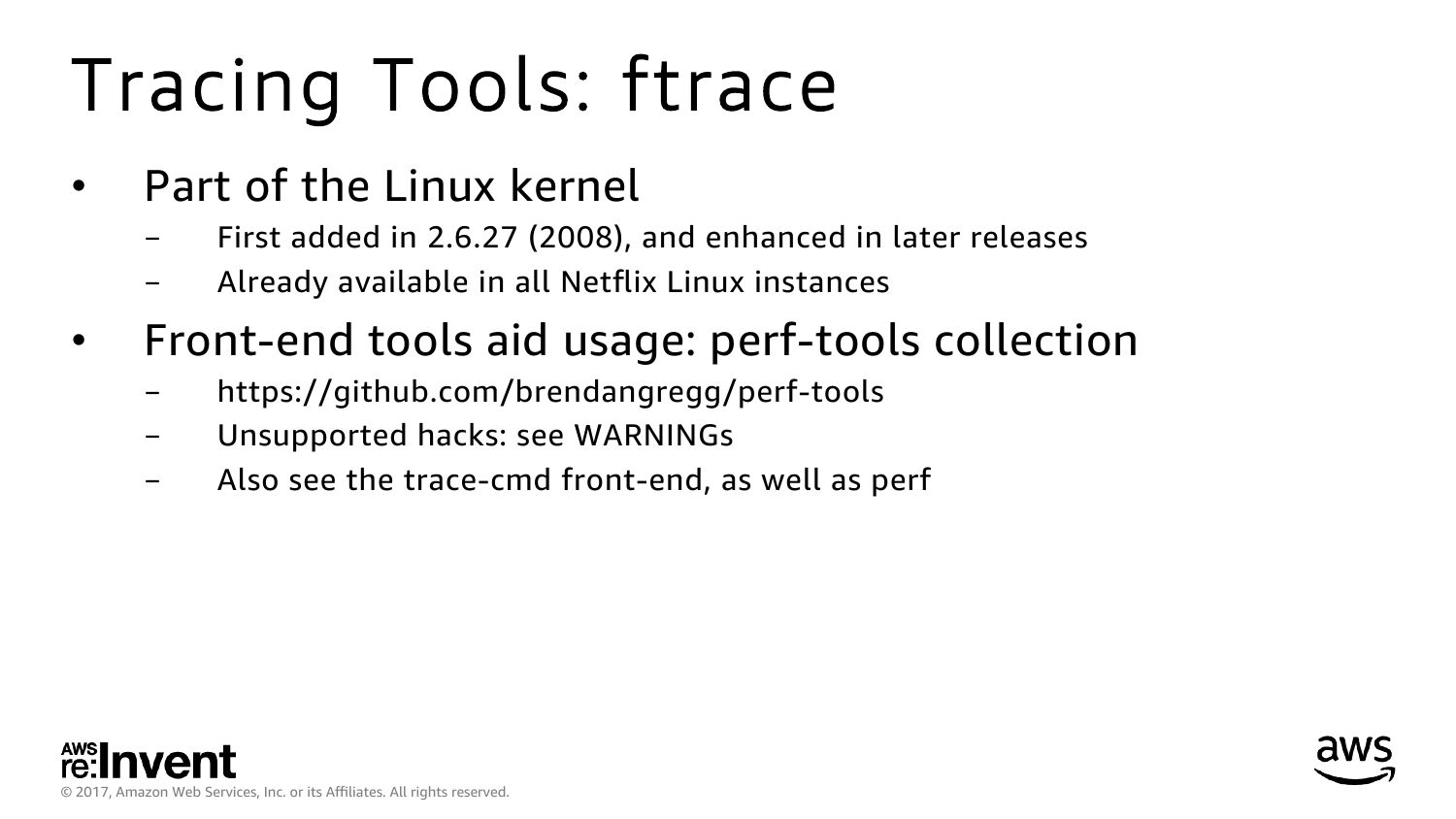

    Tracing Tools: ftrace
    Part of the Linux kernel
    First added in 2.6.27 (2008), and enhanced in later releases
    Already available in all Netflix Linux instances
    Front-end tools aid usage: perf-tools collection
    https://github.com/brendangregg/perf-tools
    Unsupported hacks: see WARNINGs
    Also see the trace-cmd front-end, as well as perf
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 47:

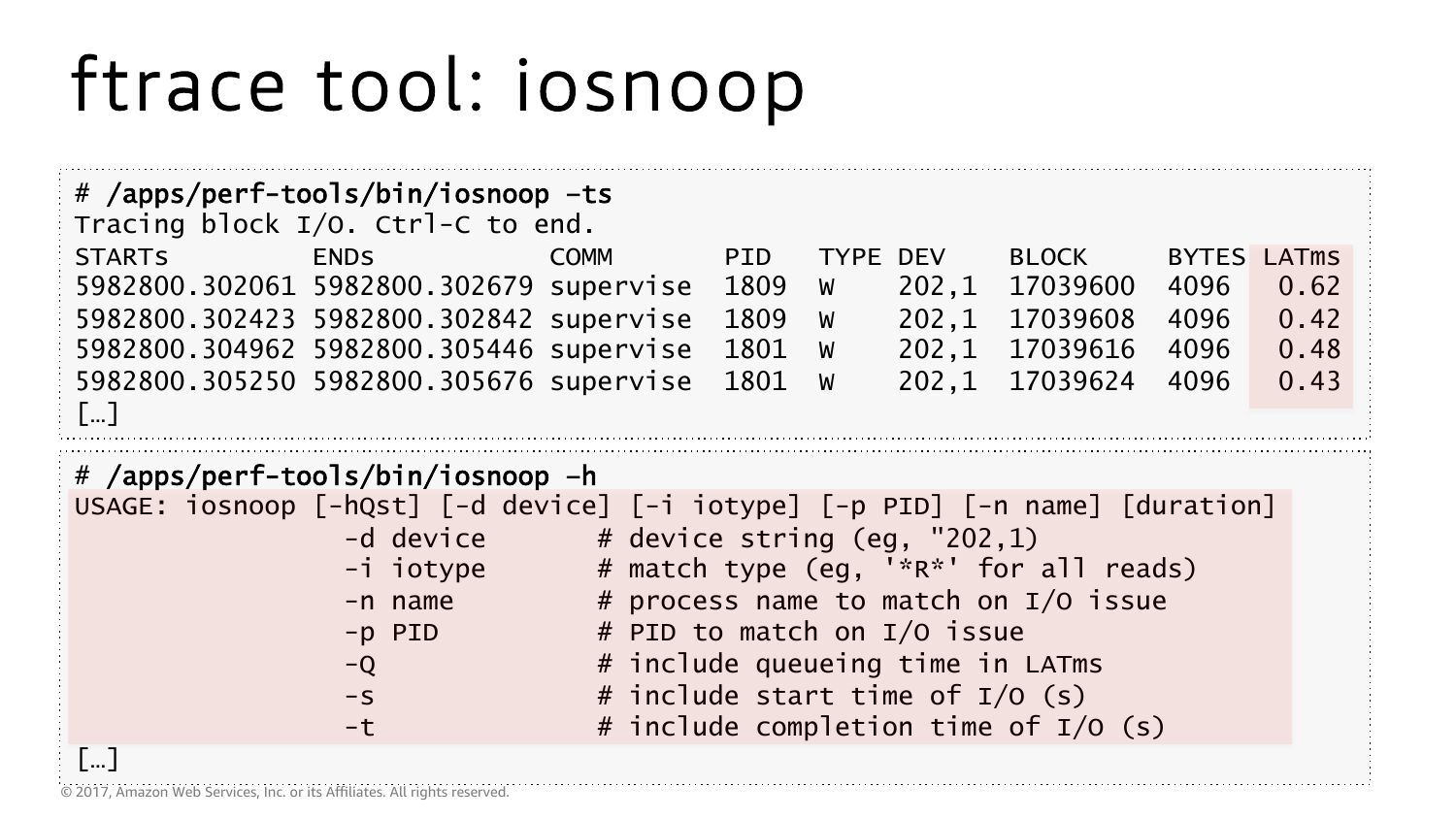

    ftrace tool: iosnoop
    # /apps/perf-tools/bin/iosnoop –ts
    Tracing block I/O. Ctrl-C to end.
    STARTs
    ENDs
    COMM
    5982800.302061 5982800.302679 supervise
    5982800.302423 5982800.302842 supervise
    5982800.304962 5982800.305446 supervise
    5982800.305250 5982800.305676 supervise
    […]
    PID
    TYPE DEV
    202,1
    202,1
    202,1
    202,1
    BLOCK
    BYTES LATms
    # /apps/perf-tools/bin/iosnoop –h
    USAGE: iosnoop [-hQst] [-d device] [-i iotype] [-p PID] [-n name] [duration]
    -d device
    # device string (eg, "202,1)
    -i iotype
    # match type (eg, '*R*' for all reads)
    -n name
    # process name to match on I/O issue
    -p PID
    # PID to match on I/O issue
    # include queueing time in LATms
    # include start time of I/O (s)
    # include completion time of I/O (s)
    […]
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 48:

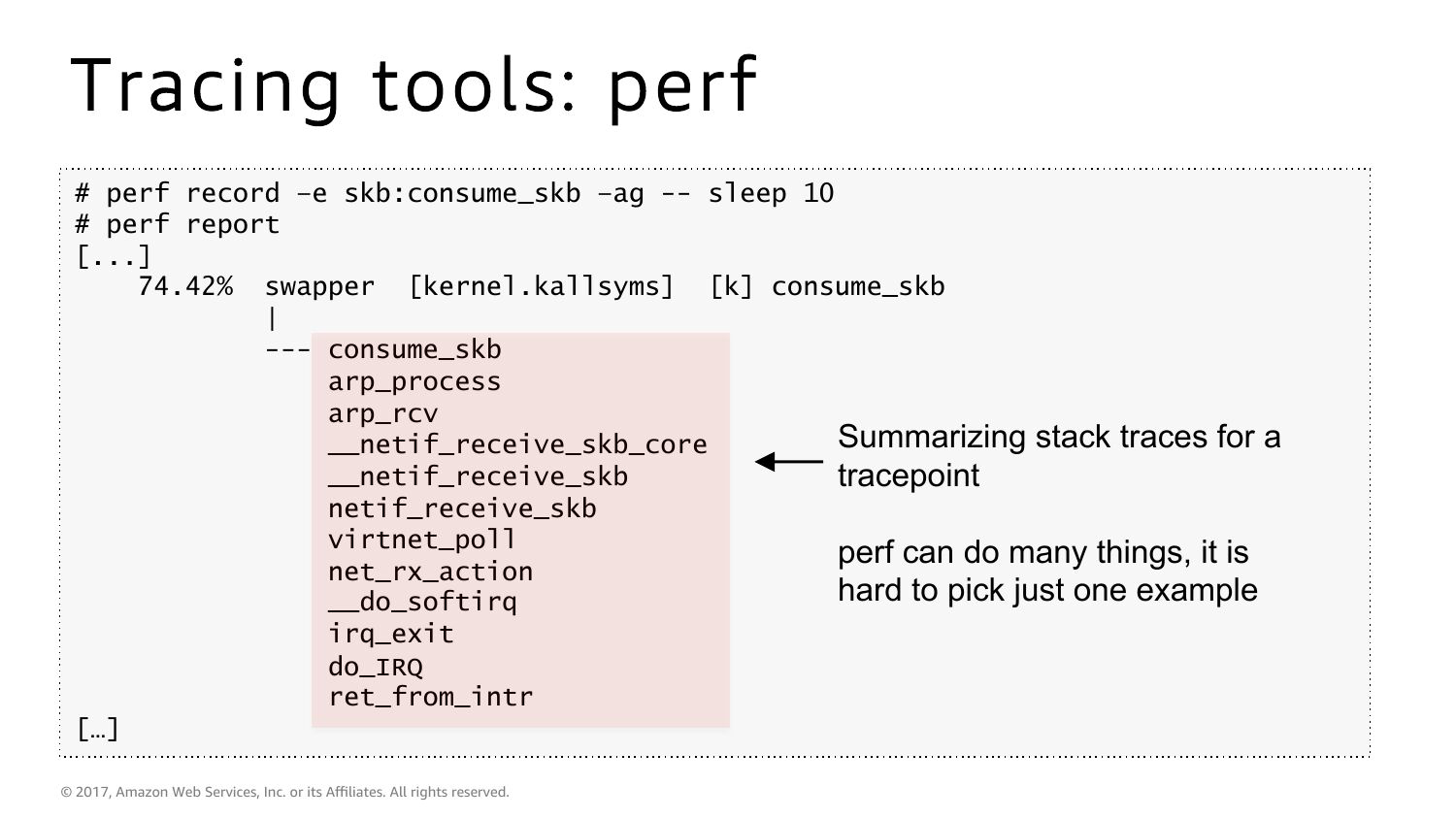

    Tracing tools: perf
    # perf record –e skb:consume_skb –ag -- sleep 10
    # perf report
    [...]
    74.42% swapper [kernel.kallsyms] [k] consume_skb
    --- consume_skb
    arp_process
    arp_rcv
    Summarizing stack traces for a
    __netif_receive_skb_core
    __netif_receive_skb
    tracepoint
    netif_receive_skb
    virtnet_poll
    perf can do many things, it is
    net_rx_action
    hard to pick just one example
    __do_softirq
    irq_exit
    do_IRQ
    ret_from_intr
    […]
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 49:

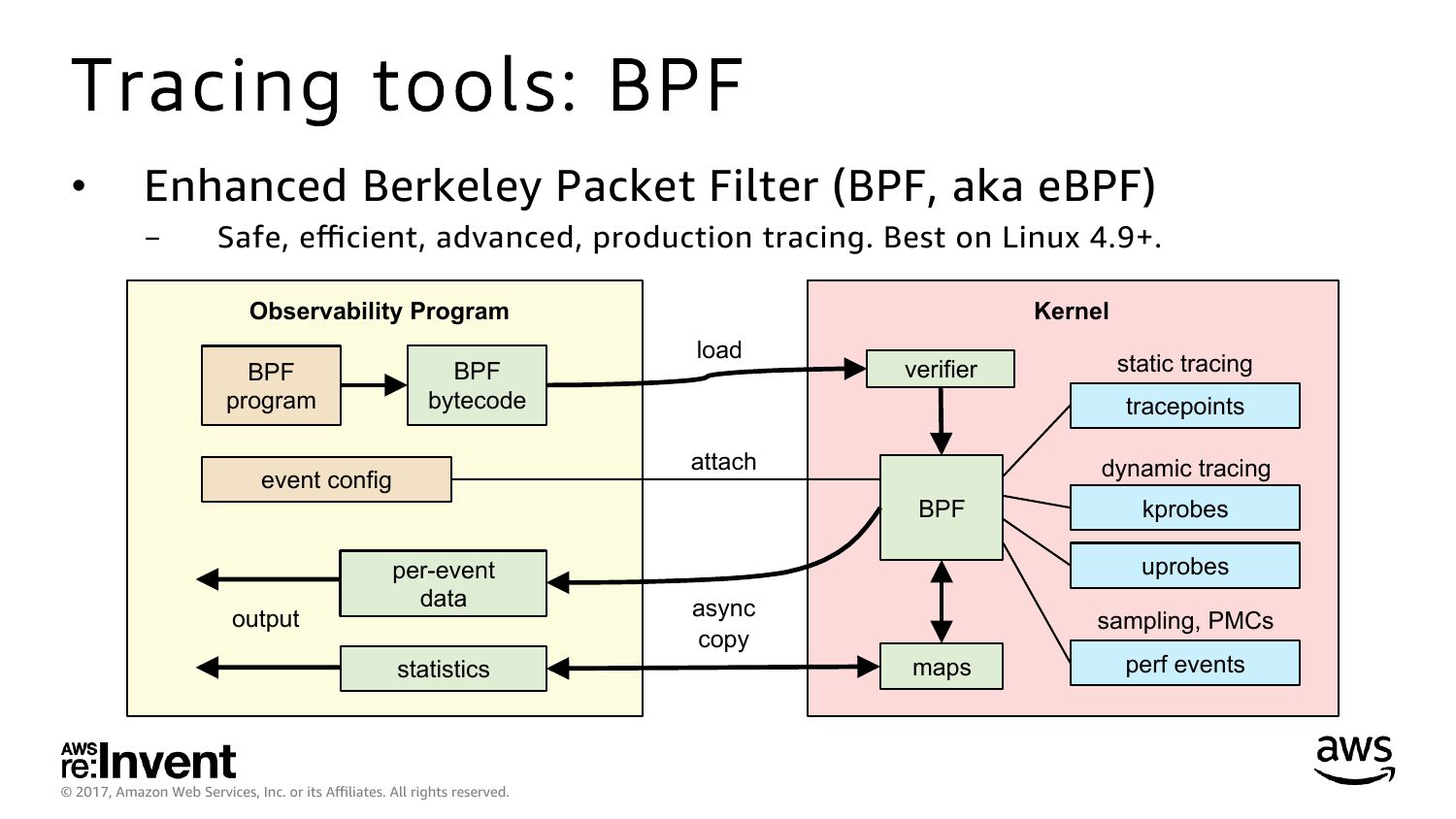

    Tracing tools: BPF
    Enhanced Berkeley Packet Filter (BPF, aka eBPF)
    Safe, efficient, advanced, production tracing. Best on Linux 4.9+.
    Observability Program
    BPF
    program
    BPF
    bytecode
    Kernel
    load
    verifier
    tracepoints
    attach
    event config
    dynamic tracing
    BPF
    output
    per-event
    data
    statistics
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    static tracing
    kprobes
    uprobes
    async
    copy
    sampling, PMCs
    maps
    perf events

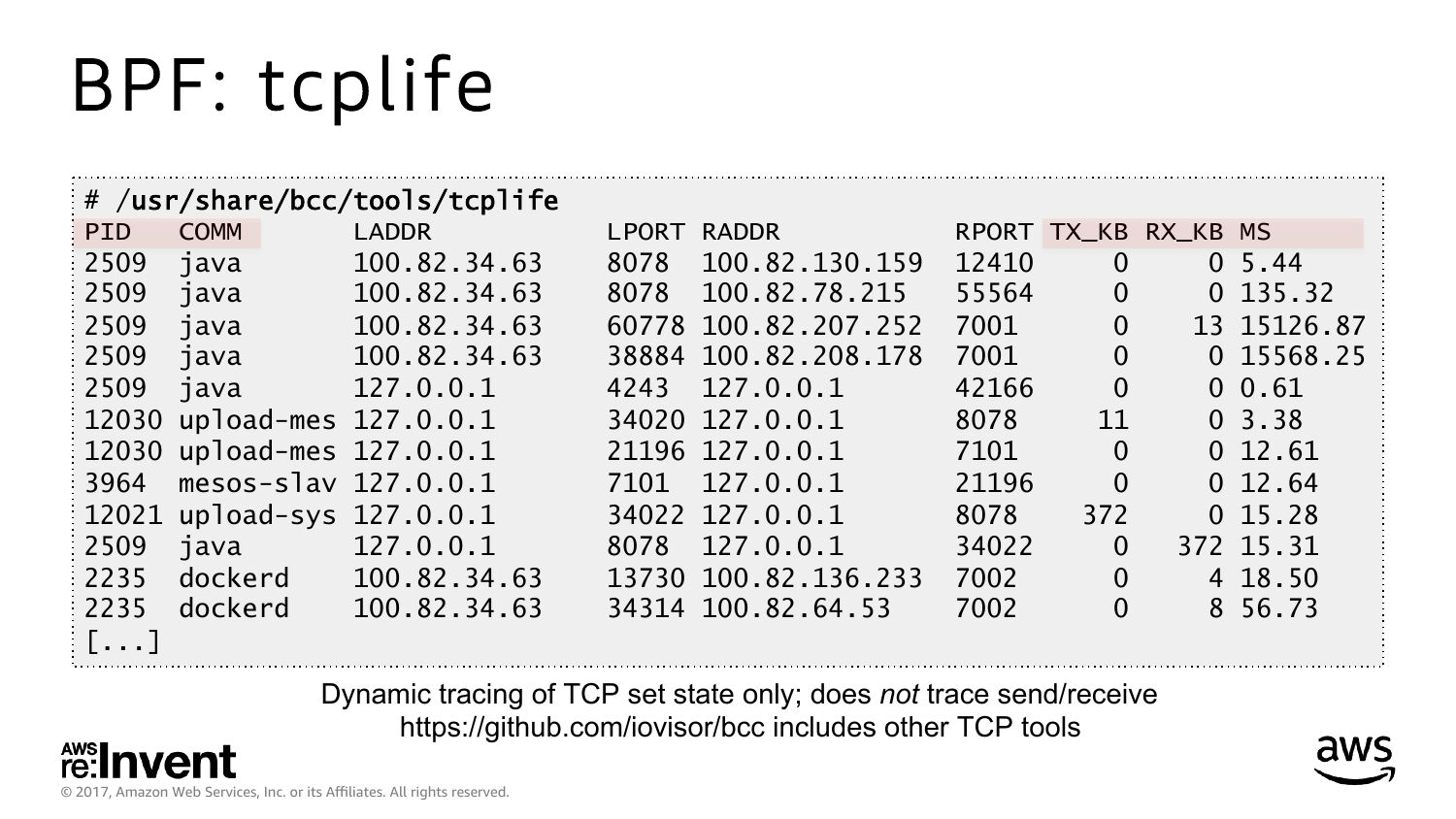

slide 50:
    BPF: tcplife
    # /usr/share/bcc/tools/tcplife
    PID
    COMM
    LADDR
    2509 java
    2509 java
    2509 java
    2509 java
    2509 java
    12030 upload-mes 127.0.0.1
    12030 upload-mes 127.0.0.1
    3964 mesos-slav 127.0.0.1
    12021 upload-sys 127.0.0.1
    2509 java
    2235 dockerd
    2235 dockerd
    [...]
    LPORT RADDR
    8078 100.82.130.159
    8078 100.82.78.215
    60778 100.82.207.252
    38884 100.82.208.178
    4243 127.0.0.1
    34020 127.0.0.1
    21196 127.0.0.1
    7101 127.0.0.1
    34022 127.0.0.1
    8078 127.0.0.1
    13730 100.82.136.233
    34314 100.82.64.53
    RPORT TX_KB RX_KB MS
    0 5.44
    0 135.32
    13 15126.87
    0 15568.25
    0 0.61
    0 3.38
    0 12.61
    0 12.64
    0 15.28
    372 15.31
    4 18.50
    8 56.73
    Dynamic tracing of TCP set state only; does not trace send/receive
    https://github.com/iovisor/bcc includes other TCP tools
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 51:

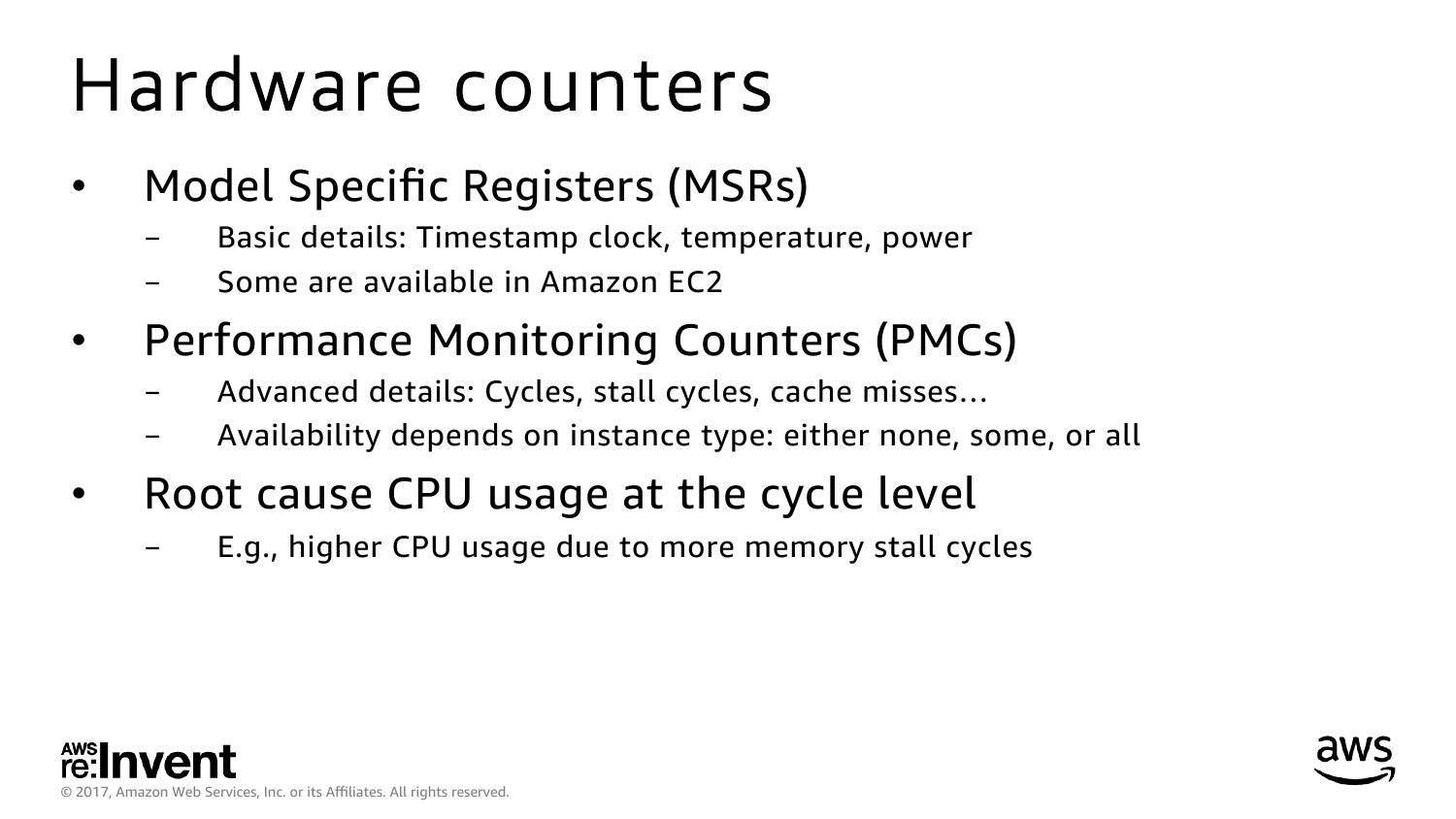

    Hardware counters
    Model Specific Registers (MSRs)
    Performance Monitoring Counters (PMCs)
    Basic details: Timestamp clock, temperature, power
    Some are available in Amazon EC2
    Advanced details: Cycles, stall cycles, cache misses…
    Availability depends on instance type: either none, some, or all
    Root cause CPU usage at the cycle level
    E.g., higher CPU usage due to more memory stall cycles
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 52:

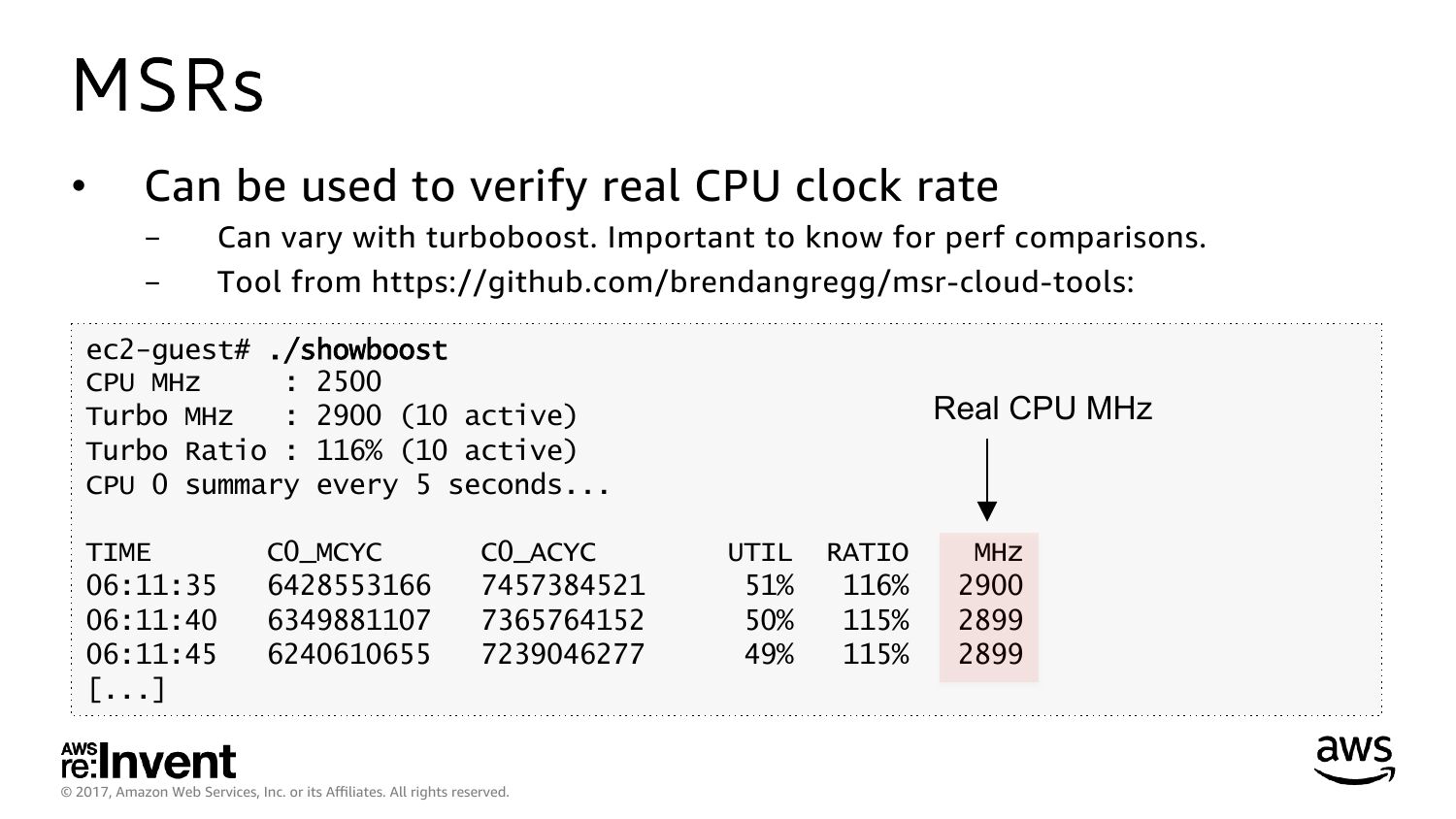

    MSRs
    Can be used to verify real CPU clock rate
    Can vary with turboboost. Important to know for perf comparisons.
    Tool from https://github.com/brendangregg/msr-cloud-tools:
    ec2-guest# ./showboost
    CPU MHz
    : 2500
    Turbo MHz
    : 2900 (10 active)
    Turbo Ratio : 116% (10 active)
    CPU 0 summary every 5 seconds...
    TIME
    06:11:35
    06:11:40
    06:11:45
    [...]
    C0_MCYC
    C0_ACYC
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    Real CPU MHz
    UTIL
    51%
    50%
    49%
    RATIO
    116%
    115%
    115%
    MHz

slide 53:

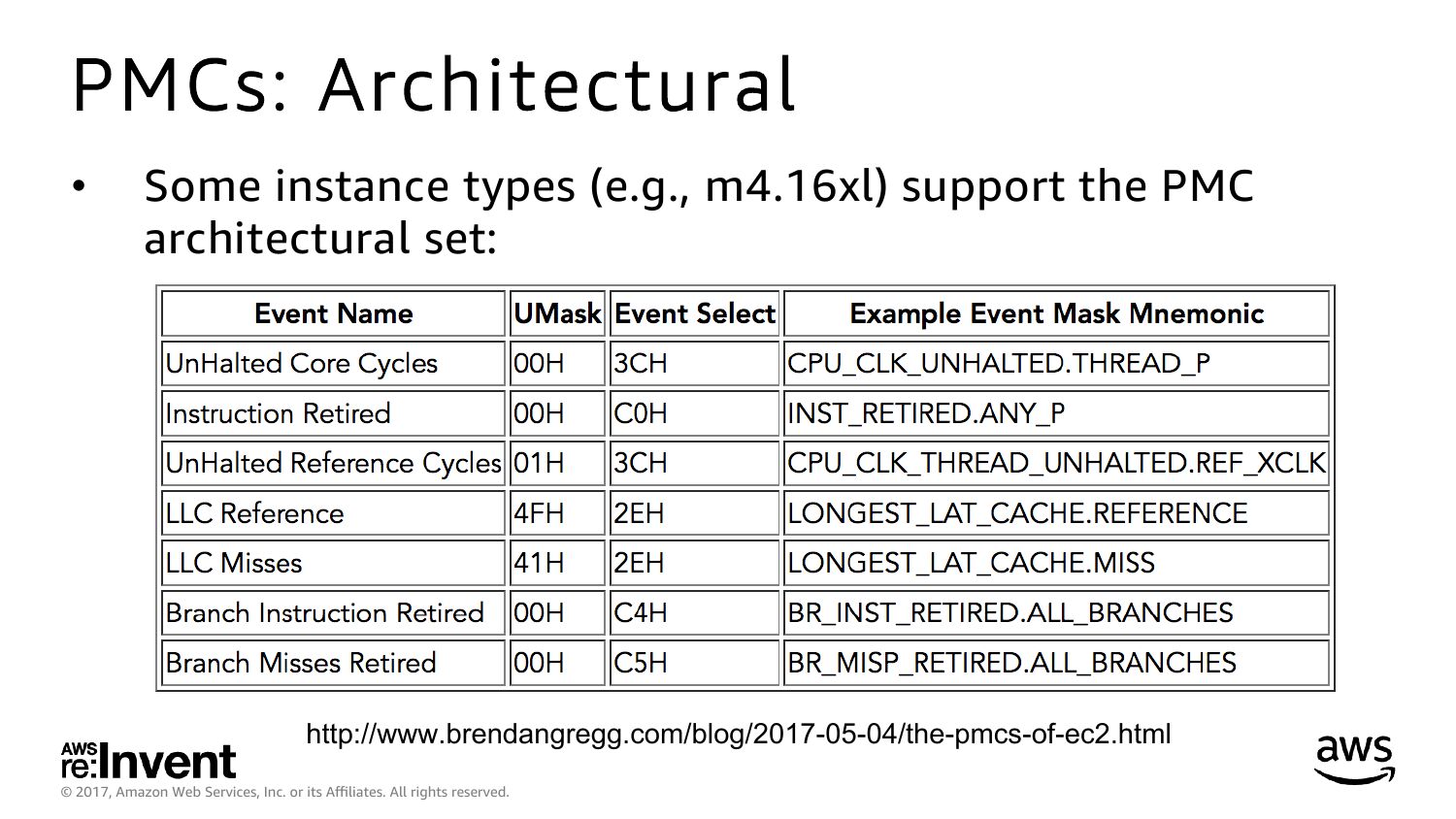

    PMCs: Architectural
    Some instance types (e.g., m4.16xl) support the PMC
    architectural set:
    http://www.brendangregg.com/blog/2017-05-04/the-pmcs-of-ec2.html
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

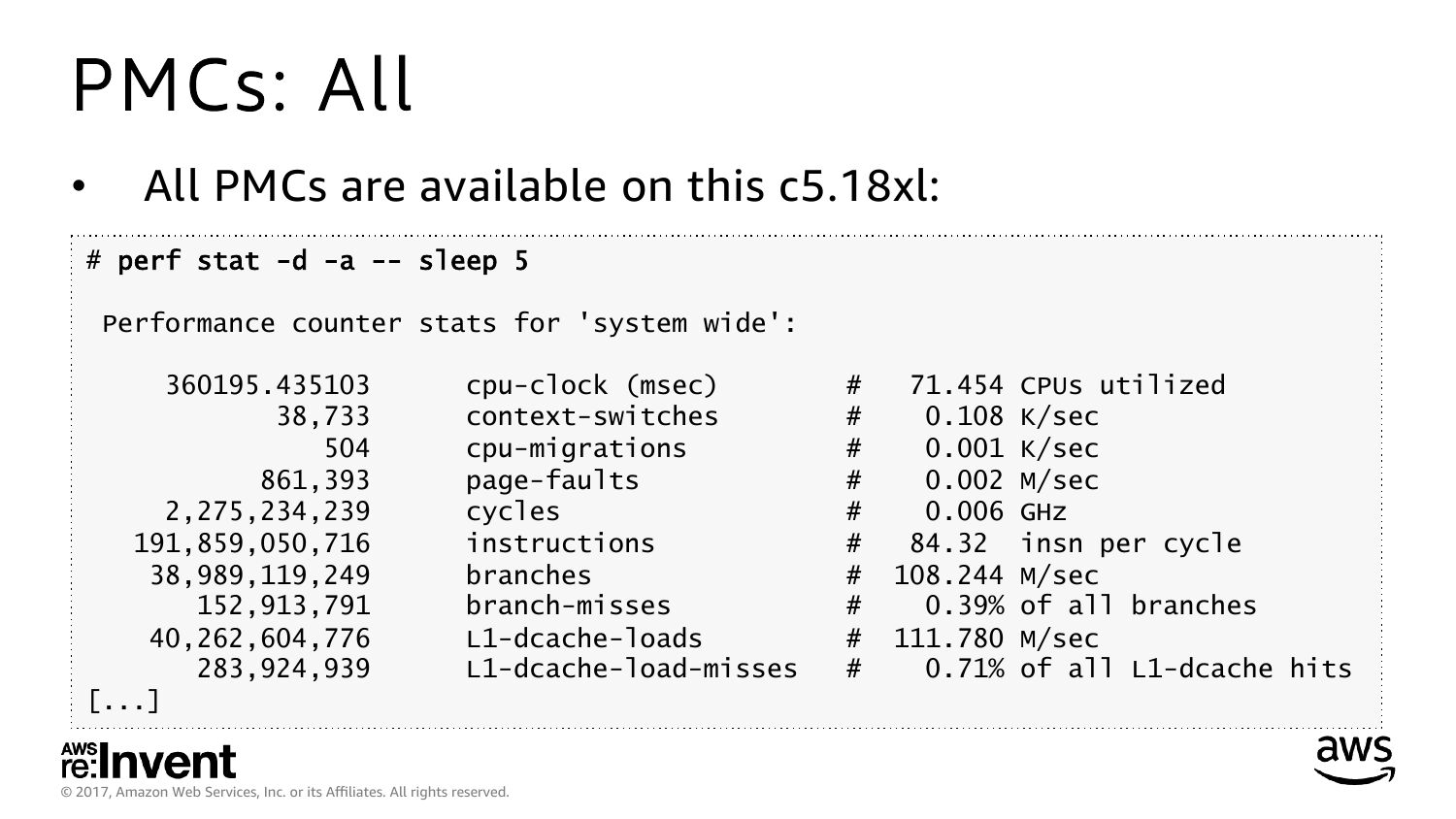

slide 54:
    PMCs: All
    All PMCs are available on this c5.18xl:
    # perf stat -d -a -- sleep 5
    Performance counter stats for 'system wide':
    38,733
    861,393
    2,275,234,239
    191,859,050,716
    38,989,119,249
    152,913,791
    40,262,604,776
    283,924,939
    [...]
    cpu-clock (msec)
    context-switches
    cpu-migrations
    page-faults
    cycles
    instructions
    branches
    branch-misses
    L1-dcache-loads
    L1-dcache-load-misses
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    71.454 CPUs utilized
    0.108 K/sec
    0.001 K/sec
    0.002 M/sec
    0.006 GHz
    84.32 insn per cycle
    108.244 M/sec
    0.39% of all branches
    111.780 M/sec
    0.71% of all L1-dcache hits

slide 55:

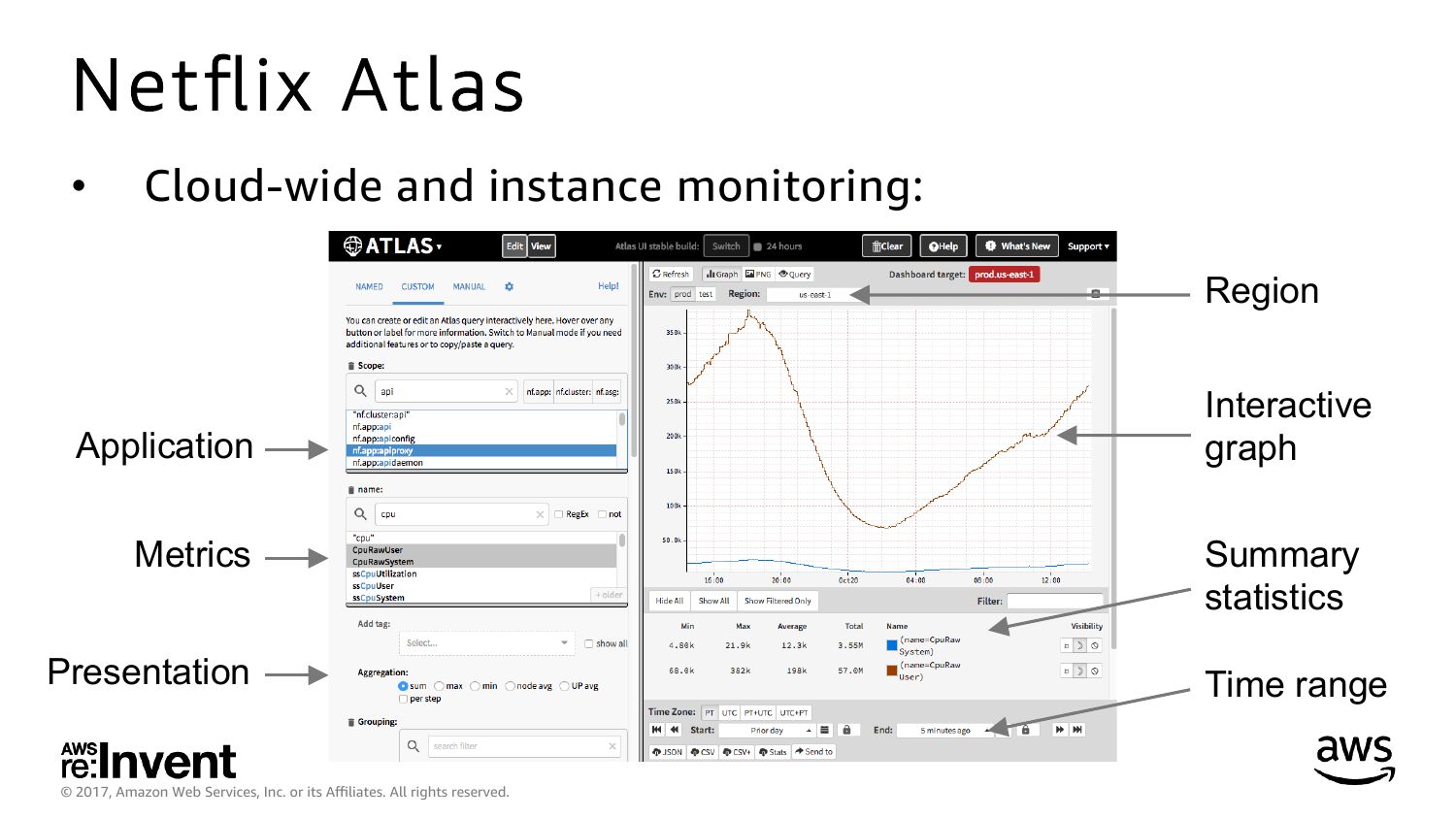

    Netflix Atlas
    Cloud-wide and instance monitoring:
    Region
    Application
    Metrics
    Presentation
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
    Interactive
    graph
    Summary
    statistics
    Time range

slide 56:

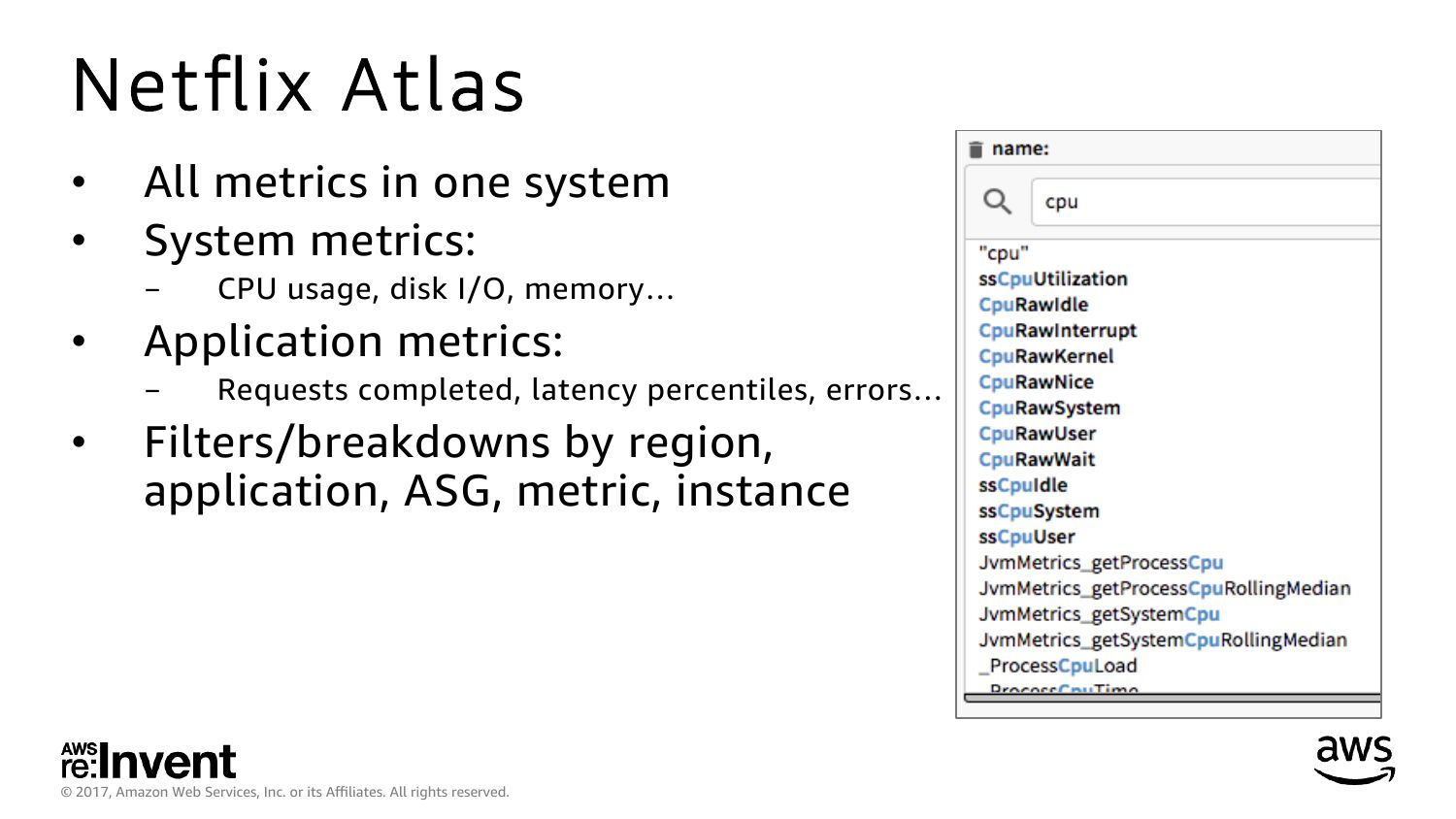

    Netflix Atlas
    All metrics in one system
    System metrics:
    Application metrics:
    CPU usage, disk I/O, memory…
    Requests completed, latency percentiles, errors…
    Filters/breakdowns by region,
    application, ASG, metric, instance
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

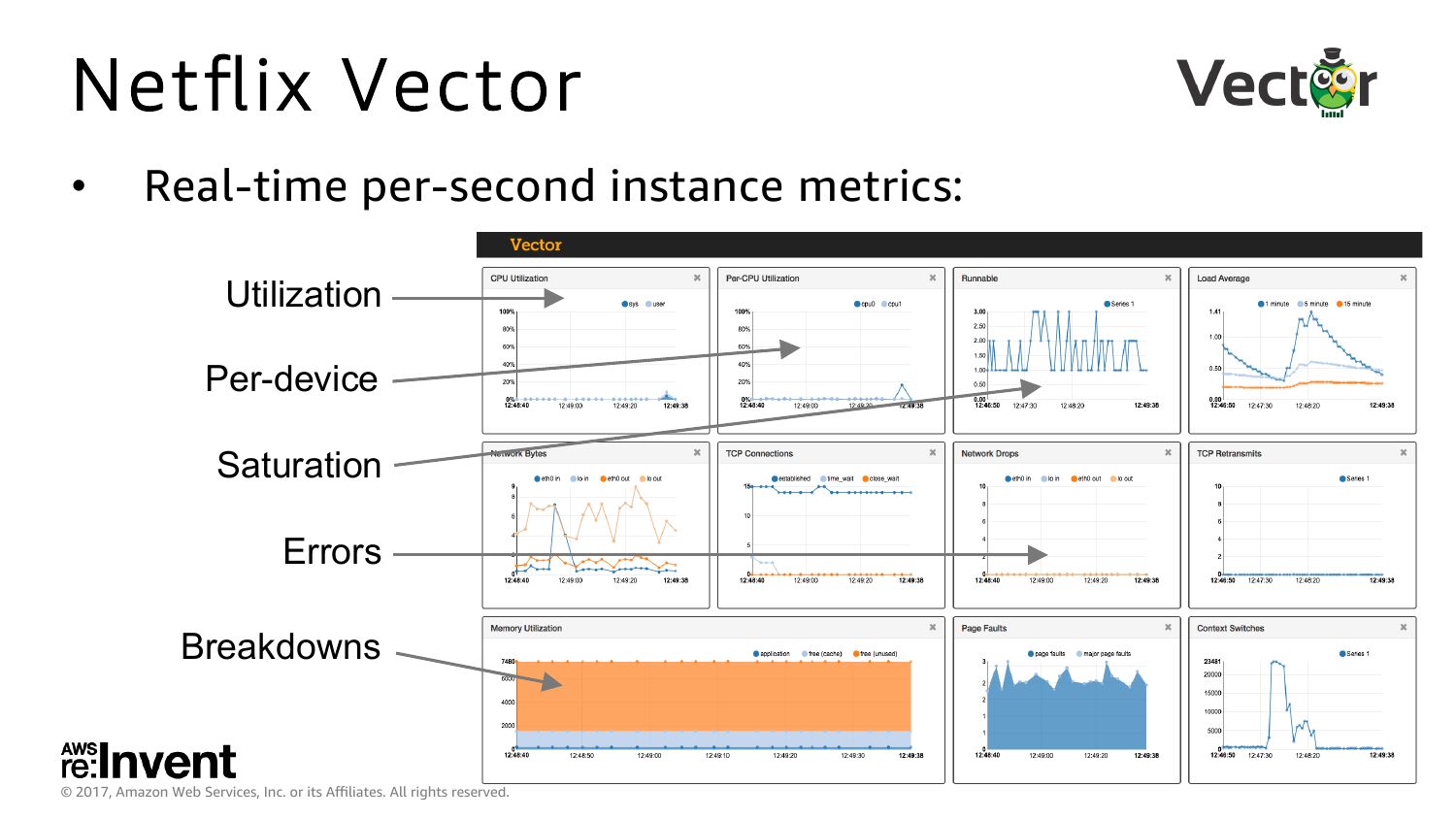

slide 57:
    Netflix Vector
    Real-time per-second instance metrics:
    Utilization
    Per-device
    Saturation
    Errors
    Breakdowns
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

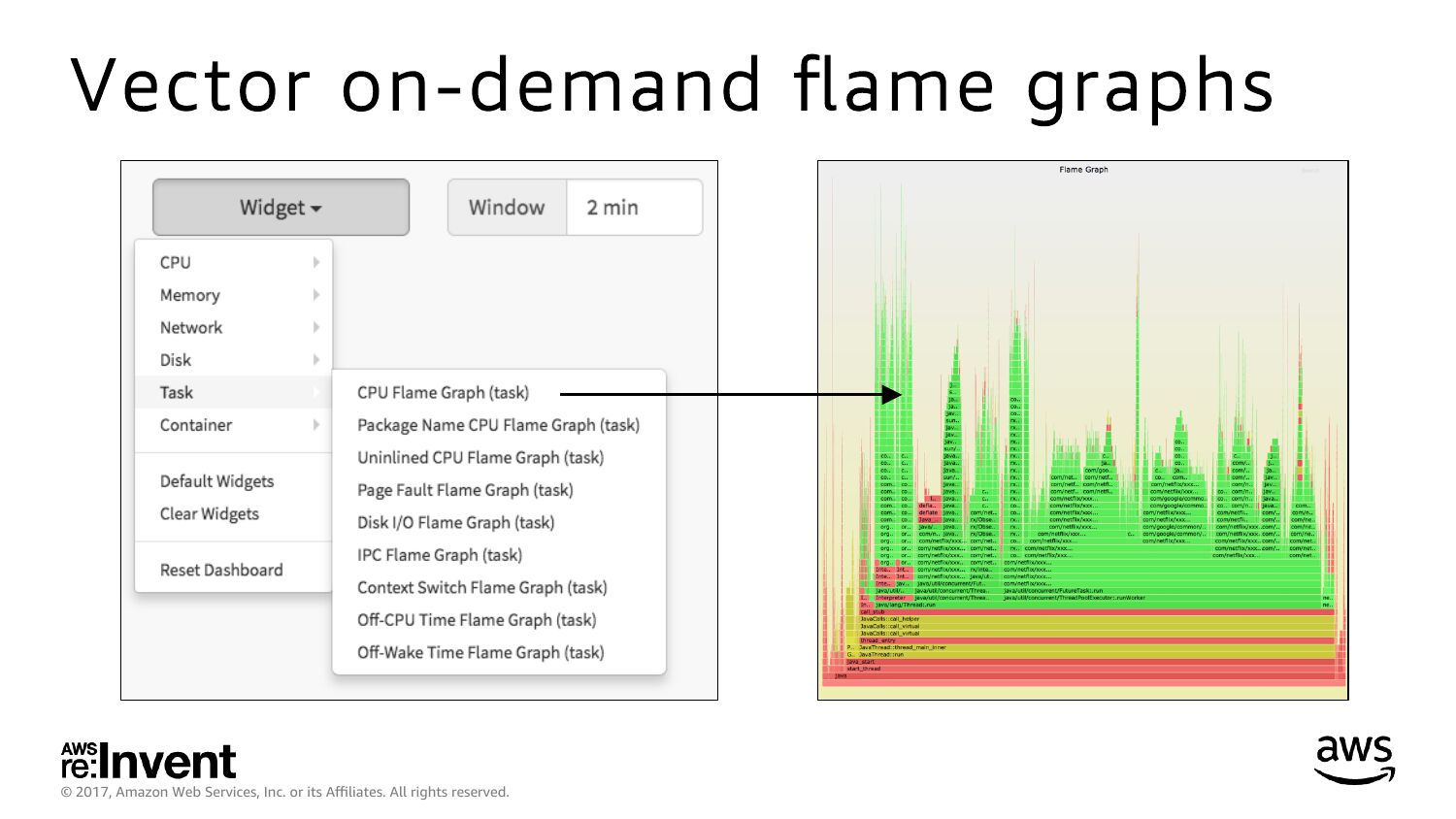

slide 58:
    Vector on-demand flame graphs
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

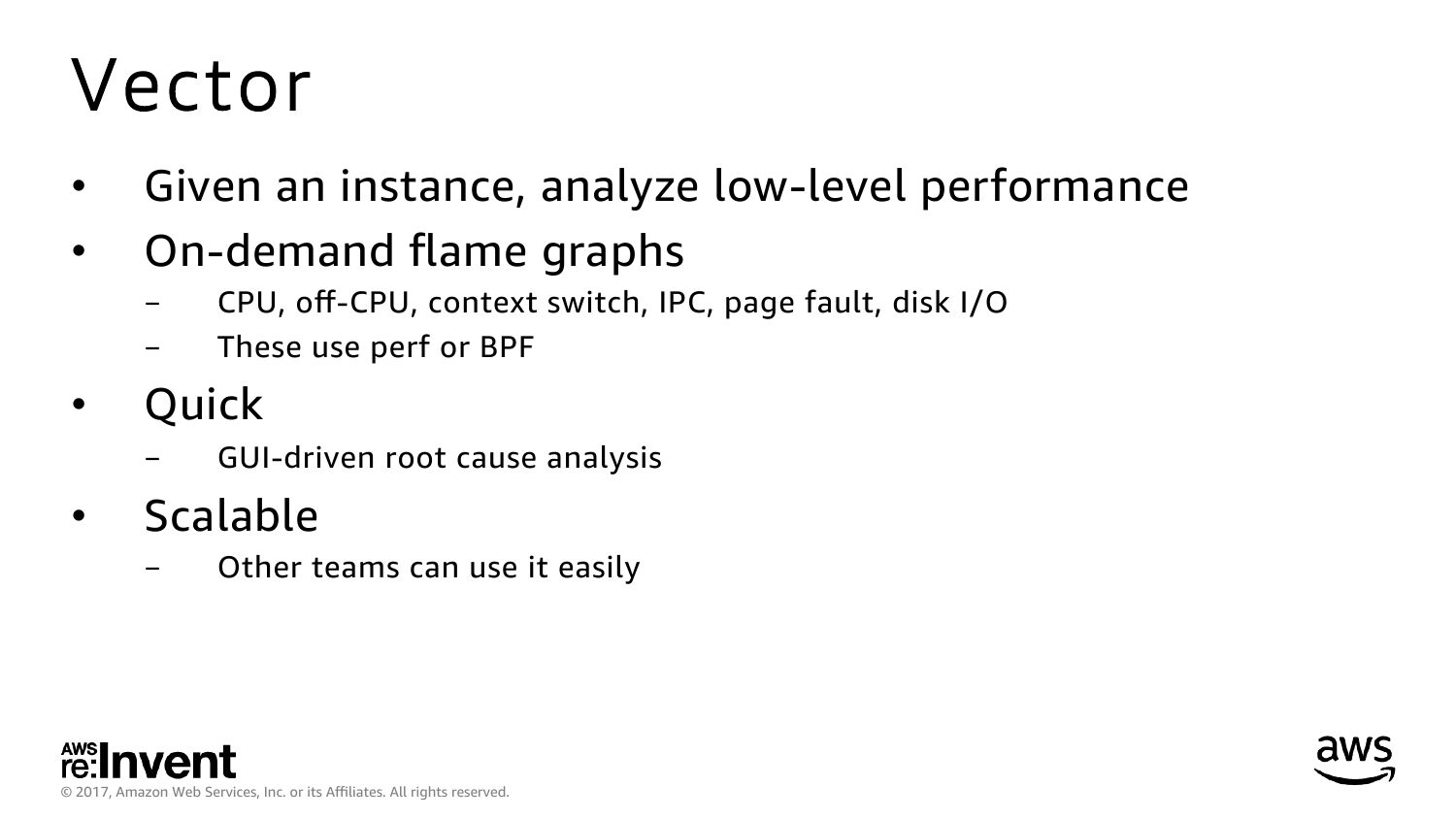

slide 59:
    Vector
    Given an instance, analyze low-level performance
    On-demand flame graphs
    Quick
    CPU, off-CPU, context switch, IPC, page fault, disk I/O
    These use perf or BPF
    GUI-driven root cause analysis
    Scalable
    Other teams can use it easily
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

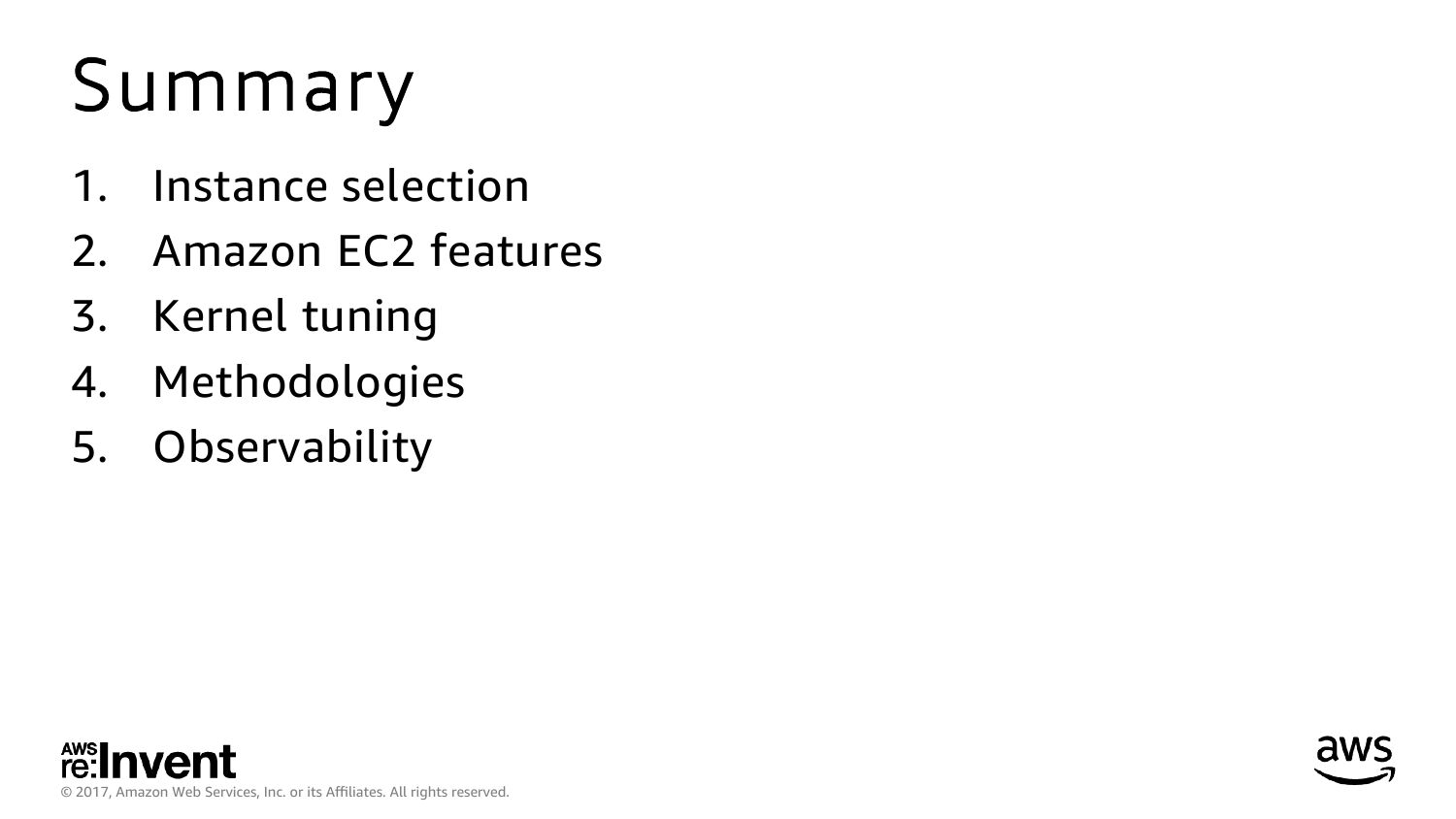

slide 60:
    Summary
    Instance selection
    Amazon EC2 features
    Kernel tuning
    Methodologies
    Observability
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

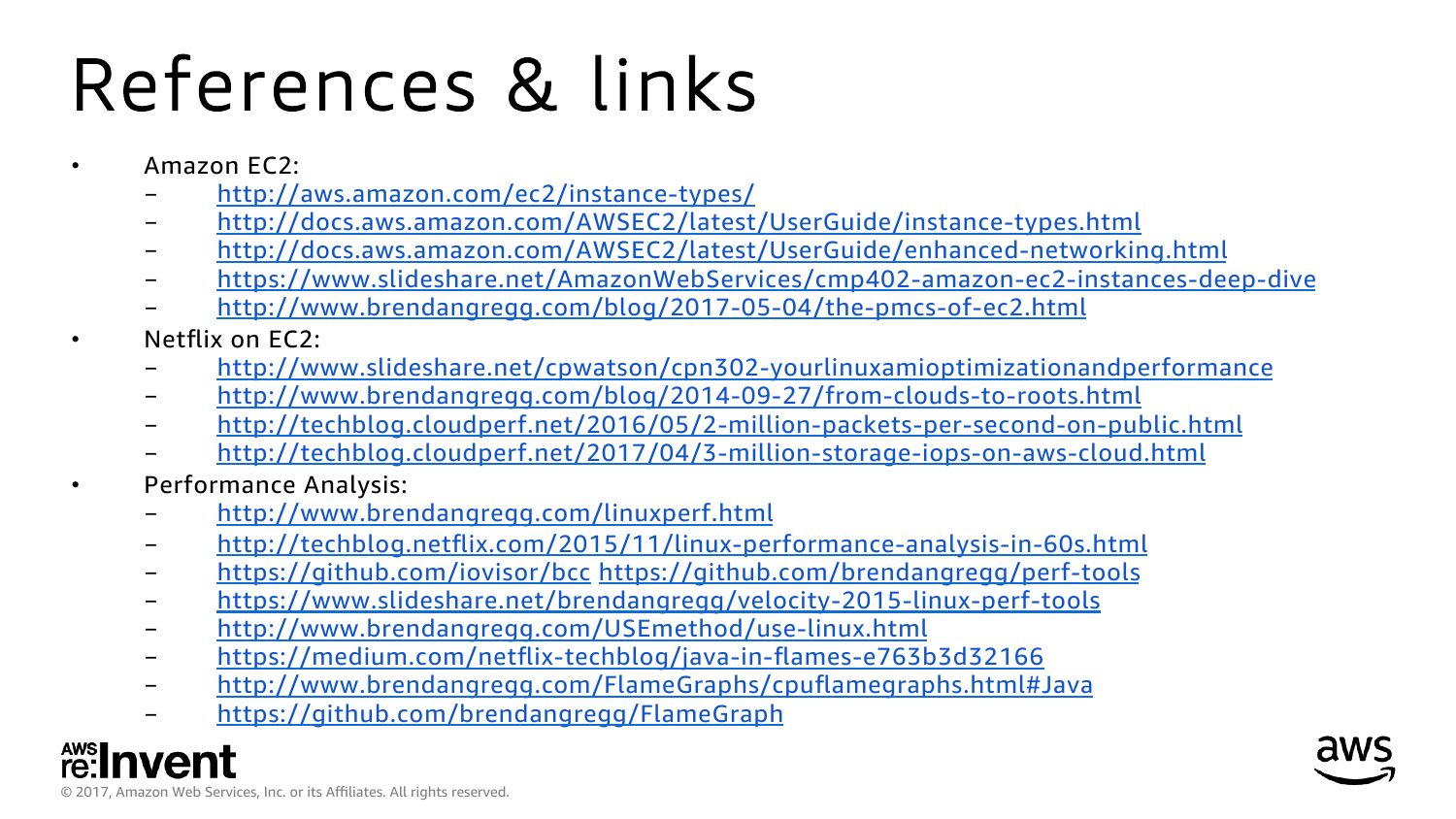

slide 61:
    References & links
    Amazon EC2:
    http://aws.amazon.com/ec2/instance-types/
    http://docs.aws.amazon.com/AWSEC2/latest/UserGuide/instance-types.html
    http://docs.aws.amazon.com/AWSEC2/latest/UserGuide/enhanced-networking.html
    https://www.slideshare.net/AmazonWebServices/cmp402-amazon-ec2-instances-deep-dive
    http://www.brendangregg.com/blog/2017-05-04/the-pmcs-of-ec2.html
    Netflix on EC2:
    http://www.slideshare.net/cpwatson/cpn302-yourlinuxamioptimizationandperformance
    http://www.brendangregg.com/blog/2014-09-27/from-clouds-to-roots.html
    http://techblog.cloudperf.net/2016/05/2-million-packets-per-second-on-public.html
    http://techblog.cloudperf.net/2017/04/3-million-storage-iops-on-aws-cloud.html
    Performance Analysis:
    http://www.brendangregg.com/linuxperf.html
    http://techblog.netflix.com/2015/11/linux-performance-analysis-in-60s.html
    https://github.com/iovisor/bcc https://github.com/brendangregg/perf-tools
    https://www.slideshare.net/brendangregg/velocity-2015-linux-perf-tools
    http://www.brendangregg.com/USEmethod/use-linux.html
    https://medium.com/netflix-techblog/java-in-flames-e763b3d32166
    http://www.brendangregg.com/FlameGraphs/cpuflamegraphs.html#Java
    https://github.com/brendangregg/FlameGraph
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

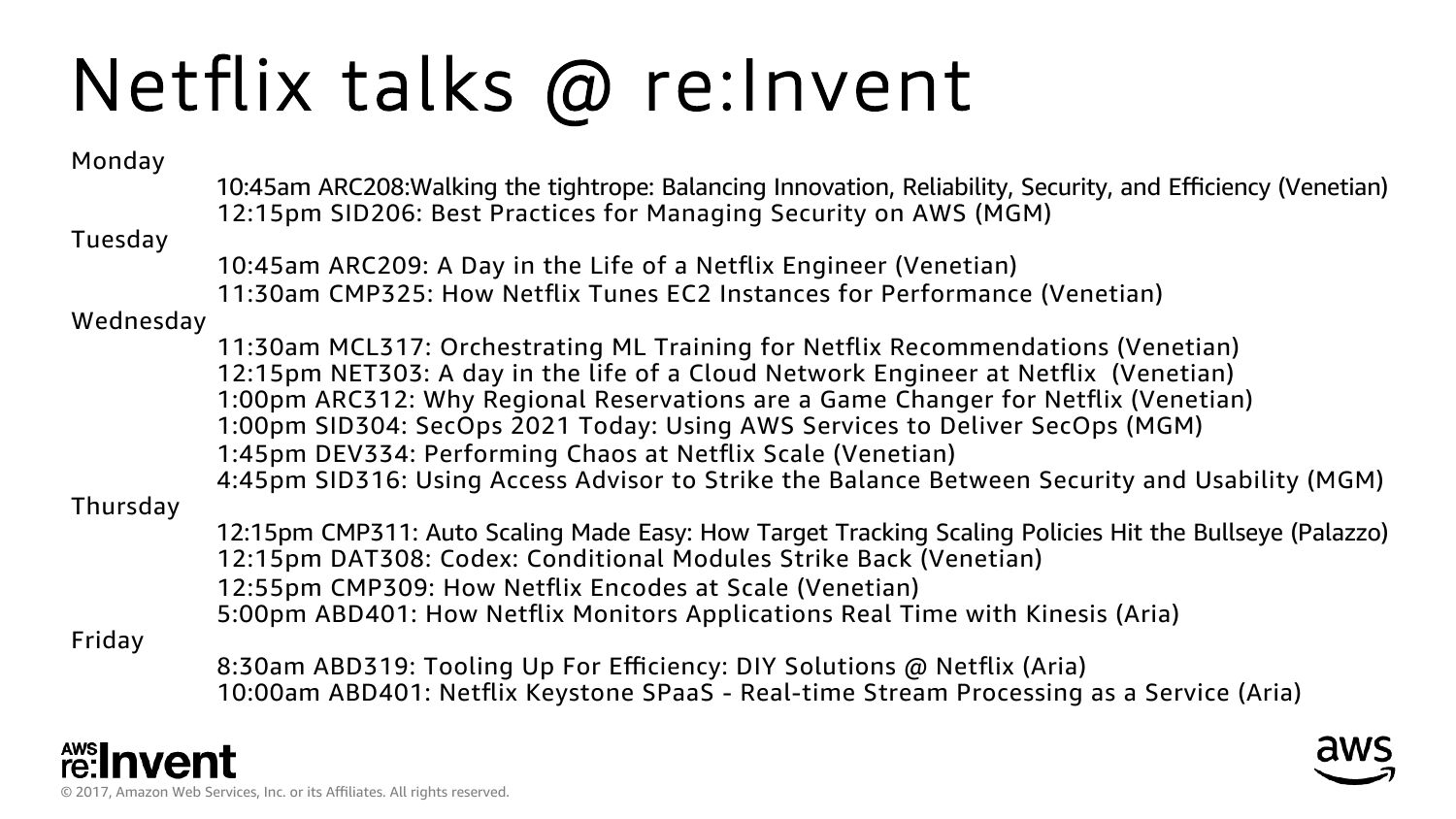

slide 62:
    Netflix talks @ re:Invent
    Monday
    Tuesday
    Wednesday
    Thursday
    Friday
    10:45am ARC208:Walking the tightrope: Balancing Innovation, Reliability, Security, and Efficiency (Venetian)
    12:15pm SID206: Best Practices for Managing Security on AWS (MGM)
    10:45am ARC209: A Day in the Life of a Netflix Engineer (Venetian)
    11:30am CMP325: How Netflix Tunes EC2 Instances for Performance (Venetian)
    11:30am MCL317: Orchestrating ML Training for Netflix Recommendations (Venetian)
    12:15pm NET303: A day in the life of a Cloud Network Engineer at Netflix (Venetian)
    1:00pm ARC312: Why Regional Reservations are a Game Changer for Netflix (Venetian)
    1:00pm SID304: SecOps 2021 Today: Using AWS Services to Deliver SecOps (MGM)
    1:45pm DEV334: Performing Chaos at Netflix Scale (Venetian)
    4:45pm SID316: Using Access Advisor to Strike the Balance Between Security and Usability (MGM)
    12:15pm CMP311: Auto Scaling Made Easy: How Target Tracking Scaling Policies Hit the Bullseye (Palazzo)
    12:15pm DAT308: Codex: Conditional Modules Strike Back (Venetian)
    12:55pm CMP309: How Netflix Encodes at Scale (Venetian)
    5:00pm ABD401: How Netflix Monitors Applications Real Time with Kinesis (Aria)
    8:30am ABD319: Tooling Up For Efficiency: DIY Solutions @ Netflix (Aria)
    10:00am ABD401: Netflix Keystone SPaaS - Real-time Stream Processing as a Service (Aria)
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

slide 63:
    CMP325
    Thank you!
    B r e n d a n G r e g g , N e t fl i x P e r f o r m a n c e a n d O p e r a t i n g S y s t e m s T e a m
    @brendangregg
    © 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
