27 Feb 2017
Brendan Gregg
Senior Performance Architect
image: h)p://makeitstranger.com

Observability

Best Possible Performance
Root Cause Analysis

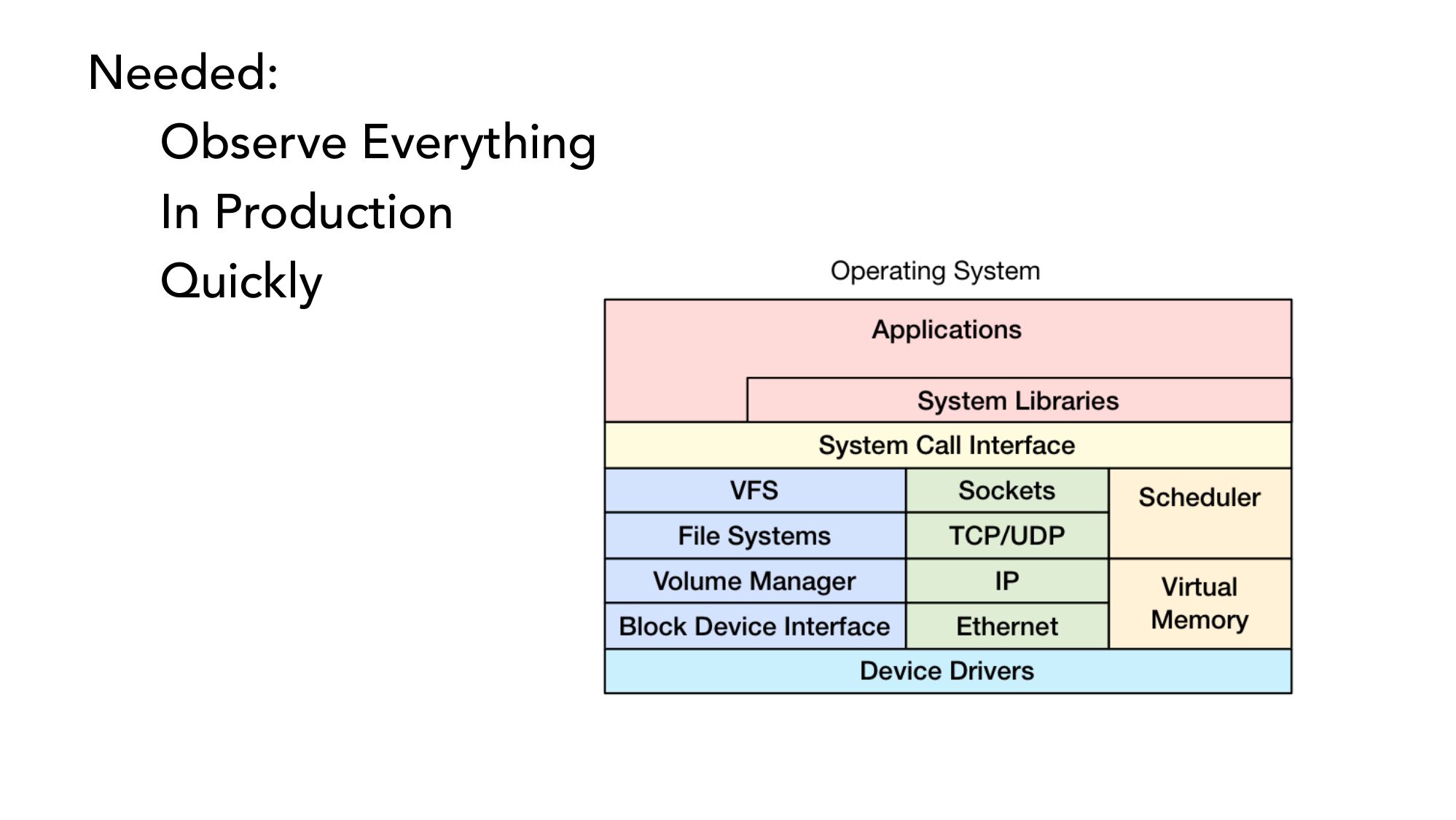

Needed:
Observe Everything
In Production
Quickly

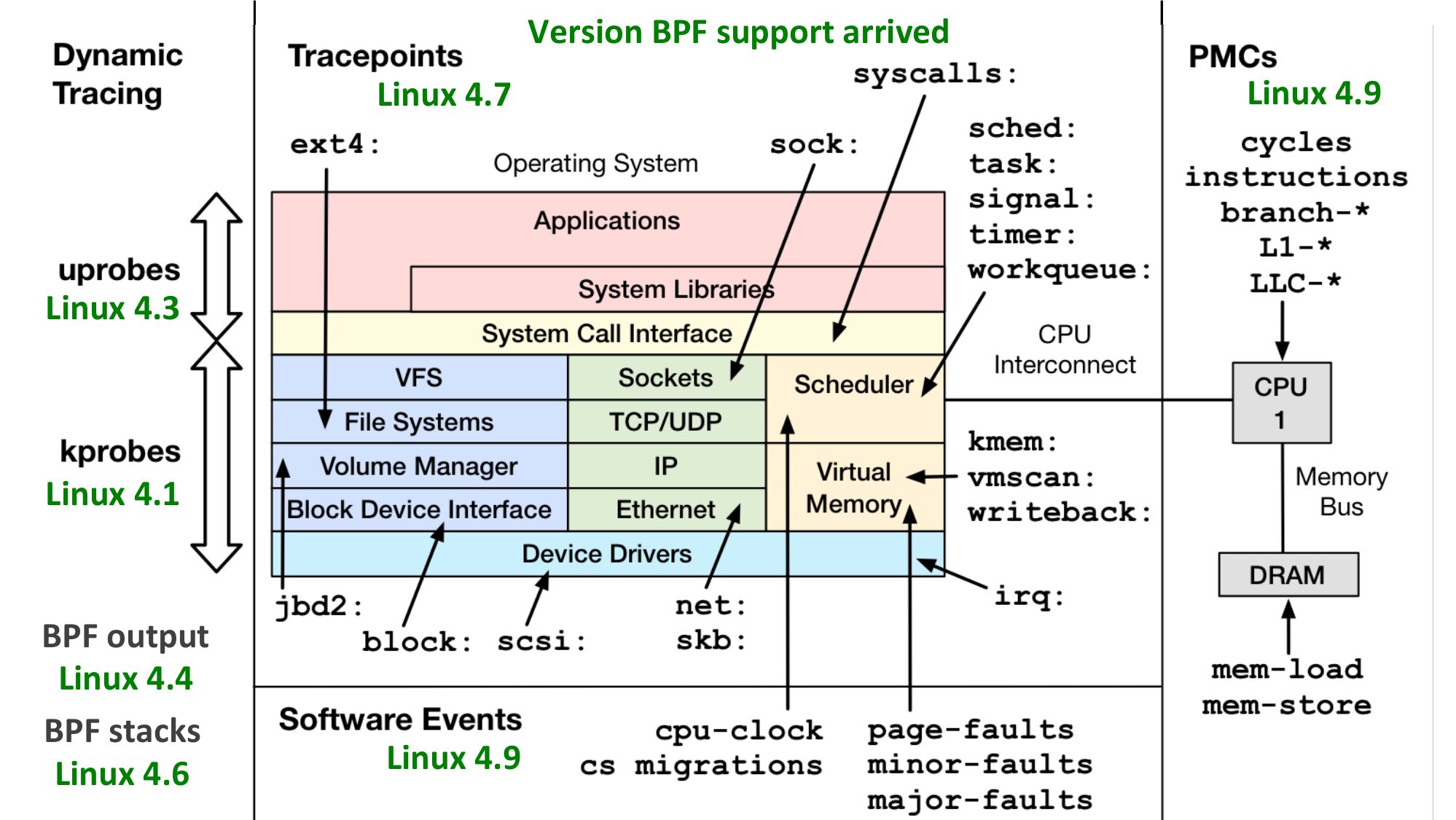

Enhanced BPF is in Linux

Version BPF support arrived
Linux 4.7
Linux 4.3
Linux 4.1
BPF output
Linux 4.4
BPF stacks
Linux 4.6
Linux 4.9
Linux 4.9

How do we
use these
superpowers?

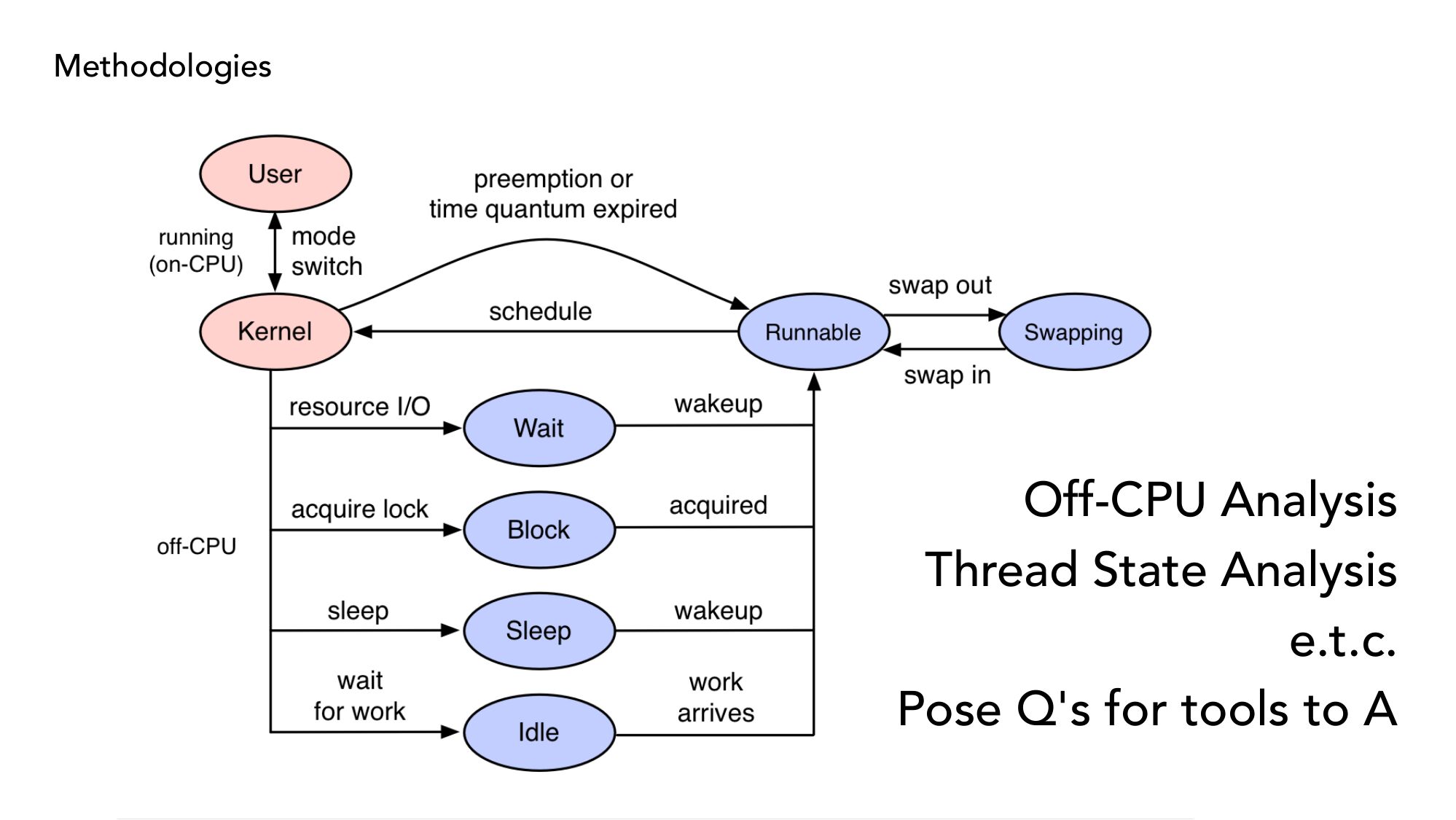

Methodologies
Off-CPU Analysis
Thread State Analysis
e.t.c.
Pose Q's for tools to A

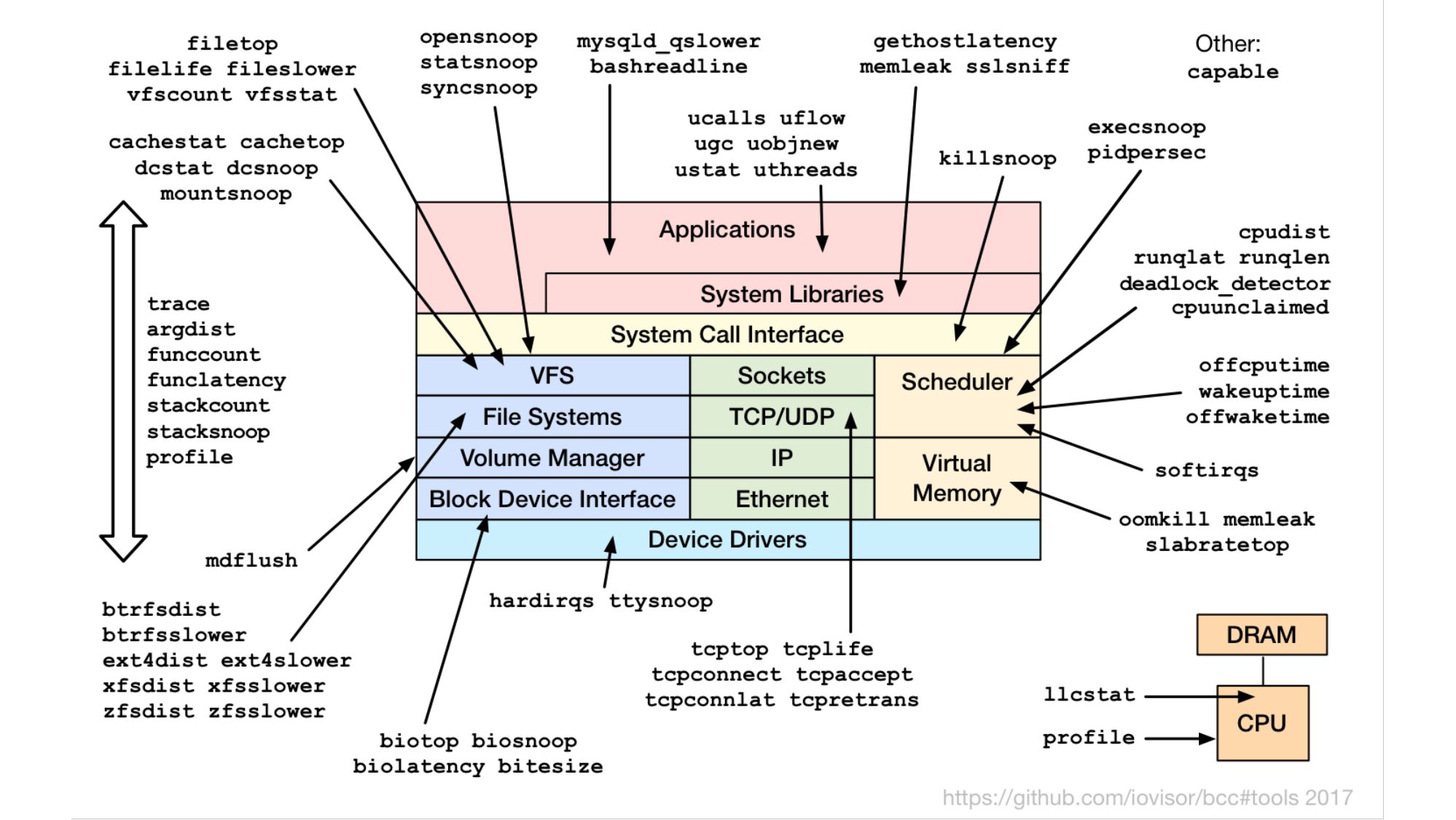

Current Tools

bcc: BPF Compiler Collection
https://github.com/iovisor/bcc

Single Purpose Tools
Multi-Tools

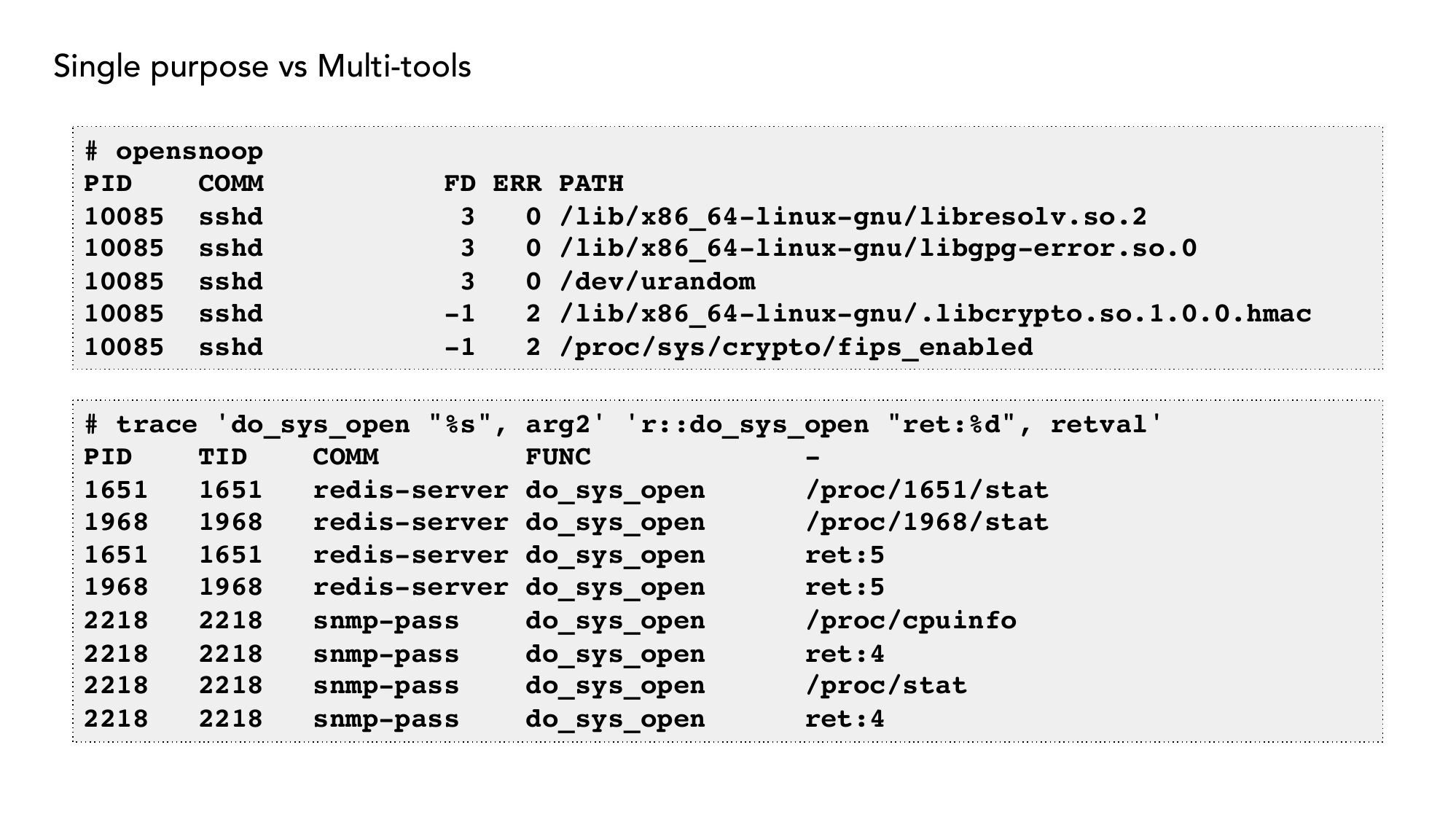

Single purpose vs Multi-tools
# opensnoop
PID
COMM
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
FD ERR PATH
0 /lib/x86_64-linux-gnu/libresolv.so.2
0 /lib/x86_64-linux-gnu/libgpg-error.so.0
0 /dev/urandom
2 /lib/x86_64-linux-gnu/.libcrypto.so.1.0.0.hmac
2 /proc/sys/crypto/fips_enabled
# trace 'do_sys_open "%s", arg2' 'r::do_sys_open "ret:%d", retval'
PID
TID
COMM
FUNC
redis-server do_sys_open
/proc/1651/stat
redis-server do_sys_open
/proc/1968/stat
redis-server do_sys_open
ret:5
redis-server do_sys_open
ret:5
snmp-pass
do_sys_open
/proc/cpuinfo
snmp-pass
do_sys_open
ret:4
snmp-pass
do_sys_open
/proc/stat
snmp-pass
do_sys_open
ret:4

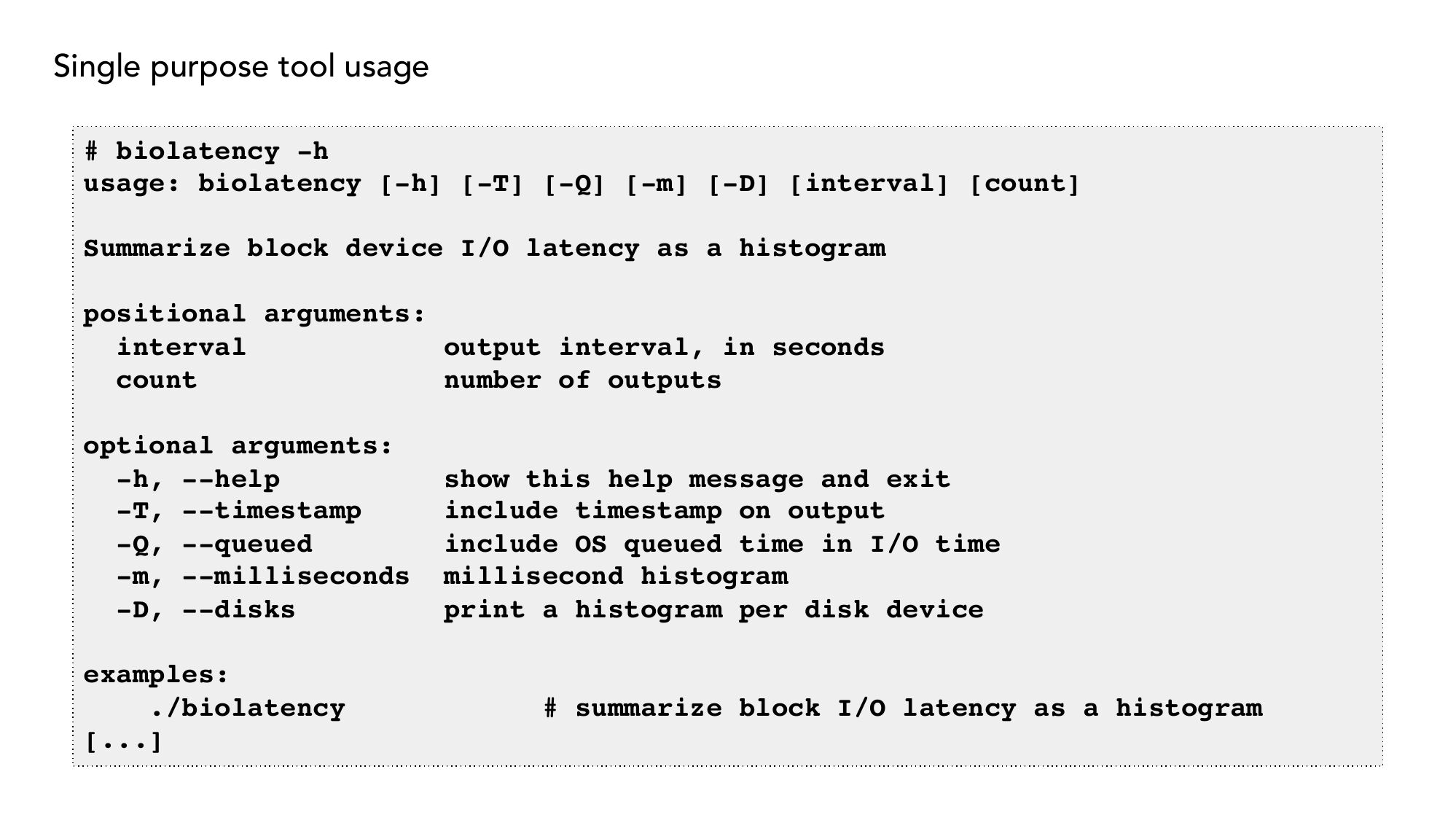

Single purpose tool usage
# biolatency -h
usage: biolatency [-h] [-T] [-Q] [-m] [-D] [interval] [count]
Summarize block device I/O latency as a histogram
positional arguments:
interval
output interval, in seconds
count
number of outputs
optional arguments:
-h, --help
-T, --timestamp
-Q, --queued
-m, --milliseconds
-D, --disks
examples:
./biolatency
[...]
show this help message and exit
include timestamp on output
include OS queued time in I/O time
millisecond histogram
print a histogram per disk device
# summarize block I/O latency as a histogram

CLI
Tool Design

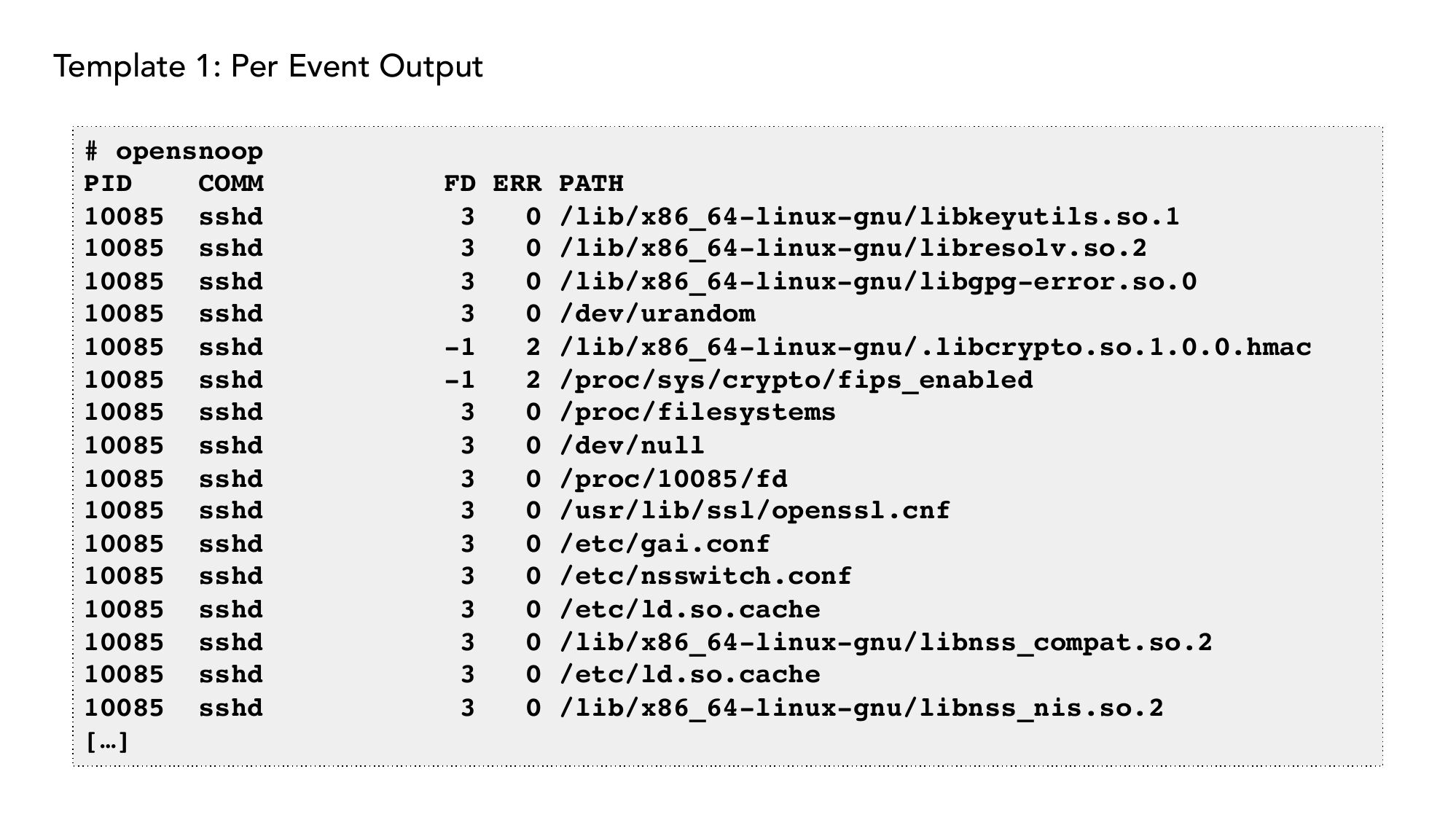

Template 1: Per Event Output
# opensnoop
PID
COMM
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
10085 sshd
[…]
FD ERR PATH
0 /lib/x86_64-linux-gnu/libkeyutils.so.1
0 /lib/x86_64-linux-gnu/libresolv.so.2
0 /lib/x86_64-linux-gnu/libgpg-error.so.0
0 /dev/urandom
2 /lib/x86_64-linux-gnu/.libcrypto.so.1.0.0.hmac
2 /proc/sys/crypto/fips_enabled
0 /proc/filesystems
0 /dev/null
0 /proc/10085/fd
0 /usr/lib/ssl/openssl.cnf
0 /etc/gai.conf
0 /etc/nsswitch.conf
0 /etc/ld.so.cache
0 /lib/x86_64-linux-gnu/libnss_compat.so.2
0 /etc/ld.so.cache
0 /lib/x86_64-linux-gnu/libnss_nis.so.2

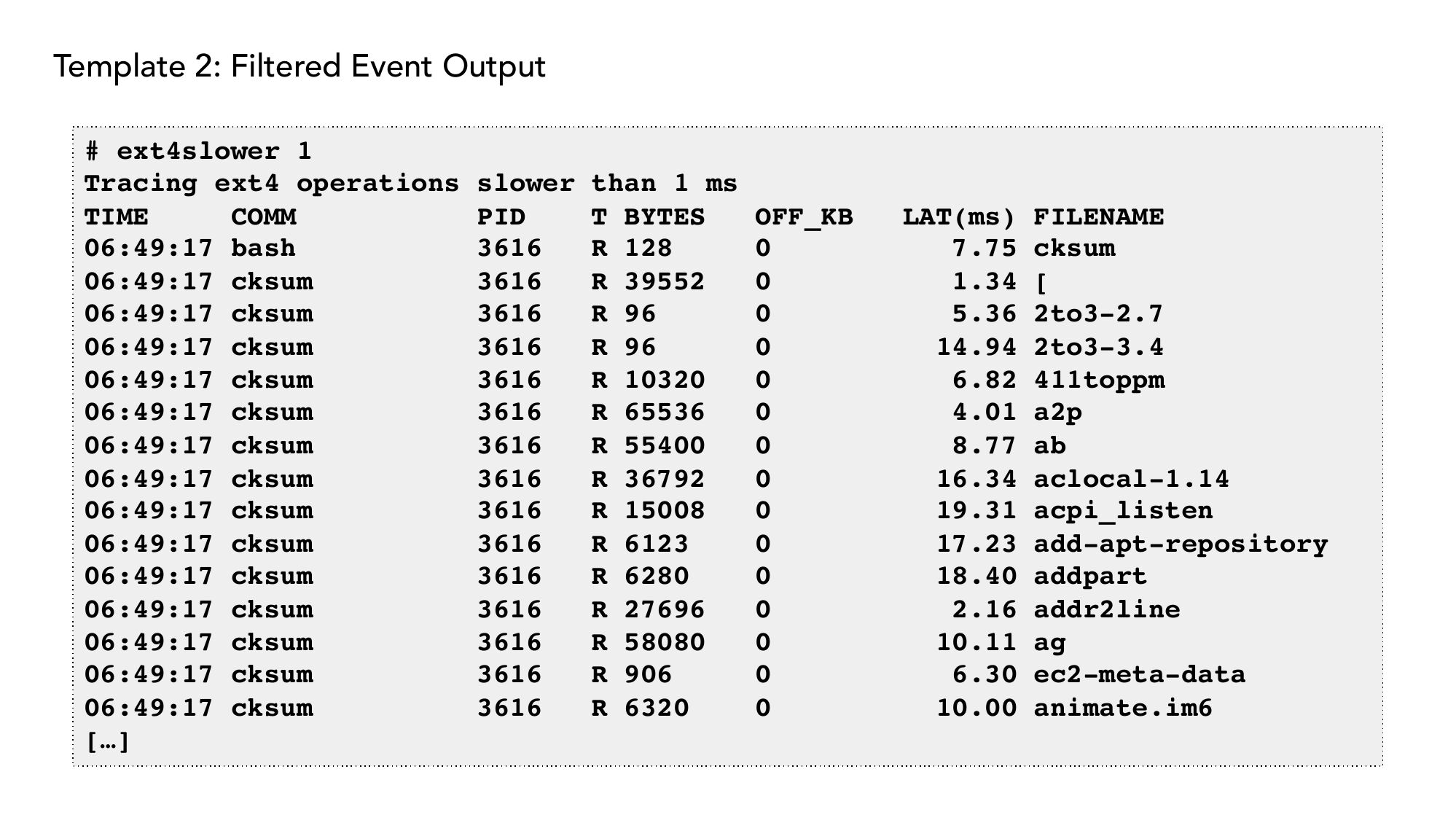

Template 2: Filtered Event Output
# ext4slower 1
Tracing ext4 operations slower than 1 ms
TIME
COMM
PID
T BYTES
OFF_KB
06:49:17 bash
R 128
06:49:17 cksum
R 39552
06:49:17 cksum
R 96
06:49:17 cksum
R 96
06:49:17 cksum
R 10320
06:49:17 cksum
R 65536
06:49:17 cksum
R 55400
06:49:17 cksum
R 36792
06:49:17 cksum
R 15008
06:49:17 cksum
R 6123
06:49:17 cksum
R 6280
06:49:17 cksum
R 27696
06:49:17 cksum
R 58080
06:49:17 cksum
R 906
06:49:17 cksum
R 6320
[…]
LAT(ms) FILENAME
7.75 cksum
1.34 [
5.36 2to3-2.7
14.94 2to3-3.4
6.82 411toppm
4.01 a2p
8.77 ab
16.34 aclocal-1.14
19.31 acpi_listen
17.23 add-apt-repository
18.40 addpart
2.16 addr2line
10.11 ag
6.30 ec2-meta-data
10.00 animate.im6

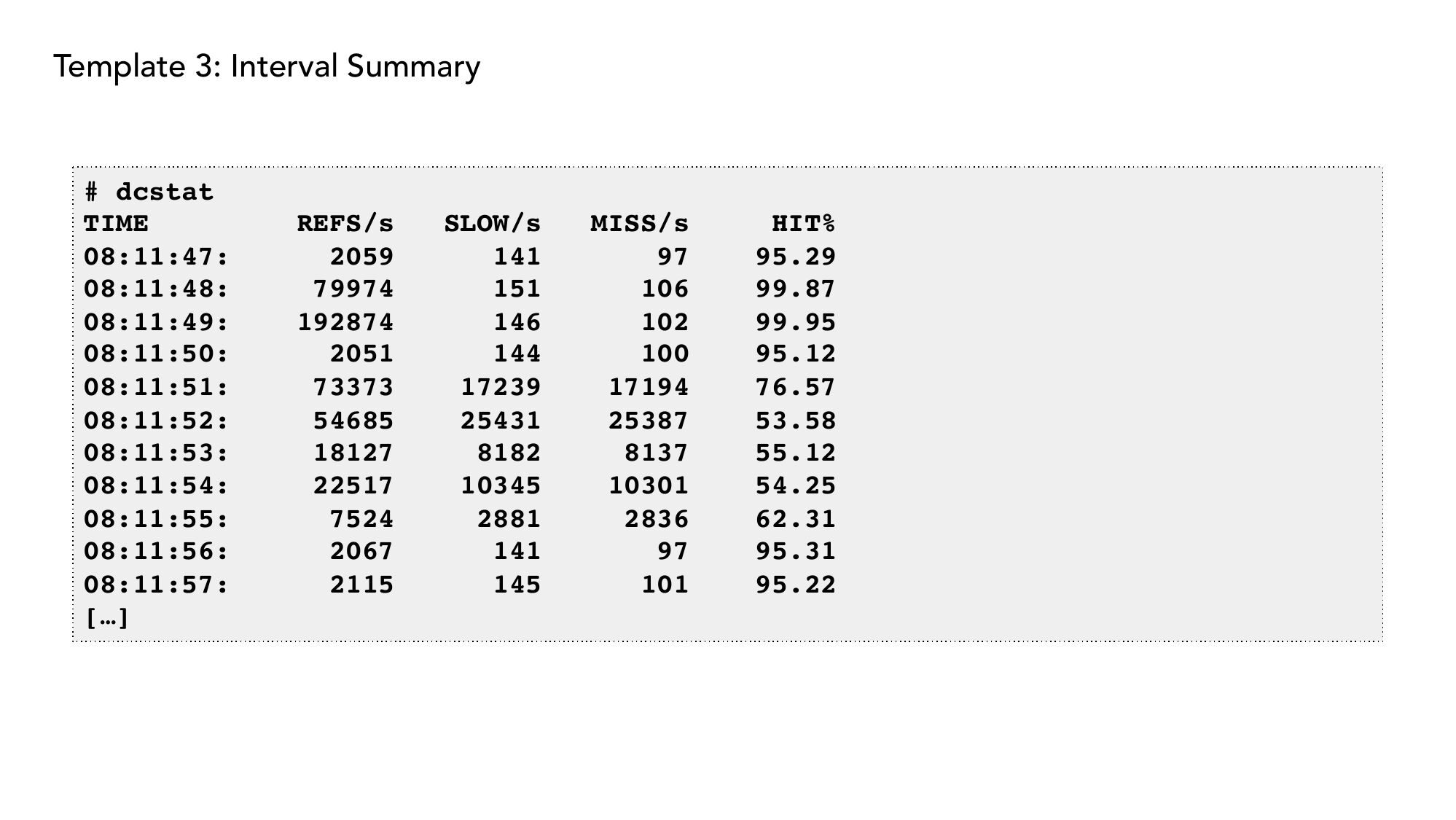

Template 3: Interval Summary
# dcstat
TIME
08:11:47:
08:11:48:
08:11:49:
08:11:50:
08:11:51:
08:11:52:
08:11:53:
08:11:54:
08:11:55:
08:11:56:
08:11:57:
[…]
REFS/s
SLOW/s
MISS/s
HIT%

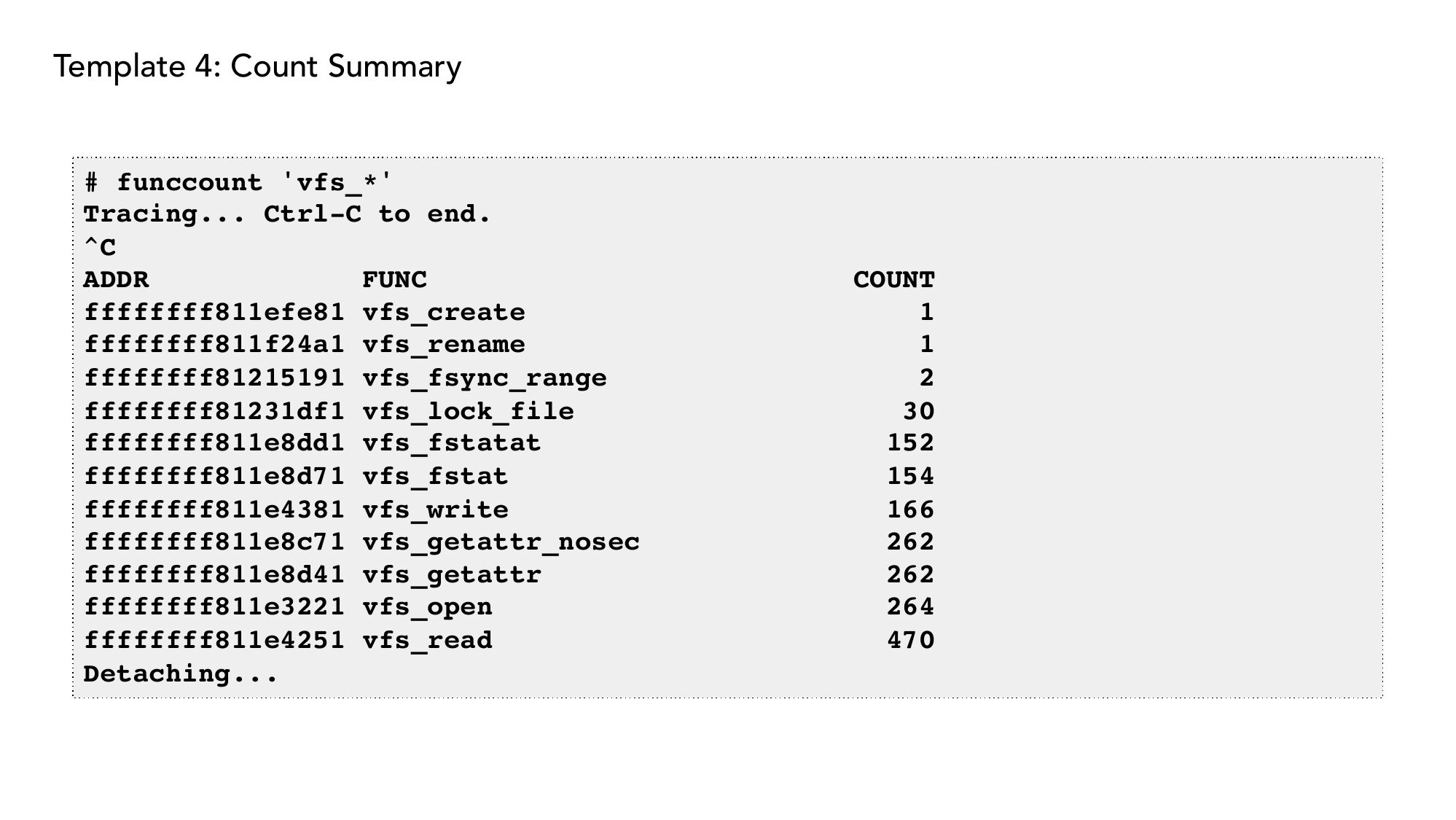

Template 4: Count Summary
# funccount 'vfs_*'
Tracing... Ctrl-C to end.
ADDR
FUNC
ffffffff811efe81 vfs_create
ffffffff811f24a1 vfs_rename
ffffffff81215191 vfs_fsync_range
ffffffff81231df1 vfs_lock_file
ffffffff811e8dd1 vfs_fstatat
ffffffff811e8d71 vfs_fstat
ffffffff811e4381 vfs_write
ffffffff811e8c71 vfs_getattr_nosec
ffffffff811e8d41 vfs_getattr
ffffffff811e3221 vfs_open
ffffffff811e4251 vfs_read
Detaching...
COUNT

Template 5: Histogram Summary
# biolatency
Tracing block device I/O... Hit Ctrl-C to end.
usecs
: count
distribution
4 ->gt; 7
: 0
8 ->gt; 15
: 0
16 ->gt; 31
: 0
32 ->gt; 63
: 0
64 ->gt; 127
: 1
128 ->gt; 255
: 12
|********
256 ->gt; 511
: 15
|**********
512 ->gt; 1023
: 43
|*******************************
1024 ->gt; 2047
: 52
|**************************************|
2048 ->gt; 4095
: 47
|**********************************
4096 ->gt; 8191
: 52
|**************************************|
8192 ->gt; 16383
: 36
|**************************
16384 ->gt; 32767
: 15
|**********
32768 ->gt; 65535
: 2
65536 ->gt; 131071
: 2

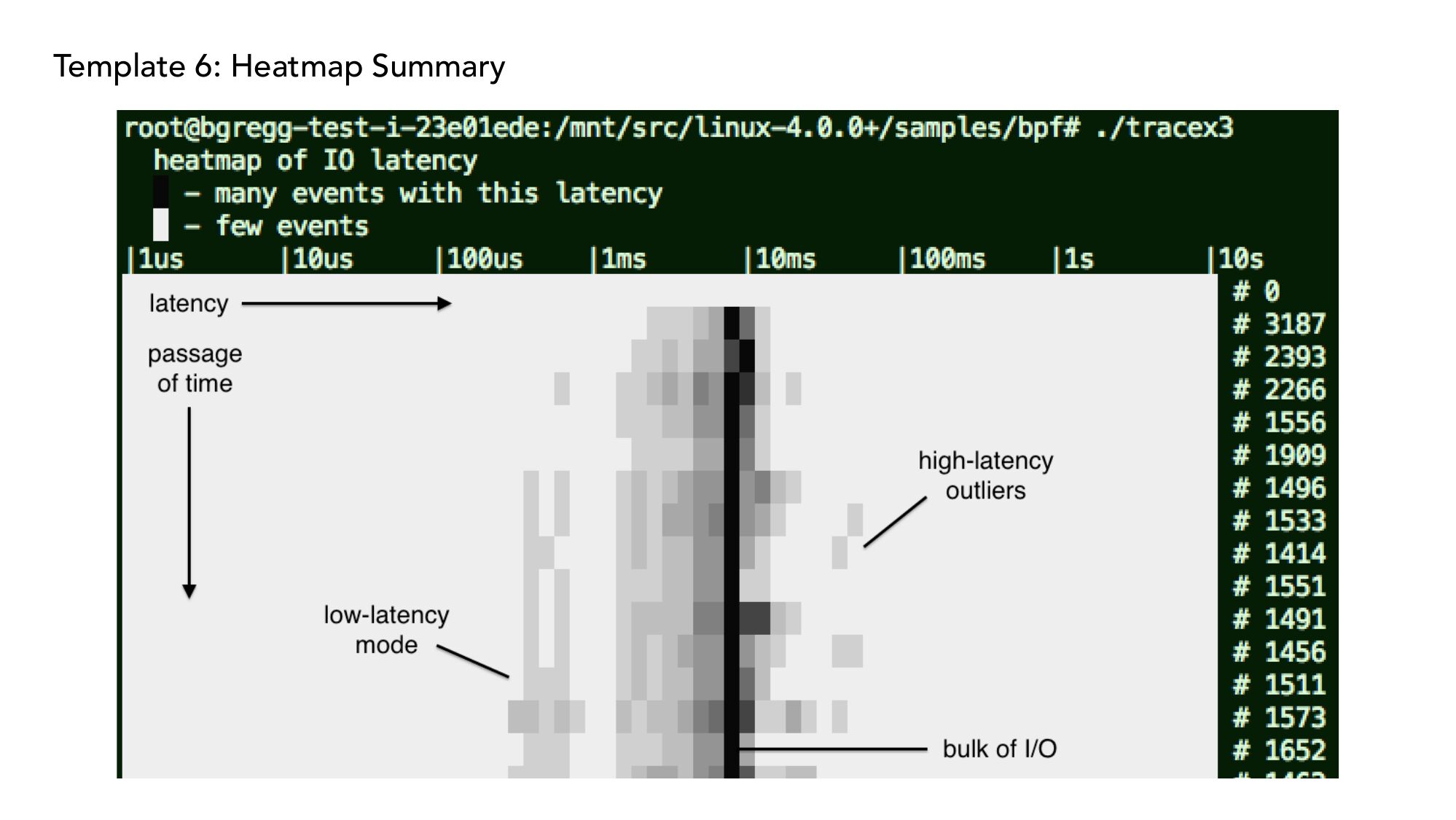

Template 6: Heatmap Summary

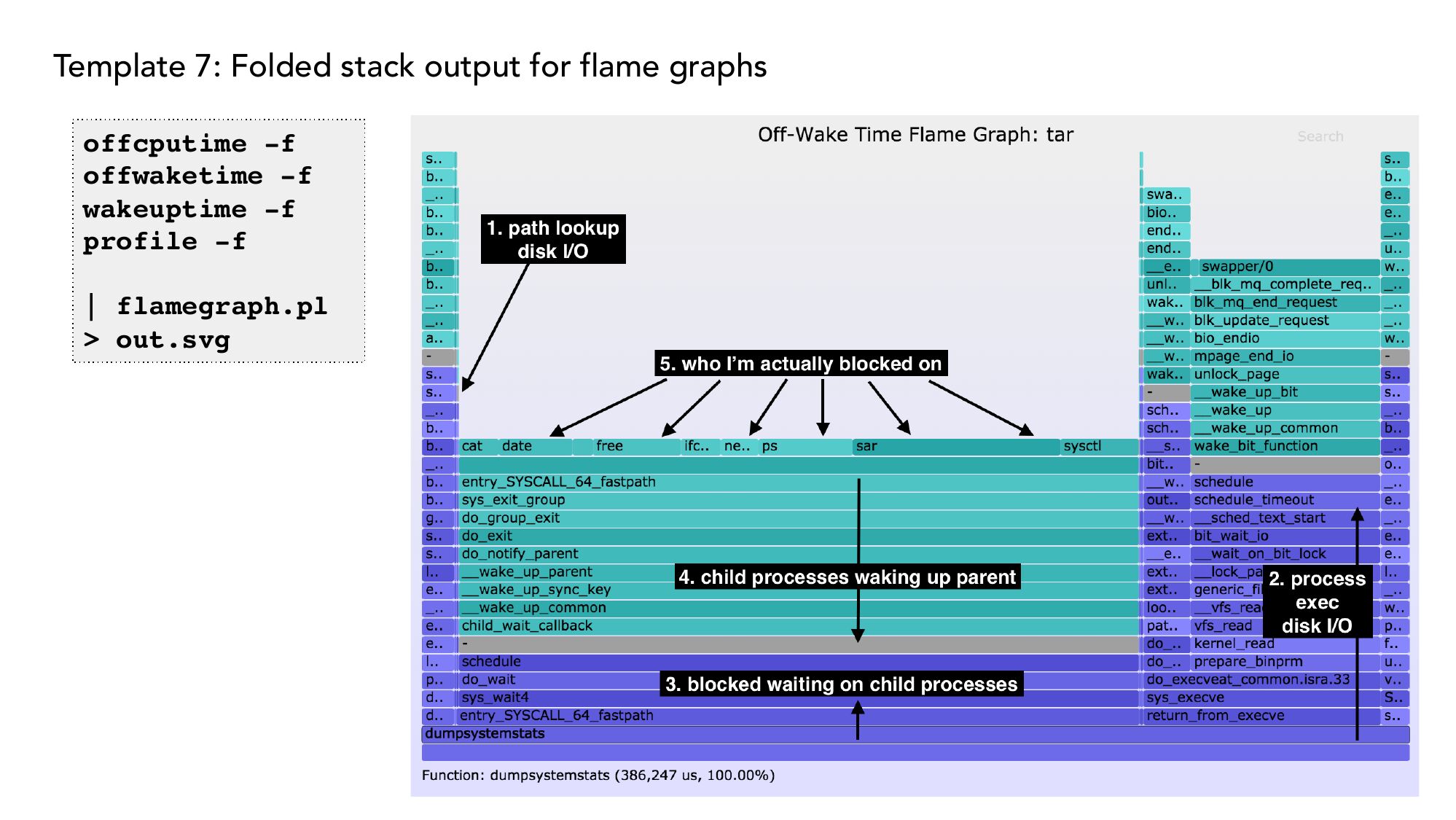

Template 7: Folded stack output for flame graphs
offcputime -f
offwaketime -f
wakeuptime -f
profile -f
| flamegraph.pl
>gt; out.svg

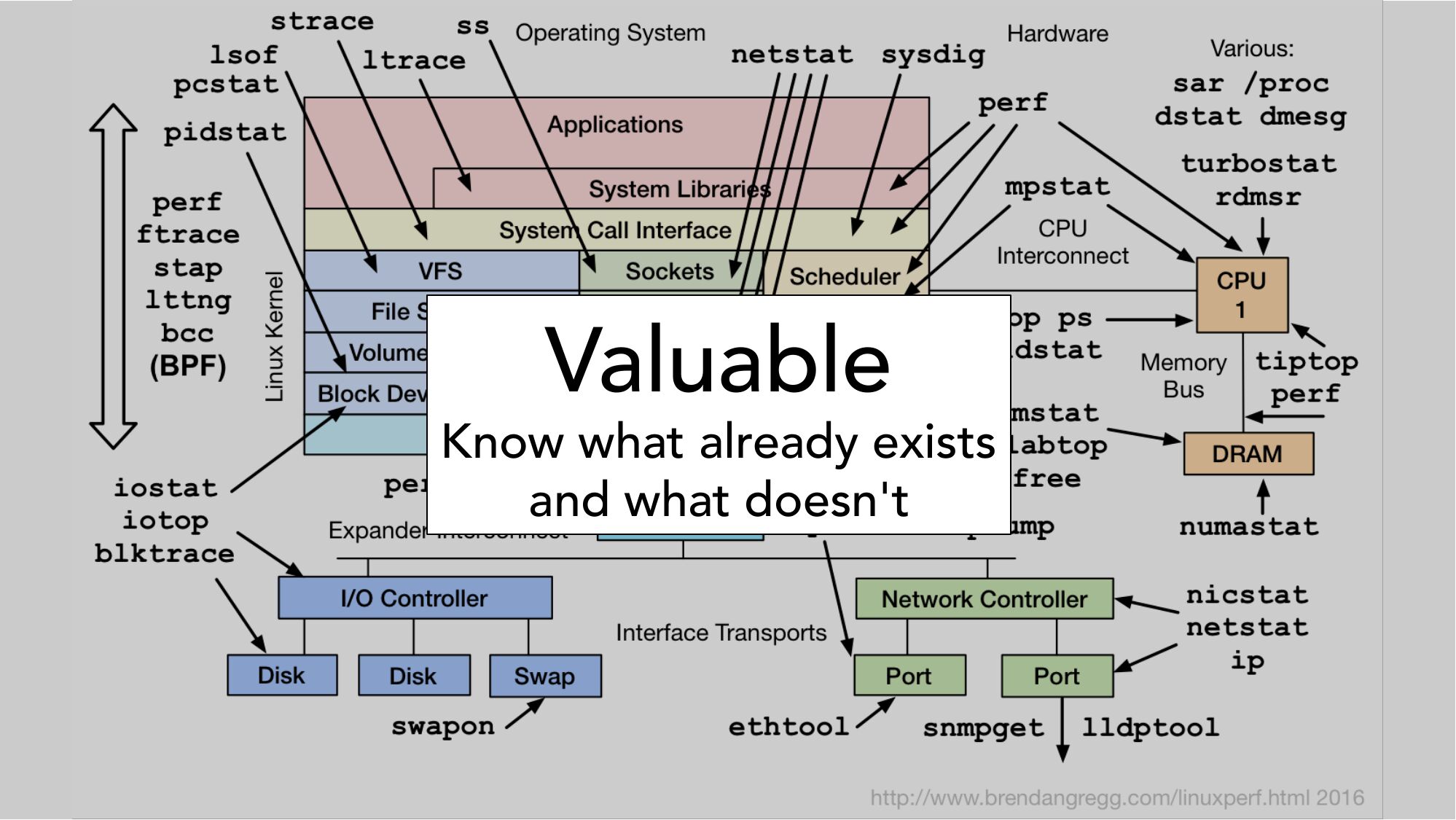

Valuable
Know what already exists
and what doesn't

Documented
code comments
man pages
example files

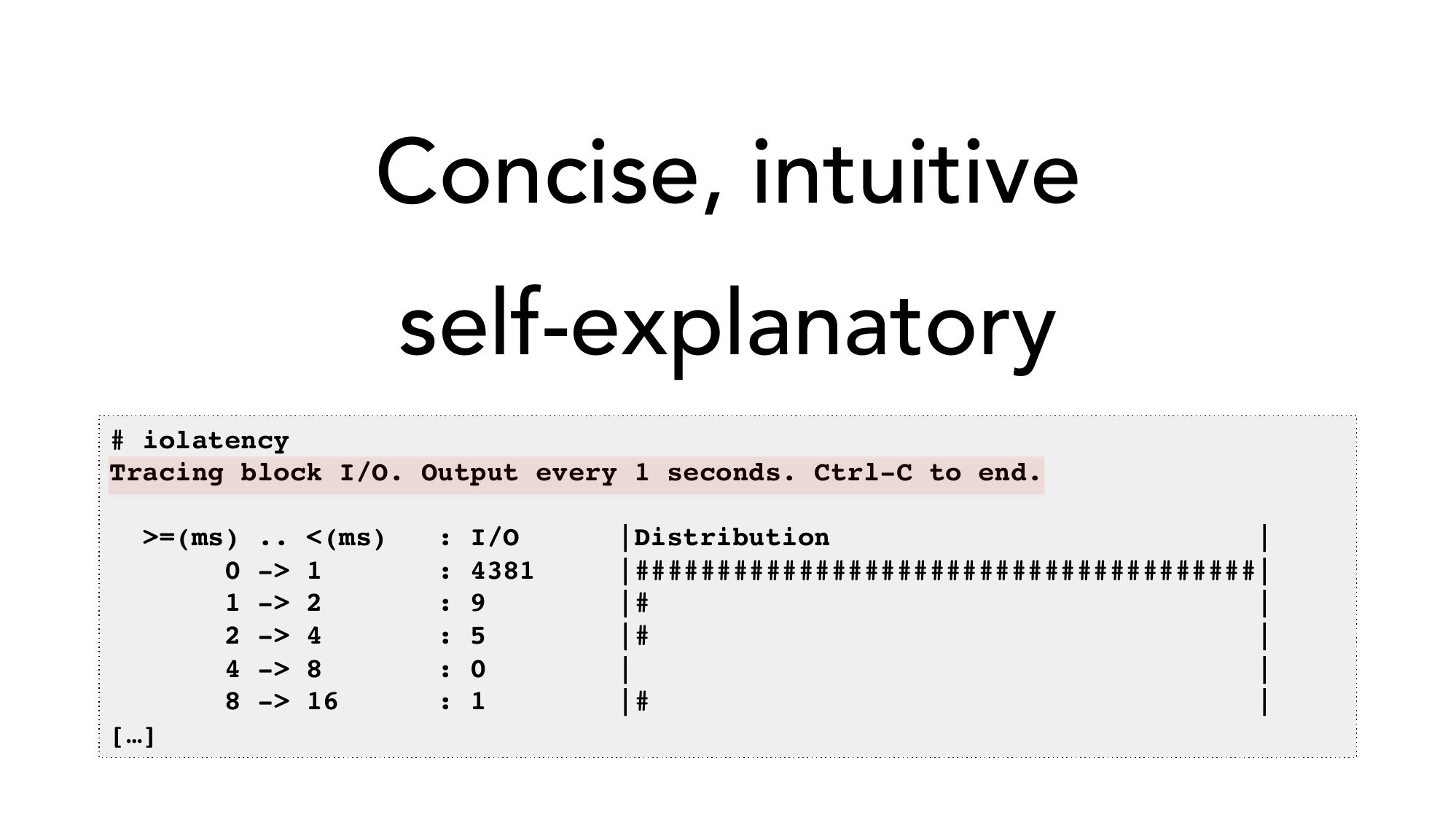

Concise, intuitive
self-explanatory
# iolatency
Tracing block I/O. Output every 1 seconds. Ctrl-C to end.
>gt;=(ms) .. gt; 1
1 ->gt; 2
2 ->gt; 4
4 ->gt; 8
8 ->gt; 16
[…]
: I/O
: 4381
: 9
: 5
: 0
: 1
|Distribution
|######################################|

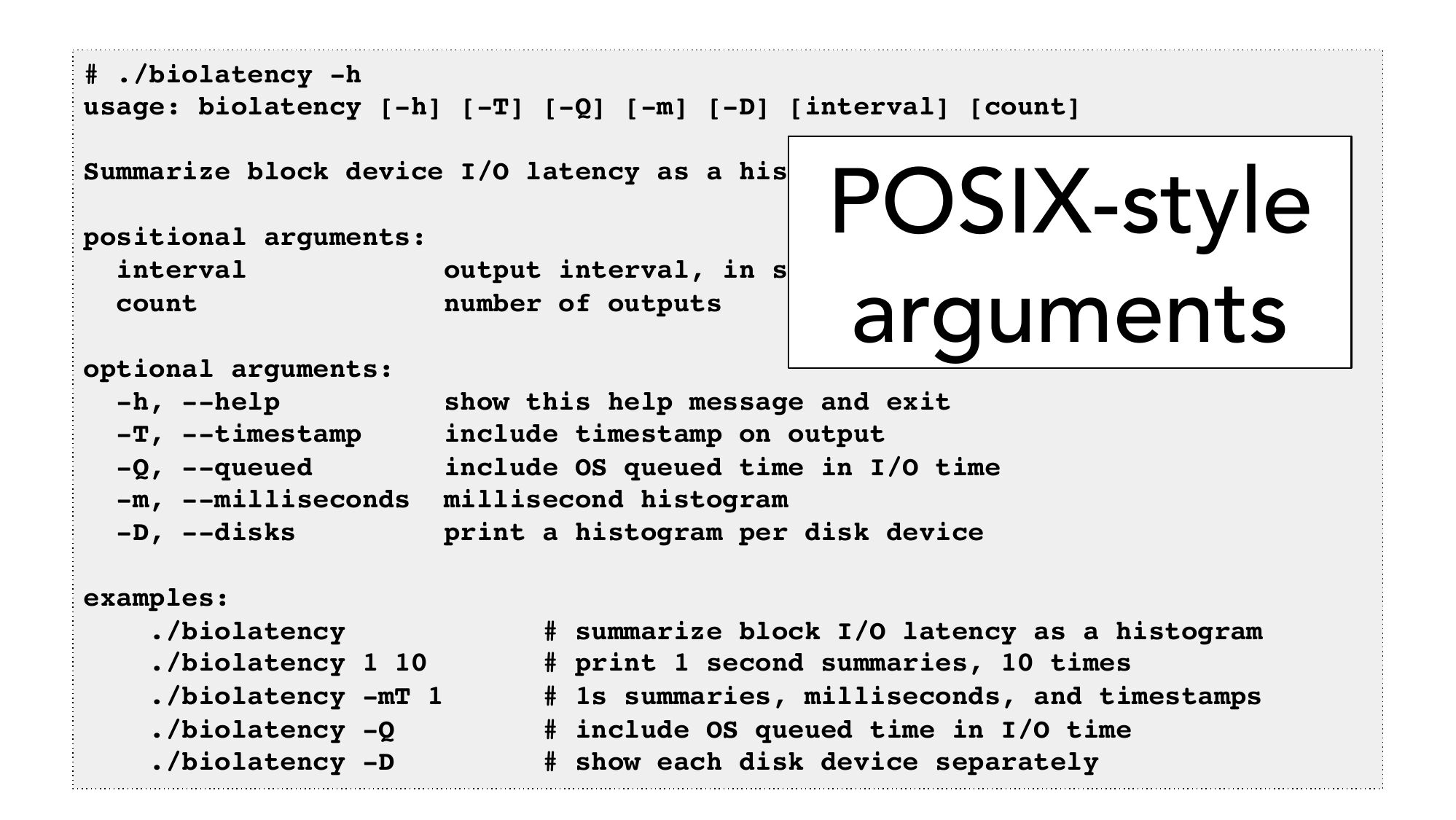

# ./biolatency -h
usage: biolatency [-h] [-T] [-Q] [-m] [-D] [interval] [count]
.POSIX-style.
arguments
Summarize block device I/O latency as a histogram
positional arguments:
interval
output interval, in seconds
count
number of outputs
optional arguments:
-h, --help
-T, --timestamp
-Q, --queued
-m, --milliseconds
-D, --disks
examples:
./biolatency
./biolatency 1 10
./biolatency -mT 1
./biolatency -Q
./biolatency -D
show this help message and exit
include timestamp on output
include OS queued time in I/O time
millisecond histogram
print a histogram per disk device
# summarize block I/O latency as a histogram
# print 1 second summaries, 10 times
# 1s summaries, milliseconds, and timestamps
# include OS queued time in I/O time
# show each disk device separately

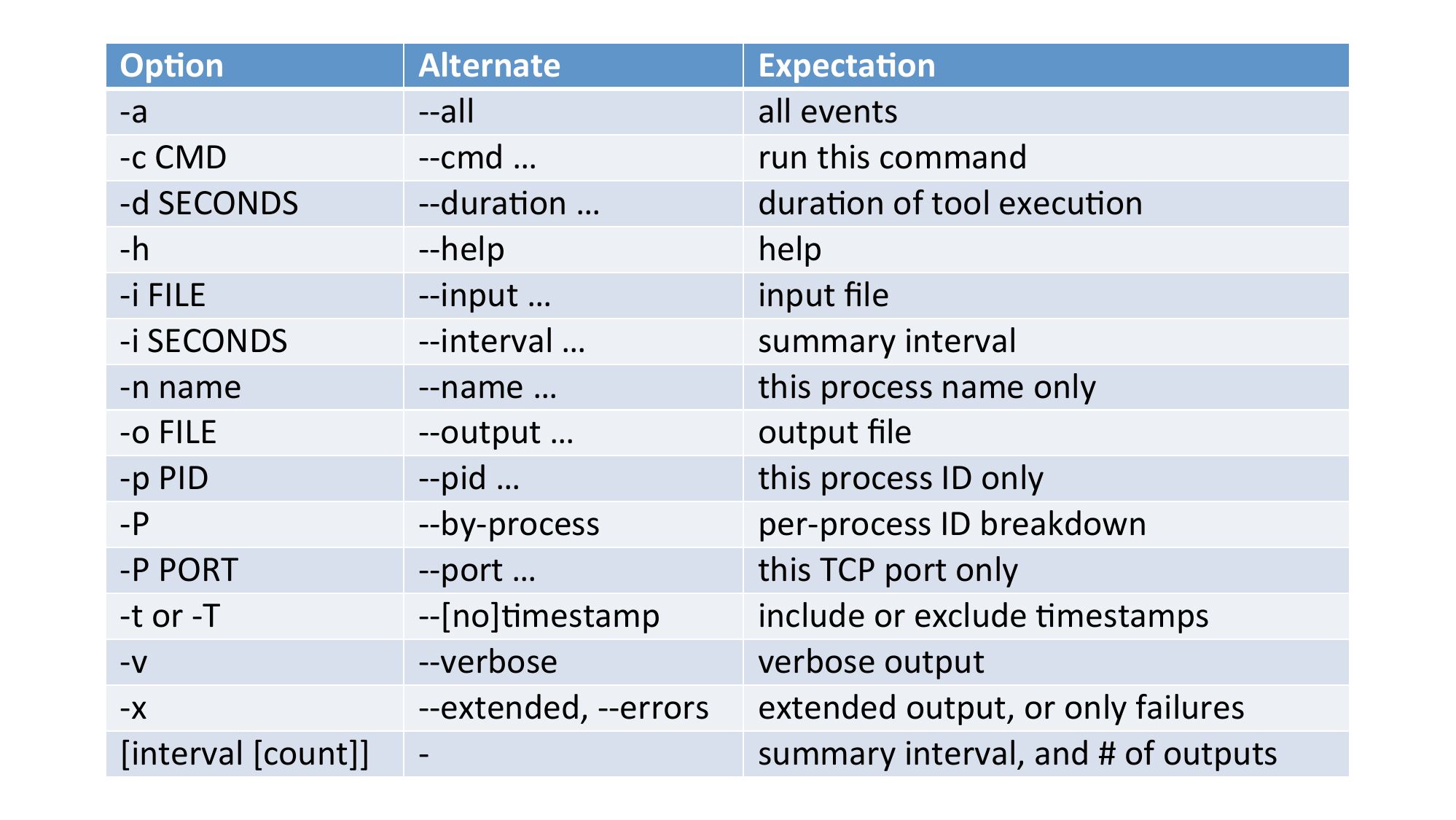

Op>gt;on
-c CMD
-d SECONDS
-i FILE
-i SECONDS
-n name
-o FILE
-p PID
-P PORT
-t or -T
[interval [count]]
Alternate
--all
--cmd …
--duraAon …
--help
--input …
--interval …
--name …
--output …
--pid …
--by-process
--port …
--[no]Amestamp
--verbose
--extended, --errors
Expecta>gt;on
all events
run this command
duraAon of tool execuAon
help
input file
summary interval
this process name only
output file
this process ID only
per-process ID breakdown
this TCP port only
include or exclude Amestamps
verbose output
extended output, or only failures
summary interval, and # of outputs

Tested
If you can't write the workload,
you can't write the tool

Future
Challenges

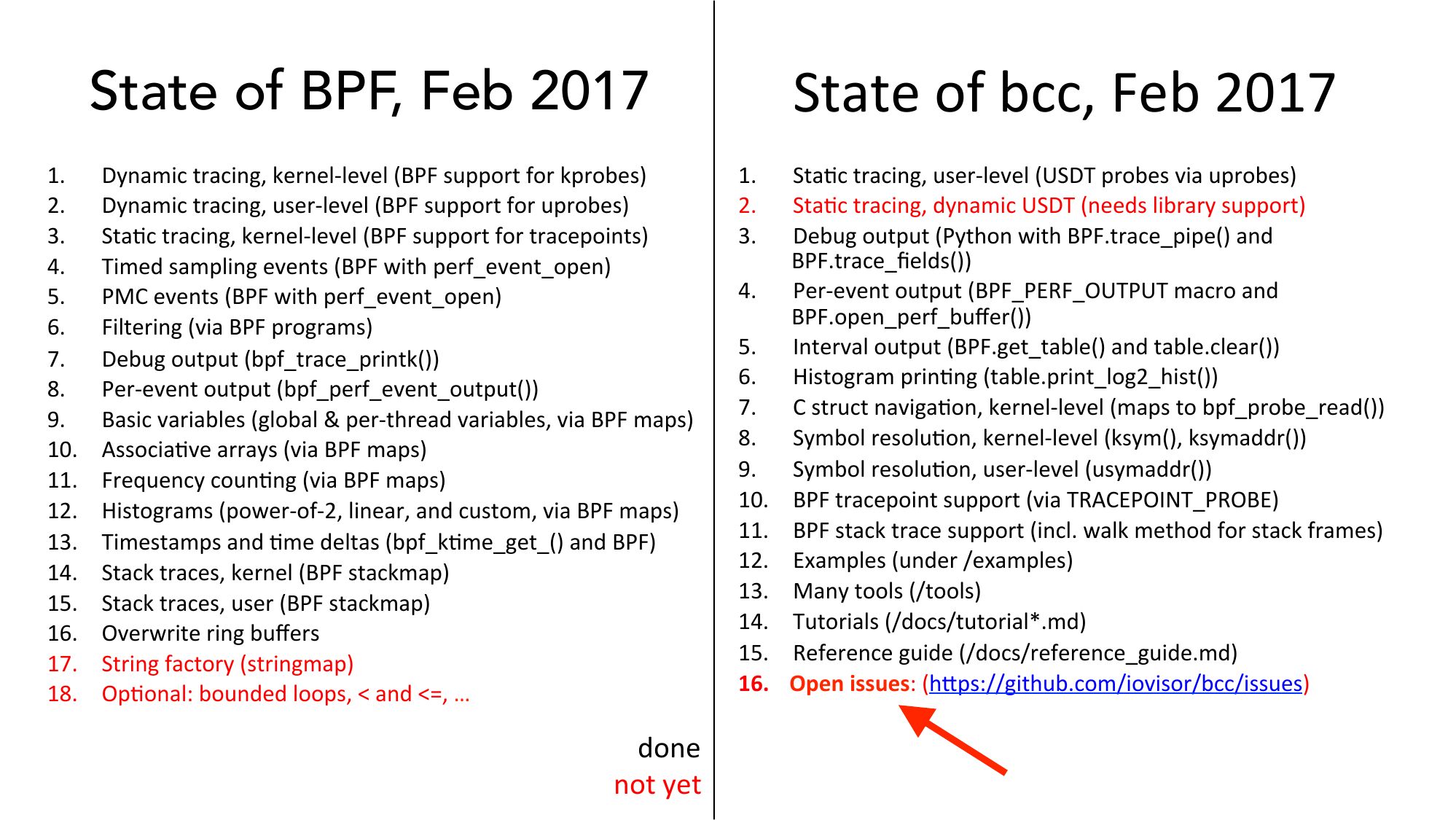

State of bcc, Feb 2017
State of BPF, Feb 2017
Dynamic tracing, kernel-level (BPF support for kprobes)
Dynamic tracing, user-level (BPF support for uprobes)
StaAc tracing, kernel-level (BPF support for tracepoints)
Timed sampling events (BPF with perf_event_open)
PMC events (BPF with perf_event_open)
Filtering (via BPF programs)
Debug output (bpf_trace_printk())
Per-event output (bpf_perf_event_output())
Basic variables (global & per-thread variables, via BPF maps)
AssociaAve arrays (via BPF maps)
Frequency counAng (via BPF maps)
Histograms (power-of-2, linear, and custom, via BPF maps)
Timestamps and Ame deltas (bpf_kAme_get_() and BPF)
Stack traces, kernel (BPF stackmap)
Stack traces, user (BPF stackmap)
Overwrite ring buffers
String factory (stringmap)
OpAonal: bounded loops,

Dynamic tracing stability
need those smoke tests
switch tools to static tracepoints

Invalid Tools

Overhead
Especially current uprobes

Ease of Coding

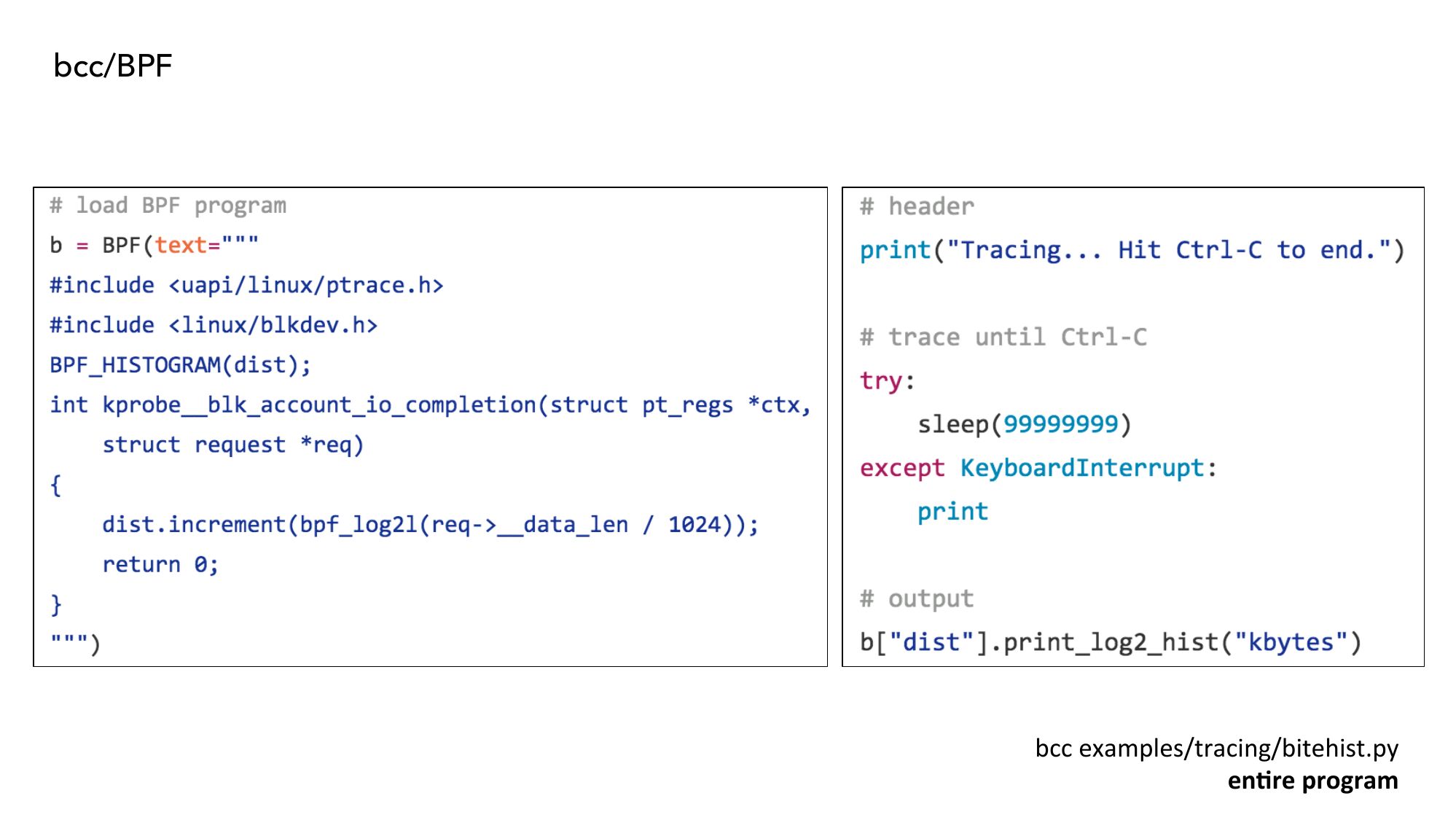

bcc/BPF
bcc examples/tracing/bitehist.py
en>gt;re program

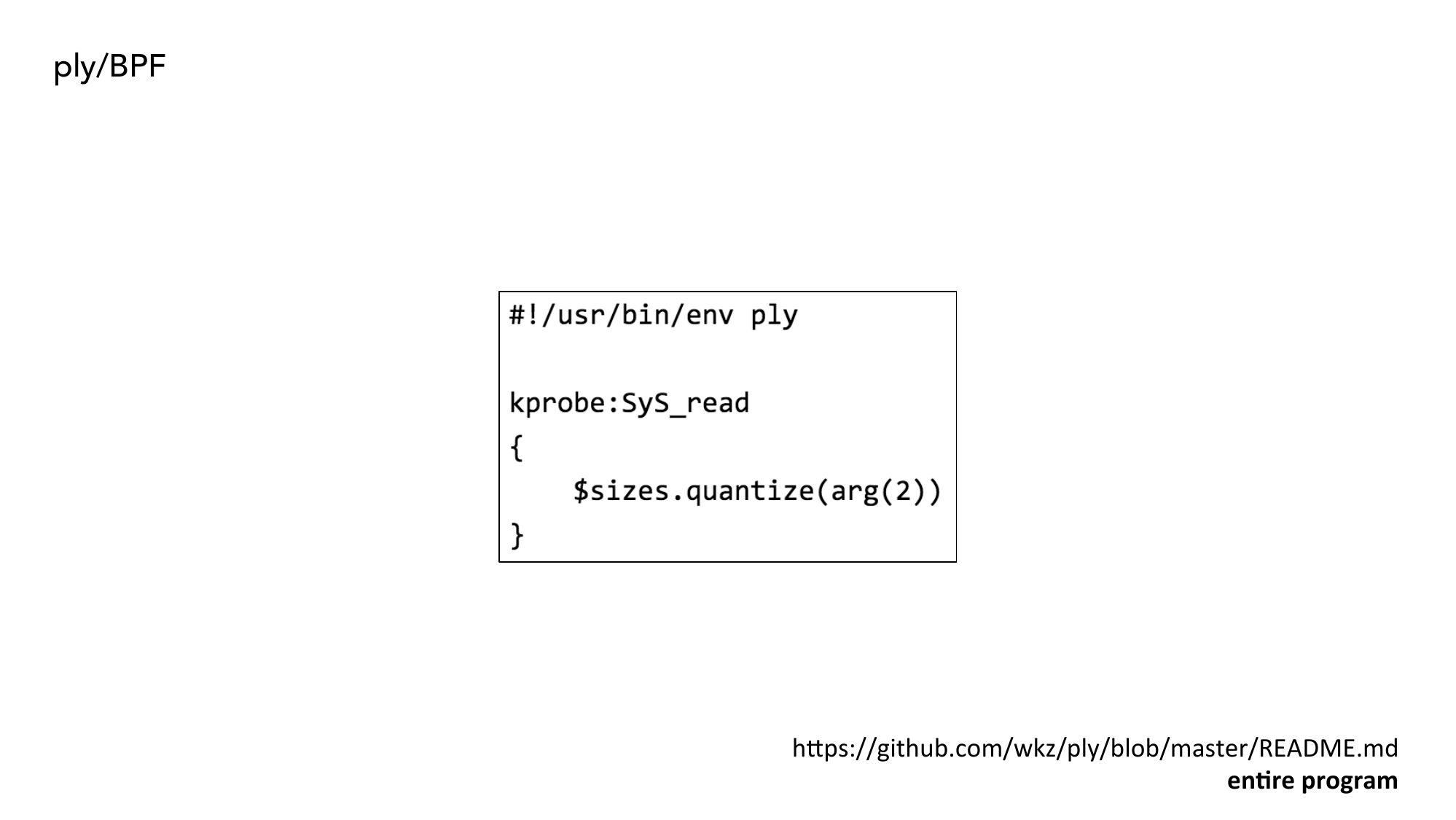

ply/BPF
h)ps://github.com/wkz/ply/blob/master/README.md
en>gt;re program

Visualizations

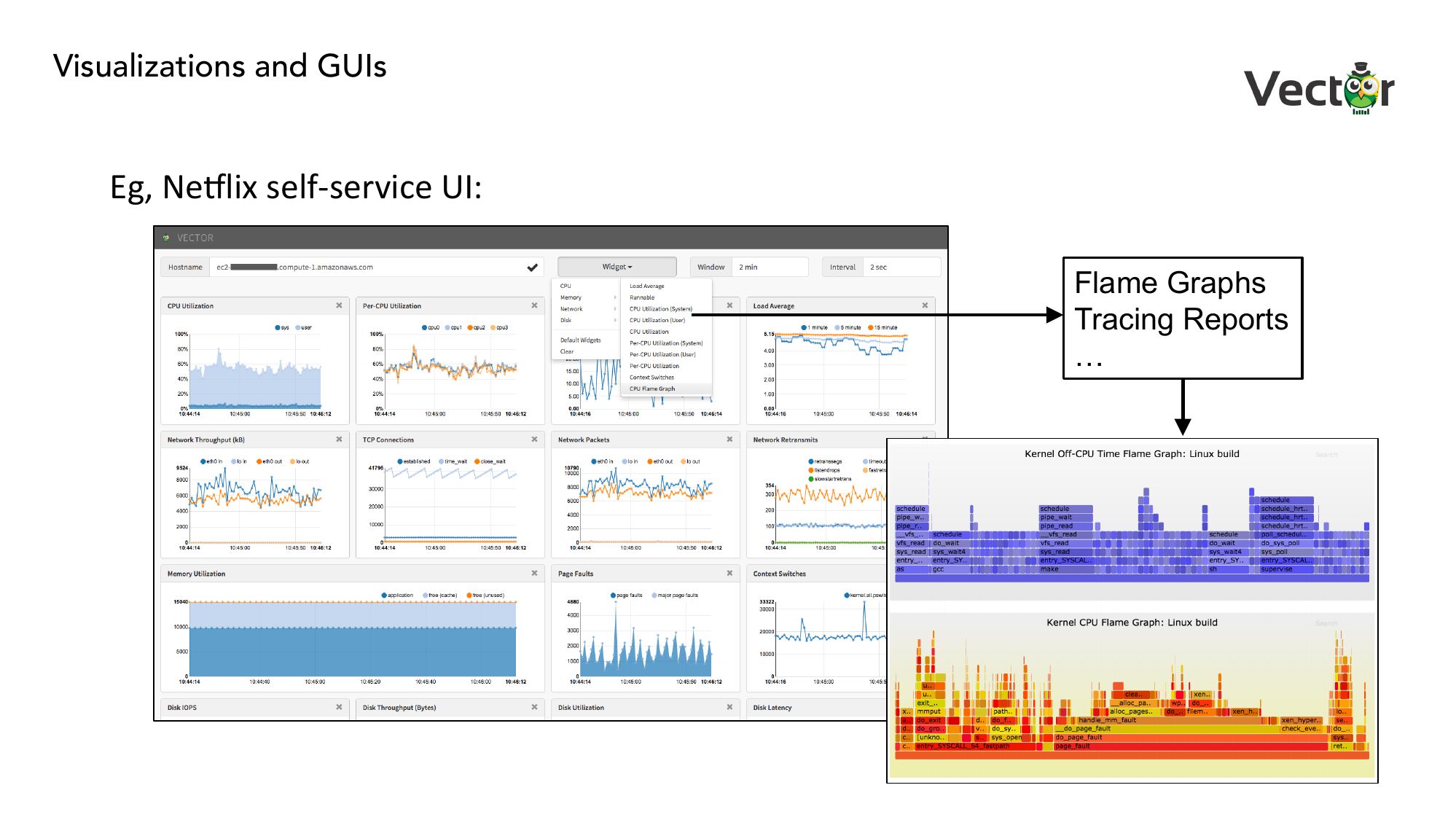

Visualizations and GUIs
Eg, Nejlix self-service UI:
Flame Graphs
Tracing Reports

Ancient Linux
Linux 3.18
Linux 3.10
Linux 3.2
Linux 2.6.x

(Some) More Tools

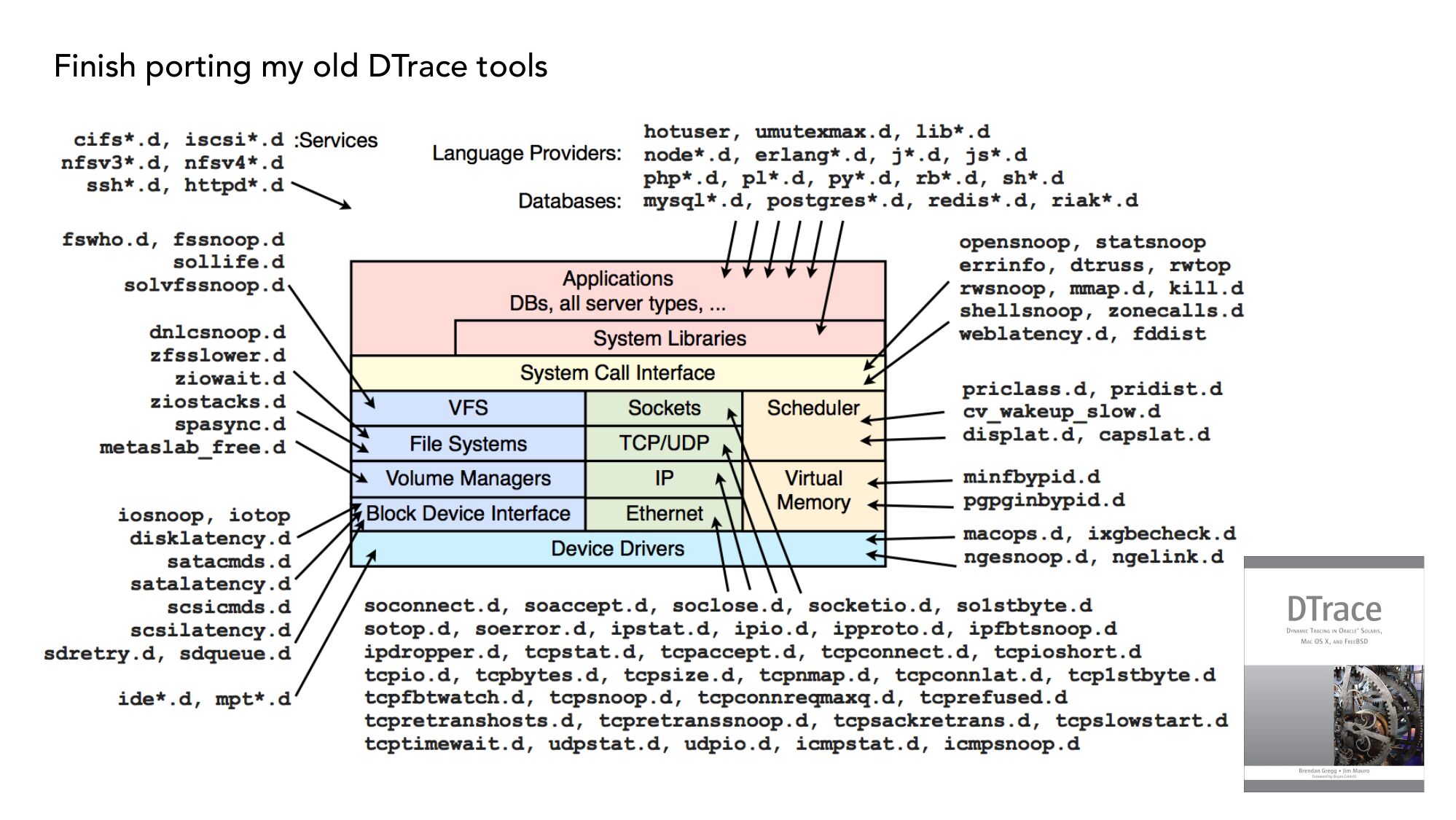

Finish porting my old DTrace tools

Links & References
iovisor bcc:
https://github.com/iovisor/bcc
https://github.com/iovisor/bcc/tree/master/docs
http://www.brendangregg.com/blog/ (search for "bcc")
http://blogs.microsoft.co.il/sasha/2016/02/14/two-new-ebpf-tools-memleak-and-argdist/
I'll change your view of Linux tracing: https://www.youtube.com/watch?v=GsMs3n8CB6g
On designing tracing tools: https://www.youtube.com/watch?v=uibLwoVKjec
BPF:
• https://www.kernel.org/doc/Documentation/networking/filter.txt
• https://github.com/iovisor/bpf-docs
• https://suchakra.wordpress.com/tag/bpf/
Flame Graphs:
• http://www.brendangregg.com/flamegraphs.html
• http://www.brendangregg.com/blog/2016-01-20/ebpf-offcpu-flame-graph.html
• http://www.brendangregg.com/blog/2016-02-01/linux-wakeup-offwake-profiling.html
Linux Performance: http://www.brendangregg.com/linuxperf.html

Thanks
Discussion?
iovisor bcc: https://github.com/iovisor/bcc
http://www.brendangregg.com
http://slideshare.net/brendangregg
bgregg@netflix.com
@brendangregg
Thanks to Alexei Starovoitov (Facebook), Brenden Blanco
(PLUMgrid/VMware), Sasha Goldshtein (Sela), Daniel
Borkmann (Cisco), Wang Nan (Huawei), and other BPF
and bcc contributors!
