BPF Internals
(eBPF)
Tracing Examples
Brendan Gregg
USENIX
Jun, 2021

BPF Internals (Brendan Gregg)
(it’s actually quite easy)

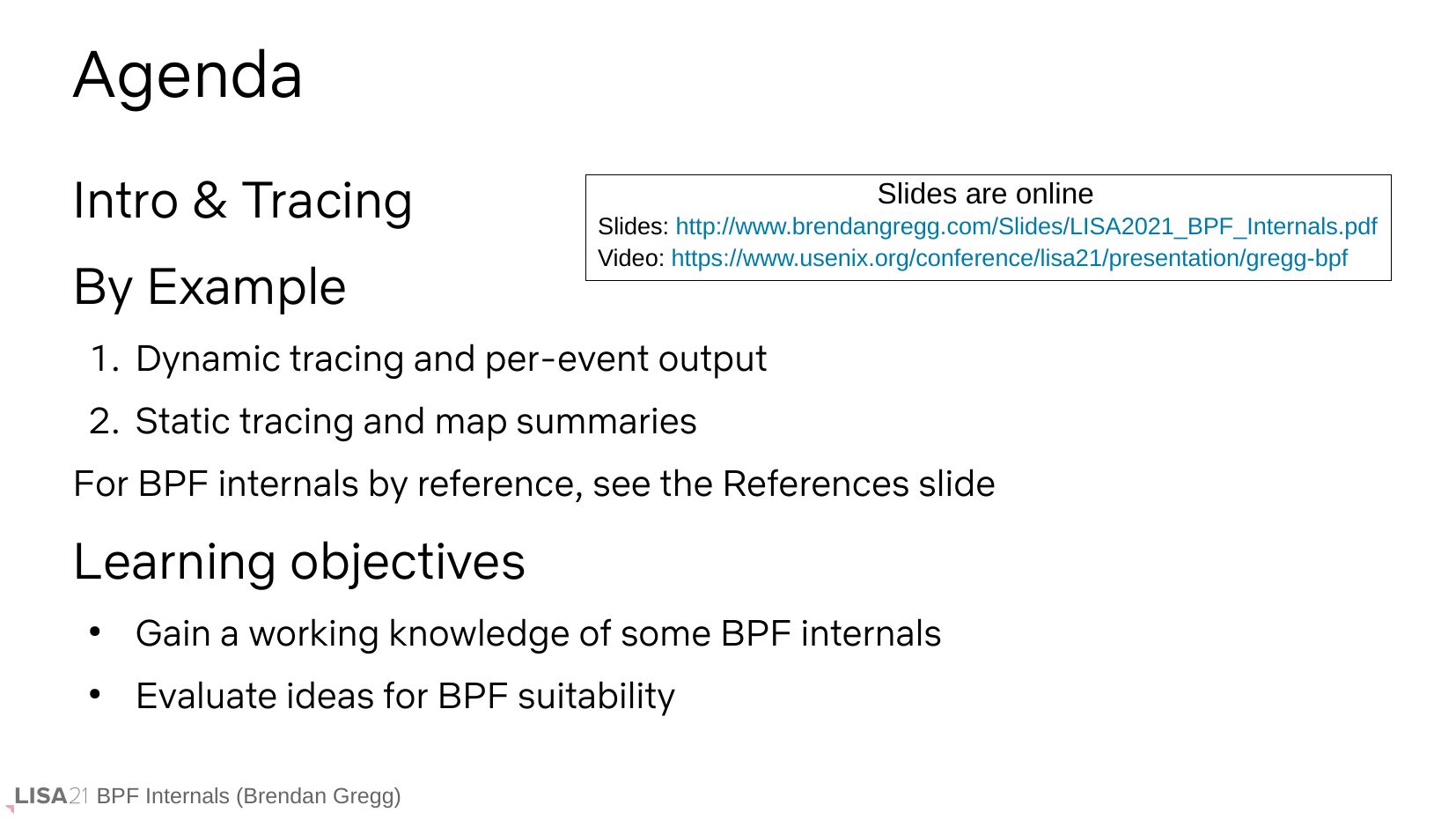

Agenda
Intro & Tracing
By Example
Slides are online
Slides: http://www.brendangregg.com/Slides/LISA2021_BPF_Internals.pdf
Video: https://www.usenix.org/conference/lisa21/presentation/gregg-bpf
1. Dynamic tracing and per-event output

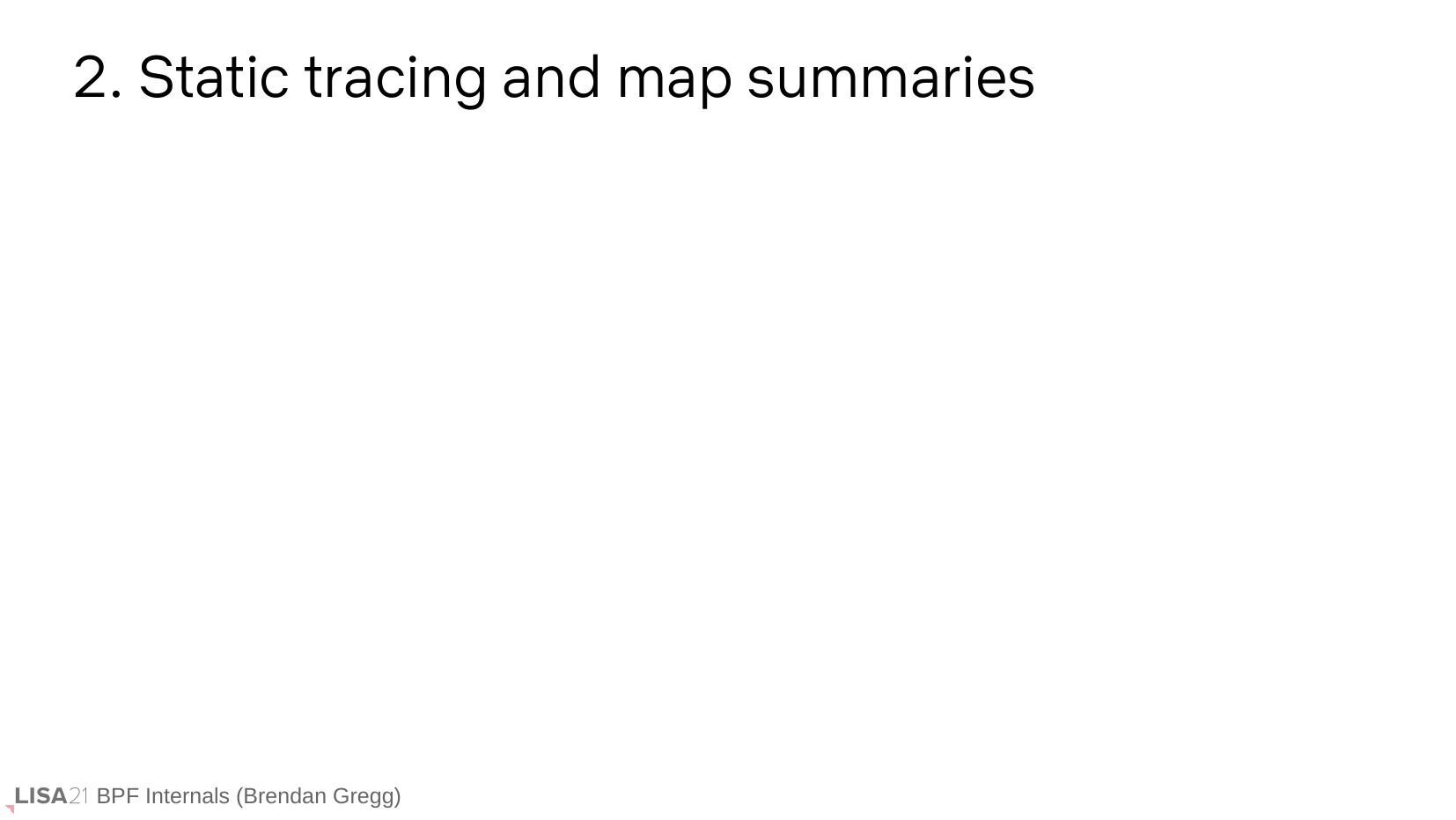

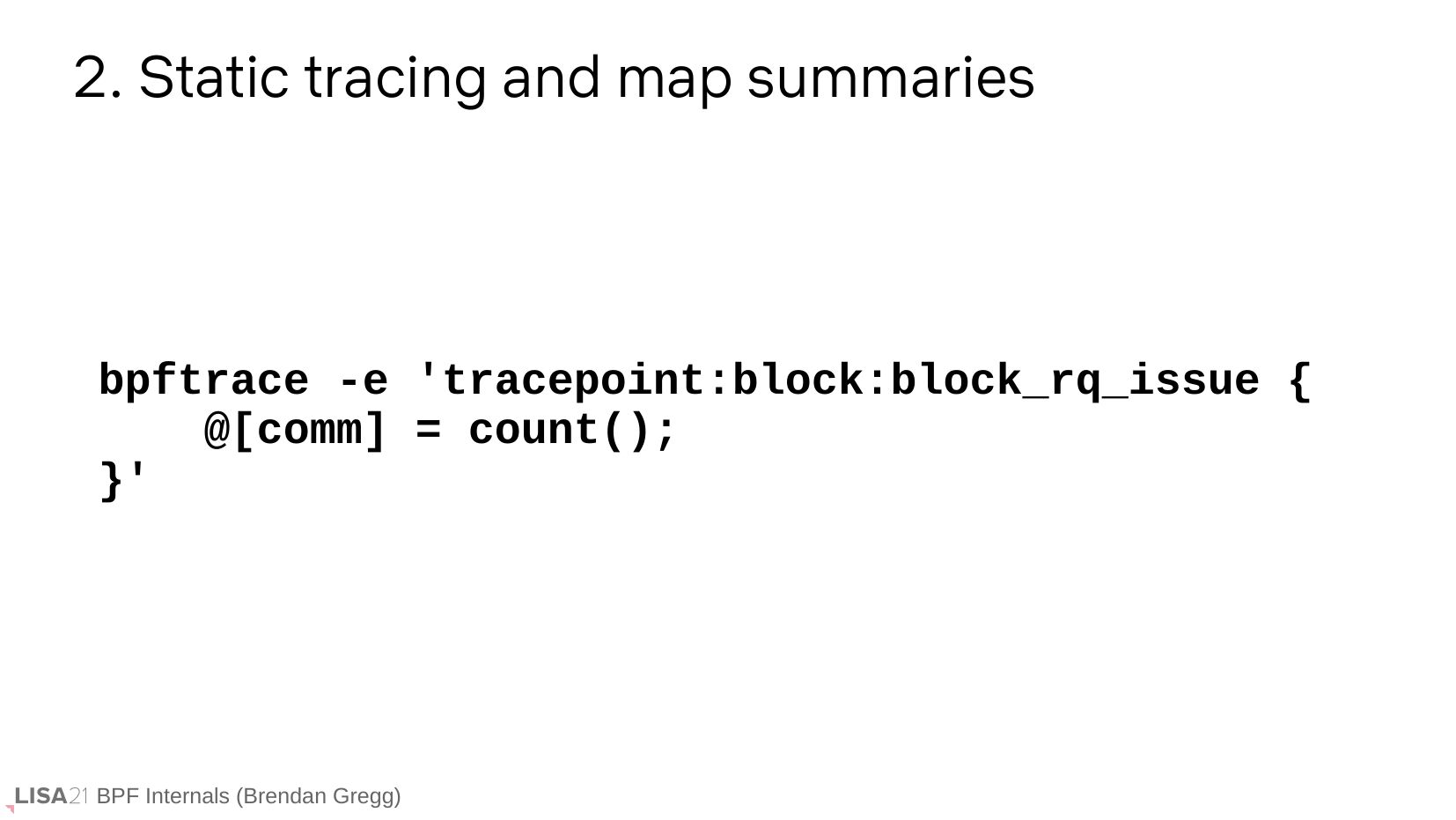

2. Static tracing and map summaries

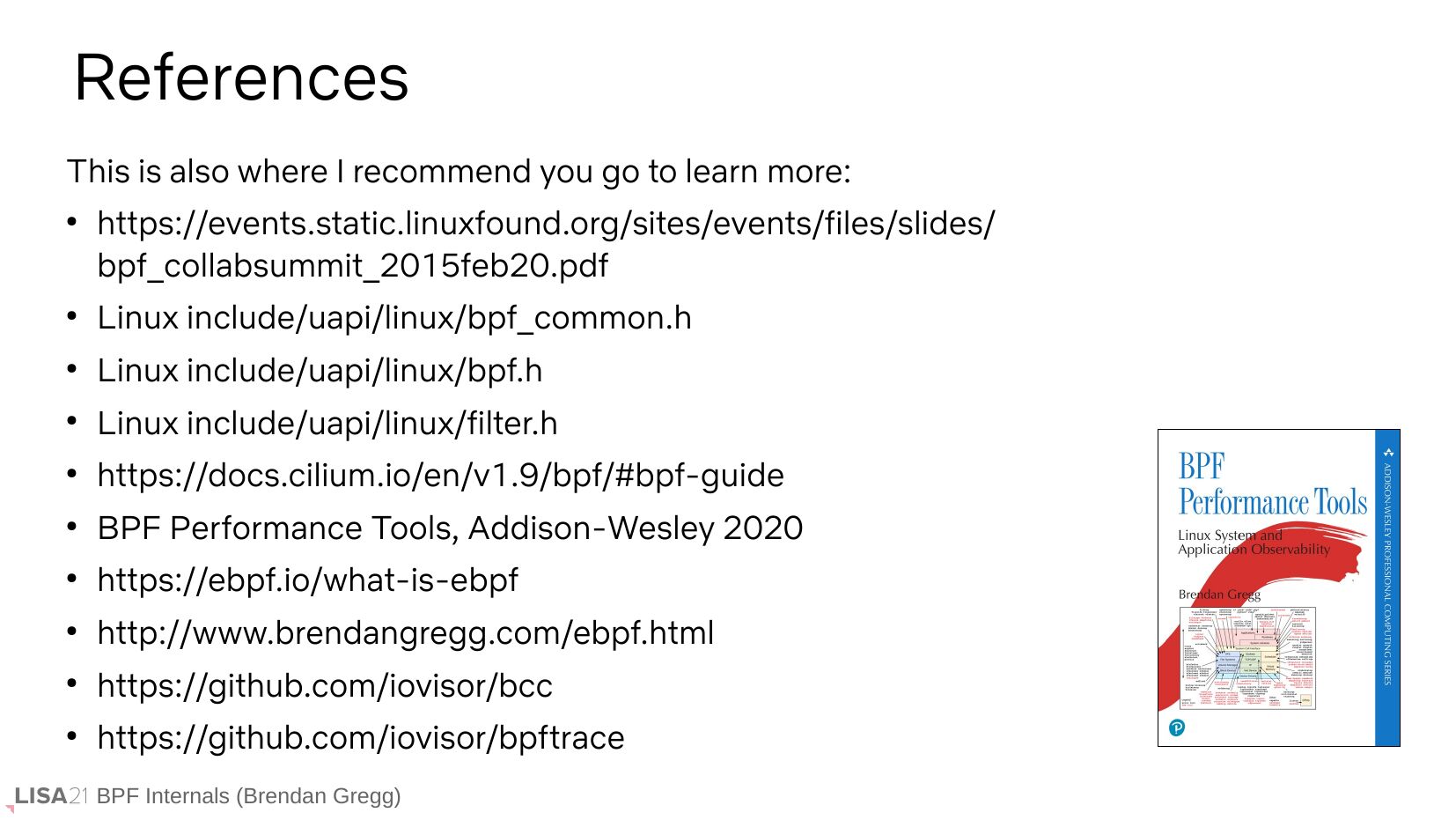

For BPF internals by reference, see the References slide
Learning objectives
Gain a working knowledge of some BPF internals
Evaluate ideas for BPF suitability
BPF Internals (Brendan Gregg)

BPF Intro
BPF Internals (Brendan Gregg)

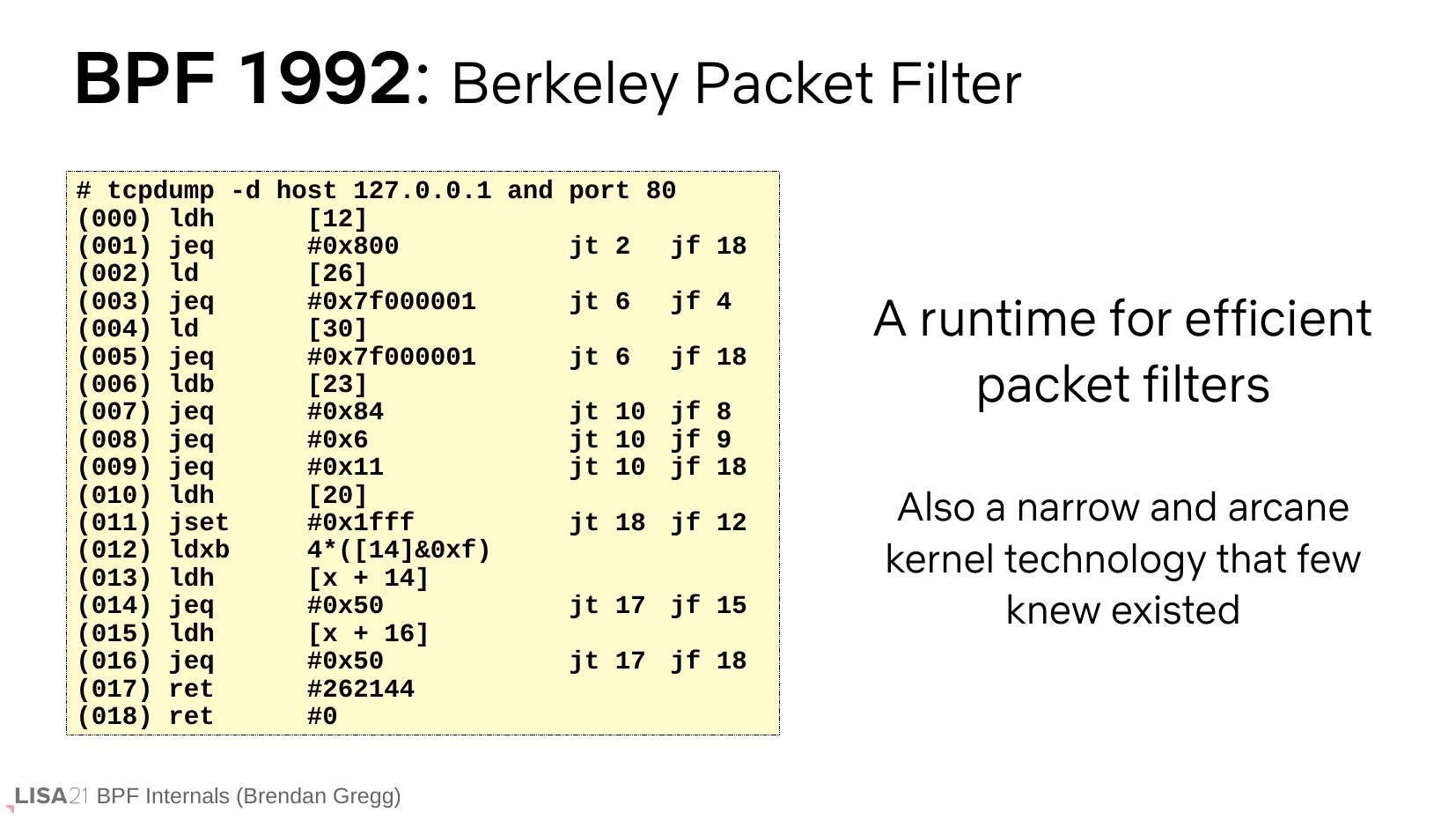

BPF 1992: Berkeley Packet Filter
# tcpdump -d host 127.0.0.1 and port 80
(000) ldh
[12]
(001) jeq
#0x800
jt 2
jf 18
(002) ld
[26]
(003) jeq
#0x7f000001
jt 6
jf 4
(004) ld
[30]
(005) jeq
#0x7f000001
jt 6
jf 18
(006) ldb
[23]
(007) jeq
#0x84
jt 10 jf 8
(008) jeq
#0x6
jt 10 jf 9
(009) jeq
#0x11
jt 10 jf 18
(010) ldh
[20]
(011) jset
#0x1fff
jt 18 jf 12
(012) ldxb
4*([14]&0xf)
(013) ldh
[x + 14]
(014) jeq
#0x50
jt 17 jf 15
(015) ldh
[x + 16]
(016) jeq
#0x50
jt 17 jf 18
(017) ret
#262144
(018) ret
BPF Internals (Brendan Gregg)
A runtime for efficient
packet filters
Also a narrow and arcane
kernel technology that few
knew existed

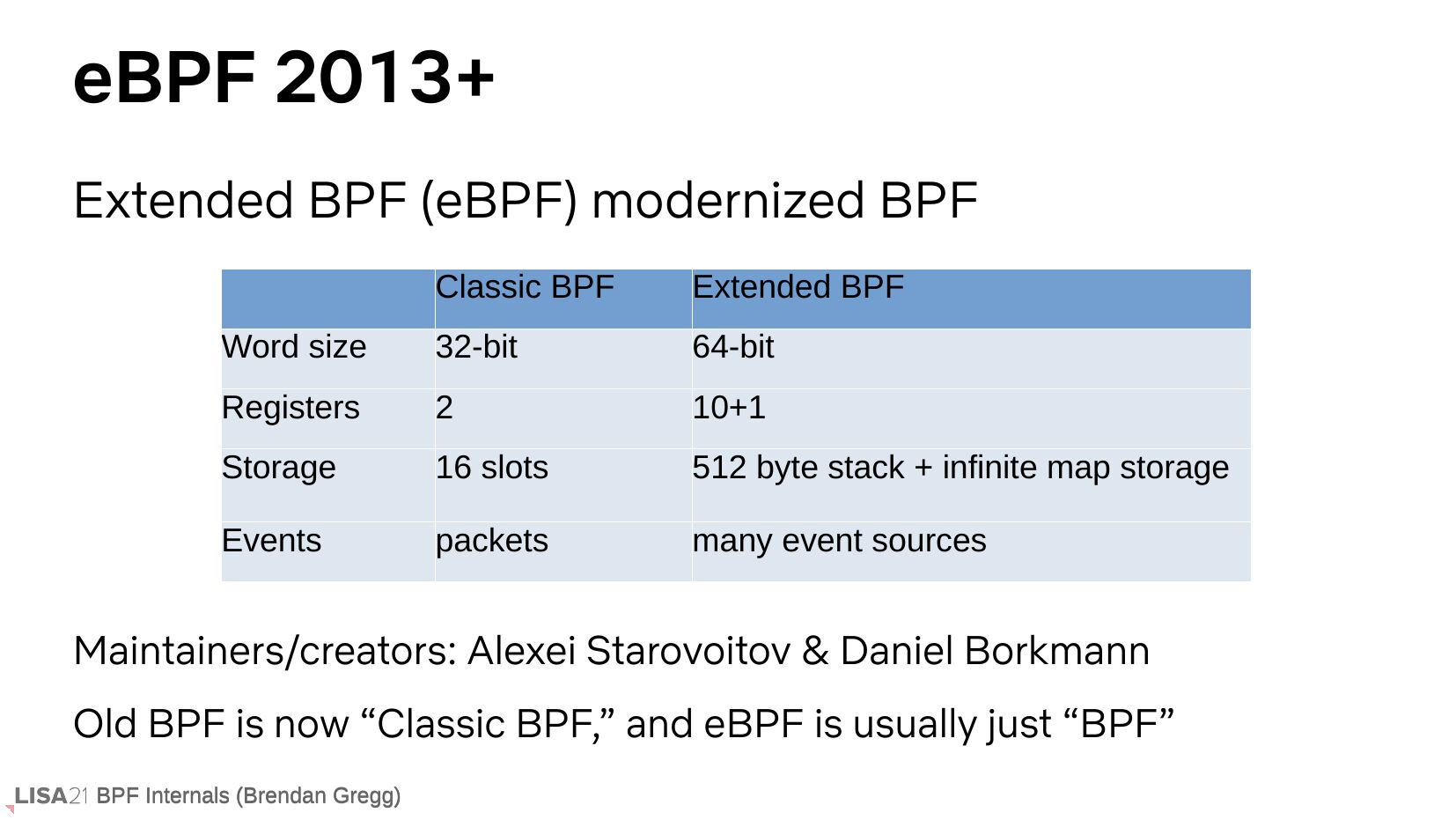

eBPF 2013+
Extended BPF (eBPF) modernized BPF
Classic BPF
Extended BPF
Word size
32-bit
64-bit
Registers
10+1
Storage
16 slots
512 byte stack + infinite map storage
Events
packets
many event sources
Maintainers/creators: Alexei Starovoitov & Daniel Borkmann
Old BPF is now “Classic BPF,” and eBPF is usually just “BPF”
BPF Internals (Brendan Gregg)

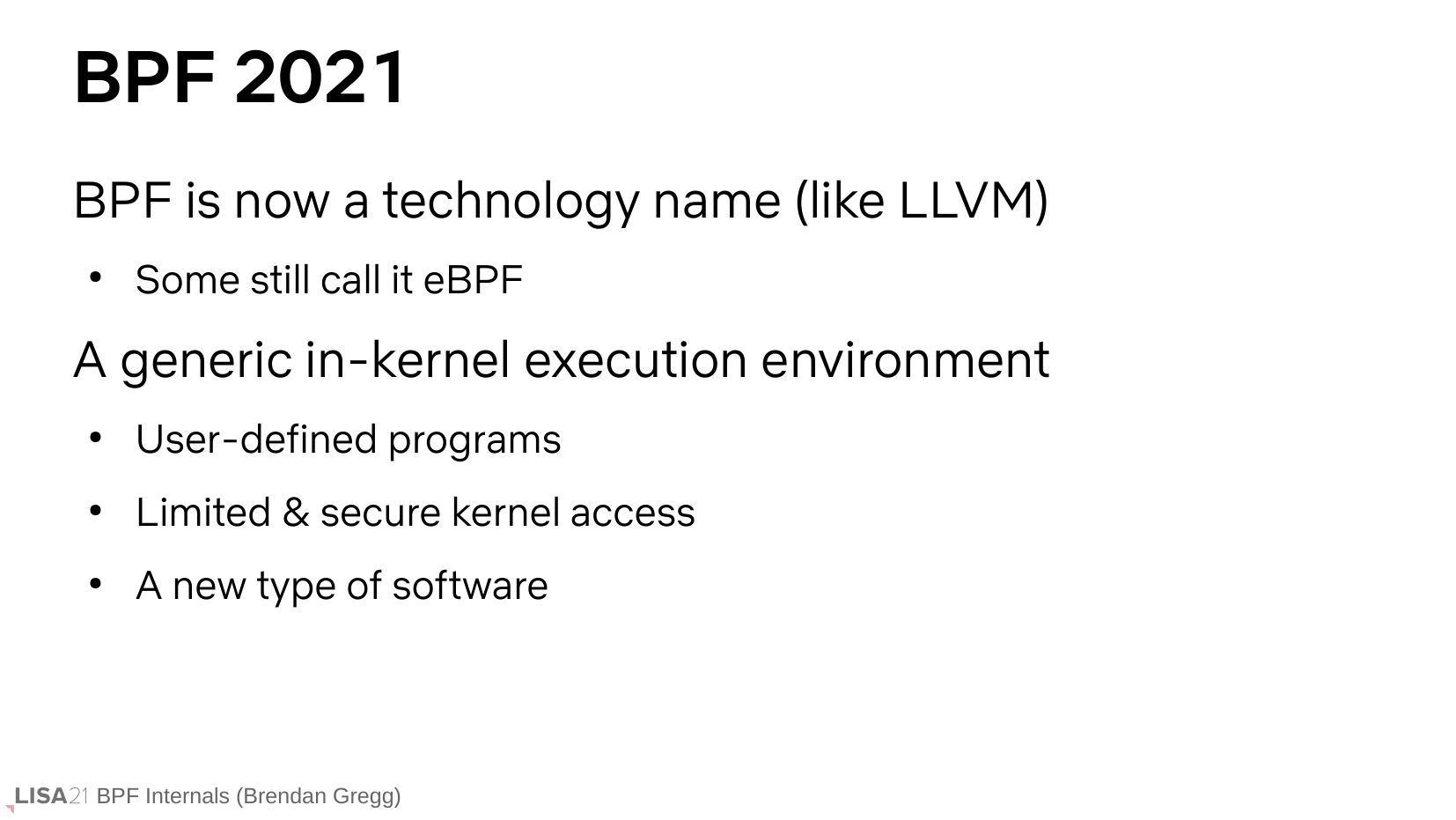

BPF 2021
BPF is now a technology name (like LLVM)
Some still call it eBPF
A generic in-kernel execution environment
User-defined programs
Limited & secure kernel access
A new type of software
BPF Internals (Brendan Gregg)

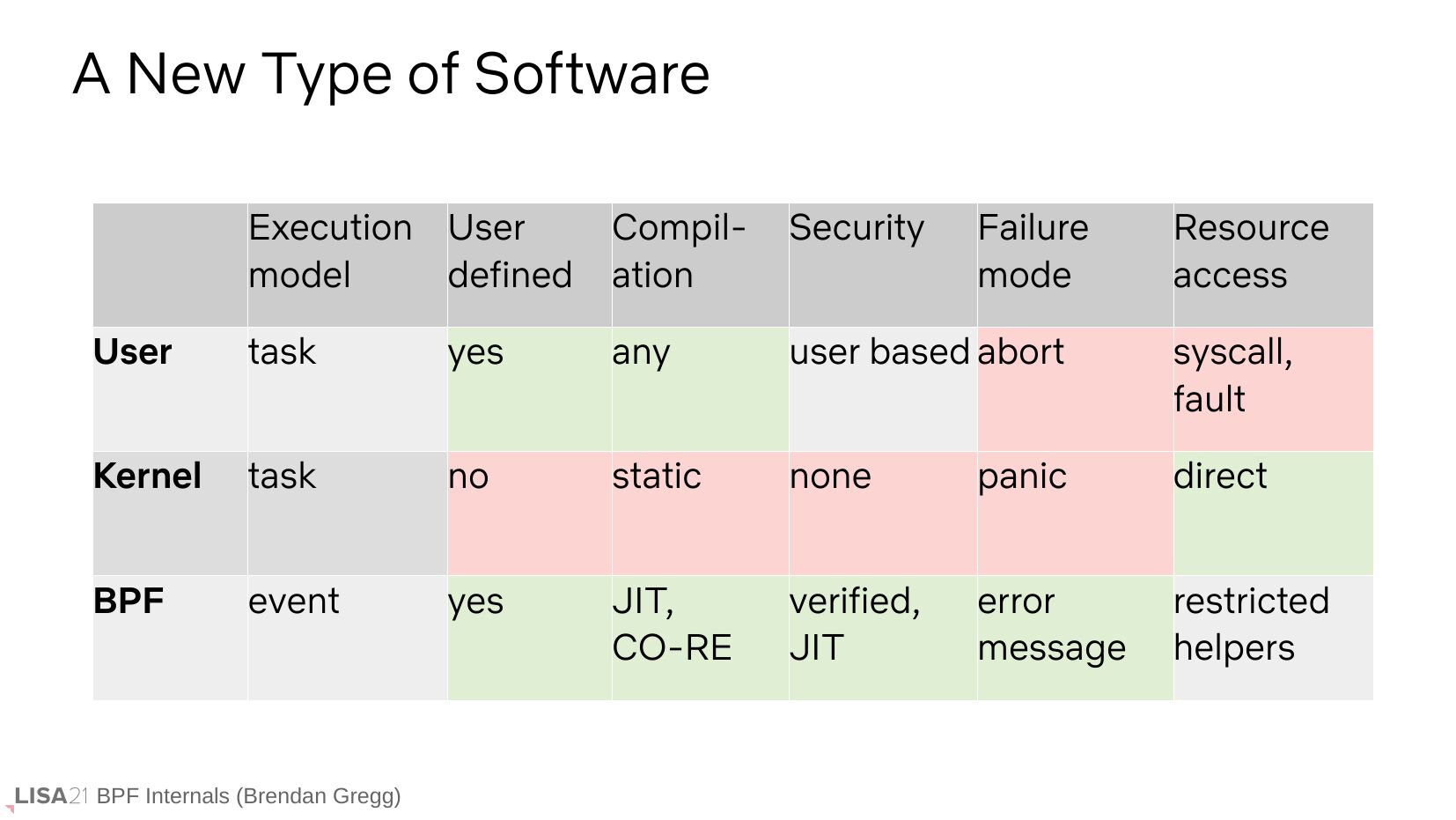

A New Type of Software
Execution User
model
defined
Compilation
Security
User
task
yes
any
user based abort
syscall,
fault
Kernel
task
static
none
panic
direct
BPF
event
yes
JIT,
CO-RE
verified,
JIT
error
message
restricted
helpers
BPF Internals (Brendan Gregg)
Failure
mode
Resource
access

BPF program state model
Off-CPU
Enabled
event fires
program ended
BPF
preempt
attach
Loaded
On-CPU
Sleeping
(restricted state)
page fault
helpers
Kernel
spin lock
Spinning
BPF Internals (Brendan Gregg)

BPF Tracing
BPF Internals (Brendan Gregg)

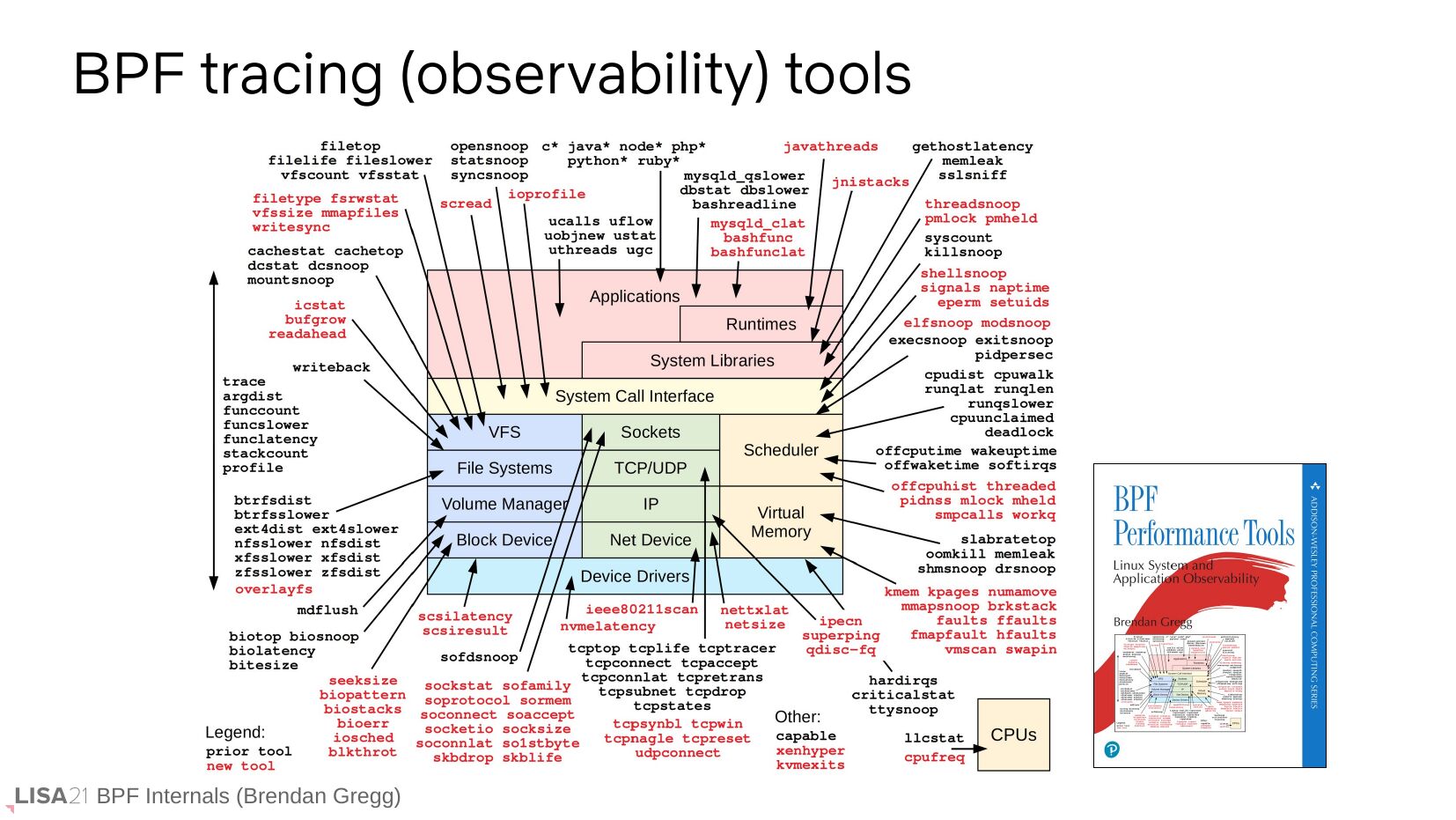

BPF tracing (observability) tools
BPF Internals (Brendan Gregg)

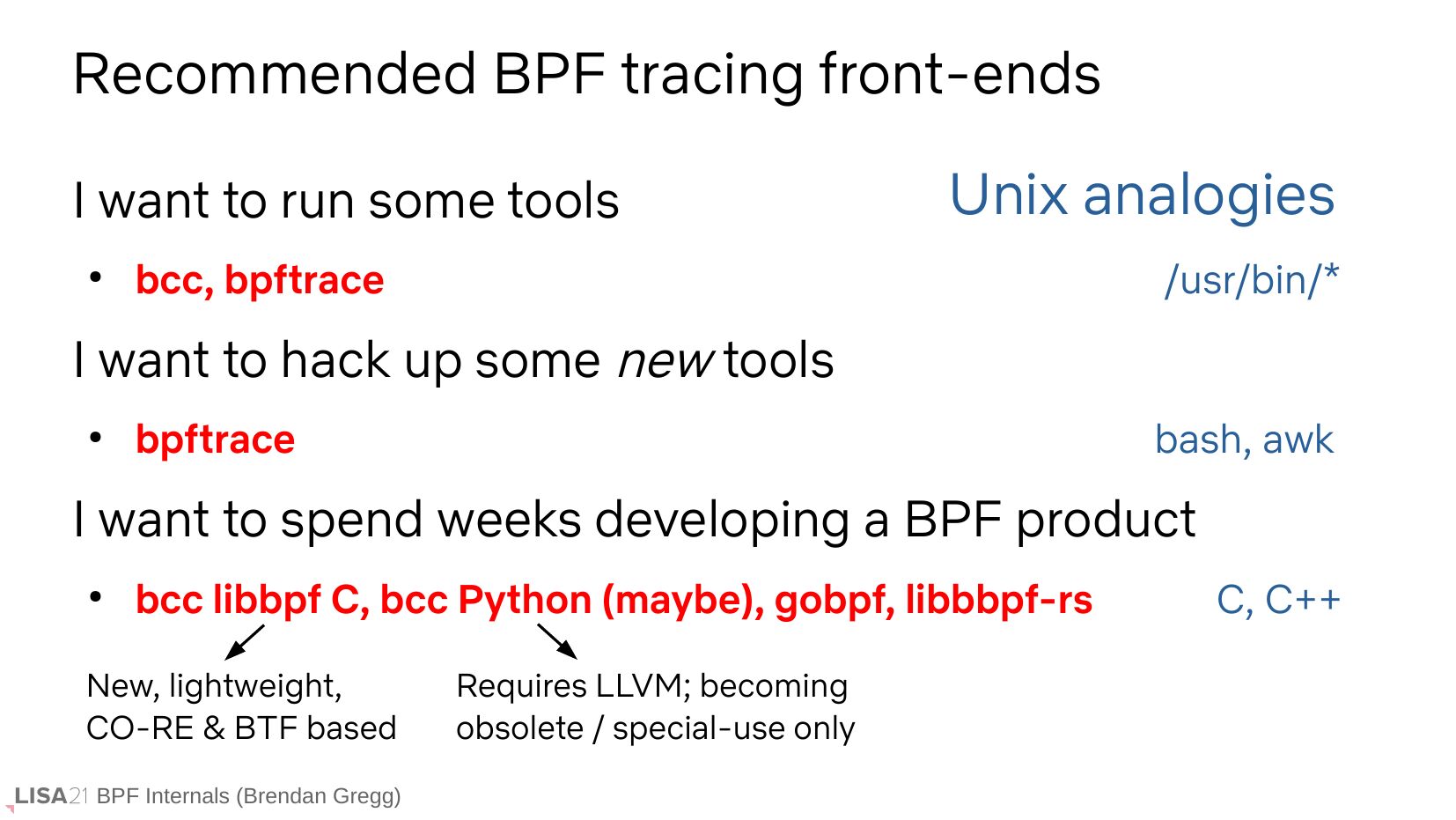

Recommended BPF tracing front-ends
I want to run some tools
Unix analogies
bcc, bpftrace
/usr/bin/*
I want to hack up some new tools
bpftrace
bash, awk
I want to spend weeks developing a BPF product
bcc libbpf C, bcc Python (maybe), gobpf, libbbpf-rs
New, lightweight,
CO-RE & BTF based
BPF Internals (Brendan Gregg)
Requires LLVM; becoming
obsolete / special-use only
C, C++

BPF Internals
(developing BPF was hard;
understanding it is easy)
BPF Internals (Brendan Gregg)

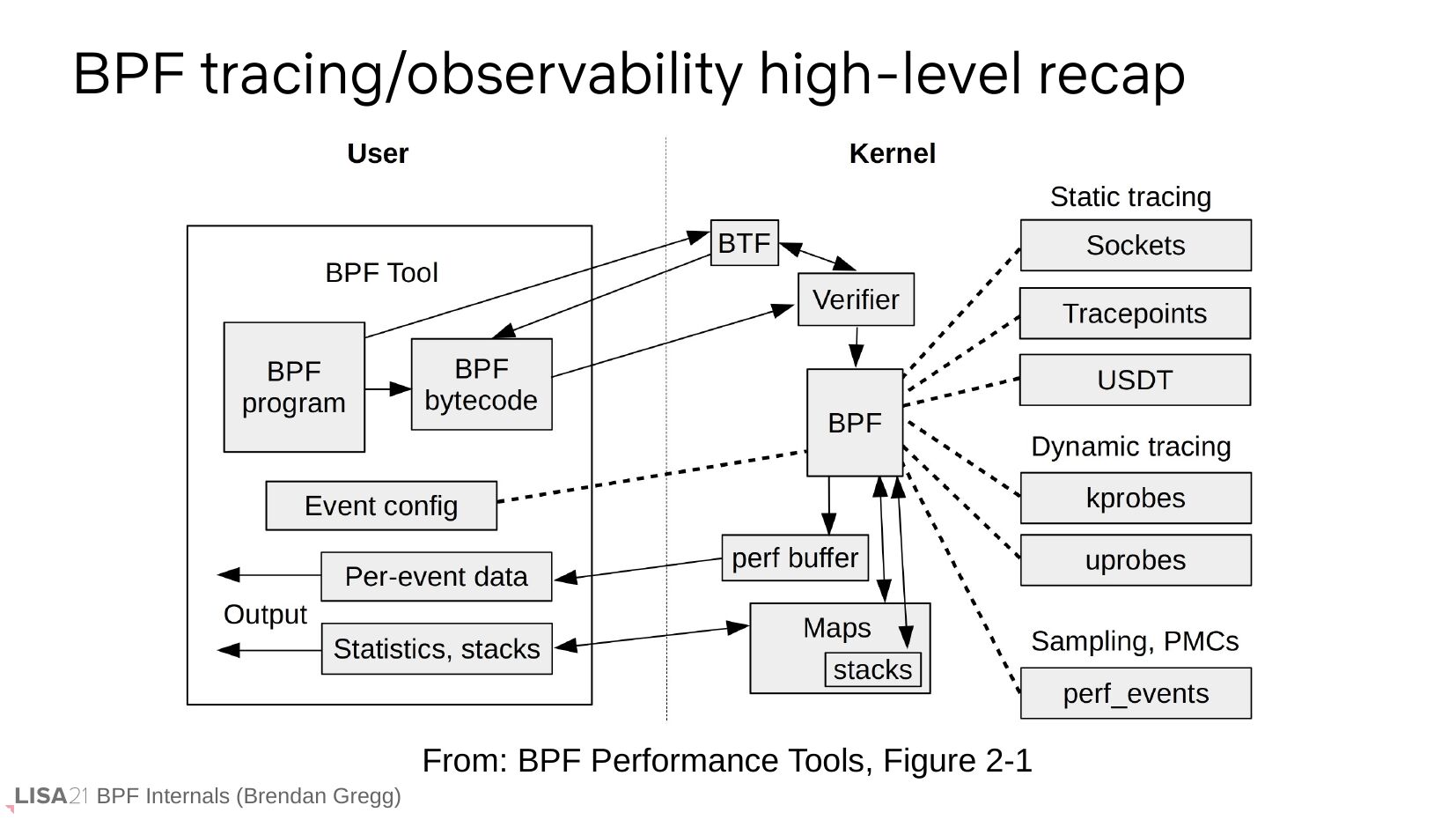

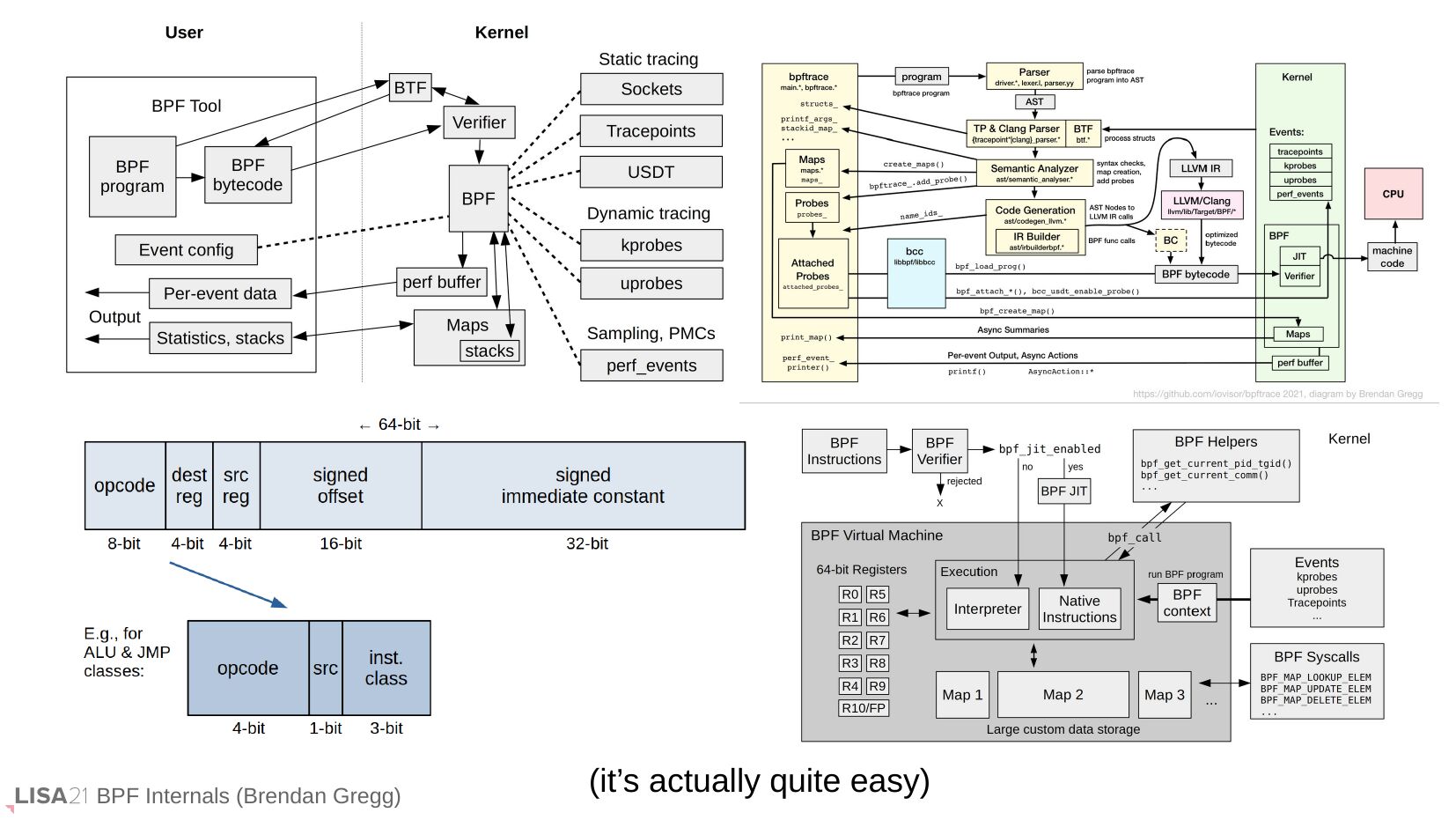

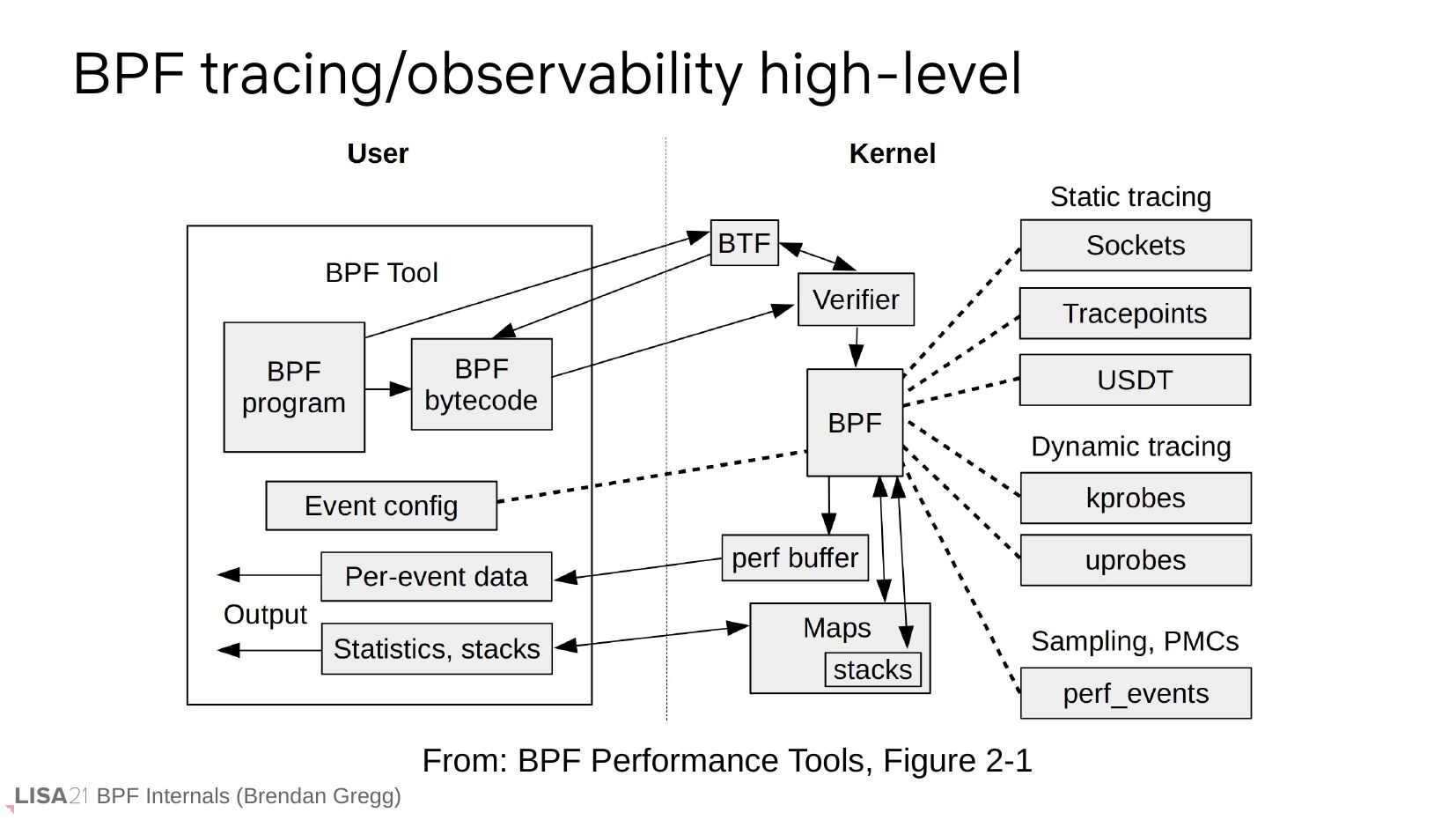

BPF tracing/observability high-level
From: BPF Performance Tools, Figure 2-1
BPF Internals (Brendan Gregg)

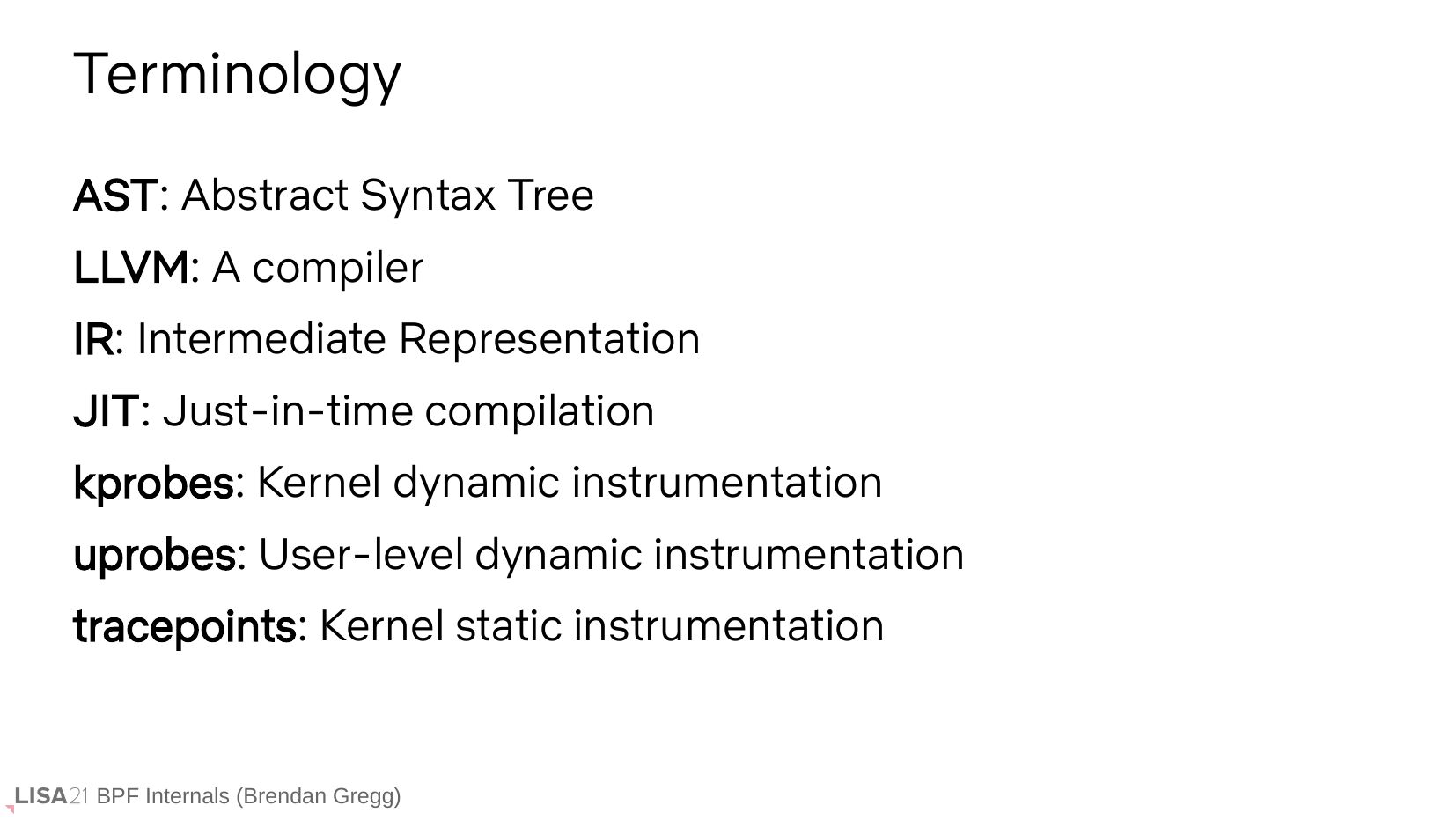

Terminology
AST: Abstract Syntax Tree
LLVM: A compiler
IR: Intermediate Representation
JIT: Just-in-time compilation

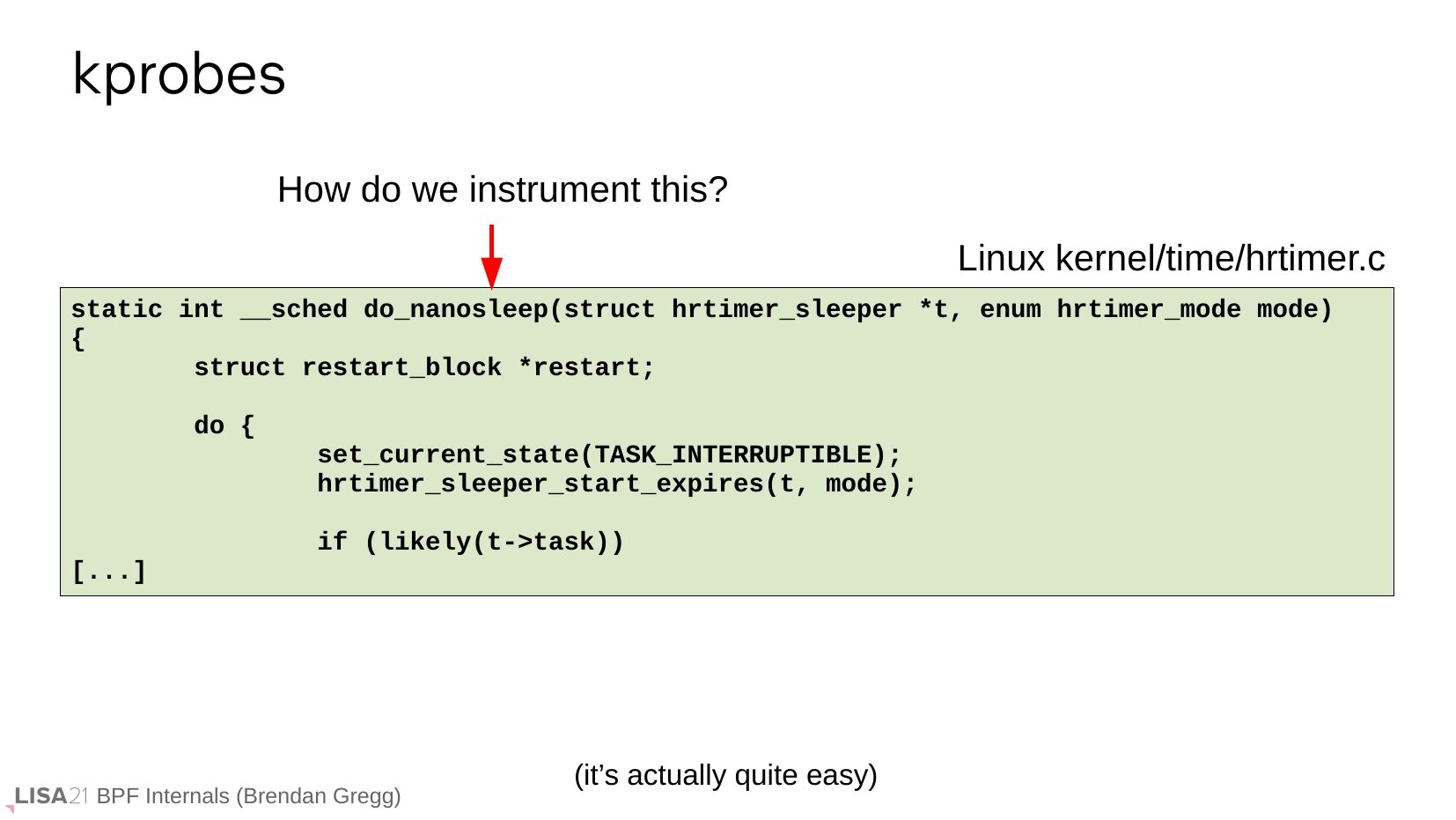

kprobes: Kernel dynamic instrumentation
uprobes: User-level dynamic instrumentation
tracepoints: Kernel static instrumentation
BPF Internals (Brendan Gregg)

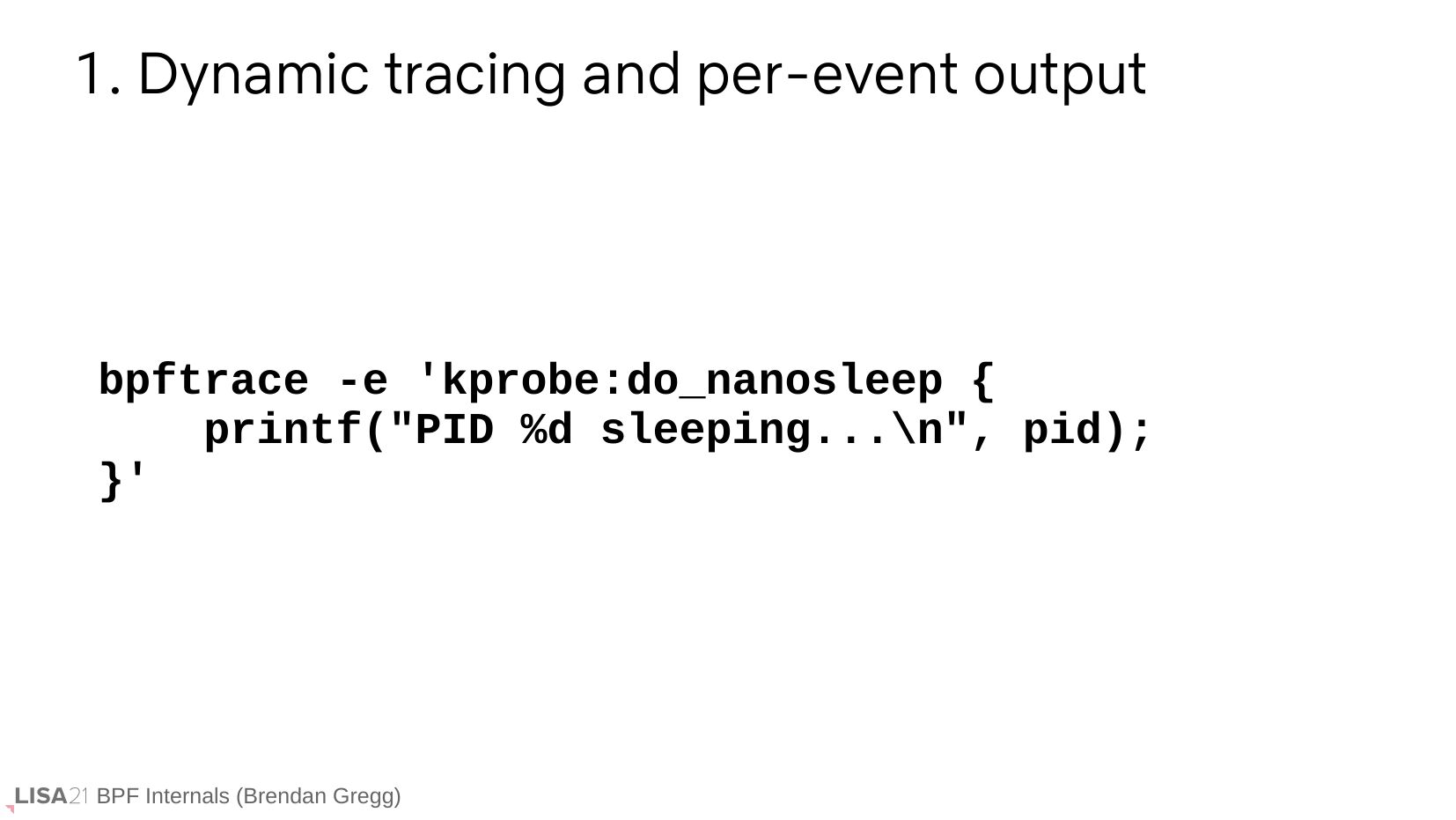

1. Dynamic tracing and per-event output
BPF Internals (Brendan Gregg)

1. Dynamic tracing and per-event output
bpftrace -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid);
BPF Internals (Brendan Gregg)

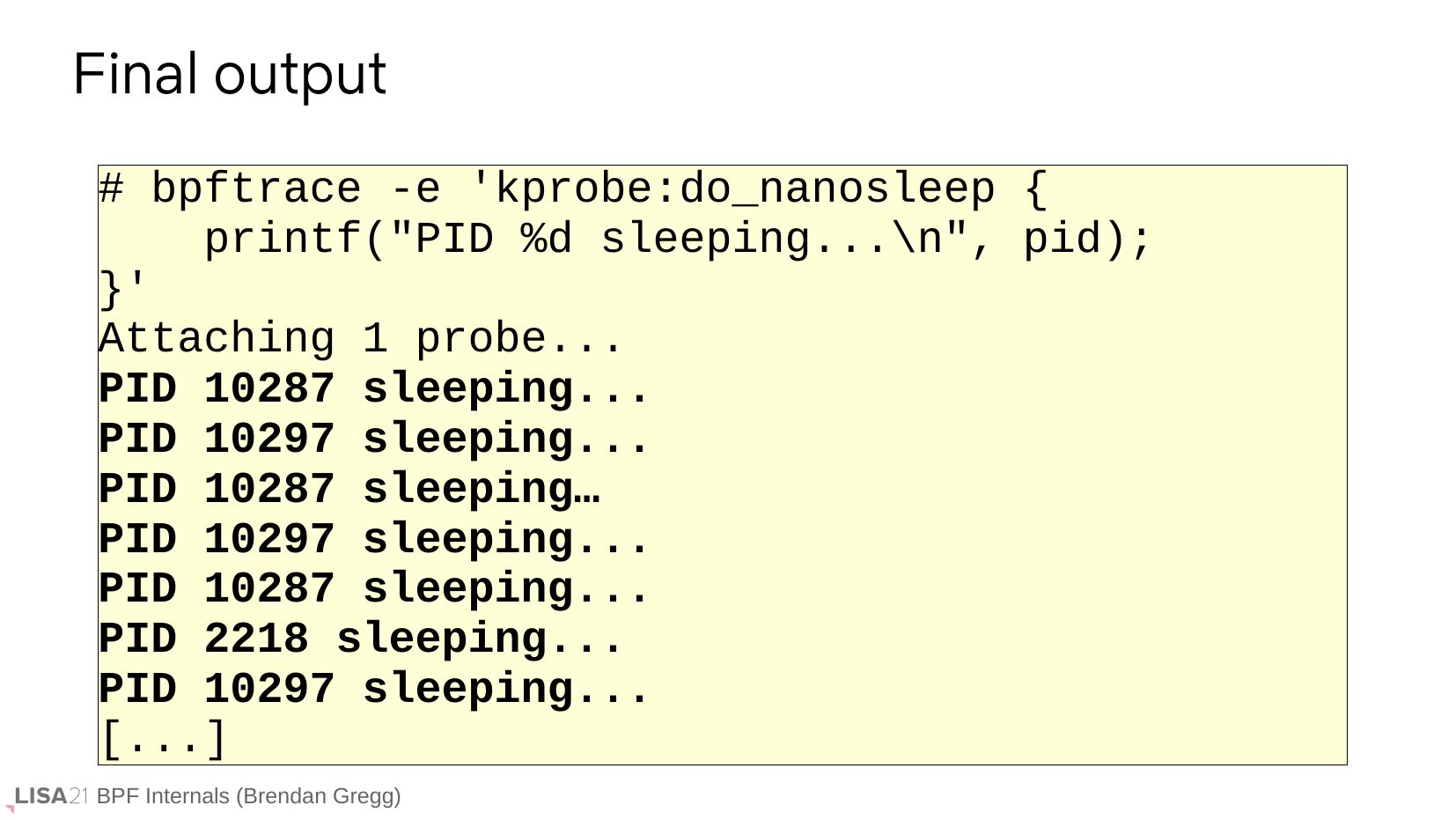

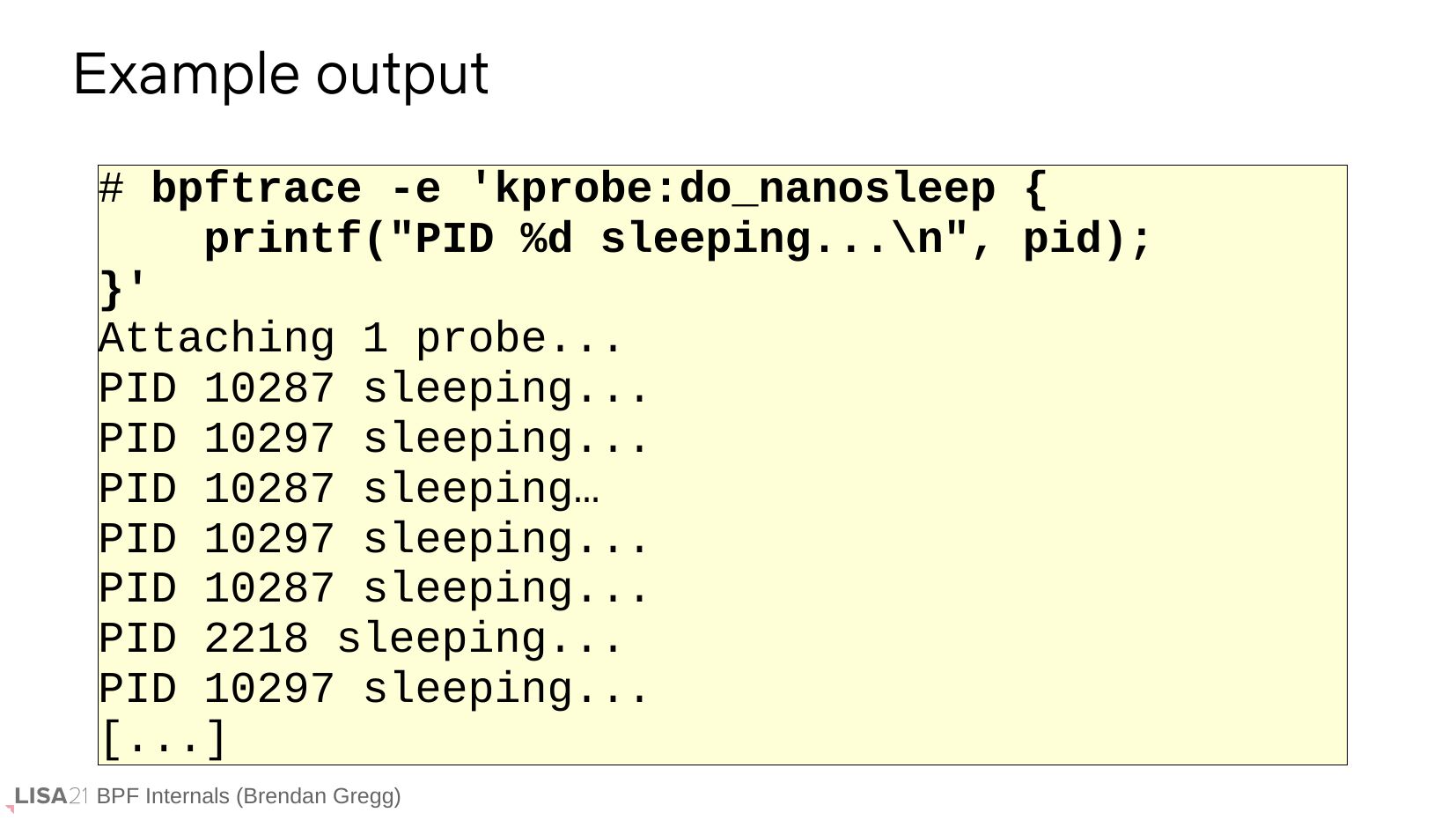

Example output
# bpftrace -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid);
Attaching 1 probe...
PID 10287 sleeping...
PID 10297 sleeping...
PID 10287 sleeping…
PID 10297 sleeping...
PID 10287 sleeping...
PID 2218 sleeping...
PID 10297 sleeping...
[...]
BPF Internals (Brendan Gregg)

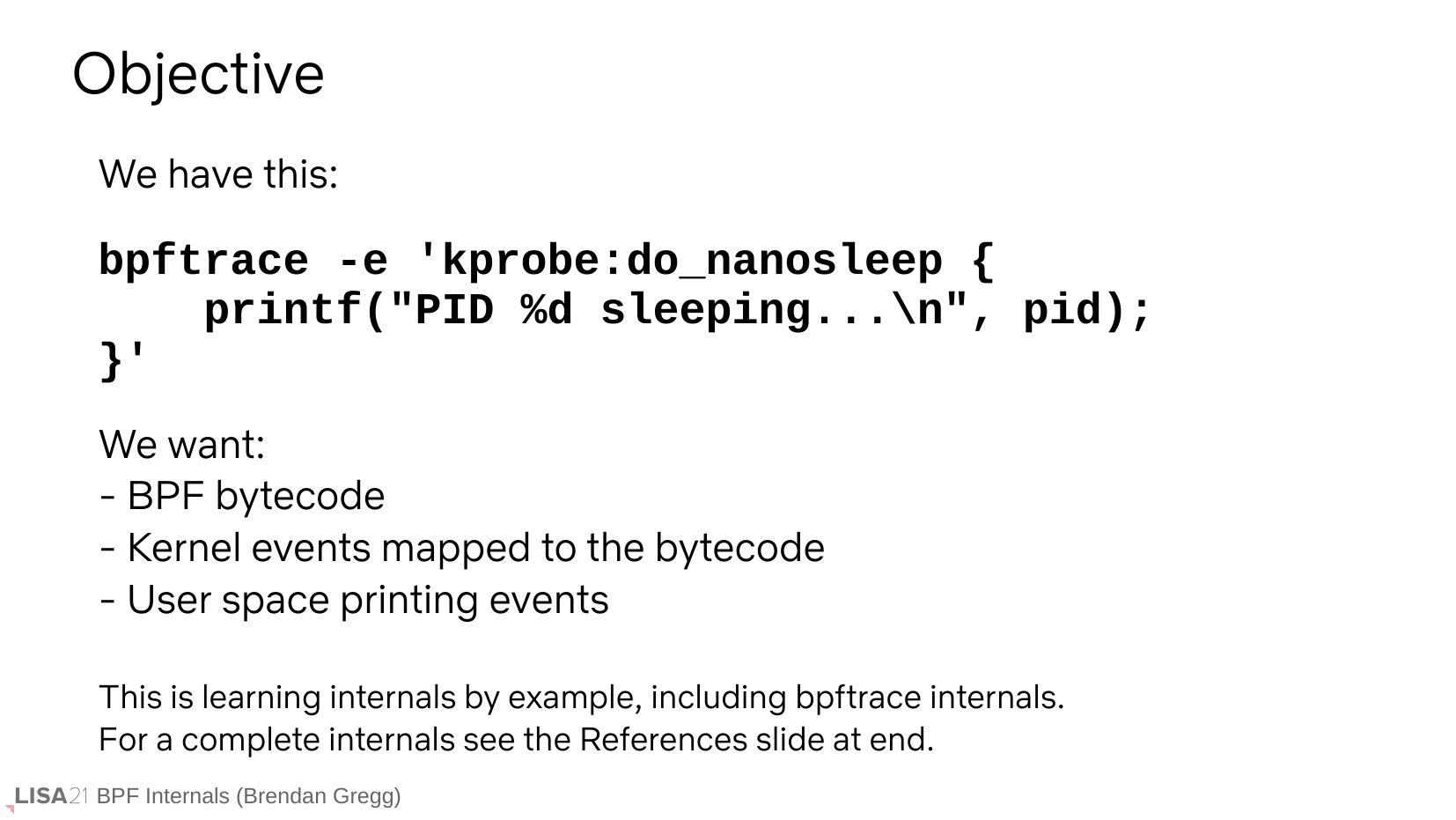

Objective
We have this:
bpftrace -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid);
We want:

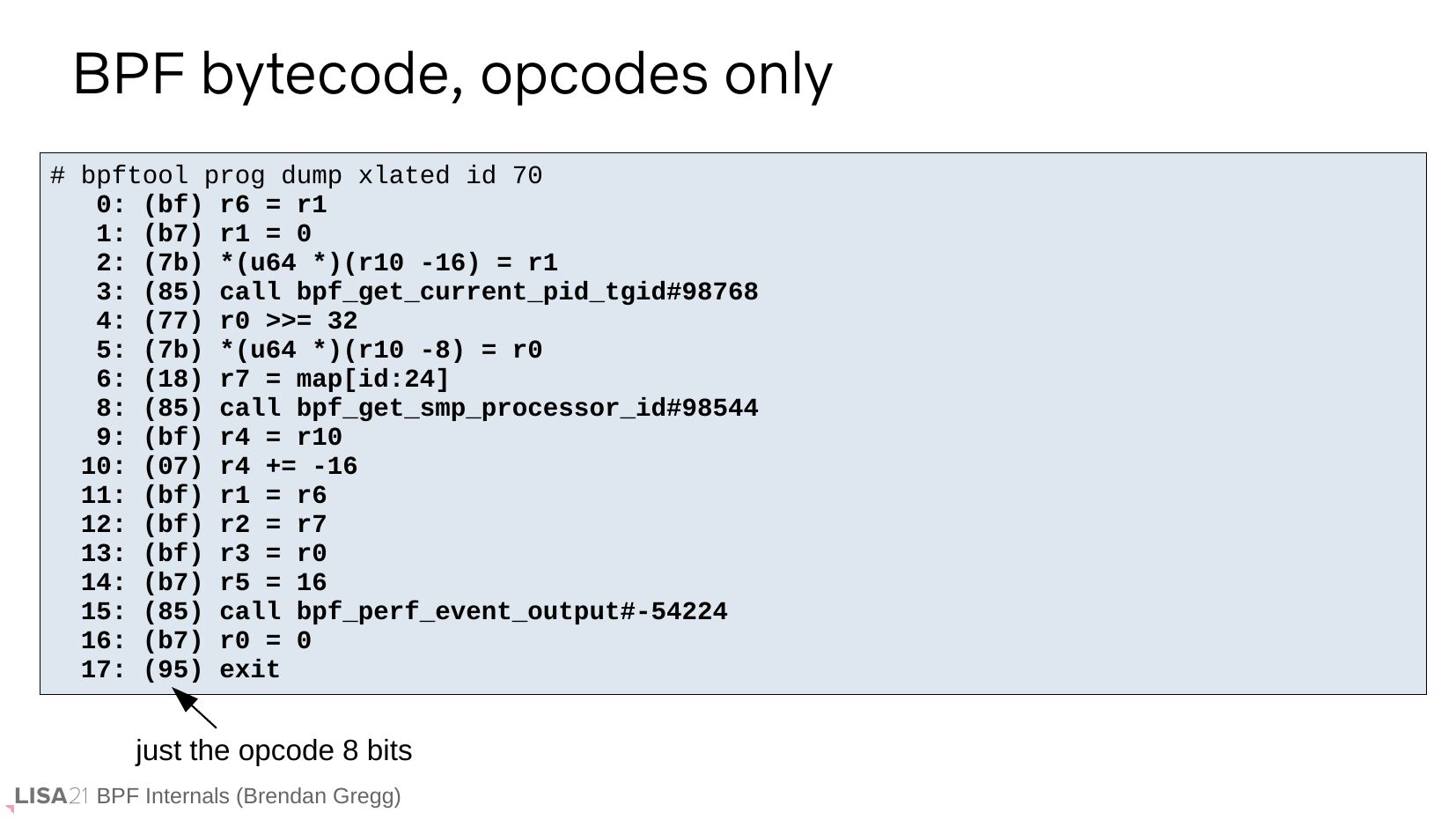

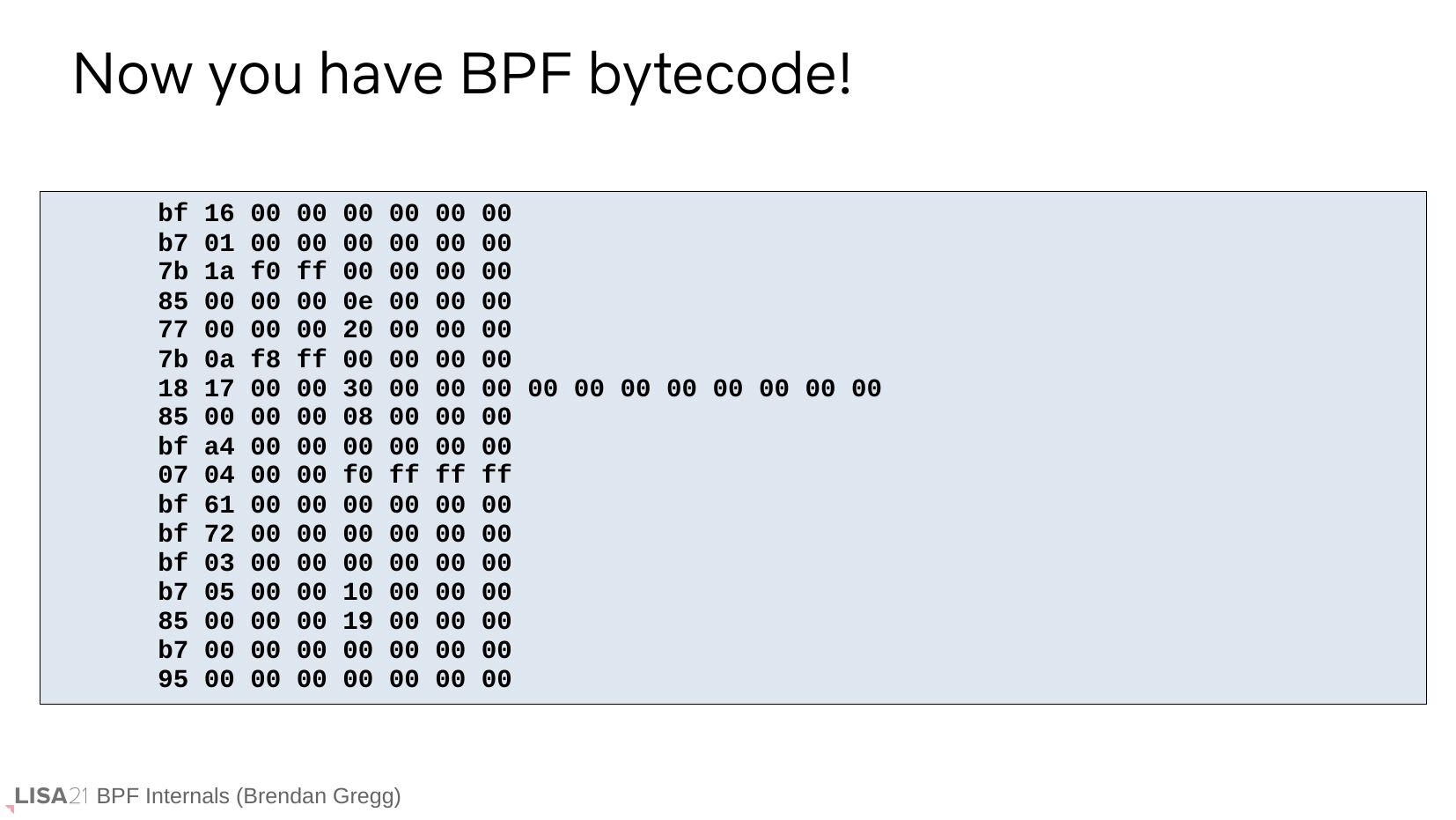

- BPF bytecode
- Kernel events mapped to the bytecode
- User space printing events
This is learning internals by example, including bpftrace internals.
For a complete internals see the References slide at end.
BPF Internals (Brendan Gregg)

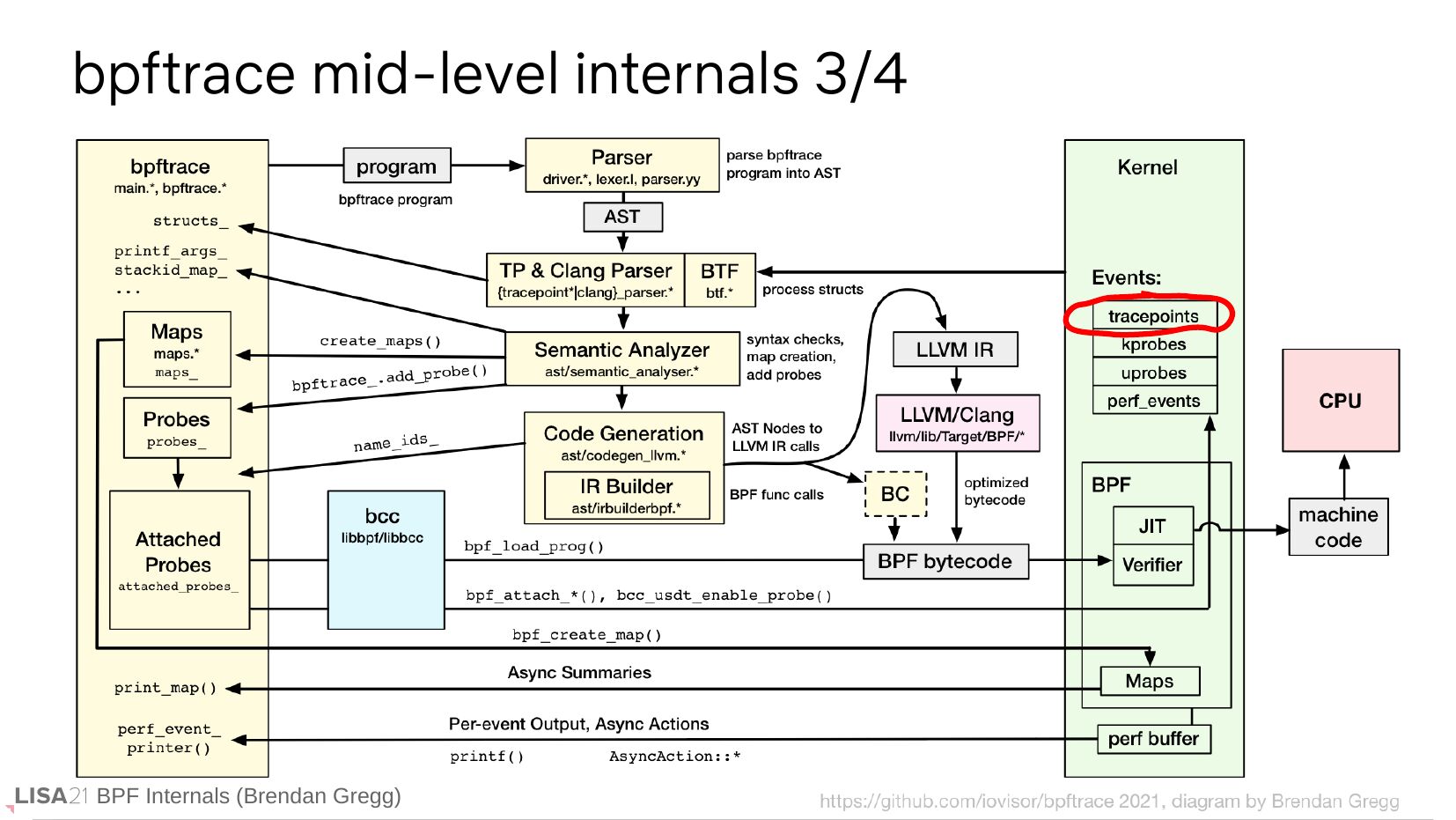

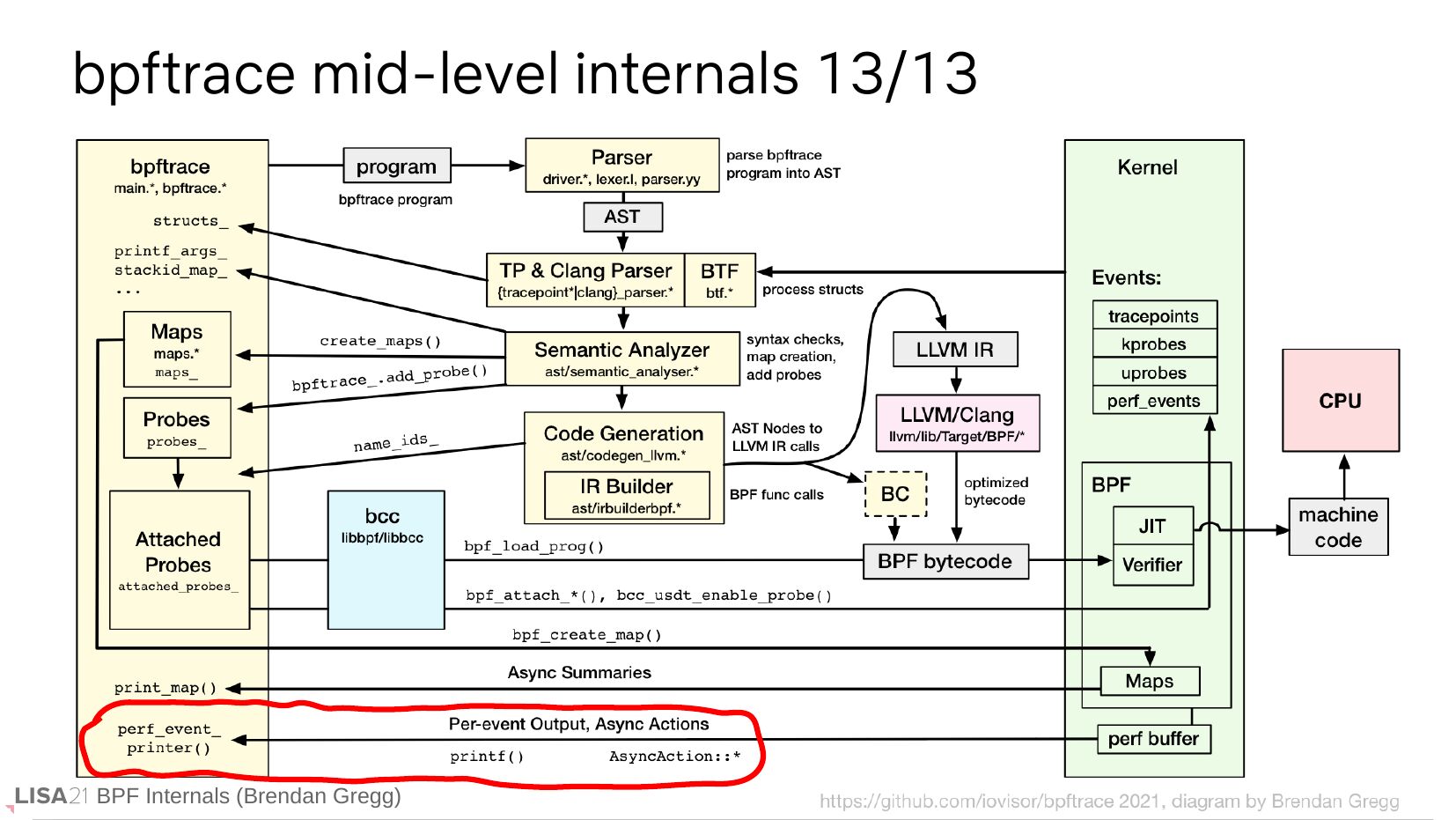

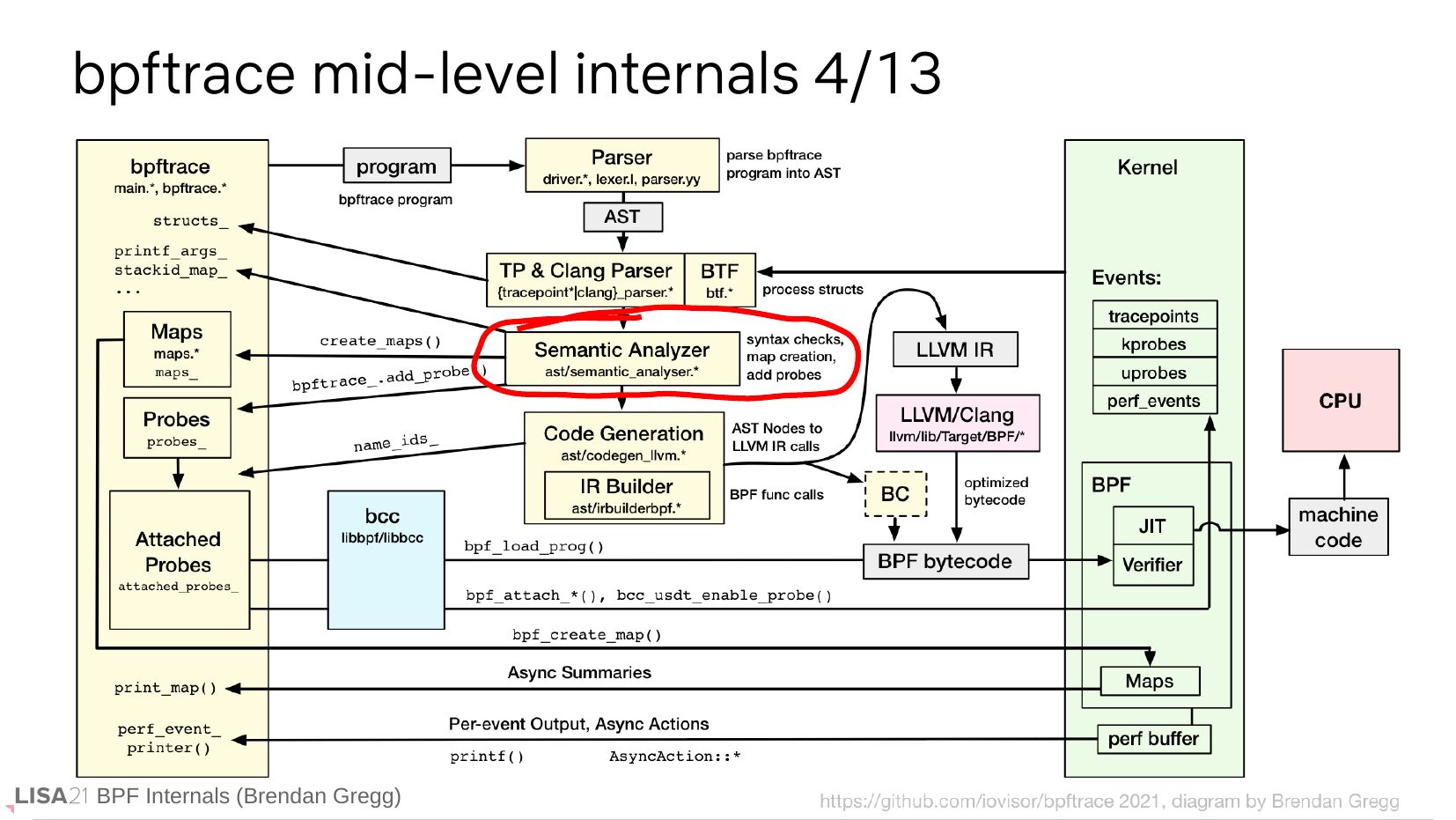

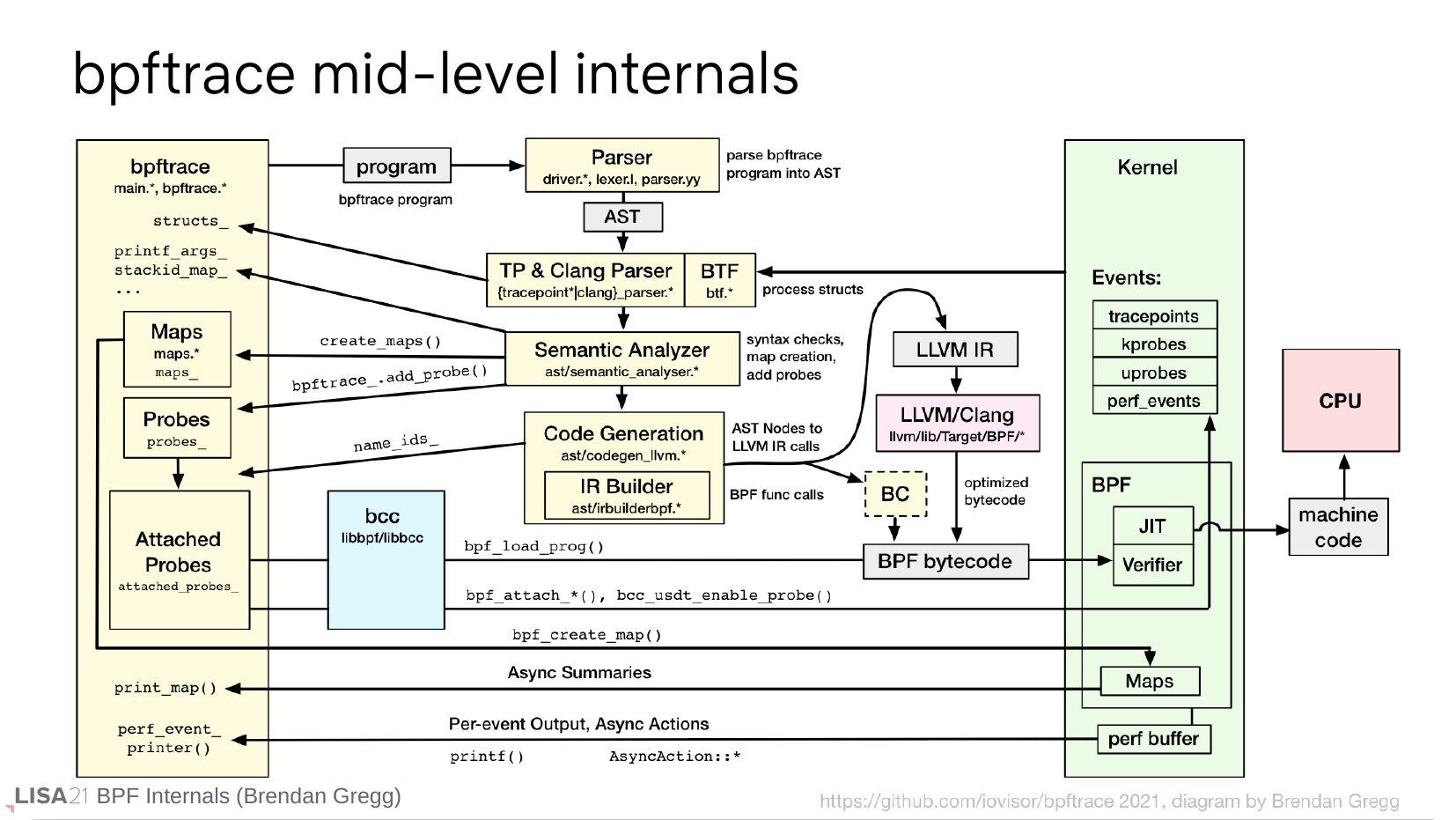

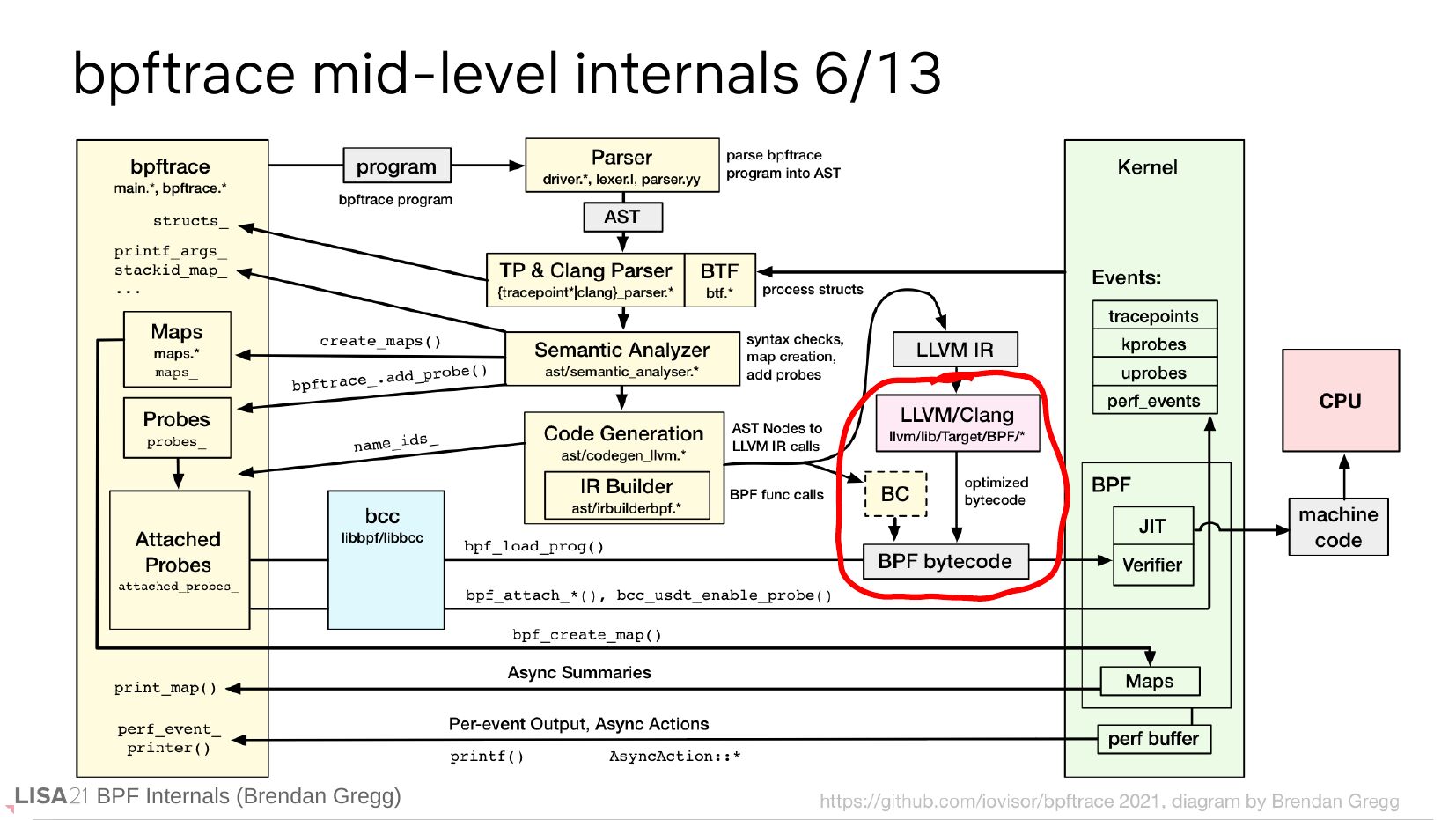

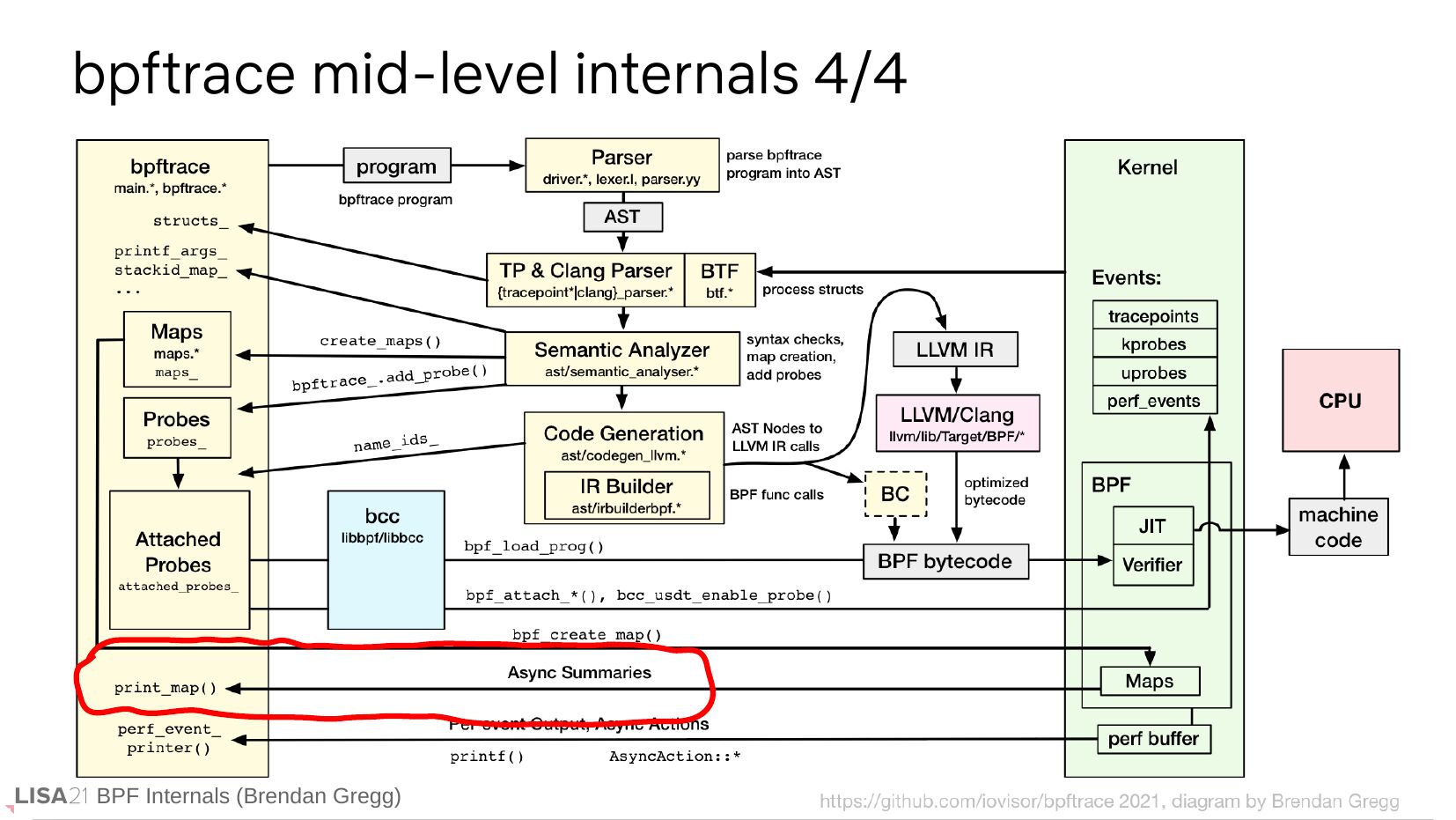

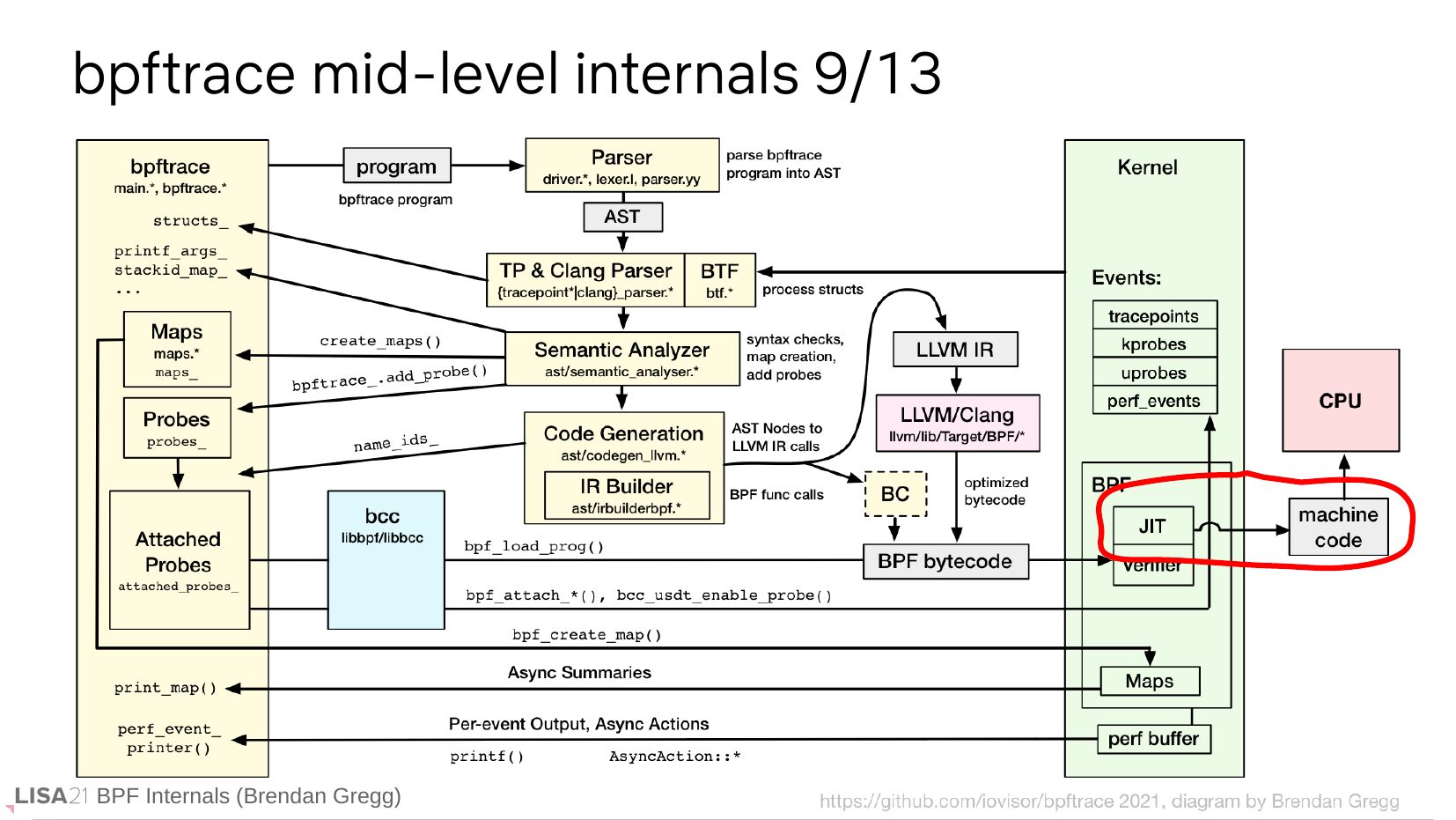

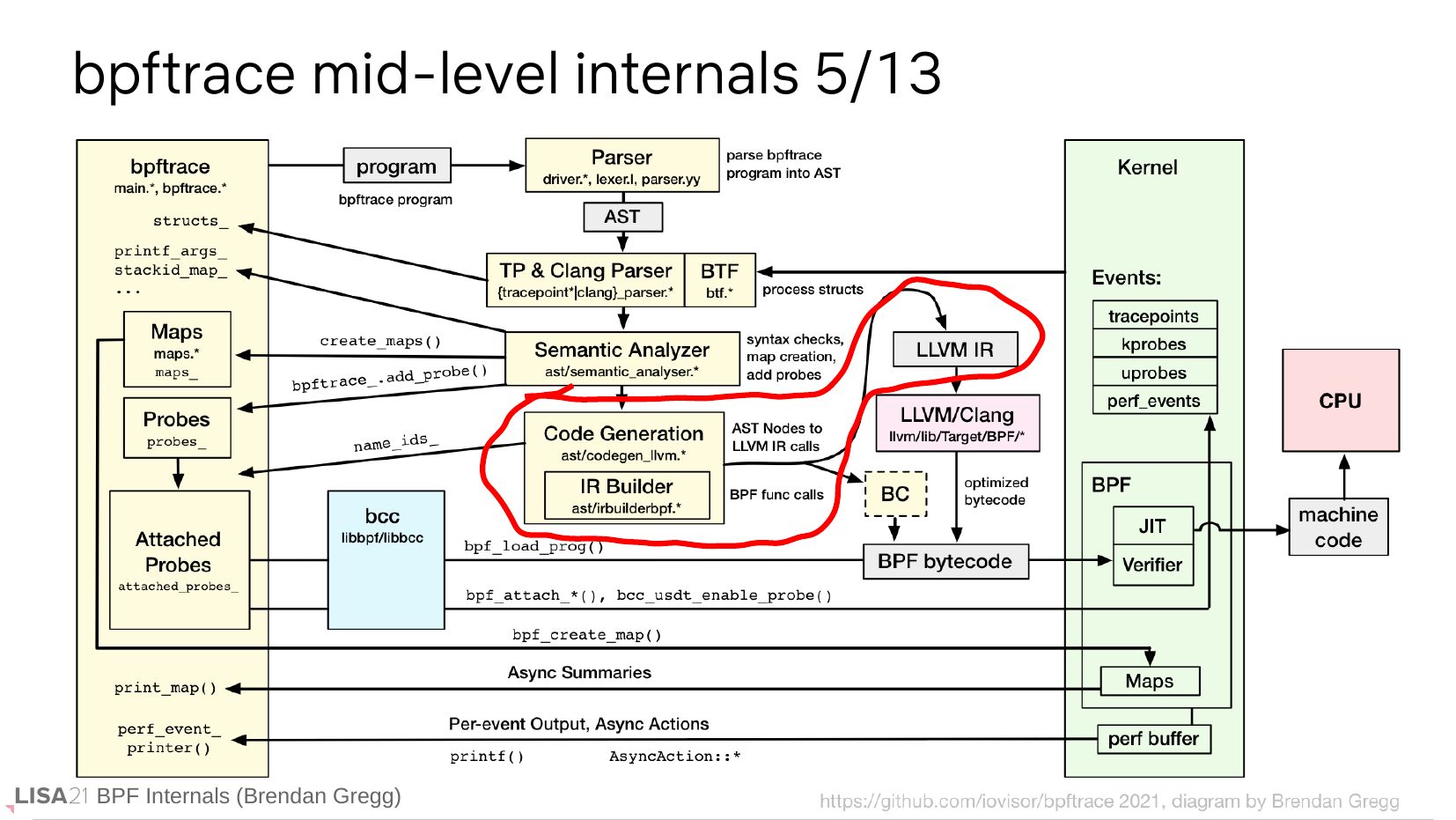

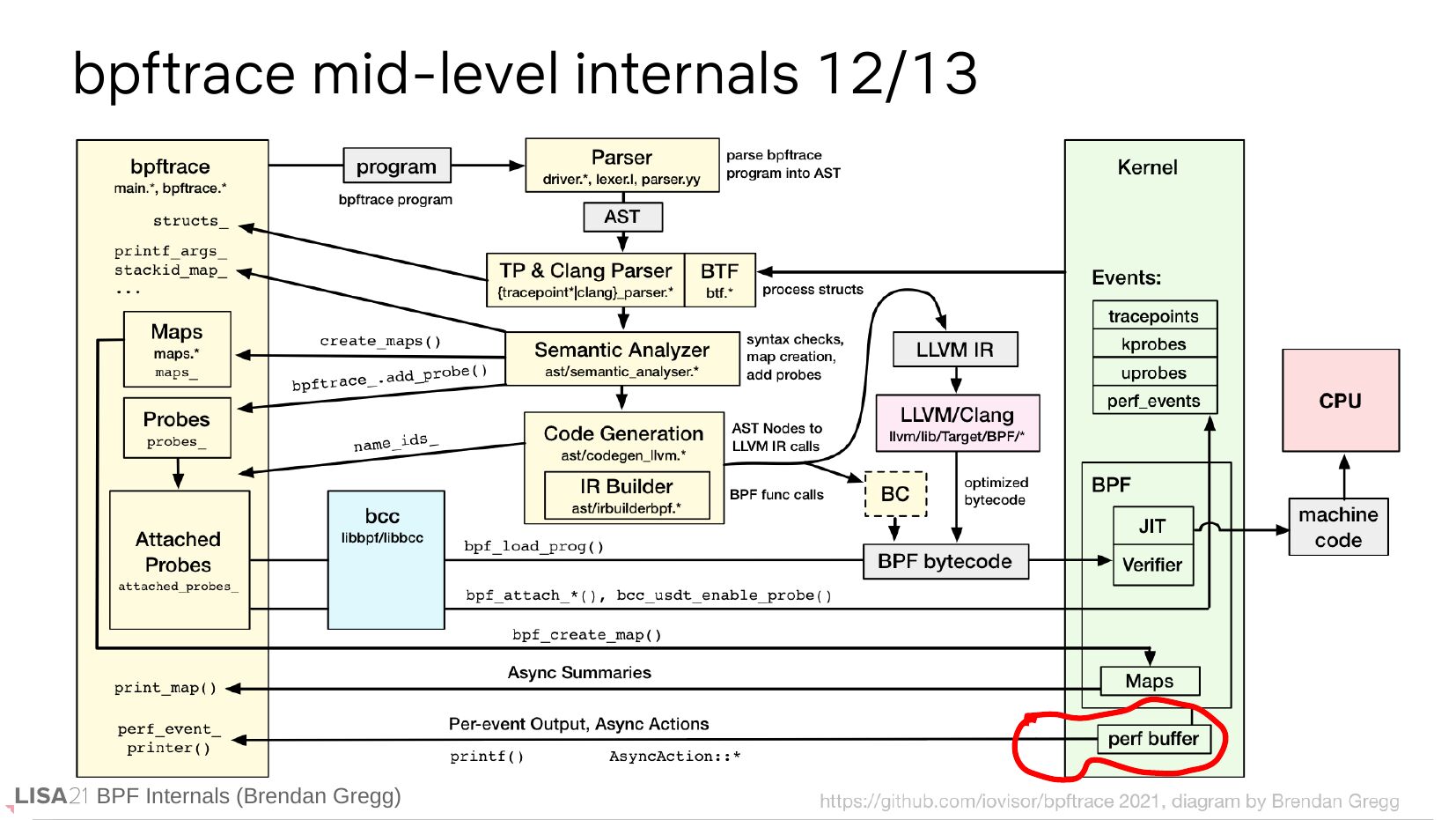

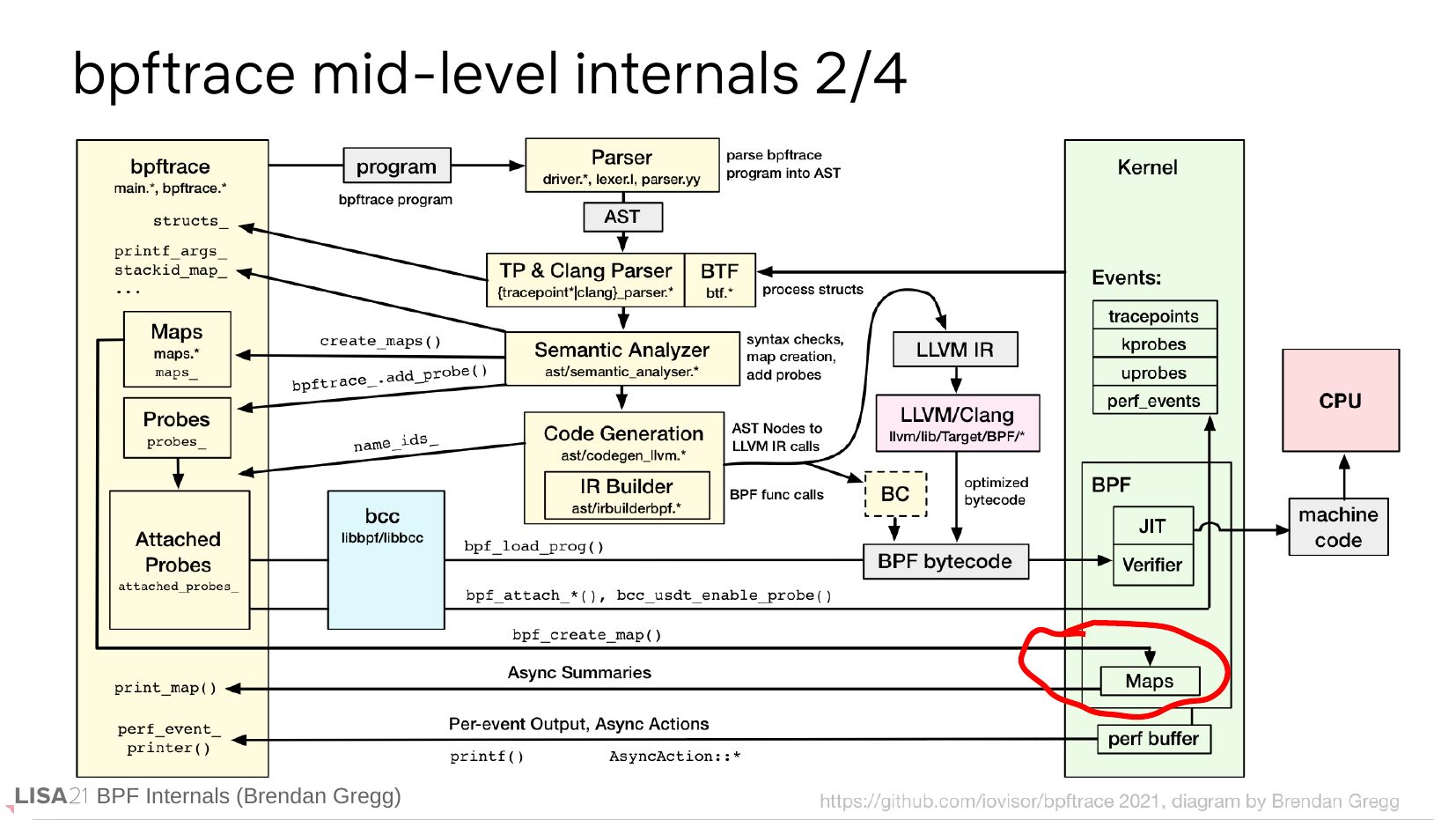

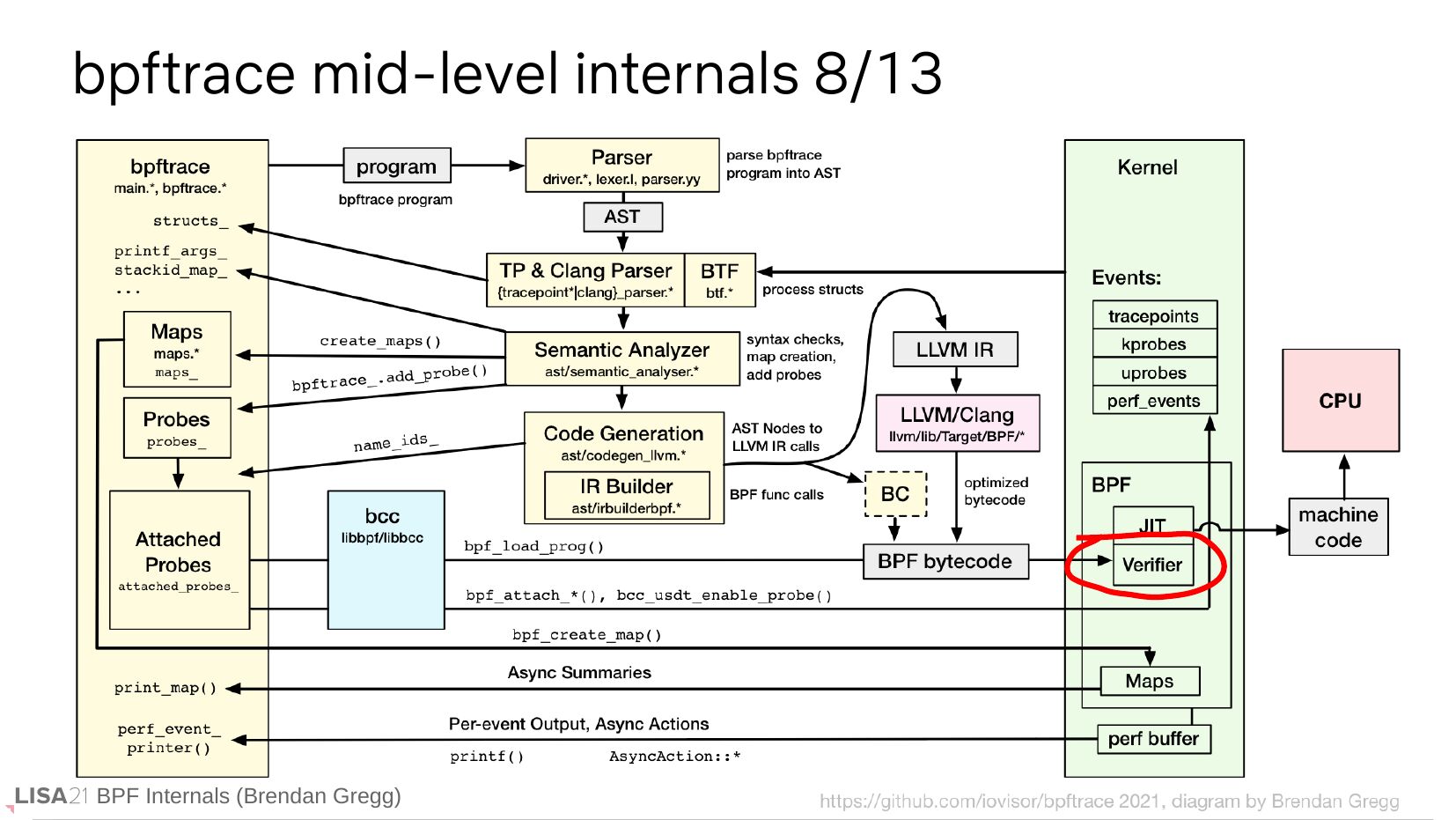

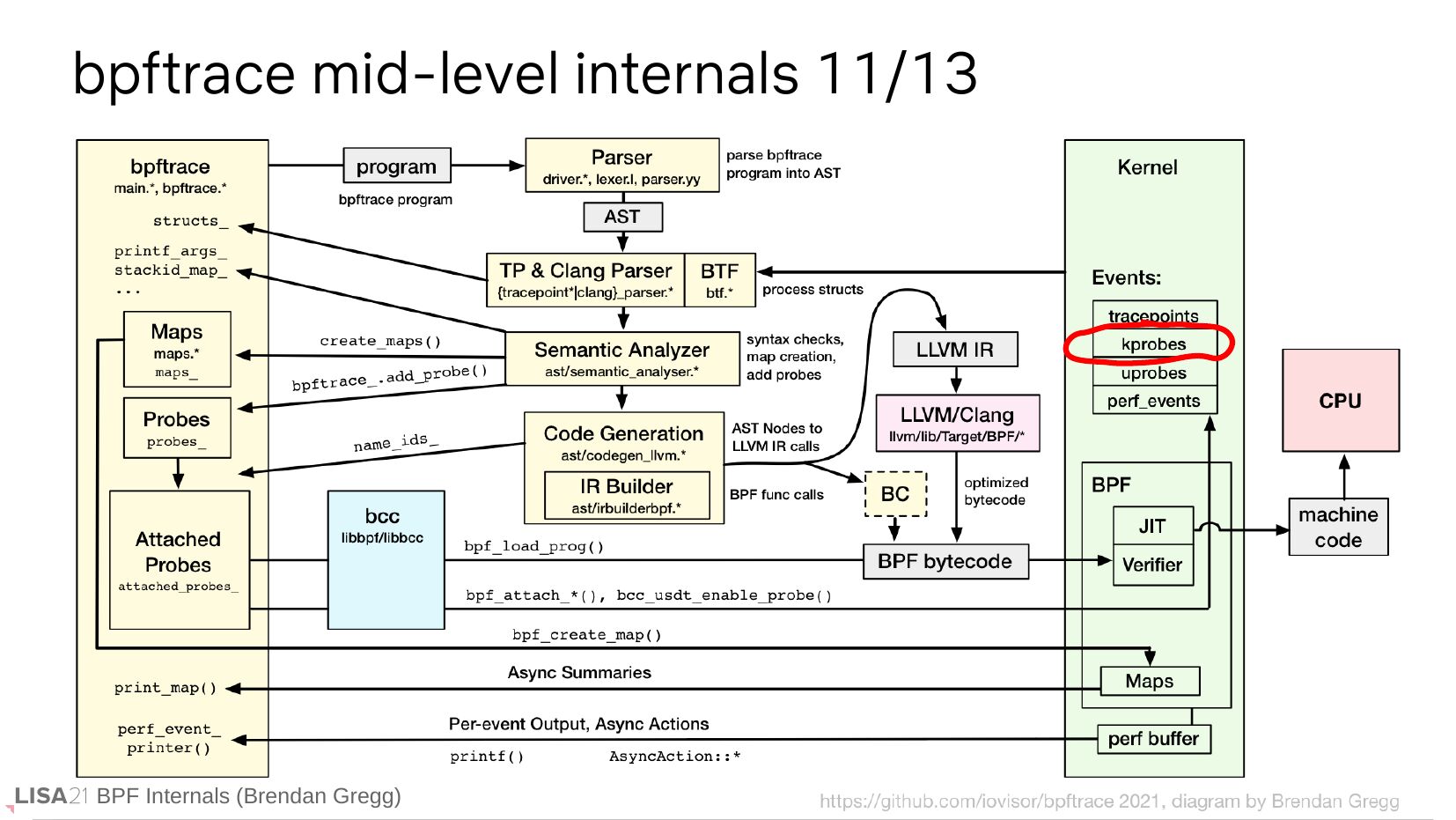

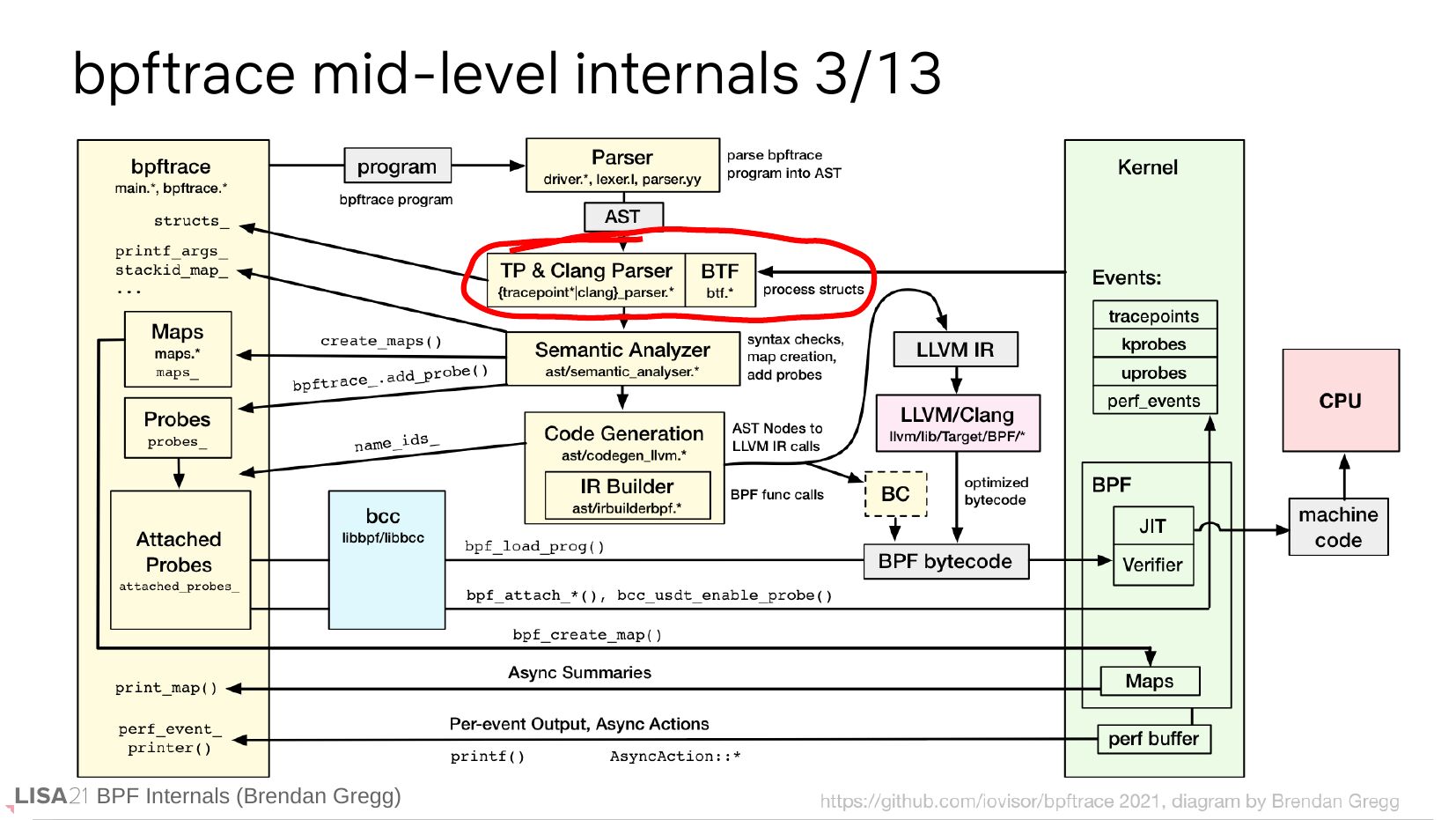

bpftrace mid-level internals
BPF Internals (Brendan Gregg)

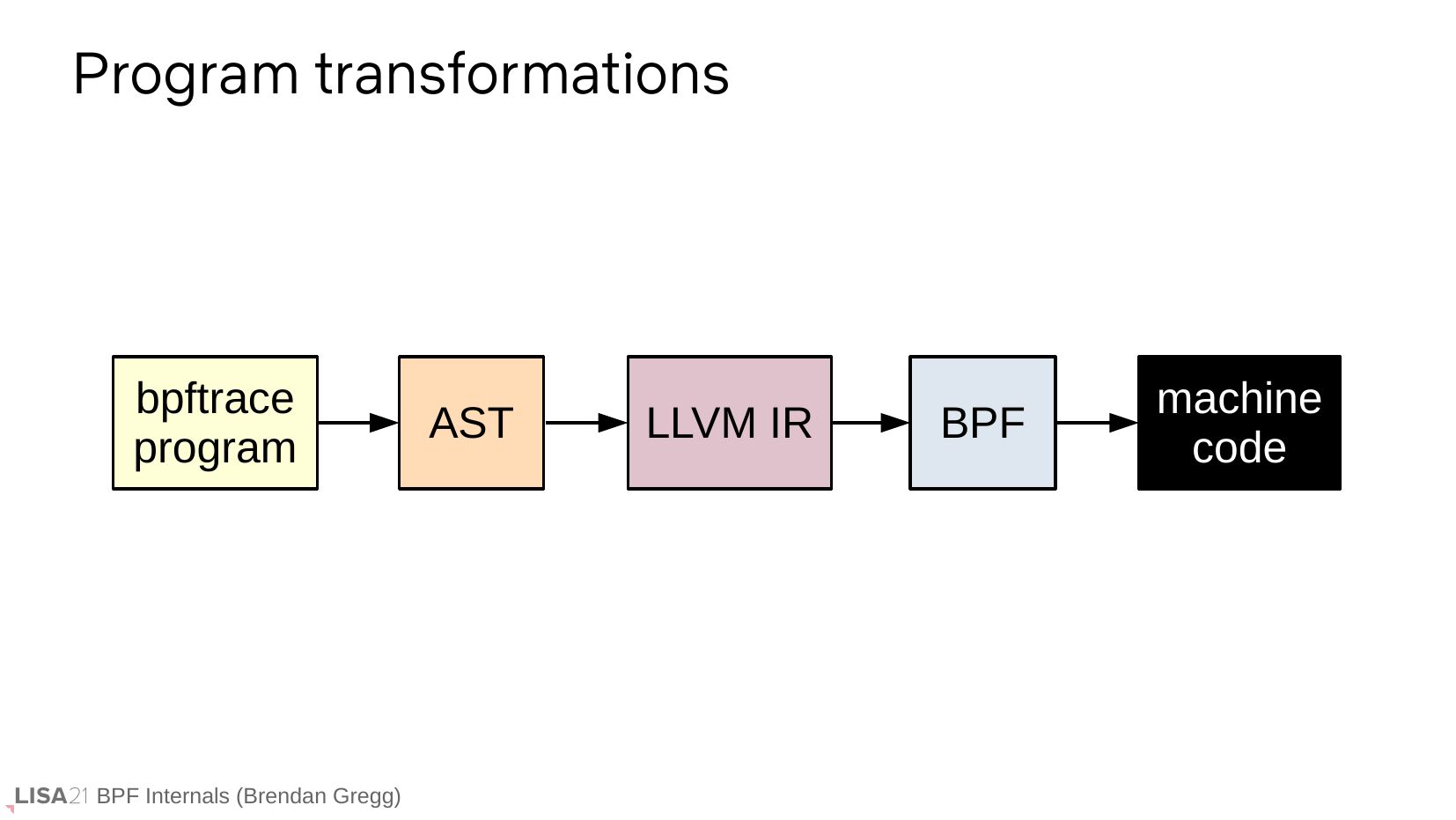

Program transformations
bpftrace
program
BPF Internals (Brendan Gregg)
AST
LLVM IR
BPF
machine
code

bpftrace mid-level internals 1/13
BPF Internals (Brendan Gregg)

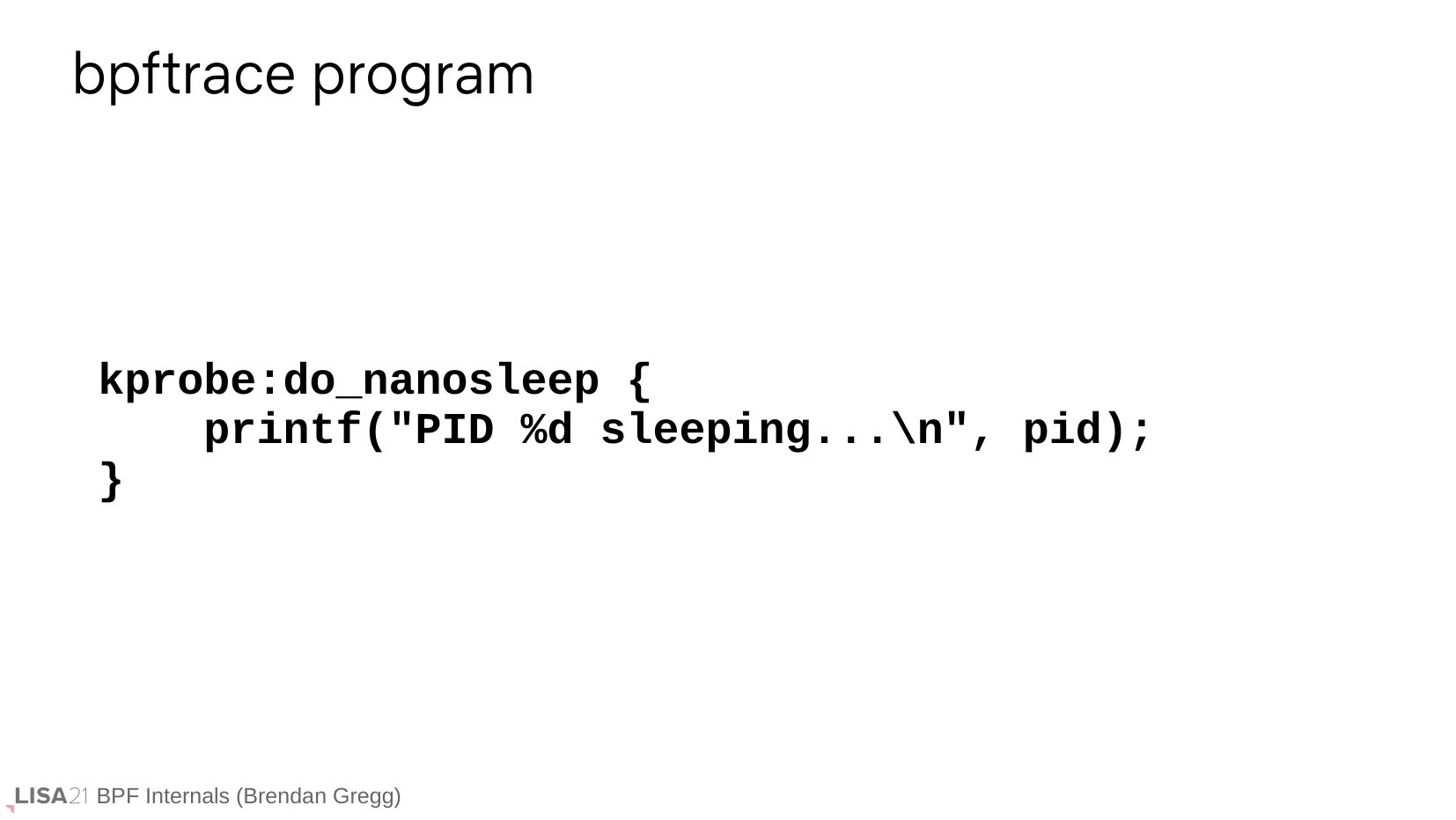

bpftrace program
kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid);
BPF Internals (Brendan Gregg)

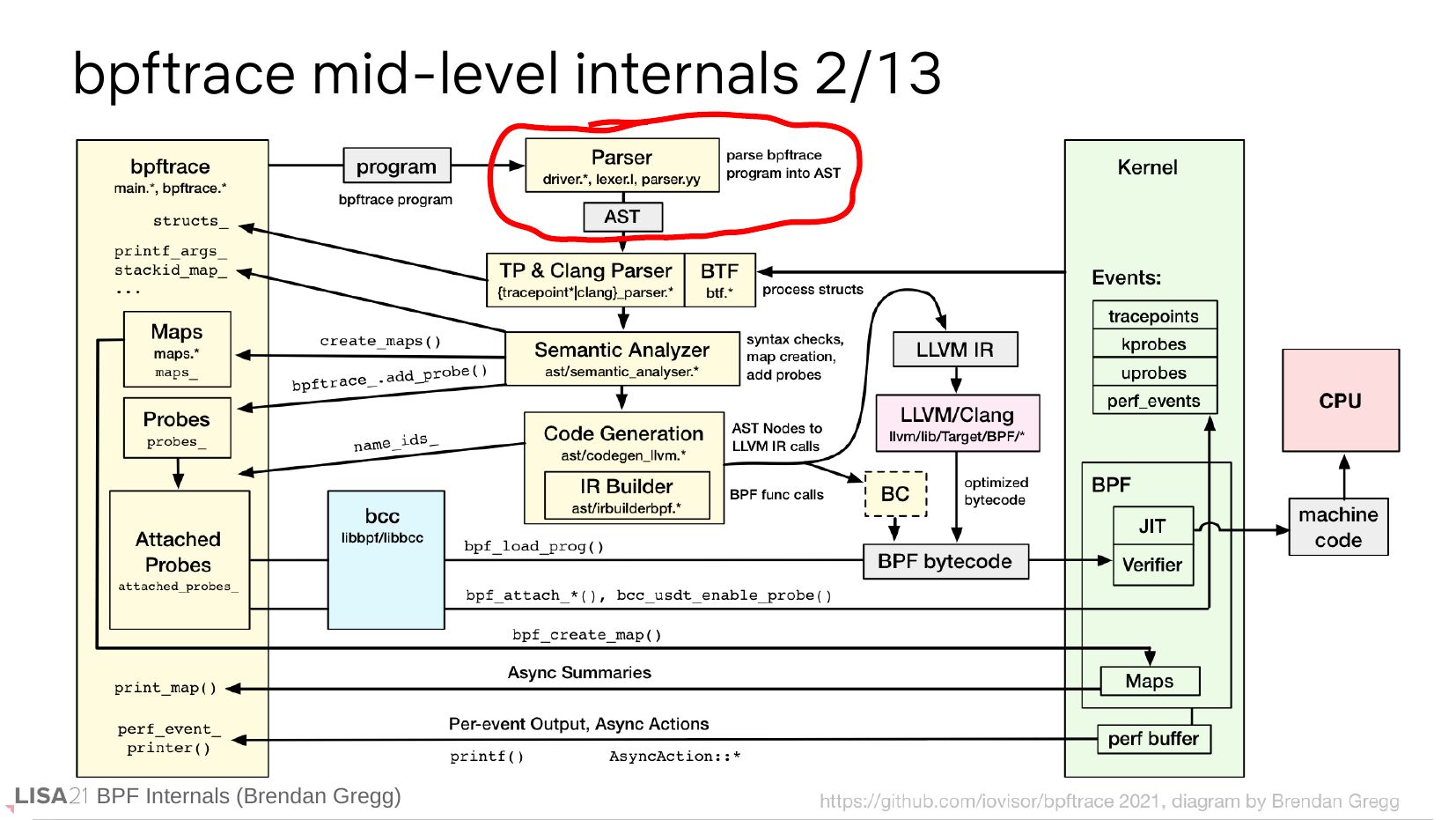

bpftrace mid-level internals 2/13
BPF Internals (Brendan Gregg)

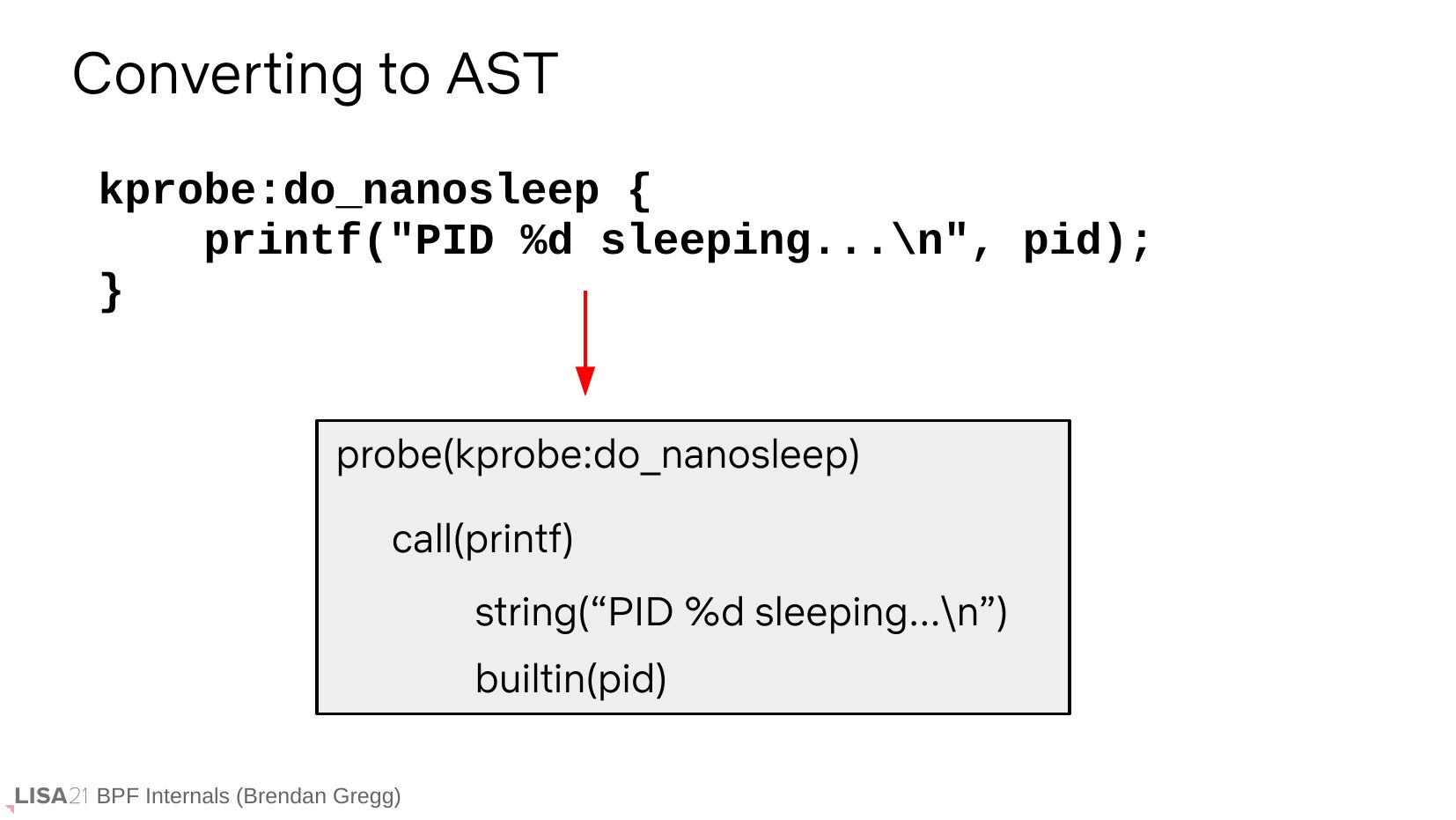

Converting to AST
kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid);
probe(kprobe:do_nanosleep)
call(printf)
string(“PID %d sleeping...\n”)
builtin(pid)
BPF Internals (Brendan Gregg)

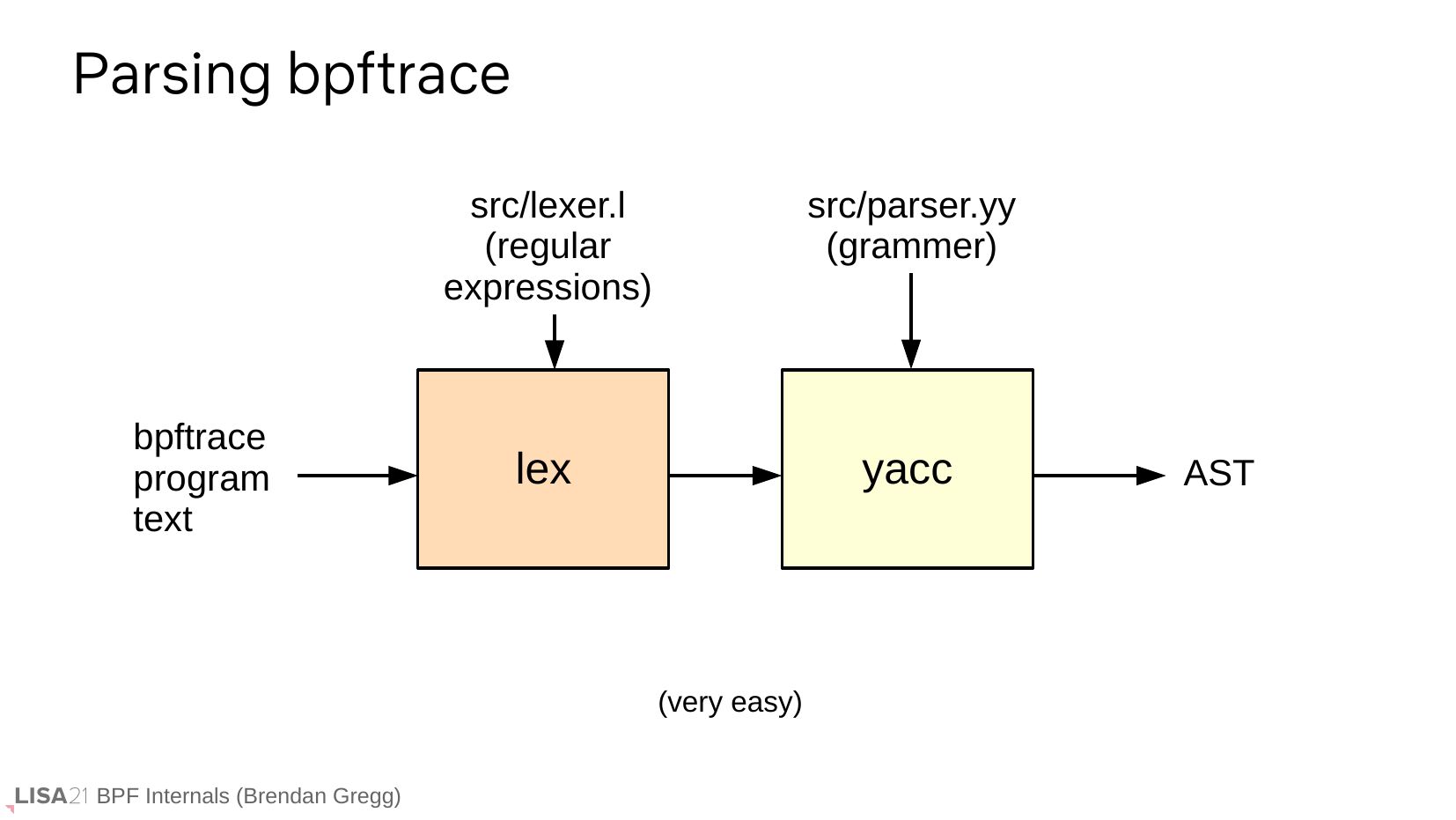

Parsing bpftrace
bpftrace
program
text
src/lexer.l
(regular
expressions)
src/parser.yy
(grammer)
lex
yacc
(very easy)
BPF Internals (Brendan Gregg)

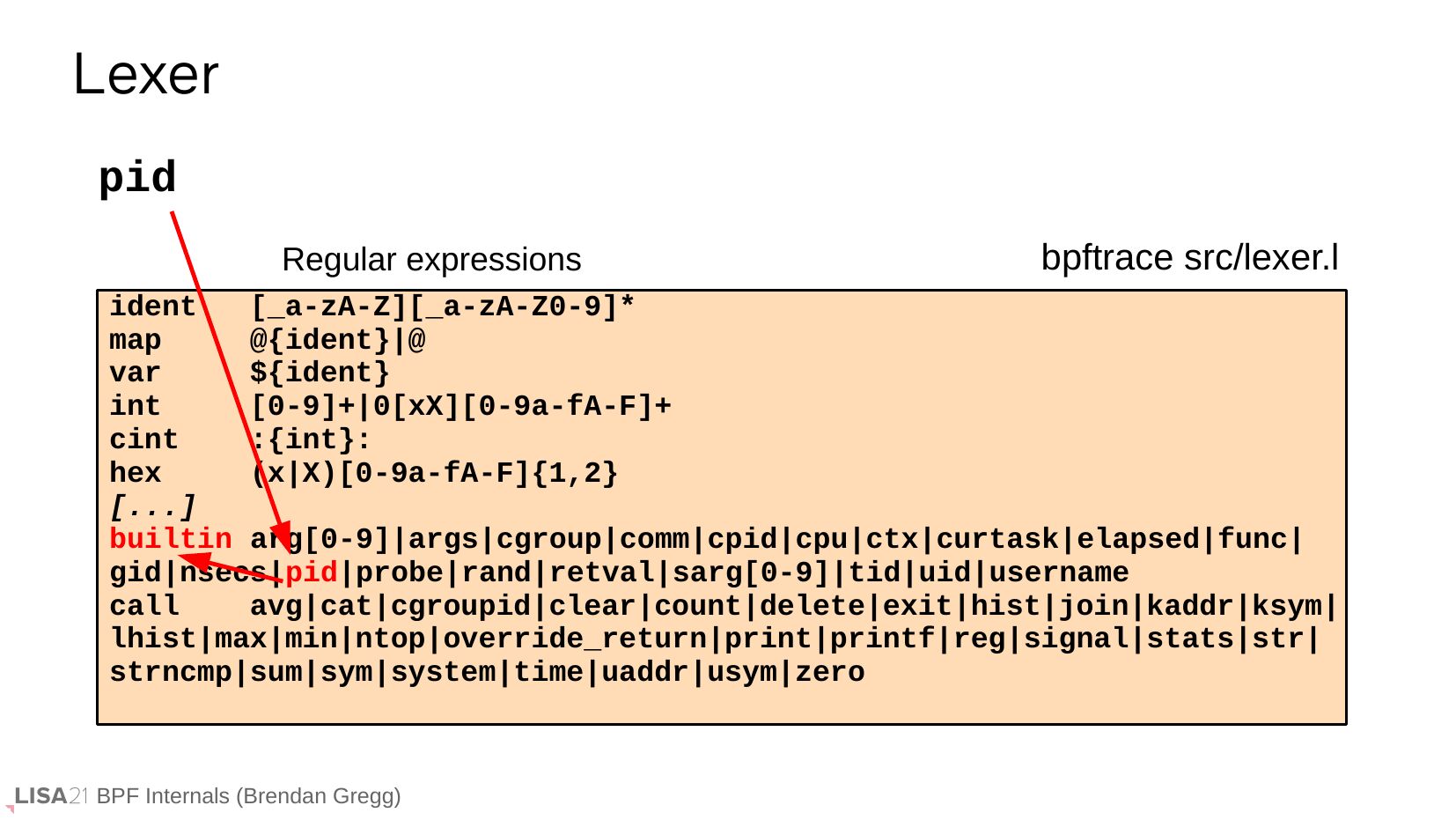

AST

Lexer
pid
Regular expressions
bpftrace src/lexer.l
ident
[_a-zA-Z][_a-zA-Z0-9]*
map
@{ident}|@
var
${ident}
int
[0-9]+|0[xX][0-9a-fA-F]+
cint
:{int}:
hex
(x|X)[0-9a-fA-F]{1,2}
[...]
builtin arg[0-9]|args|cgroup|comm|cpid|cpu|ctx|curtask|elapsed|func|
gid|nsecs|pid|probe|rand|retval|sarg[0-9]|tid|uid|username
call
avg|cat|cgroupid|clear|count|delete|exit|hist|join|kaddr|ksym|
lhist|max|min|ntop|override_return|print|printf|reg|signal|stats|str|
strncmp|sum|sym|system|time|uaddr|usym|zero
BPF Internals (Brendan Gregg)

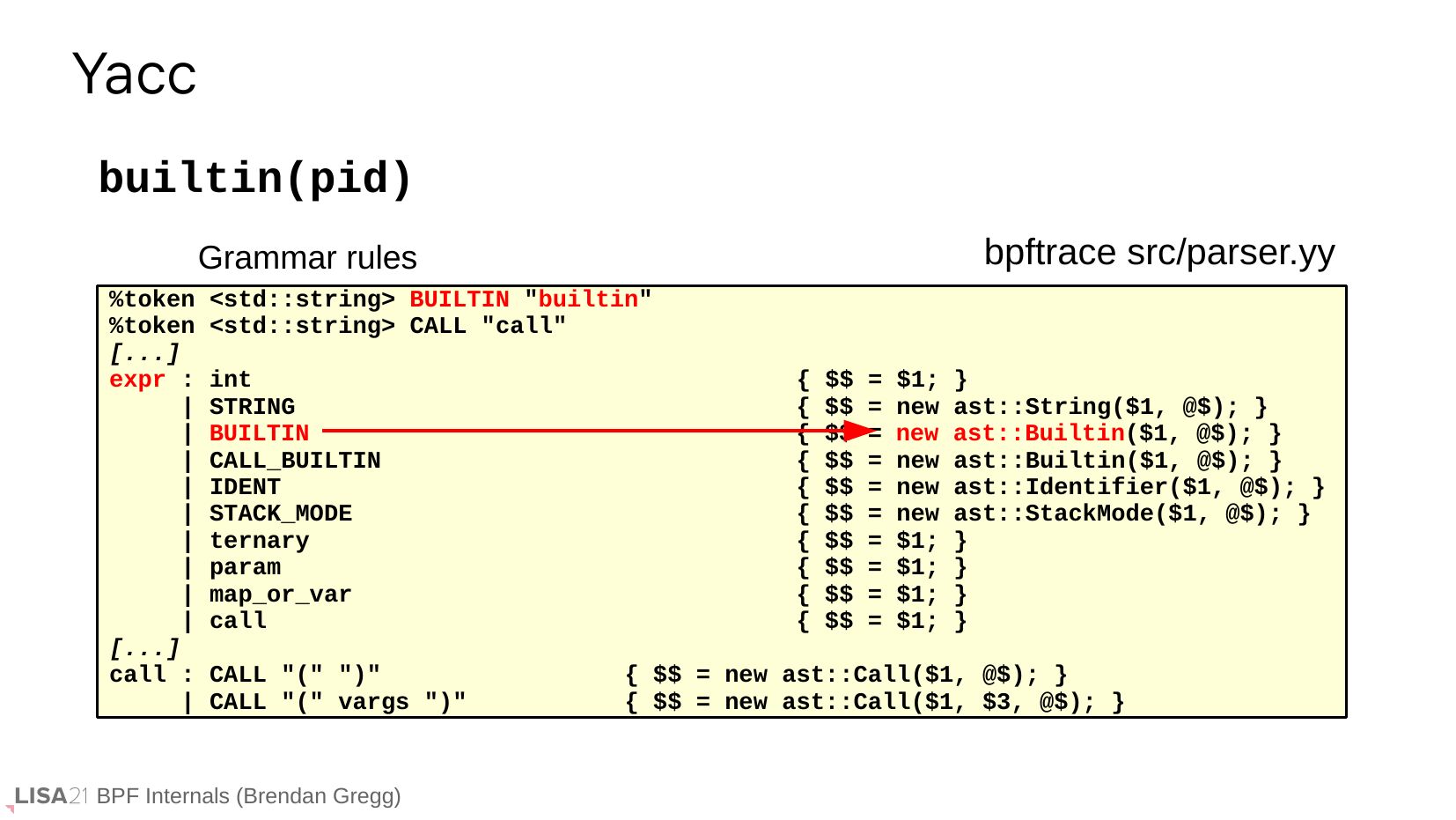

Yacc
builtin(pid)
Grammar rules
bpftrace src/parser.yy
%token gt; BUILTIN "builtin"
%token gt; CALL "call"
[...]
expr : int
{ $$ = $1; }
| STRING
{ $$ = new ast::String($1, @$); }
| BUILTIN
{ $$ = new ast::Builtin($1, @$); }
| CALL_BUILTIN
{ $$ = new ast::Builtin($1, @$); }
| IDENT
{ $$ = new ast::Identifier($1, @$); }
| STACK_MODE
{ $$ = new ast::StackMode($1, @$); }
| ternary
{ $$ = $1; }
| param
{ $$ = $1; }
| map_or_var
{ $$ = $1; }
| call
{ $$ = $1; }
[...]
call : CALL "(" ")"
{ $$ = new ast::Call($1, @$); }
| CALL "(" vargs ")"
{ $$ = new ast::Call($1, $3, @$); }
BPF Internals (Brendan Gregg)

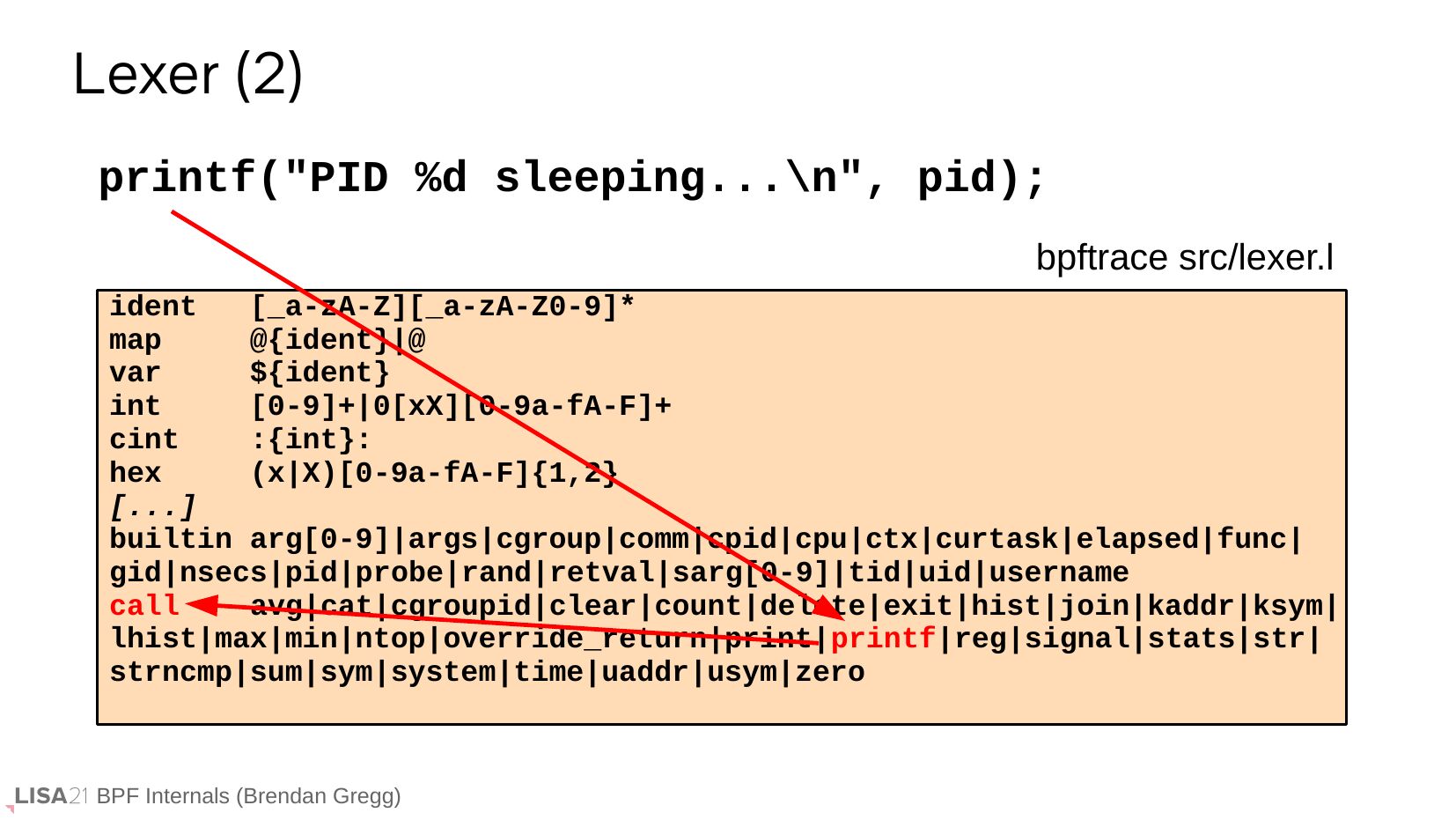

Lexer (2)
printf("PID %d sleeping...\n", pid);
bpftrace src/lexer.l
ident
[_a-zA-Z][_a-zA-Z0-9]*
map
@{ident}|@
var
${ident}
int
[0-9]+|0[xX][0-9a-fA-F]+
cint
:{int}:
hex
(x|X)[0-9a-fA-F]{1,2}
[...]
builtin arg[0-9]|args|cgroup|comm|cpid|cpu|ctx|curtask|elapsed|func|
gid|nsecs|pid|probe|rand|retval|sarg[0-9]|tid|uid|username
call
avg|cat|cgroupid|clear|count|delete|exit|hist|join|kaddr|ksym|
lhist|max|min|ntop|override_return|print|printf|reg|signal|stats|str|
strncmp|sum|sym|system|time|uaddr|usym|zero
BPF Internals (Brendan Gregg)

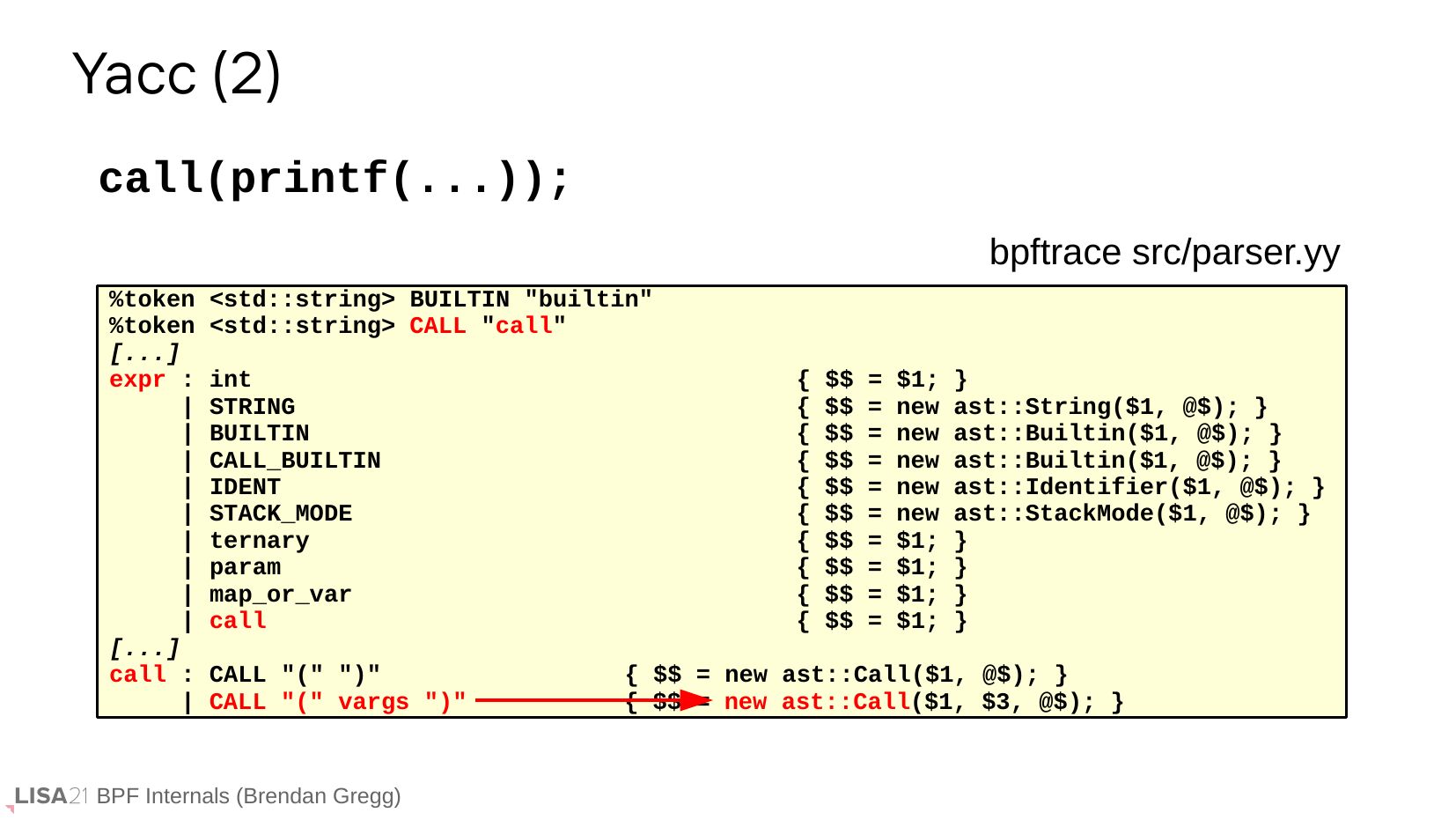

Yacc (2)
call(printf(...));
bpftrace src/parser.yy
%token gt; BUILTIN "builtin"
%token gt; CALL "call"
[...]
expr : int
{ $$ = $1; }
| STRING
{ $$ = new ast::String($1, @$); }
| BUILTIN
{ $$ = new ast::Builtin($1, @$); }
| CALL_BUILTIN
{ $$ = new ast::Builtin($1, @$); }
| IDENT
{ $$ = new ast::Identifier($1, @$); }
| STACK_MODE
{ $$ = new ast::StackMode($1, @$); }
| ternary
{ $$ = $1; }
| param
{ $$ = $1; }
| map_or_var
{ $$ = $1; }
| call
{ $$ = $1; }
[...]
call : CALL "(" ")"
{ $$ = new ast::Call($1, @$); }
| CALL "(" vargs ")"
{ $$ = new ast::Call($1, $3, @$); }
BPF Internals (Brendan Gregg)

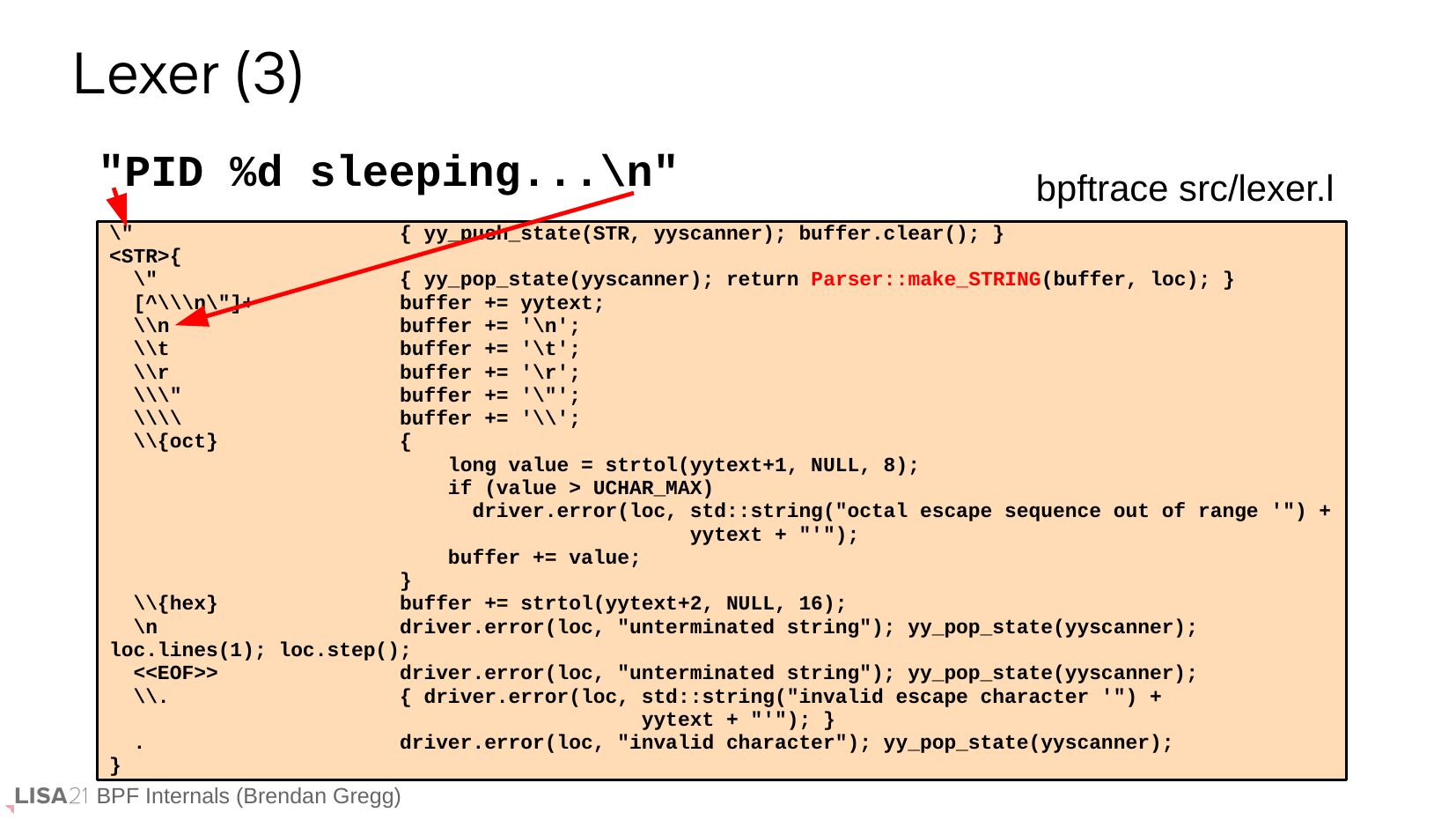

Lexer (3)
"PID %d sleeping...\n"
gt;{
[^\\\n\"]+
\\n
\\t
\\r
\\\"
\\\\
\\{oct}
bpftrace src/lexer.l
{ yy_push_state(STR, yyscanner); buffer.clear(); }
{ yy_pop_state(yyscanner); return Parser::make_STRING(buffer, loc); }
buffer += yytext;
buffer += '\n';
buffer += '\t';
buffer += '\r';
buffer += '\"';
buffer += '\\';
long value = strtol(yytext+1, NULL, 8);
if (value >gt; UCHAR_MAX)
driver.error(loc, std::string("octal escape sequence out of range '") +
yytext + "'");
buffer += value;
\\{hex}
buffer += strtol(yytext+2, NULL, 16);
driver.error(loc, "unterminated string"); yy_pop_state(yyscanner);
loc.lines(1); loc.step();
gt;>gt;
driver.error(loc, "unterminated string"); yy_pop_state(yyscanner);
\\.
{ driver.error(loc, std::string("invalid escape character '") +
yytext + "'"); }
driver.error(loc, "invalid character"); yy_pop_state(yyscanner);
BPF Internals (Brendan Gregg)

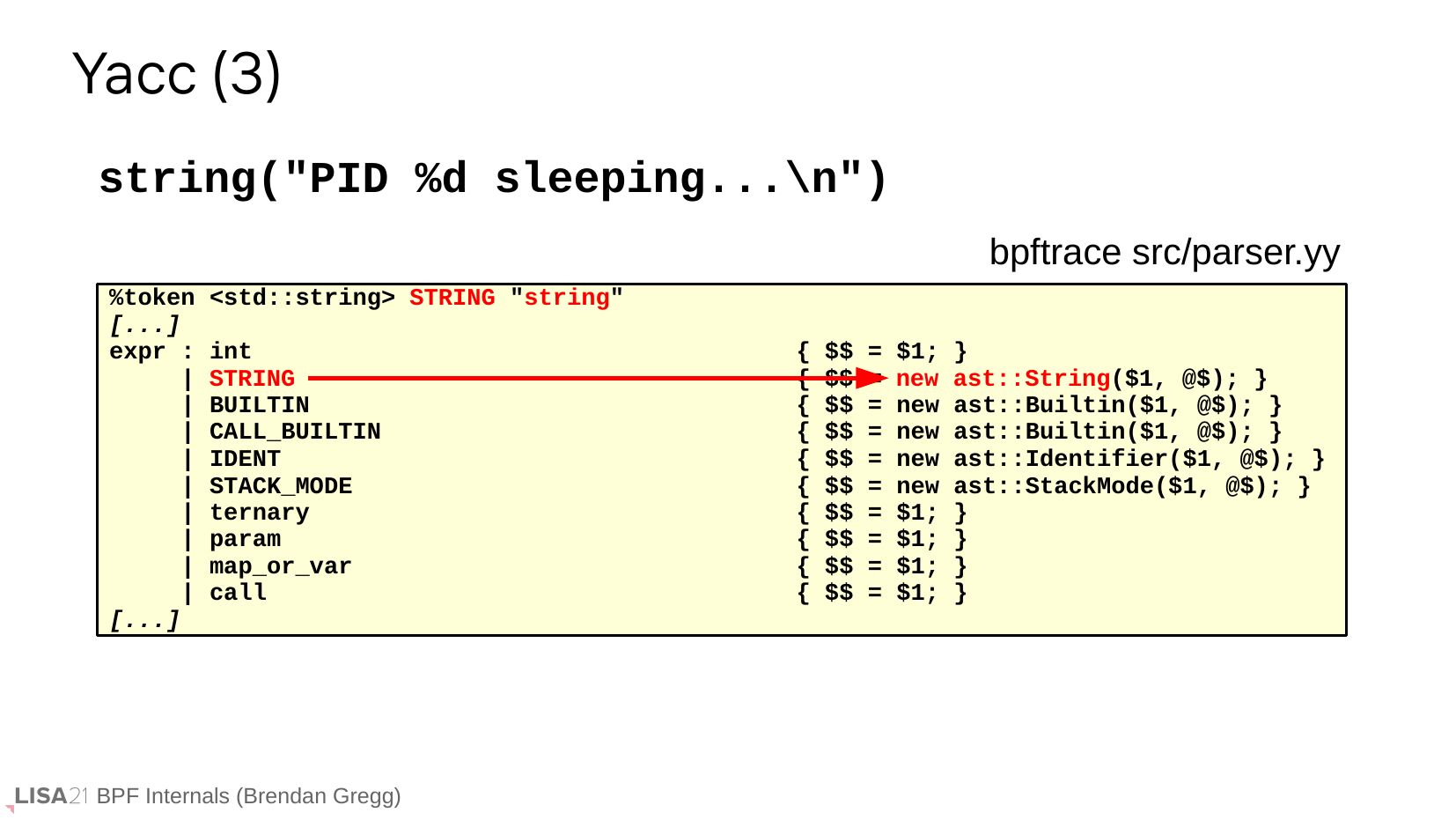

Yacc (3)
string("PID %d sleeping...\n")
bpftrace src/parser.yy
%token gt; STRING "string"
[...]
expr : int
| STRING
| BUILTIN
| CALL_BUILTIN
| IDENT
| STACK_MODE
| ternary
| param
| map_or_var
| call
[...]
BPF Internals (Brendan Gregg)
{ $$ = $1; }
{ $$ = new ast::String($1, @$); }
{ $$ = new ast::Builtin($1, @$); }
{ $$ = new ast::Builtin($1, @$); }
{ $$ = new ast::Identifier($1, @$); }
{ $$ = new ast::StackMode($1, @$); }
{ $$ = $1; }
{ $$ = $1; }
{ $$ = $1; }
{ $$ = $1; }

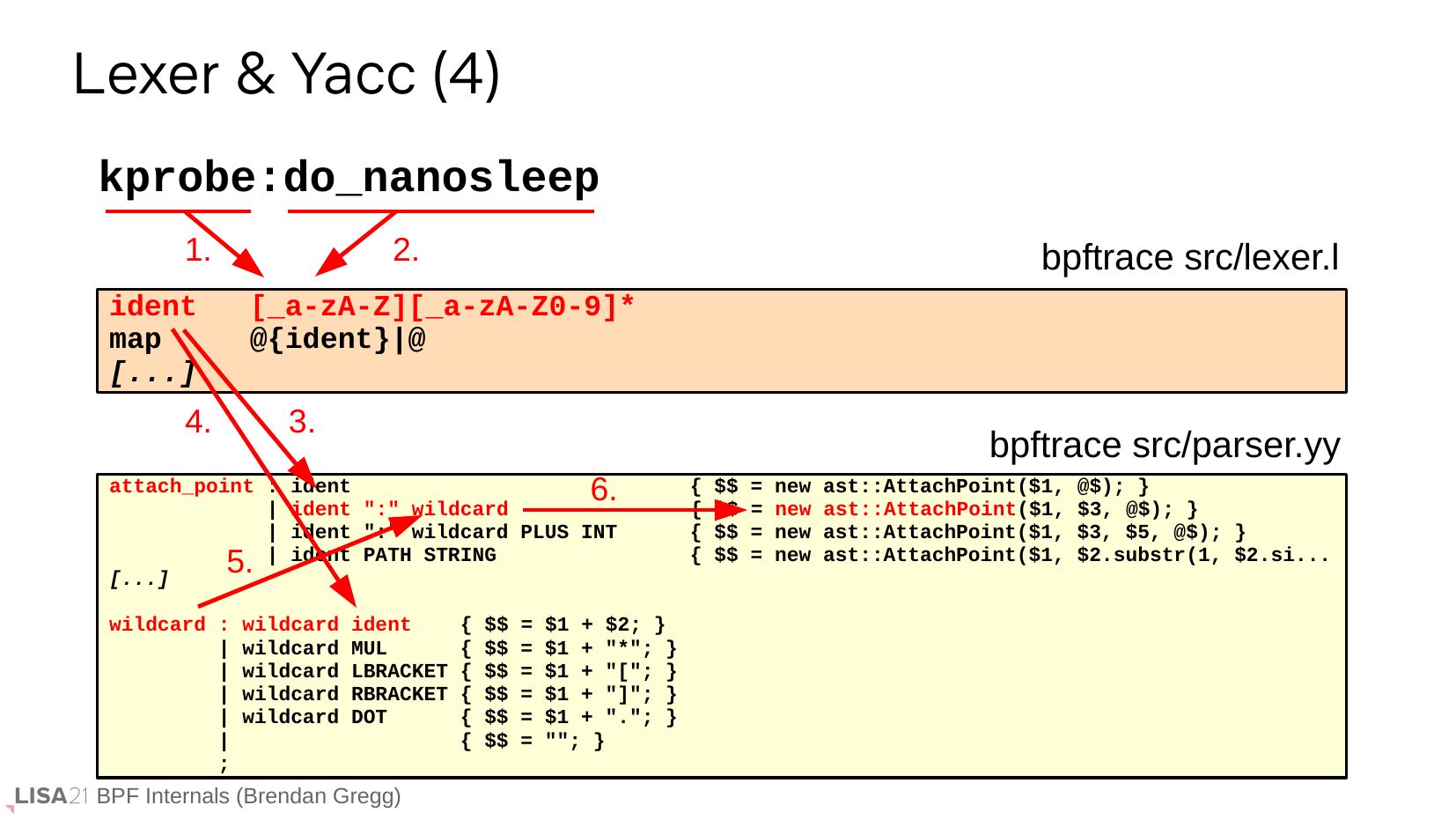

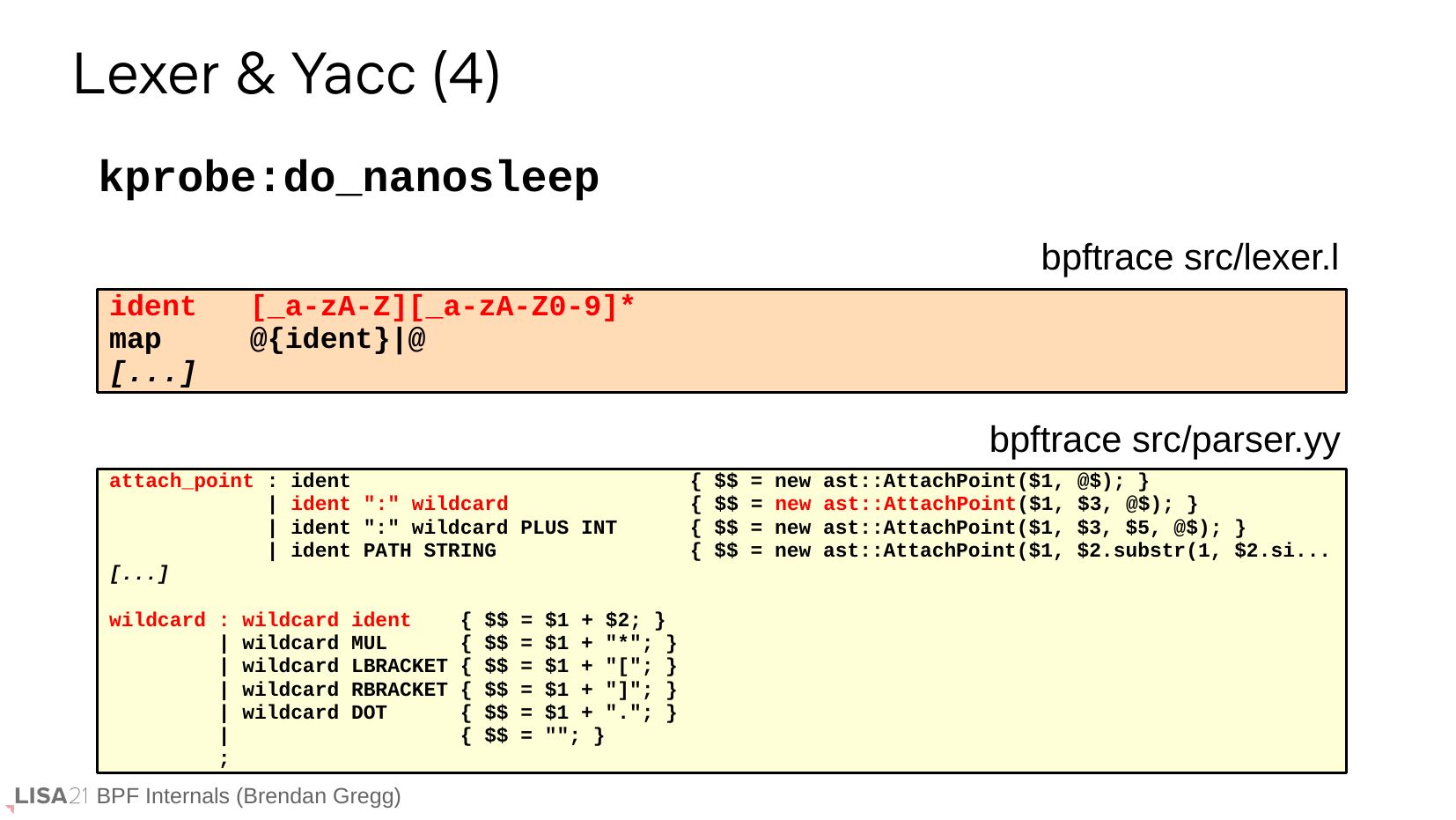

Lexer & Yacc (4)
kprobe:do_nanosleep
bpftrace src/lexer.l
ident
map
[...]
[_a-zA-Z][_a-zA-Z0-9]*
@{ident}|@
bpftrace src/parser.yy
attach_point : ident
| ident ":" wildcard
| ident ":" wildcard PLUS INT
| ident PATH STRING
[...]
wildcard : wildcard ident
{ $$ = $1 + $2; }
| wildcard MUL
{ $$ = $1 + "*"; }
| wildcard LBRACKET { $$ = $1 + "["; }
| wildcard RBRACKET { $$ = $1 + "]"; }
| wildcard DOT
{ $$ = $1 + "."; }
{ $$ = ""; }
BPF Internals (Brendan Gregg)
{ $$ = new ast::AttachPoint($1, @$); }
{ $$ = new ast::AttachPoint($1, $3, @$); }
{ $$ = new ast::AttachPoint($1, $3, $5, @$); }
{ $$ = new ast::AttachPoint($1, $2.substr(1, $2.si...

Lexer & Yacc (4)
kprobe:do_nanosleep
ident
map
[...]
bpftrace src/lexer.l
[_a-zA-Z][_a-zA-Z0-9]*
@{ident}|@
bpftrace src/parser.yy
attach_point : ident
| ident ":" wildcard
| ident ":" wildcard PLUS INT
| ident PATH STRING
[...]
wildcard : wildcard ident
{ $$ = $1 + $2; }
| wildcard MUL
{ $$ = $1 + "*"; }
| wildcard LBRACKET { $$ = $1 + "["; }
| wildcard RBRACKET { $$ = $1 + "]"; }
| wildcard DOT
{ $$ = $1 + "."; }
{ $$ = ""; }
BPF Internals (Brendan Gregg)
{ $$ = new ast::AttachPoint($1, @$); }
{ $$ = new ast::AttachPoint($1, $3, @$); }
{ $$ = new ast::AttachPoint($1, $3, $5, @$); }
{ $$ = new ast::AttachPoint($1, $2.substr(1, $2.si...

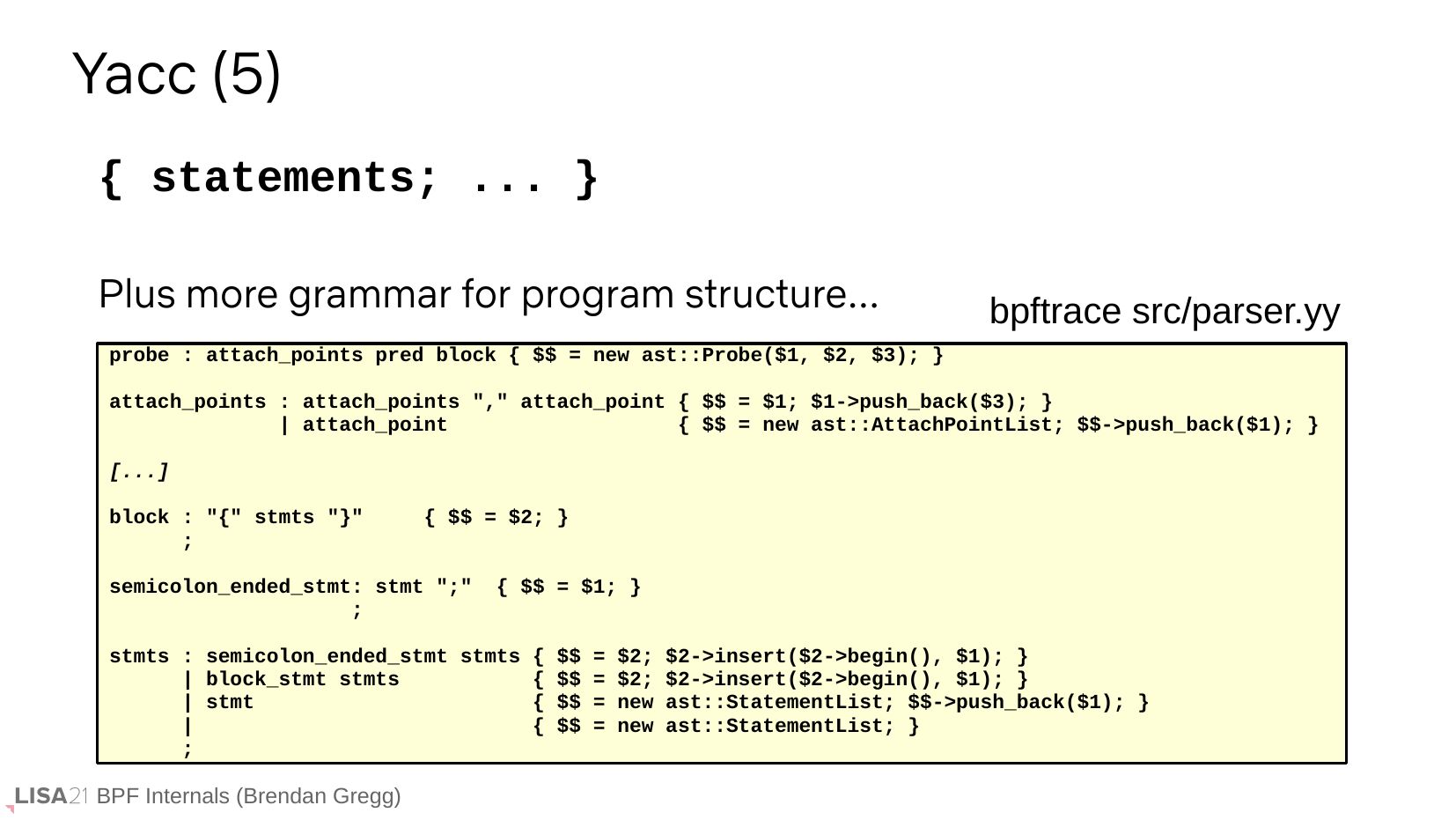

Yacc (5)
{ statements; ... }
Plus more grammar for program structure...
bpftrace src/parser.yy
probe : attach_points pred block { $$ = new ast::Probe($1, $2, $3); }
attach_points : attach_points "," attach_point { $$ = $1; $1->gt;push_back($3); }
| attach_point
{ $$ = new ast::AttachPointList; $$->gt;push_back($1); }
[...]
block : "{" stmts "}"
{ $$ = $2; }
semicolon_ended_stmt: stmt ";"
{ $$ = $1; }
stmts : semicolon_ended_stmt stmts { $$ = $2; $2->gt;insert($2->gt;begin(), $1); }
| block_stmt stmts
{ $$ = $2; $2->gt;insert($2->gt;begin(), $1); }
| stmt
{ $$ = new ast::StatementList; $$->gt;push_back($1); }
{ $$ = new ast::StatementList; }
BPF Internals (Brendan Gregg)

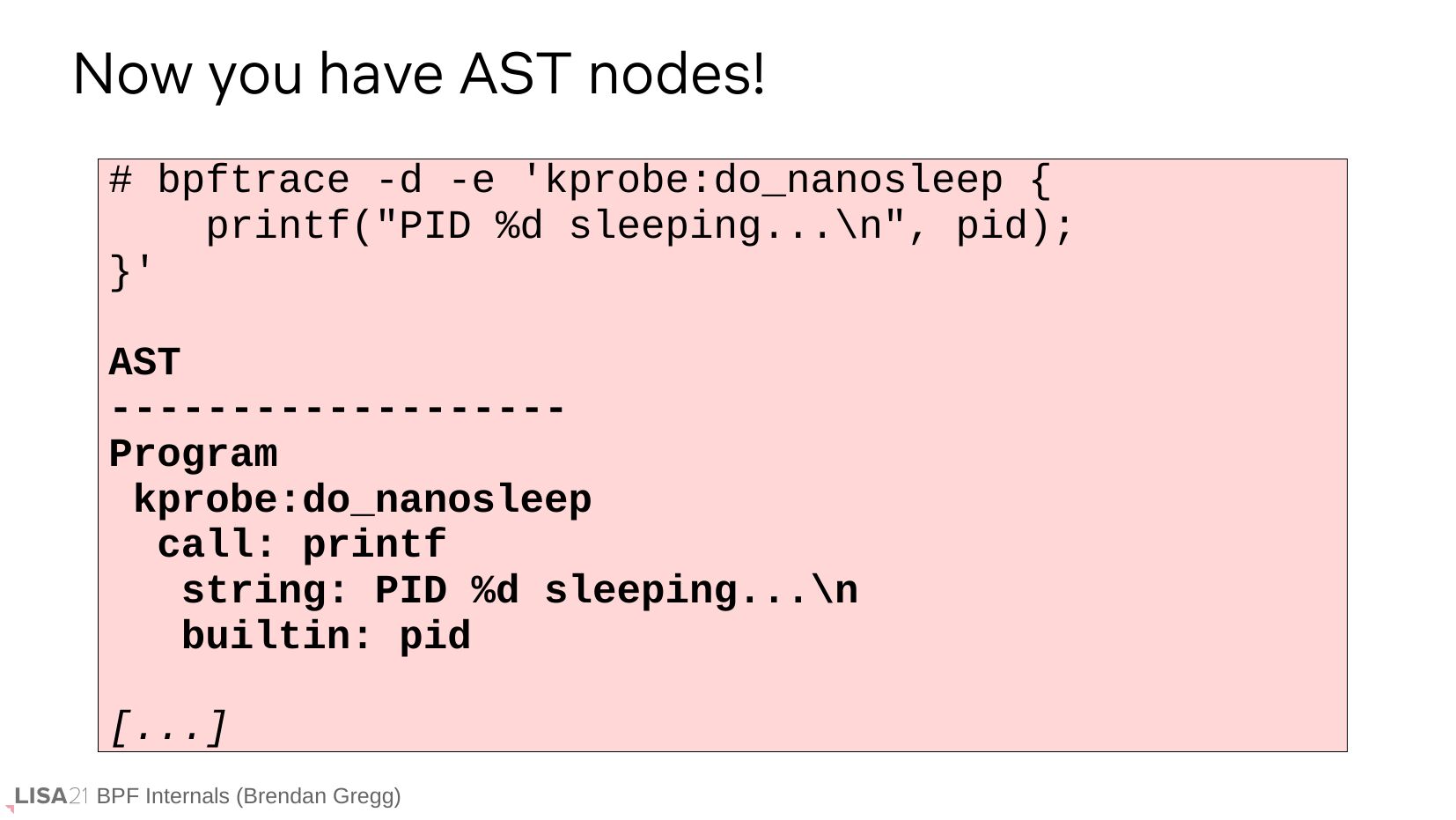

Now you have AST nodes!
# bpftrace -d -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid);
AST
------------------Program
kprobe:do_nanosleep
call: printf
string: PID %d sleeping...\n
builtin: pid
[...]
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 3/13
BPF Internals (Brendan Gregg)

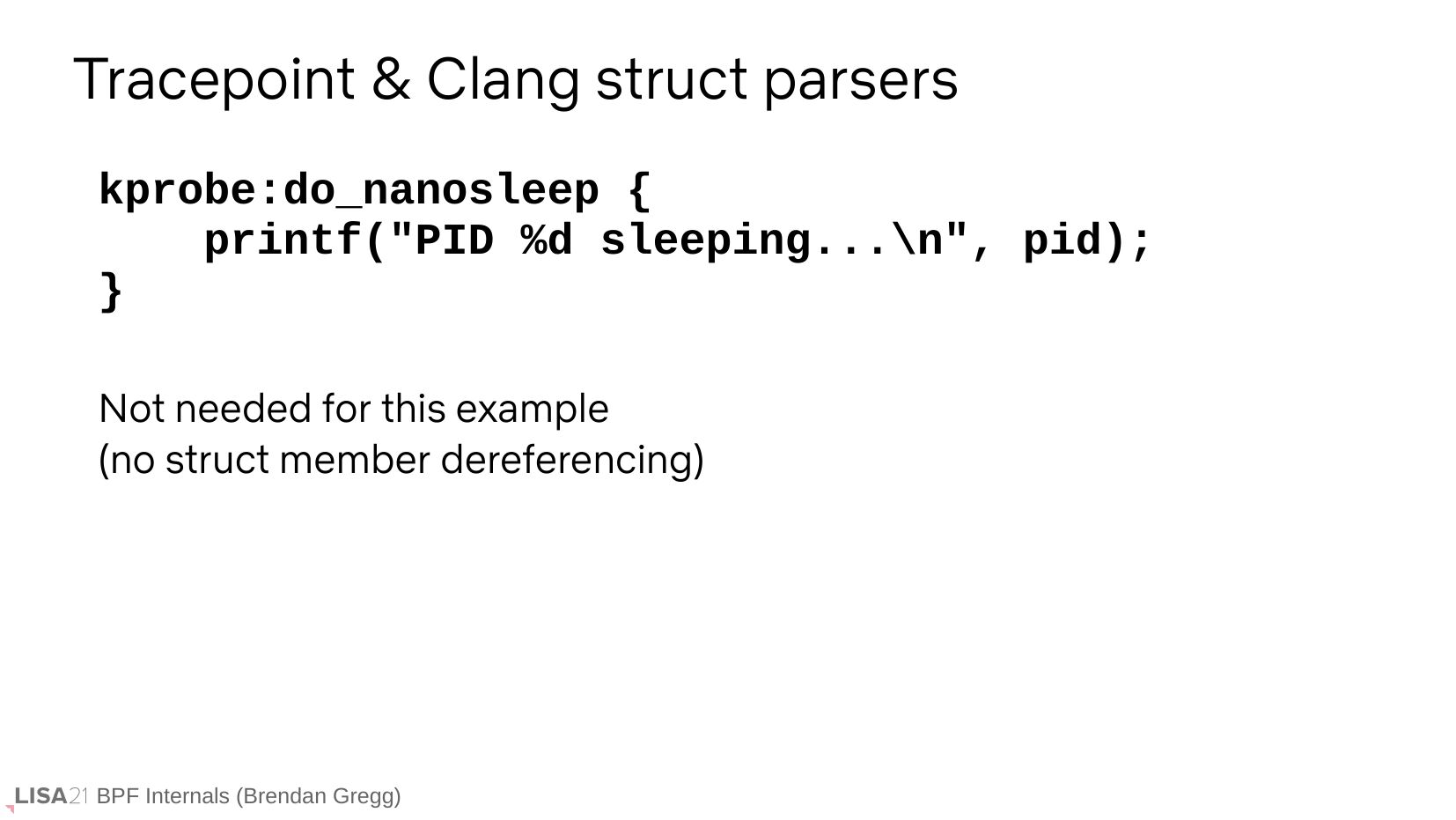

Tracepoint & Clang struct parsers
kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid);
Not needed for this example
(no struct member dereferencing)
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 4/13
BPF Internals (Brendan Gregg)

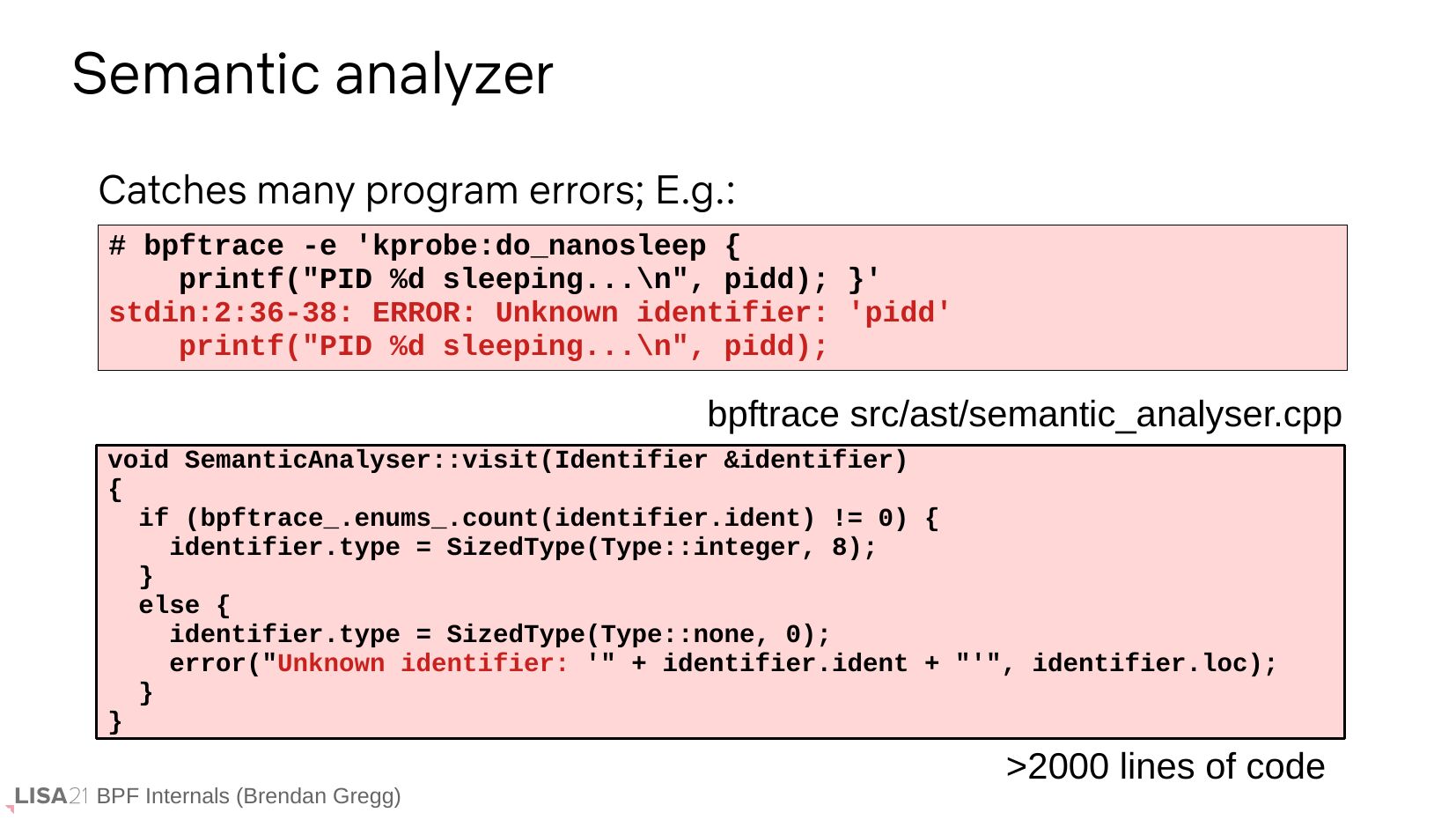

Semantic analyzer
Catches many program errors; E.g.:
# bpftrace -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pidd); }'
stdin:2:36-38: ERROR: Unknown identifier: 'pidd'
printf("PID %d sleeping...\n", pidd);
bpftrace src/ast/semantic_analyser.cpp
void SemanticAnalyser::visit(Identifier &identifier)
if (bpftrace_.enums_.count(identifier.ident) != 0) {
identifier.type = SizedType(Type::integer, 8);
else {
identifier.type = SizedType(Type::none, 0);
error("Unknown identifier: '" + identifier.ident + "'", identifier.loc);
BPF Internals (Brendan Gregg)
>gt;2000 lines of code

bpftrace mid-level internals 5/13
BPF Internals (Brendan Gregg)

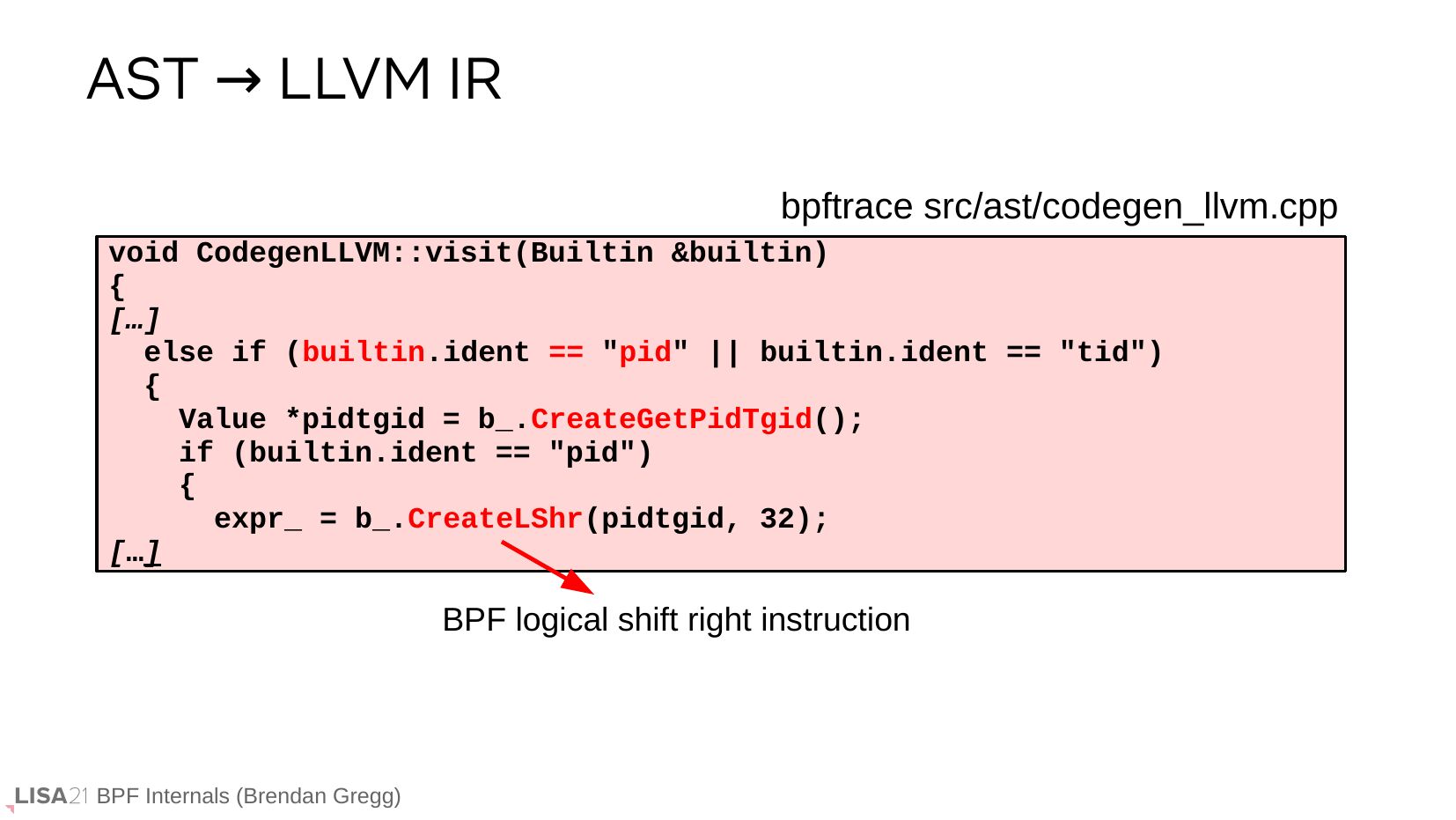

AST → LLVM IR
bpftrace src/ast/codegen_llvm.cpp
void CodegenLLVM::visit(Builtin &builtin)
[…]
else if (builtin.ident == "pid" || builtin.ident == "tid")
Value *pidtgid = b_.CreateGetPidTgid();
if (builtin.ident == "pid")
expr_ = b_.CreateLShr(pidtgid, 32);
[…]
BPF logical shift right instruction
BPF Internals (Brendan Gregg)

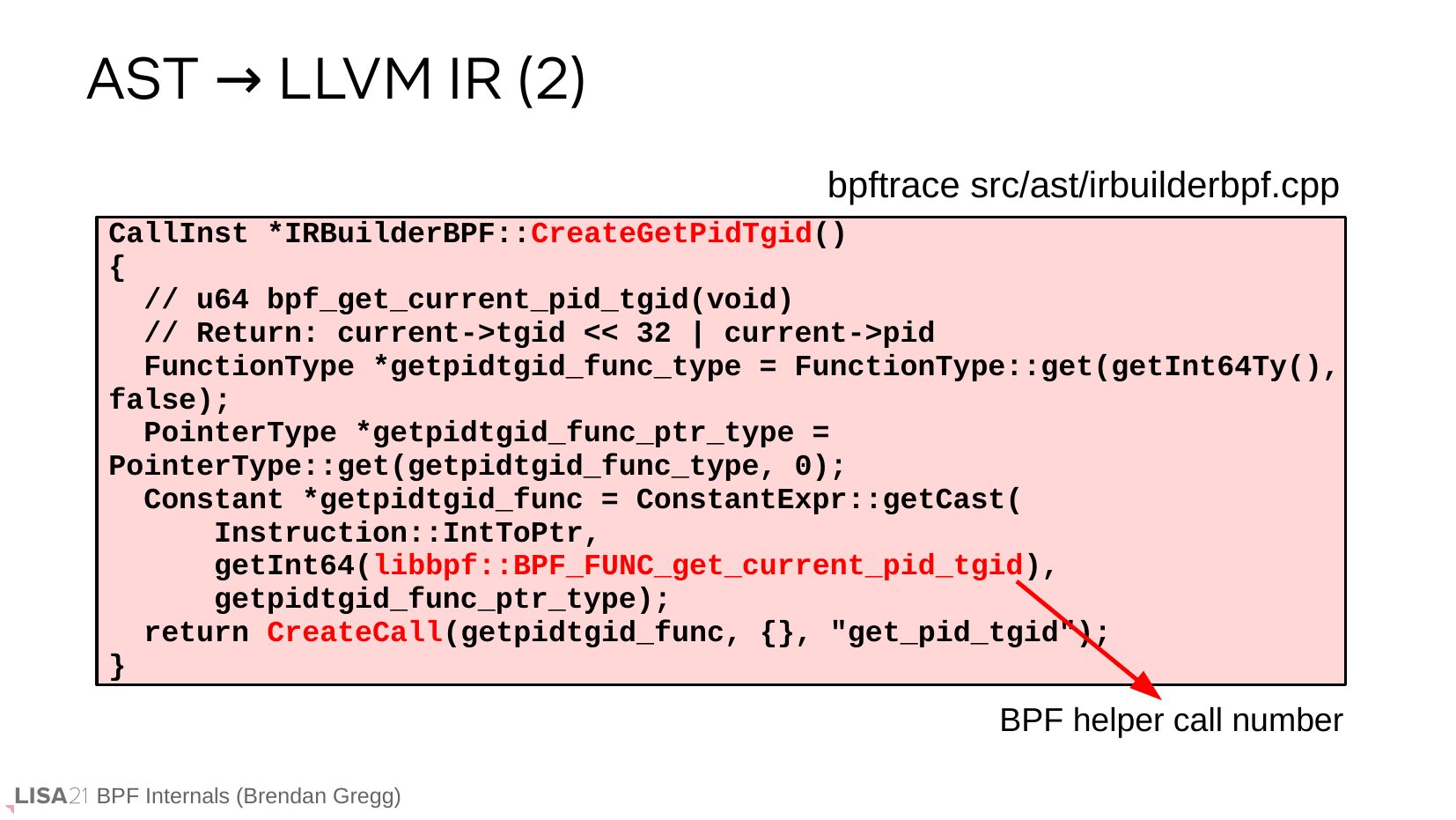

AST → LLVM IR (2)
bpftrace src/ast/irbuilderbpf.cpp
CallInst *IRBuilderBPF::CreateGetPidTgid()
// u64 bpf_get_current_pid_tgid(void)
// Return: current->gt;tgid gt;pid
FunctionType *getpidtgid_func_type = FunctionType::get(getInt64Ty(),
false);
PointerType *getpidtgid_func_ptr_type =
PointerType::get(getpidtgid_func_type, 0);
Constant *getpidtgid_func = ConstantExpr::getCast(
Instruction::IntToPtr,
getInt64(libbpf::BPF_FUNC_get_current_pid_tgid),
getpidtgid_func_ptr_type);
return CreateCall(getpidtgid_func, {}, "get_pid_tgid");
BPF helper call number
BPF Internals (Brendan Gregg)

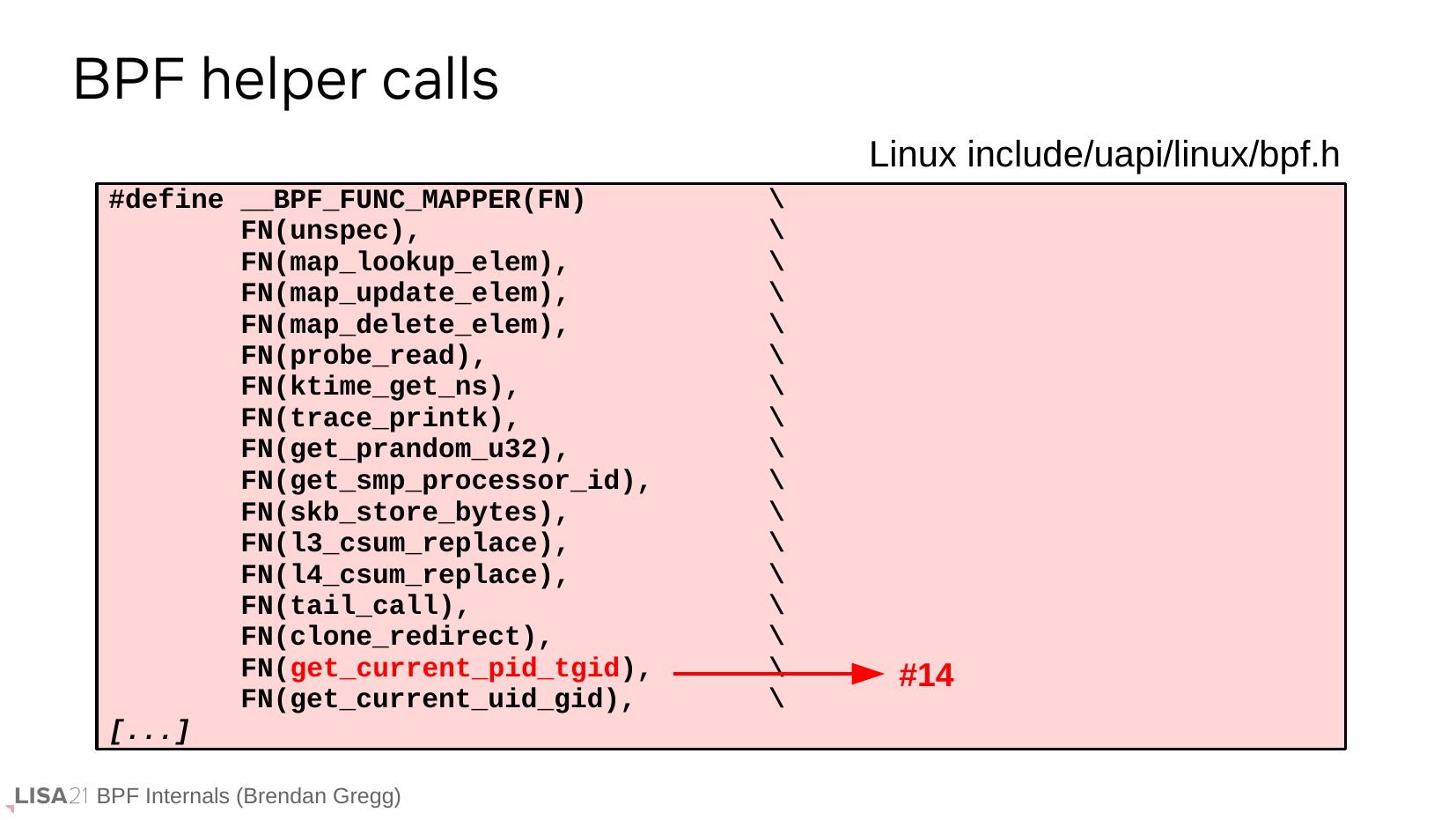

BPF helper calls
Linux include/uapi/linux/bpf.h
#define __BPF_FUNC_MAPPER(FN)
FN(unspec),
FN(map_lookup_elem),
FN(map_update_elem),
FN(map_delete_elem),
FN(probe_read),
FN(ktime_get_ns),
FN(trace_printk),
FN(get_prandom_u32),
FN(get_smp_processor_id),
FN(skb_store_bytes),
FN(l3_csum_replace),
FN(l4_csum_replace),
FN(tail_call),
FN(clone_redirect),
FN(get_current_pid_tgid),
FN(get_current_uid_gid),
[...]
BPF Internals (Brendan Gregg)
#14

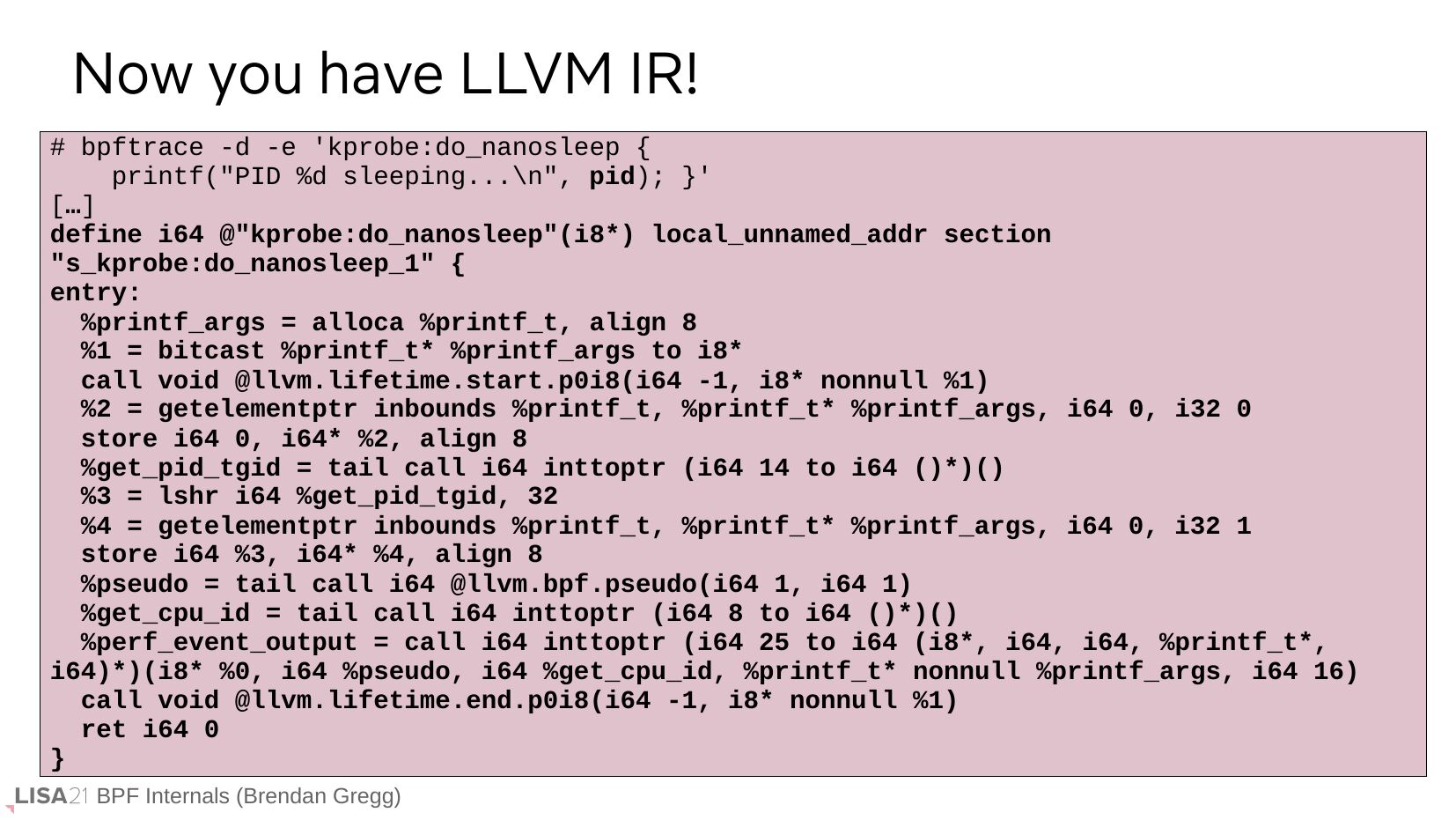

Now you have LLVM IR!
# bpftrace -d -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid); }'
[…]
define i64 @"kprobe:do_nanosleep"(i8*) local_unnamed_addr section
"s_kprobe:do_nanosleep_1" {
entry:
%printf_args = alloca %printf_t, align 8
%1 = bitcast %printf_t* %printf_args to i8*
call void @llvm.lifetime.start.p0i8(i64 -1, i8* nonnull %1)
%2 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 0
store i64 0, i64* %2, align 8
%get_pid_tgid = tail call i64 inttoptr (i64 14 to i64 ()*)()
%3 = lshr i64 %get_pid_tgid, 32
%4 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 1
store i64 %3, i64* %4, align 8
%pseudo = tail call i64 @llvm.bpf.pseudo(i64 1, i64 1)
%get_cpu_id = tail call i64 inttoptr (i64 8 to i64 ()*)()
%perf_event_output = call i64 inttoptr (i64 25 to i64 (i8*, i64, i64, %printf_t*,
i64)*)(i8* %0, i64 %pseudo, i64 %get_cpu_id, %printf_t* nonnull %printf_args, i64 16)
call void @llvm.lifetime.end.p0i8(i64 -1, i8* nonnull %1)
ret i64 0
BPF Internals (Brendan Gregg)

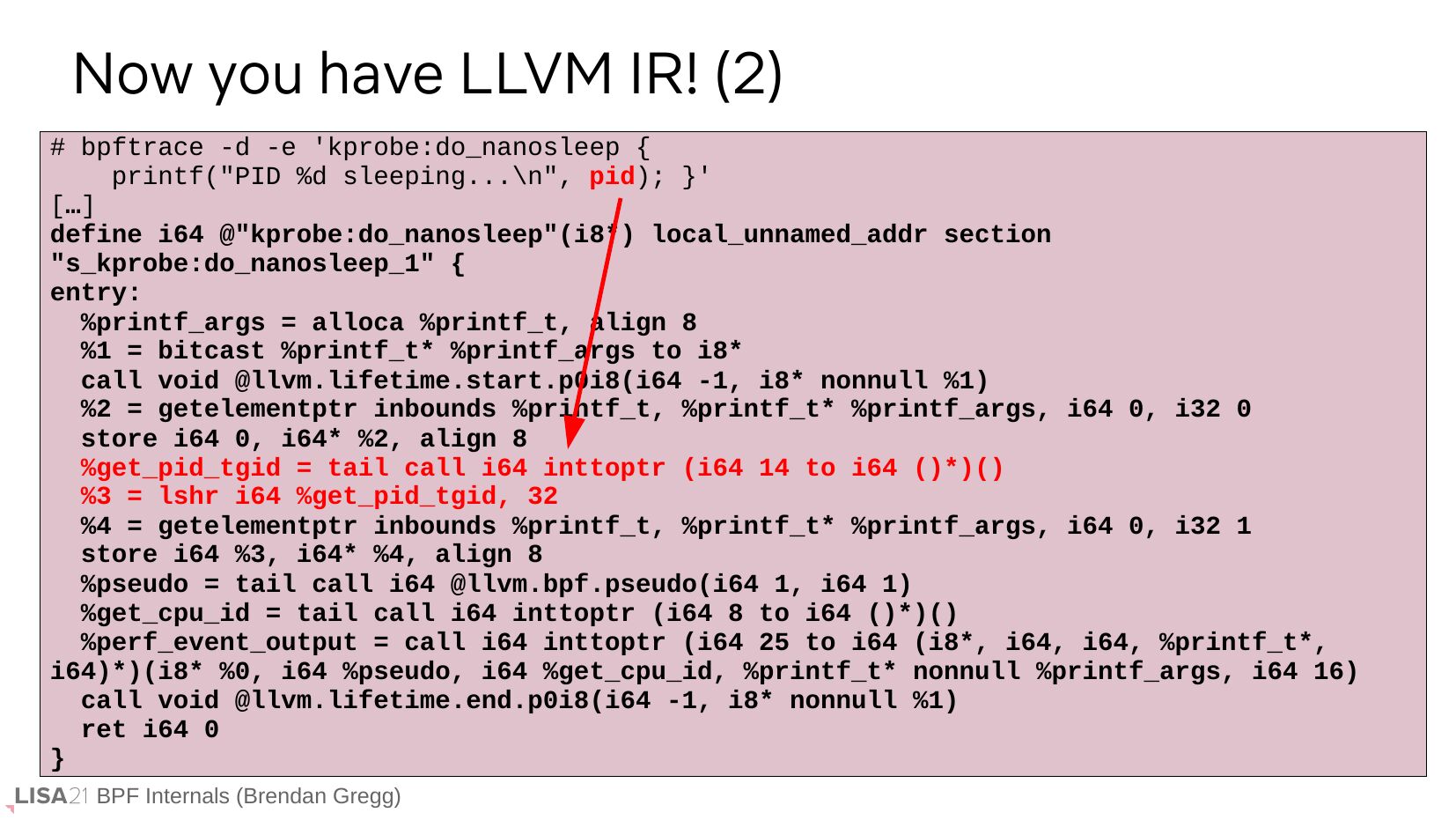

Now you have LLVM IR! (2)
# bpftrace -d -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid); }'
[…]
define i64 @"kprobe:do_nanosleep"(i8*) local_unnamed_addr section
"s_kprobe:do_nanosleep_1" {
entry:
%printf_args = alloca %printf_t, align 8
%1 = bitcast %printf_t* %printf_args to i8*
call void @llvm.lifetime.start.p0i8(i64 -1, i8* nonnull %1)
%2 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 0
store i64 0, i64* %2, align 8
%get_pid_tgid = tail call i64 inttoptr (i64 14 to i64 ()*)()
%3 = lshr i64 %get_pid_tgid, 32
%4 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 1
store i64 %3, i64* %4, align 8
%pseudo = tail call i64 @llvm.bpf.pseudo(i64 1, i64 1)
%get_cpu_id = tail call i64 inttoptr (i64 8 to i64 ()*)()
%perf_event_output = call i64 inttoptr (i64 25 to i64 (i8*, i64, i64, %printf_t*,
i64)*)(i8* %0, i64 %pseudo, i64 %get_cpu_id, %printf_t* nonnull %printf_args, i64 16)
call void @llvm.lifetime.end.p0i8(i64 -1, i8* nonnull %1)
ret i64 0
BPF Internals (Brendan Gregg)

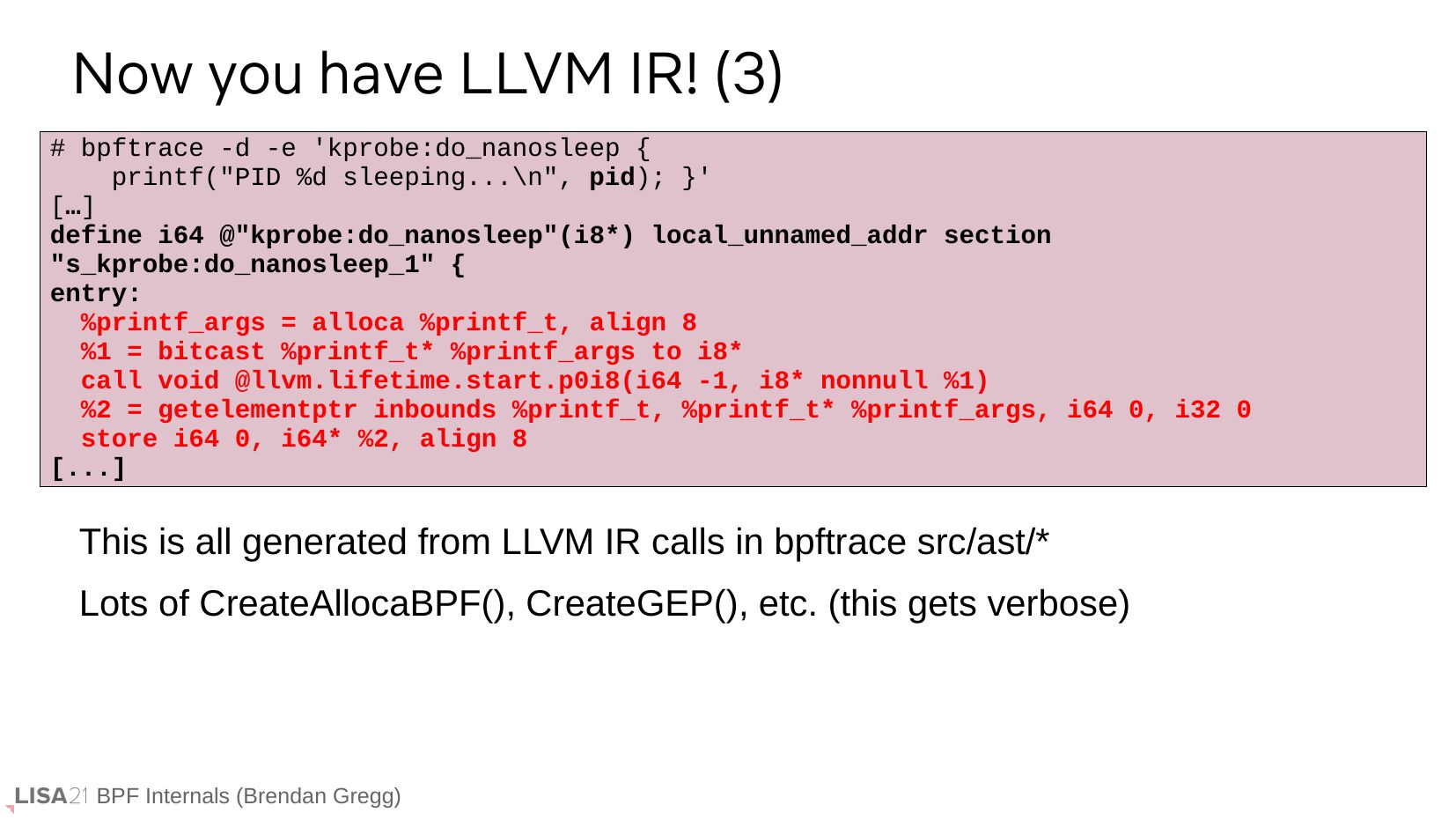

Now you have LLVM IR! (3)
# bpftrace -d -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid); }'
[…]
define i64 @"kprobe:do_nanosleep"(i8*) local_unnamed_addr section
"s_kprobe:do_nanosleep_1" {
entry:
%printf_args = alloca %printf_t, align 8
%1 = bitcast %printf_t* %printf_args to i8*
call void @llvm.lifetime.start.p0i8(i64 -1, i8* nonnull %1)
%2 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 0
store i64 0, i64* %2, align 8
[...]
This is all generated from LLVM IR calls in bpftrace src/ast/*
Lots of CreateAllocaBPF(), CreateGEP(), etc. (this gets verbose)
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 6/13
BPF Internals (Brendan Gregg)

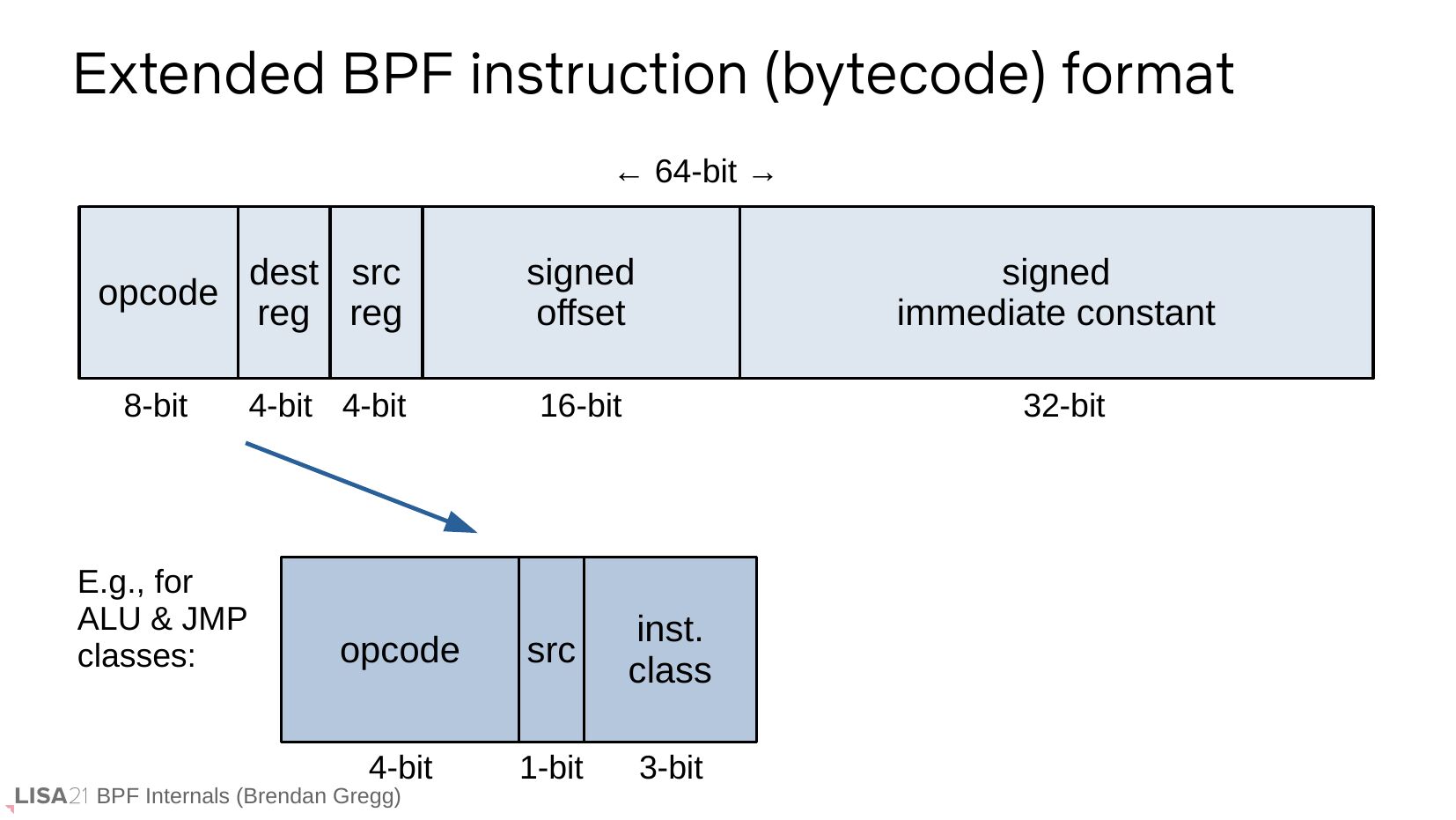

Extended BPF instruction (bytecode) format
← 64-bit →
opcode
dest src
reg reg
signed
offset
signed
immediate constant
8-bit
4-bit 4-bit
16-bit
32-bit
E.g., for
ALU & JMP
classes:
opcode
src
inst.
class
4-bit
1-bit
3-bit
BPF Internals (Brendan Gregg)

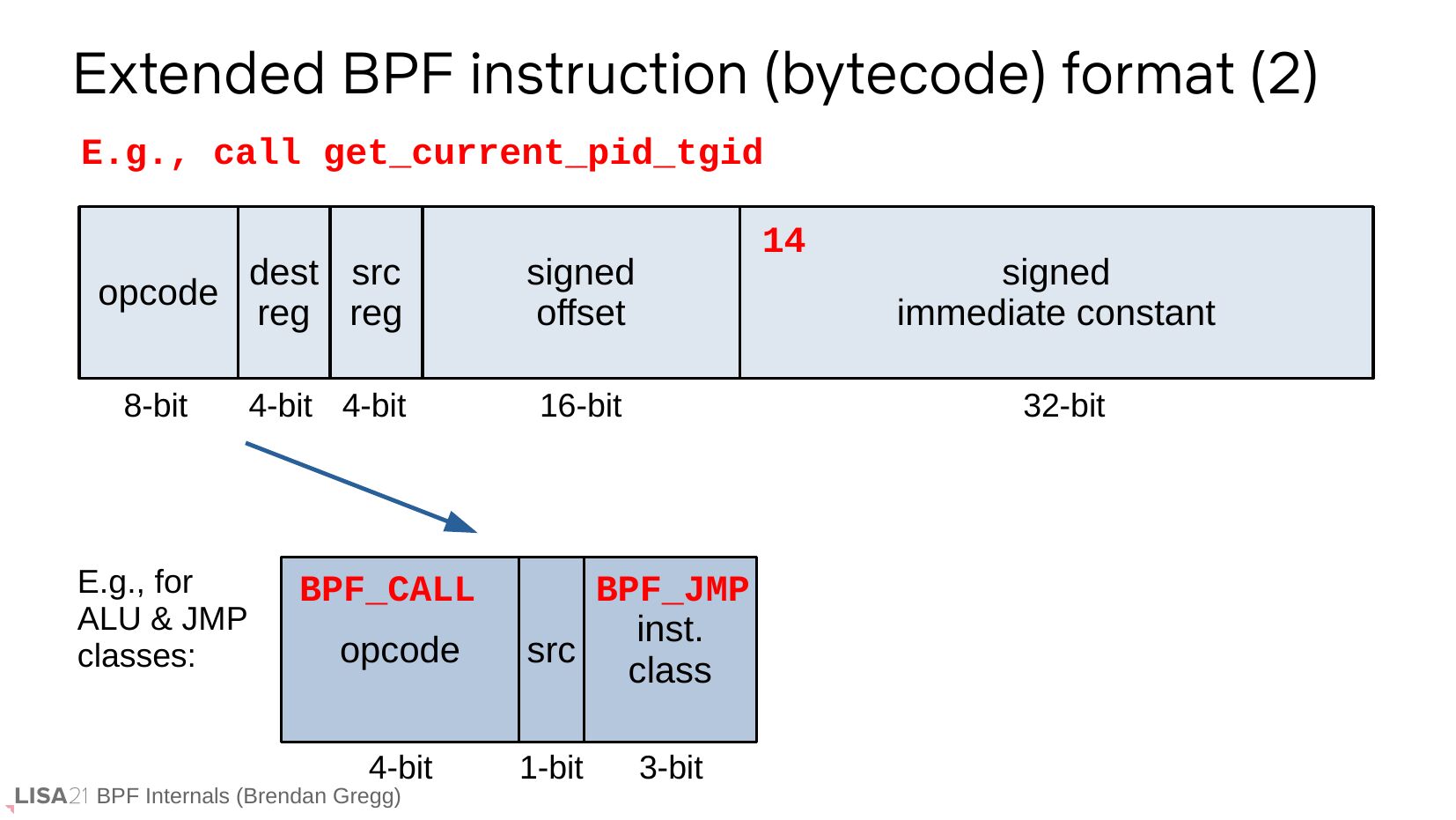

Extended BPF instruction (bytecode) format (2)
E.g., call get_current_pid_tgid
opcode
dest src
reg reg
signed
offset
8-bit
4-bit 4-bit
16-bit
E.g., for
ALU & JMP
classes:
BPF_CALL
opcode
4-bit
BPF Internals (Brendan Gregg)
32-bit
BPF_JMP
inst.
src
class
1-bit
signed
immediate constant
3-bit

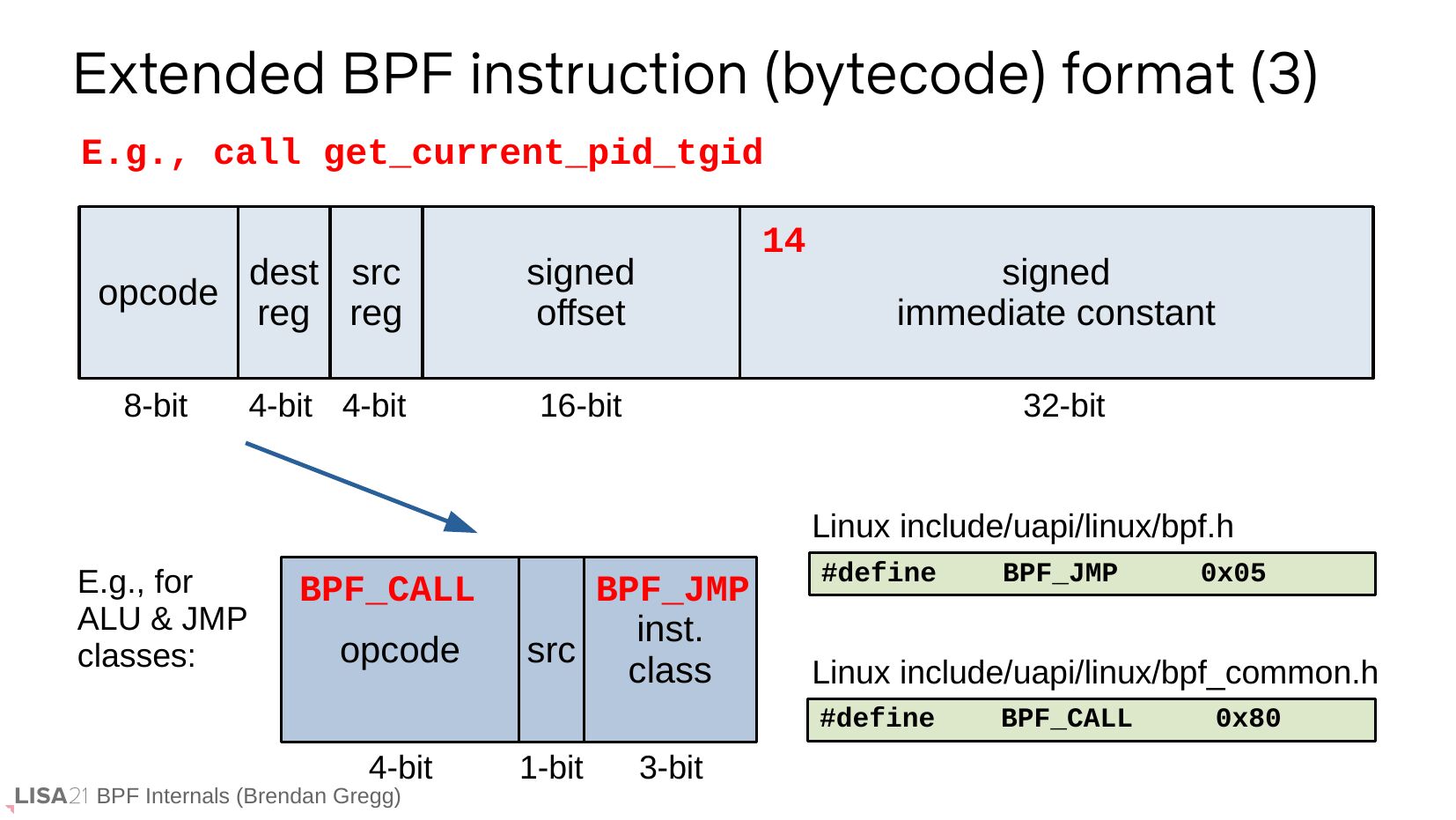

Extended BPF instruction (bytecode) format (3)
E.g., call get_current_pid_tgid
opcode
dest src
reg reg
signed
offset
8-bit
4-bit 4-bit
16-bit
signed
immediate constant
32-bit
Linux include/uapi/linux/bpf.h
E.g., for
ALU & JMP
classes:
BPF_CALL
opcode
BPF_JMP
inst.
src
class
#define
4-bit
1-bit
3-bit
0x05
Linux include/uapi/linux/bpf_common.h
#define
BPF Internals (Brendan Gregg)
BPF_JMP
BPF_CALL
0x80

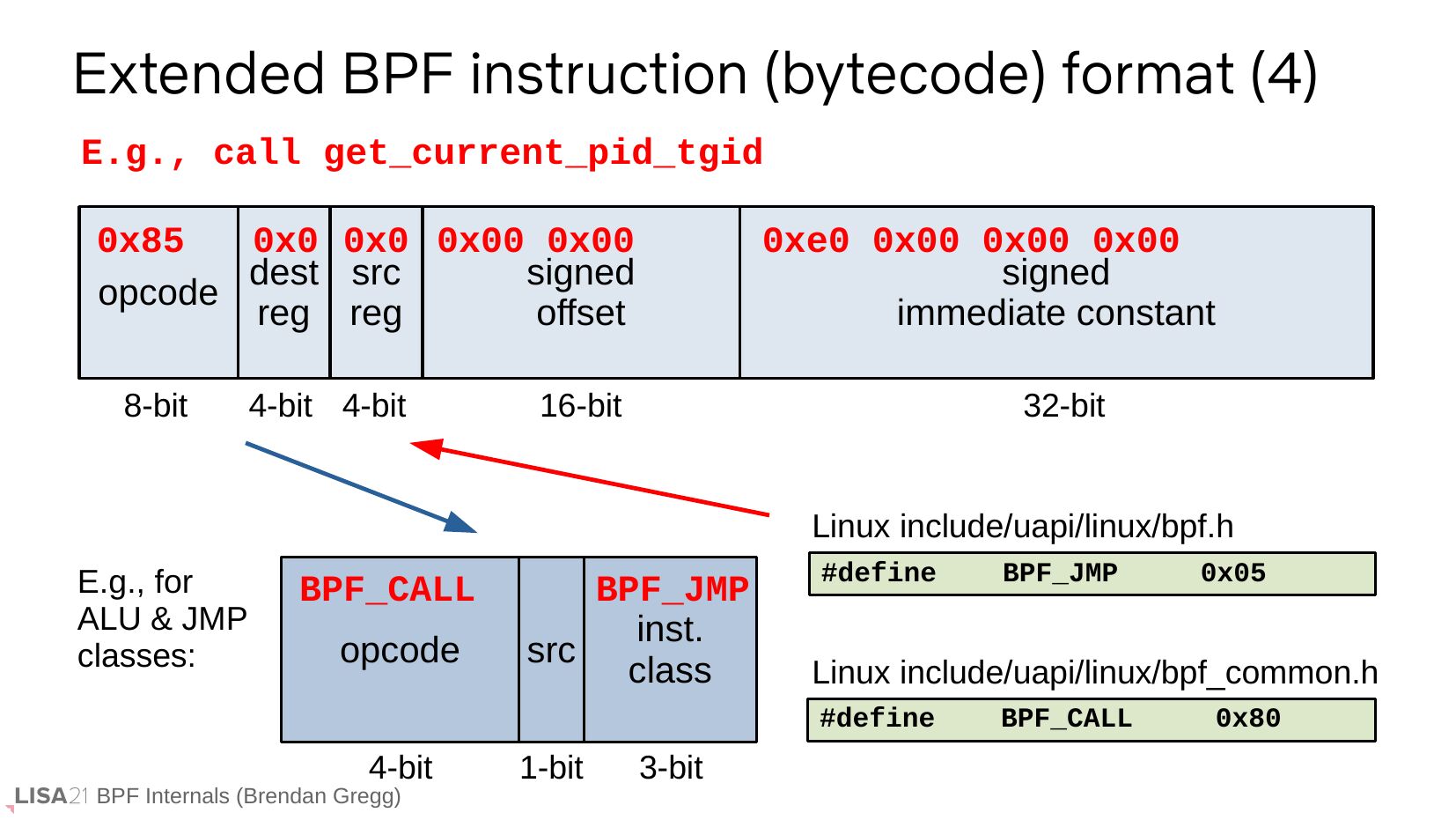

Extended BPF instruction (bytecode) format (4)
E.g., call get_current_pid_tgid
0x85
0x0 0x0 0x00 0x00
dest src
signed
opcode
reg reg
offset
8-bit
4-bit 4-bit
0xe0 0x00 0x00 0x00
signed
immediate constant
16-bit
32-bit
Linux include/uapi/linux/bpf.h
E.g., for
ALU & JMP
classes:
BPF_CALL
opcode
BPF_JMP
inst.
src
class
#define
4-bit
1-bit
3-bit
0x05
Linux include/uapi/linux/bpf_common.h
#define
BPF Internals (Brendan Gregg)
BPF_JMP
BPF_CALL
0x80

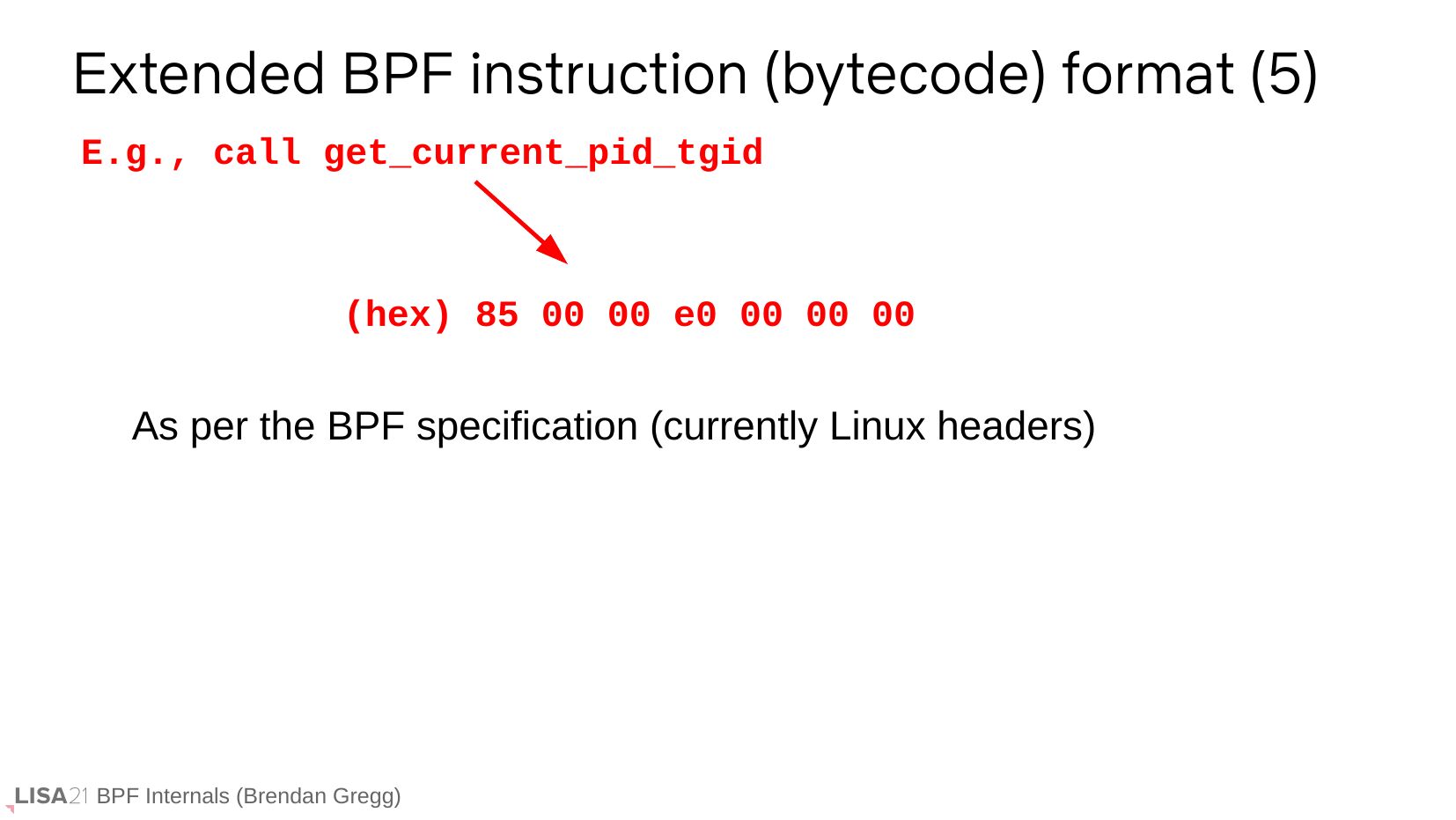

Extended BPF instruction (bytecode) format (5)
E.g., call get_current_pid_tgid
(hex) 85 00 00 e0 00 00 00
As per the BPF specification (currently Linux headers)
BPF Internals (Brendan Gregg)

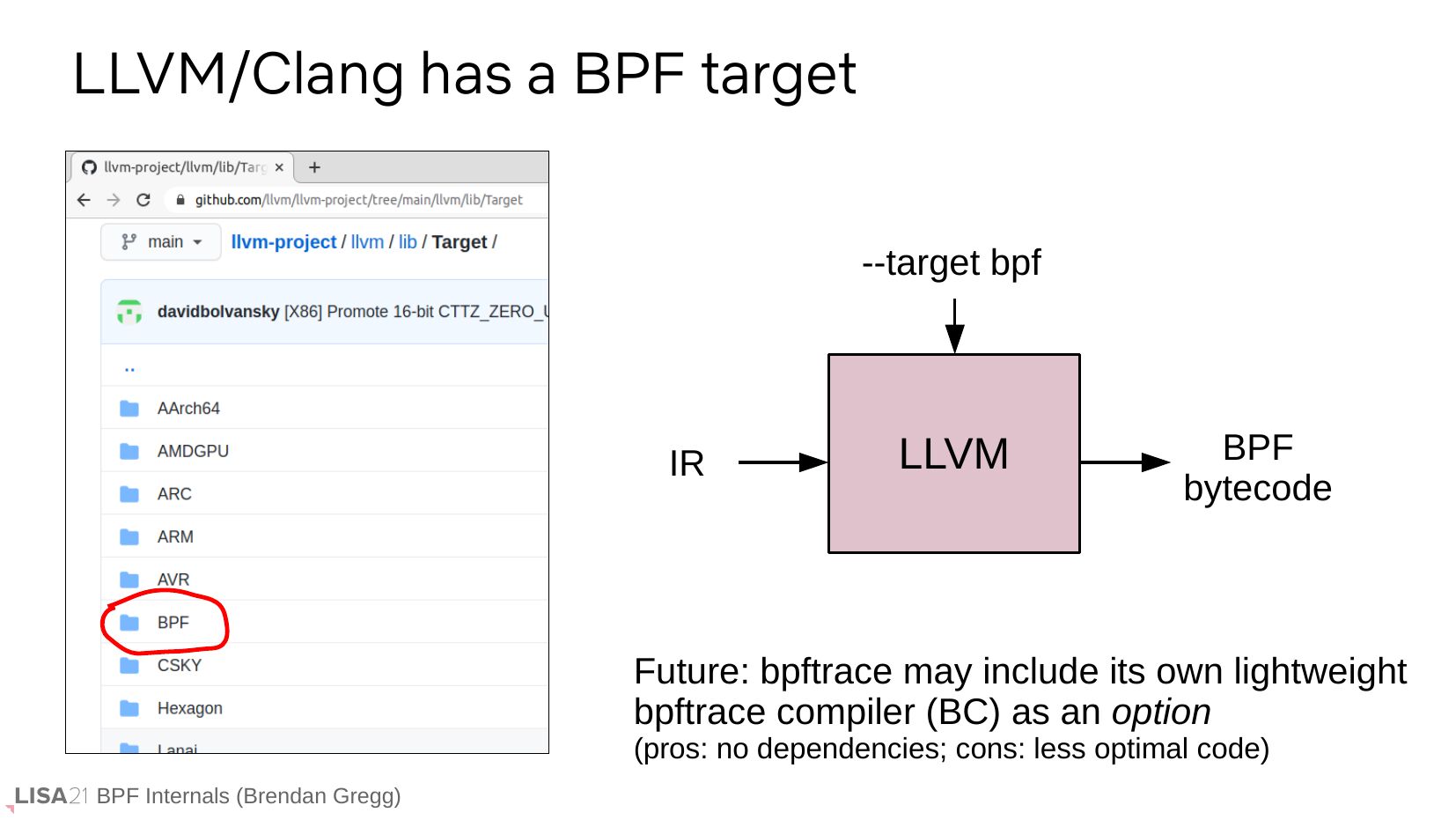

LLVM/Clang has a BPF target
--target bpf
LLVM
BPF
bytecode
Future: bpftrace may include its own lightweight
bpftrace compiler (BC) as an option
(pros: no dependencies; cons: less optimal code)
BPF Internals (Brendan Gregg)

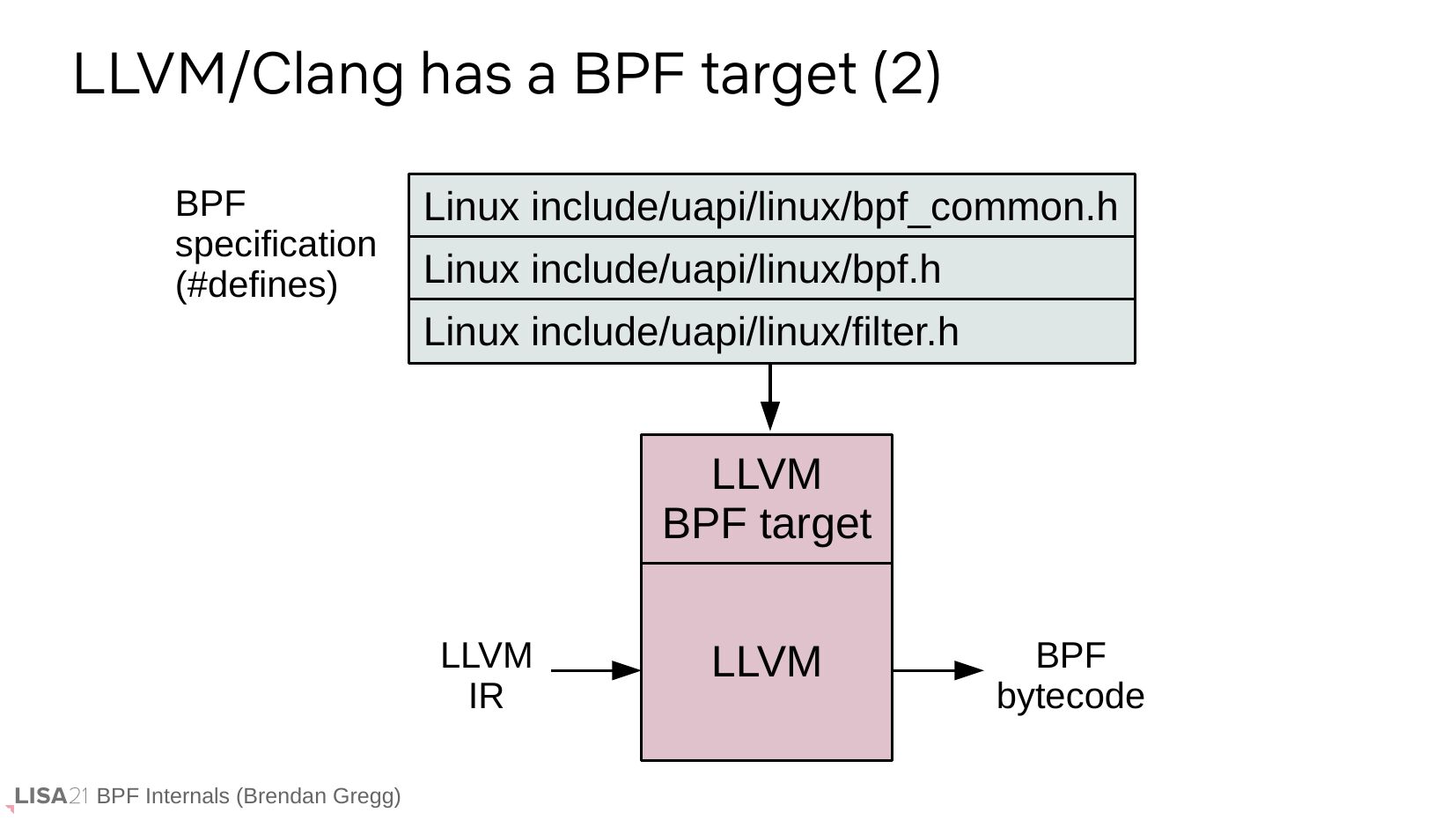

LLVM/Clang has a BPF target (2)
BPF
specification
(#defines)
Linux include/uapi/linux/bpf_common.h
Linux include/uapi/linux/bpf.h
Linux include/uapi/linux/filter.h
LLVM
BPF target
LLVM
BPF Internals (Brendan Gregg)
LLVM
BPF
bytecode

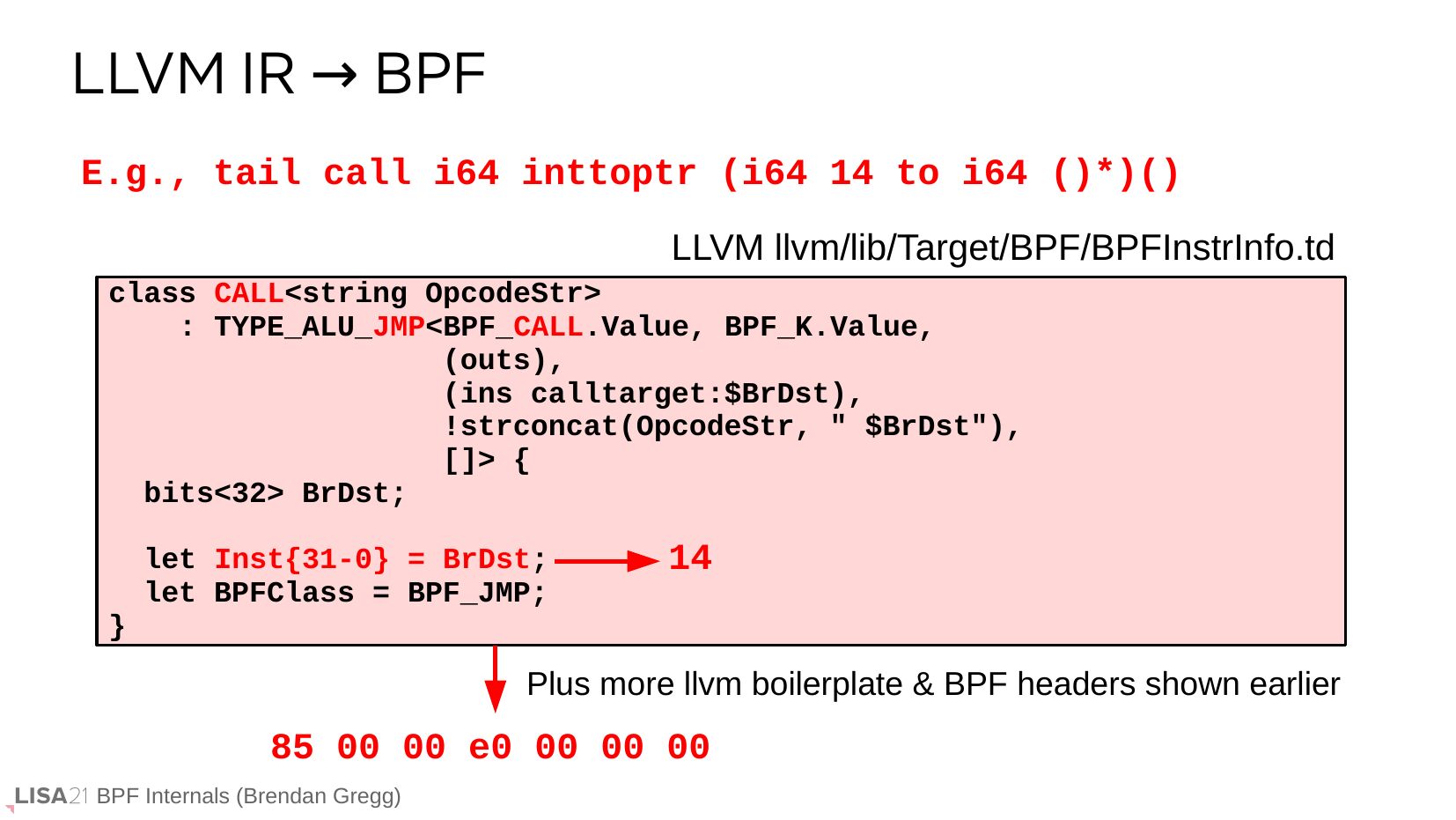

LLVM IR → BPF
E.g., tail call i64 inttoptr (i64 14 to i64 ()*)()
LLVM llvm/lib/Target/BPF/BPFInstrInfo.td
class CALLgt;
: TYPE_ALU_JMPgt; {
bitsgt; BrDst;
let Inst{31-0} = BrDst;
let BPFClass = BPF_JMP;
Plus more llvm boilerplate & BPF headers shown earlier
85 00 00 e0 00 00 00
BPF Internals (Brendan Gregg)

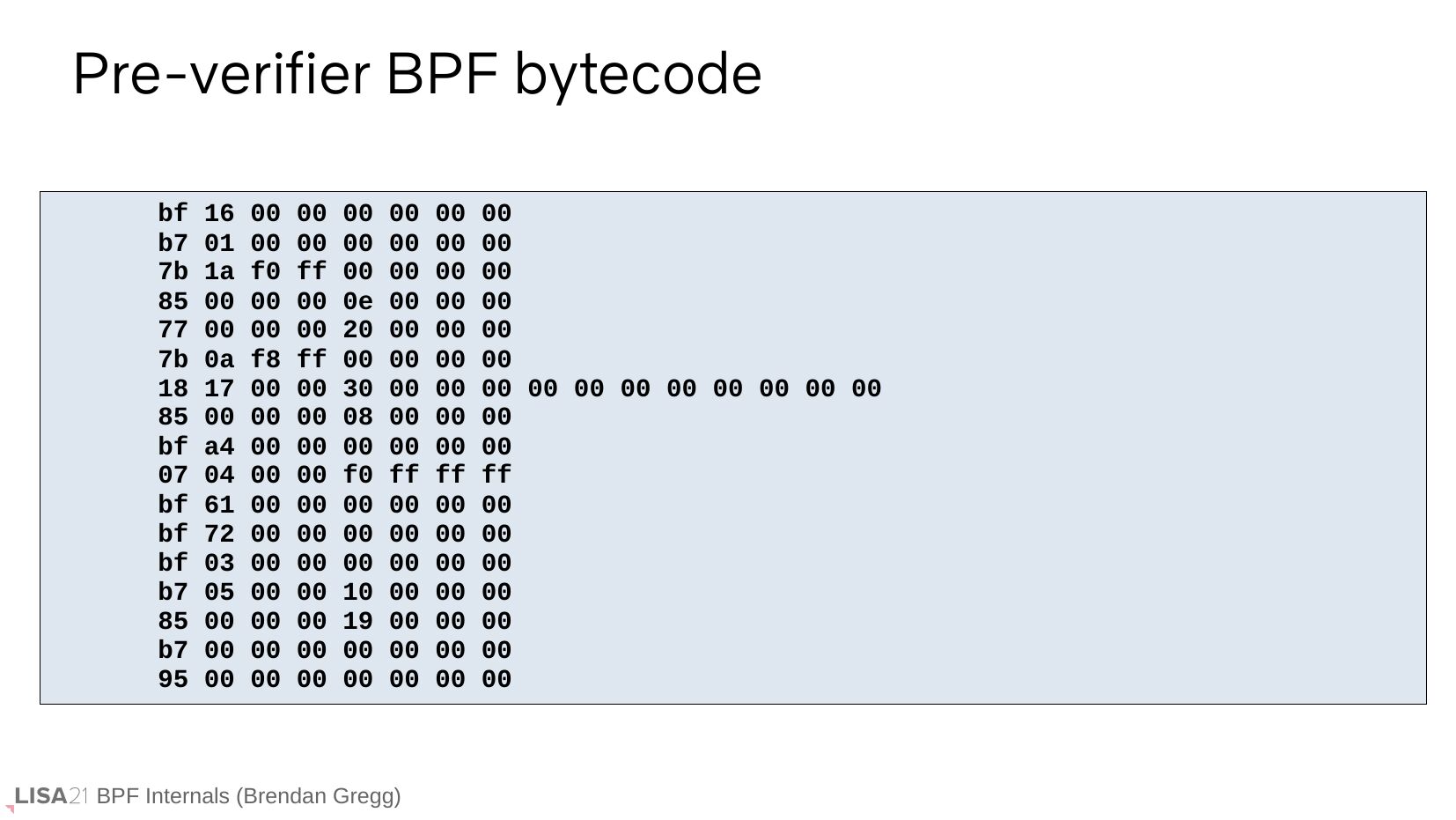

Now you have BPF bytecode!
bf 16 00 00 00 00 00 00
b7 01 00 00 00 00 00 00
7b 1a f0 ff 00 00 00 00
85 00 00 00 0e 00 00 00
77 00 00 00 20 00 00 00
7b 0a f8 ff 00 00 00 00
18 17 00 00 30 00 00 00 00 00 00 00 00 00 00 00
85 00 00 00 08 00 00 00
bf a4 00 00 00 00 00 00
07 04 00 00 f0 ff ff ff
bf 61 00 00 00 00 00 00
bf 72 00 00 00 00 00 00
bf 03 00 00 00 00 00 00
b7 05 00 00 10 00 00 00
85 00 00 00 19 00 00 00
b7 00 00 00 00 00 00 00
95 00 00 00 00 00 00 00
BPF Internals (Brendan Gregg)

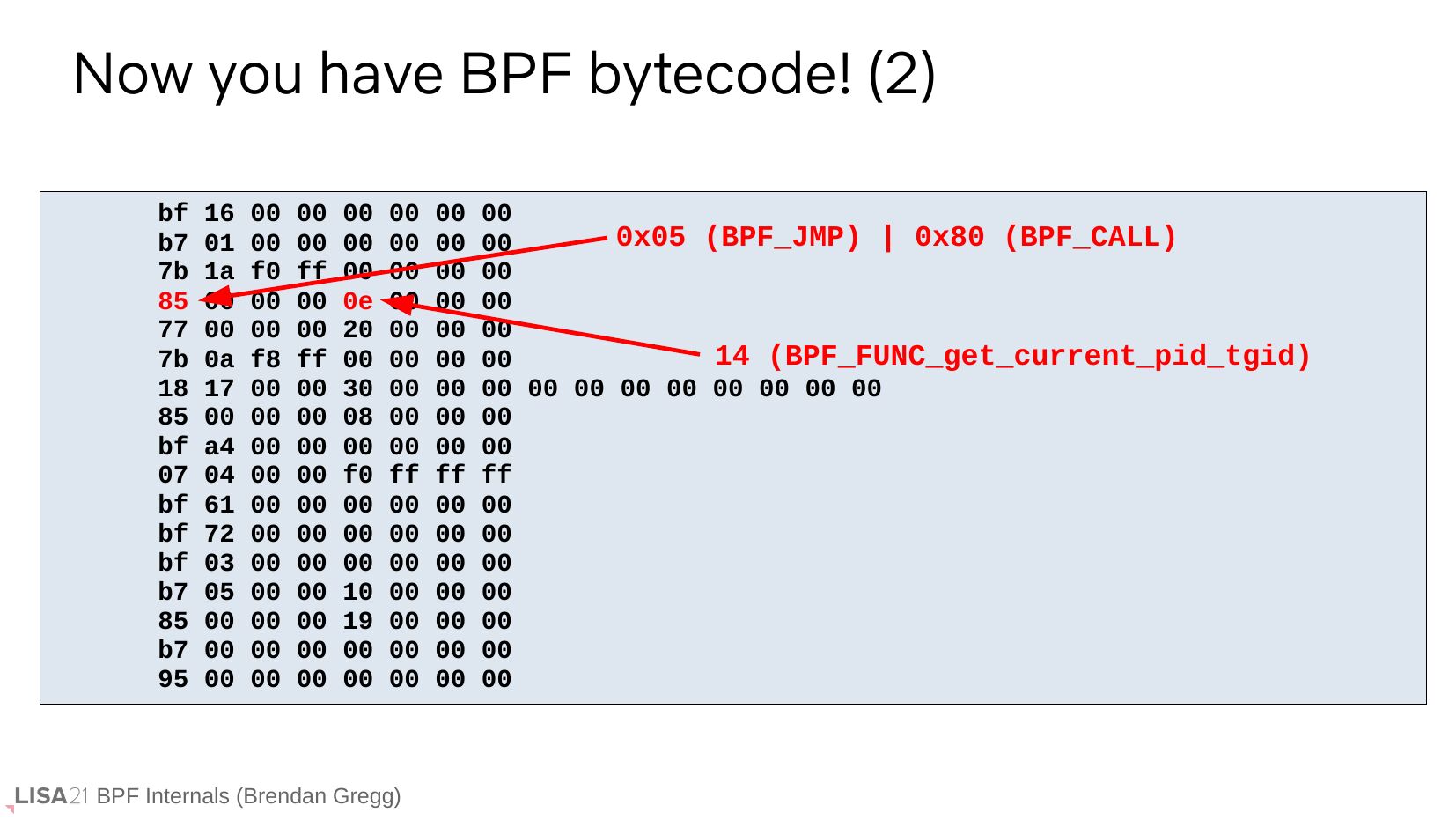

Now you have BPF bytecode! (2)
bf 16 00 00 00 00 00 00
0x05 (BPF_JMP) | 0x80 (BPF_CALL)
b7 01 00 00 00 00 00 00
7b 1a f0 ff 00 00 00 00
85 00 00 00 0e 00 00 00
77 00 00 00 20 00 00 00
14 (BPF_FUNC_get_current_pid_tgid)
7b 0a f8 ff 00 00 00 00
18 17 00 00 30 00 00 00 00 00 00 00 00 00 00 00
85 00 00 00 08 00 00 00
bf a4 00 00 00 00 00 00
07 04 00 00 f0 ff ff ff
bf 61 00 00 00 00 00 00
bf 72 00 00 00 00 00 00
bf 03 00 00 00 00 00 00
b7 05 00 00 10 00 00 00
85 00 00 00 19 00 00 00
b7 00 00 00 00 00 00 00
95 00 00 00 00 00 00 00
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 7/13
BPF Internals (Brendan Gregg)

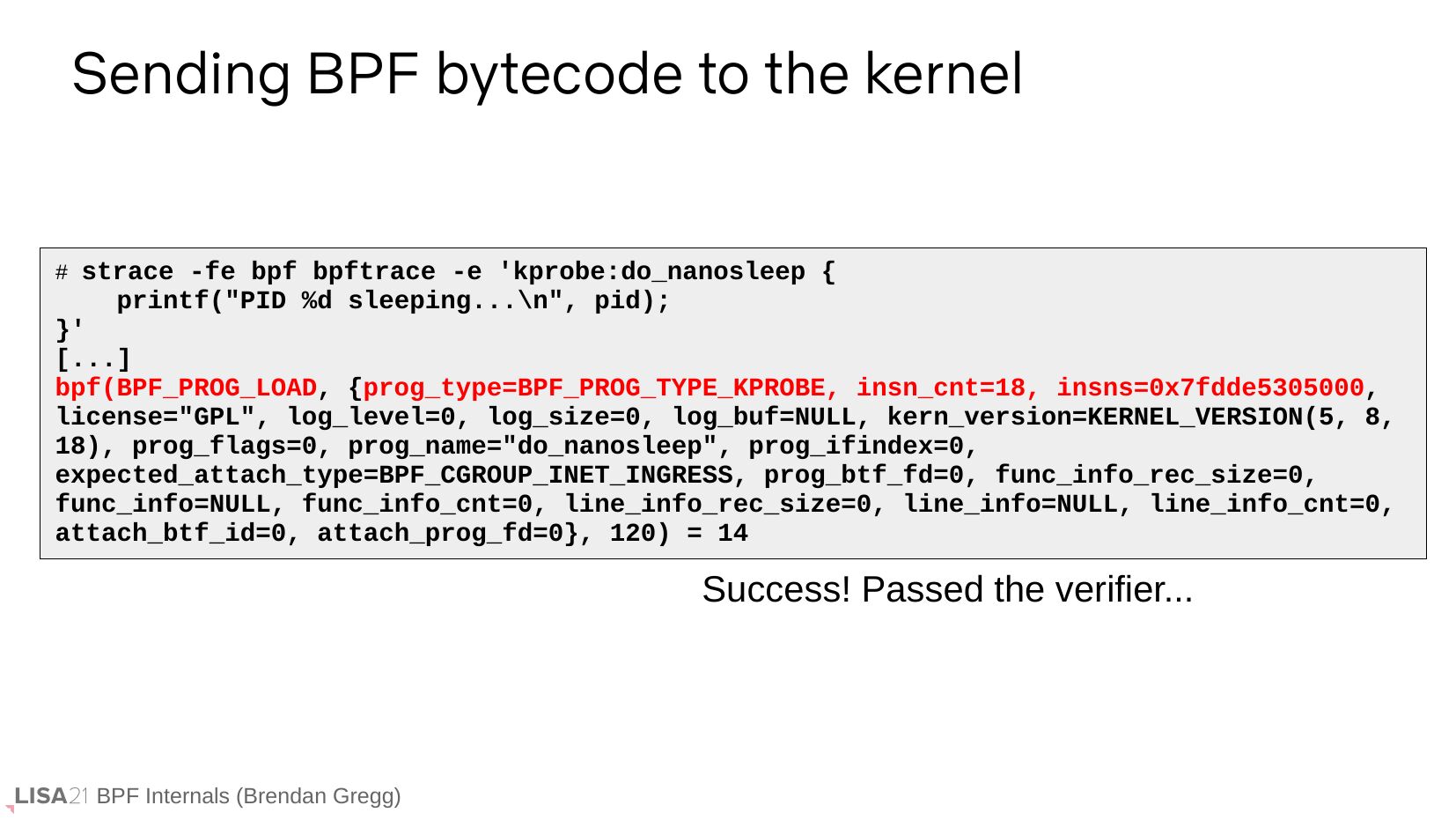

Sending BPF bytecode to the kernel
# strace -fe bpf bpftrace -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid);
[...]
bpf(BPF_PROG_LOAD, {prog_type=BPF_PROG_TYPE_KPROBE, insn_cnt=18, insns=0x7fdde5305000,
license="GPL", log_level=0, log_size=0, log_buf=NULL, kern_version=KERNEL_VERSION(5, 8,
18), prog_flags=0, prog_name="do_nanosleep", prog_ifindex=0,
expected_attach_type=BPF_CGROUP_INET_INGRESS, prog_btf_fd=0, func_info_rec_size=0,
func_info=NULL, func_info_cnt=0, line_info_rec_size=0, line_info=NULL, line_info_cnt=0,
attach_btf_id=0, attach_prog_fd=0}, 120) = 14
Success! Passed the verifier...
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 8/13
BPF Internals (Brendan Gregg)

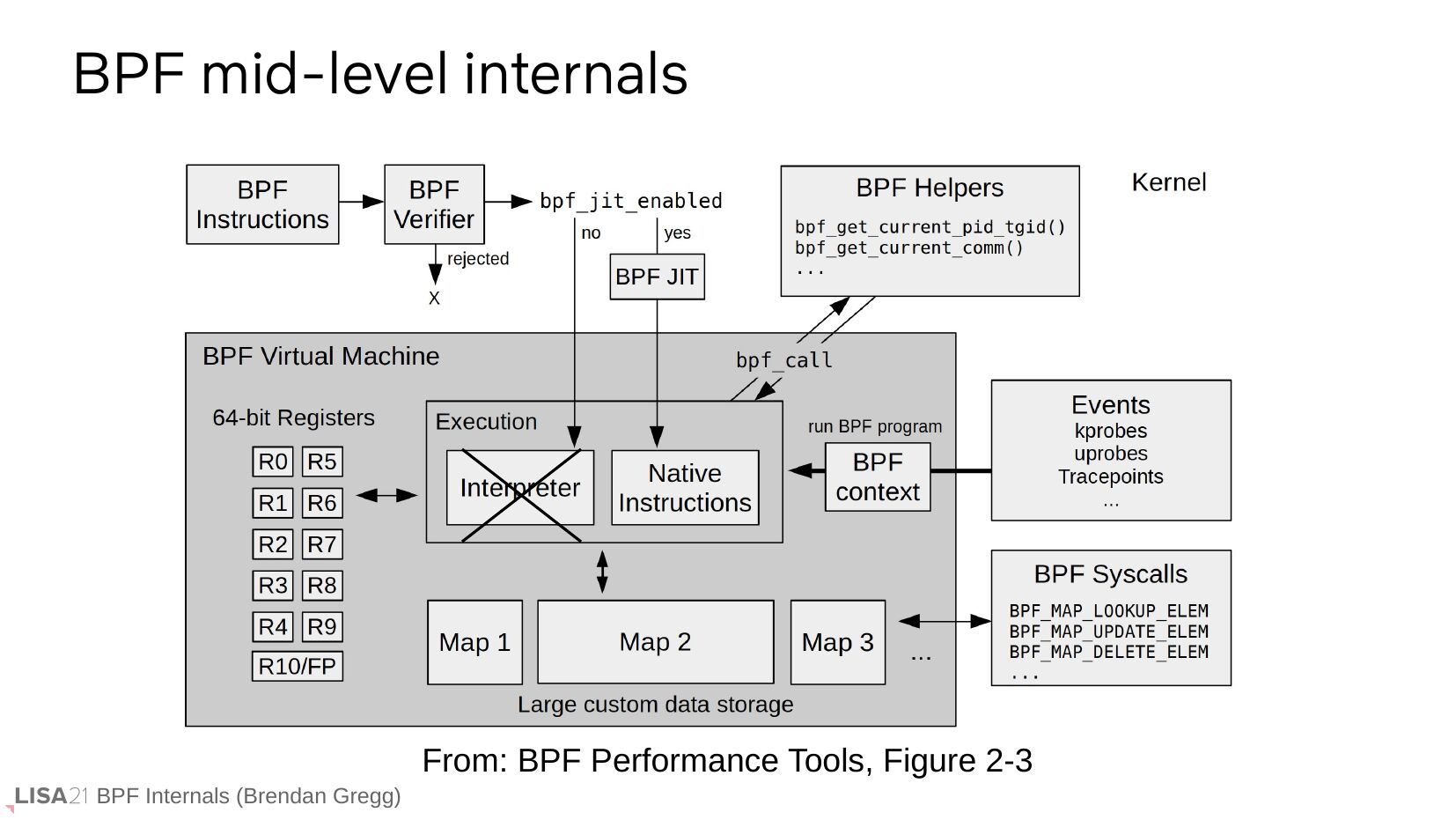

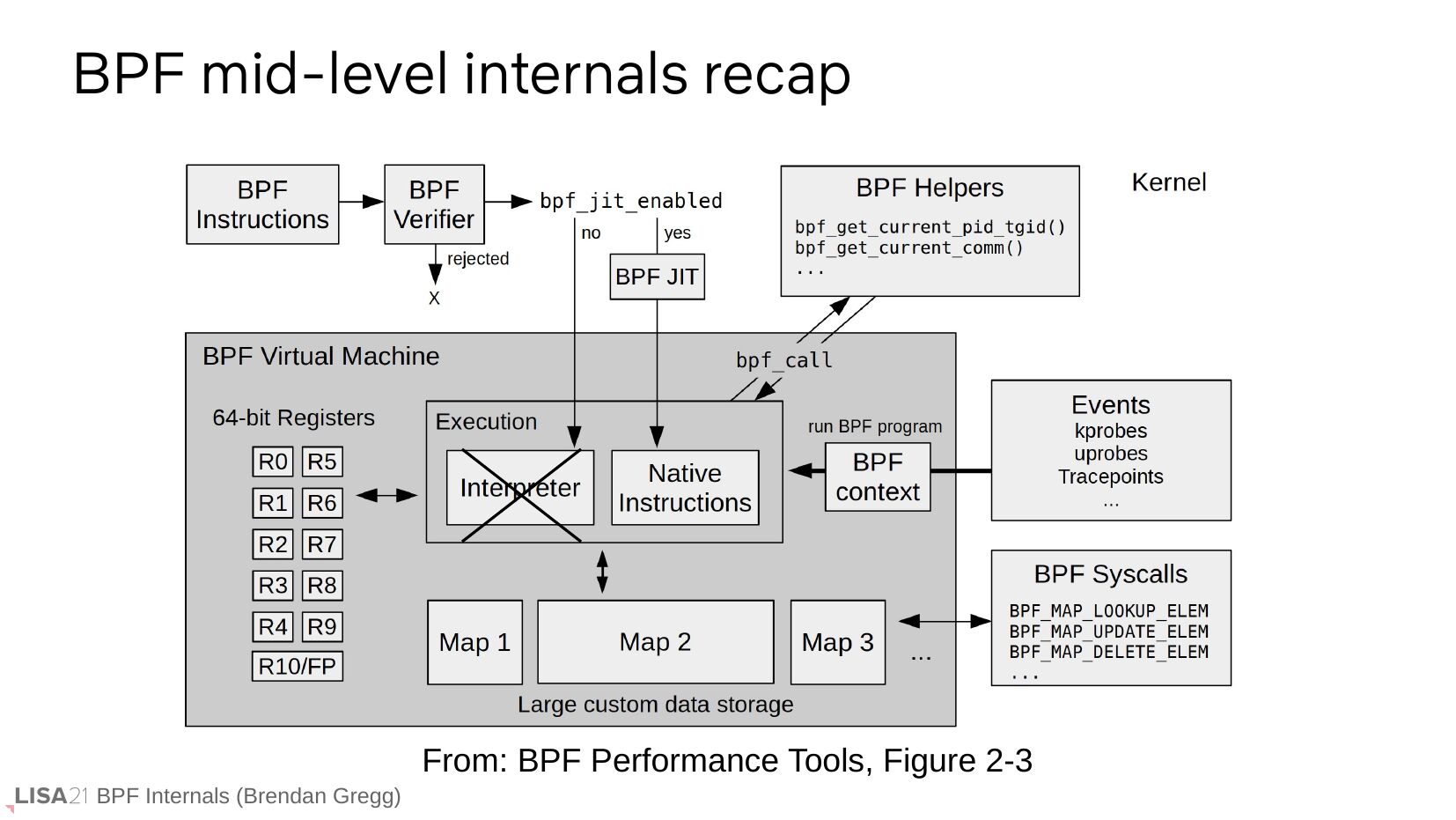

BPF mid-level internals
From: BPF Performance Tools, Figure 2-3
BPF Internals (Brendan Gregg)

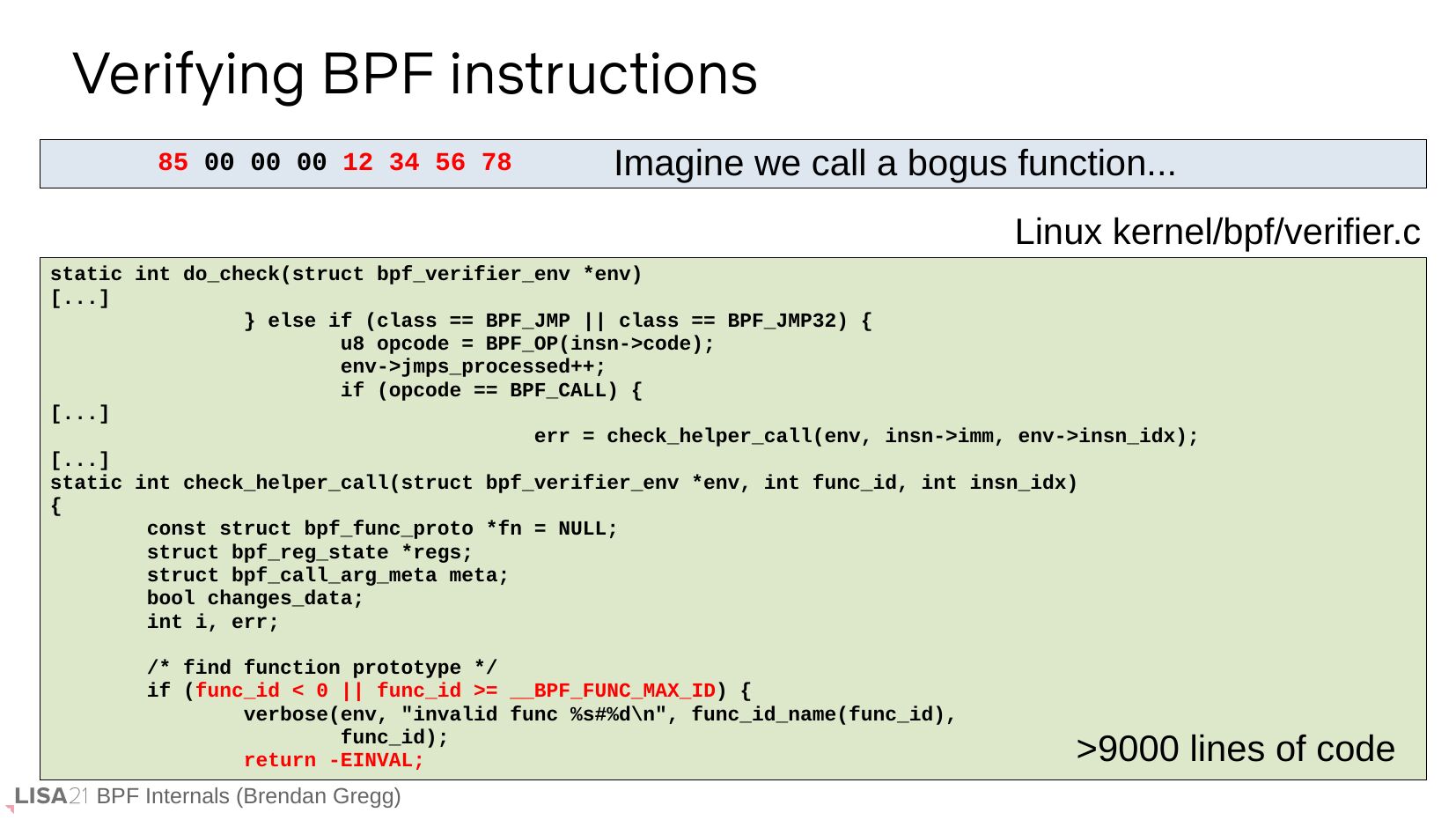

Verifying BPF instructions
85 00 00 00 12 34 56 78
Imagine we call a bogus function...
Linux kernel/bpf/verifier.c
static int do_check(struct bpf_verifier_env *env)
[...]
} else if (class == BPF_JMP || class == BPF_JMP32) {
u8 opcode = BPF_OP(insn->gt;code);
env->gt;jmps_processed++;
if (opcode == BPF_CALL) {
[...]
err = check_helper_call(env, insn->gt;imm, env->gt;insn_idx);
[...]
static int check_helper_call(struct bpf_verifier_env *env, int func_id, int insn_idx)
const struct bpf_func_proto *fn = NULL;
struct bpf_reg_state *regs;
struct bpf_call_arg_meta meta;
bool changes_data;
int i, err;
If ...
/* find function prototype */
if (func_id gt;= __BPF_FUNC_MAX_ID) {
verbose(env, "invalid func %s#%d\n", func_id_name(func_id),
func_id);
return -EINVAL;
BPF Internals (Brendan Gregg)

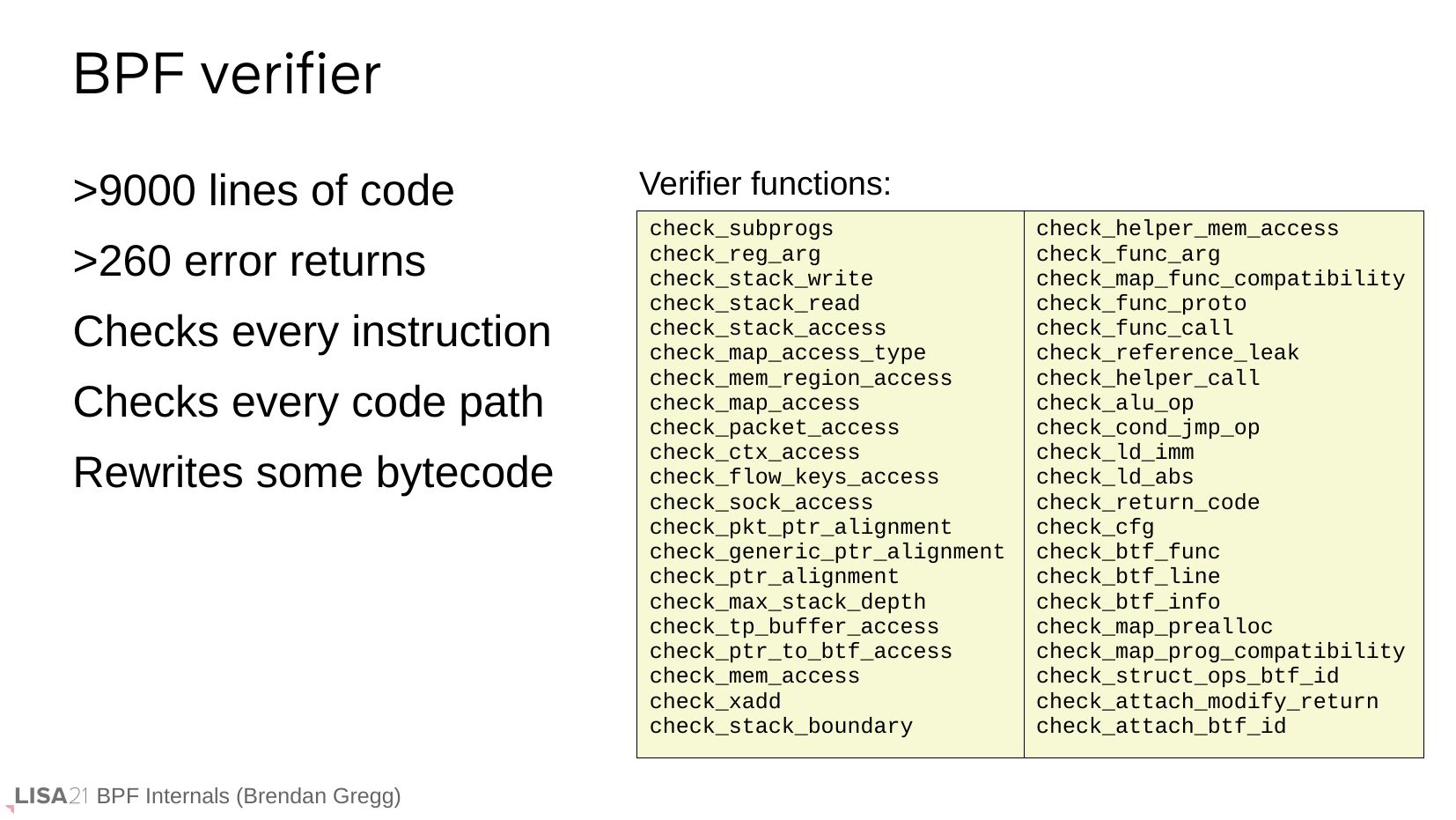

>gt;9000 lines of code

BPF verifier
>gt;9000 lines of code
>gt;260 error returns
Checks every instruction
Checks every code path
Rewrites some bytecode
BPF Internals (Brendan Gregg)
Verifier functions:
check_subprogs
check_reg_arg
check_stack_write
check_stack_read
check_stack_access
check_map_access_type
check_mem_region_access
check_map_access
check_packet_access
check_ctx_access
check_flow_keys_access
check_sock_access
check_pkt_ptr_alignment
check_generic_ptr_alignment
check_ptr_alignment
check_max_stack_depth
check_tp_buffer_access
check_ptr_to_btf_access
check_mem_access
check_xadd
check_stack_boundary
check_helper_mem_access
check_func_arg
check_map_func_compatibility
check_func_proto
check_func_call
check_reference_leak
check_helper_call
check_alu_op
check_cond_jmp_op
check_ld_imm
check_ld_abs
check_return_code
check_cfg
check_btf_func
check_btf_line
check_btf_info
check_map_prealloc
check_map_prog_compatibility
check_struct_ops_btf_id
check_attach_modify_return
check_attach_btf_id

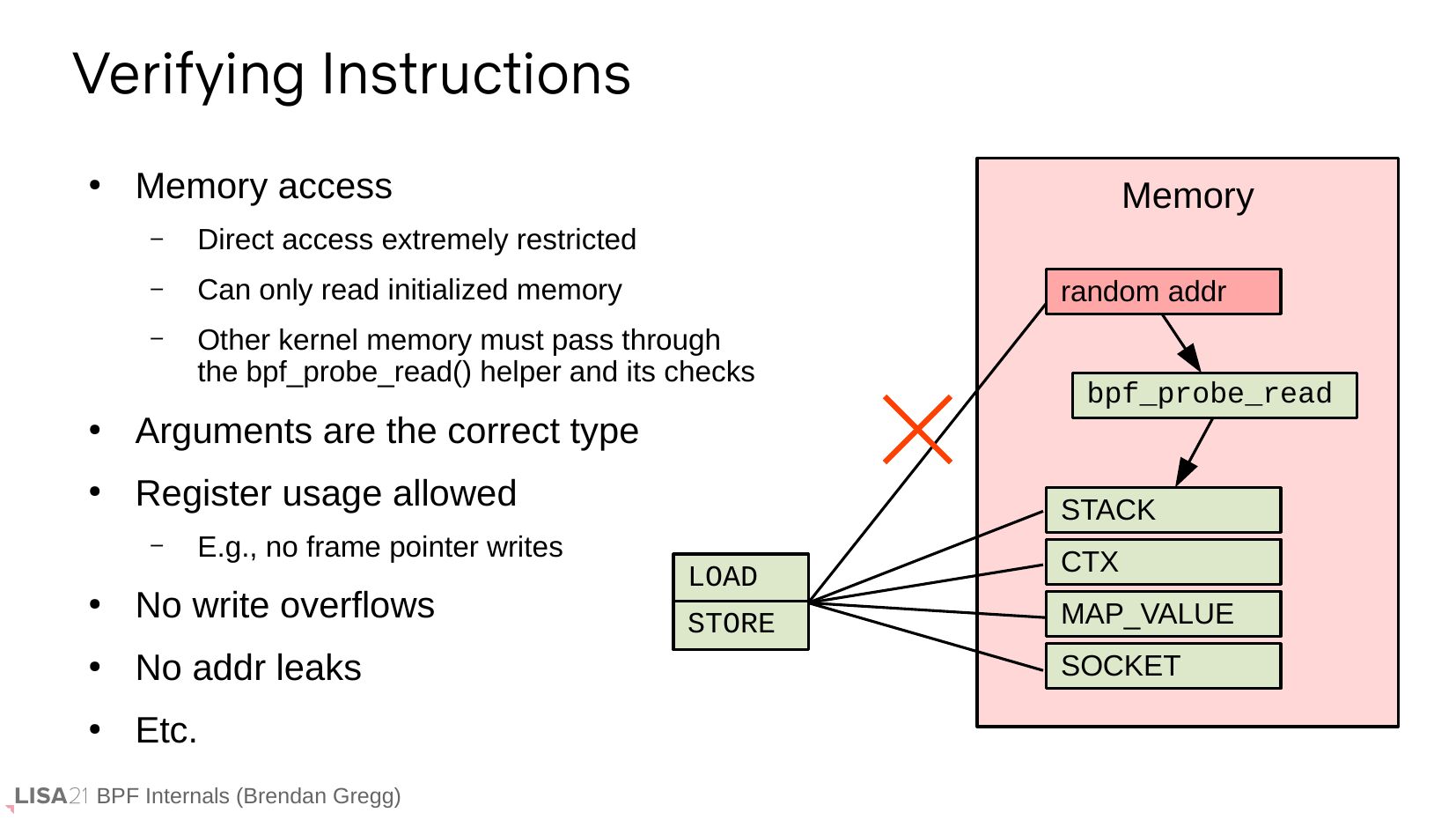

Verifying Instructions
Memory access
Memory
Direct access extremely restricted
Can only read initialized memory
Other kernel memory must pass through
the bpf_probe_read() helper and its checks
Arguments are the correct type
Register usage allowed
E.g., no frame pointer writes
No write overflows
No addr leaks
Etc.
BPF Internals (Brendan Gregg)
random addr
bpf_probe_read
STACK
LOAD
STORE
CTX
MAP_VALUE
SOCKET

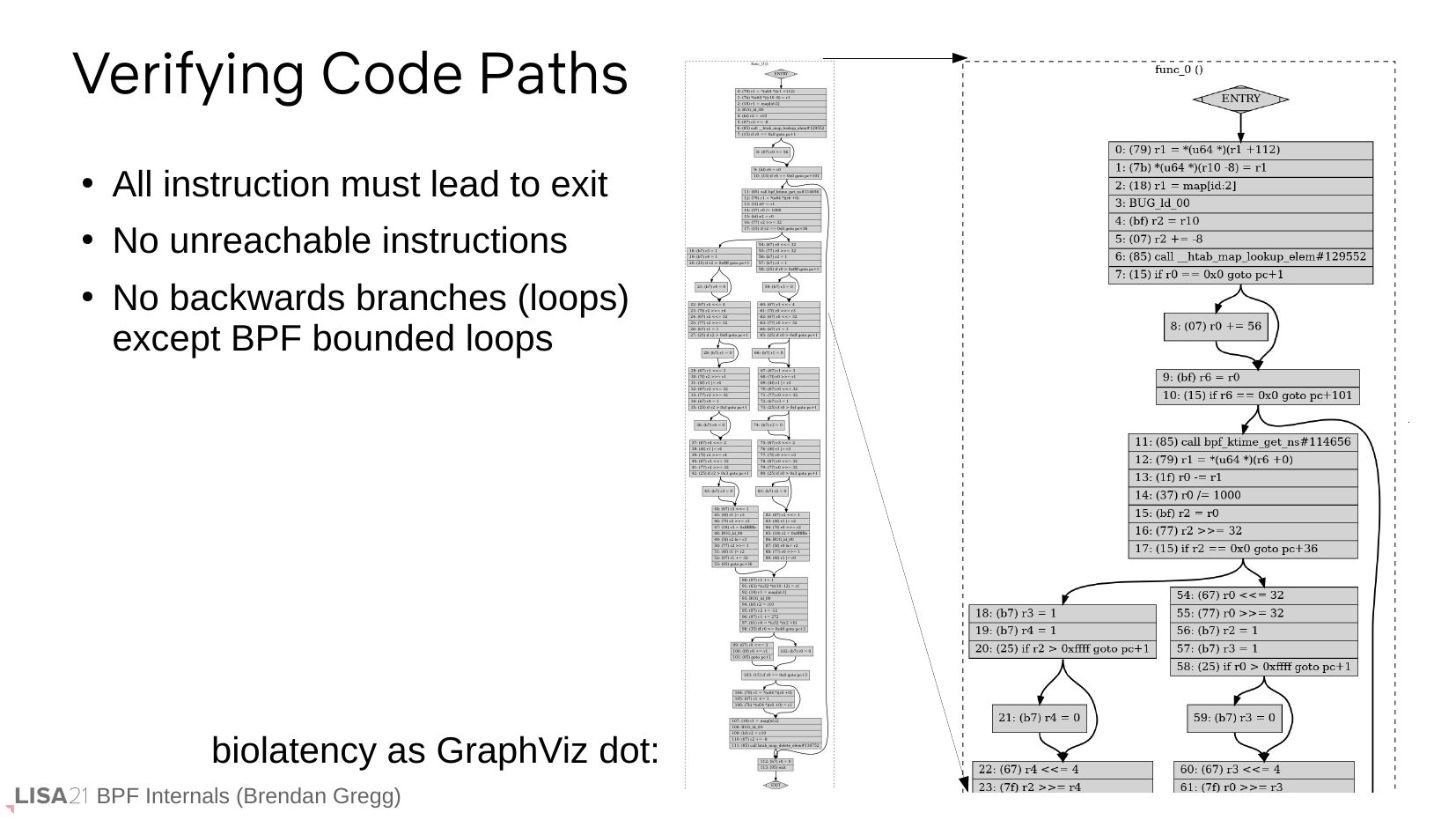

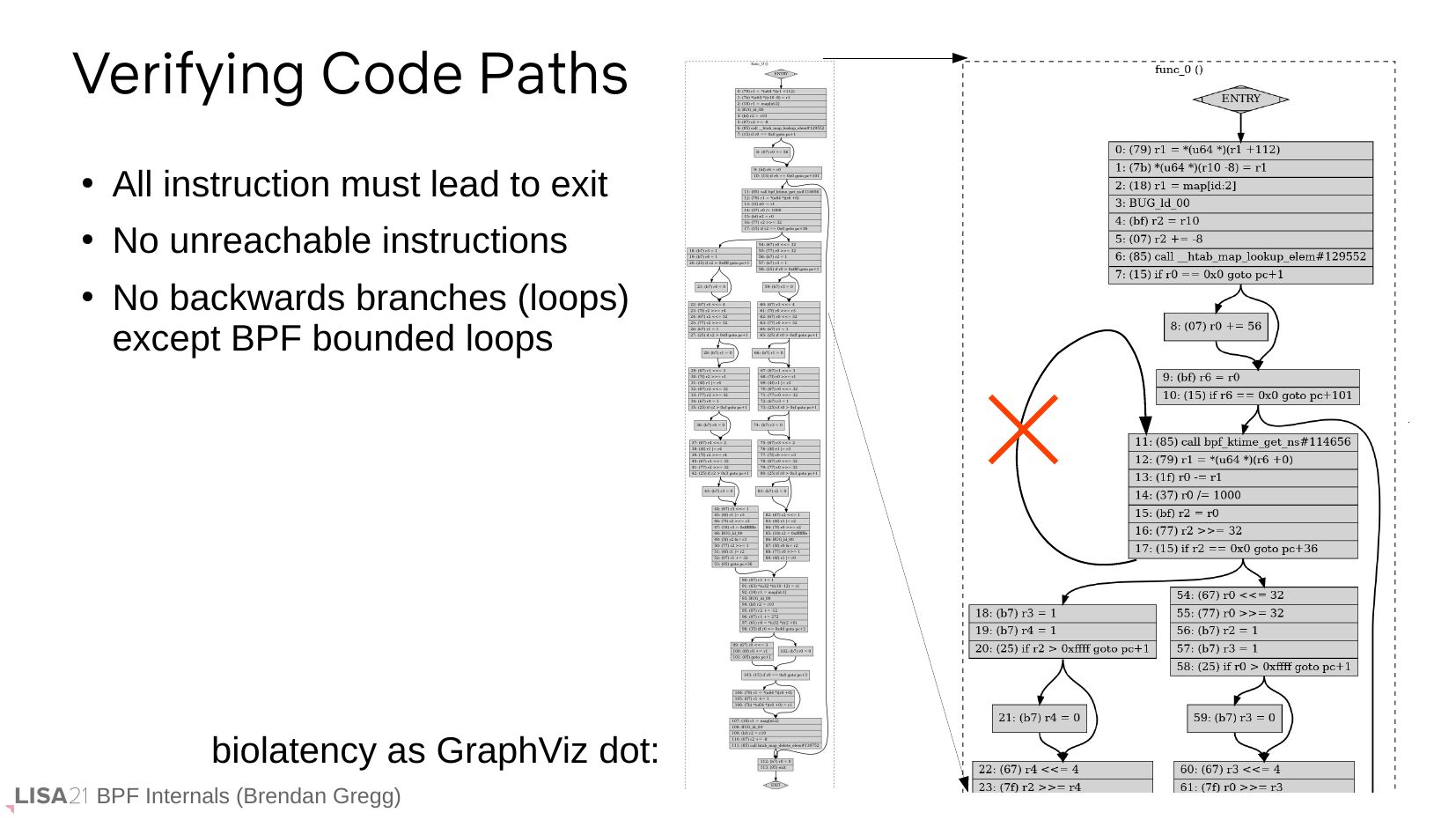

Verifying Code Paths
All instruction must lead to exit
No unreachable instructions
No backwards branches (loops)
except BPF bounded loops
biolatency as GraphViz dot:
BPF Internals (Brendan Gregg)

Verifying Code Paths
All instruction must lead to exit
No unreachable instructions
No backwards branches (loops)
except BPF bounded loops
biolatency as GraphViz dot:
BPF Internals (Brendan Gregg)

Pre-verifier BPF bytecode
bf 16 00 00 00 00 00 00
b7 01 00 00 00 00 00 00
7b 1a f0 ff 00 00 00 00
85 00 00 00 0e 00 00 00
77 00 00 00 20 00 00 00
7b 0a f8 ff 00 00 00 00
18 17 00 00 30 00 00 00 00 00 00 00 00 00 00 00
85 00 00 00 08 00 00 00
bf a4 00 00 00 00 00 00
07 04 00 00 f0 ff ff ff
bf 61 00 00 00 00 00 00
bf 72 00 00 00 00 00 00
bf 03 00 00 00 00 00 00
b7 05 00 00 10 00 00 00
85 00 00 00 19 00 00 00
b7 00 00 00 00 00 00 00
95 00 00 00 00 00 00 00
BPF Internals (Brendan Gregg)

Post-verifier BPF bytecode
bf 16 00 00 00 00 00 00
b7 01 00 00 00 00 00 00
7b 1a f0 ff 00 00 00 00
85 00 00 00 d0 81 01 00
77 00 00 00 20 00 00 00
7b 0a f8 ff 00 00 00 00
18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00
85 00 00 00 f0 80 01 00
bf a4 00 00 00 00 00 00
07 04 00 00 f0 ff ff ff
bf 61 00 00 00 00 00 00
bf 72 00 00 00 00 00 00
bf 03 00 00 00 00 00 00
b7 05 00 00 10 00 00 00
85 00 00 00 30 2c ff ff
b7 00 00 00 00 00 00 00
95 00 00 00 00 00 00 00
BPF Internals (Brendan Gregg)

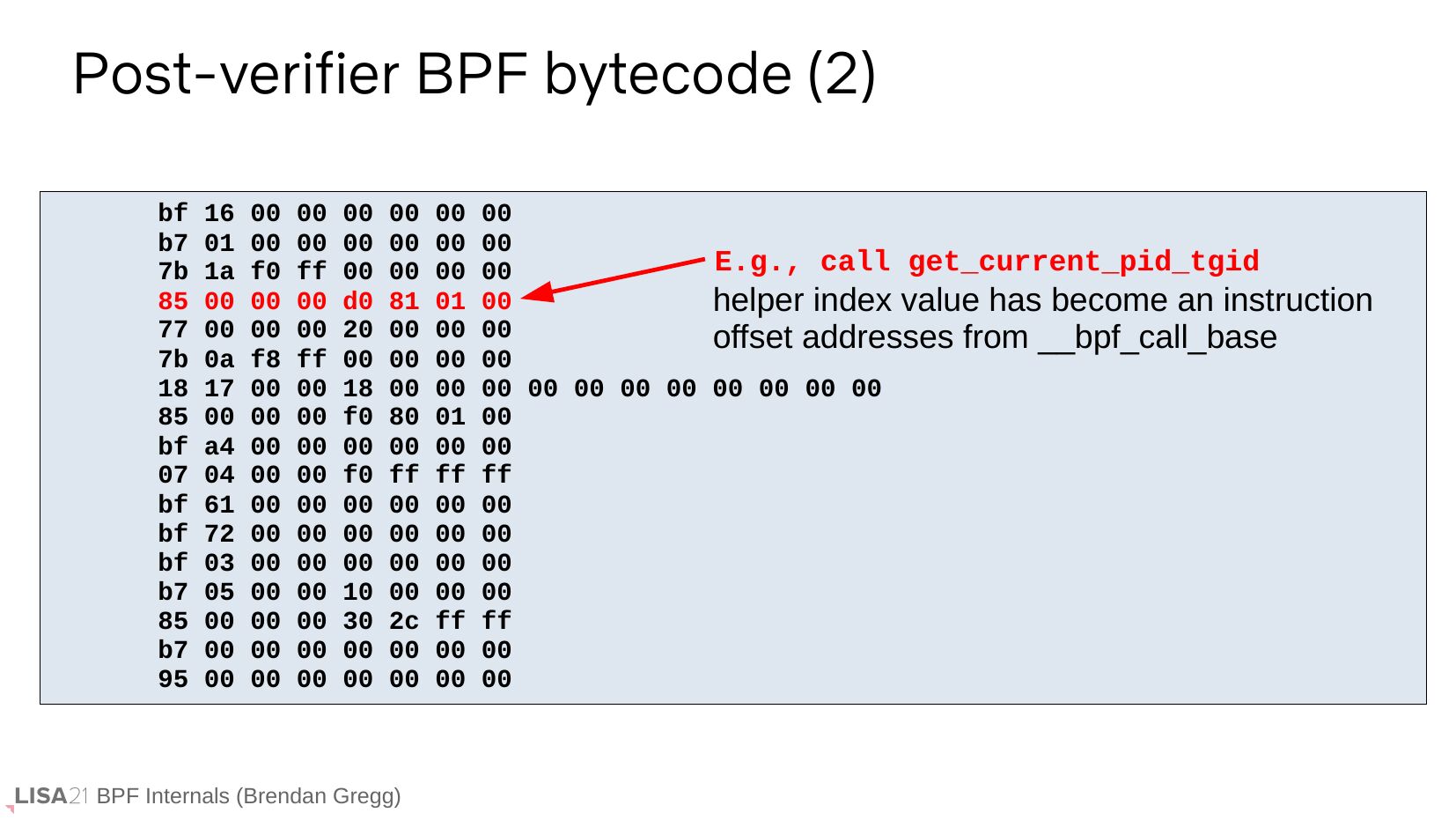

Post-verifier BPF bytecode (2)
bf 16 00 00 00 00 00 00
b7 01 00 00 00 00 00 00
E.g., call get_current_pid_tgid
7b 1a f0 ff 00 00 00 00
85 00 00 00 d0 81 01 00
helper index value has become an instruction
77 00 00 00 20 00 00 00
offset addresses from __bpf_call_base
7b 0a f8 ff 00 00 00 00
18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00
85 00 00 00 f0 80 01 00
bf a4 00 00 00 00 00 00
07 04 00 00 f0 ff ff ff
bf 61 00 00 00 00 00 00
bf 72 00 00 00 00 00 00
bf 03 00 00 00 00 00 00
b7 05 00 00 10 00 00 00
85 00 00 00 30 2c ff ff
b7 00 00 00 00 00 00 00
95 00 00 00 00 00 00 00
BPF Internals (Brendan Gregg)

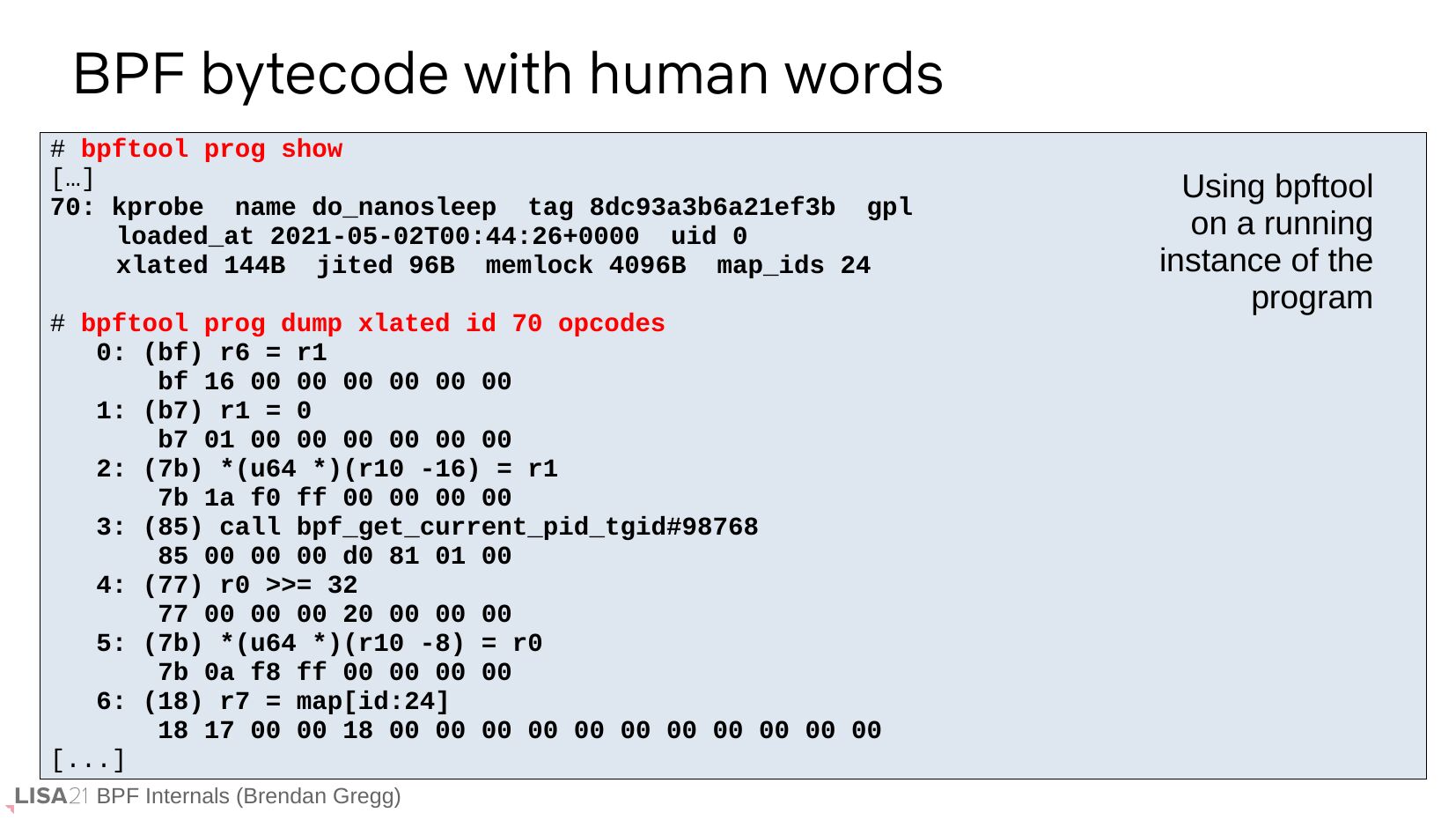

BPF bytecode with human words
# bpftool prog show
[…]
70: kprobe name do_nanosleep tag 8dc93a3b6a21ef3b gpl
loaded_at 2021-05-02T00:44:26+0000 uid 0
xlated 144B jited 96B memlock 4096B map_ids 24
# bpftool prog dump xlated id 70 opcodes
0: (bf) r6 = r1
bf 16 00 00 00 00 00 00
1: (b7) r1 = 0
b7 01 00 00 00 00 00 00
2: (7b) *(u64 *)(r10 -16) = r1
7b 1a f0 ff 00 00 00 00
3: (85) call bpf_get_current_pid_tgid#98768
85 00 00 00 d0 81 01 00
4: (77) r0 >gt;>gt;= 32
77 00 00 00 20 00 00 00
5: (7b) *(u64 *)(r10 -8) = r0
7b 0a f8 ff 00 00 00 00
6: (18) r7 = map[id:24]
18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00
[...]
BPF Internals (Brendan Gregg)
Using bpftool
on a running
instance of the
program

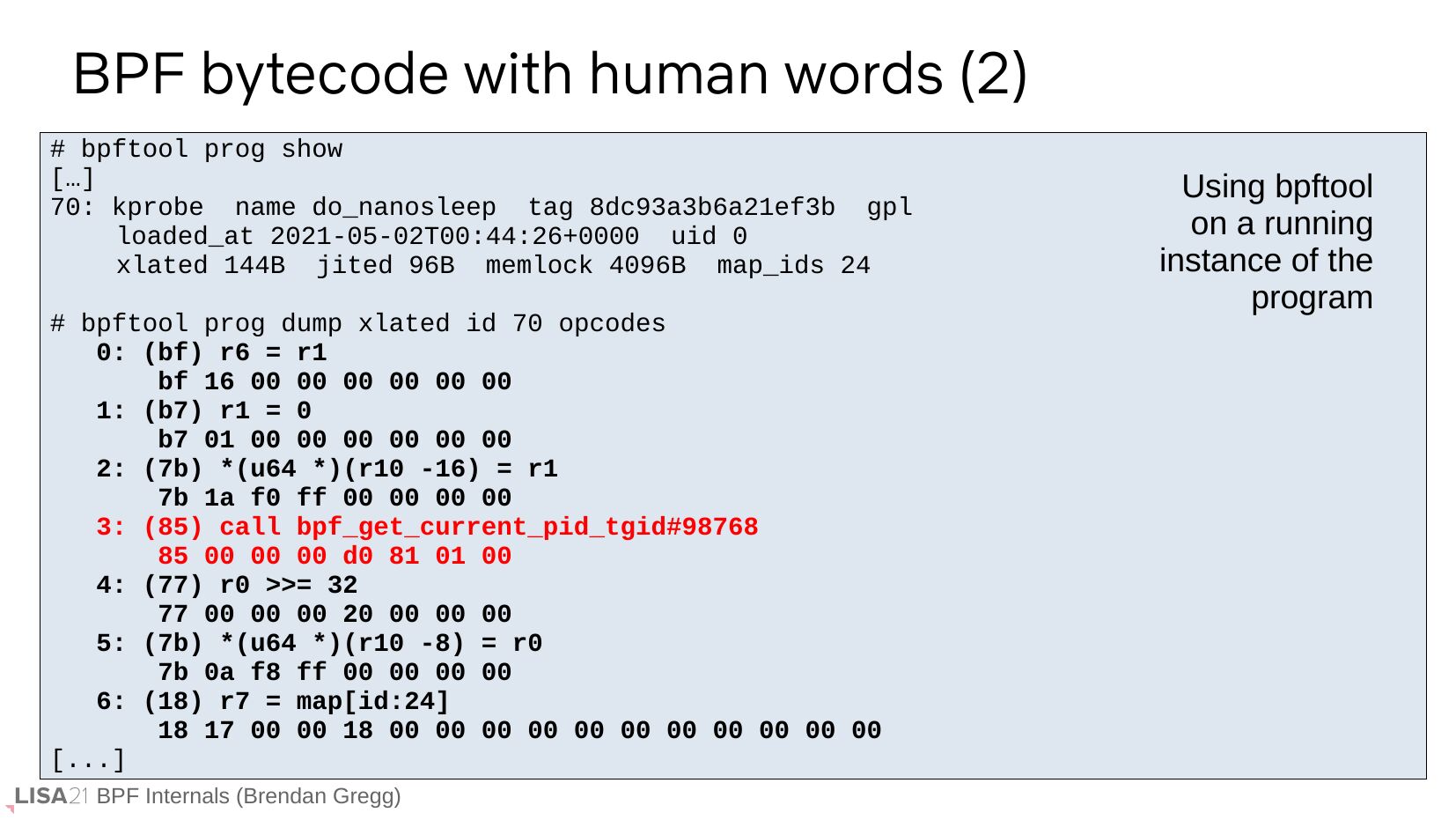

BPF bytecode with human words (2)
# bpftool prog show
[…]
70: kprobe name do_nanosleep tag 8dc93a3b6a21ef3b gpl
loaded_at 2021-05-02T00:44:26+0000 uid 0
xlated 144B jited 96B memlock 4096B map_ids 24
# bpftool prog dump xlated id 70 opcodes
0: (bf) r6 = r1
bf 16 00 00 00 00 00 00
1: (b7) r1 = 0
b7 01 00 00 00 00 00 00
2: (7b) *(u64 *)(r10 -16) = r1
7b 1a f0 ff 00 00 00 00
3: (85) call bpf_get_current_pid_tgid#98768
85 00 00 00 d0 81 01 00
4: (77) r0 >gt;>gt;= 32
77 00 00 00 20 00 00 00
5: (7b) *(u64 *)(r10 -8) = r0
7b 0a f8 ff 00 00 00 00
6: (18) r7 = map[id:24]
18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00
[...]
BPF Internals (Brendan Gregg)
Using bpftool
on a running
instance of the
program

BPF bytecode, opcodes only
# bpftool prog dump xlated id 70
0: (bf) r6 = r1
1: (b7) r1 = 0
2: (7b) *(u64 *)(r10 -16) = r1
3: (85) call bpf_get_current_pid_tgid#98768
4: (77) r0 >gt;>gt;= 32
5: (7b) *(u64 *)(r10 -8) = r0
6: (18) r7 = map[id:24]
8: (85) call bpf_get_smp_processor_id#98544
9: (bf) r4 = r10
10: (07) r4 += -16
11: (bf) r1 = r6
12: (bf) r2 = r7
13: (bf) r3 = r0
14: (b7) r5 = 16
15: (85) call bpf_perf_event_output#-54224
16: (b7) r0 = 0
17: (95) exit
just the opcode 8 bits
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 9/13
BPF Internals (Brendan Gregg)

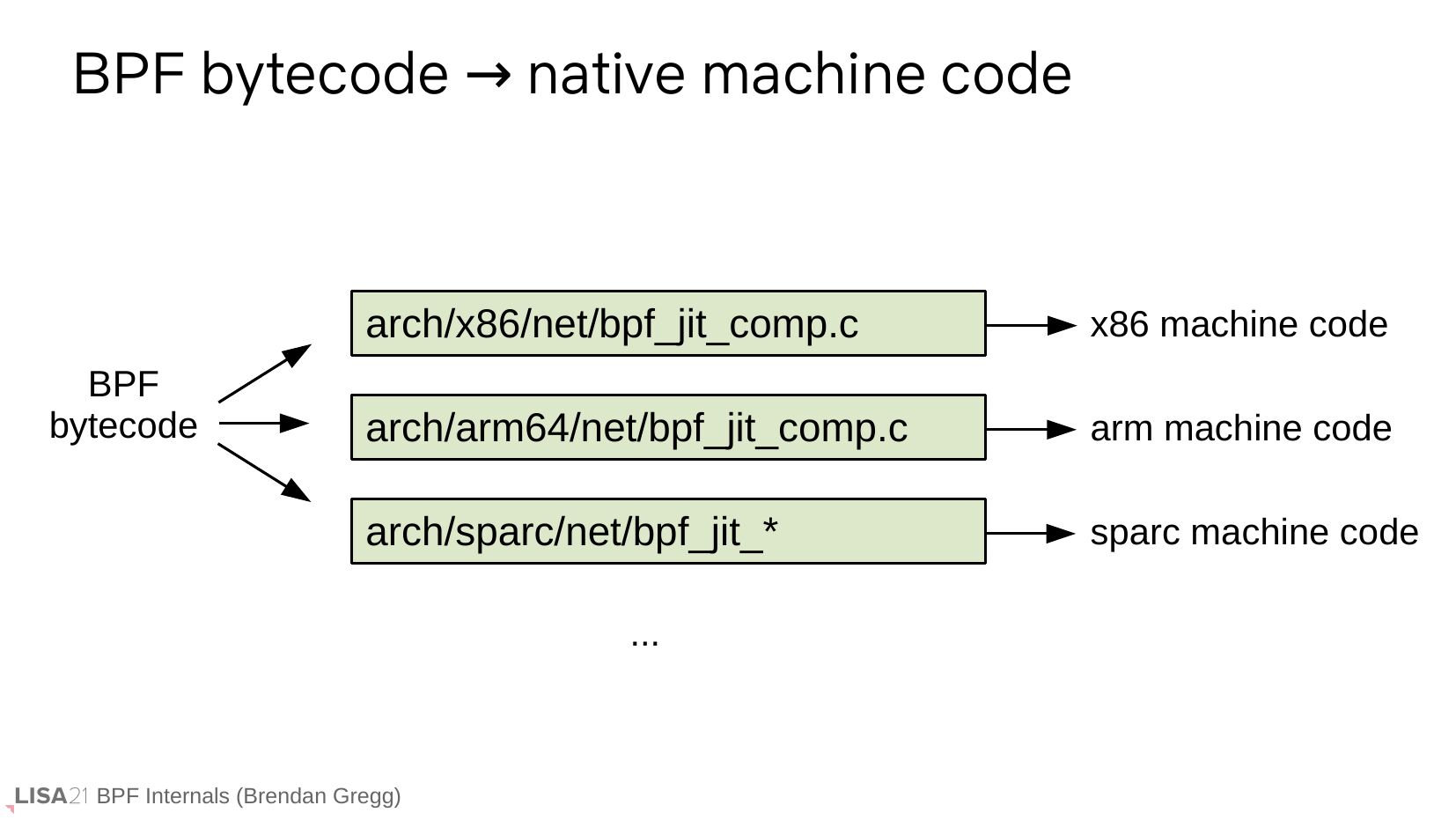

BPF bytecode → native machine code
BPF
bytecode
arch/x86/net/bpf_jit_comp.c
x86 machine code
arch/arm64/net/bpf_jit_comp.c
arm machine code
arch/sparc/net/bpf_jit_*
sparc machine code
BPF Internals (Brendan Gregg)

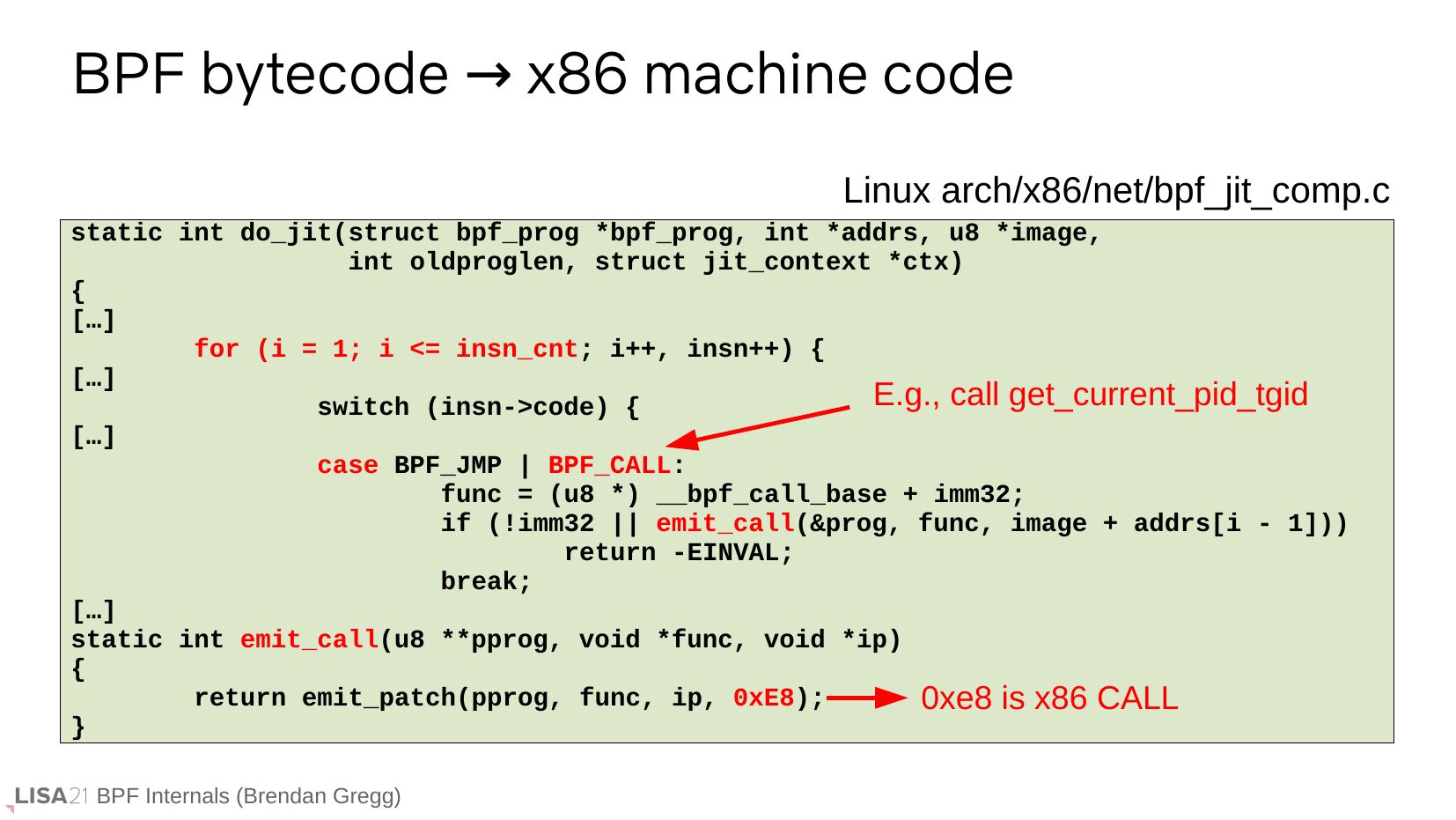

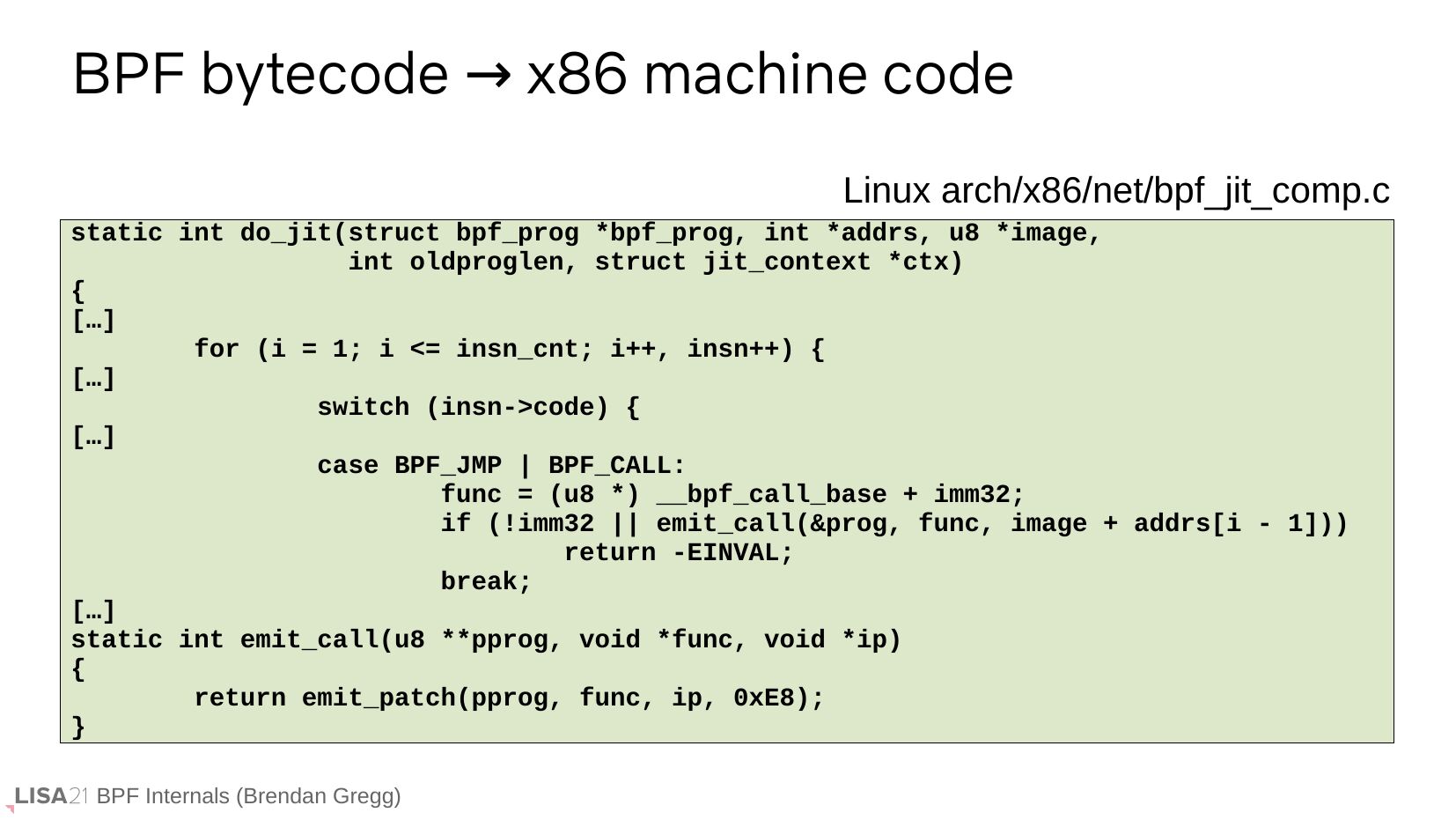

BPF bytecode → x86 machine code
Linux arch/x86/net/bpf_jit_comp.c
static int do_jit(struct bpf_prog *bpf_prog, int *addrs, u8 *image,
int oldproglen, struct jit_context *ctx)
[…]
If ... for (i = 1; i gt;code) {
[…]
case BPF_JMP | BPF_CALL:
func = (u8 *) __bpf_call_base + imm32;
if (!imm32 || emit_call(&prog, func, image + addrs[i - 1]))
return -EINVAL;
break;
[…]
static int emit_call(u8 **pprog, void *func, void *ip)
return emit_patch(pprog, func, ip, 0xE8);
BPF Internals (Brendan Gregg)

BPF bytecode → x86 machine code
Linux arch/x86/net/bpf_jit_comp.c
static int do_jit(struct bpf_prog *bpf_prog, int *addrs, u8 *image,
int oldproglen, struct jit_context *ctx)
[…]
If ... for (i = 1; i gt;code) {
[…]
case BPF_JMP | BPF_CALL:
func = (u8 *) __bpf_call_base + imm32;
if (!imm32 || emit_call(&prog, func, image + addrs[i - 1]))
return -EINVAL;
break;
[…]
static int emit_call(u8 **pprog, void *func, void *ip)
return emit_patch(pprog, func, ip, 0xE8);
0xe8 is x86 CALL
BPF Internals (Brendan Gregg)

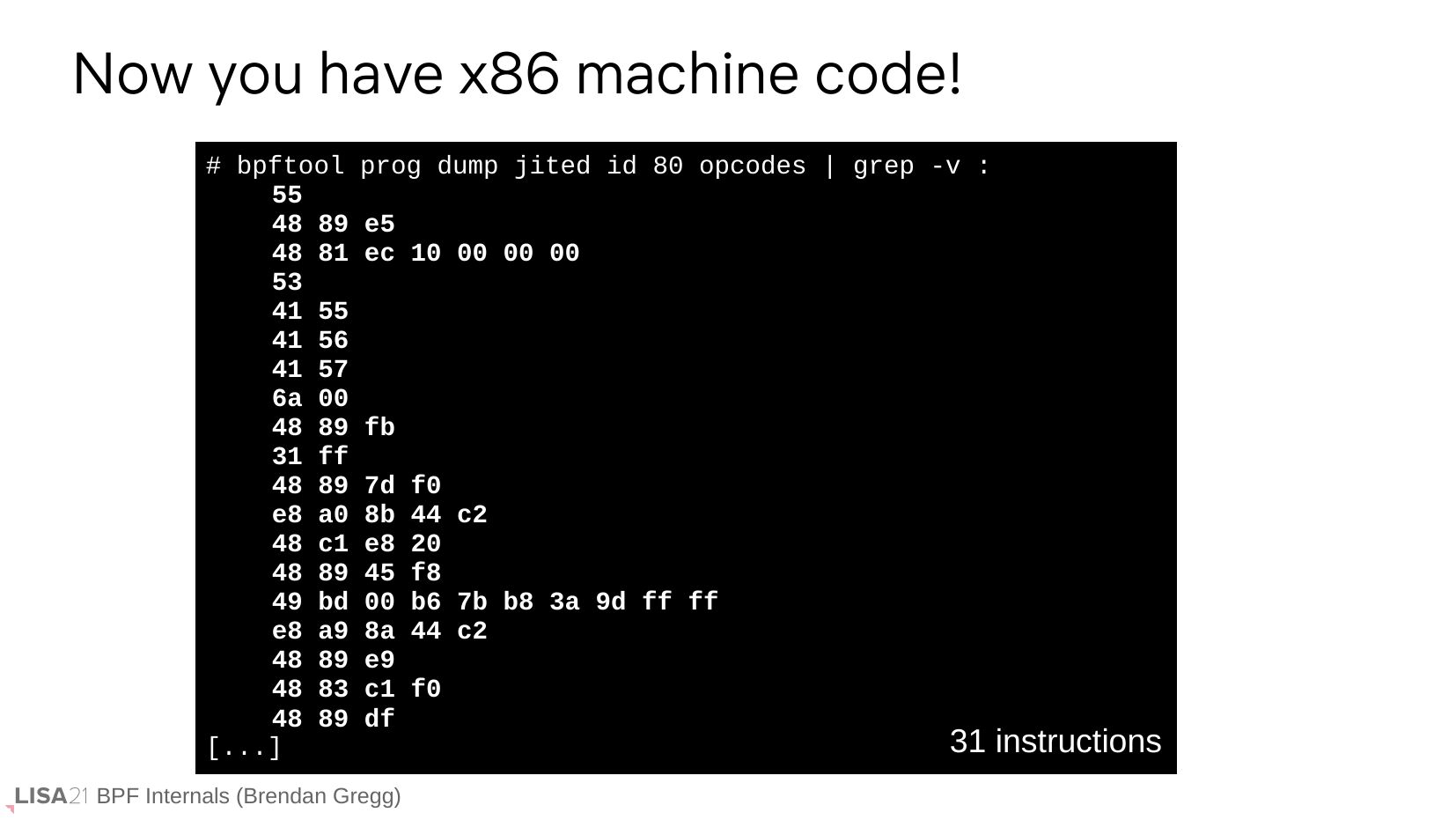

Now you have x86 machine code!
# bpftool prog dump jited id 80 opcodes | grep -v :
48 89 e5
48 81 ec 10 00 00 00
41 55
41 56
41 57
6a 00
48 89 fb
31 ff
48 89 7d f0
e8 a0 8b 44 c2
48 c1 e8 20
48 89 45 f8
49 bd 00 b6 7b b8 3a 9d ff ff
e8 a9 8a 44 c2
48 89 e9
48 83 c1 f0
48 89 df
31 instructions
[...]
BPF Internals (Brendan Gregg)

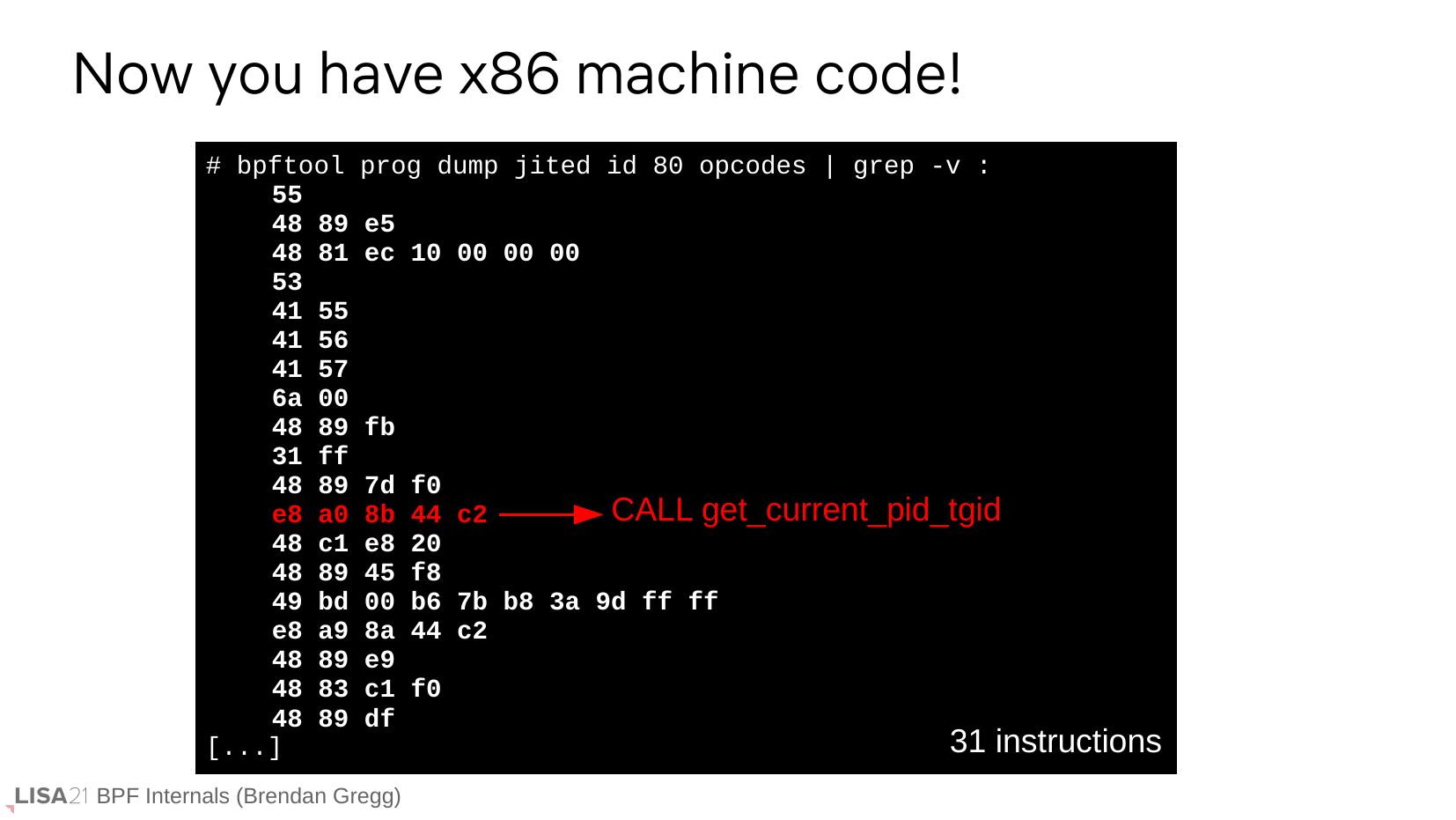

Now you have x86 machine code!
# bpftool prog dump jited id 80 opcodes | grep -v :
48 89 e5
48 81 ec 10 00 00 00
41 55
41 56
41 57
6a 00
48 89 fb
31 ff
48 89 7d f0
CALL get_current_pid_tgid
e8 a0 8b 44 c2
48 c1 e8 20
48 89 45 f8
49 bd 00 b6 7b b8 3a 9d ff ff
e8 a9 8a 44 c2
48 89 e9
48 83 c1 f0
48 89 df
31 instructions
[...]
BPF Internals (Brendan Gregg)

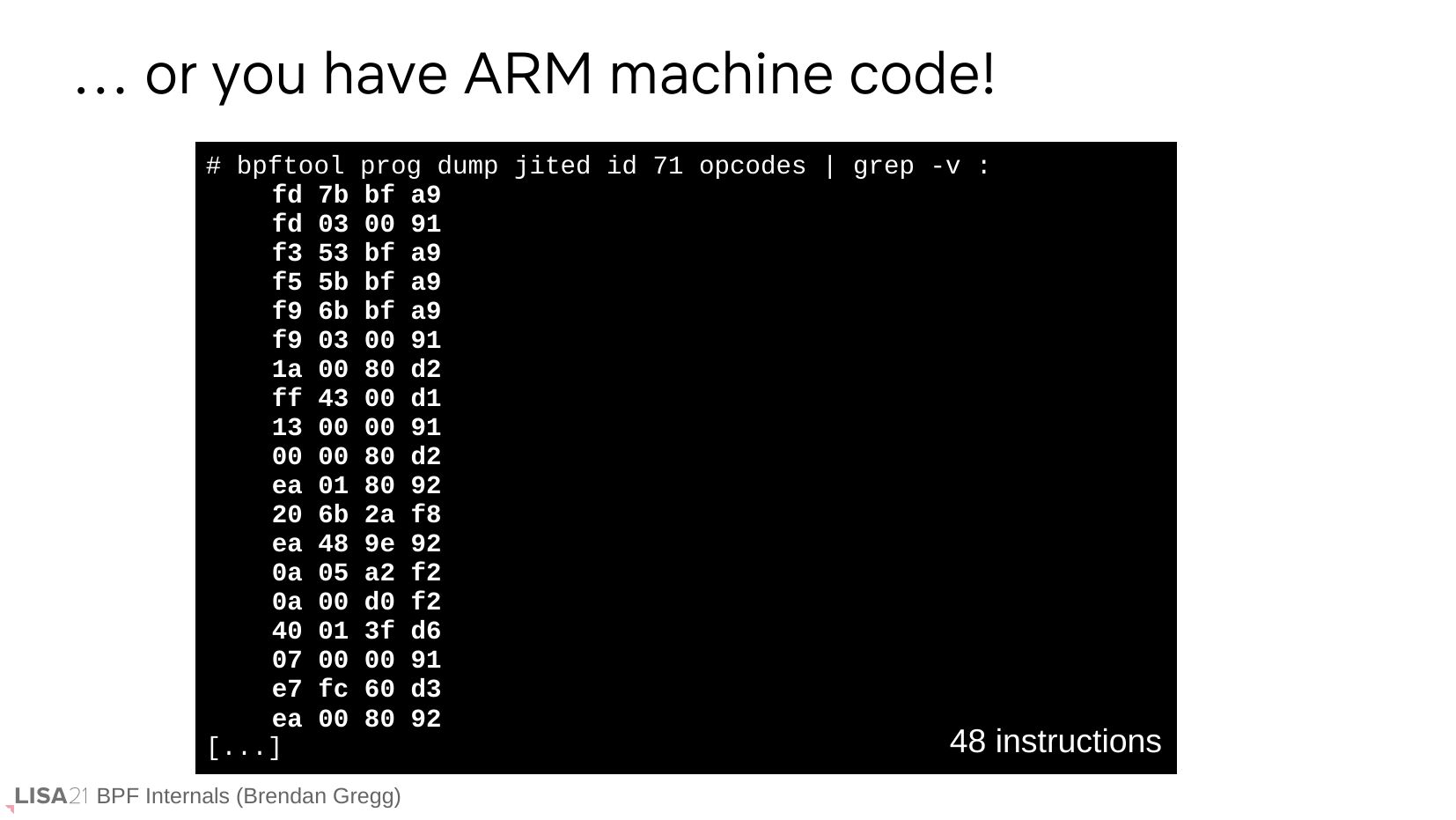

… or you have ARM machine code!
# bpftool prog dump jited id 71 opcodes | grep -v :
fd 7b bf a9
fd 03 00 91
f3 53 bf a9
f5 5b bf a9
f9 6b bf a9
f9 03 00 91
1a 00 80 d2
ff 43 00 d1
13 00 00 91
00 00 80 d2
ea 01 80 92
20 6b 2a f8
ea 48 9e 92
0a 05 a2 f2
0a 00 d0 f2
40 01 3f d6
07 00 00 91
e7 fc 60 d3
ea 00 80 92
48 instructions
[...]
BPF Internals (Brendan Gregg)

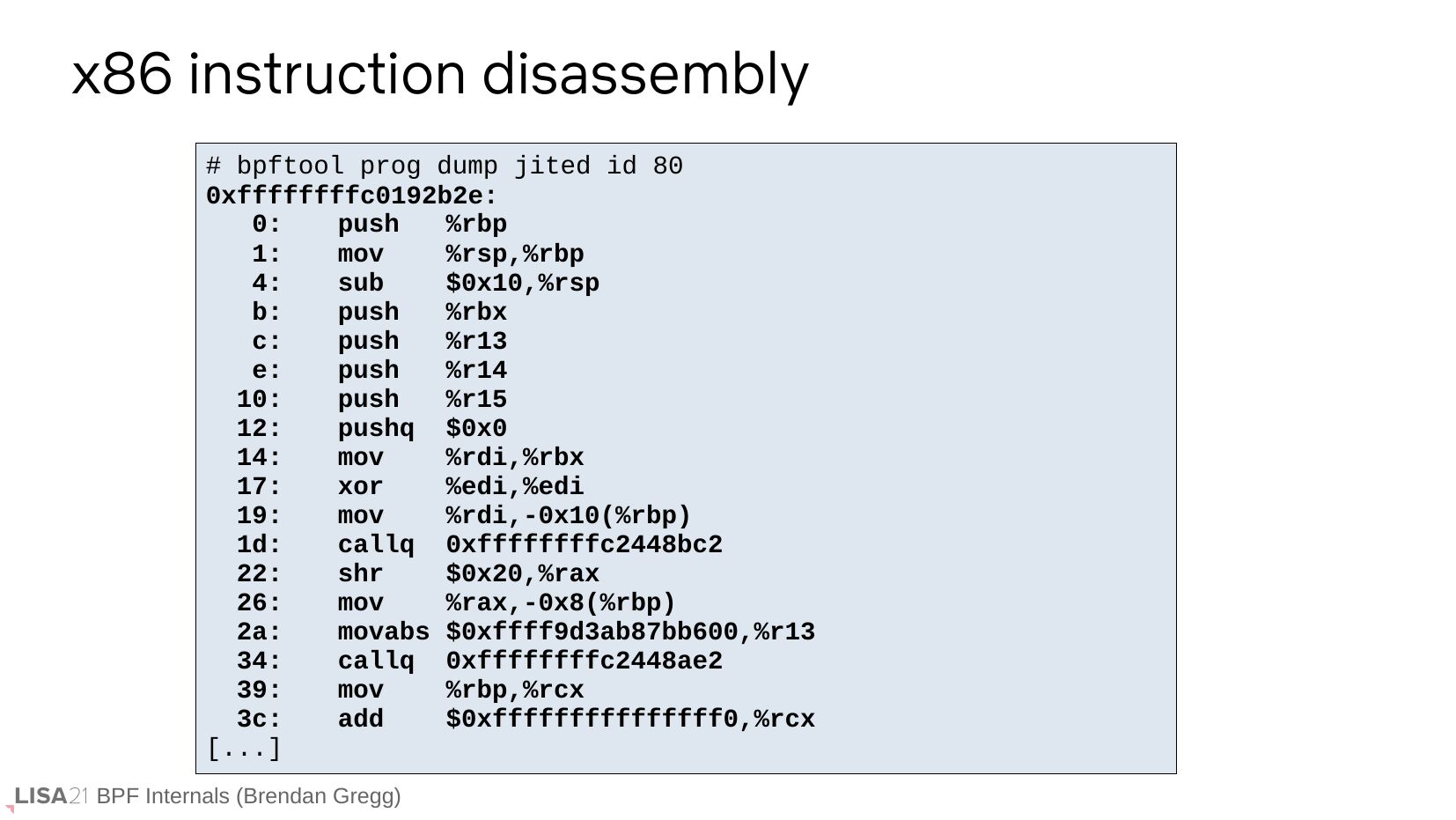

x86 instruction disassembly
# bpftool prog dump jited id 80
0xffffffffc0192b2e:
push
%rbp
mov
%rsp,%rbp
sub
$0x10,%rsp
push
%rbx
push
%r13
push
%r14
10:
push
%r15
12:
pushq $0x0
14:
mov
%rdi,%rbx
17:
xor
%edi,%edi
19:
mov
%rdi,-0x10(%rbp)
1d:
callq 0xffffffffc2448bc2
22:
shr
$0x20,%rax
26:
mov
%rax,-0x8(%rbp)
2a:
movabs $0xffff9d3ab87bb600,%r13
34:
callq 0xffffffffc2448ae2
39:
mov
%rbp,%rcx
3c:
add
$0xfffffffffffffff0,%rcx
[...]
BPF Internals (Brendan Gregg)

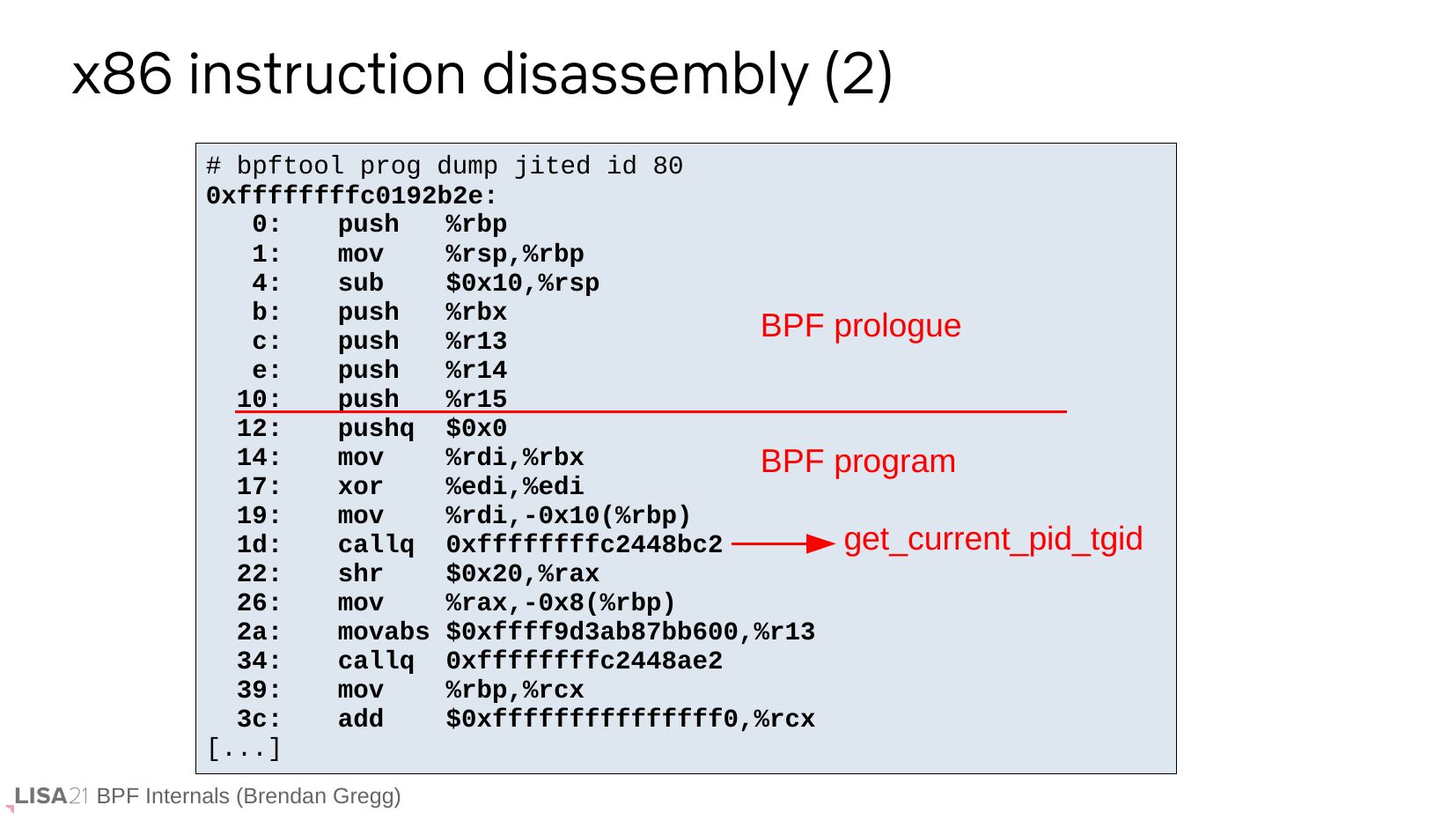

x86 instruction disassembly (2)
# bpftool prog dump jited id 80
0xffffffffc0192b2e:
push
%rbp
mov
%rsp,%rbp
sub
$0x10,%rsp
push
%rbx
BPF prologue
push
%r13
push
%r14
10:
push
%r15
12:
pushq $0x0
14:
mov
%rdi,%rbx
BPF program
17:
xor
%edi,%edi
19:
mov
%rdi,-0x10(%rbp)
get_current_pid_tgid
1d:
callq 0xffffffffc2448bc2
22:
shr
$0x20,%rax
26:
mov
%rax,-0x8(%rbp)
2a:
movabs $0xffff9d3ab87bb600,%r13
34:
callq 0xffffffffc2448ae2
39:
mov
%rbp,%rcx
3c:
add
$0xfffffffffffffff0,%rcx
[...]
BPF Internals (Brendan Gregg)

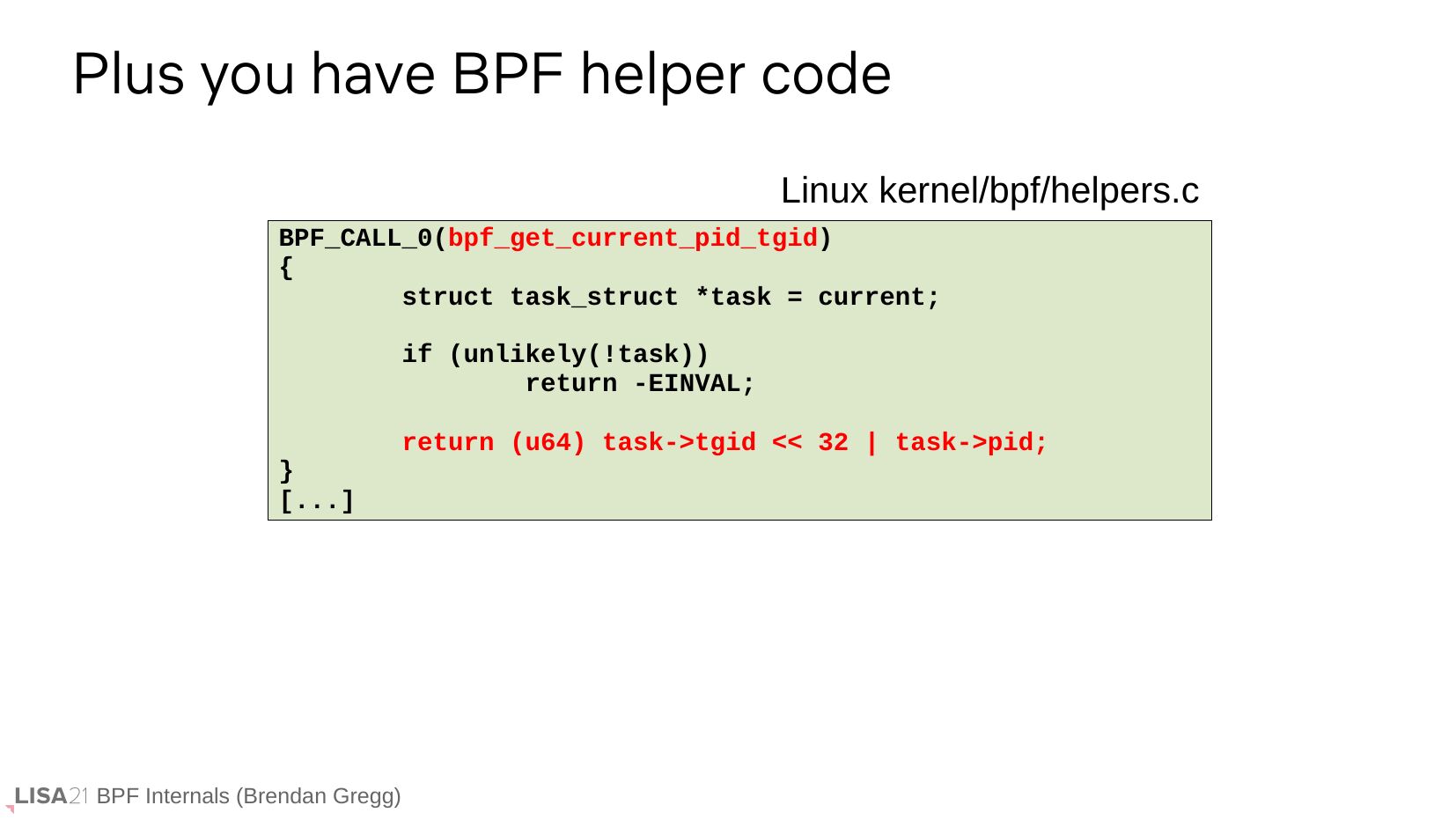

Plus you have BPF helper code
Linux kernel/bpf/helpers.c
BPF_CALL_0(bpf_get_current_pid_tgid)
struct task_struct *task = current;
if (unlikely(!task))
return -EINVAL;
[...]
BPF Internals (Brendan Gregg)
return (u64) task->gt;tgid gt;pid;

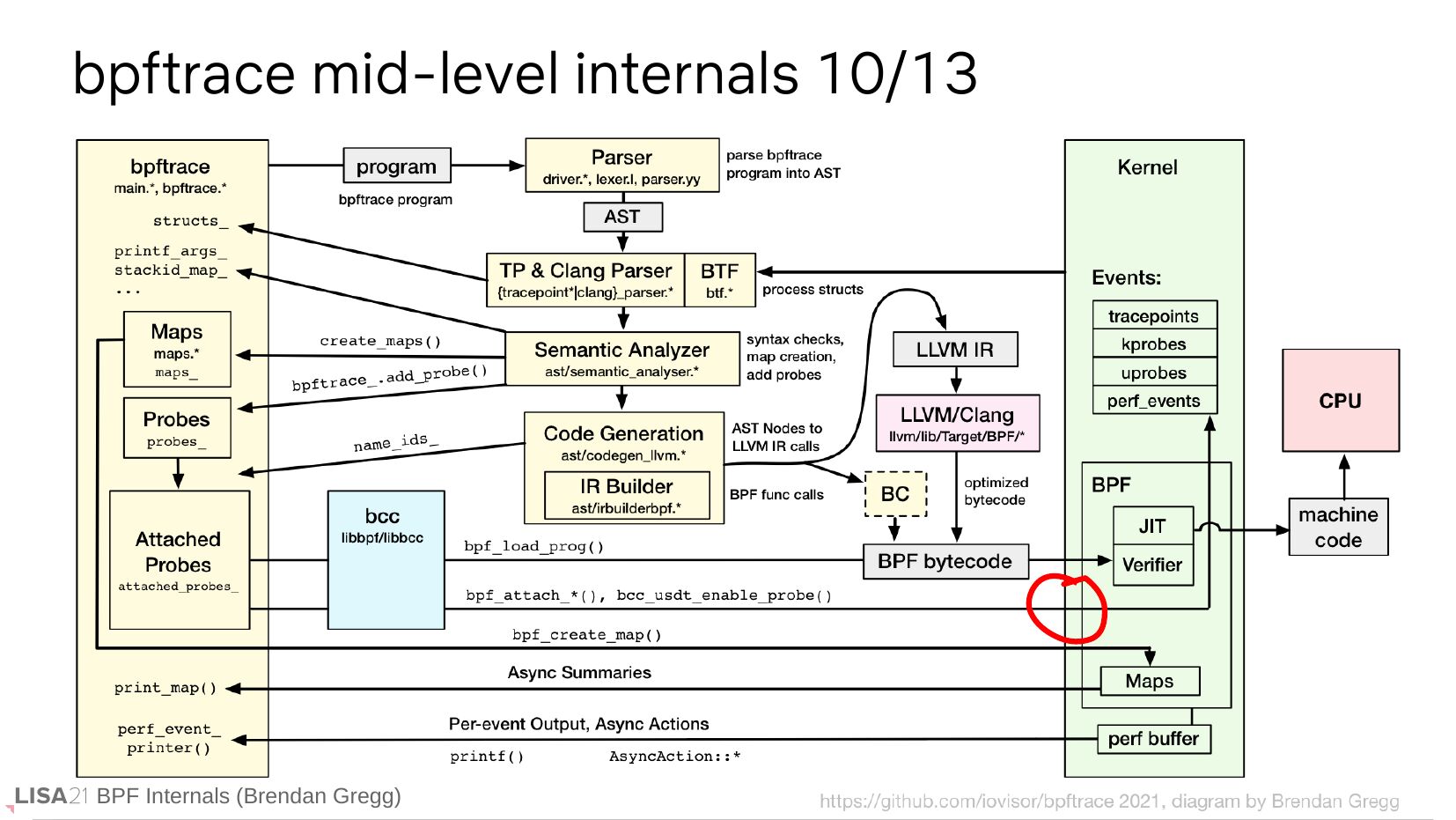

bpftrace mid-level internals 10/13
BPF Internals (Brendan Gregg)

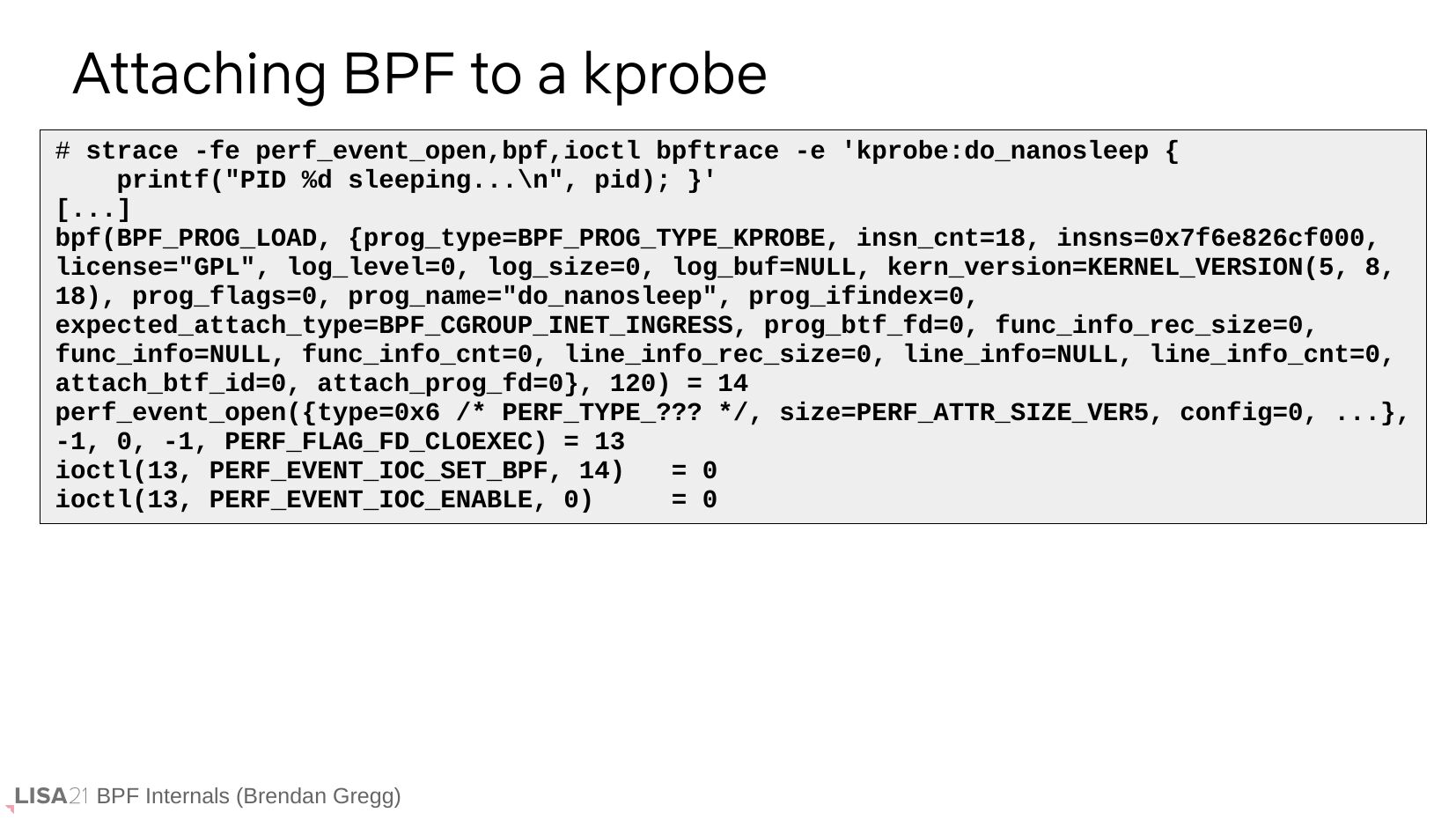

Attaching BPF to a kprobe
# strace -fe perf_event_open,bpf,ioctl bpftrace -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid); }'
[...]
bpf(BPF_PROG_LOAD, {prog_type=BPF_PROG_TYPE_KPROBE, insn_cnt=18, insns=0x7f6e826cf000,
license="GPL", log_level=0, log_size=0, log_buf=NULL, kern_version=KERNEL_VERSION(5, 8,
18), prog_flags=0, prog_name="do_nanosleep", prog_ifindex=0,
expected_attach_type=BPF_CGROUP_INET_INGRESS, prog_btf_fd=0, func_info_rec_size=0,
func_info=NULL, func_info_cnt=0, line_info_rec_size=0, line_info=NULL, line_info_cnt=0,
attach_btf_id=0, attach_prog_fd=0}, 120) = 14
perf_event_open({type=0x6 /* PERF_TYPE_??? */, size=PERF_ATTR_SIZE_VER5, config=0, ...},
-1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 13
ioctl(13, PERF_EVENT_IOC_SET_BPF, 14)
= 0
ioctl(13, PERF_EVENT_IOC_ENABLE, 0)
= 0
BPF Internals (Brendan Gregg)

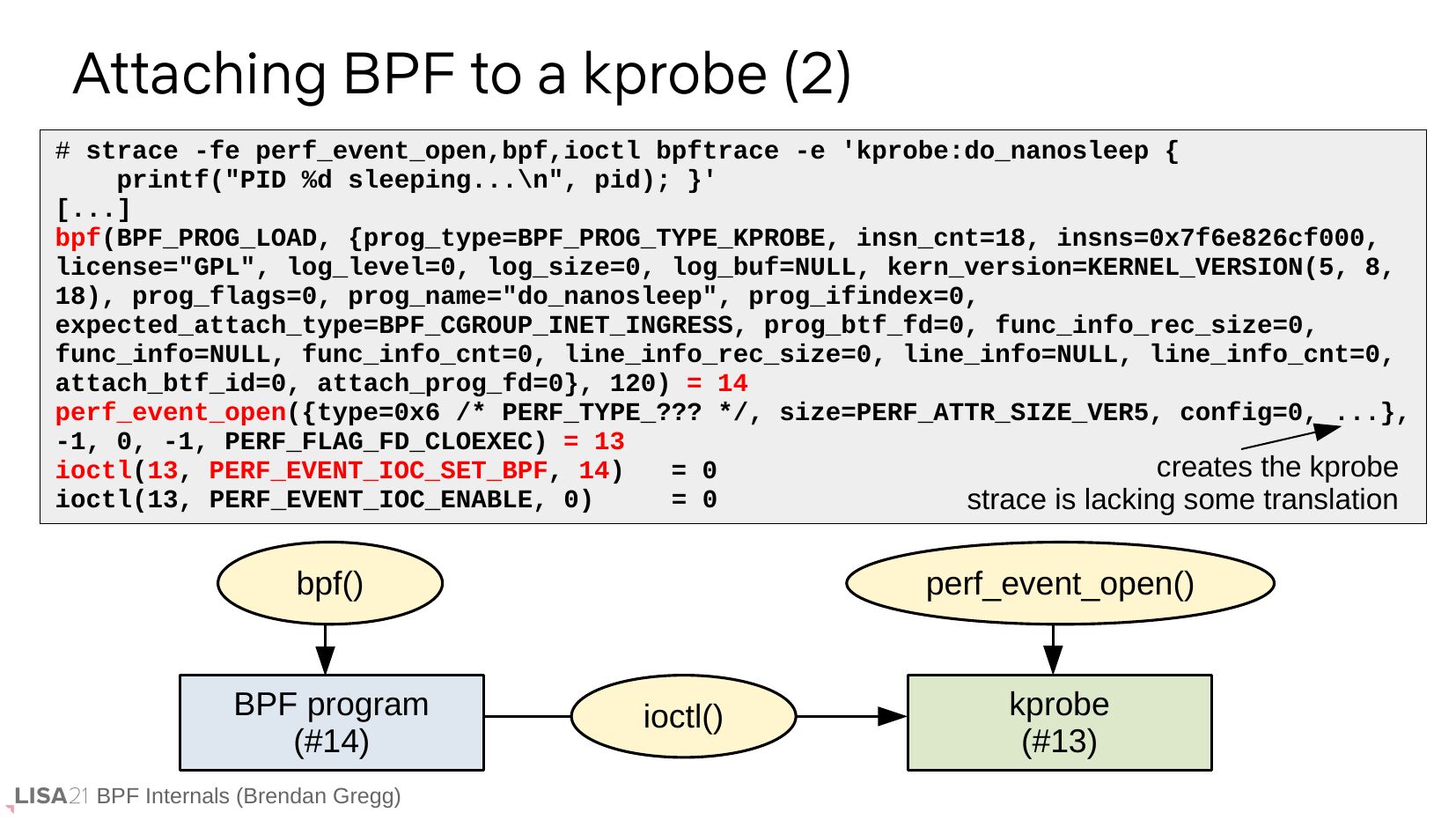

Attaching BPF to a kprobe (2)
# strace -fe perf_event_open,bpf,ioctl bpftrace -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid); }'
[...]
bpf(BPF_PROG_LOAD, {prog_type=BPF_PROG_TYPE_KPROBE, insn_cnt=18, insns=0x7f6e826cf000,
license="GPL", log_level=0, log_size=0, log_buf=NULL, kern_version=KERNEL_VERSION(5, 8,
18), prog_flags=0, prog_name="do_nanosleep", prog_ifindex=0,
expected_attach_type=BPF_CGROUP_INET_INGRESS, prog_btf_fd=0, func_info_rec_size=0,
func_info=NULL, func_info_cnt=0, line_info_rec_size=0, line_info=NULL, line_info_cnt=0,
attach_btf_id=0, attach_prog_fd=0}, 120) = 14
perf_event_open({type=0x6 /* PERF_TYPE_??? */, size=PERF_ATTR_SIZE_VER5, config=0, ...},
-1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 13
creates the kprobe
ioctl(13, PERF_EVENT_IOC_SET_BPF, 14)
= 0
ioctl(13, PERF_EVENT_IOC_ENABLE, 0)
= 0
strace is lacking some translation
bpf()
BPF program
(#14)
BPF Internals (Brendan Gregg)
perf_event_open()
ioctl()
kprobe
(#13)

bpftrace mid-level internals 11/13
BPF Internals (Brendan Gregg)

kprobes
How do we instrument this?
Linux kernel/time/hrtimer.c
static int __sched do_nanosleep(struct hrtimer_sleeper *t, enum hrtimer_mode mode)
If ... struct restart_block *restart;
do {
[...]
set_current_state(TASK_INTERRUPTIBLE);
hrtimer_sleeper_start_expires(t, mode);
if (likely(t->gt;task))
BPF Internals (Brendan Gregg)
(it’s actually quite easy)

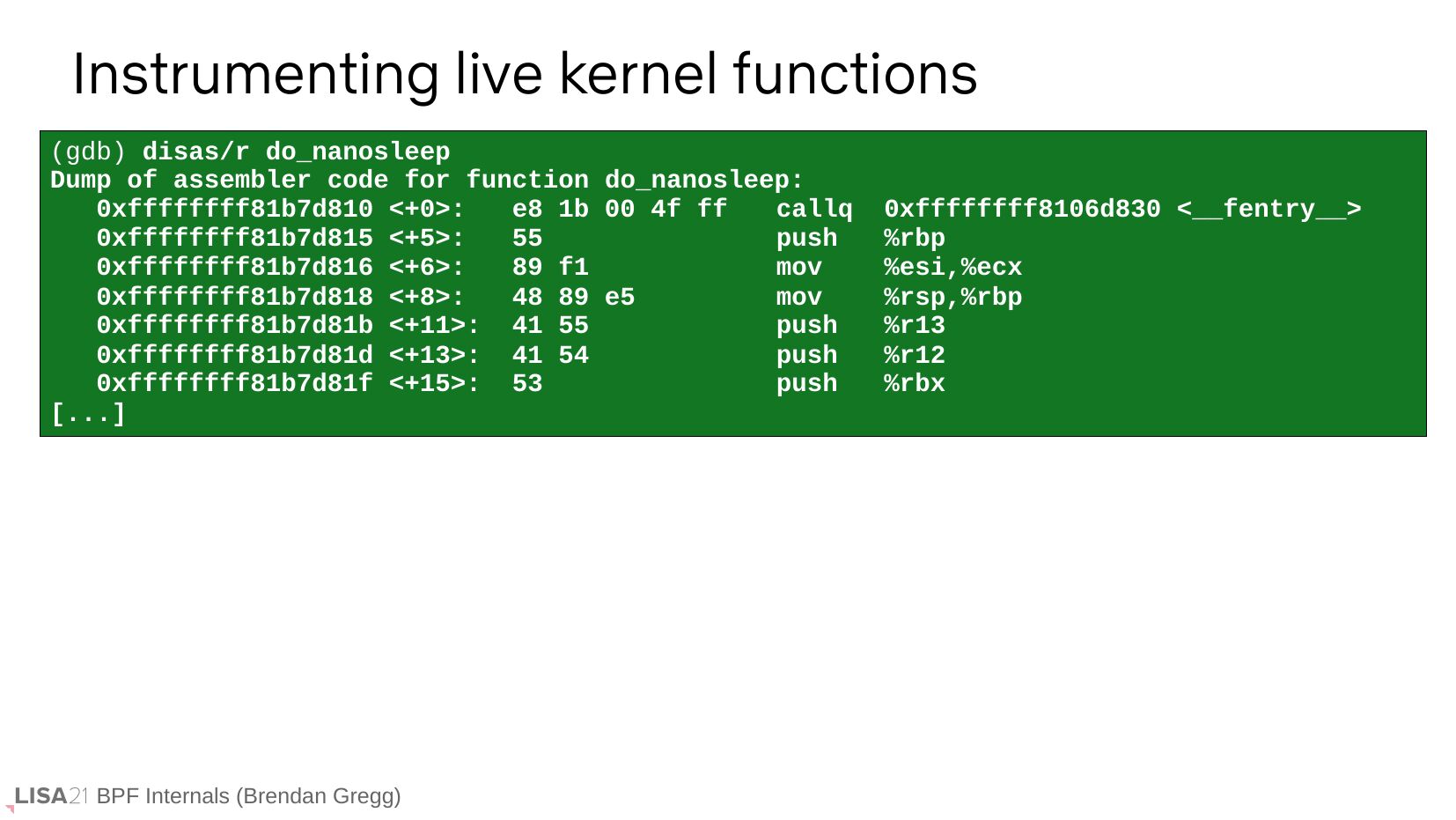

Instrumenting live kernel functions
(gdb) disas/r do_nanosleep
Dump of assembler code for function do_nanosleep:
0xffffffff81b7d810 gt;:
e8 1b 00 4f ff
callq
0xffffffff81b7d815 gt;:
push
0xffffffff81b7d816 gt;:
89 f1
mov
0xffffffff81b7d818 gt;:
48 89 e5
mov
0xffffffff81b7d81b gt;: 41 55
push
0xffffffff81b7d81d gt;: 41 54
push
0xffffffff81b7d81f gt;: 53
push
[...]
BPF Internals (Brendan Gregg)
0xffffffff8106d830 gt;
%rbp
%esi,%ecx
%rsp,%rbp
%r13
%r12
%rbx

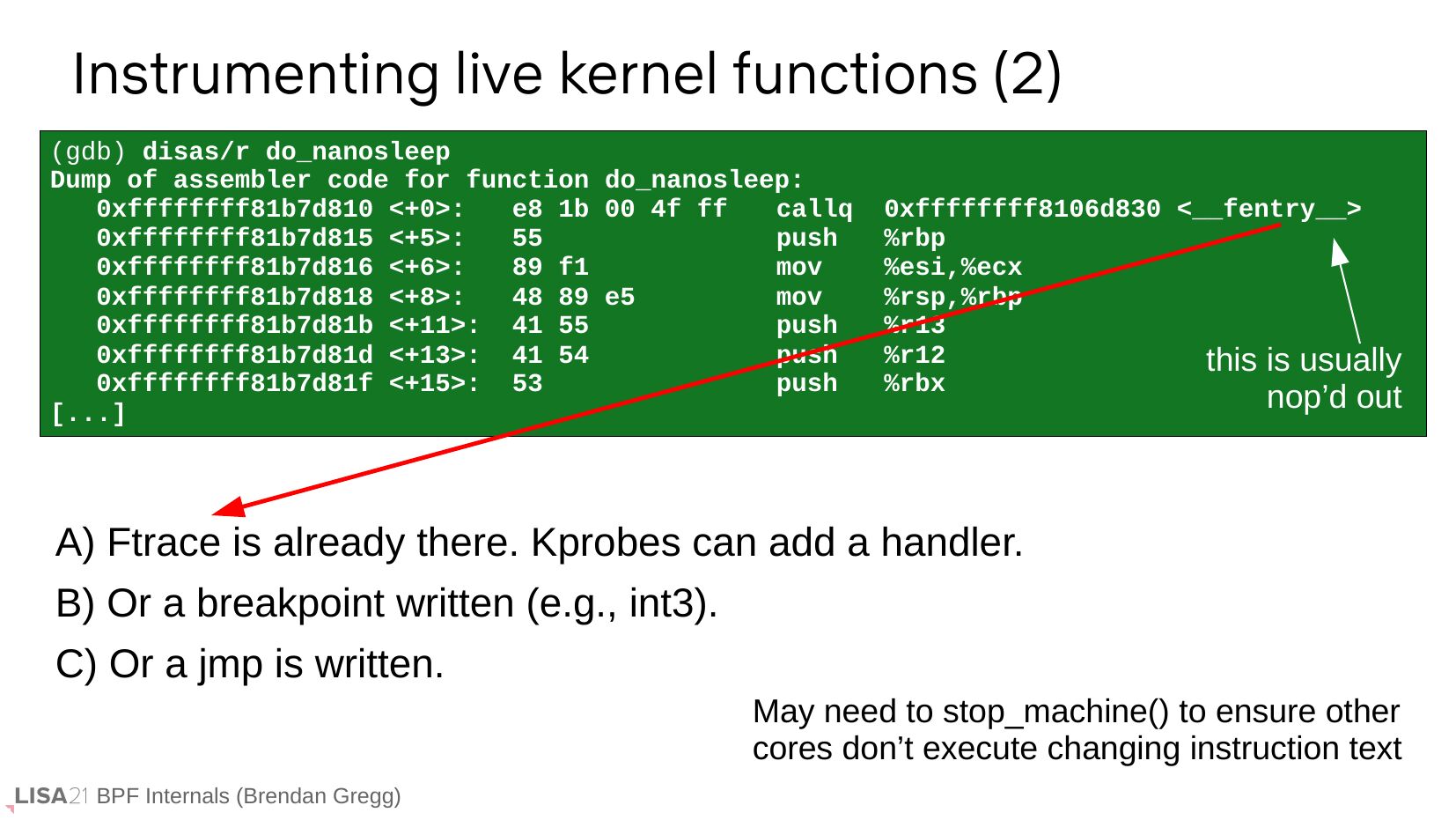

Instrumenting live kernel functions (2)
(gdb) disas/r do_nanosleep
Dump of assembler code for function do_nanosleep:
0xffffffff81b7d810 gt;:
e8 1b 00 4f ff
callq
0xffffffff81b7d815 gt;:
push
0xffffffff81b7d816 gt;:
89 f1
mov
0xffffffff81b7d818 gt;:
48 89 e5
mov
0xffffffff81b7d81b gt;: 41 55
push
0xffffffff81b7d81d gt;: 41 54
push
0xffffffff81b7d81f gt;: 53
push
[...]
0xffffffff8106d830 gt;
%rbp
%esi,%ecx
%rsp,%rbp
%r13
%r12
this is usually
%rbx
nop’d out
A) Ftrace is already there. Kprobes can add a handler.
B) Or a breakpoint written (e.g., int3).
C) Or a jmp is written.
May need to stop_machine() to ensure other
cores don’t execute changing instruction text
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 12/13
BPF Internals (Brendan Gregg)

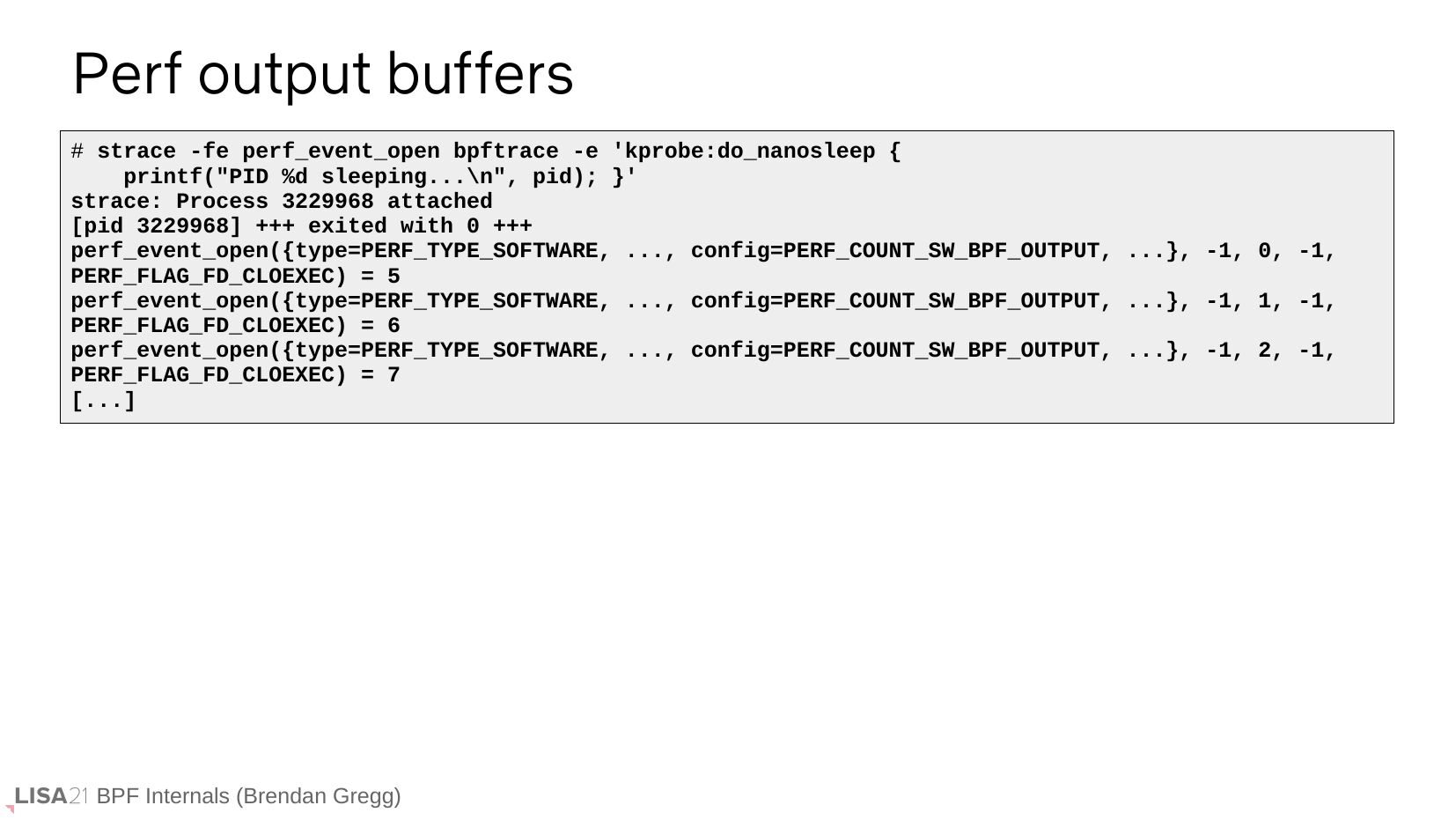

Perf output buffers
# strace -fe perf_event_open bpftrace -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid); }'
strace: Process 3229968 attached
[pid 3229968] +++ exited with 0 +++
perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 0, -1,
PERF_FLAG_FD_CLOEXEC) = 5
perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 1, -1,
PERF_FLAG_FD_CLOEXEC) = 6
perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 2, -1,
PERF_FLAG_FD_CLOEXEC) = 7
[...]
BPF Internals (Brendan Gregg)

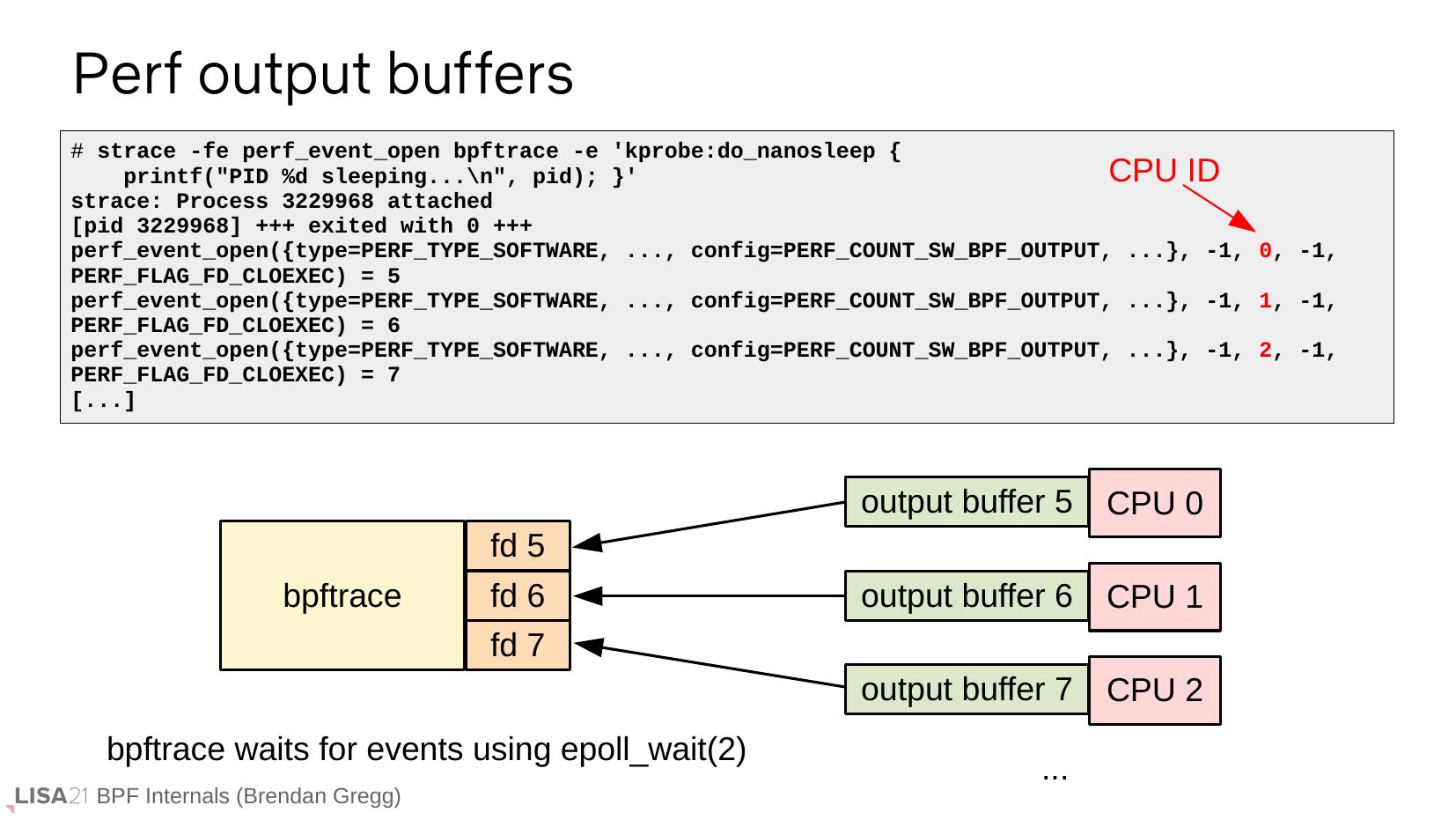

Perf output buffers
# strace -fe perf_event_open bpftrace -e 'kprobe:do_nanosleep {
CPU ID
printf("PID %d sleeping...\n", pid); }'
strace: Process 3229968 attached
[pid 3229968] +++ exited with 0 +++
perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 0, -1,
PERF_FLAG_FD_CLOEXEC) = 5
perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 1, -1,
PERF_FLAG_FD_CLOEXEC) = 6
perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 2, -1,
PERF_FLAG_FD_CLOEXEC) = 7
[...]
output buffer 5
CPU 0
output buffer 6
CPU 1
output buffer 7
CPU 2
fd 5
bpftrace
fd 6
fd 7
bpftrace waits for events using epoll_wait(2)
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 13/13
BPF Internals (Brendan Gregg)

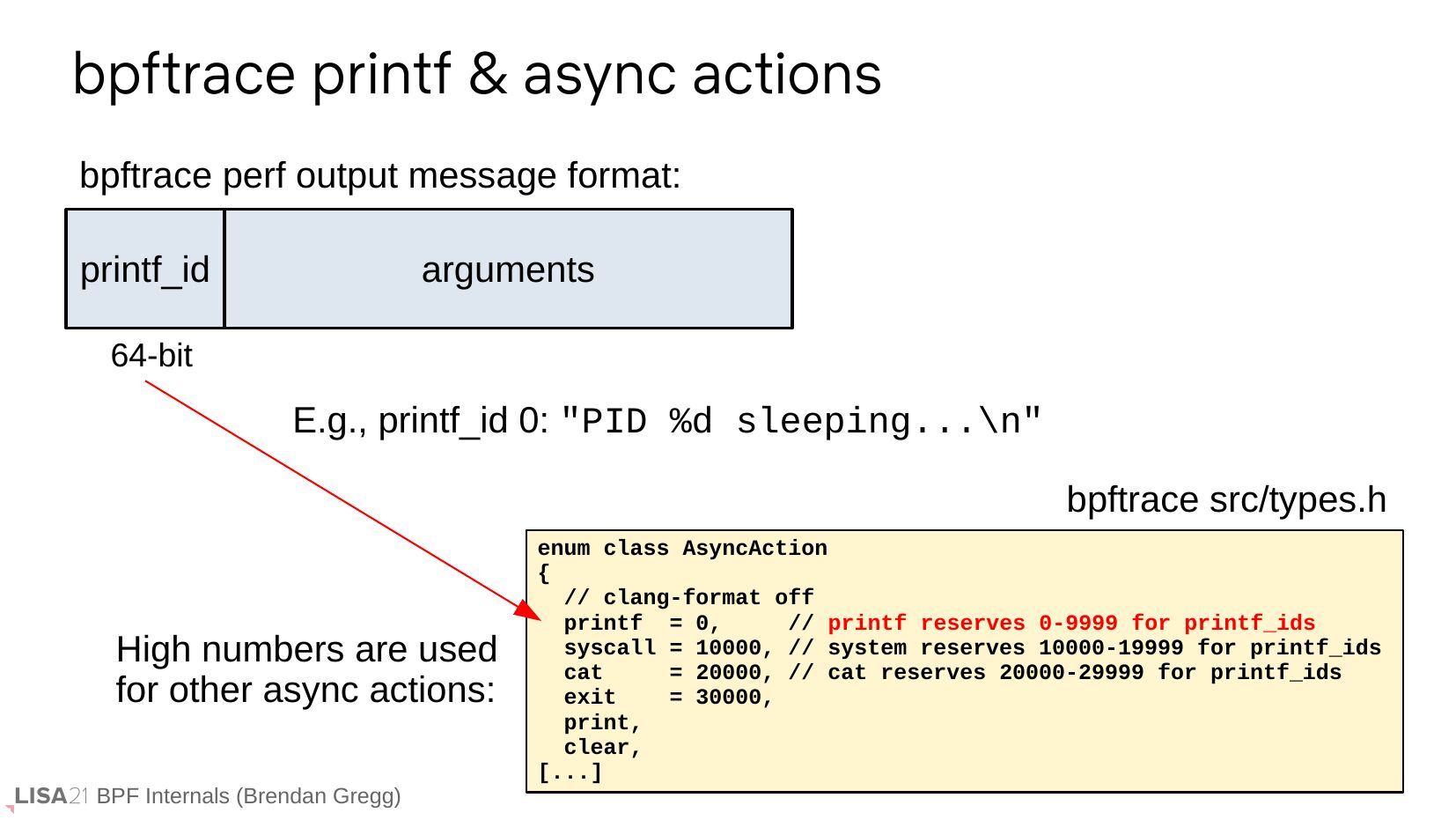

bpftrace printf & async actions
bpftrace perf output message format:
printf_id
arguments
64-bit
E.g., printf_id 0: "PID %d sleeping...\n"
bpftrace src/types.h
High numbers are used
for other async actions:
BPF Internals (Brendan Gregg)
enum class AsyncAction
// clang-format off
printf = 0,
// printf reserves 0-9999 for printf_ids
syscall = 10000, // system reserves 10000-19999 for printf_ids
cat
= 20000, // cat reserves 20000-29999 for printf_ids
exit
= 30000,
print,
clear,
[...]

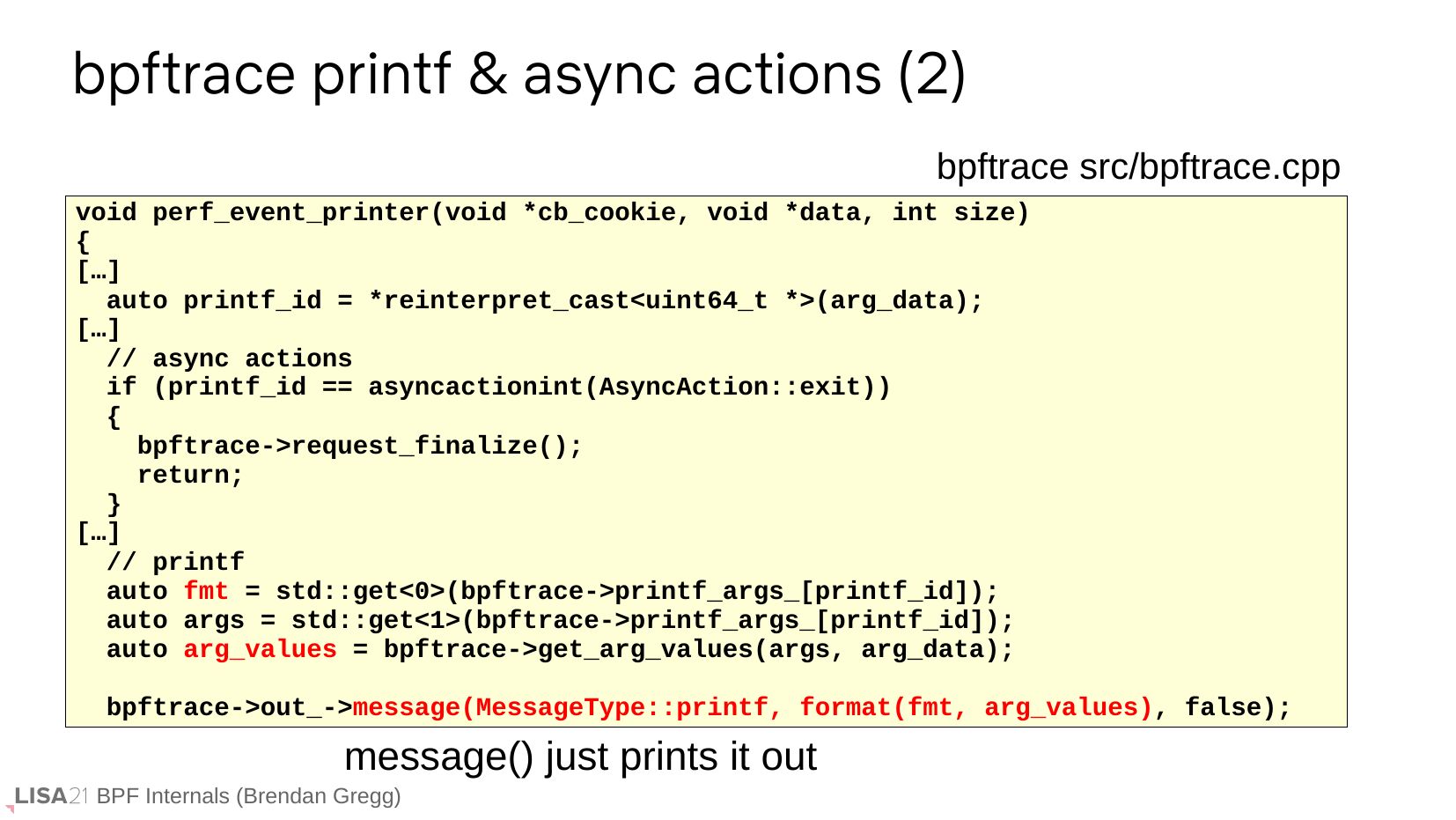

bpftrace printf & async actions (2)
bpftrace src/bpftrace.cpp
void perf_event_printer(void *cb_cookie, void *data, int size)
[…]
auto printf_id = *reinterpret_castgt;(arg_data);
[…]
// async actions
if (printf_id == asyncactionint(AsyncAction::exit))
bpftrace->gt;request_finalize();
return;
[…]
// printf
auto fmt = std::getgt;(bpftrace->gt;printf_args_[printf_id]);
auto args = std::getgt;(bpftrace->gt;printf_args_[printf_id]);
auto arg_values = bpftrace->gt;get_arg_values(args, arg_data);
bpftrace->gt;out_->gt;message(MessageType::printf, format(fmt, arg_values), false);
message() just prints it out
BPF Internals (Brendan Gregg)

Final output
# bpftrace -e 'kprobe:do_nanosleep {
printf("PID %d sleeping...\n", pid);
Attaching 1 probe...
PID 10287 sleeping...
PID 10297 sleeping...
PID 10287 sleeping…
PID 10297 sleeping...
PID 10287 sleeping...
PID 2218 sleeping...
PID 10297 sleeping...
[...]
BPF Internals (Brendan Gregg)

2. Static tracing and map summaries
BPF Internals (Brendan Gregg)

2. Static tracing and map summaries
bpftrace -e 'tracepoint:block:block_rq_issue {
@[comm] = count();
BPF Internals (Brendan Gregg)

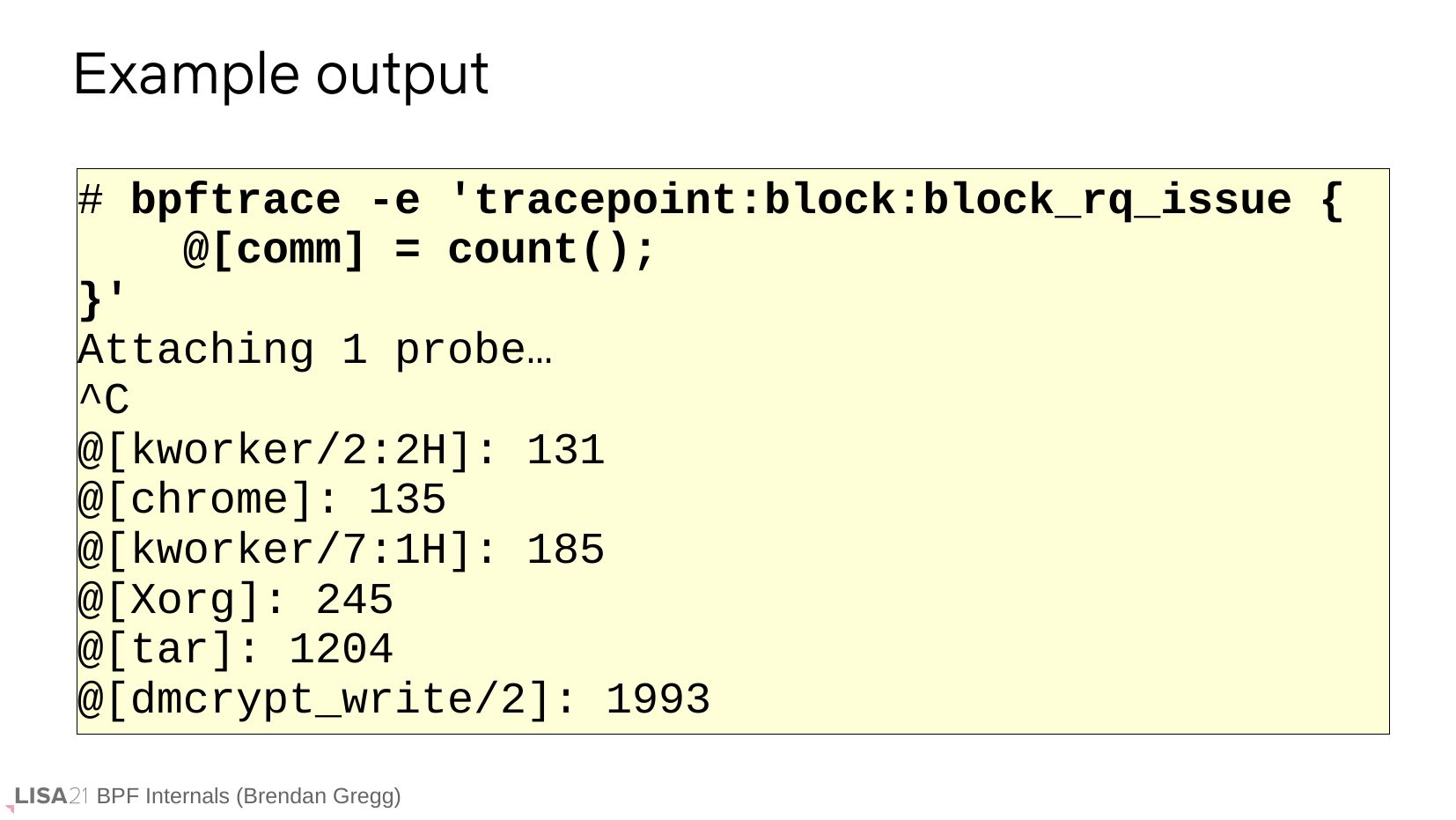

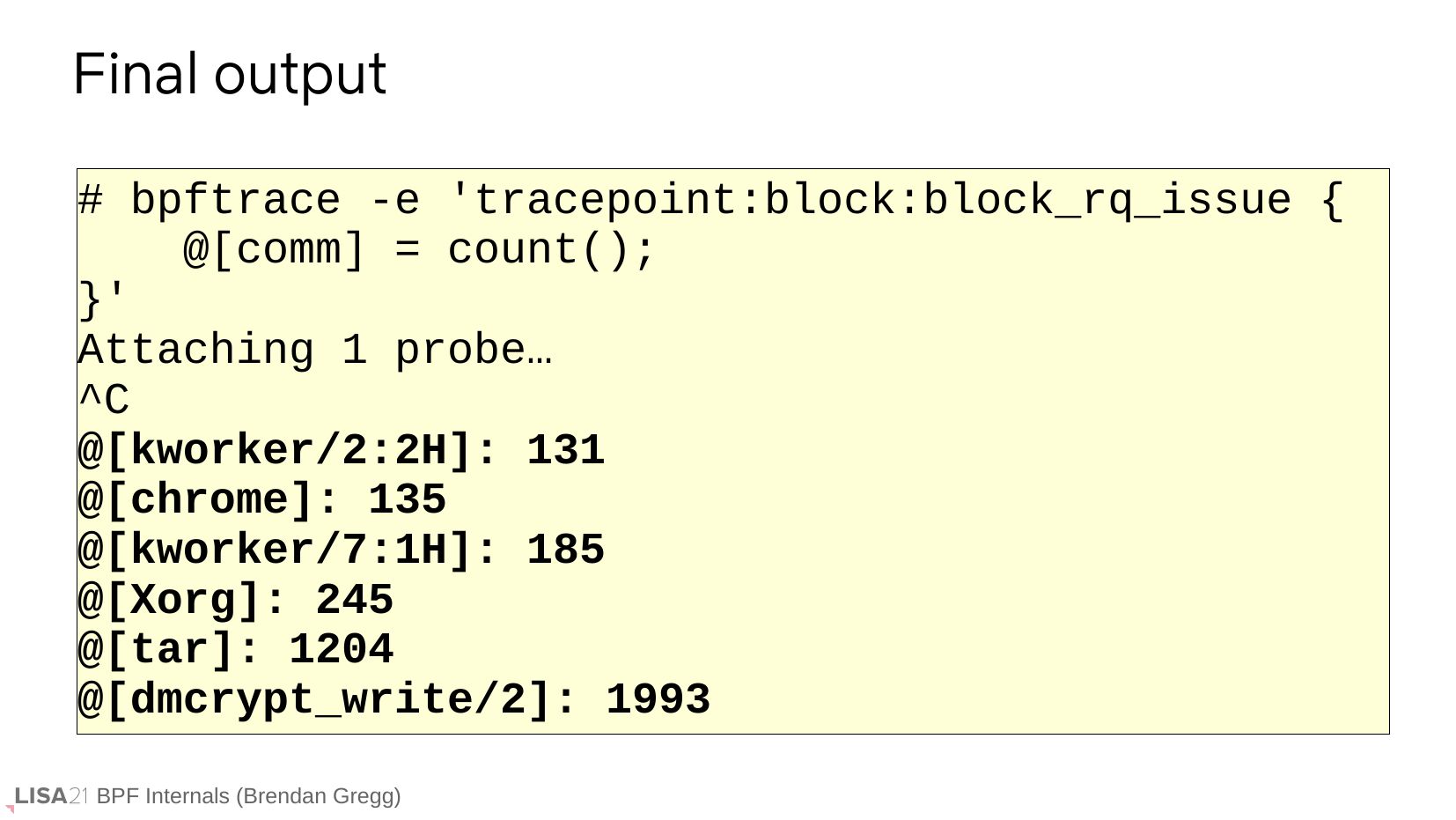

Example output
# bpftrace -e 'tracepoint:block:block_rq_issue {
@[comm] = count();
Attaching 1 probe…
@[kworker/2:2H]: 131
@[chrome]: 135
@[kworker/7:1H]: 185
@[Xorg]: 245
@[tar]: 1204
@[dmcrypt_write/2]: 1993
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 1/4
BPF Internals (Brendan Gregg)

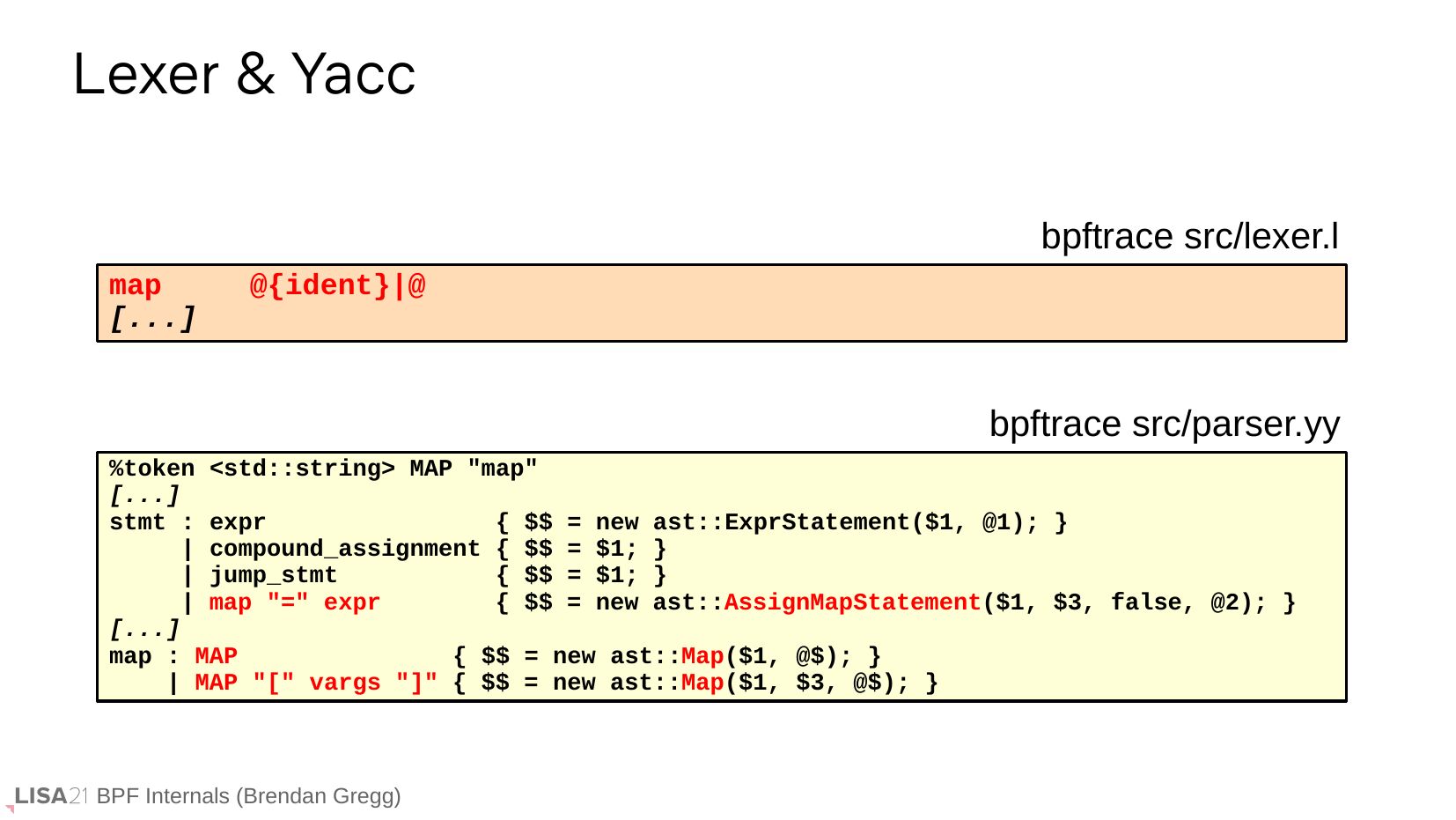

Lexer & Yacc
bpftrace src/lexer.l
map
[...]
@{ident}|@
bpftrace src/parser.yy
%token gt; MAP "map"
[...]
stmt : expr
{ $$ = new ast::ExprStatement($1, @1); }
| compound_assignment { $$ = $1; }
| jump_stmt
{ $$ = $1; }
| map "=" expr
{ $$ = new ast::AssignMapStatement($1, $3, false, @2); }
[...]
map : MAP
{ $$ = new ast::Map($1, @$); }
| MAP "[" vargs "]" { $$ = new ast::Map($1, $3, @$); }
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 2/4
BPF Internals (Brendan Gregg)

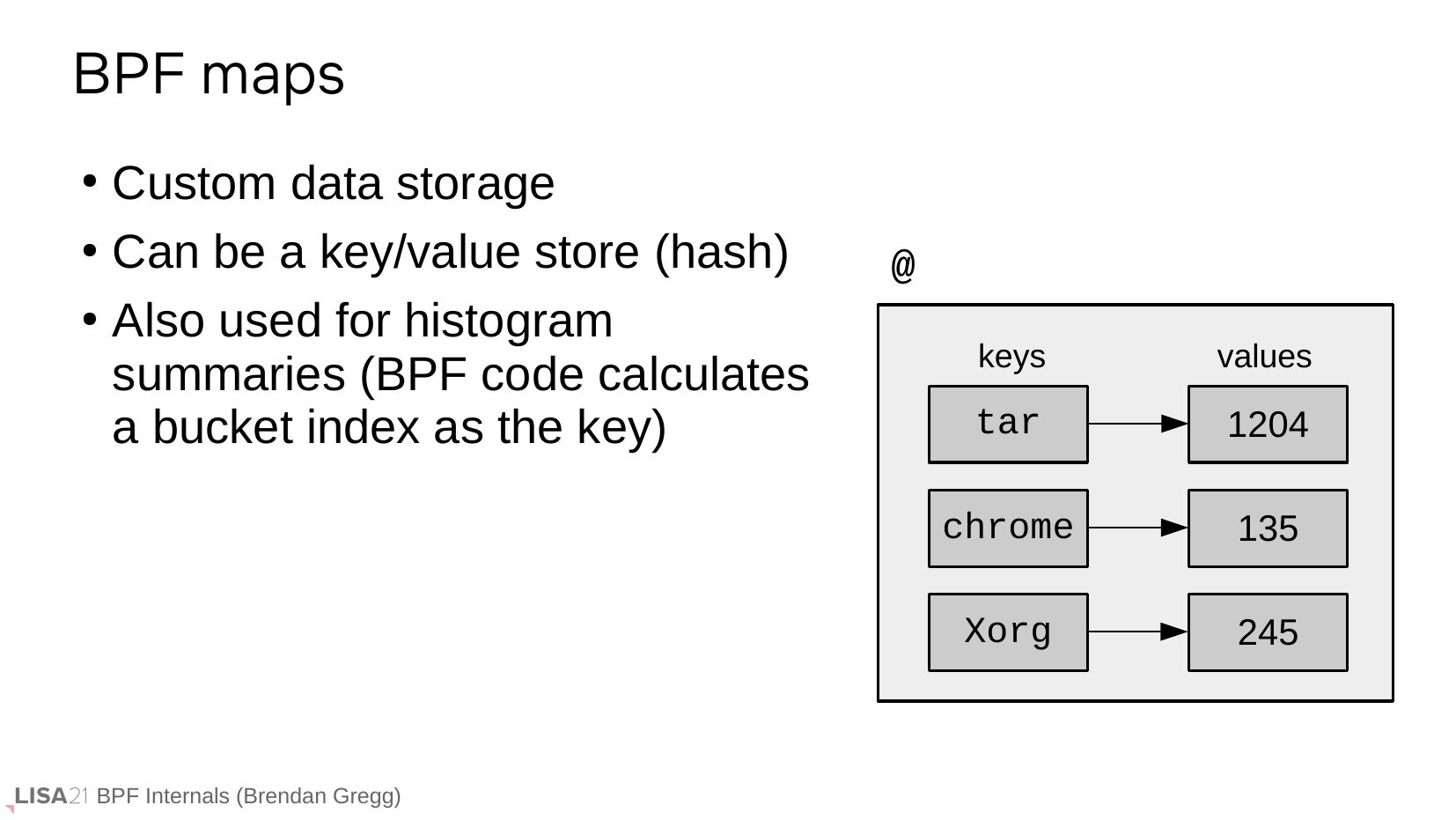

BPF maps
Custom data storage
Can be a key/value store (hash)
Also used for histogram
summaries (BPF code calculates
a bucket index as the key)
BPF Internals (Brendan Gregg)
keys
values
tar
chrome
Xorg

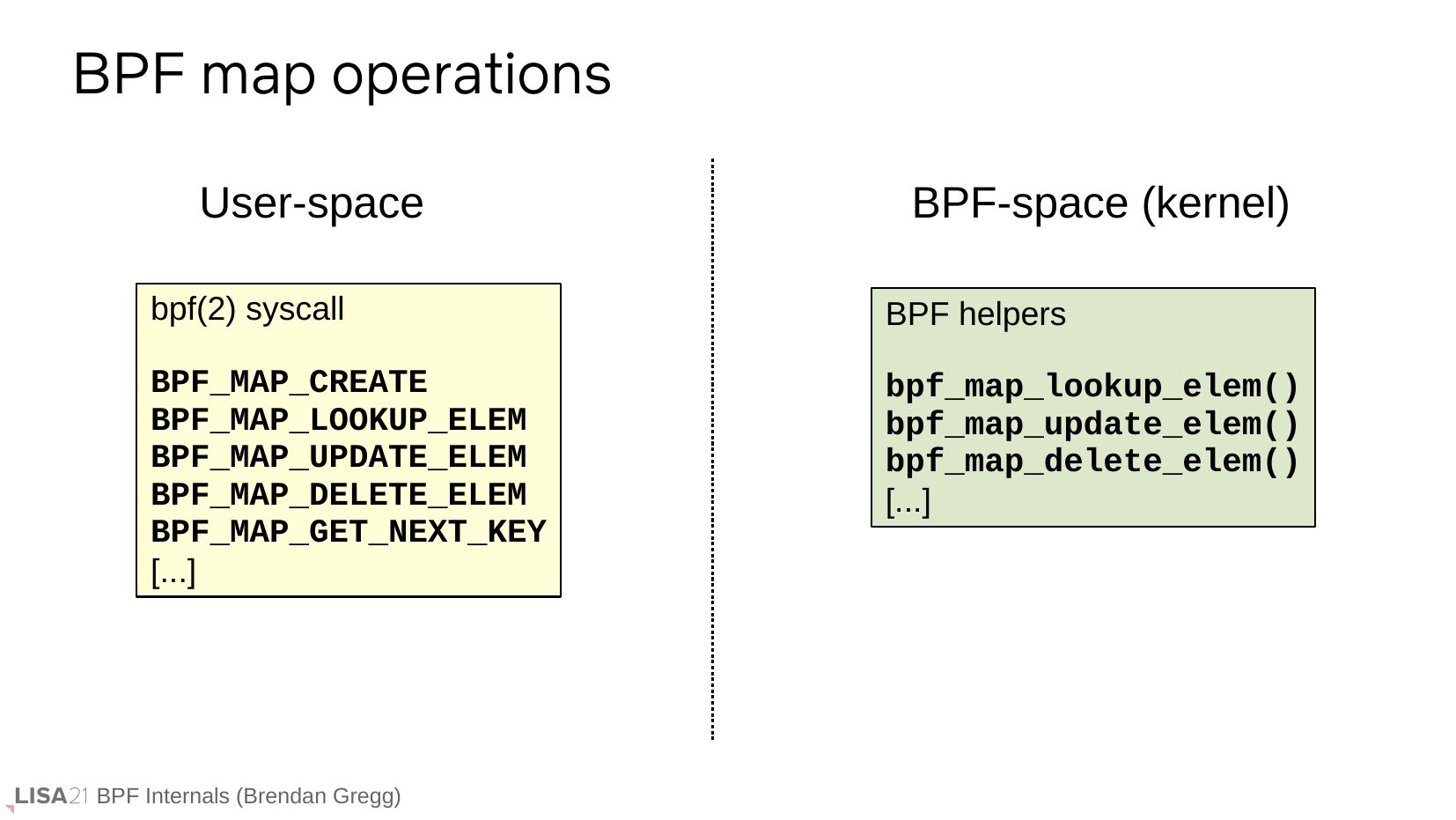

BPF map operations
User-space
BPF-space (kernel)
bpf(2) syscall
BPF helpers
BPF_MAP_CREATE
BPF_MAP_LOOKUP_ELEM
BPF_MAP_UPDATE_ELEM
BPF_MAP_DELETE_ELEM
BPF_MAP_GET_NEXT_KEY
[...]
bpf_map_lookup_elem()
bpf_map_update_elem()
bpf_map_delete_elem()
[...]
BPF Internals (Brendan Gregg)

Creating BPF maps
# strace -febpf bpftrace -e 'block:block_rq_issue {
@[comm] = count(); }'
bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_ARRAY, key_size=4, value_size=4, max_entries=1,
map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0,
btf_value_type_id=0}, 120) = 3
bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096,
map_flags=0, inner_map_fd=0, map_name="@", map_ifindex=0, btf_fd=0, btf_key_type_id=0,
btf_value_type_id=0}, 120) = -1 EINVAL (Invalid argument)
bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096,
map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0,
btf_value_type_id=0}, 120) = 3
bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERF_EVENT_ARRAY, key_size=4, value_size=4,
max_entries=8, map_flags=0, inner_map_fd=0, map_name="printf", map_ifindex=0, btf_fd=0,
btf_key_type_id=0, btf_value_type_id=0}, 120) = 4
[...]
BPF Internals (Brendan Gregg)

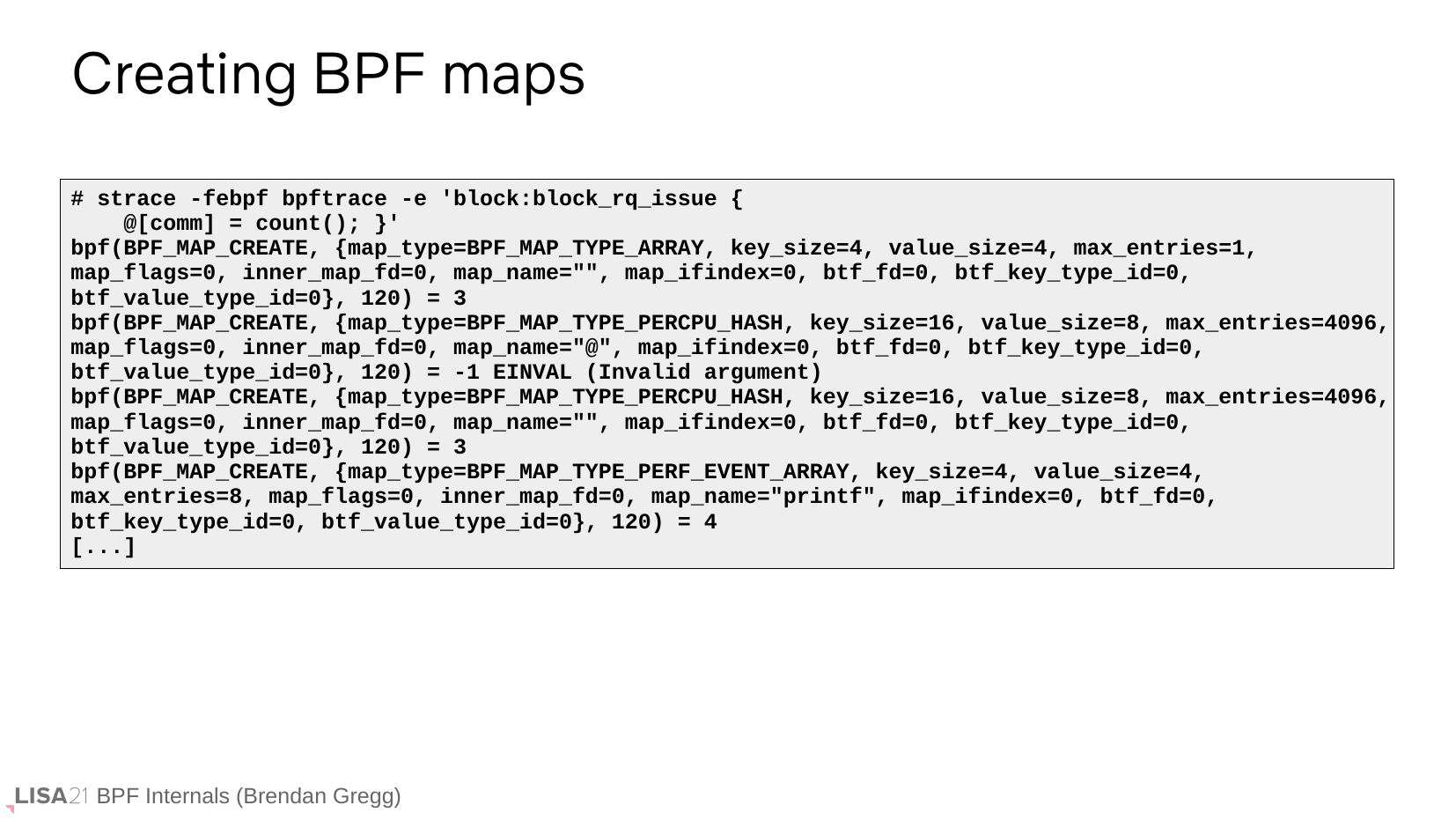

Creating BPF maps
# strace -febpf bpftrace -e 'block:block_rq_issue {
@[comm] = count(); }'
bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_ARRAY, key_size=4, value_size=4, max_entries=1,
map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0,
btf_value_type_id=0}, 120) = 3
bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096,
map_flags=0, inner_map_fd=0, map_name="@", map_ifindex=0, btf_fd=0, btf_key_type_id=0,
btf_value_type_id=0}, 120) = -1 EINVAL (Invalid argument)
bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096,
map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0,
btf_value_type_id=0}, 120) = 3
bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERF_EVENT_ARRAY, key_size=4, value_size=4,
max_entries=8, map_flags=0, inner_map_fd=0, map_name="printf", map_ifindex=0, btf_fd=0,
btf_key_type_id=0, btf_value_type_id=0}, 120) = 4
[...]
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 3/4
BPF Internals (Brendan Gregg)

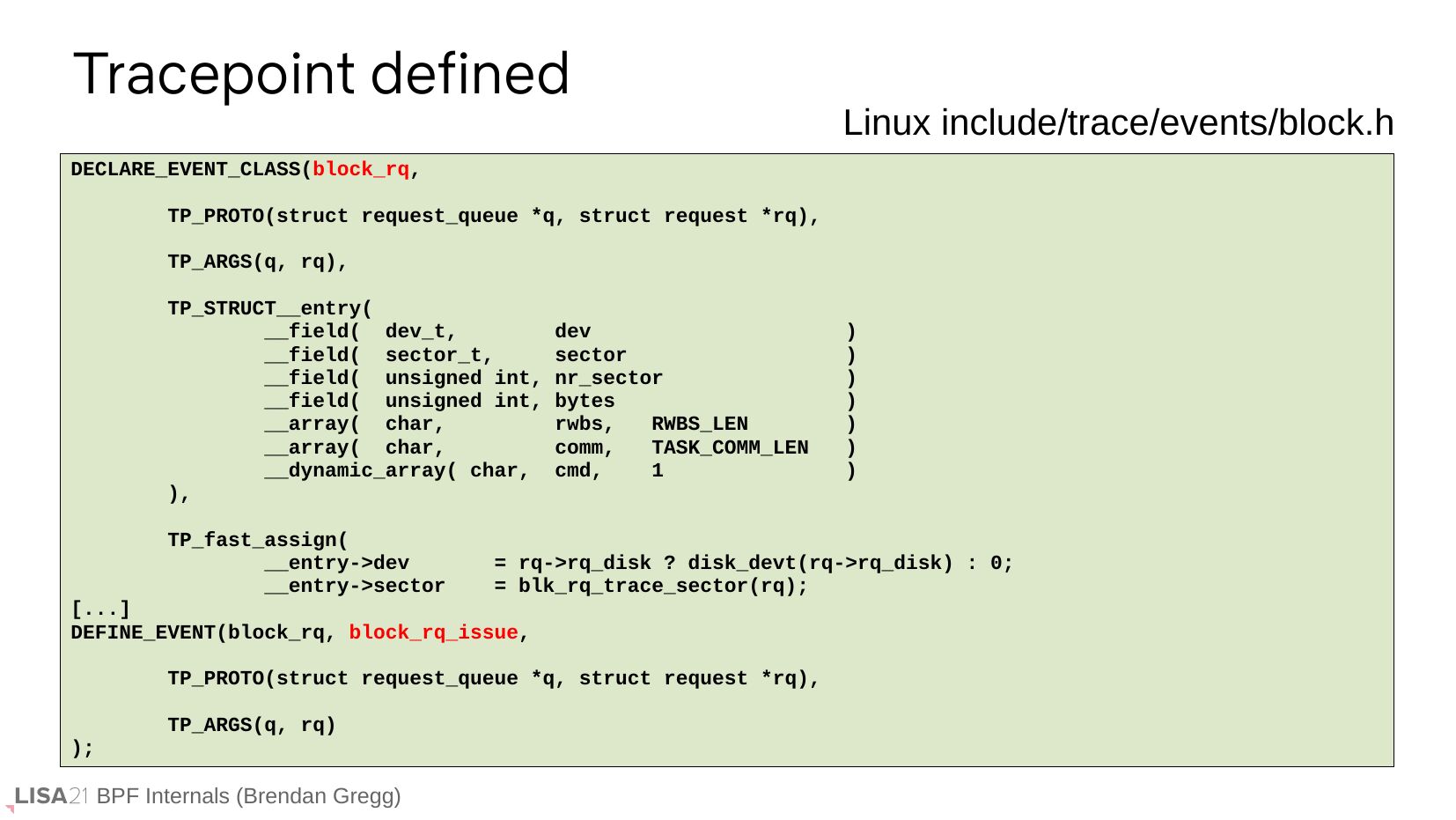

Tracepoint defined
Linux include/trace/events/block.h
DECLARE_EVENT_CLASS(block_rq,
TP_PROTO(struct request_queue *q, struct request *rq),
TP_ARGS(q, rq),
If ...
TP_STRUCT__entry(
__field( dev_t,
dev
__field( sector_t,
sector
__field( unsigned int, nr_sector
__field( unsigned int, bytes
__array( char,
rwbs,
RWBS_LEN
__array( char,
comm,
TASK_COMM_LEN
__dynamic_array( char, cmd,
TP_fast_assign(
__entry->gt;dev
__entry->gt;sector
= rq->gt;rq_disk ? disk_devt(rq->gt;rq_disk) : 0;
= blk_rq_trace_sector(rq);
[...]
DEFINE_EVENT(block_rq, block_rq_issue,
TP_PROTO(struct request_queue *q, struct request *rq),
TP_ARGS(q, rq)
BPF Internals (Brendan Gregg)

Tracepoints in code
Linux block/block-mq.c
void blk_mq_start_request(struct request *rq)
If ... struct request_queue *q = rq->gt;q;
trace_block_rq_issue(q, rq);
if (test_bit(QUEUE_FLAG_STATS, &q->gt;queue_flags)) {
rq->gt;io_start_time_ns = ktime_get_ns();
rq->gt;stats_sectors = blk_rq_sectors(rq);
[...]
This is a (best effort) stable interface
Use tracepoints instead of kprobes when possible!
BPF Internals (Brendan Gregg)

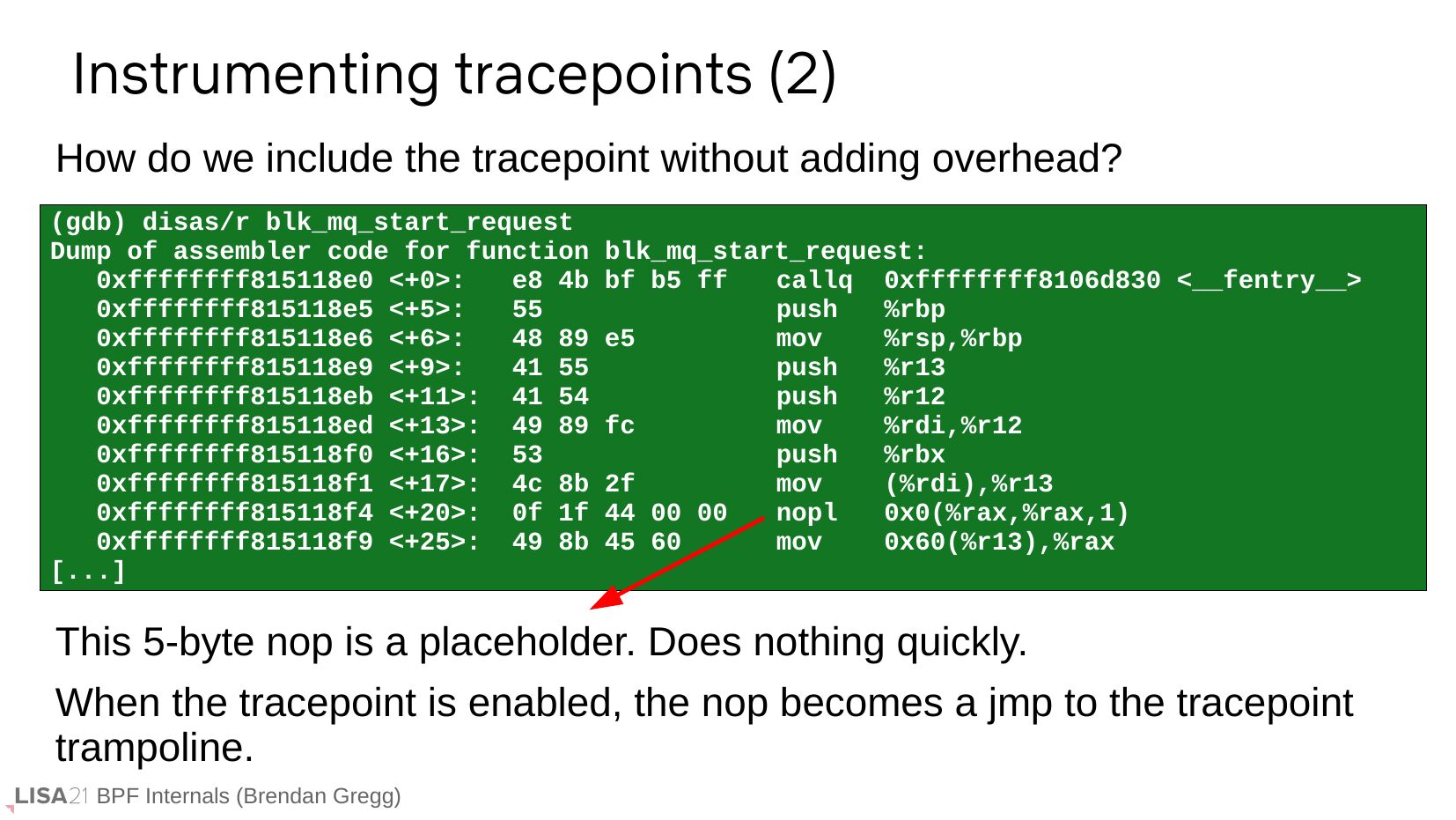

Instrumenting tracepoints (2)
How do we include the tracepoint without adding overhead?
(gdb) disas/r blk_mq_start_request
Dump of assembler code for function blk_mq_start_request:
0xffffffff815118e0 gt;:
e8 4b bf b5 ff
callq 0xffffffff8106d830 gt;
0xffffffff815118e5 gt;:
push
%rbp
0xffffffff815118e6 gt;:
48 89 e5
mov
%rsp,%rbp
0xffffffff815118e9 gt;:
41 55
push
%r13
0xffffffff815118eb gt;: 41 54
push
%r12
0xffffffff815118ed gt;: 49 89 fc
mov
%rdi,%r12
0xffffffff815118f0 gt;: 53
push
%rbx
0xffffffff815118f1 gt;: 4c 8b 2f
mov
(%rdi),%r13
0xffffffff815118f4 gt;: 0f 1f 44 00 00
nopl
0x0(%rax,%rax,1)
0xffffffff815118f9 gt;: 49 8b 45 60
mov
0x60(%r13),%rax
[...]
BPF Internals (Brendan Gregg)
(this is actually quite easy)

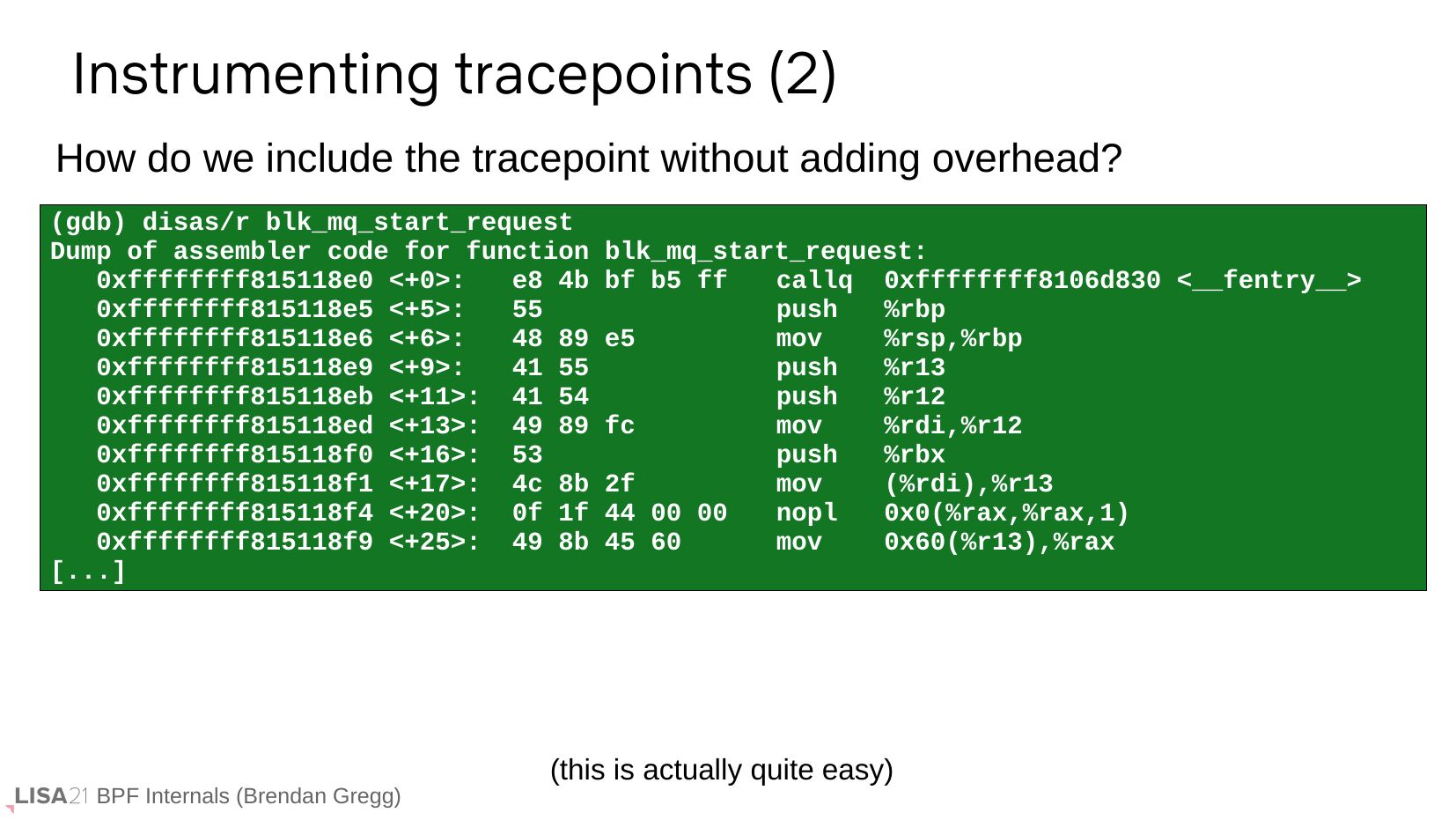

Instrumenting tracepoints (2)
How do we include the tracepoint without adding overhead?
(gdb) disas/r blk_mq_start_request
Dump of assembler code for function blk_mq_start_request:
0xffffffff815118e0 gt;:
e8 4b bf b5 ff
callq 0xffffffff8106d830 gt;
0xffffffff815118e5 gt;:
push
%rbp
0xffffffff815118e6 gt;:
48 89 e5
mov
%rsp,%rbp
0xffffffff815118e9 gt;:
41 55
push
%r13
0xffffffff815118eb gt;: 41 54
push
%r12
0xffffffff815118ed gt;: 49 89 fc
mov
%rdi,%r12
0xffffffff815118f0 gt;: 53
push
%rbx
0xffffffff815118f1 gt;: 4c 8b 2f
mov
(%rdi),%r13
0xffffffff815118f4 gt;: 0f 1f 44 00 00
nopl
0x0(%rax,%rax,1)
0xffffffff815118f9 gt;: 49 8b 45 60
mov
0x60(%r13),%rax
[...]
This 5-byte nop is a placeholder. Does nothing quickly.
When the tracepoint is enabled, the nop becomes a jmp to the tracepoint
trampoline.
BPF Internals (Brendan Gregg)

bpftrace mid-level internals 4/4
BPF Internals (Brendan Gregg)

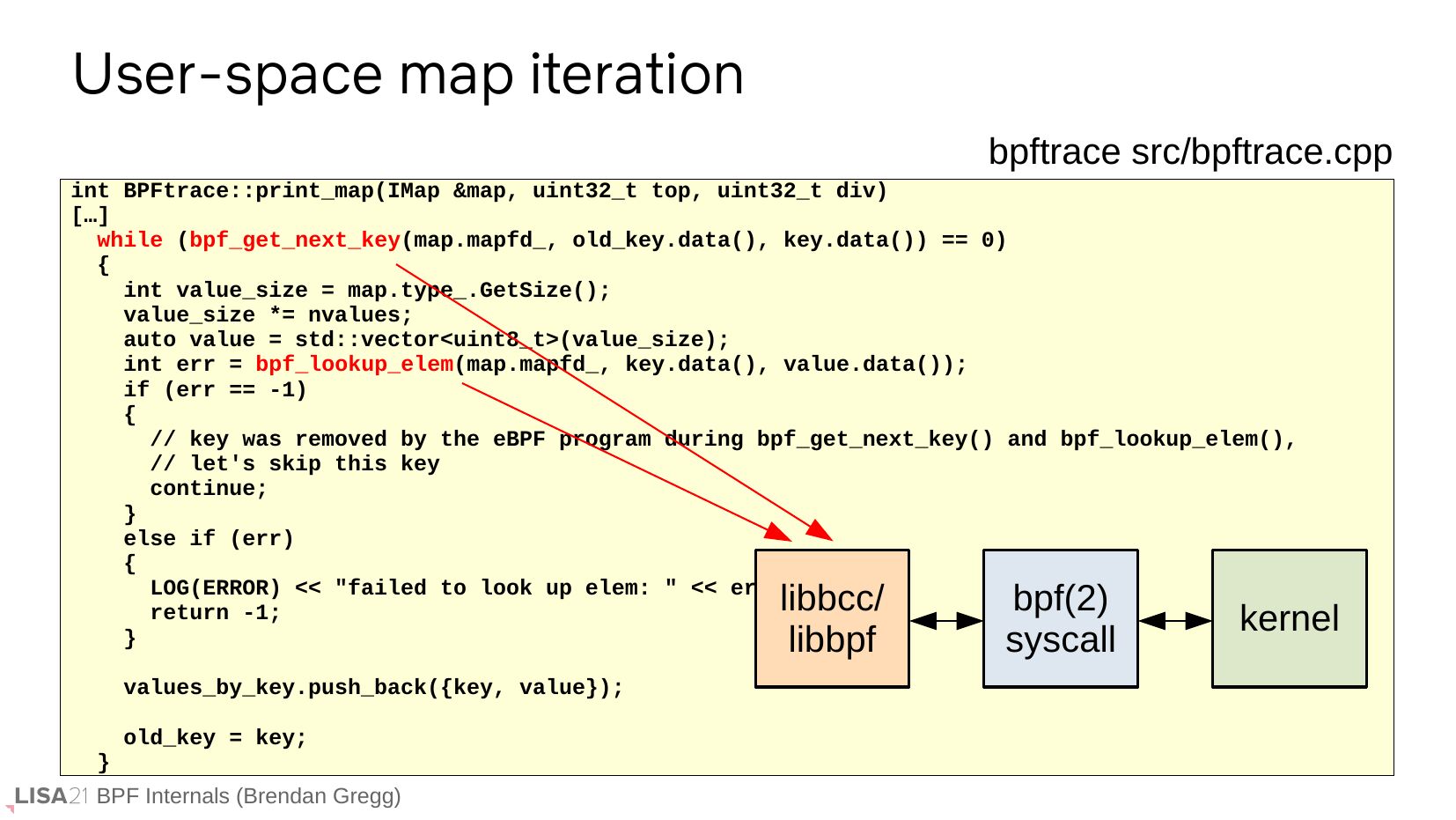

User-space map iteration
bpftrace src/bpftrace.cpp
int BPFtrace::print_map(IMap &map, uint32_t top, uint32_t div)
[…]
while (bpf_get_next_key(map.mapfd_, old_key.data(), key.data()) == 0)
int value_size = map.type_.GetSize();
value_size *= nvalues;
auto value = std::vectorgt;(value_size);
int err = bpf_lookup_elem(map.mapfd_, key.data(), value.data());
if (err == -1)
// key was removed by the eBPF program during bpf_get_next_key() and bpf_lookup_elem(),
// let's skip this key
continue;
else if (err)
LOG(ERROR)

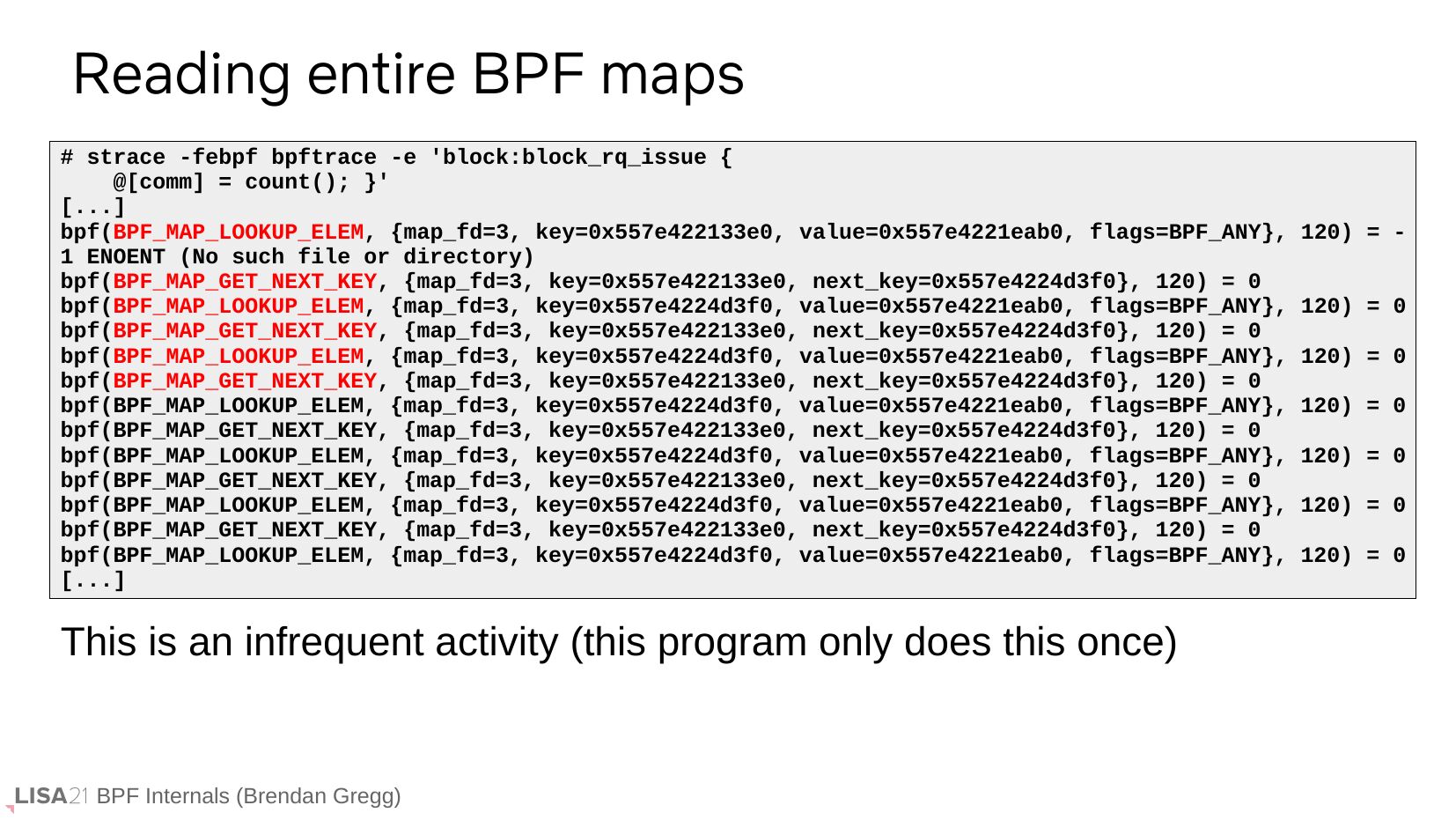

Reading entire BPF maps
# strace -febpf bpftrace -e 'block:block_rq_issue {
@[comm] = count(); }'
[...]
bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e422133e0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 1 ENOENT (No such file or directory)
bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0
bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0
bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0
bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0
bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0
bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0
bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0
bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0
bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0
bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0
bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0
bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0
[...]
This is an infrequent activity (this program only does this once)
BPF Internals (Brendan Gregg)

Final output
# bpftrace -e 'tracepoint:block:block_rq_issue {
@[comm] = count();
Attaching 1 probe…
@[kworker/2:2H]: 131
@[chrome]: 135
@[kworker/7:1H]: 185
@[Xorg]: 245
@[tar]: 1204
@[dmcrypt_write/2]: 1993
BPF Internals (Brendan Gregg)

Discussion of other internals
Stack walking
BTF
CO-RE
Tests
raw_tracepoints & fentry
Networking & XDP
Security & Cgroups
BPF Internals (Brendan Gregg)

BPF tracing/observability high-level recap
From: BPF Performance Tools, Figure 2-1
BPF Internals (Brendan Gregg)

BPF mid-level internals recap
From: BPF Performance Tools, Figure 2-3
BPF Internals (Brendan Gregg)

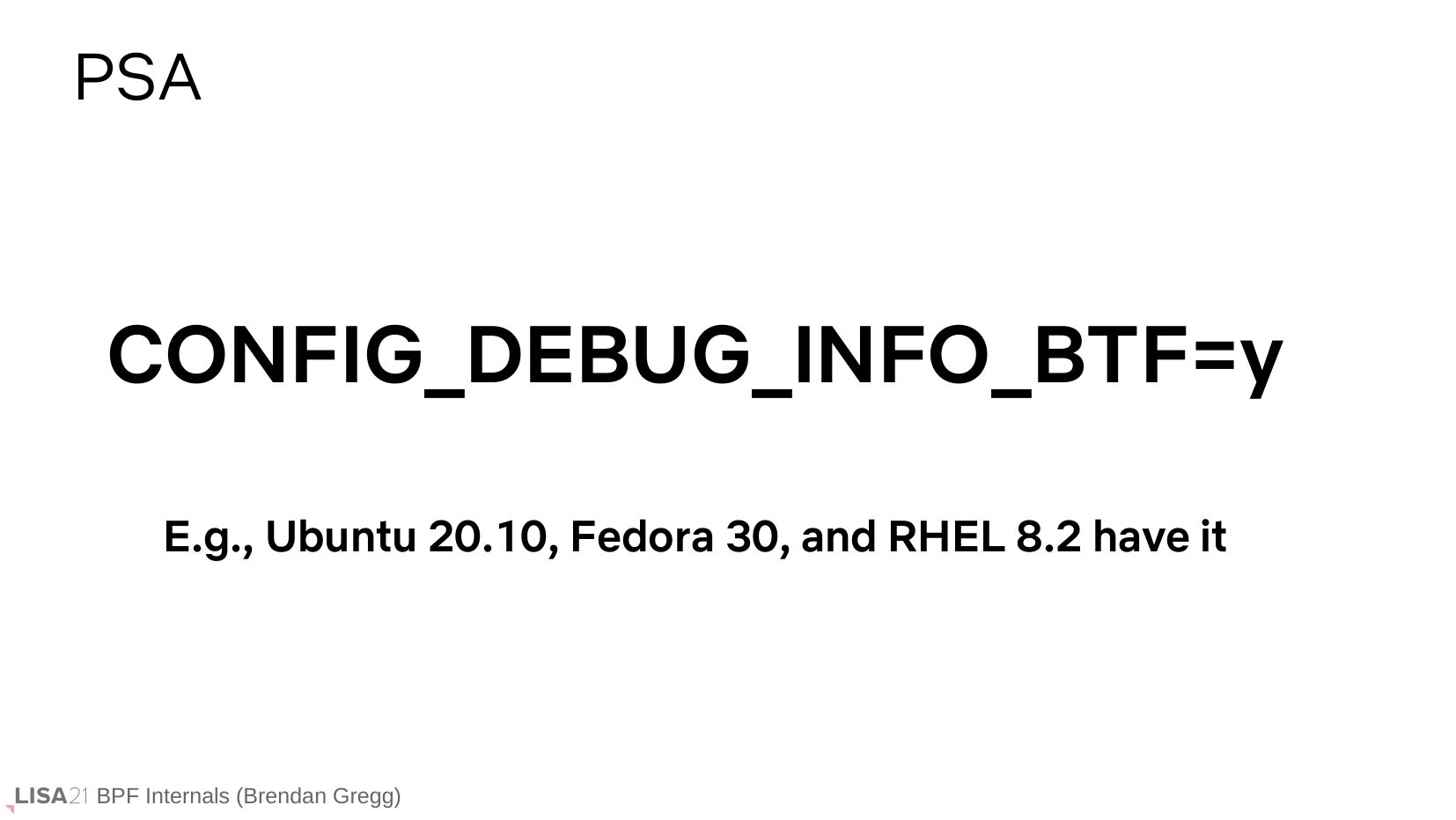

PSA
CONFIG_DEBUG_INFO_BTF=y
E.g., Ubuntu 20.10, Fedora 30, and RHEL 8.2 have it
BPF Internals (Brendan Gregg)

References
This is also where I recommend you go to learn more:
https://events.static.linuxfound.org/sites/events/files/slides/
bpf_collabsummit_2015feb20.pdf
Linux include/uapi/linux/bpf_common.h
Linux include/uapi/linux/bpf.h
Linux include/uapi/linux/filter.h
https://docs.cilium.io/en/v1.9/bpf/#bpf-guide
BPF Performance Tools, Addison-Wesley 2020
https://ebpf.io/what-is-ebpf
http://www.brendangregg.com/ebpf.html
https://github.com/iovisor/bcc
https://github.com/iovisor/bpftrace
BPF Internals (Brendan Gregg)

Thanks
BPF: Alexei Starovoitov (Facebook), Daniel Borkmann (Isovalent), David S. Miller (Red
Hat), Jakub Kicinski (Facebook), Yonghong Song (Facebook), Martin KaFai Lau
(Facebook), John Fastabend (Isovalent), Quentin Monnet (Isovalent), Jesper Dangaard
Brouer (Red Hat), Andrey Ignatov (Facebook), and Stanislav Fomichev (Google), Linus
Torvalds, and many more in the BPF community
LLVM BPF: Alexei Starovoitov, Chandler Carruth (Google), Yonghong Song, and more
bpftrace: Alastair Robertson (Yellowbrick Data), Dan Xu (Facebook), Bas Smit, Mary
Marchini (Netflix), Masanori Misono, Jiri Olsa, Viktor Malík, Dale Hamel, Willian Gaspar,
Augusto Mecking Caringi, and many more in the bpftrace community
USENIX
https://ebpf.io
Jun, 2021
BPF Internals (Brendan Gregg)
