USENIX_ATC2017_BPF_superpowers.pdf

USENIX ATC 2017: Performance Superpowers with Enhanced BPF

Video: https://www.youtube.com/watch?v=oc9000dM9-k

Talk for USENIX ATC 2017 by Brendan Gregg.

Description: "The Berkeley Packet Filter (BPF) in Linux has been enhanced in very recent versions to do much more than just filter packets, and has become a hot area of operating systems innovation, with much more yet to be discovered. BPF is a sandboxed virtual machine that runs user-level defined programs in kernel context, and is part of many kernels. The Linux enhancements allow it to run custom programs on other events, including kernel- and user-level dynamic tracing (kprobes and uprobes), static tracing (tracepoints), and hardware events. This is finding uses for the generation of new performance analysis tools, network acceleration technologies, and security intrusion detection systems.

This talk will explain the BPF enhancements, then discuss the new performance observability tools that are in use and being created, especially from the BPF compiler collection (bcc) open source project. These tools provide new insights for file system and storage performance, CPU scheduler performance, TCP performance, and much more. This is a major turning point for Linux systems engineering, as custom advanced performance instrumentation can be used safely in production environments, powering a new generation of tools and visualizations.

Because these BPF enhancements are only in very recent Linux (such as Linux 4.9), most companies are not yet running new enough kernels to be exploring BPF yet. This will change in the next year or two, as companies including Netflix upgrade their kernels. This talk will give you a head start on this growing technology, and also discuss areas of future work and unsolved problems."

	next prev 1/60
	next prev 2/60
	next prev 3/60
	next prev 4/60
	next prev 5/60
	next prev 6/60
	next prev 7/60
	next prev 8/60
	next prev 9/60
	next prev 10/60
	next prev 11/60
	next prev 12/60
	next prev 13/60
	next prev 14/60
	next prev 15/60
	next prev 16/60
	next prev 17/60
	next prev 18/60
	next prev 19/60
	next prev 20/60
	next prev 21/60
	next prev 22/60
	next prev 23/60
	next prev 24/60
	next prev 25/60
	next prev 26/60
	next prev 27/60
	next prev 28/60
	next prev 29/60
	next prev 30/60
	next prev 31/60
	next prev 32/60
	next prev 33/60
	next prev 34/60
	next prev 35/60
	next prev 36/60
	next prev 37/60
	next prev 38/60
	next prev 39/60
	next prev 40/60
	next prev 41/60
	next prev 42/60
	next prev 43/60
	next prev 44/60
	next prev 45/60
	next prev 46/60
	next prev 47/60
	next prev 48/60
	next prev 49/60
	next prev 50/60
	next prev 51/60
	next prev 52/60
	next prev 53/60
	next prev 54/60
	next prev 55/60
	next prev 56/60
	next prev 57/60
	next prev 58/60
	next prev 59/60
	next prev 60/60

PDF: USENIX_ATC2017_BPF_superpowers.pdf

Keywords (from pdftotext):

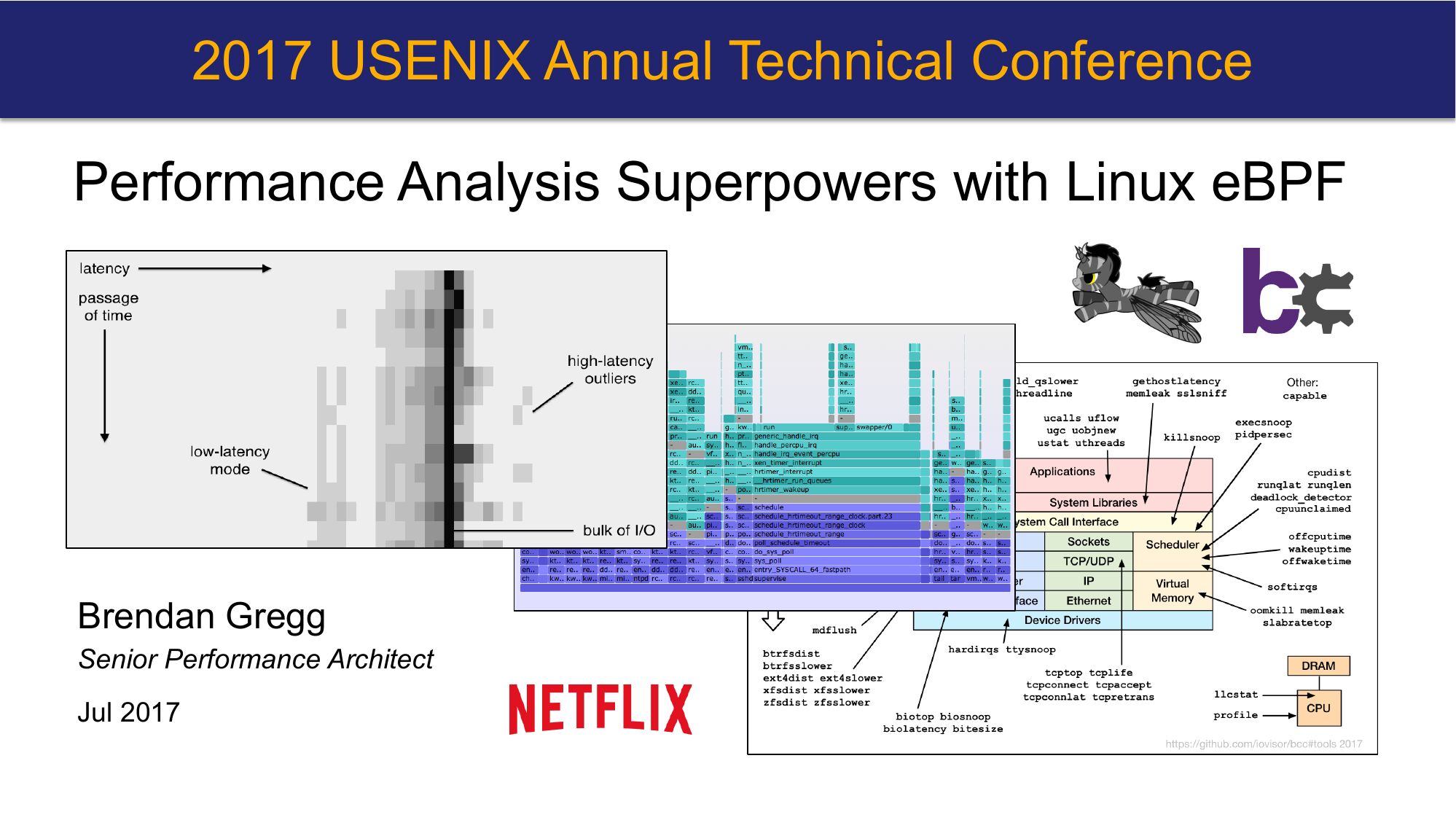

slide 1:

2017 USENIX Annual Technical Conference
Performance Analysis Superpowers with Linux eBPF
Brendan Gregg
Senior Performance Architect
Jul 2017

slide 2:

slide 3:

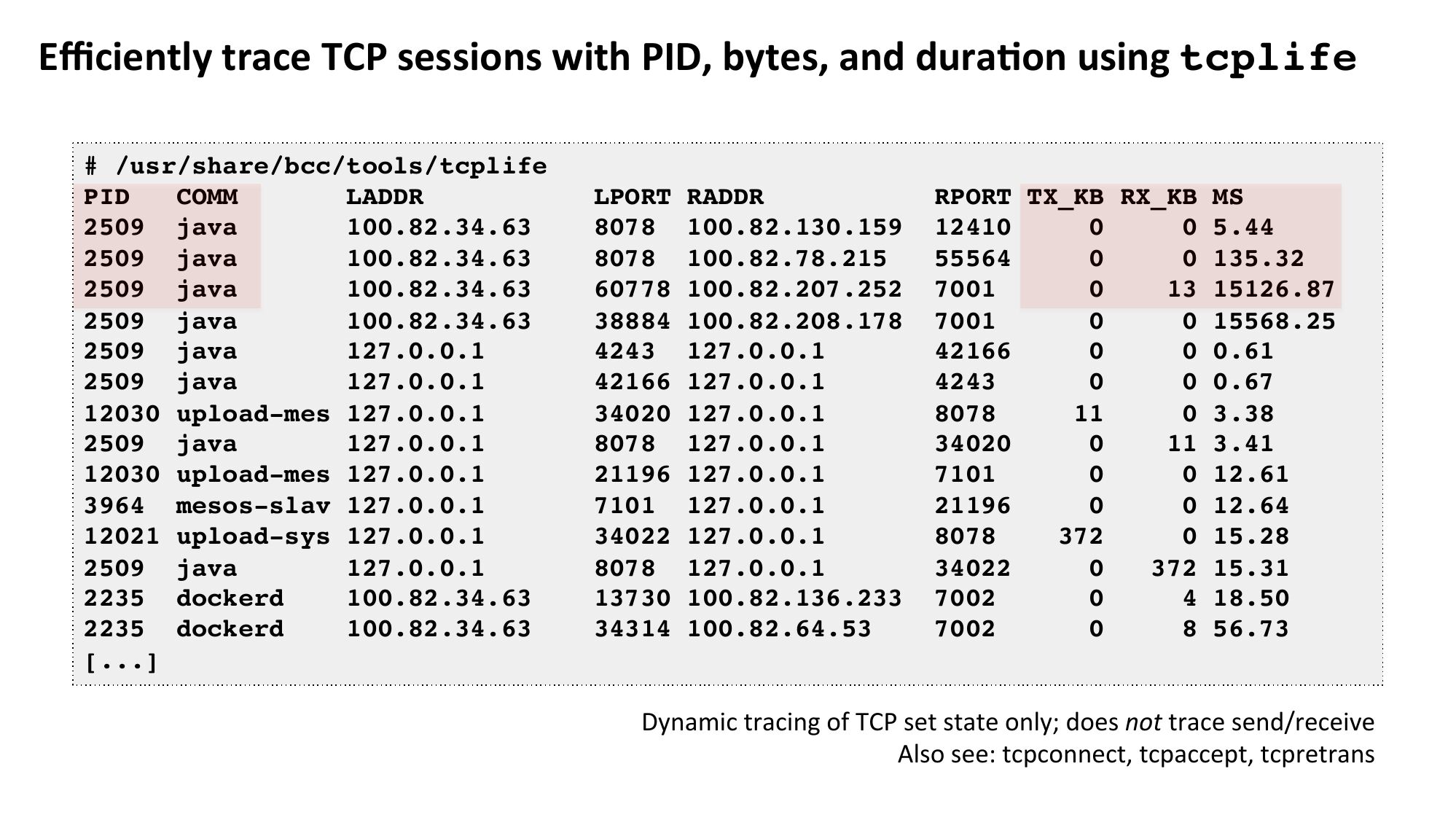

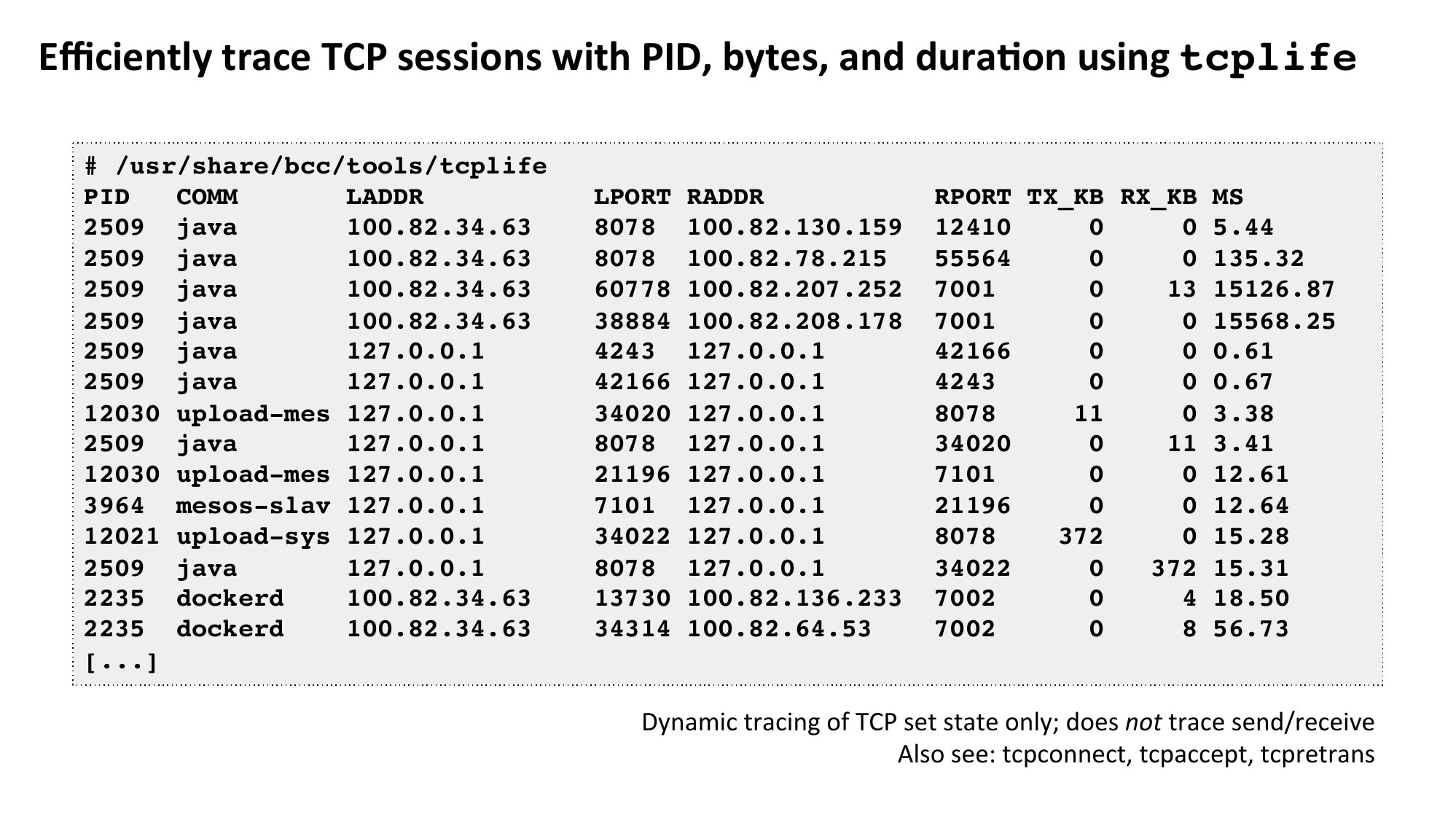

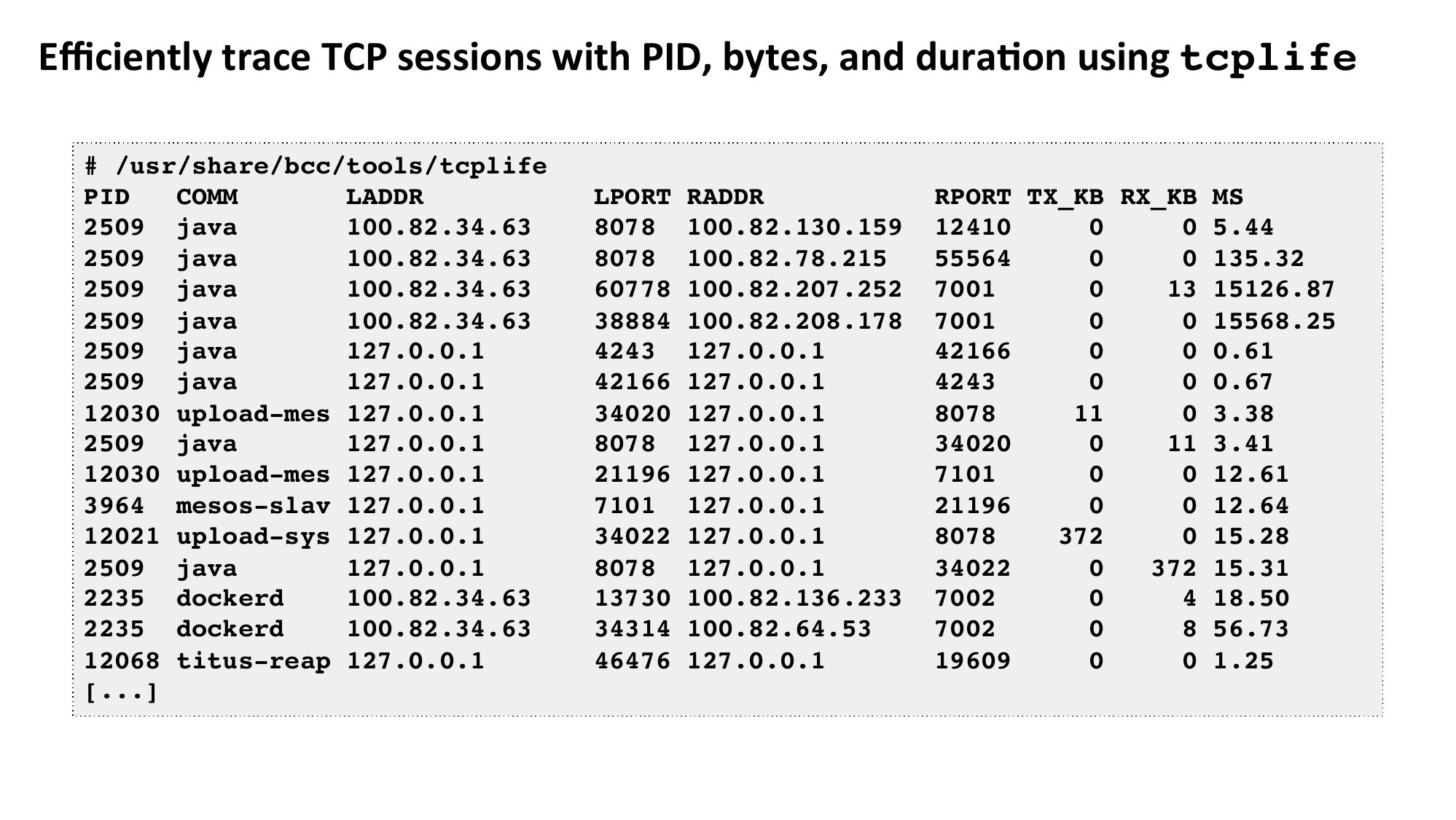

Eﬃciently trace TCP sessions with PID, bytes, and dura:on using tcplife
# /usr/share/bcc/tools/tcplife
PID
COMM
LADDR
2509 java
2509 java
2509 java
2509 java
2509 java
2509 java
12030 upload-mes 127.0.0.1
2509 java
12030 upload-mes 127.0.0.1
3964 mesos-slav 127.0.0.1
12021 upload-sys 127.0.0.1
2509 java
2235 dockerd
2235 dockerd
12068 titus-reap 127.0.0.1
[...]
LPORT RADDR
8078 100.82.130.159
8078 100.82.78.215
60778 100.82.207.252
38884 100.82.208.178
4243 127.0.0.1
42166 127.0.0.1
34020 127.0.0.1
8078 127.0.0.1
21196 127.0.0.1
7101 127.0.0.1
34022 127.0.0.1
8078 127.0.0.1
13730 100.82.136.233
34314 100.82.64.53
46476 127.0.0.1
RPORT TX_KB RX_KB MS
0 5.44
0 135.32
13 15126.87
0 15568.25
0 0.61
0 0.67
0 3.38
11 3.41
0 12.61
0 12.64
0 15.28
372 15.31
4 18.50
8 56.73
0 1.25

slide 4:

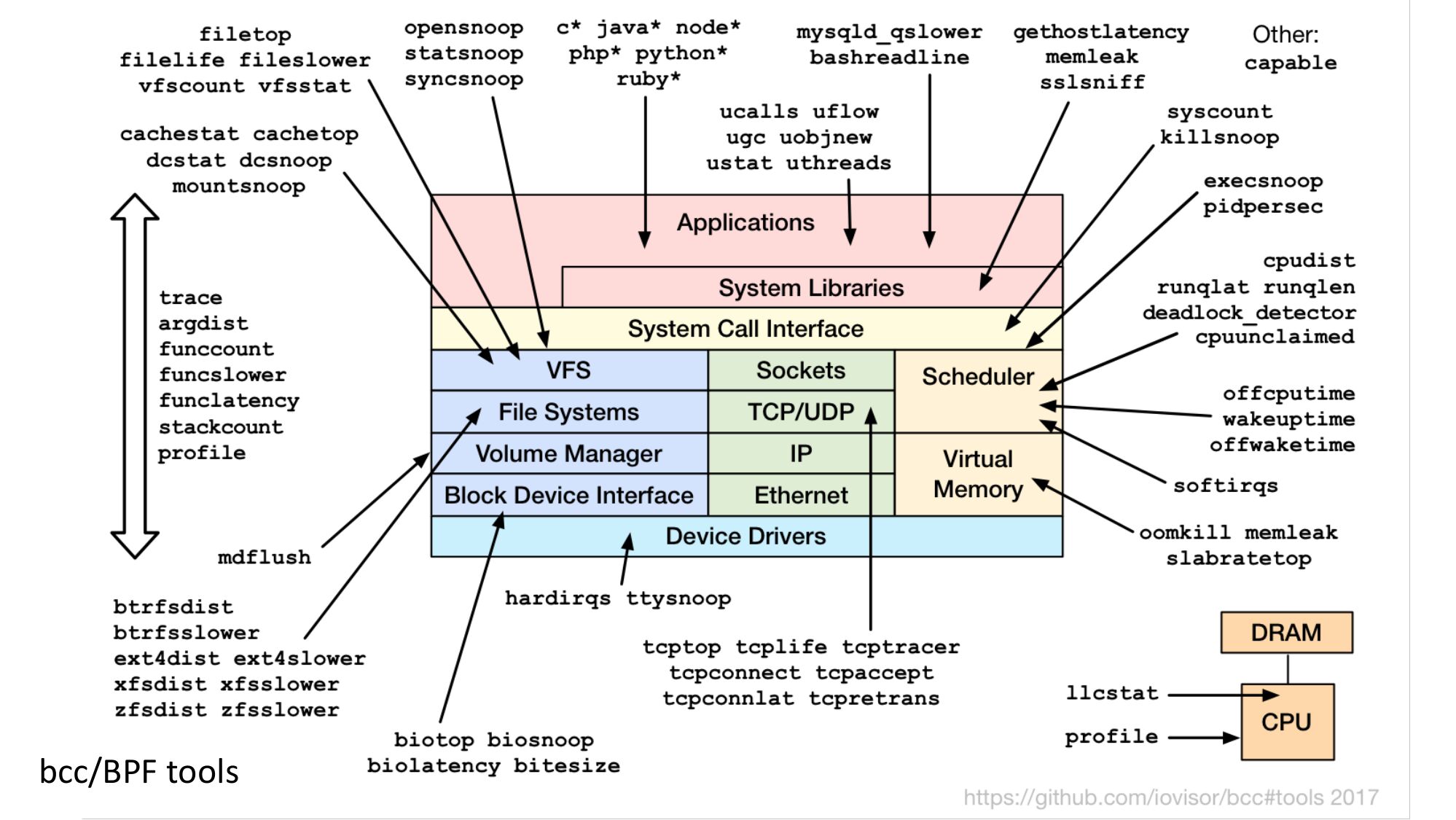

bcc/BPF tools

slide 5:

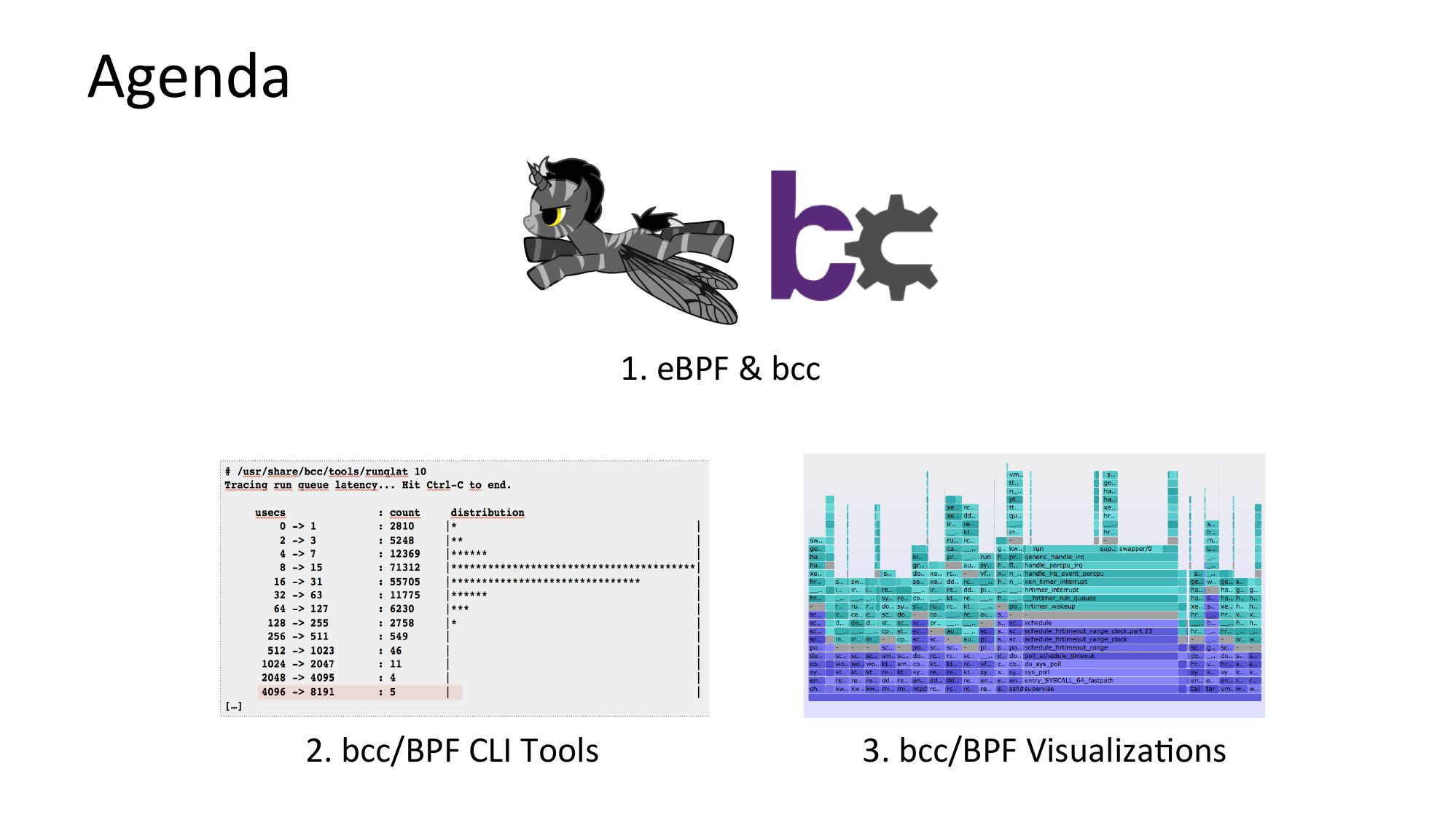

Agenda
1. eBPF & bcc
2. bcc/BPF CLI Tools
3. bcc/BPF Visualiza?ons

slide 6:

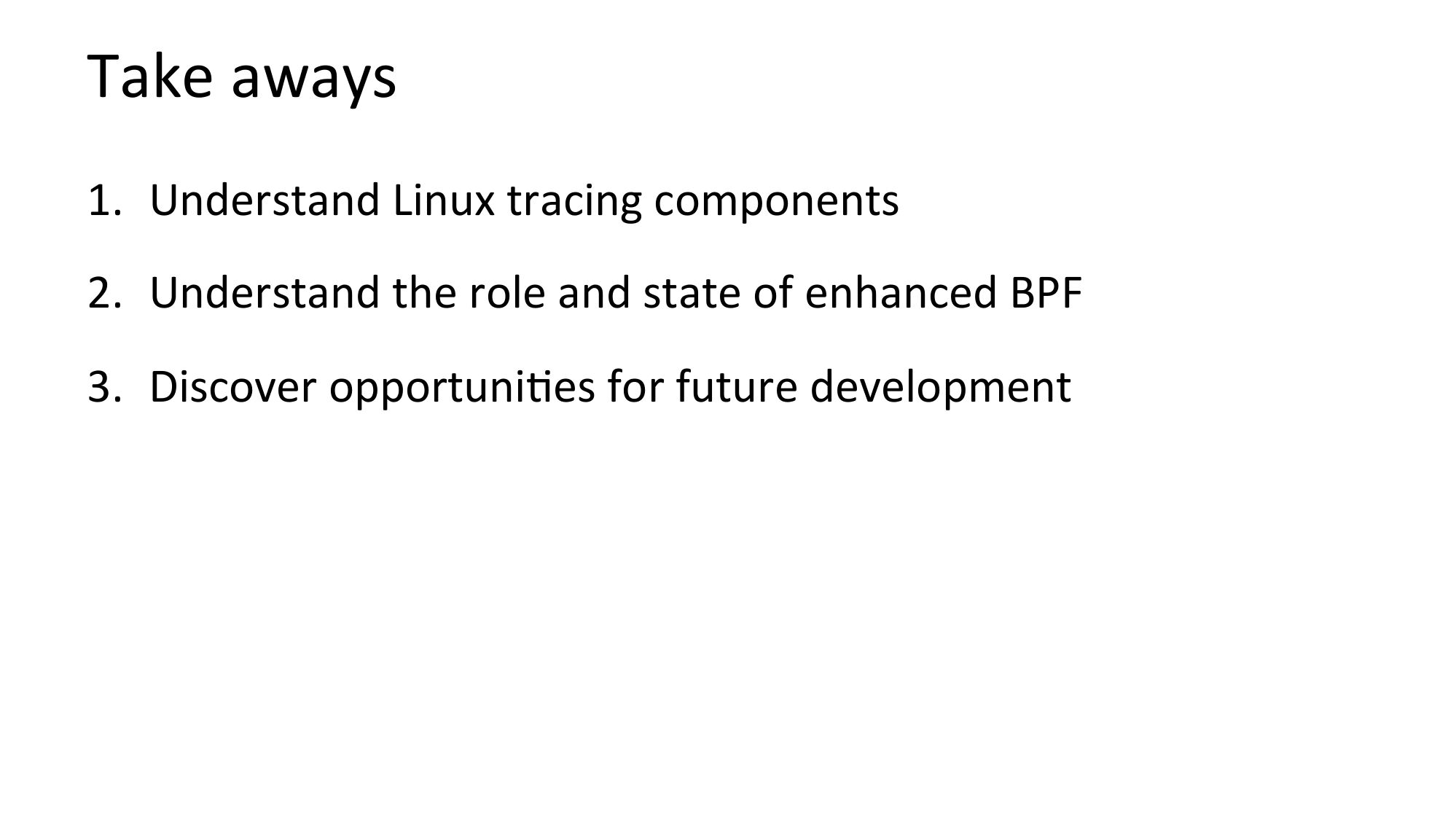

Take aways
1. Understand Linux tracing components
2. Understand the role and state of enhanced BPF
3. Discover opportuni?es for future development

slide 7:

slide 8:

Who at NeNlix will use BPF?

slide 9:

Introducing enhanced BPF for tracing: kernel-level soRware
BPF

slide 10:

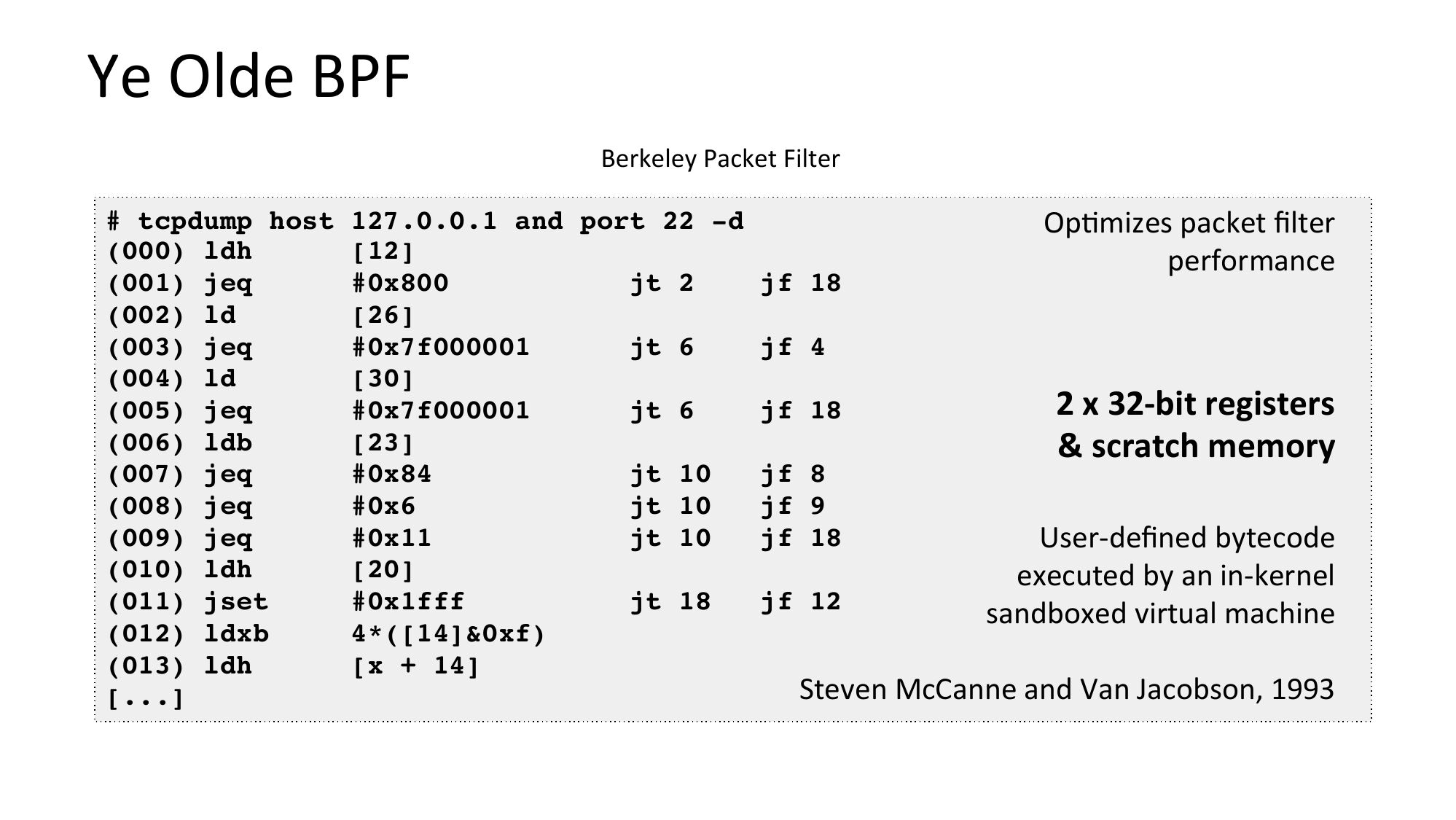

Ye Olde BPF
Berkeley Packet Filter
# tcpdump host 127.0.0.1 and port 22 -d
Op?mizes packet ﬁlter
(000) ldh
[12]
performance
(001) jeq
#0x800
jt 2
jf 18
(002) ld
[26]
(003) jeq
#0x7f000001
jt 6
jf 4
(004) ld
[30]
2 x 32-bit registers
(005) jeq
#0x7f000001
jt 6
jf 18
(006) ldb
[23]
& scratch memory
(007) jeq
#0x84
jt 10
jf 8
(008) jeq
#0x6
jt 10
jf 9
(009) jeq
#0x11
jt 10
jf 18
User-deﬁned bytecode
(010) ldh
[20]
executed by an in-kernel
(011) jset
#0x1fff
jt 18
jf 12
sandboxed virtual machine
(012) ldxb
4*([14]&0xf)
(013) ldh
[x + 14]
Steven McCanne and Van Jacobson, 1993
[...]

slide 11:

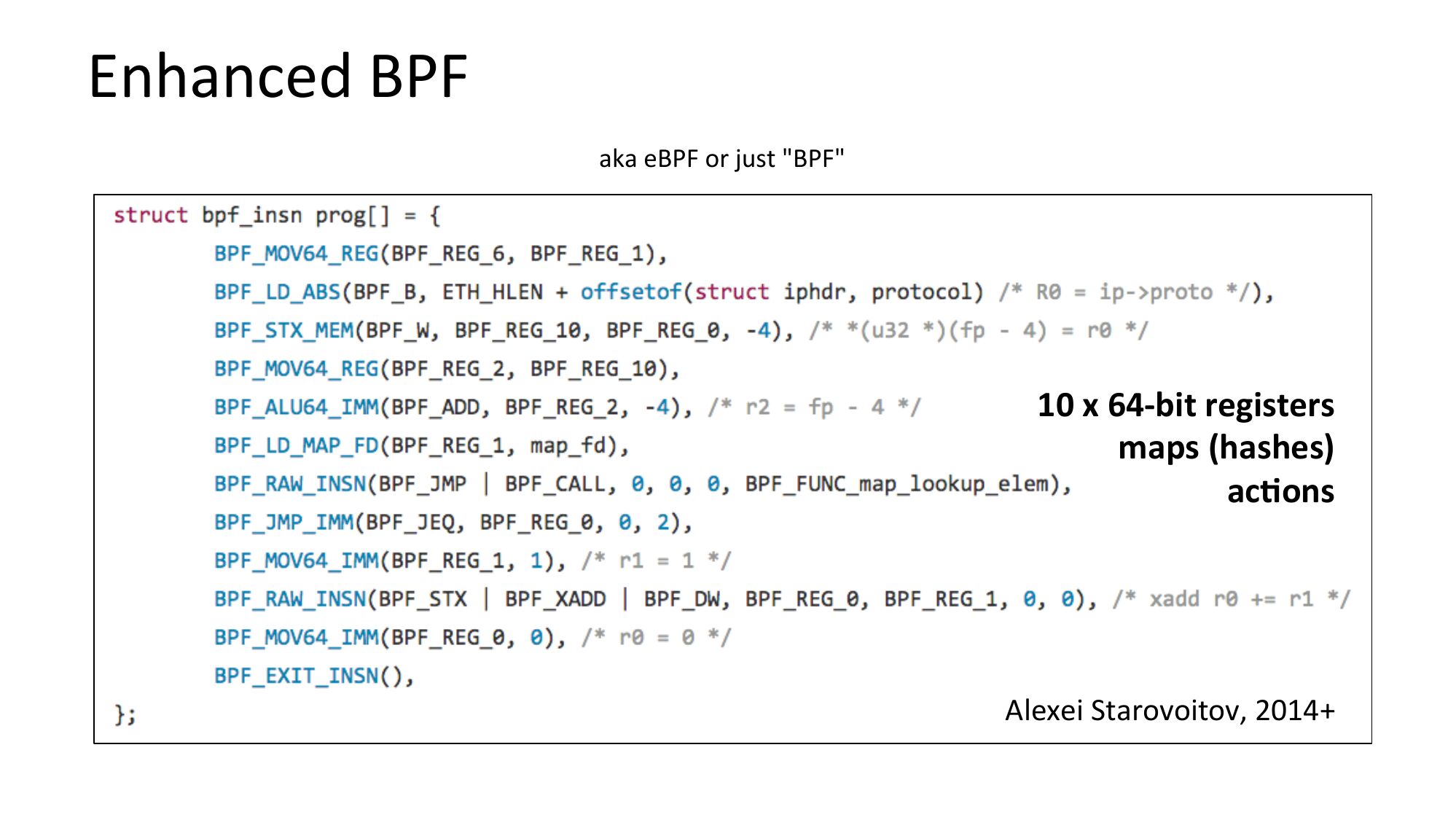

Enhanced BPF
aka eBPF or just "BPF"
10 x 64-bit registers
maps (hashes)
ac:ons
Alexei Starovoitov, 2014+

slide 12:

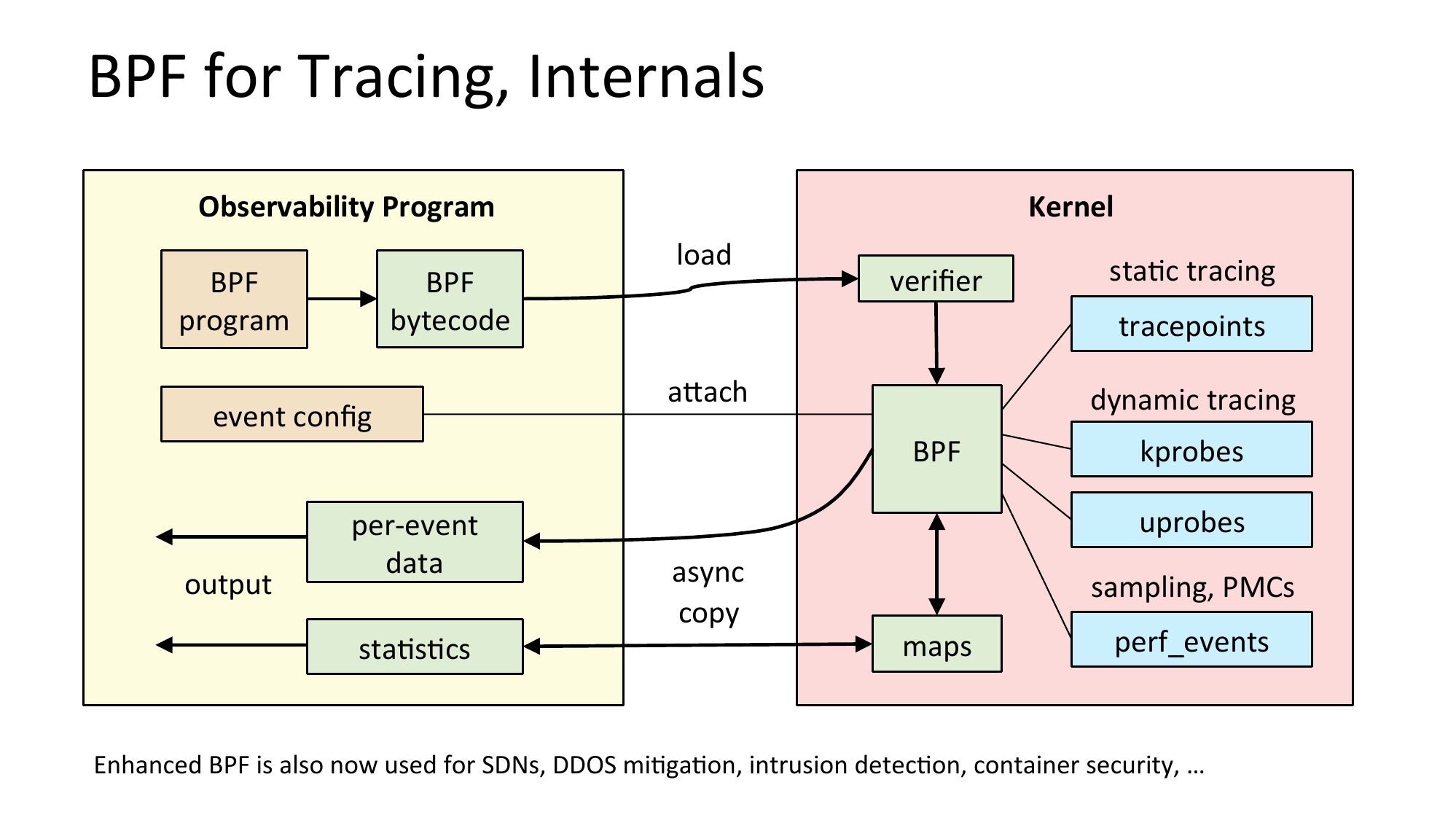

BPF for Tracing, Internals
Observability Program
BPF
bytecode
BPF
program
event conﬁg
output
per-event
data
sta?s?cs
Kernel
load
veriﬁer
sta?c tracing
tracepoints
abach
dynamic tracing
BPF
kprobes
uprobes
async
copy
sampling, PMCs
maps
perf_events
Enhanced BPF is also now used for SDNs, DDOS mi?ga?on, intrusion detec?on, container security, …

slide 13:

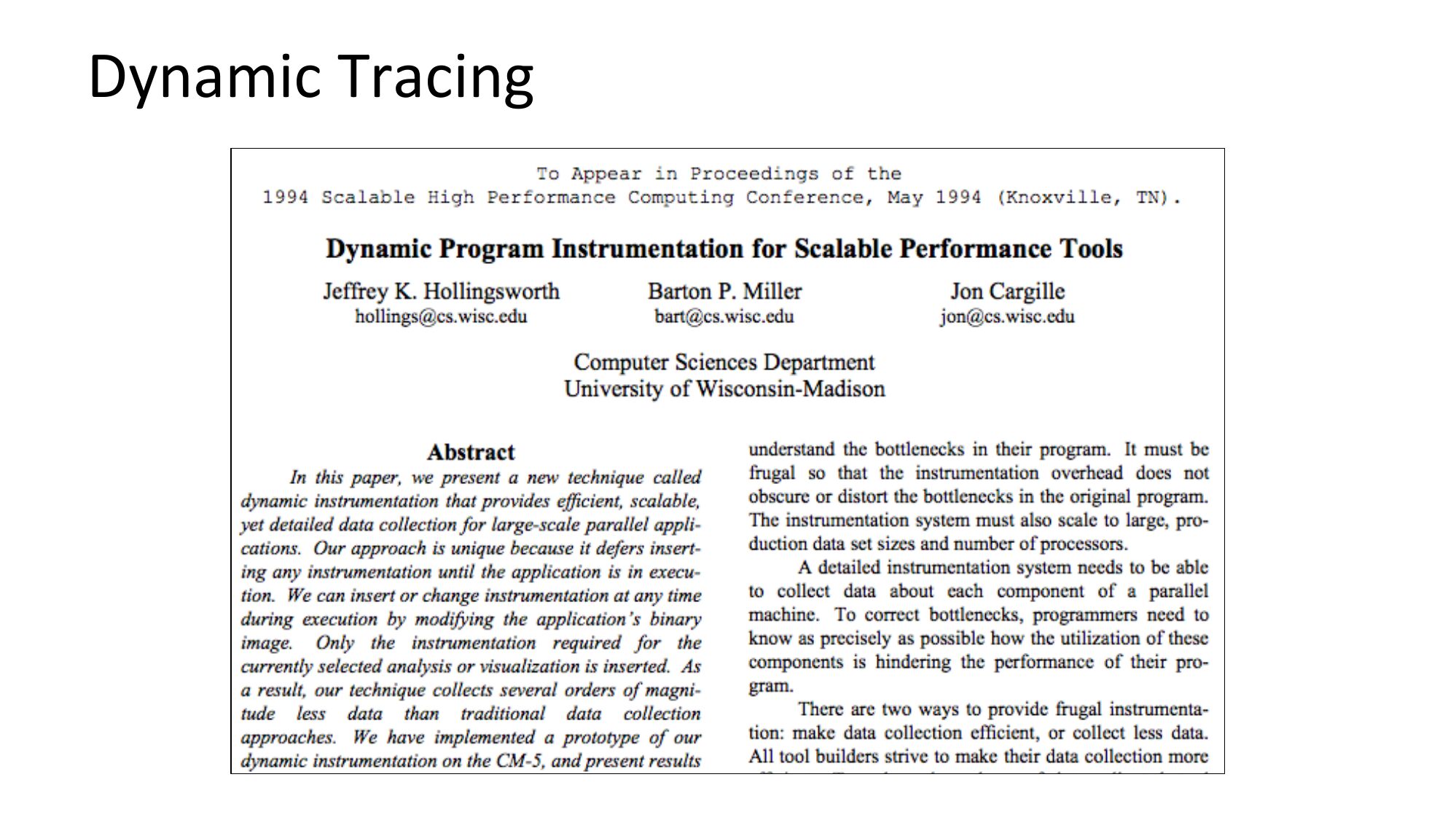

Dynamic Tracing

slide 14:

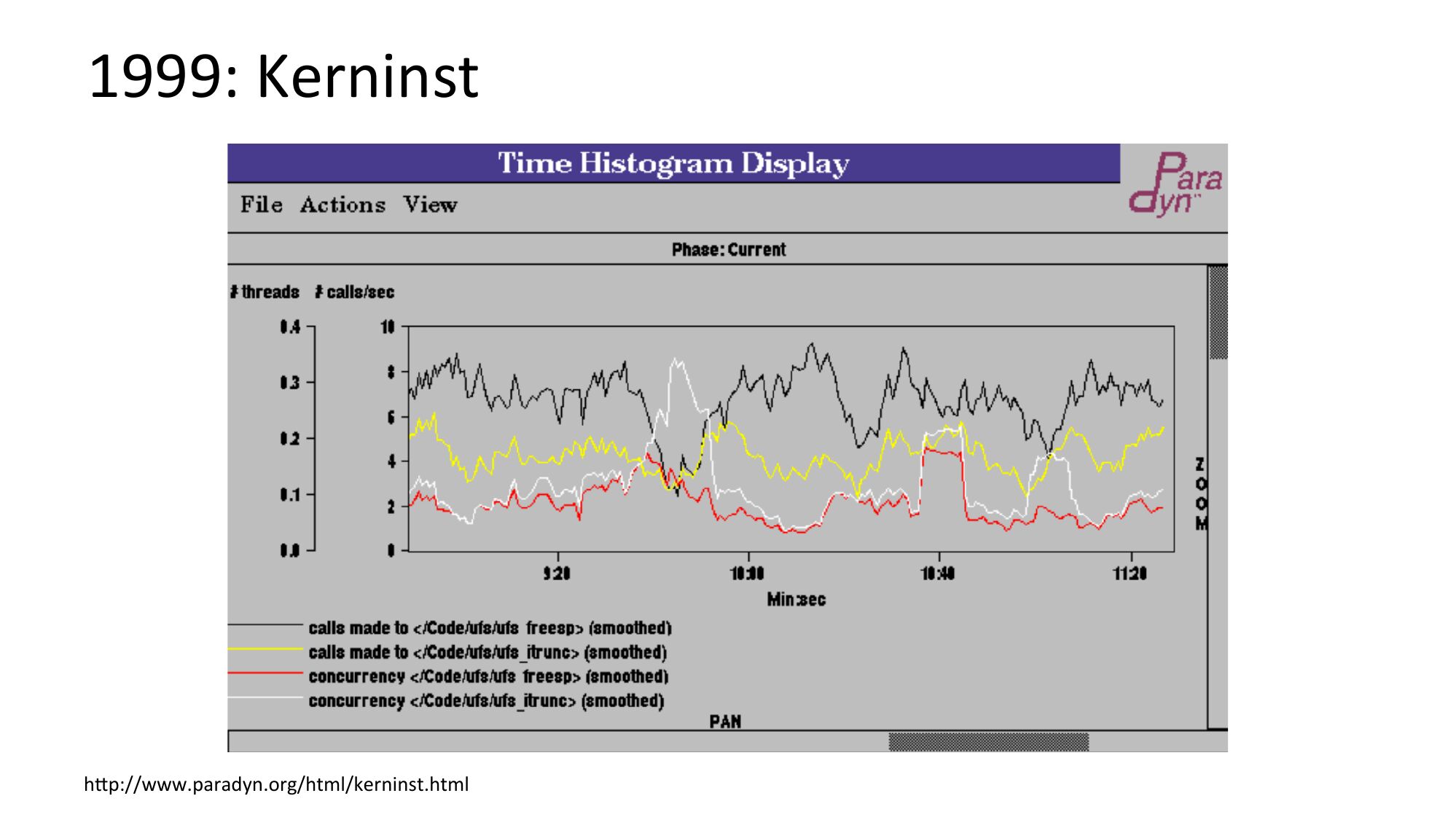

1999: Kerninst
hbp://www.paradyn.org/html/kerninst.html

slide 15:

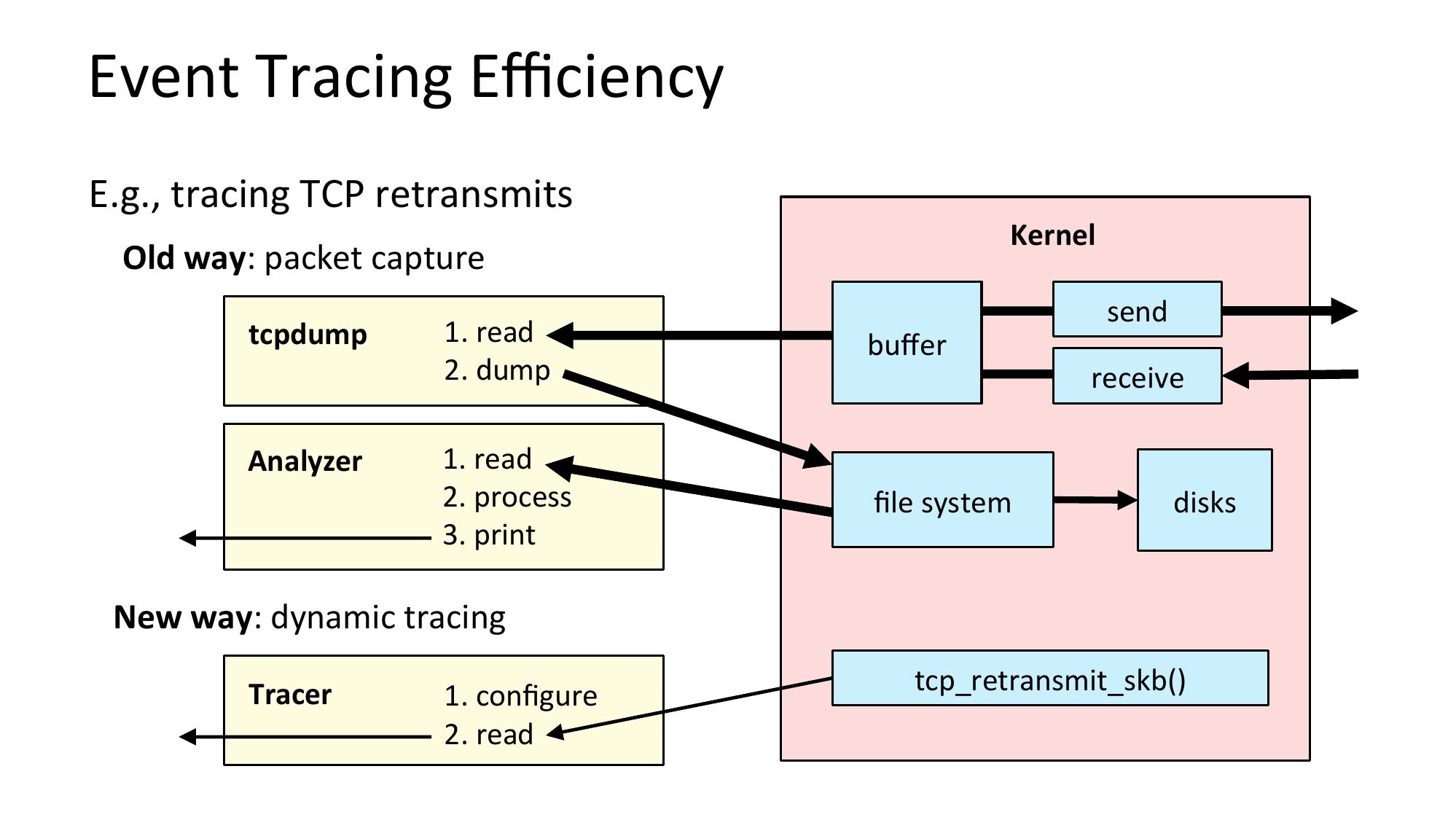

Event Tracing Eﬃciency
E.g., tracing TCP retransmits
Kernel
Old way: packet capture
tcpdump
Analyzer
1. read
2. dump
buﬀer
1. read
2. process
3. print
ﬁle system
send
receive
disks
New way: dynamic tracing
Tracer
1. conﬁgure
2. read
tcp_retransmit_skb()

slide 16:

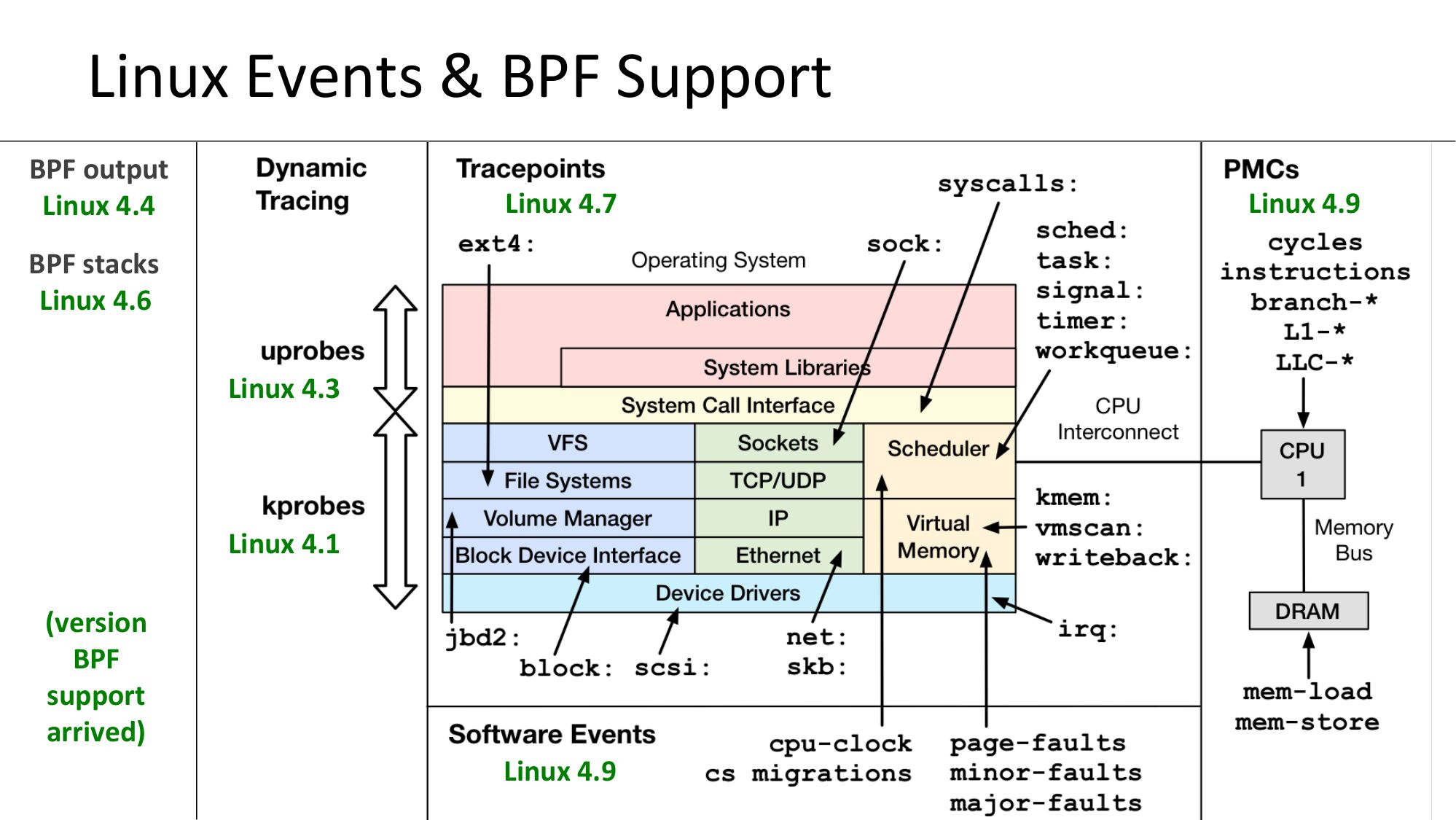

Linux Events & BPF Support
BPF output
Linux 4.4
Linux 4.7
BPF stacks
Linux 4.6
Linux 4.3
Linux 4.1
(version
BPF
support
arrived)
Linux 4.9
Linux 4.9

slide 17:

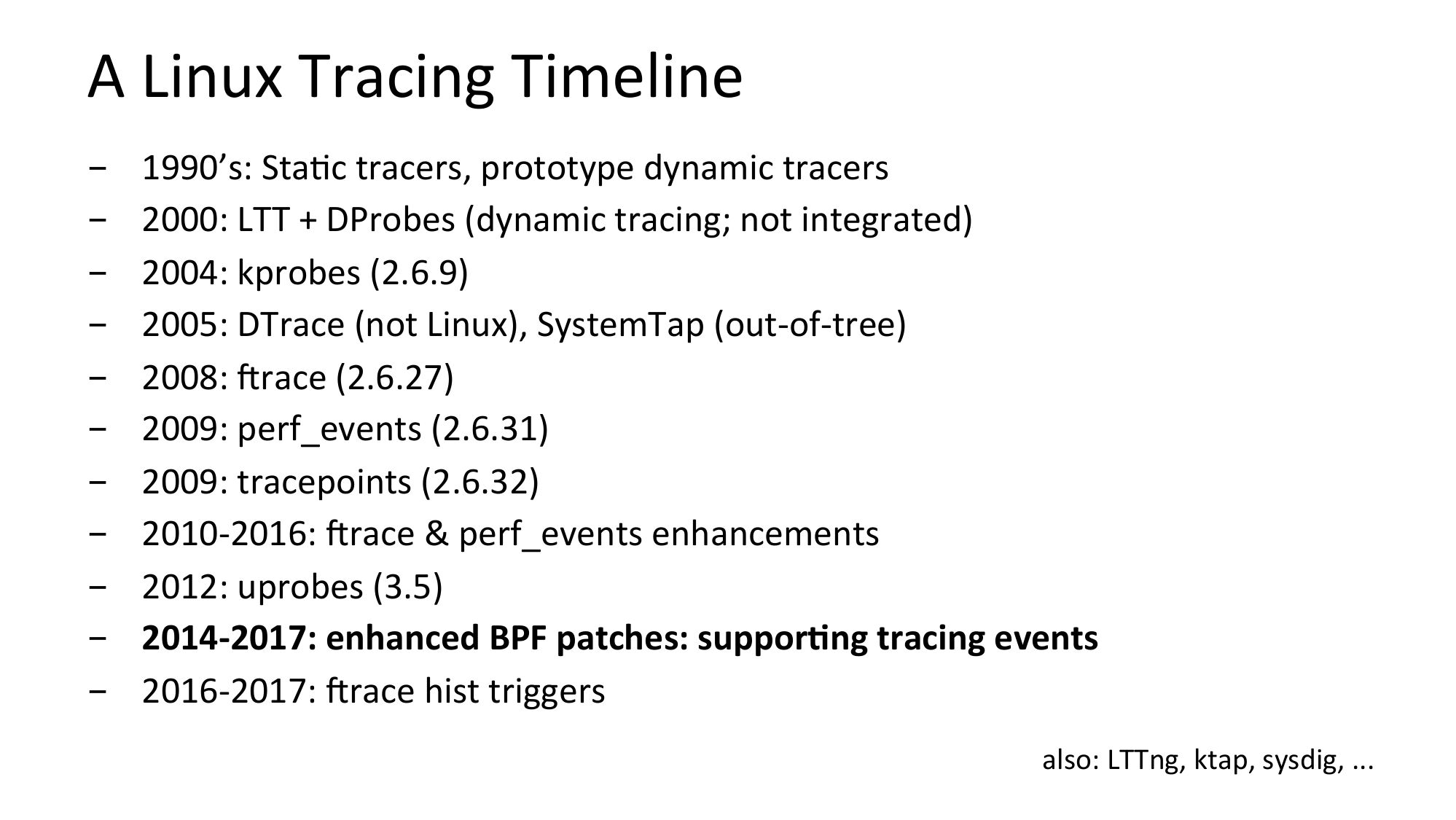

A Linux Tracing Timeline
1990’s: Sta?c tracers, prototype dynamic tracers
2000: LTT + DProbes (dynamic tracing; not integrated)
2004: kprobes (2.6.9)
2005: DTrace (not Linux), SystemTap (out-of-tree)
2008: Rrace (2.6.27)
2009: perf_events (2.6.31)
2009: tracepoints (2.6.32)
2010-2016: Rrace & perf_events enhancements
2012: uprobes (3.5)
2014-2017: enhanced BPF patches: suppor:ng tracing events
2016-2017: Rrace hist triggers
also: LTTng, ktap, sysdig, ...

slide 18:

Introducing BPF Complier Collec?on: user-level front-end
BCC

slide 19:

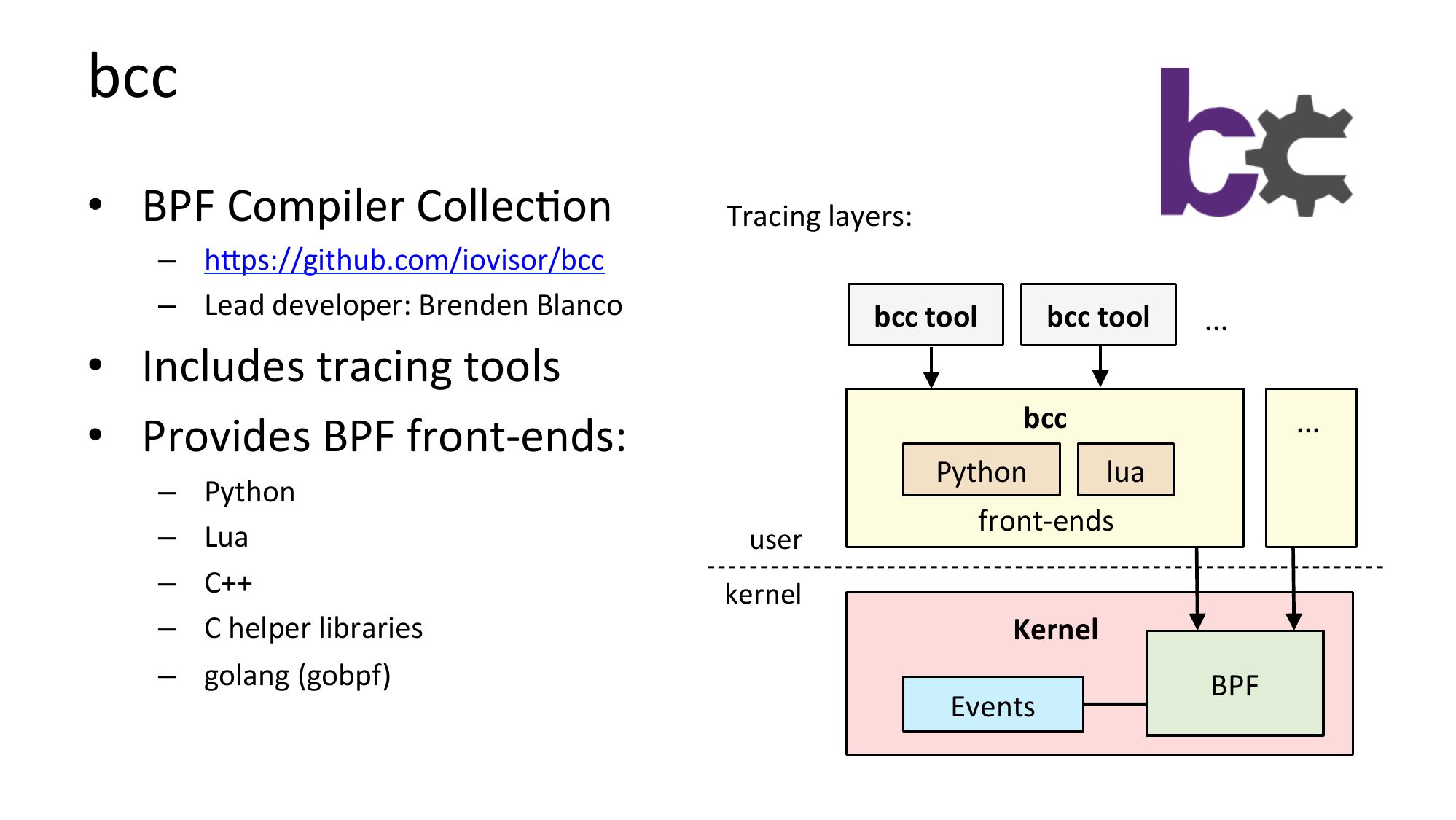

bcc
• BPF Compiler Collec?on
Tracing layers:
– hbps://github.com/iovisor/bcc
– Lead developer: Brenden Blanco
bcc tool
• Includes tracing tools
• Provides BPF front-ends:
Python
Lua
C++
C helper libraries
golang (gobpf)
bcc tool
bcc
Python
user
kernel
lua
front-ends
Kernel
Events
BPF

slide 20:

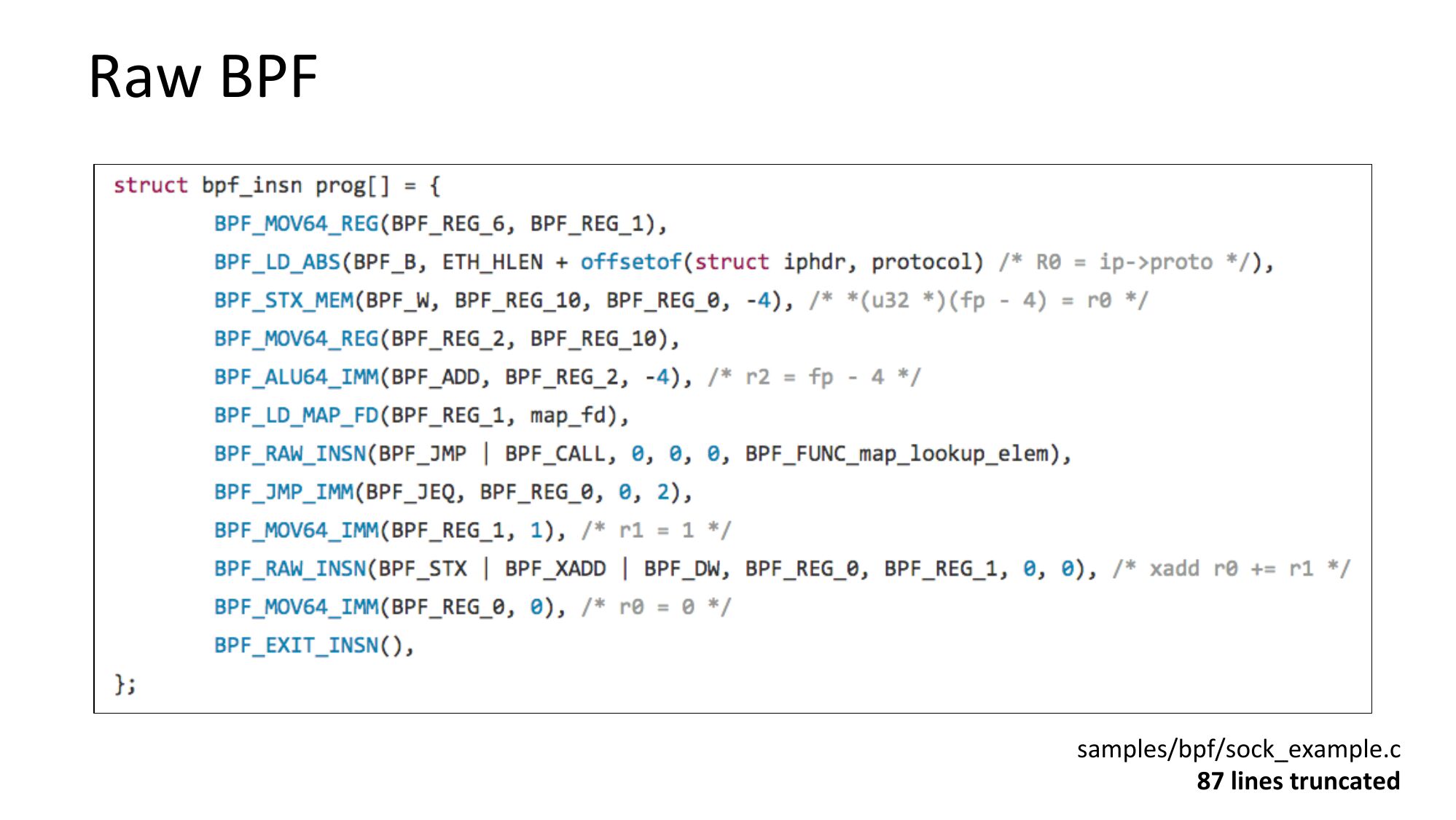

Raw BPF
samples/bpf/sock_example.c
87 lines truncated

slide 21:

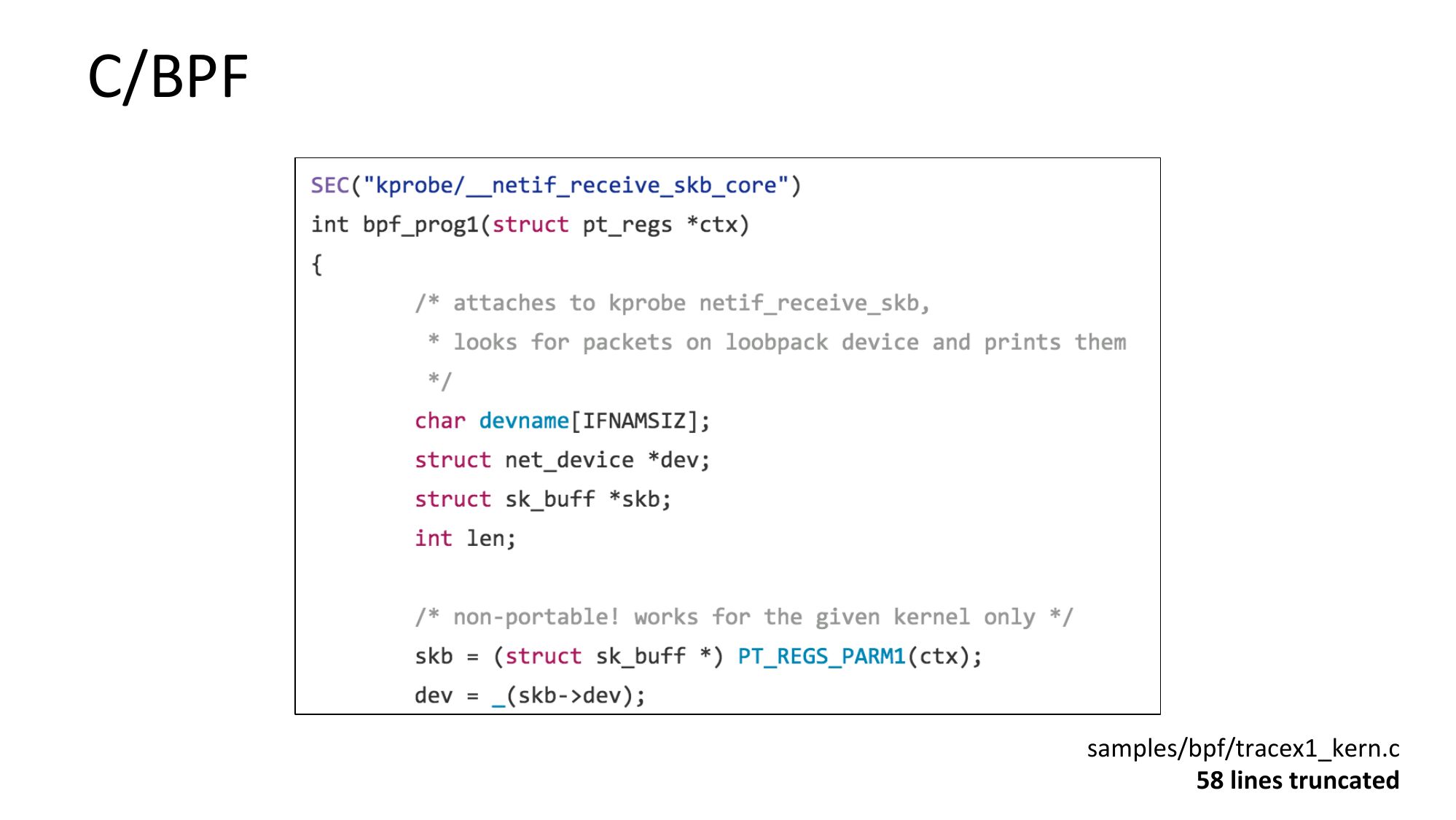

C/BPF
samples/bpf/tracex1_kern.c
58 lines truncated

slide 22:

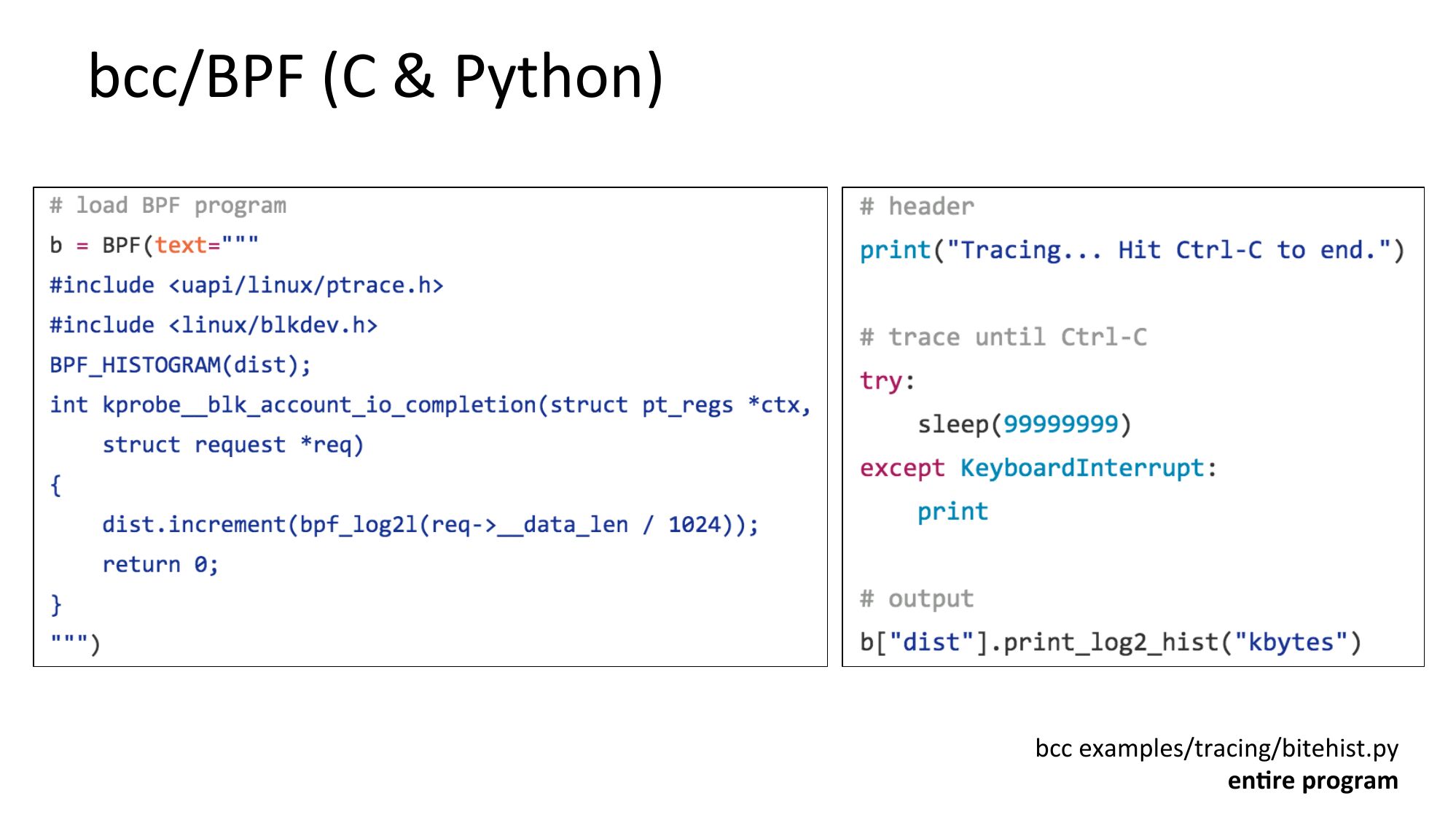

bcc/BPF (C & Python)
bcc examples/tracing/bitehist.py
en:re program

slide 23:

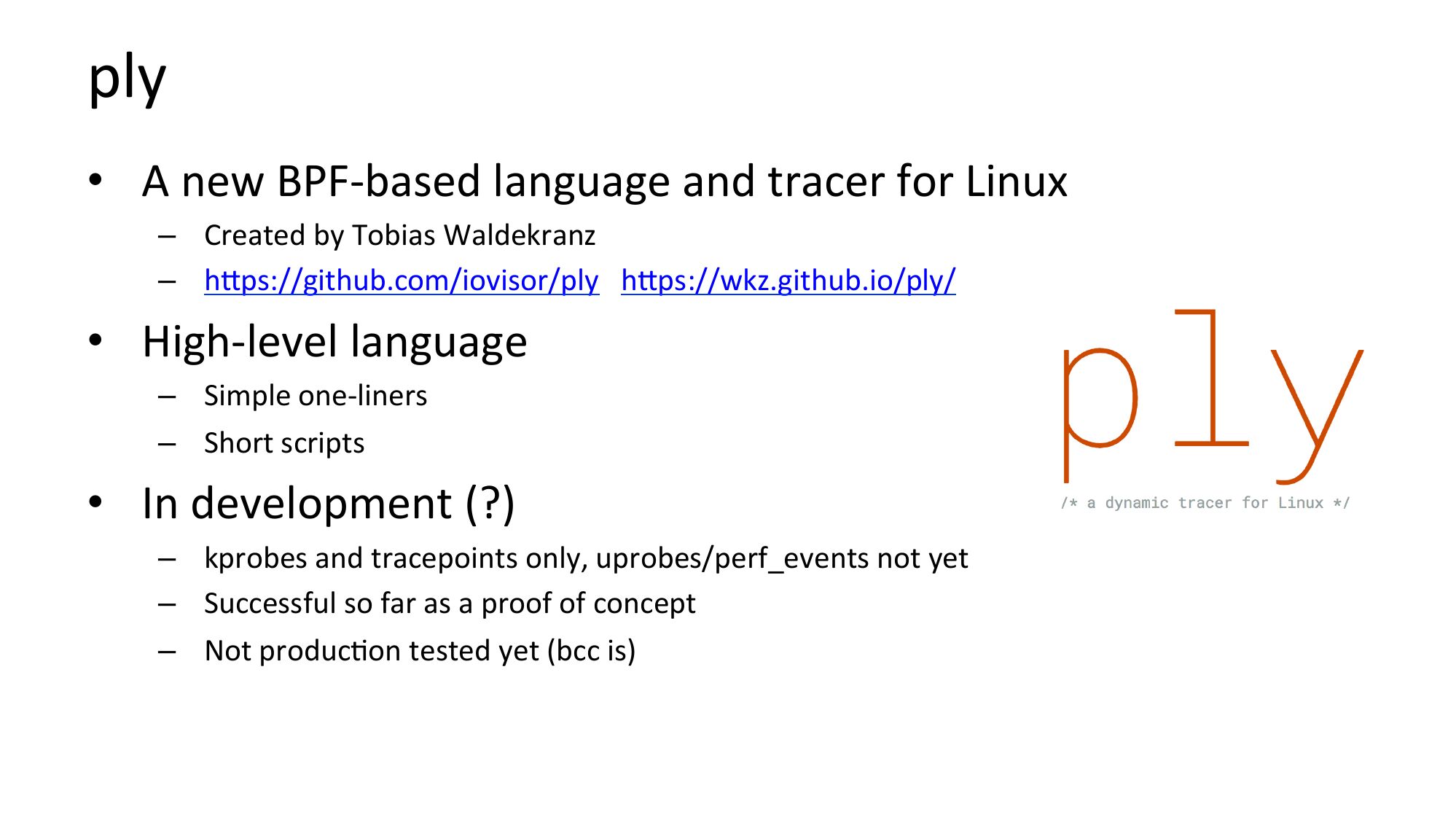

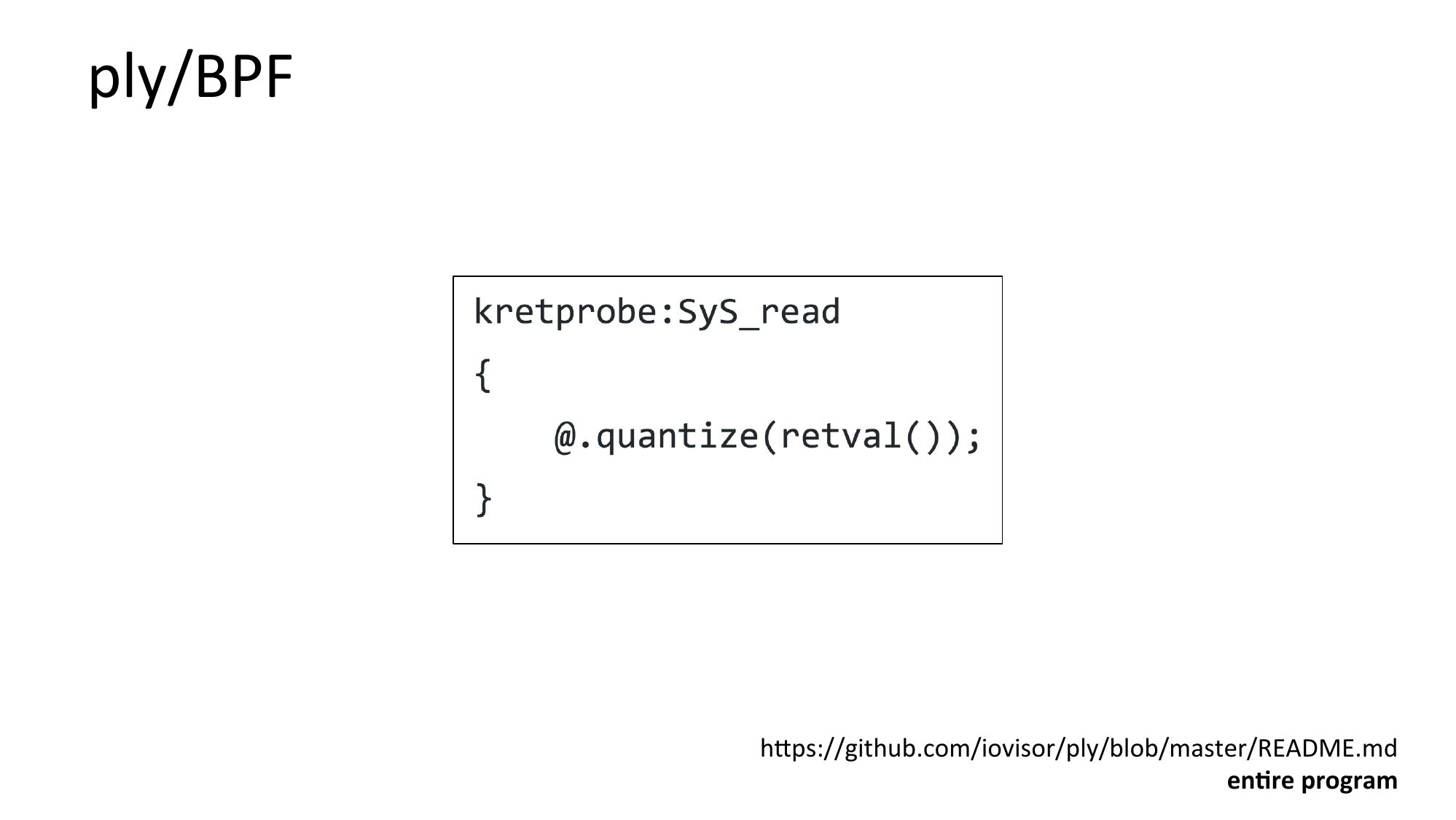

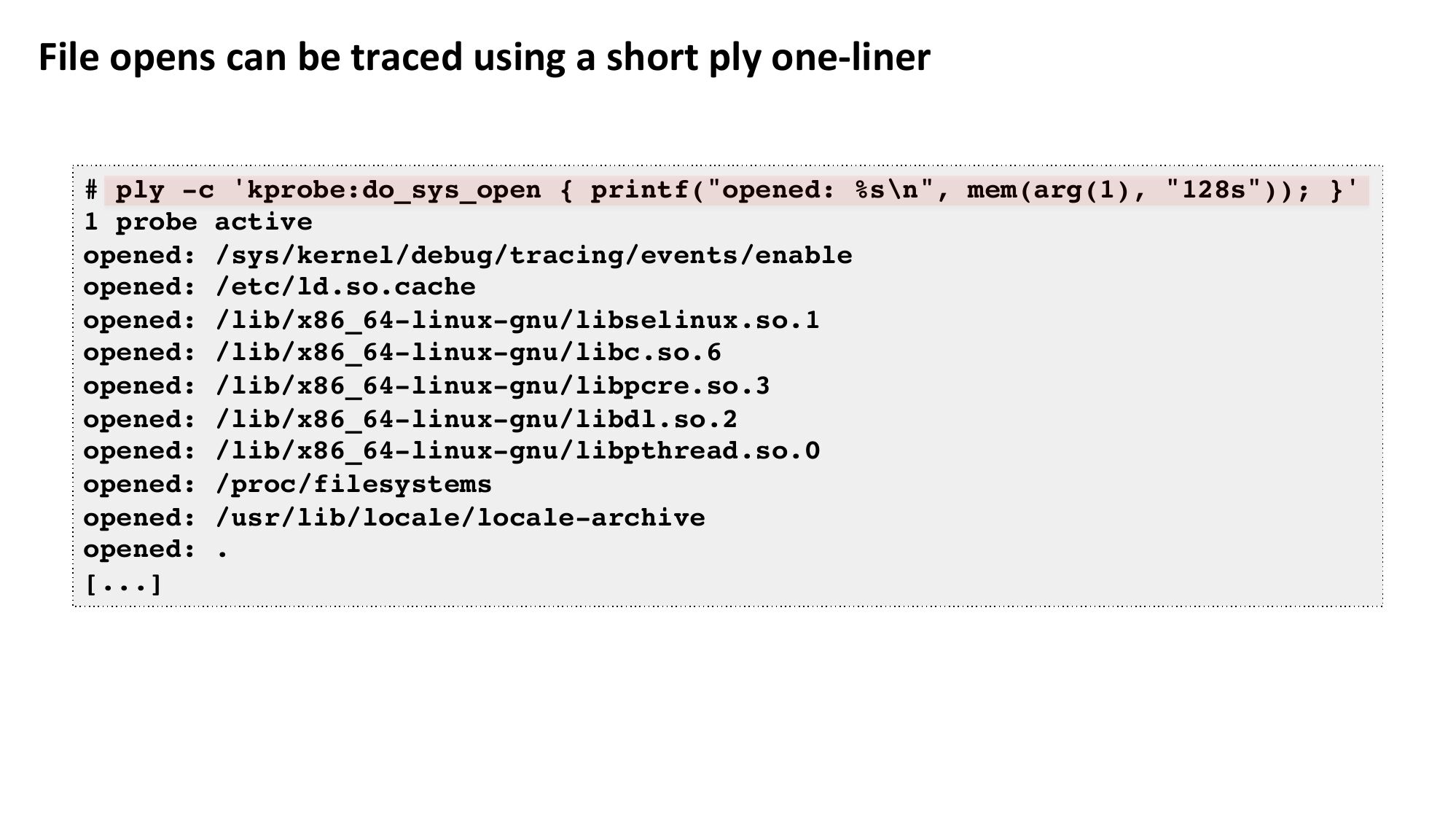

ply/BPF
hbps://github.com/iovisor/ply/blob/master/README.md
en:re program

slide 24:

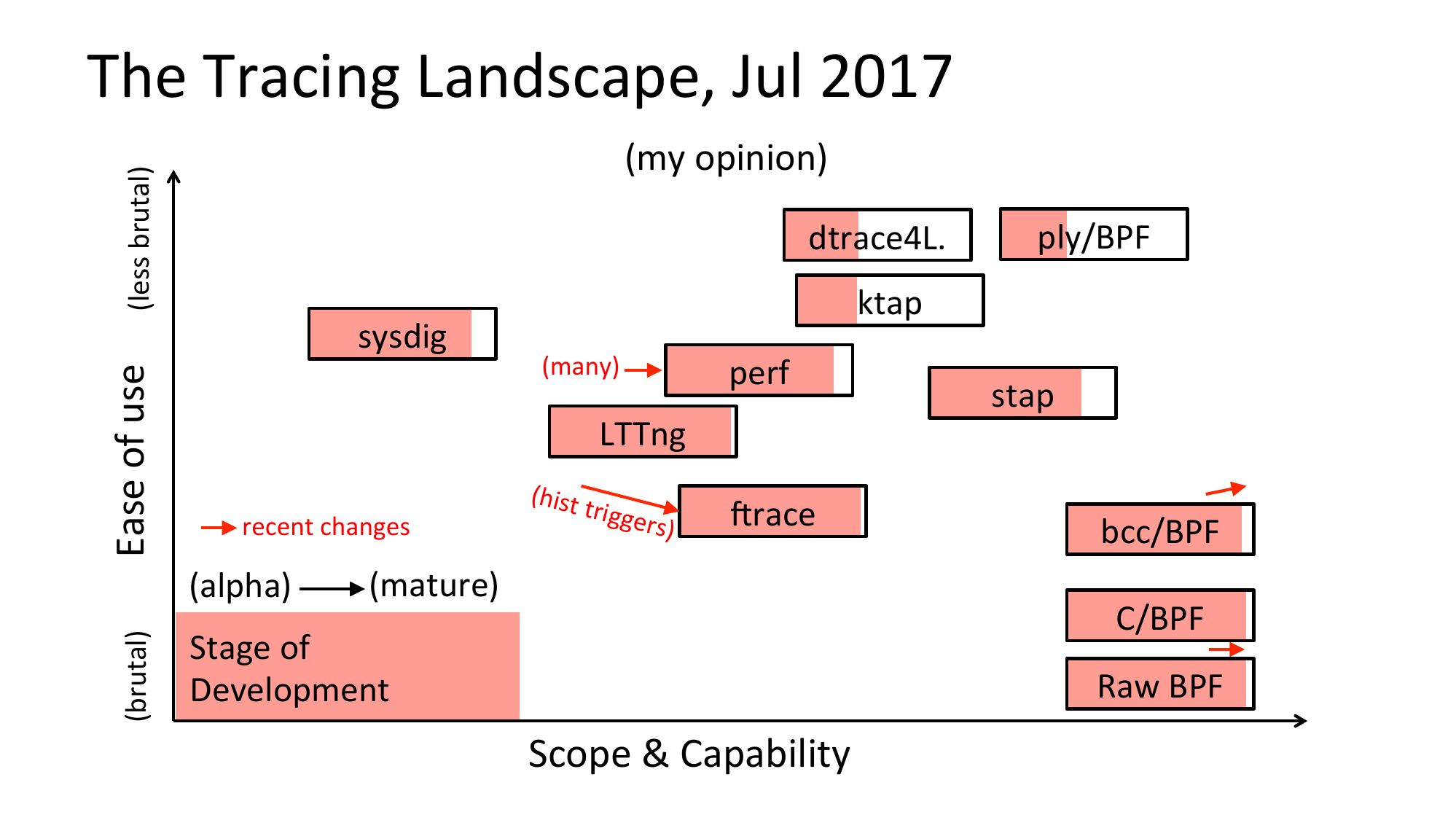

The Tracing Landscape, Jul 2017
(less brutal)
(my opinion)
dtrace4L.
Ease of use
sysdig
(alpha)
(brutal)
ktap
(many)
perf
LTTng
recent changes
ply/BPF
(h i s t t
rigge
rs)
Rrace
(mature)
stap
bcc/BPF
C/BPF
Stage of
Development
Raw BPF
Scope & Capability

slide 25:

Performance analysis
BCC/BPF CLI TOOLS

slide 26:

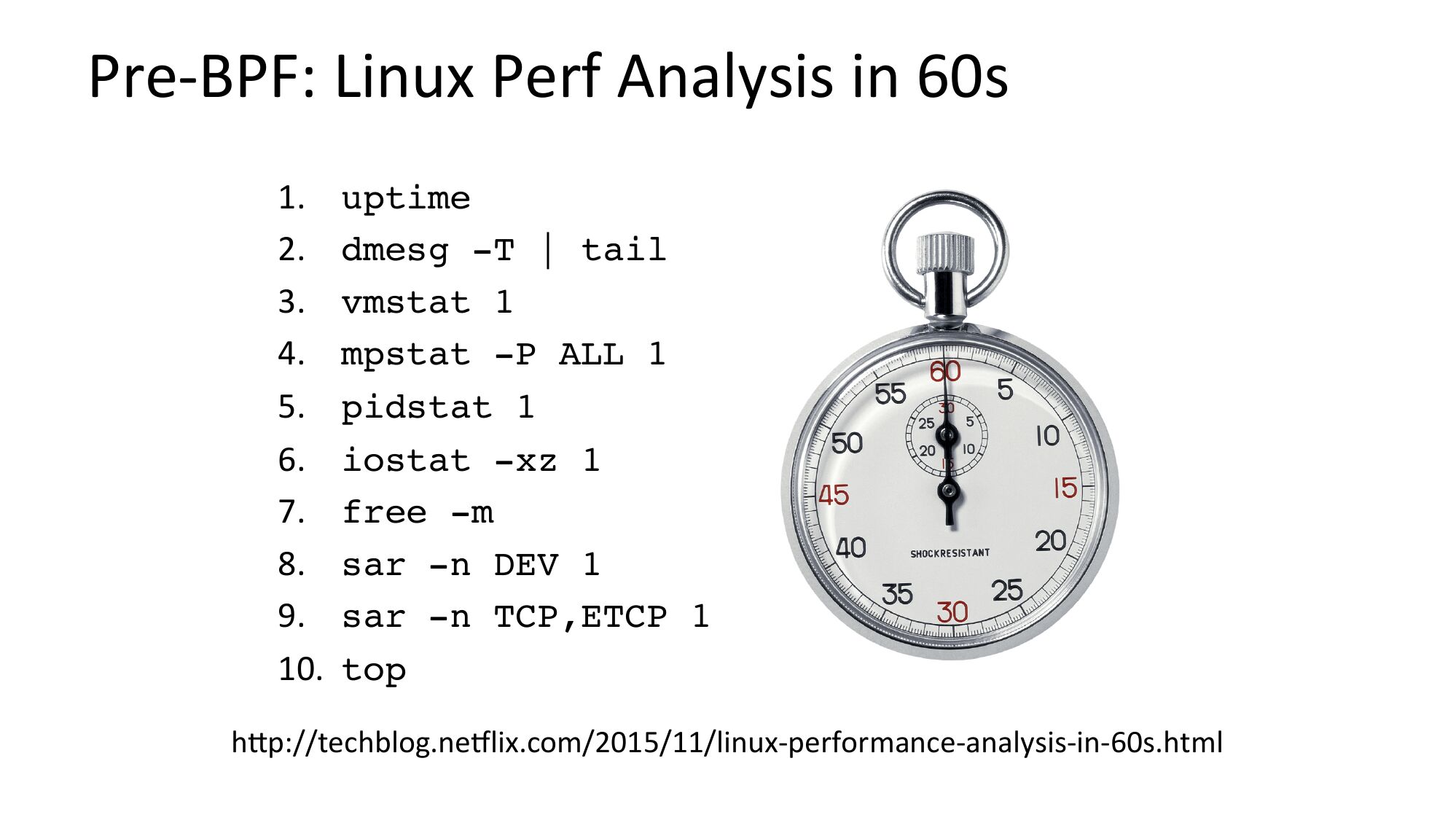

Pre-BPF: Linux Perf Analysis in 60s
1. uptime
2. dmesg -T | tail
3. vmstat 1
4. mpstat -P ALL 1
5. pidstat 1
6. iostat -xz 1
7. free -m
8. sar -n DEV 1
9. sar -n TCP,ETCP 1
10. top
hbp://techblog.neNlix.com/2015/11/linux-performance-analysis-in-60s.html

slide 27:

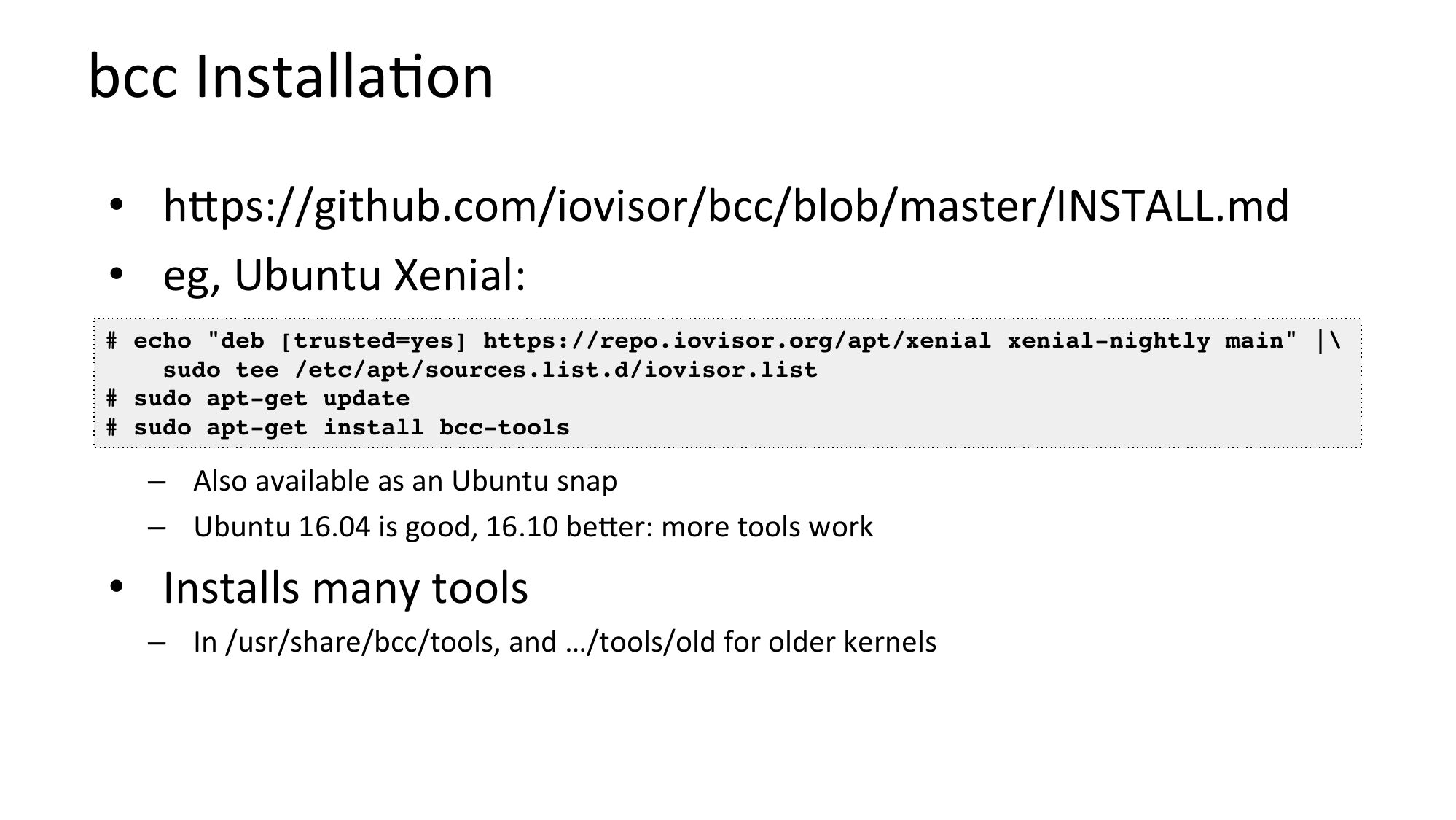

bcc Installa?on
• hbps://github.com/iovisor/bcc/blob/master/INSTALL.md
• eg, Ubuntu Xenial:
# echo "deb [trusted=yes] https://repo.iovisor.org/apt/xenial xenial-nightly main" |\
sudo tee /etc/apt/sources.list.d/iovisor.list
# sudo apt-get update
# sudo apt-get install bcc-tools
– Also available as an Ubuntu snap
– Ubuntu 16.04 is good, 16.10 beber: more tools work
• Installs many tools
– In /usr/share/bcc/tools, and …/tools/old for older kernels

slide 28:

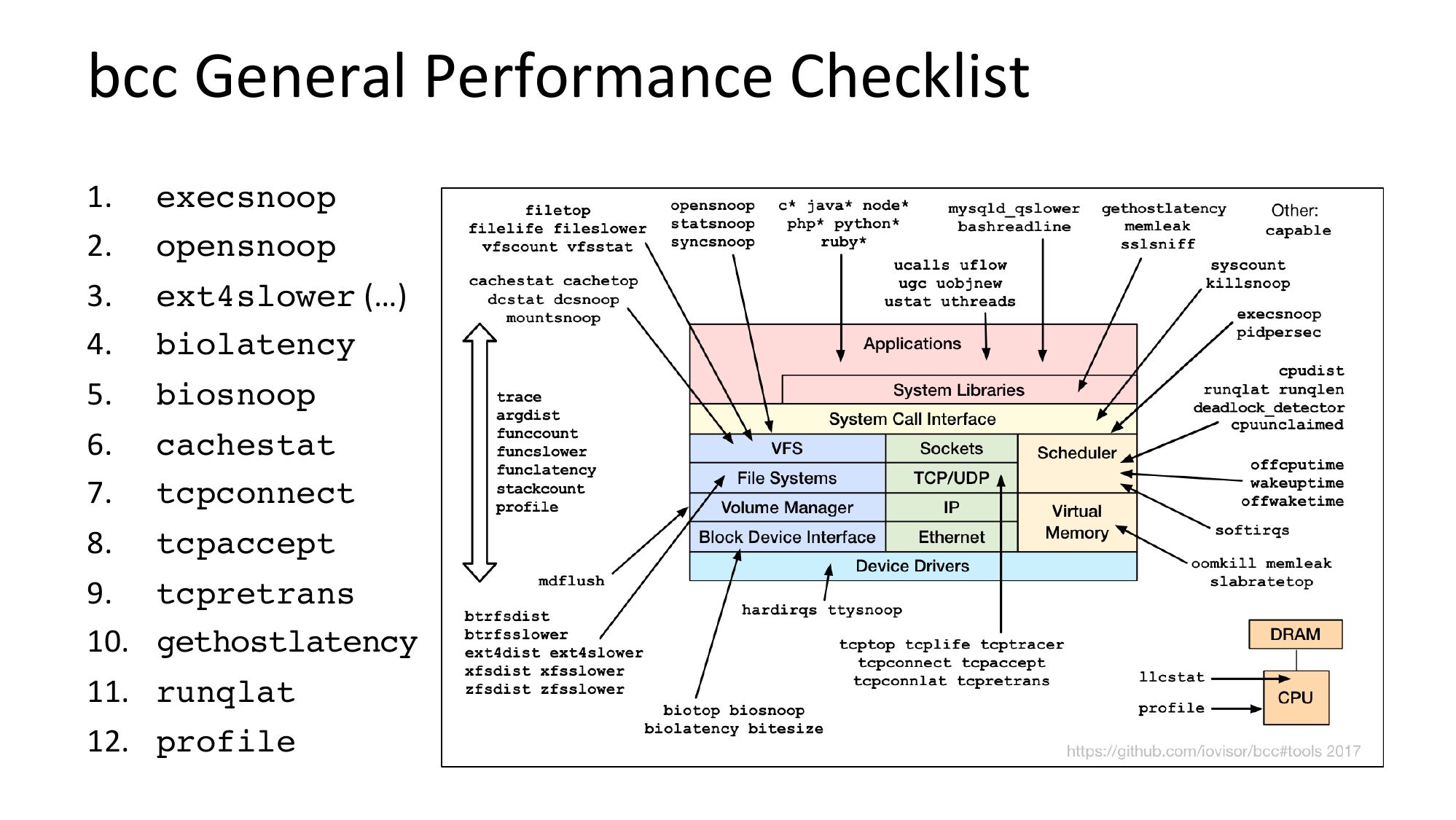

bcc General Performance Checklist
execsnoop
opensnoop
ext4slower (…)
biolatency
biosnoop
cachestat
tcpconnect
tcpaccept
9. tcpretrans
10. gethostlatency
11. runqlat
12. profile

slide 29:

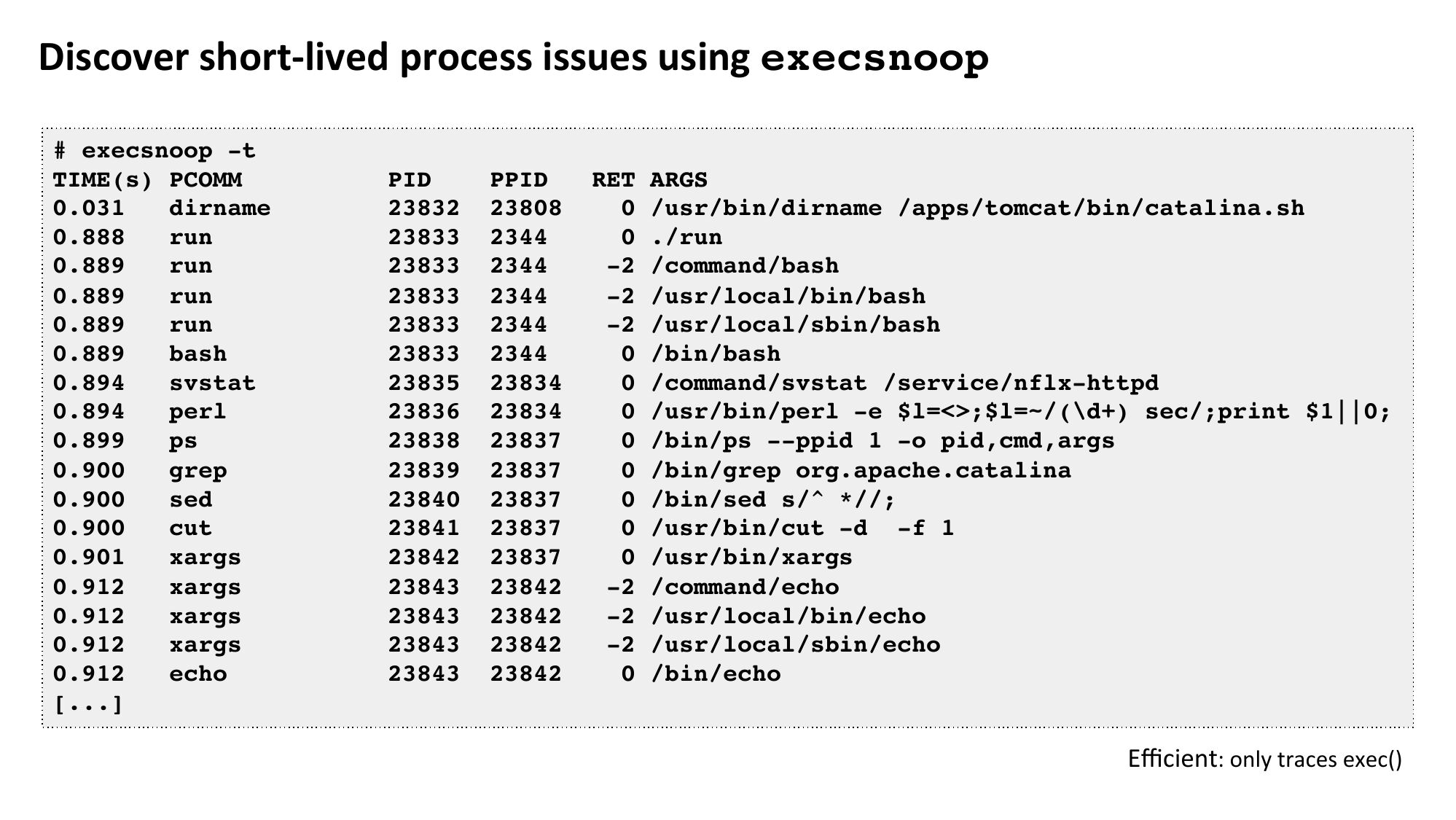

Discover short-lived process issues using execsnoop
# execsnoop -t
TIME(s) PCOMM
dirname
run
run
run
run
bash
svstat
perl
grep
sed
cut
xargs
xargs
xargs
xargs
echo
[...]
PID
PPID
RET ARGS
0 /usr/bin/dirname /apps/tomcat/bin/catalina.sh
0 ./run
-2 /command/bash
-2 /usr/local/bin/bash
-2 /usr/local/sbin/bash
0 /bin/bash
0 /command/svstat /service/nflx-httpd
0 /usr/bin/perl -e $l=gt;;$l=~/(\d+) sec/;print $1||0;
0 /bin/ps --ppid 1 -o pid,cmd,args
0 /bin/grep org.apache.catalina
0 /bin/sed s/^ *//;
0 /usr/bin/cut -d -f 1
0 /usr/bin/xargs
-2 /command/echo
-2 /usr/local/bin/echo
-2 /usr/local/sbin/echo
0 /bin/echo
Eﬃcient: only traces exec()

slide 30:

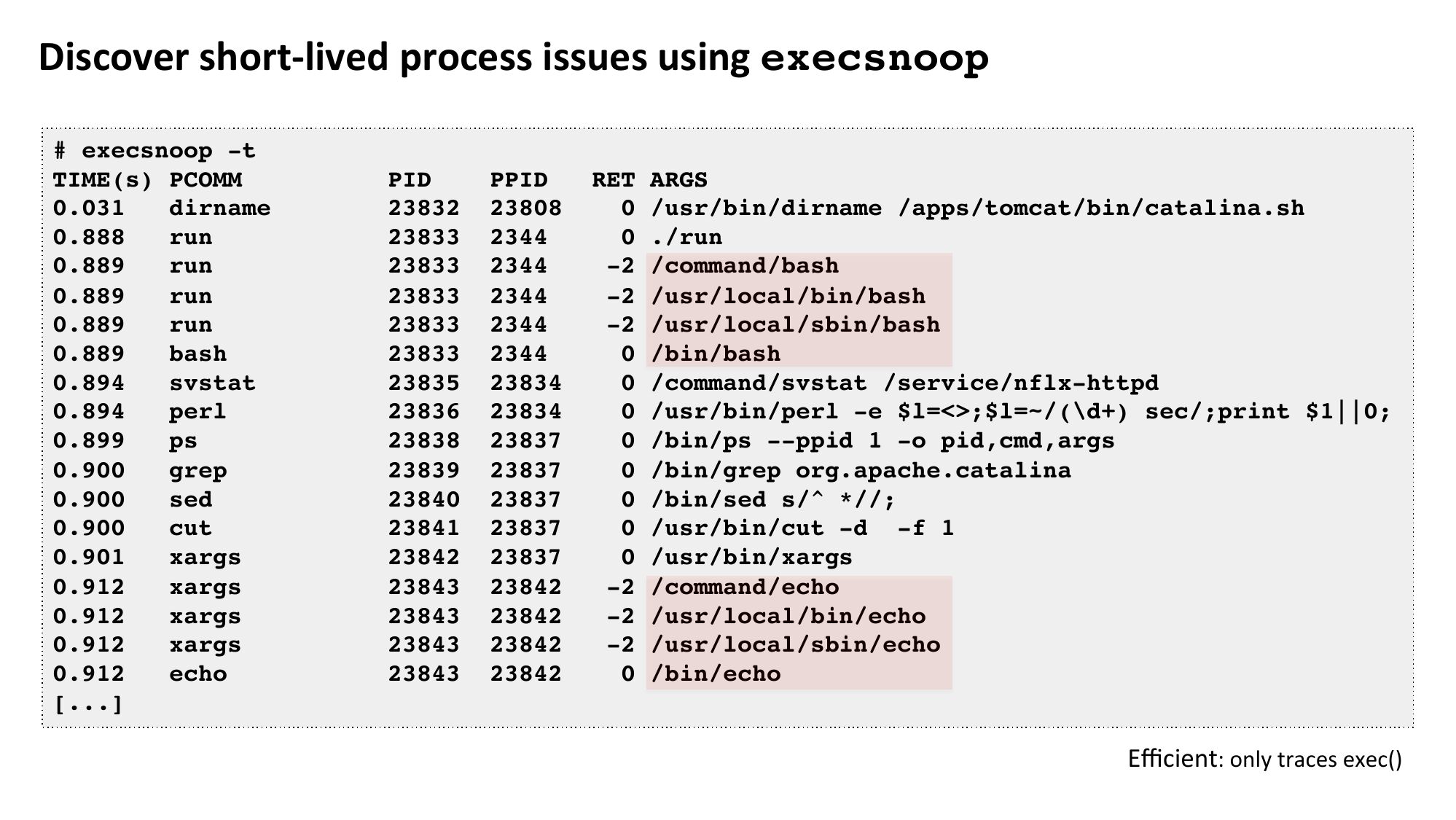

Discover short-lived process issues using execsnoop
# execsnoop -t
TIME(s) PCOMM
dirname
run
run
run
run
bash
svstat
perl
grep
sed
cut
xargs
xargs
xargs
xargs
echo
[...]
PID
PPID
RET ARGS
0 /usr/bin/dirname /apps/tomcat/bin/catalina.sh
0 ./run
-2 /command/bash
-2 /usr/local/bin/bash
-2 /usr/local/sbin/bash
0 /bin/bash
0 /command/svstat /service/nflx-httpd
0 /usr/bin/perl -e $l=gt;;$l=~/(\d+) sec/;print $1||0;
0 /bin/ps --ppid 1 -o pid,cmd,args
0 /bin/grep org.apache.catalina
0 /bin/sed s/^ *//;
0 /usr/bin/cut -d -f 1
0 /usr/bin/xargs
-2 /command/echo
-2 /usr/local/bin/echo
-2 /usr/local/sbin/echo
0 /bin/echo
Eﬃcient: only traces exec()

slide 31:

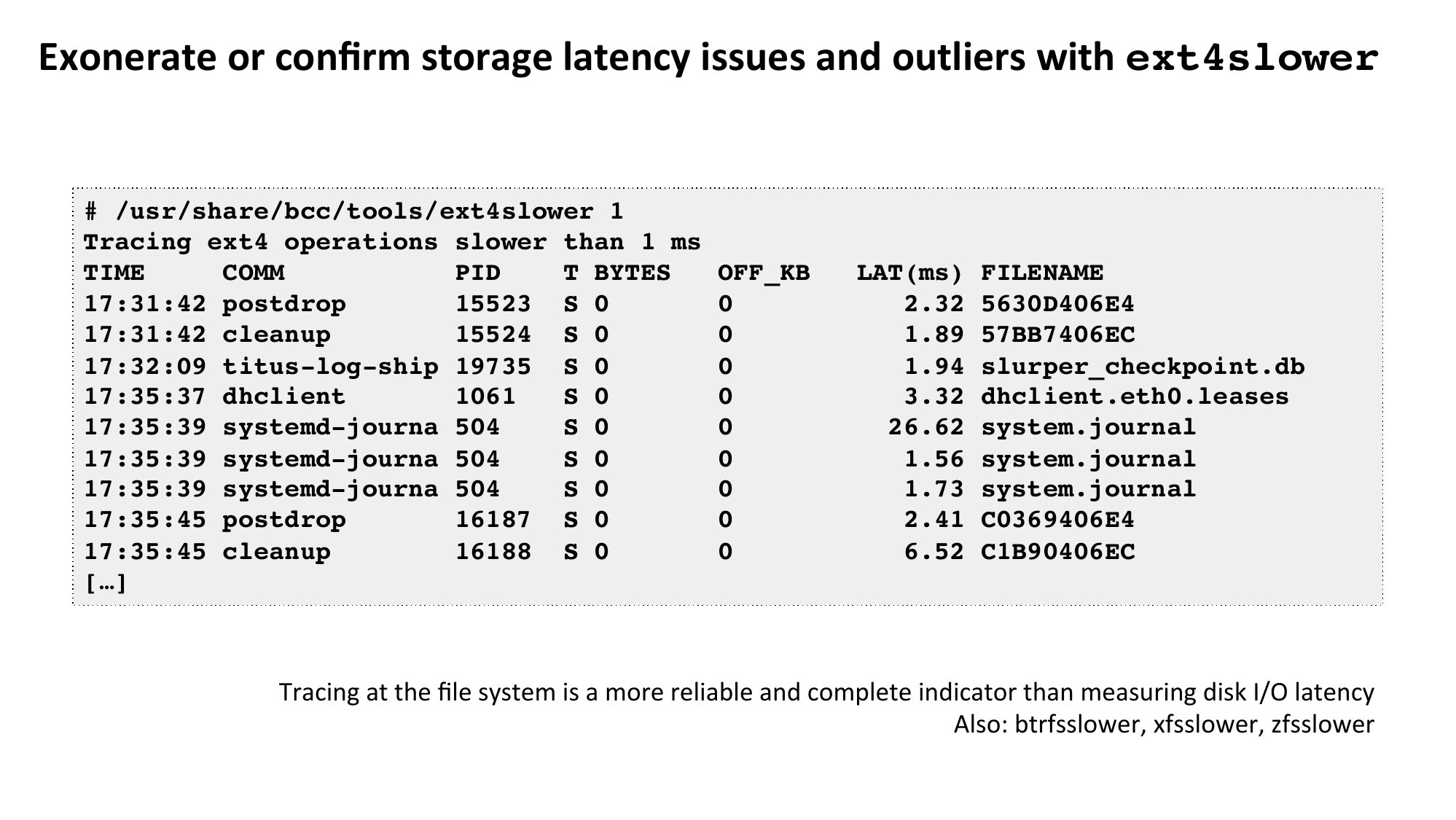

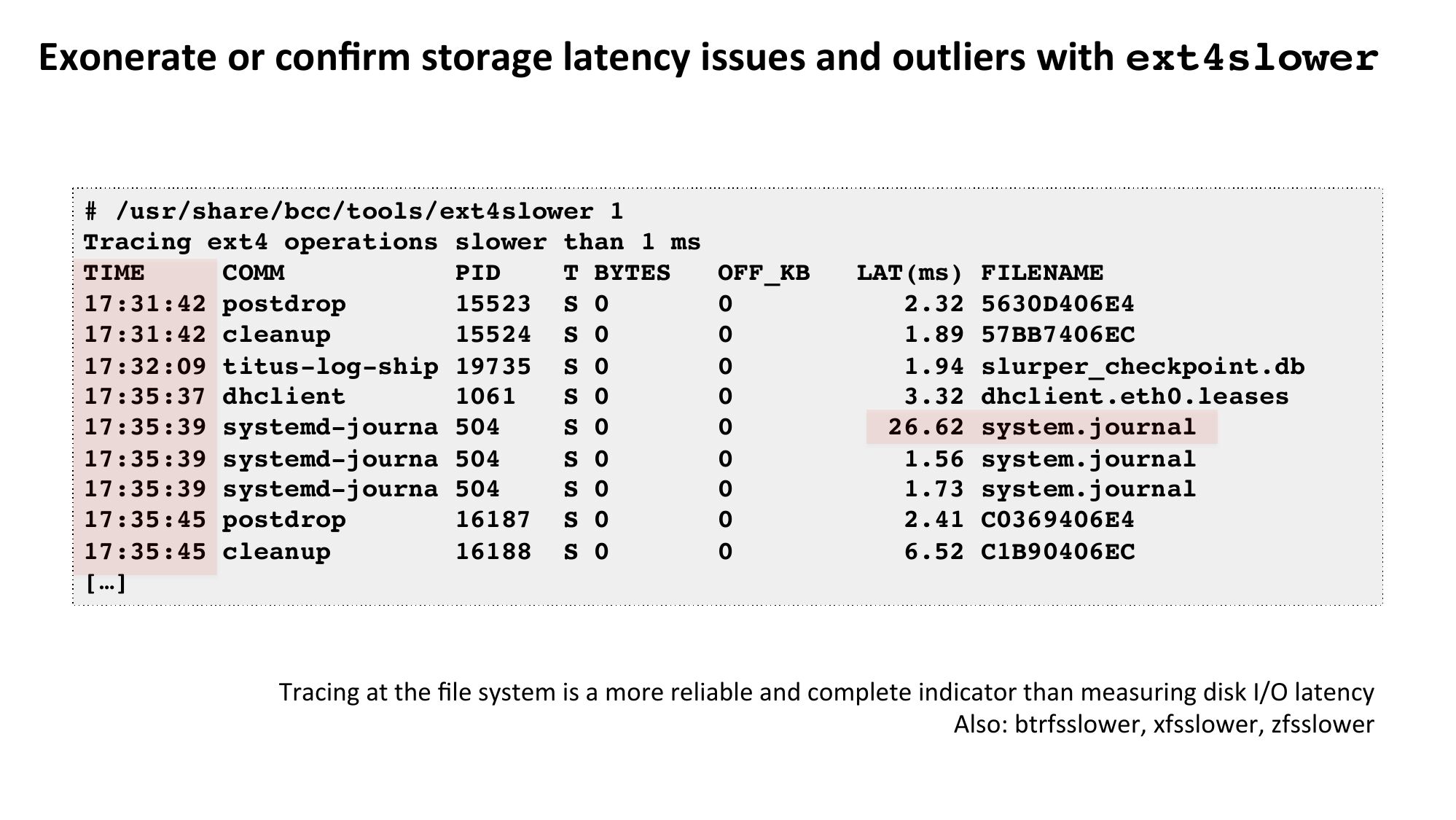

Exonerate or conﬁrm storage latency issues and outliers with ext4slower
# /usr/share/bcc/tools/ext4slower 1
Tracing ext4 operations slower than 1 ms
TIME
COMM
PID
T BYTES
OFF_KB
17:31:42 postdrop
15523 S 0
17:31:42 cleanup
15524 S 0
17:32:09 titus-log-ship 19735 S 0
17:35:37 dhclient
S 0
17:35:39 systemd-journa 504
S 0
17:35:39 systemd-journa 504
S 0
17:35:39 systemd-journa 504
S 0
17:35:45 postdrop
16187 S 0
17:35:45 cleanup
16188 S 0
[…]
LAT(ms) FILENAME
2.32 5630D406E4
1.89 57BB7406EC
1.94 slurper_checkpoint.db
3.32 dhclient.eth0.leases
26.62 system.journal
1.56 system.journal
1.73 system.journal
2.41 C0369406E4
6.52 C1B90406EC
Tracing at the ﬁle system is a more reliable and complete indicator than measuring disk I/O latency
Also: btrfsslower, xfsslower, zfsslower

slide 32:

Exonerate or conﬁrm storage latency issues and outliers with ext4slower
# /usr/share/bcc/tools/ext4slower 1
Tracing ext4 operations slower than 1 ms
TIME
COMM
PID
T BYTES
OFF_KB
17:31:42 postdrop
15523 S 0
17:31:42 cleanup
15524 S 0
17:32:09 titus-log-ship 19735 S 0
17:35:37 dhclient
S 0
17:35:39 systemd-journa 504
S 0
17:35:39 systemd-journa 504
S 0
17:35:39 systemd-journa 504
S 0
17:35:45 postdrop
16187 S 0
17:35:45 cleanup
16188 S 0
[…]
LAT(ms) FILENAME
2.32 5630D406E4
1.89 57BB7406EC
1.94 slurper_checkpoint.db
3.32 dhclient.eth0.leases
26.62 system.journal
1.56 system.journal
1.73 system.journal
2.41 C0369406E4
6.52 C1B90406EC
Tracing at the ﬁle system is a more reliable and complete indicator than measuring disk I/O latency
Also: btrfsslower, xfsslower, zfsslower

slide 33:

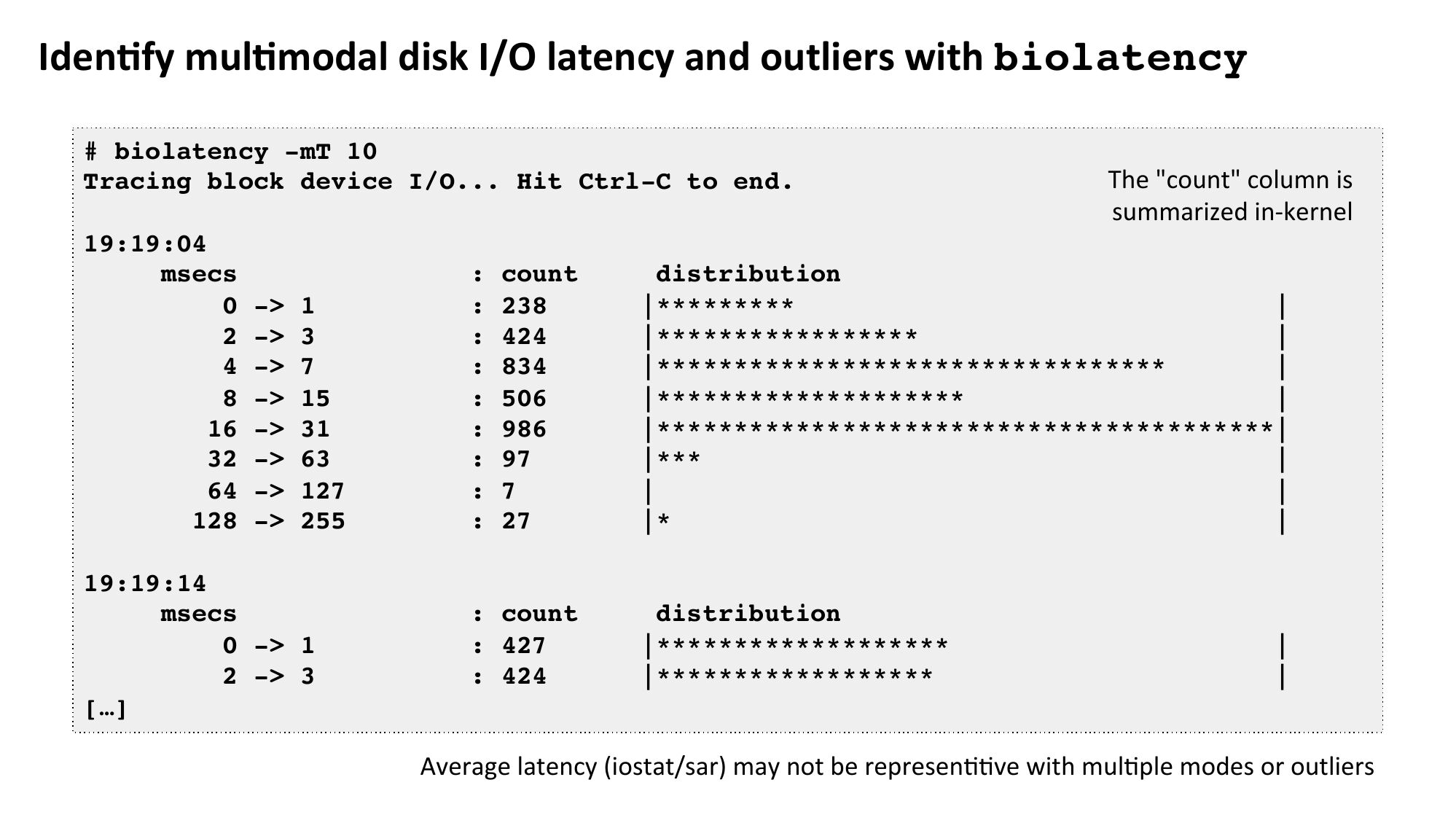

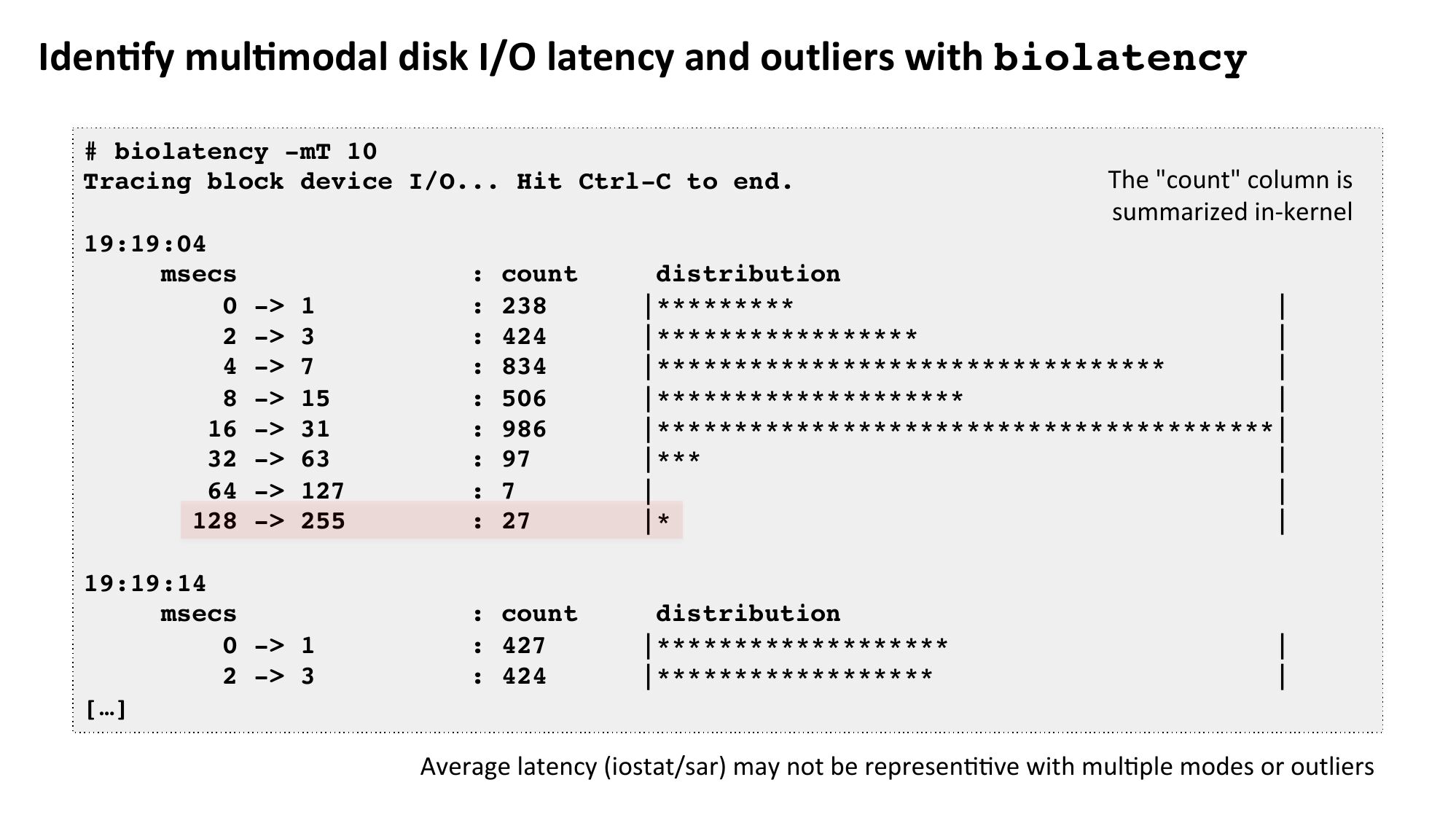

Iden:fy mul:modal disk I/O latency and outliers with biolatency
# biolatency -mT 10
Tracing block device I/O... Hit Ctrl-C to end.
19:19:04
msecs
0 ->gt; 1
2 ->gt; 3
4 ->gt; 7
8 ->gt; 15
16 ->gt; 31
32 ->gt; 63
64 ->gt; 127
128 ->gt; 255
19:19:14
msecs
0 ->gt; 1
2 ->gt; 3
[…]
The "count" column is
summarized in-kernel
: count
: 238
: 424
: 834
: 506
: 986
: 97
: 7
: 27
distribution
|*********
|*****************
|*********************************
|********************
|****************************************|
|***
: count
: 427
: 424
distribution
|*******************
|******************
Average latency (iostat/sar) may not be represen??ve with mul?ple modes or outliers

slide 34:

Iden:fy mul:modal disk I/O latency and outliers with biolatency
# biolatency -mT 10
Tracing block device I/O... Hit Ctrl-C to end.
19:19:04
msecs
0 ->gt; 1
2 ->gt; 3
4 ->gt; 7
8 ->gt; 15
16 ->gt; 31
32 ->gt; 63
64 ->gt; 127
128 ->gt; 255
19:19:14
msecs
0 ->gt; 1
2 ->gt; 3
[…]
The "count" column is
summarized in-kernel
: count
: 238
: 424
: 834
: 506
: 986
: 97
: 7
: 27
distribution
|*********
|*****************
|*********************************
|********************
|****************************************|
|***
: count
: 427
: 424
distribution
|*******************
|******************
Average latency (iostat/sar) may not be represen??ve with mul?ple modes or outliers

slide 35:

Eﬃciently trace TCP sessions with PID, bytes, and dura:on using tcplife
# /usr/share/bcc/tools/tcplife
PID
COMM
LADDR
2509 java
2509 java
2509 java
2509 java
2509 java
2509 java
12030 upload-mes 127.0.0.1
2509 java
12030 upload-mes 127.0.0.1
3964 mesos-slav 127.0.0.1
12021 upload-sys 127.0.0.1
2509 java
2235 dockerd
2235 dockerd
[...]
LPORT RADDR
8078 100.82.130.159
8078 100.82.78.215
60778 100.82.207.252
38884 100.82.208.178
4243 127.0.0.1
42166 127.0.0.1
34020 127.0.0.1
8078 127.0.0.1
21196 127.0.0.1
7101 127.0.0.1
34022 127.0.0.1
8078 127.0.0.1
13730 100.82.136.233
34314 100.82.64.53
RPORT TX_KB RX_KB MS
0 5.44
0 135.32
13 15126.87
0 15568.25
0 0.61
0 0.67
0 3.38
11 3.41
0 12.61
0 12.64
0 15.28
372 15.31
4 18.50
8 56.73
Dynamic tracing of TCP set state only; does not trace send/receive
Also see: tcpconnect, tcpaccept, tcpretrans

slide 36:

Eﬃciently trace TCP sessions with PID, bytes, and dura:on using tcplife
# /usr/share/bcc/tools/tcplife
PID
COMM
LADDR
2509 java
2509 java
2509 java
2509 java
2509 java
2509 java
12030 upload-mes 127.0.0.1
2509 java
12030 upload-mes 127.0.0.1
3964 mesos-slav 127.0.0.1
12021 upload-sys 127.0.0.1
2509 java
2235 dockerd
2235 dockerd
[...]
LPORT RADDR
8078 100.82.130.159
8078 100.82.78.215
60778 100.82.207.252
38884 100.82.208.178
4243 127.0.0.1
42166 127.0.0.1
34020 127.0.0.1
8078 127.0.0.1
21196 127.0.0.1
7101 127.0.0.1
34022 127.0.0.1
8078 127.0.0.1
13730 100.82.136.233
34314 100.82.64.53
RPORT TX_KB RX_KB MS
0 5.44
0 135.32
13 15126.87
0 15568.25
0 0.61
0 0.67
0 3.38
11 3.41
0 12.61
0 12.64
0 15.28
372 15.31
4 18.50
8 56.73
Dynamic tracing of TCP set state only; does not trace send/receive
Also see: tcpconnect, tcpaccept, tcpretrans

slide 37:

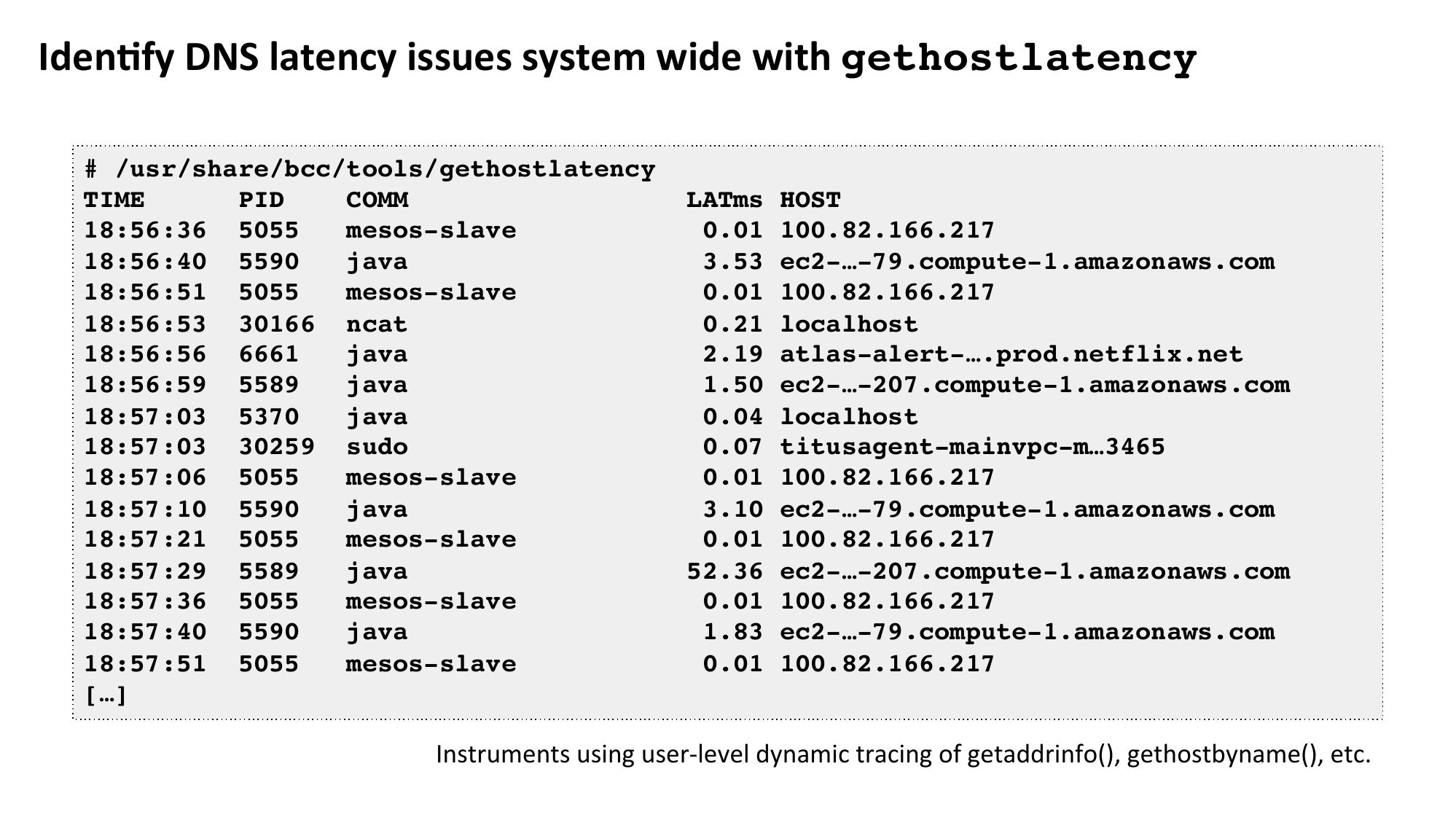

Iden:fy DNS latency issues system wide with gethostlatency
# /usr/share/bcc/tools/gethostlatency
TIME
PID
COMM
18:56:36 5055
mesos-slave
18:56:40 5590
java
18:56:51 5055
mesos-slave
18:56:53 30166 ncat
18:56:56 6661
java
18:56:59 5589
java
18:57:03 5370
java
18:57:03 30259 sudo
18:57:06 5055
mesos-slave
18:57:10 5590
java
18:57:21 5055
mesos-slave
18:57:29 5589
java
18:57:36 5055
mesos-slave
18:57:40 5590
java
18:57:51 5055
mesos-slave
[…]
LATms HOST
0.01 100.82.166.217
3.53 ec2-…-79.compute-1.amazonaws.com
0.01 100.82.166.217
0.21 localhost
2.19 atlas-alert-….prod.netflix.net
1.50 ec2-…-207.compute-1.amazonaws.com
0.04 localhost
0.07 titusagent-mainvpc-m…3465
0.01 100.82.166.217
3.10 ec2-…-79.compute-1.amazonaws.com
0.01 100.82.166.217
52.36 ec2-…-207.compute-1.amazonaws.com
0.01 100.82.166.217
1.83 ec2-…-79.compute-1.amazonaws.com
0.01 100.82.166.217
Instruments using user-level dynamic tracing of getaddrinfo(), gethostbyname(), etc.

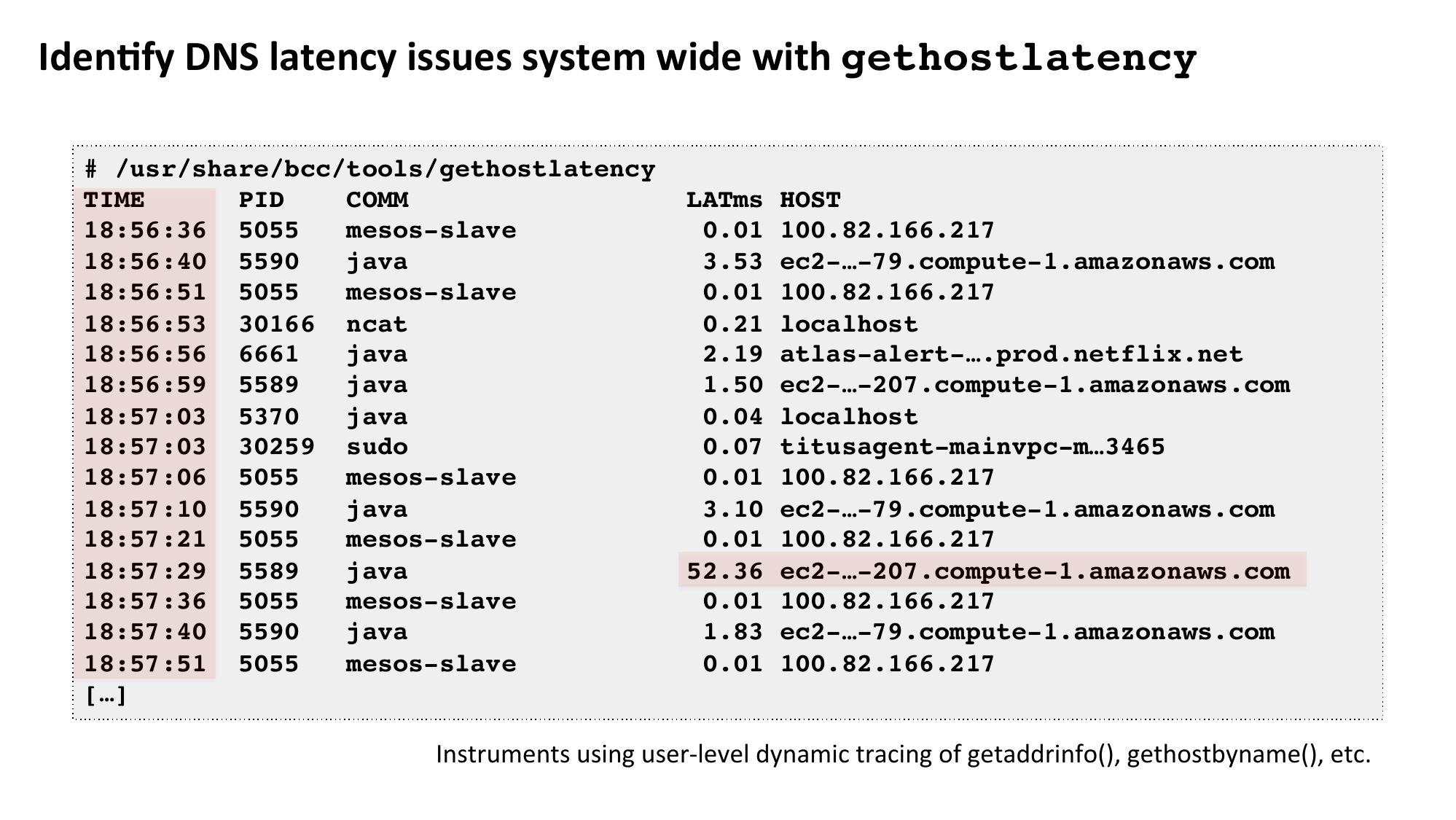

slide 38:

Iden:fy DNS latency issues system wide with gethostlatency
# /usr/share/bcc/tools/gethostlatency
TIME
PID
COMM
18:56:36 5055
mesos-slave
18:56:40 5590
java
18:56:51 5055
mesos-slave
18:56:53 30166 ncat
18:56:56 6661
java
18:56:59 5589
java
18:57:03 5370
java
18:57:03 30259 sudo
18:57:06 5055
mesos-slave
18:57:10 5590
java
18:57:21 5055
mesos-slave
18:57:29 5589
java
18:57:36 5055
mesos-slave
18:57:40 5590
java
18:57:51 5055
mesos-slave
[…]
LATms HOST
0.01 100.82.166.217
3.53 ec2-…-79.compute-1.amazonaws.com
0.01 100.82.166.217
0.21 localhost
2.19 atlas-alert-….prod.netflix.net
1.50 ec2-…-207.compute-1.amazonaws.com
0.04 localhost
0.07 titusagent-mainvpc-m…3465
0.01 100.82.166.217
3.10 ec2-…-79.compute-1.amazonaws.com
0.01 100.82.166.217
52.36 ec2-…-207.compute-1.amazonaws.com
0.01 100.82.166.217
1.83 ec2-…-79.compute-1.amazonaws.com
0.01 100.82.166.217
Instruments using user-level dynamic tracing of getaddrinfo(), gethostbyname(), etc.

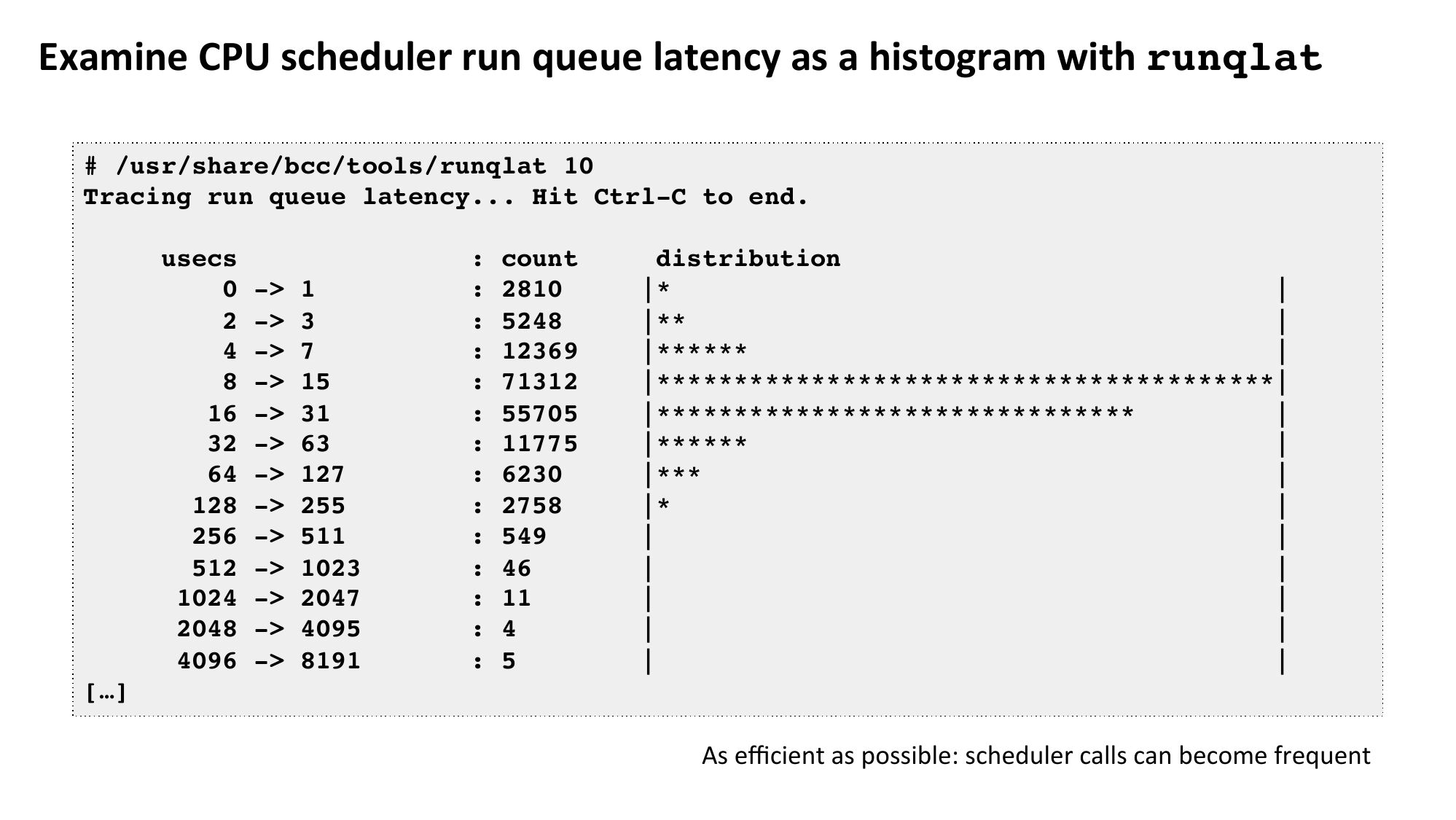

slide 39:

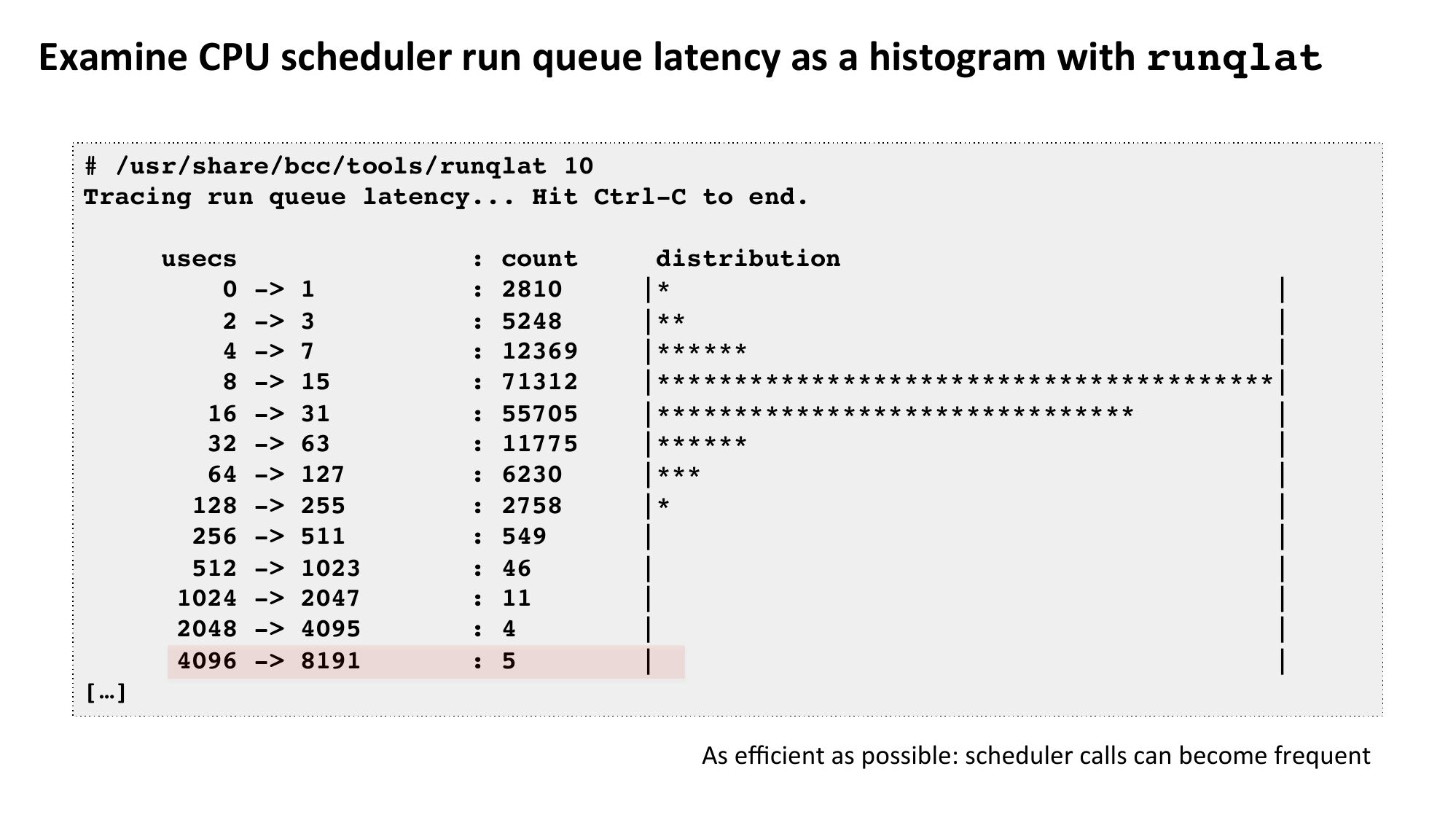

Examine CPU scheduler run queue latency as a histogram with runqlat
# /usr/share/bcc/tools/runqlat 10
Tracing run queue latency... Hit Ctrl-C to end.
usecs
0 ->gt; 1
2 ->gt; 3
4 ->gt; 7
8 ->gt; 15
16 ->gt; 31
32 ->gt; 63
64 ->gt; 127
128 ->gt; 255
256 ->gt; 511
512 ->gt; 1023
1024 ->gt; 2047
2048 ->gt; 4095
4096 ->gt; 8191
: count
: 2810
: 5248
: 12369
: 71312
: 55705
: 11775
: 6230
: 2758
: 549
: 46
: 11
: 4
: 5
distribution
|**
|******
|****************************************|
|*******************************
|******
|***
[…]
As eﬃcient as possible: scheduler calls can become frequent

slide 40:

Examine CPU scheduler run queue latency as a histogram with runqlat
# /usr/share/bcc/tools/runqlat 10
Tracing run queue latency... Hit Ctrl-C to end.
usecs
0 ->gt; 1
2 ->gt; 3
4 ->gt; 7
8 ->gt; 15
16 ->gt; 31
32 ->gt; 63
64 ->gt; 127
128 ->gt; 255
256 ->gt; 511
512 ->gt; 1023
1024 ->gt; 2047
2048 ->gt; 4095
4096 ->gt; 8191
: count
: 2810
: 5248
: 12369
: 71312
: 55705
: 11775
: 6230
: 2758
: 549
: 46
: 11
: 4
: 5
distribution
|**
|******
|****************************************|
|*******************************
|******
|***
[…]
As eﬃcient as possible: scheduler calls can become frequent

slide 41:

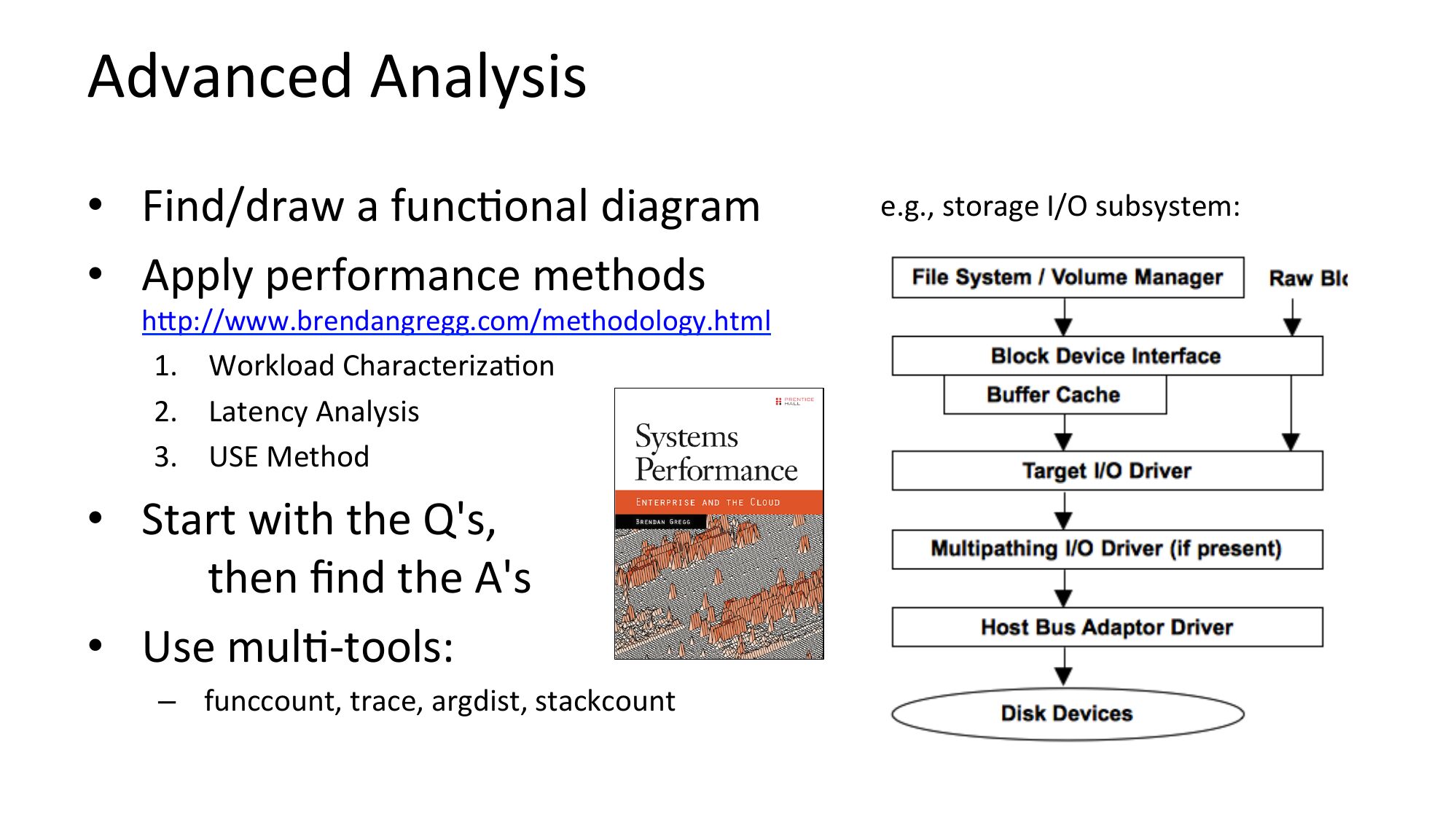

Advanced Analysis
• Find/draw a func?onal diagram
• Apply performance methods
hbp://www.brendangregg.com/methodology.html
1. Workload Characteriza?on
2. Latency Analysis
3. USE Method
• Start with the Q's,
then ﬁnd the A's
• Use mul?-tools:
– funccount, trace, argdist, stackcount
e.g., storage I/O subsystem:

slide 42:

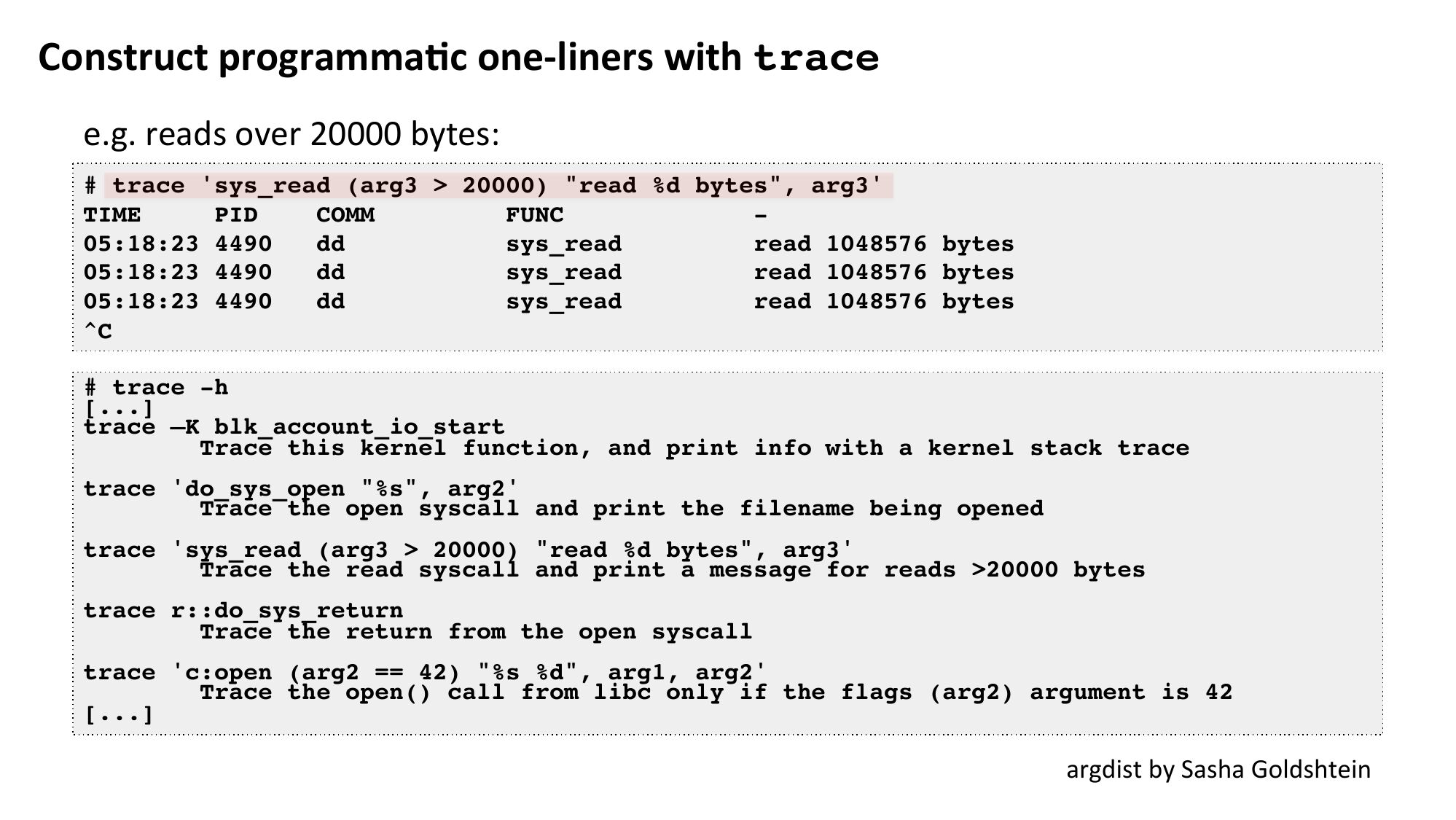

Construct programma:c one-liners with trace
e.g. reads over 20000 bytes:
# trace 'sys_read (arg3 >gt; 20000) "read %d bytes", arg3'
TIME
PID
COMM
FUNC
05:18:23 4490
sys_read
read 1048576 bytes
05:18:23 4490
sys_read
read 1048576 bytes
05:18:23 4490
sys_read
read 1048576 bytes
# trace -h
[...]
trace –K blk_account_io_start
Trace this kernel function, and print info with a kernel stack trace
trace 'do_sys_open "%s", arg2'
Trace the open syscall and print the filename being opened
trace 'sys_read (arg3 >gt; 20000) "read %d bytes", arg3'
Trace the read syscall and print a message for reads >gt;20000 bytes
trace r::do_sys_return
Trace the return from the open syscall
trace 'c:open (arg2 == 42) "%s %d", arg1, arg2'
Trace the open() call from libc only if the flags (arg2) argument is 42
[...]
argdist by Sasha Goldshtein

slide 43:

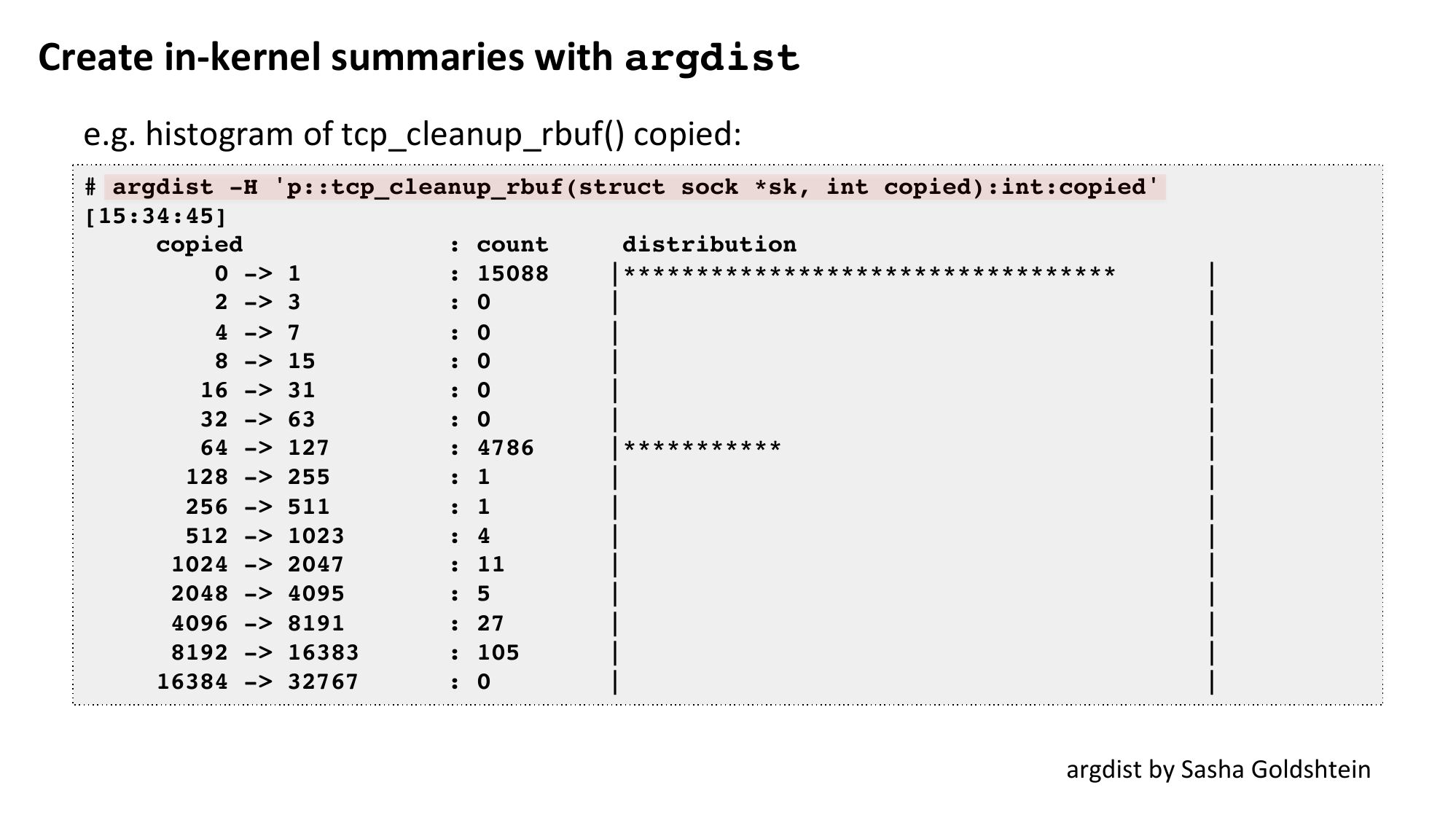

Create in-kernel summaries with argdist
e.g. histogram of tcp_cleanup_rbuf() copied:
# argdist -H 'p::tcp_cleanup_rbuf(struct sock *sk, int copied):int:copied'
[15:34:45]
copied
: count
distribution
0 ->gt; 1
: 15088
|**********************************
2 ->gt; 3
: 0
4 ->gt; 7
: 0
8 ->gt; 15
: 0
16 ->gt; 31
: 0
32 ->gt; 63
: 0
64 ->gt; 127
: 4786
|***********
128 ->gt; 255
: 1
256 ->gt; 511
: 1
512 ->gt; 1023
: 4
1024 ->gt; 2047
: 11
2048 ->gt; 4095
: 5
4096 ->gt; 8191
: 27
8192 ->gt; 16383
: 105
16384 ->gt; 32767
: 0
argdist by Sasha Goldshtein

slide 44:

Coming to a GUI near you
BCC/BPF VISUALIZATIONS

slide 45:

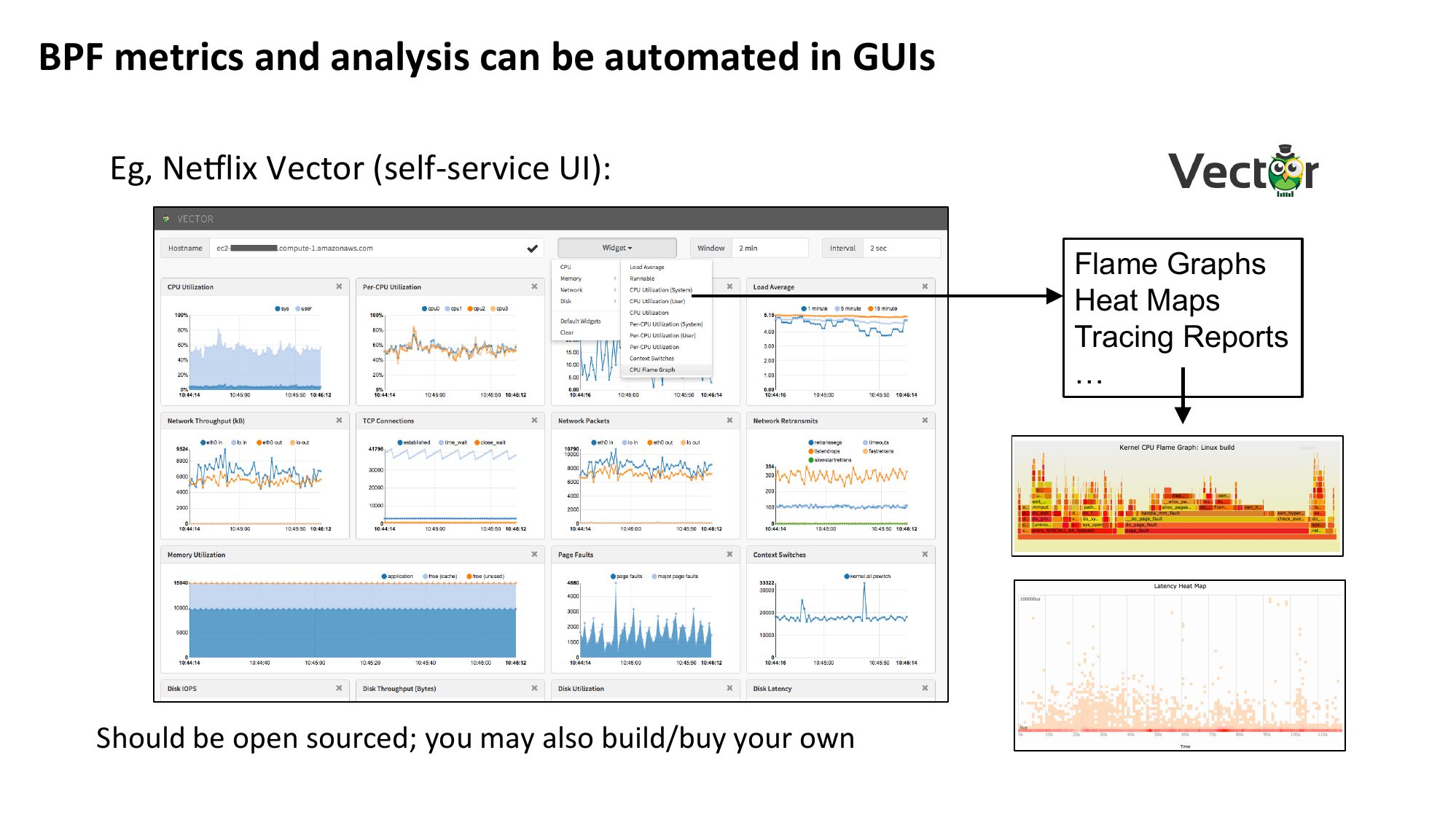

BPF metrics and analysis can be automated in GUIs
Eg, NeNlix Vector (self-service UI):
Flame Graphs
Heat Maps
Tracing Reports
Should be open sourced; you may also build/buy your own

slide 46:

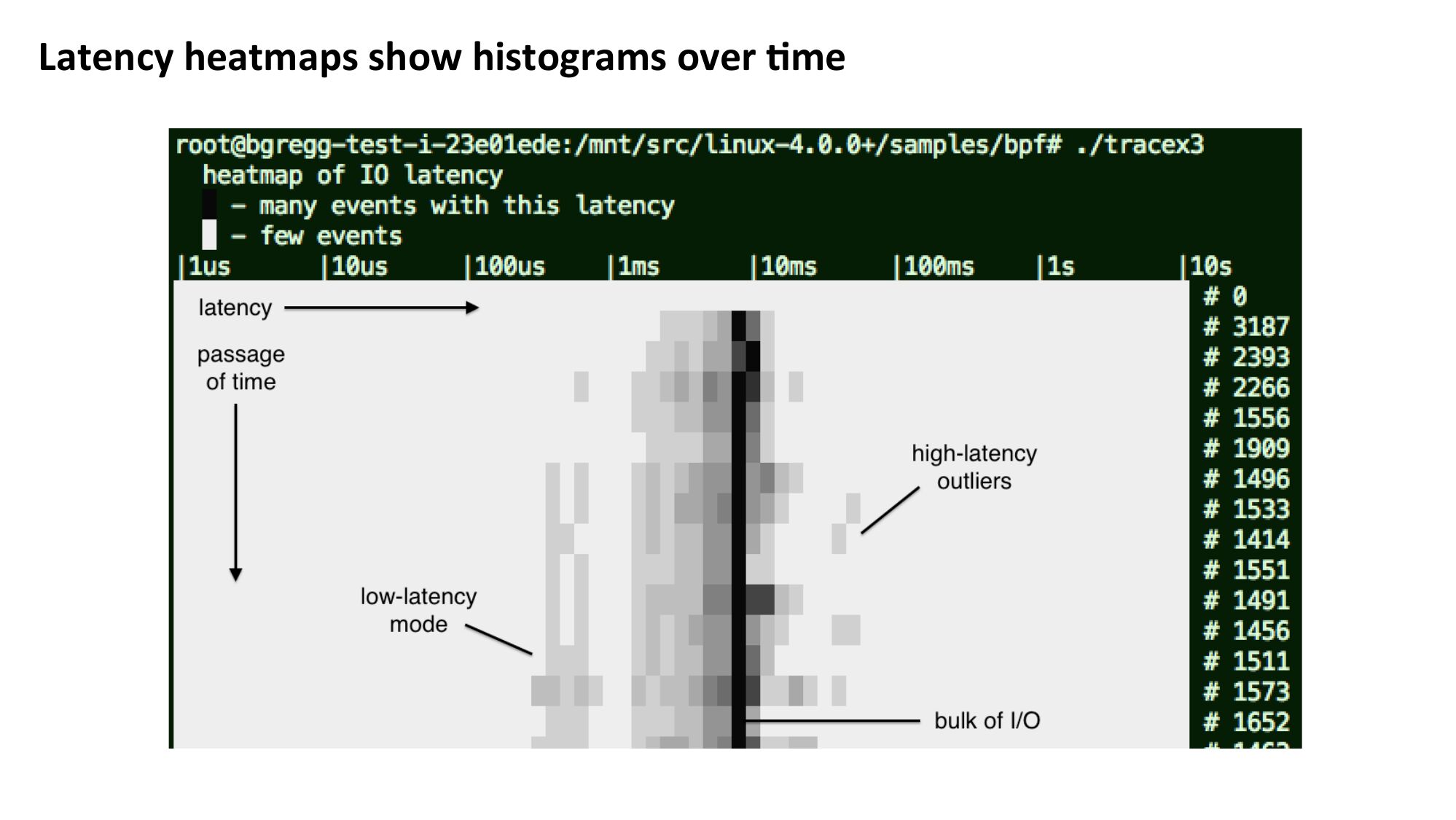

Latency heatmaps show histograms over :me

slide 47:

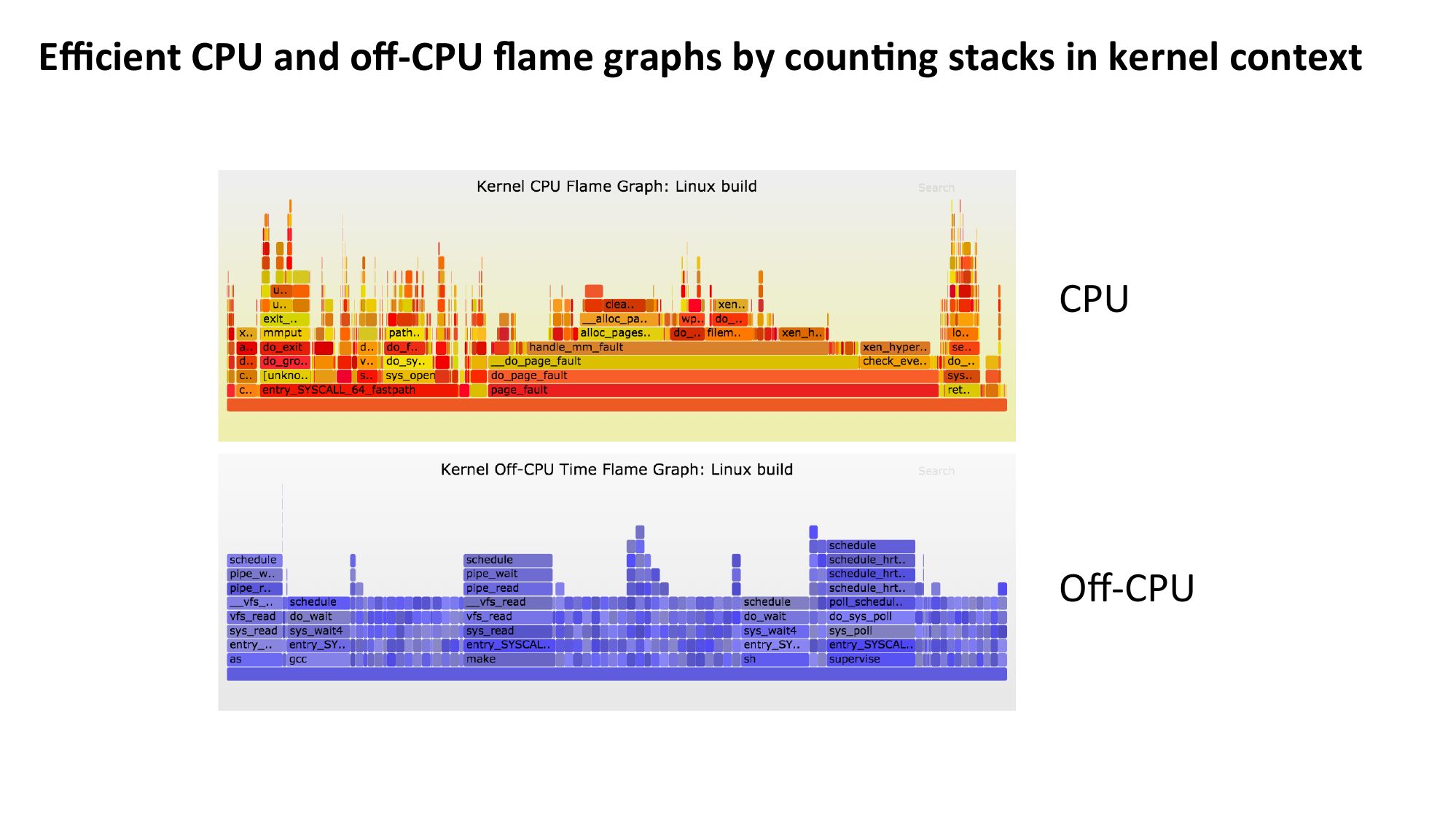

Eﬃcient CPU and oﬀ-CPU ﬂame graphs by coun:ng stacks in kernel context
CPU
Oﬀ-CPU

slide 48:

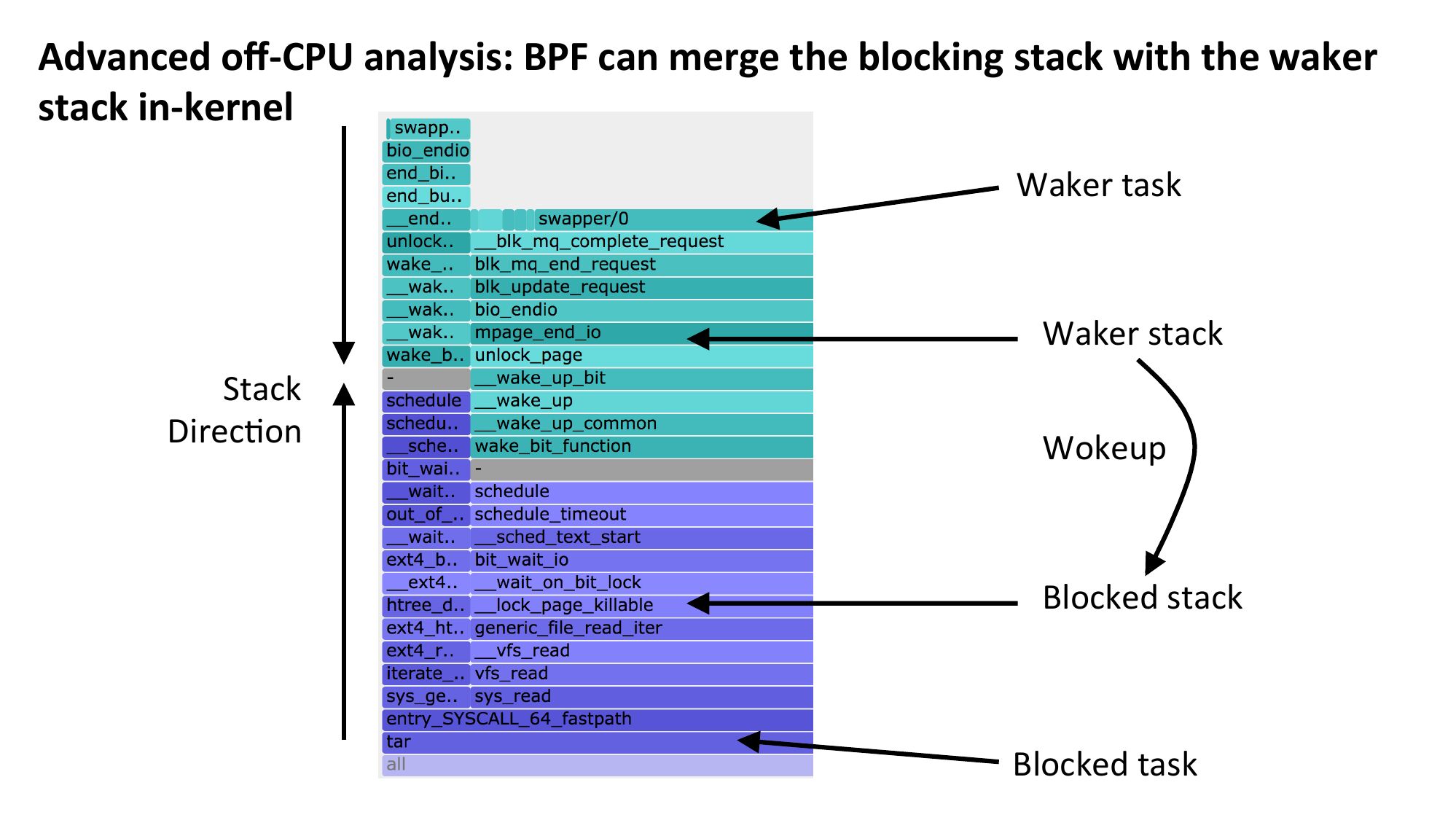

Advanced oﬀ-CPU analysis: BPF can merge the blocking stack with the waker
stack in-kernel
Waker task
Waker stack
Stack
Direc?on
Wokeup
Blocked stack
Blocked task

slide 49:

BPF
FUTURE WORK

slide 50:

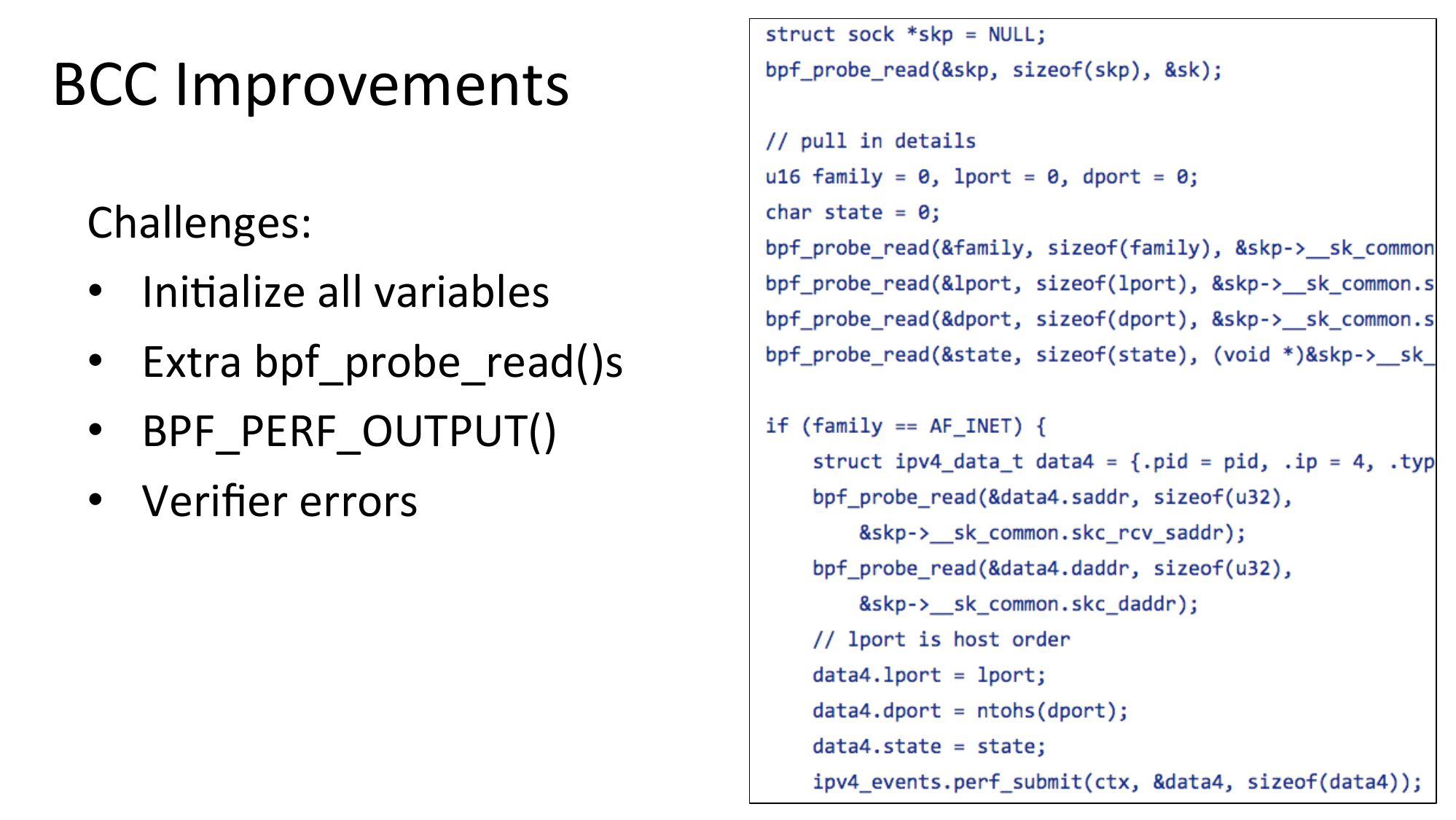

BCC Improvements
Challenges:
• Ini?alize all variables
• Extra bpf_probe_read()s
• BPF_PERF_OUTPUT()
• Veriﬁer errors

slide 51:

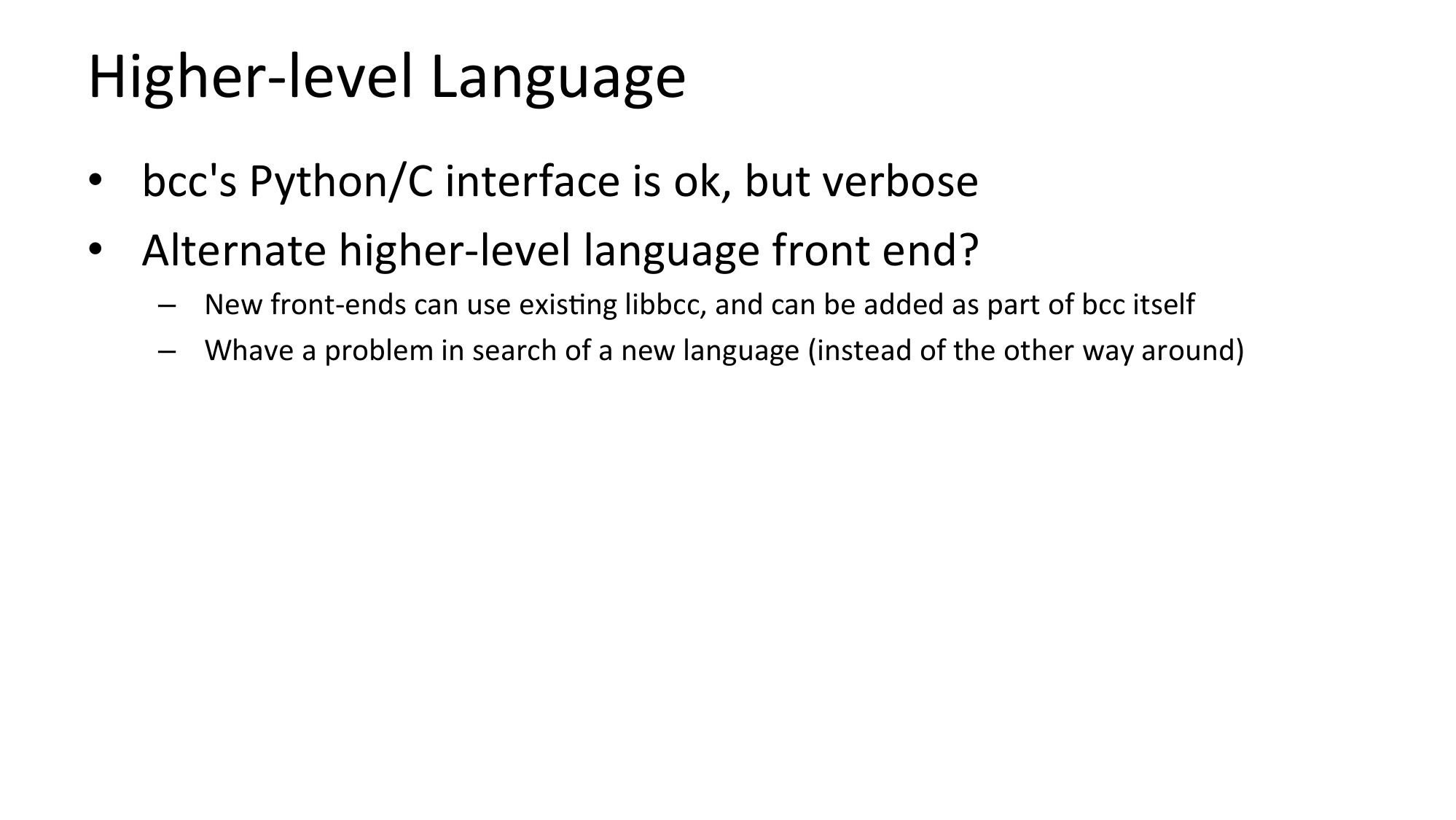

Higher-level Language
• bcc's Python/C interface is ok, but verbose
• Alternate higher-level language front end?
– New front-ends can use exis?ng libbcc, and can be added as part of bcc itself
– Whave a problem in search of a new language (instead of the other way around)

slide 52:

ply
• A new BPF-based language and tracer for Linux
– Created by Tobias Waldekranz
– hbps://github.com/iovisor/ply hbps://wkz.github.io/ply/
• High-level language
– Simple one-liners
– Short scripts
• In development (?)
– kprobes and tracepoints only, uprobes/perf_events not yet
– Successful so far as a proof of concept
– Not produc?on tested yet (bcc is)

slide 53:

File opens can be traced using a short ply one-liner
# ply -c 'kprobe:do_sys_open { printf("opened: %s\n", mem(arg(1), "128s")); }'
1 probe active
opened: /sys/kernel/debug/tracing/events/enable
opened: /etc/ld.so.cache
opened: /lib/x86_64-linux-gnu/libselinux.so.1
opened: /lib/x86_64-linux-gnu/libc.so.6
opened: /lib/x86_64-linux-gnu/libpcre.so.3
opened: /lib/x86_64-linux-gnu/libdl.so.2
opened: /lib/x86_64-linux-gnu/libpthread.so.0
opened: /proc/filesystems
opened: /usr/lib/locale/locale-archive
opened: .
[...]

slide 54:

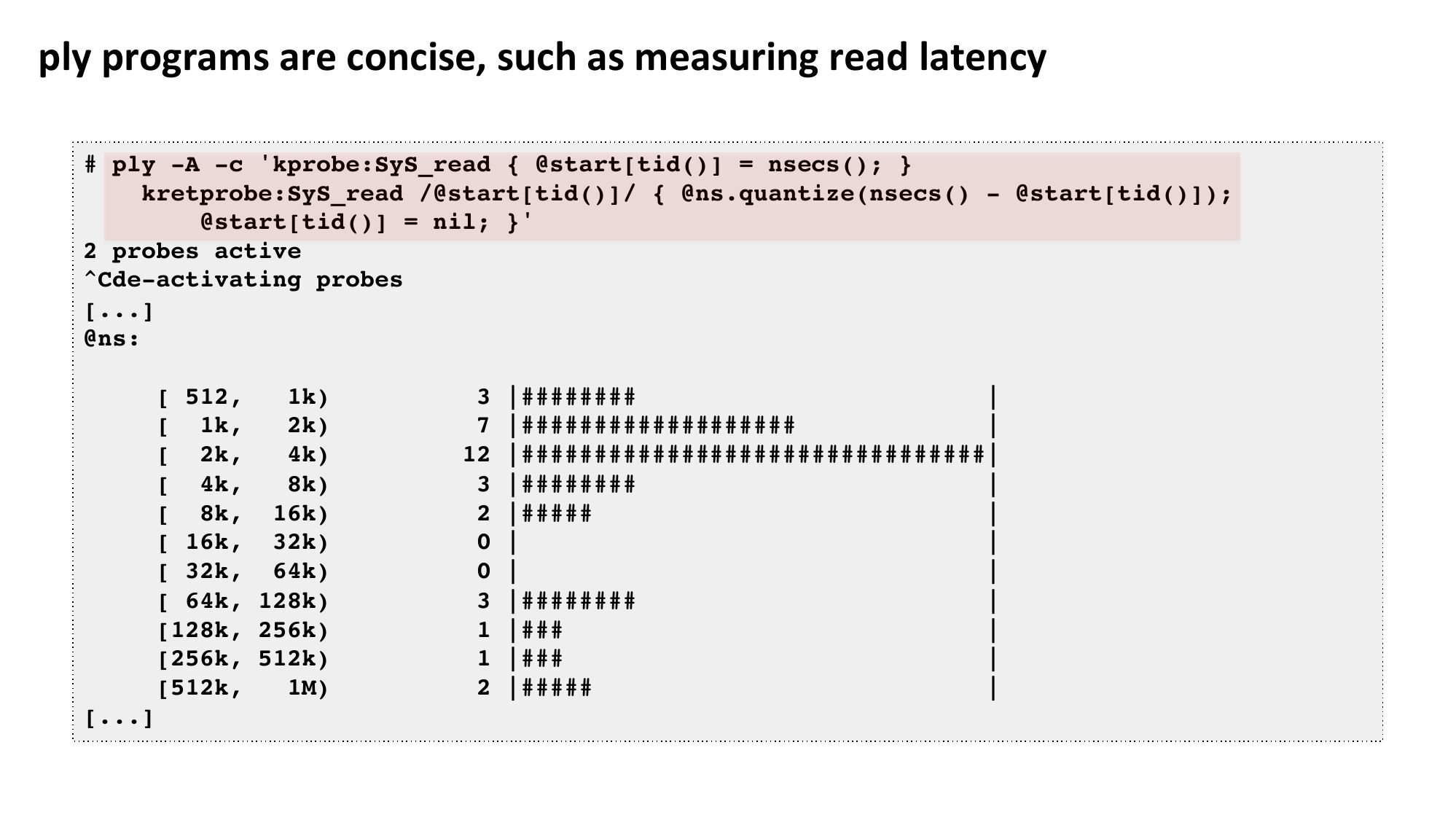

ply programs are concise, such as measuring read latency
# ply -A -c 'kprobe:SyS_read { @start[tid()] = nsecs(); }
kretprobe:SyS_read /@start[tid()]/ { @ns.quantize(nsecs() - @start[tid()]);
@start[tid()] = nil; }'
2 probes active
^Cde-activating probes
[...]
@ns:
[ 512,
1k)
[ 1k,
2k)
[ 2k,
4k)
[ 4k,
8k)
[ 8k, 16k)
[ 16k, 32k)
[ 32k, 64k)
[ 64k, 128k)
[128k, 256k)
[256k, 512k)
[512k,
1M)
[...]
3 |########
7 |###################
12 |################################|
3 |########
2 |#####
0 |
0 |
3 |########
1 |###
1 |###
2 |#####

slide 55:

New Tooling/Metrics

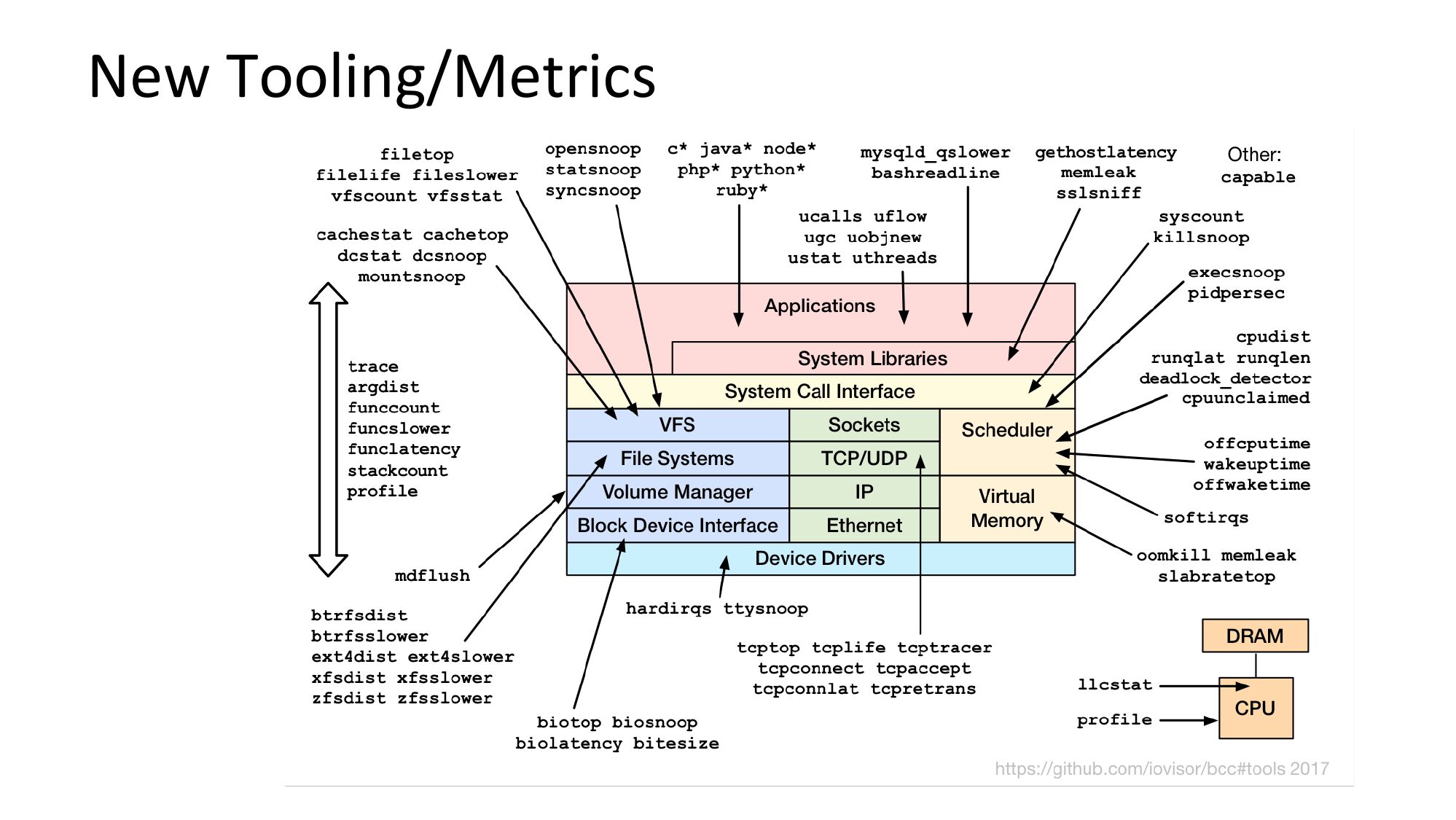

slide 56:

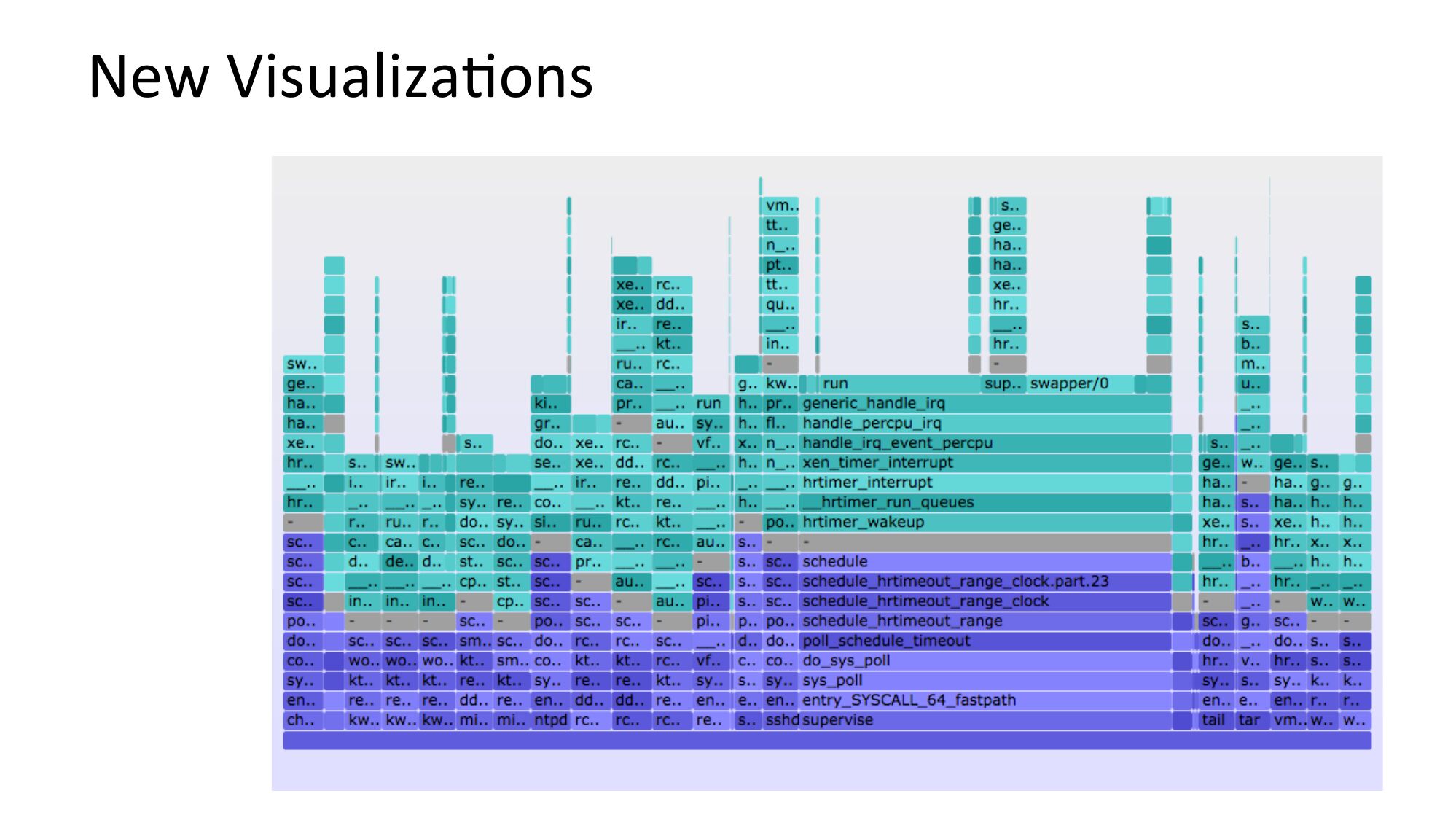

New Visualiza?ons

slide 57:

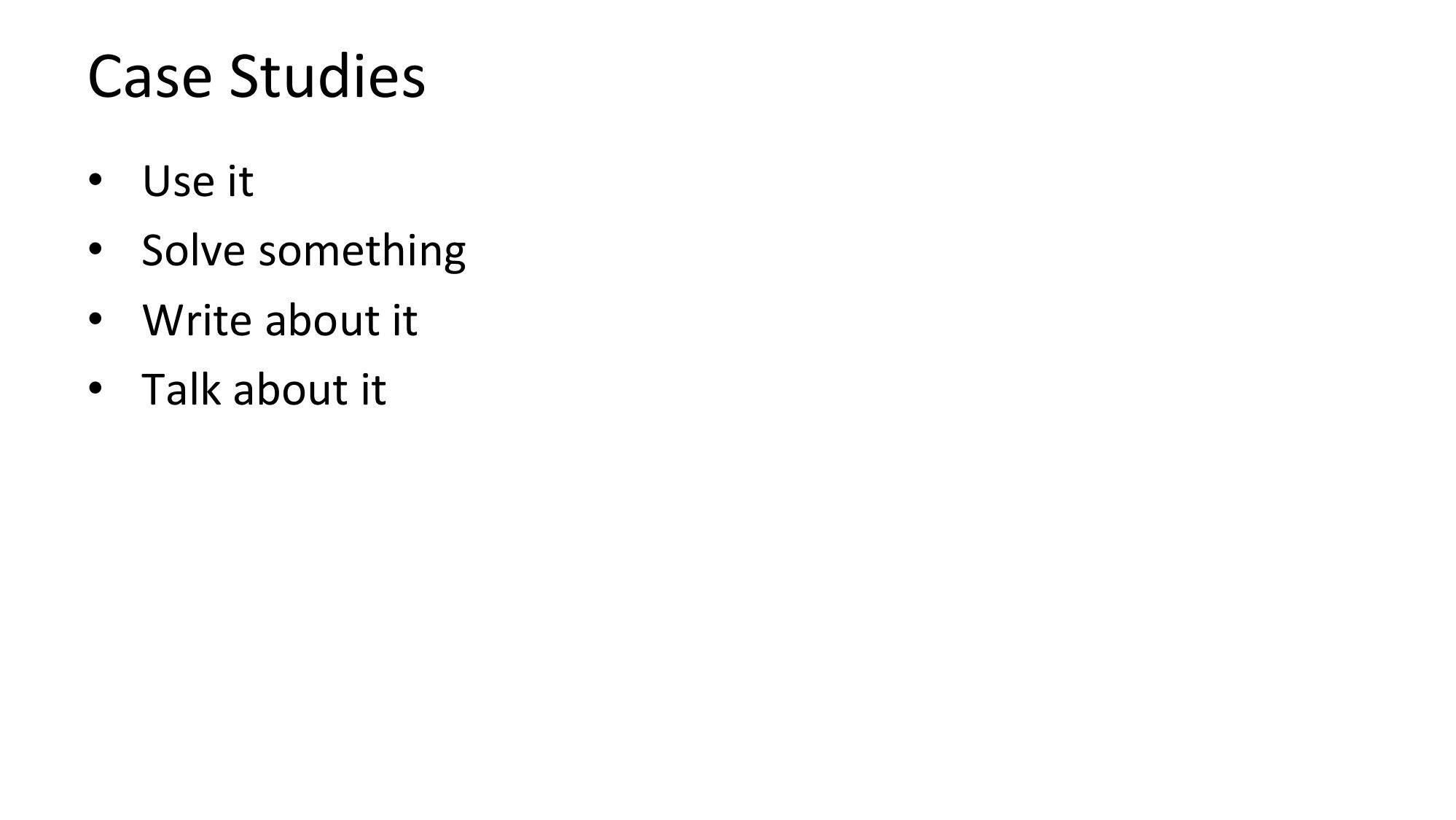

Case Studies
Use it
Solve something
Write about it
Talk about it

slide 58:

Take aways
1. Understand Linux tracing components
2. Understand the role and state of enhanced BPF
3. Discover opportuni?es for future development
Please contribute:
- hbps://github.com/
iovisor/bcc
- hbps://github.com/
iovisor/ply
BPF Tracing in Linux
• 3.19: sockets
• 3.19: maps
• 4.1: kprobes
• 4.3: uprobes
• 4.4: BPF output
• 4.6: stacks
• 4.7: tracepoints
• 4.9: proﬁling
• 4.9: PMCs

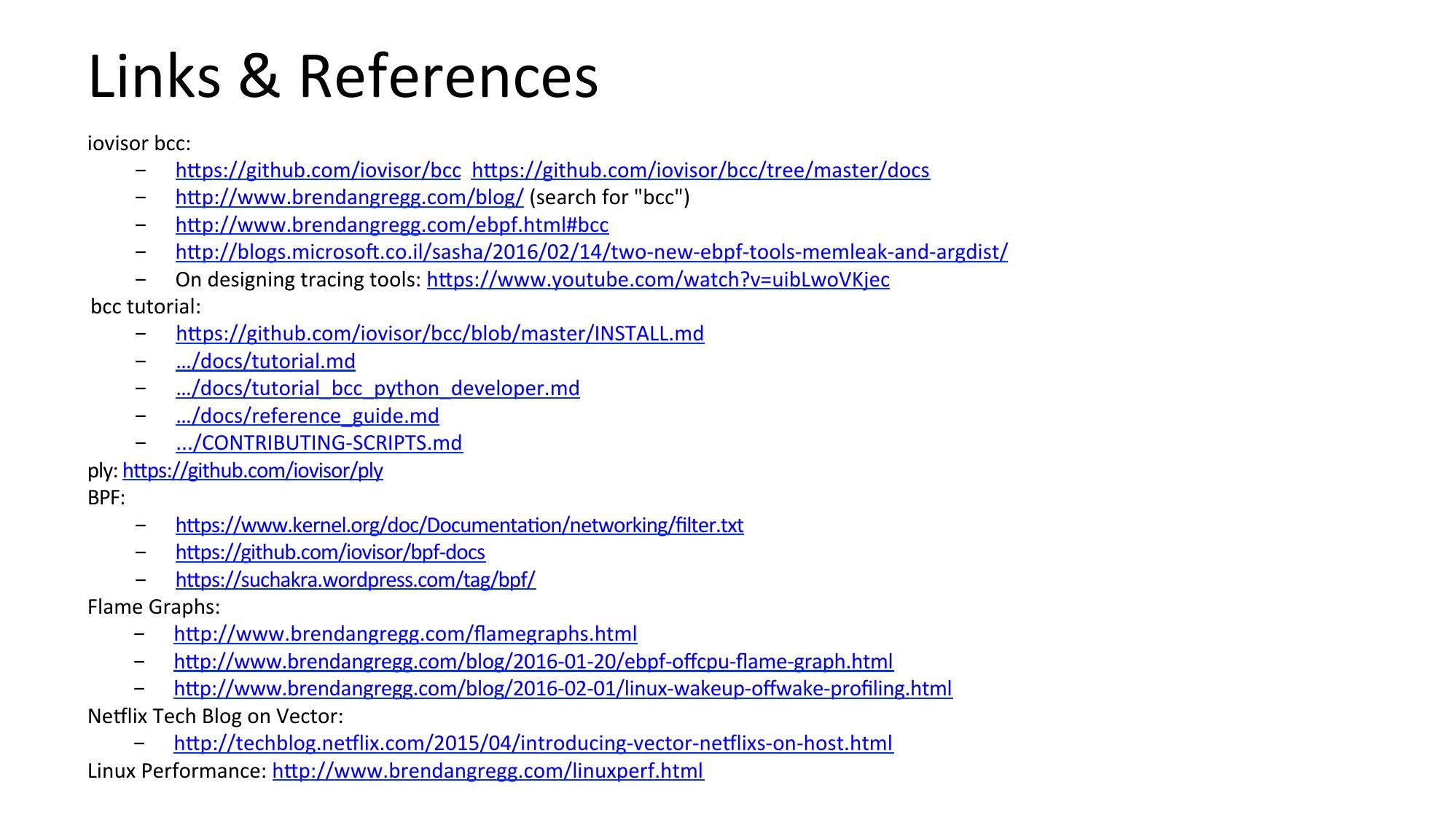

slide 59:

Links & References
iovisor bcc:
- hbps://github.com/iovisor/bcc hbps://github.com/iovisor/bcc/tree/master/docs
- hbp://www.brendangregg.com/blog/ (search for "bcc")
- hbp://www.brendangregg.com/ebpf.html#bcc
- hbp://blogs.microsoR.co.il/sasha/2016/02/14/two-new-ebpf-tools-memleak-and-argdist/
- On designing tracing tools: hbps://www.youtube.com/watch?v=uibLwoVKjec
bcc tutorial:
- hbps://github.com/iovisor/bcc/blob/master/INSTALL.md
- …/docs/tutorial.md
- …/docs/tutorial_bcc_python_developer.md
- …/docs/reference_guide.md
- .../CONTRIBUTING-SCRIPTS.md
ply: hbps://github.com/iovisor/ply
BPF:
- hbps://www.kernel.org/doc/Documenta?on/networking/ﬁlter.txt
- hbps://github.com/iovisor/bpf-docs
- hbps://suchakra.wordpress.com/tag/bpf/
Flame Graphs:
- hbp://www.brendangregg.com/ﬂamegraphs.html
- hbp://www.brendangregg.com/blog/2016-01-20/ebpf-oﬀcpu-ﬂame-graph.html
- hbp://www.brendangregg.com/blog/2016-02-01/linux-wakeup-oﬀwake-proﬁling.html
NeNlix Tech Blog on Vector:
- hbp://techblog.neNlix.com/2015/04/introducing-vector-neNlixs-on-host.html
Linux Performance: hbp://www.brendangregg.com/linuxperf.html

slide 60:

2017 USENIX Annual Technical Conference
Thank You
– Ques?ons?
– iovisor bcc: hbps://github.com/iovisor/bcc
– hbp://www.brendangregg.com
– hbp://slideshare.net/brendangregg
– bgregg@neNlix.com
– @brendangregg
Thanks to Alexei Starovoitov (Facebook), Brenden Blanco (PLUMgrid/VMware), Sasha Goldshtein (Sela),
Daniel Borkmann (Cisco), Wang Nan (Huawei), and other BPF and bcc contributors!
