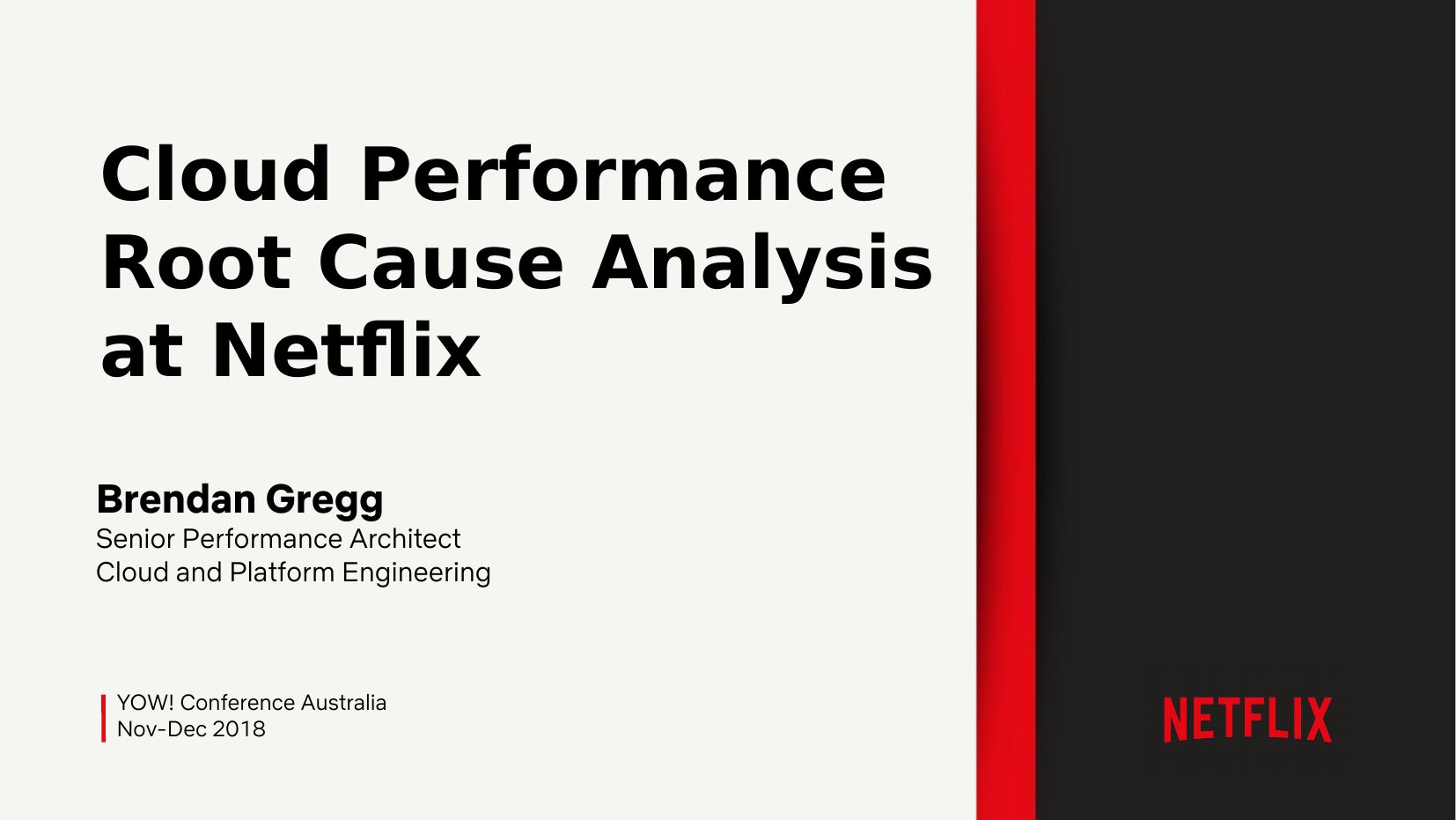

Cloud Performance
Root Cause Analysis
at Netflix
Brendan Gregg
Senior Performance Architect
Cloud and Platform Engineering
YOW! Conference Australia
Nov-Dec 2018

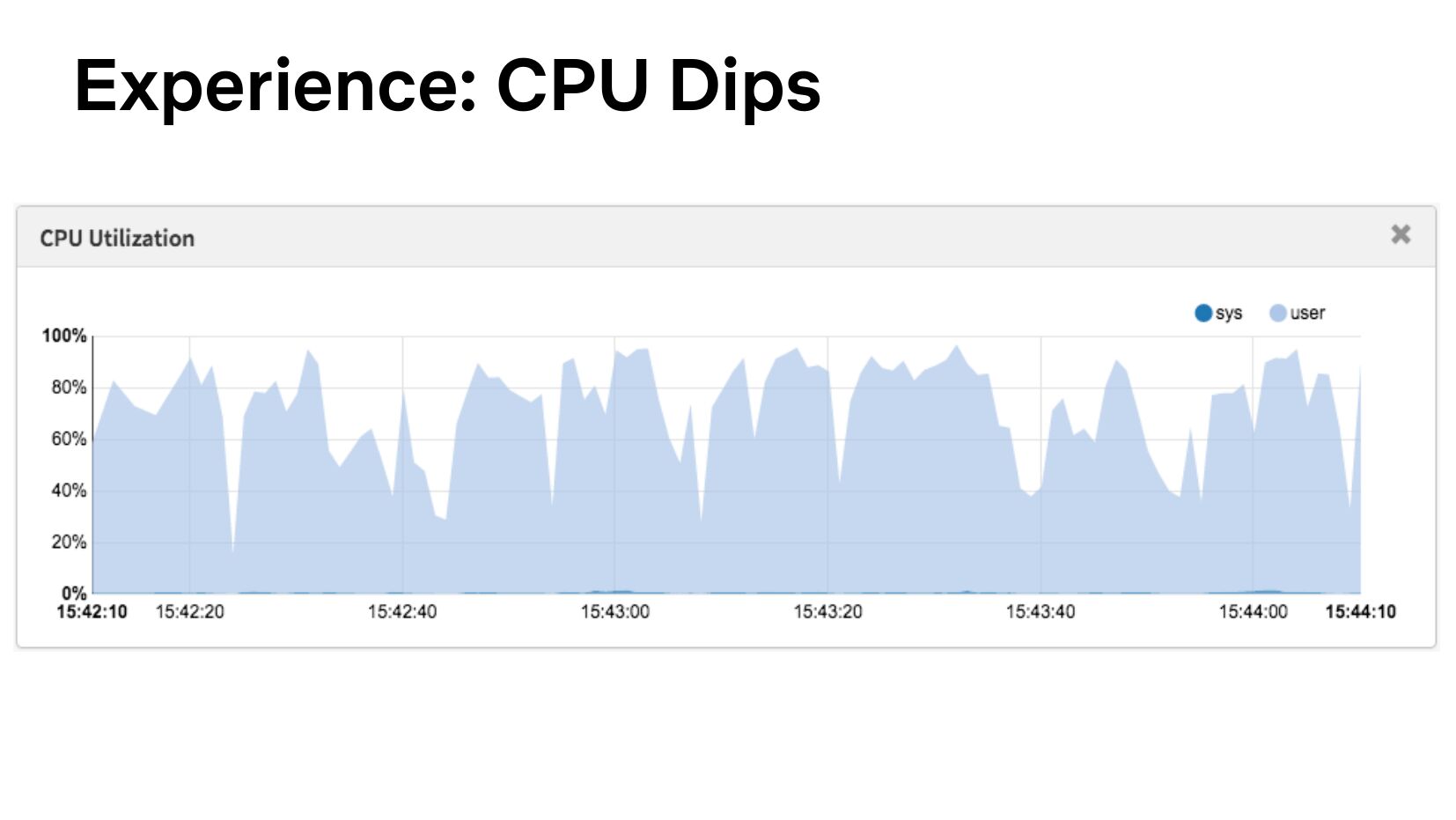

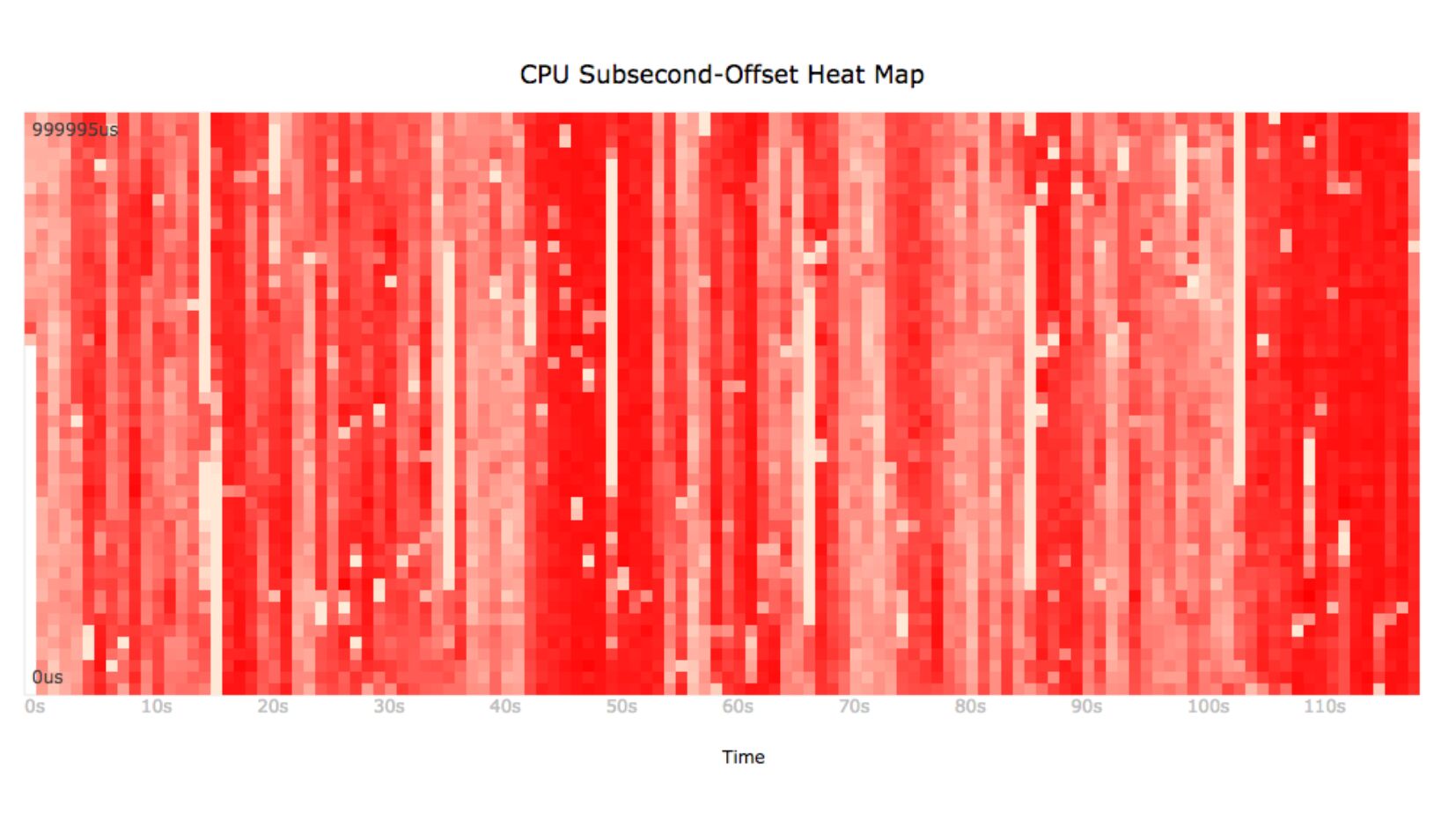

Experience: CPU Dips

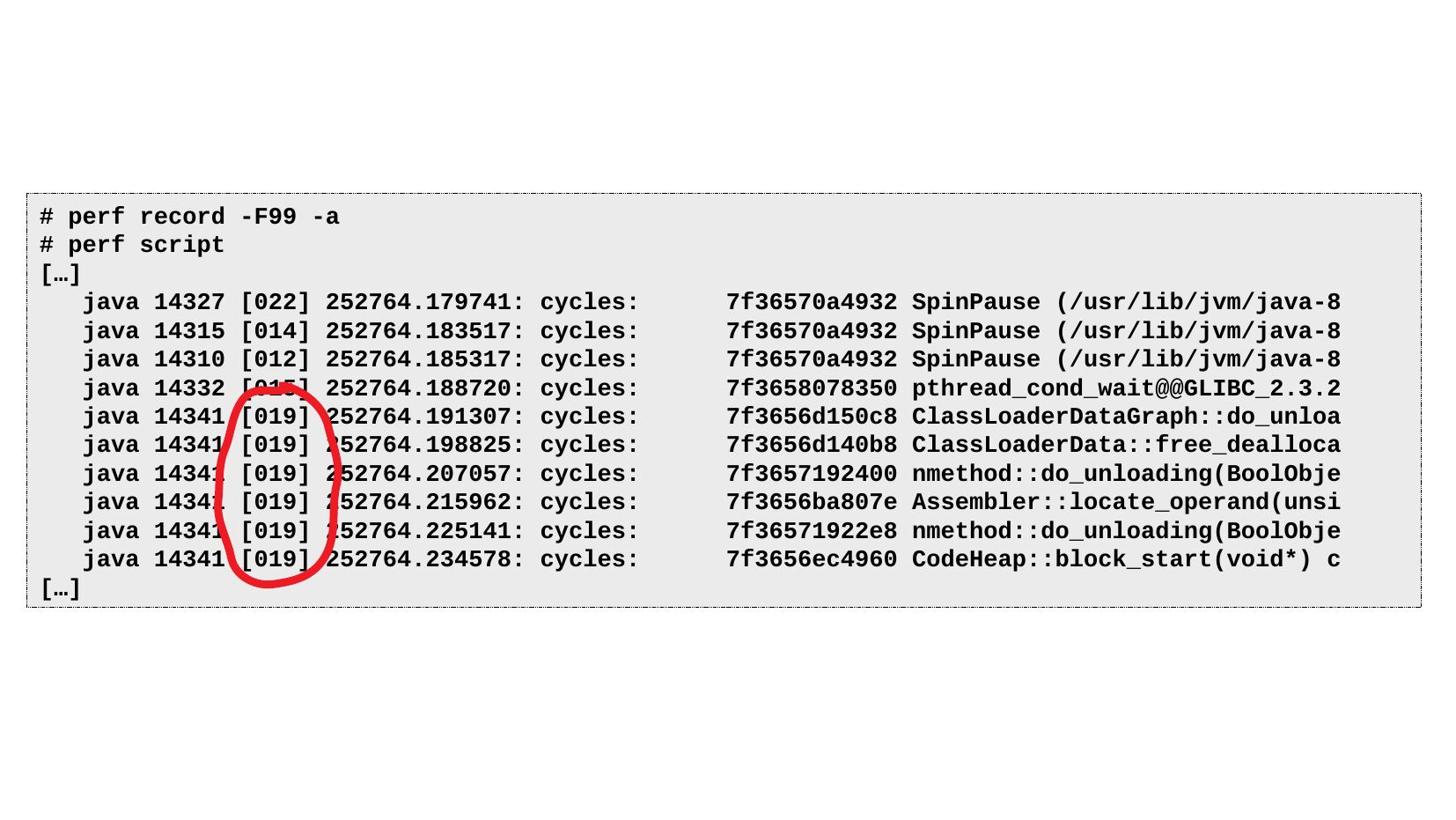

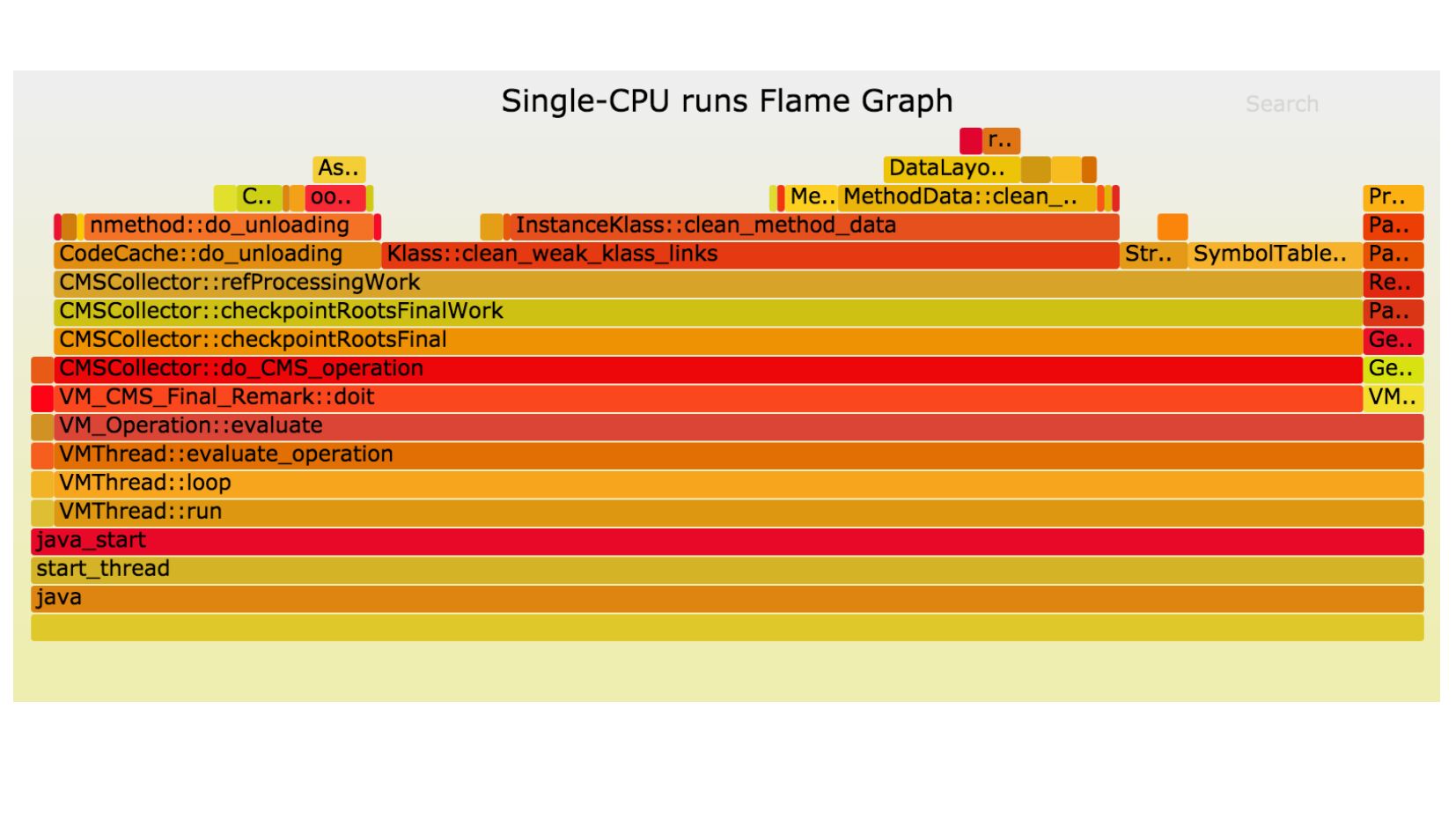

# perf record -F99 -a
# perf script
[…]
java 14327 [022] 252764.179741: cycles:
java 14315 [014] 252764.183517: cycles:
java 14310 [012] 252764.185317: cycles:
java 14332 [015] 252764.188720: cycles:
java 14341 [019] 252764.191307: cycles:
java 14341 [019] 252764.198825: cycles:
java 14341 [019] 252764.207057: cycles:
java 14341 [019] 252764.215962: cycles:
java 14341 [019] 252764.225141: cycles:
java 14341 [019] 252764.234578: cycles:
[…]
7f36570a4932 SpinPause (/usr/lib/jvm/java-8
7f36570a4932 SpinPause (/usr/lib/jvm/java-8
7f36570a4932 SpinPause (/usr/lib/jvm/java-8
7f3658078350 pthread_cond_wait@@GLIBC_2.3.2
7f3656d150c8 ClassLoaderDataGraph::do_unloa
7f3656d140b8 ClassLoaderData::free_dealloca
7f3657192400 nmethod::do_unloading(BoolObje
7f3656ba807e Assembler::locate_operand(unsi
7f36571922e8 nmethod::do_unloading(BoolObje
7f3656ec4960 CodeHeap::block_start(void*) c

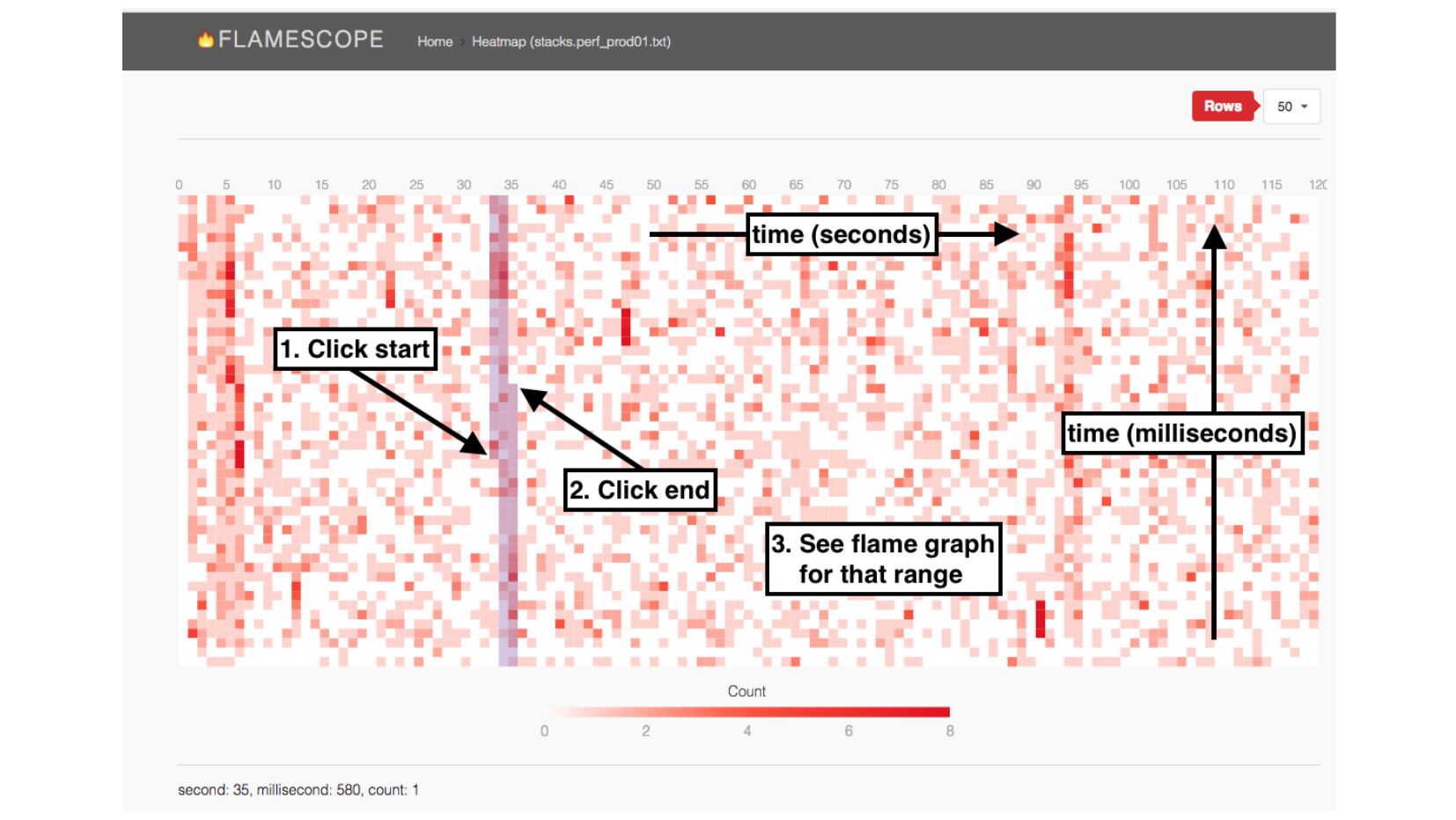

Observability
Methodology
Velocity

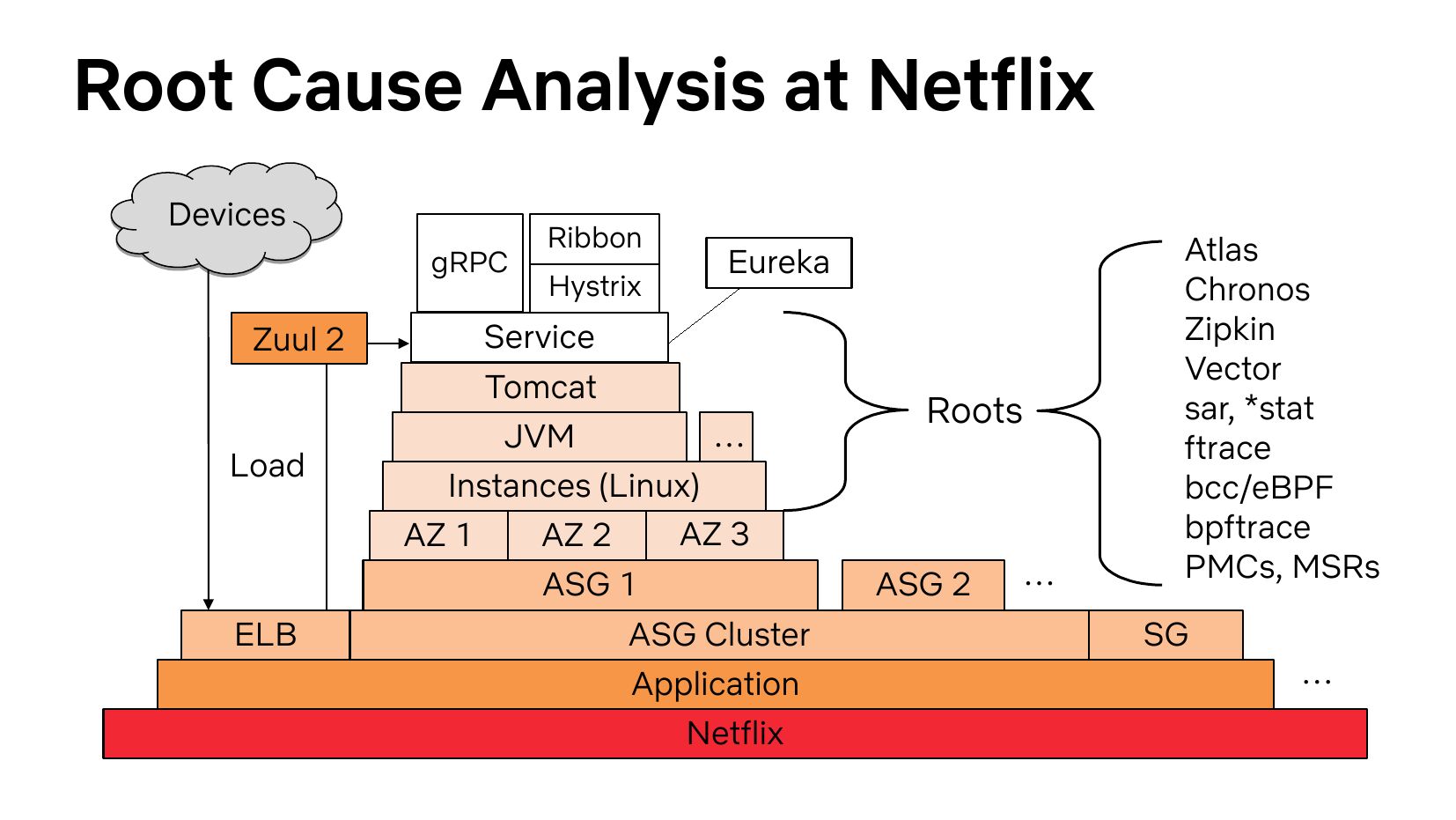

Root Cause Analysis at Netflix
Devices
gRPC
Zuul 2
Load
Ribbon
Hystrix
Eureka
Service
Tomcat
JVM
Instances (Linux)
AZ 3
AZ 1
AZ 2
ASG 1
ELB
ASG Cluster
Application
Netflix
Roots
ASG 2
Atlas
Chronos
Zipkin
Vector
sar, *stat
ftrace
bcc/eBPF

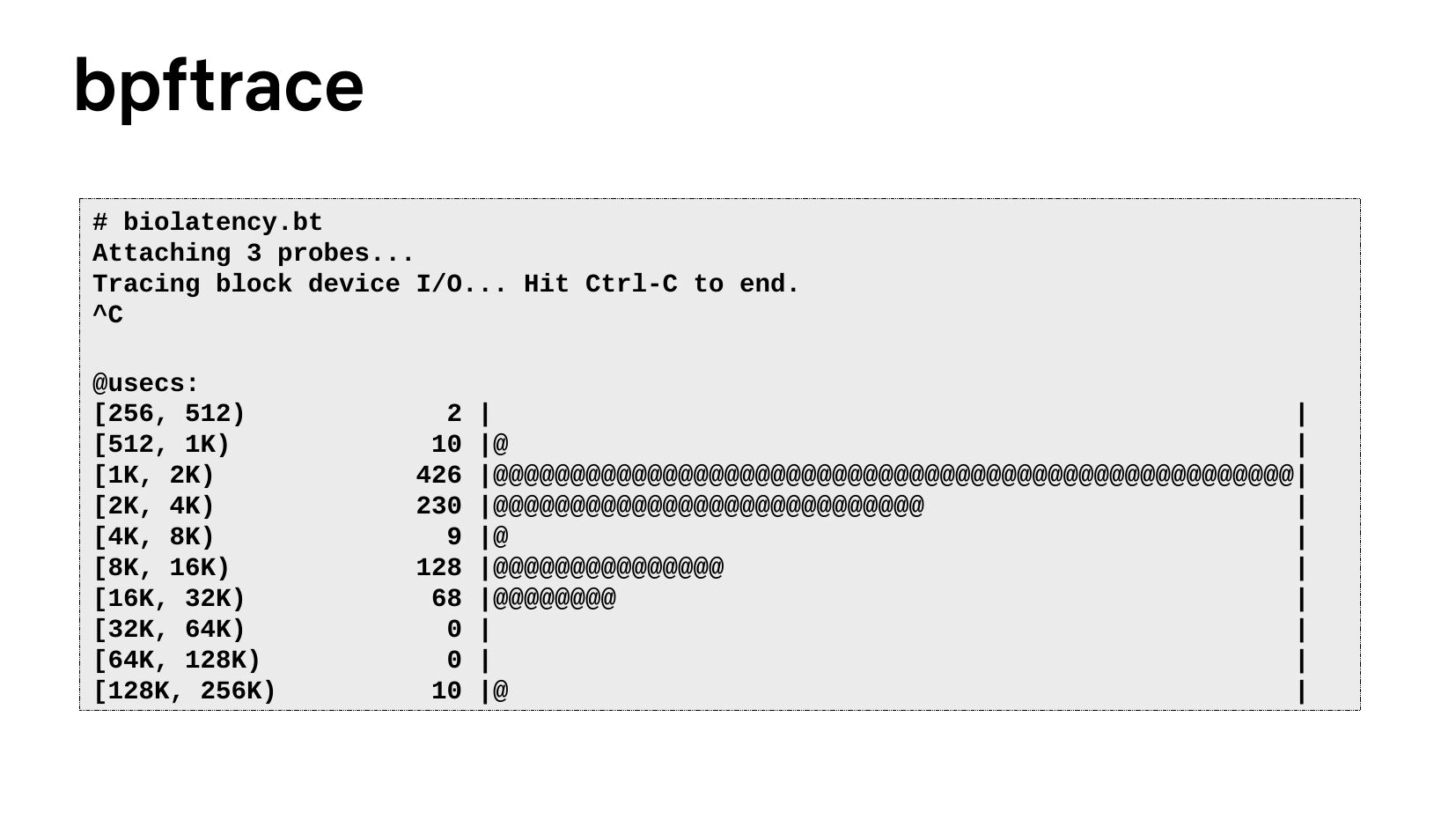

bpftrace
PMCs, MSRs

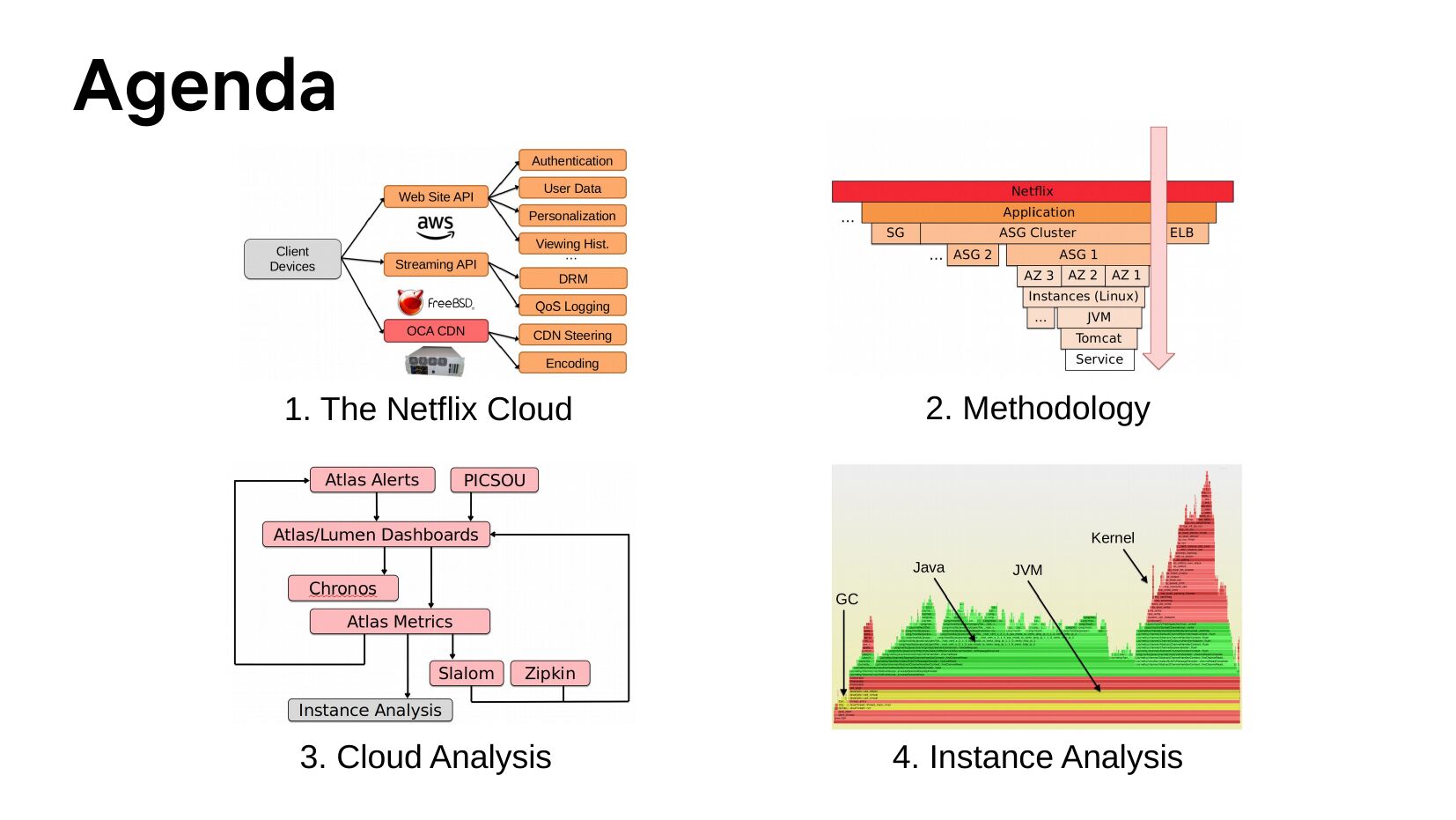

Agenda
1. The Netflix Cloud
2. Methodology
3. Cloud Analysis
4. Instance Analysis

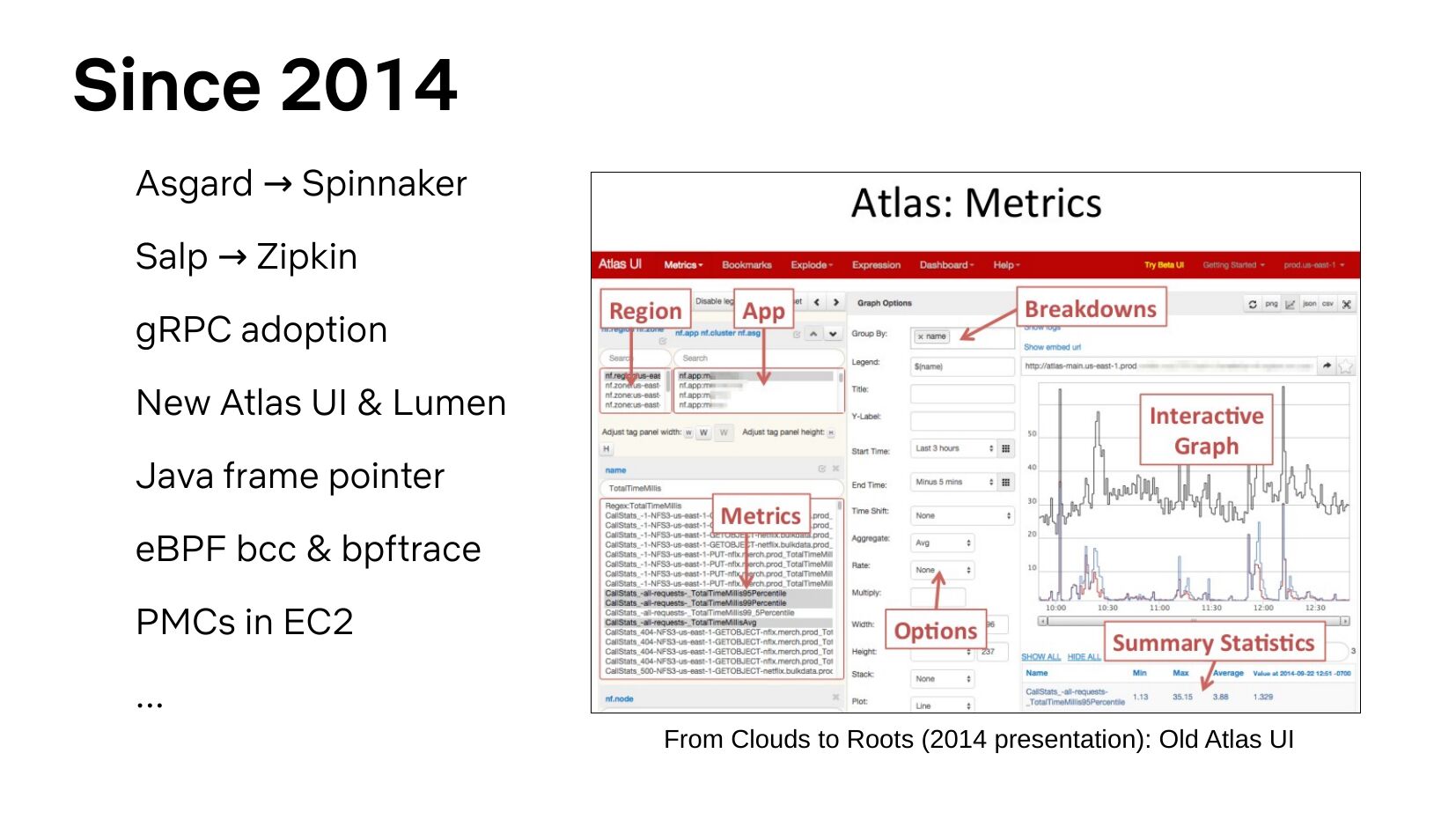

Since 2014
Asgard → Spinnaker Spinnaker
Salp → Spinnaker Zipkin
gRPC adoption
New Atlas UI & Lumen
Java frame pointer
eBPF bcc & bpftrace
PMCs in EC2
From Clouds to Roots (2014 presentation): Old Atlas UI

>gt;150k AWS EC2 server instances
~34% US Internet traffic at night
>gt;130M members
Performance is customer satisfaction & Netflix cost

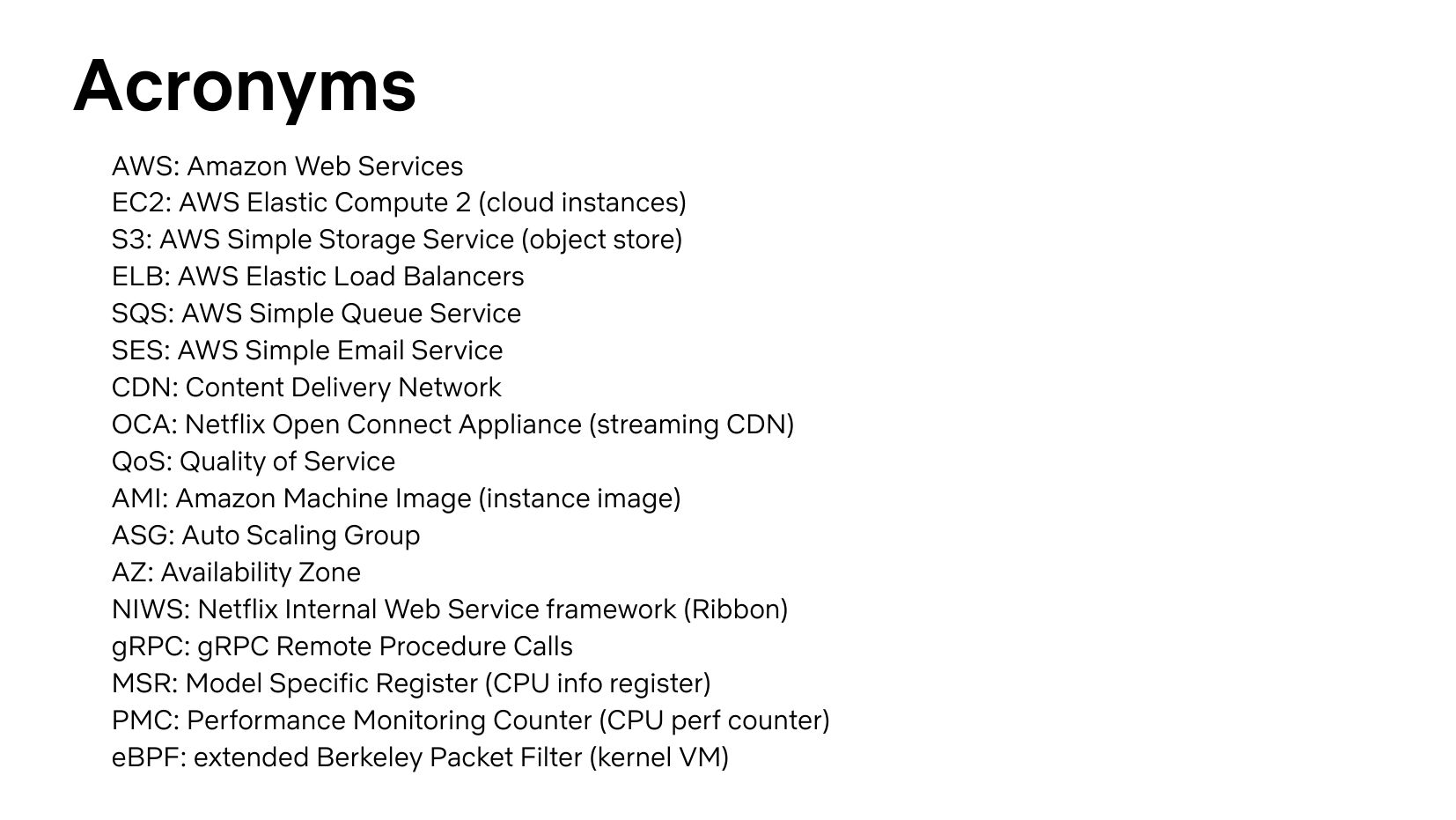

Acronyms
AWS: Amazon Web Services
EC2: AWS Elastic Compute 2 (cloud instances)
S3: AWS Simple Storage Service (object store)
ELB: AWS Elastic Load Balancers
SQS: AWS Simple Queue Service
SES: AWS Simple Email Service
CDN: Content Delivery Network
OCA: Netflix Open Connect Appliance (streaming CDN)
QoS: Quality of Service
AMI: Amazon Machine Image (instance image)
ASG: Auto Scaling Group
AZ: Availability Zone
NIWS: Netflix Internal Web Service framework (Ribbon)
gRPC: gRPC Remote Procedure Calls

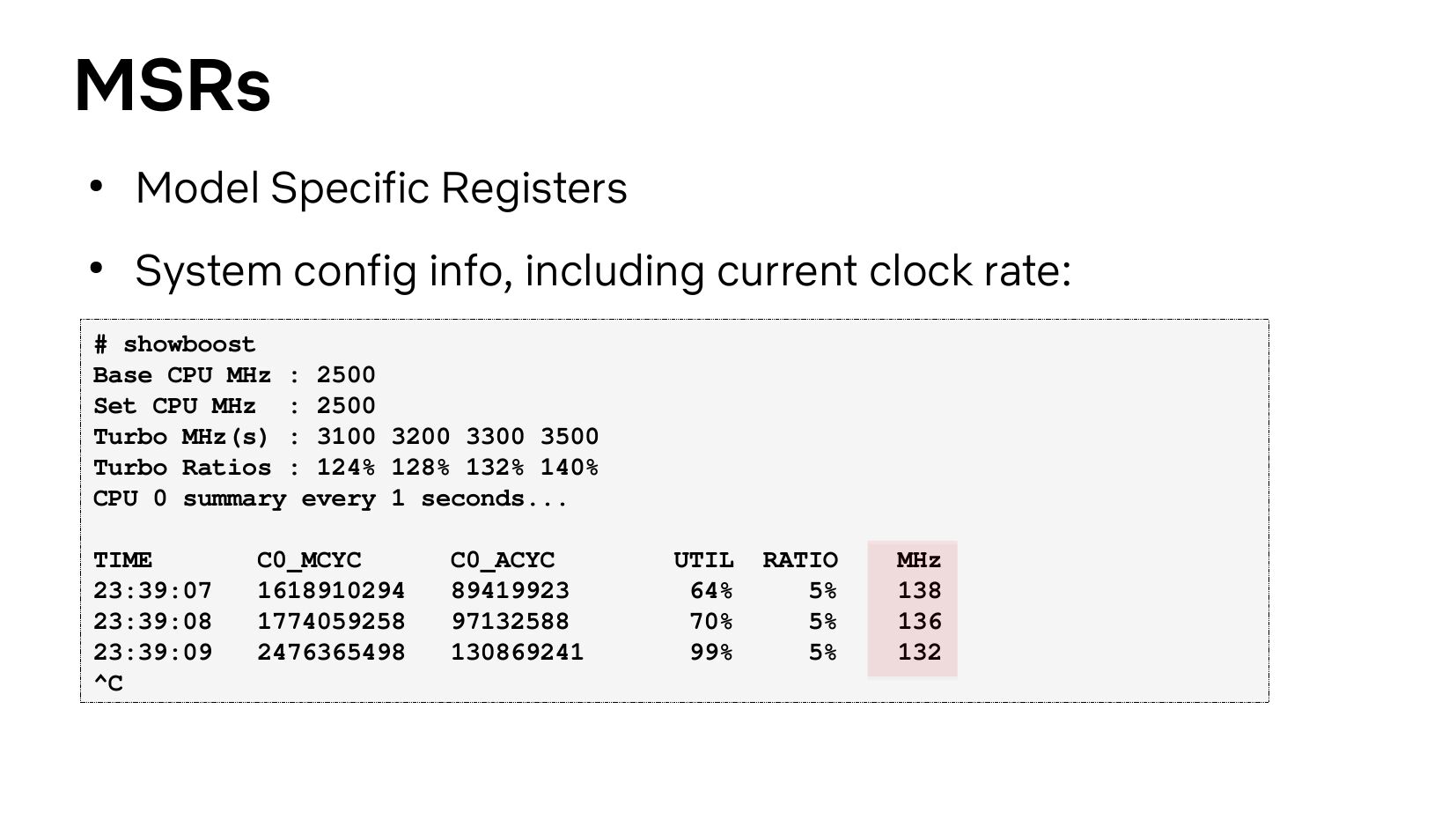

MSR: Model Specific Register (CPU info register)
PMC: Performance Monitoring Counter (CPU perf counter)

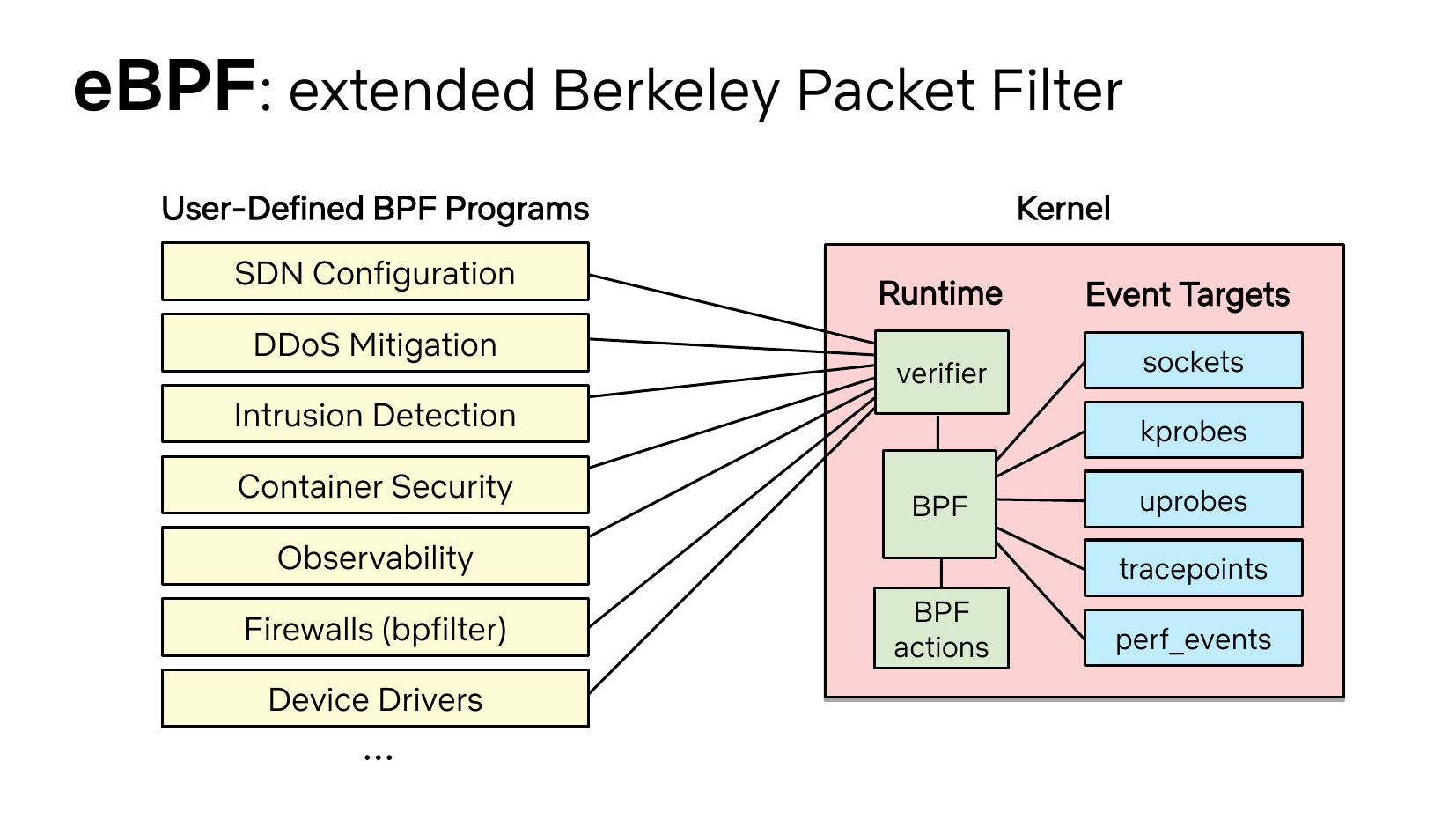

eBPF: extended Berkeley Packet Filter (kernel VM)

1. The Netflix Cloud
Overview

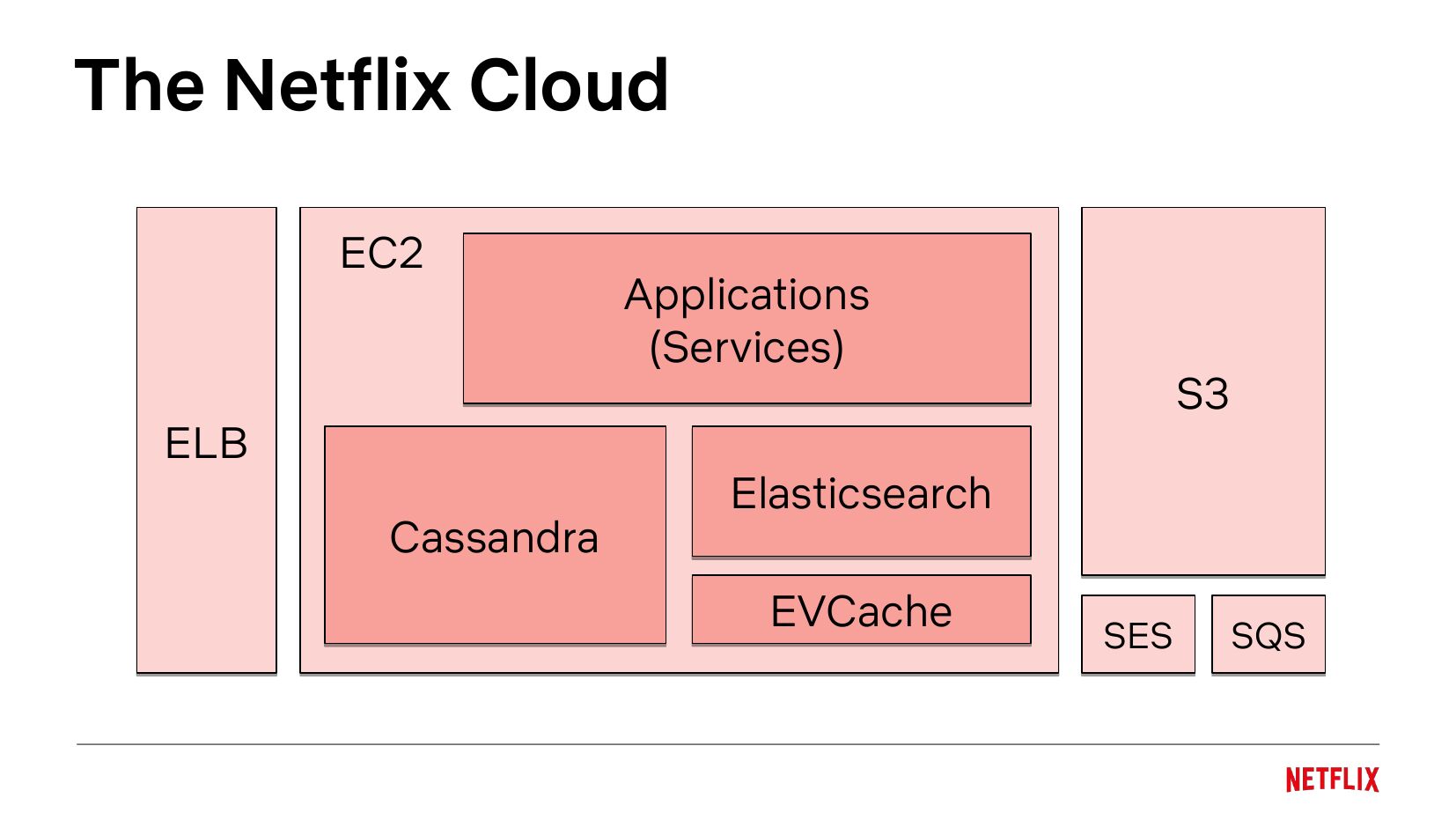

The Netflix Cloud
EC2
ELB
Cassandra
Applications
(Services)
Elasticsearch
EVCache
SES
SQS

Netflix

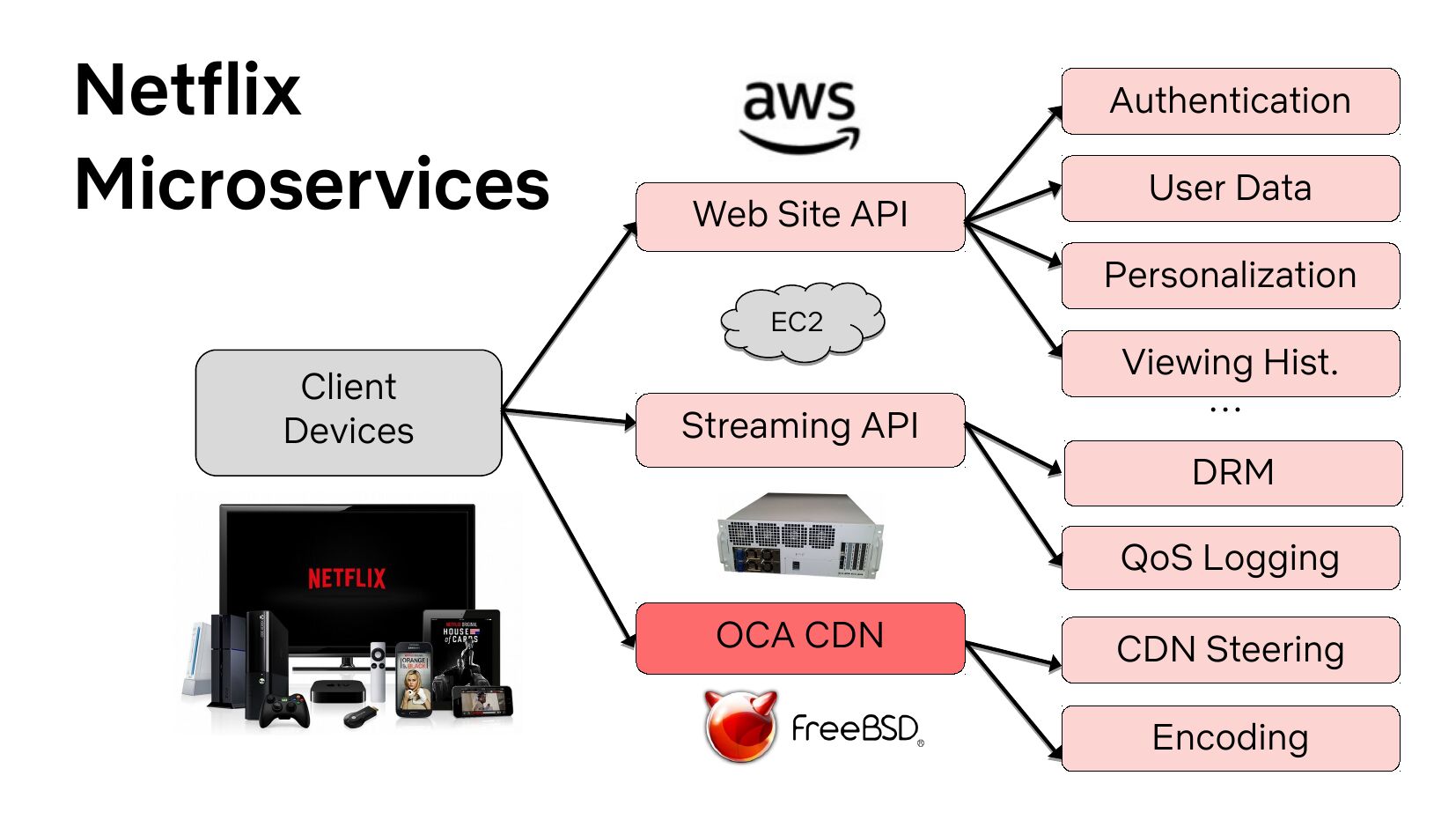

Microservices
Authentication
Web Site API
User Data
Personalization
EC2
Client
Devices
Streaming API
Viewing Hist.
DRM
QoS Logging
OCA CDN
CDN Steering
Encoding

Freedom and Responsibility
Culture deck memo is true
https://jobs.netflix.com/culture
Deployment freedom
Purchase and use cloud instances without approvals
Netflix environment changes fast!

Cloud Technologies
Usually open source
Linux, Java, Cassandra,
Node.js, …
http://netflix.github.io/

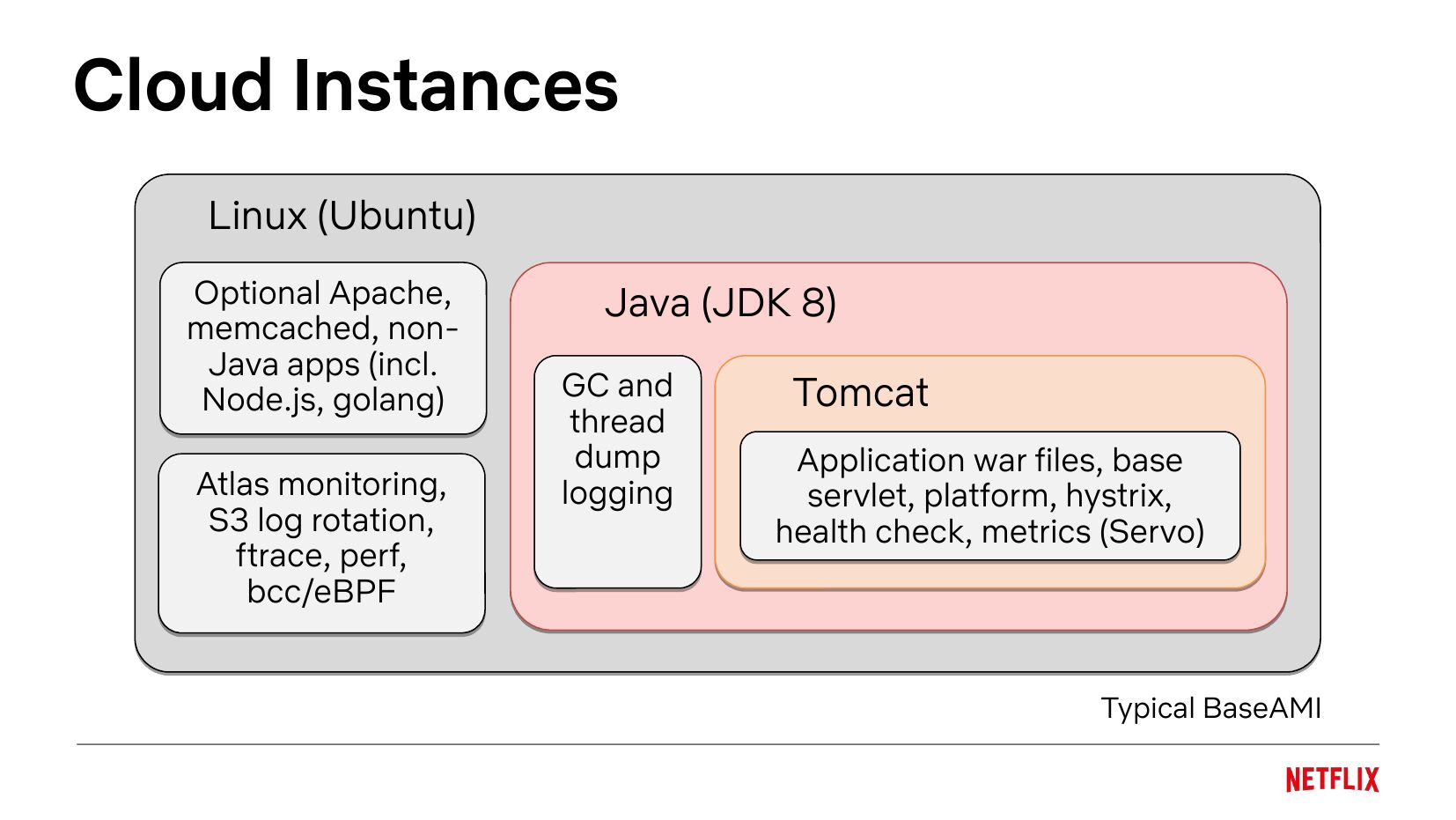

Cloud Instances
Linux (Ubuntu)
Optional Apache,
memcached, nonJava apps (incl.
Node.js, golang)
Atlas monitoring,
S3 log rotation,
ftrace, perf,
bcc/eBPF
Java (JDK 8)
GC and
thread
dump
logging
Tomcat
Application war files, base
servlet, platform, hystrix,
health check, metrics (Servo)
Typical BaseAMI

5 Key Issues
And How the Netflix Cloud is
Architected to Solve Them

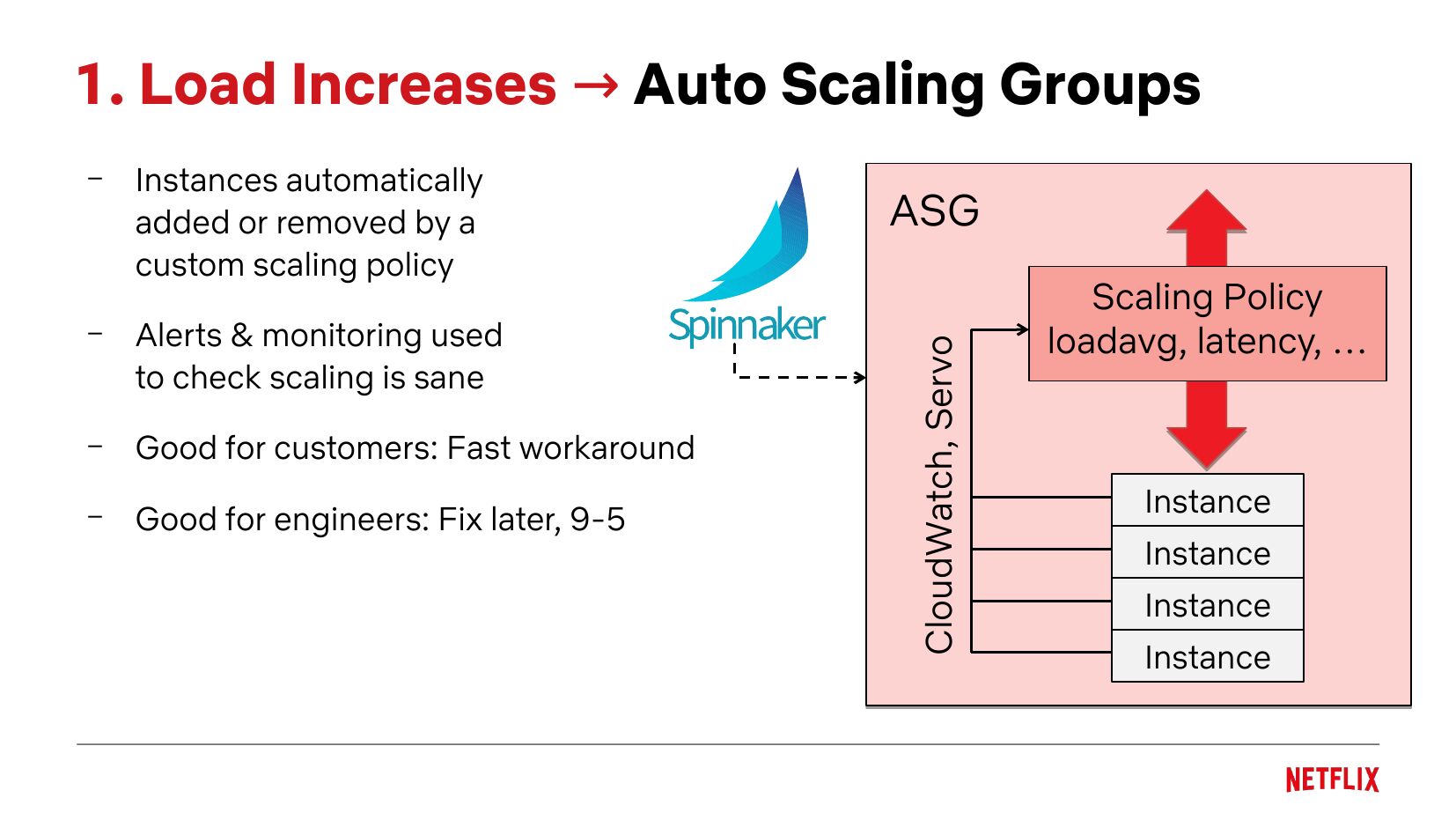

1. Load Increases → Spinnaker Auto Scaling Groups
Instances automatically
added or removed by a
custom scaling policy
Alerts & monitoring used
to check scaling is sane
Good for customers: Fast workaround
Good for engineers: Fix later, 9-5
ASG
CloudWatch, Servo
Scaling Policy
loadavg, latency, …
Instance
Instance
Instance
Instance

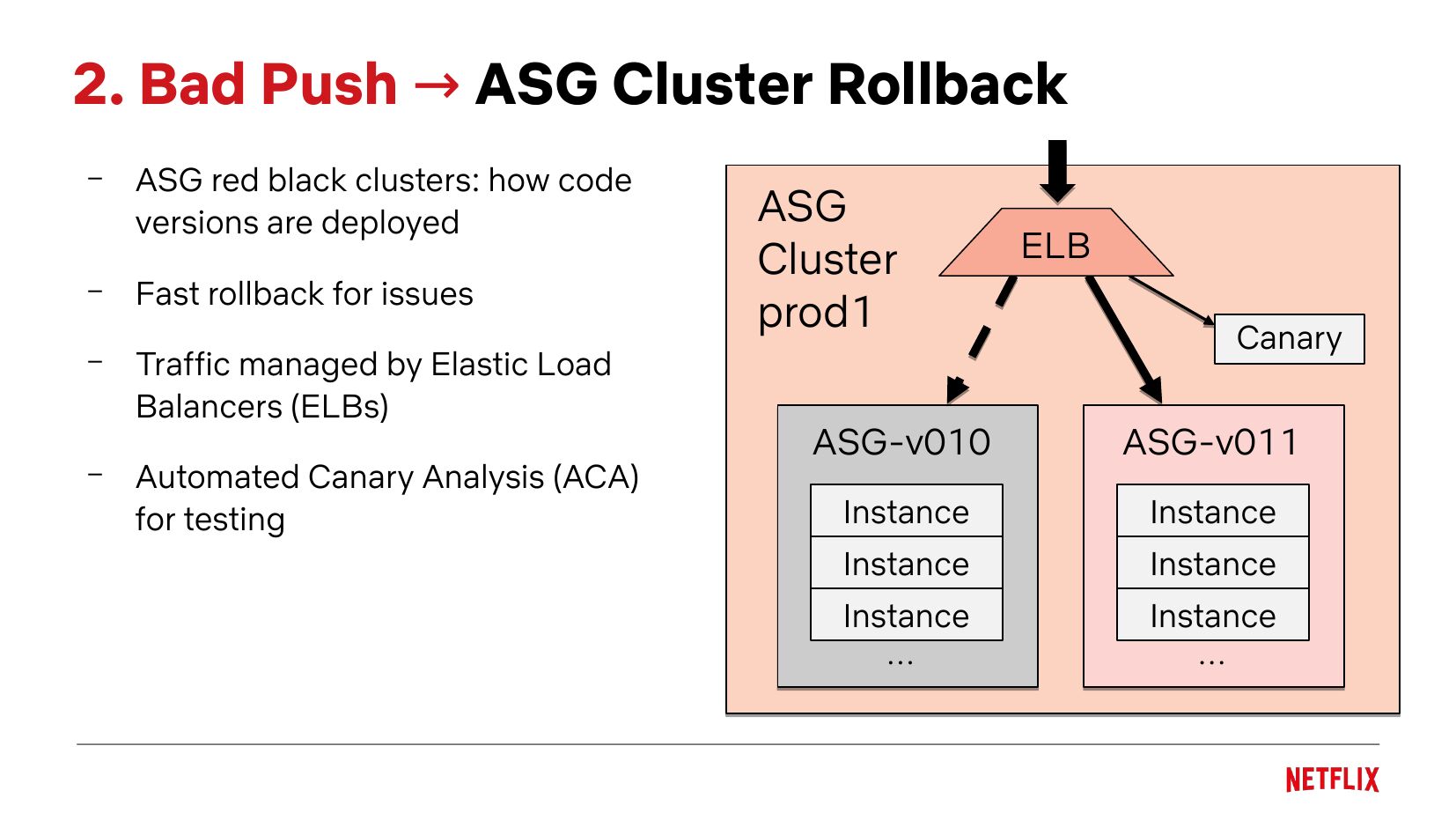

2. Bad Push → Spinnaker ASG Cluster Rollback
ASG red black clusters: how code
versions are deployed
Fast rollback for issues
Traffic managed by Elastic Load
Balancers (ELBs)
Automated Canary Analysis (ACA)
for testing
ASG
Cluster
prod1
ELB
Canary
ASG-v010
ASG-v011
Instance
Instance
Instance
Instance
Instance
Instance

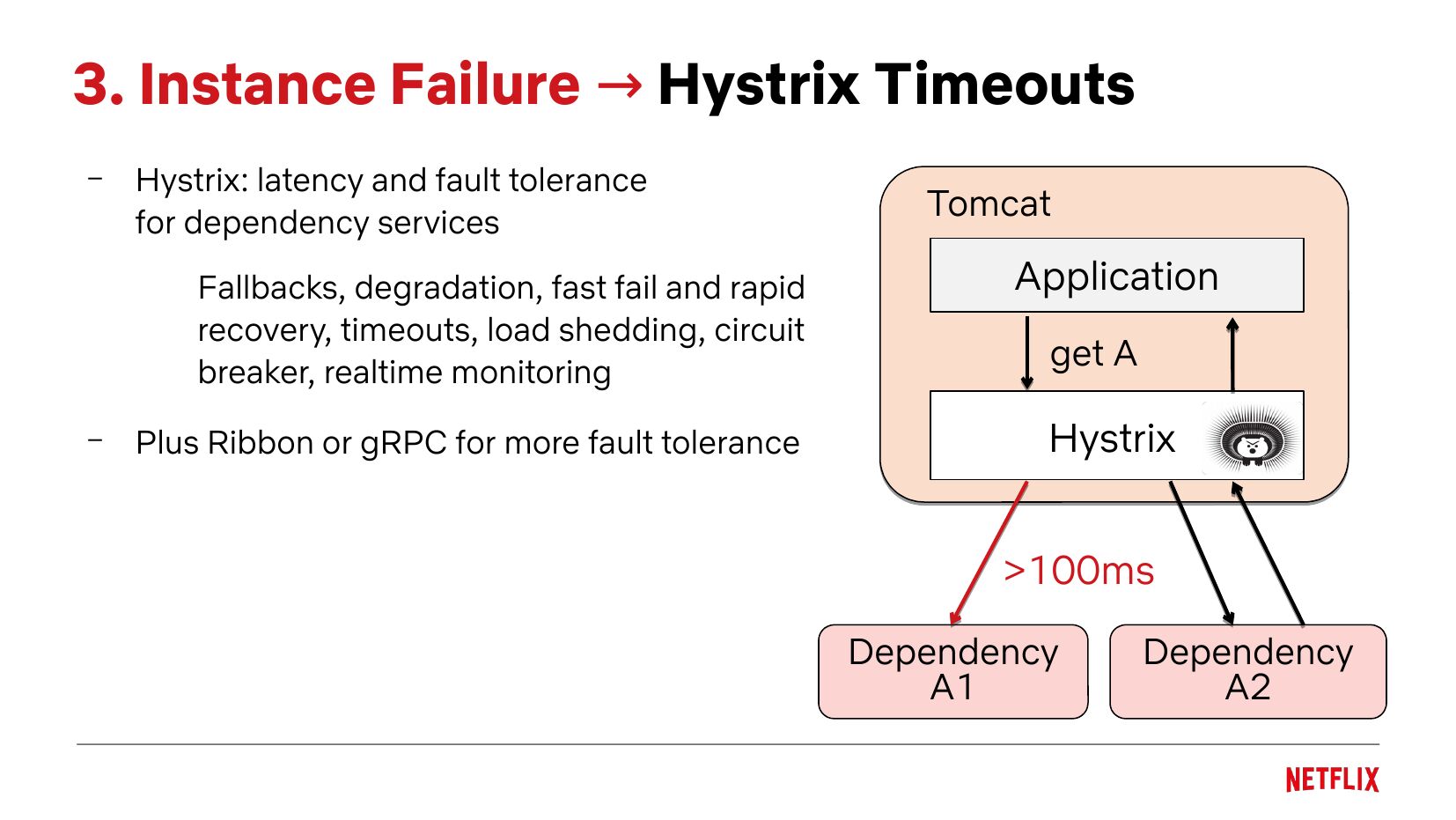

3. Instance Failure → Spinnaker Hystrix Timeouts
Hystrix: latency and fault tolerance
for dependency services
Fallbacks, degradation, fast fail and rapid
recovery, timeouts, load shedding, circuit
breaker, realtime monitoring
Plus Ribbon or gRPC for more fault tolerance
Tomcat
Application
get A
Hystrix
>gt;100ms
Dependency
Dependency

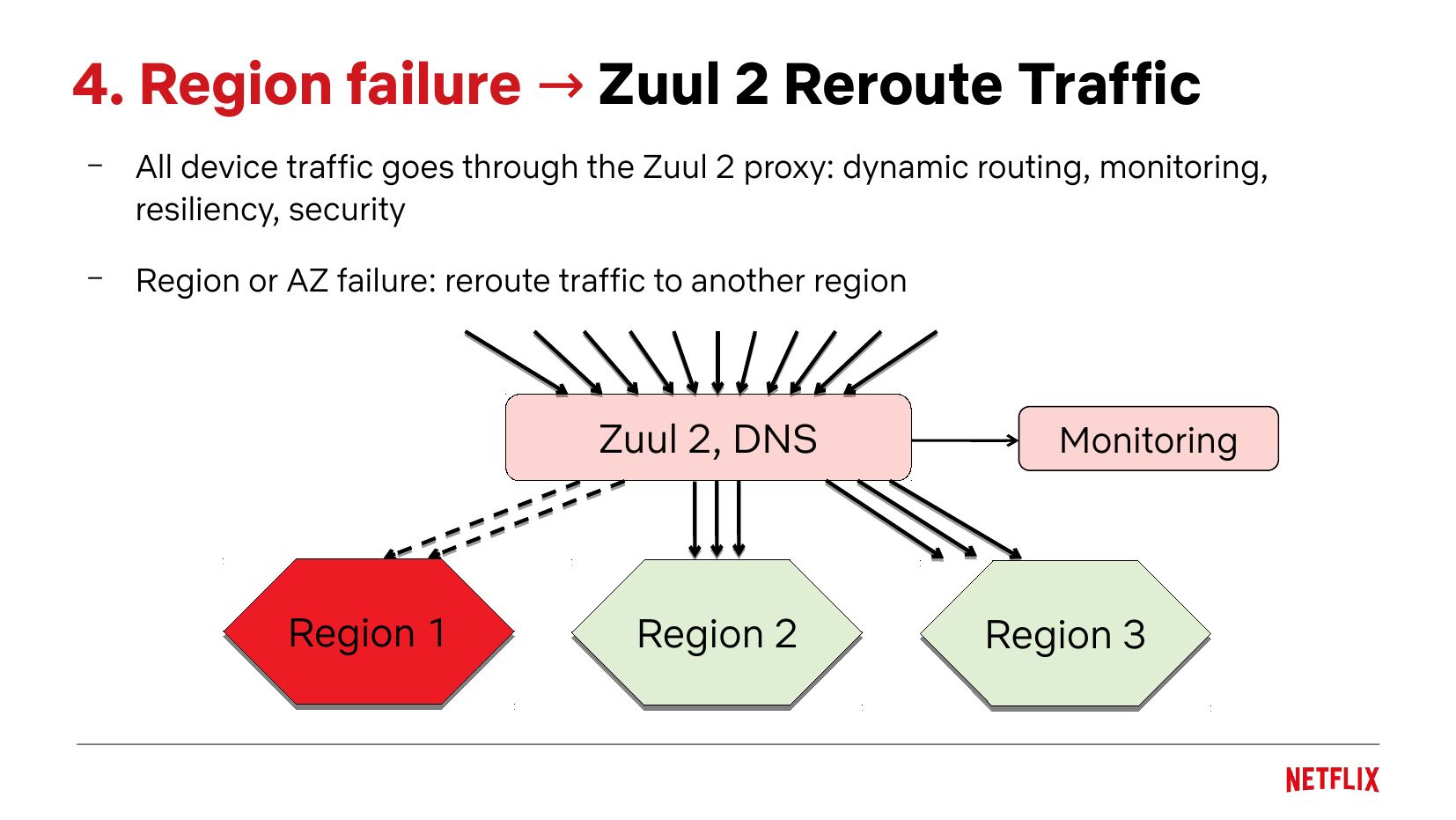

4. Region failure → Spinnaker Zuul 2 Reroute Traffic
All device traffic goes through the Zuul 2 proxy: dynamic routing, monitoring,
resiliency, security
Region or AZ failure: reroute traffic to another region
Zuul 2, DNS
Region 1
Region 2
Monitoring
Region 3

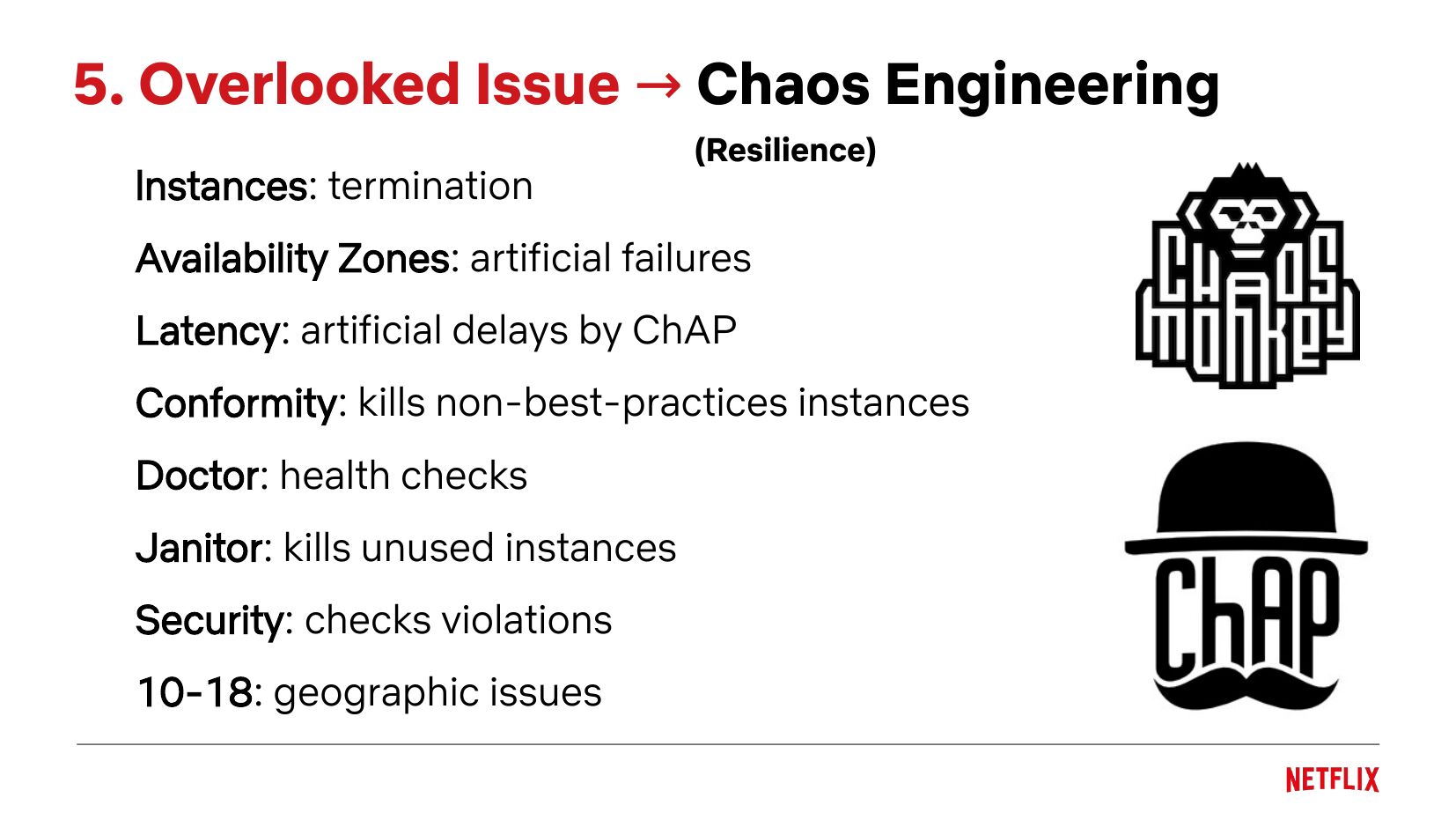

5. Overlooked Issue → Spinnaker Chaos Engineering
lnstances: termination
(Resilience)
Availability Zones: artificial failures
Latency: artificial delays by ChAP
Conformity: kills non-best-practices instances
Doctor: health checks
Janitor: kills unused instances
Security: checks violations
10-18: geographic issues

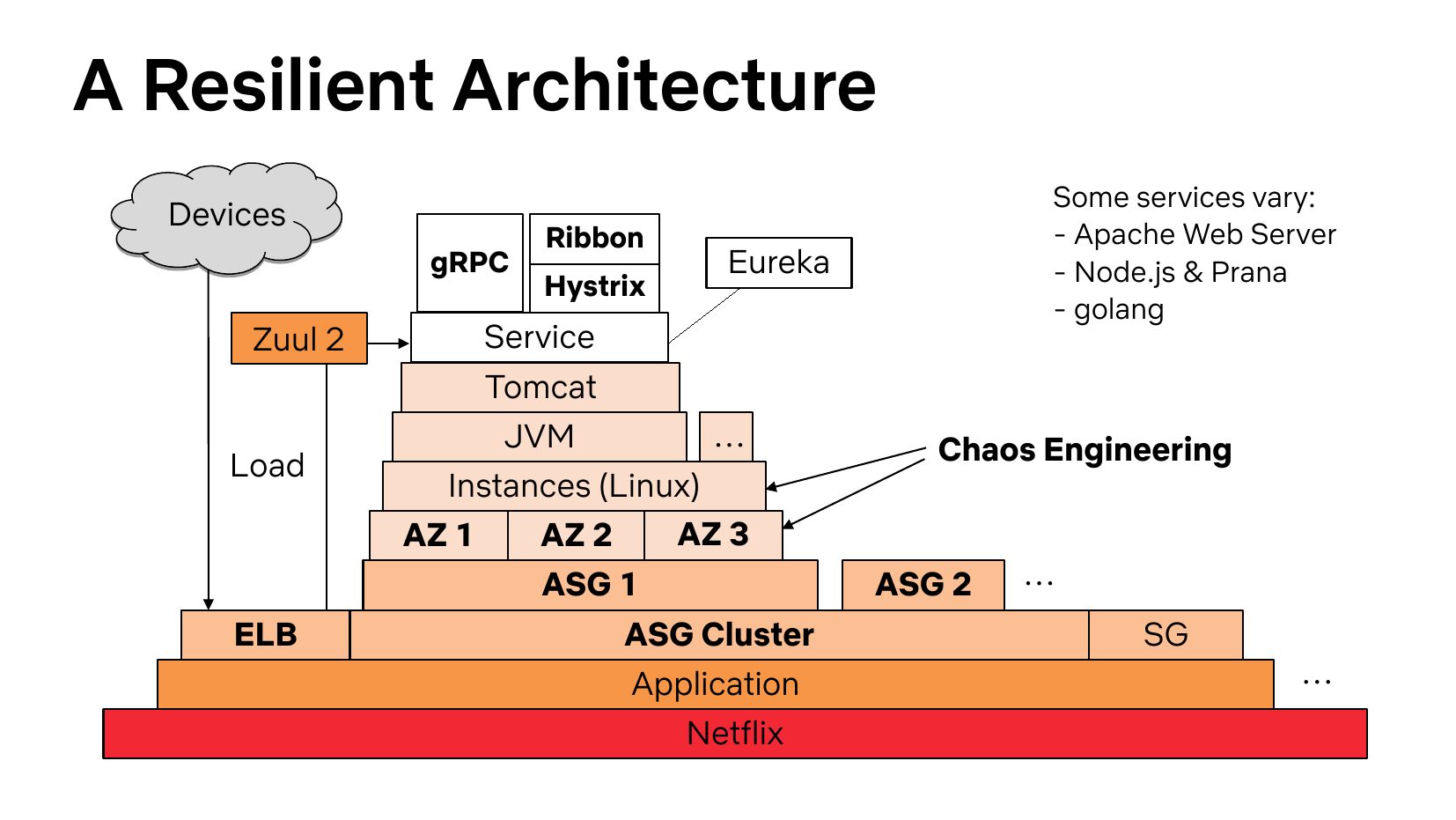

A Resilient Architecture
Devices
gRPC
Zuul 2
Load
Ribbon
Hystrix
Eureka
Service
Tomcat
JVM
Instances (Linux)
AZ 3
AZ 1
AZ 2
ASG 1
ELB
Some services vary:
- Apache Web Server
- Node.js & Prana
- golang
ASG Cluster
Application
Netflix
Chaos Engineering
ASG 2

2. Methodology
Cloud & Instance

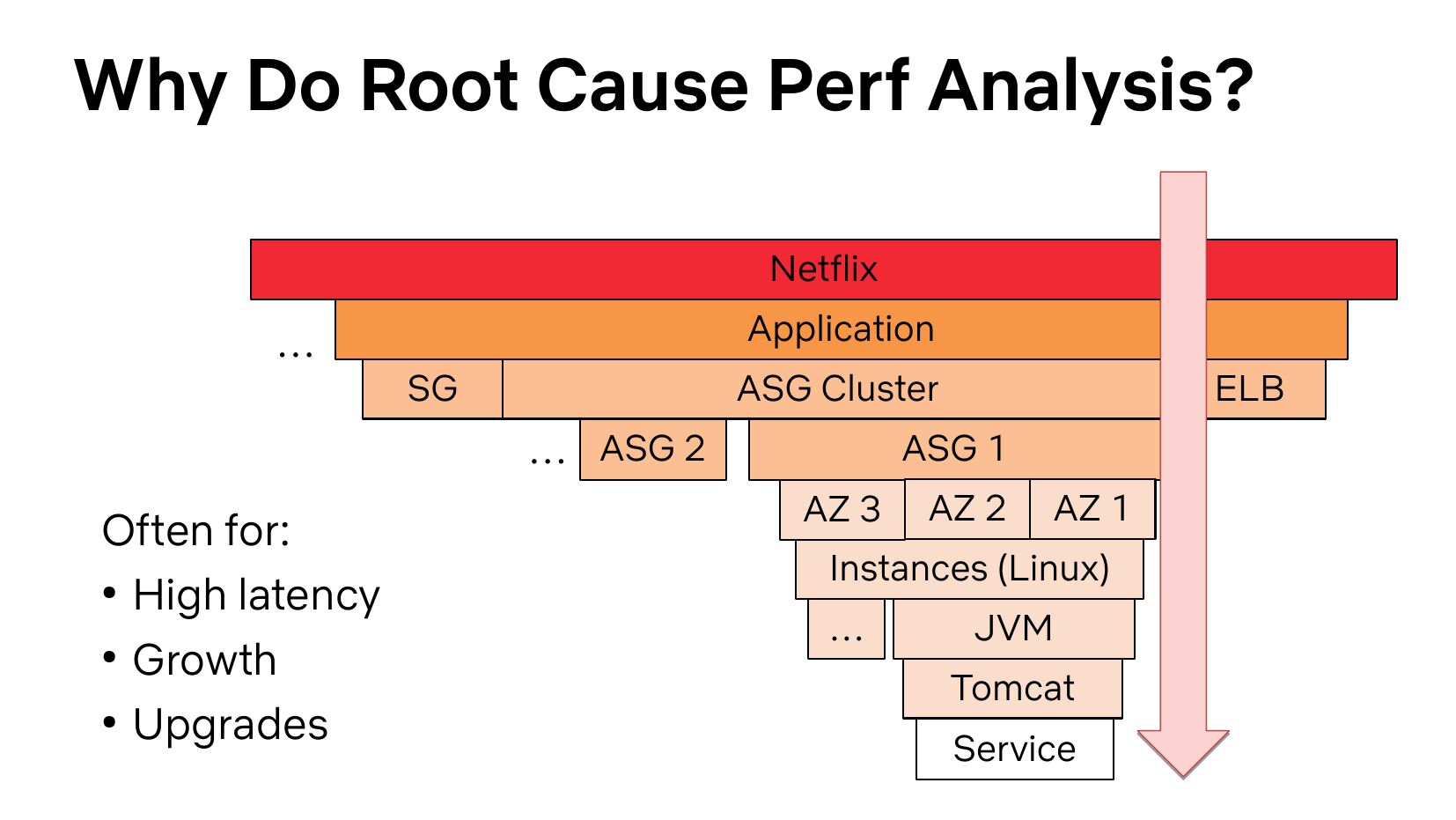

Why Do Root Cause Perf Analysis?
Netflix
Application
ASG Cluster
… ASG 2
Often for:
High latency
Growth
Upgrades
ELB
ASG 1
AZ 3
AZ 2
AZ 1
Instances (Linux)
JVM
Tomcat
Service

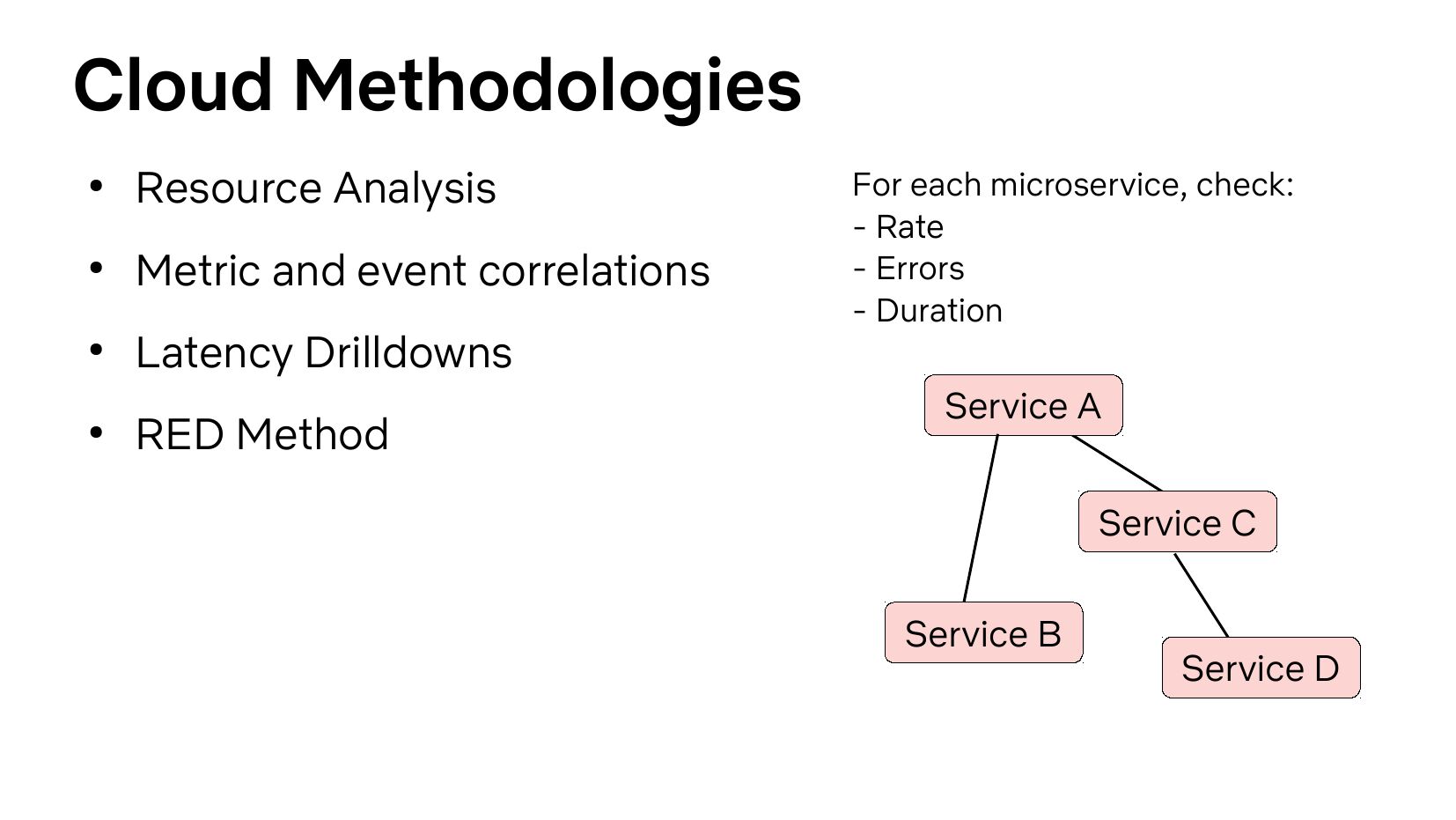

Cloud Methodologies
Resource Analysis
Metric and event correlations
Latency Drilldowns
RED Method
For each microservice, check:
- Rate
- Errors
- Duration
Service A
Service C
Service B
Service D

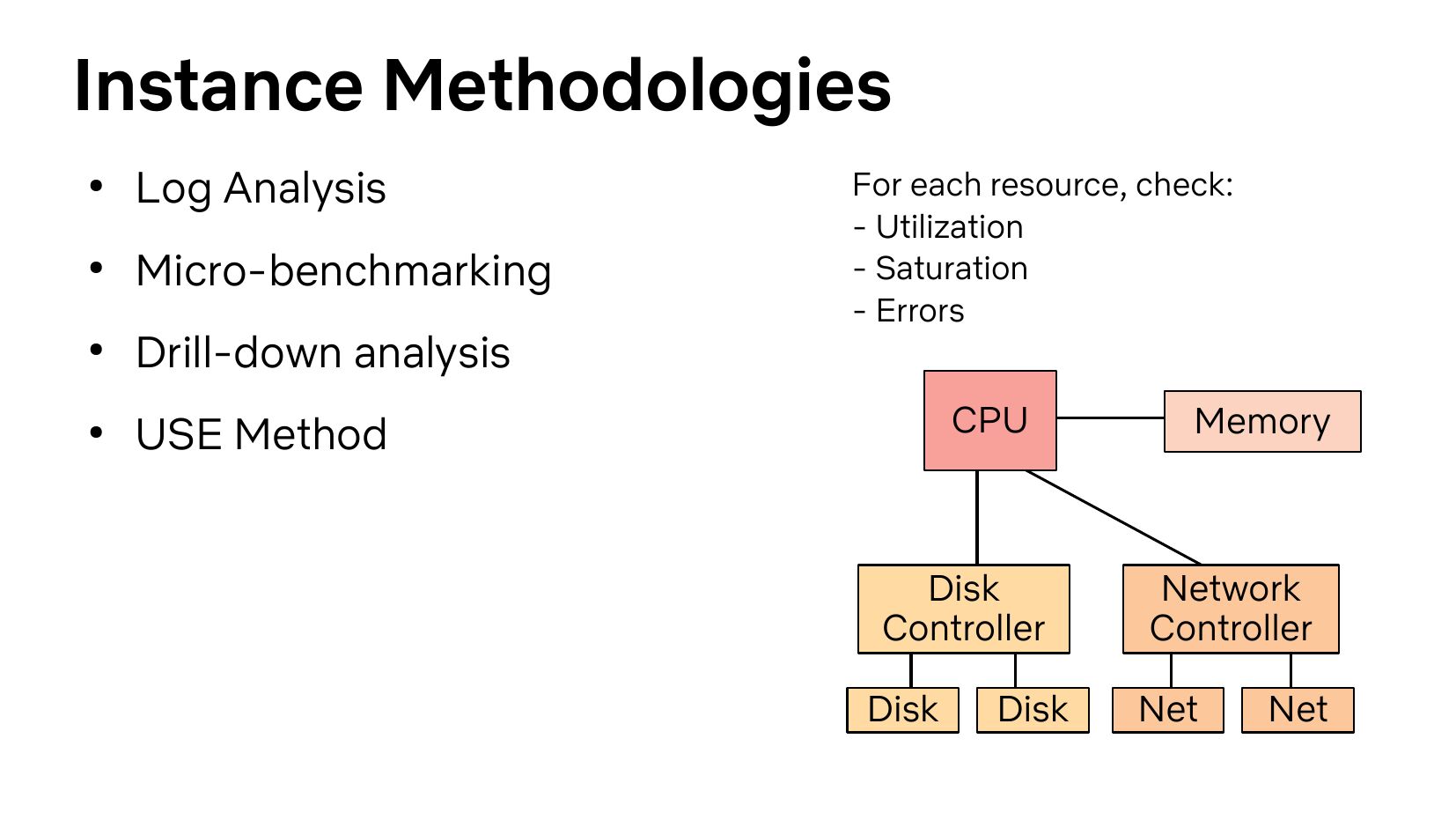

Instance Methodologies
Log Analysis
Micro-benchmarking
Drill-down analysis
USE Method
For each resource, check:
- Utilization
- Saturation
- Errors
CPU
Memory
Disk
Controller
Network
Controller
Disk
Net
Disk
Net

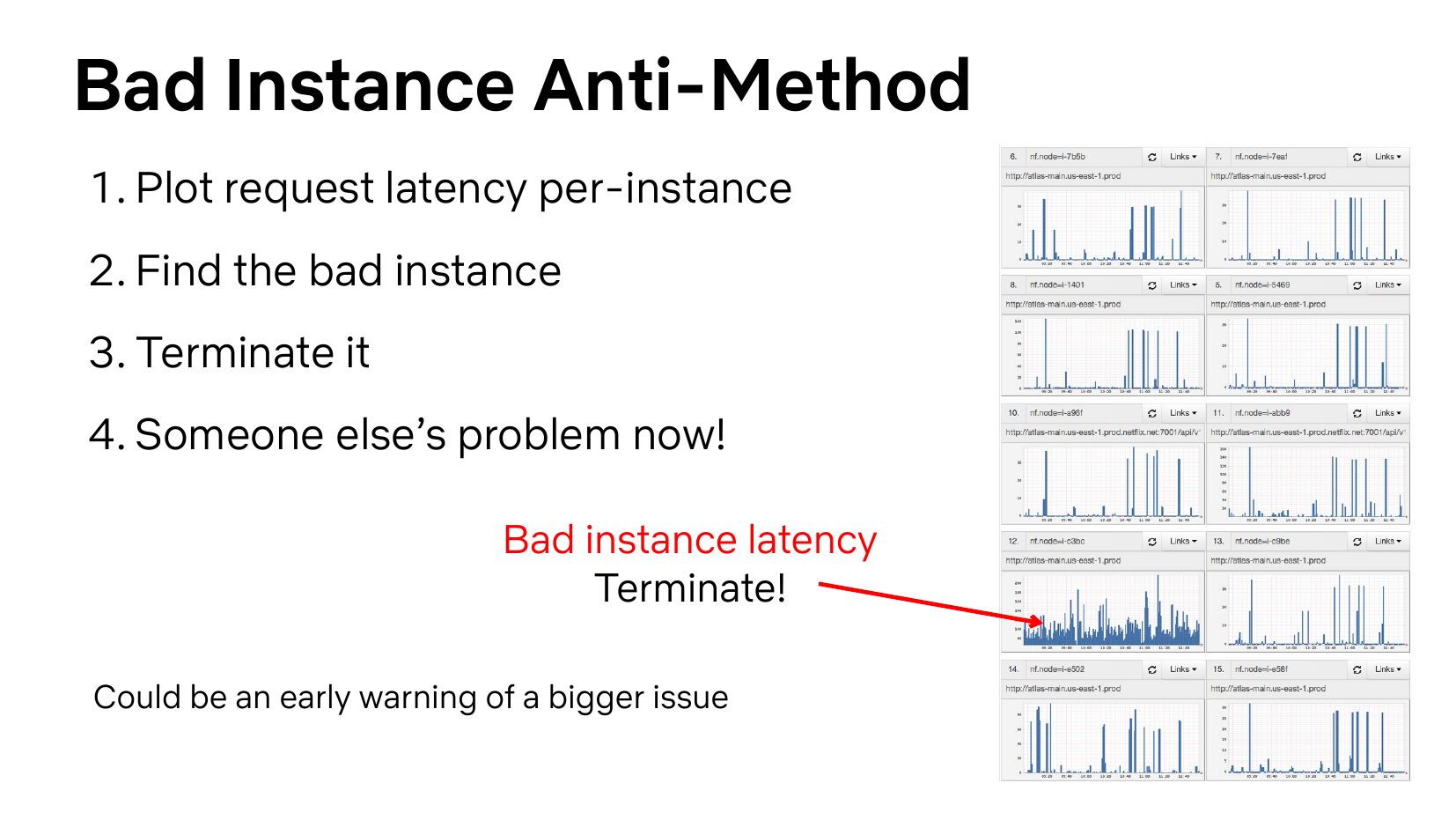

Bad Instance Anti-Method
1. Plot request latency per-instance
2. Find the bad instance
3. Terminate it
4. Someone else’s problem now!
Bad instance latency
Terminate!
Could be an early warning of a bigger issue

3. Cloud Analysis
Atlas, Lumen, Chronos, ...

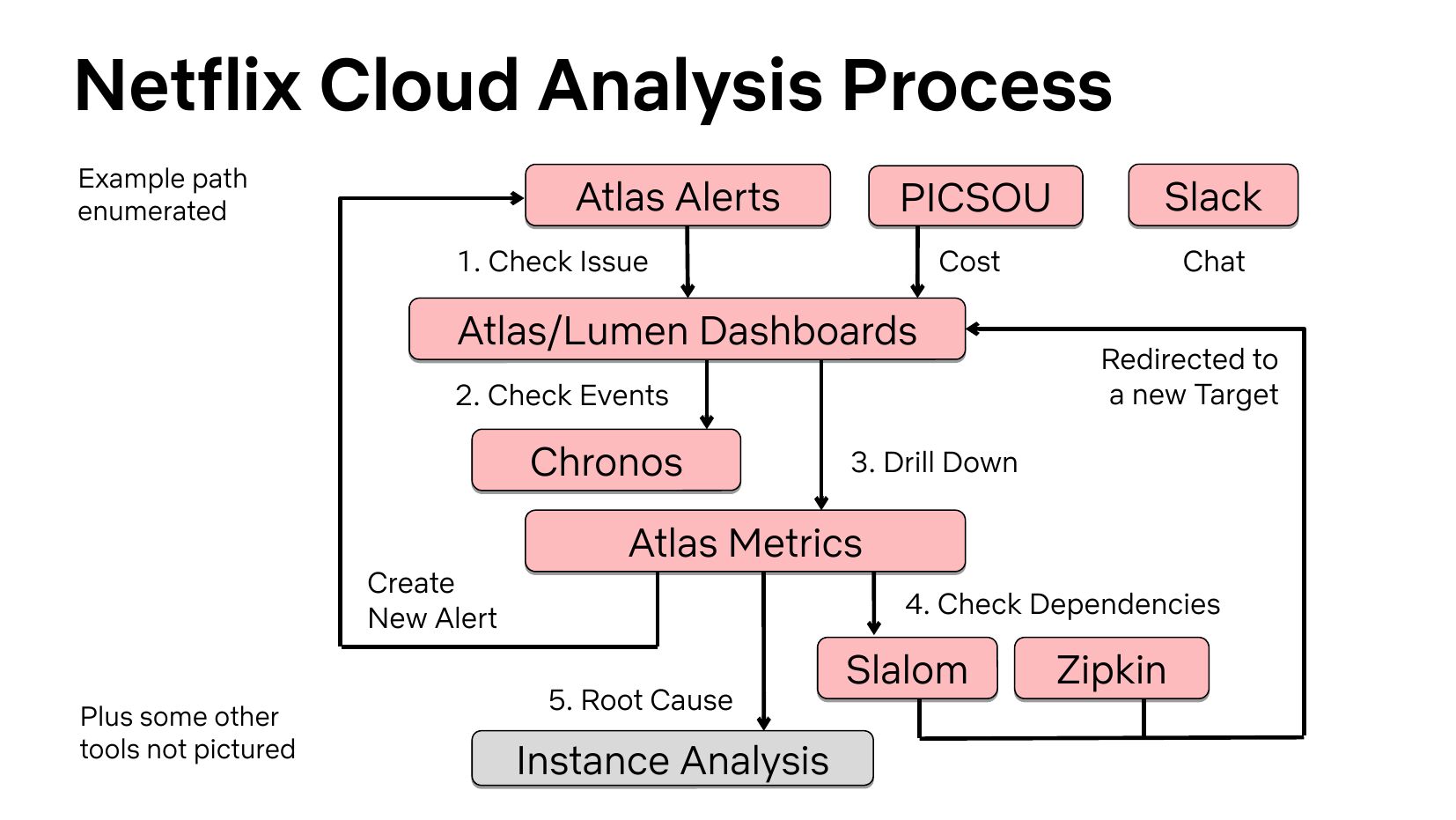

Netflix Cloud Analysis Process
Example path
enumerated
Atlas Alerts
PICSOU
Slack
Cost
Chat
1. Check Issue
Atlas/Lumen Dashboards
2. Check Events
Chronos
Create
New Alert
Plus some other
tools not pictured
Redirected to
a new Target
3. Drill Down
Atlas Metrics
4. Check Dependencies
5. Root Cause
Instance Analysis
Slalom
Zipkin

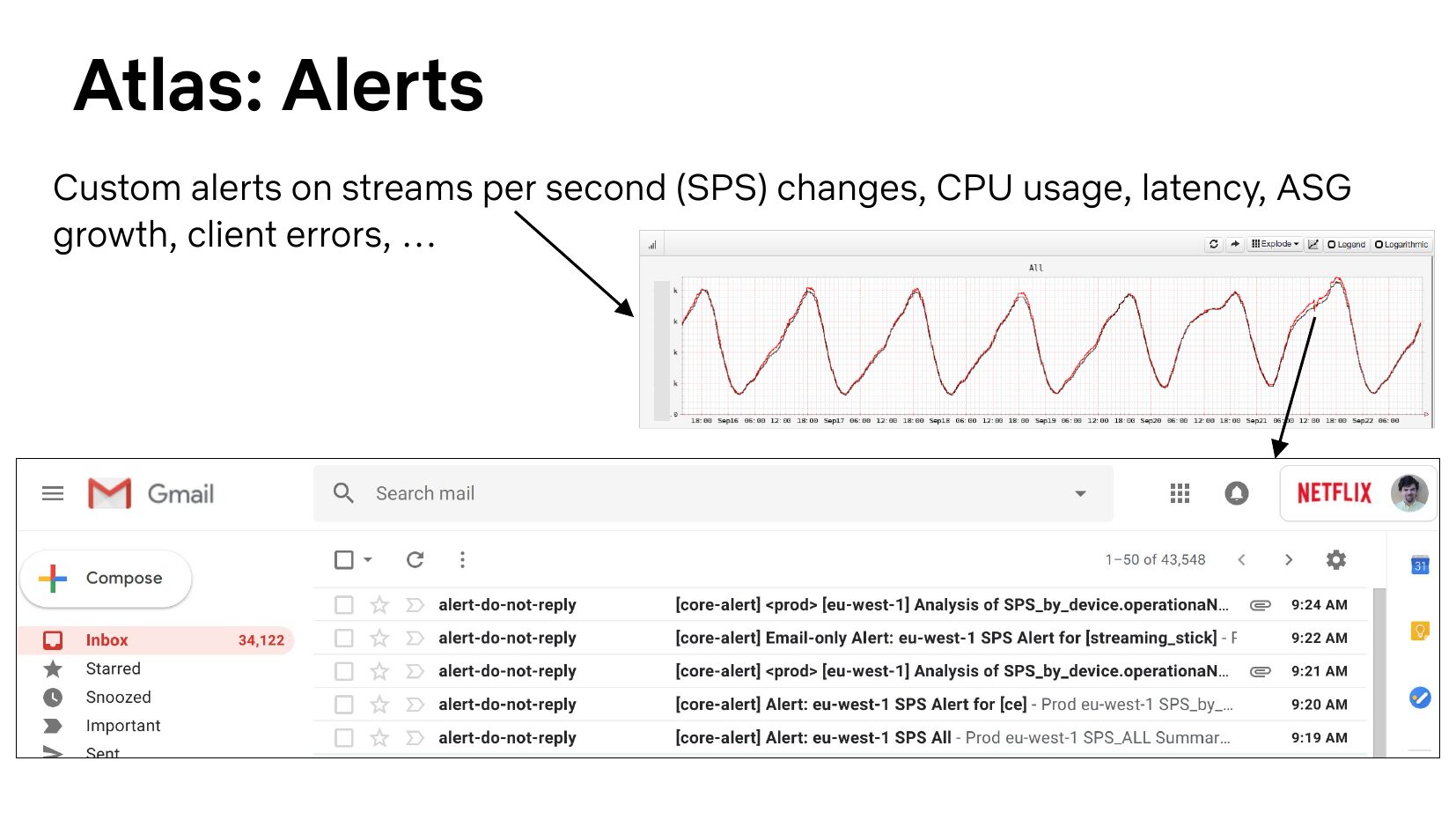

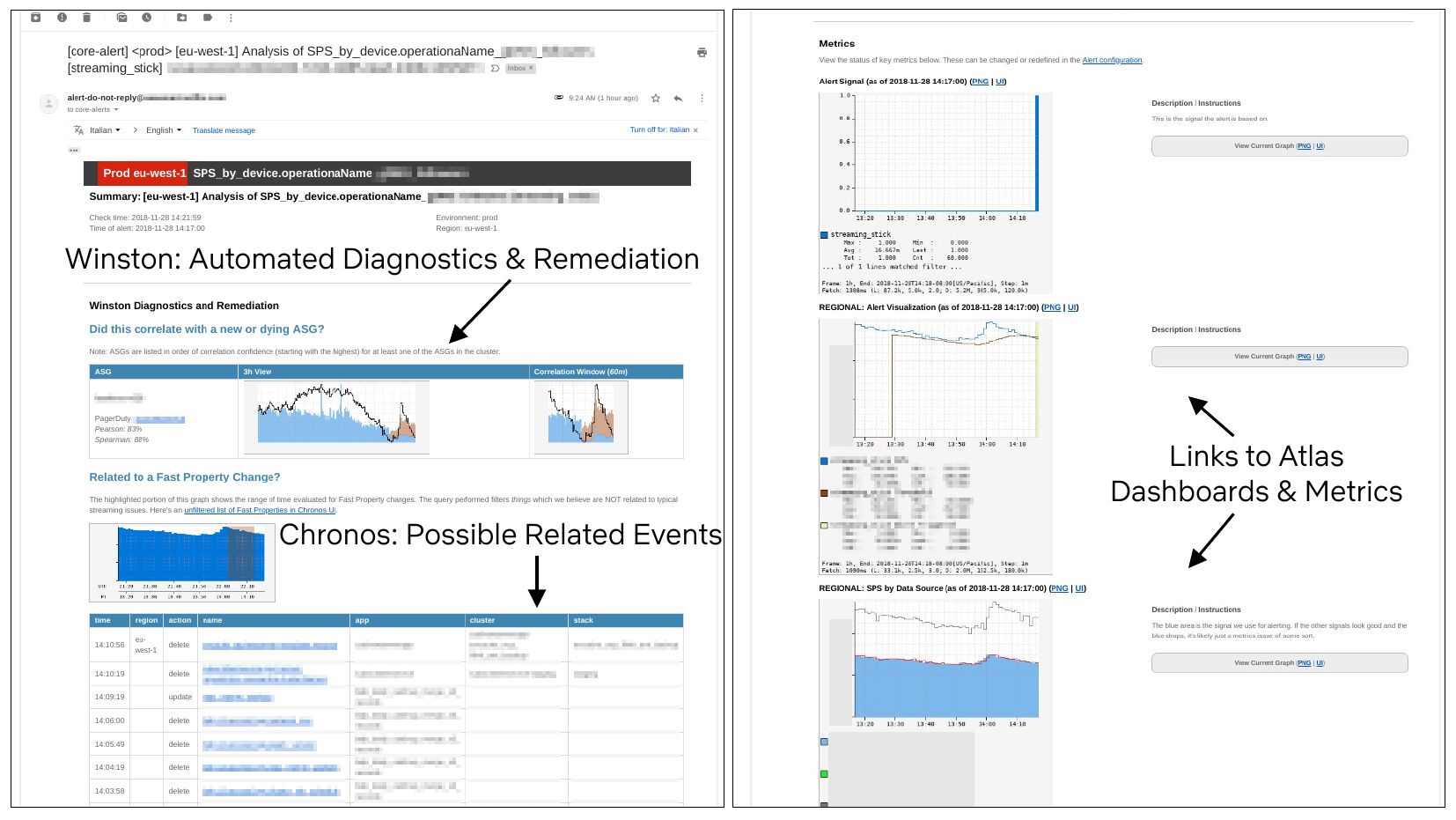

Atlas: Alerts
Custom alerts on streams per second (SPS) changes, CPU usage, latency, ASG
growth, client errors, …

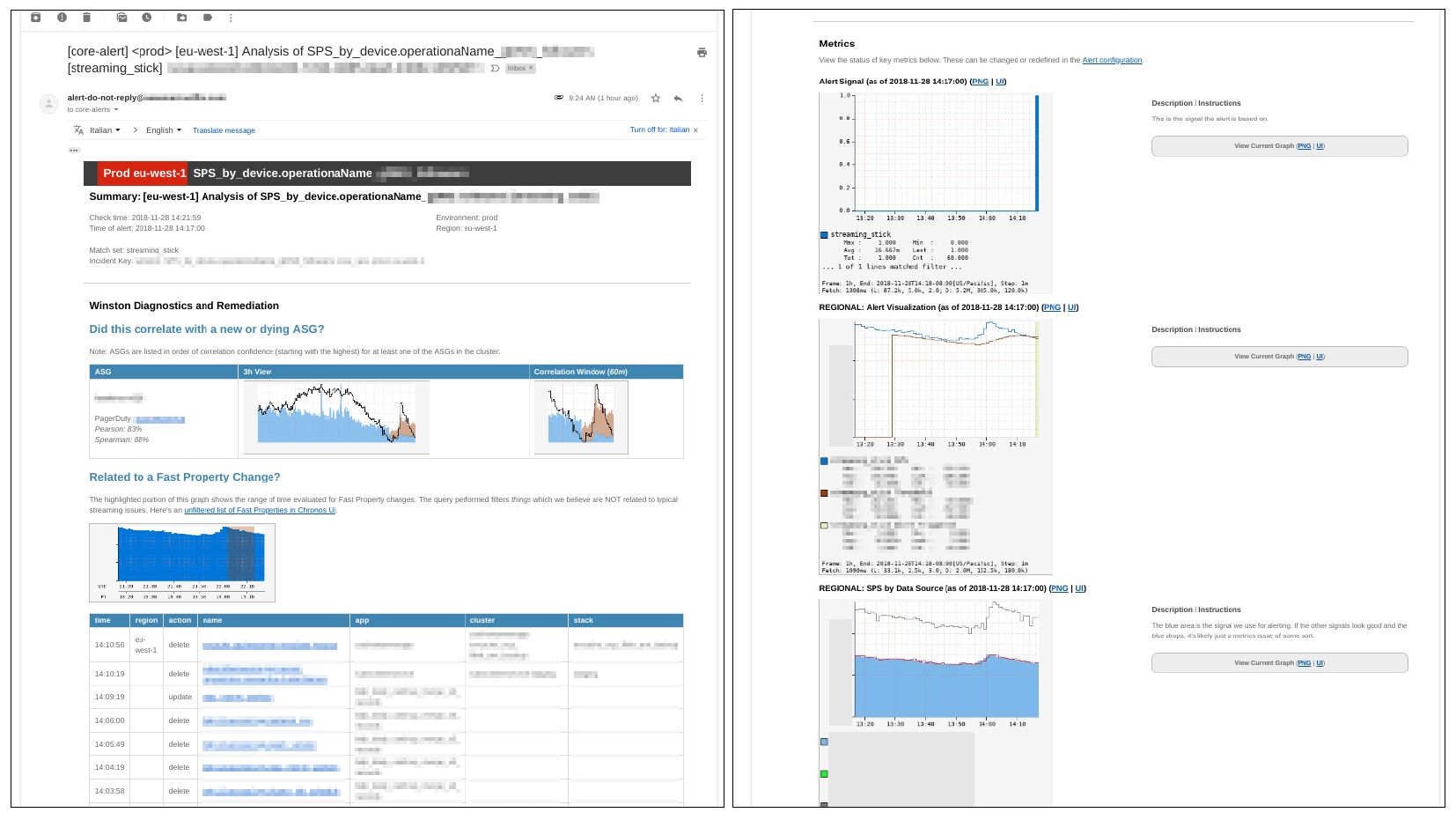

Winston: Automated Diagnostics & Remediation
Links to Atlas
Dashboards & Metrics
Chronos: Possible Related Events

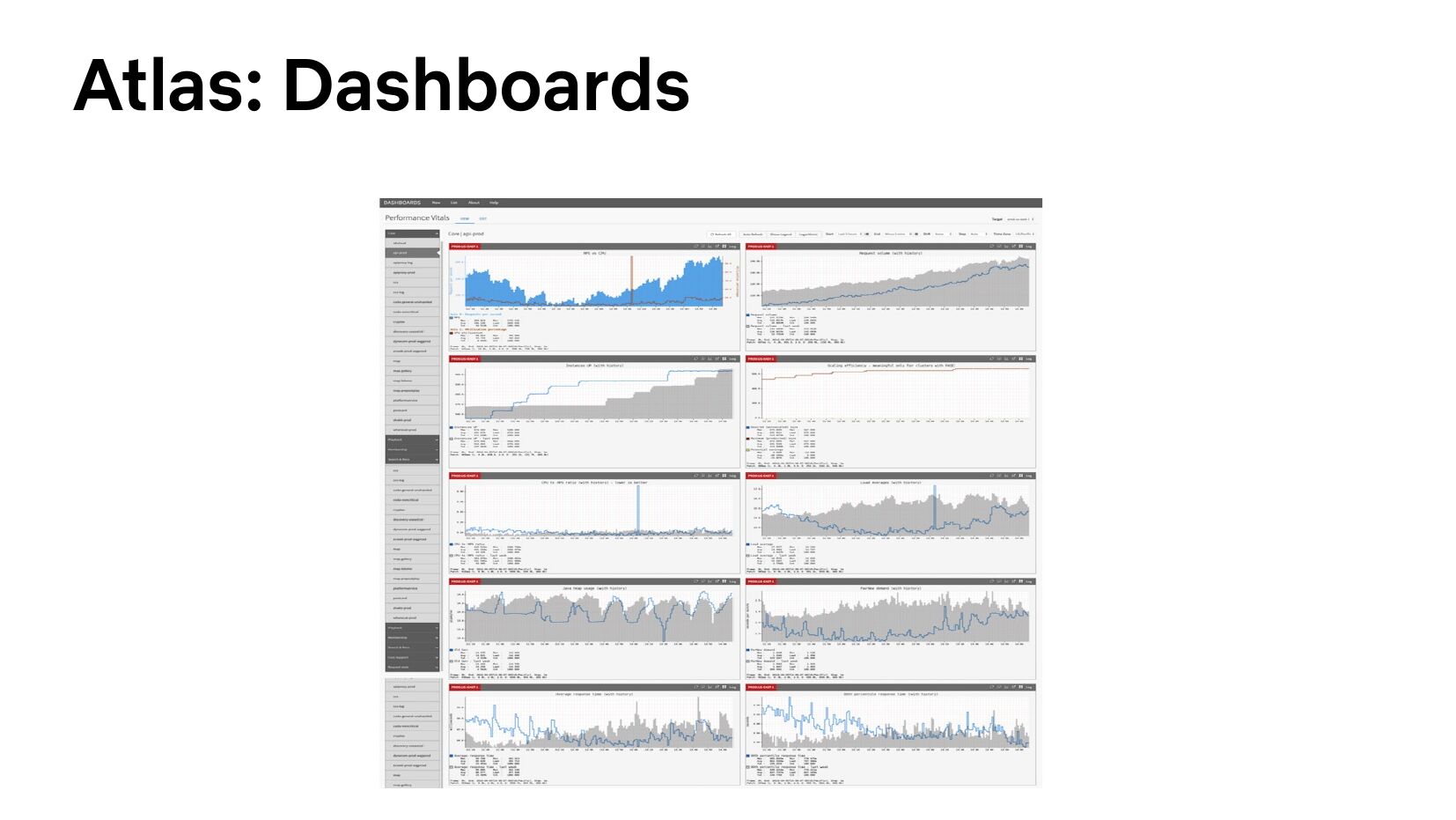

Atlas: Dashboards

Atlas: Dashboards

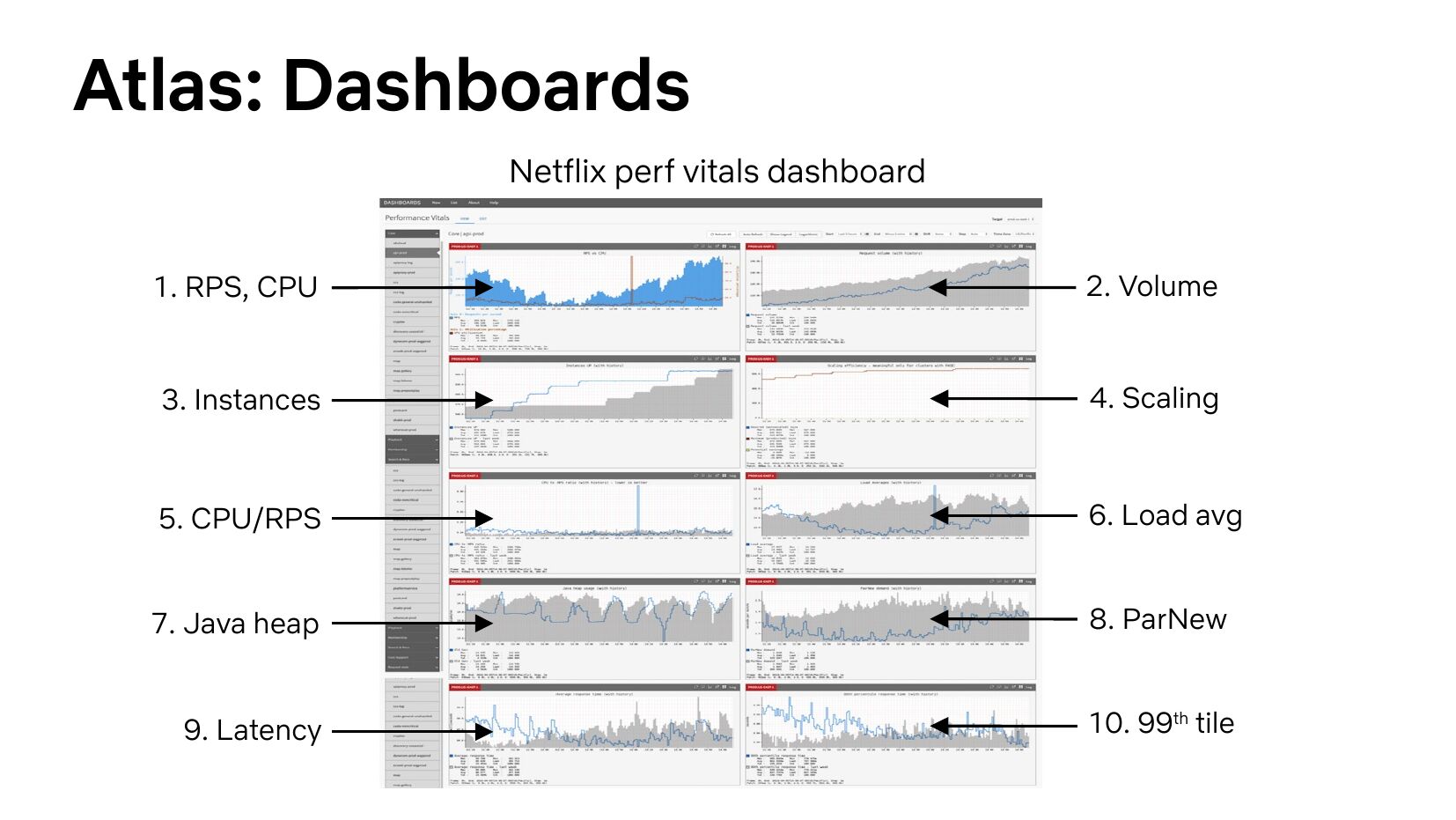

Netflix perf vitals dashboard
1. RPS, CPU
2. Volume
3. Instances
4. Scaling
5. CPU/RPS
6. Load avg
7. Java heap
8. ParNew
9. Latency
10. 99th tile

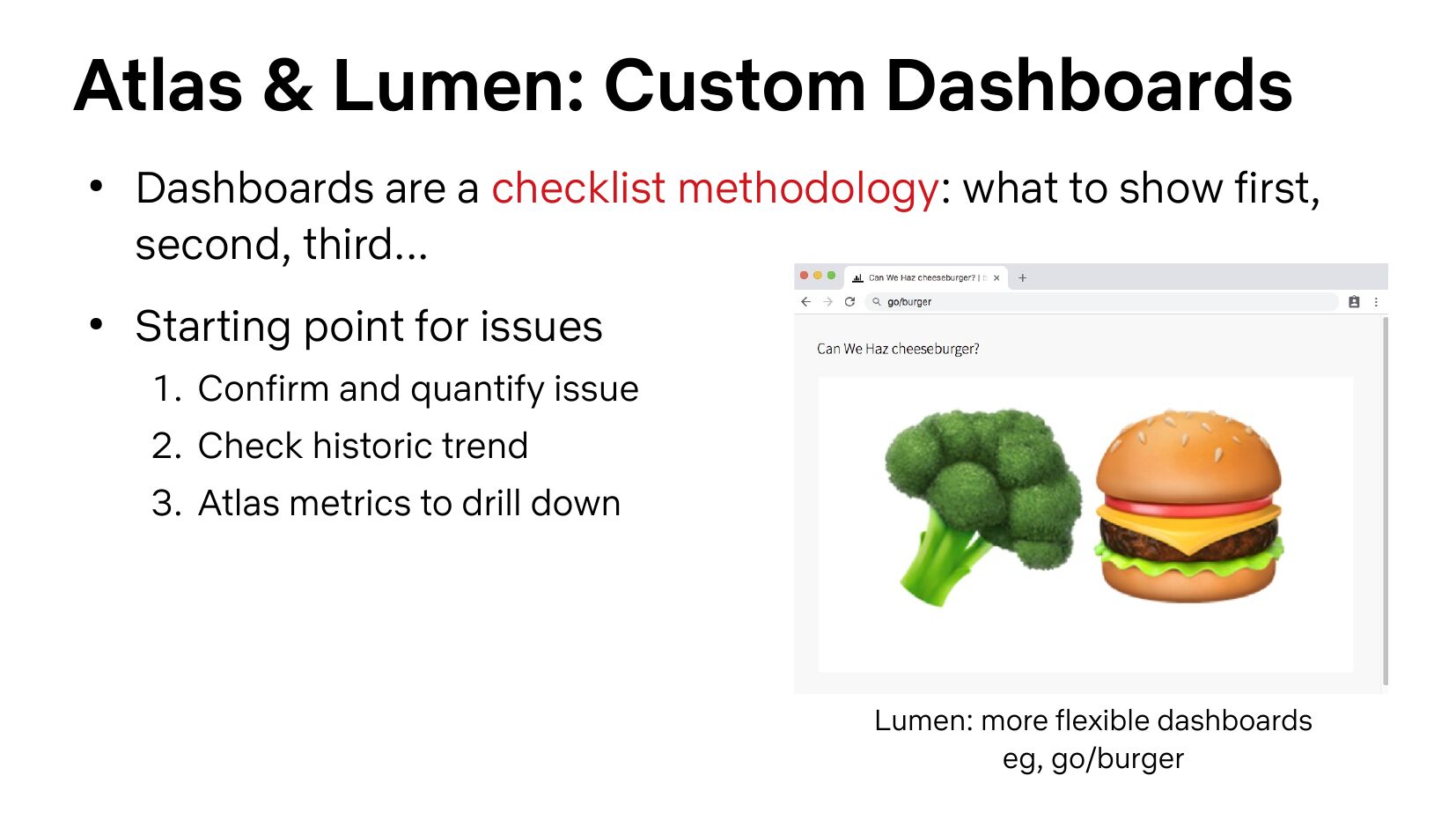

Atlas & Lumen: Custom Dashboards
Dashboards are a checklist methodology: what to show first,
second, third...
Starting point for issues
1. Confirm and quantify issue
2. Check historic trend
3. Atlas metrics to drill down
Lumen: more flexible dashboards
eg, go/burger

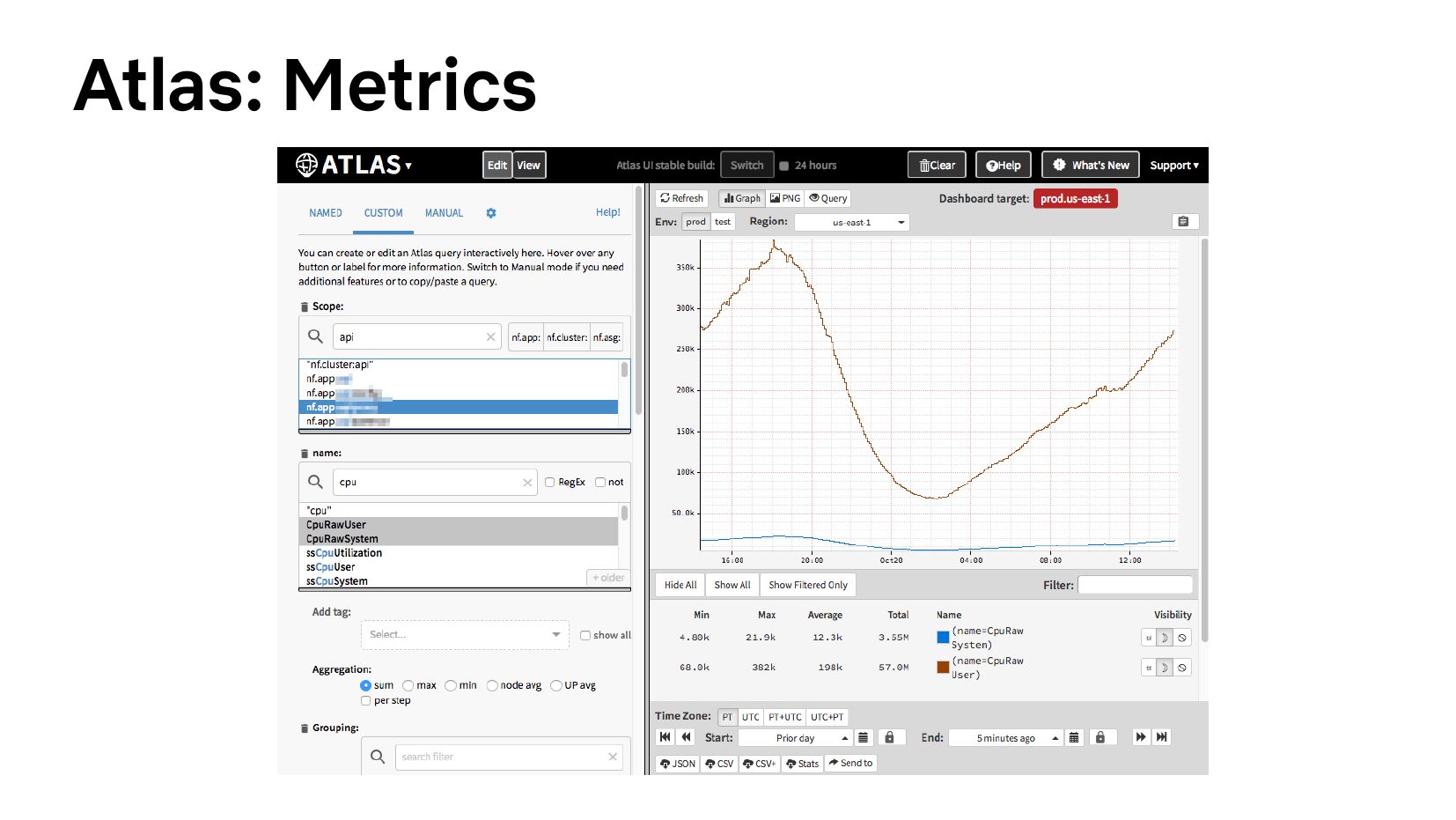

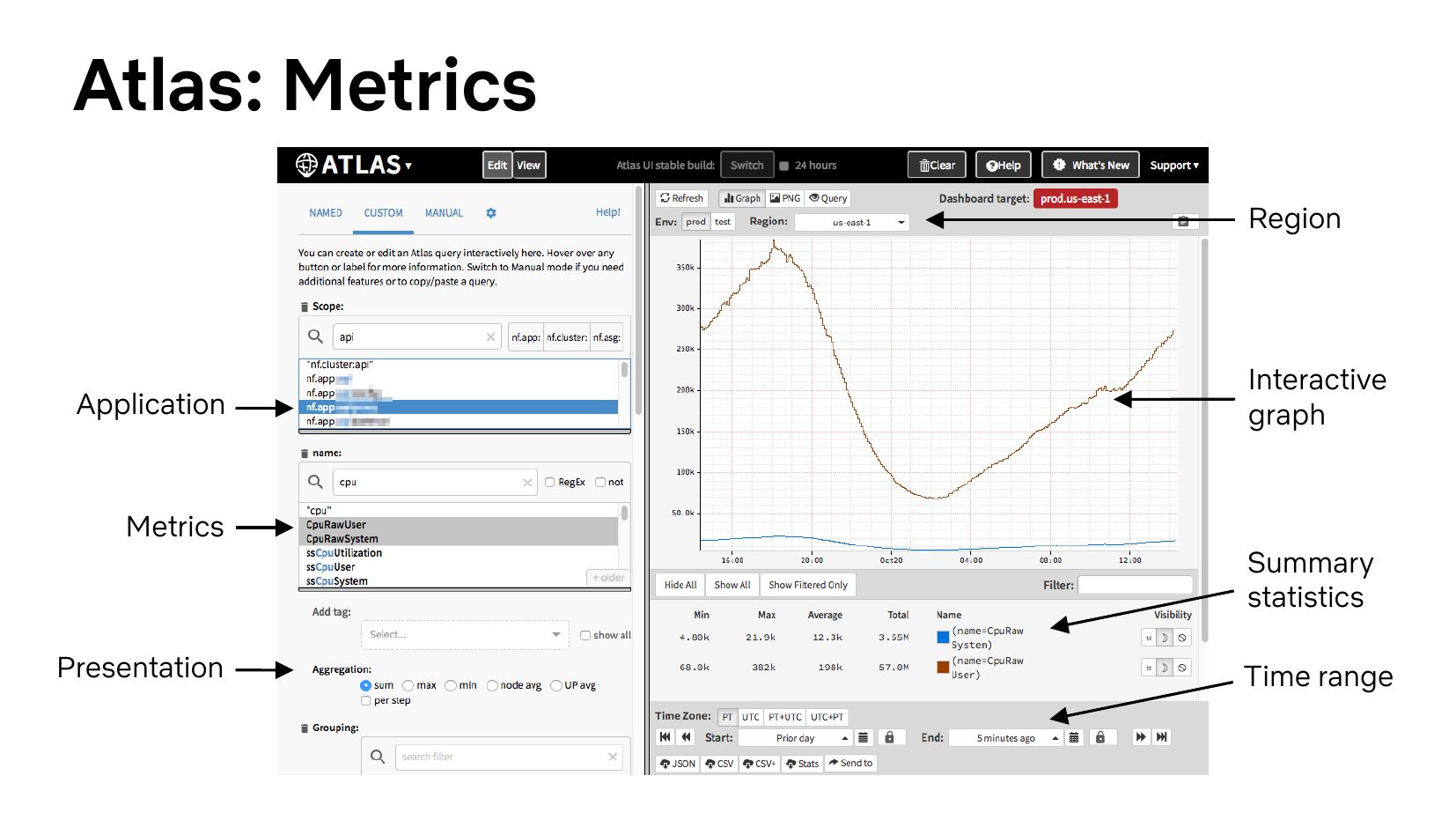

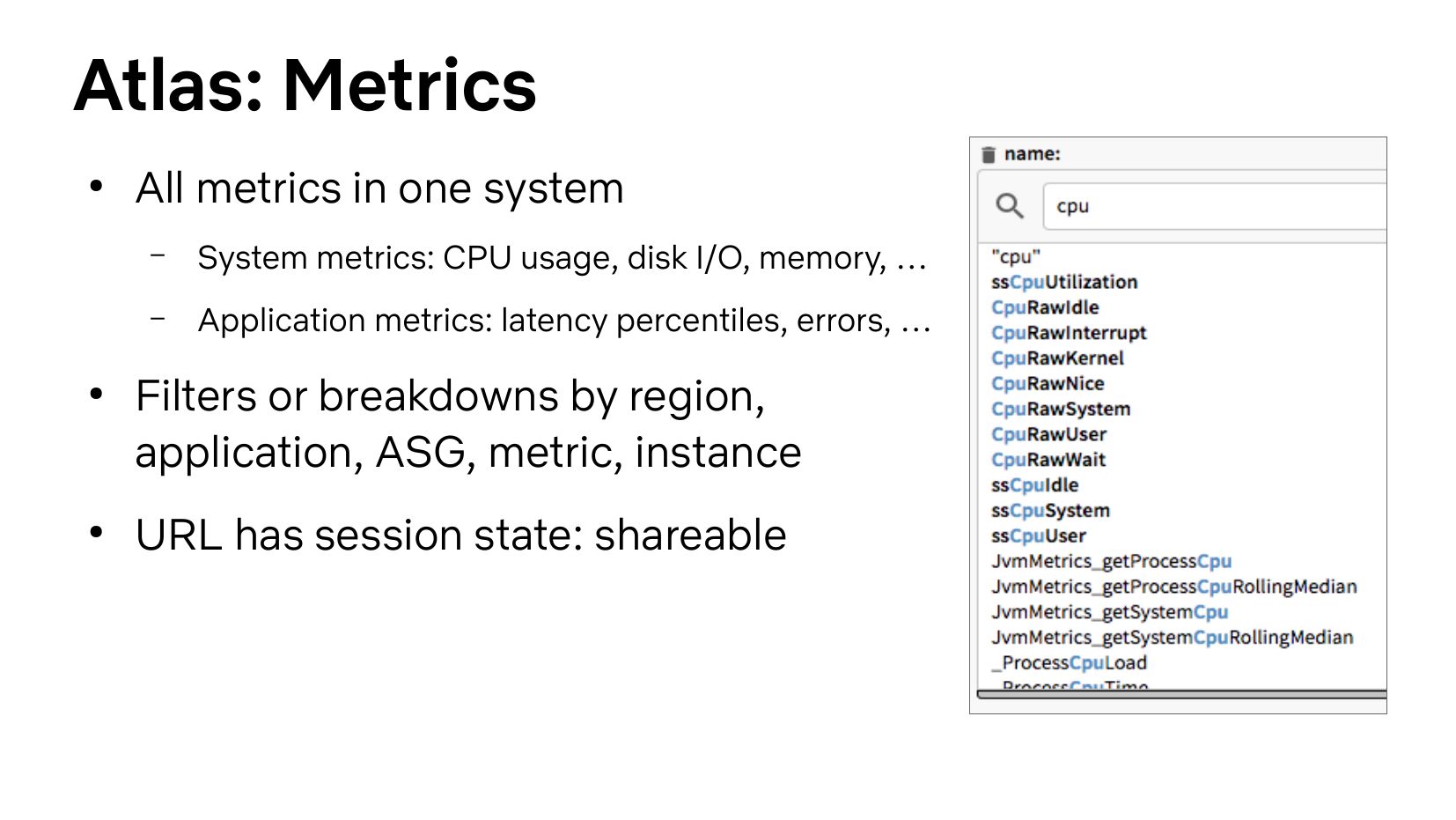

Atlas: Metrics

Atlas: Metrics
Region
Application
Metrics
Presentation
Interactive
graph
Summary
statistics
Time range

Atlas: Metrics
All metrics in one system
System metrics: CPU usage, disk I/O, memory, …
Application metrics: latency percentiles, errors, …
Filters or breakdowns by region,
application, ASG, metric, instance
URL has session state: shareable

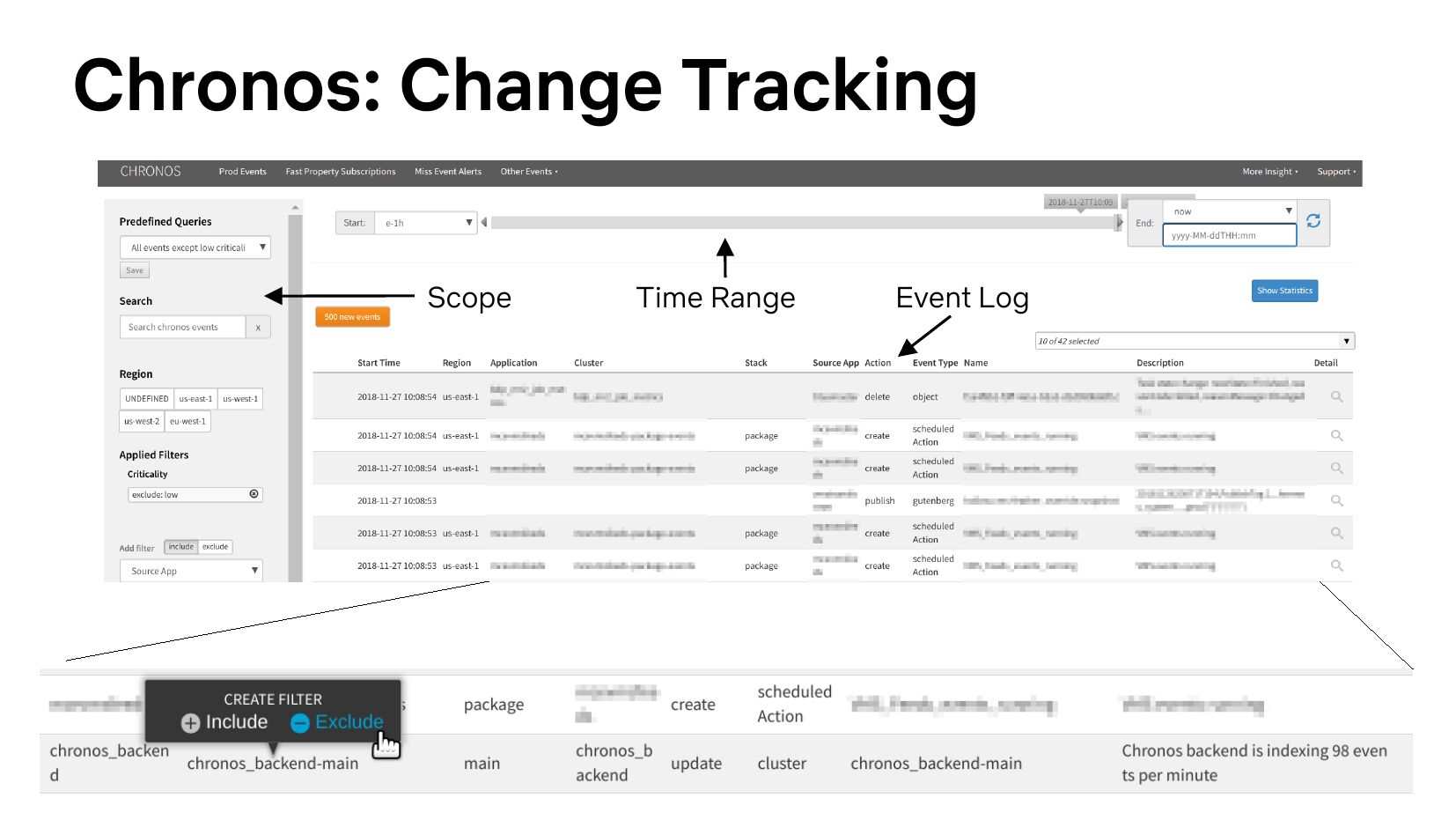

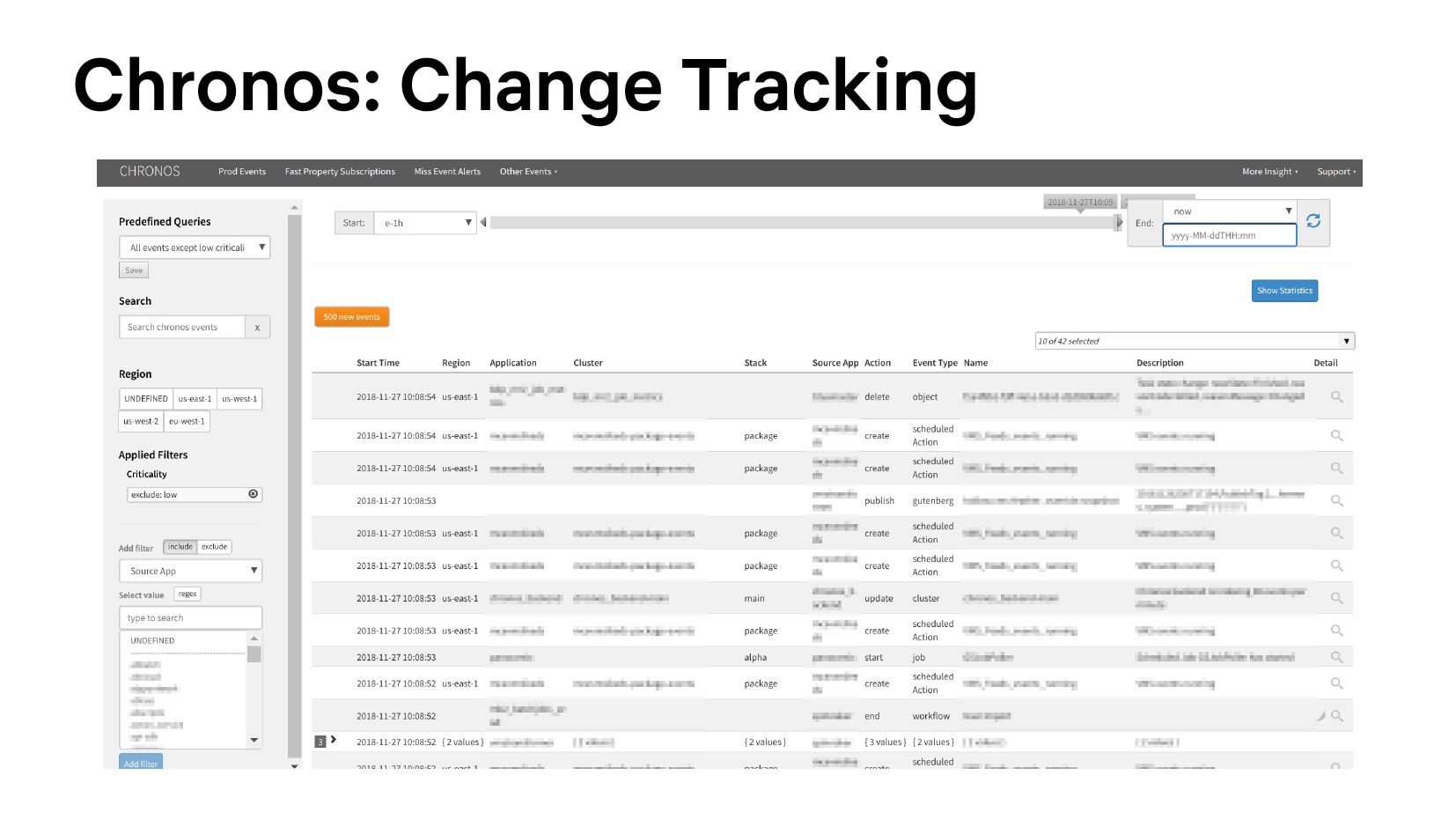

Chronos: Change Tracking

Chronos: Change Tracking
Scope
Time Range
Event Log

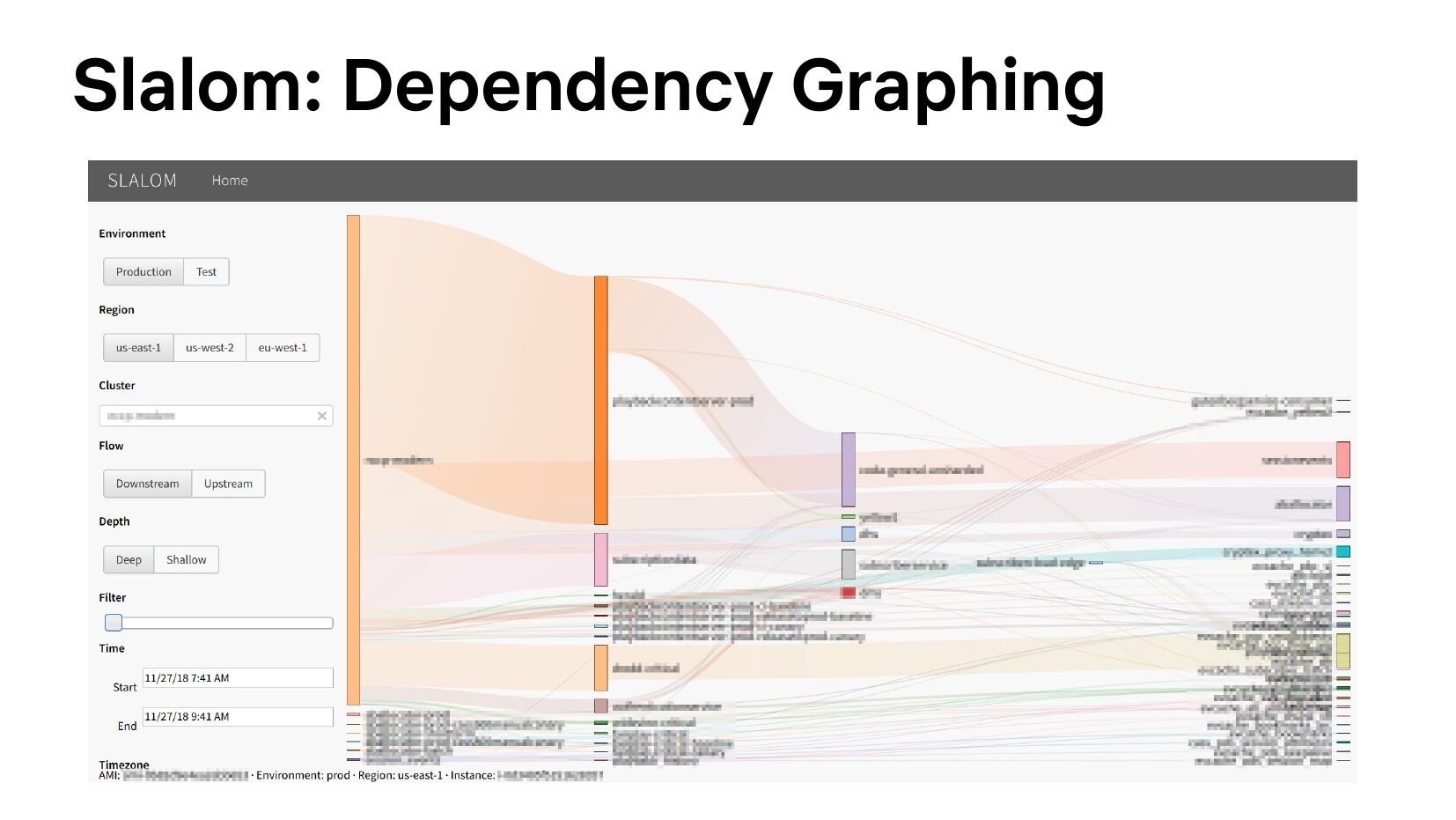

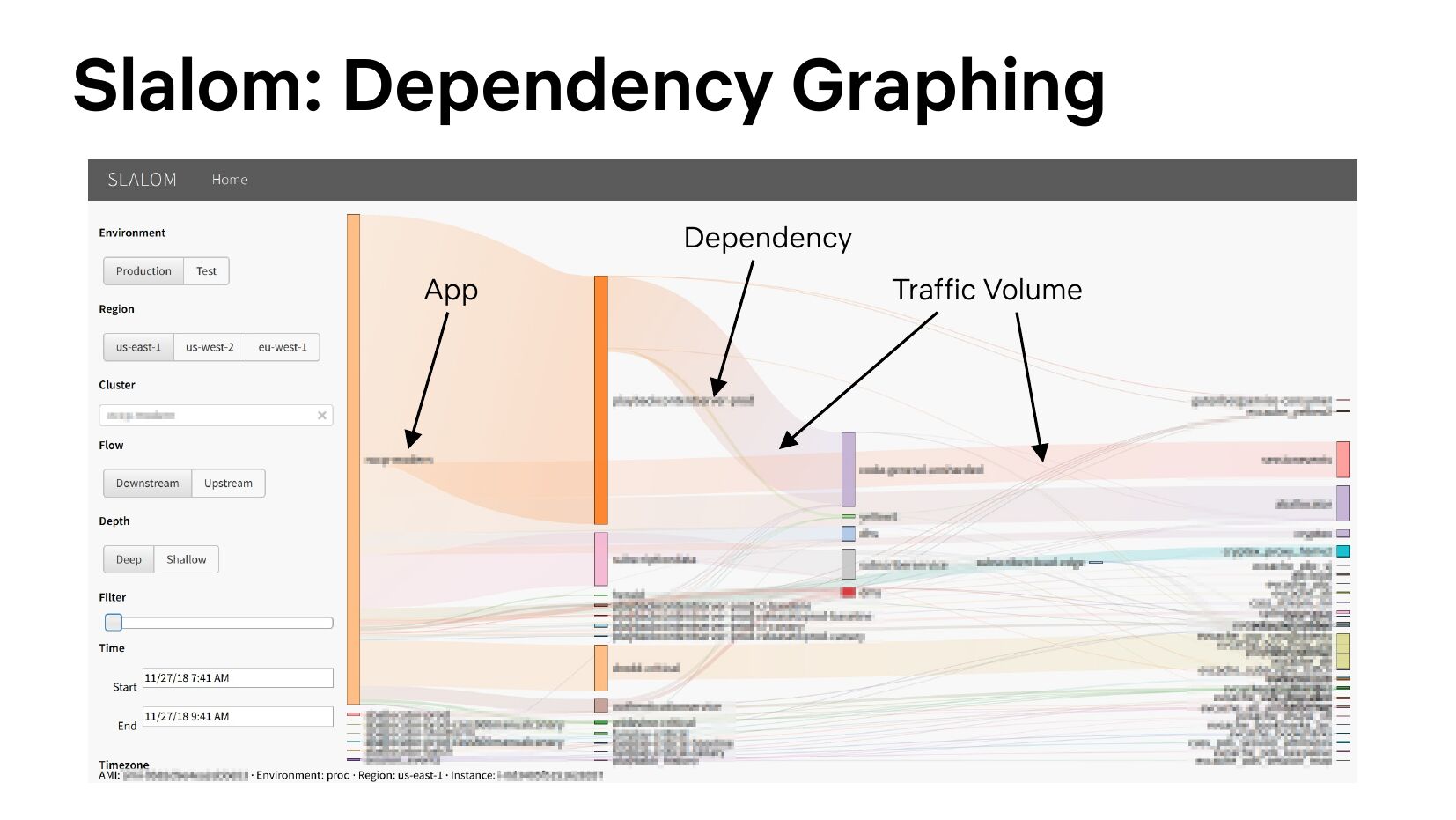

Slalom: Dependency Graphing

Slalom: Dependency Graphing
Dependency
App
Traffic Volume

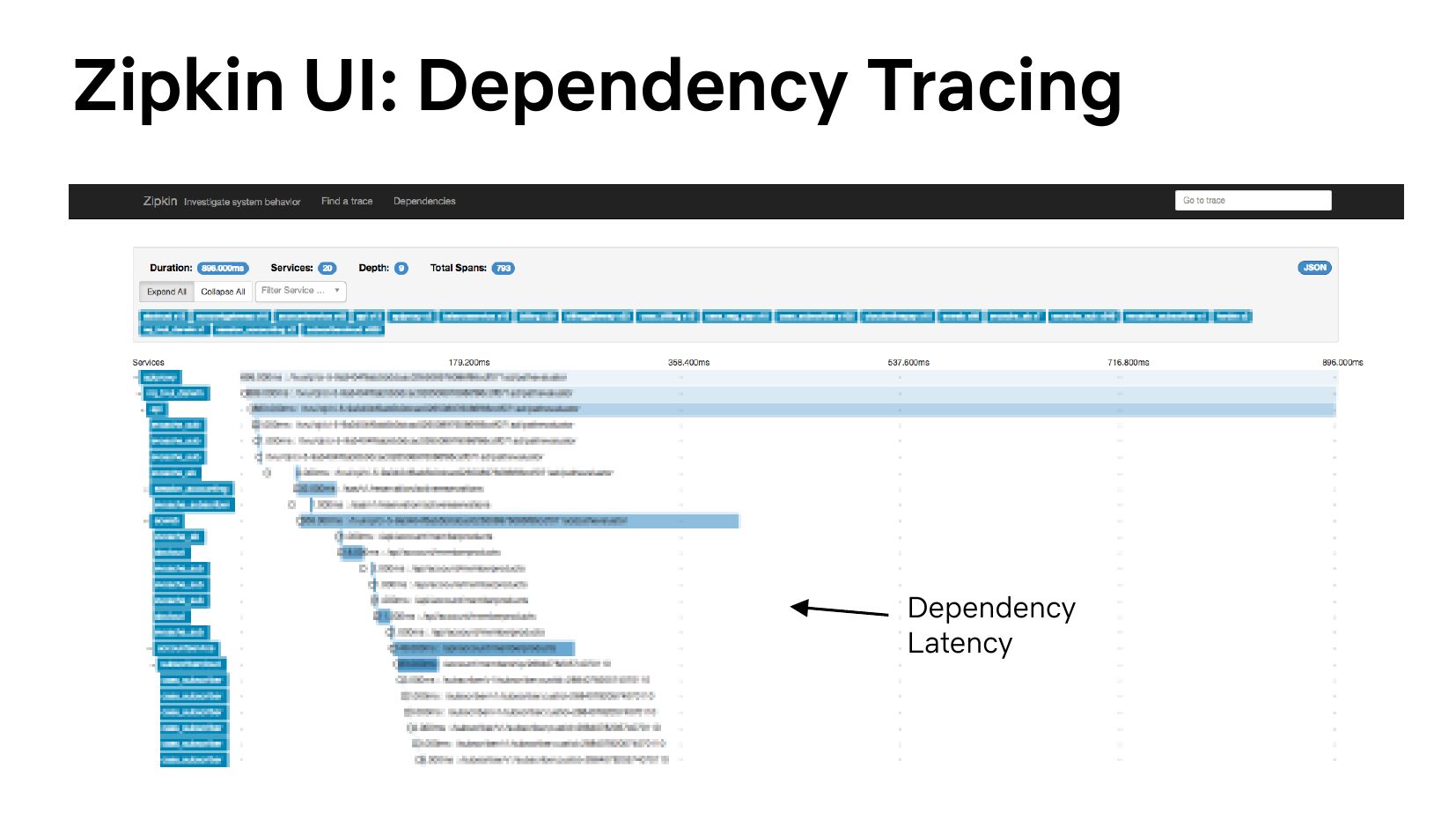

Zipkin UI: Dependency Tracing
Dependency
Latency

PICSOU: AWS Usage
Breakdowns
Cost per hour
Details (redacted)

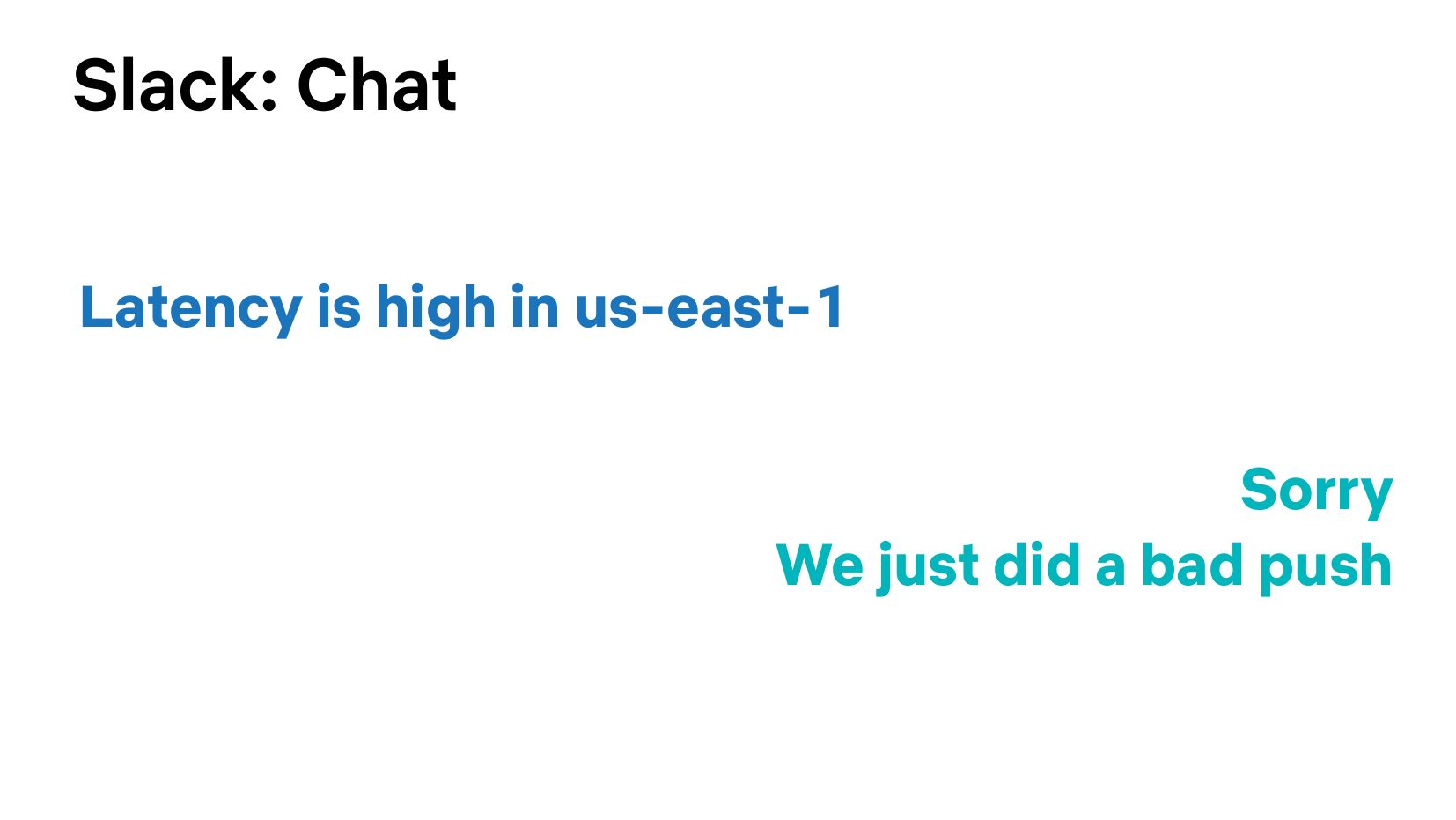

Slack: Chat
Latency is high in us-east-1
Sorry
We just did a bad push

Netflix Cloud Analysis Process
Example path
enumerated
Atlas Alerts
PICSOU
Slack
Cost
Chat
1. Check Issue
Atlas/Lumen Dashboards
2. Check Events
Chronos
Create
New Alert
Plus some other
tools not pictured
Redirected to
a new Target
3. Drill Down
Atlas Metrics
4. Check Dependencies
5. Root Cause
Instance Analysis
Slalom
Zipkin

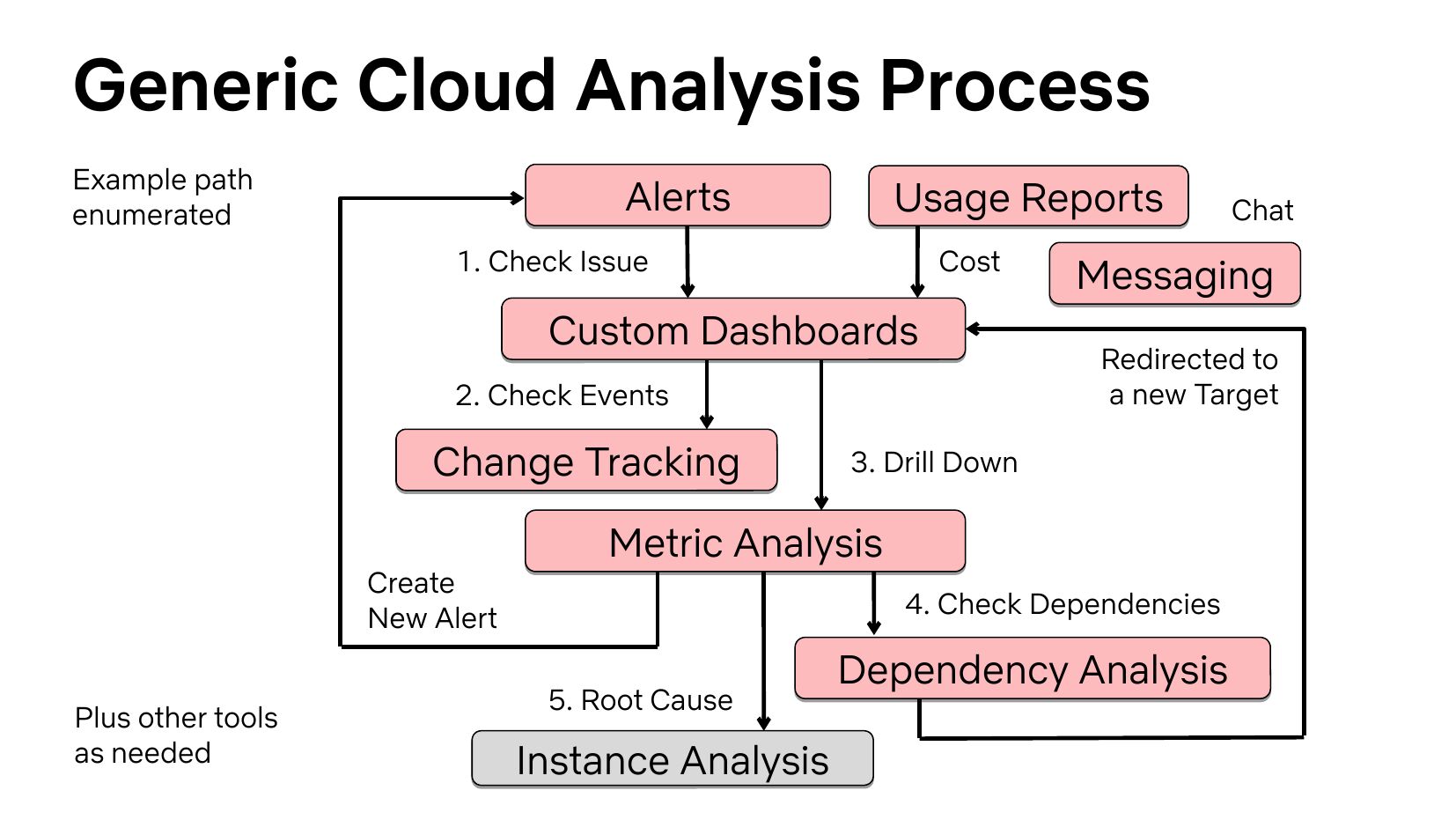

Generic Cloud Analysis Process
Example path
enumerated
Alerts
Usage Reports
1. Check Issue
Cost
Custom Dashboards
2. Check Events
Change Tracking
Create
New Alert
Plus other tools
as needed
Messaging
Redirected to
a new Target
3. Drill Down
Metric Analysis
4. Check Dependencies
5. Root Cause
Instance Analysis
Chat
Dependency Analysis

4. Instance Analysis
1. Statistics
2. Profiling
3. Tracing
4. Processor Analysis

1. Statistics

Linux Tools
vmstat, pidstat, sar, etc, used mostly normally

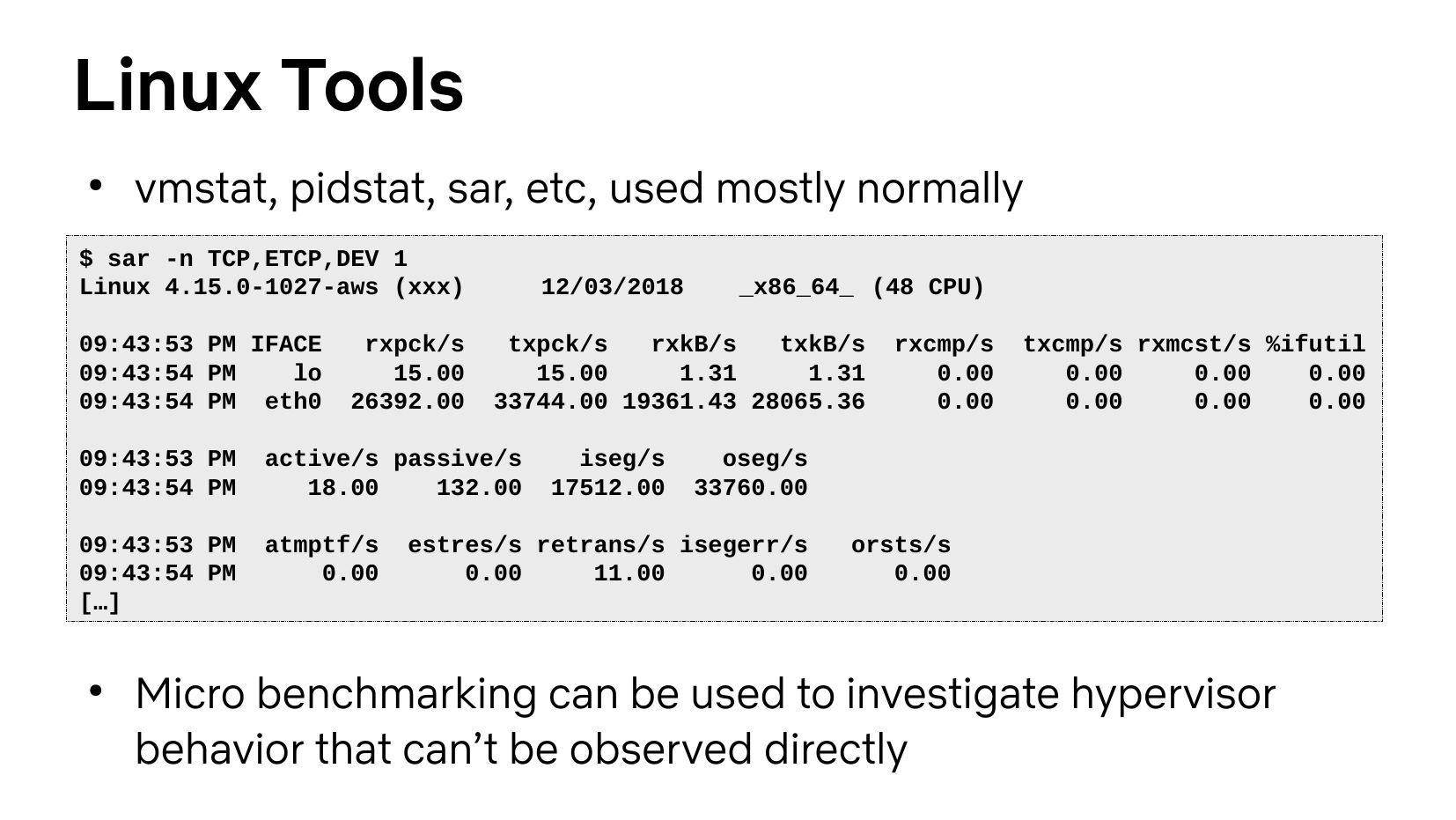

$ sar -n TCP,ETCP,DEV 1
Linux 4.15.0-1027-aws (xxx)
09:43:53 PM IFACE
09:43:54 PM
09:43:54 PM eth0
rxpck/s
12/03/2018
txpck/s
rxkB/s
txkB/s
33744.00 19361.43 28065.36
09:43:53 PM
09:43:54 PM
active/s passive/s
09:43:53 PM
09:43:54 PM
[…]
atmptf/s
_x86_64_ (48 CPU)
iseg/s
rxcmp/s
txcmp/s rxmcst/s %ifutil
oseg/s
estres/s retrans/s isegerr/s
orsts/s
Micro benchmarking can be used to investigate hypervisor
behavior that can’t be observed directly

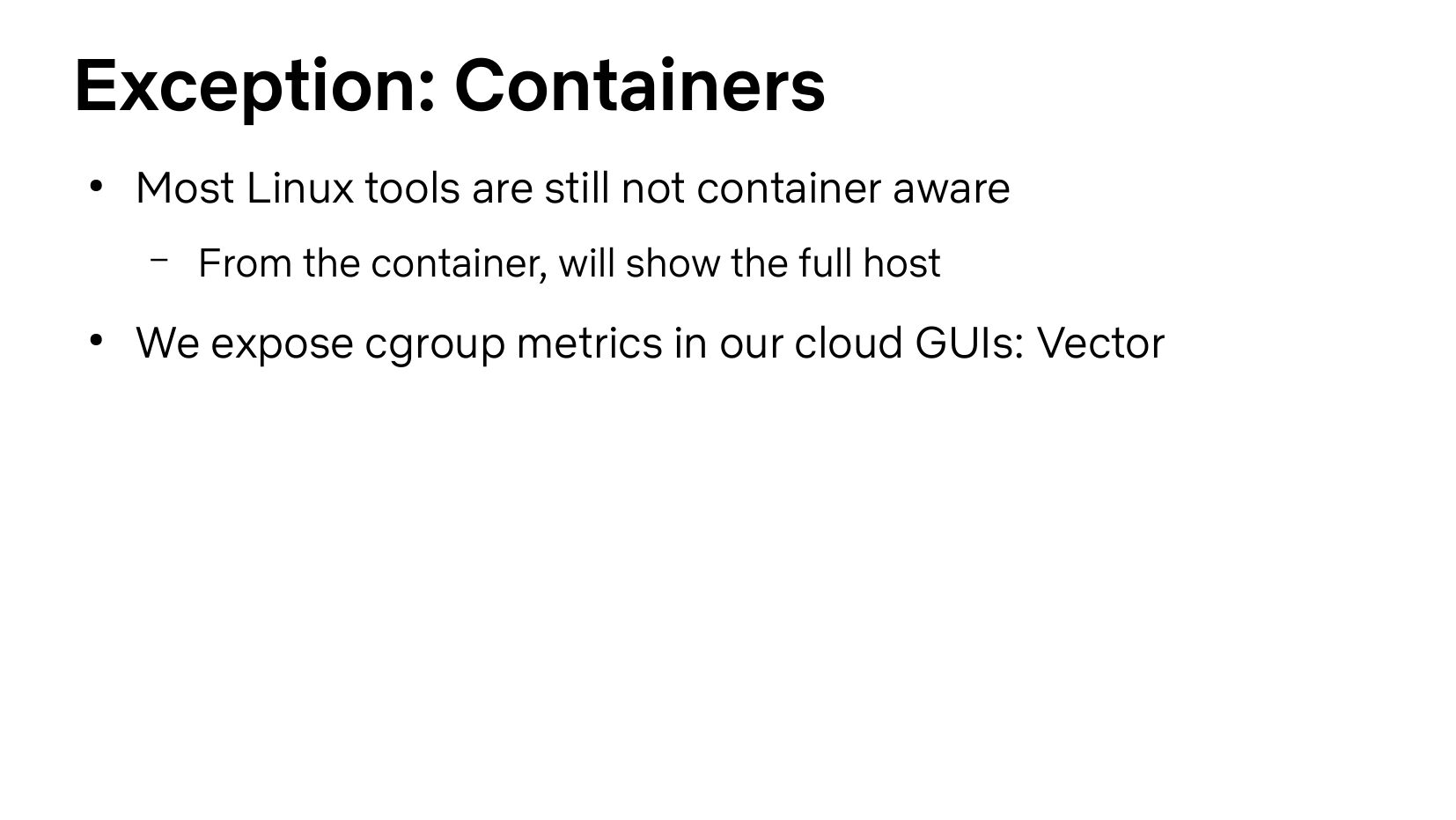

Exception: Containers
Most Linux tools are still not container aware
From the container, will show the full host
We expose cgroup metrics in our cloud GUIs: Vector

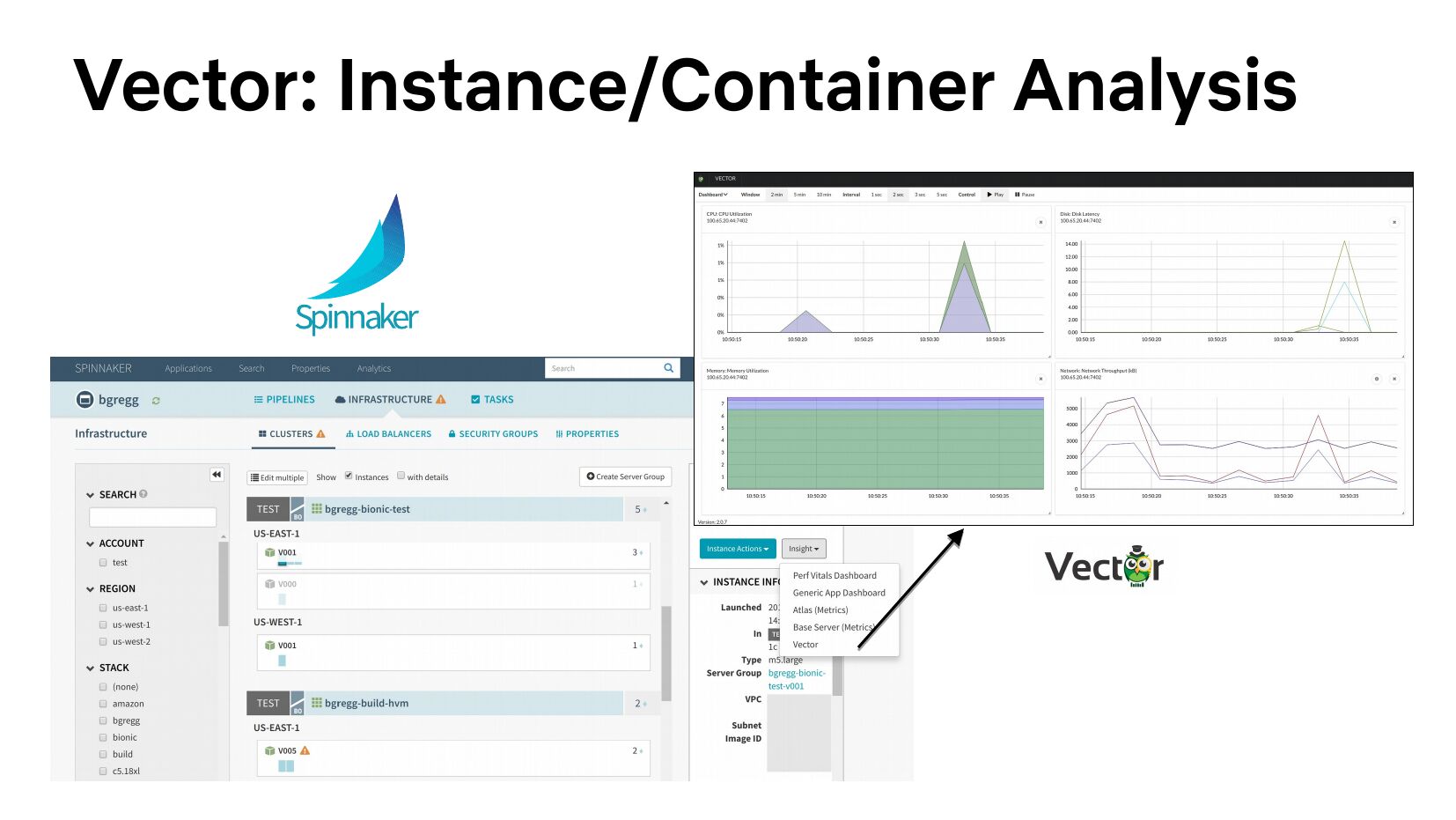

Vector: Instance/Container Analysis

2. Profiling

Experience:
“ZFS is eating my CPUs”

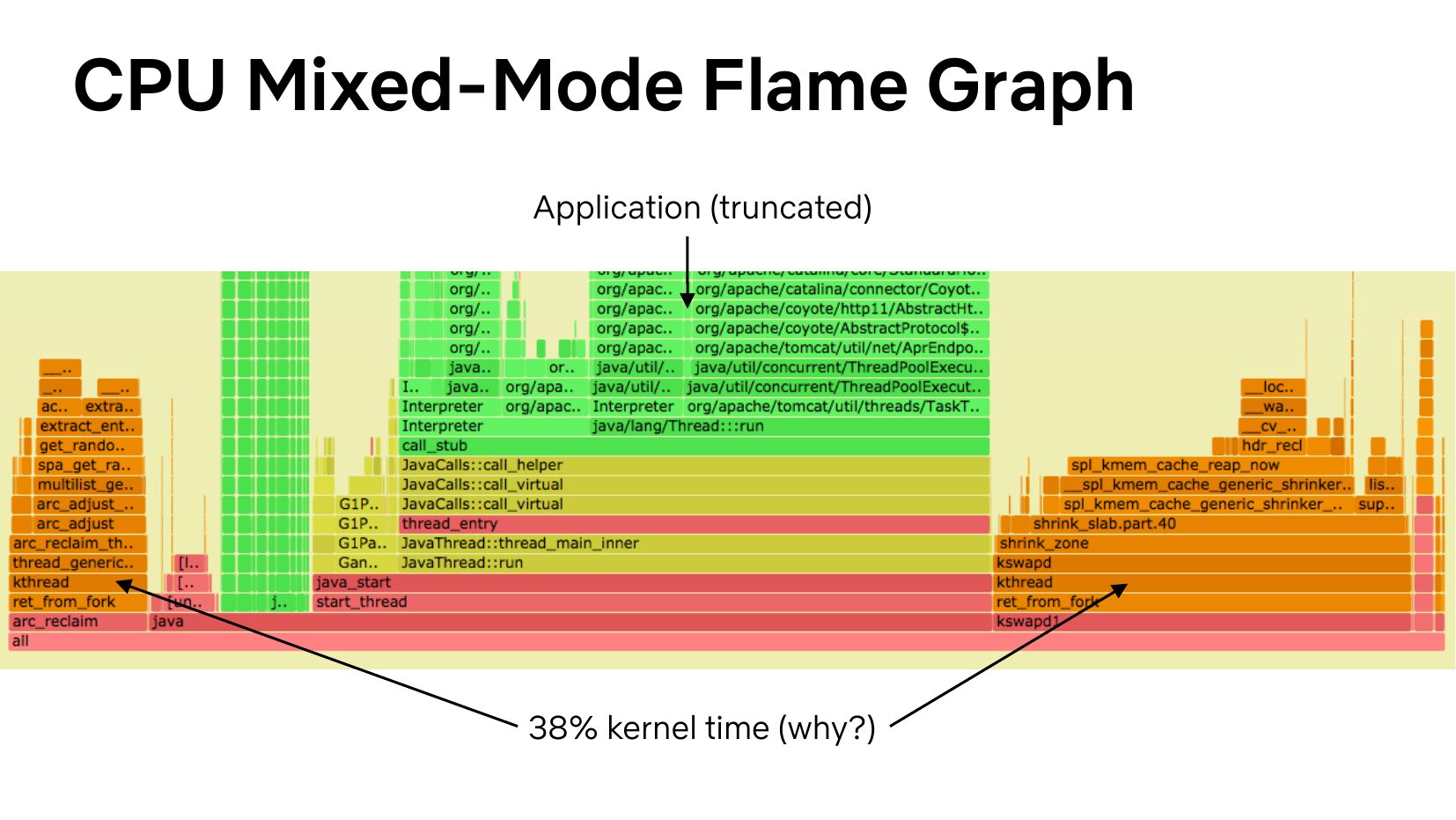

CPU Mixed-Mode Flame Graph
Application (truncated)

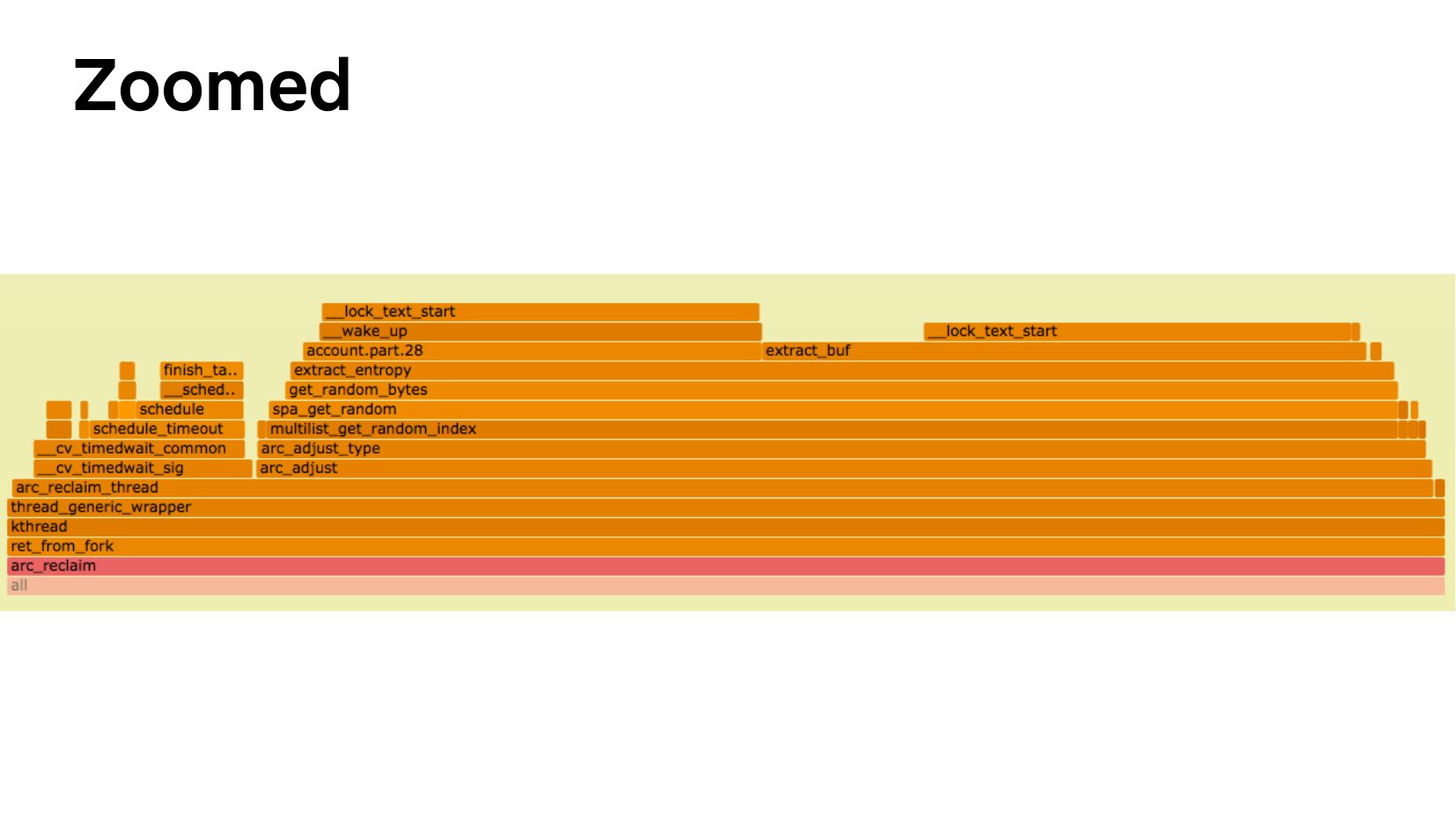

38% kernel time (why?)

Zoomed

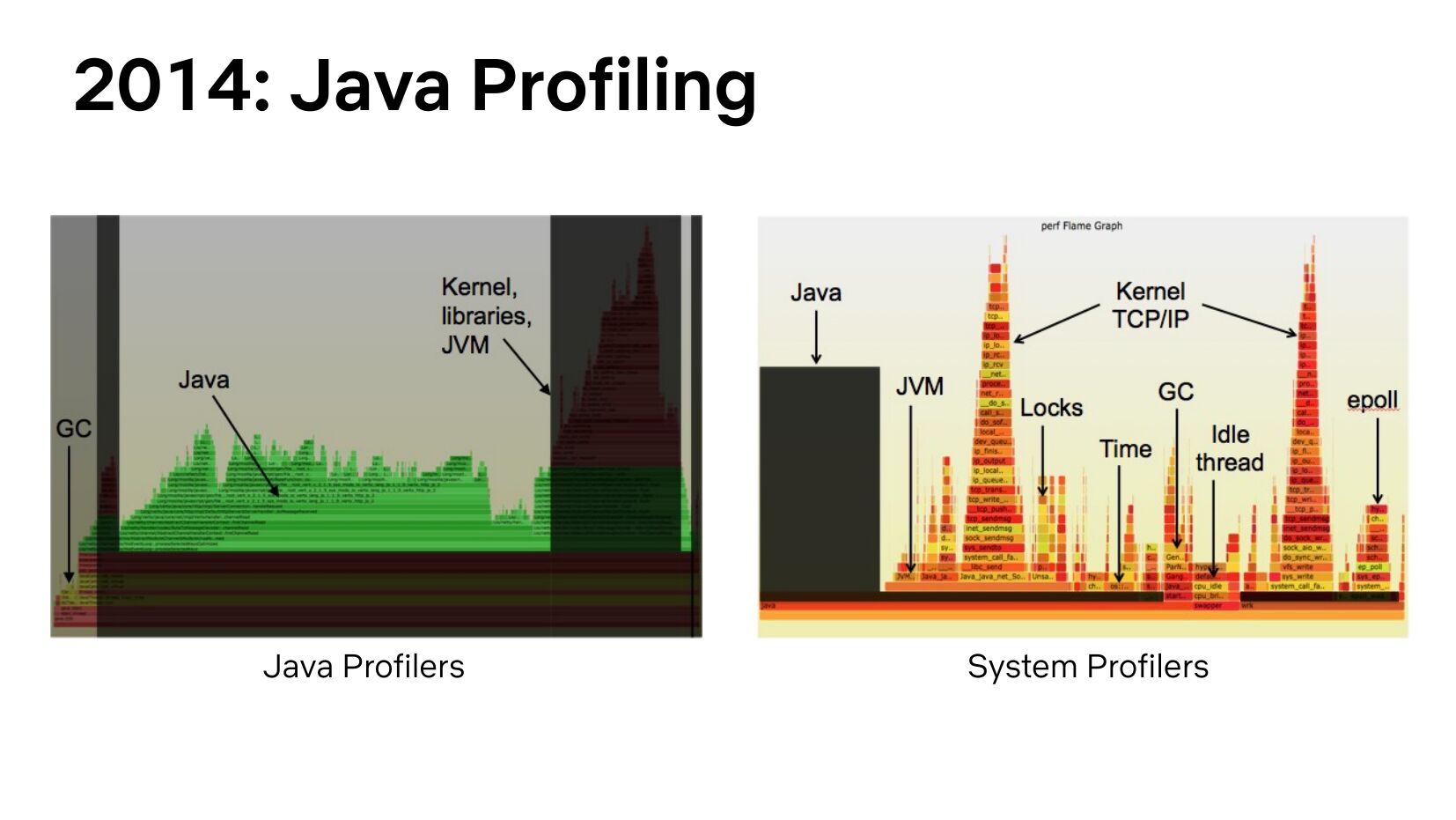

2014: Java Profiling
Java Profilers
System Profilers

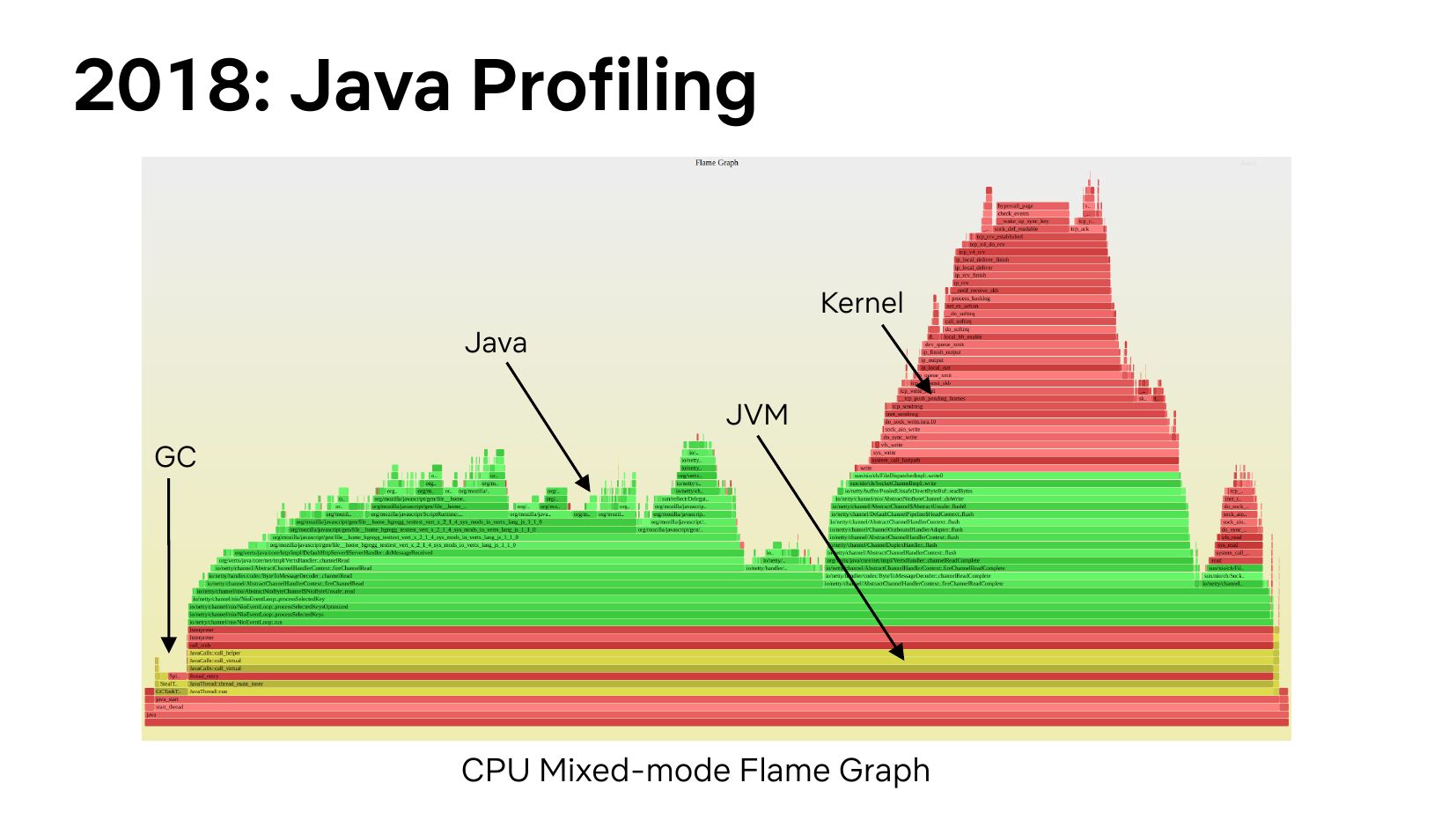

2018: Java Profiling
Kernel
Java
JVM
CPU Mixed-mode Flame Graph

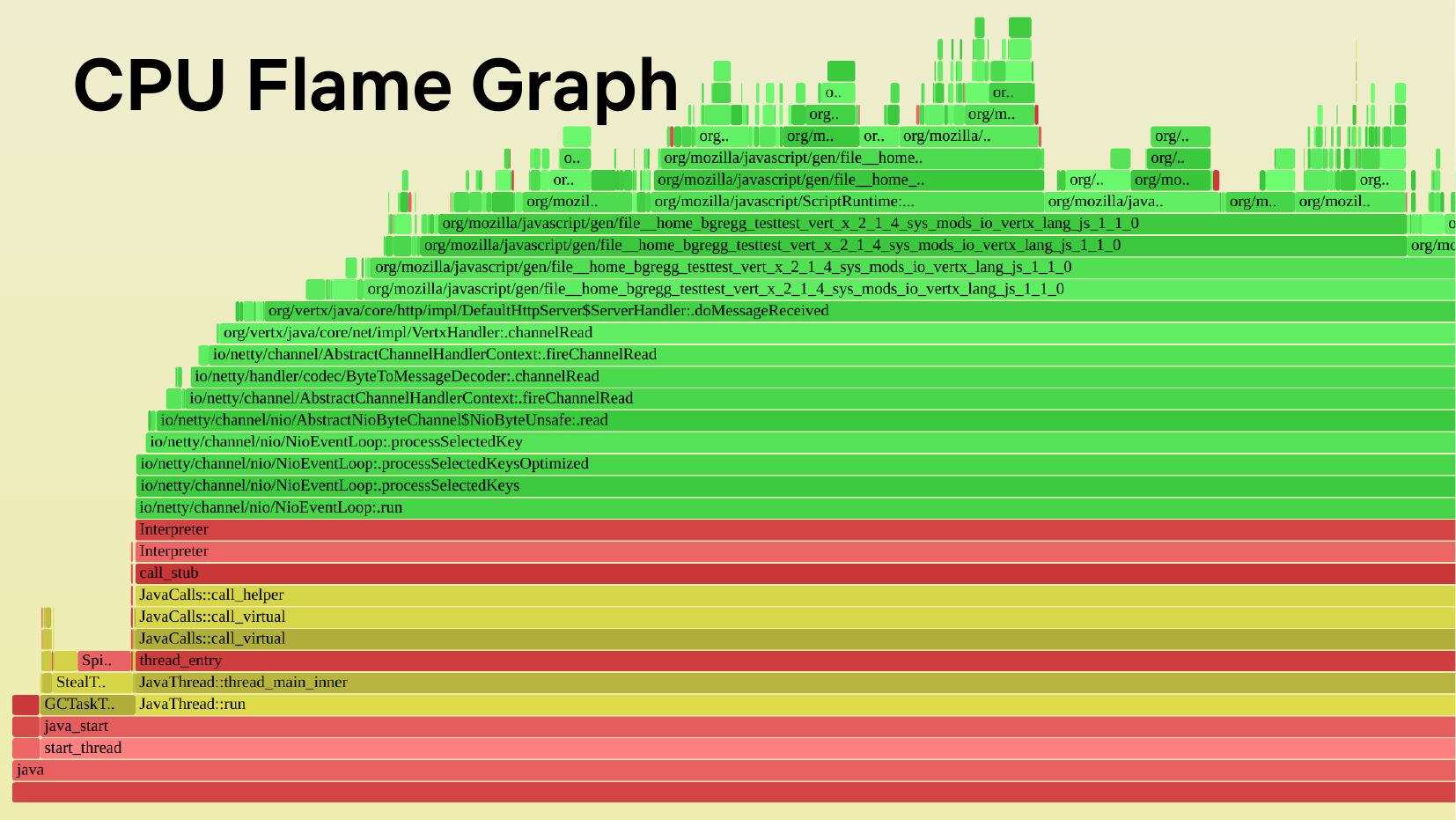

CPU Flame Graph

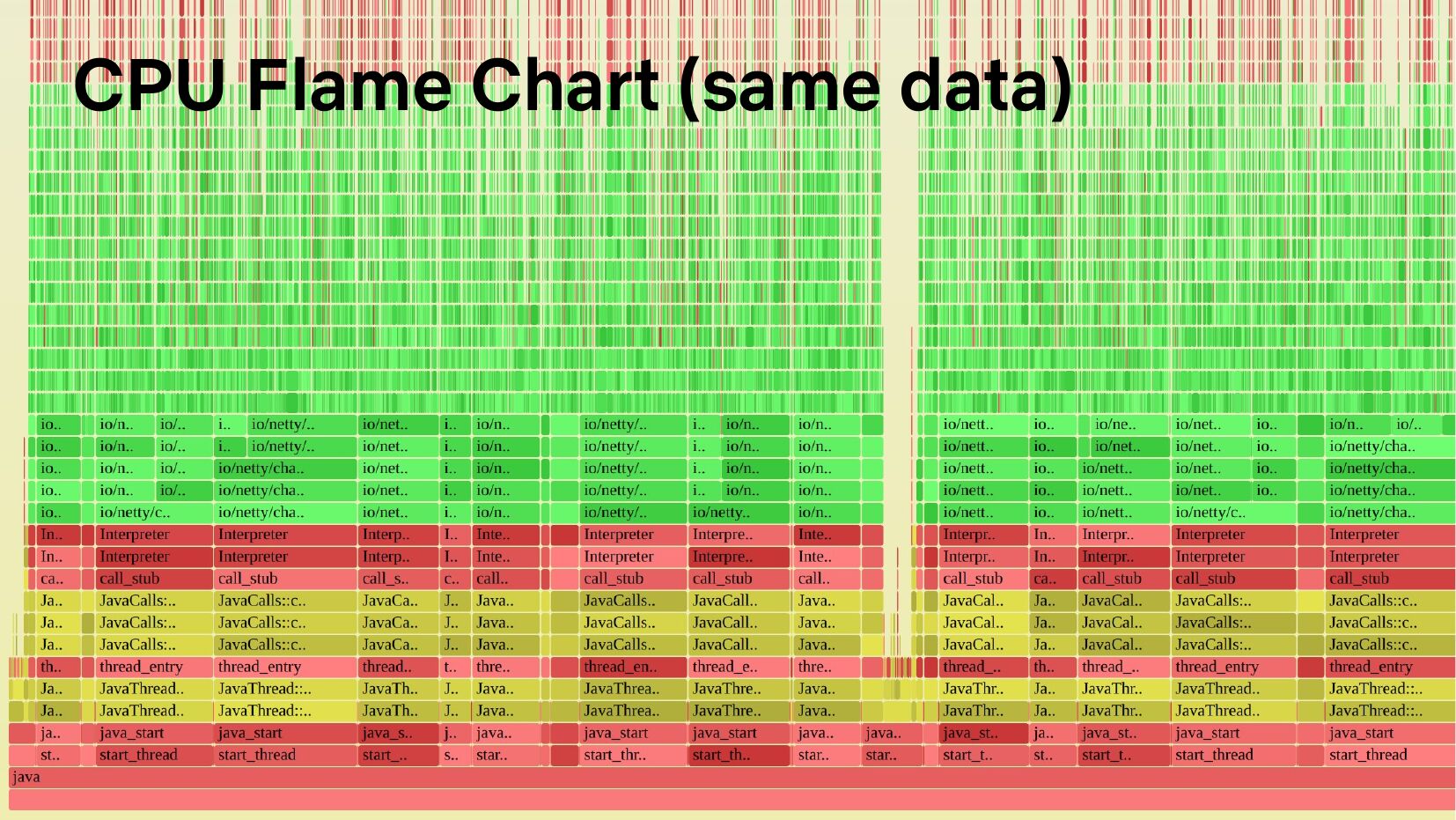

CPU Flame Chart (same data)

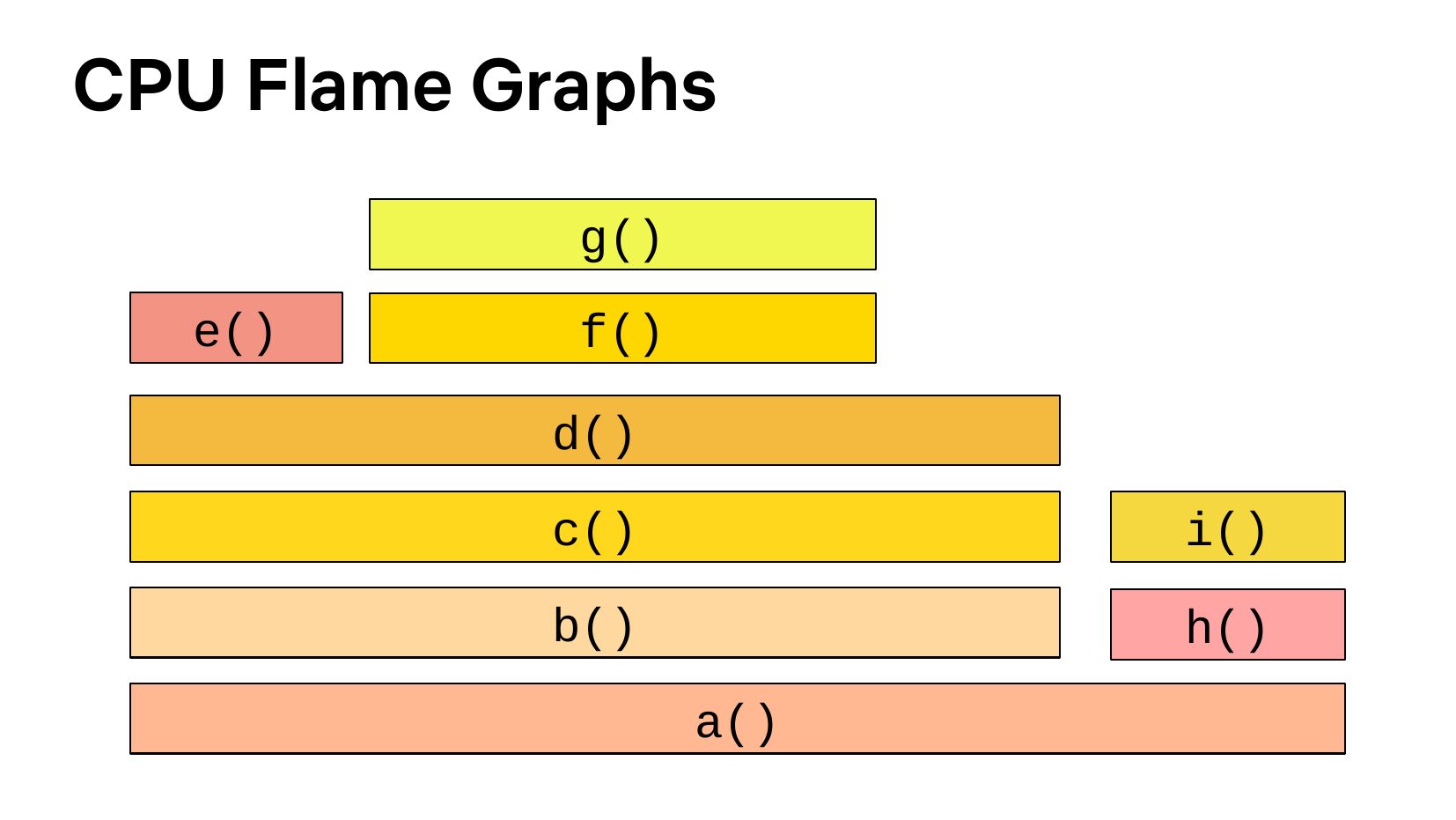

CPU Flame Graphs
g()
e()
f()
d()
c()
i()
b()
h()
a()

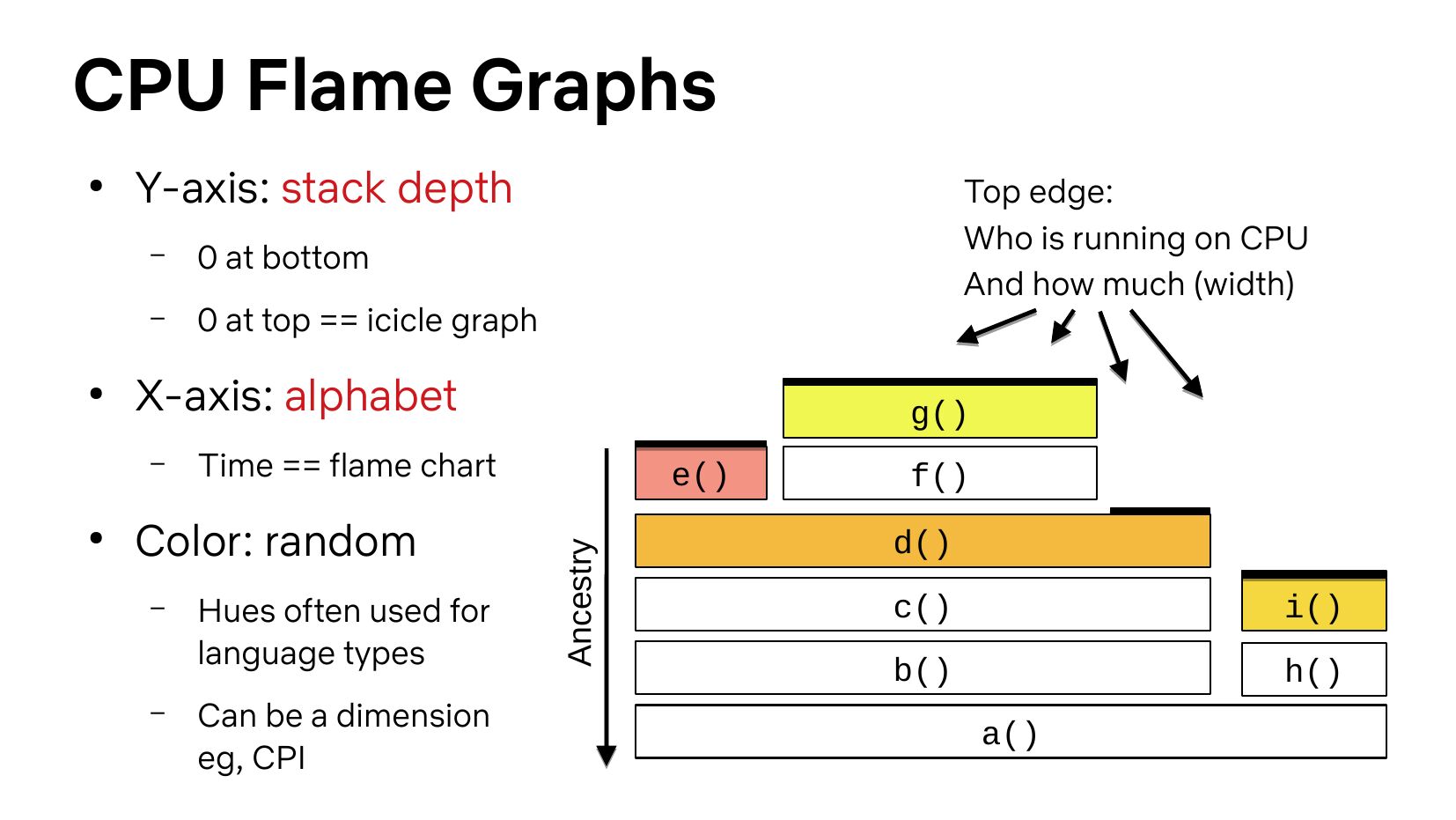

CPU Flame Graphs
Y-axis: stack depth
0 at bottom
0 at top == icicle graph
X-axis: alphabet
Top edge:
Who is running on CPU
And how much (width)
Time == flame chart
Color: random
g()
Hues often used for
language types
Can be a dimension
eg, CPI
e()
Ancestry
f()
d()
c()
i()
b()
h()
a()

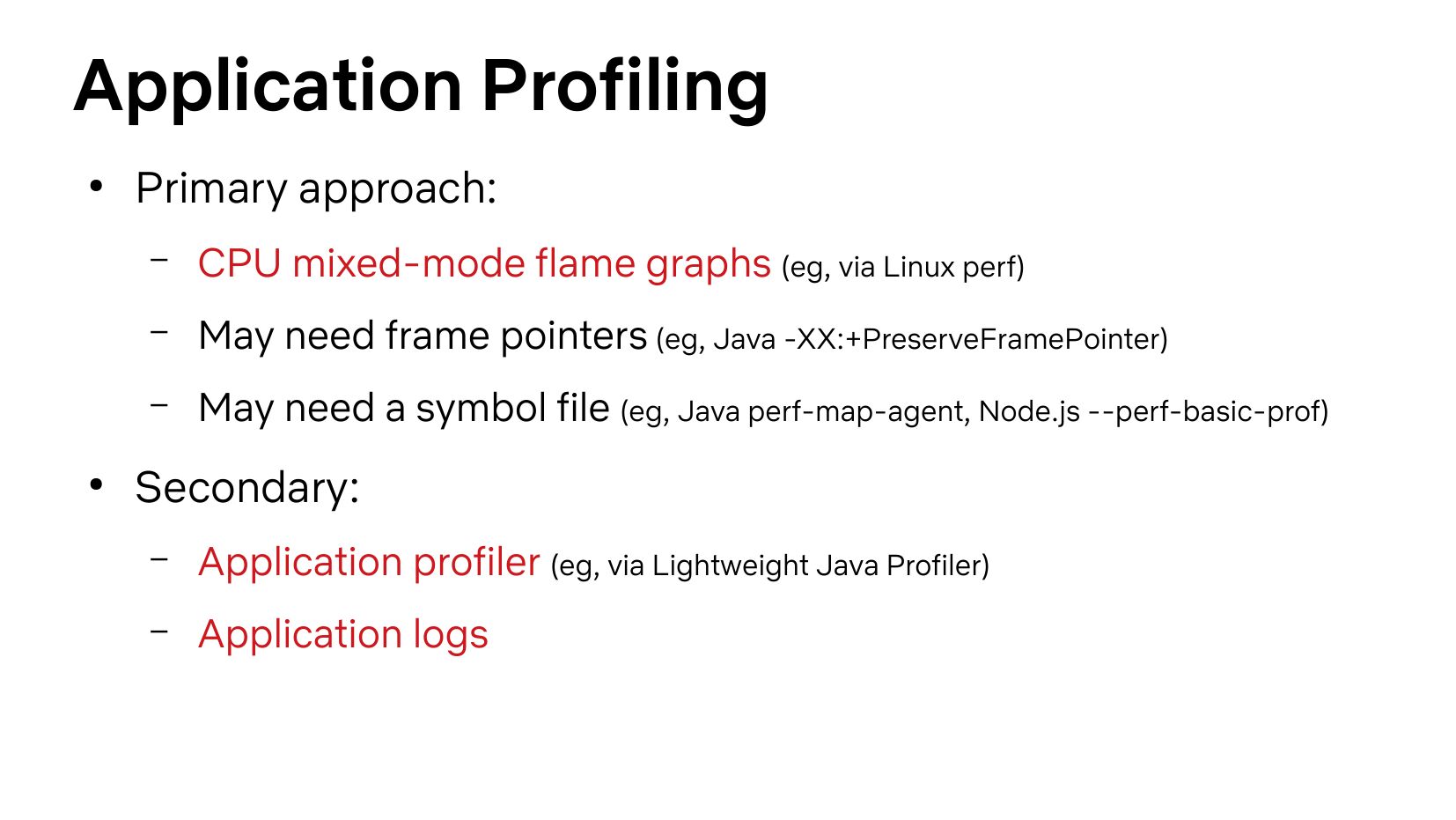

Application Profiling
Primary approach:
CPU mixed-mode flame graphs (eg, via Linux perf)
May need frame pointers (eg, Java -XX:+PreserveFramePointer)
May need a symbol file (eg, Java perf-map-agent, Node.js --perf-basic-prof)
Secondary:
Application profiler (eg, via Lightweight Java Profiler)
Application logs

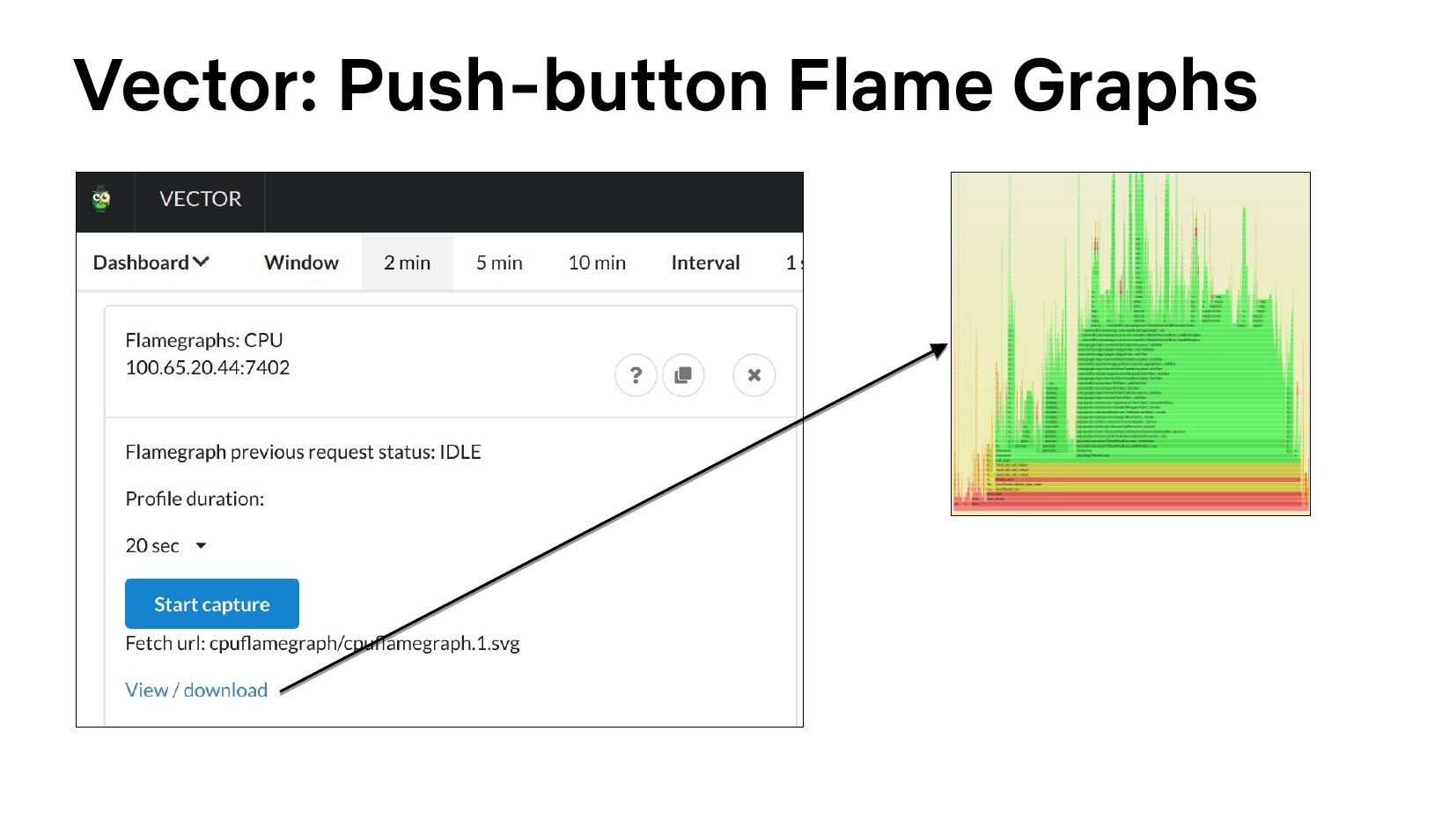

Vector: Push-button Flame Graphs

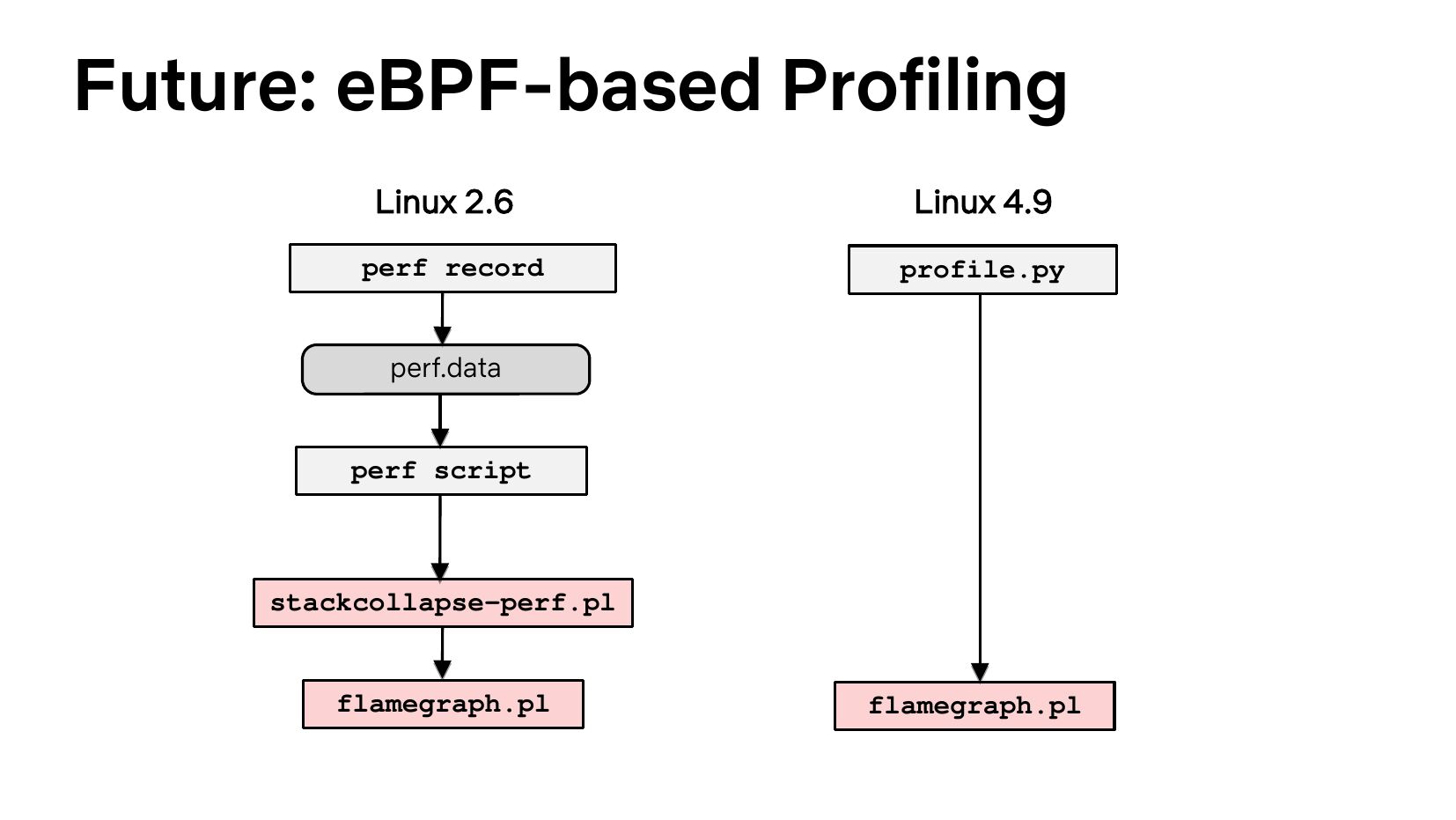

Future: eBPF-based Profiling
Linux 2.6
Linux 4.9
perf record
profile.py
perf.data
perf script
stackcollapse-perf.pl
flamegraph.pl
flamegraph.pl

3. Tracing

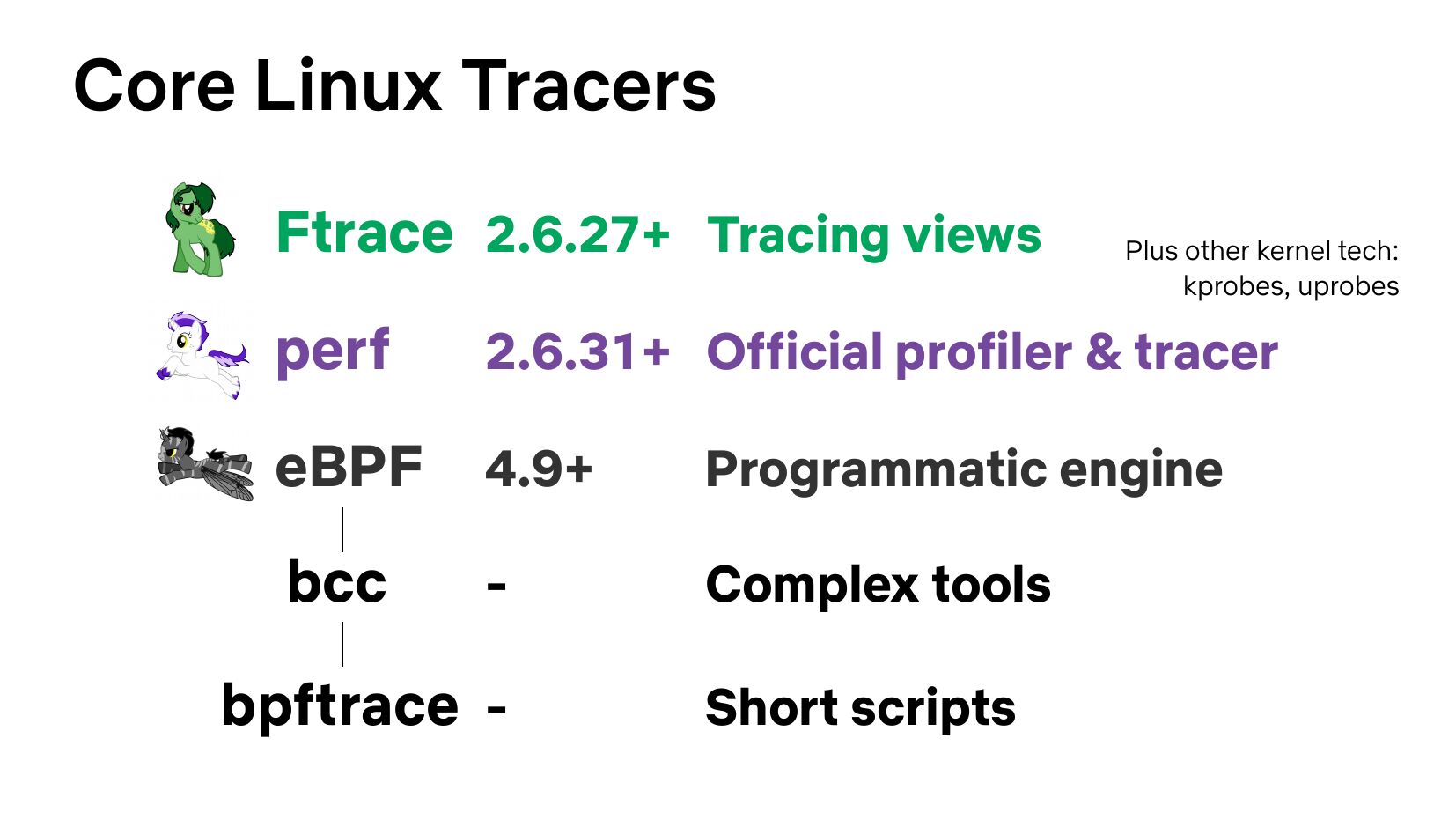

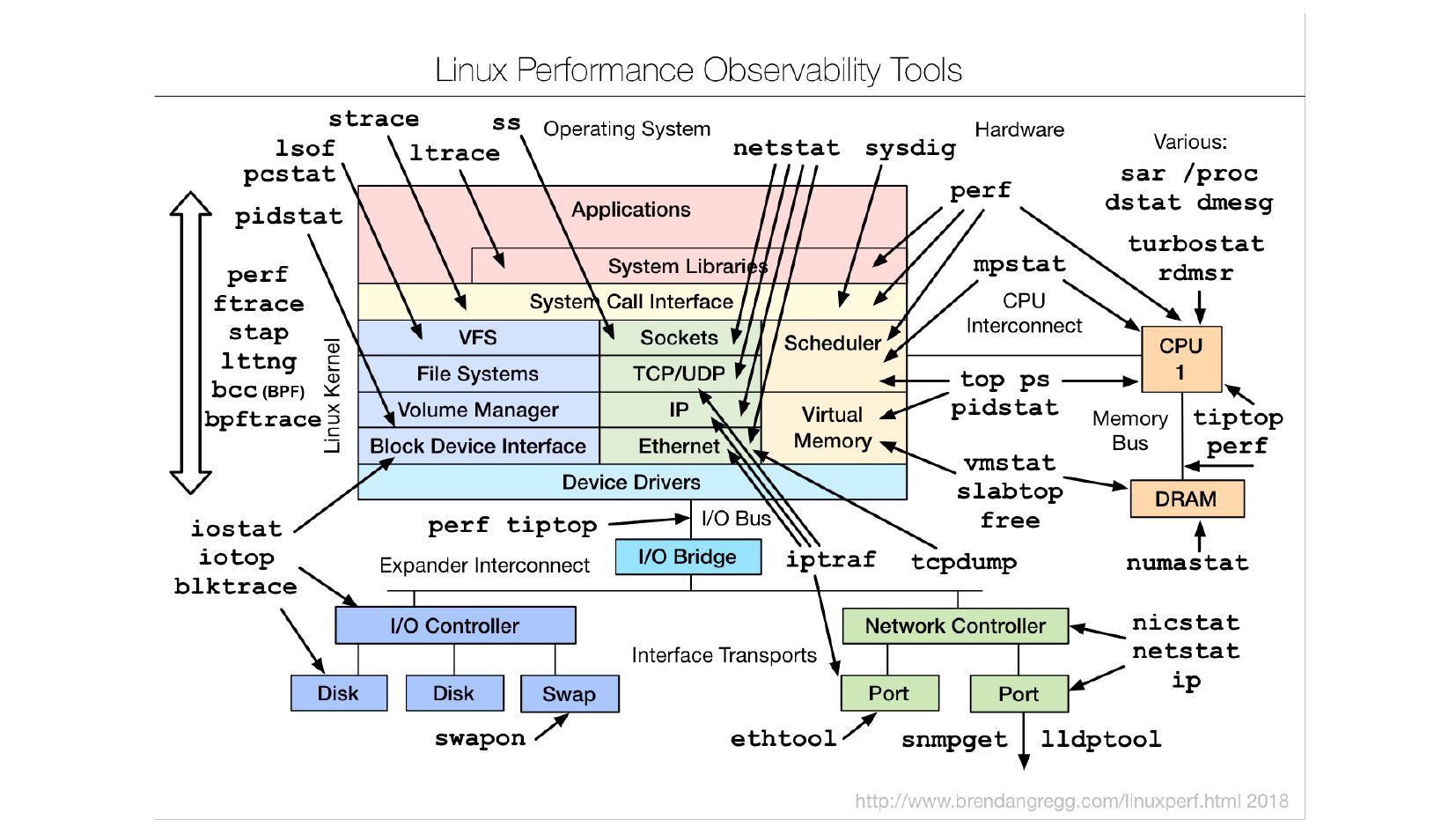

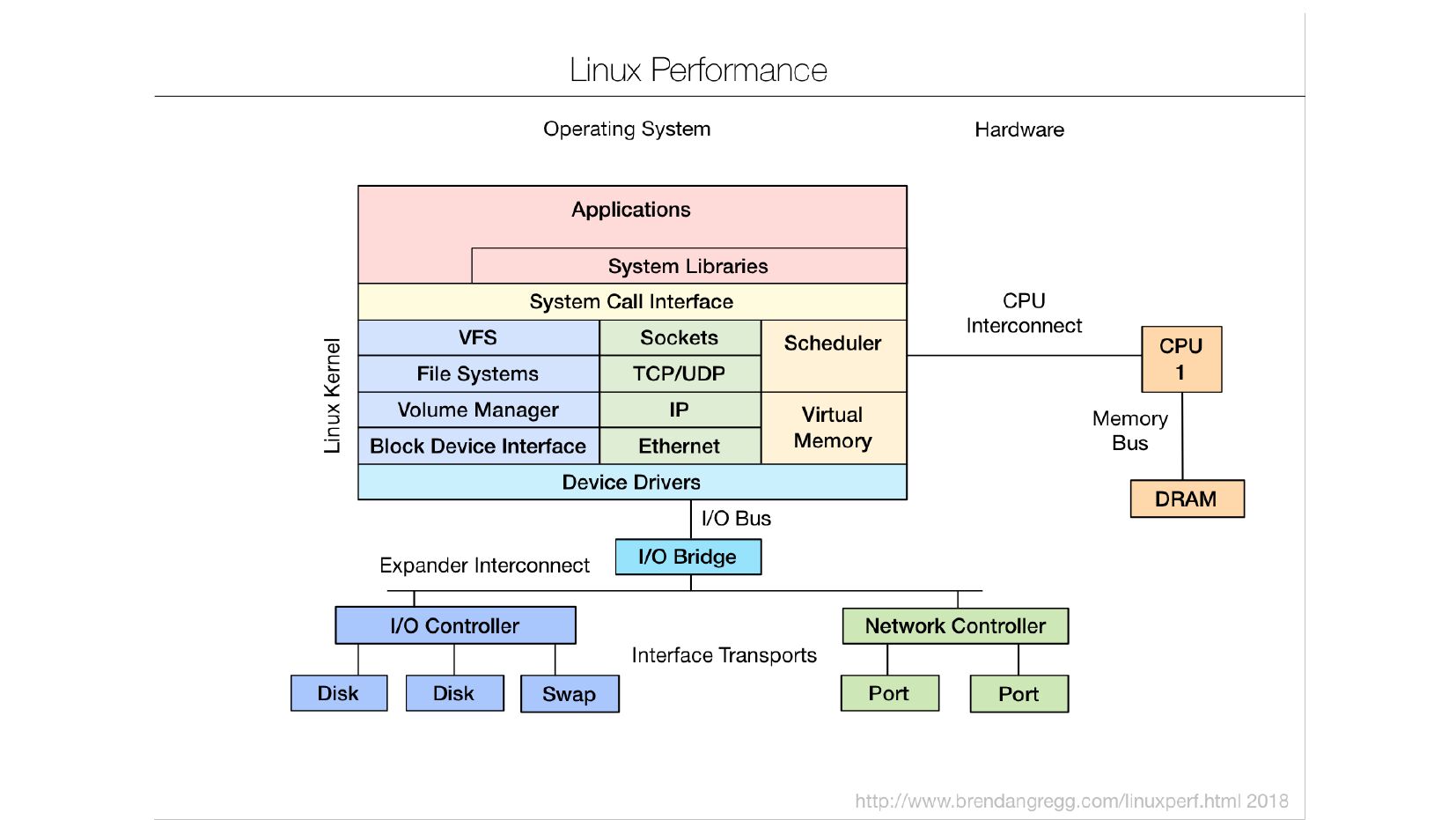

Core Linux Tracers
Ftrace 2.6.27+ Tracing views
Plus other kernel tech:
kprobes, uprobes
perf
2.6.31+ Official profiler & tracer
eBPF
4.9+
Programmatic engine
bcc
Complex tools
bpftrace -
Short scripts

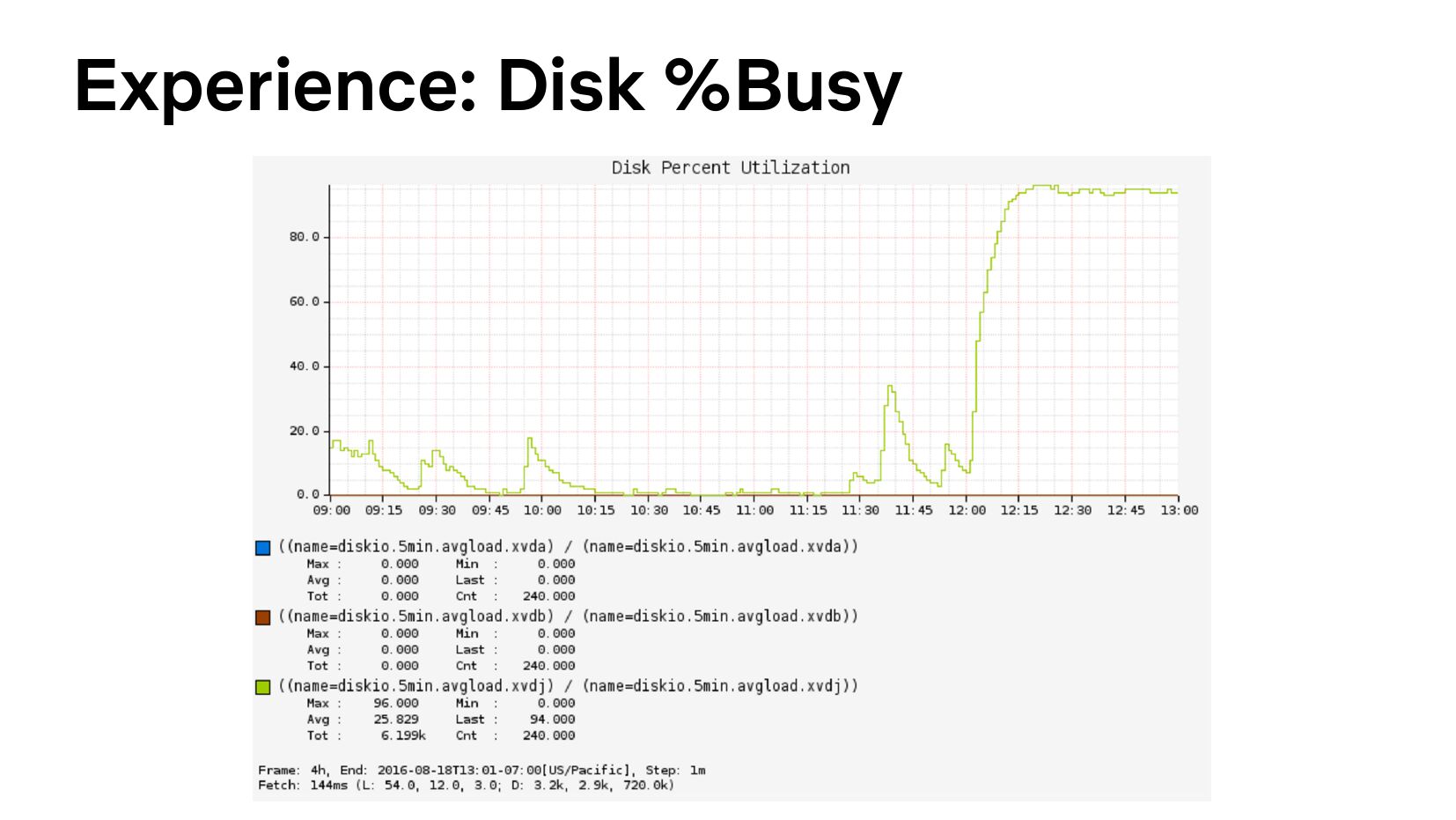

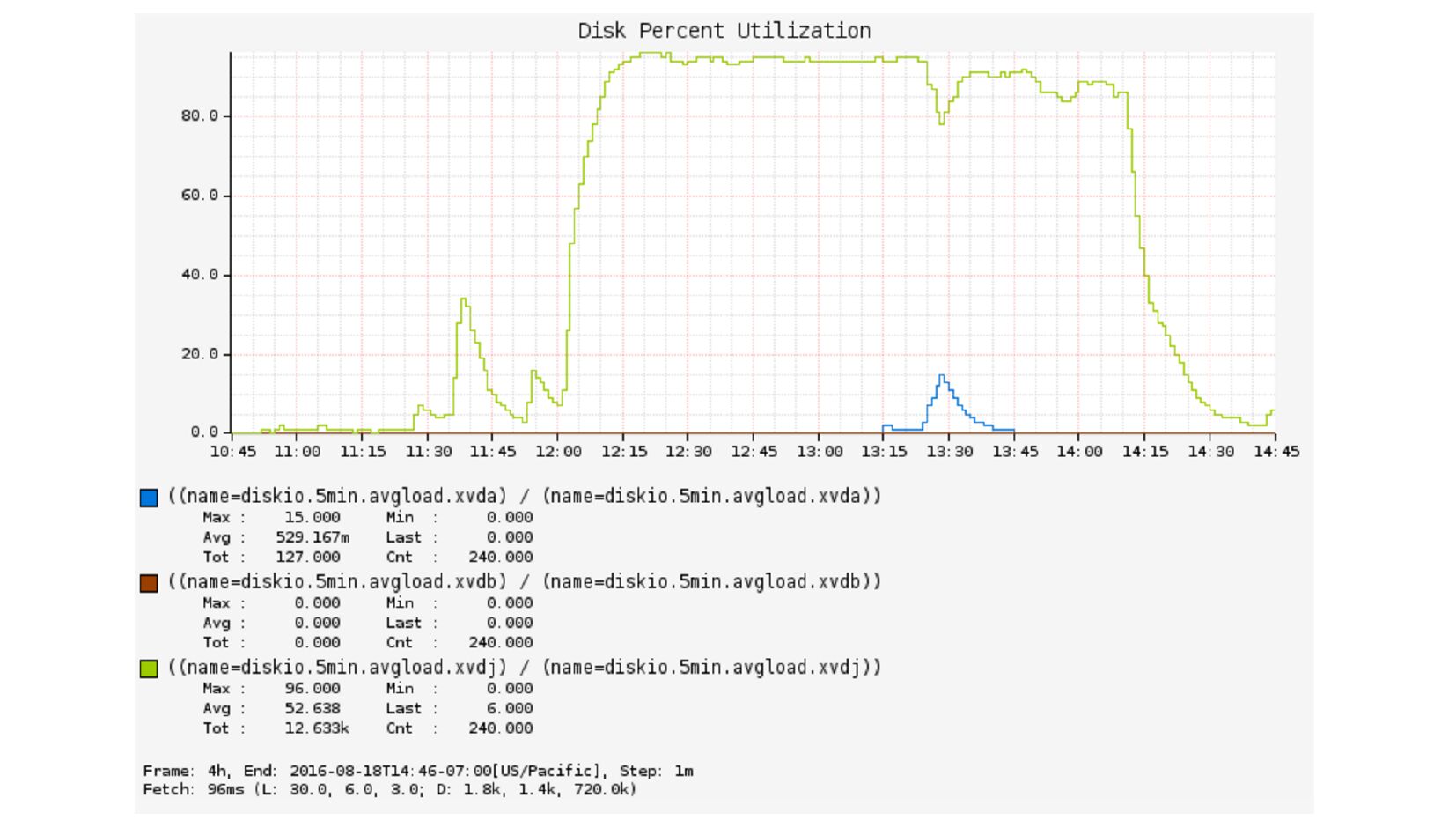

Experience: Disk %Busy

# iostat –x 1
[…]
avg-cpu: %user %nice %system %iowait %steal
Device:
xvda
xvdb
xvdj
[…]
rrqm/s
wrqm/s
r/s
0.00 139.00
w/s
rkB/s
0.00 1056.00
%idle
wkB/s avgrq-sz avgqu-sz
await r_await w_await svctm %util
0.00 0.00 0.00
0.00 0.00 0.00
0.00 6.30 87.60

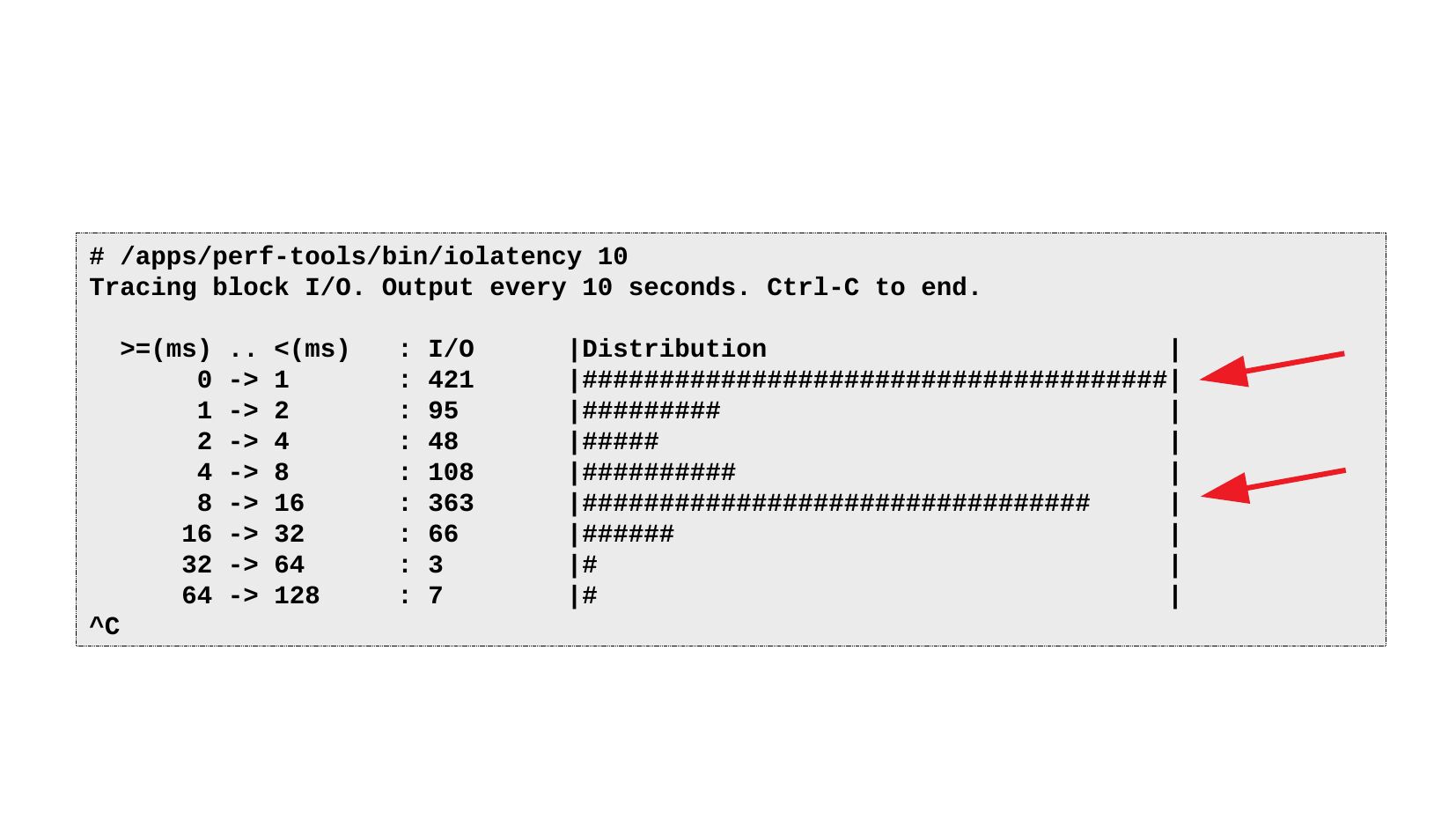

# /apps/perf-tools/bin/iolatency 10
Tracing block I/O. Output every 10 seconds. Ctrl-C to end.
>gt;=(ms) .. gt; 1
1 ->gt; 2
2 ->gt; 4
4 ->gt; 8
8 ->gt; 16
16 ->gt; 32
32 ->gt; 64
64 ->gt; 128
: I/O
: 421
: 95
: 48
: 108
: 363
: 66
: 3
: 7
|Distribution
|######################################|
|#########
|#####
|##########
|#################################
|######

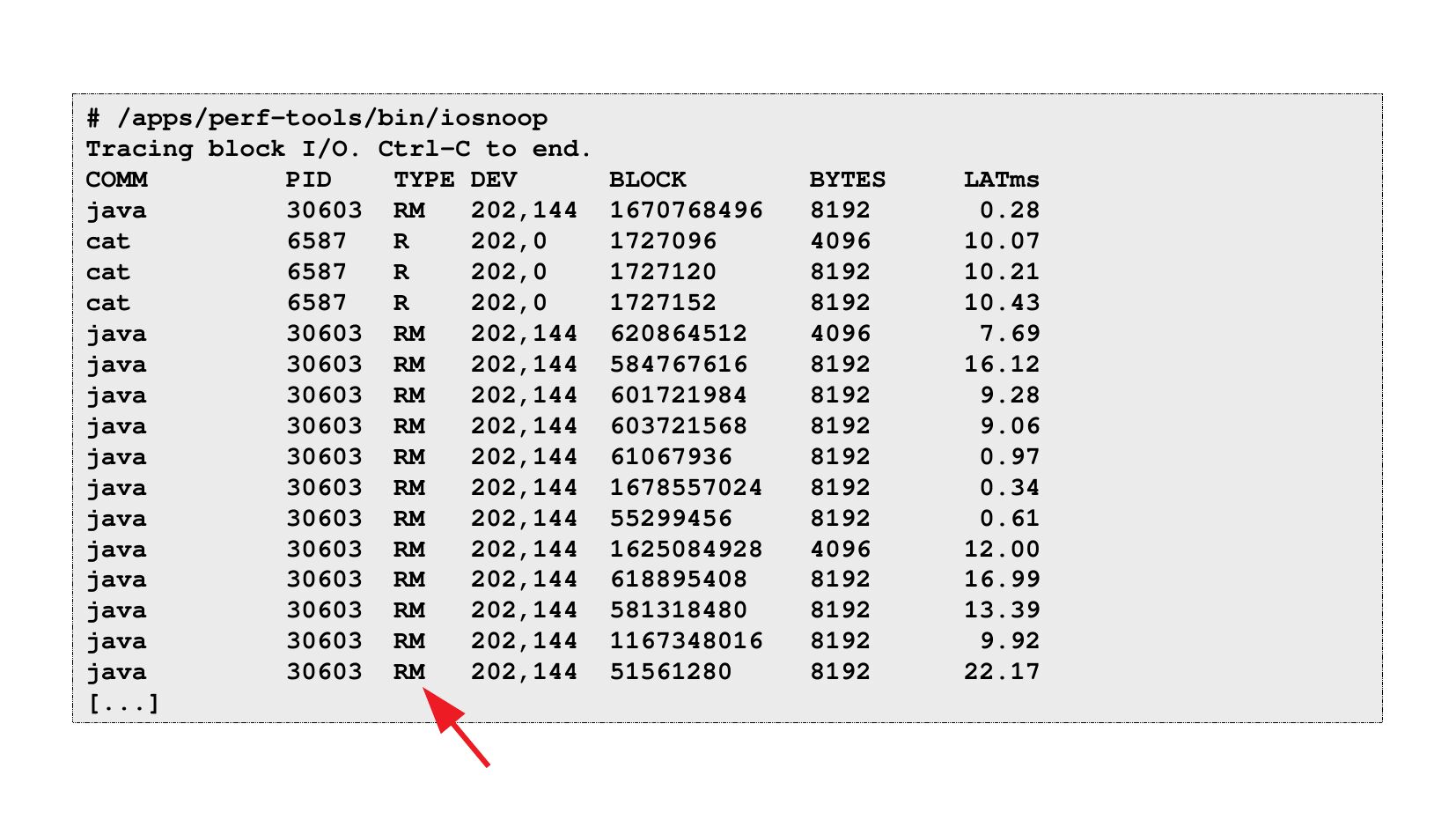

# /apps/perf-tools/bin/iosnoop
Tracing block I/O. Ctrl-C to end.
COMM
PID
TYPE DEV
BLOCK
java
30603 RM
202,144 1670768496
cat
202,0
cat
202,0
cat
202,0
java
30603 RM
202,144 620864512
java
30603 RM
202,144 584767616
java
30603 RM
202,144 601721984
java
30603 RM
202,144 603721568
java
30603 RM
202,144 61067936
java
30603 RM
202,144 1678557024
java
30603 RM
202,144 55299456
java
30603 RM
202,144 1625084928
java
30603 RM
202,144 618895408
java
30603 RM
202,144 581318480
java
30603 RM
202,144 1167348016
java
30603 RM
202,144 51561280
[...]
BYTES
LATms

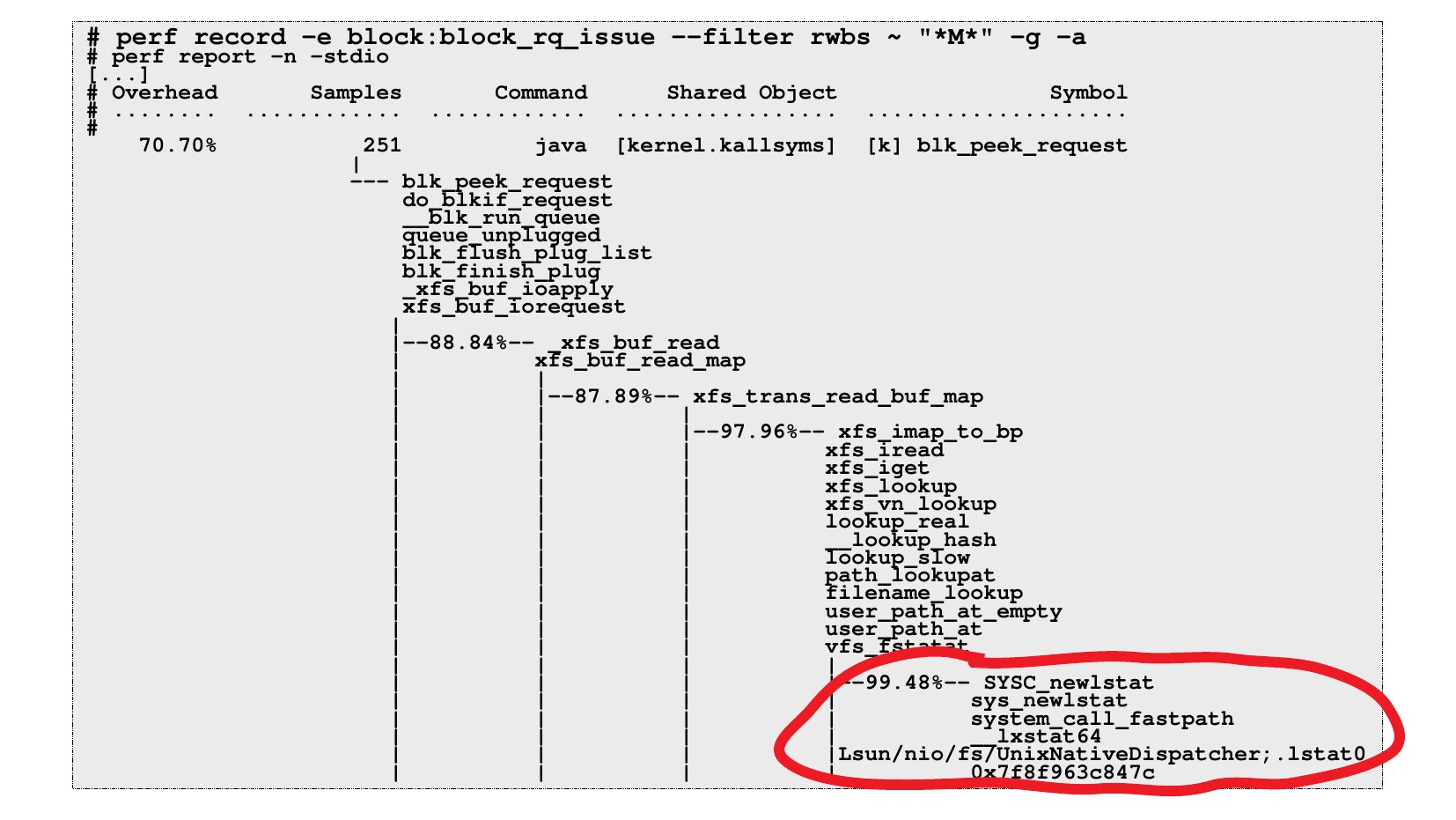

# perf record -e block:block_rq_issue --filter rwbs ~ "*M*" -g -a
# perf report -n –stdio
[...]
# Overhead
Samples
Command
Shared Object
Symbol
# ........ ............ ............ ................. ....................
70.70%
java [kernel.kallsyms] [k] blk_peek_request
--- blk_peek_request
do_blkif_request
__blk_run_queue
queue_unplugged
blk_flush_plug_list
blk_finish_plug
_xfs_buf_ioapply
xfs_buf_iorequest
|--88.84%-- _xfs_buf_read
xfs_buf_read_map
|--87.89%-- xfs_trans_read_buf_map
|--97.96%-- xfs_imap_to_bp
xfs_iread
xfs_iget
xfs_lookup
xfs_vn_lookup
lookup_real
__lookup_hash
lookup_slow
path_lookupat
filename_lookup
user_path_at_empty
user_path_at
vfs_fstatat
|--99.48%-- SYSC_newlstat
sys_newlstat
system_call_fastpath
__lxstat64
|Lsun/nio/fs/UnixNativeDispatcher;.lstat0
0x7f8f963c847c

# /usr/share/bcc/tools/biosnoop
TIME(s)
COMM
PID
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
tar
[...]
DISK
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
xvda
SECTOR
BYTES
LAT(ms)

eBPF

eBPF: extended Berkeley Packet Filter
User-Defined BPF Programs
SDN Configuration
DDoS Mitigation
Kernel
Runtime
Event Targets
verifier
sockets
Intrusion Detection
Container Security
kprobes
BPF
Observability
Firewalls (bpfilter)
Device Drivers
uprobes
tracepoints
BPF
actions
perf_events

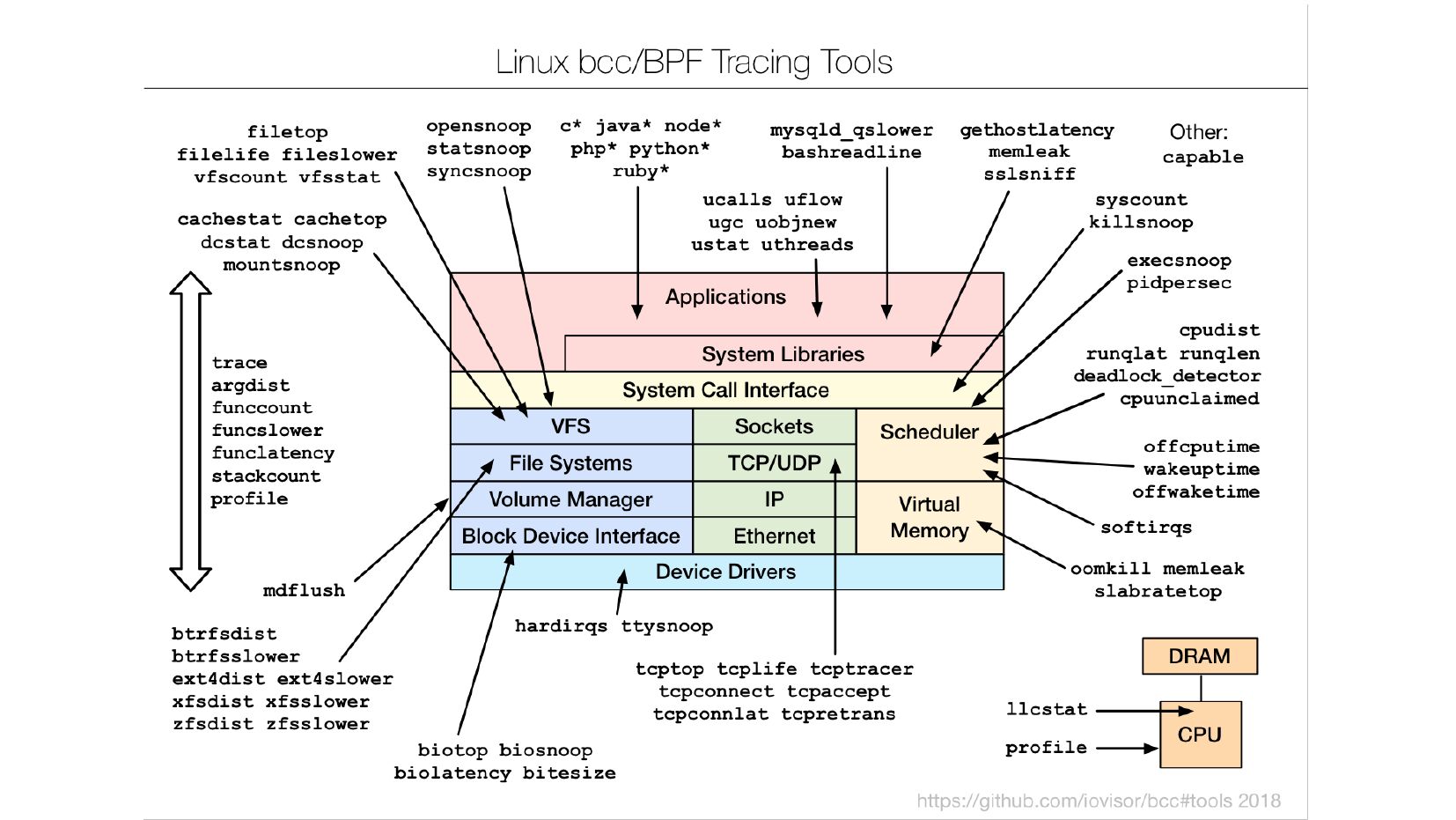

bcc

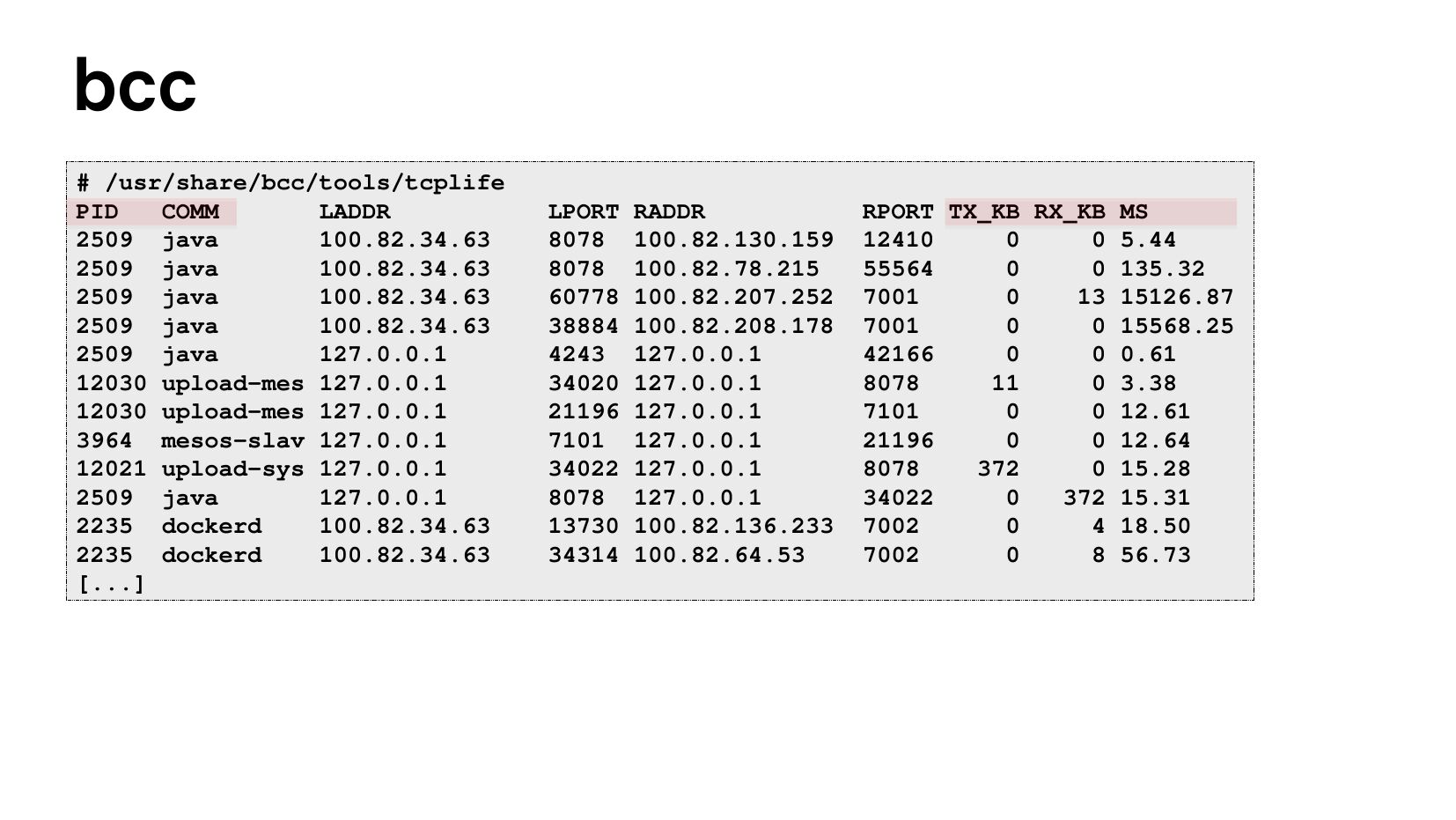

# /usr/share/bcc/tools/tcplife
PID
COMM
LADDR
2509 java
2509 java
2509 java
2509 java
2509 java
12030 upload-mes 127.0.0.1
12030 upload-mes 127.0.0.1
3964 mesos-slav 127.0.0.1
12021 upload-sys 127.0.0.1
2509 java
2235 dockerd
2235 dockerd
[...]
LPORT RADDR
8078 100.82.130.159
8078 100.82.78.215
60778 100.82.207.252
38884 100.82.208.178
4243 127.0.0.1
34020 127.0.0.1
21196 127.0.0.1
7101 127.0.0.1
34022 127.0.0.1
8078 127.0.0.1
13730 100.82.136.233
34314 100.82.64.53
RPORT TX_KB RX_KB MS
0 5.44
0 135.32
13 15126.87
0 15568.25
0 0.61
0 3.38
0 12.61
0 12.64
0 15.28
372 15.31
4 18.50
8 56.73

bpftrace
# biolatency.bt
Attaching 3 probes...
Tracing block device I/O... Hit Ctrl-C to end.
@usecs:
[256, 512)
[512, 1K)
[1K, 2K)
[2K, 4K)
[4K, 8K)
[8K, 16K)
[16K, 32K)
[32K, 64K)
[64K, 128K)
[128K, 256K)
2 |
10 |@
426 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@|
230 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@
9 |@
128 |@@@@@@@@@@@@@@@
68 |@@@@@@@@
0 |
0 |
10 |@

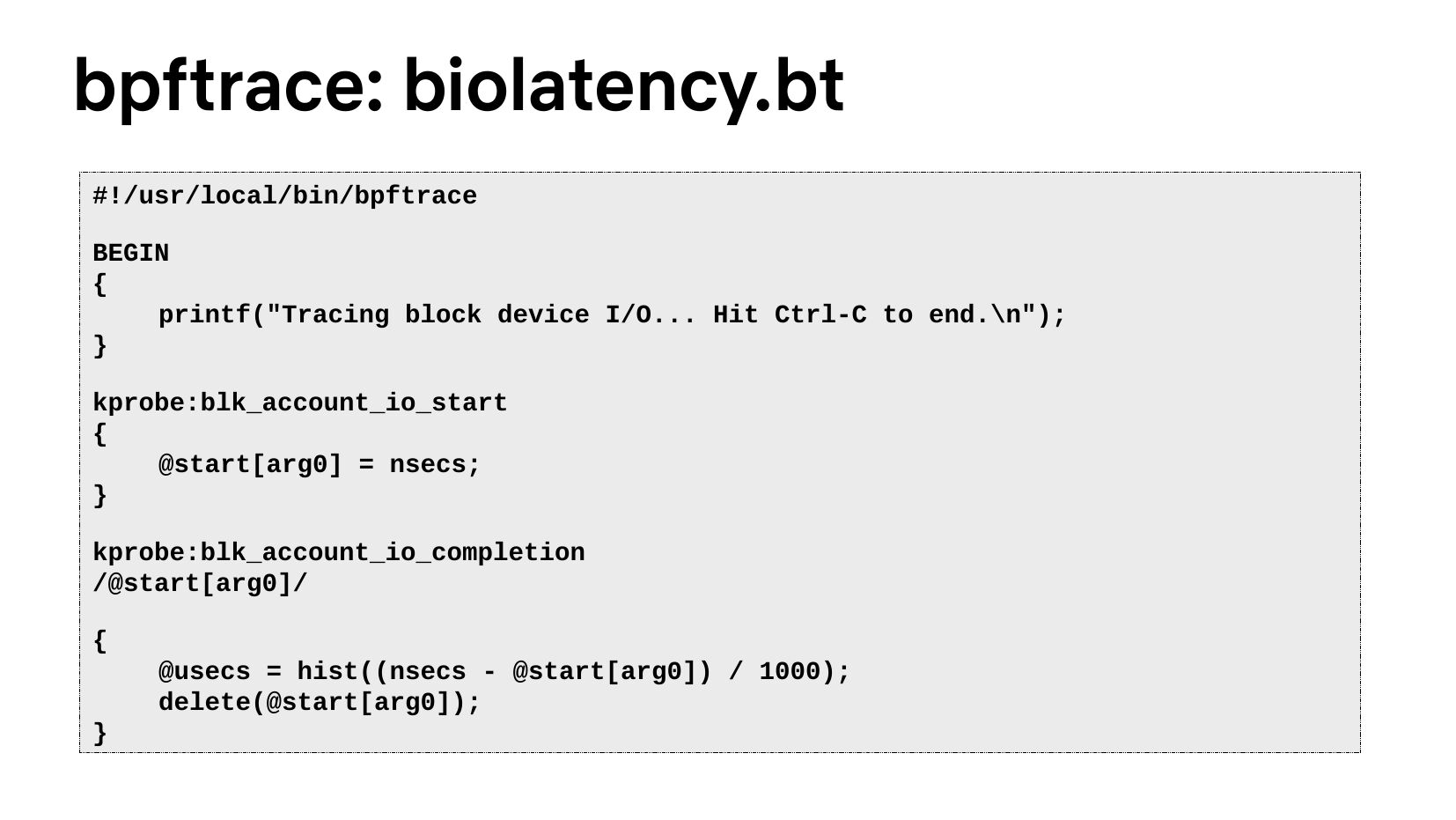

bpftrace: biolatency.bt
#!/usr/local/bin/bpftrace
BEGIN
printf("Tracing block device I/O... Hit Ctrl-C to end.\n");
kprobe:blk_account_io_start
@start[arg0] = nsecs;
kprobe:blk_account_io_completion
/@start[arg0]/
@usecs = hist((nsecs - @start[arg0]) / 1000);
delete(@start[arg0]);

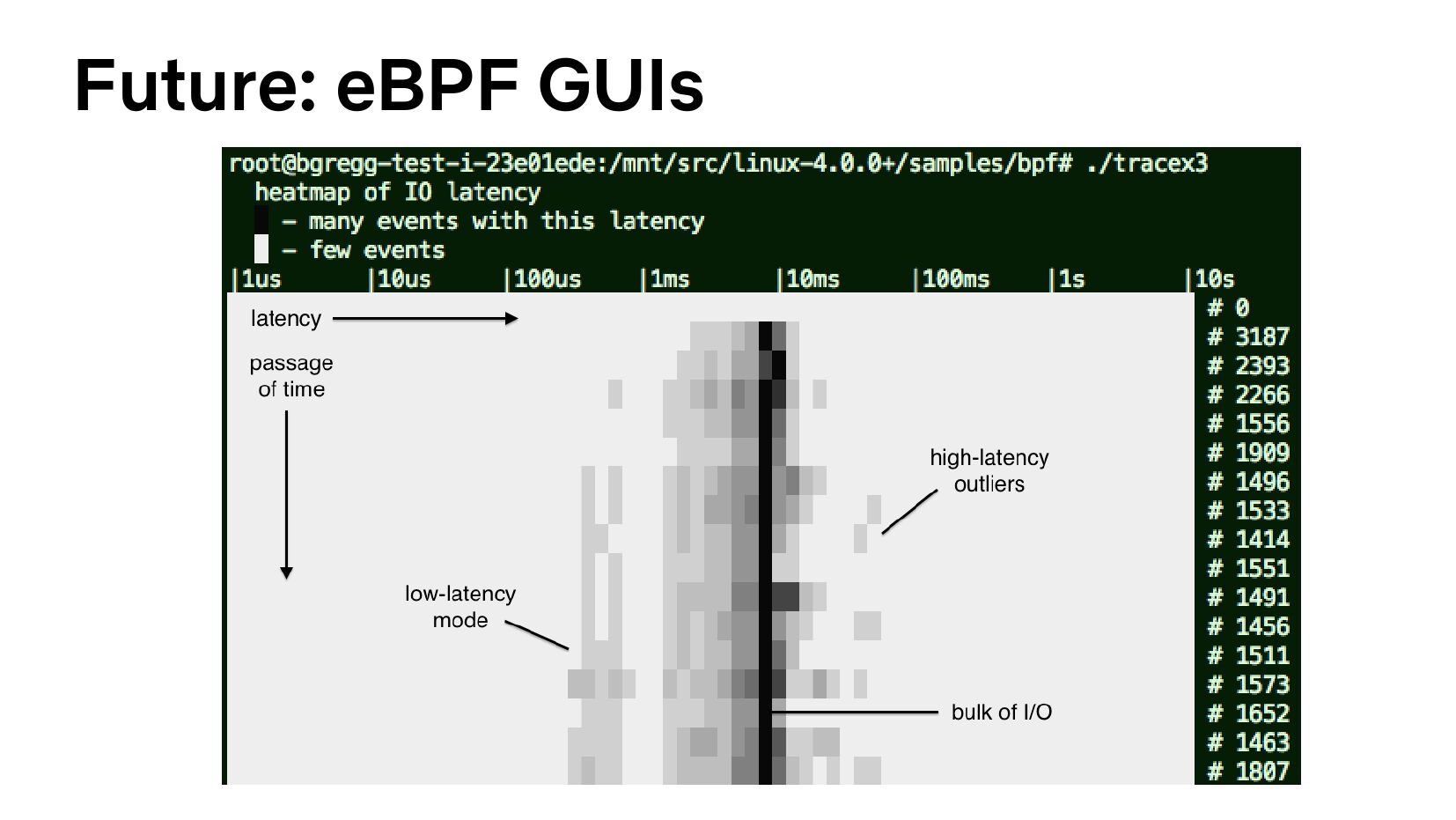

Future: eBPF GUIs

4. Processor Analysis

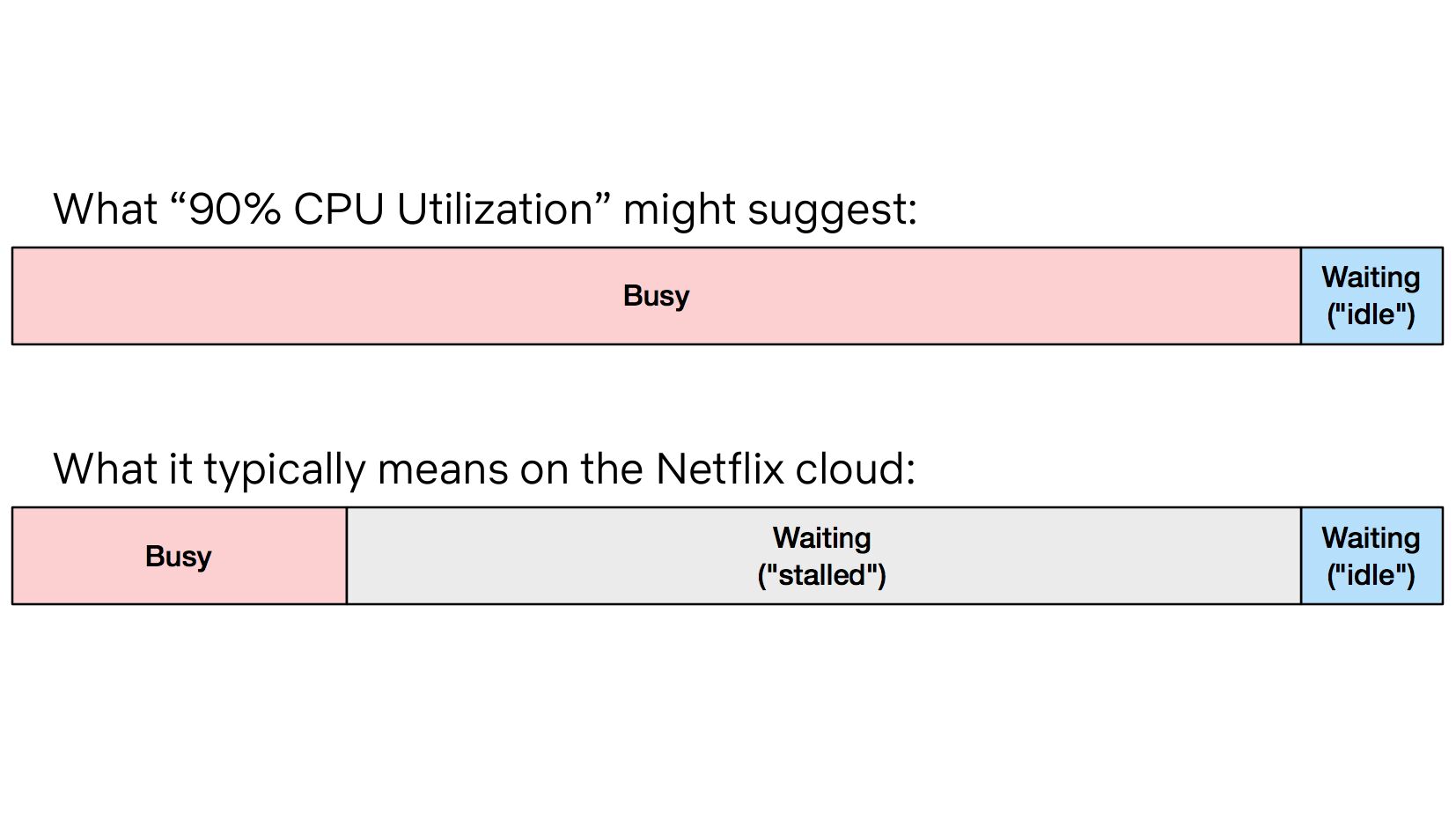

What “90% CPU Utilization” might suggest:
What it typically means on the Netflix cloud:

PMCs

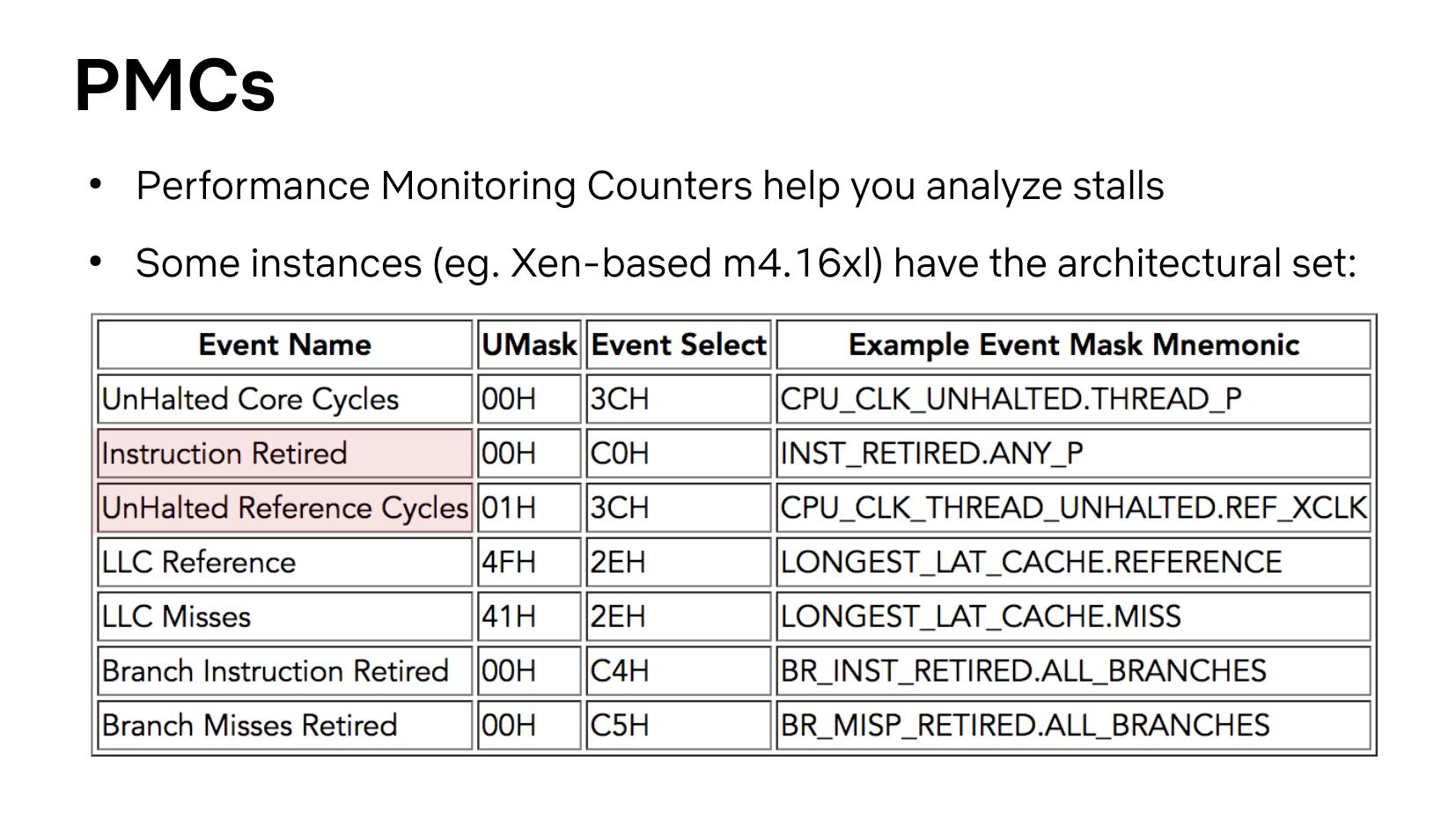

Performance Monitoring Counters help you analyze stalls
Some instances (eg. Xen-based m4.16xl) have the architectural set:

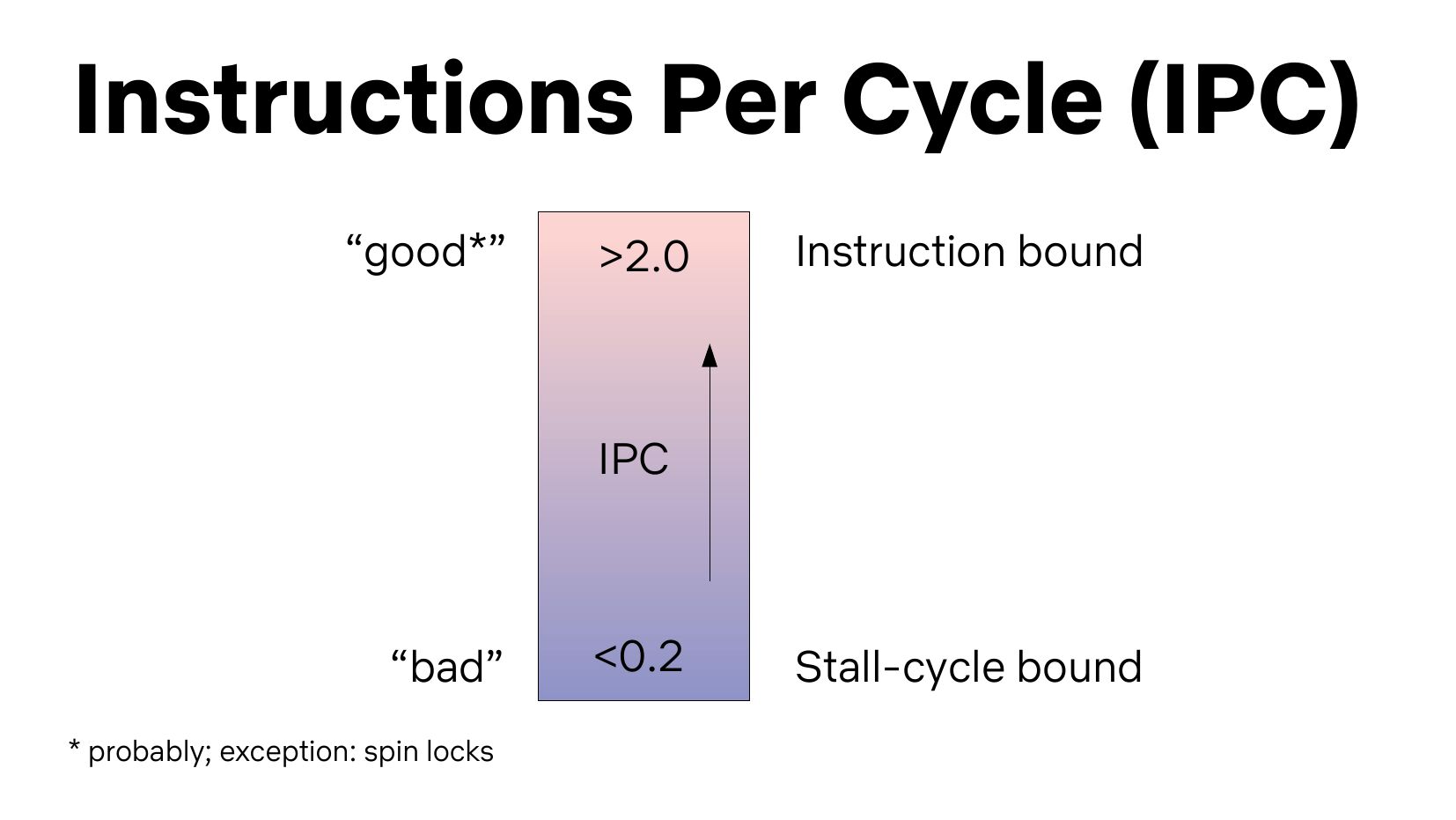

Instructions Per Cycle (IPC)
“good*”
>gt;2.0
Instruction bound
IPC
“bad”
* probably; exception: spin locks

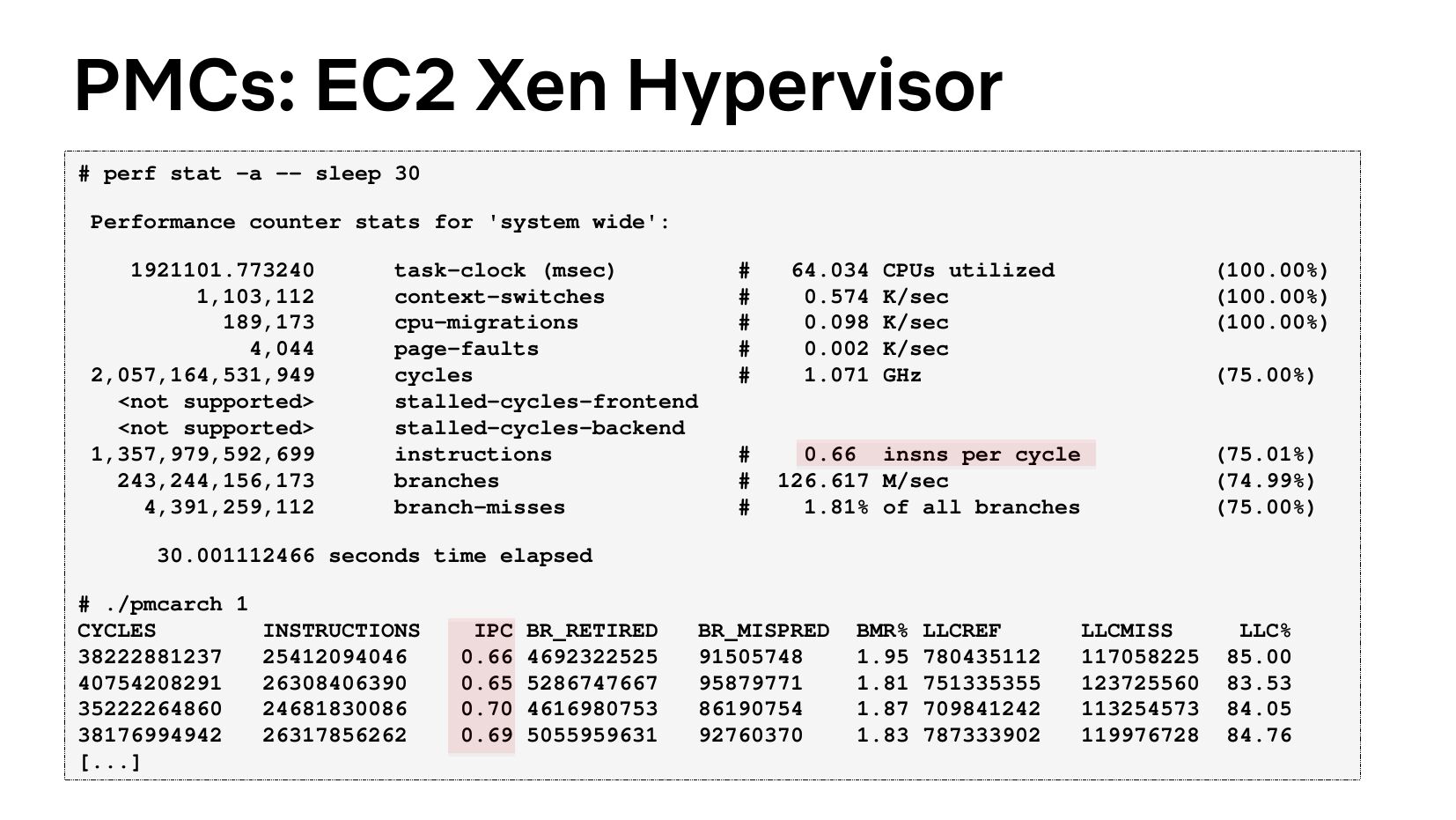

PMCs: EC2 Xen Hypervisor
# perf stat -a -- sleep 30
Performance counter stats for 'system wide':
1,103,112
189,173
4,044
2,057,164,531,949
gt;
gt;
1,357,979,592,699
243,244,156,173
4,391,259,112
task-clock (msec)
context-switches
cpu-migrations
page-faults
cycles
stalled-cycles-frontend
stalled-cycles-backend
instructions
branches
branch-misses
64.034 CPUs utilized
0.574 K/sec
0.098 K/sec
0.002 K/sec
1.071 GHz
(100.00%)
(100.00%)
(100.00%)
0.66 insns per cycle
126.617 M/sec
1.81% of all branches
(75.01%)
(74.99%)
(75.00%)
(75.00%)
30.001112466 seconds time elapsed
# ./pmcarch 1
CYCLES
INSTRUCTIONS
[...]
IPC BR_RETIRED
0.66 4692322525
0.65 5286747667
0.70 4616980753
0.69 5055959631
BR_MISPRED
BMR% LLCREF
1.95 780435112
1.81 751335355
1.87 709841242
1.83 787333902
LLCMISS
LLC%

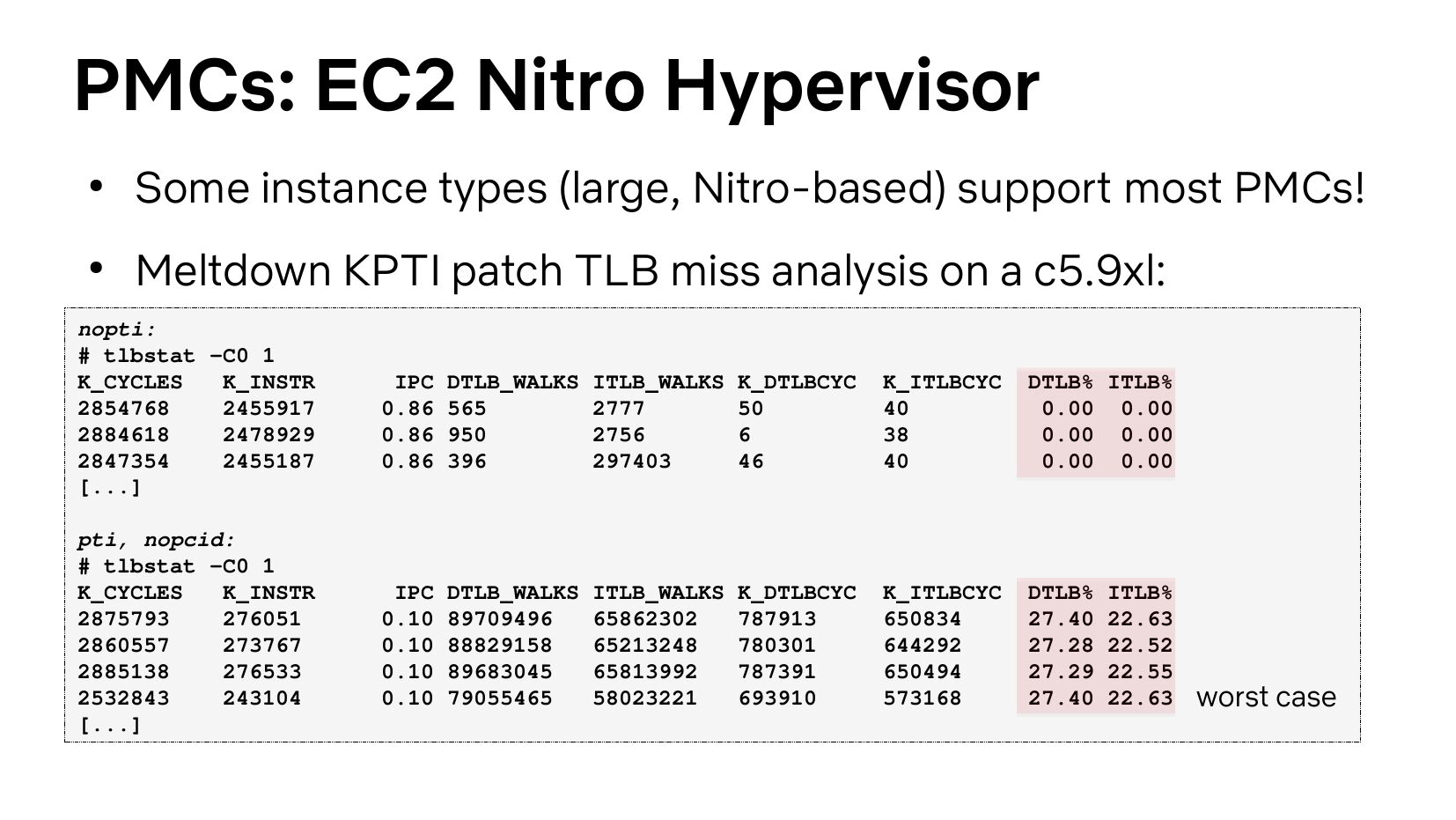

PMCs: EC2 Nitro Hypervisor
Some instance types (large, Nitro-based) support most PMCs!
Meltdown KPTI patch TLB miss analysis on a c5.9xl:
nopti:
# tlbstat -C0 1
K_CYCLES
K_INSTR
[...]
pti, nopcid:
# tlbstat -C0 1
K_CYCLES
K_INSTR
[...]
IPC DTLB_WALKS ITLB_WALKS K_DTLBCYC
0.86 565
0.86 950
0.86 396
K_ITLBCYC
DTLB% ITLB%
0.00 0.00
0.00 0.00
0.00 0.00
IPC DTLB_WALKS ITLB_WALKS K_DTLBCYC
0.10 89709496
0.10 88829158
0.10 89683045
0.10 79055465
K_ITLBCYC
DTLB% ITLB%
27.40 22.63
27.28 22.52
27.29 22.55
27.40 22.63
worst case

MSRs
Model Specific Registers
System config info, including current clock rate:
# showboost
Base CPU MHz : 2500
Set CPU MHz : 2500
Turbo MHz(s) : 3100 3200 3300 3500
Turbo Ratios : 124% 128% 132% 140%
CPU 0 summary every 1 seconds...
TIME
23:39:07
23:39:08
23:39:09
C0_MCYC
C0_ACYC
UTIL
64%
70%
99%
RATIO
MHz

Summary
Take-aways

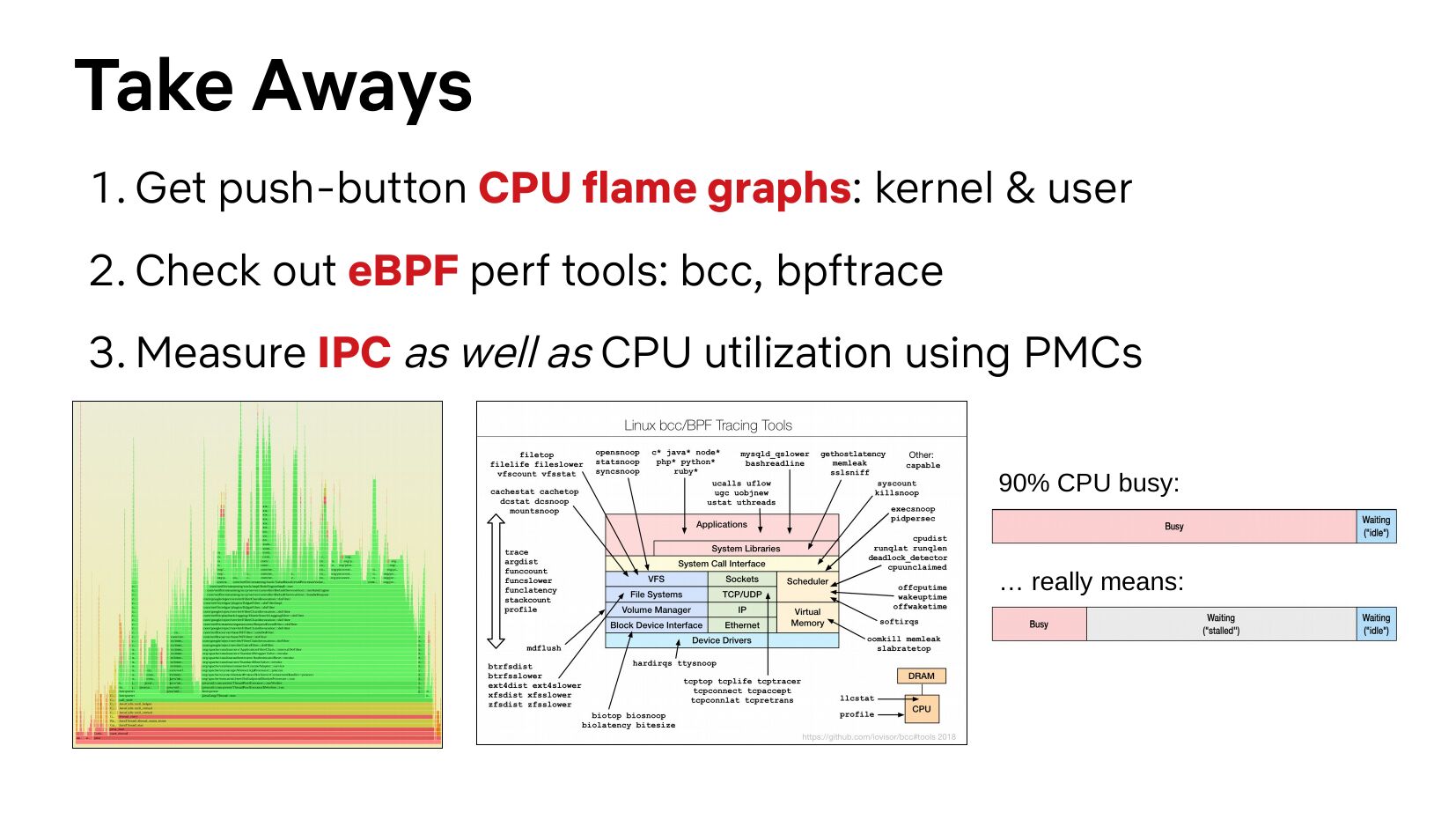

Take Aways
1. Get push-button CPU flame graphs: kernel & user
2. Check out eBPF perf tools: bcc, bpftrace
3. Measure IPC as well as CPU utilization using PMCs
90% CPU busy:
… really means:

Observability
Methodology
Velocity

Observability
Statistics, Flame Graphs, eBPF Tracing, Cloud PMCs
Methodology
USE method, RED method, Drill-down Analysis, …
Velocity
Self-service GUIs: Vector, FlameScope, …

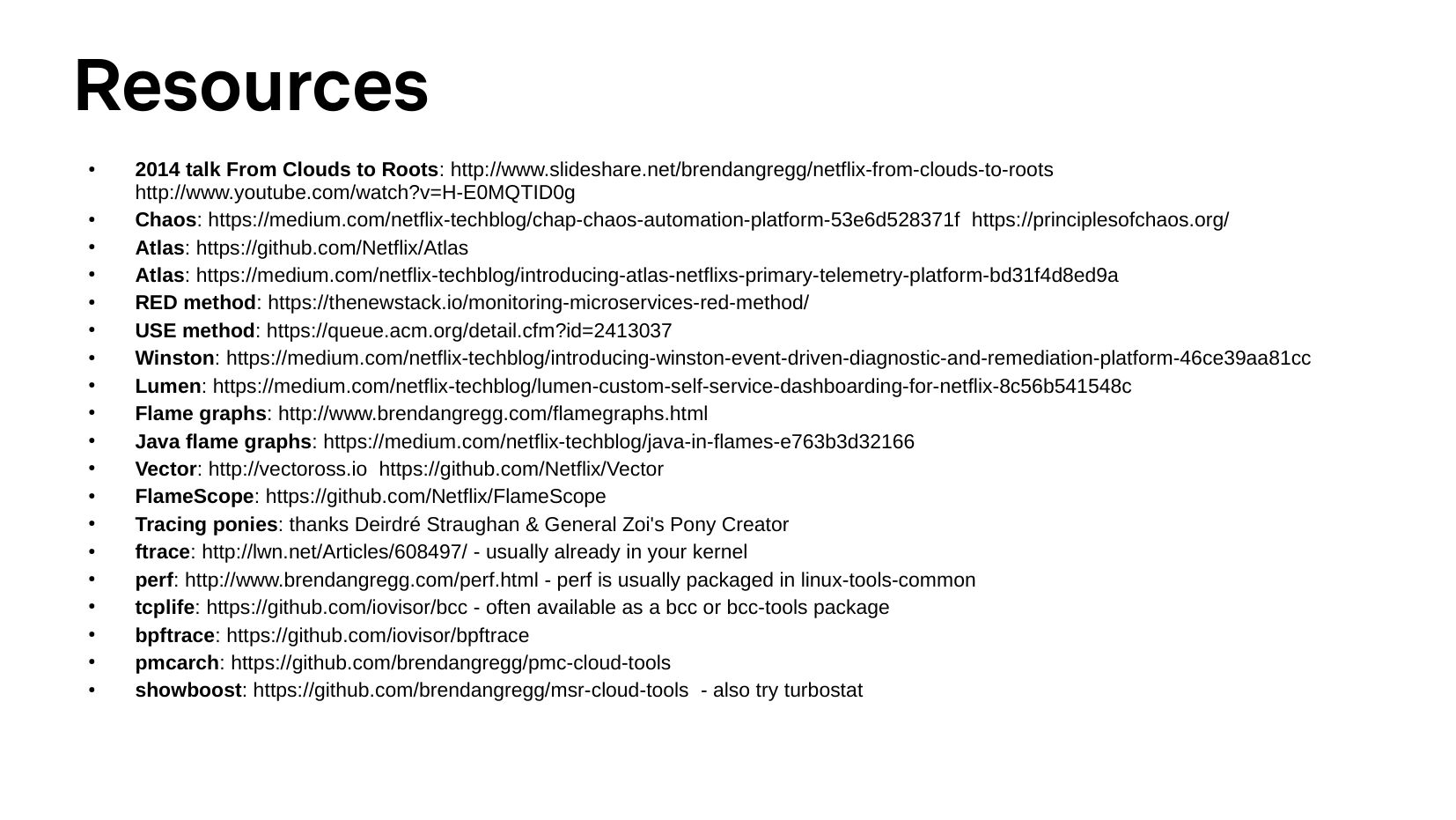

Resources
2014 talk From Clouds to Roots: http://www.slideshare.net/brendangregg/netflix-from-clouds-to-roots
http://www.youtube.com/watch?v=H-E0MQTID0g
Chaos: https://medium.com/netflix-techblog/chap-chaos-automation-platform-53e6d528371f https://principlesofchaos.org/
Atlas: https://github.com/Netflix/Atlas
Atlas: https://medium.com/netflix-techblog/introducing-atlas-netflixs-primary-telemetry-platform-bd31f4d8ed9a
RED method: https://thenewstack.io/monitoring-microservices-red-method/
USE method: https://queue.acm.org/detail.cfm?id=2413037
Winston: https://medium.com/netflix-techblog/introducing-winston-event-driven-diagnostic-and-remediation-platform-46ce39aa81cc
Lumen: https://medium.com/netflix-techblog/lumen-custom-self-service-dashboarding-for-netflix-8c56b541548c
Flame graphs: http://www.brendangregg.com/flamegraphs.html
Java flame graphs: https://medium.com/netflix-techblog/java-in-flames-e763b3d32166
Vector: http://vectoross.io https://github.com/Netflix/Vector
FlameScope: https://github.com/Netflix/FlameScope
Tracing ponies: thanks Deirdré Straughan & General Zoi's Pony Creator
ftrace: http://lwn.net/Articles/608497/ - usually already in your kernel
perf: http://www.brendangregg.com/perf.html - perf is usually packaged in linux-tools-common
tcplife: https://github.com/iovisor/bcc - often available as a bcc or bcc-tools package
bpftrace: https://github.com/iovisor/bpftrace
pmcarch: https://github.com/brendangregg/pmc-cloud-tools
showboost: https://github.com/brendangregg/msr-cloud-tools - also try turbostat

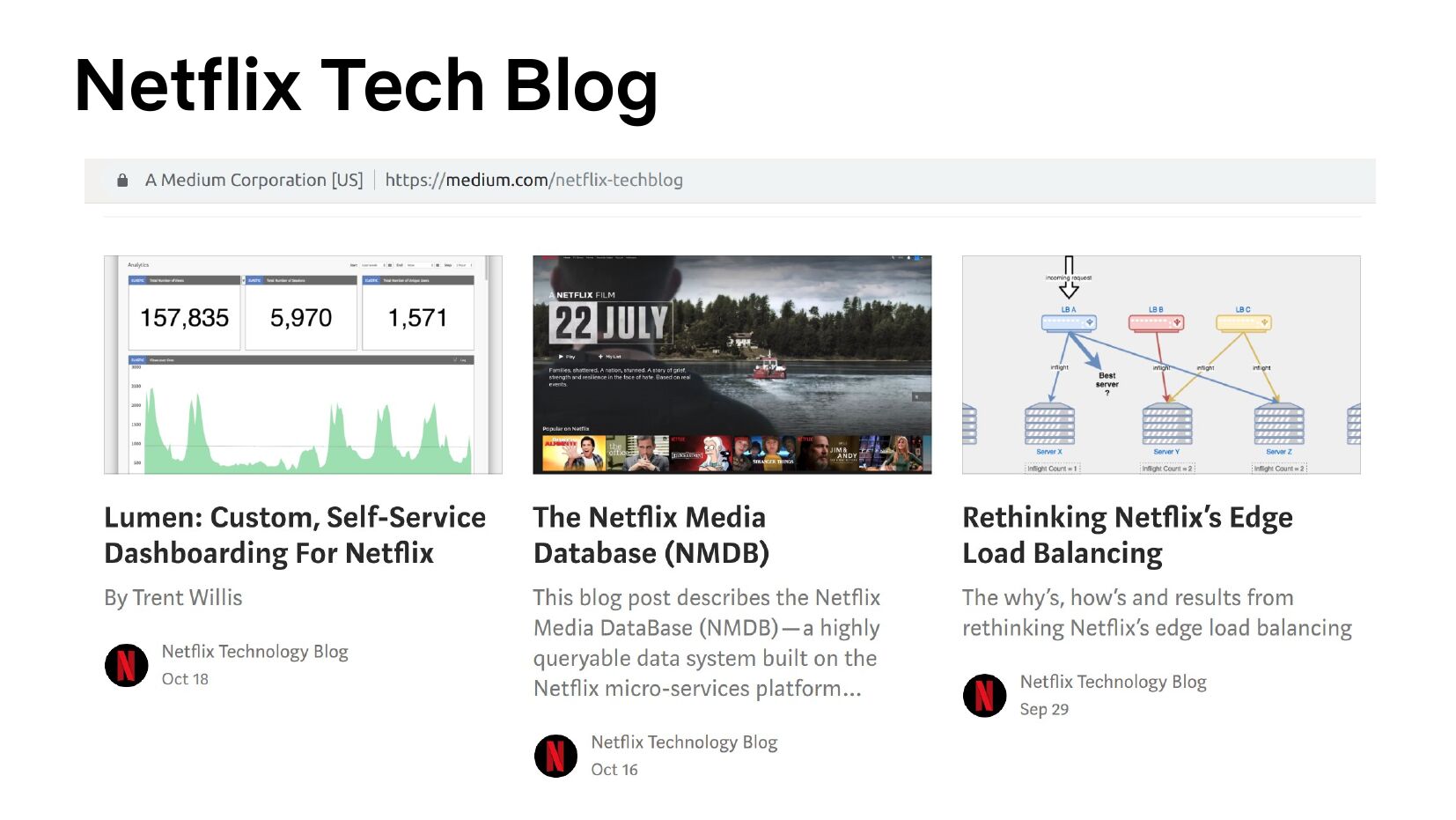

Netflix Tech Blog

Thank you.
Brendan Gregg
@brendangregg
