OPN303
BPF Performance Analysis at Netflix
Brendan Gregg
Senior Performance Architect
Netflix
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

Superpowers Demo
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

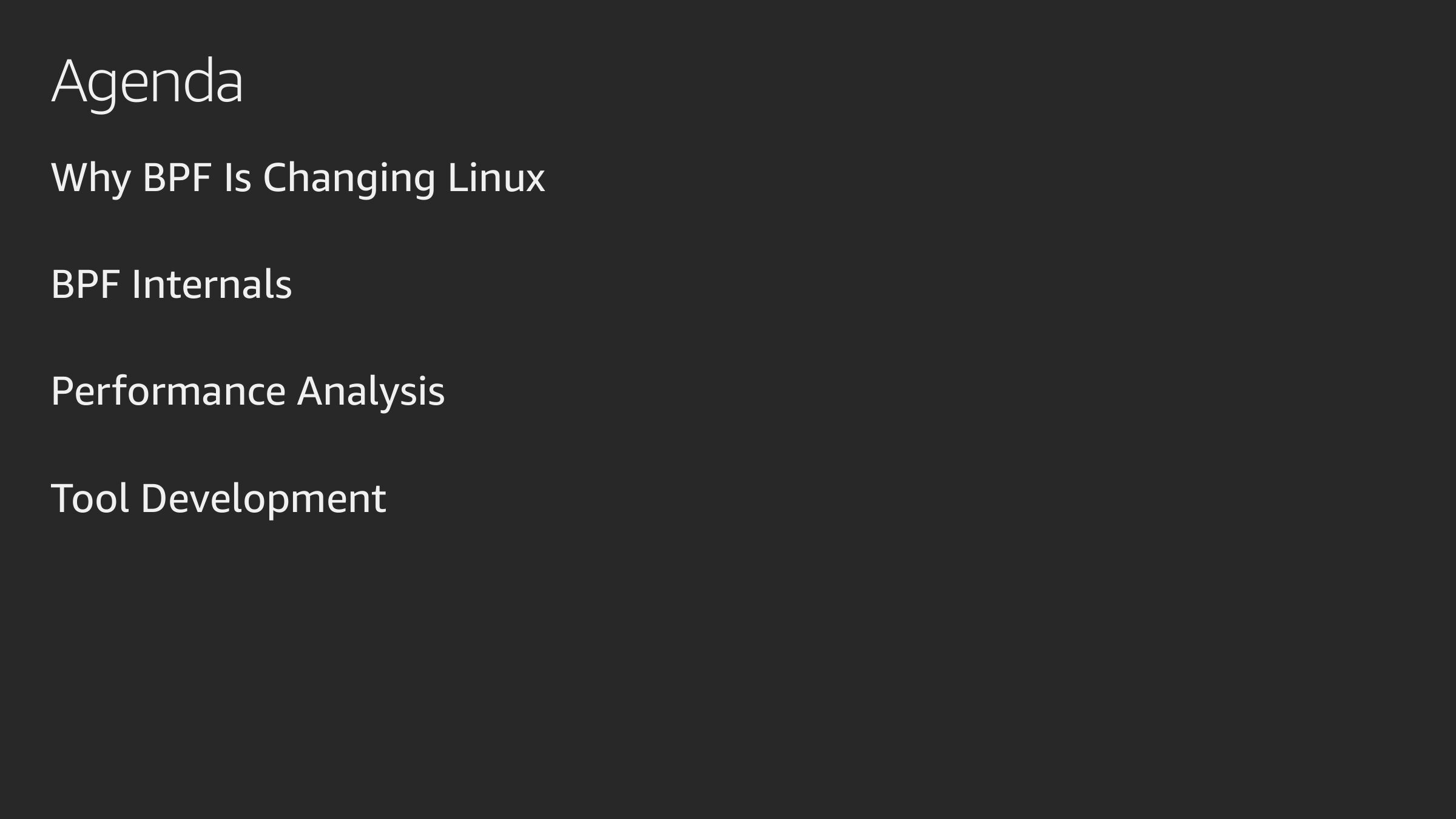

Agenda
Why BPF Is Changing Linux
BPF Internals
Performance Analysis
Tool Development

Why BPF Is Changing Linux
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

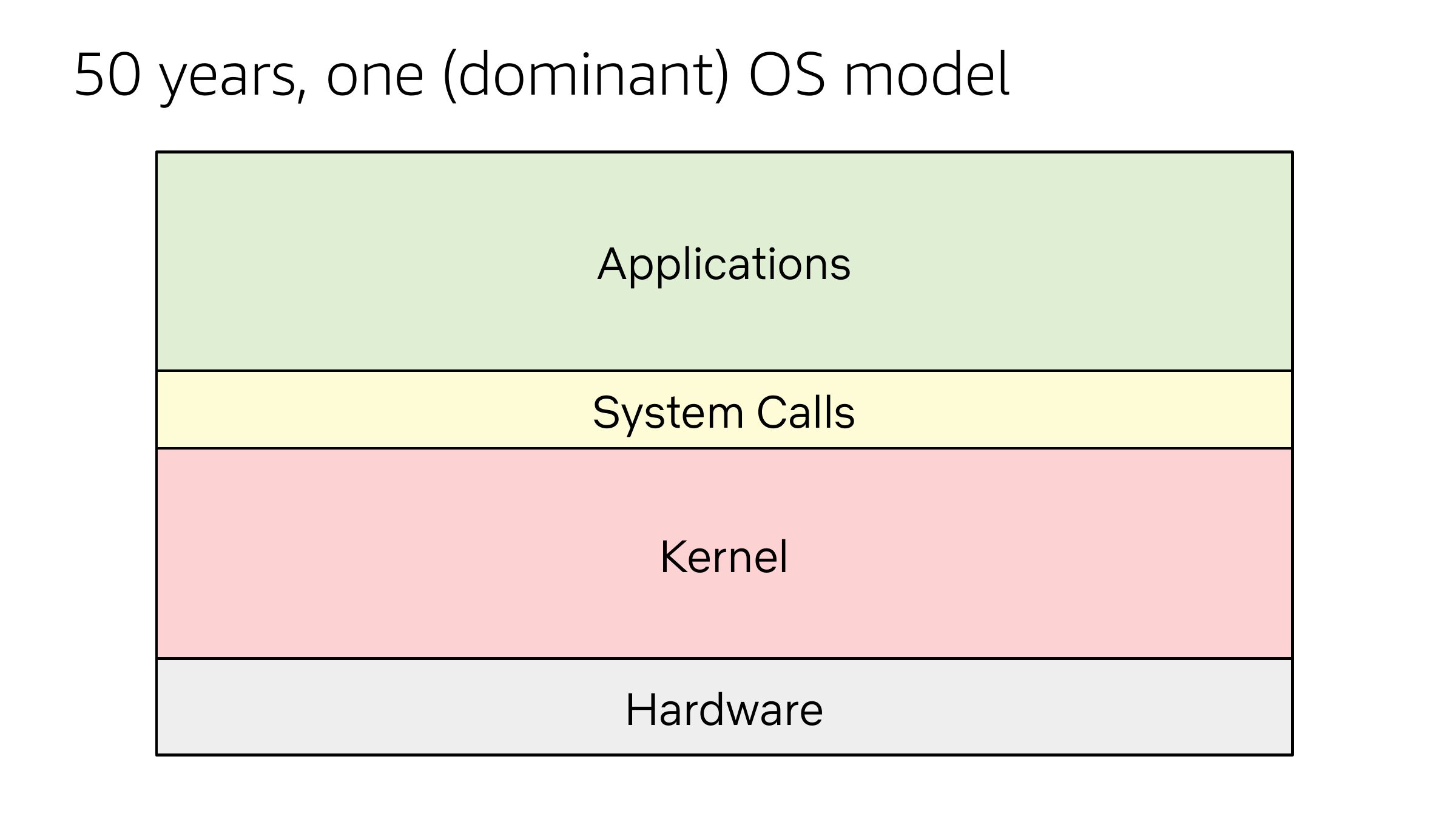

50 years, one (dominant) OS model
Applications
System Calls
Kernel
Hardware

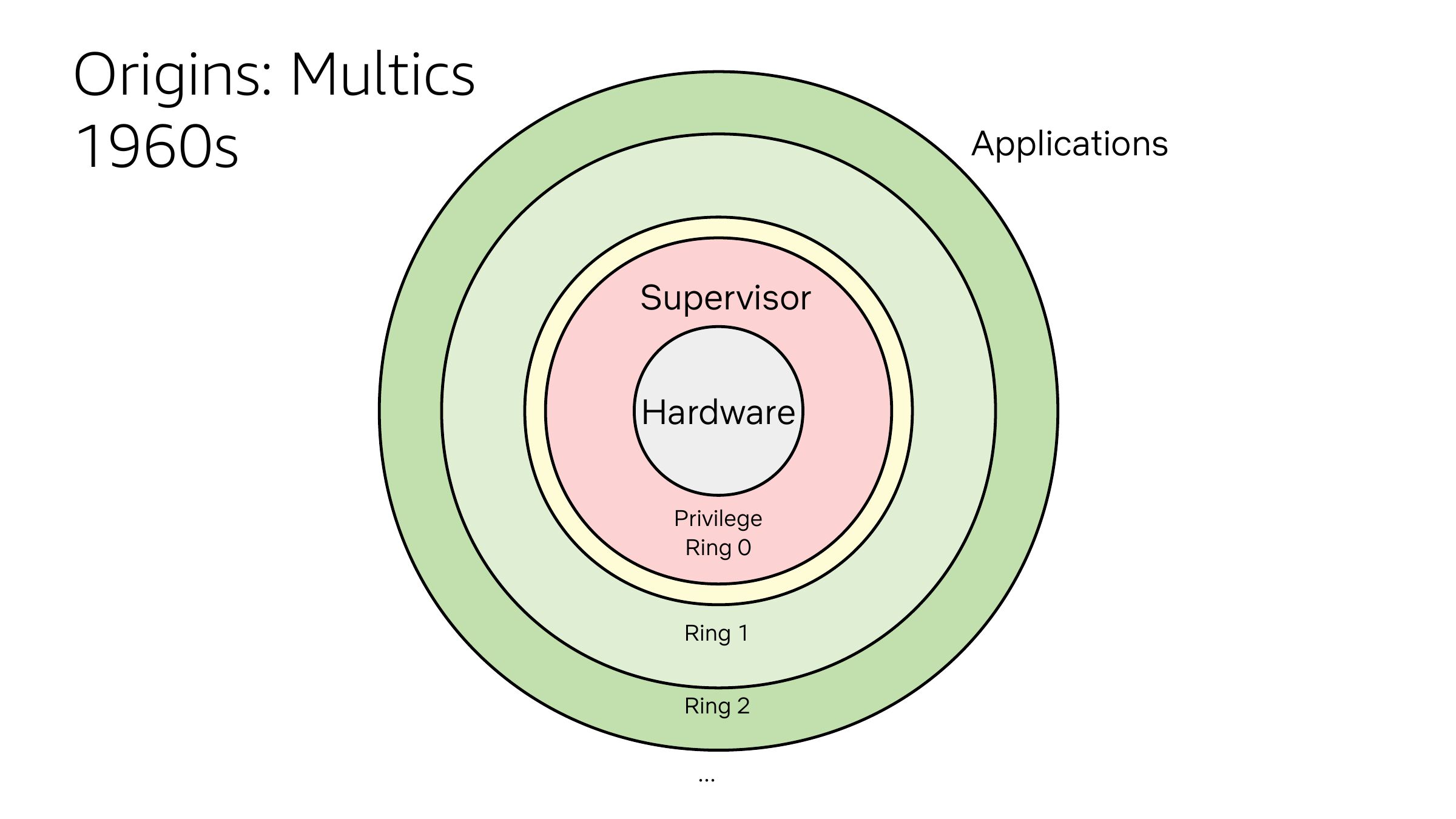

Origins: Multics
1960s
Applications
Supervisor
Hardware
Privilege
Ring 0
Ring 1
Ring 2

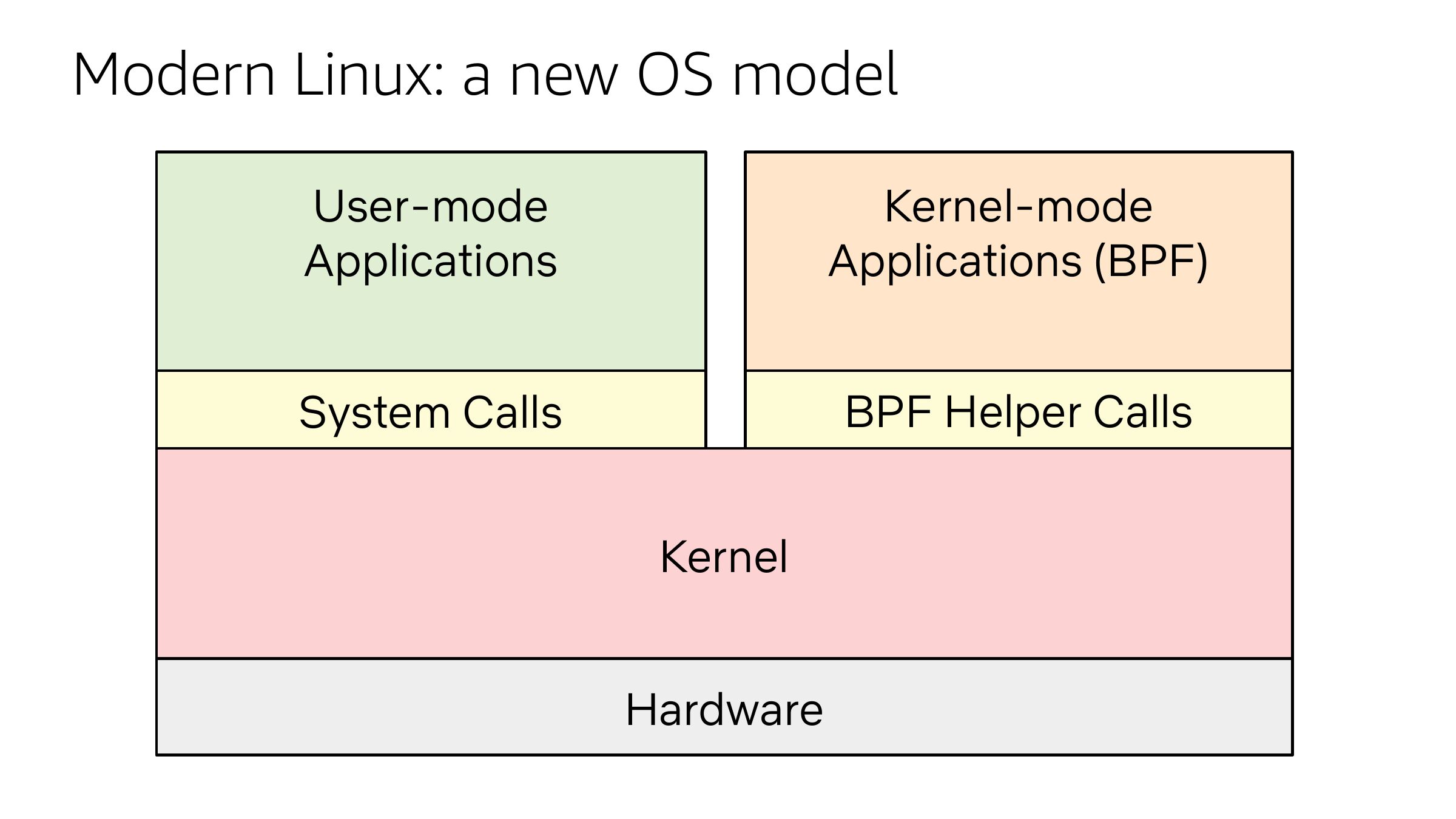

Modern Linux: a new OS model
User-mode
Applications
Kernel-mode
Applications (BPF)
System Calls
BPF Helper Calls
Kernel
Hardware

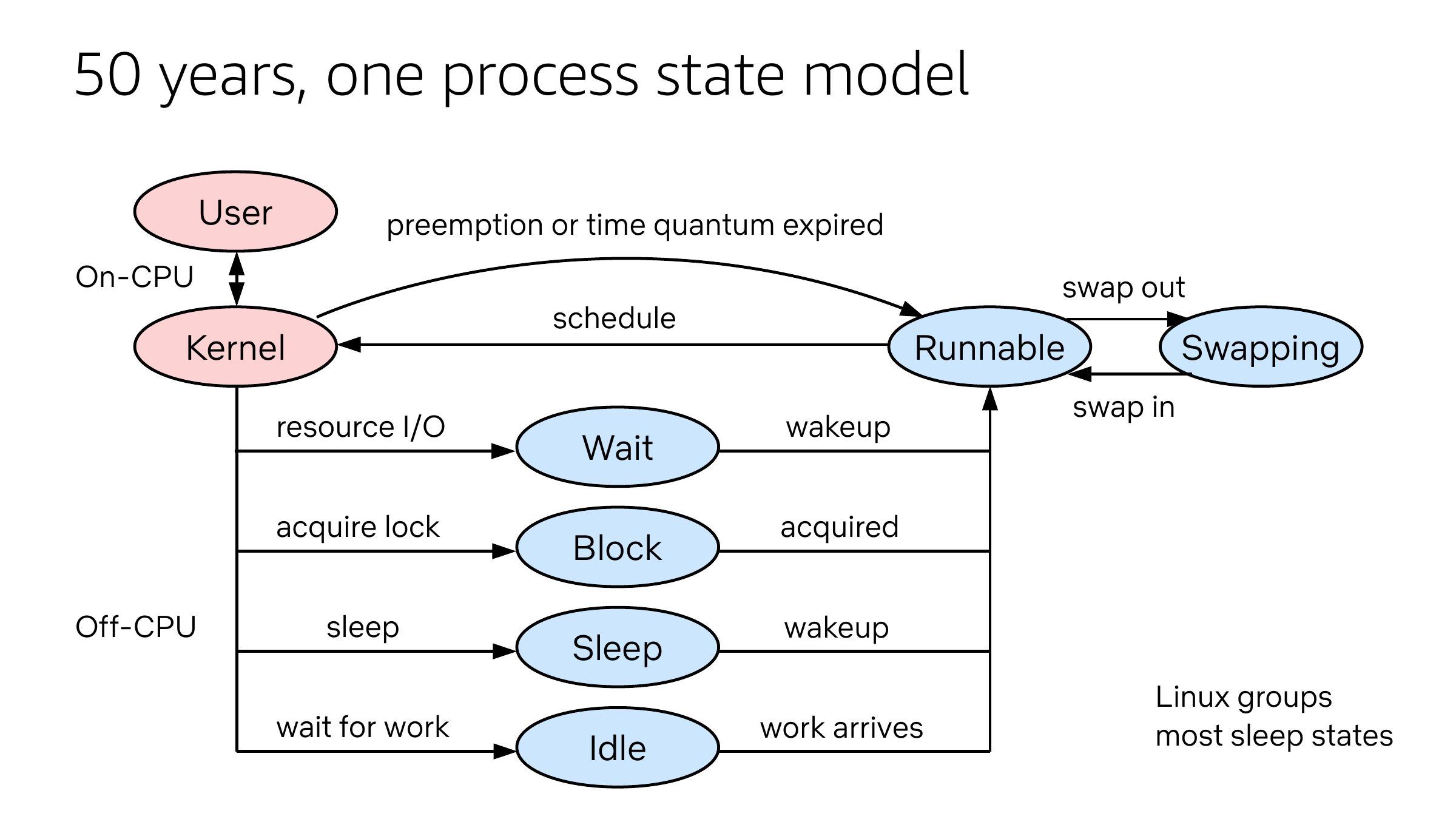

50 years, one process state model
User
preemption or time quantum expired
On-CPU
schedule
Kernel
resource I/O
acquire lock
Off-CPU
swap out
sleep
wait for work
Wait
Block
Sleep
Idle
Runnable
wakeup
Swapping
swap in
acquired
wakeup
work arrives
Linux groups
most sleep states

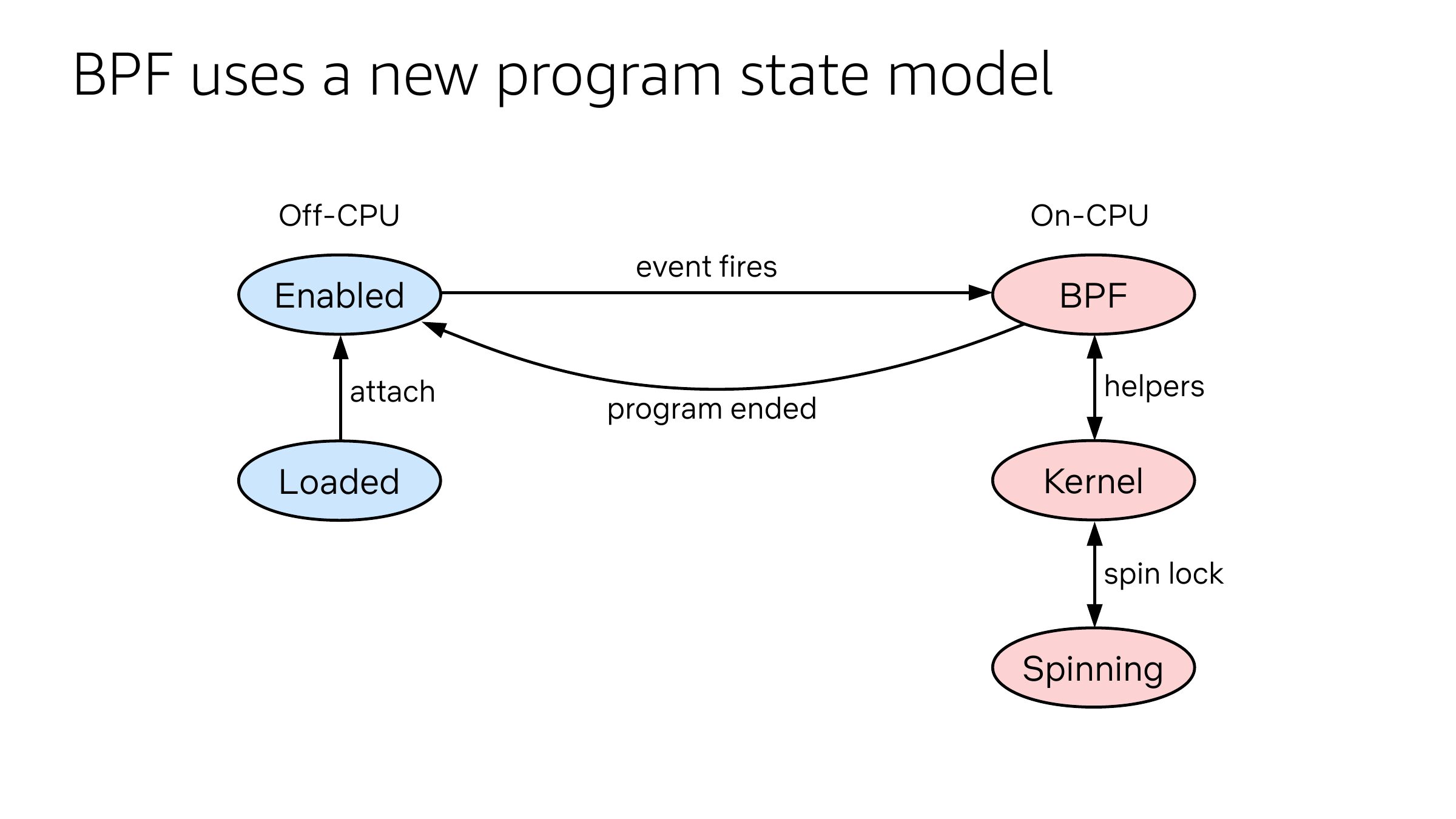

BPF uses a new program state model
On-CPU
Off-CPU
Enabled
attach
Loaded
event fires
program ended
BPF
helpers
Kernel
spin lock
Spinning

Netconf 2018
Alexei Starvoitov

Kernel Recipes 2019, Alexei Starovoitov
~40 active BPF programs on every Facebook server

>gt;150K Amazon EC2 server instances
~34% US Internet traffic at night
>gt;130M subscribers
~14 active BPF programs on every instance (so far)

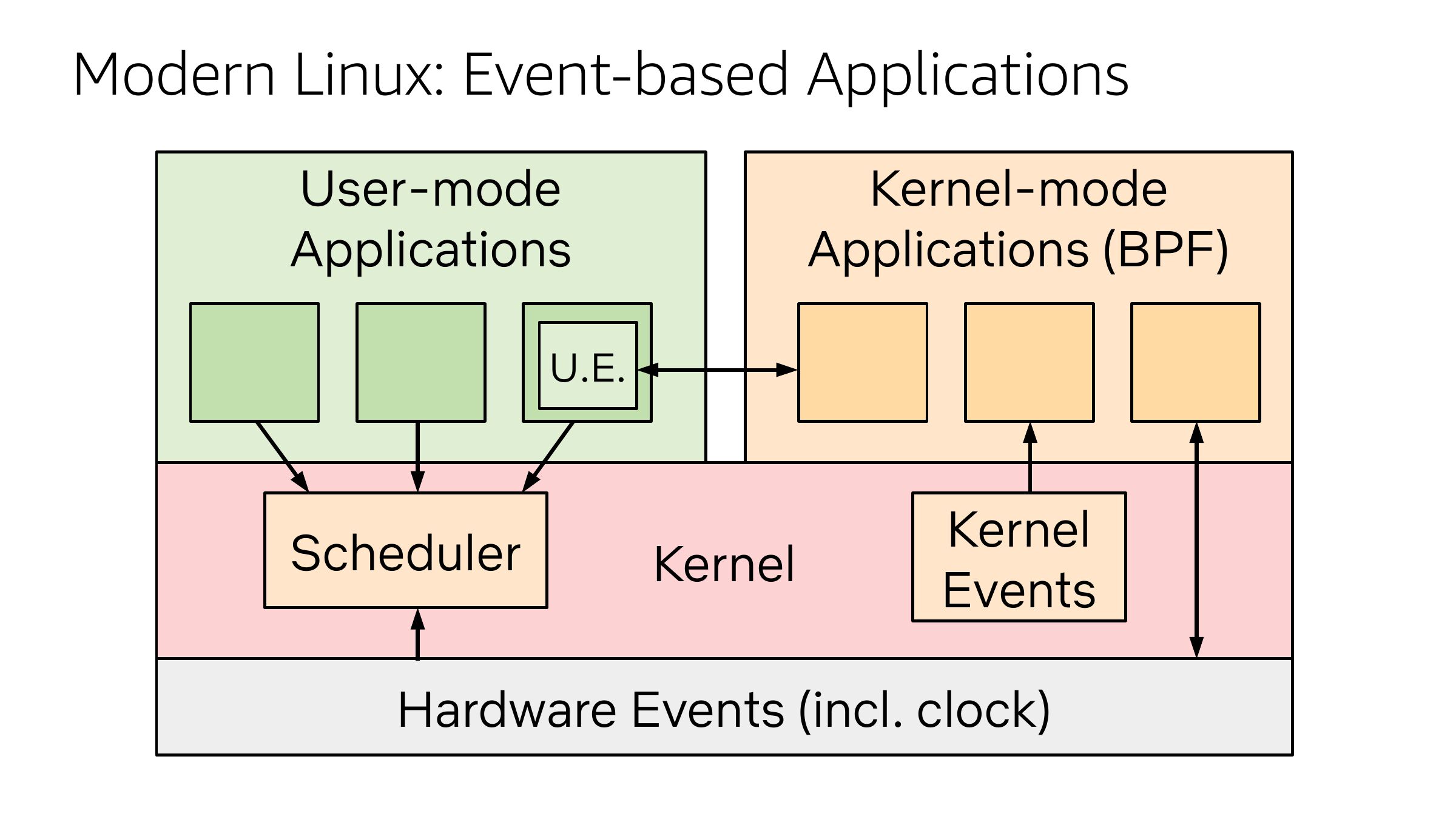

Modern Linux: Event-based Applications
Kernel-mode
Applications (BPF)
User-mode
Applications
U.E.
Scheduler
Kernel
Kernel
Events
Hardware Events (incl. clock)

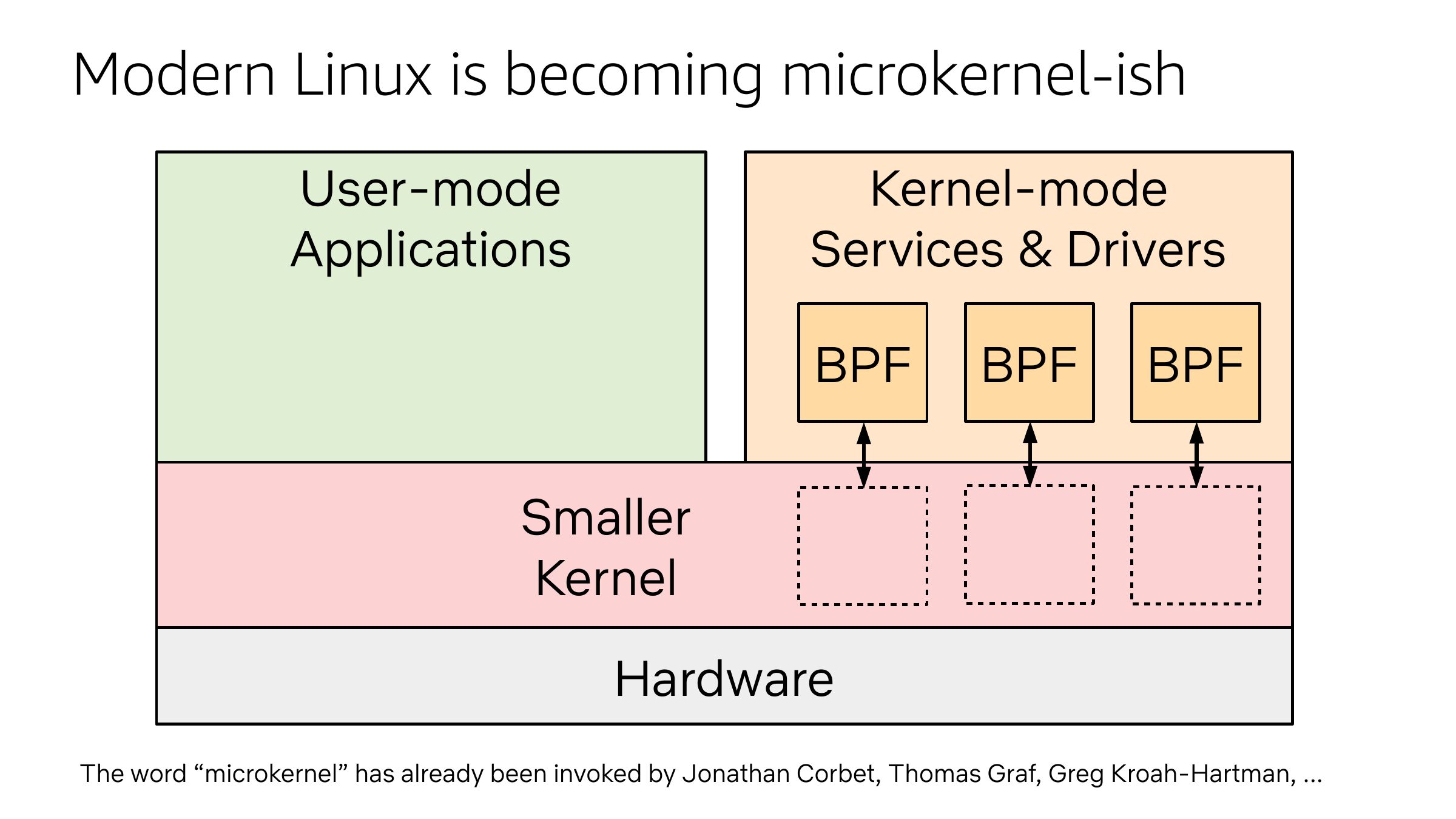

Modern Linux is becoming microkernel-ish
Kernel-mode
Services & Drivers
User-mode
Applications
BPF
BPF
BPF
Smaller
Kernel
Hardware
The word “microkernel” has already been invoked by Jonathan Corbet, Thomas Graf, Greg Kroah-Hartman, ...

BPF Internals
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

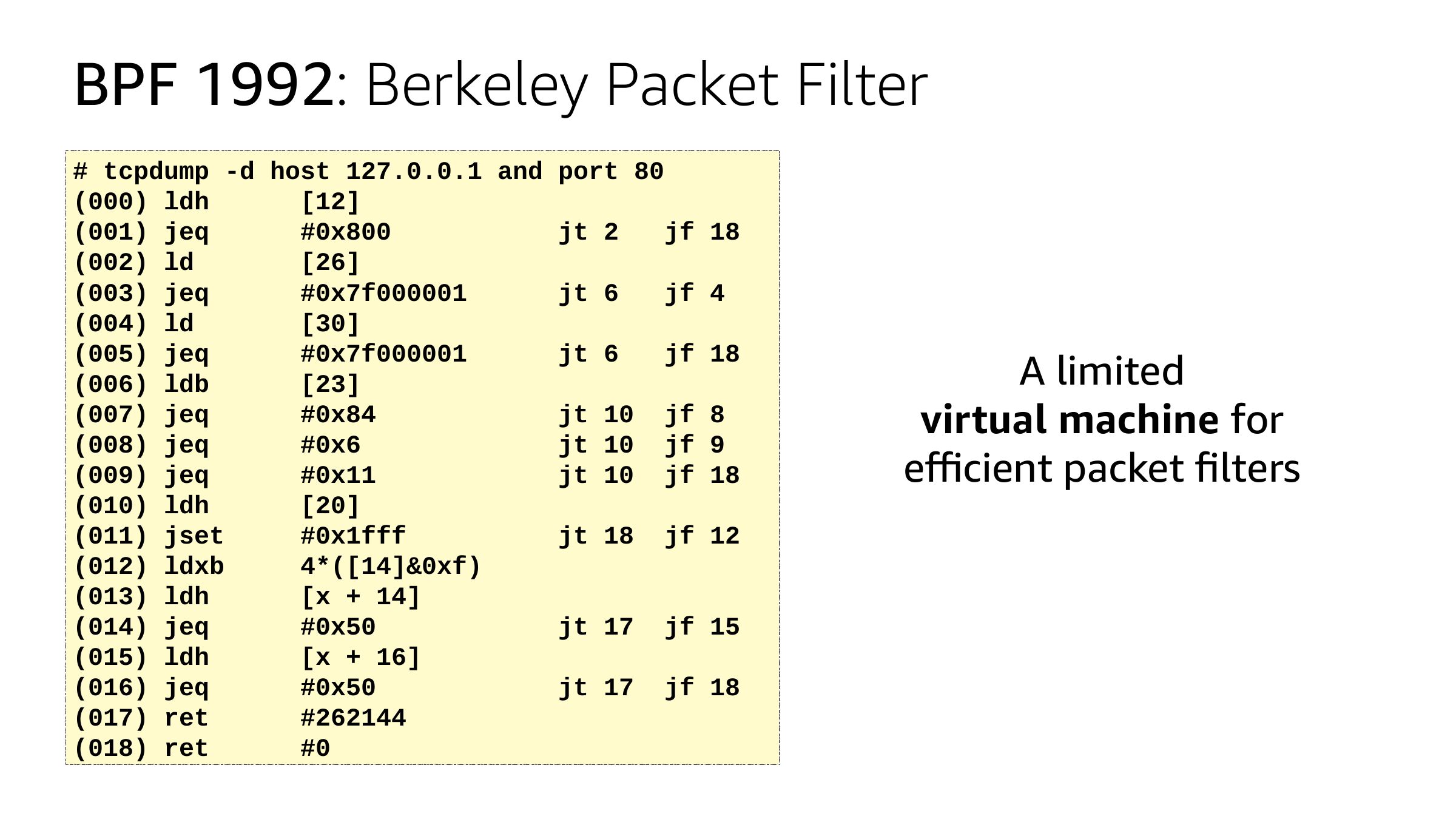

BPF 1992: Berkeley Packet Filter
# tcpdump -d host 127.0.0.1 and port 80
(000) ldh
[12]
(001) jeq
#0x800
jt 2
jf 18
(002) ld
[26]
(003) jeq
#0x7f000001
jt 6
jf 4
(004) ld
[30]
(005) jeq
#0x7f000001
jt 6
jf 18
(006) ldb
[23]
(007) jeq
#0x84
jt 10 jf 8
(008) jeq
#0x6
jt 10 jf 9
(009) jeq
#0x11
jt 10 jf 18
(010) ldh
[20]
(011) jset
#0x1fff
jt 18 jf 12
(012) ldxb
4*([14]&0xf)
(013) ldh
[x + 14]
(014) jeq
#0x50
jt 17 jf 15
(015) ldh
[x + 16]
(016) jeq
#0x50
jt 17 jf 18
(017) ret
#262144
(018) ret
A limited
virtual machine for
efficient packet filters

BPF 2019: aka extended BPF
bpftrace
XDP
bpfconf
BPF Microconference
& Facebook Katran, Google KRSI, Netflix flowsrus,
and many more

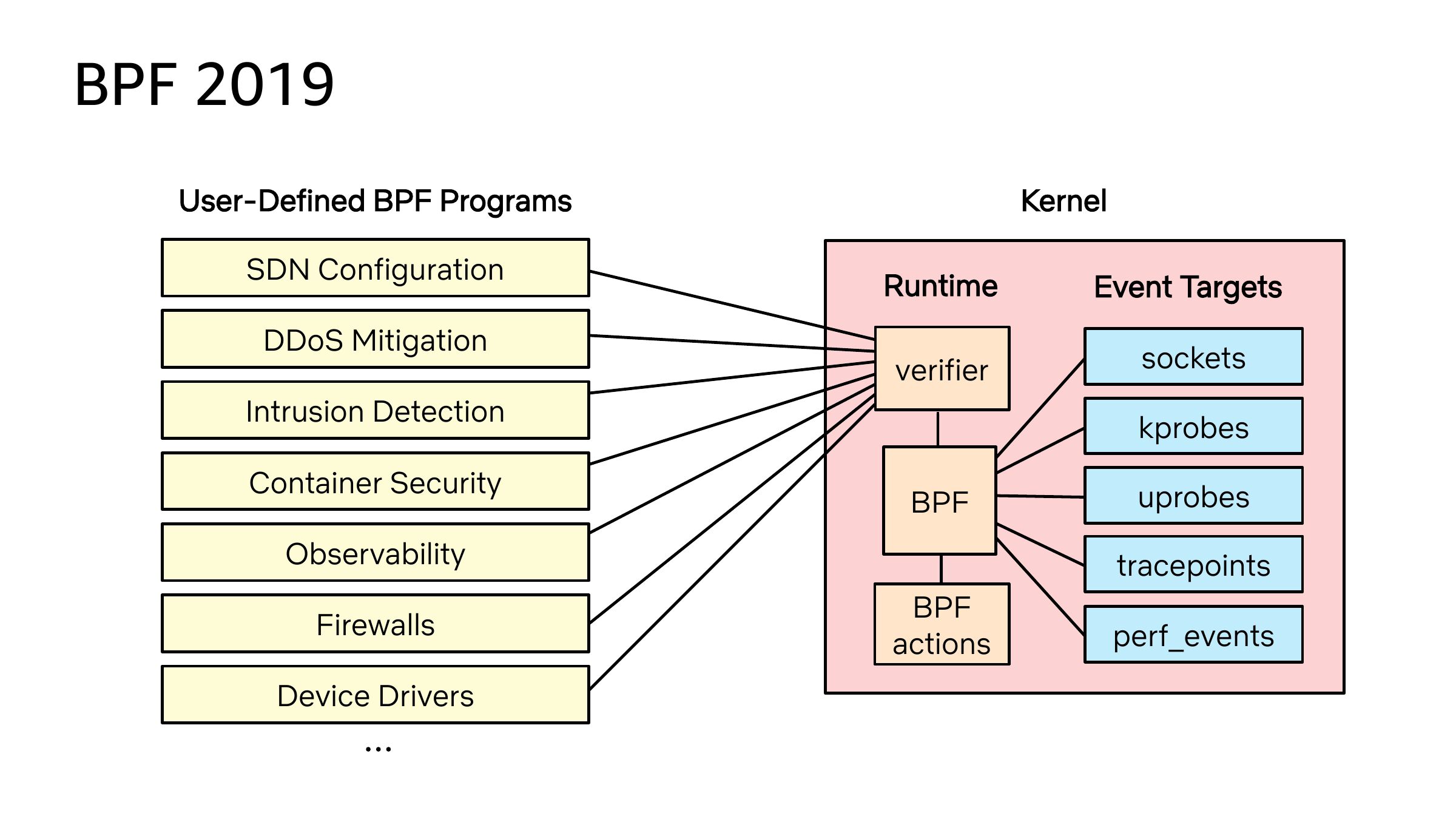

BPF 2019
User-Defined BPF Programs
SDN Configuration
DDoS Mitigation
Kernel
Runtime
Event Targets
verifier
sockets
Intrusion Detection
Container Security
kprobes
BPF
Observability
Firewalls
Device Drivers
uprobes
tracepoints
BPF
actions
perf_events

BPF is open source and in the Linux kernel
(you’re all getting it)
BPF is also now a technology name,
and no longer an acronym

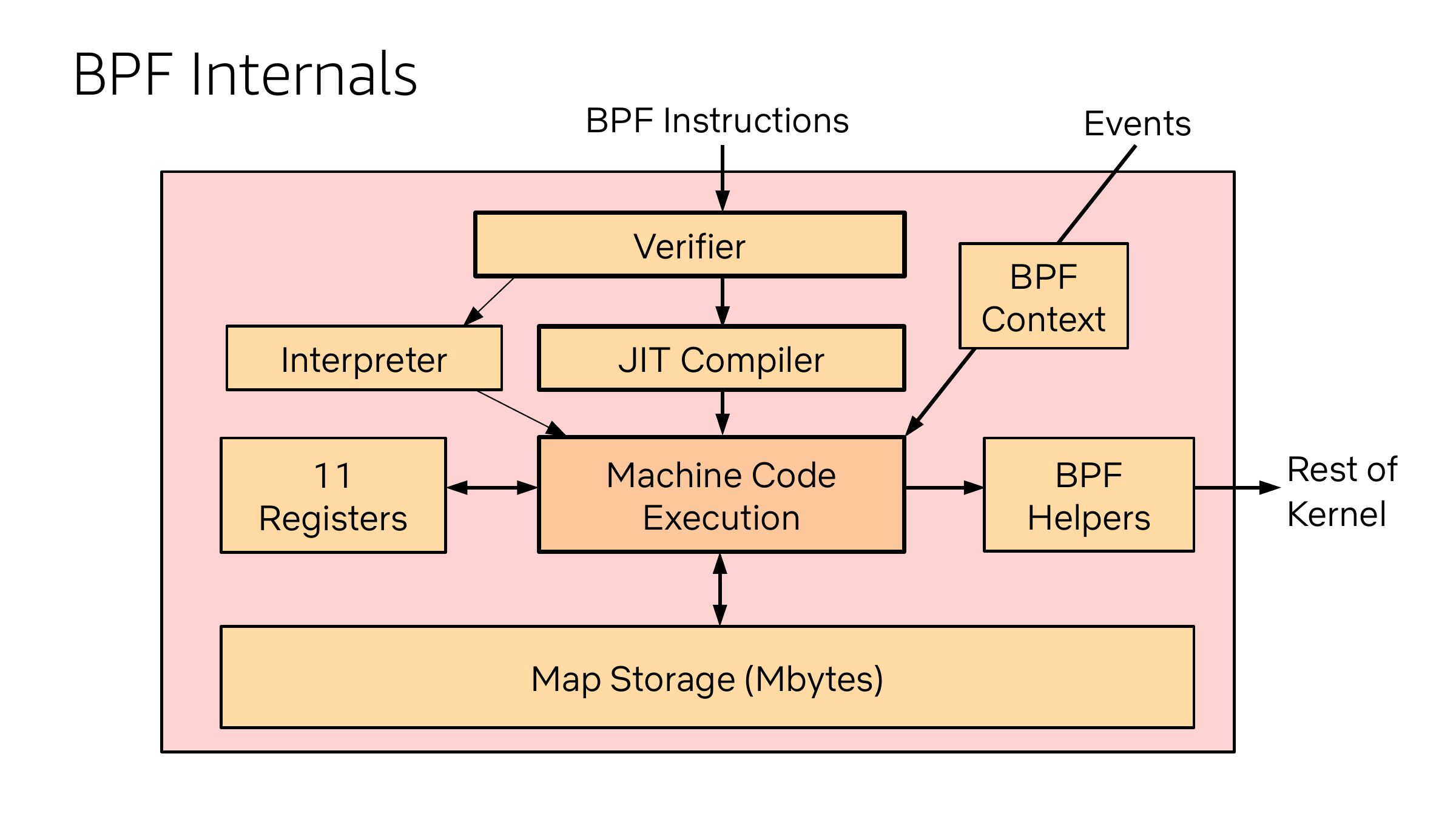

BPF Internals
BPF Instructions
Verifier
Interpreter
JIT Compiler
Registers
Machine Code
Execution
Map Storage (Mbytes)
Events
BPF
Context
BPF
Helpers
Rest of
Kernel

Is BPF Turing complete?

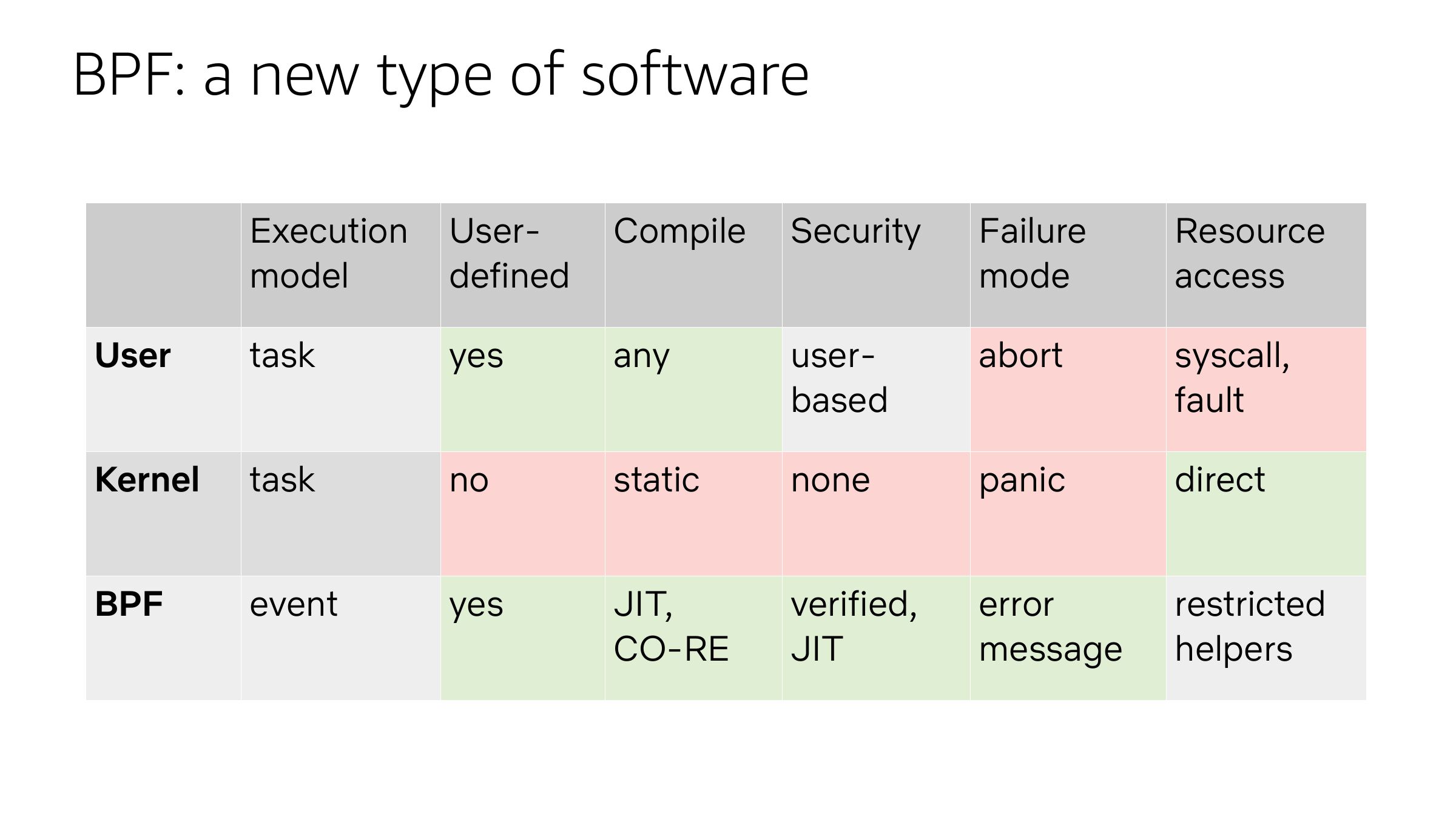

BPF: a new type of software
Execution
model
Userdefined
Compile
Security
Failure
mode
Resource
access
User
task
yes
any
userbased
abort
syscall,
fault
Kernel
task
static
none
panic
direct
BPF
event
yes
JIT,
CO-RE
verified,
JIT
error
message
restricted
helpers

Performance Analysis
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

BPF enables a new class of
custom, efficient, and production-safe
performance analysis tools

BPF
Performance
Tools

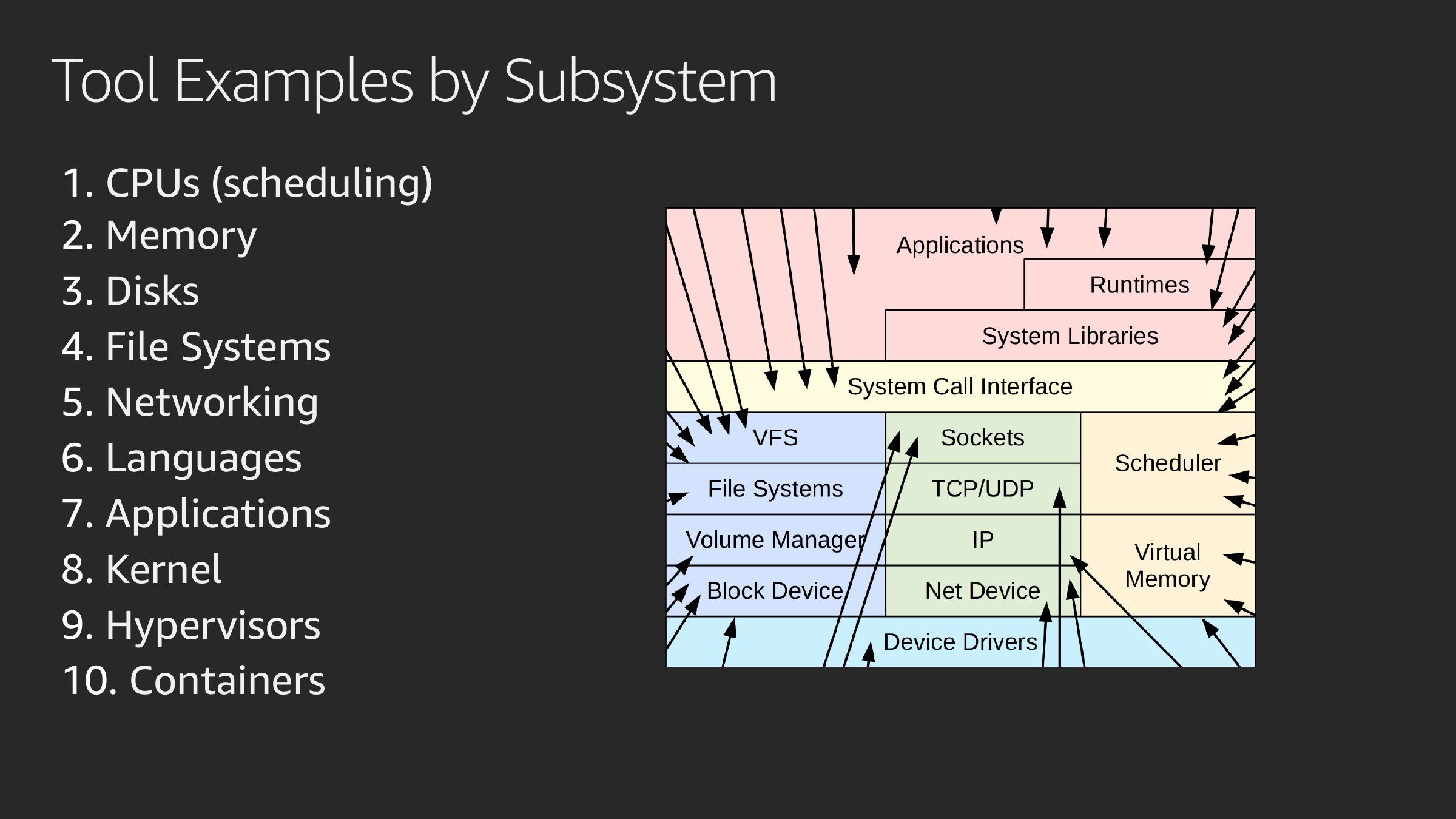

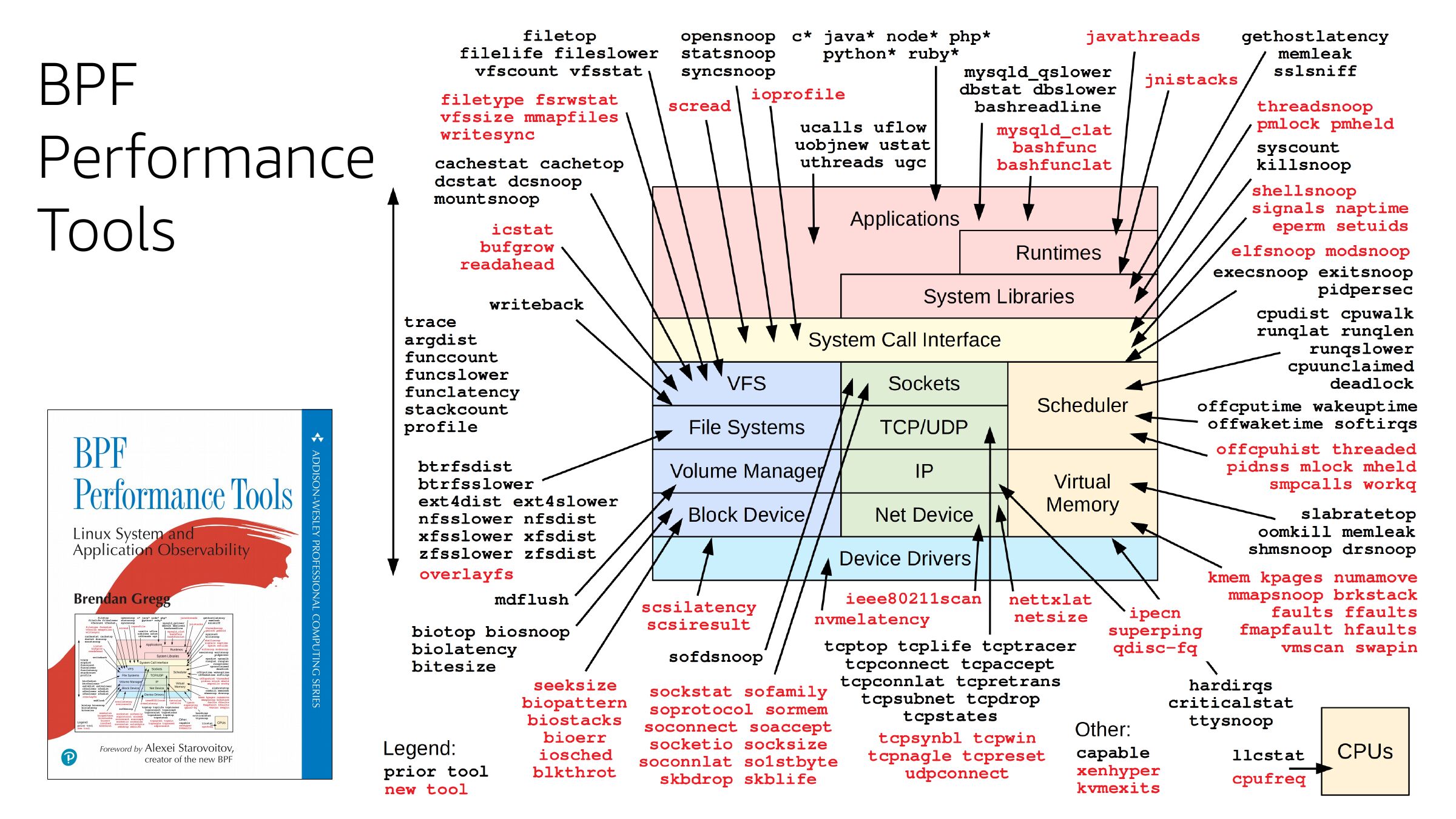

Tool Examples by Subsystem
1. CPUs (scheduling)
2. Memory
3. Disks
4. File Systems
5. Networking
6. Languages
7. Applications
8. Kernel
9. Hypervisors
10. Containers

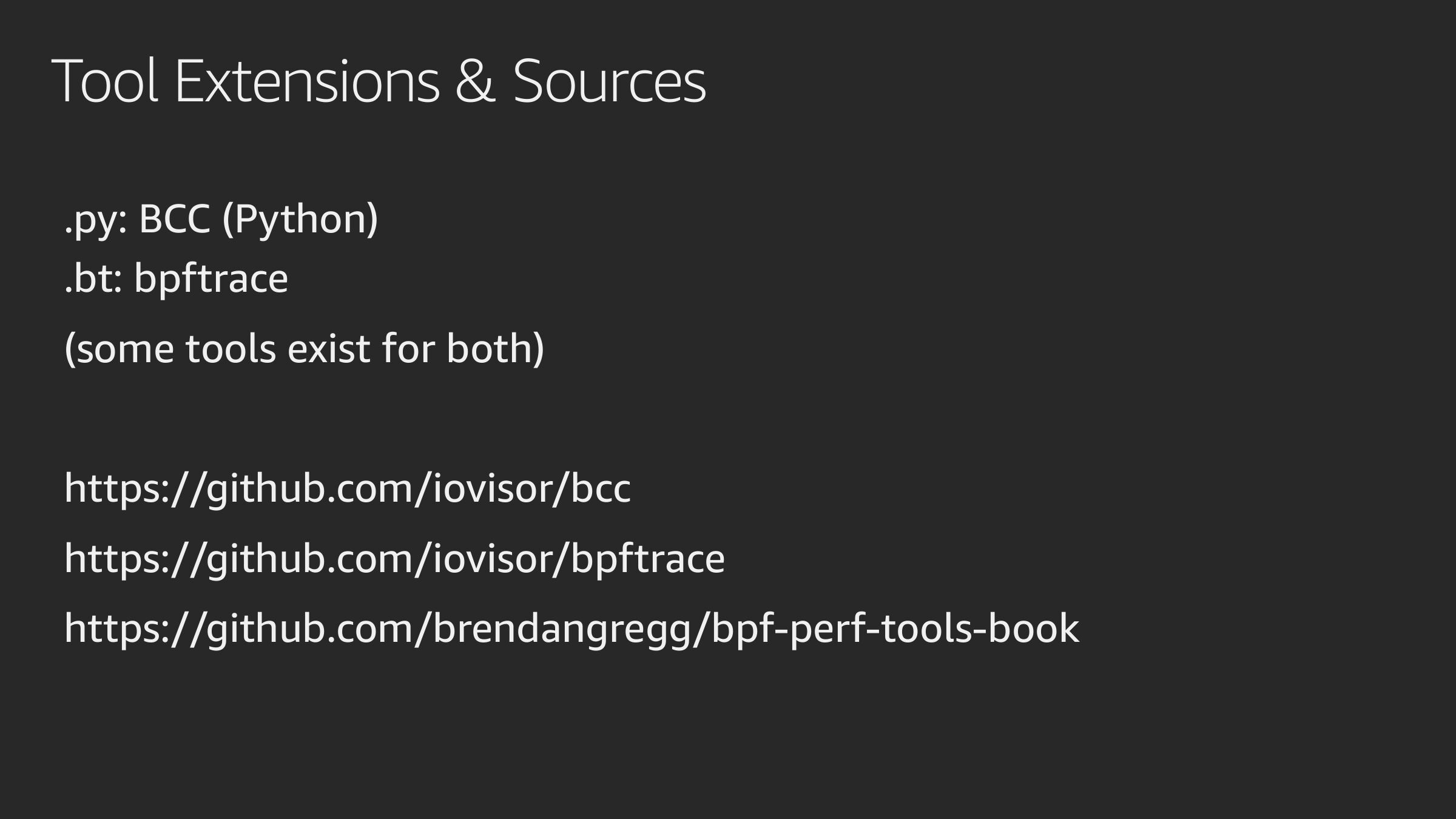

Tool Extensions & Sources
.py: BCC (Python)
.bt: bpftrace
(some tools exist for both)
https://github.com/iovisor/bcc
https://github.com/iovisor/bpftrace
https://github.com/brendangregg/bpf-perf-tools-book

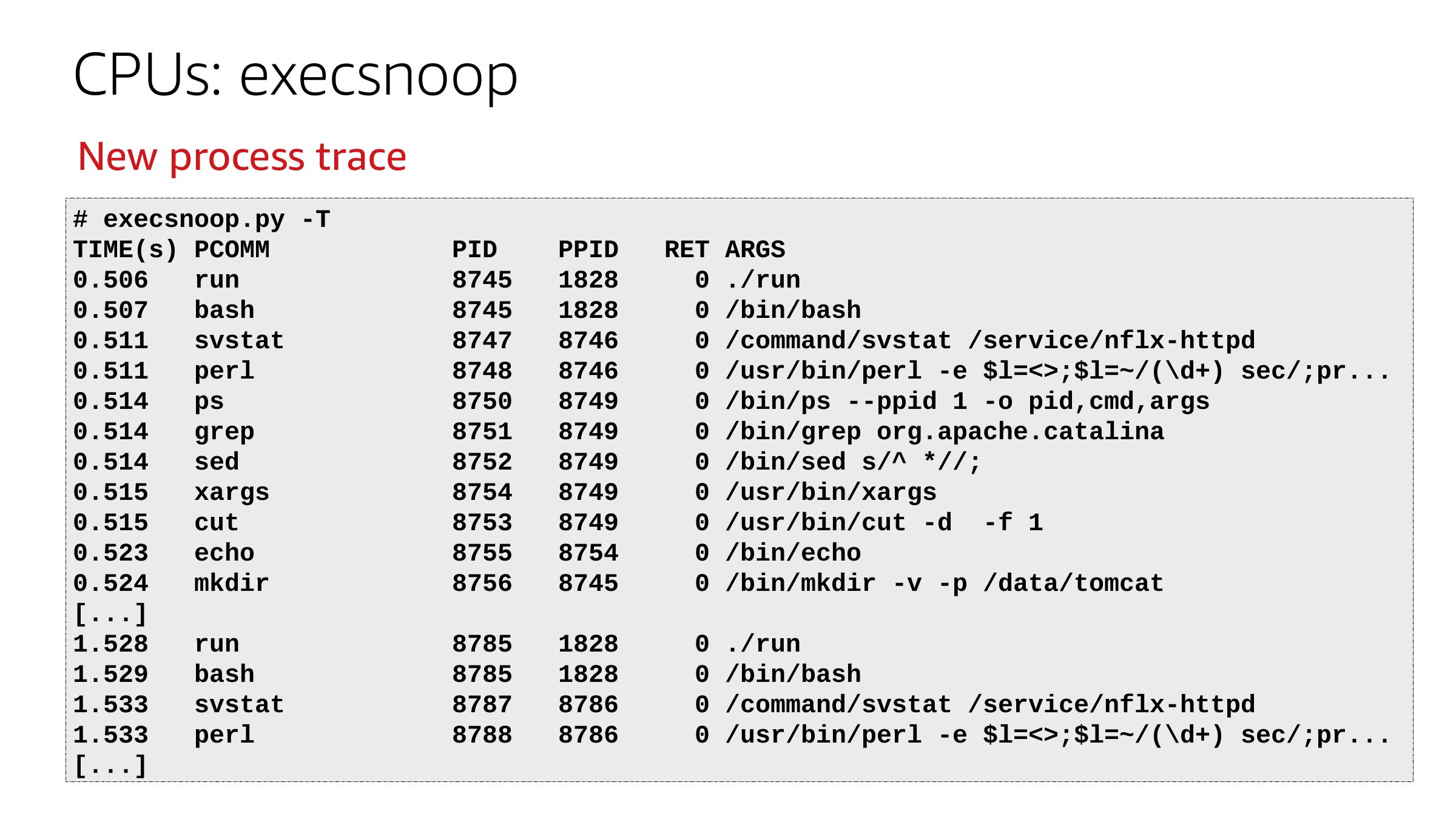

CPUs: execsnoop
New process trace
# execsnoop.py -T
TIME(s) PCOMM
run
bash
svstat
perl
grep
sed
xargs
cut
echo
mkdir
[...]
run
bash
svstat
perl
[...]
PID
PPID
RET ARGS
0 ./run
0 /bin/bash
0 /command/svstat /service/nflx-httpd
0 /usr/bin/perl -e $l=gt;;$l=~/(\d+) sec/;pr...
0 /bin/ps --ppid 1 -o pid,cmd,args
0 /bin/grep org.apache.catalina
0 /bin/sed s/^ *//;
0 /usr/bin/xargs
0 /usr/bin/cut -d -f 1
0 /bin/echo
0 /bin/mkdir -v -p /data/tomcat
0 ./run
0 /bin/bash
0 /command/svstat /service/nflx-httpd
0 /usr/bin/perl -e $l=gt;;$l=~/(\d+) sec/;pr...

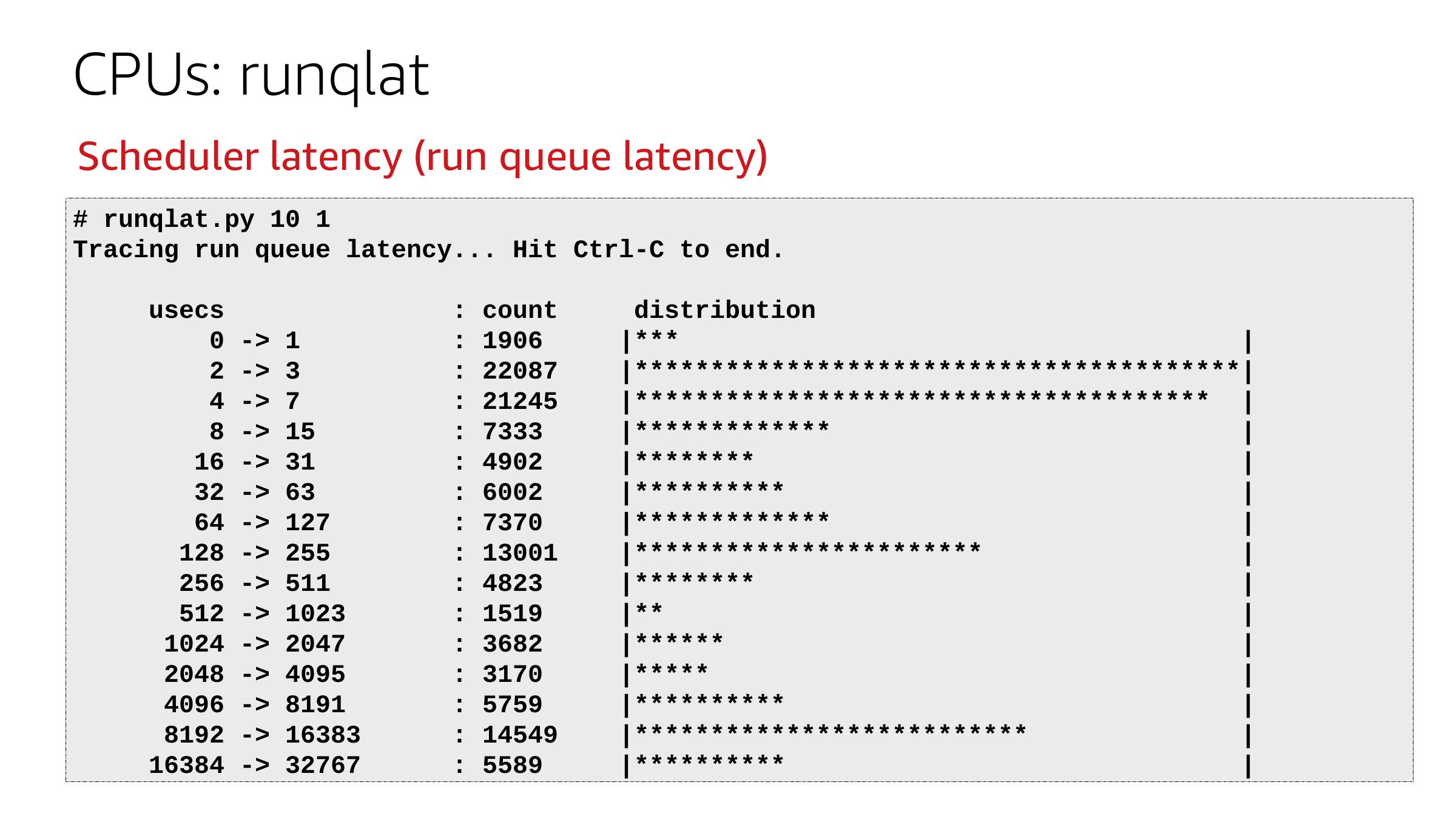

CPUs: runqlat
Scheduler latency (run queue latency)
# runqlat.py 10 1
Tracing run queue latency... Hit Ctrl-C to end.
usecs
0 ->gt; 1
2 ->gt; 3
4 ->gt; 7
8 ->gt; 15
16 ->gt; 31
32 ->gt; 63
64 ->gt; 127
128 ->gt; 255
256 ->gt; 511
512 ->gt; 1023
1024 ->gt; 2047
2048 ->gt; 4095
4096 ->gt; 8191
8192 ->gt; 16383
16384 ->gt; 32767
: count
: 1906
: 22087
: 21245
: 7333
: 4902
: 6002
: 7370
: 13001
: 4823
: 1519
: 3682
: 3170
: 5759
: 14549
: 5589
distribution
|***
|****************************************|
|************************************** |
|*************
|********
|**********
|*************
|***********************
|********
|**
|******
|*****
|**********
|**************************
|**********

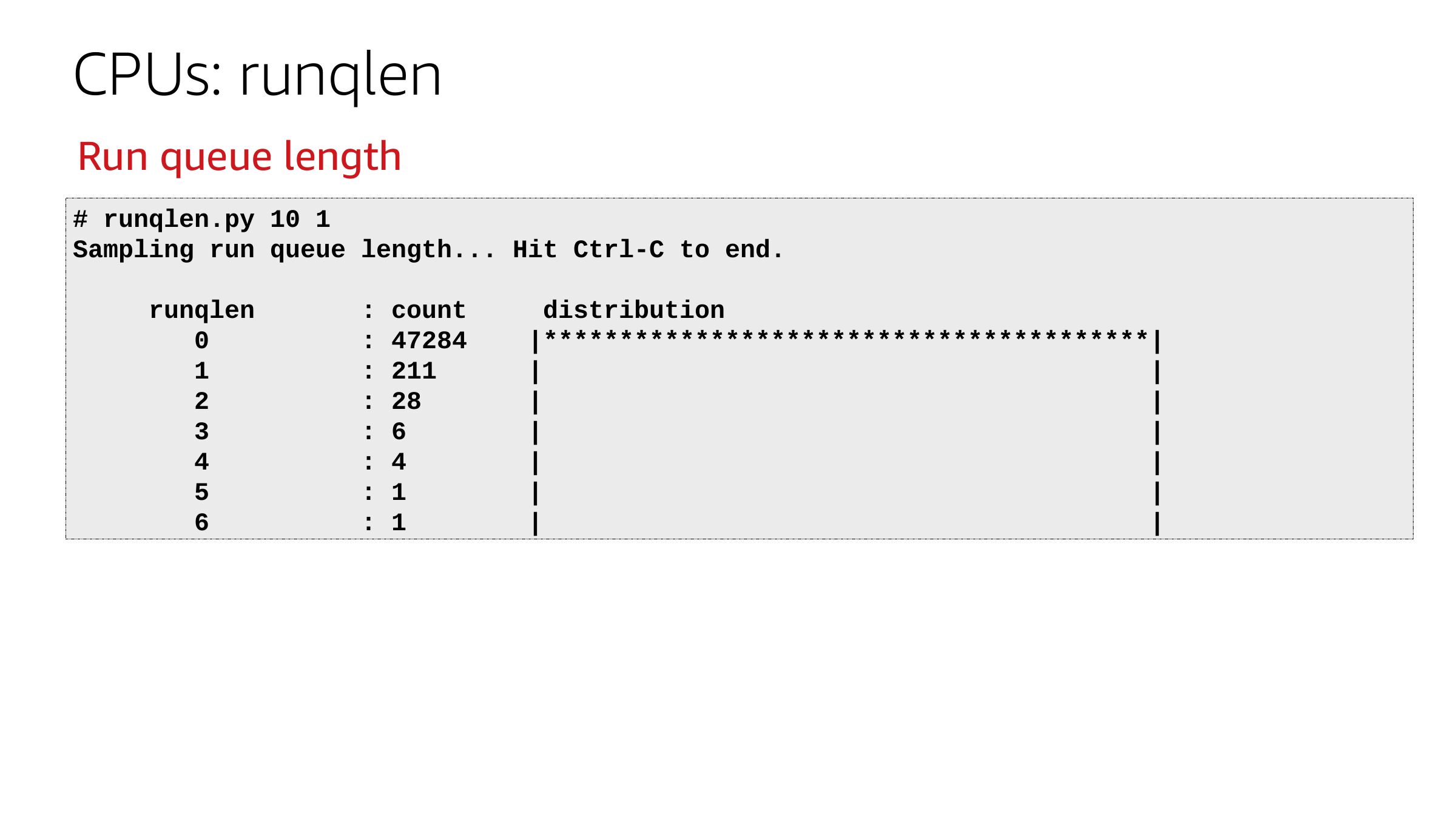

CPUs: runqlen
Run queue length
# runqlen.py 10 1
Sampling run queue length... Hit Ctrl-C to end.
runqlen
: count
: 47284
: 211
: 28
: 6
: 4
: 1
: 1
distribution
|****************************************|

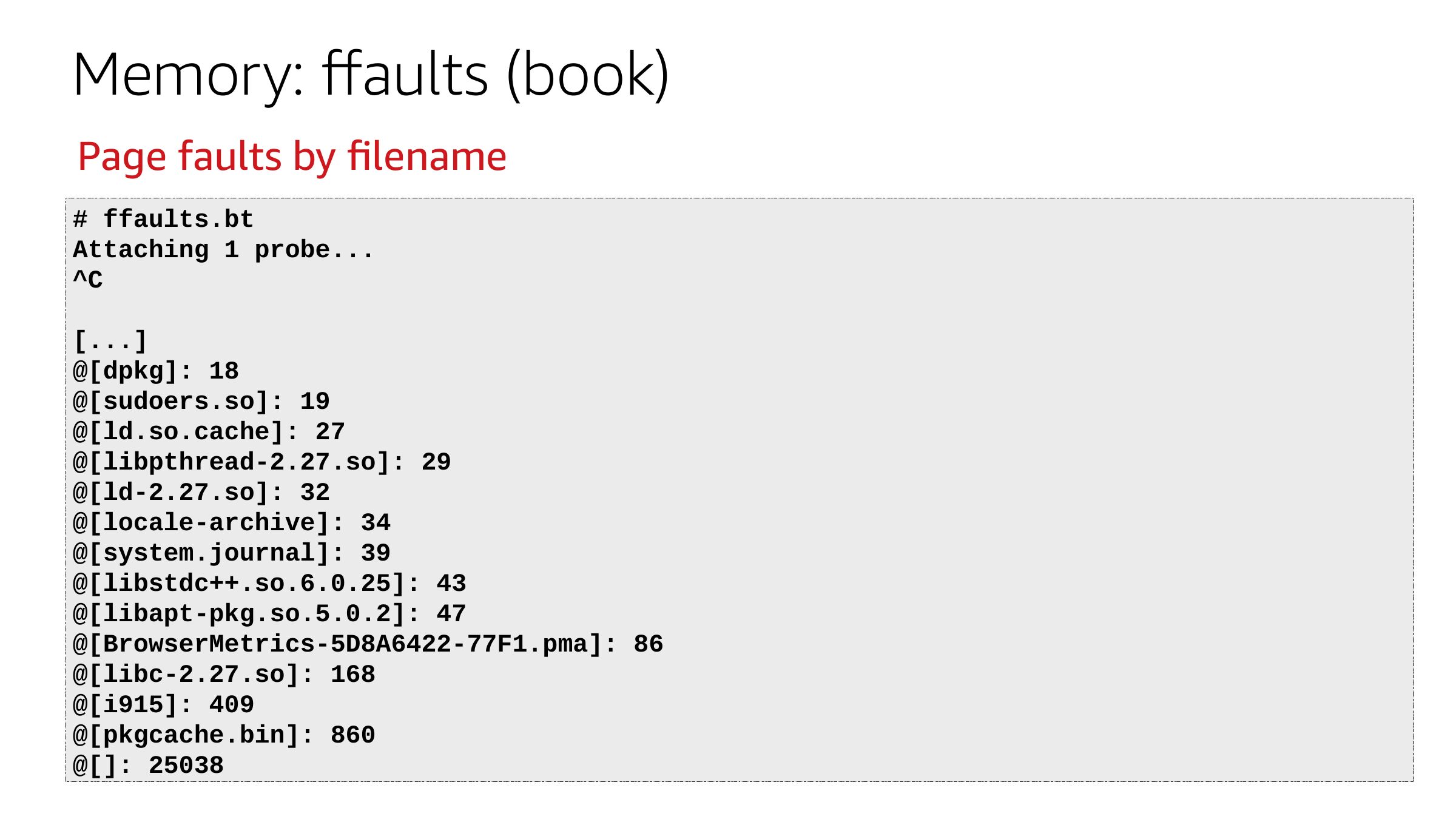

Memory: ffaults (book)
Page faults by filename
# ffaults.bt
Attaching 1 probe...
[...]
@[dpkg]: 18
@[sudoers.so]: 19
@[ld.so.cache]: 27
@[libpthread-2.27.so]: 29
@[ld-2.27.so]: 32
@[locale-archive]: 34
@[system.journal]: 39
@[libstdc++.so.6.0.25]: 43
@[libapt-pkg.so.5.0.2]: 47
@[BrowserMetrics-5D8A6422-77F1.pma]: 86
@[libc-2.27.so]: 168
@[i915]: 409
@[pkgcache.bin]: 860
@[]: 25038

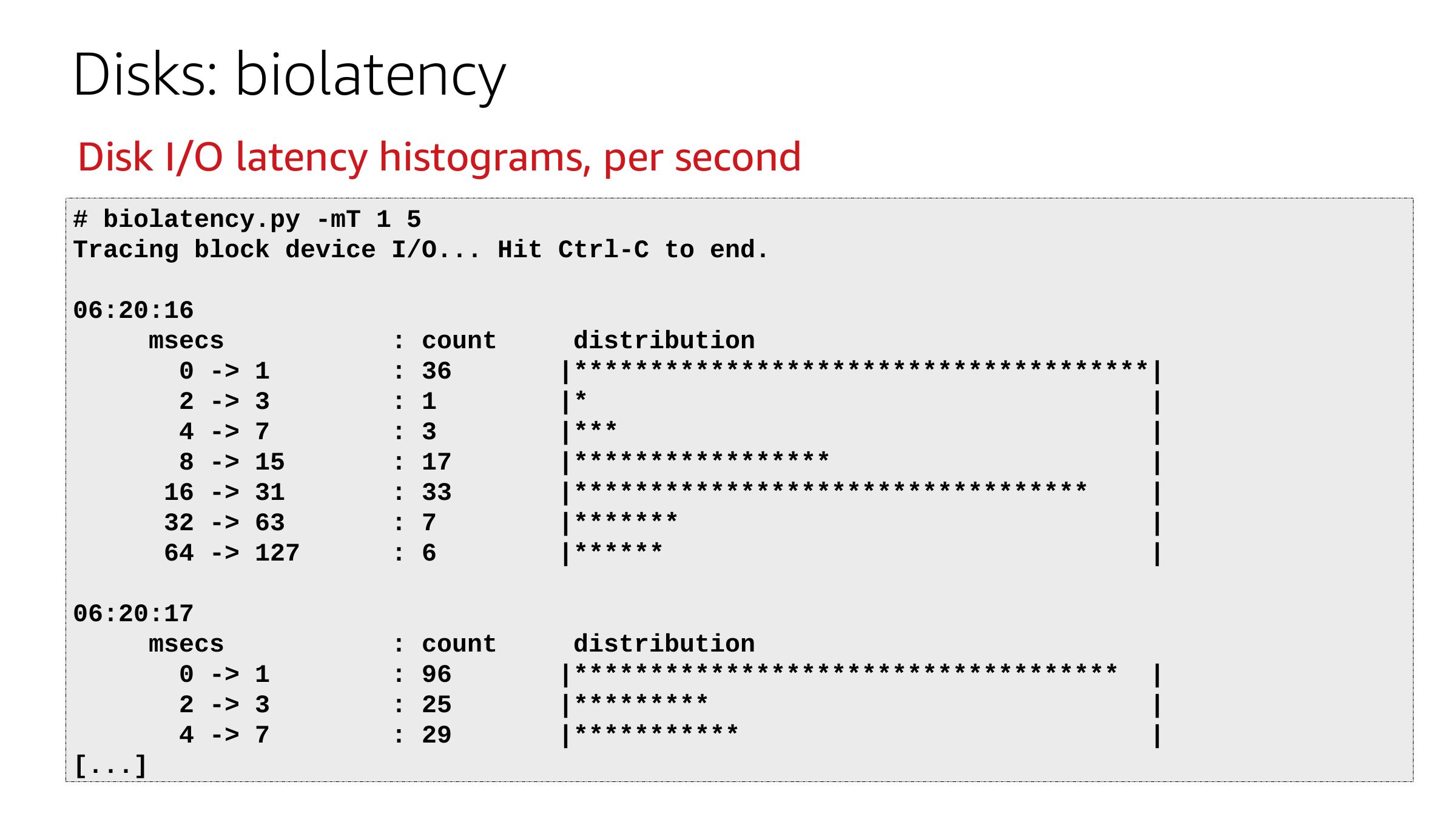

Disks: biolatency
Disk I/O latency histograms, per second
# biolatency.py -mT 1 5
Tracing block device I/O... Hit Ctrl-C to end.
06:20:16
msecs
0 ->gt; 1
2 ->gt; 3
4 ->gt; 7
8 ->gt; 15
16 ->gt; 31
32 ->gt; 63
64 ->gt; 127
06:20:17
msecs
0 ->gt; 1
2 ->gt; 3
4 ->gt; 7
[...]
: count
: 36
: 1
: 3
: 17
: 33
: 7
: 6
distribution
|**************************************|
|***
|*****************
|**********************************
|*******
|******
: count
: 96
: 25
: 29
distribution
|************************************
|*********
|***********

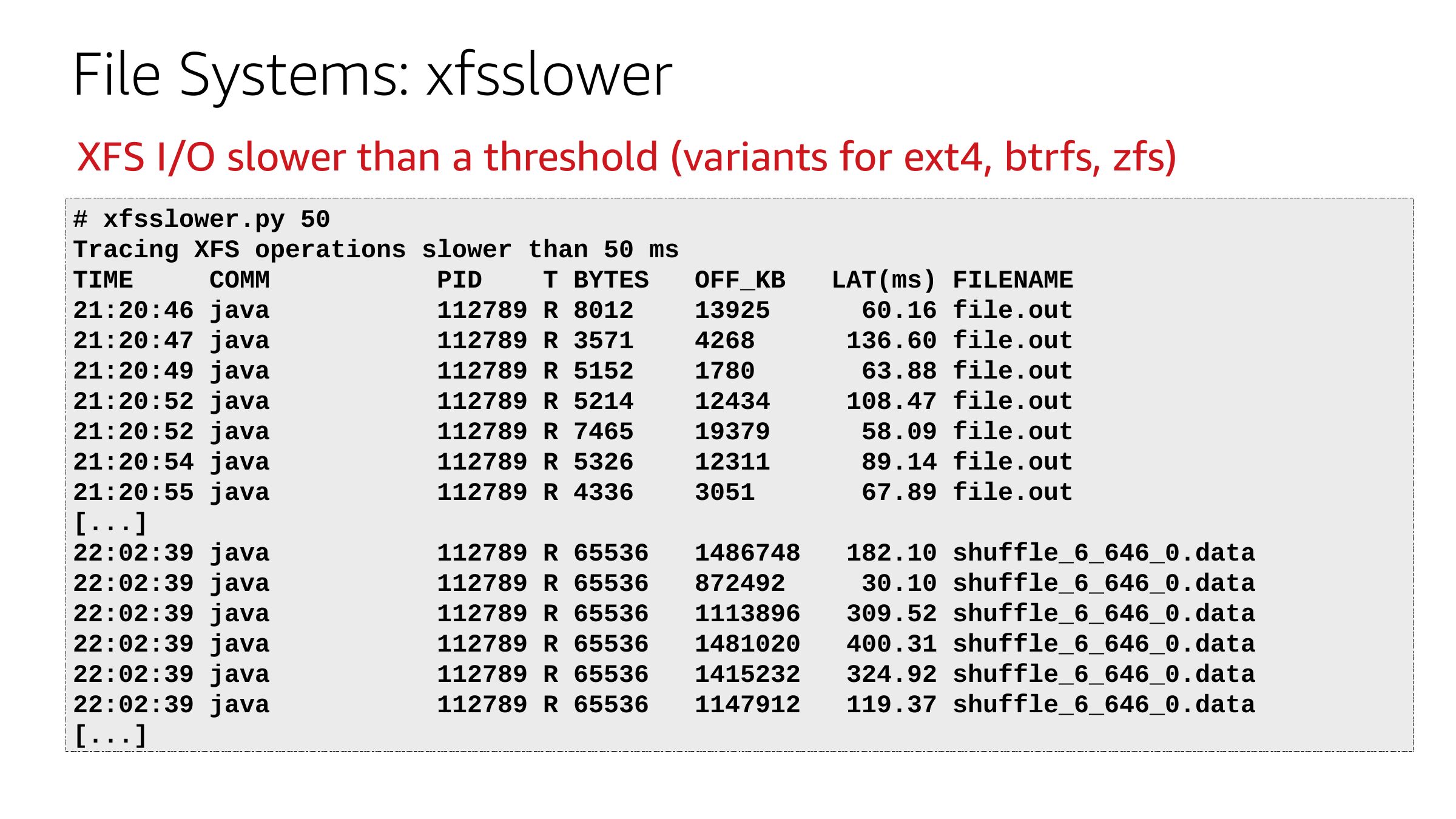

File Systems: xfsslower
XFS I/O slower than a threshold (variants for ext4, btrfs, zfs)
# xfsslower.py 50
Tracing XFS operations slower than 50 ms
TIME
COMM
PID
T BYTES
OFF_KB
21:20:46 java
112789 R 8012
21:20:47 java
112789 R 3571
21:20:49 java
112789 R 5152
21:20:52 java
112789 R 5214
21:20:52 java
112789 R 7465
21:20:54 java
112789 R 5326
21:20:55 java
112789 R 4336
[...]
22:02:39 java
112789 R 65536
22:02:39 java
112789 R 65536
22:02:39 java
112789 R 65536
22:02:39 java
112789 R 65536
22:02:39 java
112789 R 65536
22:02:39 java
112789 R 65536
[...]
LAT(ms) FILENAME
60.16 file.out
136.60 file.out
63.88 file.out
108.47 file.out
58.09 file.out
89.14 file.out
67.89 file.out
182.10 shuffle_6_646_0.data
30.10 shuffle_6_646_0.data
309.52 shuffle_6_646_0.data
400.31 shuffle_6_646_0.data
324.92 shuffle_6_646_0.data
119.37 shuffle_6_646_0.data

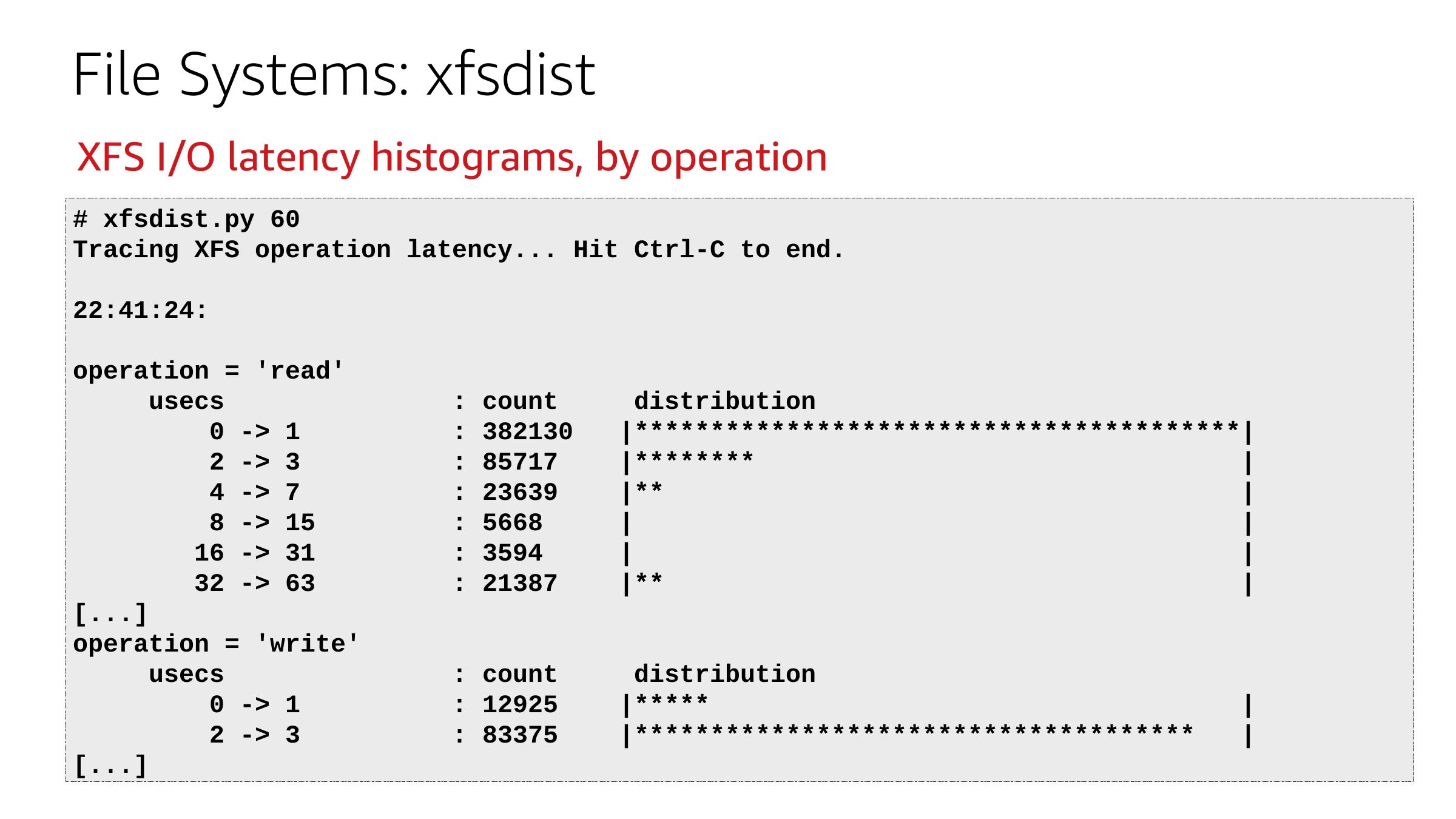

File Systems: xfsdist
XFS I/O latency histograms, by operation
# xfsdist.py 60
Tracing XFS operation latency... Hit Ctrl-C to end.
22:41:24:
operation = 'read'
usecs
0 ->gt; 1
2 ->gt; 3
4 ->gt; 7
8 ->gt; 15
16 ->gt; 31
32 ->gt; 63
[...]
operation = 'write'
usecs
0 ->gt; 1
2 ->gt; 3
[...]
: count
: 382130
: 85717
: 23639
: 5668
: 3594
: 21387
distribution
|****************************************|
|********
|**
|**
: count
: 12925
: 83375
distribution
|*****
|*************************************

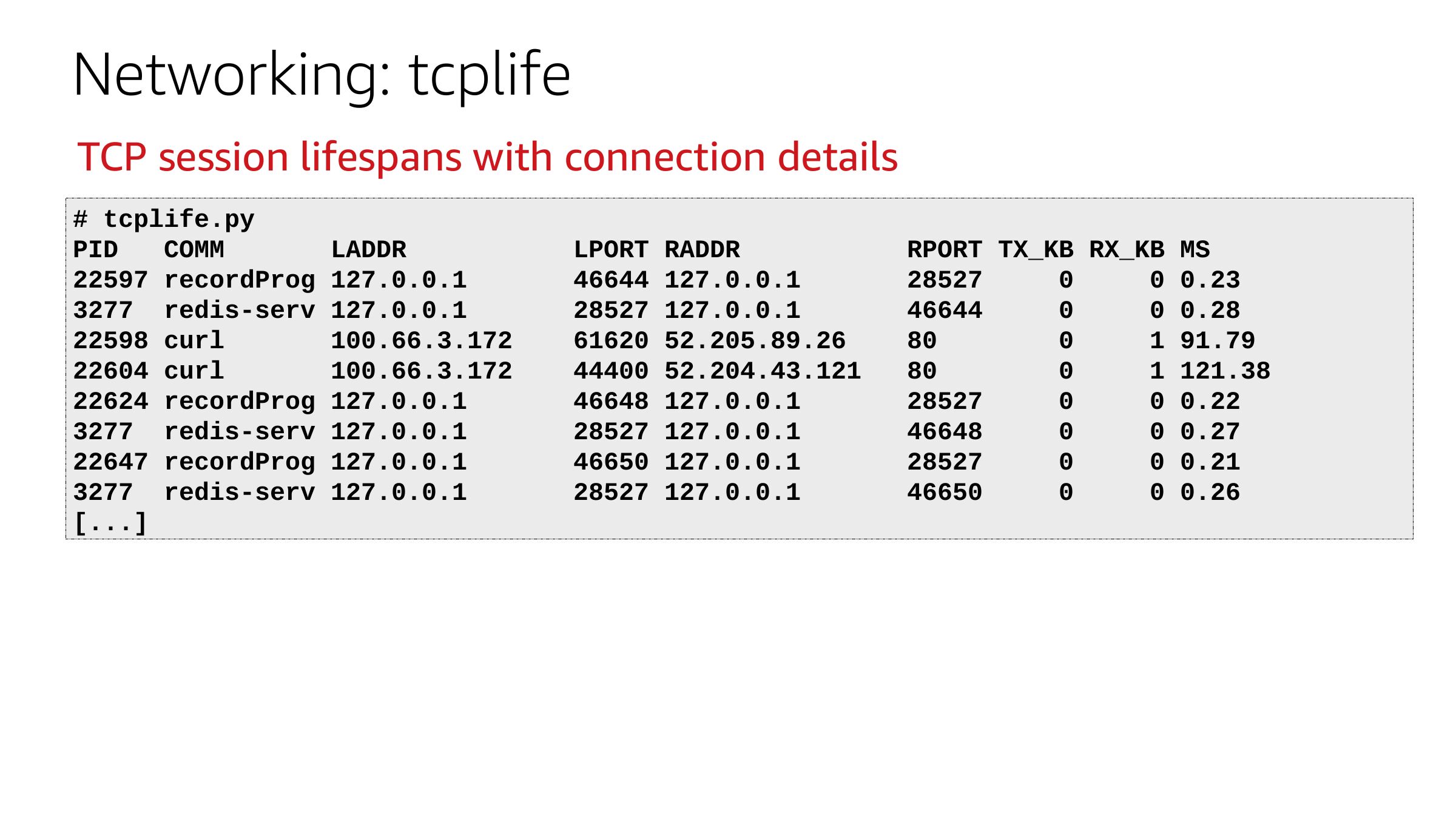

Networking: tcplife
TCP session lifespans with connection details
# tcplife.py
PID
COMM
LADDR
22597 recordProg 127.0.0.1
3277 redis-serv 127.0.0.1
22598 curl
22604 curl
22624 recordProg 127.0.0.1
3277 redis-serv 127.0.0.1
22647 recordProg 127.0.0.1
3277 redis-serv 127.0.0.1
[...]
LPORT RADDR
46644 127.0.0.1
28527 127.0.0.1
61620 52.205.89.26
44400 52.204.43.121
46648 127.0.0.1
28527 127.0.0.1
46650 127.0.0.1
28527 127.0.0.1
RPORT TX_KB RX_KB MS
0 0.23
0 0.28
1 91.79
1 121.38
0 0.22
0 0.27
0 0.21
0 0.26

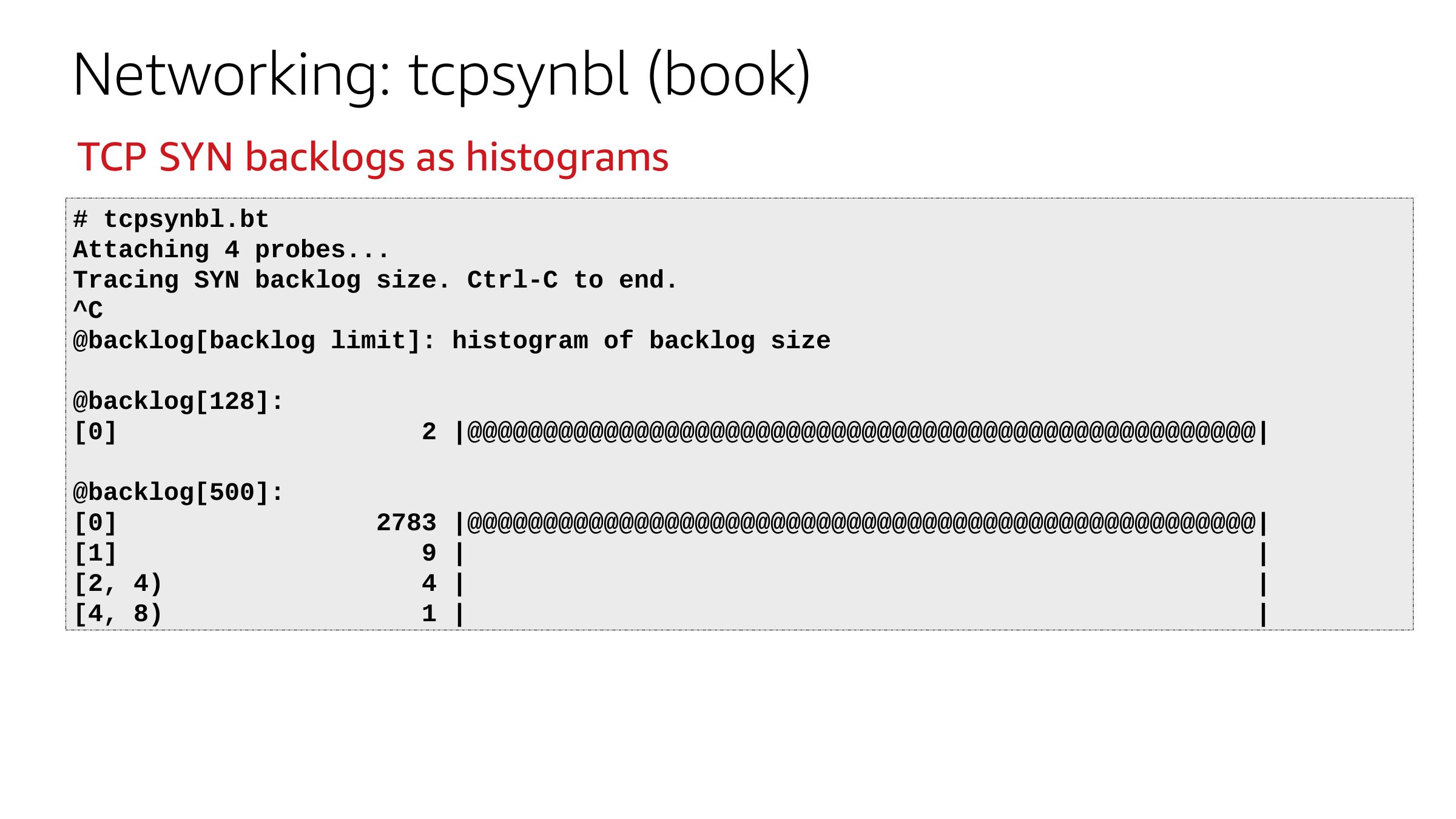

Networking: tcpsynbl (book)
TCP SYN backlogs as histograms
# tcpsynbl.bt
Attaching 4 probes...
Tracing SYN backlog size. Ctrl-C to end.
@backlog[backlog limit]: histogram of backlog size
@backlog[128]:
[0]
2 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@|
@backlog[500]:
[0]
[1]
[2, 4)
[4, 8)
2783 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@|
9 |
4 |
1 |

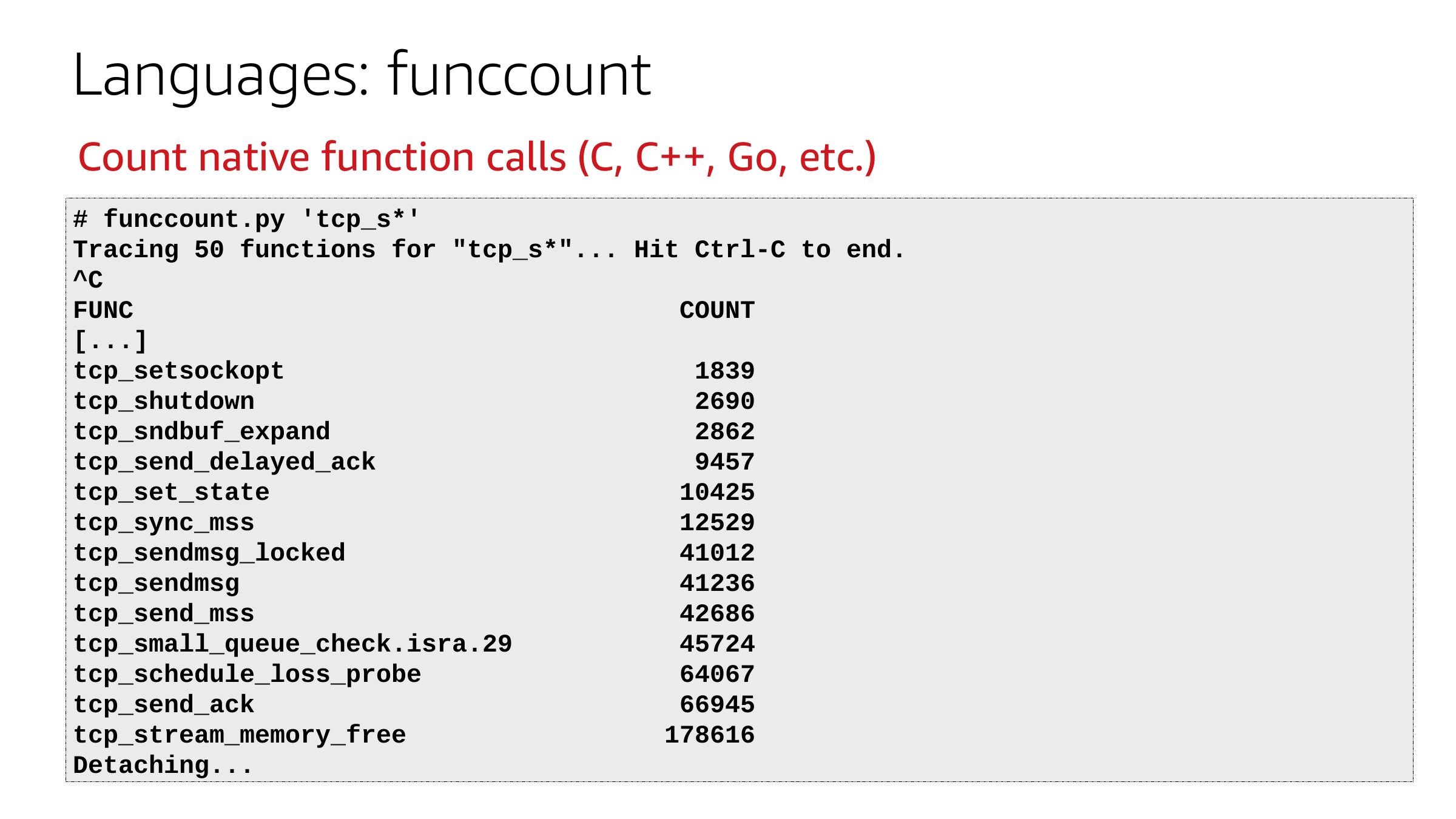

Languages: funccount
Count native function calls (C, C++, Go, etc.)
# funccount.py 'tcp_s*'
Tracing 50 functions for "tcp_s*"... Hit Ctrl-C to end.
FUNC
COUNT
[...]
tcp_setsockopt
tcp_shutdown
tcp_sndbuf_expand
tcp_send_delayed_ack
tcp_set_state
tcp_sync_mss
tcp_sendmsg_locked
tcp_sendmsg
tcp_send_mss
tcp_small_queue_check.isra.29
tcp_schedule_loss_probe
tcp_send_ack
tcp_stream_memory_free
Detaching...

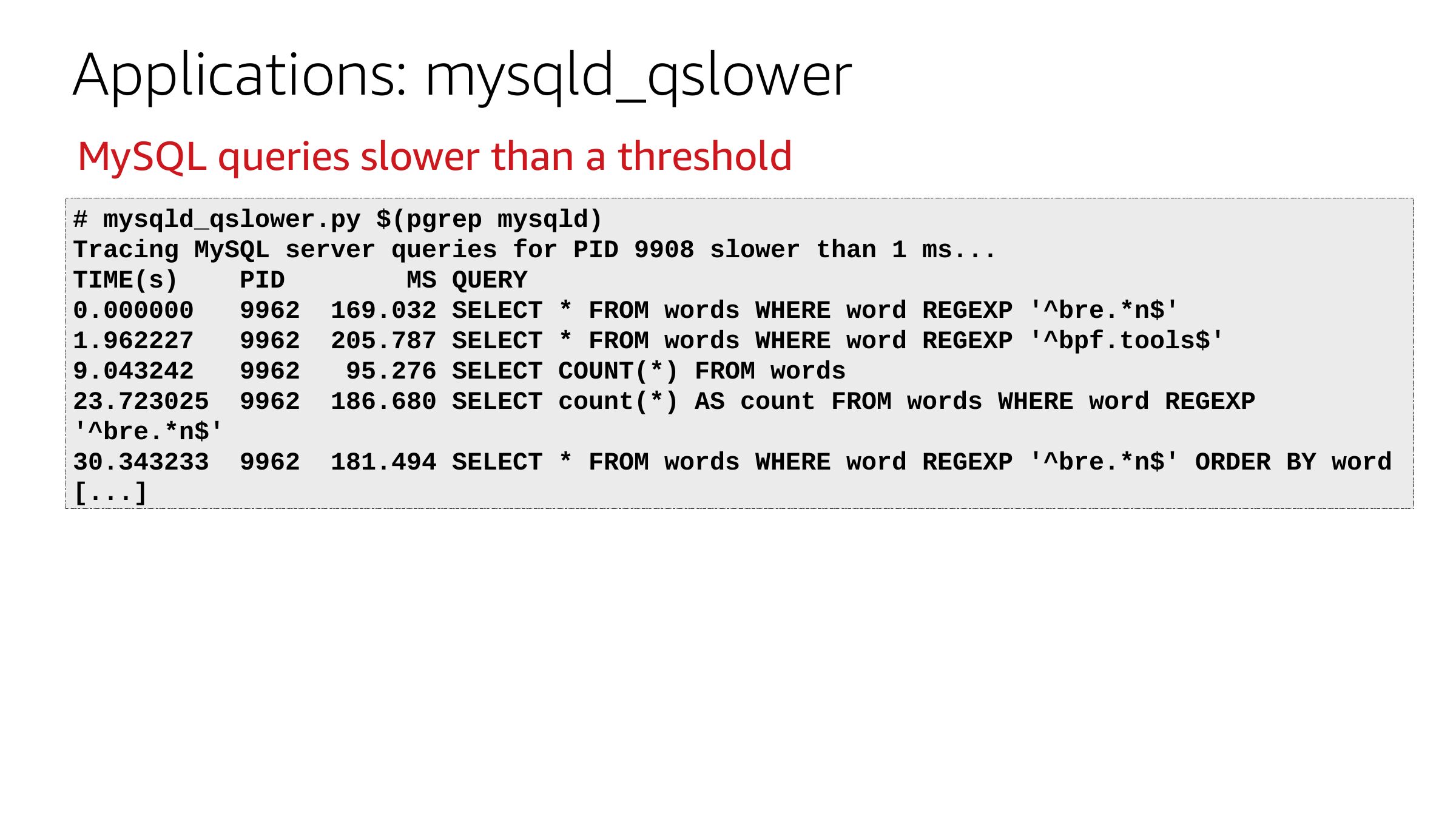

Applications: mysqld_qslower
MySQL queries slower than a threshold
# mysqld_qslower.py $(pgrep mysqld)
Tracing MySQL server queries for PID 9908 slower than 1 ms...
TIME(s)
PID
MS QUERY
9962 169.032 SELECT * FROM words WHERE word REGEXP '^bre.*n$'
9962 205.787 SELECT * FROM words WHERE word REGEXP '^bpf.tools$'
95.276 SELECT COUNT(*) FROM words
23.723025 9962 186.680 SELECT count(*) AS count FROM words WHERE word REGEXP
'^bre.*n$'
30.343233 9962 181.494 SELECT * FROM words WHERE word REGEXP '^bre.*n$' ORDER BY word
[...]

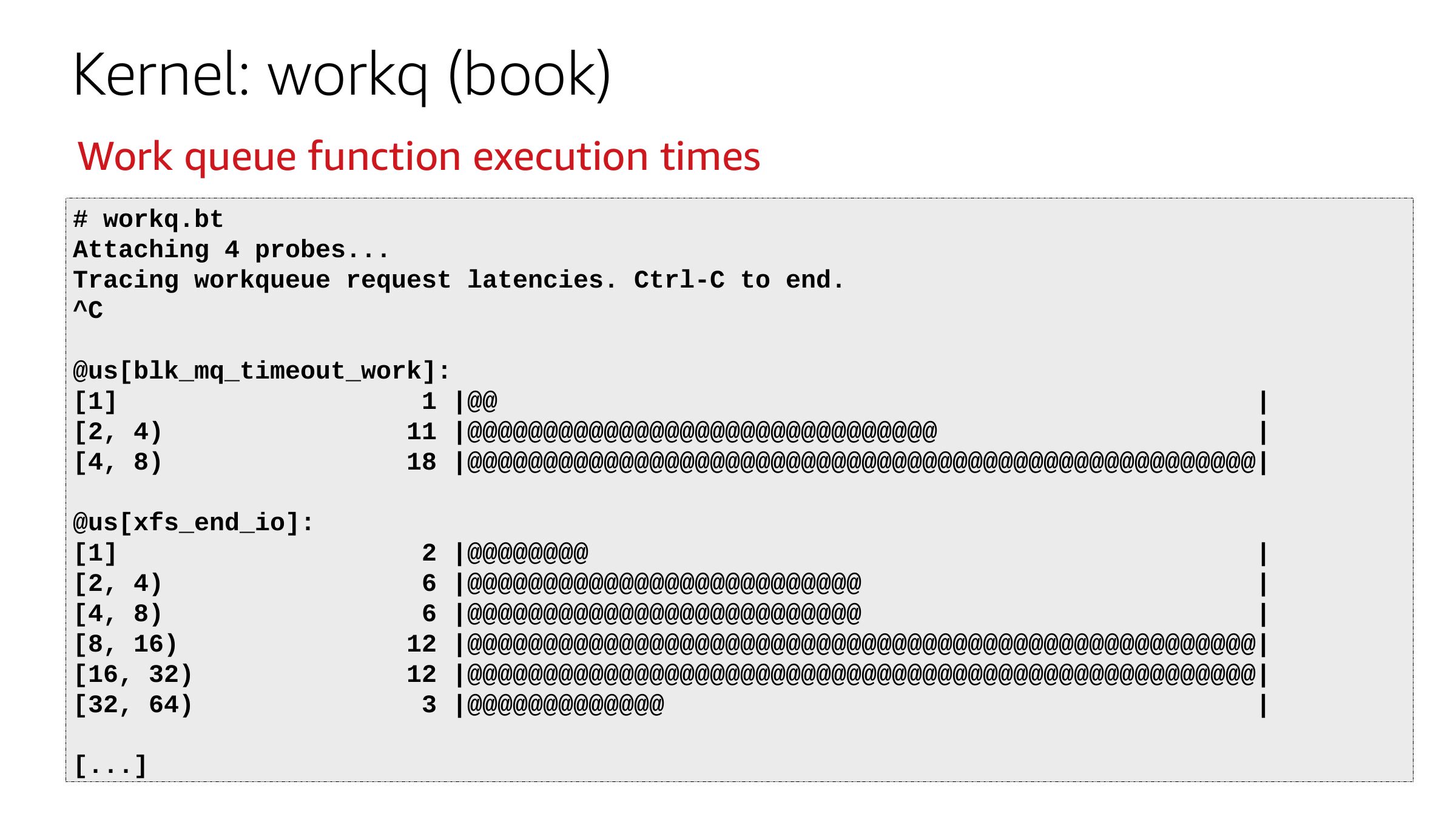

Kernel: workq (book)
Work queue function execution times
# workq.bt
Attaching 4 probes...
Tracing workqueue request latencies. Ctrl-C to end.
@us[blk_mq_timeout_work]:
[1]
1 |@@
[2, 4)
11 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
[4, 8)
18 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@|
@us[xfs_end_io]:
[1]
[2, 4)
[4, 8)
[8, 16)
[16, 32)
[32, 64)
[...]
2 |@@@@@@@@
6 |@@@@@@@@@@@@@@@@@@@@@@@@@@
6 |@@@@@@@@@@@@@@@@@@@@@@@@@@
12 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@|
12 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@|
3 |@@@@@@@@@@@@@

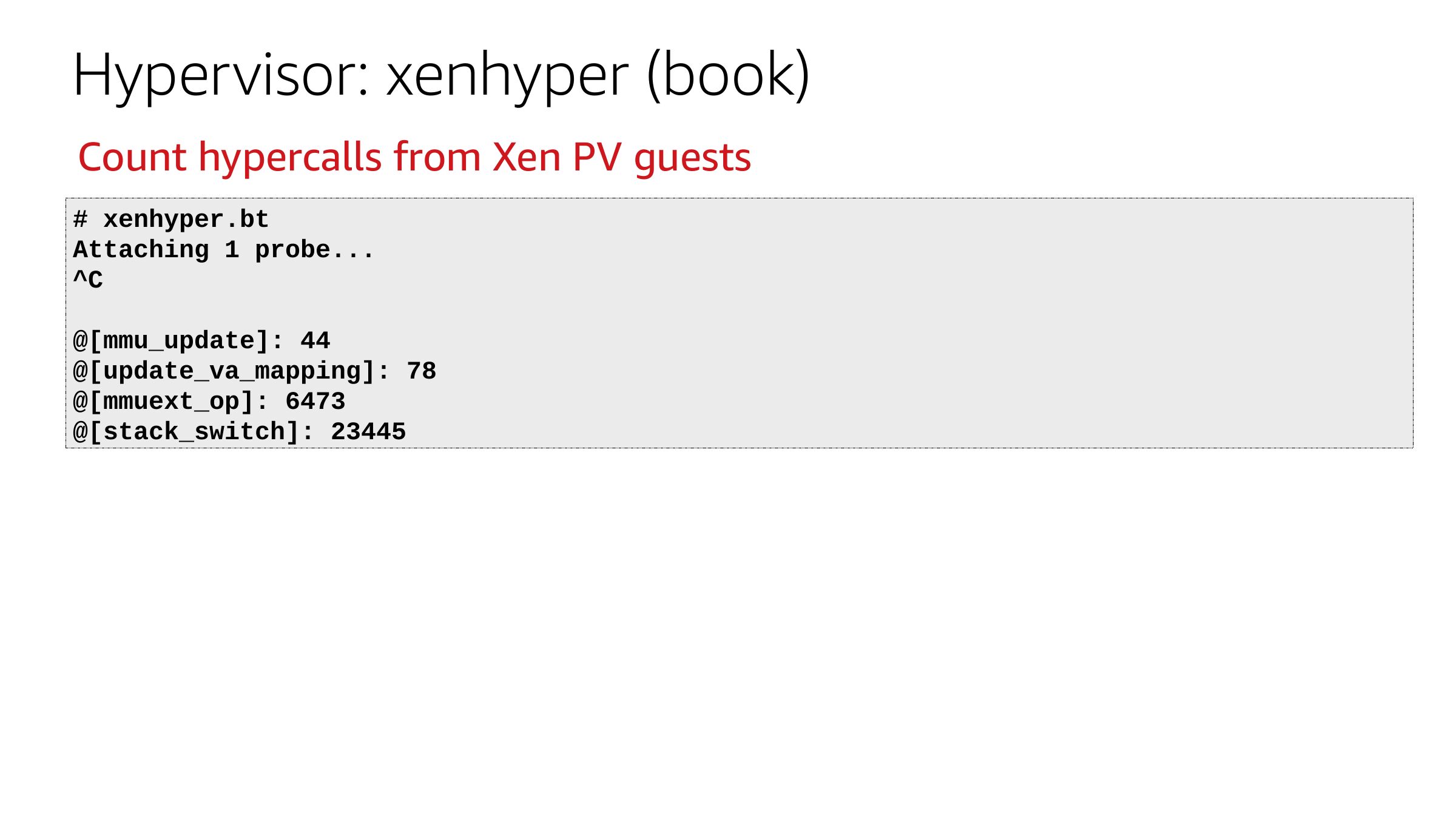

Hypervisor: xenhyper (book)
Count hypercalls from Xen PV guests
# xenhyper.bt
Attaching 1 probe...
@[mmu_update]: 44
@[update_va_mapping]: 78
@[mmuext_op]: 6473
@[stack_switch]: 23445

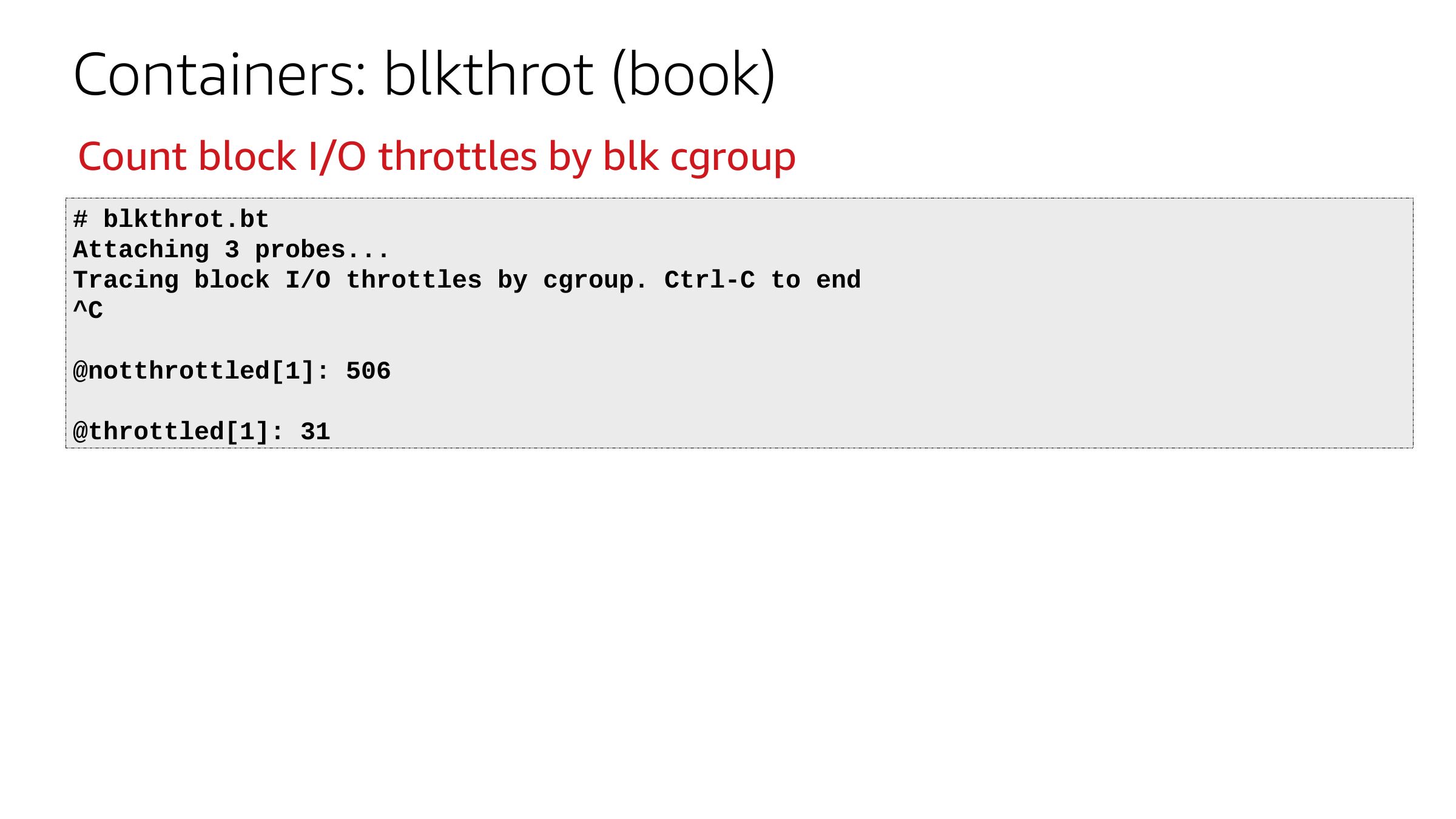

Containers: blkthrot (book)
Count block I/O throttles by blk cgroup
# blkthrot.bt
Attaching 3 probes...
Tracing block I/O throttles by cgroup. Ctrl-C to end
@notthrottled[1]: 506
@throttled[1]: 31

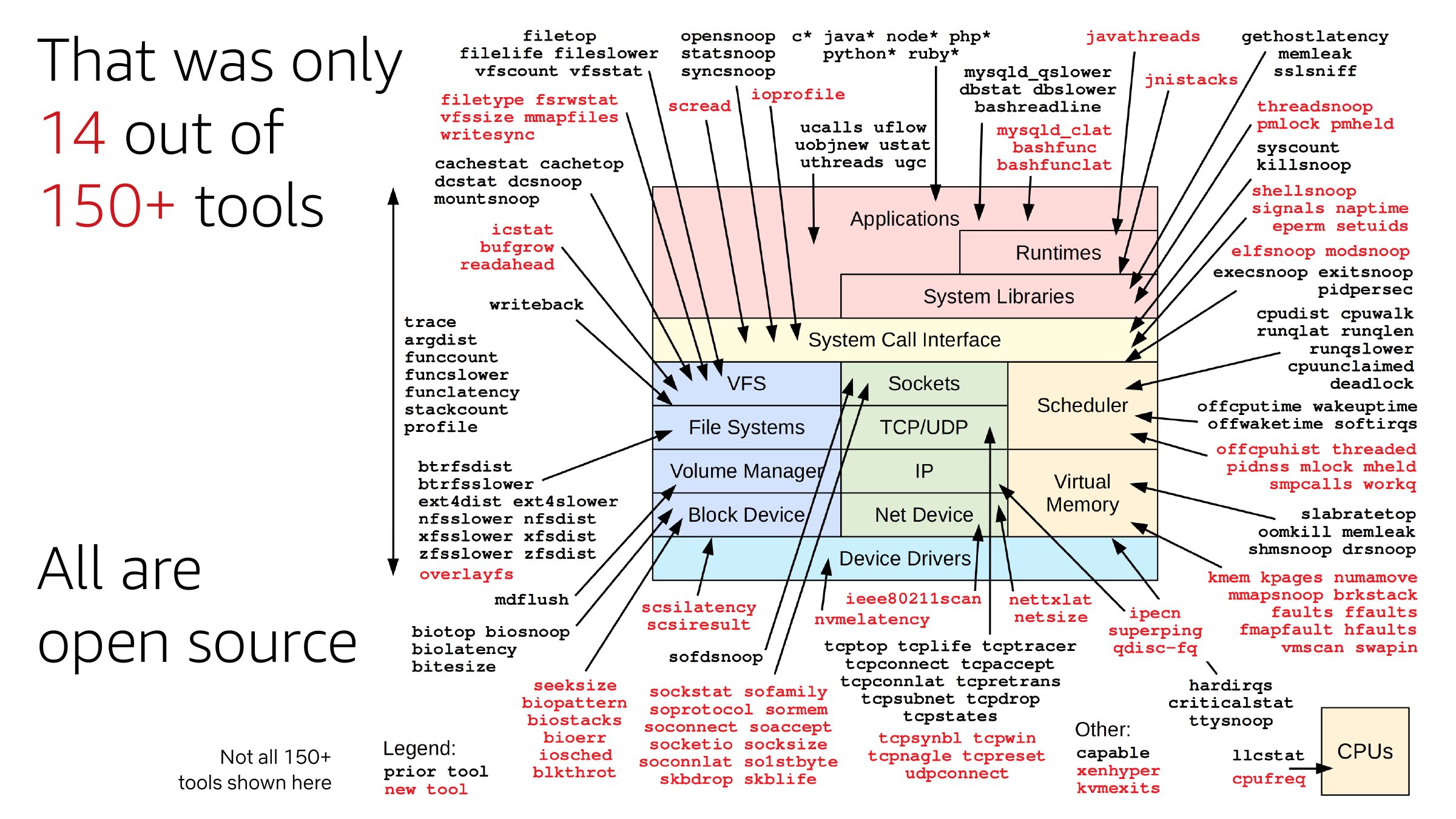

That was only
14 out of
150+ tools
All are
open source
Not all 150+
tools shown here

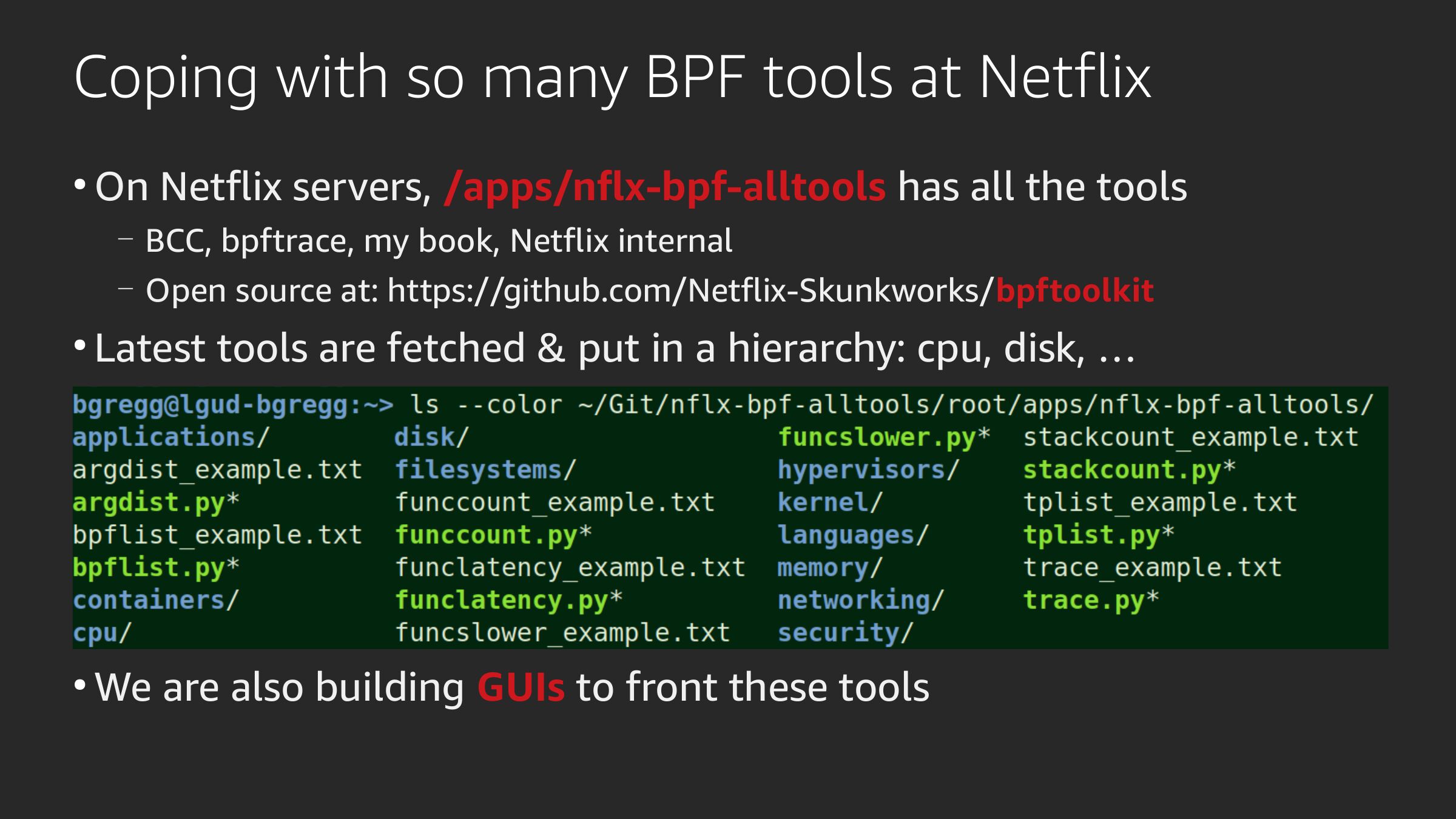

Coping with so many BPF tools at Netflix
On Netflix servers, /apps/nflx-bpf-alltools has all the tools
BCC, bpftrace, my book, Netflix internal
Open source at: https://github.com/Netflix-Skunkworks/bpftoolkit
Latest tools are fetched & put in a hierarchy: cpu, disk, …
We are also building GUIs to front these tools

Tool Development
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

Only one engineer at your company
needs to learn tool development
They can turn everyone’s ideas into tools

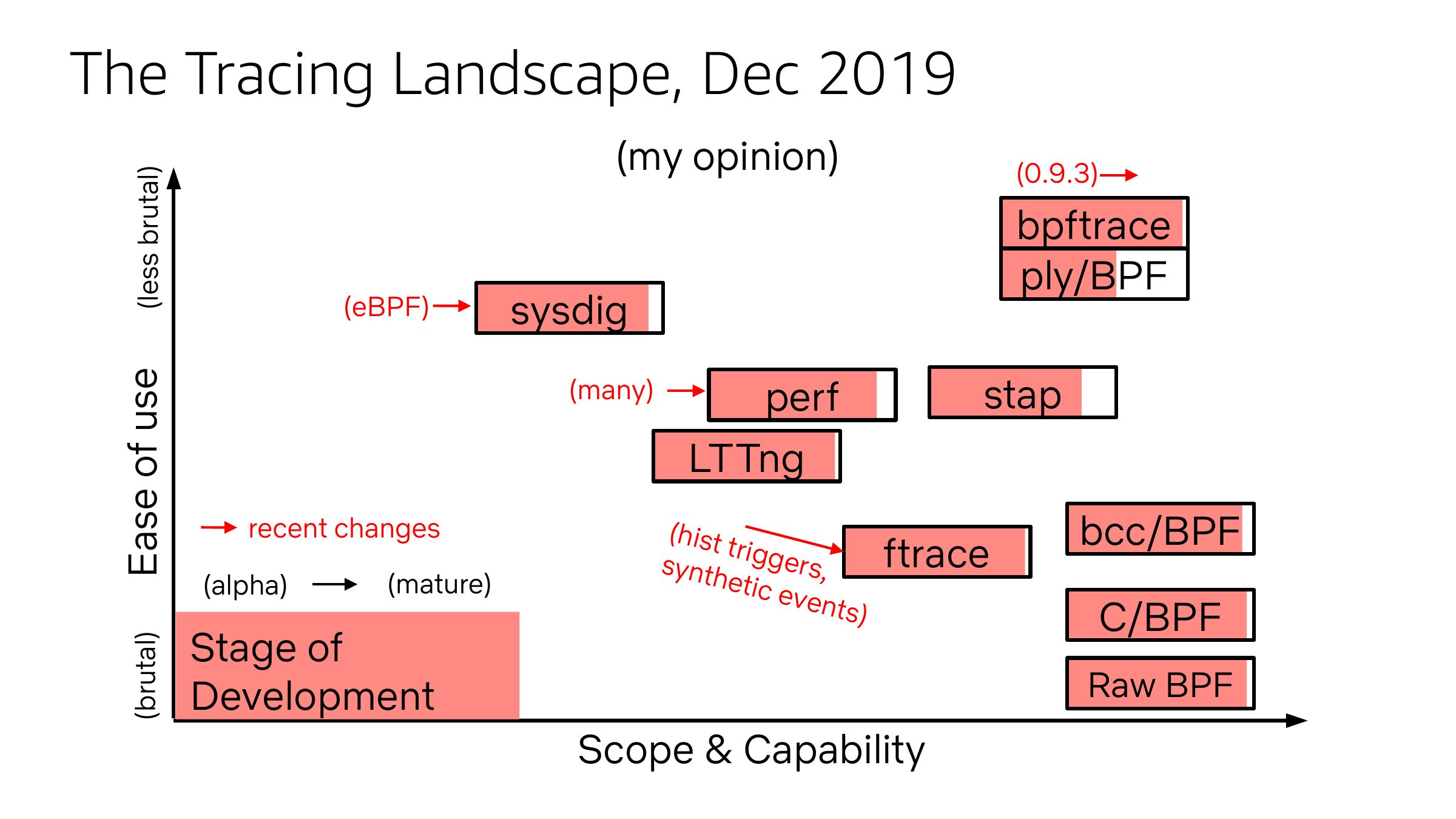

The Tracing Landscape, Dec 2019
(brutal)
Ease of use
(less brutal)
(my opinion)
(eBPF)
(0.9.3)
bpftrace
ply/BPF
sysdig
(many)
perf
stap
LTTng
recent changes
(alpha)
(mature)
Stage of
Development
(hist
trigg
ftrace
ers,
synth
etic e
vents
bcc/BPF
C/BPF
Raw BPF
Scope & Capability

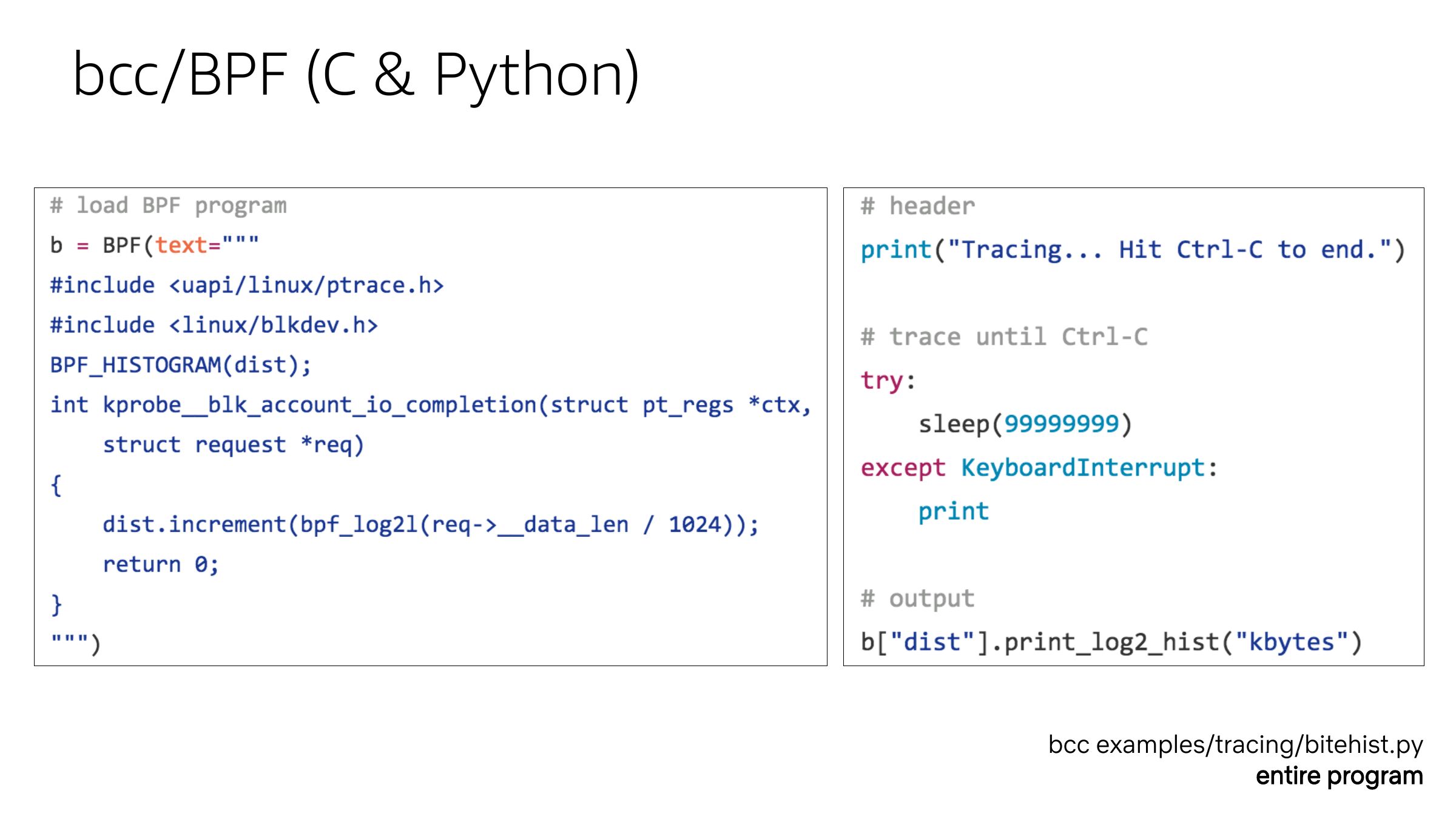

bcc/BPF (C & Python)
bcc examples/tracing/bitehist.py
entire program

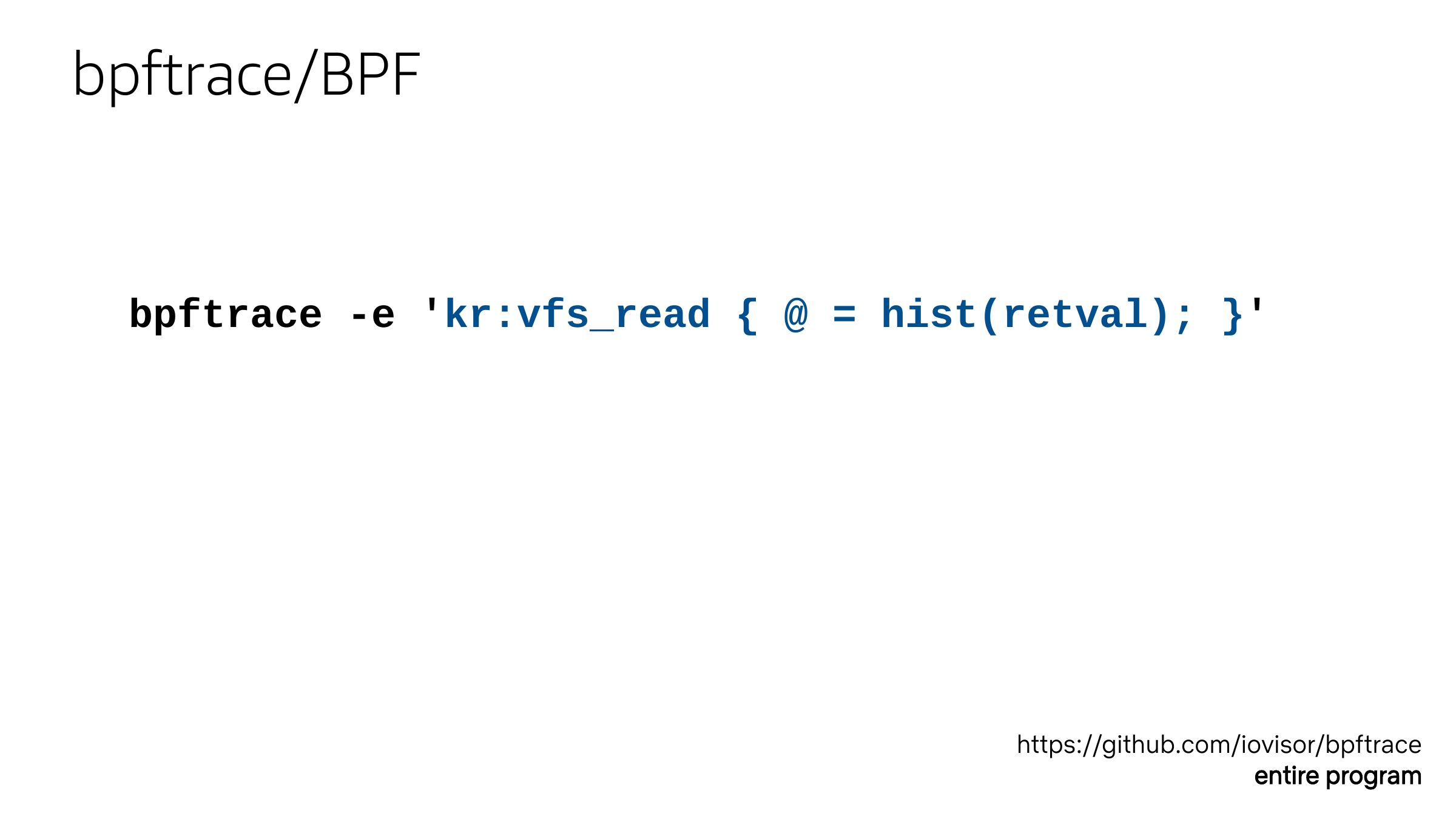

bpftrace/BPF
bpftrace -e 'kr:vfs_read { @ = hist(retval); }'
https://github.com/iovisor/bpftrace
entire program

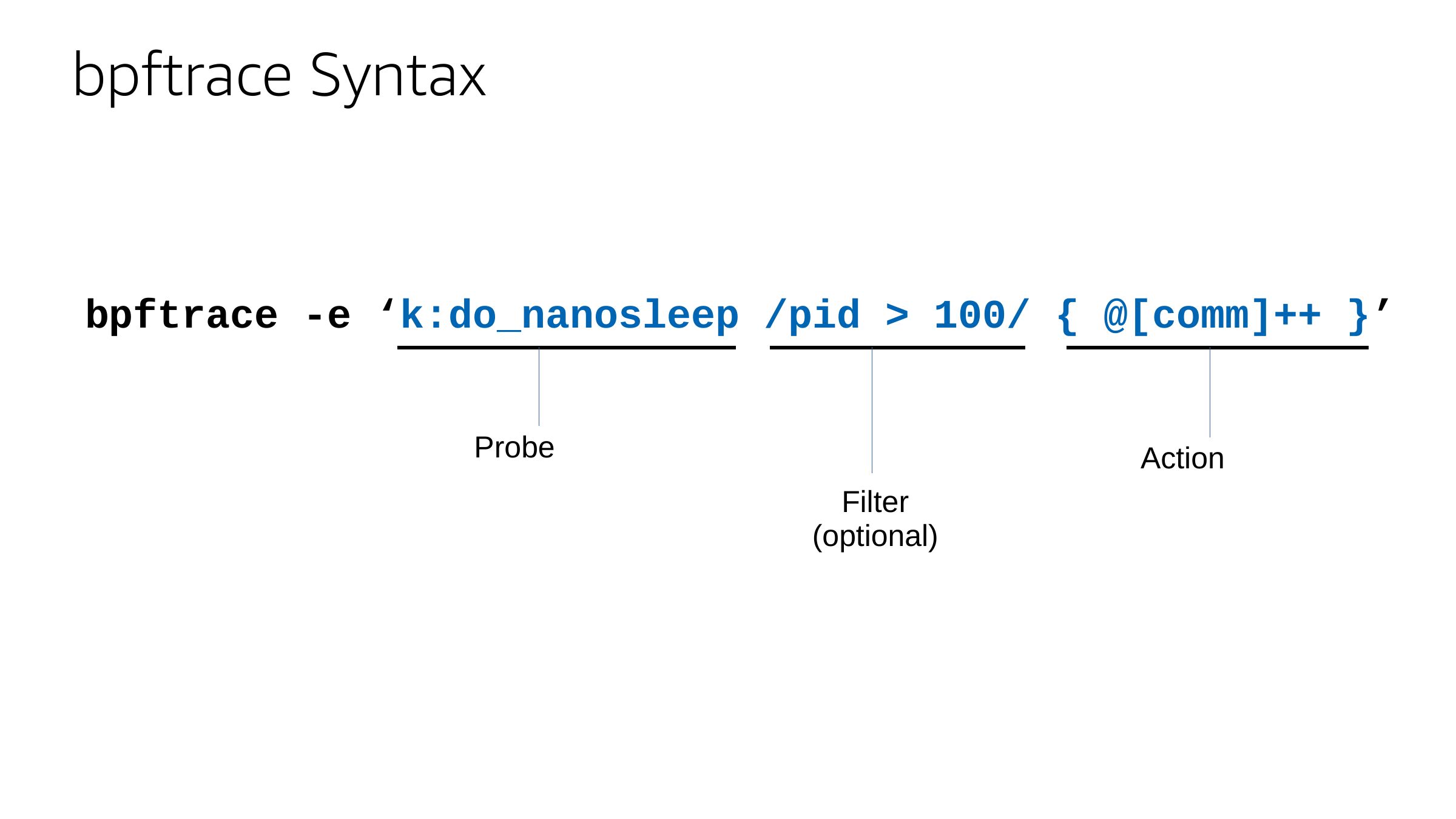

bpftrace Syntax
bpftrace -e ‘k:do_nanosleep /pid >gt; 100/ { @[comm]++ }’
Probe
Action
Filter
(optional)

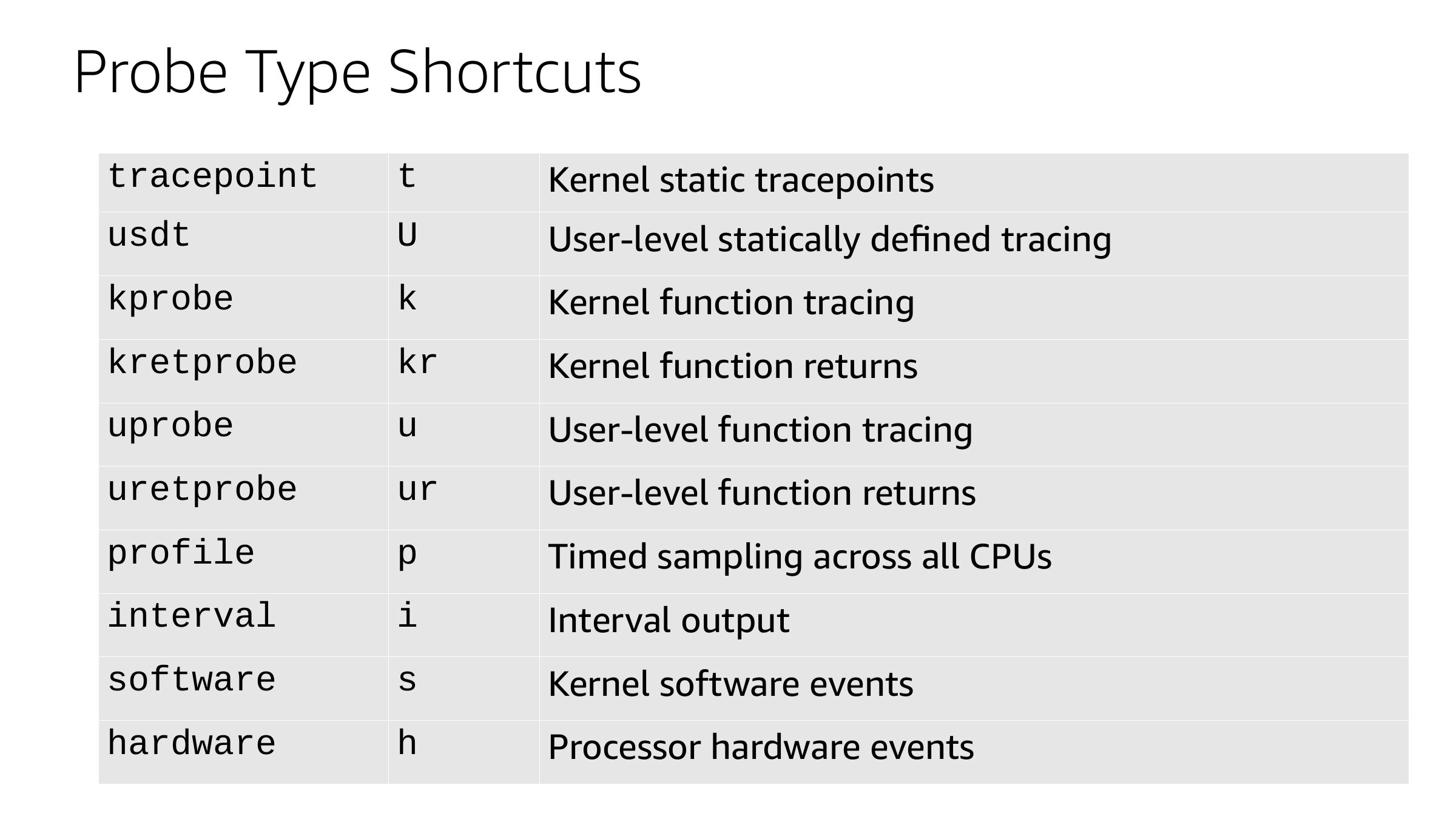

Probe Type Shortcuts
tracepoint
Kernel static tracepoints
usdt
User-level statically defined tracing
kprobe
Kernel function tracing
kretprobe
Kernel function returns
uprobe
User-level function tracing
uretprobe
User-level function returns
profile
Timed sampling across all CPUs
interval
Interval output
software
Kernel software events
hardware
Processor hardware events

Filters
/pid == 181/
/comm != “sshd”/
/@ts[tid]/

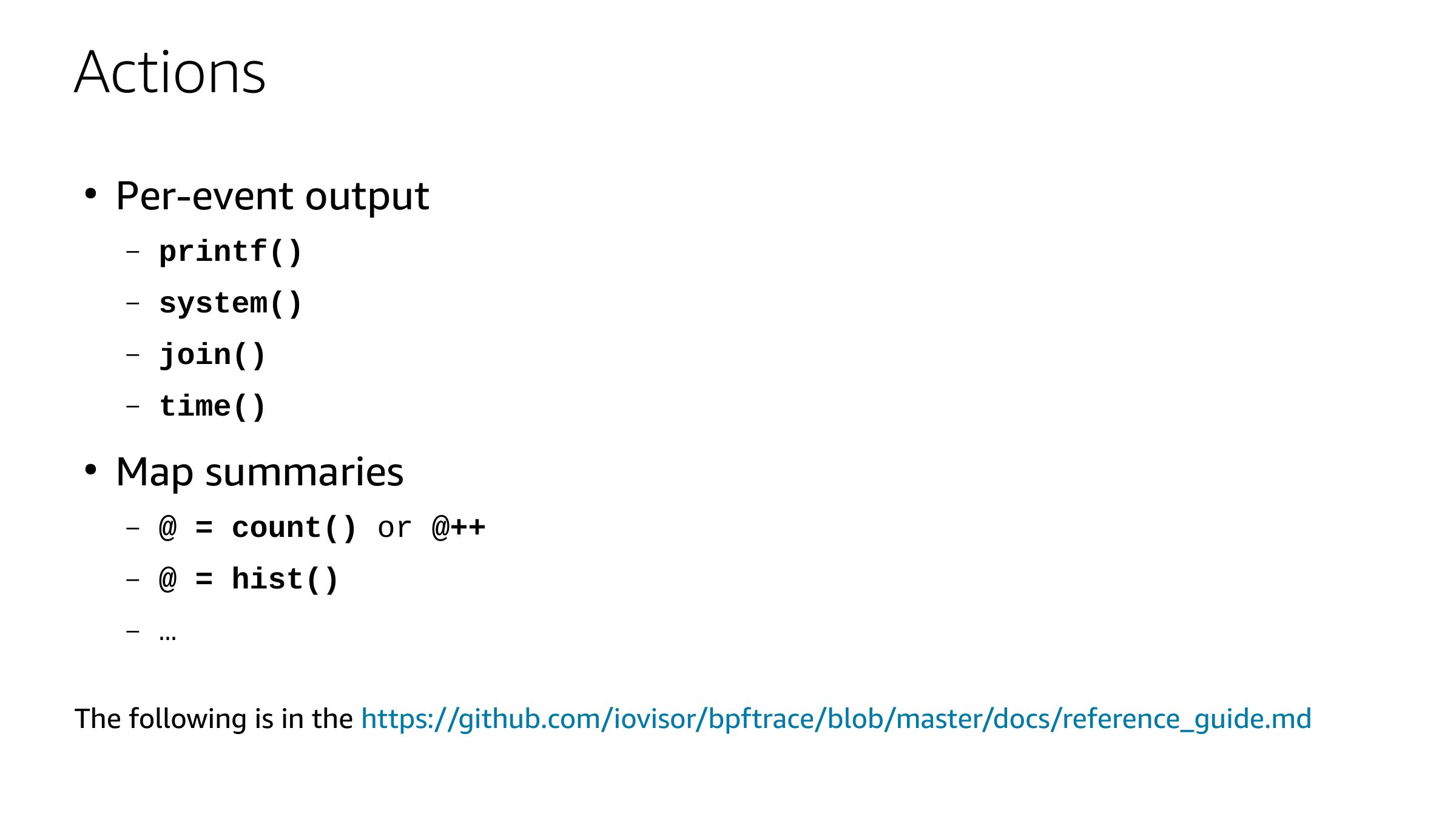

Actions
Per-event output
printf()
system()
join()
time()
Map summaries
@ = count() or @++
@ = hist()
The following is in the https://github.com/iovisor/bpftrace/blob/master/docs/reference_guide.md

Functions
hist(n)
Log2 histogram
Print formatted
printf(fmt, ...)
lhist(n, min, max, step) Linear hist.
print(@x[, top[, div]]) Print map
count()
Count events
delete(@x)
Delete map element
sum(n)
Sum value
clear(@x)
Delete all keys/values
min(n)
Minimum value
Maximum value
Register lookup
max(n)
reg(n)
join(a)
Join string array
time(fmt)
Print formatted time
system(fmt)
Run shell command
avg(n)
stats(n)
Average value
Statistics
str(s)
String
ksym(p)
Resolve kernel addr
cat(file)
Print file contents
usym(p)
Resolve user addr
exit()
Quit bpftrace
kaddr(n)
Resolve kernel symbol
uaddr(n)
Resolve user symbol

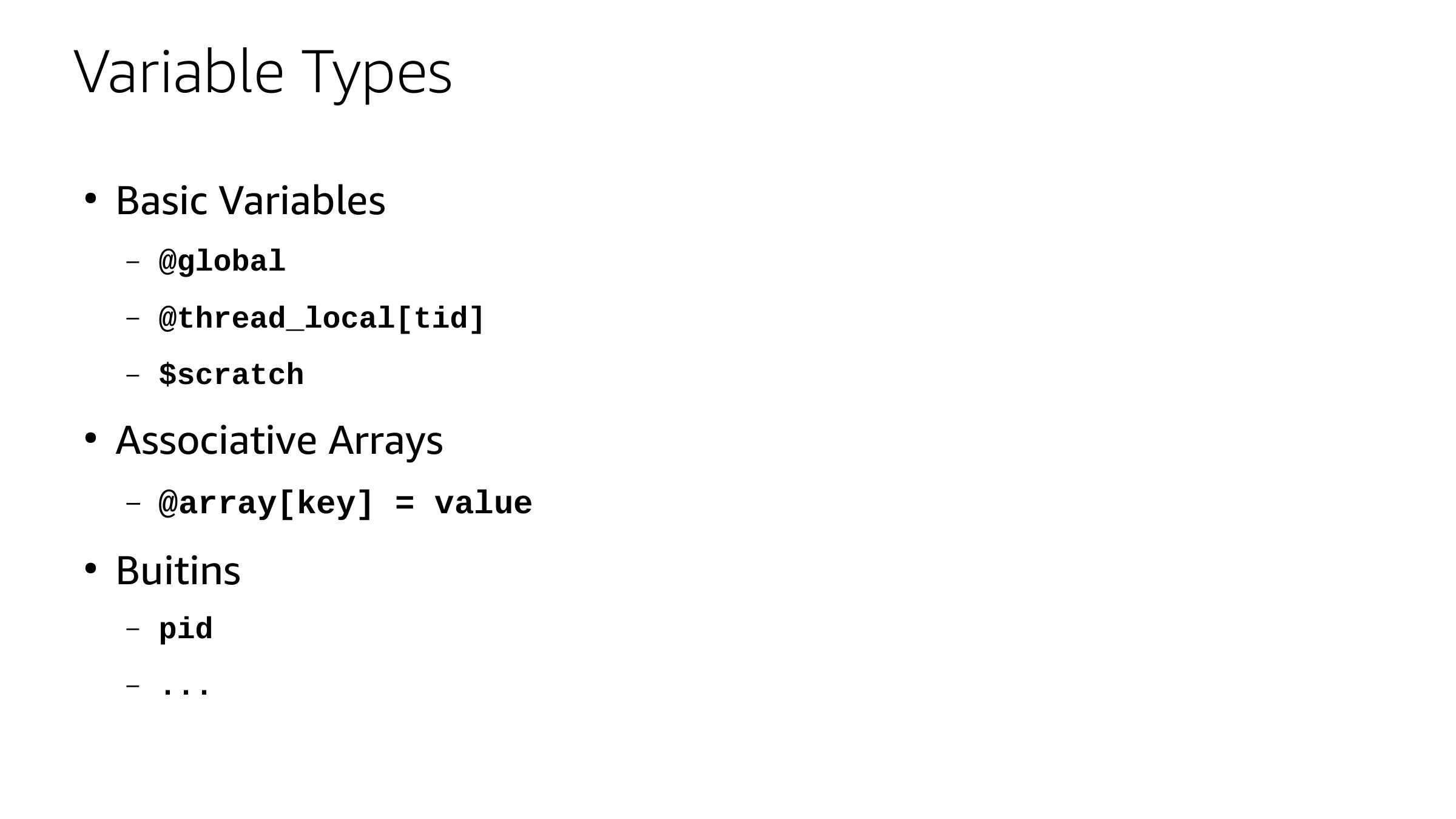

Variable Types
Basic Variables
@global
@thread_local[tid]
$scratch
Associative Arrays
@array[key] = value
Buitins
pid

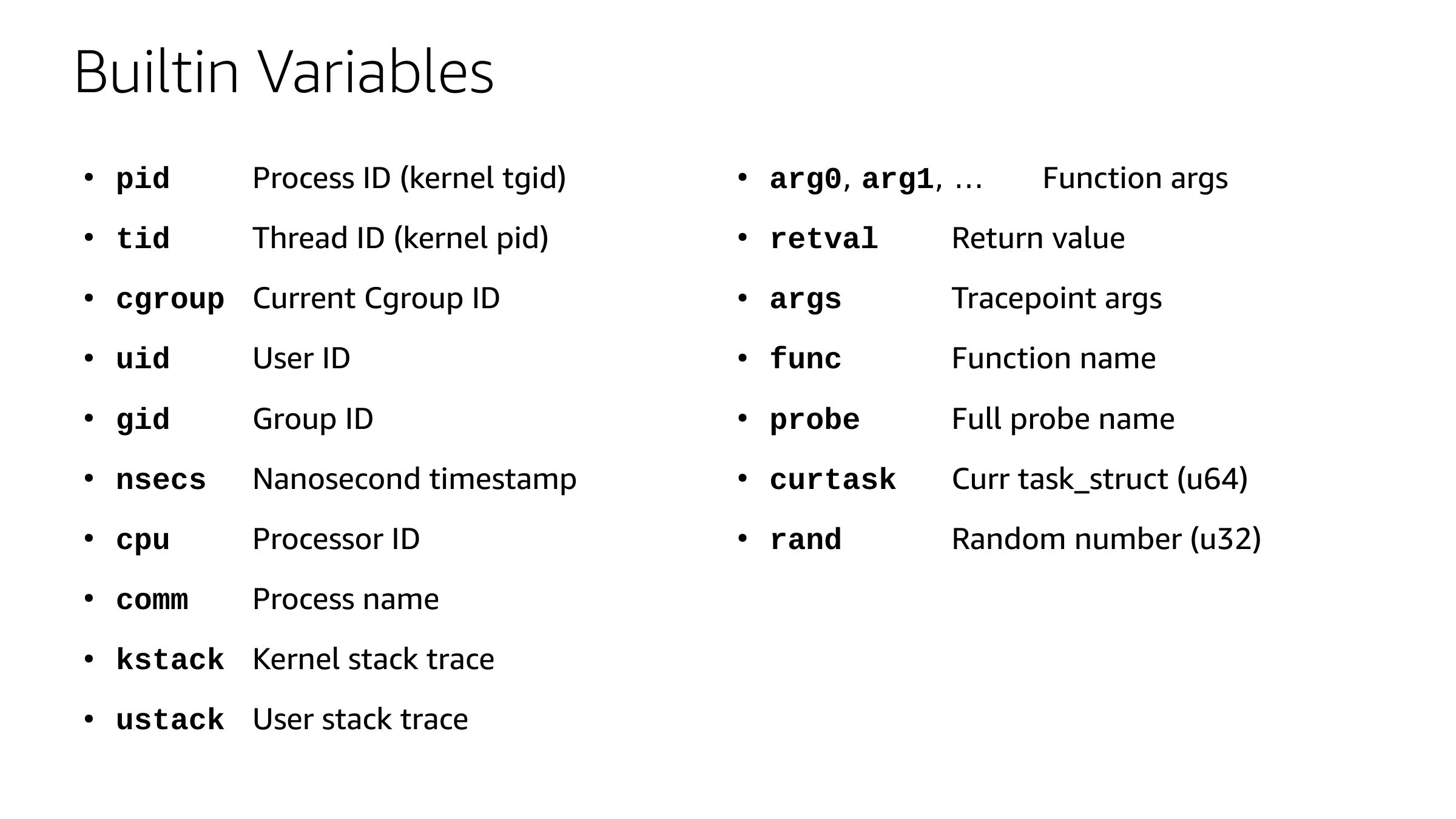

Builtin Variables
pid
Process ID (kernel tgid)
arg0, arg1, …
Function args
tid
Thread ID (kernel pid)
retval
Return value
cgroup Current Cgroup ID
args
Tracepoint args
uid
User ID
func
Function name
gid
Group ID
probe
Full probe name
nsecs
Nanosecond timestamp
curtask
Curr task_struct (u64)
cpu
Processor ID
rand
Random number (u32)
comm
Process name
kstack Kernel stack trace
ustack User stack trace

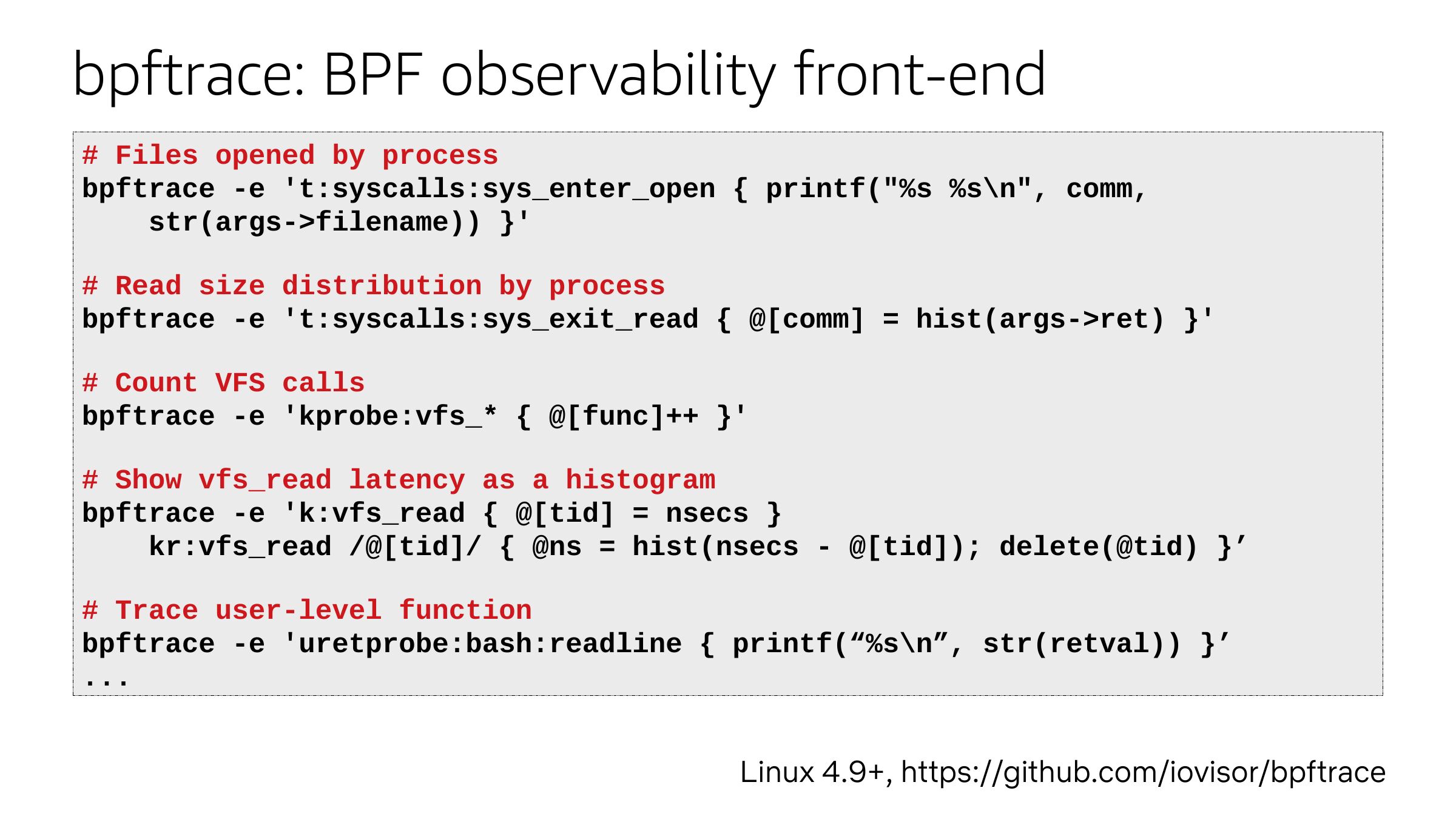

bpftrace: BPF observability front-end
# Files opened by process
bpftrace -e 't:syscalls:sys_enter_open { printf("%s %s\n", comm,
str(args->gt;filename)) }'
# Read size distribution by process
bpftrace -e 't:syscalls:sys_exit_read { @[comm] = hist(args->gt;ret) }'
# Count VFS calls
bpftrace -e 'kprobe:vfs_* { @[func]++ }'
# Show vfs_read latency as a histogram
bpftrace -e 'k:vfs_read { @[tid] = nsecs }
kr:vfs_read /@[tid]/ { @ns = hist(nsecs - @[tid]); delete(@tid) }’
# Trace user-level function
bpftrace -e 'uretprobe:bash:readline { printf(“%s\n”, str(retval)) }’
Linux 4.9+, https://github.com/iovisor/bpftrace

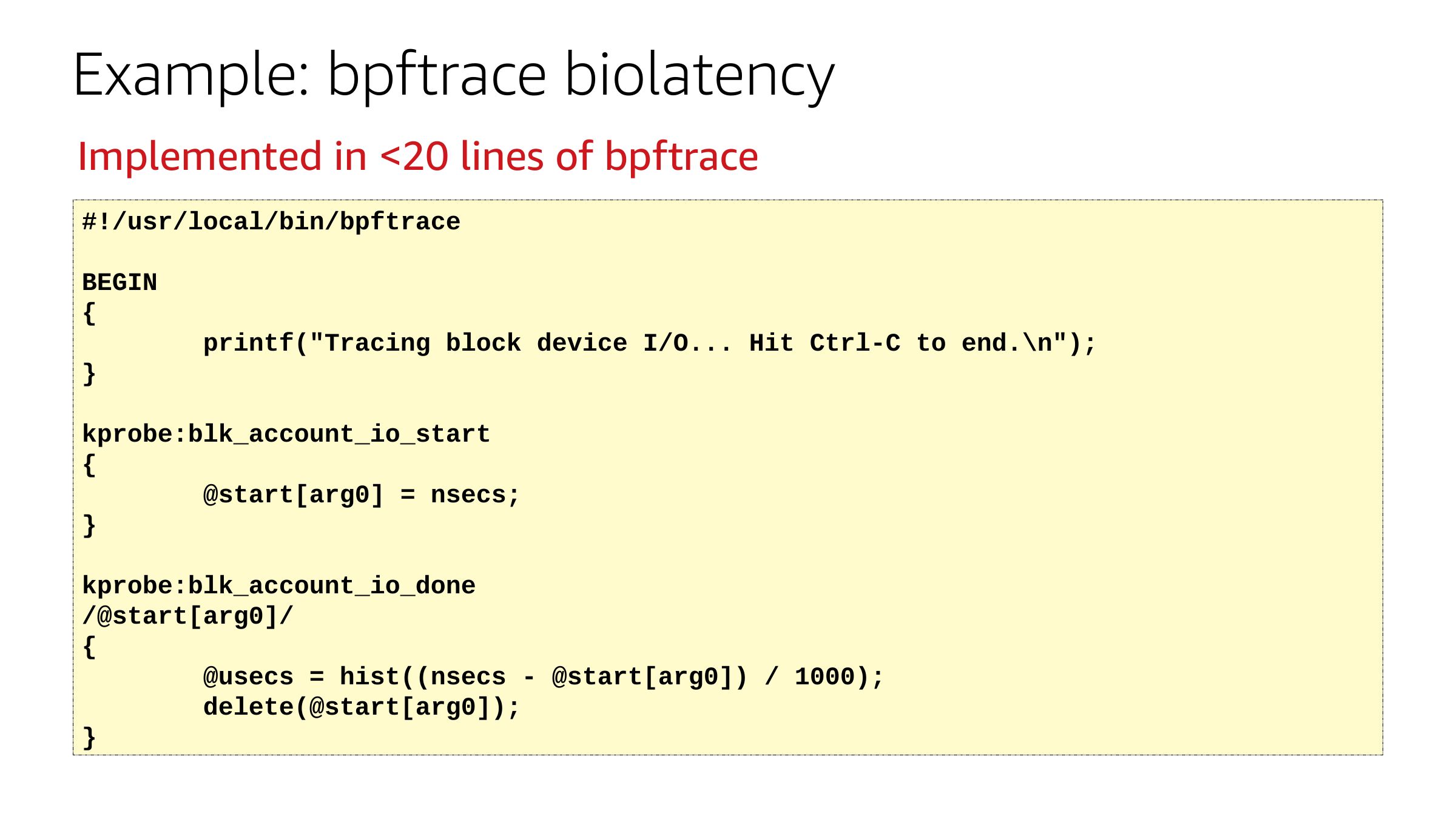

Example: bpftrace biolatency

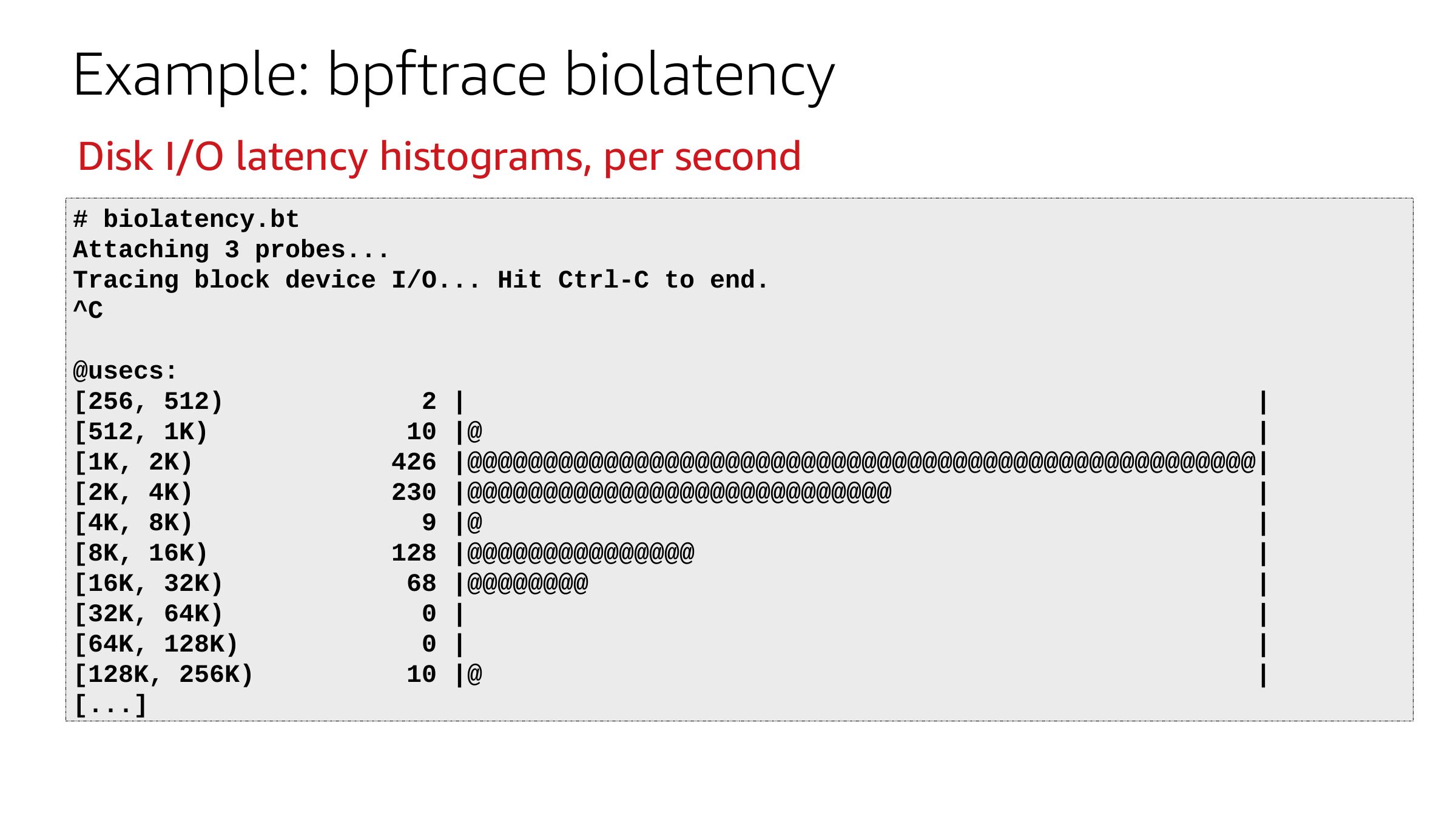

Disk I/O latency histograms, per second
# biolatency.bt
Attaching 3 probes...
Tracing block device I/O... Hit Ctrl-C to end.
@usecs:
[256, 512)
[512, 1K)
[1K, 2K)
[2K, 4K)
[4K, 8K)
[8K, 16K)
[16K, 32K)
[32K, 64K)
[64K, 128K)
[128K, 256K)
[...]
2 |
10 |@
426 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@|
230 |@@@@@@@@@@@@@@@@@@@@@@@@@@@@
9 |@
128 |@@@@@@@@@@@@@@@
68 |@@@@@@@@
0 |
0 |
10 |@

Example: bpftrace biolatency
Implemented in

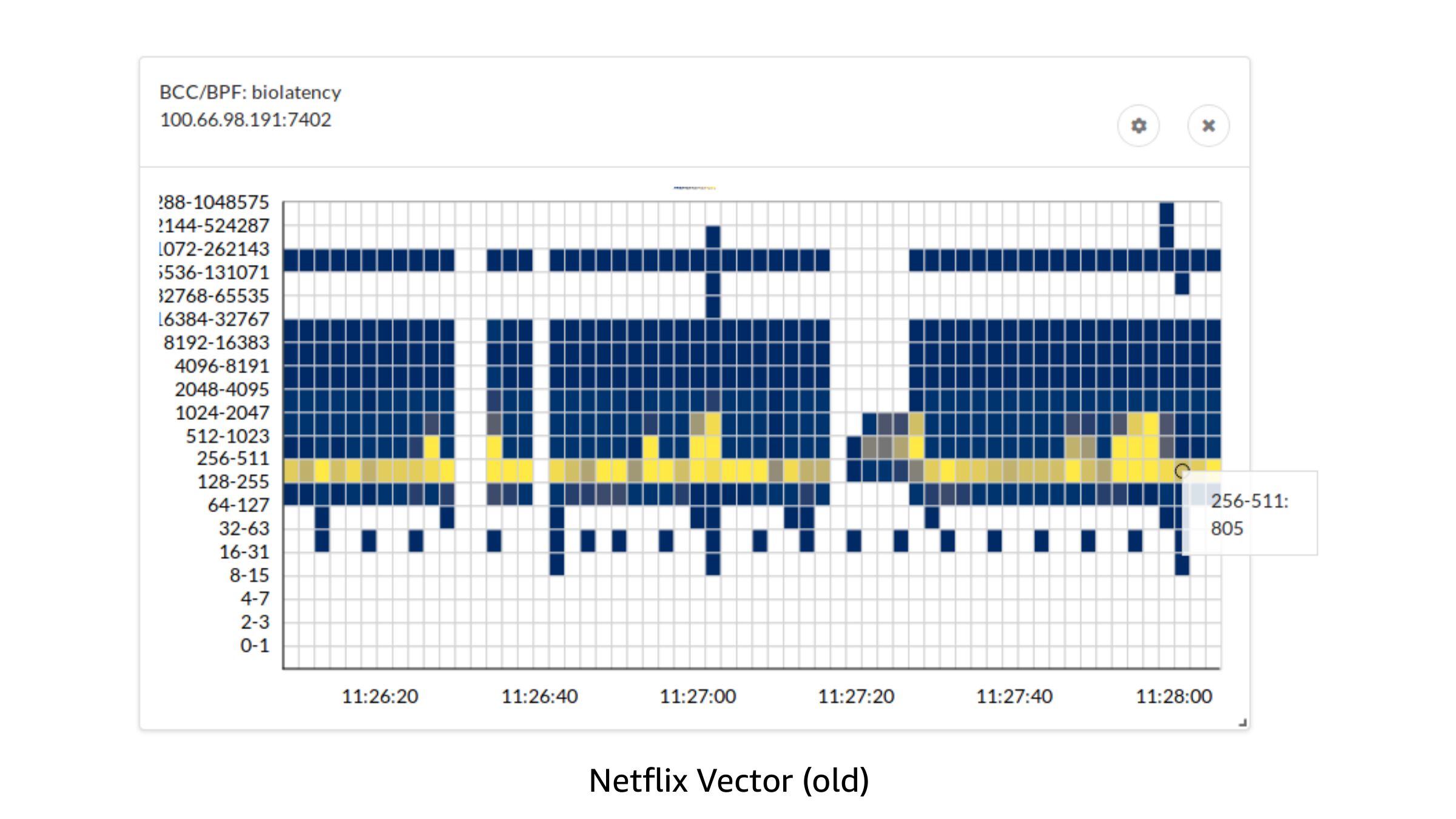

Netflix Vector (old)

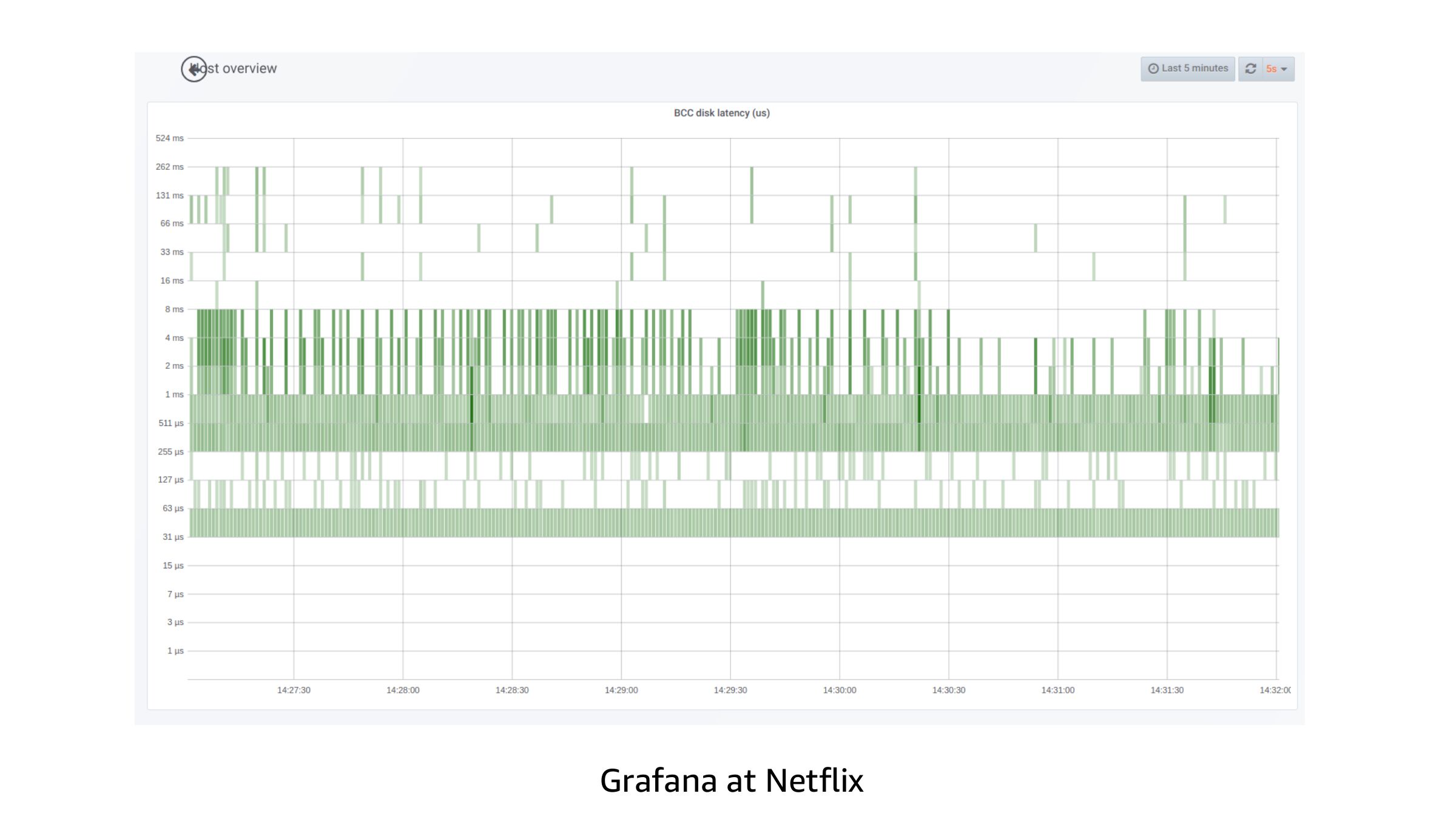

Grafana at Netflix

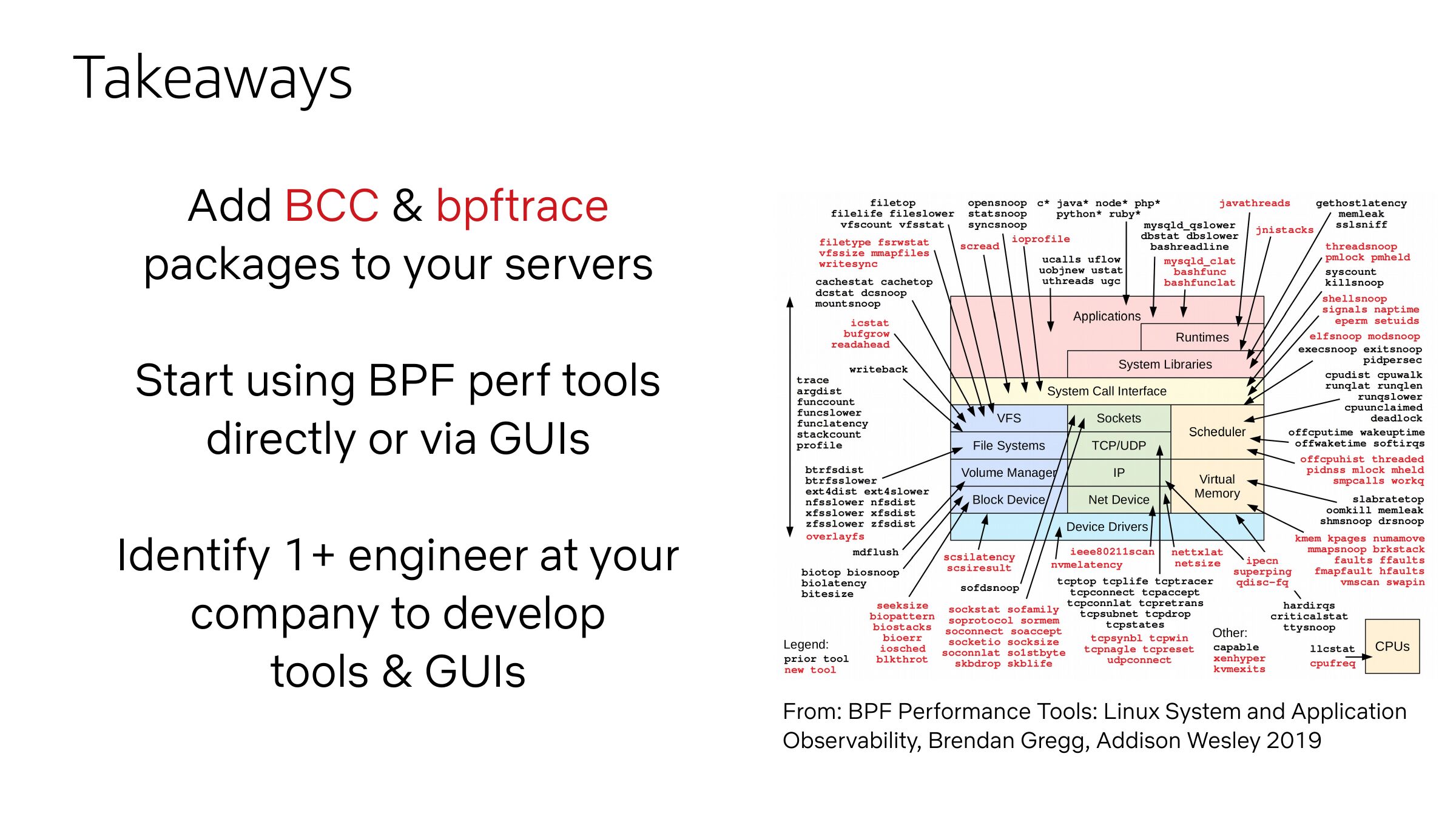

Takeaways
Add BCC & bpftrace
packages to your servers
Start using BPF perf tools
directly or via GUIs
Identify 1+ engineer at your
company to develop
tools & GUIs
From: BPF Performance Tools: Linux System and Application
Observability, Brendan Gregg, Addison Wesley 2019

Thanks & URLs
BPF: Alexei Starovoitov, Daniel Borkmann, David S. Miller, Linus Torvalds, BPF community
BCC: Brenden Blanco, Yonghong Song, Sasha Goldsthein, BCC community
bpftrace: Alastair Robertson, Matheus Marchini, Dan Xu, bpftrace community
https://github.com/iovisor/bcc
https://github.com/iovisor/bpftrace
https://github.com/brendangregg/bpf-perf-tools-book
http://www.brendangregg.com/ebpf.html
http://www.brendangregg.com/bpf-performance-tools-book.html
All diagrams and photos (slides 11 & 22) are my own; slide 12 is from KernelRecipes: https://www.youtube.com/watch?v=bbHFg9IsTk8

Thank you!
Brendan Gregg
@brendangregg
bgregg@netflix.com
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

Please complete the session
survey in the mobile app.
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
